High toluene uptake at a trace concentration in a novel gallium-based metal–organic framework

Thach N. Tu a, Hyuk Taek Kwon b, Manfred Scheer *c and Jinsoo Kim *a
aDepartment of Chemical Engineering (Integrated Engineering), Kyung Hee University, 1732 Deogyeong-daero, Giheung-gu, Yongin-si, Gyeonggi-do 17104, Republic of Korea. E-mail: jkim21@khu.ac.kr
bDepartment of Chemical Engineering, Pukyong National University, 45 Yongso-ro, Nam-gu, Busan 48513, Republic of Korea
cInstitute of Inorganic Chemistry, University of Regensburg, 93040 Regensburg, Germany. E-mail: Manfred.Scheer@chemie.uni-regensburg.de

Received 28th November 2024 , Accepted 23rd February 2025

First published on 4th March 2025


Abstract

A novel gallium-based MOF, termed Ga-BPTSC (single crystal) and Ga-BPTP (powder), was synthesized. Structural analysis reveals that Ga-BPTSC and Ga-BPTP are isostructural with a slight difference in the unit cell parameters. Specifically, both Ga-BPTSC and Ga-BPTP are constructed from a trinuclear gallium oxide cluster and BPT3− linker, consisting of a 3D structure with unique micro-channels decorated with small adsorption cavities (∼6.5 Å). These structural features enable Ga-BPTP to adsorb a significant amount of toluene and xylenes at trace levels (toluene and xylene uptakes of 6.29 mmol g−1 at P/P0 = 0.005 and ∼6.1 mmol g−1 at P/P0 = 0.01, respectively). The toluene uptake of Ga-BPTP exceeds that of the recently reported MOFs, ZJU-520 and ZJU-620, as well as benchmark MOFs (e.g. UiO-66 and HKUST-1) at P/P0 = 0.005. Moreover, the breakthrough toluene capture of Ga-BPTP at 200 ppm reveals an uptake of 4.89 mmol g−1, which is considerably higher than that of the benchmark MOFs (e.g. ZIF-8, MIL-100, MIL-101, UiO-66, HKUST-1 and UiO-66-NH2). The development of the Ga-BPT synthetic protocol and its exceptional adsorption and separation capacities pave the way to the discovery and application of a new class of gallium-based MOFs constructed from trinuclear gallium oxide clusters.


Introduction

Metal–organic frameworks (MOFs) are a type of porous material, whose structures are based on chelating bonds between inorganic metal clusters and organic linkers with multi-topic chelation groups.1 This principle endows MOFs with the possibility of being designed and synthesized by connecting modular building blocks to control the structure, pore size, shape, and surface polarity.2 Currently, MOFs are employed in a wide range of applications, such as drug delivery,3,4 crystalline sponges,5–7 catalysis,8–10 proton conduction,11–14 chemical sensors,15–17 and gas/vapor adsorption and separation.18–22

Gallium, located in Group 13 of the periodic table between aluminum and indium, commonly has an oxidation state of +3. Gallium-based MOFs exhibit unique properties for electrochemical catalysis,23 and adsorption and/or separation of water, H2, CO2 and SF6.24–28 Specifically, gallium-based MOFs exhibit strong anti-bacterial and anti-inflammatory properties for drug applications and drug delivery.29–33 Moreover, gallium–Rh clusters immobilized in MOFs are capable of complexation with alkenes.34 Despite the wide availability of MOFs synthesized from Al3+ and In3+, MOFs synthesized from Ga3+ are rare.35–38 Currently, only a few studies have been devoted to exploring the structures and building motifs of MOFs from gallium clusters, with only a few Ga-based MOFs reported in the literature.24–26,28,39–46 Furthermore, these structures primarily rely on (Ga(OH)(CO2)2)n rod-based metal clusters,25,26,28,39–41,43 and tetrahedral/octahedral Ga3+ atoms.24,42,44,45 Discovering synthetic protocols toward other gallium inorganic building blocks is challenging but would open up new opportunities in employing the unique properties of gallium-based MOFs for emerging applications.

Aromatic-based VOCs, such as toluene and xylenes, are a common class of organic substances used in various aspects of daily life and industrial production.47 Despite this, these substances can cause severe harm to human health. For example, long-term exposure to toluene and xylenes is often associated with hearing disorders and neurological problems.48 Recently, efforts have been made to synthesize and engineer the structures of MOFs to capture these compounds.47,49–57 Despite the fact that MOFs usually exhibit considerable uptakes of these compounds at high relative pressure, developing MOFs with high uptakes at trace concentrations remains challenging.48,49,54,55

Herein, we report the first gallium-based MOFs synthesized from a trinuclear gallium oxide cluster, termed Ga-BPTSC (single crystal phase) and Ga-BPTP (powder phase). SCXRD structural analysis of Ga-BPTSC revealed a formula of Ga3O(BPT)2(Ben)(H2O), where BPT = biphenyl-3,4′,5-tricarboxylate and Ben = benzoate. Ga-BPTSC is built from Ga3O(CO2)7(H2O) clusters stitched by the H3BPT linker to realize a 3D structure with asymmetric 9.2 Å channels. Meanwhile, Ga-BPTP possesses a similar structure to Ga-BPTSC, but with a slight change of the unit cell parameters. Interestingly, the micropore channels of Ga-BPTP feature four different adsorption sites matching the molecule size of aromatic compounds such as toluene. The high density of binding sites leads to an exceptionally high toluene uptake of ∼6.3 mmol g−1 (0.58 g g−1) at the trace concentration of P/P0 = 0.005 (∼200 ppm), which surpasses the recently reported values of ZJU-520,58 ZJU-620,50 UiO-66,59 and HKUST-1.60 Ga-BPTP exhibited a high breakthrough toluene capacity of 4.98 mmol g−1 (0.46 g g−1) at 200 ppm and 25 °C, which is much higher than that of benchmark MOFs such as HKUST-1, UiO-66, UiO-66-NH2, MIL-100, MIL-101, and ZIF-8.

Experimental

Synthesis of Ga-BPTSC

A mixture of GaI (5.6 mg, 0.028 mmol), H3BPT (2.4 mg, 0.009 mmol), and benzoic acid (24 mg, 0.197 mmol) was weighed into a Pyrex tube. DMF (1.5 mL) was then added to completely dissolve the mixture. The tube was then isothermally heated at 180 °C for 72 h to yield needle-like single crystals (Ga-BPTSC) attached to the tube wall (above the DMF level) and a white powder product at the tube bottom (Ga-BPTP).

Synthesis of Ga-BPTP

A similar procedure is employed; however, a larger scale of Ga-BPTP was synthesized using a Teflon line stainless steel reactor. In detail, a mixture of GaI (336 mg, 1.71 mmol), H3BPT (144 mg, 0.5 mmol), and benzoic acid (1.44 g, 0.012 mol) was weighed into a Teflon-lined Hydrothermal Autoclave. DMF (48 mL) was then added to completely dissolve the mixture. Subsequently, the autoclave was isothermally heated at 180 °C in a circulated oven for 48 h. The product as a white powder was then collected, solvent exchanged and outgassed under freeze-drying conditions, followed by heating at 150 °C under dynamic vacuum to obtain ∼150 mg (∼30% yield) of activated Ga-BPTP. EA (activated sample): calcd for Ga3C37H21O16 [double bond, length as m-dash]Ga3O(C15H7O6)2(C7H5O2)(H2O)·8H2O: C, 41.4; H, 3.5%. Found: C, 41.23; H, 3.1; N, 0.1948%.

The breakthrough experiments

The breakthrough experiments were performed utilizing an in-house system. The flow rate was controlled by a mass flow control (MFC, Brooks instruments, model 5800E). Before the breakthrough experiments, the mass flow controllers (MFCs) were calibrated using a bubble film flowmeter (Fig. S13). The stream after passing through the column was analyzed using a mass spectrometry analyzer (Hidden Analytical, QGA).

Breakthrough capture of toluene

∼10 mg Ga-BPTP (or the reference MOFs) was added into the columns (length: 65 mm and inner diameter: 6 mm). The columns were then filled with glass beads to minimize the dead volume. Finally, glass wool was placed at both ends of the columns. The columns were then connected to the mass flow controllers (MFCs). Toluene (200 ppm) in argon was then fed into the column at a flow rate of ∼7.4 cm3 min−1 (at 25 °C and under ambient pressure). After adsorption, the Ga-BPTP column was regenerated overnight under dynamic vacuum at 150 °C.

Results and discussion

Ga-BPTSC was synthesized using a seal tube procedure. The seal tube containing a DMF solution (∼1.5 mL) of H3BPT and GaI was isothermally heated at 180 °C for 72 h in the presence of a benzoic acid modulator. The tube was then cooled naturally to room temperature. The reaction led to a white powder product at the bottom and colourless needle-like single crystals attached to the tube wall above the liquid level. The needle-like crystals were then collected for single-crystal X-ray diffraction (SCXRD) to determine their crystal structure (Section S2). Ga-BPTSC was found to crystallise in the acentric orthorhombic space group, Pmn21 (No. 31), with unit cell parameters, a = 22.997, b = 9.7823, and c = 15.749 Å (CCDC number 2386132, Table S1). The structure of Ga-BPTSC is built from trinuclear gallium oxide clusters with six carboxylate extension points connected by the asymmetric BPT3− linkers and one extension point coordinated by a benzoate molecule (Fig. 1a and b). This arrangement realizes a three-dimensional structure with an asymmetric one-dimensional channel of 9.2 Å featuring a lining of coordinated benzoate at a fixed distance to form adsorption cavities of 6.5 Å (Fig. 1c and d).
image file: d4ta08445d-f1.tif

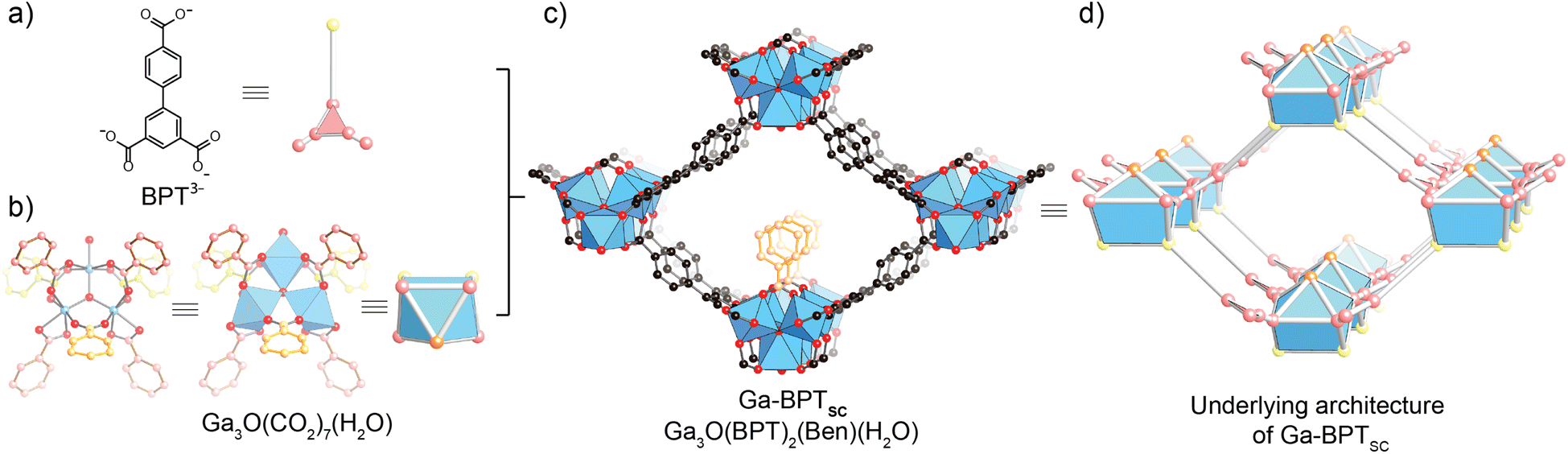

Fig. 1 Crystal structure of Ga-BPTSC (c) is constructed from the BPT3− linker (a) and the trinuclear gallium oxide Ga3O(CO2)7(H2O) cluster (b) and the representation of the underlying architecture of Ga-BPTSC (d). Atom colors: Ga, blue balls and polyhedra; C, black; O, red. All other H atoms are omitted for clarity.

The PXRD pattern of Ga-BPTP (powder product) was collected. However, the patterns indicated a slight shift of the (1 0 1) peak to a smaller angle compared with the simulated PXRD from the single-crystal X-ray diffraction structure of Ga-BPTSC (Fig. 2a). We deduced the above difference to be due to the slight change of the unit cell parameters of Ga-BPTP. To further clarify the structure of Ga-BPTP, the PXRD patterns of Ga-BPTP were monitored upon slowly drying from DMF. The PXRD pattern of Ga-BPTP after drying from DMF exhibited a slight peak shift to match with the simulated PXRD pattern of Ga-BPTSC (Fig. S8). We further collected the PXRD patterns of the activated sample for Rietveld refinement (Section S3). The model structure of Ga-BPTP was then built based on the structure of Ga-BPTSC; however, with a change of the unit cell parameters (a = 22.042; b = 9.896; c = 17.960 Å). The Rietveld refinement of this modelled structure was performed using Material studio software to optimize the atomic positions within the lattice. The structure successfully converged with satisfactory R-values (2θ = 2–50°, Rp = 2.39%, and Rwp = 4.51%), as shown in Fig. 2b and Table S2.,61,62 The refined structure clearly reveals a similar, but slightly larger unit cell parameter compared to Ga-BPTSC, resulting in a slightly larger channel of Ga-BPTP (∼10 Å) (Fig. 2c).


image file: d4ta08445d-f2.tif
Fig. 2 Structural analysis of Ga-BPTP: PXRD patterns of Ga-BPTP in comparison to the simulated pattern of Ga-BPTSC (a); the experimental (red) and refined (green) PXRD patterns of as-synthesized Ga-BPTP after Rietveld refinement with the difference plot (brown) and Bragg positions (blue) are also provided (b); the structural difference between Ga-BPTP and Ga-BPTSC (c).

We further characterized Ga-BPTP by common methods (Section S4). Fourier transform infrared (FTIR) spectroscopy analysis of the activated Ga-BPTP showed the C–O stretching band of coordinated carboxylate at 1640 and 1610 cm−1 (multi-carboxylate peaks are caused by the presence of an asymmetric linker or different linkers in Ga-BPTP) indicating the stability of the atomic connectivity upon activation (Fig. S2). N2 adsorption measurement at 77 K was performed to analyse the porosity and the surface area of Ga-BPTP. The resulting isotherm indicated reversible uptake with a BET (Langmuir) surface area of 2264 m2 g−1 (2427 m2 g−1), which is in line with the theoretical value (∼2800 m2 g−1) (Fig. S5–S7). The well-matched PXRD pattern of the activated Ga-BPTP with that from the as-synthesized sample (Fig. 2a) and the high porosity confirmed the stability of Ga-BPTP upon activation. Elemental microanalysis (EA) confirmed the proposed chemical formula from the single crystal X-ray diffraction model of Ga-BPTSC to be Ga3O(C15H7O6)2(C7H5O2)(H2O)·8H2O (cal. C, 41.4; H, 3.5%. Found: C, 41.23; H, 3.1; N, 0.1948%). Thermogravimetric analysis (TGA) indicated stability up to 350 °C (Fig. S3). Moreover, the resulting Ga2O3 (∼36 wt%) matches well with the calculated value from the structural model (∼31 wt%). FE-SEM also revealed the square cylinder morphology of the Ga-BPTP crystals (size ∼0.9 × 1.3 μm) (Fig. S4).

The high surface area and the dense existence of potential binding sites in Ga-BPTP drove us to analyse its adsorption properties versus guest molecules of suitable molecular size. The toluene adsorption isotherm of Ga-BPTP at 25 °C was measured, which demonstrates an increasing step of the uptake at an exceptionally low pressure (P/P0 from 0.0015, P0 = 3.82 kPa) to reach the uptake capacity of 6.29 mmol g−1 (or 0.58 g g−1) at P/P0 = 0.005, which corresponds to an absolute pressure of 0.02 kPa (or 200 ppm) (Fig. 3a). Noticeably, this value of toluene concentration (P/P0 = 0.005) is just right at the legal airborne permissible exposure limit for toluene according to the regulation from the U.S. Department of Labour.48 The high toluene uptake at low pressure indicated the strong interaction of Ga-BPTP and toluene. At P/P0 > 0.005, the toluene uptake was found to gradually increase and reach the maximum capacity of 8.75 mmol g−1 at P/P0 ∼0.96 (Fig. 3a). Despite the lack of available toluene adsorption data at low pressure from the literature, we found that the toluene uptake of Ga-BPTP exceeded that of the recently reported toluene uptakes at P/P0 = 0.005 (Table 1).


image file: d4ta08445d-f3.tif
Fig. 3 Adsorption analysis of Ga-BPTP with the toluene and xylene adsorption isotherms (a); the breakthrough capture of toluene (b); and the regeneration of Ga-BPTP (c).
Table 1 Static trace toluene uptake of Ga-BPTP in comparison with other MOFs
Material Uptake @ 0.02 kPa (mmol g−1) Reference
Ga-BPTP 6.29 This work
ZJU-520 0.27 58
ZJU-620 2.0 50
BUT-66 1.36 54
UiO-66 3.22 59
HKUST-1 4.36 60


The high toluene uptake at trace toluene concentration (6.29 mmol g−1 at P/P0 = 0.005) drove us to investigate its adsorption mechanism in Ga-BPTP. The toluene uptake of ∼11 molecules per unit cell was chosen (∼6 mmol g−1) to probe the potential binding sites by Grand Canonical Monte Carlo (GCMC) simulation. The results from the GCMC simulation revealed toluene adsorption sites (Fig. 4, S11 and S12). These sites are named: site I (∼6.5 Å) – confined between the coordinated benzoate and the channel walls; site II (∼6.5 Å) – confined between the gallium unsaturated metal site, the Ga clusters and the linkers; site III (∼5.0 × 7.0 Å) – confined between the two BPT3− and the coordinated benzoate; site IV (∼4 Å) – confined between the coordinated benzoate and the isophthalate ring of BPT3−. The matching sizes facilitated the strong binding and high uptake of toluene via π–π and CH–π interaction at sites I, II, IV, and the Ga–π and/or Ga–CH at site II (Fig. S12).


image file: d4ta08445d-f4.tif
Fig. 4 The adsorption sites in Ga-BPTP suggested by the GCMC simulation: adsorption cavities in Ga-BPTP (a and b); and the molecule size of toluene (c).

We further measured the Ga-BPTP adsorption isotherms of o, p, and m-xylenes at 25 °C (Fig. 3a). All of these compounds exhibited strong interaction with Ga-BPTP evidenced by their high uptake at low pressure. Accordingly, the adsorption isotherms of the three xylene compounds showed an increasing step to reach similar uptakes of ∼6.1 mmol g−1 at P/P0 ∼0.01 (with P0, o-xylene = 0.888; P0, p-xylene = 1.168; P0, m-xylene = 1.108), which are equal to that of toluene uptake at P/P0 = 0.005 (Fig. 3a). In a similar manner, gradual increases of xylene uptake were found at P/P0 > 0.01 to reach the maximum capacity of ∼7 mmol g−1 at P/P0 ∼0.96. The increasing step of xylene uptake at low pressure could be attributed to the adsorption at the active sites in Ga-BPTP.

In the next step, the breakthrough performance of Ga-BPTP for toluene capture at trace levels was evaluated (Section S7). As the legal airborne permissible exposure limit for toluene must be below 200 ppm for an average 8 h work shift and should not exceed 500 ppm in a 10 min work period, the toluene concentration of 200 ppm was chosen as a controlled target.48 An argon stream containing 200 ppm toluene was passed through the Ga-BPTP column at the flow rate of 7.4 mL min−1. The toluene breakthrough curve of Ga-BPTP was recorded with the output concentration of toluene in ppm as the Oy axis and the time normalized to the mass of Ga-BPTP as the Ox axis (Fig. 3b). The breakthrough curve at 25 °C showed that the toluene concentration broke through at 1, 20, and 200 ppm after ∼1100, 1160, and 1493 h g−1, corresponding to the uptakes of 4.42, 4.62, and 4.98 mmol g−1, respectively.

We further investigated the toluene breakthrough capture of the benchmark MOFs for comparison (ZIF-8, MIL-100, MIL-101, UiO-66, and UiO-66-NH2) (Fig. 3b). The toluene breakthrough uptakes corresponding to the concentrations of 1, 20, and 200 ppm are listed in Table 2. Accordingly, UiO-66 and HKUST-1 exhibited the uptakes of 3.37 and 4.5 mmol g−1 at 200 ppm, which well-agreed with the uptake values from the toluene isotherms at ∼P/P0 = 0.005 (3.22 and 4.36 mmol g−1, respectively).59,60 Remarkably, it was found that the breakthrough toluene uptake of Ga-BPTP exceeded that of HKUST-1, UiO-66, and other benchmark MOFs (Table 2).

Table 2 Breakthrough toluene uptake of Ga-BPTP and benchmark materials
Materials Toluene breakthrough uptake (mmol g−1)
@ 1 ppm @ 20 ppm @ 200 ppm
Ga-BPTP 4.42 4.62 4.98
HKUST-1 3.98 4.23 4.50
UiO-66 2.69 2.86 3.37
UiO-66-NH2 1.43 1.61 1.88
MIL-100 0.4 0.55 0.85
MIL-101 0.52 0.55 0.83
ZIF-8 0.011 0.022 0.076


The durability of Ga-BPTP for breakthrough toluene capture was further evaluated by recycling under vacuum at 150 °C. The breakthrough experiments showed that Ga-BPTP could be recycled without significantly reducing the uptake performance. Specifically, Ga-BPTP maintains up to 89% of the original toluene uptake capacity after the 4th regeneration (Fig. 3c). The structural maintenance of Ga-BPTP after completing the 4th-cycle of regeneration for toluene capture was also confirmed using PXRD analysis, which showed a high degree of correspondence with the original sample (Fig. S15). The dependence of Ga-BPTP's toluene breakthrough on temperature was investigated to evaluate the dynamic uptake capacities under varying temperature conditions (Fig. S16). The results indicated a slight decrease in uptake capacity with an increase in temperature from RT to 40 °C, retaining ∼86% of the toluene uptake observed at RT. These results demonstrate the excellent performance of Ga-BPTP in capturing toluene under fluctuating temperature conditions. Moreover, Ga-BPTP exhibited good performance in the presence of moisture, maintaining 85% of its toluene uptake capacity compared to dry conditions under continuing flow at 20% RH (Fig. S17), which is in agreement with the condensed RH at 32% from the water adsorption isotherm (Fig. S9).

Conclusion

A novel gallium-based MOF constructed from trinuclear gallium oxide clusters and a BPT3− linker was synthesized and characterized for the first time. The unique micro-channels, decorated with small adsorption cavities and active sites, allow Ga-BPTP to exhibit high toluene and xylene uptake capacities at trace levels. The volumetric toluene uptake of Ga-BPTP at P/P0 = 0.005 exceeded the recently reported toluene uptakes of ZJU-520, ZJU-620, BUT-66 and the benchmark MOFs (UiO-66 and HKUST-1) at the same pressure. Similarly, Ga-BPTP exhibited an exceptional capacity for breakthrough toluene capture at 200 ppm (4.98 mmol g−1), which is much higher than that of benchmark MOFs such as UiO-66, UiO-66-NH2, MIL-100, MIL-101, ZIF-8 and HKUST-1.

Data availability

Data supporting this study are included within the article and/or ESI.

Author contributions

T. N. T. conceived the idea, designed and conducted the experiments, interpreted the data, and wrote the paper. H. T. K. measured the adsorption isotherms. J. K. and M. S. supervised the work. T. N. T. and J. K. secured the funding. All authors contributed to reviewing, editing, and revising the paper.

Conflicts of interest

The authors declare no competing interests.

Acknowledgements

This work was supported by the Brainpool Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Science and ICT, Republic of Korea (NRF 2022H1D3A2A02079453). T. N. T. and M. S. acknowledge the support from the Alexander von Humboldt Foundation for Ga-BPTSC synthesis and structural determination.
