Quick drying process: a promising strategy for preparing an egg-shell-type Cu/γ-Al₂O₃ catalyst for direct N₂O decomposition

Abstract

The egg-shell-type γ-Al₂O₃ catalyst having a Cu shell was developed using the simple quick drying (QD) technique. The fabricated catalyst is developed for use in a direct N₂O decomposition (deN₂O) technology. To observe the effective manufacturability of egg-shell-type catalysts, we compared three different drying methods: oven drying (OD), vacuum oven drying (VOD), and quick drying (QD). The SEM/EDS analysis, deN₂O test, and kinetic properties (activation energy, reaction rate and turnover frequency) confirmed that the QD method is suitable for the effective manufacturability of the egg-shell-type catalyst. The simple QD method induces the formation of a thin and uniform Cu shell on the surface of the pellet support, which promotes N₂O decomposition. A series of QD-Cu(x)/γ-Al₂O₃ (x = 5, 10, and 15 wt%) catalysts were prepared by the QD method. The QD-Cu(10)/γ-Al₂O₃ catalyst with an appropriate amount of Cu exhibited an outstanding N₂O decomposition conversion rate and abundant Cu¹⁺ active sites with high reducibility. A long-term stability test with 1% and 20% N₂O was carried out for 360 h and 500 h, respectively. During the long-term stability tests under changing feed conditions, such as temperature, air, and steam, the catalytic activity and copper distribution remained very stable, indicating that the QD-Cu(10)/γ-Al₂O₃ catalyst has high durability and reliability.

---

1. Introduction

Nitrous oxide (N₂O) is a greenhouse gas with a global warming potential (GWP) of ∼300 and a lifetime of 121 years.¹ Recent studies have shown that N₂O has become the third most important greenhouse gas, followed by CO₂ and CH₄, due to its gradual increase in emissions yearly.² Even worse, the atmospheric concentration of N₂O is gradually increasing and is expected to reach two times the current emissions by 2050 due to human activities.³ Human activities that contribute to N₂O emissions include biomass burning, fossil fuel combustion, industrial activities, etc.⁴ N₂O is usually emitted from adipic acid production tail gas, nitric acid production tail gas, three-way catalyst exhaust gas, and the direct use of ammonia as a fuel.⁵ N₂O emissions can be decreased in two ways: limiting the formation of N₂O or after-treatment technologies.⁶ Several after-treatment technologies have been developed and applied to control N₂O emissions. These can be categorized into thermal decomposition,⁷ non-selective catalytic reduction (NSCR),⁸ selective catalytic reduction (SCR),^9,10 and direct decomposition (deN₂O).⁴ Among them, deN₂O (eqn (1)) has attracted great attention from due to its high decomposition efficiency, low energy consumption, economy, simplicity, and sustainability.^11,12

Various catalytic materials have been tested for deN₂O, including supported noble metals,^13,14 ion-exchanged zeolites,^15,16 and metal oxides.^17,18 Noble metal (such as Rh, Ir, Sm, etc.) doping in catalysts can improve deN₂O activity while reducing the use of precious metals, and widespread industrial applications of noble metals are limited by their high cost and insufficient poisoning resistance. The ultimate goal in catalyst industries is to identify optimal earth-abundant materials.^13,14 Lucentini et al.¹⁹ reported that there is a linear relationship between the price and GWP of a catalyst because it is related to the abundance of the element in the earth. For this reason, noble metals, such as Au, Pd, Pt, and Ru, have a high price and environmental impact. They also reported that using elements in the lower range, such as Al, Zn, Cu, Co, and Cr should be preferred. Therefore, there is a need to develop non-noble metal catalysts with improved catalytic activity and durability for practical applications. Numerous papers have reported that CuO has excellent performance and can achieve high redox, which is a prominent property for N₂O decomposition.^20–22 Tanaka et al.²³ reported that the high activity of copper catalysts is quite interesting from a practical point of view, as copper catalysts have approximately the same activity as noble metals. Pekridis et al.²⁴ evaluated the performance of several metals, i.e., Pd, Rh, Ru, Cu, Fe, In, and Ni supported on γ-Al₂O₃ catalysts, and it was concluded that noble metals (Pd, Ru, and Rh) followed by Cu exhibited the best catalytic performance.

According to the literature, various researchers have prepared catalysts in a uniform manner, i.e., the active phase is homogeneously distributed in the support. If the active metals were selectively located on the outer part of the support, we could have reduced the characteristic diffusion distance by the classical 7 steps for heterogeneous catalysts and reduced the use of active metals.^25–27 From this perspective, egg-shell-type catalysts have been proposed for rapid reactions such as methane stream reforming,^28–30 Fischer–Tropsch synthesis,³¹ purification of automobile exhaust gases,³² and selective hydrogenation of pyrolysis gasoline.^33,34 Cho et al.³⁰ prepared an egg-shell-type Ni/Ru bimetallic alumina pellet catalyst by using the repulsion between hydrophobic 1-octanol and a hydrophilic ruthenium nitrosyl nitrate solution to selectively locate Ru in the outer region inside the alumina pellet. Similarly, Zhuang et al.³⁵ synthesized egg-shell catalysts using n-undecane as an organic solvent to prevent the distribution of the aqueous impregnation solution to the core of the pellet. Kim et al.³⁶ prepared a Ni-based egg-shell-type catalyst on cylindrical alumina pellets. To minimize the penetration of the hydrophilic solution containing Ni nitrate, they used a blocking solvent such as 1-octanol or ethylene glycol in the cylindrical pellet. The Ni precursors were then selectively loaded onto the pellet, and the hydrophobic and hydrophilic solvents were removed by drying. Xu et al.³⁷ used hydrophobic solvents to suppress the penetration of aqueous silver precursor solution into the pores of SiO₂ pellets.

So far, researchers have focused on blocking surface pores to prevent active metal solutions from settling into the pore. The application of these methods on a commercial scale is impeded by their additional process costs and non-scalable synthesis. In particular, the development of egg-shell-type catalysts without the use of chemical agents is challenging due to the rapid diffusion of the metal solution into the pores of the support. In the absence of a chemical agent to block the pores of the support, the thickness of the shell depends on the transport of the metal solution through a pore. In general, the drying rate can be affected by temperature and operating pressure.³⁸ Therefore, controlling the factors that determine the drying rate is a key point in designing egg-shell-type catalysts without chemical agents.

This study aims to improve the drying rate to prepare a thin egg-shell-type Cu/γ-Al₂O₃ catalyst for deN₂O with high surface exposure of active metal, and to optimise the amount of Cu loading. First, three types of drying methods were compared to investigate the feasibility of controlling the egg-shell structure by using pressure and temperature: (1) oven drying (OD), (2) vacuum oven drying (VOD), and (3) quick drying (QD). SEM/EDS characterisation, the deN₂O test, and kinetic properties (activation energy, reaction rate and turnover frequency (TOF)) showed that the QD process was the best method for preparing an egg-shell-type catalyst with fast solution evaporation rates. XPS, H₂-TPR analysis and the deN₂O test indicated that the appropriate Cu content in the QD process was 10 wt%. The effects of oxygen, steam, and N₂O concentration on the deN₂O activity were verified. In addition, a long-term stability test for 360 and 500 h was performed to confirm the potential of the QD-Cu(10)/γ-Al₂O₃ catalyst to reduce N₂O under various conditions, such as N₂O concentration (1, 20%), steam (0–7.5%), oxygen, and temperature (500–650 °C). As a result, the QD-Cu(10)/γ-Al₂O₃ catalyst showed high durability without any degradation. Based on the results obtained in this study, it was suggested that the QD process has a high potential for fabricating effective egg-shell-type catalysts by a simple physical method and has a high potential for application as an industrial N₂O decomposition catalyst.

2. Experimental section

2.1 Catalyst preparation

The γ-Al₂O₃ pellet (5 mm × 5 mm) supports were prepared by extrusion and heat treatment with boehmite (Sasol, high purity, 50 nm). The boehmite powder was mixed with deionized water in a plastic bag and extruded using a lab-scale table extruder as described in our previous study.³⁹ The extruded boehmite was dried at 80 °C for 12 h and calcined in a muffle furnace at 700 °C for 4 h. The Cu/γ-Al₂O₃ catalyst was prepared by spray coating followed by drying. The respective amounts of Cu(NO₃)₂·3H₂O (Sigma Aldrich) were dissolved in 20 mL of deionized water for the spray coating solution.

For the preparation of the egg-shell structured catalyst, three different methods were used to coat copper (Fig. 1). The OD method included spraying Cu solution and drying in an oven at 80 °C. The difference between the VOD method and OD was vacuum drying instead of oven drying. After spraying Cu solution on the surface of γ-Al₂O₃ pellets, the catalyst was dried in a vacuum drying oven at 80 °C at a gauge pressure of −100 kPa. The QD method involved spraying Cu solution and quick drying with a heat gun. The catalysts were then obtained by calcination at 500 °C for 4 h.

Fig. 1 Schematic illustration for the preparation process of γ-Al₂O_3, and three types of Cu/γ-Al₂O₃ catalysts.

2.2 Catalytic performance tests

The schematic of the testing system is shown in Fig. S1,† which consisted of a vertical furnace, mass flow controllers (MFC, Alicat Co.), a water pump (NS, NP-KX-210) and a water trap. The N₂O decomposition reaction was conducted in a 25.4 mm diameter Inconel 600 reactor packed with 20 mL of catalysts and placed in the center of a vertical furnace. N₂O was supplied to be 1 or 20% by dry basis. In the case of steam effect testing, water was supplied by a water pump and vaporized in the preheating zone of the reactor. The conditions of the deN₂O tests are shown in Table S1.† The concentration of N₂O was analyzed by using a gas chromatograph equipped with an 80/100 Porapak Q column (6 ft, SS) and a thermal conductivity detector. The NO_x (NO and NO₂) concentration at the outlet of the catalytic reactor was detected using NO and NO₂ detection tubes (Gastec Corporation). The N₂O conversion rate was calculated by using the following equation:where (N₂O)_in and (N₂O)_out represent the inlet and outlet N₂O flow rates, respectively.

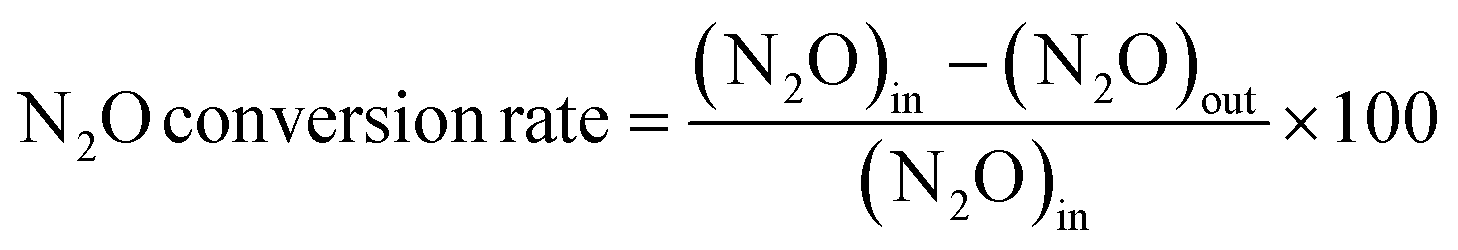

The activation energy (E_a) for the N₂O decomposition was calculated by using the following equation:

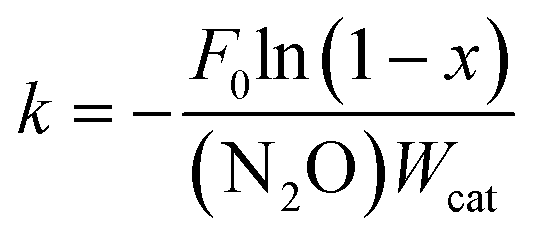

where F₀ (mol s⁻¹) is the total gas flow over the reaction reactor, x is the N₂O decomposition conversion, (N₂O) (mol cm⁻³) is the concentration of N₂O at the inlet, W_cat (g) is the amount of catalyst, T (K) is the temperature, A is the pre-exponential factor, and R (8.314 J mol⁻¹ K⁻¹) is the gas constant.

Based on the specific surface area (S_BET), normalized reaction rates (R_s) were calculated by using the following equation:

where C_inlet is N₂O concentration in the inlet gas, F (mol s⁻¹) is the flow rate, m_cat (g) is the amount of catalyst, S_BET (m² g⁻¹) is the specific surface area obtained by N₂ adsorption–desorption analysis, and X_N2O is the N₂O decomposition efficiency.

The specific reaction rate (r) and turnover frequency (TOF) for N₂O decomposition was calculated by using the following equation:

where p₀ (101 325 Pa) is the atmospheric pressure, F (ml s⁻¹) is the total flow rate of the feed gas mixture, R (8.314 J mol⁻¹ K⁻¹) is the gas constant, T₀ (298 K) is room temperature, and m_cat (g) is the amount of the catalyst. In eqn (2-5), n (μmol g_cat⁻¹) is the amount of active sites detected by O₂-TPD.²

2.3 Catalyst characterization

A digital vernier caliper was used to measure the Cu shell thickness. Field emission scanning electron microscopy (FE-SEM, HITACHI S-4800) and energy dispersive X-ray spectroscopy (EDS, HORIVA XMAX 50) were used to determine the morphology images and Cu distribution. Surface areas and pore volumes were measured by the Brunauer–Emmett–Teller (BET, Micromeritics 3Flex 3500) method with N₂ adsorption–desorption at −196 °C. X-ray diffraction (XRD, Rigaku smartLab) patterns were obtained to identify the crystalline structures of the catalysts and the average particle size. The surface oxidation states of the Cu species were measured by the X-ray photoelectron spectroscopy (XPS, Thermo Fisher Scientific) method using Al Kα as the radiation source. The temperature programmed reduction of H₂ (H₂-TPR, MicrotracBEL Belcat 2) analysis was performed to investigate the reducibility of the catalysts. Prior to the analysis, the catalysts were pretreated at 500 °C for 1 h in an atmosphere of helium to remove impurities. Then, the temperature was decreased to 50 °C, and 5 vol% H₂ + 95 vol% Ar mixture gas was supplied with 50 mL min⁻¹ instead of He. The temperature was increased to 1000 °C with a heating rate of 10 °C min⁻¹.

3. Results and discussion

3.1 Effect of the quick drying (QD) method on the preparation of egg-shell-type catalysts

In egg-shell-type catalysts, the active phase is located on the outer surface of the support. When an egg-shell-type catalyst is prepared using a porous catalyst, the metal solution can easily penetrate into the inner pores of the support. Therefore, to form the egg-shell structure, some researchers have tried to block the surface pores with chemical oils to prevent the metal solution from entering the inner pores of the support.^30,35–37 From the point of view of productivity, a very simple physical method should be considered. In this study, we prepared an egg-shell-type catalyst by spraying Cu solution on the γ-Al₂O₃ support to prevent the penetration of Cu solution into the inner pores of the γ-Al₂O₃ support. Then, we focused on the drying step to form the thin Cu shell structure, and three different drying methods were compared. Fig. 1 shows a schematic of three different drying methods. Oven drying (OD) is oven drying at 80 °C after spray coating with Cu solution. Vacuum oven drying (VOD) is a method of extracting the Cu solution that enters the internal pores after spraying in a vacuum environment, and the quick drying (QD) method is an attempt to rapidly dry the Cu solution before it enters the internal pores of the supports using a heat gun.

In the case of OD and VOD, we repeated the spraying and drying steps 5 times to complete the Cu coating. It took ∼20 min to finish drying for each step, which means it took >100 min to complete the Cu coating. Using the QD method, the Cu coating was completed in 20 minutes with 10 repetitions of spraying and drying, which is an 80% reduction in manufacturing time compared to OD and VOD. Thus, when comparing catalyst productivity, it can be concluded that the QD method is the most efficient.

The uptake of the liquid into the pores of the support is due to the capillary pressure difference.⁴⁰ The Young–Laplace (Y–L) equation is widely used to describe the capillary pressure: , where ΔP is the pressure difference across the liquid surface (the external pressure minus the internal pressure), γ is the surface tension of the liquid, and R₁ and R₂ are the principal radii of surface curvature.⁴¹ In a vacuum environment, the significantly reduced external pressure weakens the capillary pressure (ΔP), preventing the liquid from entering the pores of the catalyst. In addition, as the temperature increases, the surface tension (γ) of water decreases due to a decrease in molecular attraction.⁴² Therefore, as the temperature increases, the value of ΔP decreases (due to an increase in the internal pressure), which increases the pressure required for the liquid to enter the pore. Li et al.³⁸ found that the increase in the liquid temperature in the neighboring nanopore can significantly increase the net evaporation rate from the observed nanopore. Moreover, the evaporation mass flux increases with decreasing vapour pressure, because the condensation flow is minimised at lower vapour pressure. Therefore, the vacuum environment and high temperature help to prevent excessive penetration of the solution, ensuring that large amounts of Cu are deposited on the surface of the support. To investigate the variation of the Cu content on the support surface with the drying rate, egg-shell-type catalysts were prepared using different drying methods.

The γ-Al₂O₃ catalysts with Cu loading (1 wt%), denoted as OD-Cu(1)/γ-Al₂O₃, VOD-Cu(1)/γ-Al₂O₃, and QD-Cu(1)/γ-Al₂O₃ are derived from the drying methods (OD, VOD, and QD, respectively). As presented in the SEM images of OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ (Fig. 2a–c), although the same amount of 1 wt% Cu was supported on the γ-Al₂O₃ pellets, the Cu distribution on the surface varied depending on the drying method. Notably, QD-Cu(1)/γ-Al₂O₃ shows remarkably uniform and finely dispersed Cu particles. However, relatively few Cu particles were observed on the surface of oven and vacuum oven dried catalysts (OD-, VOD-Cu(1)/γ-Al₂O₃). The amount of Cu coating on the support surfaces was confirmed by using the Cu elemental mapping images using EDS (Fig. 2d). In the order of OD, VOD, and QD, more Cu particles appeared on the surface of γ-Al₂O₃. In particular, the Cu concentration on the surface was 10.47 wt% on the QD-Cu(1)/γ-Al₂O₃ catalyst, which was 31.7 and 3.8 times higher than that of OD- and VOD-Cu(1)/γ-Al₂O₃ catalysts, respectively. These results indicate that the use of vacuum drying or increasing the drying temperature can alleviate the penetration of the solution into the pore. In particular, the quick drying method can effectively prevent the Cu particles from penetrating into the support pores, while large amounts of active metal are deposited on the surface by increasing the evaporation rate of the metal solution.

Fig. 2 Comparison of the physical properties of egg-shell-type catalysts. (a–c) FE-SEM/EDS mapping analysis and (d) surface Cu contents of the three types of catalysts. (e) N₂ adsorption–desorption results and (f) XRD patterns over γ-Al₂O₃ and OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts.

BET analysis was carried out to examine whether the surface Cu coating obstructs the pores of the γ-Al₂O₃ support (Fig. 2e and S2†). OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts exhibited similar specific surface areas and pore volumes. As shown in Fig. S2a,† typical type IV curves with steep hysteresis loops were observed for the mesoporous structure. And the corresponding pore size distribution in Fig. S2b† shows that the pore size of γ-Al₂O₃ (13.4 nm) was similar to that of the OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts (11.6, 11.3, and 13.3 nm, respectively). This also suggests that the QD method can uniformly coat the active metal without affecting the pores and specific surface area of the support surface. As shown in Fig. 2f, the XRD patterns of the OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts indicated that all samples were assigned to γ-Al₂O₃ (JCPDS No. 29-0063). The absence of peaks belonging to the copper oxide phase can be explained by considering the fact that Cu particles are extremely small and well dispersed on the γ-Al₂O₃ surface.⁴³

Fig. 3a shows a schematic diagram of the thick and thin egg-shell-type catalytic reaction mechanism. In a typical heterogeneous catalyst, the catalytic reaction occurs in seven classical steps (marked as reaction A):²⁶ (1) mass transfer of reactants to the catalyst surface, (2) diffusion of reactants from the pore entrance to the inner catalytic surface, (3) adsorption of reactants on the inner catalytic surface, (4) reaction at specific active sites on the catalyst surface, (5) desorption of the products from the inner surface, (6) diffusion of the products from the interior of the pellet to the pore entrance on the outer surface, and (7) diffusion of the products from the outer pellet surface to the bulk fluid. In reaction A, reducing the characteristic diffusion distance of the reactants can reduce the mass transfer resistance of the catalyst. The egg-shell structure is an attractive solution to independently shorten the diffusion length and maximize the reaction because the active metal is on the catalyst surface.²⁷ For this reason, egg-shell-type catalysts are dominated by the surface reaction that takes place on the loaded active metal (marked as reaction B). However, the shell thickness of egg-shell-type catalysts varies depending on the preparation method. When a thick egg-shell-type catalyst is prepared, it can be predicted that reactions A and B may occur similarly because the active metal is placed not only on the surface but also on the inside. In contrast, thin egg-shell-type catalysts are dominated by the surface reaction that takes place on the loaded active metal (reaction B).

Fig. 3 Effect of the quick drying method on the preparation of egg-shell-type catalysts. (a) Schematic image of the catalytic reaction on the thick and thin egg-shell-type catalysts. (b) Cross-sectional schematic and optical images of the Cu particle distribution of the OD-, VOD-, and QD-catalysts. (c) N₂O decomposition performance, (d) Arrhenius fitting curves, and (e) S_BET normalised reaction rates over γ-Al₂O₃ and OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts. Reaction conditions: 20 mL catalyst, 1% N₂O, balance N₂, GHSV = 1800 h⁻¹.

To investigate the shell thickness according to the three different drying methods, the cross-sectional schematic and optical images of the OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts are shown in Fig. 3b. The Cu shell and support are well separated on the three different types of catalysts, indicating that the spray coating method is effective for preparing an egg-shell-type catalyst. The Cu shell thickness was varied with the different drying methods, and the average Cu shell thickness is ordered as follows: OD- (∼1.00 mm) > VOD- (∼0.66 mm) > QD- (∼0.32 mm)Cu(1)/γ-Al₂O₃ catalysts (Fig. S3 and Table S2†). The thin Cu shell on the QD-Cu(1)/γ-Al₂O₃ catalyst reveals that a large amount of Cu particles are selectively located on the surface of the γ-Al₂O₃ support, combined with the SEM/EDS analysis (Fig. 2c and d).

To confirm the egg-shell structure, a cross-sectional SEM/EDS analysis of the QD-Cu(10)/γ-Al₂O₃ catalyst was carried out (Fig. S4†). The EDS line scan was performed at the boundary of the shell and support layer to verify the well formation of the Cu shell in detail, and the actual Cu shell thickness was investigated as shown in Fig. S3 and Table S2.† As shown in Fig. S4,† the Cu shell was well formed on the surface of the γ-Al₂O₃ support.

To confirm the N₂O decomposition activity as a function of shell thickness in the egg-shell-type catalyst, the deN₂O activity was conducted under the case 1 condition in Table S1† (Fig. 3c). As shown in Fig. 3c, the deN₂O activity was the highest in the order of QD-, VOD-, and OD-Cu(1)/γ-Al₂O₃ catalysts, supporting that the thinner egg-shell-type catalyst has higher deN₂O activity. The activation energies (E_a) of the γ-Al₂O₃, OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts were calculated using the Arrhenius equation and are shown in Fig. 3d. The lower activation energy of the QD-Cu(1)/γ-Al₂O₃ catalyst than that of the γ-Al₂O₃, OD-, and VOD-Cu(1)/γ-Al₂O₃ catalysts proved that it is more favorable for the decomposition of N₂O is to occur on the QD-Cu(1)/γ-Al₂O₃ catalyst. Furthermore, the reaction rate, normalised to the specific surface area, of N₂O decomposition at different temperatures was calculated and is shown in Fig. 3e, and was consistent with the result that the QD-Cu(1)/γ-Al₂O₃ catalyst exhibited the highest catalytic activity. The TOF value of the OD-, VOD-, and QD-Cu(1)/γ-Al₂O₃ catalysts in the reaction process was calculated based on the integration area of O₂-TPD, which was 7.8 × 10⁻⁵, 9.9 × 10⁻⁵, and 1.6 × 10⁻⁴, respectively (Table S3†).^2,44 The TOF values varied depending on the drying method, with the QD-Cu(1)/γ-Al₂O₃ catalyst exhibiting higher values than the OD- and VOD-Cu(1)/γ-Al₂O₃ catalysts, respectively. This means that the active metal located on the catalyst surface can react extremely to maximise the deN₂O activity by uniformly forming a very thin Cu shell on the egg-shell-type catalyst. Therefore, although the same amount of Cu content was loaded on the γ-Al₂O₃ support, we could achieve high deN₂O activity and effective kinetic properties on the QD-Cu(1)/γ-Al₂O₃ catalyst. Based on the results in Fig. 2 and 3, we can conclude that the spray coating method is a very simple and practical way to coat the active metal on the surface of the catalyst support, and the QD process is effective for deN₂O activity by forming a thin and uniform shell in a short period of time.

3.2 Effect of Cu content on the γ-Al₂O₃ supports on N₂O decomposition

The metal coated on the support surface significantly affects the physical properties of the catalyst and the gas decomposition rate, depending on the amount of coating. The Cu content was varied from 5, 10, and 15 wt% to investigate the effect of the metal content on the preparation of the QD-Cu(x)/γ-Al₂O₃ catalysts. The dispersion and amount of Cu on the surface of the γ-Al₂O₃ support were investigated by SEM (Fig. 4a–c). For QD-Cu(5)/γ-Al₂O₃ with 5 wt% Cu coating, Cu is unevenly coated on the support surface, whereas for QD-Cu(10)/γ-Al₂O₃ with 10 wt% Cu coating, dense Cu particles with uniform coating on the support surface can be seen. However, at a higher Cu coating of 15 wt% (QD-Cu(15)/γ-Al₂O₃), considerable Cu aggregation was observed (Fig. 4c). The amount of Cu coating on the γ-Al₂O₃ support surface was confirmed by EDS mapping analysis (Fig. 4d). The Cu content of QD-Cu(1)/γ-Al₂O₃ was only 10%, while for QD-Cu(15)/γ-Al₂O₃, 60% Cu was observed on the surface. It can also be seen that the Cu content on the surface increases proportionally with the amount of Cu coating. In addition, the Cu shell thickness was slightly changed with different Cu contents, and the average Cu shell thickness is ordered as follows: QD-Cu(15) (∼0.40 mm) > QD-Cu(10) (∼0.48 mm) > QD-Cu(5) (∼0.54 mm) catalysts (Fig. S3 and Table S2†).

Fig. 4 Effect of Cu content on the γ-Al₂O₃ pellet on N₂O decomposition. (a–c) FE-SEM/EDS mapping analysis of the 5, 10, and 15 wt% QD-Cu(x)/γ-Al₂O₃ catalyst surfaces. (d) Surface Cu contents, (e) N₂ adsorption–desorption results and (f) XRD patterns of the QD-Cu(x)/γ-Al₂O₃ catalysts (x: 1, 5, 10, 15 wt%).

BET analysis was performed to investigate the effect of the Cu coating amount on the pores and surface area of the support (Fig. 4e). The surface area of QD-Cu(5)/γ-Al₂O₃ was 150 m² g⁻¹, which was similar to that of QD-Cu(1)/γ-Al₂O₃ (155 m² g⁻¹). However, at higher Cu coatings (10% and 15 wt%), the surface area was significantly lower than that of γ-Al₂O₃ (136 m² g⁻¹ for QD-Cu(10)/γ-Al₂O₃, 123 m² g⁻¹ for QD-Cu(15)/γ-Al₂O₃, and 163 m² g⁻¹ for γ-Al₂O₃). The pore volume also tends to decrease with increasing Cu coating. This result suggests that excessive Cu coating blocks the pore volume of the support, thereby reducing the specific surface area.

The crystal structure of the QD-Cu(x)/γ-Al₂O₃ catalysts was determined by XRD analysis (Fig. 4f). In the case of the QD-Cu(1) and (5)/γ-Al₂O₃ catalysts, γ-Al₂O₃ formed the dominant peak due to the low Cu content on the surface, while a CuO peak (JCPDS No. 48-1548) was observed in QD-Cu(10) and (15)/γ-Al₂O₃ with a large amount of Cu coated on the surface. As the amount of Cu coating increased, the average particle size, calculated using the Scherrer's equation, increased from 17.2 nm (QD-Cu(10)/γ-Al₂O₃) to 22.2 nm (QD-Cu(15)/γ-Al₂O₃). Excessive Cu coating causes Cu particles to aggregate during high temperature heat treatment, resulting in an uneven surface distribution and a reduction in the active sites of the active metal. The average crystallite size of CuO for QD-Cu(1) and (5)/γ-Al₂O₃ is too small, so the size cannot be measured.

Correlations between the N₂O decomposition activity and the relative abundance of Cu¹⁺ have been reported, as Cu¹⁺ can improve the catalytic activity.^43,45–47 As shown in eqn (3-1), the N₂O molecule interacts and adsorbs on the Cu¹⁺ site with the O atom. Such an interaction leads to weakening of the N–O bond, release of gas phase N₂ and oxidation of Cu¹⁺ to Cu²⁺ (eqn (3-2)). Subsequently, a recombination step of two neighboring oxygen atoms is required to regenerate the initial Cu¹⁺ active site (eqn (3-3)).

Cu¹⁺ + N₂O → Cu¹⁺ − ONN (3-1)

Cu¹⁺ − ONN → Cu²⁺ − O⁻ + N₂ (3-2)

Cu²⁺ − O⁻ → 2Cu¹⁺ + O₂ (3-3)

The XPS analysis was carried out to investigate the oxidation states of the active Cu species on the surface of the catalysts. The XPS spectra of the Cu 2p core level at binding energies between 965 and 925 eV show the main and the satellite peaks of Cu 2p3_/2 and Cu 2p_1/2 over the QD-Cu(x)/γ-Al₂O₃ catalysts (Fig. S5†). As shown in Fig. S5,† the spectra were fitted based on the intensity of the main peak of Cu 2p_3/2. Copper oxide can exist in two semiconducting phases of Cu₂O and CuO, i.e., Cu in the +1 and +2 valence states, respectively. The peaks at 932.2–932.8 eV were assigned to the surface Cu¹⁺ species, while the peaks at 933.5–934.0 eV were assigned to the surface Cu²⁺ species.^48–50 The relative abundances of Cu¹⁺ for QD-Cu(x)/γ-Al₂O₃ (x: 5, 10, 15) were 32, 51, and 39%, respectively. These results indicated that Cu¹⁺ was the dominant species on the QD-Cu(10)/γ-Al₂O₃ catalyst surface.

The reducibility of the active site strongly influences the N₂O decomposition activity.^51–53 H₂-TPR was performed to investigate the enhancement of the reducibility of the γ-Al₂O₃, QD-Cu(5), (10), and (15)/γ-Al₂O₃ catalysts (Fig. S6†). With the support of Cu species on the γ-Al₂O₃ catalyst, the reduction peak shifted to lower temperatures, which was attributed to the positive effects of the Cu support on the distribution over the surface of the γ-Al₂O₃ catalyst. These results indicate that the presence of Cu improves the reducibility of the γ-Al₂O₃ catalyst. In the H₂-TPR profile of the QD-Cu(x)/γ-Al₂O₃ catalysts, there are two major reduction peaks at 150–300 °C, which correspond to the stepwise reduction of CuO to Cu₂O and Cu₂O to Cu.^54,55 The H₂-TPR profiles indicate that the QD-Cu(10)/γ-Al₂O₃ catalyst is easily reduced, followed by the Cu(15) and Cu(5)/γ-Al₂O₃ catalysts.

3.3 Catalytic activity test of the egg-shell-type QD-Cu(10)/γ-Al₂O₃ catalyst

The deN₂O activity of as-prepared QD-Cu(x)/γ-Al₂O₃ was evaluated at different reaction temperatures (Fig. 5a). At higher reaction temperatures, above 500 °C, the high activity of Cu resulted in 100% deN₂O activation regardless of the Cu content, showing that the QD-Cu(x)/γ-Al₂O₃ catalysts have remarkable activity. At the relatively low decomposition temperature of 400 and 450 °C, the deN₂O activity was increased in the order QD-Cu(10) > (15) > (5)/γ-Al₂O₃. This observed trend is consistent with the Cu particle distribution results, indicating that the large amount of surface active metal induced by the uniform Cu coating has a positive effect on the deN₂O activity, resulting in high efficiency even at low temperature (Fig. 4). Furthermore, the reducibility of the H₂-TPR results and abundance of Cu¹⁺ active site of XPS results are of the same order as the N₂O decomposition activity. Based on the results of the deN₂O activity test, we can conclude that 10 wt% Cu could be a reasonable amount when using the QD method to form an effective egg-shell-type catalyst.

Fig. 5 Active test of the QD-Cu(10)/γ-Al₂O₃ catalyst. (a) N₂O decomposition performance of the QD-Cu(x)/γ-Al₂O₃ catalysts (x: 5, 10, 15 wt%). (b) The effect of impurity gases and (c) different N₂O contents as a function of the reaction temperature for the QD-Cu(10)/γ-Al₂O₃ catalyst. Reaction conditions: 20 mL catalyst, 1–20% N₂O, 5000 ppm N₂O, 0 or 7.5% H₂O, balance N₂ or air, GHSV = 1800 or 1960 h⁻¹. Long-term stability test over the QD-Cu(10)/γ-Al₂O₃ catalyst. (d) 1% and (e) 20% N₂O concentration under different feed conditions with time on stream. (f) Schematic images of the N₂O decomposition process on the QD-Cu(10)/γ-Al₂O₃ catalyst. (g) Comprehensive comparison with the reported catalytic performance for N₂O decomposition.

The influence of varying gas mixtures and different concentrations of N₂O on the catalytic activity of the QD-Cu(10)/γ-Al₂O₃ catalyst was also investigated (Fig. 5b and c). To determine the effect of oxygen and steam on the active site of the QD-Cu(10)/γ-Al₂O₃ catalyst, experiments were carried out under the conditions of case 2 and 3 in Table S1.† In general, the catalytic decomposition of N₂O was highly dependent on the competitive adsorption between O₂ and N₂O on the active sites of the catalysts.^14,17,20 Therefore, the presence of air strongly suppressed the active sites of the catalyst (Fig. 5b). For example, the N₂O conversion curve was shifted to higher temperatures by about 70 °C due to the presence of O₂. However, as the temperature increased, the effect of O₂ decreased, and complete decomposition of N₂O was achieved at 570 °C. The effect of O₂ and 7.5% H₂O was investigated over the QD-Cu(10)/γ-Al₂O₃ catalyst (Fig. 5b). When H₂O was further added to the feed side, the N₂O conversion decreased drastically to 2.6% at 400 °C, and the complete conversion was achieved at 600 °C, which is 100 and 30 °C higher temperature than that in case 1 and 2, respectively. The presence of H₂O in the deN₂O reaction shows a more negative effect than O₂ due to competitive adsorption and poisoning of the catalyst active sites by H₂O.^56,57

We have focused our research on N₂O decomposition catalysts that can be used in the semiconductor and display manufacturing industries where sulphur oxides or nitrogen oxides are not emitted. Therefore, the influence of toxic substances such as SO_x or NO_x on the active sites of the QD-Cu(10)/γ-Al₂O₃ catalyst has not been determined. However, the influence of toxic substances could be expected. As reported in the literature, the addition of SO_x to the feed stream results in severe irreversible deactivation.⁵⁸ Yu et al.⁵⁹ reported that the catalyst activity did not recover after the impurities (50 ppmv SO₂ + 5vol% O₂) were removed from the feed stream. In the case of NO_x, NO_x strongly suppresses the active sites of the catalyst and has a severe inhibition effect compared to O₂ and H₂O.^2,57,59 Therefore, we believe that higher temperatures (above 650 °C) will be required for complete N₂O decomposition in the presence of impurities such as NO_x and SO_x. Currently, NF₃ and SF₆ are used as etching gases in semiconductors and display manufacturing processes, and we are researching catalysts for the simultaneous decomposition of NF₃, SF₆, and N₂O. Since NF₃ and SF₆ emit NO + NO₂ and SO_x during hydrolysis, we will be able to determine the effects of NO_x and SO_x on N₂O co-decomposition.^60,61 We plan to report on this study in detail in the future.

The use of greenhouse gases, such as fluorinated gases and N₂O has increased with the growth of the electronics manufacturing industry.⁶² N₂O is used to remove organic contaminants from silicon wafer surfaces and for chamber-washing after chemical vapor deposition processes in semiconductor and liquid crystal display manufacturing.⁶² In addition, N₂O is also used in the chemical vapor deposition process to deposit an SiO₂ oxide film along with SiH_4.⁶³ In some cases, N₂O emissions from semiconductors and display processes are as high as 15%. Therefore, the influence of different N₂O concentrations (1–20%) over the QD-Cu(10)/γ-Al₂O₃ catalyst was also measured to verify the potential for reducing the high concentration of N₂O emitted by the display industry using the conditions of case 4 in Table S1† (Fig. 5c). As shown in Fig. 5c, the catalytic efficiency tends to decrease under harsher feed gas conditions, but even under seriously harsh conditions using 20% N₂O, the QD-Cu(10)/γ-Al₂O₃ catalyst showed only a 14% performance decrease at 450 °C, still showing a high efficiency of 75%. However, at temperatures as high as 550 °C, the catalytic efficiency was over 99% even under 20% N₂O supply, confirming that the prepared catalysts can exhibit high efficiencies even under harsh conditions.

Thus, the prepared QD-Cu(10)/γ-Al₂O₃ catalyst exhibited outstanding deN₂O performance under various decomposition conditions. Long-term durability tests were also carried out to confirm the commercial suitability of the catalysts prepared by the QD method. In industry, N₂O is emitted along with various impurities such as air and steam, and the N₂O concentration is not constant. On this account, the deN₂O reaction was carried out under different reaction conditions over ∼360 h (Fig. 5d). Detailed information such as feed conditions, temperature, conversion rate, and the accumulation time with time on stream are also listed in Table S4.†

As shown in Fig. 5d, the N₂O conversion remained stable at ∼99% for ∼24 h in the N₂ mixture (Section 1). When N₂ was changed to air and 7.5% H₂O was injected into the inlet, the N₂O conversion decreased to ∼83% and ∼54% (Sections 2 and 3), respectively, and the conversion value was maintained at ∼54% (Section 3) for ∼24 h. When the water injection was stopped, the catalytic activity recovered fully very quickly, indicating that the H₂O inhibition is not permanent but reversible (Section 4). When O₂ was removed (Section 5), the catalytic activity recovered to the value in Section 1 and remained for 65 h. These results indicate that steam and oxygen do not induce drastic structural changes in our QD-Cu(10)/γ-Al₂O₃ catalyst.

The influence of H₂O content is described in Section 6. The N₂O conversion rate gradually decreased from ∼99% to ∼83%, ∼78%, ∼75%, and ∼73% with increasing H₂O contents of 1.8, 3.6, 5.4, and 7.5%, respectively. Surprisingly, when the H₂O content exceeded 3.6%, the activity almost did not deteriorate with the H₂O content. To verify the influence of temperature on the coexistence of steam, we increased the temperature from 500 °C to 580 °C, and the N₂O conversion reached ∼98%. Changing N₂ to air slightly decreased the conversion value due to O₂, but increasing the temperature to 600 °C increased the conversion rate to ∼98%.

After turning off the water and replacing air with N₂, a similar N₂O conversion rate of ∼99% could be obtained at a lower temperature of ∼70 °C, i.e., 500 °C. The N₂O conversion rate of ∼99% was the same as that in Section 1. After ∼60 h as in Section 12, the temperature was changed to room temperature with continuous feed gas to confirm the durability of the catalyst when the reactor is shut down due to electrical problems (Section 13). After remaining for ∼22 h, when the temperature was then increased to 500 °C, the conversion value reached the same value of ∼99% and was maintained for ∼50 h (Section 14).

During the catalyst durability test, we checked the formation of NO_x using NO and NO₂ detection tubes under different conditions, i.e., N₂, N₂ + steam, and air + steam (Fig. S7†). No NO_x was observed, indicating that the direct catalytic decomposition of N₂O (eqn (1)) occurs completely on the QD-Cu(10)/γ-Al₂O₃ catalyst.

To confirm the applicability at high N₂O concentration, the stability test was performed with 20% N₂O for ∼500 h. Detailed information such as supply conditions, temperature, conversion rate, and accumulation time with time on stream are given in Table S5.† The results in Fig. 5e indicate that the N₂O conversion remained stable during the stability test. To verify the adaptability under different conditions, the gas compositions were changed after 355 h, and the temperatures were adjusted to achieve >99% conversion. The specific information from 350 to 430 h is provided in Fig. S8† As shown in Fig. S8,† when air was supplied instead of N₂, the N₂O conversion dropped to ∼95% due to the negative impact of O₂ (Section 2) and the conversion returned to ∼99% at 600 °C (Sections 3 and 4). When 7.5% steam was injected into air, a complete decomposition can be obtained at 650 °C (Sections 5–7). After ∼80 h of adaptability tests, the stability test under the N₂ + 20% N₂O mixture was continued at 550 °C, and the catalytic activity remained stable for the last hours (Section 10). From the stability test with a high concentration of N₂O, it can be concluded that the QD-Cu(10)/γ-Al₂O₃ catalysts are very stable and applicable for high concentration of N₂O and various feed conditions. After the stability test, SEM/EDS analysis was conducted for investigation of copper distribution on the surface of the support. The results in Fig. S9† indicate that the high copper dispersion still remained unchanged.

In summary, from the SEM surface analysis, XPS and H₂-TPR analysis, it can be concluded that the QD-Cu(10)/γ-Al₂O₃ catalyst exhibited excellent deN₂O performance due to its highly dispersed Cu shell, abundant Cu¹⁺ active sites, and high reducibility (Fig. 5f). A comprehensive comparison with the reported catalytic performance for N₂O decomposition is shown in Fig. 5g and Table S6.† The durability tests were carried out to demonstrate the commercial stability of the catalysts prepared by the QD method under 100% deN₂O activity conditions. Although a 1 : 1 comparison with other reported literature is not possible due to different feed conditions, the durability tests indicated that the QD-Cu(10)/γ-Al₂O₃ catalyst exhibited excellent stability over long periods (∼500 h) without degradation, even under very harsh conditions (N₂O concentration: 20%). This result suggests that the catalyst prepared by the QD method is a promising candidate for commercial deN₂O applications. In addition, through coating with synergistic metals (Ce, Co, etc.), surface functionalization, and heteroatom doping on the QD-manufactured egg-shell-type catalyst, we expect to develop catalysts with high decomposition efficiency at low temperatures and ensure commercial competitiveness.

4. Conclusions

In this work, egg-shell-type Cu/γ-Al₂O₃ catalysts were prepared by three different drying methods (oven drying (OD), vacuum oven drying (VOD), and quick drying (QD)), and their effects on the structure and performance of deN₂O were investigated. SEM/EDS results clearly show that the QD method can significantly reduce the shell thickness by reducing the drying time of the metal solution penetrating into the pores of the γ-Al₂O₃ support. The highest deN₂O performance, reaction rates (1.08 × 10⁻⁹ m² s⁻¹ at 450 °C) and TOF value (1.6 × 10⁻⁴ s⁻¹ at 450 °C) and lower activation energy (113.12 kJ mol⁻¹) were achieved when the QD method was adapted. The amount of Cu loading prepared by the QD method was optimised by comparing the surface active metal distribution, oxidation state of the active Cu species, reducibility, and the deN₂O activity. SEM/EDS results reveal that the Cu in the QD-Cu(10)/γ-Al₂O₃ catalyst is highly dispersed and the Cu shell has high sintering resistance without agglomeration in long-term stability tests. Both XPS and H₂-TPR results illustrate that the QD-Cu(10)/γ-Al₂O₃ catalyst has abundant Cu¹⁺ (51%) active sites and high reducibility, thus facilitating the deN₂O reaction. The QD-Cu(10)/γ-Al₂O₃ catalyst exhibited practical applicability in long-term stability tests (1% N₂O for 360 h and 20% N₂O for 500 h) without deactivation. The high stability and simple manufacturability of the QD-Cu(10)/γ-Al₂O₃ catalyst make the quick drying method an interesting candidate for industrial applications and the preparation of effective egg-shell-type catalysts.

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

Eun-Han Lee: writing – original draft preparation, investigation. In-Heon Kwak: investigation. Hansung Kim: supervision, writing – review & editing. Shin-Kun Ryi: funding acquisition, supervision, conceptualization, writing – review & editing, project administration.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was conducted under the framework of the Research and Development Program of the Korea Institute of Energy Research (KIER) (C4-2475). This study was supported by the Korea Institute for Advancement of Technology (KIAT) World Class Plus project and received financial support from the Ministry of Trade, Industry & Energy, Republic of Korea (No. P0017165).

References

1. Y.-K. Park and B.-S. Kim, Chem. Eng. J., 2023, 461.
2. J. Qi, X. Qi, Y. Pan, J. Cui, Y. Xiong, W. Shan and H. Yu, Appl. Surf. Sci., 2023, 611, 155657.
3. Y. You, H. Chang, L. Ma, L. Guo, X. Qin, J. Li and J. Li, Chem. Eng. J., 2018, 347, 184–192.
4. M. Konsolakis, ACS Catal., 2015, 5, 6397–6421.
5. H. Liu, J. Chen, Y. Wang, S. Xiong, Z. Su, Y. Wang, W. Yang, X. Chu, W. Yang, Y. Peng, W. Si and J. Li, Chem. Eng. J., 2021, 414.
6. F. Kapteijn, J. Rodriguez-Mirasol and J. A. Moulijn, Appl. Catal., B, 1996, 9, 25–64.
7. M. Röhrig, E. L. Petersen, D. F. Davidson and R. K. Hanson, Int. J. Chem. Kinet., 1996, 28, 599–608.
8. J. Pérez-Ramírez, F. Kapteijn, K. Schöffel and J. A. Moulijn, Appl. Catal., B, 2003, 44, 117–151.
9. X. Zhang, Q. Shen, C. He, C. Ma, J. Cheng, L. Li and Z. Hao, ACS Catal., 2012, 2, 512–520.
10. Y. You, S. Chen, J. Li, J. Zeng, H. Chang, L. Ma and J. Li, J. Hazard. Mater., 2020, 383, 121117.
11. X. Hu, Y. Wang, R. Wu and Y. Zhao, Appl. Surf. Sci., 2021, 538, 148157.
12. S. Hinokuma, T. Iwasa, Y. Kon, T. Taketsugu and K. Sato, Sci. Rep., 2020, 10, 21605.
13. V. K. Tzitzios and V. Georgakilas, Chemosphere, 2005, 59, 887–891.
14. S. Parres-Esclapez, M. J. Illán-Gómez, C. S.-M. de Lecea and A. Bueno-López, Appl. Catal., B, 2010, 96, 370–378.
15. H. Xia, K. Sun, Z. Liu, Z. Feng, P. Ying and C. Li, J. Catal., 2010, 270, 103–109.
16. B. M. Abu-Zied, W. Schwieger and A. Unger, Appl. Catal., B, 2008, 84, 277–288.
17. Z. Liu, F. He, L. Ma and S. Peng, Catal. Surv. Asia, 2016, 20, 121–132.
18. A. Satsuma, H. Maeshima, K. Watanabe, K. Suzuki and T. Hattori, Catal. Today, 2000, 63, 347–353.
19. I. Lucentini, X. Garcia, X. Vendrell and J. Llorca, Ind. Eng. Chem. Res., 2021, 60, 18560–18611.
20. S. Choi, K. Bok Nam, H. Phil Ha and D. Wook Kwon, J. Ind. Eng. Chem., 2023, 121, 462–471.
21. S. Kawi, S. Y. Liu and S. C. Shen, Catal. Today, 2001, 68, 237–244.
22. C. Ohnishi, K. Asano, S. Iwamoto, K. Chikama and M. Inoue, Catal. Today, 2007, 120, 145–150.
23. K. Tanaka, A. Shimizu, M. Fujimori, S. Kodama and S. Sawai, Bull. Chem. Soc. Jpn., 2003, 76, 651–657.
24. G. Pekridis, C. Athanasiou, M. Konsolakis, I. V. Yentekakis and G. E. Marnellos, Top. Catal., 2009, 52, 1880.
25. V. Russo, L. Mastroianni, R. Tesser, T. Salmi and M. Di Serio, Chem. Eng., 2020, 4, 24.
26. R. Klaewkla, M. Arend and W. F. Hoelderich, A Review of Mass Transfer Controlling the Reaction Rate in Heterogeneous Catalytic Systems, INTECH Open Access Publisher, Rijeka, 2011.
27. C. Niu, H. Li, M. Xia, J. Wang, C. Chen, Z. Ma, L. Jia, B. Hou and D. Li, AIChE J., 2021, 67, e17226.
28. E. Cho, Y. J. Yu, Y. Kim, T. N. Phan, D. Park and C. H. Ko, Catal. Today, 2020, 352, 157–165.
29. K. Takehira, T. Shishido, D. Shoro, K. Murakami, M. Honda, T. Kawabata and K. Takaki, Catal. Commun., 2004, 5, 209–213.
30. E. H. Cho, K. Y. Koo, H. W. Lee, Y.-K. Park, W. L. Yoon and C. H. Ko, Int. J. Hydrogen Energy, 2017, 42, 18350–18357.
31. S. A. Gardezi, J. T. Wolan and B. Joseph, Appl. Catal., A, 2012, 447–448, 151–163.
32. B. Liu, Y. Chai, Y. Liu, Y. Wang, Y. Liu and C. Liu, Fuel, 2012, 95, 457–463.
33. X. Wen, R. Li, Y. Yang, J. Chen and F. Zhang, Appl. Catal., A, 2013, 468, 204–215.
34. Z. Zhou, T. Zeng, Z. Cheng and W. Yuan, Chem. Eng. Sci., 2010, 65, 1832–1839.
35. Y. Q. Zhuang, M. Claeys and E. van Steen, Appl. Catal., A, 2006, 301, 138–142.
36. Y. Kim, E. Cho and C. H. Ko, Int. J. Hydrogen Energy, 2019, 44, 5314–5323.
37. X. Xu, X. Hu, Z. Luo, Y. Cao, Y.-A. Zhu, W. Li, J. Zhou and X. Zhou, New J. Chem., 2023, 47, 6045–6049.
38. R. Li, Z. Yan and G. Xia, Phys. Fluids, 2023, 35, 032015.
39. E.-H. Lee, T.-W. Kim, S. Byun, D.-W. Seo, H.-J. Hwang, J. Baek, E.-S. Jeong, H. Kim and S.-K. Ryi, Clean Technol., 2023, 29, 126–134.
40. P. Munnik, P. E. De Jongh and K. P. De Jong, Chem. Rev., 2015, 115, 6687–6718.
41. H. Liu and G. Cao, Sci. Rep., 2016, 6, 23936.
42. Y. Huang, X. Zhang, Z. Ma, Y. Zhou, W. Zheng, J. Zhou and C. Q. Sun, Coord. Chem. Rev., 2015, 285, 109–165.
43. M. Zabilskiy, P. Djinović, B. Erjavec, G. Dražić and A. Pintar, Appl. Catal., B, 2015, 163, 113–122.
44. F. Zhang, X. Wang, X. Zhang, M. Tursun and H. Yu, Chin. J. Catal., 2015, 36, 344–347.
45. A. Dandekar and M. Vannice, Appl. Catal., B, 1999, 22, 179–200.
46. M. Zabilskiy, P. Djinović, E. Tchernychova, O. P. Tkachenko, L. M. Kustov and A. Pintar, ACS Catal., 2015, 5, 5357–5365.
47. P. Xie, Z. Ma, H. Zhou, C. Huang, Y. Yue, W. Shen, H. Xu, W. Hua and Z. Gao, Microporous Mesoporous Mater., 2014, 191, 112–117.
48. D. S. Kozak, R. A. Sergiienko, E. Shibata, A. Iizuka and T. Nakamura, Sci. Rep., 2016, 6, 21178.
49. D. Tahir and S. Tougaard, J. Phys.: Condens. Matter, 2012, 24, 175002.
50. S. Poulston, P. Parlett, P. Stone and M. Bowker, Surf. Interface Anal., 1996, 24, 811–820.
51. L. Chen, H. Chen, J. Lin and K. Tan, Surf. Interface Anal., 1999, 28, 115–118.
52. S. Xiong, J. Chen, N. Huang, S. Yang, Y. Peng and J. Li, Surf. Interface Anal., 2019, 53, 10379–10386.
53. H. Zhou, Z. Huang, C. Sun, F. Qin, D. Xiong, W. Shen and H. Xu, Appl. Catal., B, 2012, 125, 492–498.
54. Y. Li, X. Wang and C. Shi, J. Environ. Chem. Eng., 2023, 11, 109970.
55. M. Konsolakis, S. A. C. Carabineiro, E. Papista, G. E. Marnellos, P. B. Tavares, J. A. Moreira, Y. Romaguera-Barcelay and J. L. Figueiredo, Catal. Sci. Technol., 2015, 5, 3714–3727.
56. M. Tursun, X. Wang, F. Zhang and H. Yu, Catal. Commun., 2015, 65, 1–5.
57. S. Parres-Esclapez, M. Illán-Gómez, C. S.-M. de Lecea and A. Bueno-López, Int. J. Greenhouse Gas Control, 2012, 11, 251–261.
58. M. Konsolakis, I. V. Yentekakis, G. Pekridis, N. Kaklidis, A. C. Psarras and G. E. Marnellos, Appl. Catal., B, 2013, 138–139, 191–198.
59. H. Yu, M. Tursun, X. Wang and X. Wu, Appl. Catal., B, 2016, 185, 110–118.
60. N.-K. Park, Y. H. Jeong, J. W. Lee and T. J. Lee, Catal. Today, 2018, 303, 46–54.
61. D. Liu, Y. Gui, C. Ji, C. Tang, Q. Zhou, J. Li and X. Zhang, Appl. Surf. Sci., 2019, 465, 172–179.
62. S. J. Lee, I. S. Ryu and S. H. Moon, Greenhouse Gases:Sci. Technol., 2012, 2, 380–385.
63. D. K. Kim, Y. K. Park, S. Biswas and C. Lee, Mater. Chem. Phys., 2005, 91, 490–493.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d4ta07764d

---
