Electronic interactions of a quatertiophene-based surfactant at the liquid/gas interface

Abstract

We report the synthesis of a functional molecule, a quatertiophene-based surfactant, which can both adsorb at the water/gas interface (surface active molecule) and aggregate through π−π stacking interactions. We assess then the ability of this molecule to create these functionalities at interfaces. This interfacial functional aggregation, characterized here in situ for the first time, is probed thanks to Langmuir trough experiments and spectrometric ellipsometry. These results pave the way to the design of new water based optoelectronic devices.

---

1 Introduction

The design of new organic materials that can assemble at the nanoscale is a crucial step towards the construction of the next generation of advanced functional materials for nanoscale electronics and optoelectronic devices such as organic field effect transistors (OFETs), organic light emitting diodes (OLEDs) and sensors.^1,2 As the performance of the device depends on both the optoelectronic properties and nanoscale morphology, which are inherently interconnected, control over their self-assembly at the nanoscale is of paramount importance. To achieve this, chemists can utilize a wide range of non-covalent interactions, such as hydrogen bonding, van der Waals interactions, electrostatic forces, and π–π interactions, which can be tuned through structural modifications.^3,4 Consequently, there is a growing research focus on conjugated organic materials, particularly on developing strategies to optimize their intramolecular conformation and intermolecular electronic coupling through structurally programmed non-covalent assembly.^4–6

In the self-assembly process of these specifically designed organic materials, the nature of solvent (polarity, dipole moment, protic/aprotic nature, dielectric constant) is a key parameter for tuning the intermolecular interactions between the organic units.^7,8 While thin films of organic materials are typically formed using organic solvent, designing molecules capable of self-assembly in water while retaining their optoelectronic properties presents a great challenge.^9,10

Achieving such self-assembly in water offers the possibility of using a sustainable and biocompatible solvent. More interestingly, it will be a first step for coupling ionic, specifically protonic, and electronic transport. This coupling is generally achieved thanks to electrochemical processes at electrodes. In the specific case of interfacial processes, this coupling has also been reported in the case of electrokinetic water transport in the vicinity of van der Waals materials such as graphene.^11,12 We explore here an alternative route, by designing a new functional molecule that can at the same time assemble at interfaces and bear these electronic properties.

To this aim, we designed an amphiphilic π-conjugated molecule built upon a quaterthiophene backbone allowing the presence of π–π stacking intermolecular interactions, and three ethylene glycol chains to facilitate water solubility.¹³ We measure the surface pressure of the liquid–gas interface as a function of the molecular area of the molecule at interface, thanks to Langmuir trough experiments. We demonstrate that it tends to adsorb at interfaces and is surface-active. Analysis of the curves with surface equations of state allows us to define two regimes of interaction and to evidence that aggregation occurs when the interfacial layer is dense enough. To go further, we characterize the aggregation properties of this so-called electronic surfactant directly in situ, when they are located at interfaces. Hence, we probe the spectroscopic properties of the molecular assembly directly at the liquid–air interface thanks to a new dedicated spectrometric ellipsometry technique. A shift of some absorption bands when the molecular area is decreased allowed us to get, for the first time, a signature of the formation within the molecular layer of some interfacial molecular complexes in which electron delocalization can occur.

2 Materials and methods

2.1 Surfactant synthesis

2.1.1 Materials. Reactions needing an inert atmosphere are performed under argon using oven-dried glassware and Schlenk techniques. All anhydrous solvents and reagents are obtained from commercial suppliers and used as received without further purifications: sodium hydride (Sigma-Aldrich, >99.5%). (5′-Bromo-2,2′-bithiophen-5-yl)methanol, 5-trimethylstannyl-2,2′-bithiophene and Pd(PPh₃)₄ are prepared according to procedures described in the literature.^14–17 Thin-layer chromatography (TLC) is carried out on Merck DC Kieselgel 60 F-254 aluminium sheets and spots are visualized with UV-lamp (λ = 254/365 nm) if necessary. Preparatory purifications are performed by silica gel column chromatography (Merck 4060 M) and flash chromatography is carried out using a Biotage Isolera System (UV-Vis 200–800 nm detector) over silica cartridges (Sfar HC D).

2.1.2 Characterization methods of the synthesised surfactant. Nuclear magnetic resonance (NMR) spectroscopy and mass spectrometry (MS) are performed at the Plateforme d'Analyse et de Caractérisation (PAC) of the Pôle Chimie Balard (CNRS, Univ Montpellier, ENSCM).

¹H and ¹³C{¹H} NMR spectra are recorded on Bruker 400 MHz Avance III HD and 500 MHz Avance III spectrometers at 298 K. Deuterated solvents CDCl₃ (Sigma-Aldrich, 99.8%) and dimethyl sulfoxide-d₆ (DMSO-d₆) (Avantor, >99.0%) are used as received. ¹H and ¹³C{¹H} NMR spectra are calibrated using the relative chemical shift of the residual non-deuterated solvent as an internal standard. Chemical shifts (δ) are expressed in ppm. Abbreviations used for NMR spectra are as follows: s, singlet; d, doublet; t, triplet; m, multiplet.

High resolution mass spectra (HRMS) are recorded on a Bruker MicroTof QII instrument in positive/negative modes.

2.1.3 Synthesis.
2.1.3.1 Synthesis of compound 2. (5′-Bromo-2,2′-bithiophen-5-yl)methanol (355 mg, 1.290 mmol) is placed into a two-neck 100 mL round bottom flask under argon with anhydrous tetrahydrofuran (THF) (20 mL). The solution is cooled to 0 °C with an ice bath. Sodium hydride (60% dispersed in mineral oil) (33 mg, 1.360 mmol, 1.1 eq.) is added and the mixture is stirred for ninety minutes. Then, a solution of compound 1, whose structure is reported in Fig. 2 (784 mg, 1.190 mmol, 0.9 eq.) in 15 mL of anhydrous THF is added dropwise and the mixture is stirred at room temperature for 24 hours. The reaction is followed by TLC using CH₂Cl₂ as eluent. Once the reaction is finished, the solvent is evaporated, CH₂Cl₂ is added and the organic phase is washed with water (3 × 25 mL). The organic phases are gathered, dried over MgSO₄ and the solvent is evaporated under reduced pressure. The resulting crude mixture is purified by flash column chromatography on silica gel using gradient elution CH₂Cl₂/MeOH (98 : 2 to 90 : 10 (v : v)) leading to compound 2 as a yellow/brownish oil (335 mg, 66%).

¹H NMR (400 MHz, CDCl₃) δ = 6.97 (d, 1H, ³J_H–H = 3.6 Hz), 6.96 (d, 1H, ³J_H–H = 3.8 Hz), 6.89 (d, 1H, ³J_H–H = 3.9 Hz), 6.88 (dt, 1H, ³J_H–H = 3.6 Hz, ⁴J_H–H = 0.6 Hz), 6.58 (s, 2H), 4.63 (br. s, 2H), 4.55 (br. s, 2H), 4.14 (m, 6H), 3.85 (br. d, 2H ³J_H–H = 4.4 Hz), 3.83 (br. d, ³J_H–H = 4.8 Hz, 2H), 3.79 (br. d, 1H, ³J_H–H = 4.4 Hz), 3.78 (br. d, 1H ³J_H–H = 5.0 Hz), 3.72 (m, 6H), 3.65 (m, 12H), 3.54 (m, 6H), 3.37 (s, 9H) ppm.

¹³C{¹H} NMR (100 MHz, CDCl₃) δ 152.8, 140.7, 139.0, 138.0, 137.0, 133.3, 130.8, 127.4, 123.9, 123.6, 111.1, 107.4, 72.4, 72.0, 71.9, 70.9, 70.8, 70.7, 70.6, 69.8, 68.9, 66.5, 59.2 ppm.

HRMS (ESI⁺): m/z calcd for C₃₇H₅₅BrO₁₃S₂⁺ [M]⁺: 851.2334 Da, found: 851.2336 Da.

2.1.3.2 Synthesis of compound 3. Compound 2 (270 mg, 0.317 mmol, 1 eq.), 2,2′-bithiophen-5-yl(trimethyl)stannane (147 mg, 0.447 mmol, 1.4 eq.) and tetrakis(triphenylphosphine)palladium (15 mg, 0.012 mmol, 0.04 eq.) are placed into a two-neck 100 mL round bottom flask and flushed with argon. Then, anhydrous toluene (25 mL) is added. The solution is stirred at reflux 24 hours and the reaction is followed by TLC using CH₂Cl₂/MeOH (98 : 2 (v : v)) as eluent. Once the reaction is finished, the solvent is evaporated. CH₂Cl₂ (30 mL) is added and the organic phase is washed with water (3 × 20 mL). All organic phases are gathered, dried over MgSO₄ and the solvent is evaporated under reduced pressure. The resulting crude mixture is purified by column chromatography on silica gel using CH₂Cl₂/MeOH (98 : 2 to 90 : 10 (v : v)) as eluent leading to compound 3 as a yellow/brownish oil (260 mg, 87%).

¹H NMR (400 MHz, CDCl₃): δ 7.23 (dd, 1H, ³J_H–H = 5.1 Hz, ⁴J_H–H = 1.1 Hz), 7.18 (dd, 1H, ⁴J_H–H = 1.0 Hz, ³J_H–H = 3.6 Hz), 7.08 (m, 2H),7.08 (br. s, 2H), 7.03 (m, 2H), 6.90 (d, 1H, ³J_H–H = 3.6 Hz), 6.59 (s, 1H), 4.65 (s, 1H), 4.47 (s, 1H), 4.15 (m, 7H), 3.85 (t, 5H, ³J_H–H = 5.0 Hz), 3.79 (t, 2H, ³J_H–H = 5.2 Hz), 3.73 (m, 7H), 3.65 (m, 14H), 3.54 (m, 7H), 3.37 (2 br s, 9H), 1.64 (s, 9H) ppm.

¹³C{¹H} NMR (100 MHz, CDCl₃) δ 152.6, 140.3, 139.7, 137.9, 137.5, 137.3, 136.9, 136.3, 136.2, 135.9, 135.7, 133.3, 132.1, 132.0, 131.9, 131.9, 129.0, 128.5, 128.4, 128.2, 127.9, 127.8, 127.3, 127.2, 125.3, 124.6, 124.3, 124.2, 123.7, 123.2, 107.3, 77.5, 77.4, 76.8, 72.3, 71.9, 71.7, 70.8, 70.6, 70.5, 69.7, 68.8, 66.5, 59.0, 21.4 ppm.

C,H,S analysis. Anal. calcd for C₄₅H₆₀O₁₃S₄: C, 57.67; H, 6.45; S, 13.57. Found: C, 57.44; H, 6.62; S, 13.64.

HRMS (ESI⁺): m/z calcd for C₄₅H₆₀O₁₃S₄⁺ [M⁺]: 937.2989 Da, found: 937.2994 Da.

UV-vis (H₂O): λ_max (log(ε)), 357 nm (4.3), 411 nm (3.8), 440 nm (3.56).

2.2 Bulk characterization methods

2.2.1 UV-visible absorption spectroscopy. UV-visible absorption spectra are recorded in DMSO, chloroform and water with a JASCO V-750 UV-visible-NIR spectrophotometer in 10 mm quartz cells (Hellma). The molar extinction coefficients (ε) are determined by preparing solutions of the surfactant at different concentrations in DMSO, chloroform and water. The concentration range is chosen to remain in the linear range of the Beer–Lambert relationship (A ca. 0.2–0.8).

2.2.2 Dynamic light scattering. Dynamic light scattering (DLS) measurements are performed using a Malvern Zetasizer Nano series Nano-ZS in water. The critical micellar concentration (CMC) values are determined by preparing solutions in water at different concentrations and measuring the intensity of the scattered light. The data are visualized by plotting scattered light intensity as a function of the concentration, revealing an sharp increase at the CMC. The underlying principle is that larger particles scatter light more efficiently than smaller molecules. Accordingly, solutions of compound 3 (Fig. 2) at various concentrations are prepared for the measurements and showed this increase as reported in Fig. 15.

2.2.3 Cryo-electron microscopy. Three microliters of suspensions prepared in deionized water are applied to glow discharged Lacey grid (Ted Pella inc.), blotted for 3 seconds and then flash frozen in liquid ethane using a EM-GP2 (LEICA). The concentration of the amphiphilic quaterthiophene – compound 3 – is 50 μmol L⁻¹. Before freezing, the humidity rate is stabilized at 95% at 20 °C in the chamber. Cryo-TEM observation is carried out on a JEOL 2200FS (JEOL, Europe, SAS), operating at 200 kV under low-dose conditions (total dose of 20 electrons Å⁻²) in the zero-energy-loss mode with a slit width of 20 eV. Images are taken with direct detection electron K3 camera (Ametek-Gatan inc.) at a nominal magnification of 6000×, 15 000× and 30 000× with defocus ranging from 1.8–2.5 μm.

2.3 Molecules at interfaces

2.3.1 Deposition of the molecules at liquid–gas interfaces. Due to the limited solubility of the surfactant molecule in water and the necessity of placing them at the water/air interface, surfactant solutions are prepared using chloroform as the solvent. A carefully measured quantity of chloroform with a density (ρ_chl) of 1.49 g cm⁻³ at a temperature of 25 °C is added to the initially powdered compound 3 using a precision balance (Sartorius). As chloroform is highly volatile, even when stored in a sealed container, the solutions are renewed before each experimental campaigns by evaporating the chloroform, measuring the weight of the resulting dried powder, and subsequently adding fresh chloroform. All experiments are conducted within one to two weeks from the date of solution preparation to maintain the consistency and reliability of the results.

The molecular layer is deposited on deionized water (18.2 MΩ cm at the exit of the deionized machine PURELAB flex, ELGA, 1 MΩ cm after a few minutes at ambient atmosphere) placed in a Langmuir–Blodgett trough (KSV NIMA Medium), composed of a Teflon tank with two motorized barriers positioned at the water–gas level, allowing for adjustment of the surface area, A, accessible to the surfactants at the liquid–gas interface. First, the Teflon tank is filled with ultrapure water, and a paper Wilhelmy plate is hung on a force sensor to measure the surface pressure at the interface (Fig. 1). Then, a given volume of the surfactant chloroform solution is dispensed cautiously thanks to a glass syringe (Hamilton) on top of the water–air interface. Great care to minimize the dissolution into the bulk water is required. The amount of volume dispensed each time was approximately 1 μL dropwise. A small correction factor (less than 15%) is added when computed the molecular area of 3 to correct uncertainties on the deposited volume and on the surfactant concentration in chloroform. This factor is constant for a run of experiments and allow to collapse both adsorption isotherm, ellipsometry data and UV-vis absorption spectra.

Fig. 1 Scheme of the experiments that couple spectroscopic ellipsometry and Langmuir trough characterizations.

2.3.2 Langmuir trough experiments. To characterize the adsorption of insoluble surfactants, we measure the evolution of the surface tension with the surface concentration using the Langmuir–Blodgett trough as mentioned before. The motion of the Teflon barriers allows a decrease of the air/water interface area A, inducing a compression of the deposited layer. The velocity of the barriers is fixed at 40 mm min⁻¹ avoiding any potential surfactant dissolution (compound 3 is hardly soluble in water). The vertical force sensor provides access to the surface pressure Π = γ₀ − γ of the interface, with γ₀ the surface tension of the naked water/air interface and γ the surface tension of the interface with the adsorbed surfactant layer. The surface pressure is reported as a function of the area per surfactant molecule, or molecular area, noted a_s, which is a_s = A/(nN_A), with n the amount of surfactants deposited at the interface and N_A the Avogadro number (Fig. 5).

2.3.3 Spectroscopic ellipsometry on liquid interfaces. The optical properties of the surfactant layer at the air/water interface are scrutinized with spectroscopic ellipsometry. Light with different polarization is reflected on the air/water interface with a given angle of incidence (typically 65° in our case), for a wide wavelength spectrum in the range of 200–1000 nm. The apparatus (Woollam M-2000 Spectroscopic Ellipsometry) measures the ratio between the reflection coefficient of the light polarized in the incident plane, noted ρ_P, versus the one when the light is polarized perpendicularly to the incident plane noted ρ_S. This ratio is a complex number that is written as:and the observables are either Ψ and Δ quantifying respectively the amplitude and phase change of this ratio, or the real and imaginary components ρ and [small rho, Greek, tilde]. The values of this complex ratio depend on the angle of incidence of the light, the thickness of the deposited layer and the complex optical index (namely the refractive index and the extinction coefficient) of the layer as a function of the wavelength through a nonlinear relation. Obtaining the properties of the layer from the ellipsometry measurements requires a model and data inversion procedure. Such procedure is developed on thin solid layer deposited on a solid substrate^18,19 or in the commercial software from Woollam. However, it is still challenging to perform it on liquid interfaces where roughness, fluctuations or heterogeneities must be considered.^20–22 Moreover, when considering a monolayer of molecular thickness, large uncertainties remain during the inversion and no quantitative result can be obtained.²³ Taking into account these effects is out of the scope of this study, so we will only analyse here directly the evolution of the raw ellipsometry data.

The ellipsometry and Langmuir trough techniques are coupled, as depicted in Fig. 1, to discuss the evolution of the optical properties (namely Ψ and Δ) in relation with the adsorption isotherms (namely surface pressure and surface concentration).

3 Surfactant synthesis and bulk characterizations

3.1 Surfactant synthesis

The synthetic route to the amphiphilic quaterthiophene, noted 3, is described in Fig. 2. Compound 3 is prepared in two steps starting from precursor 1. First, the etherification condensation reaction of precursor 1 with (5′-Bromo-2,2′-bithiophen-5-yl)methanol in THF at room temperature (RT) for 24 hours produces compound 2 in 66% yield. Finally, the quaterthiophene (compound 3) is synthesized in 87% yield by a palladium-catalyzed Stille cross-coupling reaction between 5-trimethylstannyl-2,2′-bithiophene and compound 2. The full reaction protocol and characterizations of compound 3 are detailed in Section 2.1.3. Compounds 2 and 3 have been fully characterized by ¹H NMR, ¹³C{¹H} NMR, and high-resolution ESI-MS (see Appendix 1).

Fig. 2 Synthesis route towards amphiphilic quaterthiophene – compound 3.

3.2 Optical properties and aggregation behavior

To determine the critical micellar concentration (CMC) of the obtained amphiphilic quaterthiophene (compound 3) in water, the intensity of scattered light is measured at various concentrations. For concentrations below the CMC, the intensity of scattered light is very low and stable. However, exceeding the CMC results in an abrupt increase in scattered light intensity due to the formation of surfactant aggregates at these concentrations. This phenomenon is based on the principle that large particles scatter light much more efficiently than small molecules. According to this, the CMC value of compound 3 is found to be of the order of 0.008 mM as depicted in Appendix 1 (see Fig. 15). This value is rather low compared to side-chain functionalized oligothiophenes,^24,25 probably due to the strong hydrophobic character brought by the presence of the non-decorated four thiophene units.

The morphology of the aggregates formed by the amphiphilic quaterthiophene (compound 3) is then examined using cryo-transmission electron microscopy (cryo-TEM). Typical morphologies obtained for samples prepared in deionized water at 0.05 mM, a concentration 10 times higher than the CMC, are depicted in Fig. 3. Large vesicular assemblies, generally unilamellar, with diameters ranging from 63–657 nm and an average diameter of 159 nm, are observed, as previously reported¹³ for a quaterthiophene bearing a triethylene glycol polar chain in position 2. The size distribution histogram is reported in Appendix 1, Fig. 14. The objects gradually merged over time, forming large and complex structures that became less visible as the measurements progressed.

Fig. 3 Cryo-TEM of amphiphilic quaterthiophene 3 in water at 0.05 mM. Scale bar is 200 nm.

The UV-visible absorption spectra of the compound are measured in DMSO, water and chloroform as shown in Fig. 4. The UV-visible absorption spectrum of compound 3 in DMSO displays a broad band lacking distinct fine structures at λ_max = 404 nm, indicating the presence of multiple conformers in solution. This absorption is attributed to a twisted anti conformation, deviating 30° from planarity, similar to what is observed and calculated for other unsubstituted oligothiophenes.^26,27 A similar absorption profile is observed in chloroform. In water, a blue-shifted absorption of λ_max = 357 nm is noticed compared to the absorption in DMSO, which may be due to the aggregation order of the oligothiophene chromophores in such solvent, namely formation of H-aggregates as already found for oligothiophenes with linear end groups.^13,28

Fig. 4 UV-visible absorption spectra of compound 3 at 0.05 mM in DMSO (dashed black line), 0.05 mM in water (blue line), and at 0.92 mM in chloroform (red line).

4 Aggregation properties at interfaces

4.1 Langmuir trough experiments

4.1.1 Results. The evolution of the surface pressure as a function of molecular area shows some specific features (Fig. 5). First, at large molecular area, the surface pressure remains close to zero, experiencing a gradual increase during compression. Then, a larger increase is observed, a signature of interactions between the molecules at the interface, up to reaching a small plateau (or kink) for a surface pressure around 10 mN m⁻¹. Finally, a very sharp increase is observed up to 35 mN m⁻¹, followed by a rapid collapse at very large compression (small molecular area). Two main regions can then be distinguished: one at large surface area or small surface pressure (below 10 mN m⁻¹), before the kink, defined here as regime 1, and one at small molecular area or large surface pressure defined as regime 2. A final regime at very large compression, where the surface pressure decreases, is a signature of the collapse of the monolayer, well-documented in the literature.²⁹ Compression/decompression cycles of the interfacial layer within regime 1 elicit a high degree of reproducibility, whereas some hysteresis in the isotherm appears if compression is done at surface area smaller than the one of the kink. A similar shape of adsorption isotherm was observed on a quaterthiophene functionalized with an ethylene glycol chain.¹³ A phase transition also appears but at smaller molecular area and higher surface pressure probably due to the smaller steric hindrance of the ethylene glycol groups. Moreover, the quaterthiophene surfactant synthesized in the current work appears to be more stable at interface as we can perform several compression/decompression cycles without evolution of the adsorption isotherm in the regime 1.

Fig. 5 Evolution of the surface pressure Π as a function of the molecular area for compound 3 at the air/water interface at 21 °C. The evolution is obtained from different sets of experiments, where molecular area is corrected. Data are fitted by a combination of eqn (3) and (4), with parameters given in Table 1. Inset: Same data, with colored circles that corresponds to the point at which ellipsometry measurements were performed (Fig. 6).

4.1.2 Discussion. To understand the surfactant behavior at interfaces in the two regimes, and to extract the relevant interaction parameters, we will use equations of state known for Langmuir monolayers,³⁰ but including two-dimensional phase transitions.³¹

For that, we first assume that regime 1 corresponds to a classical compressible monolayer, using a modified Volmer model.^30,32,33 This model is compatible with the high reproducibility of the compression/decompression cycles of the interfacial layer in this regime, consistent with the absence of strong intermolecular interactions. This model assumes that the surfactants can be considered as hard disks, with no long-range interactions. These hypotheses are softened, by introducing a 2D monolayer compressibility ε, which modifies the excluded area per molecule as a function of the surface pressure, as

α = α₀(1 − εΠ), (2)

with α₀ the initial excluded area per molecule, and Π the surface pressure. An additional cohesion pressure Π* accounting for molecular interactions in the gaseous state is also introduced. Within these hypotheses, the equation of state then reads

This regime is valid at large surface area, until the above-mentioned kink is observed, at a critical pressure noted Π_c. This kink is the signature of a phase transition that we attribute to the formation of aggregates at interfaces.^13,31

In regime 2, the pressure–area isotherm can be modeled by an equation of state that considers aggregation of the molecules,³¹ described in Appendix 2. Single surfactant molecules are then in equilibrium with aggregates of n surfactants. In this case, the equation of states reads:

where:andε_a is the normalized difference in the area occupied by n single molecules and one aggregate (ε_a > 0 means that one aggregate occupies a smaller area than n free molecules), and is a pressure that accounts for interactions between the aggregates at low surface area. Note that and Π* have different values, as they account for distinct phenomena.

Such a refined model, using both eqn (3) and (4) is required to fit all the data, and a satisfying agreement is achieved (see Fig. 5). The fitting procedure is detailed in Appendix 2. The fitting parameters are given in Table 1 and discussed below.

Table 1 Parameters used to fit data of Fig. 5, using eqn (3) and (4) and associated error estimations of these parameters

Regime 1	α 0 (Å^2)	ε (m N^−1)	Π* (mN m^−1)
	99.3 ± 0.1	53.4 ± 3	−0.947 ± 0.003
Kink point	A c (Å^2)	Π c (mN m^−1)
	85.9 ± 0.5	9.79 ± 0.16
Regime 2	ε a
	0.622 ± 0.003	−40.9 ± 2.9

---

The molecular area occupied by one monomer α₀ is found to be around 1 nm², which can be compared to the size of the hydrophobic part of compound 3. Compound 3 hydrophobic part consists in four thiophenes' group, with sizes around 0.383 nm,³⁴ and three C–C bonds, of length 0.154 nm. A rough estimation of this area is then given by A = (0.154 × 3 + 0.383 × 4) × 0.383 nm², which results in 0.76 nm², very comparable to α₀, though a bit smaller. It shows that when they are not interacting, single molecules tend to be planar at the interface. In this dilute regime, the interactions between monomers are very small, as shown by the very small value of Π*. The compression factor ε is in the range of commonly observed factors with these types of insoluble molecules.³³ The critical area at which aggregation occurs A_c is a little bit less than the area of one monomer α₀, showing that a change of conformation of the molecule at the interface must occur before aggregation. This is confirmed by the fact that a compression factor needs to be introduced in the Volmer modified regime.

In the aggregated regime, the aggregates are more compact than the free monomers, as shown by the value of ε_a, which is larger than 0. This compaction is quite important (ε_a ≃ 0.6) demonstrating a strong reorganization of the molecules at interface, a signature of specific oriented interactions, among which electronic delocalization or so-called π–π interactions are good candidates. The typical area per molecule in the aggregate is ε_a/n = α₀(1 − ε_a) ≈ 37.5 Ų (corresponding to the area at which the collapse appears on Fig. 5): it is sligthly larger than the largest measured cross section of one thiophene group,¹³ probably due to the presence of the three ethylene glycol chains. It tends to confirm that the electronic surfactant does not have all its thiophene group along the interface in regime 2.

To confirm these findings at a molecular scale, we probe the surface by spectrometric ellipsometry, which gives some qualitative information of the optical response of the monolayers, and can be correlated to the absorption band of the amphiphilic quaterthiophene.

4.2 Spectroscopic ellipsometry

4.2.1 Results. The optical properties can in turn provide indications on aggregation and may reveal a potential electronic delocalization at the interface, which can then be discussed regarding the conductive properties of the surfactant–laden interface.

Fig. 6 reports the spectra of the amplitude Ψ (top) and phase Δ (bottom) performed on the air/water interface covered by compound 3 at different stages of the surface compression. For a non-absorbing compound at the interface, only variations of Δ are expected. A clear signature of the adsorption of compound 3 is observed both on Ψ and Δ. Both the amplitude of the bands of the spectra and their shape change with the surface compression.

Fig. 6 Spectroscopic ellipsometry measurements performed at different stage of the surface compression. The blue curves are performed in the dilute regime (regime 1), the red ones in the aggregated regime (regime 2), and the gray ones when the monolayer collapses. The curve color corresponds to the point colors on insert of Fig. 5.

4.2.2 Discussion. In the presence of π−π interactions and electronic delocalization at the interface, we expect a wavelength shift and/or enlargement of some of the absorption peaks of the surfactant layer. These shifts are due to the degeneracy of an energy level, where one of the degenerated energy levels is forbidden due to symmetry.³⁵

At Brewster angle, for surfactants that do not interact with light, the ellipticity coefficient [small rho, Greek, tilde] is a signature of surfactant adsorption: it becomes more and more negative when surfactants get adsorbed at air/water interface as the hydrocarbon chain have a negative contribution in this parameter.³⁶ A direct link between this coefficient and the surfactant concentration is not possible without independent calibration. However, it appears that for single chain cationic surfactants, [small rho, Greek, tilde] evolves linearly with the surface concentration.³⁶ We adopt the same approach even if we do not work at Brewster angle to discuss the ellipsometry data collected. We then first analyse the signature of surfactant adsorption far from resonance (absorption peaks) i.e. at 620 nm for example: the evolution of the ellipsometry ratio [small rho, Greek, tilde] is plotted as a function of the surface concentration Γ = 1/a_s on Fig. 7, top. At small molecular area (regime 1 on Fig. 5), one recovers a linear decrease of [small rho, Greek, tilde] as a function of the surface concentration. This is in agreement with observations of the adsorption isotherms: the surfactants behave as independent molecules, with almost no interaction.

Fig. 7 Evolution of the ellipticity coefficient with the surface concentration respectively (top) far from adsorption band at 620 nm and (bottom) at the adsorption band in water i.e. at 404 nm. The vertical grey line corresponds is equivalent to A_c (see Table 1), i.e. the beginning of the interacting-regime identified on the adsorption isotherm.

At the molecular area A_c, where there is a kink in the adsorption isotherm, the slope of the ellipticity as a function of the surface concentration changes: this is also a signature that the surfactant interaction begins. A new linear regime is observed, which is a signature of a change in the effective optical index of these interacting entities. The collapse regime identified in the adsorption isotherm is confirmed by the optical signal: there is no more evolution of the ellipticity ratio indicating that there is no more evolution of the surface concentration.

Interestingly, the behavior close to the absorption band of the surfactant dispersed in chloroform, namely 404 nm, is very different, as illustrated in Fig. 7, bottom. The linear evolution of the ellipticity ratio is recovered in the dilute regime but the intermediate regime is not monotonous. Looking to the spectral signature of the ellipsometry data shown in Fig. 6, one can observe that the dip in Ψ around 404 nm progressively shifts and transforms into a peak at shorter wavelengths, typically around 350 nm, aligning closely with the absorption peak observed when the surfactant is dispersed in bulk water as shown in Fig. 4. If a direct comparison between the UV-vis absorption spectra and the ellipsometry measurements is not possible, this trend tends to highlight a shift in the absorption band under compression. Simultaneously, a new peak appears around 275 nm probably due to the appearance of a new band of adsorption. All these modifications indicate once again the appearance of aggregates on the air/water interface, but also prove the electronic nature of the interactions.

5 Conclusion

In this work, we describe the synthesis of an amphiphilic conjugated molecule possessing aggregation properties at the interface. To ensure amphiphilic features, we decorated a quaterthiophene that should allow intermolecular electronic delocalization, with three ethylene glycol chains, that should ensure its amphihilic properties. The characterization of this compound demonstrates its bulk aggregation behavior in water. Signature of the aggregation process at the interface has also been observed thanks to adsorption isotherm, in which two distinct regimes can be identified, a signature of a 2D phase transition. A model that considers the formation of aggregates closely matches the data, and an analysis of the fitting parameters is in good agreement with the fact that specific directional interactions exist between the molecules in the aggregates, to allow compaction of the molecules. This aggregation is also confirmed by optical characterization at the interface, thanks to ellipsometric spectroscopy. Even if this technique does not allow us to get the direct spectroscopic properties of the surfactant monolayer, analysis of the signal intensity at various wavelengths shows specific transitions when aggregation occurs (peak shift), which are compatible with electronic delocalization due to π−π interactions.

This work offers many perspectives in the design and characterization of functional surfactants at interfaces. Various similar molecules, differing in the thiophene backbone or the length of ethylene glycol chains, can be optimized to get the best molecular assembly in the aggregates. Spectroscopic ellipsometry is a powerful tool to characterize spectroscopic properties of the interface, but also requires fundamental theoretical work to analyze the signal to get optical index of the monolayer, taking into account the presence of interface fluctuations. Finally, interfacial conductivity measurements are required to probe the real efficiency of these functional molecules.

Author contributions

C. Bae: methodology, investigation, formal analysis, visulaization, writing – review & editing. K. Narayanaswamy: methodology, investigation. H. Idriss: investigation. L. Poyac: investigation, writing – review & editing, validation. I. Sen: project administration, funding acquisition. S. Richeter: formal analysis, supervision. S. Clément: conceptualization, formal analysis, supervision, writing – review & editing, project administration, funding acquisition. A.-L. Biance: conceptualization, formal analysis, methodology, supervision, writing – original draft, project administration, funding acquisition. S. Albert: investigation, formal analysis, methodology, visualization. O. Bonhomme: conceptualization, formal analysis, methodology, supervision, writing – original draft, project administration.

Data availability

Data, including Ellipsometry, Langmuir trough and UV Vis spectrum, and python codes for Langmuir trough fitting are available at https://doi.org/10.5281/zenodo.15131079.

Conflicts of interest

There are no conflicts to declare.

Appendices

Appendix 1 Surfactant synthesis: compounds characterizations

¹H NMR spectrum, ¹³C{¹H} NMR spectrum and high resolution ESI-TOF (positive mode) mass spectrum of compound 2 are reported in Fig. 8, 9 and 10 respectively. Similarly, ¹H NMR and ¹³C{¹H} NMR spectra and high resolution ESI-TOF (positive mode) mass spectrum of compound 3 are reported in Fig. 11–13.

Fig. 8 Full (top) and partial (bottom) ¹H NMR spectrum (400 MHz, CDCl₃) of compound 2.

Fig. 9 ¹³C{¹H} NMR spectrum (125 MHz, CDCl₃) of compound 2.

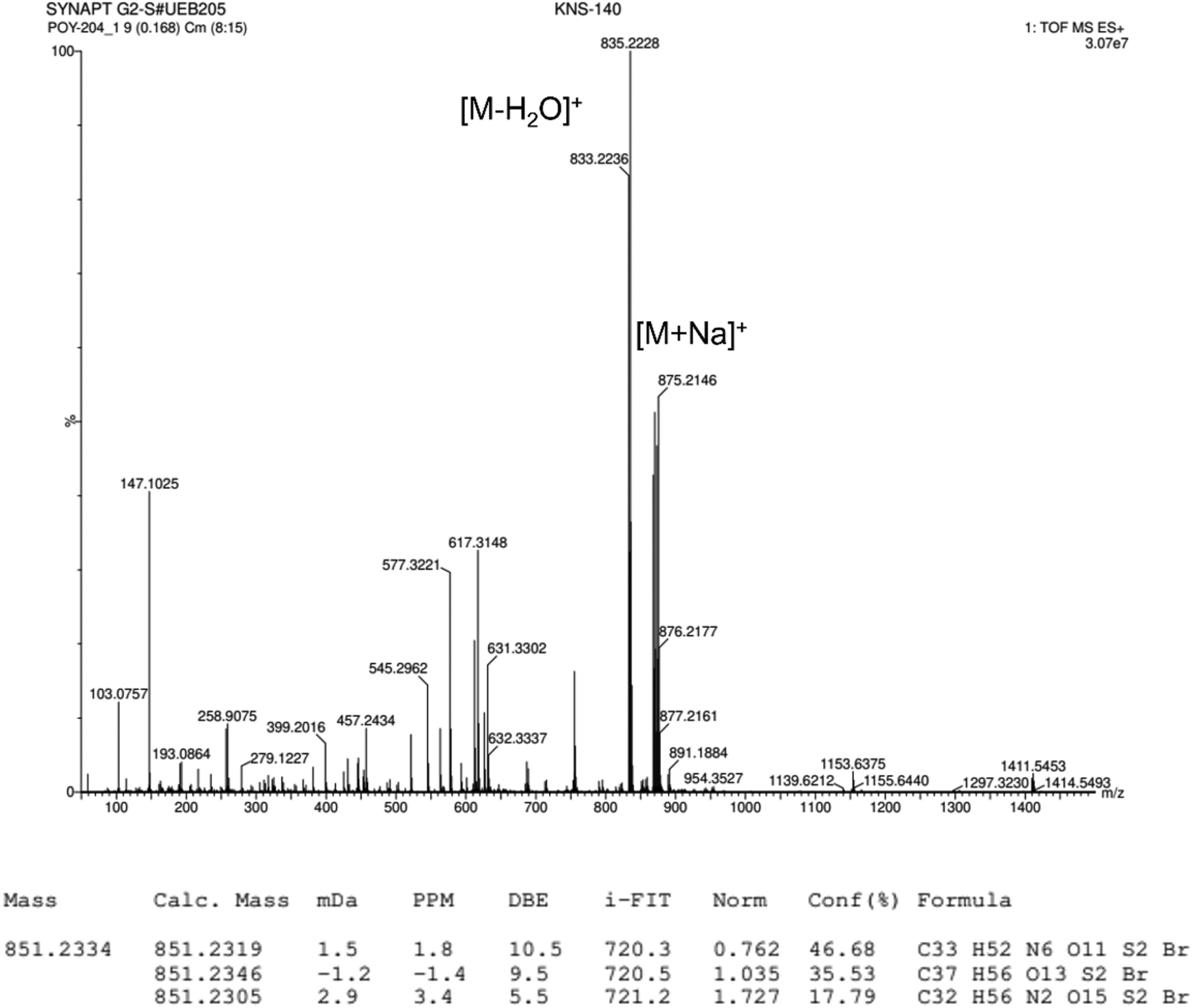

Fig. 10 High resolution ESI-TOF (positive mode) mass spectrum of compound 2.

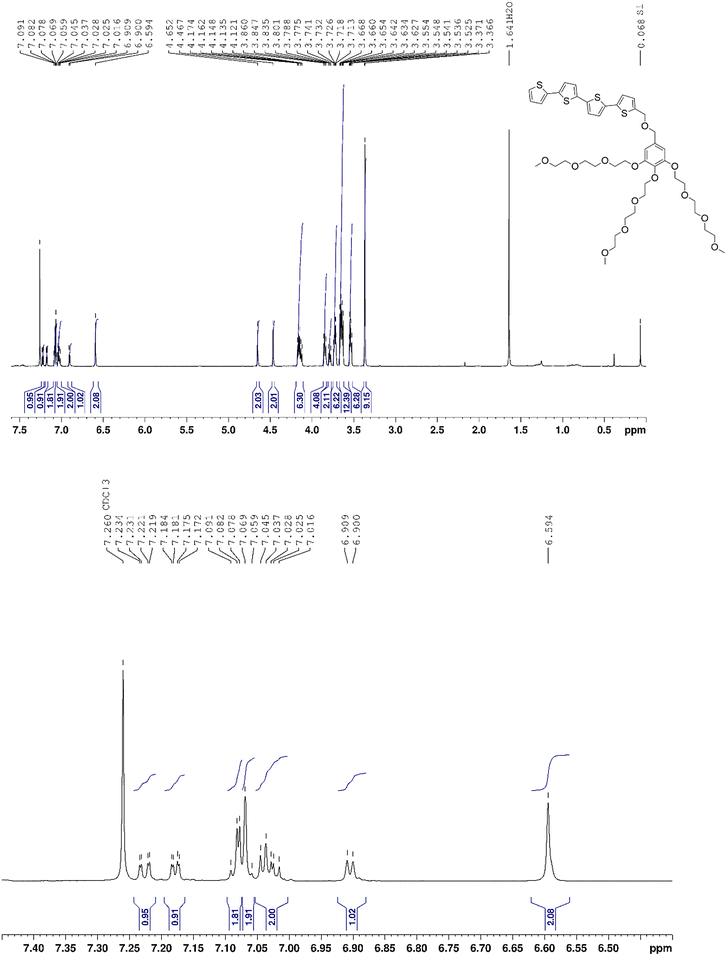

Fig. 11 Full (top) and partial (bottom) ¹H NMR spectrum (400 MHz, CDCl₃) of compound 3.

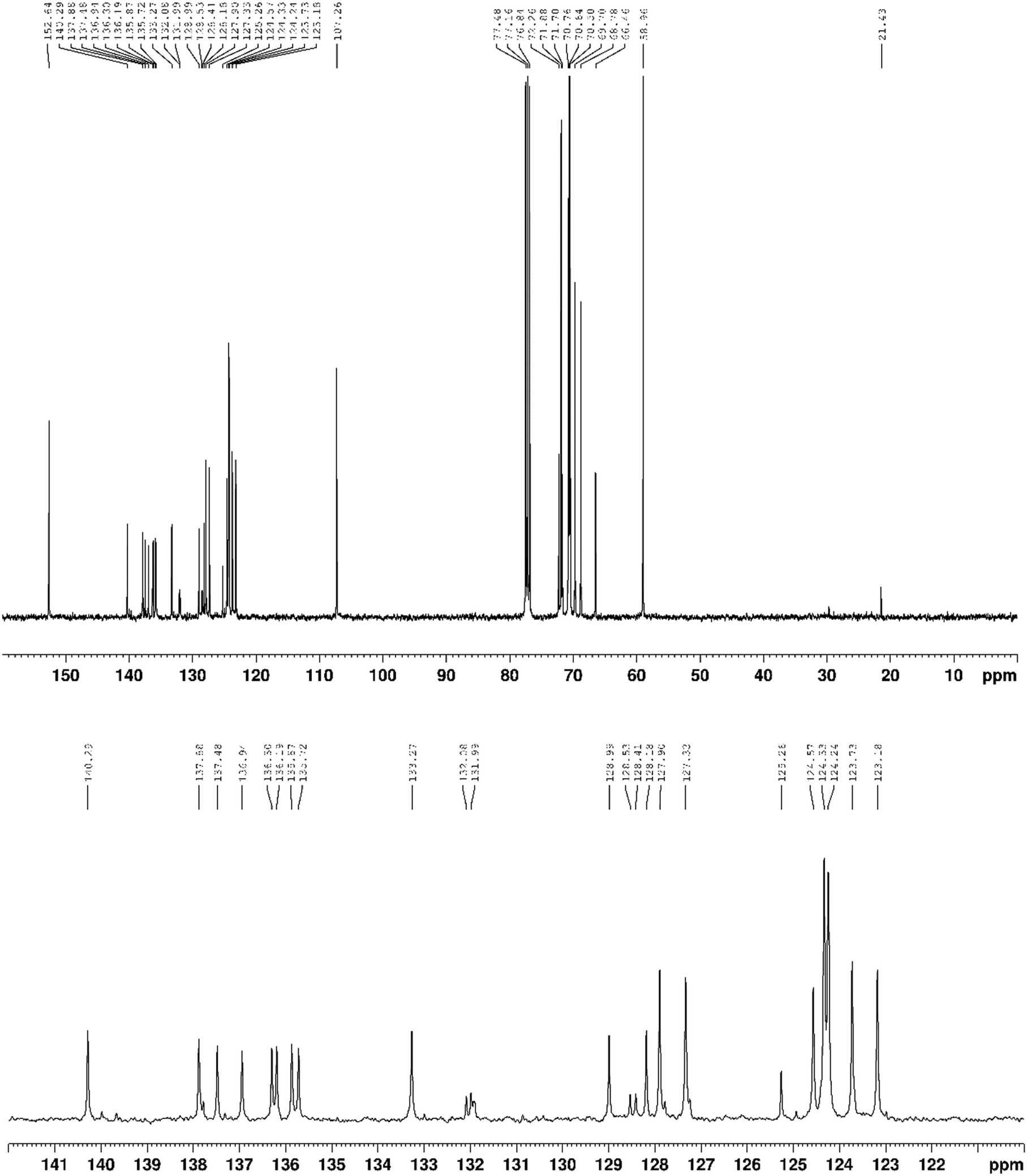

Fig. 12 ¹³C{¹H} NMR spectrum (101 MHz, CDCl₃) of compound 3.

Fig. 13 High-resolution ESI-TOF (positive mode) mass spectra (top), theorical and experimental isotopic profiles (bottom) of compound 3.

Appendix 2 Equation of state for the aggregated phase

We consider that two phases coexist at the interface in equilibrium: one phase, with single surfactant molecules, in coexistence with some 2D monodisperse aggregates of n surfactant molecules. The chemical potential of each component at interface reads³⁷

μ_i = μ⁰_i + k_BT ln f_ix_i − γα_i, (7)

with f_i the activity coefficient, x_i the molecular fraction, α_i the partial molecular area and γ the surface tension. The adsorption Gibbs equation for our system then reads

dΠ = Γ₁dμ₁ + Γ_adμ_a, (8)

with Γ₁ and Γ_a the adsorption amount of single surfactants and aggregates respectively. Assuming that the activity coefficients are constant, these equations result in the generalized Volmer's equation that readswith a cohesion pressure, α₀ the molecular area of a monomer and α_a the molecular area of the aggregate.

Fig. 14 Size distribution histograms of the amphiphilic quaterthiophene 3 obtained from the cryo-TEM images analysis.

Fig. 15 Intensity of scattered light (in kilo counts per second) obtained for various concentrations of 3 prepared in deionized water, in a smi-log-plot. Lines are guide for the eyes.

Considering that the chemical potential of the aggregates is equal to the one of the monomers (because they are at equilibrium), one can first link the adsorption amount of monomers and aggregates such as:

Γ_a = Γ₁(Γ₁/Γ_T)ⁿ⁻¹, (10)

where Γ_T is the critical adsorption value for 2D aggregation and the associated critical area A_T (A_T = 1/Γ_T).

We also assume that monomers and aggregates are in equilibrium, so the local concentration of monomers is given by Γ_T. In the case of a small numbers of aggregates, this results in Γ₁ ≃ Γ_T. However, when the number of aggregates is larger, the surface free of aggregates is reduced by a factor β:

Finally, we consider that monomers in aggregates can occupy a different surface compared with the one occupied by the free monomer. We thus define a parameter ε_a such as:

α_a = nα₀(1 − ε_a), (12)

where α₀ is the molecular area of a monomer (linked to the surface concentration in monomer Γ₁ through α₀ = 1/Γ₁). ε_a > 0 indicates that the surfactants occupy less space in the aggregate than in the monomer phase.

Knowing that the physically observable value of the area occupied by 1 mole of monomers in the surface layer a_s can be defined as: a_s = 1/Γ_s where Γ_s = Γ₁ + nΓ_a, one can obtain:

More information can be obtained on A_t from eqn (7): the aggregation equilibrium nμ^s₁ = μ^s_n results in

with K_n = exp{((nμ⁰₁ − μ⁰_n − γ₀nε_aα₀)/k_BT)} the constant of aggregation equilibrium. With eqn (10), we then find that

Aⁿ⁻¹_T = K_n exp{(Πnε_aα₀/k_BT)}, (15)

which can be simplified in

A_T(Π) = A_c exp{[(Π − Π_c)ε_aα₀/k_BT]}, (16)

when applying the previous equation on the “kink” point of the adsorption isotherm (A_c; Π_c), namely the pressure and area at which aggregation begins.

Combining eqn (13) and (16) results in eqn (4) of the main text. These quantities can be used to fit the Π–a_s isotherms.

The experimental isotherm was fitted on the form a_S = f(Π) to ensure a good convergence of the fitting procedure. For that, the fitting function was defined by part. For pressure below Π_c, the critical pressure indicated on Fig. 5, the equation a_S = f(Π) derived from eqn (3) was used. For pressure above Π_c, the equation a_S = f(Π) derived from eqn (4) was used. The two functions are computed such as they both have a pressure equal to Π_c when the molecular is equal to A_c. No limitation was applied for the different fit parameters. Standard Python package SciPy and corresponding curvefit function was used for the procedure.
