Knotting and adsorption of end-grafted active polymers

Abstract

The adsorption of end-grafted active polymers is significantly influenced by the presence of knots in the polymer. In this study, the adsorption of end-grafted active polymers composed of an active head and an end-grafted passive chain is investigated using Langevin dynamics simulations. The relationship between knots and adsorption is checked by varying the rotational inertia J of the active head. The effect of the active head becomes more pronounced at larger J as the rotational persistence time of the active force on the active head is increased by increasing J. As a result, the adsorption of the active polymer is hindered and the critical surface attraction strength is increased with rising J. The results are primarily attributed to an increased probability of polymer knots P_knot with increasing J. The presence of knots leads to an obvious decrease in the number of adsorbed monomers. Furthermore, we find that the knotting process is slower than the adsorption and the influence of the knotting on the adsorption is relatively weaker than the surface attraction strength. Our simulation results reveal that the increase in the rotational persistence time can increase the probability of knotting and thus weaken the adsorption of active polymer.

---

1. Introduction

When a polymer chain is located near an attractive surface, it will be adsorbed on the surface at a sufficiently large surface attraction strength or a sufficiently low temperature.^1,2 Critical adsorption is a fundamental phenomenon in polymer science, characterized by a sharp change in the number of adsorbed monomers on a solid surface.¹ The critical adsorption is also accompanied by a change in polymer conformation.² This unique property is crucial for understanding and developing new materials for various applications, such as drug delivery, environmental remediation, and advanced functional coatings.^3–5 It is crucial to understand the physical factors that affect the adsorption of polymer chains.^6–8

Active matter, which possesses the capability to convert chemical energy or other forms of energy into mechanical motion, has garnered significant attention due to unique functionality and potential applications.^9–14 Biopolymers such as actin filaments, bacterial motility proteins, and microtubules can be viewed as active polymers constructed of active units.^15,16 Some biological systems, such as spermatozoa, bacilli, and spirochetes, have elongated organisms and can move with the help of active parties in their bodies.¹⁷ Active polymers have been an important model for studying the behaviors of active biopolymers.^18–20 In experiments, active polymers can be obtained by linking passive polymer-like DNAs or proteins to catalytic Janus particles²¹ or linking self-propelling centimeter-sized disks by rubber chains or springs.^22,23 Active polymers are of considerable interest due to their ability to adapt to environmental changes, perform biochemical reactions, and respond to external stimuli.^10,24–26 Stimuli-responsive active polymers are regarded as smart polymers with potential applications.

Active matter exhibits a wide range of emergent non-equilibrium phenomena, therefore theoretical studies of which often require computer simulations.^27,28 The active polymer models are designed to be composed wholly or partially of active units. The active forces of active units can be either independent or dependent, with the direction of the active forces either random or aligned along the tangential direction.^10,29,30 Recently, active polymer models with an active particle at the head were also proposed.^17,31 Enhanced diffusion was observed for all kinds of active polymer models.^11,19,25 Active polymer models were also proposed by introducing local active fluctuations.²⁶ Active polymers with random, independent active forces can be even regarded as passive polymers in a hotter environment as the active forces provide an extra fluctuation.³² The rotation of the active force is characterized by the rotational persistence time τ_R. The diffusion is enhanced by increasing τ_R of active particles.^33,34 In other words, the increase in τ_R enforces the effect of the active force.^33,35,36 Meanwhile, the adsorption of active polymers with random or tangential activity was influenced by the active force.^37,38 It is interesting to explore the effects of the non-equilibrium dynamics of active matter on adsorption.

The role of the active force on the adsorption was studied for a special active polymer model composed of an active head and a sequential end-grafted passive chain.³⁹ The adsorption of the active polymer is hindered, and the effect of the active force increases proportionally to the square of the active force. The obstruction of the adsorption is accompanied by the occurrence of knotting in the active polymer.³⁹ It was suggested that the knotting was dependent on τ_R of the active head as τ_R increased with increasing the active force.³⁹ So, it is worthwhile to reveal the effect of τ_R on the adsorption while keeping the active force constant.

In this study, the effect of the rotational inertia on the critical adsorption of end-grafted active polymers on an attractive surface is investigated using Langevin dynamics (LD) simulations. Increasing the rotational inertia of the active head, τ_R is increased, that enhances the effect of the active force. We find that increasing the rotational inertia inhibits the adsorption of active polymers and discover that the inhibition of adsorption stemmed from the increase of knotted active polymers. The presence of knots leads to a significant decrease in the number of adsorbed monomers. As a result, the critical surface attraction strength is raised by increasing the rotational inertia.

2. Model and simulation method

Detailed models and simulation methods are described in our previous paper.³⁹ Here we only give a brief description. A standard bead-spring polymer model is adopted.⁴⁰ The active polymer of length N consists of one active Langevin particle (labeled 1) at the head and an end-grafted passive flexible polymer with N − 1 passive beads (labeled from 2 to N). Bead-bead pairwise interactions are a repulsive Weeks–Chandler–Anderson (WCA) potential with interaction strength ε. Bonded beads in the passive polymer experience a standard finitely extensible non-linear elastic (FENE) potential with elastic coefficient K_F = 30ε/σ² and maximum bond length R₀ = 1.5σ. The active head experiences a self-propulsion force F_a = F_an. Here, n is a unit vector that points from the center of the active bead as shown in Fig. S1 in the ESI.† The active head and passive beads both have a diameter of σ and a mass of m. The terminal passive bead, labeled N, is grafted to an attractive surface positioned at z = 0. Periodic boundary conditions are adopted along the x and y directions. The polymer–surface interaction is described by the Lenard-Jones (LJ) 9-3 potential⁴¹Here ε_PS represents the surface attraction strength, z is the distance of beads from the surface, and U_c is used to shift the value of LJ potential to 0 at z = z_c. In the simulations, we set z_c = 2.5σ. The minimum of the potential is about −ε_PS at z = 0.8584σ.

A flexible polymer model is adopted, that is, bending and torsional energy aren't considered. The influence of bending energy on the adsorption of non-active polymer chains was previously studied. It was found that bending energy shifts the critical adsorption point, but the physical mechanism remains the same and can be explained by the energy–entropy balance.⁴² However, when the polymer chain's contour length greatly exceeds the persistence length, the polymer with bending energy behaves like a flexible polymer. So, the flexible polymer is the most basic polymer model.

Our simulations employ implicit solvents and ignore hydrodynamic interactions. The translational movement of the active head and passive beads is described by the translational Langevin equation^33,43

Here v is the velocity of the bead and γ is the friction coefficient. D_t = k_BT/γ is the translational diffusion constant of a single bead with k_B the Boltzmann constant and T the temperature. The Gaussian white noise ξ is a 3D vector with zero mean and second moment 〈ξ_i(t)·ξ_j(t′)〉 = 3δ_ijδ(t − t′), where i and j represent the index of beads. −∇U denotes all conservative forces including the interactions between beads and the interactions between beads and the surface.

The dynamics of the direction of the active force, n, is determined by^33,43

ṅ = ω × n. (3)

Here, ω is the angular velocity of the active head. The variation of ω is described by the rotational Langevin equation^33,43Here J is the rotational inertia of the active head. Similar to the translational Langevin dynamic equation, −γ_rω denotes the resistance torque, and the random noise ξ_r is also a Gaussian white noise which has 〈ξ_r(t)〉 = 0 and 〈ξ_r(t)·ξ_r(t′)〉 = 3δ(t − t′). D_r = k_BT/γ_r is the rotational diffusion constant of the active head. The relationship between D_r and D_t is D_t/D_r = σ²/3 according to Navier–Stokes equations.⁴⁴ Here the torque M is caused by the eccentricity of the FENE force between the passive polymer block and the active head. Increasing J will reduce the rotation of the active head so that the direction of the active force remains unaltered for an extended period. Consequently, the efficacy of the active force will be augmented with increasing J. However, if F_a = 0, the effect of J on the adsorption disappears.

In this work, the restricted rotating active polymer (RRAP)³¹ is adopted for the end-grafted active polymer. In the RRAP chain, the first passive bead is connected to the edge of the active head opposite the direction of the active force. The FENE potential⁴⁵

is used for this specific bond with bond length b. Here K_F = 30ε/σ² is the elastic coefficient and R₀ = 1.2σ is the maximum bond length. When this force does not pass through the center of the active head (shown in Fig. S1 in the ESI†), the active head is subjected to a torque M.³¹ As a result, the rotation angle of the active head is thus restricted.

The dynamics of the polymer are achieved by using the LD simulation method with the velocity-Verlet algorithm. Standard LJ units are used to express the physical quantities involved in our system. We set the mass and size of polymer monomers as unity, i.e., m = σ ≡ 1. And the bead–bead pairwise interaction strength is also set as unity, ε ≡ 1. The unit of time is τ₀ = (mσ²/ε)^1/2. The time step for the velocity-Verlet algorithm is set as 0.005τ₀. Simulations are performed at the temperature k_BT = ε = 1. We set the friction coefficient γ = 1, so we have D_t = 1 and D_t/D_r = 1/3.

The LD simulation process for the end-grafted active polymer chains is described in the following two main steps. (1) Initial system: generating an end-grafted active polymer chain by a step-by-step growing method. The terminal passive bead is fixed at z = 0.8584 above the surface, which corresponds to the minimum of the surface potential. The initial direction of the active force, n, is set arbitrarily from the center of the first passive bead to that of the active head. The initial conformation of the active polymer chain is coil-like; (2) simulated annealing: increasing the surface attraction strength ε_PS slowly from 0.05 with a non-adsorbed state to 3 with a strongly adsorbed state. At each ε_PS, we run for a period of t_eq for the polymer chains to reach a steady state and t_sta to obtain the statistical properties of the polymer chains. The final polymer conformation at the previous ε_PS is used as the initial polymer conformation of the next ε_PS. Our simulation results are averaged over 2000 independent samples. The statistical errors are quite small as they are typically less than 2%.

3. Results and discussion

3.1. Adsorption of active polymer

The adsorption of the active polymer of length N = 65 is simulated at constant temperature T = 1. With the increase in the surface attraction strength ε_PS, the mean number of adsorbed monomers, 〈M〉, increases. A monomer located close to the surface with a distance smaller than 1.22σ is defined as an adsorbed monomer. At z = 1.22σ, the attraction energy is about −0.5ε_PS. However, the grafted monomer is not counted in 〈M〉. Simulations are carried out for different rotational inertias from J = 0.1 to 50. The value of active force F_a = 5 is used for most simulations. It was found that the active force of F_a = 5 affects the adsorption of the active polymer chain obviously.³⁹ In the study of the adsorption of the active polymer, the simulated annealing process is adopted by slowly increasing ε_PS from 0.05 to 3.

For the J = 0.1 case, simulation results show that it is easy for the active polymer to reach a steady state. We have compared the results for different simulation times with t_sta = 5000 and 20 000, respectively, for every ε_PS. While t_eq = 2000 is fixed. Fig. 1 shows the variation of the fraction of adsorbed monomers φ = 〈M〉/N with ε_PS at F_a = 5. We find the simulation results are roughly independent of t_sta. This implies that the simulation times t_eq = 2000 and t_sta = 5000 are already sufficiently long for J = 0.1. The increase in φ with increasing ε_PS is consistent with the snapshots shown in Fig. 1. More beads are adsorbed at large ε_PS. However, at ε_PS = 3, a few beads adjacent to the active heads are desorbed due to the active force.

Fig. 1 Plots of the fraction of adsorbed monomers φ versus the surface attraction strength ε_PS for the active polymer chains with different simulation time t_sta. Polymer length N = 65, rotational inertia J = 0.1, and active force F_a = 5. Two insets show snapshots of the active polymer at ε_PS = 0.5 and 3. Red, tan, blue, and pink beads represent the active head, grafted bead, adsorbed beads, and non-adsorbed beads, respectively. The grey plane represents the attraction surface. The same symbols are used for the snapshots in Fig. 2 and 6.

Similar simulations are performed for the J = 50 case with t_sta = 5000 and 20 000 and with the same t_eq = 2000. Simulation results of φ versus ε_PS are presented in Fig. 2. The increase in φ with increasing ε_PS is also consistent with the snapshots shown in Fig. 2. However, the values of φ are dependent on t_sta, indicating that the time for reaching a steady state would be longer than the present simulation time for the large J case. The reason why it is very slow to reach a steady state is the slow knotting process in the chain, which will be discussed later. The inset of Fig. 2 presents a knotted polymer at ε_PS = 3. Because the polymer monomers at the knotted parts aggregate densely, the adsorption is thus decreased. The values φ of J = 50 are smaller than that of J = 0.1 (Fig. 1), especially in the large ε_PS region. The evolution of knotting depends on the value of J. As J increases, the time required for the chain to form a knot also increases. For J = 50, this time might exceed the limits of this study.

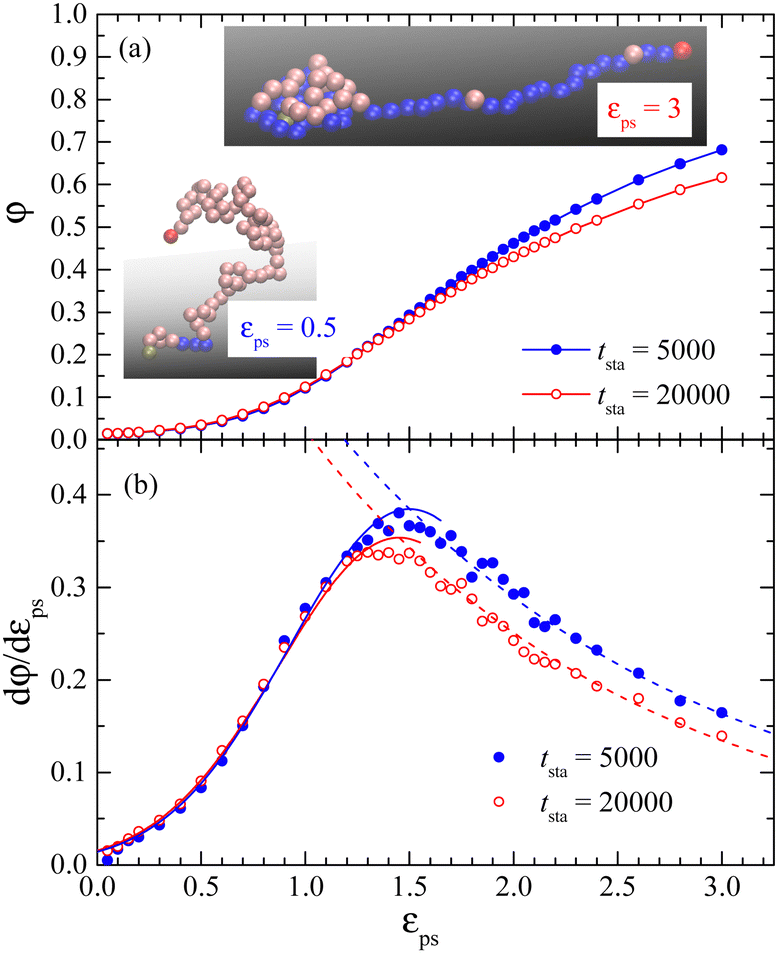

Fig. 2 Plots of the fraction of adsorbed monomers φ (a) and the derivative dφ/dε_PSversus the surface attraction strength ε_PS for the active polymer chains with different simulation time t_sta. Polymer length N = 65, rotational inertia J = 50, and active force F_a = 5. The curves in (b) are fits of eqn (6) and (7). Fitting parameters are A = 0.385, d = 0.68, and c = 1.75 for t_sta = 5000, and A = 0.354, d = 0.67, and c = 1.60 for t_sta = 20 000. Two insets show snapshots of the active polymer at ε_PS = 0.5 and 3.

We have calculated the probability of knotted polymers, P_knot, over all simulated samples and simulation times. All polymer conformations are divided into knotted and unknotted conformations. The probability P_knot is the fraction of knotted conformations. In the present study, we use the simulation method to figure out the knots in polymer chains. To this end, we apply a sufficiently large artificial stretching force on the active bead. The force is directed vertically outward from the surface to stretch the polymer chain. The unknotted conformations will be fully stretched to their fullest extent, while knotted ones will resist such complete elongation as shown in Fig. S2 in the ESI.† With this method, we can distinguish between a knotted polymer and an unknotted one. At the final ε_PS = 3, P_knot is about 0.532 for t_sta = 5000 while it is about 0.766 for t_sta = 20 000. The increase in P_knot reduces the number of adsorbed monomers. Thus we find that the adsorption of the active polymer is of time-dependence, especially for large J. We have also checked the knotted and unknotted conformations by using the KymoKnot software package,⁴⁶ which identifies knots based on the Alexander determinants. Due to the presence of the surface, to obtain accurate knotting results, it is needed to artificially extend several chain beads downward from the grafted end. These two methods obtain roughly the same value of P_knot.

The critical surface attraction strength for the end-grafted active polymer is estimated by calculating the place of the maximum variation of dφ/dε_PS. Following the method described previously, the variation of dφ/dε_PS with ε_PS is fitted by a Gaussian function³⁹

below and by an exponential decay functionabove . Here A, d, and c are fitting parameters. At the derivative dφ/dε_PS reaches the maximum with the value of A. From these two fittings, we estimate and 1.45 ± 0.05 for t_sta = 5000 and 20 000, respectively. Here the error bar is estimated from the simulation data. Although decreases with increasing t_sta, the change in is quite small. We would like to point out that there is no physical basis for eqn (6) and (7) at present. These equations incorporate data that are distant from instead of a single point of maximum dφ/dε_PS. As a result, the error associated with is reduced since the data in the vicinity of are subject to significant statistical errors as shown in Fig. 2b.

The same simulated annealing process is performed for different rotational inertia of the active head by setting t_eq = 2000 and t_sta = 20 000. are estimated using eqn (6) and (7). Fig. 3a shows the relationship between and J for active polymers of N = 33 and 65 at F_a = 5. Within the range of our simulation parameters, the monotonical increase of with J can be approximately expressed as

Here is the critical surface attraction strength for infinitely small J. The higher value of for the shorter polymer is due to the finite size effect.⁴²

Fig. 3 (a) Plot of the critical adsorption attraction strength versus the rotational inertia of the active head J for the active polymers with length N = 33 (blue solid squares) and 65 (red open circles) and active force F_a = 5. The solid lines are fits of eqn (8) with , B = 0.081, β = 0.25 for N = 33 and , B = 0.042, β = 0.50 for N = 65. (b) Plot of the fraction of adsorbed monomers φ* at versus J.

The monotonic increase of with J indicates that a higher J enhances the effect of the active force. This observation is consistent with the finding that active forces lead to an increase in the effective temperature.⁴⁷ The exponent β represents the dependence of on J. A larger value of β indicates a stronger dependence of on J. It is interesting to see the polymer of N = 65 has a larger value of β than that of N = 33, implying that of N = 65 may exceed that of N = 33 at sufficiently large J. This anomaly can be understood through the knots in the polymer chain. The probability of knots in the polymer chain increases with N. For example, we have P_knot = 0.210 for N = 33 and P_knot = 0.766 for N = 65 at ε_PS = 3. The larger value of P_knot results in a more obvious increase in for a longer polymer chain. Therefore we have a larger value of β for a longer active polymer. For even longer polymer chains, there may be multiple knots in the chains.⁴⁸

The increase of with J at fixed F_a is similar to the result that increases with increasing F_a for fixed J = 0.1.³⁹ Therefore, an increase in J enhances the effect of the active force. Similarly, less monomers are adsorbed at large F_a or large J. At the same time, the adsorption of a polymer chain is related to the variation of its conformation, especially knots in the polymer chain.³⁹ One main reason is that knotted polymers with less adsorbed monomers are formed when F_a is applied.

The fraction of adsorbed monomers φ* at is plotted in Fig. 3b for the active polymers with length N = 33 and 65 and active force F_a = 5. φ* is roughly a constant at small J. The reason is that at a portion of the monomers must be adsorbed to balance the loss of entropy upon adsorption. The decrease of φ* with increasing N is consistent with the previous results φ* ∝ N^ϕ−1 with the crossover exponent ϕ < 1,¹i.e., a smaller fraction of the adsorbed monomers is required for longer polymer chains. The physics for the increase of φ* at large J is not clear yet.

3.2. Relation between polymer knot and adsorption

It is important to understand the effect of polymer knots on the adsorption. Because of the evolution of polymer knots, we need to know how long to fulfill the knots in the polymer or reach the steady state. To this end, the evolution of polymer knots is investigated.

For the J = 0.1 case, the evolutions of P_knot and 〈M〉 over time at ε_PS = 1 and 3 are presented in Fig. 4. The initial states at time t = 0 for the simulation are the obtained steady states at very small ε_PS = 0.05. Then we quench the system to ε_PS = 1 and 3 and record the evolution at every 1000τ₀. This simulation method is named direct simulation in this work. We find that both P_knot and 〈M〉 first increase with time and then roughly saturate at a sufficiently long simulation time. That means that the steady states can be reached if the simulation time is long enough. Moreover, it is easier for 〈M〉 to saturate as the change in 〈M〉 is much smaller over the simulation time. This can explain why the simulation results of φ = 〈M〉/N shown in Fig. 1 are roughly independent of t_sta for J = 0.1. Fig. 4 also shows that the time for the system to reach a steady state becomes longer at large ε_PS, this is consistent with a small deviation in the simulation results of φ at large ε_PS. For the same reason, it is better to adopt the simulated annealing method in the study of the adsorption of the active polymer. Although the saturated values of P_knot and 〈M〉 are close to the annealing results of P_knot = 0.0814 and 〈M〉 = 10.61 for ε_PS = 1 and P_knot = 0.2543 and 〈M〉 = 46.43 for ε_PS = 3, longer simulation times are required for the direct simulation.

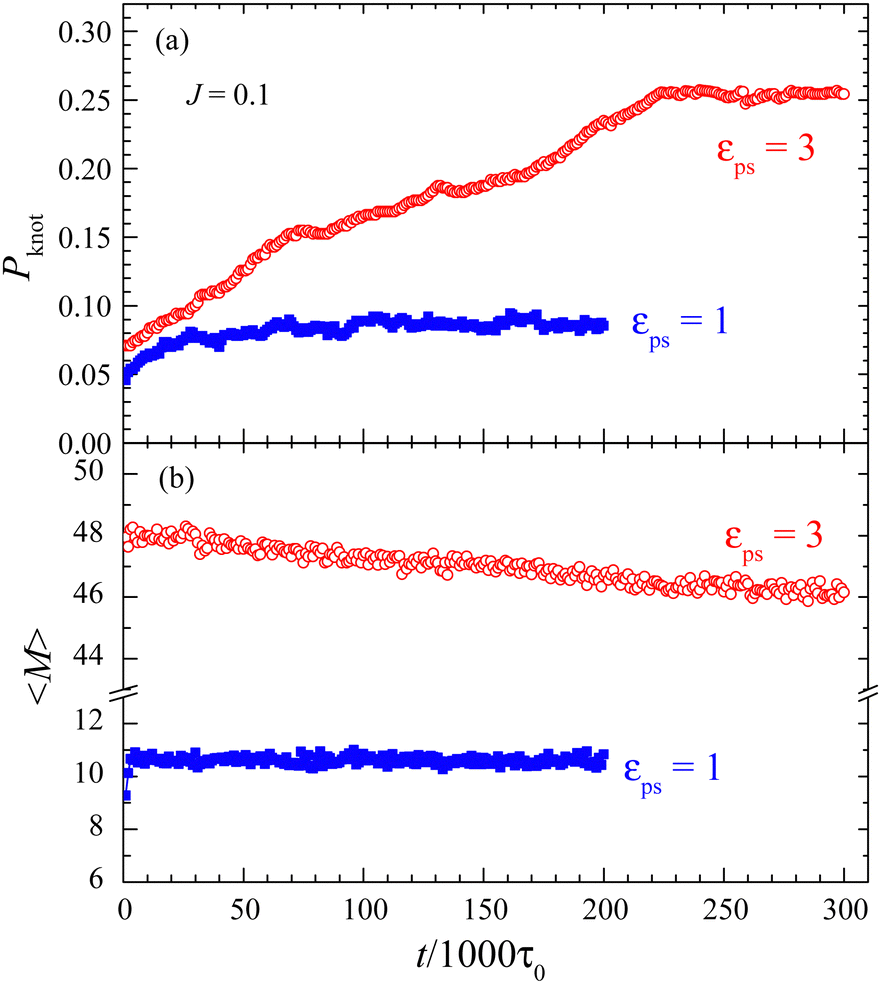

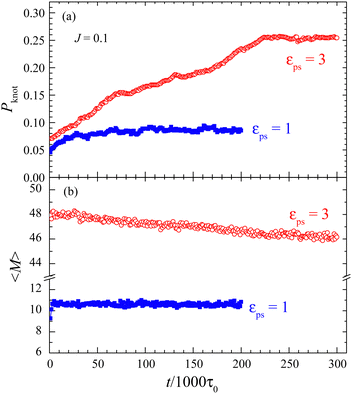

Fig. 4 Evolution of the probability of knotted polymers P_knot (a) and the mean number of adsorbed monomers 〈M〉 (b) with the simulation time for the direct simulations with surface attraction strengths ε_PS = 1 and 3. Polymer length N = 65, rotational inertia J = 0.1, and active force F_a = 5.

For the J = 50 case, two simulation methods are used for the temporal evolution of P_knot and 〈M〉. In addition to the direct simulation used for the J = 0.1 case, we also extend the simulation time by using the conformations obtained during the annealing simulations, which we call extended simulation. For the extended simulation, the surface attraction strength ε_PS is kept constant. The results are presented in Fig. 5 for both direct and extended simulations. The probability of knotted polymers P_knot increases with time, indicating that it is hard for the active polymer to reach a steady state at large J. 〈M〉 is roughly a constant independent of time at ε_PS = 1, whereas it decreases with increasing time at ε_PS = 3. This is consistent with the results obtained by annealing simulations shown in Fig. 2, where 〈M〉 decreases when τ_sta is increased and such a decrease is more significant at large ε_PS. Fig. 5 also shows that 〈M〉 is of less time dependence than P_knot. At ε_PS = 1, although P_knot increases with time, 〈M〉 is roughly a constant. Therefore, it is easier to estimate the critical attraction strength from the variation of 〈M〉. We find that P_knot is about 0 at the very beginning of the direct simulation, indicating that the initial polymers are almost unknotted.

Fig. 5 Evolution of the probability of knotted polymers P_knot (a) and (c) and the mean number of adsorbed monomers 〈M〉 (b) and (d) with the simulation time for the direct and extended simulations at surface attraction strengths ε_PS = 1 and 3. Polymer length N = 65, rotational inertia J = 50, and active force F_a = 5.

The active polymer is adsorbed strongly at ε_PS = 3 much higher than . It is interesting to see that, from Fig. 5c and d, the changes in P_knot and 〈M〉 with time for the extended simulations are quite small at ε_PS = 3 from the simulated annealing process with t_eq = 2000 and t_sta = 20 000. This means that the adsorbed active polymer almost reaches its steady state at ε_PS = 3 even for the largest J = 50 in the present study. To understand the effect of rotational inertia on the knotting, the probability of knotted polymers, P_knot, is calculated for different J at ε_PS = 3. P_knot is calculated from the conformations obtained in the annealing process with t_eq = 2000 and τ_sta = 20 000. The dependence of P_knot on J is presented in Fig. 6a. We find P_knot increases sharply at small J and roughly saturates at large J. This is only correct for small active force F_a, long polymer chain, and relatively small J. We can expect that, when J or F_a is infinitely large or N is small, the end-grafted chains will be stretched straight. The straightened chains are not conducive to knotting. For instance, we find P_knot ≈ 0.210 for a short chain of length N = 33 for J = 50 and F_a = 5. Therefore, the knotting probability P_knot will decrease eventually at a sufficiently large J. So, in this work, we adopt a relatively weak active force (F_a = 5) and a relatively long polymer chain (N = 65).

Fig. 6 Plots of the probability of knotted polymers P_knot (a) and the mean number of adsorbed monomers 〈M〉 (b) versus the rotational inertia J for the active polymer. Polymer length N = 65, surface attraction strength ε_PS = 3, and active force F_a = 5. Solid lines are guides to the eye. Snapshots of adsorbed active polymers (colored beads) for knotted (c) and unknotted (d) polymers with J = 0.1, and knotted (e) and unknotted (f) polymers with J = 50.

The variations of 〈M〉 with J are presented in Fig. 6b for both knotted and unknotted polymers. 〈M〉 of knotted polymers is always smaller than that of unknotted polymers. Therefore, combined with the result that P_knot increases with J, the overall value 〈M〉 averaged over all polymers decreases with increasing J. In short, large J causes more knotted polymers, resulting in reduced adsorption of the active polymer.

〈M〉 increases slowly with J for the unknotted polymers, indicating that the increase in J helps the adsorption of the unknotted polymers. Comparing the snapshots shown in Fig. 6c of J = 0.1 and in Fig. 6e of J = 50, we find the active polymer is more stretched at large J = 50. The mean square end-to-end distance 〈R²〉 increases from about 525.9 at J = 0.1 to about 870.9 at J = 50. Such a change in the conformation is similar to the conformation change from a flexible polymer to a rigid polymer. It is known that a rigid polymer is more easily adsorbed to the surface due to the less conformational entropy of the rigid polymer.⁴² Therefore, it is reasonable to find that the stretched polymer of large J has a large 〈M〉.

Whereas for the knotted polymers, we find 〈M〉 first decreases rapidly with the increase of J, from 〈M〉 = 41 at J = 0.1 to 〈M〉 = 36 at J = 20, and then slightly increases with J. This non-monotonic behavior might be also related to the change in the polymer conformation. Comparing the snapshots shown in Fig. 6d of J = 0.1 and in Fig. 6f of J = 50, we find a loose knot at J = 0.1 and a tight knot at J = 50. This implies a tight knot decreases the adsorption. While at large J, the unknotted part of the polymer is stretched. 〈R²〉 increases from about 241.1 at J = 0.1 to about 388.3 at J = 50. For the same reason as described for the unknotted polymer, the stretch of the polymer strengthens the adsorption of the polymer at large J.

We have investigated which part of the polymer is less adsorbed at large J. To this end, we have calculated the mean adsorption probability, P_ads, for every monomer. The results are presented in Fig. 7a for the active polymer chain at F_a = 5 for the strong adsorption case with ε_PS = 3. The values of P_ads are calculated from a total of 10 000 polymer conformations. The decrease in P_ads close to the active head is consistent with the snapshots shown in Fig. 1 and 2. The values of P_ads at J = 0.1 are larger than those at J = 50, except for the monomers close to the active head. On average, monomers at J = 50 are less adsorbed, consistent with a larger at J = 50. In other words, a large J enhances the active force to retard the adsorption of the active polymer.

Fig. 7 Plot of the mean adsorption probability P_ads for each monomer from the active head (index 1) to the grafted end (index N = 65) for all polymers (a), unknotted polymers (b), and knotted polymers (c). Polymer length N = 65, surface attraction strength ε_PS = 3, and active force F_a = 5.

To understand the effect of the rotation inertia, the values of P_ads for unknotted and knotted polymers are investigated and the results are presented in Fig. 7b and c. For unknotted polymers, values of P_ads are almost independent of J, except for the monomers close to the active head. Therefore, the effect of J on the adsorption is mainly reflected in the conformation of knotted polymers. The significant decrease in P_ads of knotted polymers near the grafted end is due to that knots appear close to the grafted end. The probability that a bead is part of a knotted region, calculated from the KymoKnot software package, is plotted in Fig. S3 in the ESI.† It is consistent with the snapshots shown in Fig. 6d and f. Thus, we can conclude that knots significantly decrease the adsorption. Whereas the values of P_ads near the active head are slightly larger at J = 50 for both knotted and unknotted polymers, due to the stretch of polymer as shown in Fig. 6e and f.

At a sufficiently long simulation time, the probability of knotted polymers P_knot is eventually saturated for J = 0.1 as shown in Fig. 4. However, the saturation is slow for J = 50 as shown in Fig. 5. For both cases, we find the number of adsorbed monomers saturates fast or changes small. That is, although the knotting of polymer is changed obviously with time, the adsorption property is less dependent on the simulation time. So the critical adsorption point can be still estimated accurately with limited simulation time.

In Fig. 5, we find P_knot increases with time for the active polymer at surface attraction strength ε_PS = 1 and 3. It is interesting to know if P_knot will be saturated over time for J = 50. To this end, the evolution of P_knot with simulation time is investigated by suddenly changing ε_PS. Two types of simulations are performed for the active polymer with J = 50 at F_a = 5. One is that we suddenly increase ε_PS from 1 to 3, while the other is that we suddenly decrease ε_PS from 3 to 1. Here ε_PS = 1 is below for J = 50 at F_a = 5 while ε_PS = 3 is above . The initial states for both simulations are the simulated polymer conformations obtained from the simulated annealing process with τ_sta = 20 000.

The evolution of P_knot and 〈M〉 are presented in Fig. 8. The value of P_knot increases with time when ε_PS is increased from 1 to 3, while it decreases with time when ε_PS is decreased from 3 to 1. Results show that the adsorption of the active polymer above is conducive to the knotting of the polymer, whereas the desorption below is conducive to the unknotting of the polymer. The decrease in P_knot with time when ε_PS is decreased from 3 to 1 implies that P_knot will be saturated when the simulation time is elongated.

Fig. 8 Evolution of the probability of knotted polymers P_knot (a) and the mean number of adsorbed monomers 〈M〉 (b) when ε_PS is suddenly increased from 1 to 3 and decreased from 3 to 1 for the active polymer with J = 50 and F_a = 5.

For both cases, P_knot changes slowly with time, indicating that the process of knotting and unknotting is slow. It would take a very long time to reach the annealing results P_knot = 0.334 for ε_PS = 1 and P_knot = 0.766 for ε_PS = 3. However, we find that 〈M〉 changes sharply in the initial stage and then changes slowly with time. Because of the slow evolution of P_knot, we find the saturation values of 〈M〉 in the narrow time window shown in Fig. 8b slightly deviate from the annealing results with 〈M〉 = 8.07 for ε_PS = 1 and 〈M〉 = 40.03 for ε_PS = 3. Our results show that, although the knotting will decrease the adsorption amount 〈M〉, the value of 〈M〉 is mainly determined by the surface attraction strength.

We would like to point out that the main reason for the change in 〈M〉 shown in Fig. 8 is the change in the surface attraction strength ε_PS. When ε_PS increases, 〈M〉 increases; conversely, 〈M〉 decreases. At this time, the influence of the change in P_knot on 〈M〉 is secondary. To see the influence of P_knot on 〈M〉, we perform a simulation by keeping ε_PS unchanged while varying the value of J. Starting from the steady state of J = 50, we suddenly reduce the value of J to 0.1 and see the variation of P_knot and 〈M〉 with time. The results are presented in Fig. S4 in the ESI.† We can see that the decrease in P_knot over time is accompanied by an increase in 〈M〉, which is consistent with the conclusion that the existence of knots reduces adsorption.

3.3. Rotational persistence time of the active head

Finally, we discuss the effect of rotational inertia on the rotational persistence time of the active head. We have calculated the dynamical orientational correlation function

C(t) = 〈n(t₀)n(t + t₀)〉 (9)

of the orientation of the active force F_a.^49,50 For active particles in dilute solution, the value of rotational persistence time τ_R is determined from a single exponential of C(t) as C(t) = e^−t/τ_R.³³

During the rotational persistence time τ_R, the active particles can be considered as moving straightly along the direction of F_a in time τ_R, which increases the diffusion of active particles.³³ Enhanced diffusive behavior was also observed for active polymers.^11,19,25,31 The evolutions of C(t) of the active head with time t are simulated for active polymers in a dilute solution. The results are presented in Fig. 9a for active polymers with length N = 65 at the active force F_a = 5. The decay of C(t) of the active polymer differs from that of active particles. We find the decay of C(t) should be expressed by a double exponential decay function

with two rotational persistence times τ_R1 and τ_R2. Table 1 lists the rotational persistence times τ_R1 and τ_R2 for different rotational inertia J of active polymers with length N = 65 in dilute solutions. We find both τ_R1 and τ_R2 increase with J, consistent with the theoretical analysis that a large J results in a slow rotation of the active head. Large τ_R1 and τ_R2 could enhance the effect of the active force.

Fig. 9 Evolutions of the dynamical orientational correlation function C(t) with time t for the active polymer in a dilute solution (a) and for the end-grafted active polymer on a repulsive surface (b). Polymer length N = 65, rotational inertia J = 0.1 and 50, and active force F_a = 5. The double-logarithmic plot (Fig. S5, ESI†) is presented in the ESI.†

Table 1 List of rotational persistence times τ_R1 and τ_R2 for different rotational inertia J of active polymers of length N = 65 in a dilute solution. The active force F_a = 5

J	τ R1	τ R2
0.1	2.2 ± 0.2	18 ± 1
0.2	2.2 ± 0.2	19 ± 1
0.5	2.4 ± 0.2	20 ± 1
1	2.4 ± 0.2	20 ± 1
2	3.5 ± 0.2	24 ± 2
5	5.5 ± 0.5	37 ± 2
10	8.5 ± 0.5	55 ± 5
20	10.5 ± 0.5	67 ± 5
30	11.0 ± 0.5	74 ± 5
50	12.5 ± 0.5	80 ± 5

---

The reason for the two rotational persistence times is not straightforward. The smaller one τ_R1 might represent the rotation of the active head in the polymer chain and the larger one τ_R2 might be related to the rotation of the entire polymer chain. Because of the limitation on the rotation of the active head, the large-scale rotation is limited by the rotation of the entire chain. We find that the rotation of the entire chain, characterized by the self-correlation function of the end-to-end vector, is much slower than the rotation of the active head. For example, the relaxation time of the end-to-end vector is about 630 for a free polymer chain of length N = 65 in the dilute solution, see Fig. S6 in the ESI.† For comparison, the double-logarithmic plot of Fig. 9 can be found in the ESI† (Fig. S5). The log–log behavior emerges at the moderate range of time. However, in the short-time region, the double exponential decay function is better.

The rotation of the active head has also been checked for a general case when the active polymer is end-grafted on a repulsive surface. We set z_c = 0.8584 and ε_PS = 1 in eqn (1). Evolutions of C(t) with t for the active polymer of length N = 65 with rotational inertia J = 0.1 and 50 are presented in Fig. 9b. The magnitude of the active force is F_a = 5. For the end-grafted polymer chains, the decay of C(t) can be still expressed by the double exponential decay function as eqn (9). Analogue to the active-polymers in a dilute solution, a large J results in a slow rotation of the active head for the end-grafted active-polymers. However, it is interesting to find that τ_R1 and τ_R2 are reduced when the active polymer is end-grafted on a repulsive surface. For the end-grafted active polymer, we have τ_R1 = 0.47 and τ_R2 = 6.2 for J = 0.1, and τ_R1 = 2.7 and τ_R2 = 16.7 for J = 50. The reduction in the rotational persistence times may be due to the larger polymer conformation and thus smaller spatial constraints on the active head.

Simulation results show that the rotational persistence times of the active head increase with increasing J. The increase in the rotational persistence times enforces the effect of the active force. Our results imply that the increase in the rotational persistence times could strengthen the knotting but weaken the adsorption.

The rotational inertia, active force, and restriction of the active bead are considered in the present active polymer model. These three factors make the rotational behavior of the active head rather complicated. Therefore, in this work, we only qualitatively explain that the rotational persistence times increase with the increase of inertia, without a quantitative discussion. The rotational behavior of the active head is worthy of further study.

4. Conclusions

The adsorption of end-grafted active polymers on an attraction surface has been studied by Langevin dynamics simulation. The active polymers are composed of only one active particle at the head and an end-grafted flexible passive chain. The active head experiences an active force of magnitude F_a. In this work, the rotational inertia J of the first active head is varied. We vary the surface attraction strength ε_PS to investigate the adsorption of the active polymer. We find that the critical surface attraction strength for the active polymer increases with increasing J as . The increase of is related to the knotting of the active polymer.

Due to the stretch of the active force, knotted polymers are observed especially at high ε_PS and high J. We find that knotted polymers are less adsorbed than unknotted ones. As the probability of knotted polymers P_knot is increased with increasing J, the mean number of adsorbed monomers 〈M〉 is reduced when J is increased. As a result, the knotting of the active polymer raises the value of . Moreover, the knotting process is relatively slow, both 〈M〉 and P_knot evolve over simulation time. However, 〈M〉 demonstrates less sensitivity to time changes compared to P_knot. Therefore, simulation on 〈M〉 is less sensitive to the simulation time.

The effect of the active head becomes more pronounced at larger J as the rotational persistence times are increased by increasing J. Our simulations reveal that the increase in the rotational persistence times can enhance knotting and weaken polymer adsorption. The ability of active polymers to exhibit inertia-sensitive adsorption may become a candidate for the future development of adaptive, smart polymer surfaces.

The present model active polymer might be achieved in experiments by linking DNA to Janus particles. To observe knotting in experiments, flexible long chains with moderate forces are preferred. Single-stranded DNA (ssDNA) molecules are considered to be flexible with a Kuhn length σ ≈ 1.6 nm and a pair-wise energy ε ≈ 11.5 kJ mol⁻¹.⁵¹ Here, σ ≈ 1.6 nm in ssDNA corresponds to two bases with a mass of about m = 650 g mol⁻¹.⁵¹ Then, the units of force ε/σ is about 120 pN, and that of rotational inertia mσ² is about 2.76 × 10⁻⁴⁴ kg m². Double-stranded DNA (dsDNA) molecules are of finite stiffness and much longer dsDNA molecules are needed to observe the same knotting effect. Furthermore, using attractive surfaces for the active polymer is also helpful for knotting.

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

The authors declare that they have no conflict of interest.

Acknowledgements

This work is supported by the National Natural Science Foundation of China under grant no. 11974305.
