Polymer-based host–guest organic room-temperature phosphorescent (RTP) materials are promising candidates for new flexible electronic devices. Nowadays, the insufficient fabrication processes of polymeric RTP materials have hindered the development of these materials. Herein, we propose a strategy to realize 3D printable organic RTP materials and have successfully demonstrated real-time sensing and display devices through a Digital Light Processing (DLP) 3D printing process. We have designed and synthesized the molecules EtCzBP, PhCzBP and PhCzPM with A–D–A structures. The crucial role of strong intramolecular charge transfer (ICT) at the lowest triplet states in achieving bright photo-activated phosphorescence in polymer matrices has also been demonstrated. 3D printable RTP resins were manufactured by doping emissive guest molecules into methyl methacrylate (MMA). Based on these resins, a series of complex 3D structures and smart temperature responsive RTP performances were obtained by DLP 3D printing. Additionally, these RTP 3D structures have been applied in real-time temperature sensing and display panels for the first time. This work not only provides a guiding strategy for the design of emissive guest molecules to realize photo-activated RTP in poly(methyl methacrylate) (PMMA), but also paves the way for the development of 3D-printable real-time sensing structures and new-concept display devices.
In recent years, a series of impressive examples of polymer-based host–guest RTP systems have been reported. Among these guest molecules, some exhibited intramolecular charge transfer (ICT) properties.46–48 Other compounds lacking ICT characteristics could also demonstrate RTP after being doped in PMMA matrices.1,49–53 However, the critical role of ICT states in promoting the RTP properties of poly(methylmethacrylate) (PMMA)-based doped RTP materials was not mentioned. Besides, the applications of polymer-based RTP materials have also been reported extensively. For instance, by incorporating various chromophores into the PMMA matrix and coating it with an oxygen-barrier layer, photoinduced programmable transparent organic luminescent tags for continuous information storage and erasure were designed.1,52,54–56 Taking advantage of the oxygen-sensitive characteristics of polymer-based RTP materials, Li and coworkers reported their applications in oxygen leak testing and microcrack detection.51 Nevertheless, the applications of polymer-based RTP materials were mainly demonstrated in thin films, and thus, the construction of precisely prescribed complex 3D geometries with smart RTP properties became an appealing issue.1,2,5,51–53,57–59 Digital Light Processing (DLP) 3D printing offers the ability to fabricate complex RTP structures by utilizing digital mask projection to trigger localized photopolymerization.60,61 Through the DLP-based 3D printing method, it becomes feasible to realize structure–function integrated RTP 3D structures that show responsiveness to multiple stimuli.
Herein, we have designed and synthesized a series of new guest molecules to fabricate polymer-based RTP materials, named EtCzBP, PhCzBP, and PhCzPM. Upon doping into PMMA, EtCzBP and PhCzBP exhibited obvious photo-activated RTP performance, while no RTP was observed for PhCzPM. Photophysical studies and time-dependent density functional theory (TD-DFT) calculations were performed to reveal the origins of the RTP emissions and the photo-activated properties. DLP printable photo-activated RTP resins were achieved by doping EtCzBP into MMA based resins and a series of complex 3D structures with RTP properties were also successfully achieved. For the printed 3D structures, the RTP duration and ON/OFF states were sensitive and readily tunable depending on the surrounding temperature. Accordingly, 3D-printable real-time temperature sensing and new-concept displays were fabricated based on these new 3D printable resins.
Furthermore, PMMA (Mw ∼ 200000) was selected as a polymer matrix that could provide a rigid environment to protect triplet excitons. The films were prepared using the method illustrated in the ESI† and the thickness was about 450 μm. As shown in Fig. 1e, f and h, photo-activated RTP emission was achieved by doping EtCzBP and PhCzBP into the PMMA matrix with a concentration of 5 wt% (named EtCzBP@PMMA and PhCzBP@PMMA). For EtCzBP@PMMA, a Gaussian band at ca. 477 nm was detected under UV excitation (365 nm). Under persistent UV excitation (365 nm, 3.46 mW cm−2) for 4 s, low-energy emission bands at ca. 498 nm and 537 nm appeared. Strong green afterglow lasting more than 2 s could be observed by the naked eye after turning off the excitation, and the lifetime reached 189 ms (Fig. S19†). The fluorescence and phosphorescence quantum yields after UV irradiation were 4.6% and 3.2%, respectively.72 After doping EtCzBP into the PMMA matrix with different average molecular weights of 100
000 g mol−1 and 150
000 g mol−1, the doped polymer films still exhibited similar RTP performance (Fig. S22†). PhCzBP@PMMA films also exhibited a similar photo-activated RTP process (Fig. 1f and S23†). Based on the photophysical analysis, it was revealed that EtCzBP and PhCzBP showed essentially the same emission bands in the PMMA matrix and in the 2-MeTHF glass state (77 K, 1.0 × 10−5 M) as shown in Fig. 1. It was preliminary demonstrated that the compounds were well dispersed in the PMMA polymer matrix. To provide further substantiation, optical microscopy and laser scanning confocal microscopy (LSCM) were performed on the doped polymer films (Fig. S24†). The results showed that the PMMA films doped with guest molecules were very uniform and without aggregated areas.73,74 These results further proved the good dispersion of these compounds in the doped PMMA films. Therefore, the photo-activated phosphorescence at ca. 508 nm and 536 nm was attributed to the phosphorescent components. However, no obvious photo-activated RTP process was observed by dispersing PhCzPM in PMMA with a concentration of 5 wt%, even after prolonged excitation. For PhCzPM@PMMA films, an emission band at ca. 462 nm was observed under UV excitation, as shown in Fig. 1g. Upon termination of UV excitation, faint and brief phosphorescence with a lifetime of 103 μs was observed (Fig. S26†). As shown in Fig. 1h, EtCzBP@PMMA, PhCzBP@PMMA and PhCzPM@PMMA films showed photo-activated RTP under UV excitation (λex = 365 nm). The delayed spectrum exhibited a similar profile to that observed in 2-MeTHF glass at 77 K. Specifically, the shortened distance between the carbazole and carbonyl groups in PhCzPM, compared to EtCzBP and PhCzBP, may influence its ability to initiate a photo-activated RTP process. The observed weak photo-activated phosphorescence performance of PhCzPM@PMMA films may be attributed to the distinct modes of electron transition in the excited state.
To further investigate the mechanism of photo-activated RTP of phosphorescent emitters in the polymer matrix, theoretical calculations based on density functional theory (DFT) were carried out at the B3LYP/6-311G* level (Fig. 1i–k and S17, and Tables S3–S5†).75,76 The hole and electron distributions of the S0 → T1 transition for EtCzBP and PhCzBP indicated that the holes and electrons were located in separated regions. It indicated the presence of ICT character from the electron-rich donor carbazole to the electron-deficient benzophenone moieties. The intense ICT transition was also supported by the large bathochromic shift of EtCzBP and PhCzBP with increasing solvent polarity (Fig. S8 and S9†). For PhCzPM, the shorter distance between the carbazole group and the benzophenone group led to the hybridization of the electrons and holes around the carbonyl groups in the S0 → T1 transition. It suggested that the lowest triplet excited states displayed mainly locally excited (LE) state and ICT state characters. Upon excitation, PhCzPM exhibited emission peaks related to LE and CT transitions in toluene and ethyl acetate solvents (Fig. S10†). Besides, it was noteworthy that the spin–orbit coupling constants (ξ) of S1 to Tn for monomers EtCzBP and PhCzBP were found to be basically similar to those of the monomer PhCzPM, indicating a similar efficient intersystem crossing (ISC) process for the generation of triplet excitons (Fig. S18†). However, even after longer excitation, photo-activated RTP emission could hardly be observed in PhCzPM@PMMA films. Therefore, we believed that the different transition modes present in the lowest triplet excited states have played significant roles in the photo-activated phosphorescent process.
As shown in Fig. 2b, for EtCzBP@PMMA films, the emission bands at ca. 508 nm and 536 nm were negligible at the initial stage but became prominent upon continuous UV excitation for 4 s (3.46 mW cm−2). The decreased PL intensity with increasing UV irradiation duration was because the UV irradiation process intensified the molecular motion, leading to an increased nonradiative transition process (Fig. S20 and S21†).77 The corresponding CIE chromaticity coordinates shifted from (0.23, 0.32) to (0.28, 0.42) (Fig. 2e). The photographs in Fig. 2a also manifested the photo-activated RTP process. Subsequently, the stability of the photo-activated RTP photoswitching performance was thoroughly assessed (Fig. 2c). After undergoing 15 repeated cycles of UV irradiation turning on and off, ∼80% of the initial photo-activated phosphorescent intensity was maintained. The photo-activated RTP performance could still be efficiently achieved. Fig. S25a† shows that the doped PMMA films can still exhibit stable RTP even after multiple photoactivation processes, which could be further used for multiple information writing and erasure. Besides, the RTP lifetime of the doped polymer films remained stable under different UV irradiation durations (Fig. S25b†). The stable photo-activated RTP performance laid the foundation for extensive and advanced applications in various fields. Moreover, the photo-activated RTP behavior was highly related to the intensity of excitation UV light. Impressively, the activation time of EtCzBP@PMMA films gradually decreased as the UV light power density increased from 0.93 to 9.46 mW cm−2 (Fig. 2d). The gradually increased phosphorescent component during the photo-activated process was in connection with the oxygen existing in the polymer matrix (Fig. 2a).1 The transmittance results of the solution or films containing both PMMA and EtCzBP provided evidence in support of this hypothesis (Fig. S28†). The tetrahydrofuran (THF) solution containing both PMMA and EtCzBP exhibited notable changes in the transmittance and colour after UV excitation for 20 minutes, displaying increased absorption in the blue wavelength region. Similarly, for EtCzBP@PMMA films, the transmission decreased and the colour of the films changed to yellow after UV excitation. This observation was consistent with the well-known phenomenon of yellowing as an indication of polymer oxidation. After fabrication, the EtCzBP@PMMA films contained some triplet ground state oxygen. In the initial stage of UV irradiation, the populated triplet excitons of EtCzBP would be quenched by triplet oxygen inside the films and singlet oxygen was produced via a triplet–triplet annihilation (TTA) process. After constant UV irradiation, the triplet oxygen was totally consumed by the excited triplet excitons of EtCzBP, which could decay through a radiative process, leading to the appearance of phosphorescence. In the photoactivated process, the singlet oxygen could interact with PMMA, resulting in the oxidation and yellowing of PMMA (Fig. S28†).1 The TTA process between the triplet excitons of EtCzBP and triplet oxygen that accelerates the generation of excited singlet oxygen was also proved by the ultraviolet absorption spectrum of EtCzBP and DPBF (1,3-diphenylisobenzofuran) (Fig. S29†).
Taking advantage of the remarkable photo-activated RTP properties of the EtCzBP@PMMA films, afterglow patterns were easily recorded by persistent UV illumination. For instance, “RTP” characters could be written on the EtCzBP@PMMA films by using a light optical fiber. Under flash UV excitation, the characters could be observed (Fig. 3a and Movies S1†). In addition, information such as a Quick Response (QR) code could be clearly printed on the films with a mask (Fig. 3b and Movies S2†). The QR code could then be read under flash UV light excitation (16 W) (Fig. 3b). Moreover, the QR code information could be erased by activating the phosphorescence of the entire film with persistent UV irradiation (50 W). To date, most applications for organic RTP materials have focused on two-dimensional flexible films, but complex structures with smart RTP properties have seldom been reported.45,78 Herein, the molecule EtCzBP was selected as the dopant due to its high PLQY and great RTP potential among the three molecules and by doping EtCzBP phosphorescent molecules into a MMA based resin with an optimized concentration of 0.5 wt% (Fig. S30†), a DLP printable resin was achieved. EtCzBP molecules have been proved to act as light absorbers in EtCzBP@PMMA inks to improve printing precision (Fig. S31†). Based on the rapid light curing of liquid resins, DLP 3D printing has the advantage of producing complex 3D objects with high resolution geometry and printing efficiency.79–82 As depicted in Fig. 4a, the prepared liquid resins were directly used in DLP 3D printing. The solidified 3D structures consisted of cross-linked PMMA macromolecular chains and dispersed EtCzBP emitters, forming a cohesive network within the matrix. Based on the resin, different types of complex structures, such as an exquisite flower, a meshy sphere, a regular dodecahedron, a hollow cube, etc., with photo-activated RTP properties were printed through DLP 3D printing (Fig. 4e). As shown in Fig. 4b, under persistent UV excitation, the steady-state emission spectrum of the 3D structures displayed a broad emission band, and a bright afterglow could be observed after ceasing UV light. The afterglow could last more than 2 s with a lifetime of 188 ms (Fig. S27†). The delayed emission spectrum was in good accordance with that of EtCzBP in 2-MeTHF at 77 K. Besides, the obtained EtCzBP@PMMA resins enabled the fabrication of high-resolution 3D structures with RTP performance (up to 13 μm in the X-direction in Fig. 4c). The uniform layer thickness of the resulting 3D structures matched the preset slice thickness of ca. 50 μm (Fig. 4d). The phosphorescence-emitting region of the 3D structures is in the range of 50–100 μm from the surface under UV excitation (Fig. S36†). This suggested that utilizing DLP 3D printing to fabricate complex 3D structures with RTP emission was a very feasible and dependable approach. Based on the high precision manufacturing process, a series of complex 3D structures with temperature-responsive RTP properties were prepared. Meanwhile, the successful fabrication of these structures provides the necessary prerequisites for applications such as real-time temperature sensing 3D structures and new-concept RTP-based displays.

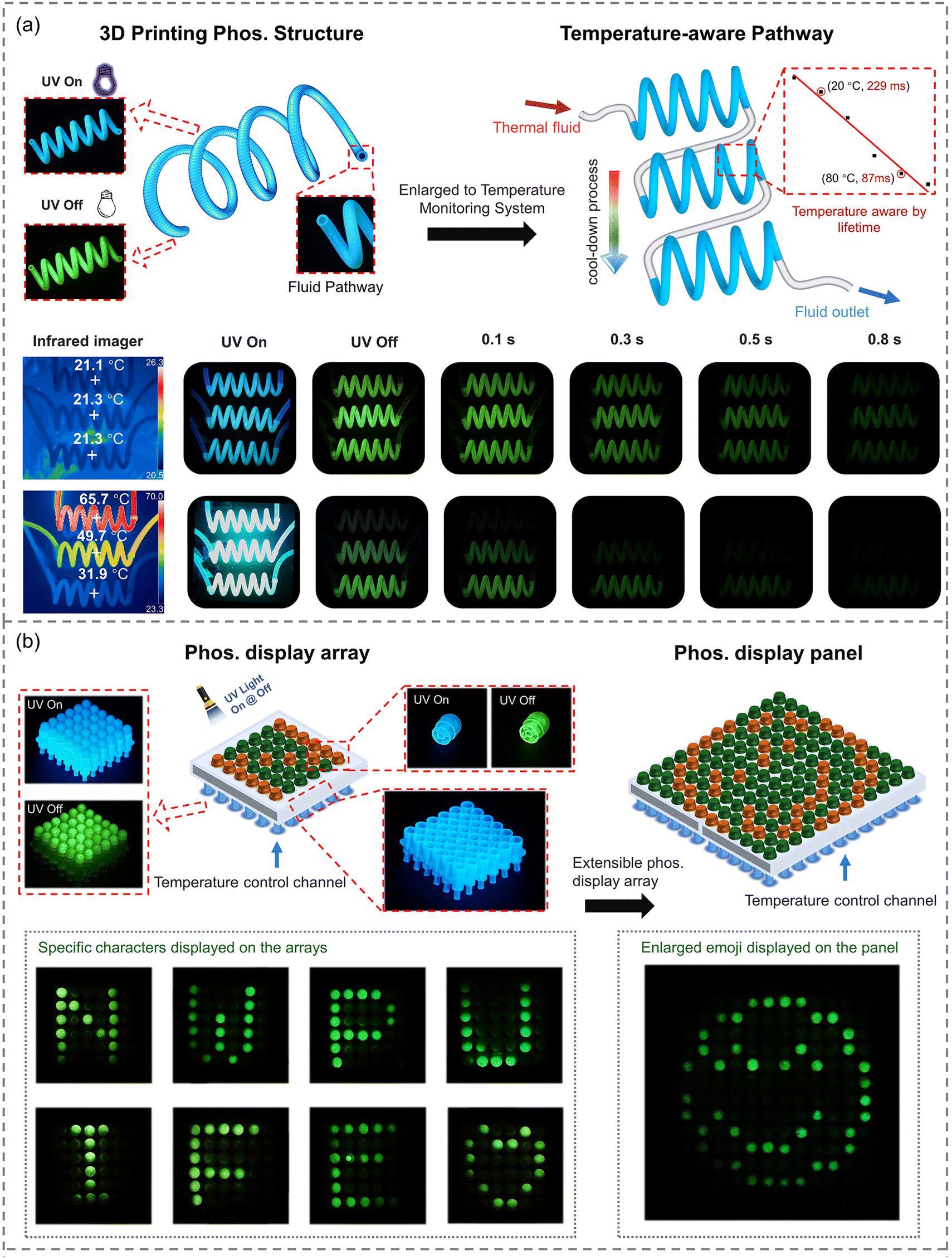

Although the application of organic phosphorescent materials has made great progress in recent years, phosphorescent sensing and display based on complex structures have rarely been reported. By doping EtCzBP emitters into MMA based resins, an ink capable of DLP 3D printing was obtained. Compared with fluorescence, organic RTP was much more sensitive to the surrounding temperature, due to the long-lasting decay processes and intense dissipation of triplet excitons.25,26 The obtained DLP-printed 3D structures with RTP performance also exhibited obvious temperature-responsive characteristics. By gradually enhancing the surrounding temperature from 20 °C to 80 °C, the phosphorescent lifetime of the printed 3D structures gradually decreased from 229 ms to 87 ms (Fig. S32–S35†). Based on that, the temperature of the 3D printing structure could be evaluated by the RTP lifetime. Therefore, phosphorescence-based temperature real-time sensing and display structures based on prescript structures were successfully fabricated (Movie S3†). As shown in Fig. 5a, the spiral hollow structure was obtained by DLP 3D printing, and the hollow structure could be used as a channel for fluid flow. The real-time temperature of the fluid flow could be directly sensed by measuring the duration of the afterglow. For instance, when liquid at ambient temperature (ca. 21 °C) flowed through the spiral hollow pipes, simultaneous disappearance of afterglow was observed in all three spirals after turning off the UV light. When hot liquid (ca. 65.7 °C) flowed through the spiral hollow pipes, it would gradually be cooled from ca. 65.7 °C to ca. 31.9 °C according to the infrared images in Fig. 5a. The cooling process of the liquid was visibly manifested according to the different phosphorescent durations at different positions of the 3D printed spiral pipes. The duration of the afterglow could not be detected by the naked eye at a temperature of 65.7 °C, while it gradually increased to 0.3 s and 0.8 s at temperatures of 49.7 °C and 31.9 °C, respectively. As shown in Fig. S37,† when the spiral hollow pipes were covered with a transparent glass (1.1 mm), the infrared camera failed to display the real-time temperature of the structure properly through the glass plate. However, the temperature signal of the structure could still be captured through the glass via phosphorescence. Therefore, real-time temperature sensing via monitoring the duration of the afterglow in the designed 3D-printed structures could effectively address the limitation of the infrared camera's inability to transmit signals through certain media like glass. Based on these results, real-time temperature sensing via monitoring the duration of the afterglow for the designed 3D-printed structures has been demonstrated. According to the temperature-dependent RTP ON/OFF switches, an RTP display array was designed and fabricated by the DLP 3D printing method, as shown in Fig. 5b. In the RTP array, each pixel was represented by a mini-channel fabricated via DLP 3D printing (Fig. 5b). The temperature of each pixel could be easily and readily manipulated by flowing water or gas flow through the mini-channels (Movie S4†). Thus, as shown in Fig. 5b, through controlling the temperature of different mini-channels, various letters “N”, “W”, “P”, “U”, “I”, “F”, and “E” and a heart symbol were alternatively displayed on the 6 × 6 pixel array after turning off the UV excitation. In addition, the displays could be easily extended to larger ones by increasing the number of pixel units. For instance, a more complex emoji pattern could be shown on a larger display with 12 × 12 pixels. These results, derived from the utilization of RTP 3D-printable resins, have presented a new approach for constructing complex 3D structures that are capable of real-time temperature sensing and useful for new-concept display devices. Long-term storage of 3D printed structures in high humidity environments can affect or even extinguish their ambient RTP, which needs to be improved in the future with the development of more materials that are not sensitive to ambient humidity.
