Koki
Kawai
a,
Mai
Usui
b,
Sota
Ikawa
b,
Naoyuki
Hoshiya
c,
Yosuke
Kishikawa
c and
Norio
Shibata
*ab
aDepartment of Nanopharmaceutical Sciences, Nagoya Institute of Technology, Gokiso, Showa-ku, Nagoya 466-8555, Japan. E-mail: nozshiba@nitech.ac.jp
bDepartment of Engineering, Nagoya Institute of Technology, Gokiso, Showa-ku, Nagoya 466-8555, Japan
cTechnology and Innovation Center, DAIKIN Industries, Ltd, 1-1 Nishi-Hitotsuya, Settsu, Osaka 566-8585, Japan
First published on 13th January 2025
In this study, we explore the potential of the difluoro(trifluoromethoxy)methyl group, CF2–O–CF3, an underexplored but promising structural analog of the trifluoromethoxy group (OCF3). This moiety offers unique electronic properties and enhanced chemical stability due to its multiple C–F bonds, along with the added advantage of C–O bond cleavage, making it an attractive option in fluorine chemistry. We have succeeded in synthesizing difluoro(trifluoromethoxy)methyl compounds via radical amino- and hydroxy-trifluoromethoxylations of β,β-difluorostyrenes. Control experiments, including radical clock experiments, support a free radical mechanism. The synthetic utility of the resulting difluoro(trifluoromethoxy)methyl compounds is also demonstrated through transformations into bioactive analogs, such as pyrrole derivatives, fendiline analogs, and carpropamid analogs, highlighting their potential in drug development.
The introduction of the –CF2–O–CF3 moiety provides a novel opportunity to explore its potential as a terminal functional group in molecular design. This group is distinct from the well-studied –OCF3 group due to the addition of the difluoromethylene (–CF2–) unit, which may offer unique lipophilic, electronic and steric effects that can significantly impact molecular interactions and reactivity.6 The presence of multiple C–F bonds in this structure is expected to impart high electronegativity and chemical stability, which are both highly desirable traits in drug candidates and advanced materials. In addition to its desirable electronic and steric properties, the –CF2–O–CF3 moiety presents another unique property. According to ref. 5, owing to the oxygen atom embedded within the perfluoroalkyl unit, the –CF2–O–CF3 structure is susceptible to C–O bond cleavage under UV irradiation conditions.7 Thus, the CF2–O–CF3 group is a unique functional group that combines strong fluorine-based attributes with a potential property of bond cleavage under specific conditions, making this functional group an attractive option in the design of organofluorine compounds.
The synthetic methods for difluoro(trifluoromethoxy)methyl molecules are not well established. DesMarteau8 reported the addition reactions of trifluoromethoxy hypohalite, CF3OX (X = F, Cl), with fluoroalkenes to give difluoro(trifluoromethoxy)methyl compounds. However, CF3OX poses significant challenges due to its strong oxidizing power, high reactivity, and gaseous nature, making it difficult to handle. Therefore, the development of practical methods to access difluoro(trifluoromethoxy)methyl molecules is highly desirable. In this study, we present an investigation into the synthesis of difluoro(trifluoromethoxy)methyl-molecules through radical trifluoromethoxylation of β,β-fluorinated alkenes. This approach not only introduces a new fluorinated functional group9 but also opens new pathways for the design of molecules with enhanced fluorine-induced properties and controlled degradation potential. Our strategy for constructing difluoro(trifluoromethoxy)methyl compounds is based on the site selective radical trifluoromethoxylation at the C1-position of difluorinated alkenes, followed by nucleophilic functionalization at the C2-position (Fig. 1b). However, this process presents significant challenges due to the highly reactive and electrophilic nature of the trifluoromethoxy radical, ˙OCF3. The trifluoromethoxy radical exhibits exceptional electrophilicity, as indicated by its high global electrophilicity index (ω− = 3.79 eV), and is characterized by strong oxidative power, with a calculated reduction potential of E(calc)red = +2.76 V. These features contrast sharply with those of the much milder methoxy radical, ˙OCH3, (E(calc)red = −0.05 V), underscoring the unruly reactivity profile of the trifluoromethoxy radical (Fig. 1c).10 This pronounced electrophilicity makes the trifluoromethoxy radical highly selective for electron-rich substrates, where it readily engages in radical addition. However, this same reactivity also increases the likelihood of undesired oxidative pathways, including single-electron transfer (SET) processes, which significantly restrict the range of compatible substrates. Indeed, the combination of strong oxidative potential and the propensity for side reactions limits the utility of this radical in many contexts. Over the past few years, several radical trifluoromethoxylation reagents have been developed, with the majority focused on trifluoromethoxylation of aromatic systems.11 However, these methods have predominantly been limited to electron-deficient arenes, where oxidative side reactions can be controlled. Magnier, Dagousset, and Dell'Amico (2021) demonstrated the radical trifluoromethoxylation of enol carbonates using the Togni OCF3 reagent, offering a rare example of radical trifluoromethoxylation beyond the aromatic ring.12 More recently, in 2024, Hopkinson expanded the substrate scope by applying the bis(trifluoromethyl)peroxide (BTMP) reagent to the radical trifluoromethoxylation of silyl enol ethers (Fig. 1d).13 These advancements mark significant progress, yet the scope remains largely confined to specific functionalized alkenes and electron-poor arenes, limiting broader applicability (Fig. 1c). Thus, the inherent difficulty lies in controlling the strong electrophilic and oxidizing nature of trifluoromethoxy radicals, which often results in undesirable side reactions, such as SET oxidative pathways, and thus narrows the substrate scope.

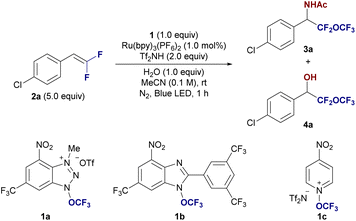

Entry | 1 | Deviations from standard conditions | Yield 3a (%)b/4a (%)b |
---|---|---|---|
a Unless otherwise noted, the standard conditions refer to 1 (0.1 mmol), 2a (0.5 mmol), Tf2NH (0.2 mmol), H2O (0.1 mmol), and Ru(bpy)3(PF6)2 (1.0 mol%) in MeCN irradiated at rt for 1 h. b Determined by 19F NMR spectroscopy using C6F6 as the internal standard. c Yields based on 2a. | |||
1 | 1a | Without Tf2NH | 52/9 |
2 | 1b | Without Tf2NH | 0/0 |
3 | 1c | Without Tf2NH | 28/0 |
4 | 1a | TfOH instead of Tf2NH | 51/9 |
5 | 1a | None | 64/0 |
6 | 1a | 2a (1.0 equiv.) | 54/0 |
7 | 1a | 1a (2.0 equiv.), 2a (1.0 equiv.) | 35/0c |
8 | 1a | [Ir(dFCF3ppy)2-(5,5′-dCF3bpy)]PF6 (1.0 mol%) | 9/0 |
9 | 1a | 4CzIPN (1.0 mol%) | 22/0 |
10 | 1a | H2O (50 equiv.) | 23/15 |
11 | 1a | Acetone instead of MeCN | 0/19 |
12 | 1a | Acetone (0.1 M), without Tf2NH | 0/45 |
13 | 1a | No light | 0/0 |
14 | 1a | No photocatalyst | 0/0 |
With the optimized reaction conditions in hand, we explored the generality of the amino-trifluoromethoxylation of difluoroalkenes 2 with 1a in acetonitrile. As illustrated in Fig. 2, a broad range of β,β-difluorostyrenes 2 containing both electron-donating and electron-withdrawing groups on the aryl ring were successfully employed, yielding the desired α-difluoro(trifluoromethoxy)methyl benzylamine derivatives 3 in good yields. Halogen-substituted β,β-difluorostyrenes at the para-position (2a: Cl, 2b: F, 2c: Br) provided the corresponding difluoro(trifluoromethoxy)methyl benzylamines 3a–c in 63–67% yields. Styrene (2d) was also converted to simple α-difluoro(trifluoromethoxy)methyl benzylamine 3d in 63% yield. Additionally, difluorinated biphenyl styrene (2e) was converted to 3e in 26% yield. Electron-donating groups (2f: Me, 2g: OCOPh, and 2h: OMe) and electron-withdrawing groups (2i: OCF3 and 2j: CO2Me) on the para-position at the aryl ring of β,β-difluorostyrenes afforded the corresponding products 3f–j in 39–58% yields, while the p-CF3-substituted styrene 2k lowered the yield of 3k to 13%. The alkene moiety in 2k would be more electrophilic. This reduces the reactivity towards the electrophilic trifluoromethoxy radical. The meta-substituted styrene derivatives (F, 2l; Me, 2m) yielded 3l and 3m in 40% and 37% yields, respectively. However, the ortho-fluorinated styrene 2n provided a lower yield of 3n (25%), likely due to steric hindrance at the ortho position. Interestingly, the reaction also accommodated α-methyl-substituted β,β-difluorostyrene (2o) and α,α-diphenyl β,β-difluorostyrene (2p), giving the corresponding amines 3o and 3p in 44% and 43% yields, respectively. When β-monofluorostyrene (2q) was subjected to the standard conditions, it delivered the α-fluoro(trifluoromethoxy)methyl, –CFH–O–CF3, containing benzylamine derivative 3q in 43% yield with a diastereomeric ratio of 1.3:
1. However, the aliphatic difluoroalkene 2r failed to produce the desired product 3r, highlighting a limitation of the method. We further explored the reaction with β,β-difluorostyrenes derived from drug molecules. Probenecid- (2s) and ibuprofen-derived (2t) difluorostyrenes underwent amino-trifluoromethoxylation smoothly, yielding α-difluoro(trifluoromethoxy)methylated drug candidates 3s and 3t in 51% and 49% yields, respectively. Notably, difluoro(trifluoromethoxy)methylated ethyl amide 3u was produced in propionitrile as the solvent with a yield of 36%. A gram-scale reaction using 7.0 mmol (3.36 g) of 1a under optimized conditions resulted in the isolation of α-difluoro(trifluoromethoxy)methyl benzylamine derivative 3a in 55% yield (1.22 g isolated).
To further expand the scope of this reaction, we also investigated non-fluorinated styrenes 5. Without the use of Tf2NH, various styrenes substituted with functional groups, including halogens, electron-donating, and electron-withdrawing groups (5a: Cl, 5d: H, 5f: Me, 5g: OCOPh, 5j: CO2Me, and 5k: CF3), successfully yielded the corresponding (trifluoromethoxy)methyl products 6 in 20–67% yields. However, the electron-rich styrene with a para-methoxy (OMe) group (5h) failed to produce the desired product 6h, likely due to single-electron transfer between the trifluoromethoxy radical and the electron-rich aromatic system.
The method also proves effective for the synthesis of deuterium-labeled products, which are of particular interest in drug design due to the kinetic isotope effect. Deuterium-containing drugs often exhibit reduced metabolic rates, leading to a longer half-life.15 By using deuterated acetonitrile (CD3CN) instead of regular acetonitrile under optimized conditions, we successfully isolated the deuterated product 3a-d3 in 55% yield. From a mechanistic perspective, we also investigated the reaction using cyclopropyl-containing difluorostyrene 2v under standard conditions. Interestingly, the 1,4-amino-trifluoromethoxylation reaction proceeded via ring-opening of the cyclopropyl group, yielding the vinyl difluoro(trifluoromethoxy)methyl product 3v as an E/Z mixture (major = 1.3:
1) in 27% yield. This outcome supports the involvement of a free radical process in the amino-trifluoromethoxylation reaction.
We next turned our attention to the hydroxy-trifluoromethoxylation of fluorinated styrenes 2 for providing (trifluoromethoxy)methyl benzyl alcohol derivatives 4. The reaction proceeded stably when β,β-difluorostyrenes (2a and 2g) were treated with 1a, Ru(bpy)3(PF6)2 (1 mol%), and H2O (1 equiv.) in acetone, yielding 4a and 4g in 41% and 43% yields, respectively. Similarly, non-fluorinated styrene 5j afforded the (trifluoromethoxy)methyl benzyl alcohol 7j in 46% yield when Na3PO4 (1 equiv.) was used.

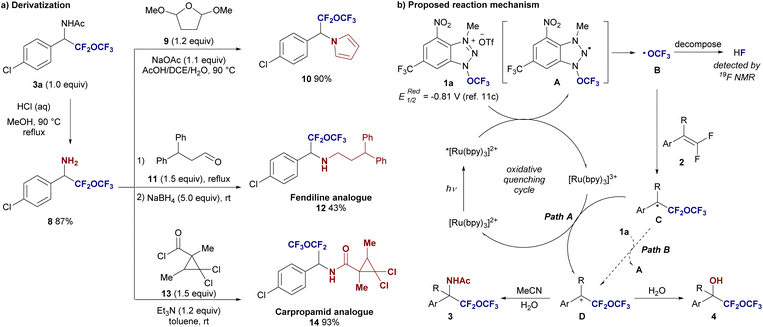

To demonstrate the synthetic utility of the obtained difluoro(trifluoromethoxy)methyl benzyl amine derivatives 3, we first removed the acetyl group from compound 3a under acidic conditions, yielding the free amine 8 in high yield (Fig. 3). This transformation allows the amine functionality to be accessible for various subsequent modifications. Moreover, this fact indicated that the –CF2–O–CF3 unit is stable under acidic conditions with heated. In a Clauson–Kass type reaction, difluoro(trifluoromethoxy)methyl benzyl amine 8 was reacted with 2,5-dimethoxytetrahydrofuran 9 at 90 °C, affording the corresponding difluoro(trifluoromethoxy)methyl benzylpyrrole derivative 10 in an excellent 90% yield. In another transformation, amine 8 was reacted with aldehyde 11 in the presence of triethylamine (Et3N), followed by NaBH4 reduction, yielding the N-alkylated fendiline analogue 12 in 43% yield over two steps (fendiline is a nonselective calcium channel blocker). Additionally, treating amine 8 with a suitably designed acyl chloride 13 provided the carpropamid analogue 14 in 93% yield (carpropamid is a melanin-inhibiting fungicide). These results highlight the versatility of difluoro(trifluoromethoxy)methyl benzyl amines and their potential for generating bioactive molecules, demonstrating the synthetic value of this functional group in medicinal chemistry.
Based on these experimental results, along with precedents from reported radical alkoxylation mechanisms, we propose the mechanism shown in Fig. 3b. The reaction begins with the photoexcitation of the Ru(II) catalyst, which reduces the trifluoromethoxylation reagent 1a to form the OCF3 radical Bvia intermediate A. The OCF3 radical B then undergoes addition to the alkene 2, generating the stable benzyl radical intermediate C. The formation of the stable benzyl radical intermediate C is critical to this transformation, as the aliphatic 2r has not been converted to the adduct 3r. This radical intermediate C is subsequently oxidized by the Ru(III) catalyst (path A), producing the benzyl cation intermediate D. The cationic intermediate D can be trapped by acetonitrile in a Ritter-type reaction, leading to the formation of an amide product 3. Alternatively, when the cation is trapped by water, a hydroxylated product 4 is formed. The moderate yields observed in all cases can be attributed to the competitive decomposition of the OCF3 radical into HF, as evidenced by the presence of an HF peak in the crude reaction mixture in the 19F NMR spectrum and the substantial amount of unreacted starting material 2. To investigate whether the reaction proceeds via a radical chain mechanism (path B), we conducted a light/dark experiment. The experiment demonstrated that the reaction does not occur under dark conditions (see the ESI†). While this result suggests a dependence on light, it does not definitively rule out the possibility that the trifluoromethoxylation reaction involves a radical chain mechanism.16
