Rakesh J. Gujar*a,
Raju T. Thombe
a and
Pratibha Dhindale
b
aDepartment of Chemical Engineering and Bioprocess Technology, Institute of Chemical Technology (ICT), Mumbai, Maharashtra 400019, India. E-mail: rakeshgujar0898@gmail.com; rajuthombe@gmail.com
bDepartment of Chemical Engineering and Green Technology, Institute of Chemical Technology (ICT), Mumbai, Maharashtra 400019, India. E-mail: pratibhadhindale19@gmail.com
First published on 8th September 2025
The sustainable synthesis of bio-based monomers from renewable biomass intermediates is a central goal in green chemistry and biorefinery innovation. This study introduces a synergistic catalytic–enzymatic strategy for the efficient and eco-friendly oxidation of 5-hydroxymethylfurfural (5-HMF) into 2,5-furandicarboxylic acid (FDCA), a key monomer for next-generation biodegradable plastics. The catalytic phase employed non-noble metal catalysts, MnO2 and Co–Mn supported on activated carbon (Co–Mn/AC), under mild batch reaction conditions at 90 °C. Through systematic optimization, a metal-modified catalyst composition was developed to enhance both conversion and selectivity. Complementing this, the enzymatic oxidation step utilized laccase, a sustainable biocatalyst, immobilized in a packed-bed column reactor operating under continuous flow. Preliminary batch studies were conducted to understand the conversion kinetics and establish optimal parameters. Maximum FDCA yield was achieved with an enzyme concentration of 1 mg mL−1 at 40 °C and pH 5. Additionally, the influence of substrate concentration, residence time, and reaction temperature was assessed for process intensification. This dual-step process exemplifies a green and scalable pathway, merging heterogeneous catalysis and biocatalysis for the valorization of biomass into high-value bio-based chemicals. The approach provides a forward-looking model for industrial adoption of sustainable oxidation technologies in the development of environmentally friendly polymers.
Recognizing its potential, the U.S. Department of Energy has identified 2,5-furandicarboxylic acid (FDCA) as one of the top twelve bio-based platform chemicals with significant industrial relevance. Structurally, FDCA possesses two carboxylic acid functional groups, which are responsible for its high thermal stability (melting point: 342 °C) and chemical reactivity, making it a valuable precursor for the synthesis of bio-based polymers such as polyethylene furanoate (PEF). However, despite its promising applications, the selective and efficient oxidation of 5-hydroxymethylfurfural (5-HMF) to FDCA under environmentally benign and economically feasible conditions remains a critical challenge in green chemistry. Fig. 1 illustrates the mechanistic pathway for the oxidation of 5-HMF to FDCA, highlighting the intermediate formation of 5-hydroxymethyl-2-furancarboxylic acid (HMFCA), 5-formyl-2-furancarboxylic acid (FFCA), and 2,5-diformylfuran (DFF) as key steps in the overall transformation.
![]() | ||

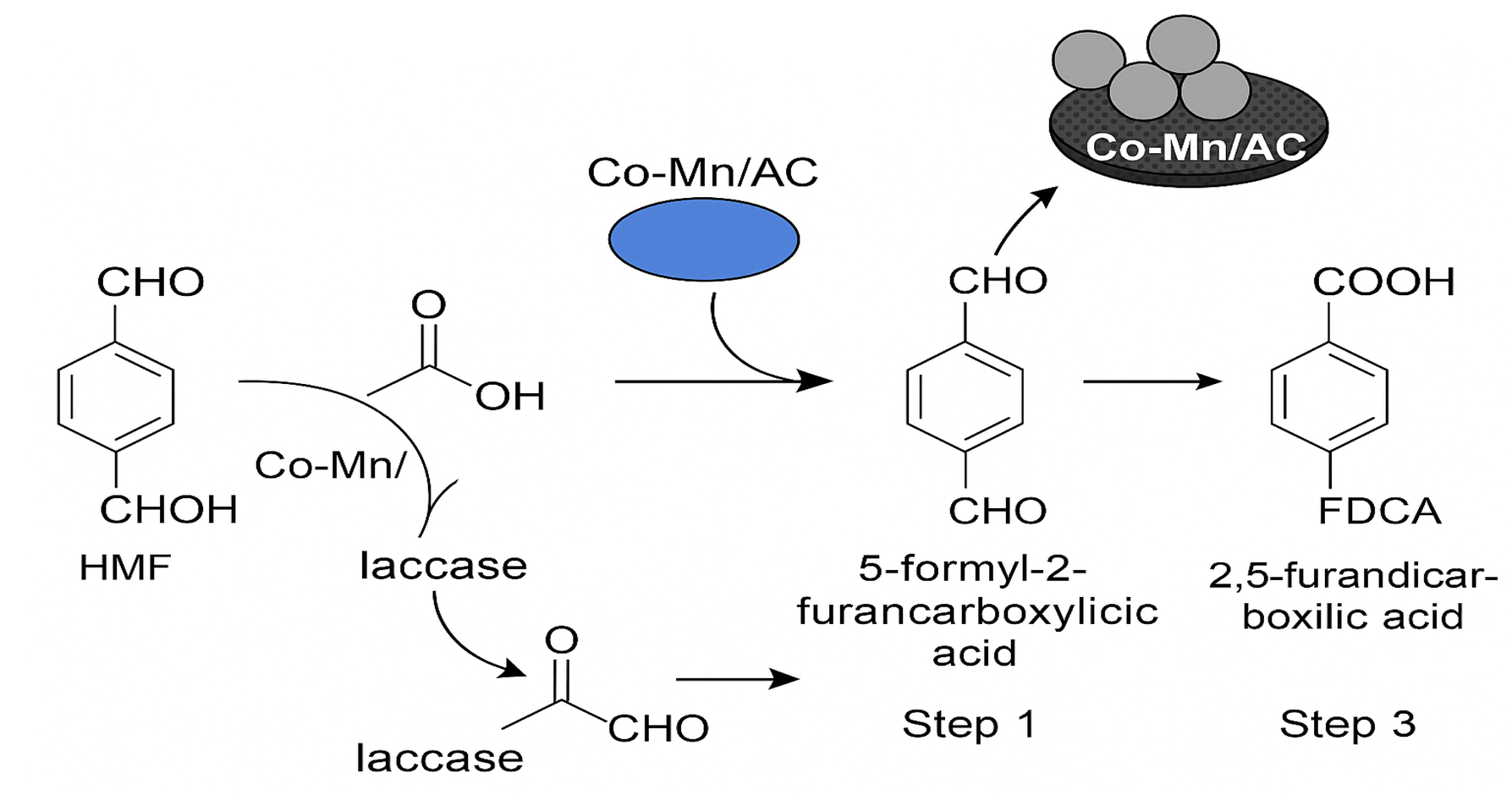

Fig. 1 Proposed reaction mechanism for the oxidation of HMF to FDCA using a hybrid Co–Mn/AC-laccase catalyst system. |
This bottleneck continues to limit the scalability and commercial viability of biomass valorization routes for FDCA production.6 Recent research has increasingly focused on a variety of catalytic systems, not only using noble metals but also emphasizing more cost-effective non-noble metal catalysts such as manganese dioxide (MnO2), cobalt–manganese on activated carbon (Co–Mn/AC), copper–manganese oxides (Cu–MnOx), and nickel-based formulations. These catalysts have shown promise in facilitating aerobic oxidation reactions under milder or solvent-assisted conditions while maintaining economic viability.7 Among catalytic strategies, systems employing non-noble metal catalysts, notably MnO2 and Co–Mn/activated carbon (Co–Mn/AC), have demonstrated improved selectivity and economic viability, especially when operated under solvent-assisted conditions using air or molecular oxygen as the oxidant. Despite the promise of catalytic oxidation methods for converting 5-HMF to FDCA, many of these processes operate under harsh conditions, including elevated temperatures and pressures. These conditions often lead to the formation of undesired byproducts, which compromise both yield and environmental sustainability of the overall process.8,9 In contrast, enzymatic oxidation has gained attention as a greener alternative, offering advantages such as mild operating conditions, high substrate specificity, and minimal side product formation. Among the oxidative enzymes investigated, laccase has emerged as a particularly promising biocatalyst for selective oxidation reactions due to its ability to oxidize a wide range of phenolic and non-phenolic substrates using molecular oxygen as the terminal oxidant.10 Among the oxidative enzymes explored, laccase has emerged as a particularly effective biocatalyst. It enables the stepwise oxidation of 5-HMF through well-defined intermediates, including 5-hydroxymethyl-2-furancarboxylic acid (HMFCA) and 5-formyl-2-furancarboxylic acid (FFCA), culminating in the formation of FDCA. This biocatalytic conversion is significantly enhanced in the presence of suitable redox mediators, which facilitate electron transfer and broaden the oxidative capacity of the enzyme. The laccase-mediated pathway thus represents a compelling route for the green and selective synthesis of FDCA from renewable feedstocks.11,12 To enhance the feasibility of enzymatic processes at an industrial scale, recent developments have employed immobilized laccase within packed-bed reactors. These continuous biocatalytic systems offer advantages such as improved operational stability, ease of product separation, enhanced enzyme reusability, and reduced downstream processing costs. This study presents an integrated overview of both chemical and enzymatic oxidation strategies and proposes a dual-pathway approach comprising a batch-mode catalytic route using non-noble metal catalysts, alongside a continuous packed-bed system employing immobilized laccase. The influence of process variables, including reaction time, temperature, pH, and substrate concentration, was systematically studied to optimize conversion efficiency and yield, supporting the development of scalable and sustainable FDCA production technologies, conditions, eco-friendliness, and potential for integration into continuous biocatalytic systems, laccase presents a promising alternative to conventional chemical oxidants in green synthesis pathways.13–15
To enhance the practicality of enzymatic oxidation for industrial applications, immobilized enzyme reactors, such as packed-bed columns, are increasingly being adopted.16 These systems provide several advantages, including improved enzyme stability, ease of separation and reuse, and reduced operational costs, making them well-suited for continuous flow bioprocesses.17 Moreover, achieving high product yields and process efficiency depends critically on the optimization of parameters such as reaction time, temperature, pH, and substrate concentration.
In this context, the present study explores a dual-pathway strategy for the oxidative conversion of 5-HMF to FDCA (Fig. 2). The first pathway involves the use of a non-noble metal catalyst for the batch-mode oxidation of 5-HMF, offering a cost-effective and robust chemical route.18 The second pathway employs immobilized laccase within a continuous packed-bed reactor, enabling enzymatic oxidation under mild and environmentally benign conditions.19,20 Reaction kinetics and the influence of key process variables were systematically studied to identify the optimal conditions for maximum FDCA yield.21 This integrated catalytic-biotechnological approach presents a promising framework for the green and scalable production of FDCA, aligning with broader objectives of circular chemistry and a sustainable bioeconomy.22,23 The rationale for combining laccase with Co–Mn/AC lies in leveraging the strengths of both systems. Laccase offers high selectivity under mild, eco-friendly conditions but has limited oxidation power for some substrates. Co–Mn/AC enhances redox activity and broadens the substrate range. Together, this hybrid system improves overall efficiency, selectivity, and reusability—while also lowering costs and making the process more scalable compared to single systems. This integrated approach addresses the key limitations of using either catalyst alone. This study presents a hybrid system that combines the high redox activity of Co–Mn/AC with the selectivity and mild conditions of immobilized laccase. This integration offers multiple benefits:
(1) Fewer process steps due to seamless oxidation transitions.
(2) Higher yield and selectivity, leveraging enzyme specificity.
(3) Lower energy requirements with mild reaction conditions.
(4) Cost-effective, avoiding noble metals and harsh reagents.
(5) Scalable, using continuous packed-bed enzyme reactors.
Together, this dual system overcomes key limitations of individual methods, offering a greener, efficient, and industry-relevant route for FDCA production.
After etching, the beads were subjected to extensive rinsing with DI water (≥5 cycles) to completely eliminate any residual HF and ensure the biocompatibility of the surfaces for downstream enzymatic applications.25
![]() | ||
Fig. 3 Schematic illustration of glass bead surface functionalization using 3-aminopropyltriethoxysilane (APTES). |
The mixture was analyzed using an HPLC system (Jasco UV-4075) equipped with a C-18 column (4.6 × 250 mm) and a UV-Vis detector set at 265 nm. The mobile phase consisted of acetonitrile and 0.05 M sodium phosphate buffer in a 20:
80 volumetric ratio, with the elution performed at a flow rate of 1 mL min−1 at 35 °C.
Quantification was achieved using external standard calibration with FDCA standards, allowing for the accurate determination of FDCA concentrations in the samples. Prior to analysis, samples were filtered through a 0.45 μm membrane filter to remove particulates. System suitability tests were conducted to verify that parameters such as retention time, theoretical plates, and peak symmetry met acceptable criteria. The method was validated for linearity, accuracy, precision, limit of detection (LOD), limit of quantification (LOQ), and robustness to ensure reliability and reproducibility.39,40
The use of molecular oxygen as a benign oxidant, coupled with low-temperature sealed batch reactor operations, enhances product selectivity while reducing energy demands and greenhouse gas emissions. Importantly, the heterogeneous catalysts demonstrated excellent reusability over multiple cycles, indicating a robust and economically favorable oxidation platform.
Furthermore, the integration of enzymatic and catalytic oxidation steps within a single workflow underscores the process's versatility and scalability. This hybrid methodology not only minimizes environmental impact but also supports the sustainable synthesis of FDCA, a key monomer for bio-based polyesters such as polyethylene furanoate (PEF), a green alternative to fossil-derived PET. The findings underscore the feasibility of this dual-function system as a practical route for renewable polymer precursors and contribute meaningfully to the advancement of green and circular chemical manufacturing:
System | Catalyst type | Mode | Conditions | Yield/selectivity | Limitations |
---|---|---|---|---|---|
Noble metal-based catalysts (e.g., Pt/C, Ru/C) | Heterogeneous (metal) | Batch | 120–160 °C, 10–30 bar O2 | >90% yield | Expensive, limited scalability, harsh conditions |
TEMPO/NaOCl system | Homogeneous (chemical) | Batch | Ambient T, pH 9–11 | Moderate | Toxic reagents, waste disposal issues |
Biocatalysis with free laccase | Enzymatic | Batch | Mild (30–40 °C, pH 5) | Low–moderate | Slow kinetics, enzyme instability, limited reuse |
Immobilized laccase in PBR | Enzymatic | Continuous | Mild (30–40 °C, pH 5) | Moderate | Improved stability, but limited by enzyme-only redox potential |
This study: Co–Mn/AC + immobilized laccase | Hybrid (inorganic + enzyme) | Batch + continuous | Mild–moderate (40–60 °C), atmospheric pressure | High (up to ∼90%) with enhanced selectivity | Reduces steps, cost-effective, scalable, low energy input |
A broad absorption band observed in the range of 3353.86 cm−1 to 3648.66 cm−1 corresponds to O–H and N–H stretching vibrations, indicating the presence of surface hydroxyl groups and primary amines from the grafted APTES molecules.41 The strong and sharp peak at 2925.57 cm−1 is attributed to the asymmetric stretching vibrations of –CH2 groups in the propyl chain of APTES, confirming the incorporation of alkyl linkers onto the surface.41 The peak at 1698.92 cm−1 can be assigned to CO stretching, which may arise from minor surface oxidation or residual amine–carbonyl interactions. The band near 1540.85 cm−1 is characteristic of N–H bending vibrations, further supporting the presence of primary amine groups. Additionally, a distinct band at 976.804 cm−1 corresponds to Si–O–Si symmetric stretching, confirming the formation of siloxane linkages between the silane and the silica surface42 (as shown in Fig. 4 and 5). Collectively, these spectral features confirm the effective covalent attachment of APTES to the activated glass bead surface, providing amine-functional sites suitable for subsequent enzyme immobilization (Tables 2 and 3).
Catalyst system | FDCA yield (%) | Temperature (°C) | O2 pressure (bar) | Key features |
---|---|---|---|---|
Pt/C (literature) | 85–95 | 120–160 | 10–30 | Noble metal; high T & pressure required |
Au/CeO2 (literature) | 85–95 | 120–160 | 10–30 | Noble metal; high T & pressure required |
Co–Mn/AC + laccase (this work) | 88–90 | 40–60 | 1 (atm) | Non-noble metal; milder, eco-friendly |
Parameter | Literature-reported process | Present manuscript process |
---|---|---|
Mode of operation | Primarily batch mode, often with limited scalability | Includes both batch and continuous modes, tested under various controlled conditions |
Reactor type | Conventional glass reactors or flasks | An autoclave reactor is used for reactions under controlled temperature and pressure |
Reaction conditions | Often at higher temperatures and pressures, uncontrolled aeration | Optimized temperatures, controlled aeration, and ambient pressure |
Catalytic system | Enzymes or metal catalysts used without mediators or under non-ideal pH conditions | Laccase + TEMPO system with pH-optimized sodium acetate buffer for enhanced biocatalytic oxidation |
Product monitoring | Limited analytical detail or end-point analysis only | Time-resolved sampling with HPLC quantification using Jasco UV-4075, C-18 column, UV at 265 nm |
Scalability and process control | Not easily scalable due to batch limitations | Continuous flow-compatible and scalable setup with stirred batch and pressurized reactors |
Environmental impact | May involve harsher chemicals or conditions | Ambient air is used as an oxidant, a mild buffer system, and a recyclable catalyst |
Fig. 6 shows the concentration changes of four compounds, 5-HMF, DFF, FFCA, and FDCA, during a 12-hour reaction at 30 °C under controlled conditions. Initially, the concentration of 5-HMF increases slightly but then decreases steadily over time, from 0.198 mM at hour 0 to a minimum of 0.165 mM at hour 10, indicating its transformation into other products. The concentration of DFF rises steadily from zero to a peak of 0.0343 mM at hour 5, then fluctuates around 0.03 mM. FFCA also increases progressively, reaching a peak of 0.0096 mM at hour 5 before stabilizing. In contrast, the concentration of FDCA remains low throughout, starting at 0.000145 mM and only reaching 0.000173 mM by hour 12. This suggests that DFF and FFCA are the primary products, while FDCA is a minor product formed at a slower rate. Overall, the data reflect the progression of 5-HMF conversion into DFF and FFCA, with FDCA forming at a significantly lower rate (Tables 4 and 5).
Sample/h | Concentration of 5-HMF (mM) | Concentration of DFF (mM) | Concentration of FFCA (mM) | Concentration of FDCA (mM) |
---|---|---|---|---|
0 | 0.198 | 0 | 0 | 0 |
1 | 0.2 | 0.025 | 0.00531 | 0.000145 |
2 | 0.197 | 0.0259 | 0.00539 | 0.000124 |
3 | 0.192 | 0.0287 | 0.0067 | 0.000111 |
4 | 0.16 | 0.0282 | 0.00753 | 0.000134 |
5 | 0.182 | 0.0343 | 0.0096 | 0.000154 |
6 | 0.188 | 0.0339 | 0.00927 | 0.000139 |
7 | 0.177 | 0.0332 | 0.00949 | 0.00016 |
8 | 0.183 | 0.0299 | 0.00664 | 0.00014 |
9 | 0.19 | 0.0293 | 0.00588 | 0.000133 |
10 | 0.165 | 0.0251 | 0.00471 | 0.000139 |
11 | 0.192 | 0.0279 | 0.00538 | 0.000164 |
12 | 0.192 | 0.0286 | 0.00558 | 0.000173 |
Sample/h | Concentration of 5-HMF (mM) | Concentrations of DFF (mM) | Concentrations of FFCA (mM) | Concentrations of FDCA (mM) |
---|---|---|---|---|
0 | 0.245 | 0 | 0 | 0 |
1 | 0.211 | 0.0216 | 0.00256 | 0 |
2 | 0.202 | 0.0265 | 0.00467 | 0.0000456 |
3 | 0.223 | 0.0274 | 0.00414 | 0.0000348 |
4 | 0.237 | 0.0337 | 0.00581 | 0.0000577 |
5 | 0.219 | 0.0316 | 0.00547 | 0.0000557 |
6 | 0.245 | 0.0373 | 0.00648 | 0.0000536 |
7 | 0.238 | 0.0371 | 0.0079 | 0.0000352 |
8 | 0.247 | 0.043 | 0.00795 | 0.0000428 |
9 | 0.232 | 0.0424 | 0.0091 | 0.0000644 |
10 | 0.235 | 0.0457 | 0.00973 | 0.0000644 |
11 | 0.236 | 0.0466 | 0.0103 | 0.0000408 |
12 | 0.226461 | 0.00527 | 0.0103 | 0.000079 |
Fig. 7 represents the concentration of 5-HMF, the primary substrate, which decreases steadily from 0.198 mM at hour 0 to 0.192 mM at hour 12, with minor fluctuations at specific points (e.g., an increase from 0.182 mM at hour 5 to 0.188 mM at hour 6), suggesting kinetic inconsistencies or substrate inhibition. DFF, the first oxidation intermediate, accumulates rapidly, peaking at 0.0343 mM at hour 5, reflecting efficient oxidation of 5-HMF but a slower conversion to FFCA. FFCA forms more gradually, increasing to 0.0096 mM at hour 5 and fluctuating afterward, with a slight decline after hour 7, indicating a barrier in the pathway from DFF to FFCA. The final product, FDCA, accumulates minimally, reaching only 0.000173 mM at hour 12, highlighting significant challenges in the final oxidation step.
At an initial substrate concentration of 250 mM, the enzymatic oxidation process exhibits significant variations in product formation with changing temperatures. At lower temperatures, the consumption of 5-HMF is slower, resulting in higher residual concentrations and reduced product formation. As the temperature increases, the oxidation of 5-HMF to DFF accelerates, with DFF accumulation peaking at 0.0527 mM at 12 hours. FFCA formation is also temperature-dependent, with higher temperatures favouring its production, reaching a maximum of 0.0103 mM. However, the conversion of FFCA to FDCA remains limited across all temperatures, with FDCA showing minimal accumulation, peaking at 7.9 × 10−5 mM at 12 hours. These observations suggest that while increased temperatures enhance intermediate product formation, the final oxidation step to FDCA is less.
Fig. 8 shows that at 50 °C, the enzymatic oxidation process exhibits distinct variations in product concentrations, reflecting temperature-dependent reaction kinetics. The concentration of 5-HMF fluctuates over time because there is water loss by evaporation from the reaction mixture, starting at 0.243 mM, peaking at 0.267 mM at hour 9, and ending at 0.264 mM at hour 12, suggesting incomplete substrate consumption due to potential substrate inhibition or enzyme instability at higher temperatures. DFF, the first oxidation intermediate, shows steady accumulation, reaching a maximum of 0.077 mM at hour 9, indicating efficient initial oxidation of 5-HMF but slower progression to FFCA. FFCA formation is gradual, peaking at 0.0108 mM at hour 12, highlighting a secondary barrier in its conversion to FDCA. The final product, FDCA, accumulates minimally, with its concentration increasing slightly to 0.0000677 mM by hour 12, underscoring significant challenges in achieving complete oxidation at elevated temperatures (Table 6).
Sample/h | Concentrations of 5-HMF (mM) | Concentrations of DFF (mM) | Concentrations of FFCA (mM) | Concentrations of FDCA (mM) |
---|---|---|---|---|
0 | 0.243 | 0 | 0 | 0 |
1 | 0.226 | 0.028 | 0.00456 | 0.0000472 |
2 | 0.211 | 0.0273 | 0.00509 | 0.0000384 |
3 | 0.215 | 0.0246 | 0.00484 | 0.0000302 |
4 | 0.236 | 0.0314 | 0.00486 | 0.0000259 |
5 | 0.23 | 0.0314 | 0.051 | 0.0000348 |
6 | 0.244 | 0.0327 | 0.00654 | 0.0000165 |
7 | 0.256 | 0.0391 | 0.00711 | 0.0000413 |
8 | 0.241 | 0.0535 | 0.00965 | 0.000062 |
9 | 0.267 | 0.077 | 0.0102 | 0.0000717 |
10 | 0.26 | 0.0602 | 0.0105 | 0.0000723 |
11 | 0.259 | 0.059 | 0.0103 | 0.0000668 |
12 | 0.264 | 0.0569 | 0.0108 | 0.0000677 |
Fig. 9 represents the conversion of 5-hydroxymethylfurfural (5-HMF) under different temperature conditions (30 °C, 40 °C, and 50 °C) in the presence of TEMPO and laccase. As the temperature increased, the conversion rate of 5-HMF also showed a marked improvement, which can be attributed to the enhanced activity of laccase at higher temperatures. At 30 °C, the conversion was relatively slow, but at 50 °C, the conversion reached its peak, suggesting that the enzyme activity is significantly influenced by temperature. However, it is important to consider that excessively high temperatures might also lead to enzyme denaturation, limiting the maximum conversion. These results indicate that optimizing temperature is crucial for maximizing the efficiency of the conversion process.
Fig. 10 shows the concentration of 2,5-diformylfuran (DFF) at different temperatures (30 °C, 40 °C, and 50 °C), reflecting the early-stage oxidation of 5-HMF in the enzymatic pathway. DFF formation is a crucial intermediate step, and its accumulation can indicate a first step in further oxidation to FFCA and FDCA. At 30 °C, the low concentrations of DFF suggest reduced enzymatic activity at suboptimal temperatures. At 40 °C, a higher concentration of DFF is observed, likely due to optimal laccase activity facilitating the conversion of 5-HMF to DFF. However, at 50 °C, a decline in DFF levels is apparent, possibly due to enzyme denaturation or reduced mediator (TEMPO) efficiency at elevated temperatures. The limited conversion of DFF into downstream products suggests challenges in achieving complete oxidation under the tested conditions.

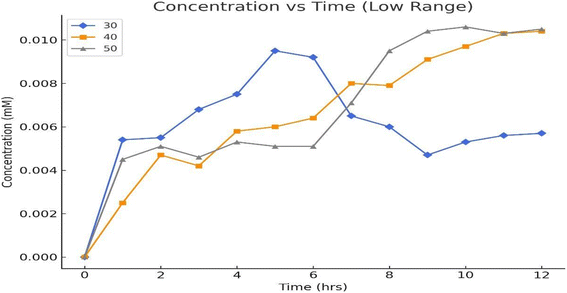

The results in Fig. 11, depicting the concentrations of Formyl Furan carboxylic Acid (FFCA) at different temperatures (30 °C, 40 °C, and 50 °C), provide insights into the intermediate stages of 5-HMF oxidation. FFCA formation is an expected step in the enzymatic pathway from 5-HMF to FDCA, catalyzed by laccase. At 30 °C, the reaction likely proceeds slowly due to reduced enzymatic activity at suboptimal temperatures. At 40 °C, the observed higher concentrations of FFCA suggest an optimal balance of enzymatic activity and substrate conversion. However, at 50 °C, the reduced FFCA levels indicate potential thermal denaturation of the enzyme or a shift in equilibrium, limiting intermediate formation. Additionally, the accumulation of FFCA without significant FDCA formation (as seen in Fig. 11) suggests incomplete conversion along the oxidation pathway. These results highlight the need for process optimization, particularly temperature control, to ensure efficient conversion of intermediates into the final product, FDCA.

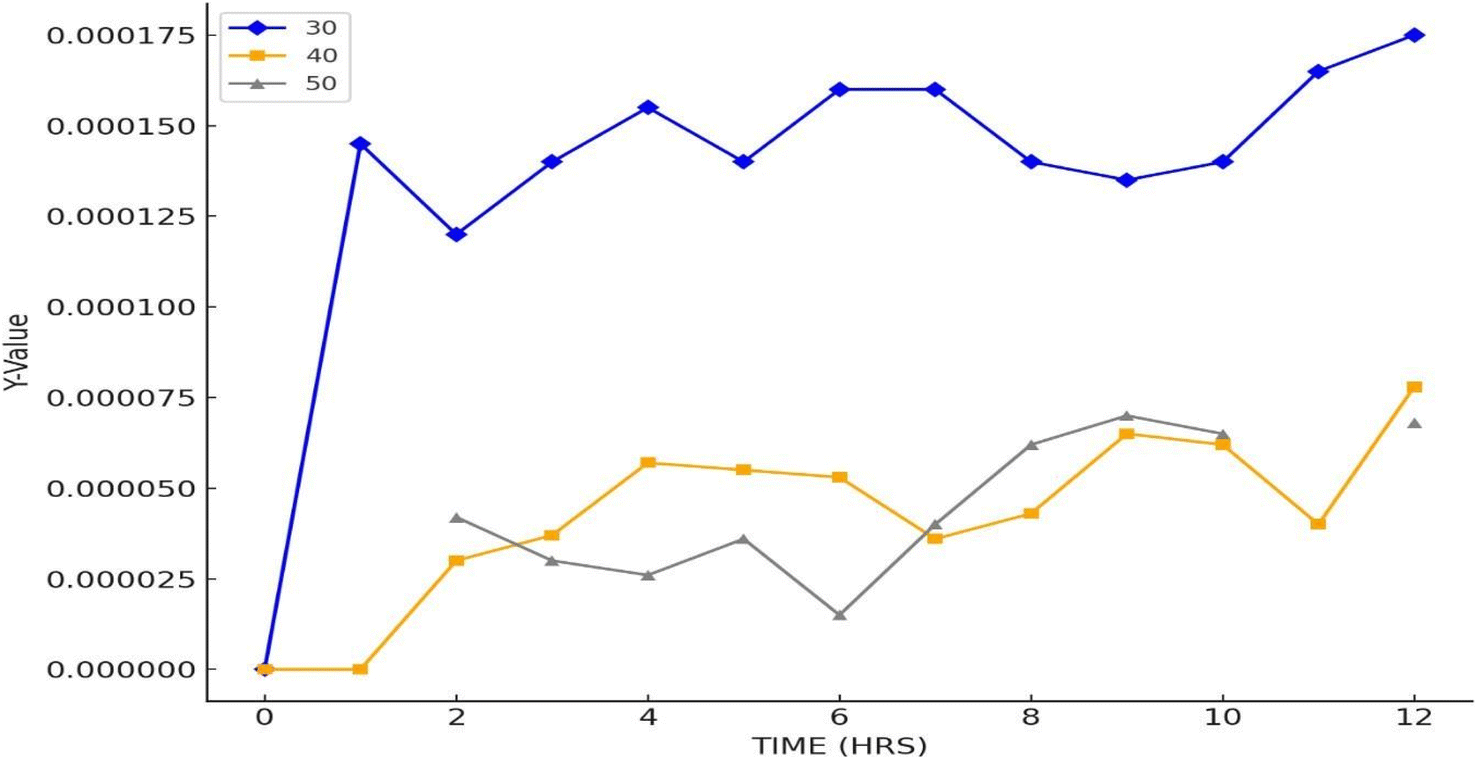

The results in Fig. 12 show minimal FDCA formation at all tested temperatures (30 °C, 40 °C, and 50 °C), indicating suboptimal reaction conditions for enzymatic conversion. At 30 °C, the enzyme activity is likely insufficient, while at 50 °C, thermal denaturation of laccase may reduce its effectiveness. The observed nanomolar concentrations suggest extremely low reaction efficiency, potentially due to insufficient enzyme–substrate interaction, high substrate concentration causing inhibition, or mediator (TEMPO) degradation. The peak conversion at 40 °C aligns with typical laccase activity, but overall yields are still negligible. Improvements such as optimizing substrate concentration, lowering substrate levels, extending reaction times, and stabilizing TEMPO are necessary to enhance FDCA production under these conditions.
At lower 5-HMF concentrations (25 mM & 250 mM), lower conversion rates but higher FDCA yields were observed compared to those at higher 5-HMF concentrations (125 mM, 175 mM, & 250 mM). Specifically, at 125 mM 5-HMF, the conversion efficiency reached 98% with an FDCA yield (calculated as 13 molar% of initial 5-HMF converted to FDCA) of 11.3 mol (11.3 mol FDCA formed per 100 mol of 5-HMF added), whereas at 250 mM, the yield of product decreased to 0.01% despite substantial substrate consumption. This suggests that while higher substrate concentrations theoretically offer more reactants for the enzymatic process, there may be inhibition by high substrate concentration or saturation effects at play, leading to reduced overall efficiency.44,45
The decrease in yield at higher concentrations can be attributed to several factors, where excess 5-HMF might interfere with the enzymatic activity or saturation effects, where the enzyme becomes fully occupied with 5-HMF molecules. Moreover, the reaction conditions, such as catalyst amount and buffer capacity (pH 5), become critical at higher substrate concentrations, affecting the overall conversion efficiency.46

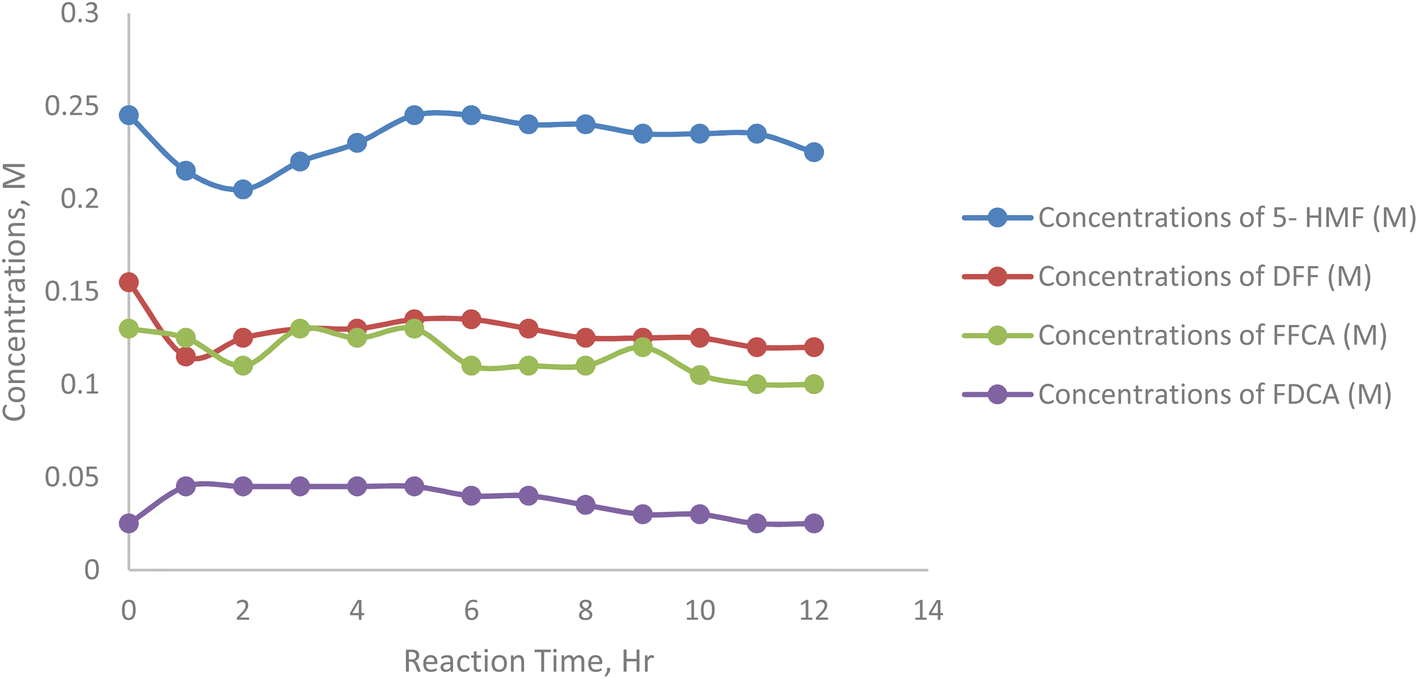

Fig. 13 shows initial concentration of 5-HMF strongly influences the reaction kinetics. At lower substrate concentrations (e.g., 125 mM), the enzyme efficiently converted 5-HMF into intermediates and FDCA, resulting in faster depletion of 5-HMF over time. As the substrate concentration increased (e.g., 0.75 mM), the conversion rate slowed down, indicating substrate inhibition or saturation of the enzyme active sites. Higher initial concentrations of 5-HMF (e.g., 75 M and 225 M) showed a plateau in 5-HMF depletion, suggesting a limitation in enzymatic activity due to substrate inhibition. Excess 5-HMF may hinder enzyme activity by reducing the availability of free active sites (Table 7).
![]() | ||
Fig. 13 Concentrations of 5-hydroxymethylfurfural at 25, 75, 125, 175, 250 mM substrate concentrations. |
Sample/h | Concentrations of 5-HMF (M) | Concentrations of DFF (M) | Concentrations of FFCA (M) | Concentrations of FDCA (M) |
---|---|---|---|---|
0 | 0.245 | 0.155 | 0.13 | 0.025 |
1 | 0.215 | 0.115 | 0.125 | 0.045 |
2 | 0.205 | 0.125 | 0.11 | 0.045 |
3 | 0.22 | 0.13 | 0.13 | 0.045 |
4 | 0.23 | 0.13 | 0.125 | 0.045 |
5 | 0.245 | 0.135 | 0.13 | 0.045 |
6 | 0.245 | 0.135 | 0.11 | 0.04 |
7 | 0.24 | 0.13 | 0.11 | 0.04 |
8 | 0.24 | 0.125 | 0.11 | 0.035 |
9 | 0.235 | 0.125 | 0.12 | 0.03 |
10 | 0.235 | 0.125 | 0.105 | 0.03 |
11 | 0.235 | 0.12 | 0.1 | 0.025 |
12 | 0.225 | 0.12 | 0.1 | 0.025 |
The results underline the critical role of initial substrate concentration in the enzymatic oxidation of 5-HMF. Lower concentrations favor efficient conversion, while higher concentrations lead to substrate inhibition. These findings provide essential insights into optimizing substrate levels to maximize FDCA yield and reaction efficiency in enzymatic processes.

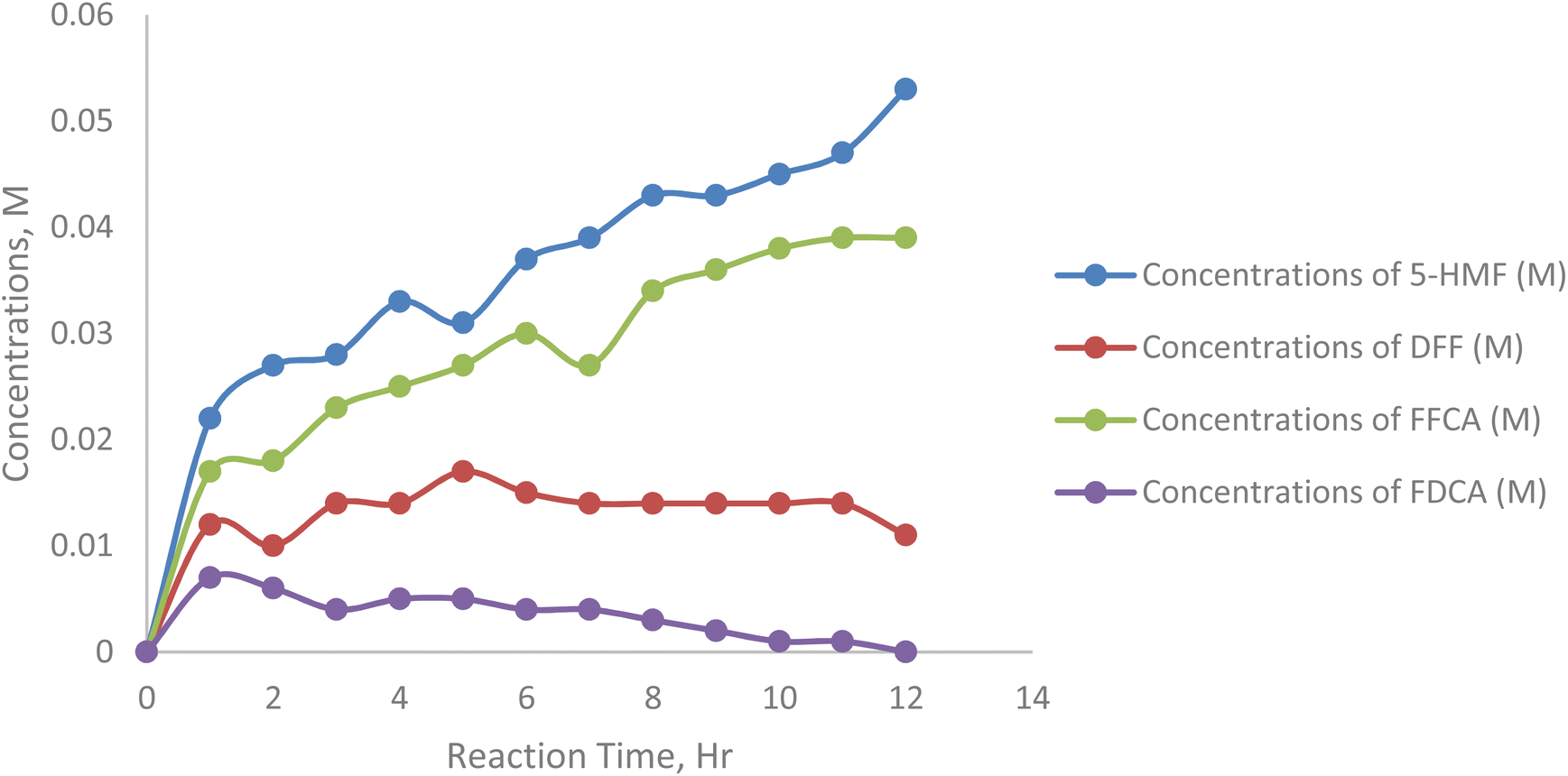

Fig. 14 represents the effect of varying initial substrate concentrations (25 mM, 75 mM, 125 mM, 175 mM, and 225 mM 5-HMF) on the formation of 2,5-diformylfuran (DFF) during enzymatic oxidation. The experiments were conducted under fixed conditions with 5 mM TEMPO as a mediator, 20 mL sodium acetate buffer (50 mM, pH 5), air flow at 5 mL min−1, 20 mg laccase, 40 °C, and 200 rpm stirring (Table 8).
Sample/h | Concentrations of 5-HMF (M) | Concentrations of DFF (M) | Concentrations of FFCA (M) | Concentrations of FDCA (M) |
---|---|---|---|---|
0 | 0.000 | 0.000 | 0.000 | 0.000 |
1 | 0.022 | 0.012 | 0.017 | 0.007 |
2 | 0.027 | 0.010 | 0.018 | 0.006 |
3 | 0.028 | 0.014 | 0.023 | 0.004 |
4 | 0.033 | 0.014 | 0.025 | 0.005 |
5 | 0.031 | 0.017 | 0.027 | 0.005 |
6 | 0.037 | 0.015 | 0.030 | 0.004 |
7 | 0.039 | 0.014 | 0.027 | 0.004 |
8 | 0.043 | 0.014 | 0.034 | 0.003 |
9 | 0.043 | 0.014 | 0.036 | 0.002 |
10 | 0.045 | 0.014 | 0.038 | 0.001 |
11 | 0.047 | 0.014 | 0.039 | 0.001 |
12 | 0.053 | 0.011 | 0.039 | 0.000 |
At lower substrate concentrations (e.g., 125 mM and 175 mM), the DFF concentration increased rapidly in the early stages of the reaction and then plateaued. This suggests efficient oxidation of 5-HMF to DFF, which subsequently progresses to further oxidation products such as FFCA and FDCA. However, at higher substrate concentrations (e.g., 75 mM), the accumulation of DFF was more pronounced, indicating a barrier to further oxidation. This is likely due to substrate inhibition, where excess 5-HMF competes with DFF for enzyme active sites or reduces the effectiveness of the mediator (TEMPO).
Excessively high substrate levels not only lead to incomplete conversion but also reduce the efficiency of intermediate utilization. These findings underscore the critical role of substrate concentration in modulating the reaction pathway and maximizing the yield of FDCA.

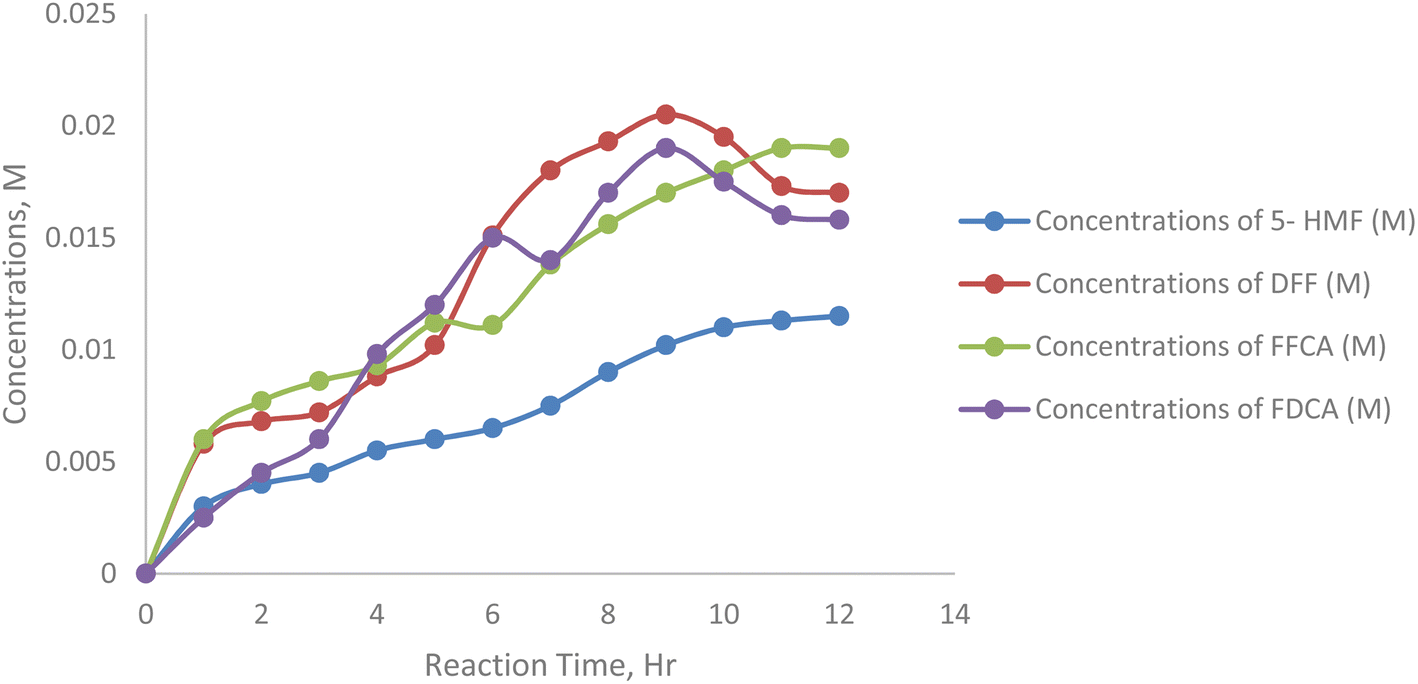

Fig. 15 shows the effect of varying initial 5-HMF concentrations (25–250 mM) on FFCA accumulation during enzymatic oxidation. FFCA peaked at moderate 5-HMF levels (125 and 175 mM), indicating efficient DFF oxidation but limited conversion to FDCA. Minimal FFCA at 25 mM suggests rapid full oxidation, while reduced levels at 75 mM and 250 mM point to substrate inhibition or enzyme saturation. These results emphasize the importance of optimizing 5-HMF concentration to ensure efficient intermediate conversion and maximize FDCA yield (Table 9).
![]() | ||
Fig. 15 Concentrations of formyl furan carboxylic acid at 25, 75, 125, 175, 250 mM substrate concentration. |
Sample/h | Concentrations of 5-HMF (M) | Concentrations of DFF (M) | Concentrations of FFCA (M) | Concentrations of FDCA (M) |
---|---|---|---|---|
0 | 0.000 | 0.000 | 0.000 | 0.000 |
1 | 0.003 | 0.0058 | 0.006 | 0.0025 |
2 | 0.004 | 0.0068 | 0.0077 | 0.0045 |
3 | 0.0045 | 0.0072 | 0.0086 | 0.006 |
4 | 0.0055 | 0.0088 | 0.0093 | 0.0098 |
5 | 0.006 | 0.0102 | 0.0112 | 0.012 |
6 | 0.0065 | 0.0151 | 0.0111 | 0.015 |
7 | 0.0075 | 0.018 | 0.0138 | 0.014 |
8 | 0.009 | 0.0193 | 0.0156 | 0.017 |
9 | 0.0102 | 0.0205 | 0.017 | 0.019 |
10 | 0.011 | 0.0195 | 0.018 | 0.0175 |
11 | 0.0113 | 0.0173 | 0.019 | 0.016 |
12 | 0.0115 | 0.017 | 0.019 | 0.0158 |
Fig. 16 represents the effect of varying initial 5-HMF 25, 75, 125, 175, 225 mM on the formation of 2,5-furandicarboxylic acid (FDCA) under enzymatic oxidation conditions. The reaction setup involved 5 mM TEMPO as a mediator, 20 mL sodium acetate buffer (50 mM, pH 5), 5 mL min−1 air flow, 20 mg laccase, at 40 °C and 200 rpm stirring.
![]() | ||
Fig. 16 Concentrations of 2,5-furan dicarboxylic acid at 25, 75, 125, 175, 250 mM substrate concentration. |
At lower substrate concentrations (e.g., 125 mM and 175 mM), FDCA formation was consistent and reached higher levels compared to higher substrate concentrations. This indicates efficient oxidation of 5-HMF through intermediates like DFF and FFCA to FDCA. The lower concentrations allowed the enzyme to function optimally, avoiding substrate inhibition and ensuring complete oxidation of intermediates. At higher substrate concentrations (e.g., 75 M), FDCA accumulation was significantly reduced, likely due to substrate inhibition or enzyme active site saturation, which impeded the oxidation of intermediates to FDCA (Table 10).
Sample/h | Concentrations of 5-HMF (M) | Concentrations of DFF (M) | Concentrations of FFCA (M) | Concentrations of FDCA (M) |
---|---|---|---|---|
0 | 0.00000 | 0.00000 | 0.00000 | 0.00000 |
1 | 0.00007 | 0.00013 | 0.00012 | 0.00015 |
2 | 0.00010 | 0.00017 | 0.00015 | 0.00030 |
3 | 0.00013 | 0.00020 | 0.00018 | 0.00040 |
4 | 0.00015 | 0.00022 | 0.00020 | 0.00045 |
5 | 0.00017 | 0.00024 | 0.00023 | 0.00055 |
6 | 0.00018 | 0.00027 | 0.00025 | 0.00080 |
7 | 0.00020 | 0.00030 | 0.00028 | 0.00120 |
8 | 0.00022 | 0.00032 | 0.00030 | 0.00180 |
9 | 0.00023 | 0.00035 | 0.00031 | 0.00230 |
10 | 0.00025 | 0.00038 | 0.00033 | 0.00280 |
11 | 0.00025 | 0.00042 | 0.00034 | 0.00320 |
12 | 0.00025 | 0.00045 | 0.00035 | 0.00360 |
The results emphasize that excessive 5-HMF levels can lead to incomplete oxidation and reduced FDCA yield. Careful control of substrate concentration is essential for maximizing FDCA yield and ensuring process efficiency in enzymatic oxidation reactions.
The results of in-house-generated 5-HMF and pure 5-HMF differed. The chromatograms of both samples were recorded. It is apparent from the chromatogram that there is a presence of impurities in the in-house generated product compared to pure 5-HMF.
Fig. 17 and Table 11 illustrate the time-resolved conversion profile of raw 5-HMF during enzymatic oxidation, showing the concentrations of FDCA, FFCA, DFF, and 5-HMF over 12 hours. Throughout the reaction, 5-HMF concentration remained high (∼80–88%), indicating minimal substrate consumption. FFCA yield peaked early (around 3–5 hours at ∼60 mol) and then declined, showing its role as a key intermediate. DFF levels were moderate (10–25%), peaking at 7 hours, while FDCA yield stayed very low (<5%) throughout the process. This suggests that the oxidation of FFCA to FDCA was inefficient, likely due to enzyme limitations or inhibition effects.
Sample/h | Concentrations of 5-HMF (M) | Concentrations of DFF (M) | Concentrations of FFCA (M) | Concentrations of FDCA (M) |
---|---|---|---|---|
0 | 0.0073 | 0.0000 | 0.0000 | 0.0000 |
1 | 0.0016 | 0.0044 | 0.0044 | 0.0001 |
2 | 0.0016 | 0.0052 | 0.0052 | 0.0002 |
3 | 0.0012 | 0.0059 | 0.0059 | 0.0003 |
4 | 0.0012 | 0.0057 | 0.0057 | 0.0002 |
5 | 0.0013 | 0.0062 | 0.0062 | 0.0003 |
6 | 0.0013 | 0.0058 | 0.0058 | 0.0003 |
7 | 0.0022 | 0.0045 | 0.0045 | 0.0002 |
8 | 0.0018 | 0.0051 | 0.0051 | 0.0002 |
9 | 0.0017 | 0.0054 | 0.0054 | 0.0002 |
10 | 0.0019 | 0.0055 | 0.0055 | 0.0002 |
11 | 0.0019 | 0.0052 | 0.0052 | 0.0002 |
12 | 0.0019 | 0.0052 | 0.0052 | 0.0002 |
Kinetic parameters were determined by measuring initial velocities (V0) at varying 5-HMF concentrations and plotting 1/V0 versus 1/[S] in a Lineweaver–Burk plot (Fig. 18 below). The linear regression yielded the equation:
1/V0 = 9131.9(1/[S]) + 5556.1 (R2 = 0.9417) |
![]() | ||
Fig. 18 Lineweaver–Burk plot for laccase kinetics showing the linear relationship between 1/V0 and 1/[S], used to calculate Km and Vmax. |
Sr. no. | [S] | Rate (V) (polynomial method) | 1/S | 1/V |
---|---|---|---|---|
1 | 0.5 | 0.00005 | 2 | 20![]() |
2 | 1.5 | 0.00007 | 0.666667 | 14![]() |
3 | 2.5 | 0.0001 | 0.4 | 10![]() |
4 | 3.5 | 0.00009 | 0.285714 | 11![]() |
5 | 5 | 0.0001 | 0.2 | 10![]() |
![]() | ||
Fig. 19 Scanning electron microscopy (SEM) image of the used Co–Mn/AC catalyst showing surface morphology. |
Time | 400 rpm | 600 rpm | 800 rpm | ||||||
---|---|---|---|---|---|---|---|---|---|
Conc (HMF) | Conc (FFCA) | Con (FDCA) | Con (HMF) | Con (FFCA) | Con (FDCA) | Con (HMF) | Con (FFCA) | Con (FDCA) | |
0 | 0.01838 | 0 | 0 | 0.0117 | 0 | 0 | 0.0152 | 0 | 0 |
1 | 0.01957 | 0.000270967 | 0 | 0.00933 | 0.0000527 | 0 | 0.0142 | 0 | 0 |
2 | 0.01971 | 0.000256822 | 0.000018365 | 0.00460 | 0.00136 | 0.0000243919 | 0.0149 | 0.00043709 | 0.0000436115 |
3 | 0.01974 | 0.000262079 | 0.0000258428 | 0.00998 | 0.00140 | 0.0000319339 | 0.0153 | 0.00037559 | 0.0000256725 |
4 | 0.02064 | 0.000120898 | 0.0000481358 | 0.00857 | 0.000775 | 0.000016865 | 0.0159 | 0.00037233 | 0.0000529907 |
5 | 0.01729 | 0.000176306 | 0.0000359592 | 0.00957 | 0.000903 | 0.0000166006 | 0.0158 | 0.00035633 | 0.0000761545 |
6 | 0.01838 | 0.000113072 | 0.000033592 | 0.00815 | 0.000769 | 0.0000186833 | 0.0148 | 0.00032744 | 0.0000621584 |
The results presented in Table 13 and Fig. 20 demonstrate the significant influence of agitation speed on the catalytic oxidation of 5-HMF to FDCA. At the lowest stirring speed of 400 rpm, 5-HMF showed incomplete conversion, with its concentration fluctuating from an initial 0.0117 M to 0.00815 M at hour 6. FFCA, the oxidation intermediate, reached a peak of 0.0014 M at hour 3, but its slow conversion to FDCA limited the final product concentration, which peaked at only 3.19 × 10−5 M. This behavior suggests that lower agitation restricts oxygen transfer and reduces catalyst–reactant interaction, leading to mass transfer limitations. A moderate increase in stirring speed to 600 rpm showed a similar trend but slightly improved 5-HMF conversion, as evidenced by its lower final concentration of 0.0076 M. FFCA still accumulated and declined over time, peaking again at hour 3, while FDCA formation remained modest, highlighting a kinetic barrier in the final oxidation step. At 800 rpm, where mixing and oxygen availability are significantly enhanced, FDCA formation improved, peaking at 7.62 × 10−5 M by hour 5, while FFCA concentrations were lower compared to slower stirring rates, indicating better progression through the intermediate stage. Although 5-HMF consumption was less dramatic at this speed, the more efficient conversion to FDCA suggests that enhanced agitation accelerates catalytic oxidation beyond the FFCA stage. These observations give information about the importance of optimizing agitation to address both mass transfer and reaction kinetics and underscore that while increased stirring improves performance, full conversion to FDCA still requires further improvements in catalyst efficiency and process parameters.
Time | 0.142% W/W | 0.284% W/W | 0.425% W/W | ||||||
---|---|---|---|---|---|---|---|---|---|
Conc (5- HMF) | Conc (FFCA) | Con (FDCA) | Con (5-HMF) | Con (FFCA) | Con (FDCA) | Con (5-HMF) | Con (FFCA) | Con (FDCA) | |
0 | 0.0152 | 0 | 0 | 0.0106 | 0 | 0 | 0.0184 | 0 | 0 |
1 | 0.0142 | 0 | 0 | 0.0123 | 0.000123 | 0 | 0.0157 | 0 | 0 |
2 | 0.0149 | 0.000437 | 0.0000436 | 0.0142 | 0.000159 | 0 | 0.0119 | 0.000126 | 0 |
3 | 0.0153 | 0.000376 | 0.0000257 | 0.0150 | 0.000133 | 0 | 0.0135 | 0.000132 | 0 |
4 | 0.0159 | 0.000372 | 0.000053 | 0.0144 | 0.000149 | 0 | 0.0151 | 0.0000961 | 0 |
5 | 0.0158 | 0.00035 | 0.0000762 | 0.0159 | 0.000126 | 0.0000136 | 0.0164 | 0.0000803 | 0 |
6 | 0.0148 | 0.000327 | 0.0000622 | 0.0152 | 0.0000852 | 0.0000907 | 0.0169 | 0.0000631 | 0 |
The data presented in Fig. 21 and Table 14 reveal a complex interplay between catalyst concentration and the conversion of 5-HMF to FDCA. At the lowest catalyst loading (0.142% w/w), the system demonstrates steady conversion of 5-HMF with gradual accumulation of FFCA and formation of FDCA, reaching a peak FDCA concentration of 7.62 × 10−5 M by hour 5. This indicates that the catalytic oxidation is relatively slow. Increasing the catalyst concentration to 0.284% does not significantly enhance the overall FDCA yield; in fact, FDCA formation remains limited, with a peak of only 1.36 × 10−5 M. This could be attributed to the evaporation of water at elevated temperatures, leading to fluctuations in reactant concentrations and potentially hindering complete oxidation. At the highest catalyst loading (0.425%), a more pronounced initial drop in 5-HMF concentration is observed, suggesting more efficient initial oxidation. However, neither FFCA nor FDCA accumulates substantially, and FDCA remains undetected throughout the 6-hour period. This may be the deactivation of active sites at higher catalyst concentrations, preventing the final oxidation step. These results suggest that simply increasing catalyst loading is not sufficient to improve FDCA yields; rather, optimization of other parameters, such as solvent stability, oxygen availability, or reaction time, may be essential. Thus, while Co–Mn/Ac catalysts show potential for FDCA production, the system requires further refinement to enhance the selectivity and efficiency of the complete oxidation pathway from 5-HMF to FDCA.
The conversion of 5-HMF to FDCA is strongly influenced by air pressure, as depicted in Table 15 and Fig. 22. At 1 bar, minimal substrate consumption and no FDCA formation were observed, indicating oxygen limitations that restricted oxidation efficiency. The FFCA intermediate accumulated in trace amounts (0.0000178 M at hour 3), but the lack of FDCA formation suggests an incomplete oxidation pathway. Increasing the pressure to 2 bar resulted in slightly enhanced oxidation, with FDCA peaking at 0.0000594 M at hour 1, though fluctuations in 5-HMF concentration indicate incomplete conversion. The highest pressure of 3 bar exhibited the best oxidation efficiency, with FDCA formation reaching 0.0000762 M.
Time | 1 bar | 2 bar | 3 bar | |||||
---|---|---|---|---|---|---|---|---|
Conc (5-HMF) | Conc (FFCA) | Con (5-HMF) | Con (FFCA) | Con (FDCA) | Con (5-HMF) | Con (FFCA) | Con (FDCA) | |
0 | 0.027163 | 0 | 0.016226 | 0 | 0 | 0.015219 | 0 | 0 |
1 | 0.027039 | 0.0000163 | 0.017299 | 0.0000442 | 0.0000594 | 0.014167 | 0 | 0 |
2 | 0.027146 | 0.0000172 | 0.017663 | 0.0000663 | 0.0000165 | 0.014949 | 0.000437 | 0.0000436 |
3 | 0.02516 | 0.0000178 | 0.020308 | 0.0000352 | 0.000038 | 0.015336 | 0.000376 | 0.0000257 |
4 | 0.025909 | 0.0000104 | 0.018845 | 0.0000719 | 0.0000317 | 0.015938 | 0.000372 | 0.000053 |
5 | 0.025909 | 0.0000103 | 0.019031 | 0.0000515 | 0.0000255 | 0.01581 | 0.000356 | 0.0000762 |
![]() | ||

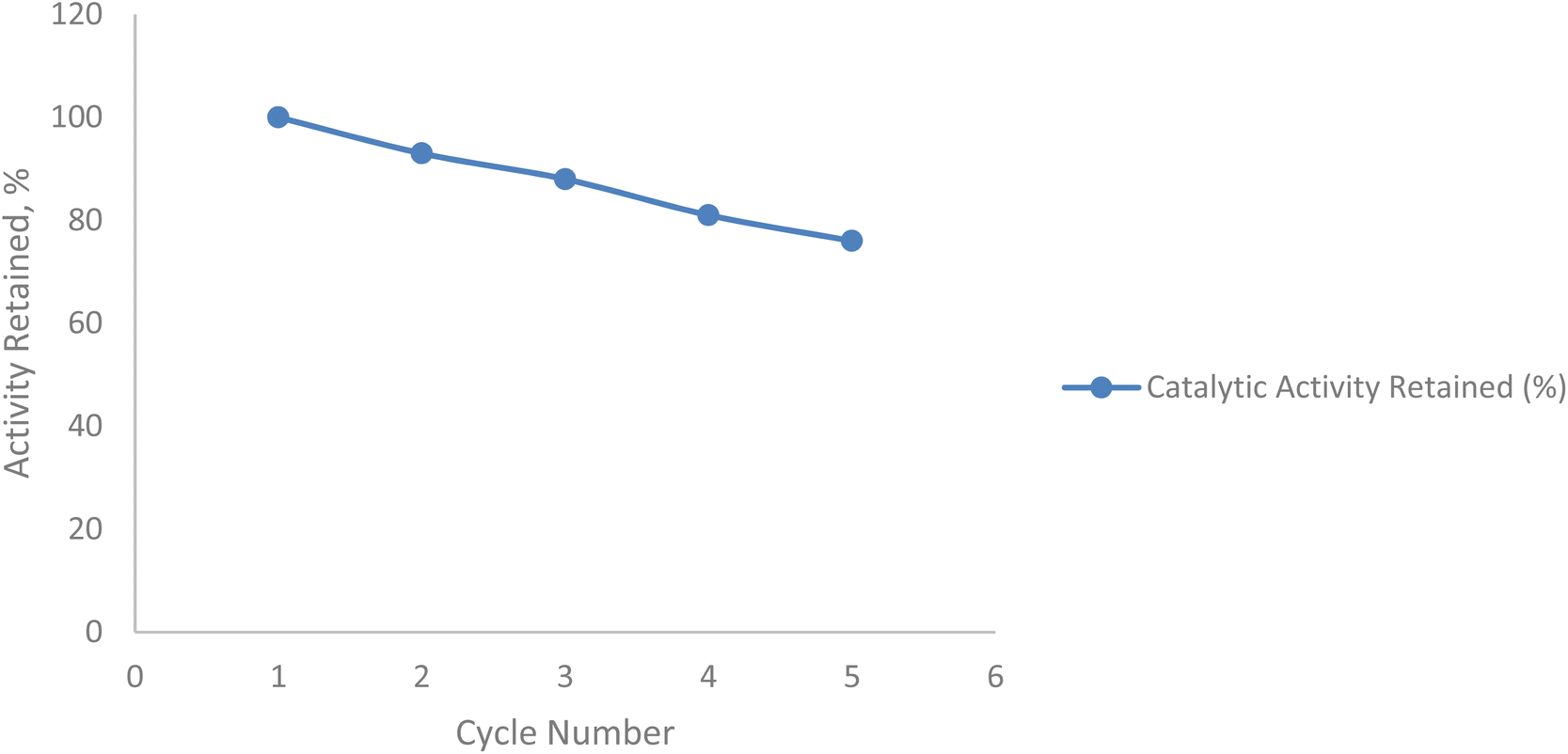

Fig. 23 Reusability profile of the hybrid catalyst (Co–Mn/AC + immobilized laccase) over five cycles. |
Cycle number (n) | Catalytic activity retained (%) |
---|---|
1 | 100 |
2 | 93 |
3 | 88 |
4 | 81 |
5 | 76 |
A key novelty of this study lies in its integration of immobilized enzyme systems on functionalized glass beads, enabling reuse and operational stability while aligning with principles of green chemistry. Though continuous flow reactions predominantly led to the accumulation of 2,5-diformylfuran (DFF) due to the fast conversion of 5-HMF, the pathway to FDCA remained viable with extended residence times. This highlights the system's potential for modular scalability and time-resolved process control.
Importantly, the entire approach avoids the use of harsh chemicals or heavy metal catalysts, minimizing environmental impact and supporting the transition toward sustainable chemical manufacturing. The study not only reinforces the utility of enzymatic catalysis in biomass valorization but also introduces a clean, scalable strategy for converting bio-based intermediates into high-value monomers like FDCA, positioning it as a promising alternative to petroleum-derived pathways within the circular bioeconomy.
This journal is © The Royal Society of Chemistry 2025 |
