Alginate integrated sodium ferrite nanocomposite-based dispersive solid-phase extraction for trace detection of metal ions in water and juices

Saima Perveenab, Aysen Hola, Jameel Ahmed Baig*b, Syed Tufail Hussain Sherazib, Shahabuddin Memonb, Tasneem Gul Kazib, Mohsin Kazic, Khalid Hussain Thebod and Khalil Akhtarb
aChemistry Department, Pamukkale University, Denizli 20017, Turkey
bCentre of Excellence in Analytical Chemistry, University of Sindh, Jamshoro 76080, Pakistan. E-mail: jameel.baig@usindh.edu.pk
cDepartment of Pharmaceutics, College of Pharmacy, King Saud University, PO Box, 2457, Riyadh 11451, Kingdom of Saudi Arabia
dInstitute of Metal Research Chinese Academy of Science, Shenyang, China

Received 19th March 2025 , Accepted 24th June 2025

First published on 1st July 2025


Abstract

In this work sodium ferrite nanoparticles (Na2Fe4O7-NPs) were synthesized through a sol–gel green synthesis process using an aqueous extract of tamarind fruit and then combined with sodium alginate to synthesize composite AG/Na2Fe4O7-NC. The synthesized nanoparticles and the composite were characterized by advanced analytical techniques to study crystalline behaviour, morphology, surface charge, and size distribution. AG/Na2Fe4O7-NC was employed to develop a novel dispersive solid-phase extraction (DSPE) method for the simultaneous detection of heavy metals (HMs), including Cd, Co, Cu, Mn, Ni, and Pb, by flame atomic absorption spectrometry. Various experimental factors, including pH, nanocomposite dose, sample volume, eluent composition, eluent concentration, and eluent volume, were examined to maximize efficiency. The developed AG/Na2Fe4O7-NC based DSPE method showed limits of detection (LODs) of 0.6, 0.2, 4.9, 1.0, 6.0, and 0.1 ng L−1 for Cd, Co, Cu, Mn, Ni, and Pb, respectively, with a preconcentration factor of 250. The accuracy of the method was validated using certified reference material (CRM), yielding excellent recovery rates between 97.1% and 98.7%. This developed method was successfully applied to measure HMs in tap water and fruit juice samples. The AG/Na2Fe4O7-NC enhance the adsorption efficiency of the developed DSPE method and makes it a powerful tool for analyzing trace metals in environmental and food safety applications.


1 Introduction

Environmental contamination is increasing daily due to several environmental contaminants, such as heavy metals (HMs), dyes, and pharmaceutical residues. Among them, the analysis of HMs is quite important for food safety, environmental protection, and the purity of materials. The investigation of HMs also holds importance in the field of agriculture to control environmental pollution. A lot of instrumental techniques for the quantitative measurement of HMs have been developed and employed. Flame atomic absorption spectrometry (FAAS) is widely applied for measuring HMs quantitatively as it is quite simple and cost-effective. The direct determination of HMs by FAAS is difficult due to their presence in trace quantities; therefore, the preconcentration step has been employed to measure the trace level of HMs in the environmental and food samples.1

Different methodologies, such as ion exchange,2 electrochemical deposition,3 liquid–liquid extraction (LLE),4 cloud point extraction,5 flotation,6 dispersive solid phase extraction (DSPE),7 and co-precipitation,8 were applied for determining HMs. DSPE is superior in cost-effectiveness over other methods and is a good alternative to LLE.9 The DSPE method is also preferred for preconcentrating HMs as it generates minimum solvent waste and reduces extraction time.10 Moreover, the stable nature and wide surface area of the DSPE method result in efficient adsorption of HMs.11 Many nanomaterials have been employed as sorbents for DSPE to enhance extraction efficiency. However, ferrite nanoparticles (FNPs) have shown maximum potential in efficiently removing HMs from environmental and food samples. This is due to their desirable features, e.g., their large surface area and high chemical reactivity, resulting in efficient capture of HMs from the sample matrix.12 FNPs have been synthesized using different synthesis methods, including hydrothermal, sol–gel, microwave, ultrasonic, precipitation, and chemical vapour deposition.13 Moreover, the green synthesis of FNPs using the sol–gel method is of great importance as it is found cheaper and more eco-friendly method.14,15 The green synthesis of FNPs uses extracts of biogenic species that contain biologically active compounds (amino acids, terpenoids, acetic acid, proteins, amides, ketones, aldehydes, and citric acid) essential for minimizing the aggregation of FNPs.16 Tamarind (Tamarindus indica) is a well-known biogenic source due to its rich phytochemical composition, which includes citric acid, flavonoids, polyphenols, tartaric acid, and reducing sugars. These phytochemicals can effectively employed as reducing and capping agents in the green synthesis of FNPs. Furthermore, tamarind is cost-effective, abundantly available, and has previously demonstrated excellent performance in biogenic nanoparticle synthesis (e.g., silver nanoparticles17), which makes it an efficient and sustainable selection for the synthesis of FNPs.17,18 The FNPs possess a low adsorption capacity, resulting in a low recovery of HMs.19 Thus, their properties can be improved by specific chemical modification via natural or synthetic polymers for the fabrication of their nanocomposite.20 Natural polymers, mainly polysaccharides (for example, alginate), are preferable due to their structural porosity, hydrophilicity, ion-exchange ability, and active chemical functionalities of carboxyl and hydroxyl groups for binding HMs.21

The current study aims to synthesize sodium ferrite nanoparticles (Na2Fe4O7-NPs) as the core material using a green method with tamarind fruit extract for the synthesis of an alginate-based core–shell composite (AG/Na2Fe4O7-NC). The synthesized AG/Na2Fe4O7-NC was applied to analyze HMs, including Cd, Co, Cu, Mn, Ni and Pb using the DSPE-based FAAS method. The Na2Fe4O7-NPs and AG/Na2Fe4O7-NC were thoroughly characterized by advanced analytical techniques to study crystalline structure, surface functionality, charge, morphology and particle size distribution. The AG/Na2Fe4O7-NC was applied for the simultaneous determination of Cd, Co, Cu, Mn, Ni, and Pb in tap water and juice samples in trace quantities by dispersive solid-phase extraction (AG/Na2Fe4O7-DSPE). The experimental factors were optimized to obtain excellent results. The AG/Na2Fe4O7-DSPE was applied to determine traces of HMs in tap water and juice samples. The method allows for the detection of multiple metals in a single run, saving time and resources compared to methods that detect each element separately.

2 Experimental work

2.1 Standards and chemicals

Analytical-grade standards and chemicals were employed in all the experimental studies. The certified reference material (CRM; SPS Waste Water level 2), was obtained from the Spectrapure Standards (Oslo, Norway). The chlorides of nickel, sodium, calcium, manganese, cobalt, and chromium, the carbonates of calcium, the sulfate salt of magnesium, and the nitrates of sodium, potassium, and iron were purchased from Fluka (Bush, Switzerland). The sodium acetate (CH3COONa), ammonium hydroxide (NH4OH), hydrochloric acid (HCl), nitric acid (HNO3), sulfuric acid (H2SO4), and the standard stock solutions of Cd, Co, Cu, Mn, Ni, and Pb of 1000 mg L−1 were also purchased from Sigma-Aldrich, Louis, USA. The distilled water was obtained from the ultra-pure water purifier system (Bedford, USA).

2.2 Instrumentation

A digital pH meter (Model pH 2700) with a glass electrode was purchased from Eutech, Malaysia. The Fourier transform infrared (FTIR) spectrophotometer of Nicolet (Madison, WI) and scanning electron microscopy (SEM) instrument of JEOL (JSM-7600F, Japan) were used to determine the functional groups and surface morphology of synthesized materials, respectively. An X-ray diffraction (XRD) instrument of Bruker (Wisconsin, USA) was used to study the crystalline structure of synthesized materials. The zeta potential (ZP) and zeta size (ZS) of synthesized materials were analyzed by a Dynamic Light Scattering system (ELSZ-2000). A FAAS instrument (PerkinElmer Analyst 200, Norwalk, CT, USA) was used for elemental analysis with a custom-built micro-sample injection system (MIS). A hollow-cathode lamp was employed for the measurement of Cd, Co, Cu, Mn, and Ni. The EDL lamp was employed for Pb measurement. The spectral line for Cd, Co, Cu, Mn, Ni, and Pb was selected as 228.8, 240.7, 324.8, 279.5, 232.0, and 217.0 nm, respectively. A Milestone (ETHOS EASY) microwave digestion device (Germany) was used to digest the juice samples.

2.3 Sol–gel green synthesis of Na2Fe4O7-NPs

The tamarind fruit was purchased from the supermarket of Pamukkale-Denizli, Turkey, and washed with distilled water. Aqueous extract of tamarind fruit was prepared by taking ten grams of tamarind fruit in 200 mL of distilled water. The mixture was heated at a temperature of 70 °C on a hot plate for 120 minutes with continuous stirring. The prepared extract was filtered and used to synthesize Na2Fe4O7-NPs.22 After extraction preparation, 100 mL of iron nitrate nonahydrate (2.0 M) and sodium nitrate (1.0 M) were prepared separately and stirred to get clear solutions. Then the prepared solutions were mixed, and 200 mL of prepared extract was poured slowly with the help of a burette. The pH of the solution was maintained from 7.0–9.0 with NH4OH. Then, the solution was stirred on a hot plate at 80 °C for two hours. After being dried in a hot air oven, the final product was pulverized with a pestle and mortar. The obtained powder was calcined at 850 °C for 5 hours for the phase development of Na2Fe4O7-NPs.23,24

2.4 Synthesis of AG/Na2Fe4O7-NC

AG/Na2Fe4O7-NC was synthesized using Na2Fe4O7-NPs.21 This composite was made by mixing 100 mL of a 3% (w/v) sodium alginate solution with 1 g of Na2Fe4O7-NPs and stirring the mixture for three hours. After adding the combination dropwise to 100 mL of a 2% (w/v) CaCl2 solution, it was left overnight. To get AG/Na2Fe4O7-NC, the resultant material was filtered, completely cleaned with distilled water, dried for 24 hours at 30 °C, and crushed into a fine powder.

2.5 DSPE-FAAS procedure for the determination of HMs by AG/Na2Fe4O7-NC

The DSPE procedure involved the mixing of 0.02 g of AG/Na2Fe4O7-NC in 500 mL of a 20 μg L−1 solution of Cd, Co, Cu, Mn, Ni, and Pb. The suspensions of different pH ranges from 2.0–9.0 were prepared using buffer solutions. The prepared suspensions were vortexed thoroughly for 30 s. The samples were then divided into multiple 50 mL centrifuge tubes and centrifuged accordingly at 3000 rpm for 3 min. The supernatant was discarded, and 5 mL of eluent (HNO3; 0.5 M) was mixed with the AG/Na2Fe4O7-NC, which was loaded with HMs. This suspension was vortexed for 30 s and then centrifuged at 3000 rpm for 3 min. The resulting supernatant was separated and detected by FAAS for the determination of HMs.

2.6 Application of CRM and real samples

The devised technique was used to evaluate the known concentration CRM (SPS Waste Water level 2), and FAAS conducted triple analyses. Samples of tap water were gathered, filtered, and stored in Denizli, Turkey. The juice boxes of several brands were purchased from stores in Denizli, Turkey. The concentrated HNO3 and H2O2 (5[thin space (1/6-em)]:[thin space (1/6-em)]1 by volume) were poured into 10 mL of the juice samples, followed by being subjected to microwave digestion.25 The resulting product was diluted up to 500 mL with distilled water. The developed AG/Na2Fe4O7-NC-based DSPE-FAAS was employed for quantifying HMs in tap water and juice samples.

3 Results and discussion

3.1 Characterization

The synthesized nanoferrites were characterized by XRD for investigation of structure, size and % crystallinity. The XRD spectra of Na2Fe4O7-NPs and AG/Na2Fe4O7-NC are given in Fig. 1(a). The diffraction peak patterns obtained from the XRD spectrum of Na2Fe4O7-NPs confirmed the formation of a hexagonal crystallite phase.26,27 Further, it the XRD spectrum of AG/Na2Fe4O7-NC showed similarities in the diffraction peak patterns to Na2Fe4O7-NPs, and some peaks also disappeared due to the coating of sodium alginate on the Na2Fe4O7-NPs. No other peak relevant to biopolymer was found in the range of 20–80° which confirmed the successful synthesis of AG/Na2Fe4O7-NC.27,28 The sharpness of peaks displays a higher degree of crystallinity. The average crystallite size was calculated by Debye–Scherrer formula which was found 21.8 and 39.3 nm, respectively. The crystallinity (%) of Na2Fe4O7-NPs and AG/Na2Fe4O7-NC was found to be 86 and 79%, respectively.
image file: d5ra01948f-f1.tif

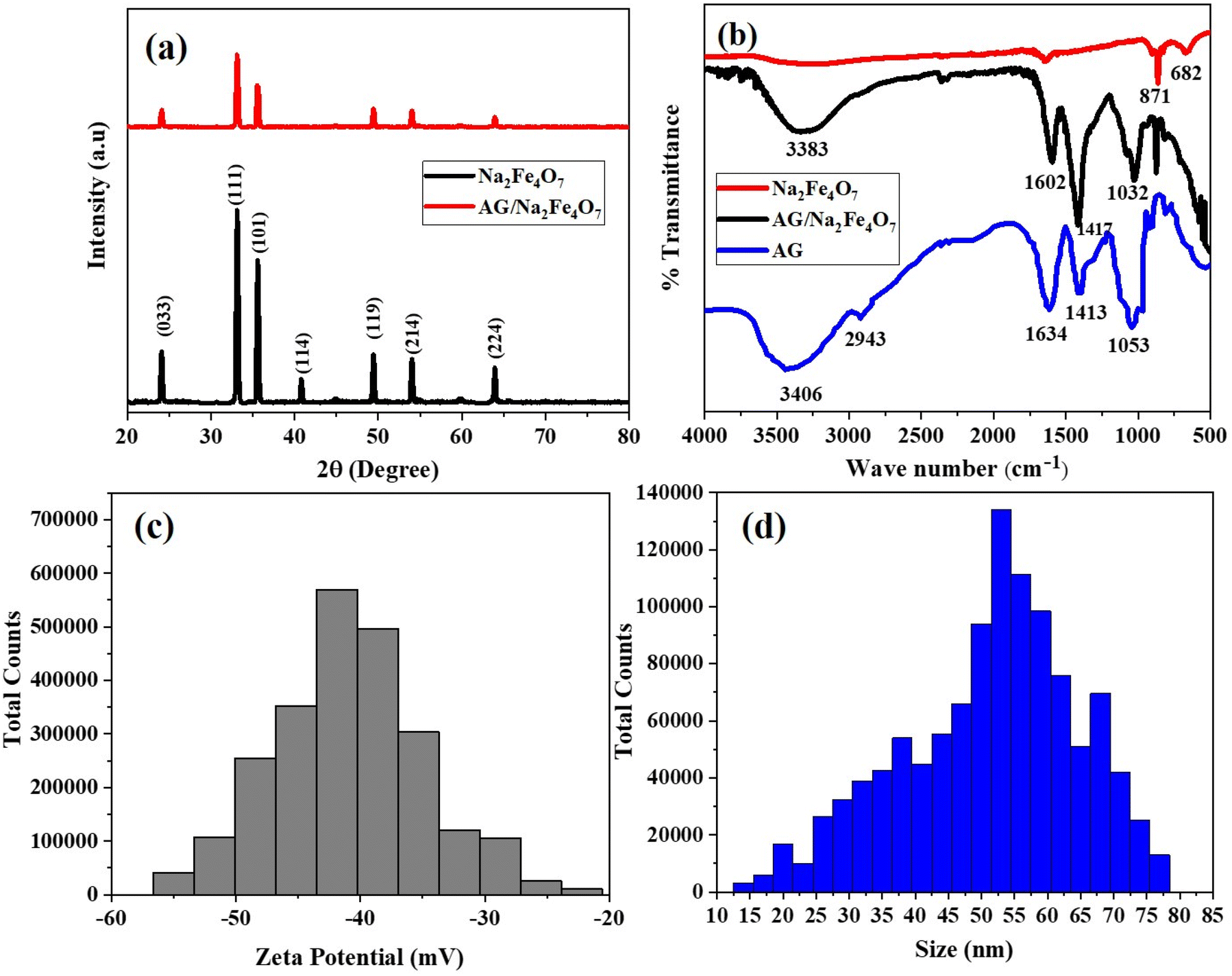

Fig. 1 (a) X-ray diffraction spectrum (b) Fourier transform infrared spectrum (c) zeta potential histogram and (d) zeta size histogram of AG/Na2Fe4O7-NC.

The presence of functional groups in sodium alginate (AG), Na2Fe4O7-NPs, and AG/Na2Fe4O7-NC was investigated by FTIR spectroscopy as shown in Fig. 1(b).29 The peaks (3249 and 1638 cm−1) were observed in the FTIR spectrum of Na2Fe4O7-NPs due to the stretching and bending of the hydroxyl group, resulting in moisture adsorption by Na2Fe4O7-NPs.30 Another, absorption peak was found at 682 cm−1 that was attributed iron–oxygen (Fe–O) stretching vibration. The peak at 871 cm−1 that was reported as distinct peak of hexagonal ferrites was also observed.31 In the FTIR spectrum of AG the peak observed at 3406, and 2943 cm−1 are due to the stretching vibration of the hydroxyl, and methylene group of alginate, respectively.32,33 The peaks observed at 1413 and 1634 cm−1 are due to symmetric and asymmetric C[double bond, length as m-dash]O stretching vibrations of carboxyl group. The carbon–oxygen (C–O) stretching vibration was observed at 1053 cm−1.32,34–37 Moreover, in the FTIR spectrum of AG/Na2Fe4O7-NC all the peaks of AG was observed with slight shifting and peak of Fe–O was also observed indicating successful formation of AG/Na2Fe4O7-NC. The presence of hydroxyl and carboxyl acid groups in AG is responsible for the effective adsorption of HMs.

Further, the zeta potential is a critical parameter that reflects the stability of nanoparticles within a colloidal dispersion.38 It measures the electrostatic potential at the interface of the double layer surrounding a colloidal particle in solution. Particles with zeta potentials between −10 mV and +10 mV are considered neutral, while those with potentials less than −30 mV or greater than +30 mV are categorized as strongly anionic or cationic, respectively.39 The zeta potential of AG/Na2Fe4O7-NC was investigated and found in the range of −22.2 mV to −54.9 mV, with an average value of −40.87 mV (Fig. 1(c)). This strongly anionic nature suggests excellent stability and enhances the material's ability to adsorb cationic heavy metals. Additionally, the zeta size (ZS) of AG/Na2Fe4O7-NC was determined by plotting the size against total counts, which showed the size ranged from 14 to 77 nm, with an average size of 51.3 nm (Fig. 1(d)).

Moreover, SEM was used to investigate the surface morphology of synthesized Na2Fe4O7-NPs and AG/Na2Fe4O7-NC as shown in Fig. 2(a) and (b).40,41 The SEM image of Na2Fe4O7-NPs displayed a semi-spherical shape of agglomerated particles with porous and rough surfaces. The surface properties of Na2Fe4O7-NPs can maximize the adsorption of HMs by possessing a large surface area.42,43 From the SEM analysis AG/Na2Fe4O7-NC it was observed that the shape of particles changed and size was also increased due to the covering of sodium alginate resulting in a highly rough surface. The increase in roughness of the surface further enhances the surface area of AG/Na2Fe4O7-NC. Consequently, the synthesized nanocomposite can be proved effective for the adsorption of HMs.


image file: d5ra01948f-f2.tif
Fig. 2 SEM image of synthesized (a) Na2Fe4O7-NPs and (b) AG/Na2Fe4O7-NC.

The elemental composition of synthesized AG/Na2Fe4O7-NC was investigated by EDX to confirm the formation of AG/Na2Fe4O7-NC. The results are shown in Fig. 3(a), which reveals the presence of all desired elements (C, Na, O, and Fe) that confirm the successful synthesis of AG/Na2Fe4O7-NC. Surface area and porosity of synthesized AG/Na2Fe4O7-NC were analyzed by nitrogen adsorption desorption isotherm. The isotherm curve in Fig. 3(b) shows an IUPAC type IV isotherm with a type H3 hysteresis loop. According to the figure, the majority of the uptake takes place between relative pressures of 0.1 and 0.95. The AG/Na2Fe4O7-NC exhibited a uniform pore width and the average pore size was found 18.387 AG/Na2Fe4O7-NC. In addition, the average BET surface area was obtained 45.256 m2 g−1 for AG/Na2Fe4O7-NC which making AG/Na2Fe4O7-NC best option for adsorption studies.


image file: d5ra01948f-f3.tif
Fig. 3 (a) EDS and (b) BET of synthesized AG/Na2Fe4O7-NC.

3.2 Optimization of DSPE factors

3.2.1 Influence of pH. The most crucial factor for the successful adsorption and retention of analytes (HMs) onto the adsorbent (AG/Na2Fe4O7-NC) is the pH of the solution. As a result, the impact of pH was investigated throughout a broad pH range of 2–9, which was maintained using buffer solutions. According to obtained experimental results in Fig. 4(a), pH 6 was found suitable for detection of Cd, Co, Cu, Mn, and Ni as these HMs showed maximum recovery at this pH. However, it was observed that the maximum recoveries for Pb were found at pH 7. Nevertheless, there were no appreciable variations in Pb recoveries at pH 6 and 7. Therefore, pH 6 was selected as the optimal pH for the simultaneous determination of Cd, Co, Cu, Mn, Ni and Pb. The maximum recovery of HMs at pH 6 is further elucidated by considering the dissociation behavior of alginic acid and the chemistry of the HMs in solution. The pKa value of alginic acid is approximately 3.5 which mean that almost 76% of the carboxyl groups are dissociated at pH 4, while more than 99% of dissociation of these groups occurs at pH 6 resulting in their deprotonation.44 The dissociation of carboxyl groups increases the negatively charged carboxylate sites on the surface which enhances the chelation capacity of the AG/Na2Fe4O7-NC. This improve the adsorption of positively charged HMs on the surface of AG/Na2Fe4O7-NC.45 However, further increase in pH showed decrease in recoveries of HMs leading to the formation of metal hydroxide species having lower solubility and tend to precipitate.46 These precipitates can adhere to the walls of the container which effectively reduce the concentration of HMs available for adsorption onto the adsorbent surface.
image file: d5ra01948f-f4.tif
Fig. 4 Optimization of (a) pH, (b) adsorbent dose, (c) sample volume, and (d) eluent composition on the recoveries of Cd, Co, Cu, Mn, Ni, and Pb using AG/Na2Fe4O7-NC based developed DSPE method.
3.2.2 Influence of adsorbent dose. In order to determine HMs using the established DSPE technique at pH 6, the impact of the adsorbent quantity was investigated between 10 and 50 mg (Fig. 4(b)). According to the results shown in Fig. 3(b), HM recoveries rose as the dose of AG/Na2Fe4O7-NC increased by up to 30 mg. The HM recoveries nearly stay the same after 30 mg of AG/Na2Fe4O7-NC, suggesting that there is an adequate dose of active site for HM adsorption at 30 mg of AG/Na2Fe4O7-NC. Therefore, 30 mg of AG/Na2Fe4O7-NC was utilized to determine the HMs.
3.2.3 Influence of sample volume. The influence of sample volume on the recovery of HMs was investigated by changing the volume from 50–600 mL while keeping experimental conditions constant. After preconcentration, the retained HMs were eluted using 2 mL of 1.0 M HNO3 and quantified using FAAS (Fig. 4(c)). The results showed that the recovery of HMs increased with increasing sample volume up to 500 mL and then decreased after further increasing the sample volume. From the results, it was noted that at lower sample volumes, the number of HMs present may be insufficient to consume the capacity of the adsorbent completely and resulting in low recovery. By increasing the sample volume, more HMs are available to interact with the abundant carboxyl functional groups on the AG/Na2Fe4O7-NC surface, which improves the recoveries of HMs. However, a further increase in sample volume beyond 500 mL leads to the saturation of the adsorbent, and the number of available active sites becomes insufficient to bind all HMs in the solution. This leads to lower recovery at higher sample volumes. Therefore, 500 mL was selected as the optimal sample volume, which offers the best cooperation between analyte availability and adsorbent capacity.
3.2.4 Selection of best eluent. Various acids such as HNO3, HCl, and H2SO4 were studied as potential eluents for the elution of HMs, and the results are shown in Fig. 4(d). It was observed that the HNO3 resulted in the highest recovery of HMs due to its strong oxidizing nature and ability to efficiently break the interaction between HMs and adsorbent. Therefore, HNO3 was selected as the optimal eluent for further use. Subsequently, the concentration of the selected eluent was investigated, ranging from 0.1–1.5 M, and the results are shown in Fig. 5(a). It was noted that the recoveries of HMs increased with increasing concentration of eluent up to 1.0 M. Beyond this concentration, no significant increase was observed which is possibly due to saturation of desorption efficiency or matrix effects. Thus, the optimal concentration of 1.0 M of eluent was selected. Further, the eluent volume was optimized in the range of 2.0–20 mL and the results are shown in Fig. 5(b). It was found that the 2.0 mL showed maximum recoveries due to sufficient desorption of retained HMs with minimal dilution. Therefore, 2 mL of 1.0 M HNO3 was selected as optimal eluent. Based on the optimized sample volume of 500 mL and eluent volume of 2.0 mL, the preconcentration factor (PF), defined as the ratio of sample volume to eluent volume, was calculated as 250.47
image file: d5ra01948f-f5.tif
Fig. 5 Optimization of (a) eluent concentration and (b) eluent volume on the recoveries of Cd, Co, Cu, Mn, Ni, and Pb using AG/Na2Fe4O7-NC based developed DSPE method.
3.2.5 Interference and reusability. The interfering species may significantly influence the recoveries of Cd, Cu, Co, Mn, Ni and Pb by interacting with HMs or the surface of the adsorbent.48 The effectiveness of the AG/Na2Fe4O7-NC/DSPE/FAAS method was examined by analyzing the recoveries of HMs (20 μg L−1) in the presence of different concentrations of interfering species including Na+, K+, Ca2+, Mg2+, Cr3+, SO42−, Cl, CH3COO, CO32−, NO3, citric acid, tartaric acid, malic acid, glucose, fructose and sucrose. The results shown in Table 1 indicated that the foreign species have no significant influence on the recoveries of Cd, Cu, Co, Mn, Ni and Pb. This confirmed the accuracy and efficiency of the developed AG/Na2Fe4O7-NC/DSPE/FAAS method for the analysis of HMs in real samples.
Table 1 Influence of foreign species for the determination of HMs by AG/Na2Fe4O7-NC-based SPE-FAAS method
Foreign species Added salts Tolerance limit (μg L−1) % Recovery
Cd Co Cu Mn Ni Pb
Na+ NaCl 2000 93.4 92.3 94.4 95.1 92.2 93.7
K+ KNO3 100 94.2 92.1 96.4 93.4 91.6 94.2
Ca2+ CaCO3 1000 95.6 95.5 95.3 92.3 93.3 93.7
Mg2+ MgSO4 2000 95.1 94.3 94.1 96.1 96.6 94.6
Cr3+ CrCl3 100 94.6 96.6 96.4 96.4 94.2 95.4
SO42− MgSO4 2000 92.3 91.8 95.8 95.3 93.4 94.4
Cl NaCl 2000 93.5 93.3 95.7 95.3 96.5 95.6
CH3COO CH3COONa 1000 94.3 96.3 93.5 93.7 95.8 96.5
CO32− CaCO3 1000 91.5 94.5 93.2 94.2 93.9 92.8
NO3 KNO3 100 93.2 94.2 95.2 92.8 90.9 91.8
Citric acid C6H8O7 500 92.5 91.5 92.7 91.4 92.5 92.5
Tartaric acid C4H6O6 500 93.1 92.3 93.5 91.3 91.1 93.1
Malic acid C4H6O5 500 92.3 91.4 92.8 92.6 92.3 91.3
Glucose C6H12O6 1000 91.8 92.6 91.9 91.8 91.3 91.1
Fructose C6H12O6 1000 91.9 92.9 91.4 91.7 92.4 90.9
Sucrose C12H22O11 1000 91.4 92.5 91.5 91.6 91.8 90.4


Further, the reusability of the synthesized AG/Na2Fe4O7-NC was assessed over five consecutive cycles using the same procedure. The AG/Na2Fe4O7-NC retained its adsorption efficiency with no significant loss in recoveries of HMs, which indicates the excellent chemical/mechanical stability and reusability of synthesized AG/Na2Fe4O7-NC. This demonstrates that AG/Na2Fe4O7-NC can be effectively reused at least five times with negligible decline in performance. Furthermore, the functional groups responsible for HMs binding remained intact, which was confirmed by consistent performance and minimal leaching during desorption. These outcomes validate that the AG/Na2Fe4O7-NC is chemically robust and mechanically durable, which makes it a reliable adsorbent for repeated application in DSPE.

3.2.6 Analytical figures of merit, validation, and application. The developed AG/Na2Fe4O7-NC-based DSPE method's analytical figures of merit were carefully assessed. A number of variables, including concentration range, enrichment factor (EF), slope, intercept, correlation coefficient (R2), limits of detection (LOD, S/N = 3.0), and limits of quantification (LOQ, S/N = 10) were investigated under ideal circumstances in order to assess the efficacy of the developed methodology.49 The LODs and LOQs were calculated by using 3σ/s and 10σ/s formulas, respectively, where, σ is the standard deviation of blank (n = 10), and s is the slope of the calibration graph.50 The LODs of the developed AG/Na2Fe4O7-NC-based DSPE-FAAS method were found to be 0.0026, 0.0013, 0.0024, 0.0063, 0.0023, and 0.0023 μg L−1 for Cd, Co, Cu, Mn, Ni, and Pb, respectively. The EF was calculated by dividing the slope of the calibration curve with DSPE by the slope of calibration curve without DSPE.51,52 The obtained EF values Cd, Co, Cu, Mn, Ni, and Pb were 249.3, 247.9, 247.6, 249.8, 248.9, and 248.8 which were approximately equal to that of PF. The findings show that trace levels of HMs in actual samples may be effectively analyzed concurrently using the new AG/Na2Fe4O7-NC-based DSPE technique (Table 2).
Table 2 Analytical features of AG/Na2Fe4O7-NC-based DSPE-FAAS method for the determination of HMsa
Without DSPE
Parameter Cd Co Cu Mn Ni Pb
a Note: LOD (limit of detection); R2 (coefficient of determination); LOQ (limit of quantification).
Dynamic range (μg L−1) 200–10[thin space (1/6-em)]000 400–20[thin space (1/6-em)]000 200–20[thin space (1/6-em)]000 200–1000 200–20[thin space (1/6-em)]000 400–20[thin space (1/6-em)]000
Slope 0.02 0.0201 0.0104 0.0094 0.0222 0.0243
Intercept 0.0273 0.0287 0.0091 0.065 0.0284 0.0125
R2 0.998 0.9992 0.9993 0.994 0.9998 0.997
LOD (μg L−1) 0.650 0.326 0.620 0.691 0.592 0.560
LOQ (μg L−1) 2.16 1.08 2.08 2.31 1.97 1.89

DSPE by AG/Na2Fe4O7-NC
Parameters Cd Co Cu Mn Ni Pb
Dynamic range (μg L−1) 2.00–80.0 4.00–80 2.00–80.0 2.00–80.0 2.00–80.0 4.00–80.0
Slope 4.986 4.9837 2.5752 2.348 5.5269 6.0468
Intercept 0.0283 0.0285 0.0063 0.09 0.0336 0.0108
R2 0.998 0.9982 0.9998 0.999 0.9974 0.999
LOD (μg L−1) 0.0026 0.0013 0.0025 0.0063 0.0023 0.0023
LOQ (μg L−1) 0.0086 0.004 0.0084 0.009 0.0079 0.0076


The CRM was examined to evaluate the practical application of the AG/Na2Fe4O7-NC-based DSPE method. The usefulness of the developed AG/Na2Fe4O7-NC-based DSPE was studied and recoveries of HMs were calculated. The resulting data of CRM samples indicated that the recoveries of HMs were found in the range of 93.62–99.70%, signifying the outstanding accuracy of the developed AG/Na2Fe4O7-NC based DSPE method for the determination of HMs (Table 3).

Table 3 Application of AG/Na2Fe4O7-NC based DSPE-FAAS methodology by quantitative determination of HMs by CRM
Heavy metal Certified conc. (mg L−1) Detected conc. (mg L−1) Recovery (%) RSD (%)
Cadmium 0.100 ± 0.0005 0.0982 ± 0.002 96.7–99.7 2.03
Cobalt 0.300 ± 0.002 0.293 ± 0.003 97.3–98.0 1.02
Copper 2.00 ± 0.01 1.942 ± 0.03 96.1–98.1 1.54
Manganese 2.00 ± 0.01 1.958 ± 0.04 96.4–99.4 2.04
Nickel 5.00 ± 0.0025 4.87 ± 0.10 95.4–99.4 2.05
Lead 2.00 ± 0.001 1.95 ± 0.03 93.6–98.1 1.54


The tap water samples (n = 3) were collected from Denizli, Turkey, filtered and stored. Fruit juices (n = 9) samples of different brands and flavors were collected from local markets in Denizli, Turkey. The juice samples include apples, oranges, and apricots. The juice samples were digested as mentioned above (in Section 2.5). The DSPE method was employed for the determination of HMs in tap water and juice samples. The results for tap water and juice samples are given in Table 4.

Table 4 Application of the developed AG/Na2Fe4O7-NC-based DSPE-FAAS methodology for the determination of HMs (μg L−1) in tap water and juice samples
Samples Pb Cu Co Ni Mn Cd
Tap water 8.71 ± 1.3 4.64 ± 1.1 1.82 ± 0.3 2.39 ± 0.51 14.6 ± 2.5 0.75 ± 0.10
Apple 47.5 ± 6.1 21.63 ± 2.3 1.03 ± 0.1 9.53 ± 2.1 7.18 ± 1.9 12.8 ± 1.04
Orange 32.3 ± 3.7 32.60 ± 3.8 1.20 ± 0.1 19.61 ± 0.0 8.9 ± 1.25 19.1 ± 3.70
Apricot 26.8 ± 4.8 69.30[thin space (1/6-em)] ± [thin space (1/6-em)]4.7 5.17[thin space (1/6-em)] ±[thin space (1/6-em)] 0.8 16.2[thin space (1/6-em)] ± [thin space (1/6-em)]1.09 48.7[thin space (1/6-em)] ± [thin space (1/6-em)]3.1 0.600[thin space (1/6-em)] ± [thin space (1/6-em)]0.01


According to the results, Orange juices have the greatest content of Cd among the various fruit juices, followed by apple and apricot juices. Similarly, Apricot juices have the greatest concentrations of Cu, Co, and Mn, followed by orange and apple juice. Further, orange juices have the greatest Ni contents, followed by apricot and apple juice. Apple juices have the greatest concentration of Pb, followed by orange juice, while apricot juice has the lowest.

3.2.7 Estimated daily intake. Using the formula EDI = (CJ + CW)/BW, where CJ and CW represent the concentrations of HMs in a 200 mL juice pack and water, respectively, the estimated daily intake (EDI) of HMs was determined. For children and adults, the average body weight was 20 kg and 60 kg, respectively. The concentrations of HMs in Table 5 are below the FAO/WHO-determined provisional tolerated daily intake (PTDI).53 A water contribution is also included in the HMs calculation. For instance, the daily water consumption of adults (2.5 L/age 20–25 years) and children (1.5 L/age 4–10 years) differs. The WHO recommended value is higher than the Turkish Food Codex, which is 0.1 mg L−1. Accordingly, the provisional tolerable daily intake (PTDI) of HMs collectively through a regular juice pack per day and drinking water (tap water) consumed by children and adults is between 0.161 and 1.311 and 0.0673 to 0.680 μg kg per body weight per day, respectively.
Table 5 Calculated estimated daily intake and compared with PTDI level (3.57 μg kg per body weight per day)54,55
Metals Concentration of metals in selected juicea Juices consumed Concentration of metals in tap water Water consumed Water and juice μg per L per day per body weight FAO/WHO PTDI: μg per L per body weight per day
Children (1L) Adults (3L) Children Adults Children Adults
a The average concentration of HMs in selected juice samples.
Cd 10.8 2.16 0.750 0.750 2.25 0.16 0.067 0.357 1.00
Co 2.50 0.490 1.82 1.82 5.46 0.16 0.080 100 500
Cu 41.1 8.20 4.64 4.64 13.92 0.750 0.330 0.5 500
Mn 21.5 4.30 14.6 14.6 43.8 1.31 0.680 0.357 140
Ni 15.1 3.00 2.39 2.39 7.17 0.330 0.150 2.8 5.00
Pb 35.5 7.10 8.71 8.71 26.13 1.01 0.480 25.8 13.35


3.2.8 Comparative study. The developed AG/Na2Fe4O7-NC/DSPE/FAAS method has demonstrated more reliability than the already reported methods for the detection and quantification of HMs.56–64 The novel adsorbent (AG/Na2Fe4O7-NC) offers high extraction efficiency, a low LOD, and a high PF (Table 6). The results showed the outstanding performance of the AG/Na2Fe4O7-NC/DSPE/FAAS method in terms of efficiency, sensitivity, and reliability for the analysis of HMs.
Table 6 Comparison of the developed AG/Na2Fe4O7-NC-based DSPE method with reported studies for the quantitative determination of HMsa
Method Sorbent Sorbent dose (mg) Detection technique PF LOD (μg L−1) Reference
a Note: FAAS; flame atomic absorption spectroscopy, mSPE; magnetic solid phase extraction, SPME; solid phase microextraction, DSPE; dispersive solid phase extraction, Fe3O4@MBA nano-hybrid; magnetite Fe3O4@biosilica/alginate, MSPE; magnetic solid phase extraction, Fe-alg-MgO; iron alginate magnetic graphene oxide, Alg-Fe3O4; sodium alginate-coated magnetite.
mSPE Luffa@TiO2 5.00 FAAS 50.0 0.13 56
SPM Bi2WO6 35.0 FAAS 50.0 6.0 57
DSP-Me ND@Bi2MoO6 5.00 FAAS 24.5 1.75 58
Mspe MWCNTs@MgAl2O4@TiO2 5.00 FAAS 100 0.42 59
SPME Nanodiamonds@NiCoFe-LDH 5.00 FAAS 25.0 0.621 60
MSPE Alginate/MIL-101(Cr)-NH2/Fe3O4 7.40 UHPLC-MS/MS 9.60 0.00043–0.0159 61
Batch flow Fe3O4@MBA nano-hybrid 1000 AAS 62
Batch Alg-Fe3O4 0.150 63
MSPE Fe-alg-MgO HPLC 0.0082–0.0139 64
DSPE AG/Na2Fe4O7 20.0 FAAS 250 0.0013–0.0063 Current study


4 Conclusion

This study presented a green synthesis method for producing Na2Fe4O7 nanoparticles (Na2Fe4O7-NPs) using tamarind fruit extract, which was then used to create AG/Na2Fe4O7-NC. The resulting AG/Na2Fe4O7-NC exhibited nanoscale dimensions with a rough surface and high stability. A new dispersive solid-phase extraction flame atomic absorption spectrometry (DSPE-FAAS) method based on AG/Na2Fe4O7-NC was developed for trace-level detection of heavy metals (HMs). The LODs of the developed method were found 0.0026, 0.0013, 0.0025, 0.0063, 0.0023, and 0.0023 μg L−1 for Cd, Co, Cu, Mn, Ni, and Pb, respectively. This DSPE-FAAS method was successfully applied to determine HMs in real water and juice samples. The estimated daily intake of HMs from the analyzed juice and water samples was also calculated and found to be below the provisional tolerable daily intake (PTDI) set by the WHO. Additionally, due to its simplicity and low LOD, this approach offers a superior alternative for the simultaneous determination of HMs compared to less effective and time-consuming methods.

Ethical statement

The current experimental investigations do not contain any kind of involvement, either direct or indirect of human contributors and animals.

Data availability

Access to the information that supports the current study will be provided at the official request.

Authour contributions

The current study owes its conceptualization, supervision, project administration, and review/editing to the esteemed efforts of Prof. Dr Aysen Hol along with Dr Jameel Ahmed Baig, Prof. Dr Syed Tufail Hussain Sherazi, Prof. Dr Shahabuddin Memon and Prof. Dr Tasneem Gul Kazi. Ms Saima Perveen, a dedicated PhD scholar, played a pivotal role in data curation, formal analysis, methodology, and creating the original draft. The technical aspects, including software usage, investigation, and visualization, were skillfully handled by Mohsin Kazi, Khalid Hussain Thebo, and Khalil Akhtar.

Conflicts of interest

All of the authors stated that they had no known financial or personal conflicts of interest that would have influenced research studies.

Acknowledgements

Thanks to the Chemistry Department, Pamukkale University, Denizli, Turkey, for support in current experimental activities. Their funding has been influential in the success of the present study and has passed the way for more discovery and exploration. The author would like to extend their sincere appreciation to the Ongoing Research Funding Program (ORF-2025-301), King Saud University, Riyadh, Saudi Arabia for the successful completion of this research study.
