In this study, SnO2@graphitic carbon nitride (g-C3N4) heterojunctions were synthesized using a hydrothermal method followed by sonication. The catalytic efficiency of SnO2@g-C3N4 under sunlight was evaluated for methylene blue (MB) and bisphenol A (BPA) degradation. Characterization techniques, including X-ray diffraction (XRD), field emission scanning electron microscopy (FESEM), and high-resolution transmission electron microscopy (HRTEM), confirmed the successful formation of SnO2 nanoparticles on g-C3N4 (GCN) sheets with porous morphology. The SnO2@GCN heterojunction achieved a 97% degradation efficiency for MB in 45 minutes, outperforming pure SnO2 (65.3%) and g-C3N4 (73.8%). Thus, the increase in photocatalytic activity is due to an enhancement in charge separation and an increase in the absorption of sunlight. For BPA degradation, the 5.0% SnO2@GCN composite demonstrated approximately 99% efficiency within 60 minutes. Additionally, recyclability tests showed good stability after five cycles, with no significant structural changes confirmed by FTIR and FESEM analyses. This study highlights the importance of interface structure and porous morphology in enhancing photocatalytic efficiency, paving the way for effective photocatalysts for wastewater treatment applications.
Recent studies have highlighted the potential of nanomaterials in improving wastewater treatment, particularly for dye degradation. Research on metal oxides and ferrites has demonstrated their effectiveness in photodegrading pollutants.5,6 For instance, our group previously reported the photodegradation of methylene blue (MB) using Sr-doped ZnO nano-disks within 60 minutes7 and the catalytic adsorption efficiency of a Co3O4@MWCNT composite, which degraded Coracryl dye in just 4 minutes and reduced 4-nitrophenol in 7 minutes.8 The very high activity was attributed to the structural properties of nanomaterials, including their high surface area and crystallinity.
Recently, researchers have integrated covalent organic frameworks (COFs) with inorganic materials to synthesize composite materials. These synthesized composites have been found to be highly functionalized materials with a very high surface area. The heterostructure between COFs and inorganic materials (inorganic–organic heterostructure) is responsible for novel properties of COF-based nanocomposites.9,10
Carbon-based materials have enormous applications in CO2 reduction11 as well as in aniline elimination.12 Materials such as multi-walled carbon nanotubes (MWCNTs) have also been widely studied because of their superior porosity and high surface area, which enhance photocatalytic efficiency.13–15 Composites, such as Ag nanoparticles on activated carbon, ZnO/CSAC, and Ag–TiO2/GNSAC, have shown improved catalytic activities over various dyes compared to their pristine forms.13–15 Among emerging photocatalysts, graphitic carbon nitride (g-C3N4) has attracted attention due to its tuneable properties.16 However, the recombination of charge carriers limits its performance.17–21 To address this, researchers have explored composite materials to suppress recombination and enhance photocatalytic activity.17–21
Heterojunctions between g-C3N4/DE/Ag/AgCl/CNDE display outstanding photocatalytic activity in highly carcinogenic Cr+6 reduction and in MB dye degradation.22,23 Further, many studies on the interface between g-C3N4 and metal oxides, such as ZnO, SnO2 and Fe3O4, have been widely reported.24–26 Among these, SnO2@g-C3N4 stands out due to its favourable band gap alignment, which promotes effective charge separation and enhances photocatalytic efficiency.27–29 The band gap difference between SnO2 (3.6–3.8 eV) and g-C3N4 (2.7–2.8 eV) supports the formation of a heterojunction, further improving performance.27–29 Previous studies, such as those by Praus and Akhundi, have demonstrated enhanced photodegradation of rhodamine B using SnO2@g-C3N4 composites.30,31 However, a more in-depth exploration of this material is needed, particularly for practical applications in dye degradation and environmental remediation.
Our current work focuses on developing a SnO2@g-C3N4 nanocomposite via the hydrothermal method, aiming to enhance the photodegradation of pollutants like MB dye and BPA. The novelty of our approach lies in the utilization of heterojunctions and porous structures to improve charge transfer and separation at the catalyst interface, which is distinct from the adsorption mechanisms seen in previous studies, such as those involving Co3O4@MWCNT and Sr-doped ZnO.7,8 In contrast to the extensively studied TiO2@g-C3N4, research on SnO2@g-C3N4 remains limited despite its promising potential for enhanced photocatalytic activity due to superior charge separation and higher reduction potential.31
In addition to MB degradation, our study is extended to the removal of BPA, a persistent organic pollutant widely used in polymer production. BPA poses significant risks to human health and ecosystems, with known endocrine-disrupting effects and environmental persistence.32–36 Although various treatment methods exist, there remains a need for more efficient, cost-effective solutions.37 Our work aims to fill this gap by demonstrating the efficacy of SnO2@g-C3N4 for the photodegradation of both MB and BPA, establishing a robust method for tackling complex environmental pollutants.
This study presents a novel approach by synthesizing SnO2@g-C3N4 nanocomposites and highlights their potential for improved photocatalytic performance in wastewater treatment applications. Characterization techniques such as FTIR, XRD, FESEM, EDS, TEM, XPS, RAMAN, and UV-vis spectroscopy were employed to confirm the material properties and catalytic performance of the synthesized composite, setting the stage for further advancements in environmental remediation.
000
00×. Further, transmission electron microscopy (TEM, JEOL JEM 2100) with LaB6 source, 200 kV power, and accelerating voltage of 20 to 200 kV was used to study the morphology of samples. The instrument was calibrated using a gold lattice as a standard grid. Oxidation states and elements were confirmed using XPS on Thermo Fischer Scientific ESCALAB Xi+ (Source aluminium k alpha radiation energy). The voltage applied was 1486.7 eV with a carbon standard peak at 284.8 eV, pass energy for survey of 50 eV and pass energy for short scan of 20 eV. The scanning resolution was 0.03 eV with a vacuum level 5.2 × 10−10 mb analyser. Hemisphere having argus mean radius of 124 mm. The angle between the analyser to the source was 90° with an instrument resolution of 0.60 eV. The band gap of all the samples was recorded on a UV-visible spectrophotometer (Shimadzu Model UV-2700). A surface area analyser (St 1 on NOVA touch 1LX) was used to calculate the surface area of the samples. Raman spectral analysis was carried out using a Renishaw spectrophotometer. Lasers used in the instrument are of high power near IR diode laser with 300 mW at 785 nm (air cooled). The standard used was silicone with an integral narrow bandpass filter having external mounting on a laser kinematic baseplate. Photocurrent and EIS studies were conducted using an impedance analyser (NOVA FRA2 μ Auto lab type III (μ3Au771301)). The photodegradation of MB dye was studied on a UV-visible spectrophotometer (Shimadzu model 1800). Degradation of BPA was studied using high-performance liquid chromatography (HPLC), using a Hitachi Primaide 1120-system liquid chromatograph (Hitachi®, Palo Alto, CA) equipped with a quaternary high-pressure pump (1110 series), a single wavelength UV detector (1410 series), and an autosampler (1210 series). Data analysis was carried out using Hitachi Chem Station software.
The as-synthesized pristine SnO2 and SnO2@GCN photocatalysts were also tested for the photodegradation of BPA under sunlight irradiation. Prior to photodegradation, the photocatalyst (35 mg) was added to the BPA solution (50 mL) and the suspension was sonicated for 2 min, followed by magnetic stirring in the dark for 30 min in order to reach the adsorption–desorption equilibrium. During photodegradation, after regular time intervals, ∼1.0 mL solution was withdrawn and filtered through a PTFE filter to remove the catalyst. The residual BPA concentration was analysed using HPLC with water/methanol (30/70, v/v) as a mobile phase (Scheme 1).
The limitation of this study is that during experimentation, conclusions were drawn based on a single data set collected. Even the data set collected does not include ESD (Estimated Standard Deviation); hence, the error values were not determined.
![]() | ||
| Fig. 1 (a) XRD patterns of as-synthesized SnO2 and various SnO2@GCN samples. (b) XRD patterns of as-synthesized GCN. | ||

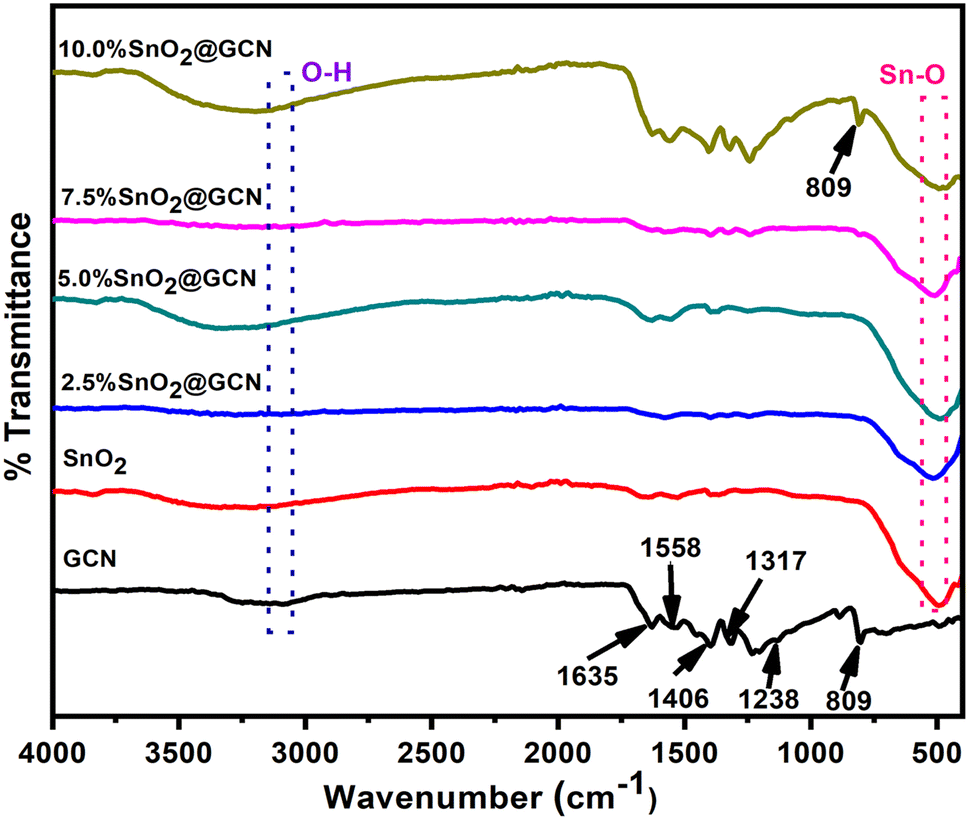

The FTIR spectra of GCN, SnO2 nanoparticles and SnO2@GCN (2.5%, 5.0%, 7.5% and 10.0%) nanocomposites are depicted in Fig. 2. In GCN, the peaks at 809 cm−1, 1635 cm−1 are because of the out of plane bending modes of heterocyclic C–N, C–N stretching vibration modes and the peaks at (1238, 1317, 1406, 1558) cm−1 are due to the aromatic C–N stretching vibration.39 SnO2 gives the characteristic Sn–O peaks at 550 cm−1 and 640 cm−1. All the samples gave strong absorption peaks around 3150 cm−1, corresponding to the O–H stretching vibration.40
The characteristics of as-synthesized SnO2 nanoparticles and SnO2@GCN nanocomposites (2.5%, 5.0%, 7.5% and 10.0%) and GCN were analysed using Raman spectra. The Raman spectra of SnO2 nanoparticles and SnO2@GCN (2.5%, 5.0%, 7.5% and 10.0%) nanocomposites and GCN are shown in Fig. 3. The basic Raman active mode of SnO2 nanoparticles at 474 cm−1 and 621.5 cm−1 was observed in the convoluted peak centred at 572 cm−1, whereas another small hump was observed at 768 cm−1. Thus, a Raman spectrum of SnO2 confirms the formation of rutile SnO2 nanoparticles. The Raman peaks at 474 cm−1, 621.5 cm−1 and 768 cm−1 correspond to the Eg, A1g and B2g vibration modes of the rutile SnO2, which are in accordance with the XRD results.41 The Raman band at 572 cm−1 is attributed to the surface mode of nanostructured SnO2. The material is crystalline, confirmed by the broadening of Raman peaks. The Raman peak observed at 572 cm−1 indicates that the synthesized SnO2 has a mixed nanocrystalline and amorphous phase. Fig. 3 shows extra vibrational modes located at 708 cm−1 and 1234 cm−1 in (2.5%, 5.0%, 7.5% and 10.0%) nanocomposites and GCN, but these are not seen in the SnO2 sample, which means that successful SnO2@GCN nanocomposites (2.5%, 5.0%, 7.5% and 10.0%) were formed. The intense of vibration modes at 708 cm−1, 1234 cm−1 enhances with concentrations of GCN, indicates concentration of GCN increases, which is equivalent to experimental conditions. Additionally, the vibrations at 708 cm−1 and 1234 cm−1 are assigned to the stretching vibration of aromatic C–N heterocycle characteristic to melem.42,43 The peaks at 708 cm−1 are related to the different types of ring breathing modes of s-triazine.
Thermogravimetric and differential thermal analyses (TGA-DTA) of SnO2 and 5.0% SnO2@GCN nanocomposites were recorded up to 700 °C. The TGA-DTA curve of SnO2 is depicted in Fig. 4a. The TGA curve showed a 11.14% weight loss up to 500 °C due to the loss of water vapour and organic components. After 500 °C, the TGA curve is almost straight. The DTA plot shows two endothermic peaks at 56.30 °C and 274 °C with corresponding weight losses of 4% and 1.6%, respectively. The TGA-DTA curve of 5% SnO2@GCN is depicted in Fig. 4b. The TGA curve shows a 14.55% weight loss up to 600 °C due to the loss of water vapour and organic components. After 600 °C, the TGA curve is almost straight line, it indicates loss of organic compound and formation of stable metal oxide. The DTA plot shows two endothermic peaks at 59 °C and 402 °C with corresponding weight losses of 7.5% and 7.4%, respectively. These results confirm the formation of the 5.0% SnO2@GCN nanocomposite.
The band gap of GCN, SnO2 nanoparticles and SnO2@GCN (2.5%, 5.0%, 7.5% and 10.0%) nanocomposites were determined using UV-diffuse reflectance spectroscopy (UV-DRS). The spectra of all the samples were measured in the 200–800 nm wavelength region (Fig. 5a). The band gap of SnO2 is 3.75, GCN is 2.39 eV, and 5.0% SnO2@GCN is 2.93 eV. A slight red shift was observed when SnO2 is dispersed with g-C3N4, which amounts to a decrease in the band gap energy of SnO2@GCN (2.5%, 5.0%, 7.5% and 10%) nanocomposites as compared with pristine SnO2 (Fig. 5b). The band gap energy (Eg) was calculated with Tauc's formulae as per the equation given below (1).
| Ahv = A(hv − Eg)n | (1) |
![]() | ||
| Fig. 5 (a) DRS spectra and (b) UV-vis absorption spectra and band gap determination of GCN, SnO2, and various SnO2@GCN samples. | ||
The morphology of GCN, SnO2 nanoparticles and SnO2@GCN (2.5%, 5.0%, 7.5% and 10.0%) nanocomposites at different magnifications were determined with the corresponding elemental mapping (Fig. 6a–r). It is clear from Fig. 6a–r that the micrometer scale images are less resolved when compared to nanometer scale images. The FESEM images showed spherical-shaped SnO2@GCN particles. The particles are agglomerated with a difference in size and porosity. Further, energy dispersive X-ray (EDAX) analysis yielded the elemental compositions within GCN, SnO2 nanoparticles and SnO2@GCN (2.5%, 5.0%, 7.5% and 10.0%) nanocomposites. The GCN compound exhibited distinctive peaks corresponding to elements C and N. In contrast, SnO2 displayed peaks attributed to elements Sn and O. However, 2.5% SnO2@GCN, 5.0 %SnO2@GCN, 7.5% SnO2@GCN and 10.0% SnO2@GCN showcased peaks indicative of elements Sn, O, C, and N. Notably, the EDAX spectra of the synthesized samples revealed no impurity peaks, confirming the creation of highly pure nanostructures.
The TEM images of the 5.0% SnO2@GCN nanocomposite (Fig. 7) describe its morphology. The 5.0% SnO2@GCN nanocomposite exhibits spherical-shaped particles (Fig. 7a and b). TEM images confirm the agglomeration of particles as observed in the FESEM images. The lattice fringes, which determine the crystallographic spacing, are confirmed from the HRTEM image (Fig. 7c). An interplanar distance of 0.263 nm was observed, which is in close agreement with the d spacing of the (110) plane. The average particle size distribution of 5.0% SnO2@GCN nanocomposite images is given in Fig. 7d. It confirmed the nano-sized crystal material, and the average particle size obtained was 31.80 nm (Fig. 7d, ESI 1†). Individual elements present in the 5.0% SnO2@GCN nanocomposite, such as Sn, O, C and N, are confirmed by colour mapping (Fig. 7e–j). The elemental composition of the 5.0% SnO2@GCN nanocomposite (Sn, O, C & N) was confirmed by the energy dispersive spectra (EDS). The synthesized SnO2@GCN nanocomposites were very pure, as there were no impurity peaks in the spectra (Fig. 7k).

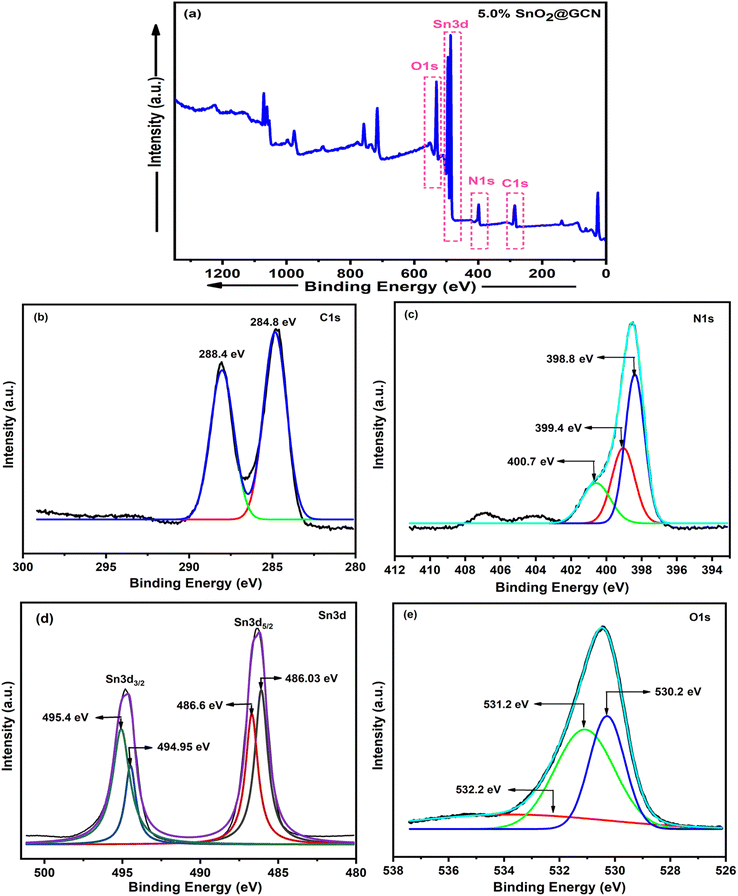

To study the surface properties and oxidation states, XPS spectroscopy was used. The full XPS scan of the 5.0% SnO2@GCN nanocomposite is depicted in Fig. 8a. In the survey scan of metals, C 1s, N 1s, O 1s and Sn3d main photoionization signals were obtained. To investigate the oxidation states, relative intensities of the narrow scan for long-time measured patterns of C 1s, N 1s, Sn3d and O 1s bands were studied and are shown in Fig. 8b–e, respectively. The 5.0% SnO2@GCN nanocomposite has binding energy peaks at 284.8 eV and 288.4 eV, which correspond to C 1s. The peaks at 398.8 eV, 399.4 eV and 400.7 eV for N 1s correspond to the sp2 nitrogen present in triazine rings (C–N
C), tertiary nitrogen groups and free amino groups (C–N–H), respectively. The core signals of other metal ions, such as signals for O 1s, were at 530.2 eV, 531.2 eV and 532.2 eV. For Sn 3d5/2, the peaks are at 486.03 eV and 486.6 eV; for Sn 3d3/2, the peaks were at 494.95 eV and 495.4 eV. These observations support the formation of the 5.0% SnO2@GCN nanocomposite.
![]() | ||
| Fig. 8 XPS spectra of the representative 5.0% SnO2@GCN nanocomposite: (a) survey scans for the 5.0% SnO2@GCN nanocomposite and (b)–(e) deconvoluted spectrum of C 1s, N 1s, Sn3d, and O 1s. | ||

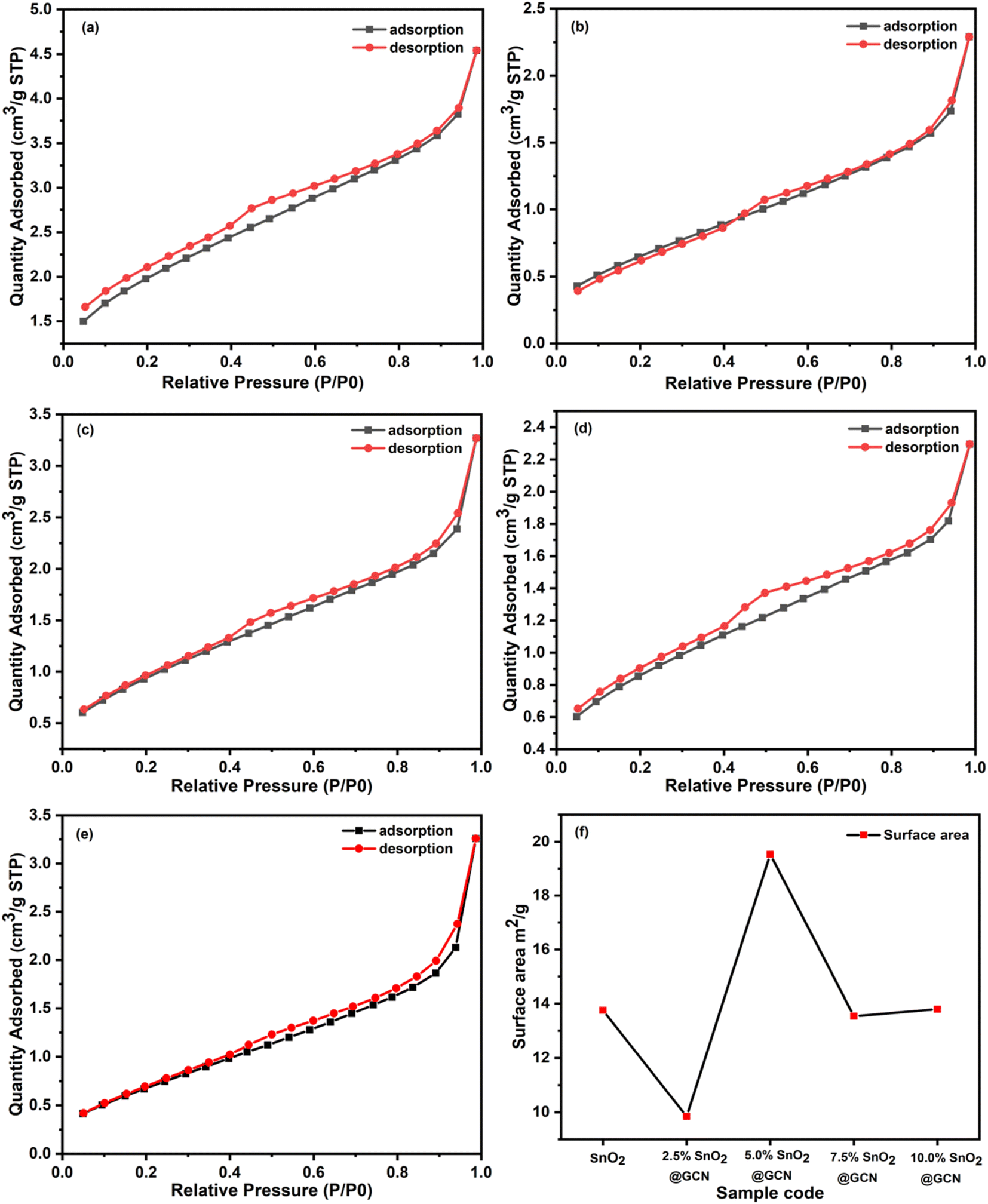

The N2 adsorption/desorption isotherms of SnO2, 2.5% SnO2@GCN, 5.0% SnO2@GCN, 7.5% SnO2@GCN and 10.0% SnO2@GCN nanocomposites are depicted in Fig. 9a–e respectively. To examine the surface area, Brunauer, Emmett, and Teller (BET) surface area measurements were carried out in liquid nitrogen at 77.35 K. Further, the Barrett–Joyner–Halenda (BJH) pore size distribution of all synthesized compounds, SnO2, 2.5% SnO2@GCN, 5.0% SnO2@GCN, 7.5% SnO2@GCN and 10.0% SnO2@GCN nanocomposites, were investigated. The surface area and morphological properties play a very important role in photocatalyst application, which could increase the contact interaction between the catalyst and the dye, enhancing the photocatalytic activity. The estimated values of specific surface area, average pore radius and total pore volume were determined (Table 1). The maximum specific surface area was observed for the 5.0% SnO2@GCN nanocomposite (Fig. 9f). The 5.0% SnO2@GCN nanocomposite with a high specific surface area showed good photocatalytic activity as compared to SnO2, 2.5% SnO2@GCN, 7.5% SnO2@GCN and 10.0% SnO2@GCN nanocomposites. Fig. 10 represents the BJH pore size distribution of all five samples of SnO2, 2.5% SnO2@GCN, 5.0% SnO2@GCN, 7.5% SnO2@GCN and 10.0% SnO2@GCN nanocomposites. The 5.0% SnO2@GCN nanocomposite exhibits a high specific surface area and pore volume (Table 1), which results in providing maximum sites for the reaction, adsorption as well as desorption and exposure of the inner surface of the material, and it is beneficial in photocatalyst application. The investigation focused on the photodegradation of MB dye in solar light over SnO2@GCN composites. The efficiency of decolorization was evaluated, and the photocatalytic process was monitored by utilizing the 663 nm optical absorption peak. The photodegradation of aqueous MB dye using SnO2@GCN composites is illustrated (Fig. 11a–e). It is evident that, in all cases, the absorbance of the MB dye gradually decreased with respect to the respective catalysts and irradiation time without any observable shifts in the spectrum. Notably, 5.0% SnO2@GCN exhibited more degradation compared to other photocatalysts. Additionally, we conducted a recyclability test for the 5.0% SnO2@GCN composite, as illustrated in Fig. 11f, and the results demonstrate that the sample exhibits good recyclability after five consecutive cycles, confirming its stability.
![]() | ||
| Fig. 9 (a–e) Nitrogen adsorption isotherms of synthesized SnO2 and various SnO2@GCN samples (f) plots showing the variation in specific surface area of SnO2 and various SnO2@GCN samples. | ||
| Surface area and pore parameters | SnO2 | 2.5%SnO2 @GCN | 5.0%SnO2 @GCN | 7.5%SnO2 @GCN | 10.0%SnO2 @GCN |
|---|---|---|---|---|---|
| Specific surface area (m2 g−1) | 13.7544 | 9.8458 | 19.5299 | 13.5362 | 13.7901 |
| Total pore volume (cm3 g−1) | 0.0298 | 0.0243 | 0.0499 | 0.0312 | 0.0414 |
| Average pore radius (nm) | 1.6874 | 1.6788 | 1.6869 | 1.6889 | 1.6859 |

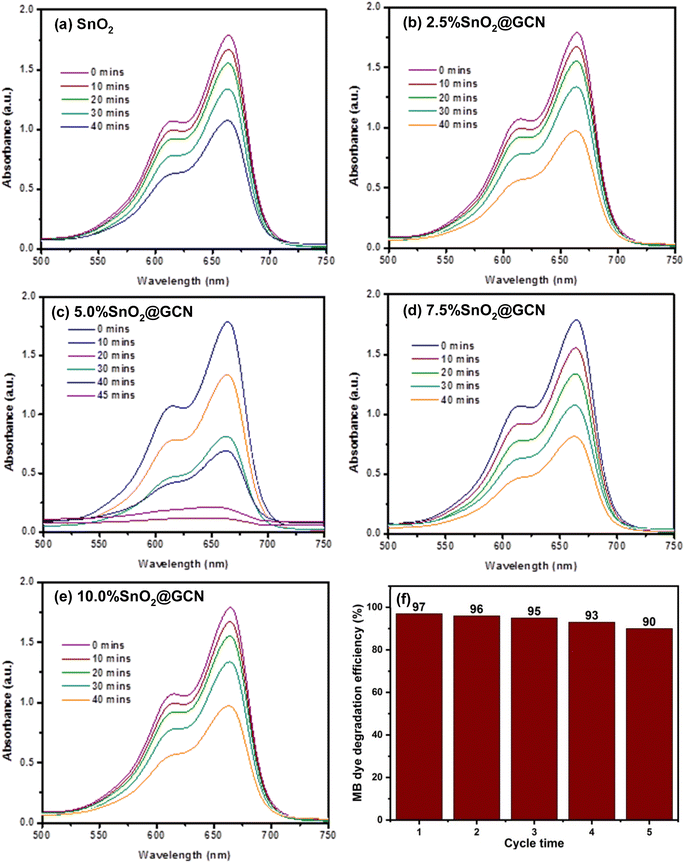

In Fig. 12a, the photodegradation plot of MB dye using different photocatalysts in solar light as a function of time is presented. A controlled experiment (no catalyst) was performed, revealing that the dye solution remained unchanged after irradiation under solar light. The photodegradation rate was observed to be higher for 5.0%SnO2@GCN compared to other samples. 5.0% SnO2@GCN demonstrated the highest photocatalytic activity, reaching almost 97%. The observed MB dye photodegradation rate followed the order: 5.0% SnO2@GCN > 7.5% SnO2@GCN > 2.5% SnO2@GCN > SnO2 > 10.0% SnO2@GCN. Thus, we can conclude that with an increase in the loading of GCN up to 5 wt%, degradation increases; however, after that, the rate of degradation decreases for 7.5% and 10.0% (SnO2@GCN) samples.
Fig. 12b displays the plot of ln (Ct/C0) versus irradiation time of MB degradation in the presence of photocatalysts. The rate constants were estimated for SnO2 nanoparticles, 2.5% SnO2@GCN, 5.0% SnO2@GCN, 7.5% SnO2@GCN and 10.0% SnO2@GCN nanocomposites, yielding values of 0.0125, 0.0382, 0.0902, 0.0589, and 0.0456, respectively (see Table 2). Notably, in contrast to previous investigations, the MB degradation for the 5.0% SnO2@GCN sample is significantly higher.44–47 The higher photodegradation is attributed to the band structure, morphology, interface, and high crystallinity of 5.0%SnO2@GCN, resulting in maximum MB degradation.
| Sample | Rate equation | Correlation coefficient R2 |
|---|---|---|
| SnO2 | y = 0.0125x | R2 = 0.9702 |
| 2.5% SnO2@GCN | y = 0.0382x | R2 = 0.9842 |
| 5.0% SnO2@GCN | y = 0.0902x | R2 = 0.9923 |
| 7.5% SnO2@GCN | y = 0.0589x | R2 = 0.9914 |
| 10.0% SnO2@GCN | y = 0.0456x | R2 = 0.9716 |
After conducting the MB dye degradation using SnO2@g-C3N4, we extended our investigation to the degradation of a colourless contaminant, BPA. This was particularly relevant given that MB is photosensitive under solar light. We examined the photocatalytic efficiency of the as-synthesized SnO2 and SnO2@GCN catalysts for the photodegradation of BPA. The degradation performance of different SnO2 and SnO2@GCN photocatalysts is illustrated in Fig. 13a. The results indicate that SnO2@GCN photocatalysts exhibit superior photocatalytic efficiency, with the 5.0% SnO2@GCN composite demonstrating the highest photoactivity, degrading approximately 99% of BPA within 60 minutes under solar light irradiation.
Further, Fig. 13b shows the effect of different dosages of 5.0% SnO2@GCN on BPA degradation. The catalyst dosages were varied between 0.25 g L−1 and 1.0 g L−1. It was observed that the degradation efficiency increased with the catalyst dosage, reaching an optimum at 0.75 g L−1. Beyond this dosage, at 1.0 g L−1, the degradation efficiency declined. This phenomenon can be attributed to the well-known fact that increasing the photocatalyst dosage generates more reactive species (e.g., radicals), which enhances photoactivity. However, exceeding the optimal dosage can lead to increased suspension opacity, inhibiting light penetration and promoting agglomeration, which reduces the active surface area available for photocatalysis, thus lowering the degradation efficiency.
Additionally, Fig. 13c illustrates the effect of varying the initial concentration of BPA on the photodegradation efficiency. The results reveal that as the initial BPA concentration increased, the degradation efficiency decreased. This can be explained by the limited number of active sites on the 1 g L−1 5.0% SnO2@GCN catalyst, which are insufficient to degrade higher concentrations of BPA, such as 45 mg L−1, leading to reduced photoactivity.
The influence of the initial pH on BPA degradation was also studied by adjusting the pH with HCl and NaOH, and the results are presented in Fig. 13d and e. The data show that the minimum degradation (∼82%) occurred at pH 10, while the degradation efficiency increased as the pH approached neutral (pH 6). This can be attributed to the interaction between BPA degradation efficiency and the ionic environment, as well as the surface charge of the SnO2@GCN photocatalyst. At pH < 6, the presence of Cl− ions may compete with BPA for adsorption on the catalyst surface, thereby reducing the degradation efficiency.
Fig. 13f further explores the effect of different cations and anions on BPA degradation. The results indicate that the addition of cations such as K+, Na+, and Ca2+ led to a slight increase in degradation efficiency, likely due to the reduction in the thickness of the electric double layer surrounding the photocatalyst particles. On the contrary, the addition of anions such as HCO3−, H3PO4˙−, and SO42− had a detrimental effect on the degradation process, with the minimum degradation (∼18%) observed in the presence of H3PO4. This reduction in degradation efficiency can be explained by the role of anions as scavengers of hydroxyl radicals and photogenerated holes, which are essential for the photocatalytic degradation of BPA.
The 5.0% SnO2@GCN composite exhibited superior photocatalytic activity for BPA degradation under optimal conditions. However, the catalyst dosage and environmental factors, such as pH and the presence of competing ions, significantly influenced the degradation efficiency. These findings underscore the importance of optimizing the reaction conditions to maximize the photocatalytic performance of SnO2@GCN composites for the degradation of organic pollutants such as BPA.

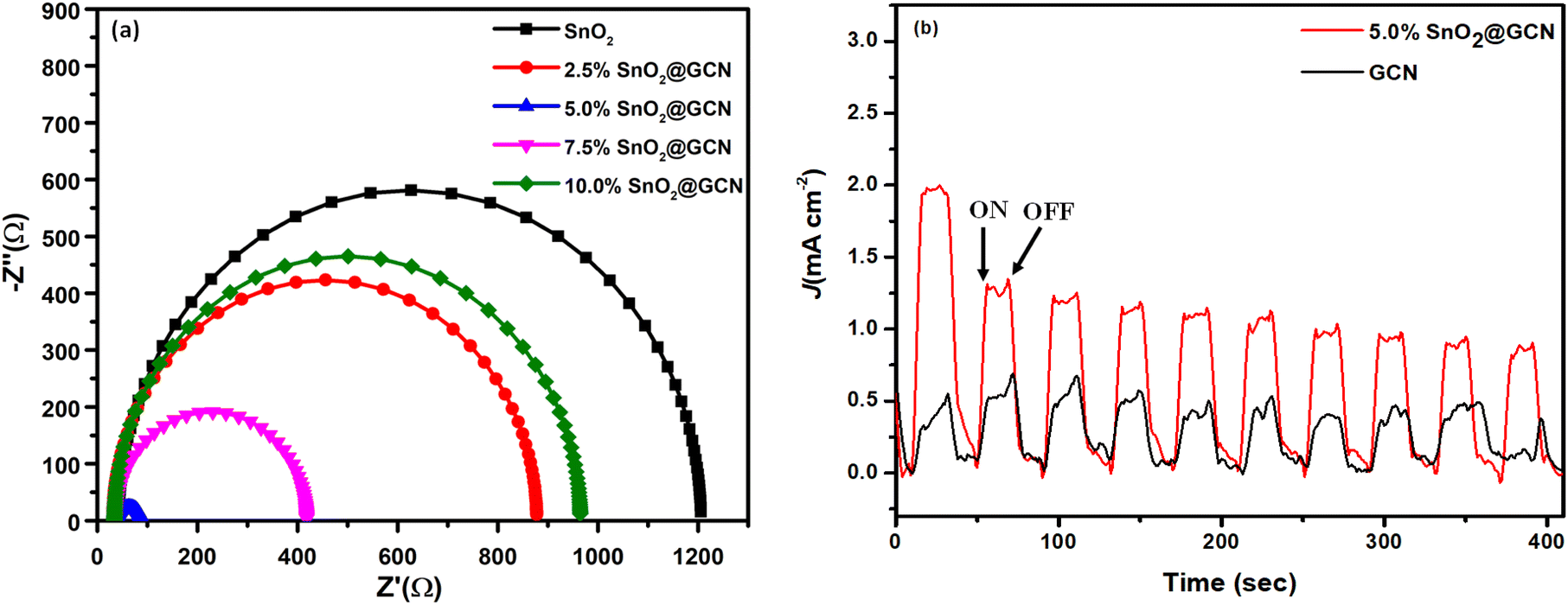

Electrochemical impedance spectroscopy (EIS) and photocurrent measurements are crucial parameters for evaluating the separation efficiency of photoinduced charge carriers in photocatalysis. EIS was utilized to further assess the separation efficiency of electron–hole pairs (Fig. 14a). The semicircle radius of the Nyquist plots provides insights into the charge carrier transfer rate; a smaller semicircle radius indicates lower resistance, and therefore, more efficient charge transfer.48 The 5.0% SnO2@GCN composite displays a smaller semicircle radius than pure SnO2 and the other composites, underscoring its superior charge separation and transfer efficiency. The enhanced charge transfer resistance is attributed to the loading of GCN in the nanocomposites (Fig. 14a).49,50
The photocurrent response of both pristine graphitic carbon nitride (GCN) and the 5.0% SnO2@GCN composite was investigated, as illustrated in Fig. 14b. The results clearly demonstrate that the 5% SnO2@GCN composite generates a significantly higher photocurrent than the pure GCN. This enhanced photocurrent response indicates a more efficient separation and transportation of photogenerated charge carriers in the composite material. The improved charge carrier dynamics can be attributed to the synergistic interaction between SnO2 and GCN, which effectively suppresses the recombination of photoinduced electron–hole pairs. Such behaviour suggests that the incorporation of SnO2 nanoparticles into the GCN matrix enhances its photoelectrochemical performance, making it a promising candidate for application in photocatalysis.9,10
Furthermore, the stability of the 5.0% SnO2@GCN composite was evaluated through FESEM and FTIR analyses conducted before and after the photocatalytic experiments, as presented in Fig. ESI 2 and 3.† The comparative analysis revealed no significant morphological or structural changes, indicating that the 5.0% SnO2@GCN composite maintains good stability during the photocatalytic process.
These results collectively demonstrate that incorporating 5.0% GCN into SnO2 significantly enhances photocatalytic performance by improving the charge carrier separation and reducing recombination rates. This enhancement is likely due to the synergistic effects between GCN and SnO2, facilitating better charge transport and extending the lifespan of charge carriers. Consequently, the 5.0% SnO2@GCN composite stands out as a promising candidate for advanced photocatalytic applications.
The role of active radicals in degrading the MB dye using the 5.0% SnO2@GCN photocatalyst was studied via radical trapping.51 To capture holes, hydroxyl radicals, and superoxide radicals, 1 mmol of ethylenediaminetetraacetic acid (EDTA), isopropanol (IPA), and benzoquinone (BQ) were added to the system. Fig. 15a shows that the photocatalytic activity of 5.0% SnO2@GCN photocatalyst decreases significantly with IPA and BQ, indicating that ˙OH and O2˙− are the main oxidative species.52 The activity remains unchanged with EDTA, proving that holes are not the primary active species.
These results highlight that the degradation rate of MB dye depends on the hydroxyl and superoxide radicals. The 5.0% SnO2@GCN incorporation enhances the generation of these radicals by improving the charge separation and increasing surface area, leading to better interaction with the dye molecules. This improved activity suggests that the SnO2@GCN composites are promising for environmental remediation, where efficient organic pollutant degradation is crucial.
The remarkable photocatalytic activity exhibited by the 5.0% SnO2@GCN nanocomposite suggests an efficient mechanism for the solar-driven degradation of methylene blue (MB). As depicted in Fig. 15b, the degradation process is likely governed by a direct Z-scheme charge transfer mechanism, as supported by recent literature.53–55 In this system, the band structure of the composite plays a critical role in facilitating efficient charge separation and enhancing photocatalytic efficiency. The positions of the conduction band (CB) and valence band (VB) edges were theoretically estimated using eqn (2) and (3):56
| ECB = χ − Ee − 0.5 Eg | (2) |
| EVB = ECB + Eg | (3) |
This direct Z-scheme mechanism not only improves the spatial separation of photogenerated charges but also preserves their strong redox capabilities, thereby enhancing photocatalytic performance. The proposed mechanism aligns well with recent findings reported for similar SnO2-based Z-scheme photocatalysts,58 further validating our approach. Additionally, supporting evidence from scavenger experiments, photoluminescence quenching, and active species trapping studies in recent reports corroborate the Z-scheme pathway in similar composite systems.59,60
The SnO2@GCN nanocomposite materials applied in photocatalysis, as reported in the literature, are summarized (Table 3). We can conclude from Table 3 that the SnO2@GCN nanocomposite photocatalysts synthesized by the hydrothermal method are superior to other materials due to their higher competing photocatalytic activity61–67 compared to other photocatalysts.
| Photocatalyst | Method | Dye soln. tested | Light source | Remark | References |
|---|---|---|---|---|---|
| SnO2@g-C3N4 | Hydrothermal | MB 10 mg L−1 | Visible light | 99.38% 75 min | 61 |
| 50% SnO2@g-C3N4 | Hydrothermal | RhB 10 mg L−1 | Visible light | 99.38% 120 min | 62 |
| SnO2@g-C3N4 40% | Hydrothermal | RhB 10 mg L−1 | UV light | 100% 240 min | 63 |
| Visible light | 98.5% 240 min | ||||
| SnO2@g-C3N4 | Hydrothermal | Methyl orange 1 × 10−5 mol L−1 | Visible light | 120 min | 64 |
| QDs SnO2@g-C3N4 | Co-precipitation | Methyl orange 5 mg L−1 | Sunlight | 94% 180 min | 65 |
| 16.5% SnO2@g-C3N4 | Hydrothermal | Methyl orange | Visible light | 58% 180 min | 66 |
| SnO2@g-C3N4 | Sol–gel | Methyl orange 2 × 10−5 M | Visible light | 83% in 150 min | 67 |
| SnO2@g-C3N4 | Hydrothermal | MB 10 mg L−1 | Sunlight | 97% 45 min | Present work |
