Open Access Article
Ateyatallah Aljuhani‡
a,
Mohamed S. Nafie‡
*bc,
Nader R. Albujuq
*d,
Mosa Alsehlia,
Sanaa K. Bardaweel
e,
Khaled M. Darwish
fg,
Shaya Y. Alraqaa,
Mohamed Reda Aouad
*a and
Nadjet Rezki
a
aChemistry Department, College of Sciences, Taibah University, Al-Madinah Al-Munawarah 41477, Saudi Arabia. E-mail: ateyatallah@hotmail.com; mosa_alsehli@hotmail.com; Sqahtani@taibahu.edu.sa; aouadmohamedreda@yahoo.fr; nadjetrezki@yahoo.fr
bDepartment of Chemistry, College of Sciences, University of Sharjah, P.O. 27272, Sharjah, United Arab Emirates. E-mail: mohamed.elsayed@sharjah.ac.ae
cChemistry Department, Faculty of Science, Suez Canal University, P.O. 41522, Ismailia, Egypt. E-mail: mohamed_nafie@science.suez.edu.eg
dDepartment of Chemistry, School of Science, The University of Jordan, Amman 11942, Jordan. E-mail: n.albujuq@ju.edu.jo
eDepartment of Pharmaceutical Sciences, School of Pharmacy, The University of Jordan, Amman 11942, Jordan. E-mail: s.bardaweel@ju.edu.jo
fMedicinal Chemistry Department, Faculty of Pharmacy, Suez Canal University, Ismailia 41522, Egypt. E-mail: khaled_darwish@pharm.suez.edu.eg
gDepartment of Medicinal Chemistry, Faculty of Pharmacy, Galala University, New Galala 43511, Egypt. E-mail: khaled.darwish@gu.edu.eg
First published on 4th February 2025
Considering the widespread availability of certain medicines, there is still a critical need for potent anti-cancer agents. It is owing to numerous negative impacts and non-functionality of current drugs, particularly during the late stages of illness. To accomplish this, the new array of 1,2,3-triazole-benzothiazole molecular conjugates tethering hydrazone/thiosemicarbazone linkage 8a–l have been successfully synthesized via the efficient copper-catalyzed 1,3-dipolar cycloaddition of the appropriate un/substituted benzothiazole azides 4a–c with several O-propargylated benzylidene derivatives 7a–d. The newly established 1,2,3-triazole structural hybrids were thoroughly characterized using appropriate spectroscopic techniques (IR, 1H, 13C-NMR & CHN analysis). The cytotoxic features of the investigated triazole hybrids were assessed against three human cancer cell lines, A549, T47-D, and HCT-116 cancer cells, using the MTT assay. Based on the findings, the breast cancer cell line T47D displayed promising results with IC50 values of 13, 17, and 19 μM for the synthesized molecules 8a–c, respectively. Furthermore, the safety assessment of these compounds on normal cell lines revealed a relatively low risk to normal cells, as indicated by their IC50 values exceeding 500 μM, suggesting a reasonable safety margin. Interestingly, the most relevant derivatives 8a, 8b, and 8c, exhibited IC50 values of 0.69, 1.16, and 4.82 μM, respectively, causing inhibition of 98.5%, 96.8%, and 92.3%, compared to Erlotinib (IC50 = 1.3 μM, 98.2% inhibition). Molecular docking results exhibited a good binding affinity of compounds 8a and 8b towards the EGFR active site. Accordingly, these compounds can be further developed as target-oriented EGFR chemotherapeutics against cancer.
Heterocyclic compounds are well known as most significant organic substances and are commonly found in molecules that are of distinct relevance in medical chemistry. Nitrogen-containing heterocycles are particularly essential to life science research because they are common in nature and serve as building blocks in various vitamins, hormones, and antibiotics as natural products.6 Benzothiazole (BTA) cores are fused heterocyclic molecules. They can be found in an array of therapeutic drugs possessing tremendous relevance in drug development and discovery approaches owing to their vast range of pharmacological properties such as anti-inflammatory,7 fungicidal,8 anti-diabetic,9 analgesics,10 anti-microbial,11 anti-tumor,12 antileishmanial,13 anthelmintic,14 antirheumatic,15 and CNS depressant activity.16 It was observed that the BTA derivatives display unique and extensive biological activity against various kinds of tumors and cancer cell lines with EGFR kinase inhibition17–20
Another interesting nitrogen-based heteroaromatic scaffold has sparked the interest of scientific academia for its distinctive structural features and remarkable bioactivities. The 1,2,3-triazole core harbors the advent of being a stable heterocyclic scaffold capable of maintaining its structural stability under various chemical conditions, including reduction, oxidation, and even hydrolysis events. Additionally, its feasible chemical synthesis through Click chemistry and copper- or ruthenium-catalyzed azide–alkyne cycloaddition methods would permit a high-yield preparation approach.21 In terms of drug development and optimization processes, this nitrogen-containing heterocycle has been considered a valuable bioelectronic isostere for versatile equipartition replacement of different functionalities such as esters, amides, and even diazo scaffolds.22,23 Regarding pharmacodynamics and compound-target affinities, the 1.2.3-triazole exhibits diverse reversible non-covalent binding potentiality towards target key binding sites owing to the ring's polar capacity serving as both hydrogen bond donor and acceptor.24 The dual potentiality of triazole rings made them indispensable for developing a variety of bioactive small molecules at a broad pharmacological spectrum, including antimalarial,25 anti-bacterial,26 antitubercular,27 anti-cancer activity,28 among others. Focusing on the scaffold's potential as anti-cancerous agents, the triazole-based compounds have been heavily reported with diverse mechanistic aspects hampering several signaling pathways, including aromatase, microtubule, bromodomain and extra terminal domain proteins (BETs), as well as tyrosine kinase enzymes.29 Notably, the tyrosine kinase and BET biotargets arose as the primary mechanistic aspects involved with the anti-cancer activities of triazole-based investigational and FDA-approved small molecules.29–31 In particular, several studies illustrated the ability of both 1,2,3-triazole and benzothiazole-containing compounds to exhibit anti-cancer properties by triggering an arrest of the cell cycle and apoptosis of cancer cells via inhibition of epidermal growth factor receptor (EGFR) tyrosine kinase (Fig. 1).32–36
Reports highlighted the adequacy of these compounds to anchor at the ATP-binding site of EGFR within a competitive inhibition manner. The benzothiazole scaffold represents an https://www.google.com/search?sca_esv=23a6d0305129b91a%26rlz=1C1GCEJ_enIN1138IN1138%26q=efficient%26spell=1%26sa=X%26ved=2ahUKEwiMm7H_l5-LAxWER2wGHToiKWwQkeECKAB6BAgHEAE bioisosteres for the ATP-purine ring, being indispensable for the binding of the benzothiazole-based compound to the central region of the EGFR pocket.31 On the other hand, the triazole-containing EGFR inhibitors offered beneficial binding to EGFR's selectivity pocket via the compounds' triazole scaffold permitting relevant hydrogen bonding with lining residues.32–36
Within the past recent years, triazole-containing small molecule hybrids showed great interest in developing anti-cancerous agents owing to their remarkable ability to hamper multiple cancerous cell lines.37 Incorporating the 1,2,3-triazole nucleus with established anti-cancer pharmacophores not only shows promise for combating drug-resistant cancer but has already demonstrated efficacy in clinical trials against various cancer types.38 Strategically attaching these pharmacophores to the 1,2,3-triazole backbone represents a valuable approach for discovering novel anti-cancer candidates, including hybrids with artemisinin,39 indole,40 and pyridine.41 Such a combination strategy holds the potential of circumventing drug resistance as well as improved pharmacokinetic/dynamics profiles.42 The potential and prospect employment of triazole scaffolds within drug discovery have been profoundly highlighted following the clinical approval of several triazole-based anti-cancerous agents such as tucatinib (EGFR inhibitor), talazoparib (PARP-1 inhibitor) and anastrozole (aromatase inhibitor).43–45 Based on this accumulated evidence, the main aim of the presented study was to develop small anti-cancerous molecules based on the triazole-benzothiazole pharmacophoric hybridization approach (Fig. 1C). Synthesized compounds were evaluated for their anti-cancerous activity through multistage in vitro biological testing including cytotoxicity bioassay against three human cancerous cell lines, antiproliferative assay, anti-migratory wound healing testing, and enzymology inhibition testing against EGFR biotarget. Further, promising compounds were investigated for their molecular affinity towards the cancer-related biotarget through a molecular modeling approach. Combined molecular insights from this study are beneficial for guiding future development and optimization of triazole-benzothiazole hybrids of potential higher activity and less toxic profiles.
![]() | ||
| Fig. 2 Rational design of the target compounds; (D) structures of the previously reported compound with benzothiazole; (E) representative example of thiosemicarbazide with biological activity; (F) and (G) target Series I and II are representative examples of hybrid molecules of benzothiazole moiety and thiosemicarbazide derivatives with 1,2,3-triazole linker that exhibits anti-cancer activity; (H) pharmacophoric features of a co-crystalline tyrosine kinase inhibitor exhibiting relevant binding affinity towards the structural/functional motifs of the ATP-binding site (PDB ID: 3W32). | ||
Building upon the aforementioned observations to enhance the anti-tumor efficacy of these reported anti-cancer compounds, we have anticipated designing and synthesizing new hybrid molecules encompassing benzothiazole and triazole moieties as anticipation and continuous pursuit of identifying novel anti-cancer agents. Our adopted ligand-based design strategy focused mainly on the ligation of 2-aminobenzothiazole moiety and a phenoxy fragment linked with thiosemicarbazide derivatives. Furthermore, we investigated the change of various substituents to explore their impact on the anti-cancer activity through the 1,2,3-triazole linker (Fig. 2). Given such findings on the potential bio-features of benzothiazole and 1,2,3-triazole molecular core; endeavors were made to hybrid benzothiazole moiety and the 1,2,3-triazole core through the Click synthesis of the focused alkyne based hydrazone/thiosemicarbazide linkage with the appropriate benzothiazole azides furnishing on the elaboration of the desired hydrazone and thiosemicarbazone derivatives as new Schiff bases tethering benzothiazole-1,2,3-triazole molecular conjugates (Series I and II).
It is worth noting that our designed target compounds were also designed to harbor the key structural features of common tyrosine kinase compounds (Fig. 2). The benzothiazole planner scaffold resembles the ATP-purine core ring being capable of mediating indispensable polar hydrogen bonding with the principal binding residues at the hinge region of the tyrosine kinase catalytic pocket.50 structural diversity on the benzothiazole ring provides prospective binding at the solvent-exposed pocket of the kinase active site. Regarding our designed acetamide triazole central structure, it comprises the heteroatom-aryl spacer being reported as important for occupying the pocket space connecting the ATP-adenine binding site with the tyrosine kinase functional DFG-motif that is typically involved within the enzyme activation machinery.51 Moving towards our thiosemicarbazone or hydrazone moieties in our compounds. These scaffolds resemble the hydrogen bond functionality (acceptors and/or donors) that have been heavily reported within several tyrosine kinase inhibitors capable of mediating polar contacts with kinase's secondary structures such as DFG-motif and αC-helix involved in enzyme's conformational activation.51,52 Finally, the terminal aryl/aroyl groups at Series-I were suggested as beneficial for targeting the buried deep hydrophobic back pocket, which has been correlated to high inhibition profiles and minimal off-target activities of reported tyrosine kinase inhibitors.50 The above-described design approach of our synthesized compounds harbors the advent of combining both ligand and structural-based insights through a holistic approach for increasing the success rate of developing anti-cancerous agents with potential tyrosine kinase inhibition activity. The resulting triazoles-based scaffold 8a–l with bioactive benzothiazole core will proceed for biological activation as cytotoxicity against breast, lung, and colon cancer cells with the EGFR target protein, as EGFR is overexpressed in a variety of human cancers, including lung, head, and neck, colon, pancreas, breast, ovary, bladder and kidney, and gliomas.53
![]() | ||
| Scheme 1 Optimized synthetic route for the synthesis of the targeted hydrazone/thiosemicarbazone-based benzothiazole-1,2,3-triazole hybrids 8a–c. | ||
The first route involves the propargylation of the p-hydroxybenzaldehyde (1) with propargyl bromide followed by its cycloaddition with the azidobenzothiazoles 4a–c to afford the corresponding 1,2,3-triazoles bearing benzaldehyde moiety 5a–c, which undergo condensation reaction with benzohydrazide 6a to give the 1,2,3-triazole-benzothiazole molecular conjugates with acetamide linkage 8a–c. The precursor benzothiazole azides 4a–c were prepared via the standard diazotization-azidolysis of the un/substitutedbenzo[d]thiazol-2-amine 3a–c.54 This route was found to produce the targeted adducts 8a–c (Scheme 1: route a) in relatively low yields (30–33%). Conversely, the condensation of the synthesized O-propargylated benzaldehyde 2 with benzohydrazide 6a yielded the alkyne derivative 7a, which was then used as an alkyne in CuAAC reaction with the selected benzothiazole azides 4a–c, yielding the targeted 1,2,3-triazole-benzothiazole molecular conjugates with acetamide linkage 8a–c in 87–91% yields (Scheme 1: route b).
The optimized Click reaction conditions were adopted to synthesize an innovative array of 1,2,3-triazoles carrying benzothiazole moiety and the hydrazone/thiosemicarbazone linkage 8d–l. Thus, the condensation of 4-(prop-2-yn-1-yloxy)benzaldehyde (2) with isoniazide (6b), 3,5-dinitrophenylhydrazine (6c), and/or thiosemicarbazide (6d), in refluxing ethanol with a catalytic quantity of acetic acid as a catalyst, afforded the corresponding hydrazone/thiosemicarbazone-based alkynes 7b–d in 93–95% yields (Table 1).
| Compounds no. | Structure | Mp (°C) | Yield (%) | |
|---|---|---|---|---|
| a Yield from route a in Scheme 1.b Yield from route b in Scheme 1. | ||||
| Alkyne derivatives | ![]() |
96 | ||

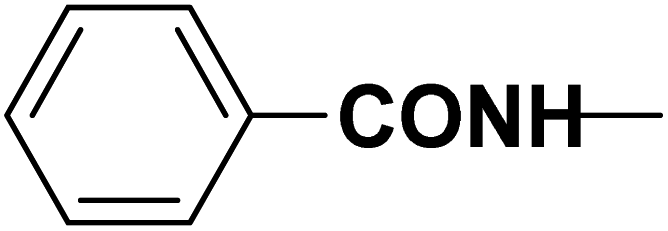

| 7a | R | ![]() |
159–160 | 94 |
| 7b | R | ![]() |
180–181 | 94 |
| 7c | R | ![]() |
226–227 | 95 |
| 7d | R | NH2CSNH– | 154–155 | 93 |
| Click adducts route a | ![]() |
|||
| 5a | R1 | –H | 197–198 | 89 |
| 5b | R1 | –CH3 | 210–211 | 88 |
| 5c | R1 | –SO2CH3 | 236–237 | 86 |
| Click adducts route b | ![]() |
|||
| 8a | R1 | –H | 223–224 | 90a |
| R2 | ![]() |
33b | ||
| 8b | R1 | –CH3 | 237–238 | 89a |
| R2 | ![]() |
32b | ||
| 8c | R1 | –SO2CH3 | 270–271 | 88a |
| R2 | ![]() |
30b | ||
| 8d | R1 | –H | 255–256 | 90 |
| R2 | ![]() |
|||
| 8e | R1 | –CH3 | 240–241 | 90 |
| R2 | ![]() |
|||
| 8f | R1 | –SO2CH3 | 289–290 | 88 |
| R2 | ![]() |
|||
| 8g | R1 | –H | 200–201 | 91 |
| R2 | ![]() |
|||
| 8h | R1 | –CH3 | 170–171 | 90 |
| R2 | ![]() |
|||
| 8i | R1 | –SO2CH3 | 190–191 | 89 |
| R2 | ![]() |
|||
| 8j | R1 | –H | 186–187 | 90 |
| R2 | NH2CSNH– | |||
| 8k | R1 | –CH3 | 209–210 | 90 |
| R2 | NH2CSNH– | |||
| 8l | R1 | –SO2CH3 | 173–174 | 88 |
| R2 | NH2CSNH– | |||
Moreover, the ligation of the resulting alkynes 7b–d with benzothiazole azides 4a–c was carried out in the presence of a mixture of copper sulfate (CuSO4) and sodium ascorbate under the 1,3-dipolar cycloaddition conditions and gave selectively 87–91% yields of the Click adduct 8d–l (Table 1).
CH) of the starting alkyne 2 supporting its participation in the Click synthesis. In addition, the appearance of a distinct singlet near δH 8.36–8.37 ppm supports the synthesis of the desired 1,2,3-triazole nucleus. The two sets of singlets observed at δH 5.32–5.33 ppm and δH 5.56–5.68 ppm were attributed to the two methylene protons of the –OCH2– and –NCH2– linkages, respectively. While the –CONH– and –CHO protons were recorded as two distinct singlets at δH 12.80–12.86 ppm and δH 9.86–9.88 ppm, respectively. All remaining protons were collected and described in the Experimental part. The 13C NMR spectra showed clearly the absence of the acetylenic carbons and the existence of a downfield signal at δC 191.9–192.5 ppm, assigned to the aldehyde carbonyl carbon.The structures of the resulting Schiff bases tethering alkyne side chains 7a–d were established using their respective spectroscopic information (IR and NMR spectra). Thus, their IR spectra clearly showed the disappearance of the characteristic aldehyde stretching bands (C
O and C–H Aldehyde) of their starting material 2, confirming the success of the condensation reaction. Their 1H NMR spectra also supported their structures by the absence of the signal attributed to the aldehyde proton and the appearance of new distinct singlets ranging around δH 8.04–8.11 ppm and δH 11.33–11.95 ppm, assigning the azomethine (HC
N–) and –CONH– protons, respectively. According to their 1H NMR spectra, the resulting hydrazone/thiosemicarbazone-based alkynes 7a–d comprised of two conformational isomers E/cis and the E/trans as most of the descriptive protons (HC
N–, –CONH, OCH2…etc.) were recorded as double signals with different isomeric ratios (see Experimental section). These results were in accordance with our early reported molecules that displayed the existence of cis/trans conformers throughout the amide (C
O and N–H) groups and E/Z geometrical isomers within the imine (HC
N) linkage.55–58
The spectra revealed the detection of a new singlet at δH 3.56–3.61 ppm referred to as the terminal alkyne proton. The residual protons were identified in their proper chemical shifts (see Experimental section). In addition, all 13C NMR results confirmed obviously the appearance of new signals caused by to Sp-carbons (C
C) at δC 78.9–79.4 ppm, which proved the production of the desired alkyne precursors 7a–c.
The success of the 1,3-dipolar cycloaddition reaction was evidenced by the analysis of the spectral data of the resulting Click products 8a–l. All IR spectra showed the disappearance of the acetylenic stretching bands of absorption (–C
C–,
C–H), confirming their participation in the formation of triazole ring.
Their 1H NMR spectra also displayed the absence of the acetylenic proton (
C–H) and the presence of the diagnostic triazolyl–H-5 proton at δH 8.25–8.42 ppm, evidencing the formation of the targeted 1,2,3-triazole core. Furthermore, the spectra also demonstrated the detection of the distinct singlets recorded at δH 5.27–5.61 ppm and δH 5.26–5.34 ppm attributed to the methylene protons of the –OCH2– and –NCH2– linkages, respectively. The two sets of singlets recorded at δH 8.25–8.63 ppm and 9.88–12.86 ppm were assigned to the –CONH– and –N
CH– protons, respectively. The spectral data of the resulting 1,2,3-triazole-based hydrazones/thiosemicarbazones 8a–l revealed the cis/trans conformers on the amide (C
O and N–H) and the E/Z geometrical isomers for the imine (HC
N) bond, respectively. These findings are congruent with the previously published research that studied this type of isomerism.58,59 The remaining protons resonated with respect to their designated area (see Experimental part). Furthermore, their 13C NMR results fitted their anticipated structures 8a–l and showed the lack of alkyne carbons (–C
C–), confirming the accomplished synthesis.
The spectra also showed new signals in the aliphatic area at δC 61.60–61.88 ppm and δC 52.10–53.20 ppm attributed to the –OCH2– and –COCH2– carbons, respectively. The carbonyl carbons (C
O) were registered around δC 159.80–166.70 ppm. All carbon signals were recorded with details in the Experimental part.
| Compound | T47-D | HCT-116 | A549 | Fibroblasts |
|---|---|---|---|---|
| a Positive control for lung cancer A549.b Positive control for breast cancer T47-D.c Positive control for colon cancer HCT-116. | ||||
| 7a | 208 ± 4 | 237 ± 6 | 200 ± 4 | >500 |
| 7b | 347 ± 9 | 395 ± 5 | 298 ± 3 | >500 |
| 7c | 175 ± 6 | 209 ± 5 | 156 ± 4 | >500 |
| 7d | 130 ± 2 | 261 ± 6 | 128 ± 5 | >500 |
| 8a | 17 ± 1 | 84 ± 3 | 18 ± 1 | >500 |
| 8b | 13 ± 1 | 94 ± 1 | 21 ± 1 | >500 |
| 8c | 19 ± 2 | 48 ± 2 | 25 ± 1 | >500 |
| 8d | 30 ± 1 | 100 ± 2 | 38 ± 2 | >500 |
| 8e | 101 ± 2 | 207 ± 5 | 92 ± 2 | >500 |
| 8f | 46 ± 4 | 149 ± 3 | 38 ± 2 | >500 |
| 8g | 95 ± 3 | 109 ± 3 | 103 ± 5 | >500 |
| 8h | 77 ± 2 | 167 ± 4 | 65 ± 3 | >500 |
| 8i | 84 ± 1 | 162 ± 5 | 89 ± 4 | >500 |
| 8j | 54 ± 2 | 190 ± 4 | 63 ± 2 | >500 |
| 8k | 119 ± 4 | 170 ± 7 | 138 ± 4 | >500 |
| 8l | 130 ± 2 | 180 ± 4 | 142 ± 3 | >500 |
| Cisplatina | — | — | 22 ± 1 | |
| Doxorubicinb | 6 ± 0.5 | — | — | |
| 5-FUc | — | 11 ± 0.7 | — | |

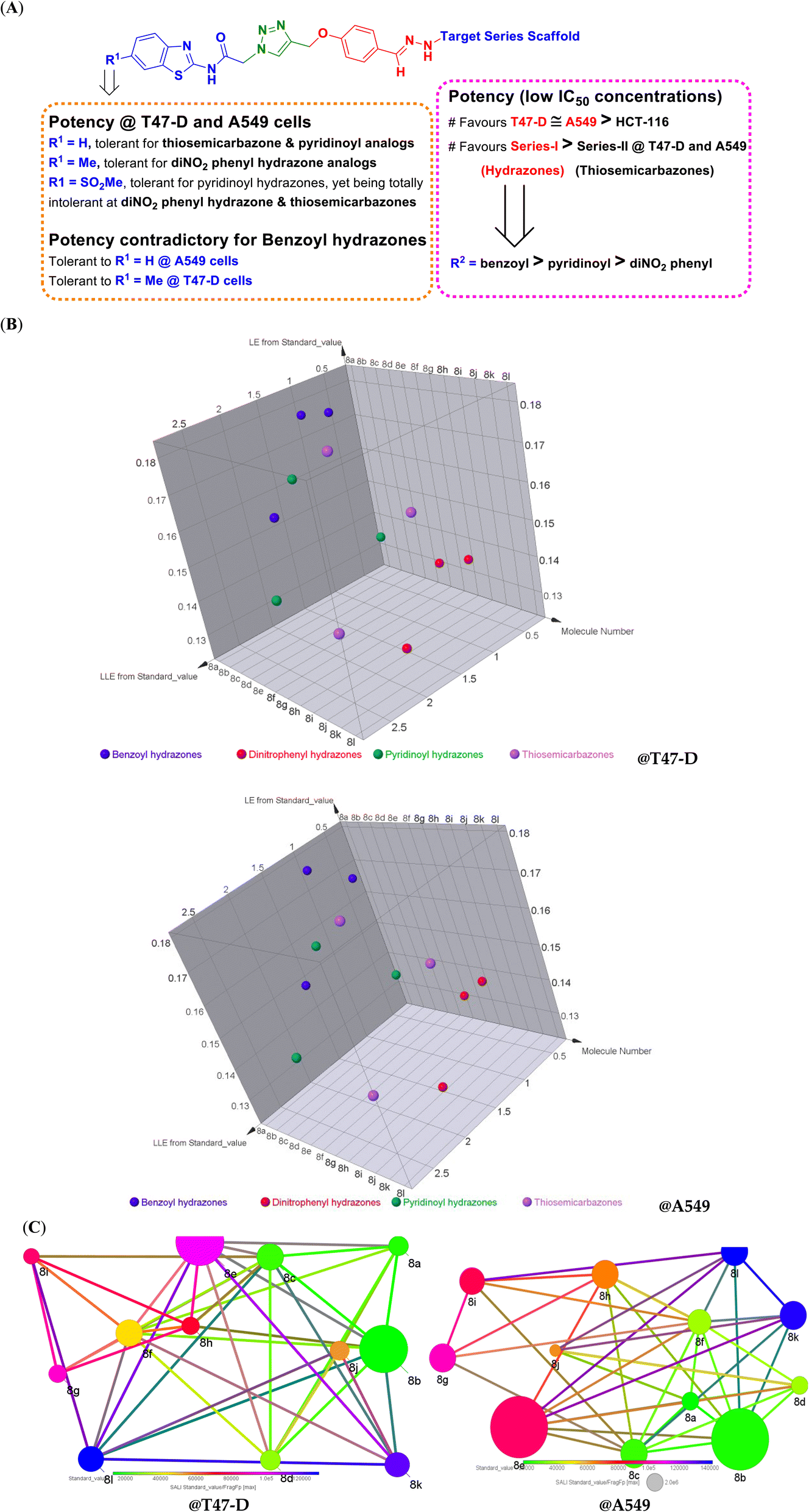

Comparing the activity patterns across the cell lines and among the same line itself was highlighted as important to deduce valuable insights regarding the in vitro cytotoxic activity correlation with compounds' structural differences. This structural activity relationship has demonstrated relevant https://www.google.com/search?sca_esv=23a6d0305129b91a%26rlz=1C1GCEJ_enIN1138IN1138%26q=structural%26spell=1%26sa=X%26ved=2ahUKEwjw35K2nZ-LAxVlcGwGHTY2B-gQkeECKAB6BAgHEAE%26cshid=1738301429273491 molecular insights being valuable for guiding future compound optimization and development. As a general observation, the synthesized benzothiazole–triazole adducts (8a–l) exhibited higher cytotoxic activities than their respective penultimate intermediate compounds (7a–d) across all three tested cancerous cell lines. On the other hand, preferential cytotoxic activity towards breast T47-D and lung A549 cell lines has been depicted to all hybrid adducts as compared to colon HCT-116 cancer cells (IC50 range = 13 ± 1 to 130 ± 2 μM @ T47-D; 18 ± 1 to 143 ± 3 μM @ A549; and 48 ± 2 to 207 ± 5 μM @ HCT-116).
The potency values in the two most responsive cell lines, T47-D and A549, showed similar activity patterns across the synthesized benzothiazole–triazole hybrids. Notably, members of the Series-I (8a–i) were assigned with higher potency values (lower IC50 concentrations) as compared to those of the thiosemicarbazone derivatives (Series-II; 8j–l). Compounds with simple unsubstituted aroyl moiety (R2 = benzoyl; 8a–c) demonstrated the highest potency values among all members of Series-I and across both cancerous cell lines. Contrarily, activity values at both T47-D and A549 cell lines were intolerant to terminal substitution with the dinitrophenyl group (8g–i) and, to a lesser extent, towards the pyridinoyl functionality (8d–f).
Moving our attention towards the structural diversity at C6 of the benzothiazole ring scaffold, activity profiles were at quite comparable patterns in both T47-D and A549 cell lines. Series-II compounds were intolerant to any R1 substitutions having better IC50 values for the unsubstituted benzothiazole ring, as seen with compound 8j. Similarly, members of the Series-I pyridinoyl hydrazone terminal groups favored their benzothiazole ring being unsubstituted with 8d for better cytotoxic activity profiles. Contrarily, members of the Series-I dinitrophenyl hydrazone moiety showed preferentiality for small group substitution (methylation) at the benzothiazole C6 position, where 8h showed better IC50s at both cancerous cells. Finally, compounds with benzoyl hydrazone scaffold were quite different across T47-D and A549 cell lines where cytotoxic activity at the earlier cell line was in favor of the R1 methylated analog (8b) while as at lung cancer, activity was intolerant to any R1 substitution. It is worth noting that methylsulphone derivatization at the benzothiazole adduct side was disfavoured for cytotoxic activity for the dinitrophenyl hydrazone and thiosemicarbazone derivatives (8i and 8I) as compared to their unsubstituted benzothiazole parent compounds. Conversely, the introduction of the methylsulphone functionality at the pyridinoylhydrazones (8f versus 8e) was favored for compound 8f cytotoxic activities across the three cancerous cell lines. It was suggested that the latter beneficial boosted cytotoxic activity for 8f could be correlated to the compound's improved physiochemical properties following the sulphone group introduction. Comparative physiochemical properties of 8e and 8f were estimated via the ADMETlab 2.0 web-based platform (https://admetmesh.scbdd.com/; Xiangya School of Pharmaceutical Sciences, Central South University, China). Interestingly, the compounds' hydrophobic characteristics were much favored for compound 8f compared to 8e in terms of log
P (octanol/water partition coefficient) and log
D (log
P at physiological pH 7.40) indices. Compound 8f showed log
P and log
D at 2.61 and 2.007, respectively, while higher lipophilicity patterns were seen with 8e (log
P = 4.20; log
D = 3.17). Generally, a compound's hydrophobicity is the driving force for the compound's permeation across cellular membranes and thus significantly impacts the cellular uptake of compounds.60 Optimal log
P and log
D values were set at ≤3.0 as per ADMETlab 2.0 thresholds where far below and above these values, the compounds became either potentially incapable of penetrating cellular membranes or being trapped within these membranes disfavouring their partition towards the aqueous https://www.google.com/search?sca_esv=9a5876f960b44ea9%26rlz=1C1GCEJ_enIN1138IN1138%26q=compartments%26spell=1%26sa=X%26ved=2ahUKEwiU5Z2An5-LAxX7SGwGHQuOJe0QkeECKAB6BAgLEAE.61,62 It is worth noting that the predicted aqueous solubility patterns (log
S) for both compounds 8e and 8f do not greatly vary (−5.814 versus −5.859, respectively). In these regards, it was suggested that incorporation of methylsulphone group at compound 8f impose balanced hydrophobic/polar characteristics for the compounds being potentially translated into better cancer cell uptake and cytotoxicity activity (lower IC50). Physiochemical properties could further provide a rational for compounds 8i and 8l being intolerant towards methylsulphone structural incorporation. As per in silico calculations, both compounds showed imbalanced polarity/hydrophobicity indices (log
S/log
D) with significant shift towards higher hydrophilicity characteristics. Generally, both compounds harbor a much polar functionality at their hydrazone terminal side (8i = dinitro; 8l = thiosemicarbazone) as compared to 8f (pyridine ring). Notably, compound 8i depicted a very high polarity index (log
S = −6.25) being uncompensated with the estimated low-value hydrophobic characteristic (log
D = 2.95). On comparable bases, compound 8l showed a very small hydrophobic parameter with predicted log
D at 1.96 under normal physiological conditions (pH 7.40). Both compounds were suggested with compromised cellular uptake the thing that could partially reason for their low IC50 values. All discussed SAR insights are summarized as follows in Fig. 3A.
The above SAR data could be highly correlated to compounds' physiochemical properties (lipophilicity, heteroatomic compositions, and/or extent of ionization) and, in turn, their pharmacokinetic profiles, the pharmacodynamics of compound-biotarget binding, or even altogether.63 Therefore, we aimed to associate the depicted cytotoxicity IC50 values on top-sensitive cancerous cells (T47-D and A549) with compounds' physiochemical characteristics through estimating more reliable indices such as ligand's efficiencies (LEs) and lipophilic efficiencies (LLEs). These activity-related indices account for compounds' hetero/heavy atom compositions and structural-related lipophilic characteristics (log
P), respectively.64 Generally, consensus threshold values of 0.3 for LEs and 3 for LLEs have been correlated to compounds with promising activity profiles.65,66 3D-charts of compounds' LE and LLE values at T47-D and A549 were constructed using DataWarriors V06.02.05 as seen in Fig. 3B. At H47-D cell line, members of the Series-I benzoyl and pyridinoyl hydrazones showed a wide range of LE and LLE indices with 8c and 8f being with the significant activity indices (LE = 0.16 and 0.15; LLE = 1.93 and 2.58, respectively). Regarding the last group members of Series-I, dinitrophenyl hydrazones, compound 8i had moderate activity values: LE = 0.12 and LLE = 1.52. Moving toward the Series-II of thiosemicarbazone analogs, relevant activity values were highlighted for 8j at LE = 0.14 and LLE = 1.81. It is worth noting that activity indices at the A549 cell line were quite comparable to those of H47-D cells, highlighting significant profiles for 8c, 8f, 8i, and 8j compounds (LEs = 0.15, 0.15, 0.12, and 0.13; LLEs = 1.84, 2.66, 1.50, and 1.82, respectively).
To further grasp the impacts of small structural modifications on similar compounds' activity, a simplified quantitative index concerning the structural activity modifications has been employed. Structural-activity cliffs were estimated for the synthesized compounds via DataWarriors V06.02.05 through Structure–Activity Landscape Index (SALI) analysis based on their structural/fragment similarity to their cytotoxicity IC50 values (Fig. 3C). Compounds are represented as nodes and colored in heat map according to their IC50 values. Compounds are to be connected if they are considered structural-activity cliffs, meaning that these connected compounds are most interesting for SAR study being most similar yet with the greatest activity/IC50 changes.67 Within the SALI analysis and at 95% cut-off, certain paired compounds were of the highest SALI values (large-sized nodes) that worth close investigation. First observation was that both Series-I and -II were represented as singular groups owing to great structural/fragment similarity being clustered all together. At H47-D, only members of Series-I (8b and 8e) were represented as highly significant structural-activity cliffs showing the largest sized nodes. The pairing of 8b or 8e was highlighted the most with 8k and 8h at SALI-IC50's highest values (1
813
500 and 449
500, respectively), highlighting the favored impact of the benzoyl hydrazones at the terminal aromatic scaffold (R2). Other significant string pairing of 8e with 8f (SALI-IC50 = 201
600) further highlights the beneficial impact of methylsulphone R1 substitution on increasing the IC50 potency only at pyridinoyl hydrazone series. Regarding the A549 cell line, almost comparable SALI findings were highlighted, showing both 8b and 8e as the most significant structural-activity cliffs, being even with larger-size nodes (SALI index) than in case of H47-D cancerous cell line.
![]() | ||
| Fig. 4 Effect of 8a and 8b treatment on A549 cell migration. A549 cells were treated with 8a and 8b at IC50 and sub-IC50 concentrations for 24 h. *(P ≤ 0.05) significantly different using the unpaired t-test in GraphPad prism. Images of the wound at 0 and 24 h at 10× magnification using EVOS XL Core imaging system is supported in the supplementary (Fig. S25†). | ||
| Compound | % of EGFR inhibition | IC50 ± SDa (μM) |
|---|---|---|
| a Values are expressed as an average of three independent replicates. IC50 values were calculated using sigmoidal non-linear regression curve fit of percentage inhibition against five concentrations of each compound. | ||
| 8a | 98.5 ± 3.1 | 0.69 ± 0.01 |
| 8b | 96.8 ± 2.1 | 1.16 ± 0.02 |
| 8c | 92.3 ± 3.1 | 4.82 ± 0.01 |
| Erlotinib | 98.2 ± 2.4 | 1.3 ± 0.01 |
Compound 8a was docked inside the protein, and the EGFR active site formed one hydrogen bond as HBA with a bond length/angle of 2.32 Å/179.6°, through its triazole core with the key amino acid with (Met769) like the co-crystallized ligand with binding energy −29.48 kcal mol−1. Besides two hydrogen bond interactions with Lys721 amino acids and the lipophilic interactions by the benzothiazole scaffold (Fig. 6). In addition, compound 8b was docked inside the protein the EGFR active site formed one hydrogen bond as HBA with bond length/angle of 2.15 Å/134.9°, through its triazole moiety with the key amino acid with (Met769) like the co-crystallized ligand with binding energy −27.27 kcal mol−1. Besides the lipophilic interactions by the benzothiazole scaffold (Fig. 7). The depicted few polar interactions between the docked compounds and EGFR protein further highlighted the superior contribution of van der Waal potentials for compound-EGFR stability, making this type of interaction significantly impact the compound's both pharmacokinetic and pharmacodynamic characteristics. Consequently, molecular docking data revealed that compounds 8a and 8b had a high binding affinity as EGFR inhibitors. This might explain the proposed mode of action for anti-cancer efficiency and the proof of concept for the preferential experimental activity of 8a over 8b. In order to account for the compounds' physiochemical properties under experimental investigation, both the physiochemical and ADME parameters of the docked compounds, 8a and 8b, were evaluated in the following section.
| Parameter | 8a | 8b | |
|---|---|---|---|
a “Mwt = molecular weight; MV = molecular volume; TPSA = total polar surface area; log P = partition coefficient at octanol–water solvent; HBA = hydrogen bond acceptor; HBD = hydrogen bond donor, drug likeness; Lipinski's rule of five (acceptable) = MW ≤ 500, log P ≤ 5, HBA ≤ 10 and HBD ≤ 5”; Pfizer rule (accepted) = log P > 3, TPSA < 75; PAINS = pan assay interference compounds, frequent hitters, alpha-screen artifacts and reactivity compounds; Caco-2 permeability = optimal if > −5.15 log unit; VD = volume of distribution (optimal 0.04–20 l kg−1); BBB penetration = blood–brain barrier penetration; CL = clearance; t1/2 = half-life time (time for the compound blood concentration to decrease to its half). |
|||
| Physiochemical | HBD | 2 | 2 |
| HBA | 10 | 10 | |
| MWt (D) | 511.14 | 525.16 | |
| MV (A3) | 497.78 | 515.08 | |
| PSA (A2) | 123.39 | 123.39 | |
Solubility (log mol l−1) |
−6.16 | −6.61 | |
Log P |
4.52 | 4.88 | |
| Medicinal chemistry | Lipinski rule | Accepted | Accepted |
| Pfizer rule | Accepted | Accepted | |
| PAINS | Zero alerts | Zero alerts | |
| Absorption | Caco-2 permeability | −5.15 (optimal) | −4.99 (optimal) |
| MDCK permeability | 1.2 × 10−5 cm s−1 (low-moderate) | 1.2 × 10−5 cm s−1 (low-moderate) | |
| Pgp-inhibitor | Non-inhibitor (99.8% probability) | Non-inhibitor (98.8% probability) | |
| Pgp-substrate | Non-inhibitor (99% probability) | Non-inhibitor (99.99% probability) | |
| Distribution | VD | 1.53 l kg−1 | 1.41 l kg−1 |
| BBB penetration | 13% probability | 5% probability | |
| Metabolism | CYP1A2 | Neither inhibitor/substrate | |
| CYP2C19 | Probable inhibitor | ||
| CYP2C9 | Probable inhibitor/substrate | ||
| CYP2D6 | Neither inhibitor/substrate | ||
| CYP3A4 | Neither inhibitor/substrate | ||
| Excretion | Cl | 4.07 ml min−1 kg−1 | 4.45 ml min−1 kg−1 |
| t1/2 | 10.1% propability of high t1/2 | 9.4% propability of high t1/2 | |
O), 1640 (C
N), 1560 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.81 (1H, s, NH), 9.86 (1H, s, CHO), 8.36 (1H, s, 1,2,3-triazole H-5), 7.99 (2H, d, J = 8 Hz, Ar–H), 7.90 (2H, d, J = 8 Hz, Ar–H), 7.78 (1H, d, J = 4 Hz, Ar–H), 7.46 (1H, d, J = 4 Hz, Ar–H), 7.33–7.28 (2H, m, Ar–H), 5.58 (2H, s, NCH2CO), 5.33 (2H, s, OCH2). 13C NMR (100 MHz, DMSO-d6): δC = 192.5 (HC
O); 162.9, 161.5, 152.6, 142.4, 139.5, 136.7, 132.4, 132.2, 131.7, 130.8, 125.9, 122.5, 121.9, 115.8 (Ar–C, 1,2,3-triazole C-5, C
N); 62.3 (OCH2); 52.8 (NCH2) ppm. Calculated for C19H15N5O3S: C, 58.01; H, 3.84; N, 17.80. Found: C, 58.19; H, 3.78; N, 17.70.
O), 1630 (C
N), 1550 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.86 (1H, s, NH), 9.88 (s, 1H, CHO), 8.36 (s, 1H, 1,2,3-triazole H-5), 7.90 (d, 2H, J = 8 Hz, Ar–H), 7.77 (s, 1H, Ar–H), 7.65 (d, 1H, Ar–H), 7.27 (d, 3H, J = 4 Hz, Ar–H), 5.56 (s, 2H, NCH2CO), 5.32 (s, 2H, OCH2), 2.40 (s, 3H, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 191.9 (HC
O); 163.4, 142.5, 133.8, 132.2, 130.3, 128.1, 127.2, 121.8, 120.8, 115.6 (Ar–C, 1,2,3-triazole C-5, C
N); 61.7 (OCH2); 52.1 (NCH2); 21.4 (CH3) ppm. Calculated for C20H17N5O3S: C, 58.96; H, 4.21; N, 17.19. Found: C, 58.74; H, 4.29; N, 17.33.
O), 1630 (C
N), 1570 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.80 (1H, br, NH), 9.88 (s, 1H, CHO), 8.66 (s, 1H, Ar–H), 8.37 (s, 1H, 1,2,3-triazole H-5), 7.97 (s, 2H, Ar–H), 7.90 (d, 2H, J = 8 Hz, Ar–H), 7.28 (d, 2H, J = 8 Hz, Ar–H), 5.62 (s, 2H, NCH2CO), 5.33 (s, 2H, OCH2), 3.25 (s, 3H, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 191.9 (HC
O); 166.9, 163.4, 162.1, 152.3, 142.5, 136.0, 132.4, 132.3, 132.2, 130.3, 125.5, 122.8, 121.4, 115.6 (Ar–C, 1,2,3-triazole C-5, C
N); 61.7 (OCH2); 52.2 (NCH2); 44.3 (CH3) ppm. Calculated for C20H17N5O5S2: C, 50.95; H, 3.63; N, 14.85. Found: C, 50.77; H, 3.71; N, 14.73.
CH), 3035 (C–H ar), 2150 (C
C), 1700 (C
O), 1610 (C
N), 1540 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 11.75 (0.90H, s, NH), 11.75 (0.90H, s, NH), 8.41 (0.90H, s, HC
N), 8.06 (0.10H, bs, HC
N), 7.92 (1.80H, d, J = 8 Hz, Ar–H), 7.81 (0.20H, d, J = 8 Hz, Ar–H), 7.70 (1.80H, d, J = 8 Hz, Ar–H), 7.58–7.50 (3.20H, m, Ar–H), 7.08 (2H, d, J = 8 Hz, Ar–H), 4.86 (2H, s, OCH2), 3.61 (1H, s,
CH). 13C NMR (100 MHz, DMSO-d6): δC = 163.4, 159.2, 148.0, 134.0, 132.1, 129.0, 128.9, 128.0, 115.6 (Ar–C, C
N, C
O); 79.4, 78.9 (C
CH); 56.0 (OCH2) ppm. Calculated for C17H14N2O2: C, 73.37; H, 5.07; N, 10.07. Found: C, 73.56; H, 5.13; N, 10.21.
CH), 3055 (C–H ar), 2160 (C
C), 1690 (C
O), 1620 (C
N), 1560 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 11.95 (0.87H, s, NH), 11.91 (0.13H, s, NH), 8.78 (1.74H, d, J = 4 Hz, Ar–H), 8.73 (0.26H, s, Ar–H), 8.41 (0.87H, s, HC
N), 8.04 (0.13H, s, HC
N), 7.81 (1.74H, d, J = 4 Hz, Ar–H), 7.72 (1.74H, d, J = 8 Hz, Ar–H), 7.66 (0.26H, d, J = 4 Hz, Ar–H), 7.48 (0.25H, d, J = 8 Hz, Ar–H), 7.09 (1.76H, d, J = 8 Hz, Ar–H), 7.01 (0.25H, d, J = 8 Hz, Ar–H), 4.87 (1.75H, s, OCH2), 4.82 (0.25H, s, OCH2), 3.61 and 3.58 (1H, 2 s,
CH). 13C NMR (100 MHz, DMSO-d6): δC = 161.9, 159.4, 150.7, 149.2, 141.0, 129.3, 127.7, 121.9, 115.7 (Ar–C, C
N, C
O); 79.4, 79.0 (C
CH); 56.0 (OCH2) ppm. Calculated for C16H13N3O2: C, 68.81; H, 4.69; N, 15.05. Found: C, 68.65; H, 4.61; N, 15.17.
CH), 3075 (C–H ar), 2140 (C
C), 1625 (C
N), 1550 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 11.59 (1H, s, NH), 8.85 (1H, d, J = 4 Hz, Ar–H), 8.63 (1H, s, HC
N), 8.33 (1H, d, J = 8 Hz, Ar–H), 8.06 (1H, d, J = 8 Hz, Ar–H), 7.76 (2H, d, J = 8 Hz, Ar–H), 7.10 (2H, d, J = 8 Hz, Ar–H), 4.87 (2H, s, OCH2), 3.61 (1H, s,
CH). 13C NMR (100 MHz, DMSO-d6): δC = 159.6, 149.7, 144.9, 137.2, 129.6, 127.5, 123.5, 117.1, 115.8 (Ar–C, C
N); 79.3, 79.0 (C
CH); 56.0 (OCH2) ppm. Calculated for C16H12N4O5: C, 56.47; H, 3.55; N, 16.46. Found: C, 56.59; H, 3.59; N, 16.53.
CH), 3065 (C–H ar), 2150 (C
C), 1620 (C
N), 1570 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 11.33 (1H, s, NH), 8.11 (1H, s, HC
N), 7.99 (1H, s, NH), 7.92 (1H, s, NH), 7.75 (2H, d, J = 8 Hz, Ar–H), 7.01 (2H, d, J = 8 Hz, Ar–H), 4.83 (2H, s, OCH2), 3.56 (1H, s,
CH). 13C NMR (100 MHz, DMSO-d6): δC = 178.1 (C
S); 159.0, 142.5, 129.2, 127.9, 115.4 (Ar–C, C
N); 79.4, 78.9 (C
CH); 56.0 (OCH2) ppm. Calculated for C11H11N3OS: C, 56.63; H, 4.75; N, 18.01. Found: C, 56.45; H, 4.83; N, 18.14.
O), 1615 (C
N), 1565 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 11.76 (0.80H, s, NH), 9.88 (0.20H, s, NH), 8.42 (1H, s, HC
N), 8.35 (1H, s, 1,2,3-triazole H-5), 7.91–7.69 (4H, m, Ar–H), 7.57–7.52 (4H, m, Ar–H), 7.28–7.16 (6H, m, Ar–H), 5.58 (2H, s, NCH2CO), 5.26 (2H, s, OCH2). 13C NMR (100 MHz, DMSO-d6): δC = 168.1, 166.3, 163.4, 160.0 (2 × C
O); 148.7, 148.3, 143.0, 129.1, 128.1, 126.7, 123.3, 121.2, 115.6 (Ar–C, 1,2,3-triazole C-5, C
N); 61.6 (OCH2); 53.0, 52.2 (NCH2) ppm. Calculated for C26H21N7O3S: C, 61.05; H, 4.14; N, 19.17. Found: C, 61.26; H, 4.19; N, 19.05. HRMS (ESI): m/z [M + Na]+ (calcd for C26H21N7O3SNa: 534.13188; found: 534.13082).
O), 1620 (C
N), 1570 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 11.75 (0.80H, s, NH), 11.61 (0.20H, s, NH), 8.43 (1H, s, HC
N), 8.33 (1H, s, 1,2,3-triazole H-5), 7.91 (2H, d, J = 4 Hz, Ar–H), 7.78–7.52 (7H, m, Ar–H), 7.26–7.15 (3H, m, Ar–H), 5.55 (2H, s, NCH2CO), 5.32 (0.20H, s, OCH2), 5.25 (1.80H, s, OCH2), 2.40 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 166.4, 159.8 (2 × C
O); 147.8, 145.0, 142.4, 133.6, 131.9, 129.1, 128.9, 115.7 (Ar–C, 1,2,3-triazole C-5, C
N); 61.4 (OCH2); 53.3, 52.3 (NCH2); 29.3 (CH3) ppm. Calculated for C27H23N7O3S: C, 61.70; H, 4.41; N, 18.66. Found: C, 61.86; H, 4.47; N, 18.78. HRMS (ESI): m/z [M + 1]+ (calcd for C27H23N7O3S: 526.16558; found: 526.16751).
O), 1625 (C
N), 1555 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 11.75 (0.80H, s, NH), 9.88 (0.20H, s, NH), 8.66 (1H, s, Ar–H), 8.42 (1H, bs, HC
N), 8.35 (1H, bs, 1,2,3-triazole H-5), 7.95–7.89 (3H, m, Ar–H), 7.69 (2H, bs, Ar–H), 7.58–7.52 (3H, m, Ar–H), 7.27–7.16 (3H, m, Ar–H), 5.60 (2H, s, NCH2CO), 5.33 (0.40H, s, OCH2), 5.26 (1.60H, s, OCH2), 3.23 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 160.8, 160.3 (2 × C
O); 152.2, 149.2, 142.7, 136.2, 132.2, 129.3, 127.1, 122.8, 121.8, 115.6 (Ar–C, 1,2,3-triazole C-5, C
N); 61.6 (OCH2); 53.2 (NCH2); 44.8 (CH3) ppm. Calculated for C27H23N7O5S2: C, 55.00; H, 3.93; N, 16.63. Found: C, 55.26; H, 3.86; N, 16.53. HRMS (ESI): m/z [M + Na]+ (calcd for C27H23N7O5S2Na: 612.10943; found: 612.10743).
O), 1610 (C
N), 1585 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.91 (1H, s, CH2CONH), 11.97 (0.90H, s, NH), 11.93 (0.10H, s, NH), 9.88 (0.10H, s, NH), 8.43 (1H, s, HC
N), 8.35 (1H, m, 1,2,3-triazole H-5), 7.99–7.88 (3H, m, Ar–H), 7.79–7.72 (4H, m, Ar–H), 7.48–7.33 (2H, m, Ar–H), 7.19–7.10 (3H, m, Ar–H), 5.62 (2H, s, NCH2CO), 5.34 (0.25H, s, OCH2), 5.27 (1.75H, s, OCH2), 3.24 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 162.0, 160.3 (2 × C
O); 150.5, 149.3, 142.8, 129.4, 128.9, 127.3, 127.0, 126.7, 124.2, 122.3, 121.0, 115.6 (Ar–C, 1,2,3-triazole C-5, C
N); 61.6 (OCH2); 52.3 (NCH2) ppm. Calculated for C25H20N8O3S: C, 58.58; H, 3.93; N, 21.86. Found: C, 58.75; H, 3.99; N, 21.96.
O), 1610 (C
N), 1555 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.86 (1H, s, CH2CONH), 12.03 (0.80H, s, NH), 11.95 (0.10H, s, NH), 9.90 (0.10H, s, NH), 8.48 (1H, bs, HC
N), 8.35 (1H, m, 1,2,3-triazole H-5), 7.89–7.66 (5H, m, Ar–H), 7.49–7.10 (6H, m, Ar–H), 5.57 (2H, s, NCH2CO), 5.33 (0.25H, s, OCH2), 5.27 (1.75H, s, OCH2), 2.41 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 166.7, 163.0, 159.9 (2 × C
O); 147.6, 145.6, 142.6, 133.9, 131.8, 128.6, 125.6, 121.1, 115.7 (Ar–C, 1,2,3-triazole C-5, C
N); 61.4 (OCH2); 53.2, 52.7 (NCH2); 29.5 (CH3) ppm. Calculated for C26H22N8O3S: C, 59.31; H, 4.21; N, 21.28. Found: C, 59.55; H, 4.29; N, 21.17.
O), 1620 (C
N), 1570 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 13.22 (1H, s, CH2CONH), 11.98 (0.80H, s, NH), 11.91 (0.10H, s, NH), 9.88 (0.10H, s, NH), 8.67 (1H, s, Ar–H), 8.44 (0.70H, bs, HC
N), 8.32–8.36 (1.30H, m, HC
N and 1,2,3-triazole H-5), 7.99–7.88 (5H, m, Ar–H), 7.72 (2H, d, J = 4 Hz, Ar–H), 7.49 (0.30H, d, J = 8 Hz, Ar–H), 7.28–7.16 (2.70H, m, Ar–H), 5.62 (2H, s, NCH2CO), 5.34 (0.25H, s, OCH2), 5.27 (1.75H, s, OCH2), 3.24 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 166.9, 162.0, 160.3 (2 × C
O); 152.3, 149.3, 142.9, 136.2, 132.2, 127.3, 125.4, 121.5, 115.6 (Ar–C, 1,2,3-triazole C-5, C
N); 61.6 (OCH2); 52.2 (NCH2); 44.8 (CH3) ppm. Calculated for C26H22N8O5S2: C, 52.87; H, 3.75; N, 18.97. Found: C, 52.71; H, 3.80; N, 18.86.
O), 1620 (C
N), 1580 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.69 (1H, bs, CH2CONH), 11.62 (1H, s, NH), 8.83 (1H, s, Ar–H), 8.63 (1H, s, HC
N), 8.31 (2H, s, 1,2,3-triazole H-5 and Ar–H), 8.05 (2H, d, J = 4 Hz, Ar–H), 7.84–7.75 (3H, m, Ar–H), 7.79–7.72 (4H, m, Ar–H), 7.40 (1H, s, Ar–H), 7.19–7.15 (3H, m, Ar–H), 5.51 (2H, bs, NCH2CO), 5.27 (2H, s, OCH2). 13C NMR (100 MHz, DMSO-d6): δC = 165.4 (C
O); 149.8, 146.1, 145.2, 142.6, 136.9, 135.0, 130.0, 129.5, 127.1, 126.0, 123.5, 117.1, 115.7 (Ar–C, 1,2,3-triazole C-5, C
N); 61.7 (OCH2); 52.9 (NCH2) ppm. Calculated for C25H19N9O6S: C, 52.35; H, 3.34; N, 21.98. Found: C, 52.52; H, 3.39; N, 21.89.
O), 1615 (C
N), 1565 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.82 (1H, s, CH2CONH), 11.60 (1H, s, NH), 8.85 (1H, s, Ar–H), 8.64 (1H, s, HC
N), 8.34 (2H, s, 1,2,3-triazole H-5 and Ar–H), 8.08 (1H, bd, J = 4 Hz, Ar–H), 7.76–7.66 (3H, m, Ar–H), 7.26–7.10 (4H, m, Ar–H), 5.56 (2H, s, NCH2CO), 5.28 (2H, s, OCH2), 2.40 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 160.5 (C
O); 149.8, 144.9, 137.2, 133.8, 130.1, 129.5, 128.0, 126.9, 123.5, 121.8, 117.1, 115.7 (Ar–C, 1,2,3-triazole C-5, C
N); 61.6 (OCH2); 52.1 (NCH2); 21.4 (CH3) ppm. Calculated for C26H21N9O6S: C, 53.15; H, 3.60; N, 21.45. Found: C, 53.39; H, 3.52; N, 21.57.
O), 1610 (C
N), 1560 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.76 (1H, bs, CH2CONH), 11.55 (1H, s, NH), 8.85 (1H, s, Ar–H), 8.64 (2H, s, HC
N and Ar–H), 8.35 (2H, s, 1,2,3-triazole H-5 and Ar–H), 8.08–8.76 (4H, m, Ar–H), 7.19–7.10 (3H, m, Ar–H), 5.61 (2H, s, NCH2CO), 5.29 (2H, s, OCH2), 3.62 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 162.7 (C
O); 159.6, 149.7, 144.9, 142.8, 137.2, 136.0, 130.2, 129.6, 129.5, 127.5, 123.5, 117.2, 115.8 (Ar–C, 1,2,3-triazole C-5, C
N); 61.6 (OCH2); 52.1 (NCH2); 21.4 (CH3) ppm. Calculated for C26H21N9O8S2: C, 47.92; H, 3.25; N, 19.35. Found: C, 47.74; H, 3.17; N, 19.49.
O), 1625 (C
N), 1575 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 13.00 (1H, bs, CH2CONH), 11.48 (1H, s, NH), 8.34 (1H, s, 1,2,3-triazole H-5), 8.25 (1H, s, HC
N), 8.04 (1H, s, NH), 7.98 (1H, d, J = 8 Hz, NH), 7.76 (3H, t, J = 4 Hz, Ar–H), 7.32–7.25 (3H, m, Ar–H), 7.10 (2H, d, J = 8 Hz, Ar–H), 5.61 (2H, s, NCH2CO), 5.32 (0.20H, s, OCH2), 5.23 (1.80H, s, OCH2). 13C NMR (100 MHz, DMSO-d6): δC = 166.2 (C
S); 160.0 (C
O); 143.4, 142.8, 131.8, 129.5, 127.3, 126.9, 126.7, 124.3, 122.3, 121.1, 115.3 (Ar–C, 1,2,3-triazole C-5, C
N); 61.5 (OCH2); 52.2 (NCH2) ppm. Calculated for C20H18N8O2S2: C, 51.49; H, 3.89; N, 24.02. Found: C, 51.70; H, 3.94; N, 24.17.
O), 1605 (C
N), 1555 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 12.78 (1H, bs, CH2CONH), 11.73 (0.70H, s, NH), 9.87 (0.30H, s, NH), 8.42–8.28 (3H, m, 1,2,3-triazole H-5, HC
N and Ar–H), 7.89 (1H, bd, J = 8 Hz, Ar–H), 7.80–7.65 (4H, m, NH and Ar–H), 7.26 (1H, bd, J = 4 Hz, Ar–H), 7.11–7.08 (2H, m, J = 4 Hz, Ar–H), 5.55 (2H, s, NCH2CO), 5.32 (0.60H, s, OCH2), 5.25 (1.40H, s, OCH2), 3.38 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 166.1 (C
S); 163.4, 160.3 (C
O); 146.7, 133.8, 132.3, 130.3, 129.8, 128.1, 126.9, 121.8, 120.8, 115.6, 115.4 (Ar–C, 1,2,3-triazole C-5, C
N); 61.8, 61.6 (OCH2); 52.1 (NCH2), 21.4 (CH3) ppm. Calculated for C21H20N8O2S2: C, 52.49; H, 4.20; N, 23.32. Found: C, 52.76; H, 4.27; N, 23.20.
O), 1615 (C
N), 1570 (C
C). 1H NMR (400 MHz, DMSO-d6): δH = 13.31 (1H, bs, CH2CONH), 11.51 (1H, s, NH), 9.89 (1H, s, NH), 8.62 (1H, s, Ar–H), 8.35–8.25 (2H, m, 1,2,3-triazole H-5 and HC
N), 8.25 (1H, s, HC
N), 8.03 (1H, s, NH), 7.93–7.88 (3H, m, Ar–H), 7.77 (2H, bd, J = 4 Hz, Ar–H), 7.27 (1H, bd, J = 4 Hz, Ar–H), 7.11 (1H, bd, J = 4 Hz, Ar–H), 5.59 (2H, s, NCH2CO), 5.33 (0.60H, s, OCH2), 5.24 (1.40H, s, OCH2), 3.38 (3H, s, CH3). 13C NMR (100 MHz, DMSO-d6): δC = 167.5 (C
S); 163.4, 160.0 (C
O); 152.6, 143.4, 142.8, 135.7, 132.2, 130.3, 129.5, 127.3, 127.1, 126.9, 125.2, 122.5, 121.2, 115.6, 115.3 (Ar–C, 1,2,3-triazole C-5, C
N); 61.8, 61.6 (OCH2); 52.6 (NCH2), 44.5 (CH3) ppm. Calculated for C21H20N8O4S3: C, 46.31; H, 3.70; N, 20.57. Found: C, 46.50; H, 3.65; N, 20.68.
000 per insert in 70 μl media, A545 cells were incubated for 24 hours in inserts (Ibidi, Germany). Afterward, cells were treated for two hours with 10 μg ml−1 of mitomycin C to inhibit cell proliferation. The media was removed, and cells underwent washing three times before being treated with IC50 and subIC50 concentrations of the investigated compounds. Images were taken at 0 and 24 hours utilizing the EVOS XL Core imaging equipment at 4× magnification. Wound width was assessed with MIPAR software, as previously described (MIPAR Software LLC, OH, USA).72Footnotes |
| † Electronic supplementary information (ESI) available: Full characterization analyses (Fig. S1–S30). See DOI: https://doi.org/10.1039/d4ra07540d |
| ‡ Both authors shared equally to this manuscript with shared first authorship. |
| This journal is © The Royal Society of Chemistry 2025 |
