A multi-resonant thermally activated delayed fluorescence emitter with a twisted second-generation carbazole dendron showing suppressed concentration quenching and its use in solution-processed organic light-emitting diodes

Jingxiang Wang a, Yuka Yasuda b, Yongxia Ren b, Ryo Kondo b, David B. Cordes a, Hironori Kaji *b and Eli Zysman-Colman *a
aOrganic Semiconductor Centre, EaStCHEM School of Chemistry, University of St Andrews, St Andrews, Fife, UK KY16 9ST. E-mail: eli.zysman-colman@st-andrews.ac.uk; Fax: +44 (0)1334463808; Tel: +44 (0) 1334463826
bInstitute for Chemical Research, Kyoto University, Uji, Kyoto, 611-0011, Japan. E-mail: kaji@scl.kyoto-u.ac.jp; Tel: +81 -0774-38-3149

Received 21st January 2025 , Accepted 3rd March 2025

First published on 7th March 2025


Abstract

Multi-resonant thermally activated delayed fluorescence (MR-TADF) emitters have drawn significant interest for use in organic lighting-emitting diodes (OLEDs) as they typically have bright and narrowband emission. However, their rigid, planar structures result in poor solubility in organic solvents and a tendency to aggregate. This usually results in severe aggregation-caused quenching (ACQ), which hinders in particular, their application in solution-processed OLEDs. Herein, a solution-processable MR-TADF emitter 2,7-tBuCzNB has been designed, synthesized and studied. The presence of eight tert-butyl groups and the use of second-generation donor dendrons help enhance its solubility and suppress the ACQ. 2,7-tBuCzNB exhibits narrowband green emission at 493 nm, with a full-width at half maximum of 32 nm and a high photoluminescence quantum yield (ΦPL) of 93% in toluene. The ΦPL values in 1–10 wt% doped films in mCP are slightly lower but still reach up to 80%. Solution-processed OLEDs using this emitter showed maximum external quantum efficiencies (EQEmax) of 11.4 and 10.6% at 5 and 10 wt% doping concentration, respectively. This work demonstrates a strategy to synthesize solution processable MR-TADF emitters for use in solution-processed OLEDs.


Introduction

Organic lighting-emitting diodes (OLEDs) have steadily become a dominant display technology, particularly in mobile devices, smartwatches and televisions, due to their inherent advantages of self-luminescence, wide viewing angle, low energy use and the ability to fabricate flexible and transparent devices.1–4 Almost all commercial OLEDs are fabricated by vacuum deposition as this technology has been shown to produce high-quality, high-performance devices, partly due to the performance of materials specifically designed and synthesized to be compatible with vacuum thermal evaporation. Compared to this fabrication process, solution-processed OLEDs (SP-OLEDs), especially those based on ink-jet printing technology, have distinct advantages, namely a much lower production cost, a more facile fabrication process for large-area devices, and a lower level of material waste.5,6 Historically, however, SP-OLEDs have tended to show poorer performance than vacuum-deposited OLEDs (VD-OLEDs) in terms of their luminescence efficiency, device lifetime, and color purity. This is in part due to sub-optimal material performance and design.7–10 Developing new materials specifically targeted for SP-OLEDs remains an outstanding academic and industry research challenge.

Over the past decade, thermally activated delayed fluorescence (TADF) emitters have been widely explored as emitters in OLEDs, partly owing to their ability to harness all of the singlet and triplet excitons to produce light and thus achieve up to 100% internal quantum efficiency (IQE).11–14 A weak overlap between the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) is required to achieve a small singlet–triplet energy gap (ΔEST) that is necessary to promote the required endothermic reverse intersystem crossing (RISC) underpinning the TADF mechanism.15 This is typically achieved by the emitter adopting a strongly twisted donor–acceptor (D–A) architecture. However, the long-range charge transfer (LRCT) character of the emissive excited state and the corresponding relatively large structural relaxation upon exciton formation lead to an undesired broadening of the emission envelope, which results in devices having poor color saturation.16

In 2016, Hatakeyama et al. reported a new type of organic TADF material known as multi-resonant TADF (MR-TADF) emitters.17,18 The short-range charge transfer (SRCT) character of the emissive lowest singlet (S1) state that exists as a result of the HOMO/LUMO separation on adjacent atoms and the rigid structure of the molecule result in narrowband emission, small Stokes shifts, and high photoluminescence quantum yields (ΦPL), all of which contribute to devices having both high color purity and high maximum external quantum efficiencies (EQEmax).19 However, the commonly rigid and planar geometries of MR-TADF emitters lead to poor solubility in organic solvents, causing them to aggregate.20,21 The resultant poor film-forming properties from solution and severe aggregation-caused quenching (ACQ) are detrimental to their performance in SP-OLEDs.8,22

In this report, a new MR-TADF emitter 2,7-tBuCzNB has been developed to address these outstanding issues in the context of SP-OLEDs (Fig. 1). The asymmetric B–N core (named Cz-SCz), reported recently by Ni et al., has been confirmed to have an emissive SRCT state in both toluene and doped films in mCP.23 The eight tert-butyl groups in 2,7-tBuCzNB are responsible for its good solubility in organic solvents. This property coupled with the relatively high molecular weight of 2,7-tBuCzNB (1525 g mol−1) contributes to the good film-forming ability of this compound.24,25 The peripheral tert-butyl carbazole and twisted second-generation tert-butyl carbazole donors help increase the intermolecular distance between adjacent emitter molecules and suppress ACQ. As a result, 2,7-tBuCzNB emits at an emission peak wavelength (λPL) of 500 nm (full width at half maximum, FWHM, of 44 nm) in a 5 wt% doped film in mCP. It has a high ΦPL of 93% in toluene, and the ΦPL values in doped films are around 80% at concentrations ranging from 1 to 10 wt%. The SP-OLEDs using this emitter at a doping concentration of 5 wt% in the DMIC-TRZ host showed an EQEmax of 11.6%, with a low turn on voltage (Von) of 3.4 V. The device with 10 wt% emitter showed nearly the same performance as that with 5 wt% emitter.


image file: d5qo00146c-f1.tif
Fig. 1 Molecular design of 2,7-tBuCzNB.

Results and discussion

Synthesis

The synthesis of 2,7-tBuCzNB is shown in Fig. 2. The nitrogen atom of 2,7-dibromo-9H-carbazole was firstly protected using tert-butyldimethylsilyl chloride to obtain 1 in 93% yield. Compound 1 was reacted with 3,6-di-tert-butyl-9H-carbazole under Buchwald–Hartwig cross-coupling conditions to afford 2 in 81% yield, which was subsequently deprotected to afford 3 in 91% yield. Compound 3 was employed in a twofold SNAr reaction with 2,6-difluorobromobenzene to afford 4 in 35% yield. 2,7-tBuCzNB was obtained via a lithium–halogen exchange/intramolecular borylation cyclization cascade in 12% yield. The identity and purity of this compound were characterized using melting point determination, 1H and 13C nuclear magnetic resonance (NMR) spectroscopy, high-resolution mass spectrometry (HRMS), high-performance liquid chromatography (HPLC), and elemental analysis (EA) (Fig. S1–S17). The structure of 2,7-tBuCzNB was confirmed by single crystal X-ray diffraction analysis (Fig. 3a, Fig. S18, and Table S2).
image file: d5qo00146c-f2.tif
Fig. 2 Synthesis scheme of 2,7-tBuCzNB.

image file: d5qo00146c-f3.tif
Fig. 3 (a) Two views of one molecule in the structure of 2,7-tBuCzNB. Minor components of disorder and hydrogen atoms have been omitted for clarity. (b) Calculated HOMO, LUMO and energy level diagram based on the optimized ground-state geometry and SOCME values based on the optimized T1 geometry in the gas phase at PBE0/6-31G(d,p). (c) Difference density plots of S1 and T1 for 2,7-tBuCzNB calculated in the gas phase at the SCS-ADC2/cc-pVDZ level (blue indicates an area of decreased electron density while yellow indicates increased electronic density between the ground and excited states).

Theoretical calculations

The optimized ground-state geometry and energy levels of 2,7-tBuCzNB were calculated using Density Functional Theory (DFT) at the PBE0/6-31G(d,p) level (Fig. 3b), starting from a structure drawn and optimized using Chem3D.26,27 The LUMO is localized on the Cz-SCz core. The calculated LUMO level of −1.87 eV is slightly more stabilized than that of Cz-SCz (−1.68 eV) (Fig. S19). The HOMO is distributed on the peripheral twisted second-generation carbazole donor dendron due to its strong electron-donating character. The calculated HOMO energy of 2,7-tBuCzNB is −5.18 eV, which is close to that of 2GCzBP (HOMO of −5.19 eV)28 and 2GCzBPN (HOMO of −5.25 eV),29 both containing a regioisomeric second-generation carbazole donor dendron. The different regiochemistry of the peripheral tert-carbazole groups does not have a significant effect on the energy level. The excited-state energies were first calculated using time-dependent DFT within the Tamm–Dancoff approximation (TDA-DFT) at the PBE0/6-31G(d,p) level (Fig. 3b). The S1 state and the lowest triplet state (T1) energies are 2.70/2.45 eV and the corresponding ΔEST value is 0.25 eV. Spin–orbit coupling matrix elements (SOCME) were calculated based on the optimized T1 geometry at the PBE0/6-31G(d,p) level, with 2,7-tBuCzNB showing similar SOCME values of 0.026 and 0.050 cm−1 for the S1–T1 and S1–T2 transitions, respectively. The larger SOCME and smaller energy gaps between S1 and T2 indicate that RISC may proceed via T2 to S1.30–34

Spin-component scaling second-order algebraic diagrammatic construction (SCS-(ADC)2/cc-pVDZ) calculations provide more accurate predictions of the excited-state energies and difference densities in MR-TADF compounds compared to TD-DFT methods (Fig. 3c).21,35,36 The alternating difference density patterns for both the S1 and T1 states are localized on the Cz-SCz core, indicating that these states have SRCT character. The S1/T1 energies are calculated to be 2.95/2.80 eV and the corresponding ΔEST value is 0.15 eV. Both the difference densities and the small ΔEST indicate the likelihood of 2,7-tBuCzNB being a MR-TADF emitter.

Optoelectronic properties

The HOMO and LUMO values of 2,7-tBuCzNB were extrapolated from the electrochemical measurements in degassed acetonitrile containing 0.1 M [nBu4N]PF6 as the supporting electrolyte and Fc/Fc+ as the internal reference (0.38 V vs. SCE)37 (Fig. S20). The electrochemical data are summarized in Table S3. The cyclic voltammogram of 2,7-tBuCzNB shows reversible oxidation and reduction waves with an oxidation potential (Eox) of 1.04 V vs. SCE, and a reduction potential (Ered) of −1.71 V vs. SCE, values that were obtained from the peaks of the corresponding differential pulse voltammogram. The corresponding HOMO and LUMO energies are −5.46 and −2.71 eV, and the ΔE value is calculated to be 2.75 eV. The HOMO energy is similar to those of most emitters containing regioisomeric second-generation carbazole donor dendrons (HOMOs of −5.41 and −5.40 eV for tBuCz3pTRZ and tBuCz3mTRZ38 and −5.41 eV for tBuCz2pTRZ, tBuCz2mTRZ, and tBuCz2m2pTRZ39), and the LUMO energy is nearly the same as that of Cz-SCz (LUMO of −2.74 eV),23 indicating that oxidation occurs on the central carbazole of the second-generation carbazole donor, while reduction occurs on the B–N core.

The ultraviolet-visible (UV-vis) absorption and photoluminescence (PL) spectra of 2,7-tBuCzNB in dilute toluene are shown in Fig. 4a. The low-energy absorption band at a peak wavelength (λabs) of 465 nm (molar absorptivity, ε, of 4.8 × 104 M−1 cm−1), similar to those of both Cz-SCz (λabs of 451 nm)23 and DtBuCzB (λabs of 467 nm),40 can be attributed to the SRCT S0–S1 absorption transitions. 2,7-tBuCzNB emits at λPL of 493 nm with a relatively narrow FWHM of 32 nm/0.16 eV. The bathochromic shifting of the absorption and emission spectra compared to Cz-SCz (λPL of 472 nm)23 indicates that the additional carbazole and second-generation carbazole donors affect the electronic properties of the Cz-SCz core. The slightly broader emission compared to that of Cz-SCz (FWHM of 28 nm)23 can be attributed to the larger degree of geometry relaxation because of the additional donors. The ΦPL value of 2,7-tBuCzNB in degassed toluene is 93%. There is a very small degree of positive solvatochromism, which indicates that the SRCT character of the S1 state is conserved across this family of solvents (Fig. 4b).


image file: d5qo00146c-f4.tif

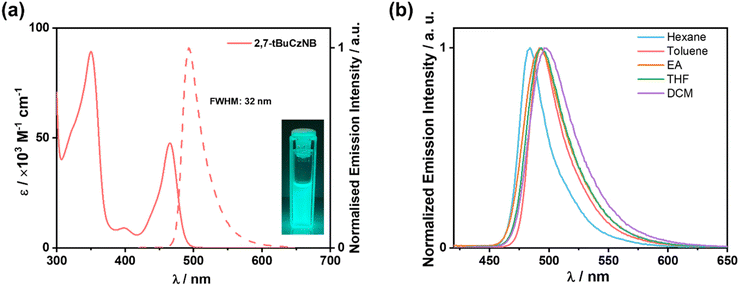

Fig. 4 (a) UV-vis absorption and PL spectra of 2,7-tBuCzNB in toluene at 300 K. Inset: photo of 2,7-tBuCzNB in toluene excited at 365 nm. (b) PL spectra of 2,7-tBuCzNB in different solvents at 300 K. (λexc = 340 nm).

The steady-state PL and phosphorescence spectra of 2,7-tBuCzNB in 2-methyltetrahydrofuran (2-MeTHF) at 77 K were measured to determine the ΔEST (Fig. 5a). The singlet and triplet energies, determined from the difference in the onset energies of the steady-state PL and phosphorescence spectra, are 2.59 and 2.43 eV, respectively, resulting in a ΔEST of 0.16 eV, a value that is similar to the calculated value (ΔEST of 0.15 eV) and that of Cz-SCzEST of 0.18 eV).23 Time-resolved PL studies in toluene revealed monoexponential decay kinetics, with a fast prompt lifetime (τp) of 6.6 ns (Fig. 5b). No delayed emission was observed in toluene solution, which is due to the magnitude of the ΔEST and the competing non-radiative decay processes to ISC/RISC cycling.41


image file: d5qo00146c-f5.tif

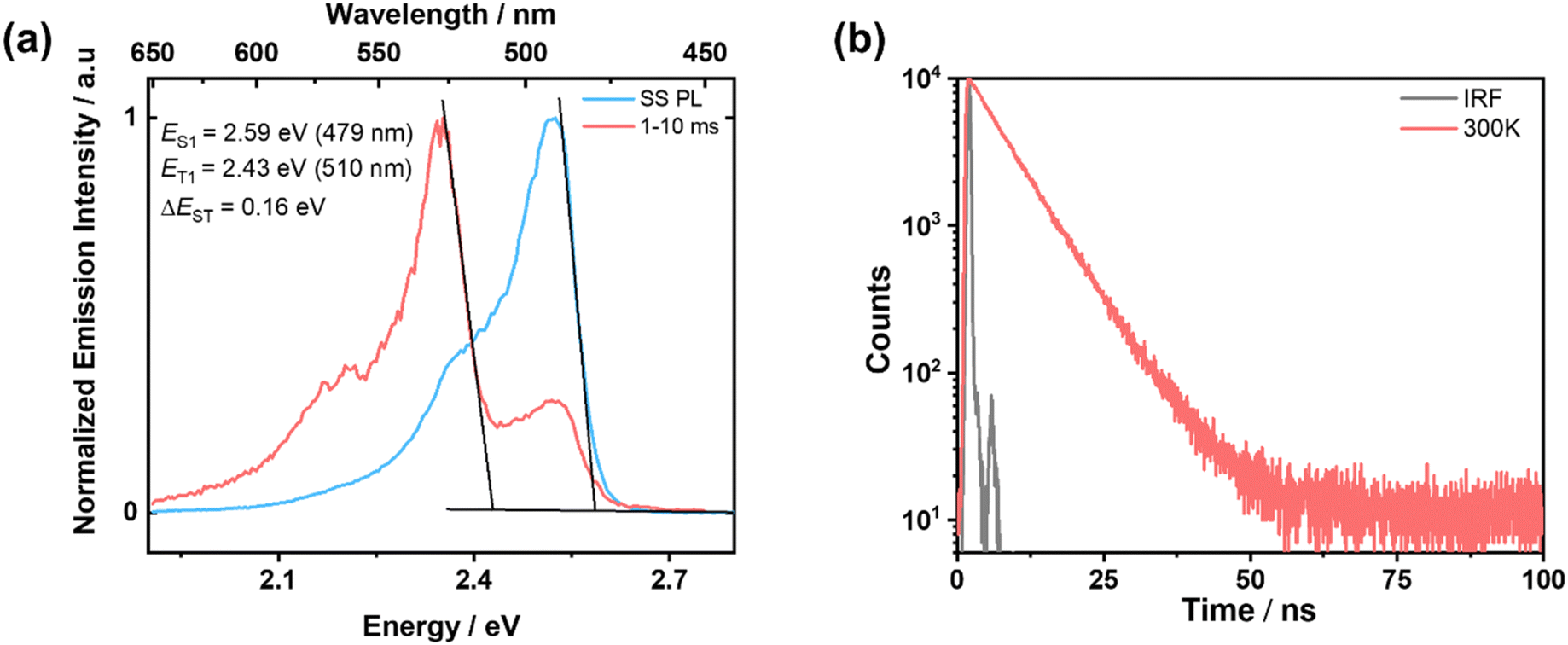

Fig. 5 (a) Steady-state PL and phosphorescence spectra of 2,7-tBuCzNB (λexc = 340 nm). (b) Time-resolved PL decay of 2,7-tBuCzNB in degassed toluene (λexc = 375 nm).

The photophysical properties of thin films were then investigated. 1,3-Bis(N-carbazolyl) benzene (mCP) was first used as the host material because of its suitably high triplet energy (ET = 2.9 eV).42 The absolute ΦPL values of 2,7-tBuCzNB at different doping concentrations in mCP were measured under a nitrogen atmosphere (Table S4). The 1, 5 and 10 wt% doped films of 2,7-tBuCzNB in mCP have similar yet slightly red-shifted PL spectra, peaking at λPL of 496, 500 and 504 nm (FWHM of 41, 44 and 48 nm), while the corresponding ΦPL values remain high at 80, 81 and 77% (Fig. S21). Although the ΦPL values are slightly lower than those in toluene, the concentration quenching is negligible in this concentration range. When increasing the doping concentrations to 20 and 50 wt%, the PL spectra broaden and further red-shift to λPL of 509 and 516 nm (FWHM of 52 and 65 nm), respectively, as aggregation of the emitters becomes pronounced; the ΦPL values decrease precipitously to 61 and 36%, respectively (Fig. S21).

Having identified that the 5 wt% doped film in mCP is optimal, we next proceeded to obtain the steady-state PL spectra and time-resolved PL decays. This film emits at λPL of 500 nm and has a FWHM of 44 nm/0.21 eV (Fig. 6a). In contrast to the properties of the isolated molecules in dilute solution, the intermolecular interactions between host–guest and guest–guest cannot be avoided in the film state, which leads to a weak red-shift and broadening of the PL spectrum of the 5 wt% doped films compared to those in toluene (λPL of 493 nm, FWHM of 32 nm/0.16 eV). The ΔEST value is slightly smaller at 0.13 eV compared to that in 2-MeTHF (Fig. 6b). The time-resolved PL decay at 300 K under vacuum reveals a prompt fluorescence lifetime, τp, of 7.6 ns and a long delayed lifetime, τd, of 1.2 ms (Table 1). The increase in the intensity of delayed emission with the increase in temperature from 77 to 300 K confirms the presence of TADF (Fig. 6c). The much longer τd of 2,7-tBuCzNB compared to that of Cz-SCz (τd of 425 μs)23 may be due to the much lower SOCME values (0.026 and 0.050 cm−1 for S1–T1 and S1–T2 of 2,7-tBuCzNB compared to 0.150 and 0.653 cm−1 for S1–T1 and S1–T2 of Cz-SCz) (Fig. S19), which result in a lower RISC rate constant (kRISC = 5.4 × 102 s−1, Table S5). The time-resolved PL decay of the 10 wt% doped film in mCP was also measured (Fig. S22). The similar PL spectra, ΦPL values, and prompt and delayed lifetimes of the 10 wt% doped film and the 5 wt% doped film indicate that there is a negligible impact of changing the concentration of the emitter on the photophysical properties (Table 1).


image file: d5qo00146c-f6.tif
Fig. 6 (a) Steady-state PL spectra in the 5 wt% doped film in mCP (λexc = 340 nm). Inset: photo of the doped film excited at 365 nm. (b) Steady-state PL and phosphorescence spectra of the 5 wt% doped film of 2,7-tBuCzNB in mCP measured in the film at 77 K (λexc = 340 nm). (c) Variable temperature time-resolved PL decays of the 5 wt% doped film of 2,7-tBuCzNB in mCP (λexc = 375 nm).
Table 1 Photophysical data of 2,7-tBuCzNB
In PhMe λ abs/nm λ PL (FWHM)/nm Φ PL/% ΔEST/eV In film λ PL (FWHM)/nm Φ PL/% τ p/ns τ d/ms
465 493 (32) 93 0.16 5 wt% 500 (44) 81 7.6 1.2
10 wt% 504 (48) 77 6.8 1.2


Organic light-emitting diodes

Finally, we fabricated SP-OLEDs with 2,7-tBuCzNB as the emitter. We report herein the device data using 5-(3-(4,6-diphenyl-1,3,5-triazin-2-yl)phenyl)-7,7-dimethyl-5,7-dihydroindeno[2,1-b]carbazole (DMIC-TRZ) as the host, as it afforded higher efficiency devices (see the ESI for results of SP-OLEDs using mCP:30 wt% OXD-7 as a mixed host, Fig. S23, and Table S6). The device structure consisted of indium tin oxide (ITO) (50 nm)/poly(styrenesulfonic acid)-doped poly(3,4-ethylenedioxythiophene) (PEDOT:PSS) (45 nm)/poly(N-vinylcarbazole) (PVK) (15 nm)/X wt% 2,7-tBuCzNB:DMIC-TRZ (30 nm)/2,4,6-tris[3-(diphenylphosphinyl)phenyl]-1,3,5-triazine (PO-T2T) (20 nm)/4,6-bis(3,5-di-4-pyridinylphenyl)-2-methylpyrimidine (B4PyMPM) (35 nm)/lithium fluoride (LiF) (1 nm)/Al (100 nm). Here, we employed PEDOT:PSS for hole injection, PVK for hole transport and electron blocking, PO-T2T for electron transport and hole and exciton blocking, B4PyMPM for electron transport, and LiF for electron injection. ACQ is suppressed in 2,7-tBuCzNB, allowing the fabrication of devices at relatively higher doping concentrations than those typically used for MR-TADF OLEDs; here, doping concentrations of 5 and 10 wt% are used. The device structure and performance are shown in Fig. 7 and Table 2. The 5 wt% doped SP-OLEDs exhibited pure green emission at λEL of 500 nm (FWHM of 41 nm) and associated CIE coordinates of (0.16, 0.56), which is effectively identical to the PL spectra. The EQEmax for this device was 11.4%. The 10 wt% doped device showed almost the same results, but with a slightly lower EQEmax of 10.6%, confirming the suppression of ACQ of the emission of 2,7-tBuCzNB. Unfortunately, despite the high ΦPL values, these devices exhibited significant efficiency roll-off, with relatively low EQE values at high luminance (EQE values of 4.6 and 3.8% at 100 cd m−2 for 5 and 10 wt% doped devices, respectively), probably associated with the extremely slow RISC.
image file: d5qo00146c-f7.tif

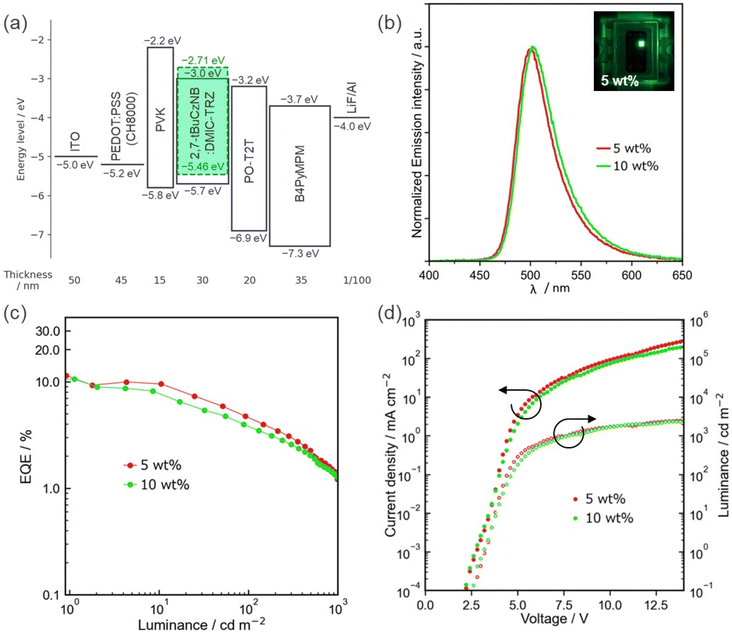

Fig. 7 (a) Device structure, (b) electroluminescence spectra (inset: photograph of the 5 wt% device), (c) EQE–luminance curves, and (d) current density–voltage–luminance characteristics of SP-OLEDs using 5 or 10 wt% 2,7-tBuCzNB:DMIC-TRZ as the emitting layer.
Table 2 Φ PL and device performances of 2,7-tBuCzNB in DMIC-TRZ
Doped concentration Φ PL[thin space (1/6-em)]a/% EQEmax/EQE100[thin space (1/6-em)]b/% V on[thin space (1/6-em)]c/V λ EL (FWHM)d/nm CIEe (x, y)
a Measured in the doped film in DMIC-TRZ. b Maximum EQE and EQE at 100 cd m−2. c Turn-on voltage at 1 cd m−2. d EL peak wavelength and FWHM. e CIE coordinates at 1 mA cm−2 for the 2,7-tBuCzNB:DMIC-TRZ devices.
5 wt% 94 11.4/4.6 3.4 500 (41) (0.16, 0.56)
10 wt% 90 10.6/3.8 3.2 503 (42) (0.17, 0.59)


Conclusion

A new solution-processable MR-TADF emitter, 2,7-tBuCzNB, has been designed and synthesized. The SCS-(ADC)2 calculations, the narrowband emission at 493 nm (FWHM of 32 nm) in toluene and the weakly positive solvatochromism all corroborate that the emissive S1 state possesses SRCT character. The introduction of twisted second-generation tert-butyl carbazole donor dendrons alleviates ACQ in films at doping concentrations of 10 wt%. Solution-processed OLEDs with 2,7-tBuCzNB as the emitter fabricated at 5 or 10 wt% doping concentration exhibited similar performance in terms of their narrowband EL spectra peaking at around 500 nm (FWHM around 40 nm), EQEmax of 11% and low Von around 3 V.

Data availability

The research data supporting this publication can be accessed at https://doi.org/10.17630/76dc4617-0c93-45f6-9c8c-340e5112c325.

Conflicts of interest

The authors declare no conflict of interest.

Acknowledgements

Jingxiang Wang thanks the China Scholarship Council (202006250026). This work was additionally funded by the EPSRC through grant numbers EP/R00188X/1, EP/W007517/1, and EP/W015137/1, the JSPS KAKENHI Grant No. JP20H05840 (Grant-in-Aid for Transformative Research Areas, “Dynamic Exciton”), the JSPS Core-to-Core Program (Grant No: JPJSCCA20220004), and the International Collaborative Research Program of Institute for Chemical Research, Kyoto University (Grant No. 2023-42, 2024-38). This project has been partly funded by the European Union Horizon Europe research and innovation programme under grant agreement no. 101073045 (TADFsolutions) and the EPSRC grant EP/X026175/1. Single crystal X-ray diffraction data for 2,7-tBuCzNB were collected remotely at beam line I-19 of Diamond Light Source (award CY30280). We thank Dr Gary S. Nichol for his assistance.
