Distinguishing and unraveling classical and non-classical pathways in MFI zeolite crystallization: insights into their contributions and impact on the final product

Abstract

Simplifying complex synthesis systems containing multiple species into ones with a single classical or non-classical growth path is valuable for understanding their respective mechanisms. However, most zeolite growth involves intertwined classical and non-classical mechanisms, making it crucial to distinguish and modulate their contributions in the original synthetic system. In this study, we presented a method to distinguish and directly quantify the contributions of classical and non-classical crystallization pathways in MFI zeolite synthesis, demonstrating that the dominant pathway could be shifted from non-classical to classical by varying the H₂O/SiO₂ and ethanol/SiO₂ ratios. Our findings showed that reducing the H₂O/SiO₂ ratio favored the non-classical pathway, while increasing the ethanol/SiO₂ ratio promoted the classical mechanism. However, these changes had minimal effect on their crystallization sequences: the non-classical pathway predominated initially, but both pathways intertwined as crystallization progressed. Notably, the shift in crystallization pathway did not significantly affect the acidic properties of the zeolites but had a direct impact on their catalytic performance. The catalytic activity of the resulting ZSM-5 zeolites in furfuryl alcohol etherification correlated with the contribution of the classical pathway, with higher contributions leading to enhanced catalytic activity. This study provides new insights into the zeolite crystallization process, offering a valuable approach for optimizing synthesis conditions and improving catalyst performance.

---

1. Introduction

Zeolites, as important open-framework materials, are extensively utilized in fields ranging from energy catalysis to environmental protection,^1–4 owing to their exceptional thermal and hydrothermal stability, diverse porosity, and tunable acidity. Studies show that these properties, crucial for their applications, are significantly influenced by the size, morphology and structural properties of the crystals.^5–7 However, developing materials with predictable physicochemical properties remains a challenge via a simply regulated crystallization process, primarily due to the complex and often poorly understood mechanisms of zeolite crystallization. Factors such as synthetic sources, chemical composition, crystallization conditions, and synthesis methods all contribute to this complexity. Moreover, the diversity of zeolite growth units and the variable sequence of events governing zeolite formation further complicate the crystallization process.^8–11

It is now understood that zeolite crystallization process involves both classical and non-classical pathways driven by diverse growth units ranging from molecules to nanoparticles.^12–14 The classical pathway, characterized by the layer-by-layer addition of soluble silica molecules (i.e., ions or molecules) to specific crystal surface sites (i.e., kinks, steps, edges, and terraces), has been the cornerstone of crystallization theory for centuries. However, emerging research into non-classical crystallization, which occurs through particle attachment, has led to new insights into zeolite formation. This mechanism, which operates alongside classical crystallization, is particularly important for understanding the controlled synthesis of zeolites with desired properties.^15–17 Despite these advances, distinguishing between these pathways and understanding their reciprocal effects remain key challenges. More recently, Yu and co-workers have revealed the critical role of silanol in the kinetic regulation of the zeolite non-classical crystallization process, demonstrating that particle addition preferentially occurs at high-density silanol surfaces, leading to the formation of high-aspect-ratio nanosheets due to anisotropic growth rates.¹⁸ In our previous work, we achieved sole non-classical crystallization of zeolite in weakly alkaline and acidic environments and dual-pathway crystallization in a strongly alkaline condition using highly ordered zeolite subcrystals.¹⁹ This led to a gradual evolution of the crystal morphologies from nanosheets to nanoparticles with increasing pH, which indicates intertwined interaction between the dual growth pathways, leading to a crystallization process that is different from those observed in single-pathway systems. Apparently, molecular addition influences oriented aggregation, thus yielding nanoparticles instead of nanosheets.²⁰ Nevertheless, most studies that investigate the role of classical or non-classical crystallization have focused on simplified systems, where soluble species or particles are separated. This limits the understanding of these mechanisms under real synthesis conditions, where soluble species and particles coexist.^21–23

Moreover, the sol–gel system in zeolite synthesis is inherently complex, as characterized by the non-ergodic nature of the zeolite precursors,^16,24 including variations in the concentration and speciation of the (alumino)silicates, as well as the dynamic distribution between the amorphous solid and solution with time. These factors are significant obstacles in achieving a systematic understanding of the zeolite crystallization mechanisms. However, up to now, it has been shown that a number of zeolites can be produced from optically clear, homogenous solutions.^25–30 These transparent systems are ideally suited for complete characterization of zeolite precursors to gain insights into the evolution of (alumino)silicate species.³¹ Among these, the synthesis of pure silica MFI (TPA-silicalite-1) serves as a model system.³² This is due to its simple composition and well-defined two-step crystallization process—nucleation and growth—which can be monitored by light-scattering techniques.^33,34

In this study, based on the MFI clear solution system, we successfully modulate and quantify the contributions of classical and non-classical pathways in the zeolite crystallization process by simply varying the water-to-silica and ethanol-to-silica ratios. These adjustments mainly affect the amounts of nuclei or soluble silica species, which in turn influence zeolite growth. By evaluating the key parameters of the typical S-shaped crystallization curves, such as the nucleation time, growth rates, particle morphology, zeolite yield, associated with the resultant catalytic performance, we offer new insights into the distinct roles of classical and non-classical pathways and their sequences throughout the crystallization process. This approach enables the direct study of the classical and non-classical mechanisms in an intact synthetic system, without the need to separate them, thus providing valuable guidance for further optimization of zeolite catalysts.

2. Experimental section

2.1. Chemical and materials

All of the following reagents were directly used without further purification: tetraethyl orthosilicate (TEOS) (99%, Sinopharm Chemical Reagent Co., Ltd), tetrapropylammonium hydroxide (TPAOH) (25 wt%, Sinopharm Chemical Reagent Co., Ltd), aluminum isopropoxide (C₉H₂₁AlO₃, 99.9%, Aladdin), deionized water (H₂O, Watsons), deuterium oxide (D₂O, 99.9 atom.% D, Aladdin), tetramethylsilane (TMS) (C₄H₁₂Si ≥99.9%, Macklin), chloroform-d (CDCl₃, 99.8 atom.% D, Macklin), ethanol (C₂H₆O, ≥99.7%, Sinopharm Chemical Reagent Co., Ltd), dialysis tube (Spectra/Por 3, Spectrum Laboratories), isopropanol (C₃H₈O, ≥99.7%, Sinopharm Chemical Reagent Co., Ltd), furfuryl alcohol (C₅H₆O₂, 98%, Aladdin), 1,3,5-trimethylbenzene (C₉H₁₂, 97%, Macklin), pyridine (Py) (C₅H₅N, 99%, Alfa-Aesar), and 2,6-ditert-butylpyridine (BDMEP) (C₁₃H₂₁N, >97.0%, Aladdin).

2.2. Synthesis of nanosized MFI under different H₂O/SiO₂ ratios and solid product collection under different times of hydrothermal treatment

Silicalite-1 nano-zeolite was prepared by using an Anton Paar Monowave 400 microwave synthesizer under different H₂O/SiO₂ molar ratios. The sol composition was X SiO₂: 0.39 TPAOH: 13.21 H₂O: 4X ethanol, where X = 1.0–1.9. A representative synthesis for X = 1.0 is as follows: 5.287 g of TPAOH solution was added to 3.472 g of TEOS, and the obtained mixture was rapidly stirred at room temperature for 24 h to ensure complete hydrolysis. Thereafter, it was transferred into a 30 mL explosion-proof glass tube for a two-step heating process. Firstly, the solution was heated at 90 °C for 90 min under microwave irradiation, where the beginning time was defined as −90 min. Secondly, the obtained clear liquid was immediately heated at 130 °C, with sampling at intervals up to 600 min. Particle size evolution was monitored using dynamic light scattering (DLS). Once the system reached the inflection point indicated by DLS measurement, the solid samples during the linear growth stage were separated and purified from the mixed sol by using a two-step dialysis procedure. In detail, the clear solution was transferred into a dialysis tube with a molecular weight cutoff of 3.5 kDa, and then the sealed dialysis tube was immersed in 6 mmol L⁻¹ TPAOH aqueous solution for 24 h. Subsequently, the dialysis tube was transferred and immersed into deionized water for 48 h, with the deionized water replaced every 12 h. Consequently, the purified sol was freeze-dried in vacuum at −50 °C, and solid yields were calculated after removing the structure-directing agent through calcination at 550 °C. For the collection of samples after the linear growth stage, the solids were separated by high-speed centrifugation, freeze-drying and calcination. Moreover, ZSM-5 nano-zeolites under different H₂O/SiO₂ molar ratios were synthesized using a similar method, but with the sol composition adjusted to X SiO₂: 0.39 TPAOH: 0.0025X Al₂O₃: 13.21 H₂O: 4X ethanol, where X = 1.0–1.9. During the hydrothermal treatment, the solid product collection and treatment followed the same procedure.

2.3. Synthesis of nanosized MFI under different ethanol/SiO₂ ratios and solid product collection under different hydrothermal treatment times

The silicalite-1 nano-zeolites were synthesized under different ethanol/SiO₂ molar ratios by an aqueous clear sol composition of 1 SiO₂: 0.39 TPAOH: 13.21 H₂O: X ethanol, where X = 0–10. For X = 6, 5.287 g of TPAOH solution and 1.533 g of ethanol (EtOH) were added to 3.472 g of TEOS. The obtained mixture was then rapidly stirred at room temperature for 24 h to ensure complete hydrolysis. For X = 0, ethanol was removed by rotary evaporation at 35 °C prior to hydrothermal treatment. The same two-step heating procedure was applied as described above. Solid product purification, freeze-drying, and yield calculations followed the same approach as for the varying H₂O/SiO₂ ratios. ZSM-5 nano-zeolites were also synthesized using a modified sol composition of 1 SiO₂: 0.39 TPAOH: 0.0025 Al₂O₃: 13.21 H₂O: X ethanol, where X = 0–10, with the same solid collection and treatment methods.

2.4. Characterization

The particle size was measured by dynamic light scattering on a Malvern Zetasizer Nano-ZS90 instrument. Field emission scanning electron microscopy (SEM) images were obtained with a Hitachi S-4800 system. Field emission transmission electron microscopy (TEM) images were recorded on a Tecnai G2 F20 S-Twin apparatus. Argon adsorption/desorption characterization was performed at 87 K after degassing at 573 K for 7 h under vacuum on a Quantachrome iQ-2 physical adsorption instrument. All ²⁹Si nuclear magnetic resonance (NMR) spectra were obtained on a Bruker AVANCE III HD 500 MHz spectrometer. An appropriate amount of the supernatant (0.6–0.8 mL) was transferred into a 5 mm NMR quartz tube with a modified background-free commercial probe, and a small amount of D₂O was added into the tube for a lock signal. A solution of tetramethylsilane (TMS) in CDCl₃ was used as an external reference. It was shown that the monomer resonance was at −71.9 ppm relative to TMS, which was then used as an internal reference. The relative amount of Qⁿ in the oligomer fraction was calculated by decomposing the ²⁹Si NMR spectra.

The acidic properties of the ZSM-5 samples were obtained by temperature-programmed desorption of ammonia (NH₃-TPD) performed on the Micromeritics 2920 chemisorption analyzer. The quantitative analysis of the B/L acid type was completed via the Bruker Invenio S instrument Fourier-transform infrared spectrometer to collect the pyridine infrared (Py-IR) spectra. A self-supported wafer of the sample was placed in the IR cell, and evacuated at 450 °C for 75 min with a vacuum system. Reference spectra at 300 °C were recorded. Prior to collecting the Py-IR spectra, the outgassed samples were placed in pyridine vapor at room temperature for 15 min. The Py-IR spectra were collected after outgassing pyridine at 300 °C in a vacuum environment for 30 min. The acid density of zeolite is calculated using the following formula:³⁵

where the peak area is calculated by integrating the peak area of the IR absorption peak, and ε stands for the molar extinction coefficient. For a Brønsted acid, ε(1545 cm⁻¹) = 0.96 (cm μmol⁻¹) and for Lewis acid, ε(1455 cm⁻¹) = 1.52 (cm μmol⁻¹).³⁶ In addition, a_cs represents the cross-sectional area of the wafer, and m is the mass of the wafer.

The element content and ratios in the products were analysed by inductively coupled plasma-atomic emission spectrometry (ICP) on a PE-8000 spectrometer. X-ray photoelectron spectroscopy (XPS) experiments were conducted on a Thermo Fisher Scientific K-Alpha (Al-Kα) X-ray photoelectron spectrometer to analyze the surface Si/Al ratio of the zeolite. Powder X-ray diffraction (XRD) data of all materials were collected using the Bruker D2 powder diffractometer to determine the phase of product. The X-ray wavelength was 1.54056 Å, with operating voltage and current set at 30 kV and 10 mA, respectively. Attenuated total reflectance-Fourier transform infrared spectroscopy (ATR-FTIR) experiments were conducted by a Spectrum Two Spectrometer (PerkinElmer) using a diamond ATR detector.

2.5. Catalytic reactions

The etherification of furfuryl alcohol (FAL) and isopropanol was carried out in an Anton Paar Monowave 400 microwave synthesizer. In a 30 mL microwave reaction tube, 80 mg of catalyst was added, along with 6 g (100 mmol) of isopropanol, 0.49 g (5 mmol) of furfuryl alcohol, and 100 mg of 1,3,5-trimethylbenzene, which is the internal standard. After thorough stirring, the tube was placed into the microwave reactor and heated at 110 °C for 2 h. Then, the products were analyzed on a Shimadzu 2010 plus gas chromatography (GC) system to calculate the conversion and selectivity of the catalytic reaction. The GC was equipped with an HP-5 chromatographic column (30 m × 0.32 mm × 0.25 μm) and a flame ionization detector (FID). As the etherification product of FAL, furfuryl isopropyl ether (FPE) was detect as the main product. The FAL conversion and product selectivity were calculated as follows: FAL conversion = moles of FAL reacted/moles of initial FAL × 100%, product selectivity = moles of FPE produced/moles of FAL reacted × 100%. Finally, the turnover numbers (TON) were calculated using the following equation:
where m is the mass of the catalyst, and the silicon-to-aluminium ratio was determined by ICP-AES.

In addition, to exclude the influence of active sites distributed on the external surface, experiments using hindered pyridine (2,6-ditert-butylpyridine, BDMEP) were performed by the addition of excess amounts of BDMEP into the solution of isopropanol containing the catalyst, and stirring for 12 h. Subsequently, the poisoned catalyst was obtained by washing with isopropanol to remove unabsorbed BDMEP. Then, the catalytic tests were performed in the same way as the above mentioned process.

3. Results and discussion

3.1. Distinguishing and quantifying the crystallization pathway in the MFI synthetic system

3.1.1. Effect of the H₂O/SiO₂ ratio on the crystallization pathway. Zeolites are mostly synthesized under hydrothermal condition, where the H₂O content relative to the solute directly influences the solute supersaturation, ultimately determining the rates of zeolite nucleation and growth. Instead of diluting the synthesis mixtures with water, herein, we change the silica content while keeping the water content constant to investigate the effect of the H₂O/SiO₂ ratio, thereby minimizing the impact of changes in the alkalinity (TPAOH/H₂O). Silicalite-1 zeolites with varying H₂O/SiO₂ ratios were prepared using a molar composition X SiO₂: 0.39 TPAOH: 13.21 H₂O: 4X C₂H₅OH (X = 1.0, 1.3, 1.6, 1.9). During the hydrothermal treatment, dynamic light scattering (DLS) was used to monitor the particle size changes in the mother liquor. As expected, all the crystallization processes displayed a typical S-shaped curve (Fig. 1), which could be easily divided into nucleation and crystal growth stages, separated by an “inflection point” characterized by rapid size changes. A reduction in the H₂O/SiO₂ ratio results in an extended nucleation period (from 45 min to 125 min, Table 1, entries 1 and 7), accompanied by a slowdown in the crystal growth rate (from 1.13 nm min⁻¹ to 0.62 nm min⁻¹, Fig. 1). Given that in the synthesis system where the H₂O content is fixed, a decrease in the H₂O/SiO₂ ratio will lead to a relative increase in the ethanol content due to the hydrolysis of TEOS in the sol. This suggests that ethanol may slow down the crystallization dynamics, including both the nucleation period and the growth rate. As shown in Fig. S1,† removing ethanol from the initial sol with a H₂O/SiO₂ ratio of 10.16 results in a significant reduction in the nucleation period (from 65 min to 15 min) and an acceleration in the crystal growth rate (from 0.87 nm min⁻¹ to 2.61 nm min⁻¹), which is even faster than the ethanol-containing system with a H₂O/SiO₂ ratio of 13.21. Therefore, the observed decrease in crystallization kinetics with a lower H₂O/SiO₂ ratio can be ascribed to the effect of ethanol. Possible reasons for this are discussed below (vide infra).

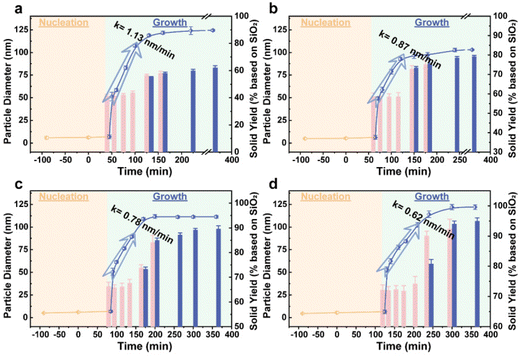

Fig. 1 Sizes and solid yields of silicalite-1 zeolite particles synthesized with different H₂O/SiO₂ molar ratios under different hydrothermal treatment times: (a) 13.21; (b) 10.16; (c) 8.26; (d) 6.95. The curves represent particle diameters, while the bar charts show the solid yields obtained by dialysis (pink) or centrifugation (blue) after removing the structure-directing agent via calcination at 550 °C. Error bars indicate the standard deviation (SD). The data for particle size are presented as the mean ± SD (n = 6), and those for yield are presented as the mean + SD (n = 4).

Table 1 Summary of the growth process and final products under different H₂O/SiO₂ ratios for the MFI zeolite

Entry	Initial gel composition		Nucleation period (min)	Contribution to total zeolite yield (wt%)		Total yield of zeolite ^c	Size^d (nm)
	H2O/SiO2	Si/Al		Non-classical pathway^a	Classical pathway^b
a Expressed by the yield of nuclei obtained via dialysis at the growth inflection point. b Expressed as the difference between the yield of the final zeolite and the yield of nuclei. c The corresponding yields of the final product obtained by centrifugation. d Measured by DLS, with the average of the 6 test results taken. e The sample also represents the one with an ethanol/SiO2 ratio of 4. All yields were calculated after removing the structure-directing agent by calcination at 550 °C, with the average of the 4 results taken.
1^e	13.21	∞	45	41.4%	20.8%	62.2%	125
2^e		200	65	46.1%	18.5%	64.6%	164
3	10.16	∞	65	58.8%	20.5%	79.3%	103
4		200	70	59.8%	21.4%	81.2%	125
5	8.26	∞	85	67.7%	21.9%	89.6%	111
6		200	80	68.7%	21.3%	90.0%	120
7	6.95	∞	125	72.2%	22.8%	95.0%	122
8		200	110	77.3%	20.8%	98.1%	133

---

A two-step dialysis program was employed at the inflection point and in the early growth stage to remove soluble monomer silica species and excess TPA⁺ ions.^20,37,38 The nanoparticles obtained by dialysis at the inflection point are nuclei with high short-range ordering, as revealed in our previous reports.²⁰ According to the previous studies,^20,37,38 these nanoparticles contributed to non-classical crystallization via aggregation. Therefore, the solid yield obtained at the inflection point represents the contribution of non-classical crystallization to the final product. Also, the total zeolite crystal yield is the sum of classical and non-classical crystallization pathways due to the well-established dual growth model for zeolite crystallization.²⁰ Thus, the difference between the yield of the nuclei and final crystal yield reflects the contribution of the classical crystallization pathway. As shown in Table 1 (entries, 1, 3, 5 and 7), the contribution of the non-classical pathway increases significantly as the ratio of H₂O/SiO₂ ratio decreases, while the classical pathway remains essentially unchanged, totally leading to an increase in the zeolite product, indicating the very different effects of the H₂O/SiO₂ ratio on the two crystallization routes. However, a marked increase in the nucleation number at a lower H₂O/SiO₂ ratio does not lead to a significant decrease in the final nano-zeolite size (Table 1, entries 1, 3, 5 and 7). This observation contrasts with the conventional conclusion of the existing literature, where the small amounts of nuclei lead to larger crystals, while higher (alumino)-silicate concentrations are desirable for producing more nuclei and minimizing the ultimate crystal sizes.^39–41 This could be attributed to the high nucleation density in our synthetic systems, even with a minimum nucleation of up to 41.4%.

The bar charts In Fig. 1 show the solid yields over time during the hydrothermal treatment. These yields in the early growth stage, calculated by the solid obtained via dialysis, provide an accurate representation of zeolite crystallization, as dialysis selectively removes the soluble species while retaining all the solid species, including growing the zeolite crystals, untransformed nuclei particles and soluble monomers that have already been incorporated into particles during growth, as shown in Fig. S2.† ^20,37,38 Interestingly, the solid yields during the linear growth stage remain relatively constant and nearly equal to the yield at the inflection point (Fig. 1), even as the growth rate slows to 0.62 nm min⁻¹. This suggests that non-classical crystallization predominates during the early linear growth stage. If the crystal growth process involves the addition of soluble species during this period, the solid yield will be higher than that of nuclei at the flection point and gradually increase over time. A sharp increase in the solid yields after the end of the linear growth period indicates the involvement of single-molecule addition via classical crystallization pathway in this period. Therefore, the sequence of events governing zeolite formation, which is not significantly affected by the H₂O/SiO₂ ratio, is characterized by predominant non-classical growth during the early linear growth stage, followed by a shift to classical crystallization in the later stage. Further crystallization studies (Fig. S3†) show that during the linear growth period, the crystals formed at different H₂O/SiO₂ ratios exhibit a rough surface due to the dominant nuclei aggregation. As crystallization progresses, the surface morphologies of the crystals evolve from rough to relatively smooth, supporting the proposed mechanism of non-classical crystallization followed by classical growth.

Additionally, the introduction of the aluminum species into the silicalite-1 system with different H₂O/SiO₂ ratios leads to the formation of the ZSM-5 zeolite, with similar crystallization behavior to silicalite-1. As shown in Fig. S4,† the crystallization kinetics of the ZSM-5 zeolites follow the same trend as that for silicalite-1, where a lower H₂O/SiO₂ ratio results in a longer nucleation time, from 65 min to 110 min (Table 1, entries 2 and 8), and a reduction in the linear growth rate from 1.22 nm min⁻¹ to 0.59 nm min⁻¹. Dialysis yields remain unchanged during in the linear stage, but increase at the later stage, once again indicating that non-classical crystallization routes dominate early on, with classical crystallization becoming more prevalent later. Moreover, in terms of thermodynamics, the increase in the silica content, i.e., a decrease in the H₂O/SiO₂ ratio, leads to an improvement in the zeolite yield, from 64.6% to nearly 100%, by increasing the contribution of non-classical crystallization. Meanwhile, the classical pathway remains relatively constant, contributing approximately 20%, which aligns with observations in silicalite-1 (Table 1). Inductively coupled plasma emission spectrometer (ICP) tests reveal a very low aluminum content in the supernatant with a Si/Al ratio exceeding 3000 (Table S1†), effectively indicating 100% utilization of the aluminum species. Consequently, as the H₂O/SiO₂ ratio decreases, the Si/Al ratio in the final product increases, owing to the increase of the zeolite yield (Table 3).

Although the introduction of aluminum did not affect the contribution of the H₂O/SiO₂ ratio to classical and non-classical crystallization as well as their sequence, it did influence the nucleation time. Specifically, the nucleation time increases in systems with low silica–alumina concentrations (Table 1, entries 1 vs. 2 and 3 vs. 4), while they decrease in high silica–alumina systems (Table 1, entries 5 vs. 6 and 7 vs. 8). Furthermore, it is noteworthy that the introduction of just 0.5 mol% aluminum species displays a minimal effect on the non-classical growth, i.e., the linear growth rate does not change significantly, but the time required for the classical crystallization is markedly prolonged (about 1 h vs. 2.5 h) at essentially unchanged total molecular additions (around 20%), which means the rate of classical crystallization slows down significantly (Fig. 1 and Fig. S4†). In summary, aluminum additions have a kinetic impact, but have a slight influence on the impact of the H₂O/SiO₂ ratio on the crystallization pathway. Namely, similar to silicalite-1, reducing the H₂O/SiO₂ ratio is thermodynamically more favourable for non-classical crystallization, while it does not change the sequence of events governing zeolite formation.

3.1.2. Effect of the ethanol/SiO₂ ratio on the crystallization pathway. Solvents play a crucial role in zeolite synthesis, influencing the solubility and reactivity of the (alumino)silicate species, thus controlling the zeolite nucleation and growth rates.^42–44 In the case of silicalite-1 synthesis, ethanol acts as both a co-solvent and an additive. As expected, variations of the ethanol content display a remarkable effect on the crystallization process of silicalite-1. It is clearly observed in Fig. 2 that increasing the ethanol/SiO₂ ratio extends the nucleation period by approximately nine-fold (from 15 min to 130 min), and decreases the crystal growth rate by about three-fold (from 2.18 nm min⁻¹ to 0.60 nm min⁻¹). The addition of ethanol can modify the interaction strength among the silicate species, ethanol, water and organic cations.^43,45,46 To confirm this further, a single nuclei solution devoid of soluble silica species, obtained via a two-step dialysis procedure at the growth inflection point,¹⁹ was employed to study their aggregation growth process. Similar to the above synthetic system, the addition of ethanol slowed the crystal growth rate (Fig. S5†). It is believed that ethanol can be adsorbed on the surface of the nuclei, inhabiting or slowing their growth.⁴⁷ It also confirms that, for the case of the H₂O/SiO₂ ratio effect, the slowdown in the nucleation period and crystal growth rate with decreasing H₂O/SiO₂ ratio is due to the increase of the ethanol content caused by the higher amount of TEOS at the lower H₂O/SiO₂ ratio, affecting the kinetics of crystallization.

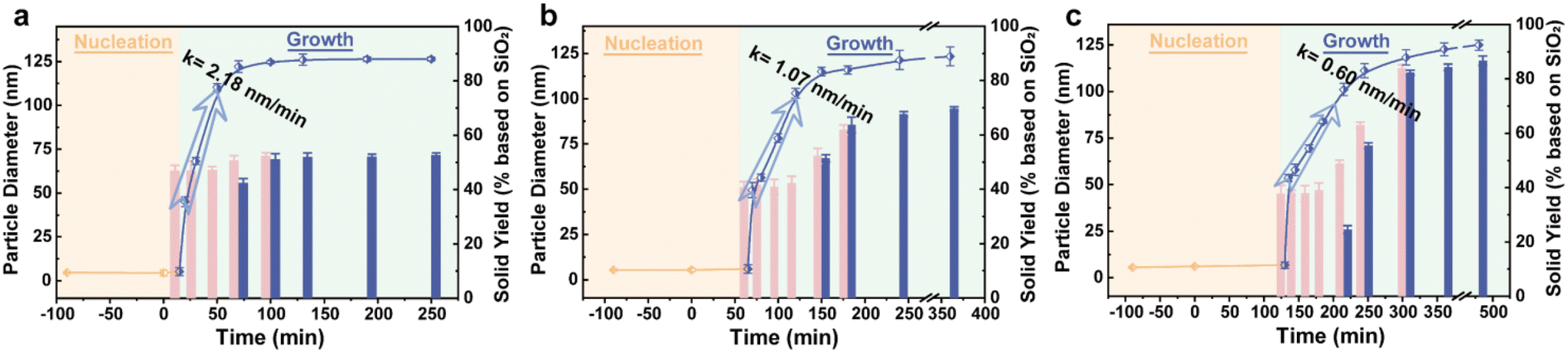

Fig. 2 Sizes and solid yields of silicalite-1 zeolite particles synthesized with different ethanol/SiO₂ molar ratios under different hydrothermal treatment times: (a) 0; (b) 6; (c) 10. The curves represent particle diameters, while the bar charts show the solid yields obtained by dialysis (pink) or centrifugation (blue) after removing the structure-directing agent via calcination at 550 °C. Error bars indicate the standard deviation (SD). The data for particle size are presented as the mean ± SD (n = 6) and those for yield are presented as the mean + SD (n = 4).

Moreover, it is surprising that the addition of ethanol slightly reduces the contribution of the non-classical crystallization pathway, while greatly enhancing the classical crystallization pathway (Table 2). For example, as the ethanol/silica ratio increases from 0 to 10, the contribution of classical crystallization to the final product increases markedly from 5.8% to 49.0% (Table 2, entries 1, 3 and 5). This means that ethanol promotes the addition of soluble silica molecules toward the crystal. However, the greater addition (around 40%) of the single molecule seems to have a minimal effect on the final particle size. The ethanol may interfere with the aggregation of nuclei, leading to the formation of more, but smaller, particles via the non-classical pathway in systems with higher ethanol content. Furthermore, similar to the observations with varying the H₂O/SiO₂ ratio, the solid yield during the linear growth stage remains relatively constant and increases significantly only in the later stages (Fig. 2). This indicates that the sequence of events governing zeolite formation remains unaffected by changes in the ethanol/SiO₂ ratio. Additionally, SEM images (Fig. S6†) show that the crystal morphologies also experience a change from rough surfaces during the linear growth period to relatively smooth ones at later stages, further supporting the sequential dominance of non-classical and classical growth mechanisms.

Table 2 Summary of the growth process and final products under different ethanol/SiO₂ ratios for the MFI zeolite

Entry	Initial gel composition		Nucleation period (min)	Contribution to total zeolite yield (wt%)		Total yield of zeolite^c	Size^d (nm)
	EtOH/SiO2	Si/Al		Non-classical pathway^a	Classical pathway^b
a Expressed by the yield of nuclei obtained via dialysis at the growth inflection point. b Expressed as the difference between the yield of the final zeolite and the yield of nuclei. c The corresponding yields of the final product obtained by centrifugation. d Measured by DLS, with the average of the 6 test results taken. All yields were calculated after removing the structure-directing agent by calcination at 550 °C, with the average of the 4 results taken.
1	0	∞	15	46.9%	5.8%	52.7%	126
2		200	35	48.4%	9.2%	57.6%	135
3	6	∞	65	40.7%	28.9%	69.6%	123
4		200	80	44.6%	29.9%	74.5%	156
5	10	∞	130	37.7%	49.0%	86.7%	125
6		200	125	43.9%	48.2%	92.1%	142

---

To further verify the role of ethanol in promoting the classical pathway (soluble silica species addition), ethanol (at an ethanol/Si ratio of 10) was added into a synthetic system initially lacking ethanol (ethanol/Si = 0) at the end of the linear growth stage (50 min). The addition results in an increase in both the size and yield of the final zeolite (Fig. 3a). Furthermore, the identification of different soluble silica species and evolution of the silicon connectivity (expresses as Qⁿ, where n represents the number of siloxane bonds of a silicon nucleus) of the oligomers in the supernatant before and after ethanol addition were realized by ²⁹Si nuclear magnetic resonance (NMR) spectra. The assignments of Qⁿ are displayed in Fig. 3c, which are all consistent with the existing literature on silicate speciation (from −71 to −73 ppm for Q⁰, from −79 to −83 ppm for Q^1/2Δ, from −86 to −91 ppm for Q^2/3Δ, −92 to −100 ppm for Q³, and from −100 to −108 ppm for Q⁴).^48–50 Notably, the relative amount of the Q³ site in all oligomers significantly increases after ethanol addition at 50 min. In particular, the cubic octamers (D4R) and double five-ring (D5R) (around −99 ppm) fraction become significant (Fig. S7†), confirming the positive role of ethanol in enhancing the condensation degree of oligomers and driving the evolution of silica species toward D4R and D5R. Once heated (>50 min), the amounts of Si in D4R and D5R significantly decrease (Fig. S7d†); in parallel, the corresponding yields markedly increase, which indicates that the existence of D4R and D5R units can drive the addition of soluble oligomers to the crystal (Fig. 3a). Furthermore, in the ethanol-added system, the residual soluble silica species in the final reaction system are reduced significantly compared to the initial system (Fig. 3c and d), further suggesting a high utilization rate of the silica species. Conversely, when ethanol is removed from a system with an initial ethanol/Si ratio of 10 at the end of the linear growth stage (215 min, Fig. 3b), an opposite trend is observed. Significant depolymerization of the D4R and D5R units occurs (Fig. S8†), along with notable reductions in the particle size and yield compared to systems where ethanol is retained (Fig. 3b), suggesting the inhibition of the soluble silica species addition process during the later stages of crystallization. Moreover, the significant increase of the residual soluble silica species in the final reaction mixture further supports the role of ethanol in facilitating the classical addition of monomers (Fig. 3e and f).

Fig. 3 Size and solid yields of silicalite-1 zeolite particles without or with ethanol addition (a), and without or with ethanol removal (b) during hydrothermal treatment. The curves represent particle diameters, while the bar charts show the solid yields obtained by centrifugation after removing the structure-directing agent via calcination at 550 °C. Error bars indicate the standard deviation (SD). The data for particle size are presented as the mean ± SD (n = 6), and those for yield are presented as the mean + SD (n = 4). ²⁹Si NMR spectra of the supernatants were obtained by centrifugation at different times before (c) and after (d) the addition of ethanol, and before (e) and after (f) the removal of ethanol. Q^nΔ indicates the Si site with n connectivity present in a 3-membered ring.

Finally, the introduction of aluminum into systems with varying ethanol/SiO₂ ratios reveals no significant changes in the relative contributions of classical and non-classical crystallization pathways, or the sequence of these processes (Fig. S9†). However, the incorporation of the aluminum species in systems with ethanol/SiO₂ ratios from 0 to 6 leads to a longer nucleation induction time, and a slower growth rate during the linear growth stage while they go in reverse in the system with an initial ethanol/Si ratio of 10. Ultimately, there is a higher zeolite yield at each alcohol-silica ratio system (Table 2, entries 1, 3, 5 vs. 2, 4 and 6). These findings indicate that ethanol offers a simple and effective approach to reversibly regulate the distribution of silicate species in oligomers while improving the final zeolite yield.

3.2. The impacts of different contributions of classical/non-classical pathway on the final product

Studies regarding the crystal engineering of zeolites have demonstrated that the regulation of the morphology and structure of zeolite can be achieved by altering the crystallization behaviours.^44,51–53 The above results show that the thermodynamic contributions of classical/non-classical crystallization are successfully quantified, showing a gradual shift from a non-classical route to the classical pathway by changing the H₂O/SiO₂ to ethanol/SiO₂ ratios. This transition is expected to impact the physicochemical properties of the resultant zeolites. Surprisingly, for the silicalite-1 nano-zeolites prepared under different H₂O/SiO₂ and ethanol/SiO₂ ratios, no significant difference in the morphological and structural features of the final products can be observed, as evidenced by the images of TEM and SEM, XRD patterns, and FTIR spectra, as well as Ar adsorption/desorption studies results (Fig. S10, S11 and Table S2†). Similarly, the ZSM-5 zeolite products with the addition of aluminum under these conditions also exhibit negligible differences in their morphological and structural features (Fig. S12, S13 and Table S3†).

Generally, the incorporation of an aluminum species can be used as an indicator of acidic and catalytic properties. NH₃ temperature-programmed desorption (NH₃-TPD) measurements show two well-defined desorption peaks for all ZSM-5 samples at around 145 °C and 340 °C, corresponding to the weak and strong acid sites (Fig. S14†), respectively. The quantitative analytic results in Table 3 show that the total acidity of all the samples correlate well with the Si/Al ratios, regardless of the synthesis conditions (different ethanol/SiO₂ ratios or H₂O/SiO₂ ratios). Meanwhile, pyridine infrared (Py-IR) spectra (Fig. S15†) further reveal comparable ratios of Brønsted acids (BAS) and Lewis (LAS) acids among all samples (Table 3). These results indicate that the changes in the crystallization pathway have minimal impact on the apparent acidic properties of the final zeolite crystals.

Table 3 Acid properties of ZSM-5 samples prepared under different ethanol/SiO₂ ratios

Entry	Initial gel composition		NH3-TPD			Py-IR			Si/Al (ICP-AES)	Si/Al (XPS)
	H2O/SiO2	EtOH/SiO2	Acid amount^a (μmol g^−1)			Acid amount^b (μmol g^−1)
			Total	Weak acid	Strong acid	BAS	LAS	B/L
a The weak and strong acid amounts were determined by the amounts of NH3 desorbed at 100–250 °C and 250–450 °C, respectively. b The Brønsted and Lewis acid amounts were determined by Py-IR at 300 °C.
1	13.21	4	174	97	77	82	23	3.6	89	78
2	10.16	4	155	86	69	73	18	4.1	104	73
3	8.26	4	145	80	65	57	15	3.8	120	67
4	6.95	4	118	70	48	51	14	3.6	132	64
5	13.21	0	193	108	85	102	25	4.1	79	73
6	13.21	6	156	91	65	75	18	4.2	98	78
7	13.21	10	124	69	55	66	17	3.9	123	83

---

To further study the impact of the crystallization pathway on the product properties, furfuryl alcohol etherification was employed to evaluate their catalytic performances. Interestingly, the catalytic activities varied significantly with the proportion of the classical pathway contribution. As shown in Fig. 4a, the conversion of furfuryl alcohol (FAL) over various ZSM-5 zeolites follows the order of ZSM-5 prepared under ethanol/SiO₂ = 10 and H₂O/SiO₂ = 13.21 (ZSM-5-13.21-10) > the one with ethanol/SiO₂ = 4 and H₂O/SiO₂ = 13.21 (ZSM-5-13.21-4) > the one with H₂O/SiO₂ = 8.26 and ethanol/SiO₂ = 4 (ZSM-5-8.26-4). The contribution proportion of the classical pathway in the above three zeolite catalysts are 52.3%, 28.6% and 23.6%, respectively, correlating directly with their catalytic activities. This suggest that the ZSM-5 zeolite with a higher classical route contribution is prone to exhibit a higher catalytic activity. It is speculated that the differences in the classical and non-classical crystallization pathways influence the spatial distribution and micro-environment of aluminum at a mesoscopic level, thereby affecting their catalytic performance.

Fig. 4 Furfuryl alcohol etherification reaction catalyzed by fresh ZSM-5 zeolites with different H₂O/SiO₂ or ethanol/SiO₂ ratios (a), and by surface-passivated zeolites with 2,6-di-tert-butylpyridine (b).

Moreover, due to their different bulk Si/Al ratios (and thus total acidic amounts), the turnover number (TON) values of the three catalysts were calculated to further elucidate their catalytic performances. Notably, ZSM-5-13.21-10 yields a TON of 480 for furfuryl alcohol etherification, nearly 50% higher than that of ZSM-5-13.21-4. For ZSM-5-13.21-4 and ZSM-5-8.26-4, an inverse trend is observed in the TON values compared to the conversion of furfuryl alcohol. The TON value of ZSM-5-8.26-4 having a lower classical pathway contribution (23.6%) is slightly higher (8%) than that of ZSM-5-13.21-4 (Fig. 4a). It is worth mentioning that the furfuryl alcohol etherification reaction is prone to form carbon deposits, thus causing catalyst deactivation. Thus, a shorter diffusion pathway can improve the catalytic activity. Therefore, considering the smaller size (120 nm) and lower surface Si/Al ratio (67) of ZSM-5-8.26-4 than those of ZSM-5-13.21-4 (164 nm, surface Si/Al = 83), surface acid site passivation experiments using BDMEP adsorption were additionally adopted to exclude the influence of active sites distributed on the external surface (Fig. 4b). Even after passivation, the catalytic trends remained consistent. However, the TON values of ZSM-5-13.21-4 and ZSM-5-8.26-4 become comparable due to their similar classical pathway contributions. Therefore, the slight TON increase for ZSM-5-8.26-4 can be attributed to its smaller size and lower surface Si/Al ratio, whereas the significantly higher TON value for ZSM-5-13.21-10 is clearly linked to its higher classical pathway contribution in it.

4. Conclusion

In summary, we have successfully quantified the contributions of non-classical and classical crystallization pathways to the final zeolite by calculating the yields of crystal nuclei and final zeolite. By varying the H₂O/SiO₂ to ethanol/SiO₂ ratios, we demonstrated that the dominant crystallization pathway of the MFI zeolite can shift from a non-classical route to a classical pathway. Specifically, reducing the H₂O/SiO₂ ratio promotes the formation of nuclei, favoring the non-classical route via particle attachment, while increasing the ethanol/silica ratio shifts the crystallization toward the classical route, enhancing the addition of soluble silicate molecules to the growing zeolite. The crystallization process revealed that, during the linear crystal growth stage, the non-classical pathway is dominant. However, as crystallization progresses, both classical and non-classical mechanisms begin to intertwine. Notably, such crystallization sequence is not affected by changes in the H₂O/SiO₂ and ethanol/SiO₂ ratios. More importantly, although the shifts in the crystallization pathway with varying H₂O/SiO₂ and ethanol/SiO₂ ratios have minimal impact on the apparent acidic properties of the final zeolite crystals, the catalytic performance of the resulting ZSM-5 zeolites in furfuryl alcohol etherification has been found to correlate directly with the proportion of the classical pathway. Zeolites with a higher classical pathway contribution exhibit significantly better catalytic activity, as evidenced by the higher conversion of furfuryl alcohol and TON. This study provides not only a method to directly distinguish, quantify and adjust the contribution of classical and non-classical crystallization, but also reveals their role in the catalytic performance, which is of great importance for advancing tailored zeolite synthesis.

Author contributions

The manuscript was written with contributions from all authors. All authors contributed extensively to the work presented in this paper. Jiayu Yu carried out the methodology, investigation, data curation, formal analysis, and writing of the original draft. Ke Du participated in data curation and analysis. Di Pan performed the methodology and investigation. He Li, Ling Ding and Wei Chen participated in the investigation. Yahong Zhang designed and directed the research, as well as contributed to the preparation and writing of the manuscript. Yi Tang participated in the analysis and discussion of the experimental results.

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We gratefully acknowledge the financial support from the National Natural Science Foundation of China (22172034, 22088101) and the Science and Technology Commission of Shanghai Municipality (No. 2024ZDSYS02).
