Fluoride binding in unlikely partners: the formation of anion–anion complexes with [M(EGTA)]⁻ and [M(OBETA)]⁻ (M = Gd³⁺, Y³⁺)

Abstract

Anionic metal complexes (M = Gd³⁺, Y³⁺) with two homologous acyclic aminopolycarboxylate ligands, heptadentate (OBETA) and octadentate (EGTA), were prepared and characterized using both relaxometric NMR (for Gd³⁺) and high-resolution NMR (for Y³⁺) techniques. The addition of fluoride to aqueous solutions of these complexes led to the formation of ternary complexes where F⁻ displaces a coordinated water molecule from the metal ion's inner coordination sphere. In the Gd³⁺ complexes, this exchange process was tracked by monitoring changes in the nuclear magnetic relaxation rate of water protons, allowing calculation of the binding affinity. For the diamagnetic Y³⁺ complexes, the exchange was followed through variable-temperature high-resolution ¹⁹F NMR experiments. Calculated enthalpic and entropic contributions to the activation free energy suggest a dissociative exchange mechanism for the monohydrated [M(EGTA)(H₂O)]⁻ and an associative mechanism for the dihydrated [M(OBETA)(H₂O)₂]⁻. Additionally, an unusual dimeric structure was observed for the dihydrated complexes, where two anionic complexes are bridged by fluoride. Detailed DFT calculations confirmed the presence of the dimer, showing a Y–F bond length of 2.33 Å and a ¹J_Y–F NMR coupling constant of 38.0 Hz, in excellent agreement with the experimental value.

---

Introduction

Anion recognition by metal ions is of great importance in coordination chemistry, as it underlies key processes in both inorganic and biological chemistry. The interaction between metal centres and anions, with varying degrees of selectivity, is central to processes such as catalysis, molecular recognition, and ion transport.¹ In biological systems, metal ion–anion binding plays a crucial role in enzyme function, ion transport, and cellular signalling pathways.²

Expanding our knowledge of metal ion–anion interactions, and the factors that influence their strength and selectivity, is also essential for the design and development of advanced inorganic materials for applications in environmental, energy, pharmaceutical, and sensing technologies.³ Moreover, the study of anion coordination is particularly relevant for understanding the mechanisms of action of contrast agents (CAs) used in magnetic resonance imaging (MRI), with the goal of optimizing their efficacy (relaxivity, r₁) and maintaining stability in vivo.^4–6

Relaxivity depends on several factors, including molecular tumbling, hydration number (q), water exchange rate (k_ex), and electronic relaxation time, all of which must be optimized to maximize CAs effectiveness.^7,8 One strategy previously explored has been to design Gd³⁺ complexes with two water molecules in the metal ion's inner coordination sphere. For decades, all approved Gd-based contrast agents (GBCAs) had only one inner-sphere water molecule (q = 1). Moving to q = 2 complexes can increase r₁ by approximately 50%, assuming all other factors remain constant. However, progress along this direction has been constrained by two main challenges: (a) the propensity of such complexes to form ternary compounds with oxyanions present in biological fluids (e.g., carbonate, oxalate, phosphate, and lactate), which displace coordinated water molecules;^9–11 and (b) the significant reduction in thermodynamic stability and kinetic inertness of the complex when reducing the chelating agent's denticity.^12,13 However, these characteristics are not entirely universal. Examples of Ln(III) complexes with q > 1 have been designed and reported that either exhibit high stability, show no tendency to form ternary complexes with anions, or possess both qualities. Notable examples include Ln(III) complexes with HOPO-based chelators, AAZTA, aDO3A, and CyPic3A.^9,11,14,15

Only recently has the first Gd³⁺ complex with q = 2, Gadopiclenol, been approved for clinical use and entered the market. This macrocyclic ligand is heptadentate, and the complex demonstrates stability and inertness under physiological conditions.¹⁶ Clearly, there is significant room for improving our understanding of the details governing the anion–metal ion interactions. Gaining deeper insight into these interactions could aid in designing more effective systems for selective recognition or in developing new MRI diagnostic probes with enhanced efficiency, where the binding interaction is minimized.

In the broader context of advancing our understanding of interactions between Ln³⁺ complexes and anions, the binding of halide ions has drawn considerable interest in recent years, although relatively few studies have been reported. Around three decades ago, significant changes in the ¹H NMR spectra of paramagnetic macrocyclic complexes [Ln(DOTA)]⁻ were observed with increasing additions of fluoride ions (H₄DOTA = 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid).¹⁷ More recently, Faulkner et al. investigated fluoride binding in DOTA tetraamide and tetrapicolyl Ln³⁺ complexes using both NMR and photophysical techniques.^18,19 Charbonnière and coworkers further demonstrated the formation of supramolecular adducts featuring a fluoride bridge in Ln³⁺ complexes with a DOTA derivative containing two indazolyl groups at the 1,7 positions.²⁰ Butler developed a Eu³⁺ complex with a strong affinity for F⁻ compared to other anions, enabling fluoride detection in water at environmentally relevant concentrations.²¹ For obvious reasons, most reported studies have involved cationic or neutral Ln³⁺ complexes, which are characterized by relatively high affinity constants. In fact, examples of fluoride binding to metal centres in anionic complexes are very rare.^22,23 In contrast, fluoride interactions with metal ions other than lanthanides have been extensively studied, particularly in the context of PET applications.²⁴ For instance, the {Al¹⁸F}²⁺ complex has attracted considerable interest for its role in enhancing radiofluorination techniques, providing a straightforward and efficient way to attach the positron-emitting ¹⁸F isotope to biomolecules.²⁵ It is also worth noting that some lanthanides, such as Tb isotopes, are utilized in PET/SPECT imaging and targeted radiotherapy. Fluoride complexes have the potential to offer improved stability and biodistribution profiles, further broadening their applicability.

In this work, we present the results of our study on the interaction between the fluoride anion and negatively charged complexes (M = Gd³⁺, Y³⁺) with H₄EGTA (ethylene glycol bis(2-aminoethyl ether) N,N,N′,N′-tetraacetic acid) and H₄OBETA (2,2′-oxobis(ethylamine) N,N,N′,N′-tetraacetic acid) (Scheme 1). These structurally related complexes – OBETA being the lower homolog of the well-known EGTA – exhibit different hydration states (q = 1 and q = 2).²⁶

Scheme 1 Chemical structure of the ligands described in this study.

The goals of this study are threefold: (a) to establish the strength of the interaction and its dependence on hydration state in structurally correlated complexes; (b) to determine relaxivity changes following coordinated water molecule substitution; and (c) to assess the effect of F⁻ binding on water exchange rate for the bishydrated complex. Thus, we employed a combination of high- and low-resolution NMR techniques in both frequency and time domains, enabling a detailed characterization of the kinetics and thermodynamics underlying the fluoride-binding event. Proton relaxometry is a highly suitable technique, as the displacement of a coordinated water molecule results in a decrease in the longitudinal nuclear magnetic relaxation rate of solvent protons (R₁). This decrease can be precisely monitored throughout a titration of a dilute solution of the paramagnetic Gd³⁺ complex.⁷ On the other hand, established high-resolution NMR techniques allow for direct measurement of the ¹⁹F nucleus in a solution of the diamagnetic Y³⁺ complex, providing valuable kinetic insights into exchange dynamics.

Results and discussion

Relaxometric characterization

Paramagnetic molecules undergoing Brownian motions in solution can generate oscillating local magnetic fields, which induce relaxation of the nuclei of nearby water molecules. The water molecules interacting with such complexes are classified as: inner sphere (IS) molecules, directly coordinated to the metal ion and in exchange with the bulk water; second sphere (SS) molecules, involved in hydrogen bonds with the polar groups of the complex; and outer sphere (OS) molecules, diffusing close to the chelate.^4,8 Each contributes to the relaxivity as follows:

r₁ = r^IS₁ + r^SS₁ + r^OS₁ (1)

with the dominant contribution associated with the IS molecules, due to their proximity to the metal centre. The inner sphere relaxivity (r^IS₁) describes fast exchange dynamics between two pools of water molecules at different concentrations, i.e. the IS ones at lower concentration, and the bulk ones at higher concentration:r^IS₁ depends on q, on the IS water mean residence time on the metal ion (τ_M), and on its longitudinal relaxation time (T_1M). T_1M is described by the Solomon–Bloembergen–Morgan (SBM) equations and depends on several parameters,²⁷ including the distance between the IS molecules’ hydrogen atoms and the paramagnetic centre (r_M–H), the magnetic fields strength (B₀) and the correlation time of the magnetic fluctuation (τ_c), defined as follows:where τ_R is the rotational correlation time, and T_ie (i = 1, 2) the electronic relaxation times. Therefore, preliminary measurements of field-dependent relaxivity profiles were performed to characterize the molecular parameters influencing the water exchange process between complexes and the bulk. Although relaxometric studies on [Gd(OBETA)(H₂O)₂]⁻ and [Gd(EGTA)(H₂O)]⁻ had already been reported several years ago,²⁶ we repeated the measurements and data analysis using modern instruments and methods, to ensure a more accurate characterization of the relaxation properties of these complexes.

Our procedure begins by measuring the dependence of relaxivity on the proton Larmor frequency across a wide range (0.01–120 MHz) at three different temperatures (283, 298, and 310 K) (Fig. S1†). The resulting data are ¹H NMRD (Nuclear Magnetic Relaxation Dispersion) profiles, which can be analysed to determine the molecular parameters governing relaxation (Fig. 1).²⁸ The profiles show two plateaux at low and high frequencies, spaced out by a single dispersion at ∼4 MHz, characteristic of low molecular weight Gd³⁺ complexes tumbling rapidly in solution. The increased relaxivity values with decreasing temperatures are consistent with systems in fast exchange regime (τ_M < T_1M). The profiles were analysed using the SBM equations²⁷ and the Freed equation,²⁹ with the latter specifically accounting for the outer-sphere contributions to relaxation.

Fig. 1 ¹H NMRD profiles (top panel) of an aqueous solution of [Gd(OBETA)(H₂O)₂]⁻ (2.9 mM and pH = 7.15) and [Gd(EGTA)(H₂O)]⁻ (5.2 mM and pH = 7.15) recorded at 298 K. ¹⁷O transverse reduced relaxation rates (bottom) as a function of the temperature of an aqueous solution of [Gd(OBETA)(H₂O)₂]⁻ (7.0 mM and pH = 7.0)²⁶ and [Gd(EGTA)(H₂O)]⁻ (32 mM and pH = 7.0) measured at 11.75 T. The solid lines correspond to the fits of the data, as described in the text.

Exchange rates of the IS water molecule(s) (k_ex) were obtained by measuring the ¹⁷O chemical shift (Δω_r) and reduced transverse relaxation rates (R_2r = 1/T_2r) of the isotopically enriched bulk-water as a function of temperature (280–350 K), at high field (11.75 T) (Fig. S2†).³⁰ The ¹⁷O R₂ data of the investigated complexes exhibit a bell-shaped curve, characterized by relatively broad maxima below 300 K, typical of fast exchange regimes (Fig. S2†). The data were analysed with the Swift–Connick equations,³¹ which describe the water exchange process between two-site characterized by different populations and relaxation times. A global analysis of the experimental ¹H NMRD and ¹⁷O NMR data was performed simultaneously, to obtain results that are more reliable. Following an established procedure, some parameters were fixed to standard values reported in the literature, including hydration number (q = 2 for [Gd(OBETA)]⁻ and q = 1 for [Gd(EGTA)]⁻), the M–H distance between the IS water molecule(s) and Gd³⁺ (r_M–H = 3.0 Å), the M–H distance involving the OS water molecules (a = 4.0 Å), the relative diffusion coefficient of OS water molecules and the complex at 298 K (²⁹⁸D = 2.24 × 10⁵ cm² s⁻¹), and the activation energy for the modulation of the zero-field splitting interaction (E_V = 1.0 kJ mol⁻¹). The analysis yielded an excellent fit of the data, providing parameter values consistent with those already published. This set of parameters was then used as a reliable starting point for further analysis and comparisons (Table 1 and Table S1†).

Table 1 Selected fitting parameters of the simultaneous analysis of ¹⁷O NMR and ¹H NMRD data of [Gd(OBETA)(H₂O)₂]⁻ and [Gd(EGTA)(H₂O)]⁻

Parameters	[Gd(OBETA)]^−	[Gd(EGTA)]^−
a Parameters fixed during the fitting procedures.
^298 r 1/mM^−1 s^−1 (60 MHz)	6.3	4.4
^298 k ex/10^6 s^−1	13 ± 1	55 ± 2
ΔHM/kJ mol^−1	40.0 ± 3.5	36.1 ± 0.9
^298 τ R/ps	63 ± 1	64 ± 1
q	2^a	1^a

---

Affinity constant of the fluoride anion for the Gd complexes

It is known that fluoride can coordinate the metal centre of lanthanide complexes so efficiently to replace one or more labile IS water molecules.^10,18 Of course, we expect the strength of the interaction to be closely dependent on the overall charge of the host, resulting in a significantly weaker interaction for anionic complexes, especially those with octadentate ligands. The hydration loss results in a relaxivity drop that can be readily detected by ¹H NMR relaxometric analysis. Measuring R₁ variation of the water protons as a function of increasing additions of fluoride in dilute Gd³⁺ complexes aqueous solutions (ca. 0.5–1 mM), at a fixed frequency (32 MHz), allow access to the affinity constant (K_A) of the molecular interaction (Scheme 2) and the relaxivity of the F-bound complex (r^bound₁), given the number of independent interaction sites (n).

Scheme 2 Equilibria between the hydrated and fluoride-bound forms of the M³⁺ complexes under study.

Solutions of [Gd(OBETA)(H₂O)₂]⁻ and [Gd(EGTA)(H₂O)]⁻ were titrated with increasing amounts of NaF until the observed change in R₁ became negligible, i.e. in the presence of a halide excess approximately three orders of magnitude greater than that of the complexes (Fig. 2). The obtained titration curves can be analysed using the well-established proton relaxation enhancement (PRE) method.⁷ The low affinity constants (K_A = 13.6 ± 2.0 M⁻¹ for [Gd(OBETA)(H₂O)₂]⁻ and K_A = 14.5 ± 2.7 M⁻¹ for [Gd(EGTA)(H₂O)]⁻) are consistent with binding interactions weakened by the strong electrostatic repulsion between the negatively charged complexes and the anions, and comparable to that found for the anionic [Gd(AAZTA)(H₂O)₂]⁻ chelate (K_A = 8.8 ± 0.8 M⁻¹).²²

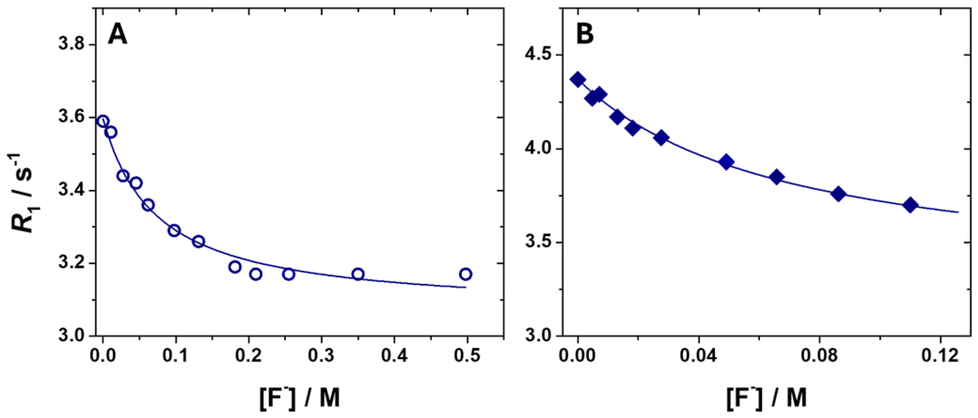

Fig. 2 Relaxometric titration of (A) 0.48 mM aqueous solution of [Gd(OBETA)(H₂O)₂]⁻ and (B) 0.86 mM aqueous solution of [Gd(EGTA)(H₂O)]⁻ in HEPES buffer (10 mM) with increasing amounts of NaF (32 MHz and 298 K). The solid lines correspond to the fits of the data, as described in the text.

The relaxivity values of the ternary adducts suggests that fluoride displaces only one water molecule from the coordination sphere of both Gd³⁺ ions. In fact, the r^bound₁ = 5.60 ± 0.05 mM⁻¹ s⁻¹ of [Gd(OBETA)(H₂O)F]²⁻ is consistent with that of a monohydrated complex, while that of [Gd(EGTA)F]²⁻ (r^bound₁ = 3.36 ± 0.03 mM⁻¹ s⁻¹) is only slightly higher than that of a q = 0 species (Table 2).

Table 2 Fitting parameters of the relaxometric titrations of [Gd(EGTA)(H₂O)]⁻ and [Gd(OBETA)(H₂O)₂]⁻ with NaF (measured at 32 MHz and 298 K)

Parameters	[Gd(OBETA)]^−	[Gd(EGTA)]^−
a Parameters fixed during the fitting procedures.
[Gd^3+]/mM	0.48^a	0.86^a
r ^free1/mM^−1 s^−1	6.7^a	4.6^a
r ^bound1/mM^−1 s^−1	5.60 ± 0.05	3.36 ± 0.03
n	1^a	1^a
K A/M^−1	13.6 ± 2.0	14.5 ± 2.7
χ ^2	0.0006	0.0009

---

It is worth noting that knowing K_A enables calculating the relative populations of binary and ternary complexes present in solution for any given concentration of fluoride ions (Scheme 2). This information is essential to analyse the relaxometric properties of pure ternary species in the absence of binary complexes, since the latter, being endowed with a higher degree of IS hydration, can substantially alter r₁ even at very low concentrations. This effect is especially evident in the case of weak halide-complex interactions, where the use of F⁻ concentrations <0.6 M, such as to keep the water microviscosity and relaxometric properties of the complexes’ unaltered, inevitably generates mixtures of binary and ternary species. Therefore, K_A allows deriving the relative concentration of the two adducts, and subtracting the relaxometric contribution of the binary species, to obtain the relaxometric properties of the ternary complex alone, as explained in the next paragraph.

Relaxometric characterization of the Gd³⁺ ternary complexes

The substitution of a water molecule by a fluoride anion has a significant impact on the relaxometric properties of Gd³⁺ complexes. For [Gd(EGTA)F]²⁻, such substitution results in a shift from q = 1 to q = 0, theoretically reducing the relaxivity to the OS contribution (r^OS₁) only. However, F⁻ ions are well-known for their capacity to promote strong hydrogen bonding interactions with surrounding water molecules, suggesting the likely presence of an extra-contribution of SS (r^SS₁).^10,32 This effect is also relevant for [Gd(OBETA)(H₂O)F]²⁻, which, additionally, holds one metal-bound water molecule with exchange rate modulated by the presence of fluoride in the inner coordination sphere.

To characterize the ternary complexes and elucidate the effects associated with F⁻ binding, we collected a full set of ¹H NMRD profiles for both complexes, complemented by variable-temperature ¹⁷O NMR data for the [Gd(OBETA)(H₂O)F]²⁻ adduct (Fig. 3A and Fig. S3†). Solutions were prepared with known stoichiometric mixtures of binary and ternary complexes. Under these conditions, the paramagnetic contribution to the relaxation rate in a solution with a total Gd³⁺ concentration of 1 mM corresponds to the sum of the relaxivities of the binary (r^free₁) and ternary (r^bound₁) complexes, each weighted by its respective molar fraction:

r₁ = r^free₁ × χ^free + r^bound₁ × χ^bound (4)

Fig. 3 Calculated ¹H NMRD profiles for (A) [Gd(OBETA)(H₂O)F]²⁻ and (B) [Gd(EGTA)F]²⁻ at 283 K, 298 K, and 310 K. The IS (blue), OS (red), and SS (green) contributions to the relaxivity at 298 K are reported as solid lines for the two complexes. The samples were prepared as follows: (A) [Gd(OBETA)(H₂O)₂]⁻ = 0.5 mM, [NaF] = 0.5 M; (B) [Gd(EGTA)(H₂O)]⁻ = 0.8 mM, [NaF] = 0.1 M, both buffered with HEPES (10 mM) at pH 7.5. The contributions to the relaxivity of the residual [Gd(OBETA)(H₂O)₂]⁻ and [Gd(EGTA)(H₂O)]⁻ species were subtracted, for each temperature, as described in the text. The solid lines correspond to the fits of the data.

To account for the high ionic strength, the relaxation rate contribution from the binary complex, prepared under identical ionic strength conditions employing NaCl (see Fig. S4 and S5†), was subtracted from the ¹H NMRD and ¹⁷O profiles, following previously reported methodologies.²² A simultaneous analysis of the ¹H NMRD profiles and ¹⁷O NMR data acquired for [Gd(OBETA)(H₂O)F]²⁻, and the fit of the ¹H NMRD profiles recorded for [Gd(EGTA)F]²⁻ were performed (Fig. 3), following the same approach described above.

[Gd(EGTA)F]²⁻. Despite the loss of the coordinated water molecule, relaxivity does not reach the typical values expected for a q = 0 complex across the entire frequency range measured. Instead, it falls at nearly intermediate levels between those of a monohydrated and a non-hydrated Gd³⁺ complex. As previously suggested in a similar study involving tetraamide derivatives of [Gd(DOTA)]⁻, this additional relaxivity contribution may be attributed to one or more water molecules forming hydrogen bonds with the fluoride anion.¹⁰ Assuming that F⁻ interacts with a single water molecule, we can analyse the SS contribution using the same set of equations applied to the IS contribution. The results of the fit are satisfactory and allow the NMRD profiles to be accurately reproduced with the parameters shown in Table S1.†

[Gd(OBETA)(H₂O)F]²⁻. In this case, one of the two coordinated water molecules, characterized by identical water exchange dynamics (²⁹⁸k_ex = 13 × 10⁶ s⁻¹) and enthalpy barriers associated with the exchange process (ΔH_M = 40 kJ mol⁻¹), is substituted by one fluoride anion. This causes a mild acceleration of the water exchange rate (²⁹⁸k_ex = 15 × 10⁶ s⁻¹) coupled with a slight decrease of reaction enthalpy (ΔH_M = 36 kJ mol⁻¹), suggesting that the energy barrier required to break the Gd–H₂O coordination bond is lower in the presence of fluoride. In fact, the anion reduces the charge density on the metal centre, thus making the coordinated water molecule more labile. As for the ternary adduct, a good fit of the data was possible only considering the presence of a SS contribution to relaxivity, which required to impose q^SS = 1.

Kinetics and thermodynamics of the fluoride exchange with Y³⁺ complexes

To gain insight into the structure of the ternary adducts and the kinetic and thermodynamic parameters of the chemical exchange reaction between the metal-bound (F⁻_bound) and the free fluoride (F⁻_free) ensembles, high-resolution ¹⁹F NMR studies were performed. Such analyses are feasible only if the spectral resolution is high enough to allow observing the ¹⁹F signals and measuring their linewidths with appropriate accuracy. However, this is not the case for paramagnetic Gd³⁺ systems, whose unpaired electrons cause a strong relaxation enhancement of the neighbouring nuclei, thus generating extremely broad lines. Therefore, Gd³⁺ has been replaced with the diamagnetic analogue Y³⁺ characterized by: (i) a similar ionic radius, which preserves coordination geometries and exchange dynamics, and (ii) sharp lines, which allow for high-resolution NMR techniques to be applied. The formation of the ternary complexes was followed by NMR titrations of the Y³⁺ complexes with increasing amounts of NaF (B₀ = 11.75 T, T = 275 K). After each addition, proton-decoupled 1D ¹⁹F NMR spectra were acquired to quantify the relative concentration of the F⁻_bound and F⁻_free species, until equal populations of the exchange sites were reached (Fig. S6†). Under these conditions, two ¹⁹F signals are observed for the [Y(EGTA)F]²⁻ complex, which, based on their chemical shifts, can be attributed to the F⁻_bound (−70.6 ppm) and F⁻_free (−119 ppm) forms in slow exchange on the NMR timescale (Fig. S6†).^18,22 Surprisingly, three signals are observable in the proton-decoupled ¹⁹F NMR spectra in the case of [Y(OBETA)]⁻ after the addition of fluoride: one resonating at −61.4 ppm, with a narrow line and spin multiplicity of a triplet (J ≈ 40 Hz), and the others at −76.2 and −119 ppm, with broad lines indicative of the presence of an exchange reaction (Fig. S6†). The first signal (−61.4 ppm) most probably arises from the scalar coupling between F⁻ and two identical NMR active nuclei with nuclear spin-½ and 100% natural abundance, such as ⁸⁹Y. This evidence suggests the formation of a dimeric complex composed of two monohydrated Y³⁺-adducts bridged by a metal-bound-fluoride [F⊂(YOBETA)₂]³⁻, which does not exchange with the other species present in solution at low temperatures. To support this hypothesis, DFT calculations were performed, as reported below. On the other hand, the other two signals resemble those observed for [Gd(EGTA)F]²⁻ and can be attributed to F⁻_bound (−76 ppm) and F⁻_free (−119 ppm) ensembles in slow chemical exchange.

To access the kinetic information on the exchange rates of the chemical reactions, and therefore the thermodynamic parameters associated with the activation energy, line-shape analysis at variable temperature was performed on [Y(EGTA)F]²⁻ and [Y(OBETA)(H₂O)F]²⁻ (Fig. 4). As chemical exchange processes produce readily detectable effects on the shapes of NMR signals, variations of the ¹⁹F line shapes induced upon temperature changes were monitored for a quantitative evaluation of the pseudo-first order rate constants for fluoride exchange (k_F), which characterize the two-site exchange involving F⁻_bound and F⁻_free. For both the investigated complexes, significant line-broadening is observed at increasing temperatures due to the acceleration of the fluoride k_F, until coalescence is reached just above 310 K (Fig. 4A and C). A quantitative evaluation of the fluoride exchange rate constants was obtained by fitting the integrals and linewidths of the F⁻_bound and F⁻_free signals over the entire set of analysed temperatures (Fig. 4B and D) by using the Dynamic NMR (DNMR) Lineshape Analysis tool (version 1.1.2) implemented in Bruker's Topspin 3.2 software.

Fig. 4 (A, C) 1D ¹⁹F NMR spectra acquired on the [Y(OBETA)(H₂O)F]²⁻ and [Y(EGTA)F]²⁻ ternary complexes. The adducts were prepared by adding NaF (175 mM) to a solution of [Y(OBETA)(H₂O)₂]⁻ (180 mM), and NaF (50 mM) to a solution of [Y(EGTA)(H₂O)]⁻ (200 mM), respectively. The spectra were acquired in H₂O/D₂O (9 : 1) at 11.75 T. (B, D) simulated ¹⁹F NMR spectra in the temperature range from 275 to 310 K for [Y(OBETA)(H₂O)F]²⁻ and from 275 to 305 K for [Y(EGTA)F]²⁻ using DNMR line shape analysis.

The exchange rates calculated at 290 K for the [Y(EGTA)F]²⁻ and [Y(OBETA)(H₂O)F]²⁻ complexes are similar (Table 3) and much faster than those reported in literature for tricationic Y(DOTA)-tetraamide derivatives,¹⁸ indicating that the electrostatic repulsion between the fluoride anion and the negatively charged complex, significantly accelerates the dissociation reaction with respect to positively charged adducts.

Table 3 Kinetic and thermodynamic parameters for the fluoride exchange reactions of the [Y(EGTA)F]²⁻ and [Y(OBETA)(H₂O)F]²⁻ complexes

Ligands	^290 k F (10^3 s^−1)	ΔH^‡ (kJ mol^−1)	ΔS^‡ (J mol^−1 K^−1)	^290ΔG^‡ (kJ mol^−1)
EGTA	4.57	53.1 ± 0.3	7.9 ± 0.9	50.8 ± 0.9
OBETA	9.76	42.1 ± 0.1	−23.3 ± 0.4	48.8 ± 0.4

---

Plotting ln(k_F/T) as a function of 1/T provides a straight line, whose slope and intercept afford the variations of activation enthalpy (ΔH^‡) and entropy (ΔS^‡), respectively (Fig. 5). From the so obtained ΔH^‡ and ΔS^‡ it is possible to determine the changes of the Gibbs free activation energy (ΔG^‡) associated with the exchange process (Table 3). The signs of ΔS^‡ are different for the two complexes, suggesting different exchange mechanisms. The slightly positive value of ΔS^‡ obtained for [Y(EGTA)F]²⁻ suggests that F⁻ exchange follows a dissociatively activated mechanisms, in which the Y–F bond involving the leaving ligand elongates significantly before the entering F⁻ ion approaches the metal ion.³³ The relatively large value of ΔS^‡ obtained for [Y(OBETA)(H₂O)F]²⁻ is likely related to an associative exchange process, most likely favoured by the heptadentate nature of the ligand, which leaves room for the simultaneous coordination of both the entering and leaving F⁻ anions in the transition state. The different mechanisms are also supported by the values of ΔH^‡, as dissociative mechanisms are generally characterized by higher enthalpy barriers, as the rate determining step is associated to the rupture of the bond between the metal ion and the leaving ligand.³³ However, these conclusions should be interpreted with caution, as the disruption and rearrangement of the fluoride anion's hydration sphere upon metal complexation may significantly contribute to ΔS^‡.³⁴

Fig. 5 Eyring plots for the exchange rates of the fluoride-free with (A) [Y(OBETA)(H₂O)F]²⁻ and (B) [Y(EGTA)F]²⁻. Dashed lines represent the fitted data.

DFT calculations

To support the hypothesis of the dimeric structure formation [F⊂(YOBETA)₂]³⁻, a comprehensive computational study of the fluoro-adducts described in this work was carried out. DFT geometry optimization were performed on [Y(OBETA)(H₂O)₂]⁻ and [Y(EGTA)(H₂O)]⁻, along with corresponding structures where one (or two, in the case of OBETA) inner-sphere water molecules were substituted by fluoride anions. The optimised geometry of the [Y(OBETA)(H₂O)F]²⁻ adduct was used as a starting point for the optimization of the [F⊂(YOBETA)₂]³⁻ structure. All structures included explicit second-sphere water molecules, while bulk solvent effects were considered using a polarized continuum model (PCM). Various computational studies have demonstrated that this combined cluster/continuum approach is necessary for achieving an accurate description of the Ln–Ow and Ln–F bonds.³⁵ These optimized structures were crucial in supporting the high-resolution ¹⁹F NMR spectra through targeted computational analysis, aimed to obtain theoretical chemical shifts for all studied structures and, in the case of [F⊂(YOBETA)₂]³⁻, also the ¹J_Y–F coupling constant. DFT calculations were performed on these structures to obtain the ¹⁹F isotropic nuclear shielding values (σ), which were then used to predict the corresponding ¹⁹F chemical shift. This computational methodology is well established in the literature and is based on the linear correlation between experimental and computationally calculated chemical shifts.³⁶ Briefly, the absolute shielding constants for the different systems were obtained using scalar relativistic DFT calculations at the TPSSh/ZORA/Def2-TZVPP level. The calculated chemical shift values were obtained by subtracting these absolute shielding constants (σ_i) from that of CCl₃F, used as the ¹⁹F NMR reference:

δ^calc = σ_CCl3F − σ_i (5)

The δ^calc values were subsequently plotted against the experimental chemical shift values, as shown in Fig. 6, revealing a notable linear correlation. To minimize systematic errors in the computational method, the predicted chemical shift values were scaled through linear regression analysis:

Fig. 6 Characterization of the [F⊂(YOBETA)₂]³⁻ binuclear entity: (A) geometry of the complex obtained with DFT calculations as explained in the text (Y–F = 2.33 Å, Y–F–Y = 152.6°); (B) partial ¹⁹F NMR spectrum (11.75 T, 275 K) of a solution of [Y(OBETA)(H₂O)₂]⁻ (180 mM) containing NaF (175 mM) showing the triplet signal due to the [F⊂(YOBETA)₂]³⁻ entity (¹J_Y–F = 40 Hz); (C) plot of the experimental versus calculated (DFT) ¹⁹F NMR shifts for the systems used to obtain scaled (δ^scal) values; (D) dependence of the calculated (DFT) ¹J_Y–F coupling constant in [F⊂(YOBETA)₂]³⁻ with the Y–F distance.

Here δ^scal are the scaled chemical shifts obtained with DFT and A and B are the intercept and slope of the plot of δ^expversus δ^calc.

It is important to note that the absolute shielding constants are highly dependent on the coordination and chemical environment of the ¹⁹F ion. For instance, when assessing the absolute shielding of the fluoride in aqueous solution, it is crucial to include an explicit hydration sphere alongside the implicit solvation model. The predicted chemical shift value for fluoride, calculated without this explicit hydration, is −273.8 ppm, deviating by 115.0 ppm from the experimental value (−118.8 ppm). The predicted chemical shift improves significantly to −118.6 ppm, perfectly matching the experimental data, when six water molecules are incorporated to form hydrogen bonds with fluoride. The number of the hydrogen bonded water molecules incorporated in the model was guided by calculations of the electrostatic potential derived from the self-consistent field electron density of the anion. This finding highlights the substantial influence of the surrounding chemical environment on the ¹⁹F absolute shielding values, emphasizing the necessity of accurate structural modelling to achieve reliable chemical shift predictions.

These considerations are particularly critical for the [F⊂(YOBETA)₂]³⁻ dimer. DFT geometry optimization revealed a bent nature of the Y–F–Y bond, with an angle of approximately 152.6°; second-sphere water molecules that form hydrogen bonds between the two complexes stabilize this conformation. The potential energy surface was further explored by changing the O–Y–F–Y dihedral angle involving a carboxylate oxygen atom (Fig. S7†), which identified two energy minima at −31.1° and 104.7°. The first one is the most stable, with a 13 kcal mol⁻¹ difference in energy. The Y–F distance is a critical parameter, closely affecting the ¹J_Y–F scalar-coupling constant in the ¹⁹F NMR data. An initial geometry optimization yielded a Y–F distance of 2.26 Å, corresponding to a DFT calculated ¹J_Y–F coupling of 56.7 Hz, which differs considerably from the experimental value ≈40.0 Hz. This discrepancy suggests that the computational model may overestimate the strength of the Y–F bonds, likely due to challenges in accurately describing the complex solvation environment, which significantly affects the chemical environment of the fluoride anion. To address this, several geometry optimizations were performed, fixing the Y–F bond lengths to values ranging from 2.26 to 2.35 Å and subsequently calculating the corresponding ¹J_Y–F coupling values. As expected, a rather good linear correlation was obtained. The dimer structure with a Y–F bond length of 2.33 Å shows a ¹J_Y–F coupling of 38.0 Hz, closely matching the experimental value (≈40.0 Hz). For this structure, as well as the others studied in this work (Table 4), the predicted chemical shift values are consistent with the experimental data, with a maximum discrepancy of 3.9 ppm observed for [Y(EGTA)F]²⁻.

Table 4 ¹⁹F NMR absolute shielding values (σ), calculated chemical shifts (δ^calc), scaled chemical shifts (δ^scal) and experimental (δ^exp) chemical shifts (ppm)^a

	σ	δ ^calc	δ ^scal	δ ^exp
a Absolute shielding constants obtained with DFT at the TPSSh/ZORA/Def2-TZVPP level. Experimental values determined at 275 K. b Not observed.
CCl3F	167.0	0.0	0.0	0.0
F^−	481.0	−314.0	−273.8	−118.8
F^−·6H2O	303.2	−136.25	−118.6	−118.8
[Y(OBETA)F]^2−	251.1	−84.2	−73.2	−76.2
[F⊂Y(OBETA)2]^3−	237.2	−70.2	−61.0	−61.4
[Y(OBETA)F2]^3−	276.6	−109.6	−95.4
	263.1	96.1	−83.6
[Y(EGTA)F]^2−	252.7	−85.7	−74.5	−70.6

---

The comparison of the experimental and DFT data reported in Table 4: (i) provides strong support for the hypothesis that the [F⊂(YOBETA)₂]³⁻ dimer forms with a geometry similar to that obtained computationally, as evidenced by the excellent match of the experimental and calculated values of both the ¹⁹F chemical shifts and ¹J_Y–F values; (ii) suggest that [Y(OBETA)F₂]³⁻ species is not form in significant concentrations under our experimental conditions, as indicated by the absence of the ¹⁹F NMR signal in the experimental spectra within the range of the DFT-predicted chemical shift.

Experimental

Characterization techniques

¹H, ¹³C and 2D NMR spectra of the ligands and the complexes were recorded using a Bruker 500 UltraShield™ spectrometer equipped with a 5 mm double resonance TXI probe. Electrospray ionization mass spectra (ESI MS) were recorded using an SQD 3100 Mass Detector (Waters), operating in positive- or negative-ion mode, with 1% v/v formic acid in methanol as the carrier solvent.

Preparation of the [M(OBETA)(H₂O)₂]⁻ and [M(EGTA)(H₂O)]⁻ complexes

The OBETA ligand (336.30 g mol⁻¹) was provided by CAGE Chemicals S.r.l. while EGTA (380.35 g mol⁻¹) was purchased from Fluka (purity >99.0%). As a source of metal ions, we used nitrate salts produced by Sigma Aldrich.

The complexes were prepared by adding a slight excess of Gd³⁺ or Y³⁺ in the form of pentahydrate nitrate salts to an aqueous solution containing the ligand. This approach was taken to prevent the potential presence of excess ligand, which could interfere with studies on fluoride interaction. After adjusting the pH to 6.0 with dilute NaOH, the solution was stirred at room temperature (r.t.) for 2 h. Then, the pH was raised to 8/8.5 with NaOH (1 M) and the solution was stirred for 2 h to allow the precipitation of the uncomplexed metal ions as insoluble hydroxides. The solution was centrifuged (4000 rpm, 15 min, r.t.), the supernatant was filtered twice (using 0.22 μm NYL filters) and neutralized with dilute HNO₃. The concentration of the paramagnetic complexes was evaluated by ¹H NMR measurements, using Evans’ method. The 1D ¹H NMR spectra of the diamagnetic [Y(OBETA)(H₂O)₂]⁻ and [Y(EGTA)(H₂O)]⁻ complexes demonstrate quantitative complexation. The ⁸⁹Y NMR chemical shift obtained for [Y(EGTA)(H₂O)]⁻ (68.6 ppm) using ¹H,⁸⁹Y-HMQC spectroscopy is in excellent agreement with the literature. For [Y(OBETA)(H₂O)₂]⁻, the ⁸⁹Y NMR signal at 55.5 ppm is more shielded in comparison with [Y(EGTA)(H₂O)]⁻, as expected by the larger shielding contribution estimated for a coordinated water molecule (107.6 ppm) than for an ether oxygen atom (95.7 ppm).³⁷

The assigned NMR spectra of the Y³⁺ complexes are reported in the ESI (Fig. S8–S11†).

[Y(OBETA)(H₂O)₂]⁻

¹H NMR (D₂O, 500 MHz, 300 K): δ_H = 2.81 ppm (t, ³J = 5.2 Hz, 4H, 2), 3.33 (d, ²J = 16.7 Hz, 4H, 3), 3.46 (d, ²J = 16.7 Hz, 4H, 3), 3.72 (t, ³J = 5.2 Hz, 4H, 1). ¹³C NMR (D₂O, 500 MHz, 300 K): δ_C = 180.3 ppm (4C, 4), 69.4 (2C, 1), 61.8 (4C, 3), 57.2 (2C, 2). MS ESI⁺ (m/z) = 444.17 [M⁻ + Na⁺ + H⁺] and 460.13 [M⁻ + K⁺ + H⁺]; calculated for [YC₁₂H₁₆N₂O₉]⁻ = 420.99.

[Y(EGTA)(H₂O)]⁻

¹H NMR (H₂O/D₂O, 500 MHz, 275 K): δ_H = 2.45 (d, 2H, 9′,12′), 2.88 ppm (t, 2H, 9,12), 3.05 (d, ²J = 17.7 Hz, 2H, 6,7), 3.15 (d, ²J = 17.7 Hz, 2H, 6′,7′), 3.20 (s, 4H, 5,8), 3.46 (d, 2H, 10,11), 3.64 (d, 4H, 10′,11′,13′,14′), 3.74 (d, ²J = 7.0 Hz, 2H, 13,14). ¹³C NMR (H₂O/D₂O, 500 MHz, 275 K): δ_C = 180.1 ppm (4C, 1–4), 70.8 (2C, 13–14), 70.1 (2C, 10–11), 63.8 (2C, 5,8), 62.2 (2C, 6,7), 57.6 (2C, 9,12). MS ESI⁺ (m/z) = 467.02 [M⁻ + 2H⁺]; calculated for [YC₁₄H₂₀N₂O₁₀]⁻ = 465.02.

Fluoride affinities for the [Gd(OBETA)(H₂O)₂]⁻ and [Gd(EGTA)(H₂O)]⁻ complexes

Association constants (K_A) and longitudinal relaxivities (r₁) of [Gd(OBETA)(H₂O)F]²⁻ and [Gd(EGTA)F]²⁻ were determined by relaxometric titrations. The titrations were performed at 32 MHz and 298 K by adding increasing amounts of NaF salt to aqueous solutions of the complexes. Specifically, a solution of [Gd(OBETA)(H₂O)₂]⁻ (0.48 mM, pH = 7.5, [HEPES] = 10 mM) was titrated with NaF until the change in the longitudinal relaxation rate (R^obs₁) became negligible, corresponding to an 1000-fold molar excess of the anion. Similarly, a solution of [Gd(EGTA)(H₂O)]⁻ (0.85 mM, pH = 7.4, [HEPES] = 10 mM) was titrated with NaF until reaching a fluoride concentration of 0.11 M. Above this concentration, an increase turbidity of the solution was noticed and an unexpected drop in the relaxation rate was measured. Probably, at high concentrations, fluoride begins to compete with the EGTA ligand for the complexation of Gd³⁺, which precipitates as GdF₃.

For the relaxometric characterization, ¹H NMRD profiles (from 0.01 to 120 MHz) were acquired on the ternary [Gd(OBETA)(H₂O)F]²⁻ complex prepared by adding 0.5 mM NaF salt to a 0.51 mM [Gd(OBETA)(H₂O)₂]⁻ solution at pH = 7.5 buffered with HEPES (10 mM). For each measurement, the relaxation contribution of the binary complex was subtracted, considering the respective mole fractions in solution calculated. The binary [Gd(OBETA)(H₂O)₂]⁻ complex solution was prepared in a similar manner, using NaCl to ensure the same ionic strength and microviscosity conditions (Fig. S5†).

¹H NMRD profiles were acquired also on the [Gd(EGTA)F]²⁻ complex, prepared by adding 0.1 mM NaF salt to a 0.83 mM [Gd(EGTA)(H₂O)]⁻ solution at pH = 7.4 in HEPES (10 mM). For each measurement, the relaxation contribution of the binary complex, prepared by adding 0.1 mM NaCl, was subtracted (Fig. S4†).

Fluoride exchange in the [Y(OBETA)(H₂O)F]²⁻ and [Y(EGTA)F]²⁻ complexes

The rates of fluoride exchange were determined by ¹⁹F high-resolution NMR measurements. The complexes were prepared by adding 175 mM of NaF to 180 mM [Y(OBETA)(H₂O)₂]⁻ solution and 50 mM of NaF to a 200 mM [Y(EGTA)(H₂O)]⁻ solution. The salt concentrations were chosen so that the integrated signal intensities of the F⁻_free and F⁻_bound species were approximately in 1 : 1 ratio. 1D ¹⁹F NMR spectra were acquired by varying the temperature. The rates of exchange of fluoride were calculated by fitting the ¹⁹F line shapes of the F⁻_free and F⁻_bound species at various temperatures through the dynamic NMR (DNMR) LineShape Analysis module (version 1.1.2) implemented using Bruker's Topspin 3.2 (Fig. 4).

Relaxometric measurements

¹H Nuclear Magnetic Relaxation Dispersion (NMRD) profiles were acquired using two different instruments, one operating at lower field (0.01–10 MHz) and the other at higher field strengths (20–120 MHz). Low field data were measured using a fast-field cycling (FFC) Stelar SMARTracer relaxometer (Stelar S.r.l., Mede (PV), Italy) equipped with a silver magnet. High-field measurements were collected with a high-field relaxometer (Stelar) equipped with an HTS-110 3 T Metrology cryogen-free superconducting magnet. The measurements were performed using the standard inversion recovery sequence (20 experiments and 2 scans) with a typical 90° pulse width of 3.5 μs and the reproducibility of the data was within ±0.5%. The temperature was controlled with a Stelar VTC-91 airflow heater equipped with a copper–constantan thermocouple (uncertainty of ±0.1 K).

Variable temperature ¹⁷O NMR measurements

Variable-temperature ¹⁷O NMR measurements were recorded on a Bruker 500 UltraShield™ spectrometer (11.75 T, 67.8 MHz for ¹⁷O) equipped with a 5 mm probe and standard temperature control unit. An aqueous solution of the complexes containing 2.0% of the ¹⁷O isotope (Cambridge Isotope) was used. Transverse relaxation rates were measured from the signal width at half-height as a function of temperature in the range 275–350 K. The bulk magnetic susceptibility contribution was subtracted from the ¹⁷O NMR shift data using the ¹H NMR shifts of the t-BuOH signal as internal reference.

Computational details

Geometry optimizations of the Y³⁺ complexes and the corresponding F⁻ adducts were performed with the Gaussian 16 program package (Rev C.01)³⁸ using restricted calculations with the TPSSh³⁹ functional and the Def2-TZVP basis set⁴⁰ for F, C, H, N and O atoms. The Stuttgart–Bonn ECP28MDF small-core relativistic effective core potential was used for Y³⁺ in combination with the ECP28MDF_VTZ 41s37p25d2f1g/5s5p4d2f1g valence basis set.⁴¹ Solvent effects were incorporated with a polarized continuum model using the default settings [scrf = (pcm, solvent = water)] implemented in Gaussian 16.⁴² The integration grid was increased using the integral = ultrafine keyword. Frequency calculations were used to confirm that the optimized structures corresponded to stationary points. For the [F⊂(YOBETA)₂]³⁻ dimer calculations, the same method was applied but using the dispersion-corrected wB97XD functional⁴³ and the smaller Def2-SV basis set.⁴⁰ Optimized cartesian coordinates of the studied structures are reported from Tables S2–S7.†

¹⁹F NMR shielding tensors were calculated with the ORCA⁴⁴ suite (version 5.0.4), which uses the SHARK integral package.⁴⁵ Scalar relativistic effects were considered with the ZORA method⁴⁶ using the all-electron ZORA-Def2-TZVPP basis set for the ligand atoms, which is a recontracted version of the Def2-TZVPP basis set,⁴⁰ and the SARC-ZORA-TZVPP basis set for Y.⁴⁷ We selected the TPSSh functional³⁹ for NMR shielding calculations, as it was shown in previous studies to provide good results for yttrium complexes.⁴⁸ Shielding tensors were obtained with the gauge-including atomic orbitals (GIAO) method.⁴⁹ The resolution of identity and chain of spheres exchange (RIJCOSX)⁵⁰ approximation was used in these calculations, using the def2/J and SARC/J auxiliary basis sets.⁵¹ The sizes of the DFT and COSX grids were set with DefGrid3 keyword. Bulk solvent effects (water) were considered with a continuum model of the solvent defined by the bulk dielectric constant and atomic surface tensions (SMD).⁵²

Conclusions

In conclusion, a combination of low- and high-resolution NMR techniques and DFT calculations have been employed to investigate the interaction between the fluoride anion and two negatively charged acyclic M³⁺ complexes with OBETA and EGTA, which are characterized by different denticity (hepta- and octadentate), resulting in different coordination geometries, and hydration numbers (q = 1, 2).

Relaxometric titrations enabled to monitor the formation of ternary adducts, which occurs by substitution of a single IS water molecule with F⁻, and to estimate the affinity constant. Interestingly, the binding affinity between the halide and the anionic Gd³⁺ chelates is relatively high for both homologues, despite the interaction being disfavoured by electrostatic repulsions. A complete relaxometric characterization indicates the presence of SS water molecule(s) (q^SS = 1 for OBETA, q^SS = 2 for EGTA) in strong hydrogen bonding interactions with the halide, which substantially contribute to the relaxivity of the ternary adducts. In the case of OBETA, additional ¹⁷O NMR analyses unveiled water exchange dynamics accelerated by F⁻ binding, which destabilizes the remaining coordinated water molecule, as expected.

Furthermore, the high-resolution NMR technique allowed access to the structure of the ternary species. While in the case of EGTA the formation of a single ternary complex is observed ([Y(EGTA)F]²⁻), for OBETA we surprisingly notice the simultaneous presence of two fluoride adducts, comprising one monomeric ([Y(OBETA)(H₂O)F]²⁻) and one homonuclear dimeric ([F⊂(YOBETA)₂]³⁻) species. Supramolecular lanthanide dimers have already been observed for positively charged DOTA derivatives, where the assembly of two positively charged complexes is stabilized by a fluoride-bridging species.^53–55 However, to the best of our knowledge, this is the first observation of a fluoride-bridged dimeric adduct where two negatively charged units are stabilized by one fluoride anion. DFT calculations supported our findings providing a structural model of the dimeric complex, where the bridging fluoride coordinates the two Y³⁺ chelates with an angle of ∼152.6°, which is in good agreement with the chemical shift values and the ¹J_Y–F coupling constant experimentally measured.

To complete the picture, high-resolution NMR line shape analyses enabled us to describe the kinetic and thermodynamic parameters associated with the fluoride chemical exchange reaction. While the fluoride-ion exchange kinetics is similar for the ternary monomeric adducts of OBETA and EGTA, the thermodynamic parameters vary substantially, suggesting two different exchange processes: a dissociative activated mechanisms for EGTA, and an associative driven pathway for OBETA.

The methodology here presented can be widely applicable to characterize the molecular interactions between paramagnetic complexes and NMR active ions. This provides the basis for the rational design of new systems capable of recognizing anions with increased affinity, which is of large interest in technological and biomedical fields and represents a significant challenge for coordination chemistry.

Author contributions

L. R.: synthesis, purification, and characterization of the complexes, NMRD profiles, manuscript preparation. M. R.: ¹⁷O NMR data, DFT calculations and manuscript preparation. D. L.: ¹⁹F NMR data and line shape analysis, conceptualization and manuscript preparation. C. P.-I.: DFT calculations, relaxometric data analyses and manuscript preparation. M. B.: project supervision, conceptualization and manuscript preparation; relaxometric data analyses.

Data availability

The data supporting this article have been included in the main article and as a part of the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

M. B. acknowledges the project NODES, which has received funding from the Ministero dell'Università e della Ricerca (MUR–M4C2 1.5 of PNRR with grant agreement no. ECS00000036). C. P.-I. thanks Ministerio de Ciencia e Innovación (Grant PID2022-138335NB-I00) and Xunta de Galicia (ED431C 2023/33) for generous financial support and Centro de Supercomputación de Galicia (CESGA) for providing supercomputer facilities.
