Chimeric fungal–firefly luciferins exhibit red shifted fungal bioluminescence

Abstract

A rational design of new luciferins based upon the combination of luciferins from different lineages is exemplified by the synthesis of chimeric luciferins from a combination of fungal and firefly luciferin. Two new chimeric fungal–firefly luciferins exhibited the furthest red shifted bioluminescence of a fungal luciferin analogue.

---

Introduction

Bioluminescence is the emission of light by living organisms and is one of nature's most beautiful spectacles on land and in the sea. The light is generated from chemical energy, in most cases, by the catalytic oxidation of a small molecule, luciferin, by a respective enzyme, luciferase. Each different bioluminescent organism has a specific structure of a luciferin and luciferase pair, and a mechanistically different chemical pathway to giving light. There are a few known structures of luciferins and their structures are diverse (Fig. 1).¹ The structures were elucidated mostly in the 20th century, with fungal luciferin 1 being one of the most recent in 2015.² A small part of each luciferin molecule, the ‘reactive’ core, is oxidised to give an excited state species which is conjugated to the remaining bulk, the chromophore, of the luciferin molecule which characterises the subsequent light emission. The light emission can also be affected to some extent by the microenvironment of the luciferase active site.

Fig. 1 A selection of commonly known luciferins which demonstrates the structural diversity.

Luciferases are widely used for imaging biological processes in vitro, in live cells and in animal models. The most popular bioluminescent imaging system uses firefly's D-luciferin (2) which bioluminesces with λ_max = 558 nm (Fig. 1).³ The technique does not require an external light source, unlike fluorescence imaging, so there are no background photons, leading to a higher signal/noise ratio, which is particularly attractive for bioanalytical methods that require enhanced sensitivity. It has proven easy to use, cheap, non-invasive, highly sensitive and has a wide dynamic range.⁴ However, one of the main limitations of using bioluminescence in vivo is that only a fraction of the light typically reaches the detector, because the photons are absorbed and/or scattered by haemoglobin, melatonin and tissue. This has a detrimental effect on image resolution and signal penetration depth. It is well accepted that light beyond the visible range (infrared) is more tissue penetrant.⁵

The development of new imaging techniques has relied upon manipulating the natural capabilities of a bioluminescence system, most often to red shift the wavelength of the emitted light for improved tissue penetration. For the most popular bioluminescent imaging system D-luciferin this was approached first through mutations of the luciferase enzyme,⁶ but was found to be limited by the inherent structure and electronic properties of the D-luciferin itself. Derivatives of D-luciferin (Fig. 2) have led to enhanced properties in terms of colour modulation, most desirably towards the red end of the spectrum.⁷

Fig. 2 Examples of modifications to D-luciferin.

The most successful analogues for imaging have been based upon substitution of the hydroxyl group of D-luciferin with an amino group (CycLuc⁸ and AkaLumine,⁹Fig. 2). Akalumine was also the first example of extended conjugation leading to red shifted bioluminescent emission.¹⁰ This concept was in turn used to develop some of the most red shifted luciferins to date, infraluciferin¹¹ and napthylluciferins¹² (λ_max = 730 and 750 nm respectively),¹³ along with other examples that have shown the beneficial effects of extending π-conjugation.^14–17 Akalumine was also an example of complete substitution of the benzothiazole nucleus of D-luciferin. Other examples have substituted for new heterocylces,^18,19 benzothiophene,²⁰ quinoline,²¹ coumarin derivatives^22–24 and benzobisthiazole ‘V’-shaped motifs.²⁵ They all suffer from much lower quantum yields than D-luciferin, but some are nevertheless efficacious due to more tissue penetrant red light being produced and specific luciferase matching.^13,26 This has been shown to be the case for CycLuc,⁸ akalumine,⁹ napthylluciferin¹² and coumarin luciferins.²³

There is still a pressing need for bright, multicoloured, nr-IR emitting luciferins for improved in vivo tissue penetration and new multiparametric bioluminescence analytical/imaging techniques for a wide range of applications. The opportunities to substitute and adorn the skeleton of the natural core of D-luciferin are dwindling and could be considered exhausted (Fig. 2). The coupling of other chromophores such as dye molecules (BODIPY, squaraine, rhodamine dye etc.) to the ‘reactive’ thiazoline unit has given useful bioluminescent species,^{9,10,12,18–24} but future examples of this concept are not obvious. Computer aided design is possible, but only when the three dimensional structure of the luciferase is known, which is not the case for all luciferases. We postulate that to rationally diversify the structures of new luciferins it would be beneficial to look beyond the structure of D-luciferin and its structurally exhausted analogues. We propose the design of chimeric luciferins that combine the ‘reactive’ core of one luciferin with the chromophore of a luciferin from another lineage to identify new luciferin structures that may form the basis for further development of bioluminescent systems for imaging.

The luciferases and luciferin extracted from different species within the same phylogenetic lineage can be cross-reacted, resulting in light emission, because they are essentially identical bioluminescent systems within each lineage.^27,28 Even though bioluminescence from each system requires the oxidation of a small molecule luciferin to its excited state, due to the subtly different mechanisms of bioluminescent light production, it is not possible for a luciferin from one lineage to give light with the luciferase from another lineage. However, luciferases can be promiscuous. For example and as already discussed, firefly luciferase can generate light with a multitude of unnatural D-luciferins (Fig. 2).⁷ This indicates that if the ‘reactive’ core of the molecule is present in an unnatural luciferin then the enzyme normally used to give light with that particular ‘reactive’ molecular feature, will most probably still give light with the new luciferin. The remaining bulk of the molecule can have a modified structure, which has been proven by the substitution of the benzothiazole of D-luciferin with other aromatic groups. Luciferin metabolites in nature have presumably evolved to gain selective advantages in their environment, in this specific case to give chemical light. By extension, each part of a luciferin, the ‘reactive’ core and the chromophore, have been selected for efficient bioluminescence. We wanted to demonstrate that for a rational synthesis of diverse new luciferins, a ‘reactive’ core of a luciferin from one lineage could be combined with a chromophore from a luciferin from another lineage. The wild type luciferase matched to the ‘reactive’ partner of the chimeric luciferin should be able to generate bioluminescence. This cross-lineage, modular approach allows extended π-conjugation and rational tuning of emission wavelengths while retaining enzymatic compatibility. We report our preliminary investigation of this chimeric approach by the synthesis and bioluminescent evaluation of two chimeric fungal–firefly luciferins, that demonstrate their potential to expand the spectral and structural diversity of luciferins.

Results and discussion

Design, calculations and synthesis

As a rational design concept, the chimeric luciferin should possess the character of both parent luciferins, and the two conjoined parts should be in conjugation with each other. By analysing the structures and mechanisms of bioluminescence from natural luciferins (Fig. 1) potential partners can be identified. In this preliminary study we focussed on the ‘reactive’ part of fungi's luciferin, 3-hydroxyhispidin (1) (Scheme 1).²⁹ In fungal luciferin 1, and like D-luciferin (2), conjugation between the 3-hydroxyl group of catechol and the ‘reactive’ functional group is essential for bioluminescence. Hypothetically conjoining the two separate halves of fungal and D-luciferin could lead to two chimeric luciferins 3 and 4, both of which retain conjugation of a hydroxyl group with the ‘reactive’ partner (Scheme 1). Chimeric structure 3 retains the active core of fungal luciferin 1 conjugated with the benzothiazole chromophore from D-luciferin (2). While chimera 4 retains the active core from D-luciferin (2) with the catechol chromophore from fungal luciferin 1.

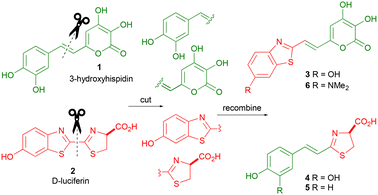

Scheme 1 Design of chimeric fungal–firefly luciferins.

We thought that chimera 3 would be more red shifted than fungal luciferin 1 as D-luciferin (2) (λ_max = 558 nm) bioluminesces with a more red shifted emission than fungal luciferin 1 (λ_max ∼ 530 nm). We also thought that chimera 4 would most likely be a poor bioluminescence emitter and unlikely to have significantly red shifted bioluminescence compared to that of fungal luciferin. This was based upon the seminal work on Akalumine (Fig. 2) which showed that the 4-substiuted phenol analogue of chimera 4, analogue 5, was a weak bioluminescence emitter (λ_max = 530 nm).¹⁰ Amino luciferins are often red shifted compared to their hydroxyl parents and increased lipohilicity can yield advantages in terms of lowering K_m.^7–9,12 Therefore this study focussed on the synthesis of chimera 3 and due to the beneficial tuning effect of substituting the hydroxyl group in D-luciferin with a dimethylamine,^7–9,12 we also chose to additionally synthesise chimera 6.

DFT calculations at the B3LYP/6-311+G(2d,p) level^30,31 were performed to interrogate the proposed red shifting effect of dimethylamine substitution in chimera 6 over the hydroxyl derivative chimera 3. The calculations supported our prediction that of the light giving oxidised forms of the luciferins, that would be produced by fungal luciferase, Oxy-6 had a smaller HOMO–LUMO gap (2.94 eV) and a higher dipole moment (μ = 9.15 D) than Oxy-3 (3.51 eV; μ = 5.64 D) which should manifest itself in red shifted bioluminescence of chimera analogue 6 compared to chimera 3. The calculated values (Fig. 3) are consistent with increased charge delocalisation and enhanced intramolecular charge transfer (ICT).^32,33 Orbital density mapping showed HOMO localisation on the aryl donor and LUMO concentration on the reactive backbone (Fig. 3), supporting directional ICT upon excitation.

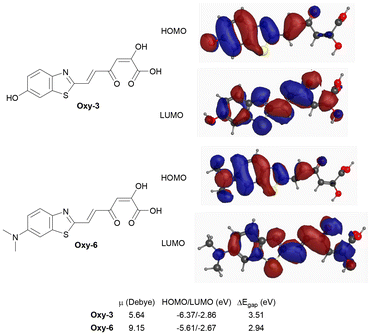

Fig. 3 HOMO and LUMO visualisations of oxidised luciferins Oxy-3 and Oxy-6, rendered with isovalue 0.020 and density isovalue 0.005, highlighting differences in orbital delocalisation and charge distribution.

We investigated a synthetic strategy for synthesising the chimeric fungal–firefly luciferins that focused on the central alkene function as a convergent joining point. Although a series of condensation reactions between 4-methoxy-6-methyl-2H-pyran-2-one (7) and a range of aryl aldehydes has been reported,³⁴ analogous attempts with 6-methoxybenzo[d]thiazole-2-carbaldehyde (8), with a view to using the fully oxygenated 3,4-dimethoxy-pyranone under similar conditions if successful, led to degradation (Scheme 2). The exploration of a range of deprotonating conditions using LDA, t-BuOK, NaOAc, piperidine and DBU were also unfruitful. Inspired by the reported palladium catalysed coupling of arene diazonium tetrafluoroborates with a vinyl-2-pyrone,³⁵ investigation of a Heck type approach with suitable coupling partners 9 and 10 was also unsuccessful under a range of different conditions (Scheme 2). Resorting to Wittig based technology that had already been shown by Kaskova et al. to be effective for the synthesis of fungal luciferin analogues,²⁹ a fully tris-methyl protected analogue 11 was prepared. Unfortunately global deprotection of the methyl groups to give target chimera 3 was unsuccessful due to the 6-MeO group being recalcitrant to unmasking under a range of more forcing conditions that ultimately led to degradation. It was decided to repeat this latter approach with a more compliant 6-phenolic protecting group.

Scheme 2 Exploration of synthetic routes to chimeric fungal–firefly luciferin 3.

The approach was repeated with a 6-OMEM group as it had been used successfully in luciferin synthesis.^36,37 Wittig reaction of known aldehydes 12 ³⁷ and 13 ³⁸ with phosphonium salt 14 ²⁹ gave good yields of alkene products 15 and 16 (Scheme 3). Global deprotection of 15 was achieved in two steps, first by removal of the MEM protecting group with TFA and then treatment with an excess of BBr₃ to give target 3 in a 60% yield after reverse phase HPLC purification. After optimisation global deprotection of 16 was achieved by stirring with an excess of BBr₃ for 4 days to give 6 in 69% yield after reverse phase HPLC purification.

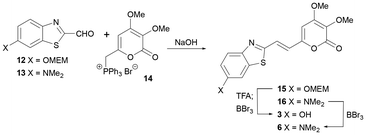

Scheme 3 Synthesis of chimeric fungal–firefly luciferins 3 and 6.

Spectroscopic and bioluminescent properties

Fluorescence spectra (DMSO) showed maximum absorption for 3λ = 394 nm and 6λ = 444 nm with corresponding emissions for 3λ = 496 nm and 6λ = 633 nm (Fig. 4). The greater red shifted emission of 6 was in line with our DFT calculations.

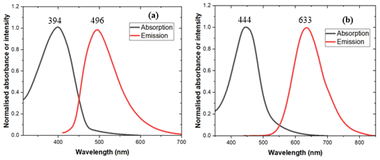

Fig. 4 Normalised absorption and fluorescence emission of (a) Chimera 3 and (b) Chimera 6 in DMSO at 25 °C. The absorption data was collected in DMSO at 25 °C under concentrations of 0.3 μM and 0.9 μM for Chimeras 3 and 6 respectively. Identical conditions were used for the collection of emission data.

The bioluminescence of the chimeric fungal–firefly luciferins, 3 and 6 were assayed with recombinant Neonothopanus nambi luciferase. Both compounds produced red shifted emission profiles compared to wild type fungal luciferin 1, with λ_max values for 3 at 630 nm more red shifted than 6 at 600 nm (Fig. 5).

Fig. 5 Bioluminescence emission spectra of chimeric fungal–firefly luciferins 3 and 6 with recombinant fungal luciferase, showing red shifted λ_max values relative to fungal luciferin 1.

While the red shifted bioluminescence emission of 3 compared to 6 contradicted our DFT calculations, fluorescence measurements and the results from amino firefly luciferins in the literature,^7–9,12 the results did fit the trend seen for fungal luciferin analogues,²⁹ and those of coumarin luciferins²³ with respect to substitution of hydroxyl groups for dimethylamino substituents. Hydroxyl groups can induce bathochromic shifts through microenvironmental interactions within the active site of the luciferase that are not captured by in vitro DFT or optical measurements.

Kinetic analyses (Fig. 6 and Table 1) revealed low Michaelis constants (K_m = 0.40 μM for 3 and 0.25 μM for 6) compared to fungal luciferin (K_m = 1.09 μM), indicative of high luciferase affinity. The lower K_m value of dimethylamino chimera analogue 6 over that of chimera 3 is in line with previous observations for amino substituted luciferins.^7–9,12 However, the V_max values were markedly reduced compared to fungal luciferin with relative bioluminescence intensities of ∼1.5% for 3 and ∼2.8% for 6 (Fig. 7). This suggested tight binding, but poor catalytic turnover possibly due to steric or electronic misalignment in the active site. These magnitudes of relative bioluminescence are expected for luciferin analogues.⁷

Fig. 6 Michaelis–Menten plots illustrating the bioluminescence reaction kinetics of chimeras 3 and 6 with membrane N. nambi exaction. Each point represents the average of duplicate or triplicate measurements of light integration over a 60 second period. Michaelis–Menten kinetics were determined using non-linear regression in Prism 9. Data were plotted on both linear and logarithmic axes.

Fig. 7 (a) Relative bioluminescent activity of 3, 6 and fungal luciferin 1 substrates. (b) Total luminescent output (integrated over 60 seconds) measured using Promega GloMax luminometer. Fungal luciferin 1 exhibited the highest activity (5 732 893 RLU), followed by 6 (158 254 RLU) and 3 (85 448 RLU).

Table 1 Summary of luciferin activity, K_m and bioluminescence emission wavelength maximum of 3, 6 and the WT luciferin (1)

Substrate	Relative activity (%)	K m (μM)	Emission wavelength maximum (nm)
1	100	1.09 ± 0.06	548 ± 10
6	2.8	0.25 ± 0.05	600 ± 10
3	1.5	0.40 ± 0.05	630 ± 10

---

Conclusions

This work has shown proof of concept that the combination of luciferins from different lineages can lead to bioluminescent chimeric luciferins. In this preliminary work, careful selection of luciferin partners from fungal and firefly bioluminescence systems resulted in the design and synthesis of chimeric fungal–firefly luciferins that exhibited the farthest red shifted fungal luciferin bioluminescence recorded. The initial structural designs were validated by DFT calculations. The synthesis of the new chimeric fungal–firefly luciferins used the existing route used by Kaskova for the synthesis of fungal luciferin analogues and proved to be efficient in terms of yield and purity. The chimeric fungal–firefly luciferin 3 exhibited bioluminescence of λ_max = 630 nm compared to wild type fungal luciferin of λ_max = 548 nm. Substitution of the hydroxyl group in chimera 3 for a dimethylamino group gave chimera analogue 6 with λ_max = 600 nm. DFT calculations and optical measurements had suggested that chimera 6 possessed physical properties that could make it more red shifted than its parent chimera 3. However, subtle interactions with the oxidised light giving forms of their luciferins in the microenvironment of the luciferase active site, particularly with hydroxyl groups,⁷ may alter the character of the frontier molecular orbitals of the luciferins that are not captured by in vitro DFT or optical measurements. This has previously been noted for fungal luciferin analogues,²⁹ and those of coumarin luciferins²³ with respect to substitution of hydroxyl groups for dimethylamino substituents. The relative activities of chimera 3 and 6 are 2 orders of magnitude lower than that of fungal luciferin 1. In bioluminescence imaging brightness is not the absolute requirement for better penetration and resolution because of a reduced signal to noise effect caused by light scattering. Scatter of light is inversely proportional to the fourth power of wavelength and so is less for red shifted light. The two new luciferin structures 3 and 6 may thus offer a starting point for the further development of fungal luciferin bioluminescence imaging³⁹ through the engineering of fungal luciferase mutants and simple chemical structure modifications as has been achieved in firefly bioluminescence imaging. In addition the design of chimeric luciferins from other lineages offers a rational design concept for new luciferins that may be tuned for other bioluminescence applications.

Experimental

General experimental details – please see SI

Phosphonium salt 14. Synthesis was performed as reported in the literature²⁹ except for the step below which was improved by using an IR lamp instead of daylight.

6-(Bromomethyl)-3,4-dimethoxy-2H-pyran-2-one. To a solution of 6-methyl-3,4-dimethoxy-2H-pyran-2-one²⁹ (1.75 g, 10.3 mmol) in CCl₄ (120 mL) was added N-bromosuccinimide (3.66 g, 20.6 mmol) and benzoyl peroxide (50.0 mg, 0.206 mmol). The reaction mixture was stirred for 16 h under irradiation with a Philips IR175C-PAR 240 V 175 W white light lamp. After 16 h, the reaction mixture was diluted with DCM (50 mL), washed with a saturated aqueous solution of Na₂S₂O₃ (200 mL), and the aqueous layer re-extracted with DCM (3 × 150 mL). The combined organic layers were dried (Na₂SO₄), filtered and concentrated in vacuo. The residue was purified by flash chromatography (pet. ether/EtOAc 1 : 1) to give 20 (1.99 g, 78%, lit.³ 34%) as a yellow solid; R_f 0.29 (pet. ether/EtOAc 1 : 1); ¹H NMR (400 MHz, CDCl₃) δ 6.29 (1H, s, CH), 4.14 (2H, s, CH₂), 3.97 (3H, s, CH₃), 3.83 (3H, s, CH₃). ¹³C NMR (100 MHz, CDCl₃) δ 160.9 (C=O), 157.8 (CCH₂), 154.2 (COCH₃), 128.5 (C(OCH₃)C=O), 99.6 (CH), 60.3 (OCH₃), 57.8 (OCH₃), 26.9 (CH₂). The data was in agreement with the literature.²⁹

(E)-3,4-Dimethoxy-6-(2-((2-methoxy)methoxy)benzo[d]thiazol-2-yl)vinyl-2H-pyran-2-one (15). To a stirred mixture of NaOH (1.0 mL, 2.0 M aq. Solution) and phosphonium salt 14 ²⁹ (24.0 mg, 0.0471 mmol) in DCM (1.0 mL) was added aldehyde 12 ³⁷ (18.8 mg, 0.0704 mmol) and the reaction mixture was allowed to stir at room temperature. After 4 h, the reaction mixture was diluted with DCM (2 mL) and washed with water (2 × 2 mL). The aqueous layer was re-extracted with DCM (2 mL), and the combined organic layers were dried (Na₂SO₄), filtered and concentrated in vacuo. The residue was purified by flash column chromatography (pet. ether/EtOAc 1 : 1 → 1 : 4) to afford the product 10 (46.0 mg, quant.) as a fluorescent green syrup; R_f 0.26 (pet. ethe/EtOAc 1 : 1); λ_max (acetonitrile) = 389 nm (c = 0.27 mM, ε = 14 967 L mol⁻¹ cm⁻¹); IR (neat) 1692 (C=C), 1247 (C–O), 1029 cm⁻¹; ¹H NMR (500 MHz, CD₃CN) δ 7.81 (1H, d, J = 8.9, ArCH), 7.62 (1H, d, J = 2.4, ArCH), 7.33 (1H, d, J = 15.8, HC=CH), 7.16–7.12 (2H, m, HC=CH, ArCH), 6.78 (1H, s, CHCOCH₃), 5.27 (2H, s, OCH₂O), 3.95 (3H, s, OCH₃), 3.74–3.72 (2H, m, OCH₂), 3.70 (3H, s, OCH₃), 3.45–3.43 (2H, m, OCH₂), 3.18 (3H, s, OCH₃); ¹³C NMR (125 MHz, CD₃CN) δ 162.3 (COC=O), 159.2 (C=N), 158.1 (C=O), 156.0 (ArC), 152.4 (ArC), 149.3 (ArC), 136.4 (COCH₃), 129.2 (HC=CH), 125.8 (HC=CH), 125.5 (ArCH), 123.7 (ArCH), 117.5 (C(OCH₃)C=O), 107.6 (ArCH), 101.6 (HCCOCH₃), 93.8 (OCH₂O), 71.4 (OCH₂), 67.7 (OCH₂), 59.1 (OCH₃), 57.8 (OCH₃), 57.0 (OCH₃); HRMS C₂₀H₂₂NO₇³²S [M + H]⁺ calcd 420.1102, found 420.1112.

(E)-3,4-Dihydroxy-6-(2-((hydroxy)benzo[d]thiazol-2-yl)vinyl)-2H-pyran-2-one (3). A solution of 15 (310 mg, 0.740 mmol) in anhydrous TFA (10.0 mL) was stirred for 3 h at rt under N₂. The reaction mixture was neutralised with saturated aqueous NaHCO₃ solution until effervescence had stopped. The product was extracted with EtOAc (3 × 50 mL), dried (Na₂SO₄), filtered and concentrated in vacuo. The residue was purified by flash column chromatography (pet. ether/EtOAc 1 : 1) to afford the mono deprotected 6-OH (231 mg, 95%) as a pale green-fluorescent solid; R_f 0.14 (pet. ether/EtOAc 1 : 1); mp 85–86 °C; IR (neat) cm⁻¹ 3099, 2995, 2930 (C–H), 1684 (C=O), 1606 (C=C), 1410, 1347 (O–H bend), 1265 (C–O) cm⁻¹; ¹H NMR (500 MHz, DMSO) δ 10.14 (1H, s, OH), 7.81 (1H, d, J = 8.9, ArCH), 7.64–7.53 (1H, m, ArCH), 7.35 (1H, d, J = 15.8, HC=CH), 7.23 (1H, J = 15.9, HC=CH), 7.09 (1H, s, HCCOCH₃), 7.01 (1H, dd, J = 8.8, 2.4, ArCH), 3.94 (3H, s, OCH₃), 3.71 (3H, s, OCH₃); ¹³C NMR (125 MHz, DMSO) δ 162.3 (COC=O), 159.2 (C=N), 158.1 (C=O), 156.0 (ArC), 152.4 (ArC), 149.3 (ArC), 131.5 (COCH₃), 128.7 (HC=CH), 125.5 (HC=CH), 125.4 (ArCH), 123.8 (ArCH), 116.7 (COCH₃), 106.8 (ArCH), 101.6 (CHCOCH₃), 59.5 (OCH₃), 57.4 (OCH₃); HRMS C₁₆H₁₄O₅N³²S [M + H]⁺ calcd 332.0587, found 332.0580.

To a solution of the mono deprotected 6-OH compound prepared above (51.0 mg 0.142 mmol) in anhydrous DCM (40 mL) was added a solution of BBr₃ (7.10 mL of 1.0 M in DCM, 30 eq.) and the reaction mixture was allowed to stir for 3 days under N₂. The solvent and the excess BBr₃ were removed in vacuo, and the residue was partitioned between phosphate buffer (100 mL, pH 7.4) and EtOAc (100 mL). The layers were separated, the aqueous layer was further extracted with EtOAc (3 × 100 mL), and the combined organic layers dried (Na₂SO₄), filtered and concentrated in vacuo. The residue was dissolved in DMSO (6.00 mL) and purified by reverse-phase HPLC to give the product 3 (162 mg, 58%) as a green solid; R_t 13.4 min (5–95% acetonitrile in water); λ_max (DMSO) = 394 nm (c = 0.33 μM, ε = 2666 L mol⁻¹ cm⁻¹); IR (neat) 2925, 2856 (C–H), 1732 (C=O), 1457, 1376 (O–H bend), 1265 (C–O) cm⁻¹; ¹H-NMR (700 MHz, DMSO-d₆) δ 10.80 (1H, br s, OH), 9.96 (1H, s, OH), 9.23 (1H, br s, OH), 7.78 (1H, d, J = 8.8, ArCH), 7.37 (1H, d, J = 2.5, ArCH), 7.19 (1H, d, J = 15.9, HC=CH), 7.18 (1H, d, J = 15.9, HC=CH), 6.97 (1H, dd, J = 8.8, 2.5, ArCH), 6.59 (1H, s, CHC(OH)); ¹³C NMR (150 MHz, acetone-d6) δ 162.3 (COH), 161.0 (COC=O), 157.1 (C=N), 149.8 (C=O), 149.0 (ArC), 137.5 (ArC), 132.7 (C(OH)C=O), 129.5 (ArC), 129.4 (HC=CH), 126.4 (HC=CH), 124.7 (ArCH), 117.2 (ArCH), 107.4 (ArCH), 107.0 (CHC(OH)); HRMS C₁₄H₁₀O₅N³²S [M + H]⁺ calcd 304.0274, found 304.0278.

(E)-3,4-Dimethoxy-6-(2-((6-dimethylamino)benzo[d]thiazol-2-yl)vinyl)-2H-pyran-2-one (16). To a stirred mixture of NaOH (14 mL, 2.0 M aq.) and a solution of phosphonium salt 14 ²⁹ (204 mg, 0.400 mmol) in DCM (14 mL) was added the aldehyde 13³⁸ (124 mg, 0.602 mmol). After 3 h, the reaction mixture was diluted with DCM (2 × 50 mL), washed with H₂O (2 × 50 mL), dried (Na₂SO₄), filtered and concentrated in vacuo. The residue was purified by flash column chromatography (pet. ether/EtOAc 1 : 1) to afford 16 (123 mg, 86%.) as a fluorescent deep orange solid; R_f 0.41 (pet. ether/EtOAc 1 : 1); mp >200 °C (dec.); λ_max (acetonitrile) = 415 (c = 0.22 M, ε = 17 312 L mol⁻¹ cm⁻¹); IR (neat) 3087, 2918 (C–H), 1684 (C=O), 1611 (C=C), 1348 (C–N) 1278 (C–O), 1156 (C–O) cm⁻¹; ¹H NMR (500 MHz, CDCl₃) δ 7.84 (1H, d, J = 9.0, ArCH), 7.50 (1H, d, J = 15.6, HC=CH), 7.03 (1H, d, J = 2.6, ArCH), 6.97–6.92 (2H, m, HC=CH, ArCH), 6.21 (1H, s, CHC(OCH₃)), 3.99 (3H, s, OCH₃), 3.89 (3H, s, OCH₃), 3.05 (6H, s, N(CH₃)₂); ¹³C NMR (125 MHz, CDCl₃) δ 160.5 (COC=O), 159.0 (C=N), 158.2 (C=O), 153.4 (ArC), 149.4 (ArC-NMe₂), 146.2 (ArC), 138.0 (COCH₃), 129.3 (HC=CH), 127.3 (HC=CH), 123.8 (ArCH), 123.1 (ArCH), 114.0 (ArCH), 102.4 (ArCH), 100.2 (CHC(OCH₃)), 60.5 (OCH₃), 57.6 (OCH₃), 41.0 (N(CH₃)₂); HRMS C₁₈H₁₈N₂O₄³²S [M + H]⁺ calcd 359.1060, found 359.1057.

(E)-3,4-Dihydroxy-6-(2-((6-(dimethylamino)benzo[d]thiazol-2-yl)vinyl)-2H-pyran-2-one (6). To a solution of compound 16 (302 mg, 0.843 mmol) in anhydrous DCM (50 mL) was added a solution of BBr₃ (25.3 mL of 1.0 M in DCM, 30 eq.) and the reaction mixture was allowed to stir for 3 days under N₂. The solvent and the excess BBr₃ were removed in vacuo, and the residue was partitioned between phosphate buffer (150 mL, pH 7.4) and EtOAc (150 mL). The layers were separated, and the aqueous layer was further extracted with EtOAc (3 × 150 mL) and the combined organic layers were dried (Na₂SO₄), filtered and concentrated in vacuo. The residue was dissolved in DMSO (15 mL) and purified by reverse-phase HPLC to give the major product 6 (162 mg, 58%) as a reddish brown solid; R_t 17.2 min (5–95% acetonitrile in water); mp >250 °C (dec); λ_max (DMSO) = 444 nm (c = 0.9 μM, ε = 10474 L mol⁻¹ cm⁻¹); IR (neat) 3284 (O–H), 2923 (C–H), 1651 (C=O), 1561 (C=C), 1354 (C–N), 1153 (C–O) cm⁻¹; ¹H NMR (700 MHz, acetone-d6) δ 7.77 (1H, d, J = 9.1, ArCH), 7.30 (1H, d, J = 15.8, HC=CH), 7.24 (1H, d, J = 2.6, ArCH), 7.05 (1H, d, J = 15.8, HC=CH), 7.03 (1H, dd, J = 9.1, 2.6, ArCH), 6.52 (1H, s, CHC(OH)), 3.06 (6H, s, (N(CH₃)₂); ¹³C NMR (150 MHz, acetone-d6) δ 162.4 (COH), 160.1 (COC=O), 150.4 (C=N), 150.1 (C=O), 146.8 (ArC), 138.2 (ArC), 128.0 (C(OH)C=O), 125.4 (ArC), 125.2 (HC=CH), 124.1 (HC=CH), 122.4 (ArCH)), 114.4 (ArCH), 103.3 (ArCH), 103.0 (CHC(OH)), 40.8 (N(CH₃)₂); HRMS C₁₆H₁₅N₂O₄³²S [M + H]⁺ calcd 331.0742, found 331.0747.

Author contributions

JIA and ML developed the syntheses, ADB and AAF determined the bioluminescence data, ZMK interpreted the results, JCA conceived the project, directed the research and wrote the paper with input from all authors.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information: general experimental, kinetic data collection, computational data files, ¹H and ¹³C NMR spectra for all new compounds and HPLC traces with fraction collection. See DOI: https://doi.org/10.1039/d5ob01589h.

Acknowledgements

We thank the Leverhulme Trust RPG-2019-360, UCL and the Russian Science Foundation project number 25-76-30006 for funding.
