DOI:
10.1039/D5OB00273G
(Communication)
Org. Biomol. Chem., 2025,
23, 4648-4653
Arynes in green solvent: employing o-silylaryl triflates with propylene carbonate†
Received
14th February 2025
, Accepted 8th April 2025
First published on 11th April 2025
Abstract
Arynes generated from o-silylaryl triflate precursors are shown to engage with a range of arynophiles in propylene carbonate solvent. Possessing similar physicochemical properties to acetonitrile, propylene carbonate is found to be an effective direct solvent replacement, affording similar yields and promoting increased reaction rates. This is the first time that arynes have been used in conjunction with green and sustainable cyclic carbonate solvents.
Introduction
Solvents are the major component of chemical reactions. As traditional organic solvents are often volatile and toxic liquids, the large volumes used renders them one of the foremost chemical products harmful to health and the environment.1 In the pharmaceutical sector, organic solvents can comprise up to 56% of the entire mass involved in the preparation of a typical active pharmaceutical ingredient.2 Reducing the overall volume of solvent used, as well as finding safer and more sustainable alternatives to traditional options are key actions that align with the principles of green chemistry.3 Desirable characteristics for green solvent alternatives include low toxicity, low cost, biodegradability, simple handling and good chemical yields. To this end, many different solvents possessing a range of physicochemical properties have been investigated and several guides produced by industrial and academic consortia aimed at providing chemists with tools for alternative solvent selection.4
Cyclic carbonates are receiving growing interest as green solvents in both academia and industry.5 Amongst this class, propylene carbonate (PC) scores highly in the GSK Solvent Sustainability Guide and is one of the most widely used organic carbonates.6 PC is a non-corrosive liquid with low toxicity, high boiling point and low vapour pressure. It is also biodegradable and economical to produce, making it favourable to applications in large-scale industrial settings. The most common approach to synthesise PC is via cycloaddition of propylene oxide and CO2 (Scheme 1a), with cheap and effective methods reported for industrial-scale production.5–8 The process is 100% atom economical and makes use of an abundant non-toxic and renewable source of carbon. Given the continued rise in global CO2 emissions, fixation of this waste greenhouse gas affords additional environmental and sustainability benefits.9 The physicochemical properties of PC, such as dipole moment and Hansen solubility parameters (van der Waals forces, polarity and hydrogen bonding) are very similar to acetonitrile.4f,10 With comparable solvating ability to traditional dipolar aprotic solvents and featuring in several selection guides, PC is being used for an increasing range of synthetic transformations. These include hydrogenation,11a aldol11b and cyanohydrin11c reactions, hydrosilylation,11d metal-catalysed cross couplings,11e–g proline-catalysed aminations,11h bisindole synthesis,11i hydroacylation of alkynes,11j enzymatic kinetic resolution,11k Povarov cycloaddition11l and oxidations under continuous flow.11m
 |
| Scheme 1 (a) Propylene carbonate as a green and sustainable dipolar aprotic solvent. (b) Application of PEGDME as solvent in benzyne reactions. (c) Use of propylene carbonate as green solvent replacement for acetonitrile in aryne reactions. | |
Aryne chemistry is an area of synthesis that relies heavily on the use of dipolar aprotic solvents. These versatile reactive intermediates rapidly generate valuable benzenoid and heterocyclic frameworks commonly found in pharmaceuticals, agrochemicals and organic materials.12 They have experienced a recent resurgence in interest due to the advent of precursors that act under mild conditions, such as the o-trimethylsilylaryl triflates (oSATs),13 hexadehydro-Diels–Alder reaction of polyalkynes14 and the development of arenes bearing onium ion leaving groups.15 Most of the contemporary precursors, including oSAT and onium ion species, employ acetonitrile or ethereal solvents. However, very little has been documented regarding the replacement of these traditional solvents with greener and more sustainable alternatives. To the best of our knowledge, just one study exists in this area. Chandrasekhar and co-workers reported that a variety of benzyne reactions proceeded with good yields in poly(ethylene glycol) dimethyl ether (PEGDME), an environmentally benign and recyclable high boiling point solvent (Scheme 1b).16 The PEGDME was proposed to operate as both solvent and phase transfer catalyst to help solubilise the inorganic fluoride salt. Whilst these are very encouraging results, substituted aryne derivatives were not reported. Furthermore, PEGDME does not feature in major solvent selection guides (e.g. GSK solvent sustainability guide, Pfizer solvent selection tool, CHEM21 selection guide)4 which is likely to hinder uptake in the near future.
Given our interests in the chemistry of arynes,17 we postulated whether PC would be a viable alternative to the use of acetonitrile in transformations involving oSAT precursors (Scheme 1c). As the two solvents share very similar Hansen solubility parameters and PC scores highly in the GSK solvent guide,4e,f this could favour potential future adoption by the synthetic community. Such a replacement would provide a greener and more sustainable alternative to the conventional dipolar aprotic solvents currently used with oSAT precursors and would expand the options available to synthetic chemists when developing new aryne-based methodologies.
Results and discussion
To test our hypothesis, examples of well-known aryne transformations were selected that have been previously optimised for acetonitrile. The reactions were conducted in both PC and acetonitrile, to benchmark the literature processes in our hands and to enable a direct comparison of outcomes. Aryne Diels–Alder cycloadditions have been extensively studied over the years, so this transformation was chosen for the initial investigations. Following the procedure described by Garg and co-workers for the preparation of benzonorbornadiene units used for subsequent polymerisation, 2-trimethylsilylphenyl triflate 1 was heated to 50 °C in the presence of 2,5-dimethyl furan 7a and CsF (Scheme 2).18 Excitingly, when the reaction was conducted in PC the desired product 8a was isolated in an excellent 87% yield, which compared well with the literature. To directly assess the reaction efficiencies of PC and acetonitrile in our hands, addition of an internal standard (dibromomethane) to each crude mixture enabled swift quantification via1H NMR spectroscopy. Herein PC and acetonitrile were found to perform equally well, affording 90% and 91% NMR yields respectively. Attempts to reduce the amount of CsF employed in the process to 3 equivalents, from the 5 equivalents reported by Garg and co-workers,18 afforded only trace amounts of the Diels–Alder adduct in both solvents.
 |
| Scheme 2 Diels–Alder cycloaddition reactions of benzyne and 2,5-dimethyl furan conducted in propylene carbonate and acetonitrile solvents. 1H NMR yields vs. dibromomethane internal standard, isolated yield in parentheses. | |
Next, we investigated the rate of reaction in the two different solvents. To this end, aliquots were taken from each reaction mixture at fixed intervals and both the consumption of precursor 1 and formation of Diels–Alder adduct 8a were monitored by 1H NMR spectroscopy. Interestingly, the process conducted in PC was found to proceed at twice the rate of acetonitrile (see ESI† for details). Although the two solvents share many similar physicochemical properties, the observed difference in rates could be attributed to the marked variation in dielectric constants (PC = 64.9 cf. MeCN = 35.9 at 25 °C).4f It follows that greater solvation of CsF by PC should increase the rate at which the oSAT precursor is converted to aryne. This difference in aryne generation could be a valuable new tool for future methodology development involving oSATs.
Having confirmed that PC compares favourably to acetonitrile as a solvent for the Diels–Alder reaction between 1 and 7a, attention turned to investigating the substrate scope of the transformation. First, oSAT 1 was exposed to a selection of furans (7a–d) under the same reaction conditions (Scheme 3). Pleasingly, a comparison of the yields obtained in PC and acetonitrile revealed analogous reaction efficiencies to deliver adducts 8a–c. A slight decrease in yield was observed when furan derivative 7d was run in PC as opposed to acetonitrile (62% and 97% yields respectively).
 |
| Scheme 3 Diels–Alder cycloaddition reactions of benzyne and various furan derivatives conducted in propylene carbonate and acetonitrile solvents. 1H NMR yields vs. dibromomethane internal standard, isolated yields in parentheses. | |
Next, the Diels–Alder cycloaddition of furan 7a was performed with a range of substituted aryne derivatives 4a–h (Scheme 4). Encouragingly, there were no significant differences in reaction efficiencies between PC and acetonitrile in all examples. The cycloaddition worked very well with oSATs that possessed electron-donating or electron-withdrawing substituents, as well as moderate steric congestion around the aryne (4a–f). As such, adducts 9a–f were all furnished in very good to excellent yields and with no sizeable variation between the outcomes in both solvents. Interestingly, cycloadducts 9g and 9h were obtained in considerably lower yields; however, it is notable that the reaction efficiency in PC still matched that seen in acetonitrile (18% PC vs. 19% MeCN for 9g and 23% vs. 21% for 9h). These two compounds are generated via cycloaddition with the more reactive 2,3-naphthyne and 3,4-pyridyne intermediates, which might explain the lower yields attained. Finally, o-methoxy aryne precursor 4c was exposed to an unsymmetrical furan (7c). The reaction performed equally well in both solvents, with an analogous regioisomeric mixture of products afforded (2
:
1, 9i
:
9i′). It is noteworthy that no further reaction optimisation was attempted with any substrate in PC, as the primary focus of this investigation was the direct comparison of PC and acetonitrile. Importantly, this is the first time that substituted oSAT precursors have been used in a green solvent, whilst the successful inclusion of a heteroaryne (4h) is particularly interesting with regards to substrate diversification in methodology development.
 |
| Scheme 4 Diels–Alder cycloaddition reactions of various aryne derivatives and 2,5-dimethyl furan conducted in propylene carbonate and acetonitrile solvents. 1H NMR yields vs. dibromomethane internal standard, isolated yields in parentheses. | |
With the suitability of PC fully established as a solvent for the aryne Diels–Alder reaction, the final objective was to investigate whether it is a viable green alternative for acetonitrile across all the main classes of aryne reactivity. To this end, examples of nucleophilic addition, sigma bond insertion, multicomponent reactions, metal-catalysed cyclotrimerization and 1,3-dipolar cycloaddition were selected from the literature; all transformations having been optimised for acetonitrile.19–24 Following the procedures reported by Larock and co-workers,19 aniline was successfully mono- and di-arylated in both solvents to afford diphenylamine 10 and triphenylamine 11, respectively (Scheme 5a & b). However, whilst triphenylamine 11 was furnished in analogous yields across the two solvents, mono-arylation was much less effective in PC (37% vs. 92% yield in MeCN). Interestingly, analysis of the 1H NMR spectrum of the crude material from the PC reaction revealed the presence of triphenylamine 11. It is postulated that the faster rate of aryne generation in PC, as previously observed in the Diels–Alder cycloaddition, could lead to deleterious consumption of the target diphenylamine 10 during the mono-arylation process. Next, a formal aryne insertion into the central C–C sigma bond of ethyl 3-phenylpropionate was achieved without a major variation in reaction efficiency between the two solvents (39% PC and 51% MeCN, Scheme 5c).20 Encouragingly, a multicomponent reaction described by Tan and co-workers involving benzyne, isoquinoline and chloroform proceeded better in PC than acetonitrile (affording 90% vs. 80% respective NMR yields of dearomatized product 13) (Scheme 5d).21 PC was equally effective as a solvent in the transition metal free N-arylation of O-benzyl hydroxamate reported by Jin and co-workers, affording 14 in 69% NMR yield compared to 66% in acetonitrile (Scheme 5e).22 A more sizeable difference (i.e. >20% yield) was observed in the final two transformations studied, the palladium-catalysed cyclotrimerisation of benzyne reported by Pérez, Guitián and co-workers (Scheme 5f)23 and a 1,3-dipolar cycloaddition of benzyl azide described by Larock and co-workers (Scheme 5g).24 Importantly, PC still proved to be a suitable solvent for both reactions, leading to good amounts of the desired products, triphenylene 15 (55%) and benzotriazole 16 (62%). However, in these cases a more significant decrease was observed compared to acetonitrile (77% and 90% yields for 15 and 16 respectively). As previously noted in the Diels–Alder studies, none of the literature reactions were further optimised when PC was used as the solvent, so it is possible that the yields of these two processes, plus the mono-arylation of aniline, could be improved in the future if desired.
 |

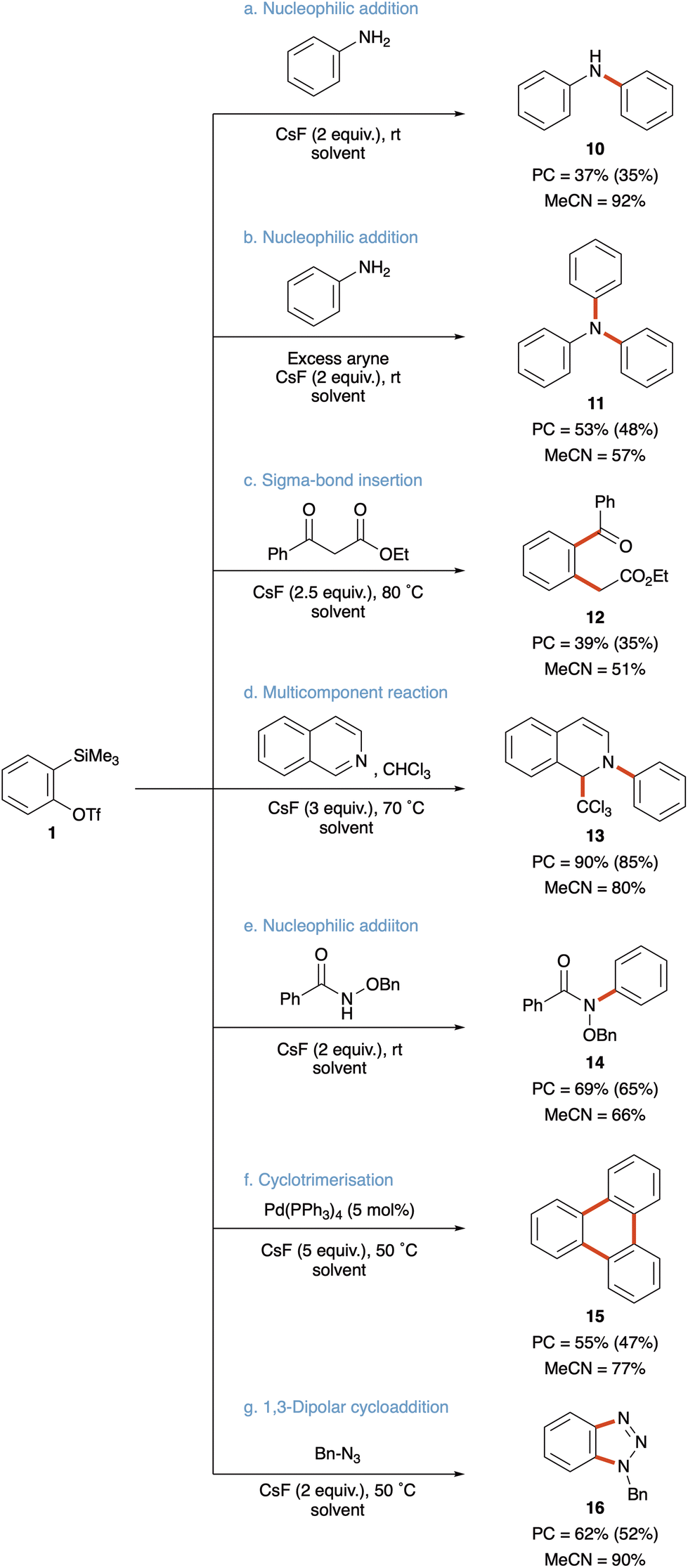

| Scheme 5 Common aryne transformations conducted in propylene carbonate and acetonitrile solvents. 1H NMR yields vs. dibromomethane internal standard, isolated yields in parentheses. | |
Conclusions
It has been shown that PC can be used as a direct replacement for acetonitrile in a range of aryne transformations involving oSAT precursors. There is little compromise on reaction efficiency, as the two solvents typically give analogous yields in reactions previously optimised for acetonitrile. PC was also found to promote reaction rate, potentially due to increased solubility of the inorganic fluoride salt. Reaction protocols involving PC are operationally simple, although it is noted that the high boiling point (242 °C) does require extraction of the reaction mixture with a small volume of hexane. Nevertheless, replacement of the reaction solvent with a green alternative, as well as reducing the volume of organic solvent required during work-up are notable advances with regards to applying green chemistry principles to chemical synthesis involving arynes. This study provides organic chemists with a viable greener and more sustainable solvent option to explore during future aryne methodology development.
Author contributions
Synthetic work was conducted by HF, KS, NA, RK and LAS. KS also supervised synthetic studies and contributed to paper writing. CJ conceived and led the project and wrote the paper.
Data availability
The data supporting this article have been included as part of the ESI.†
Conflicts of interest
There are no conflicts to declare.
Acknowledgements
We are grateful to DAAD RISE (GB-CH-5574, studentship to HF), the RSC (bursary to NA) and IPN (studentship to LAS) for financial support.
References
- C. Capello, U. Fischer and K. Hungerbühle, Green Chem., 2007, 9, 927 RSC.
- C. Jimenez-Gonzalez, C. S. Ponder, Q. B. Broxterman and J. B. Manley, Org. Process Res. Dev., 2011, 15, 912 CrossRef CAS.
- P. Anastas and N. Eghbali, Chem. Soc. Rev., 2010, 39, 301 RSC.
- Selected green solvent reviews:
(a) K. Alfonsi, J. Colberg, P. J. Dunn, T. Fevig, S. Jennings, T. A. Johnson, H. P. Kleine, C. Knight, M. A. Nagy, D. A. Perry and M. Stefaniak, Green Chem., 2008, 10, 31 RSC;
(b) D. Prat, J. Hayler and A. Wells, Green Chem., 2014, 16, 4546 RSC;
(c) F. P. Byrne, S. Jin, G. Paggiola, T. H. M. Petchey, J. H. Clark, T. J. Farmer, A. J. Hunt, C. R. McElroy and J. R. Sherwood, Sustainable Chem. Processes, 2016, 4, 7 CrossRef;
(d) D. Prat, A. Wells, J. Hayler, H. Sneddon, C. Robert McElroy, S. Abou-Shehada and P. J. Dunn, Green Chem., 2016, 18, 288 RSC;
(e) C. M. Alder, J. D. Hayler, R. K. Henderson, A. M. Redman, L. Shukla, L. E. Shuster and H. F. Sneddon, Green Chem., 2016, 18, 3879 RSC;
(f) A. Jordan, C. G. Hall, L. R. Thorp and H. F. Sneddon, Chem. Rev., 2022, 122, 6749 CrossRef CAS PubMed.
- Selected reviews of organic carbonates:
(a) W.-L. Dai, S. L. Luo, S. F. Yin and C. T. Au, Appl. Catal., A, 2009, 366, 2 CrossRef CAS;
(b) M. North, R. Pasquale and C. Young, Green Chem., 2010, 12, 1514 RSC;
(c) P. P. Pescarmona, Curr. Opin. Green Sustainable Chem., 2021, 29, 100457 CrossRef CAS;
(d) T. Yan, H. Liu, Z. X. Zeng and W. G. Pan, J. CO2 Util., 2023, 68, 102355 CrossRef CAS.
- J. S. Bello Forero, J. A. Hernández Muñoz, J. Jones Junior and F. M. da Silva, Curr. Org. Synth., 2016, 13, 834 CrossRef CAS.
- Selected examples using propylene oxide:
(a) D.-H. Lan, F.-M. Yang, S.-L. Luo, C.-T. Au and S.-F. Yin, Carbon, 2014, 73, 351 CrossRef CAS;
(b) J. Steinbauer and T. Werner, ChemSusChem, 2017, 10, 3025 CrossRef CAS PubMed;
(c) N. Liu, Y. F. Xie, C. Wang, S. J. Li, D. H. Wei, M. Li and B. Dai, ACS Catal., 2018, 8, 9945 CrossRef CAS;
(d) A. J. Kamphuis, F. Milocco, L. Koiter, P. P. Pescarmona and E. Otten, ChemSusChem, 2019, 12, 3635 CrossRef CAS PubMed;
(e) A. P. C. Ribeiro, P. Goodrich and L. M. D. R. S. Martins, Molecules, 2021, 26(4), 1089 CrossRef CAS PubMed.
- Selected examples without propylene oxide:
(a) S. Huang, S. Liu, J. Li, N. Zhao, W. Wei and Y. Sun, Catal. Lett., 2007, 118, 290 CrossRef CAS;
(b) J. M. Whitaker and R. C. Ronald, Synthesis, 2009, 1403 CAS;
(c) R. D. Aher, B. S. Kumar and A. Sudalai, Synlett, 2014, 97 CAS;
(d) S. P. Chavan and B. M. Bhanage, Tetrahedron Lett., 2014, 55, 1199 CrossRef CAS.
- M. Aresta and A. Dibenedetto, Catal. Today, 2004, 98, 455 CrossRef CAS.
-
(a) Y. Chernyak, J. Chem. Eng. Data, 2006, 51, 416 CrossRef CAS;
(b)
C. Hansen, Hansen Solubility Parameters, A User's Handbook, 2nd edn, CRC Press, Boca Raton, FL, 2007 CrossRef;
(c) M. Díaz de los Ríos and E. Hernández Ramos, SN Appl. Sci., 2020, 2, 676 CrossRef.
-
(a) B. Schäffner, V. Andrushko, J. Holz, S. P. Verevkin and A. Börner, ChemSusChem, 2008, 1, 934 CrossRef PubMed;
(b) M. North, F. Pizzato and P. Villuendas, ChemSusChem, 2009, 2, 862 CrossRef CAS PubMed;
(c) M. North and M. Omedes-Pujol, Tetrahedron Lett., 2009, 50, 4452 CrossRef CAS;
(d) A. Berh, F. Naendrup and D. Obst, Adv. Synth. Catal., 2002, 344, 1142 CrossRef;
(e) H. L. Parker, J. Sherwood, A. J. Hunt and J. H. Clark, ACS Sustainable Chem. Eng., 2014, 2, 1739 CrossRef CAS;
(f) A. Czompa, B. L. Pásztor, J. A. Sahar, Z. Mucsi, D. Bogdán, K. Ludányi, Z. Varga and I. M. Mándity, RSC Adv., 2019, 9, 37818 RSC;
(g) C. Torborg, A. Zapf and M. Beller, ChemSusChem, 2008, 1, 91 CrossRef CAS PubMed;
(h) C. Beattie, M. North and P. Villuendas, Molecules, 2011, 16, 3420 CrossRef CAS PubMed;
(i) P. N. de Azevedo, L. S. Behenck, J. S. B. Forero, J. A. H. Muñoz, E. M. de Carvalho, J. Jones-Junior and F. M. da Silva, Curr. Org. Synth., 2014, 11, 605 CrossRef CAS;
(j) P. Lenden, P. M. Ylioja, C. González-Rodríguez, D. A. Entwistle and M. C. Willis, Green Chem., 2011, 13, 1980 RSC;
(k) X.-M. Wu, W. Sun, J.-Y. Xin and J.-Y. Xia, World J. Microbiol. Biotechnol., 2008, 24, 2421 CrossRef CAS;
(l) J. S. B. Forero, E. M. de Carvalho, J. Jones, Jr and F. M. da Silva, Curr. Org. Synth., 2014, 12, 102 CrossRef;
(m) B. Pieber and O. Kappe, Green Chem., 2013, 15, 320 RSC.
- Selected reviews:
(a) R. Sanz, Org. Prep. Proced. Int., 2008, 40, 215 CrossRef CAS;
(b) P. M. Tadross and B. M. Stoltz, Chem. Rev., 2012, 112, 3550 CrossRef CAS PubMed;
(c) A. V. Dubrovskiy, N. A. Markina and R. C. Larock, Org. Biomol. Chem., 2013, 11, 191 RSC;
(d) R. W. Hoffmann and K. Suzuki, Angew. Chem., Int. Ed., 2013, 52, 2655 CrossRef CAS PubMed;
(e) D. Pérez, D. Peña and E. Guitían, Eur. J. Org. Chem., 2013, 5981 CrossRef;
(f) J.-A. García-Loṕez and M. F. Greaney, Chem. Soc. Rev., 2016, 45, 6766 RSC;
(g) O. J. Diamond and T. J. Marder, Org. Chem. Front., 2017, 4, 891 RSC;
(h) F. I. M. Idiris and C. R. Jones, Org. Biomol. Chem., 2017, 15, 9044 RSC;
(i) J. Shi, L. Li and Y. Li, Chem. Rev., 2021, 121, 3892 CrossRef CAS PubMed;
(j) K. Kamikawa, Nat. Rev. Chem., 2023, 7, 496 CrossRef PubMed;
(k) N. Kim, M. Choi, S.-E. Suh and D. M. Chenoweth, Chem. Rev., 2024, 124, 11435 CrossRef CAS PubMed.
- Y. Himeshima, T. Sonoda and H. Kobayashi, Chem. Lett., 1983, 12, 1211 CrossRef.
- T. R. Hoye, B. Baire, D. Niu, P. H. Willoughby and B. P. Woods, Nature, 2012, 490, 208 CrossRef CAS PubMed.
- Selected examples:
(a) M. Lanzi, T. Rogge, T. S. Truong, K. N. Houk and J. Wencel-Delord, J. Am. Chem. Soc., 2023, 145, 345 CrossRef CAS PubMed;
(b) R. A. Roberts, B. E. Metze, A. Nilova and D. R. Stuart, J. Am. Chem. Soc., 2023, 145, 3306 CrossRef CAS PubMed;
(c) B. E. Metze, R. A. Roberts, A. Nilova and D. R. Stuart, Chem. Sci., 2023, 14, 13885 RSC;
(d) O. Smith, M. J. Hindson, A. Sreenithya, V. Tataru, R. S. Paton, J. W. Burton and M. D. Smith, Nat. Synth., 2024, 3, 58 CrossRef CAS.
- S. Rai, P. Samatha, R. Addipillib, P. S. Mainkara, P. Sripadib, R. Adepua and S. Chandrasekhar, Synthesis, 2022, 5026 CAS.
-
(a) P. Trinchera, W. Sun, J. E. Smith, D. Palomas, R. Crespo-Otero and C. R. Jones, Org. Lett., 2017, 19, 4644 CrossRef CAS PubMed;
(b) F. I. M. Idiris, C. E. Majesté, G. B. Craven and C. R. Jones, Chem. Sci., 2018, 9, 2873 RSC;
(c) W. Sun, P. Trinchera, N. Kurdi, D. Palomas, R. Crespo-Otero, S. Afshinjavid, F. Javid and C. R. Jones, Synthesis, 2018, 4591 CAS;
(d) Y. Yang, Y. Xu and C. R. Jones, Eur. J. Org. Chem., 2019, 5196 CrossRef CAS;
(e) E. A. Neal, A. Y. R. Werling and C. R. Jones, Chem. Commun., 2021, 57, 1663 RSC;
(f) W. Sun, M. Uttendorfer, F. I. M. Idiris, A. W. Y. Werling, K. Siddiq and C. R. Jones, Chem. Commun., 2023, 59, 11823 RSC;
(g) H. U.-R. Shah, Q. Li and C. R. Jones, Chem. Commun., 2024, 60, 11928 RSC.
- J. M. Medina, J. H. Ko, H. D. Maynard and N. K. Garg, Macromolecules, 2017, 50, 580 CrossRef CAS PubMed.
- Z. J. Liu and R. C. Larock, J. Org. Chem., 2006, 71, 3198 CrossRef CAS PubMed.
- U. K. Tambar and B. M. Stoltz, J. Am. Chem. Soc., 2005, 127, 5340 CrossRef CAS PubMed.
- J. Tan, B. Liu and S. Su, Org. Chem. Front., 2018, 5, 3093 RSC.
- L. Zhang, Y. Geng and Z. Jin, J. Org. Chem. Soc., 2016, 81, 3542 CrossRef CAS PubMed.
- D. Peña, S. Escudero, D. Pérez, E. Guitián and L. Castedo, Angew. Chem., Int. Ed., 1998, 37, 2659 CrossRef.
- F. Shi, J. P. Waldo, Y. Chen and R. C. Larock, Org. Lett., 2008, 10, 2409 CrossRef CAS PubMed.
|
