Effects of Néel and Brownian relaxations on dynamic magnetization empirically characterized in single-core and multicore structures of magnetic nanoparticles

Abstract

This study takes a novel approach toward understanding the diagnostic and therapeutic efficacy of magnetic nanoparticles for cancer theranostics. We focused on the parameters influencing the dynamic magnetization response, such as particle core size and magnetic anisotropy. Our experimental investigation on the relationship between magnetic relaxation and these particle parameters provides fresh insights for developing biomedical applications. The magnetic relaxation time was estimated from the magnetic relaxation process and measured by applying a pulsed magnetic field over a wide time range of 20 ns to 200 ms. Magnetic nanoparticles with single-core and multicore structures under viscous fluid and solid conditions were investigated to evaluate the Néel and Brownian relaxations, respectively, associated with the magnetization and physical particle rotations. We observed a distinct magnetization response associated with the complex magnetic relaxation mechanisms, which challenged the concept described by the conventional theory of effective relaxation time. Moreover, we clarified the relationship between the effective magnetic anisotropy energy and attempt time for controlling the magnetization dynamics dependent on particle structures. Our novel measurement technique and investigation of the magnetic relaxation time provide guidance for significantly optimizing material design and determining the magnetic field conditions for the biomedical applications of magnetic nanoparticles, particularly in cancer theranostics.

---

1 Introduction

The sensitivity and resolution in magnetic particle imaging (MPI)¹ and heating performance in hyperthermia treatment² depend on the magnetic properties of magnetic nanoparticles (MNPs). MNP parameters, such as size and the anisotropy constant associated with particle structure, have been evaluated,^3–8 and the relationship between these parameters and performance in biomedical applications has been discussed.^9–13 The core size and anisotropy constant of MNPs were estimated using a measured magnetization curve in a static magnetic field.⁹ The dependence of shape and size on the anisotropy constant was determined by analyzing the blocking temperature.¹⁰ The size, shape, and structure of MNPs influenced the signal intensity of MPI^11–15 and hyperthermia performance.^16–27

Magnetic relaxation is an important magnetization characteristic for biomedical applications. The tumor microscopic structure has been assessed by measuring the magnetic relaxation of MNPs injected into tumors in vivo.²⁸ The Néel and Brownian relaxations are two relaxation types associated with magnetization and particle physical rotation, respectively. The relaxation times τ_N and τ_B for the Néel and Brownian types are represented, respectively, by the following equations:

where τ₀, K_eff, V_M, k_B, T, η, and V_H denote the attempt time, effective anisotropy constant, MNP volume, Boltzmann constant, temperature, viscosity of the solvent, and hydrodynamic volume of the MNPs, respectively. Néel and Brownian relaxations occur in parallel, and the effective relaxation time τ_eff is obtained as follows:²⁹

Under zero-field conditions, the magnetic relaxation time is given by eqn (1) and (2). The dependence of the Néel and Brownian relaxation times on the applied magnetic field strength has been observed using numerical simulations.³⁰

Magnetic relaxation has been evaluated using magnetic susceptibility measurements under an alternating current (AC) magnetic field, and the magnetic relaxation time has been calculated based on the Debye model.³¹ In addition, magnetic relaxation processes have been observed using a pulsed magnetic field.^32–34

In this study, we prepared electrical circuits to measure the magnetic relaxation process over a considerably wide measurement period with relatively low concentrations compared to in our previous studies,^32,33 to decrease the effects of the dipole interactions. Measurements were conducted by changing the solvent, and the effect of the relaxation mechanisms on the net magnetization dynamics was thus investigated. The distribution of the magnetic relaxation time, including the Néel and Brownian relaxation mechanisms, was estimated from the measured magnetic relaxation process. It is known that the magnetic relaxation mechanism can be affected by several parameters, such as the particle volume, anisotropy constant and attempt time, based on the particle structure and material composition. While the dominance of the relaxation mechanism based on the effective relaxation time theory has been previously discussed,^35–37 the effective parameters affecting the relaxation mechanism dependent on particle structure have not been confirmed empirically.

An empirical model of the magnetic relaxation in multicore MNPs would be useful for hyperthermia treatment and MPI owing to the large hysteresis²⁶ and strong nonlinear magnetization of such MNPs,³ respectively, which could be characterized by comparison with the relaxation in single-core particles. This comparison could contribute to the design of MNPs for future biomedical applications. Generally, MNPs formed by clustered core particles as effective particles are referred to as multicore-structured MNPs.³⁸ It was previously reported that under a magnetic field, the magnetic moments in single-crystalline core particles were rotated in multicore particles, which was different from the domain-wall displacement in the multidomain structures.³¹

2 Experimental section

2.1 Sample preparation

Various commercially dispersed iron oxide nanoparticles were obtained, namely SHA-20 (Ocean NanoTech Ltd, San Diego, CA, USA), Synomag®-D (Micromod Partikeltechnologie GmbH, Rostock, Germany), and Resovist® (PDR Pharma Ltd, Tokyo, Japan), each with a concentration of 20 mg-Fe per mL. SHA-20³⁹ and Resovist®⁴⁰ consisted of Fe₃O₄ and γ-Fe₂O₃, respectively, while Synomag®-D²⁶ consisted of γ-Fe₂O₃. As the liquid samples, MNPs were dispersed in diluted water with viscosity η of 0.89 mPa s and diluted water mixed with glycerol (FUJIFILM Wako Pure Chemical Corp., Tokyo, Japan) to adjust η = 5.4 and 12.4 mPa s. η were measured using a viscometer (VM-10A; Sekonic Corp., Tokyo, Japan). Additionally, the MNPs were embedded in epoxy resin to form solid samples. The structure and diameter of the MNPs were observed by transmission electron microscopy (TEM) at the Hanaichi UltraStructure Research Institute (Okazaki, Japan). Details regarding the analysis of the diameters of the MNPs are provided in ESI Note S1.†

2.2 Measurement of the DC magnetization

The DC magnetization of the MNPs was measured using a vibrating sample magnetometer (VSM) system (Riken Denshi Co., Tokyo, Japan), which primarily comprised an electromagnet, sample vibrator, and pick-up coils. Electric current was supplied to the electromagnet using a bipolar power supply (Kudo Electric Co. Ltd, Sendai, Japan), controlled by a function generator (WF1983; NF Corp., Yokohama, Japan). The strength of the applied magnetic field was measured using a Tesla meter (F41; Lake Shore Cryotronics Inc., Ohio, USA). The magnetization signal detected by the pick-up coils was measured using a lock-in amplifier (LI5645; NF Corporation, Japan) and recorded using a Memory HiCorder unit (MR6000-01) with a digital voltmeter (MR8990) purchased from Hioki EE Corporation, Ueda, Japan. The method for estimating the effective core diameters is detailed in ESI Note S2.†

2.3 Measurement of the magnetic relaxation process

The magnetic relaxation process in the prepared samples was measured using various types of pick-up and excitation coils. The pick-up coils measured the induced voltage (Volt) according to Faraday's law, represented by Volt = −dΦ/dt, where Φ is the magnetic flux. A high number of turns in the pick-up coil is required to achieve sufficiently high sensitivity to measure the slow magnetization response. By contrast, when the magnetization response is fast, the number of turns should be small, because the time constant of the coil is proportional to the inductance. Designing different electric circuits was thus necessary, including coil sets, such as circuits (i)–(v), as shown in Fig. S4 and Table S1,† for each measurement period. The magnetization response was measured using circuits (i)–(iii) in η = 0.89 and 5.4 mPa s, circuits (i)–(iv) in η = 12.4 mPa s, and circuits (i)–(v) in the solid. A cancel coil was used in circuits (ii)–(v) to reduce the voltage derived from the applied magnetic field together with the differential amplifier SA-440F5 driven by the DC voltage source LP5392 (NF Corp., Yokohama, Japan). The function generators AFG3022C (Tektronix Inc., Beaverton, OR, USA) and WF1974 (NF Corp., Yokohama, Japan) were used as the pulse waveform generators in circuits (i)–(iii) and (iv)–(v), respectively. The output waveform was measured using the MSO64 6-BW-1000 oscilloscope (Tektronix Inc., Beaverton, OR, USA). The cut-off frequencies of the low pass filters included in each circuit were adjusted with negligible interruption to the measured signal of MNPs to remove white noise.

The specific measurement periods were determined by the time constant and sensitivity of the electric circuits, and the magnetization in each measured MNP, as shown in Table S2.† When measuring the solid sample in circuit (i), the two measurement periods were set by adjusting the rise time of the pulsed magnetic field. High resolution in the vertical range of the oscilloscope was required for measuring the relatively slow magnetization response. A wide vertical range of the oscilloscope was thus required to also measure the fast response, owing to Faraday's law, but this reduced the resolution for measuring the low voltage induced by the slow response.

The maximum intensity of the pulsed excitation magnetic fields was 0.1 mT, with the rise time defined as 90% of the maximum value reached in 12.2 ns. Details on connecting the magnetic relaxation processes measured across the different circuits and the normalization of the magnetization values per unit weight are provided in ESI Note S3.† The method for estimating the magnetic relaxation time is described in ESI Note S4.†

2.4 Measurement of AC susceptibility

AC susceptibilities were measured at frequencies ranging from 100 Hz to 1 MHz at an amplitude of 0.1 mT. Circuits (iii), (vi), and (vii), shown in Fig. S4c, S9a, and S9b,† were used in the 100 Hz to 10 kHz, 10–100 kHz, and 100 kHz to 1 MHz frequency ranges, respectively. The measured AC susceptibilities of the different circuits were normalized at 10 kHz and 100 kHz of the frequency, dividing the measurement range into smaller ranges to treat the AC susceptibilities continuously in the 100 Hz to 1 MHz frequency range. The function generator AFG3022C (Tektronix Inc., Beaverton, OR, USA) was used as the AC waveform generator. Regarding the differential amplifier and oscilloscope, systems similar to those used to measure the magnetic relaxation process were used.

The real and imaginary parts of the susceptibility, χ′ and χ′′, were calculated as follows:

where χ₀, f, χ, θ, H₀, and M_AC denote the initial susceptibility, the frequency of an applied AC magnetic field, the susceptibility, phase delay, amplitude of the applied AC magnetic field, and magnetization measured under the AC magnetic field.^31,41χ was calculated as the ratio of M_AC to H₀ because the value of H₀ was sufficiently small that the linear response theory could be applied.

3 Results and discussion

3.1 DC magnetization curve

Fig. 1a–c show the core structures of the measured MNPs. SHA-20 exhibited a single-core structure, whereas Synomag®-D primarily exhibited a multicore structure with a few particles displaying single cores. The Resovist® particles were mainly single-core particles, with some multicore ones. Fig. 1d–f present the volume fraction, as analyzed from Fig. 1a–c, where aggregated particles were counted as effectively large multicore particles in Synomag®-D. A histogram of the number of counted particles is also shown in Fig. S10.†

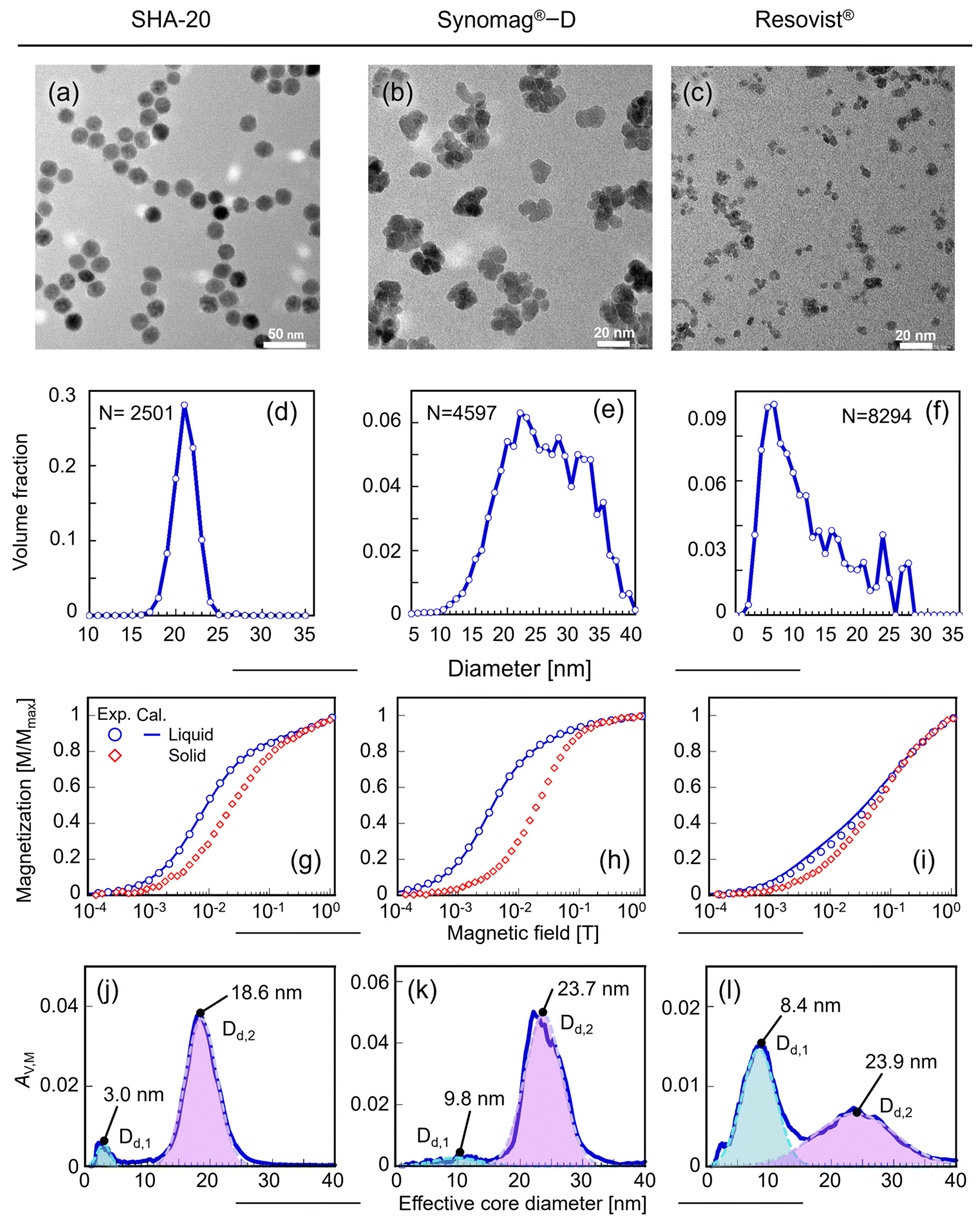

Fig. 1 TEM images of (a) SHA-20, (b) Synomag®-D, and (c) Resovist®. Volume fraction calculated from TEM images for (d) SHA-20, (e) Synomag®-D, and (f) Resovist®. Magnetization curves under a DC magnetic field for (g) SHA-20, (h) Synomag®-D, and (i) Resovist®.

Fig. 1g–i show the measured magnetization curves under DC magnetization fields of 0–1.5 T. The coercivities of Synomag®-D and Resovist® were marginal in the solid samples, indicating that the MNPs behaved superparamagnetically. The coercivity of SHA-20 in the solid sample was 0.65 mT, which was relatively large compared to that of Synomag®-D and Resovist®.

The maximum magnetizations in the solid and liquid samples were similar for all the MNPs tested. The magnetization in the solid sample was lower than that in the liquid sample at the magnetic field strength where magnetization did not achieve saturation because the magnetic anisotropy energy bound the magnetization to the easy axis. Fig. 1j–l show the effective core diameter d_C distribution, estimated from the DC magnetization curves for the liquid samples. Furthermore, the distribution was fitted by a normal distribution. Table 1 shows the mean ± SD values for the d_C distribution. SHA-20 exhibited a diameter of approximately 20 nm without an organic coating layer.³⁹ This aligned with the second peak of the d_C distribution shown in Fig. 1j. For Synomag®-D, the effective d_C of the core particles included in the multicore structure was approximately 10 nm, whereas that of the multicore particles was approximately 20 nm.^42,43 These aligned with the first and second peaks of the d_C distribution, D_d,1 and D_d,2, shown in Fig. 1k. In Resovist®, the averaged values of the d_C distribution were 8.4 and 23.9 nm, as shown in Table 1. In particular, the distribution of D_d,2 in Resovist® was broader than that for SHA-20 and Synomag®-D, consistent with the trends reported in previous studies.^9,38,42,43

Table 1 Values of mean ± SD with respect to d_C estimated from the distribution shown in Fig. 1j–l by fitting using normal distribution and saturation magnetization in SHA-20, Synomag®-D, and Resovist®

		SHA-20	Synomag®-D	Resovist®
d C [nm]	D d,1	3.0 ± 1.0	9.8 ± 3.6	8.4 ± 2.7
	D d,2	18.6 ± 2.5	23.7 ± 2.9	23.9 ± 6.5
Saturation magnetization [emu per g-Fe]		111.5	110.6	96.3

---

While Fig. 1j–l generally aligned with Fig. 1d–f, the distribution peaks calculated from the TEM images were higher than those derived from the DC magnetization curves, particularly in Synomag®-D. With respect to SHA-20, the distribution of D_d,1 was not observed in the TEM image (Fig. 1d and j). The saturation magnetization shown in Table 1 showed higher values for bulk γ-Fe₂O₃ (60–80 emu per g-Fe) and Fe₃O₄ (92–100 emu per g-Fe).³⁹ The differences in the d_C distribution and saturation magnetization were due to gradually increasing the magnetization toward saturation by the dipole–dipole interactions and the inhibition of magnetization by the demagnetizing field, which led to magnetic polarization.

3.2 Magnetic relaxation dependent on the particle structure

Fig. 2 shows the time evolution of the magnetization response measured by applying a pulsed magnetic field to the liquid and solid samples. The percentages of M_pulse at 200 ms in uncompleted magnetic relaxation for SHA-20 and Resovist® were 94% and 96%, respectively. Regarding SHA-20 and Resovist®, the magnetic relaxation time increased with η because τ_B was proportional to η, as shown in eqn (2). By contrast, the relaxation process was almost unaffected by η in Synomag®-D. Hence, the process was slightly faster for η = 5.4 and 12.4 mPa s compared with that in η = 0.89 mPa s.

Fig. 2 Magnetic relaxation process measured by applying a pulsed magnetic field to the liquid and solid samples, as shown by the plots, which were fitted using eqn (S3)† as represented by the curves with respect to (a) SHA-20, (b) Synomag®-D, and (c) Resovist®. The viscosity in the liquid sample was adjusted to 0.89, 5.4, and 12.4 mPa s.

The magnetic relaxation time was fitted by a lognormal distribution from 100 ns to 1 s (see Fig. 3). Because the magnetization response up to approximately 20 ns was affected by the transitional response of the applied magnetic field limited by the time constant of the measurement circuit due to the inductance of the excitation coil, a relaxation time distribution larger than 100 ns was fitted with a lognormal distribution. A relaxation time shorter than 20 ns insufficiently illustrated the magnetization response owing to the transitional response of the applied magnetic field, whereas the magnetic relaxation occurred faster than 20 ns.

Fig. 3 Distribution of the magnetic relaxation time estimated from the magnetic relaxation process shown in Fig. 2 using eqn (S3),† as represented by the solid curves, which were fitted to a lognormal distribution from 100 ns to 1s at each characteristic peak, as shown by the dotted curves for (a) SHA-20, (b) Synomag®-D, and (c) Resovist®.

The peak values of the relaxation time distribution, τ_peak, fitted using the lognormal distribution (see Fig. 3) are shown in Fig. 4. The plots and dotted lines represent the liquid and solid samples, respectively, for each measured MNP. The theoretical curves of τ_B calculated using eqn (2) are shown as dotted curves in Fig. 4. Notably, the mean hydrodynamic diameters measured using dynamic light scattering (DLS), d_H,DLS, were 60.3, 45.5, and 53.8 nm (PDI = 0.160, 0.070, and 0.199) for SHA-20, Synomag®-D, and Resovist®, respectively. The distributions shown for the solid samples were derived from Néel relaxation because particle rotation was inhibited.

Fig. 4 Peak values of the relaxation time distributions determined in liquid and solid samples using the lognormal distribution in Fig. 3, shown by plots and dotted lines, respectively, with respect to (a) SHA-20, (b) Synomag®-D, and (c) Resovist®. The theoretical τ_B calculated using eqn (2), is shown by the dotted curves.

In SHA-20, the relaxation time distribution was divided into two distributions of D_τ,1 and D_τ,2 in the liquid samples, and four distributions of D_τ,1, D_τ,2, D_τ,3, and D_τ,4 in the solid sample by fitting them to the lognormal distribution, as shown in Fig. 3a. In the liquid samples, τ_peak in D_τ,2 increased with η. By contrast, τ_peak in D_τ,1 was not affected by η. The theoretical curve was close to the approximated curve of τ_peak in D_τ,2 in the liquid samples, as shown in Fig. 4a (R² = 0.946). Furthermore, the estimated hydrodynamic diameter d_H,est was 62.9 nm, which was close to the measured d_H,DLS.

These observations indicated that D_τ,2 in the liquid samples was derived from Brownian relaxation. τ_peak in D_τ,1 in the liquid samples, which was approximately identical to τ_peak in D_τ,1 in the solid sample, was derived from Néel relaxation. In addition, these were longer than those in the solid samples owing to the influence of particle rotation as the initial response in the Brownian relaxation. The relaxation time distribution in the solid samples exhibited multiple peaks, despite the sharp diameter distribution observed in the TEM images (see Fig. 1d) and in the DC magnetization curves (see Fig. 1j). This suggests that the magnetic anisotropy in SHA-20 could vary, possibly owing to the heterogeneous particle aggregation impacted by surface modification. The distribution density of aggregated particle counts, as analyzed from the TEM image and as shown in Fig. S11,† supports this hypothesis.

In Synomag®-D, the relaxation time distribution was divided into D_τ,1 and D_τ,2 with η = 0.89 mPa s; D_τ,1, D_τ,2, and D_τ,3 with η = 5.4 mPa s and η = 12.4 mPa s; and D_τ,1, D_τ,2, D_τ,3, and D_τ,4 in the solid sample by fitting using the lognormal distribution (see Fig. 3b).

τ _peak in D_τ,2 with η = 0.89 mPa s and τ_peak in D_τ,3 with η = 5.4 and 12.4 mPa s were close to τ_peak in D_τ,3 in the solid sample. Also, τ_peak in D_τ,1 with η = 0.89 mPa s and τ_peak in D_τ,2 with η = 5.4 and 12.4 mPa s were close to τ_peak in D_τ,2 in the solid sample. Again, τ_peak in D_τ,1 with η = 5.4 and 12.4 mPa s were close to τ_peak in D_τ,1 in the solid sample. These peaks were considered to be dominantly derived from Néel relaxation. In addition, τ_peak in the liquid samples was not proportional to the viscosity, despite M_max in the liquid being sufficiently larger than that in the solid (see Fig. 2), presumably due to the particle rotation, which is conventionally affected by the viscosity. This contradiction was due to the specific magnetic relaxation mechanism discussed in Section 3.4. In the solid samples, τ_N was typically shorter than ∼10 ns. However, the distributions from the TEM images (see Fig. 1e) and DC magnetization curves (see Fig. 1k) indicated particle diameters of predominantly 20–30 nm, with τ_N exceeding 10 ns. This finding suggests that the magnetization of core particles (10–15 nm) in multicore particles may occur primarily with τ_N shorter than 10 ns.

In Resovist®, the τ_peak values in D_τ,2, D_τ,4, and D_τ,3 with η = 0.89, 5.4, and 12.4 mPa s were longer than the theoretical τ_B calculated at d_H,DLS = 53.8 nm. Furthermore, the τ_peak values were proportional to η, as shown in Fig. 4c, indicating their association with Brownian relaxation at d_H,est = 96.9 nm (R² = 0.998).

By contrast, the Brownian relaxation derived from d_H,DLS = 53.8 nm presumably occurred because the magnetization distribution M_maxA_M,τ at the theoretical τ_B was sufficiently large. Considering the Brownian relaxation derived from d_H,DLS and d_H,est, the distribution of d_H in Resovist® was relatively more comprehensive than in both SHA-20 and Synomag®-D, which indicates the limitation of the spherical approximation for hydrodynamic structures.

τ _peak in D_τ,1 in the liquid was close to τ_peak in D_τ,1 in the solid, owing to the dominance of Néel relaxation, which indicates that the particles in D_d,1 in Fig. 1l dominantly rotated with Néel relaxation. Because the τ_peak values in D_τ,2 with η = 0.89 mPa s, D_τ,4 with η = 5.4 mPa s, and D_τ,3 with η = 12.4 mPa s were proportional to the viscosity, the relatively large particles in D_d,2 in Fig. 1l dominantly rotated with Brownian relaxation. The dominance of Néel relaxation in smaller particles and that of Brownian relaxation in larger particles in Resovist® particles was also observed in ref. 44. On the other hand, it is also worth noting that it is difficult to determine the threshold of the core particle size when the dominant relaxation mechanisms changes. Here, τ_peak in D_τ,3 with η = 5.4 mPa s was close to both the theoretical τ_B and τ_peak in D_τ,2 in the solid, demonstrating the contribution of both Néel and Brownian relaxations. By contrast, τ_peak in D_τ,2 with η = 12.4 mPa s was close to only τ_peak in D_τ,2 in the solid, because only Néel relaxation occurred when τ_B increased with a high η. Néel relaxation was more significant with increasing η because τ_B was long compared to τ_N, in accordance with the conventional theory of the effective relaxation time shown by eqn (3). The MNPs with a relaxation time corresponding to D_τ,2 in η = 5.4 mPa s were presumably distributed in the broad D_τ,1 at η = 0.89 mPa s and D_τ,2 at η = 12.4 mPa s.

3.3 Magnetization dynamics under AC magnetic fields dependent on the particle structure

Fig. 5 shows the real and imaginary parts of the susceptibility, χ′ and χ′′, respectively, measured under AC magnetic fields in η = 0.89 and 5.4 mPa s and solid samples. In addition, χ′ and χ′′ were calculated from the magnetic relaxation time distribution (see Fig. 3) based on the Debye model given by eqn (4) and (5).

Fig. 5 AC susceptibility calculated from the magnetic relaxation time distribution shown in Fig. 3 using eqn (4) and (5), as represented by the solid curves, with respect to (a) SHA-20, (b) Synomag®-D, and (c) Resovist®. The plots show the measured AC susceptibility from 100 Hz to 1 MHz for η = 0.89 and 5.4 mPa s in the solid samples.

The measured and calculated χ′ and χ′′ agreed at η = 0.89 and 5.4 mPa s. In addition, the frequency in the local maximum peaks of χ′′ observed in the 100 Hz to 10 kHz range was proportional to η in SHA-20 and Resovist®, but was not proportional to η in Synomag®-D. These results corresponded to the magnetic relaxation time distribution trend shown in Fig. 3 and 4.

In the solid, particularly with respect to Resovist®, although the measured and computed χ′ agreed with each other, the measured χ′′ was smaller than the calculated χ′′. The magnetic relaxation time for the small d_c components included in D_d,1 (see Fig. 1l), which was shorter than the transition time of the applied magnetic field, was estimated as a longer relaxation time compared to the actual value in Resovist®. This limitation decreased the peak frequency of the calculated χ′′ compared to the measured χ′′, increasing the χ′′ calculated using eqn (5).

In SHA-20, 94% of the magnetic relaxation process in the solid occurred at 200 ms. Some uncertain components derived from the remaining 6% magnetization caused the slight disagreement between the measured and calculated χ′′ in the solid.

3.4 Model of the complex magnetic relaxation dependent on the particle structure

Under a zero magnetic field, the easy axis inherent in the particle body and magnetization were simultaneously disturbed by the thermal energy in the liquid. In SHA-20, the magnetization was rotated along the easy axis under the applied magnetic field (see Fig. 6a). Magnetic relaxation in the liquid samples was derived from the physical rotation of the particles defined as Brownian relaxation when τ_B ≪ τ_N, where the dynamic magnetization response was controlled by d_H and η. In addition, the magnetic torque acting on the magnetization was transmitted to the particle body owing to the large braking torque.⁴⁵

Fig. 6 Models illustrating the mechanism of magnetic relaxation when (a) the magnetization is strongly bound to the easy axis by high anisotropy energy in the ferromagnetic regime, and (b) the magnetization is slightly bound to the easy axis by low anisotropy energy.

In the solid or liquid samples with an extremely high η, the magnetization rotation was limited owing to K_eff. By contrast, the magnetization rotation constraint of the easy axis was relatively weak in Synomag®-D owing to the behavior of the core particles in the multicore structure under the case of a zero magnetic field. The thermal energy in the liquid disturbed the easy axis and magnetization almost independently. When the magnetic field was applied, the magnetization was first rotated by Néel relaxation. The easy axis was rotated second (see Fig. 6b) owing to the significant MNP components with a considerable anisotropy energy K_effV_M, which was sufficient to transmit the magnetic torque acting on the magnetization to the particle body when τ_N ≤ τ_B. This two-step motion, determined by balancing the friction and braking torques, was repeated by promoting the magnetization occurring at τ_N ≤ τ_B, as shown in Fig. 3 and 4; in particular τ_peak in D_τ,1 in SHA-20 and τ_peak in D_τ,1 and D_τ,2 in Synomag®-D in the liquid sample.

It is challenging to represent this phenomenon using the conventional theory of the effective relaxation time. However, it could be observed that the dynamic orientation of the easy axis towards the applied magnetic field gradually promoted magnetization, owing to the effective decrease in K_effV_M.⁴⁶ Moreover, decreasing the M_maxA_M,τ when the relaxation time was long with increasing η reflected the reduced contribution of particle rotation to magnetization as the gap between τ_N and τ_B increased under the case of τ_N < τ_B.

3.5 Mechanism of the Néel relaxation process dependent on the anisotropy energy and attempt time

With respect to all the tested MNPs, τ_peak in the solid samples, as shown in Fig. 4, was assumed to be associated with the relatively large d_C included in D_d,2, as shown in Fig. 1. Meanwhile, K_eff was obtained by dividing the component of V_M calculated from the peak value of d_C, d_C,peak in D_d,2 by applying the spherical approximation from K_effV_M calculated from the τ_peak values in the solid shown in Fig. 4 using eqn (1), because only Néel relaxation occurred in the solid. Fig. 7 shows the K_eff values estimated using eqn (1) at various τ₀ for each particle, indicating the significant impact of τ₀ for estimating K_eff.

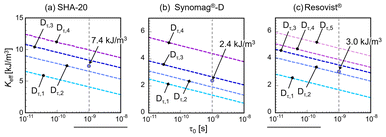

Fig. 7 Effective anisotropy constant K_eff estimated at various τ₀ using eqn (1) for each relaxation time distribution in (a) SHA-20, (b) Synomag®-D, and (c) Resovist®.

When τ₀ = 10⁻⁹ s, for SHA-20, the averaged K_eff, K_eff,τ, in all the peaks of 7.4 kJ m⁻³ (see Fig. 7a) was similar to that as analyzed from the blocking temperature in ref. 7. The K_eff,τ in SHA-20 was relatively large compared to the 2.4 kJ m⁻³ and 3.0 kJ m⁻³ values estimated for Synomag®-D and Resovist® (see Fig. 7b and c), respectively.

By contrast, in Synomag®-D, the area enclosed by the DC magnetization curves in the liquid and solid samples as 0.015 was larger than that in SHA-20 as 0.013 (see Fig. 8a), which indicates that K_effV_M in Synomag®-D was larger than that in SHA-20, as shown by Brownian relaxation occurring owing to the magnetization being pinned to the easy axis.

Fig. 8 (a) Phase diagram of the particle structures illustrated by τ_N dependent on K_effV_M and τ₀ calculated from eqn (1). The areas enclosed by the DC magnetization curves in the liquid and solid samples were 0.013 in SHA-20 and 0.015 in Synomag®-D. The magnetic field H and magnetization M were normalized by their maximum values, H_max and M_max, respectively. (b) Transition of the magnetization state of the core particles included in a multicore particle, dependent on the applied magnetic field strength in Synomag®-D.

The dependence of K_effV_M on the particle structure estimated from the static magnetization response contradicted that calculated from the magnetic relaxation time based on the dynamic magnetization response at constant τ₀. This indicates that τ₀ was dependent on the particle structure, as shown in Fig. 8a. For Synomag®-D, τ₀ was relatively short with a large K_effV_M because τ_N was dominantly distributed below ∼10⁻⁹ s, which is a shorter timescale compared with that of SHA-20, as shown in Fig. 3.

Besides, the coercivity of the DC magnetization curves in Synomag®-D was comparatively small under the case of a zero magnetic field (see Fig. S12†), although K_effV_M in Synomag®-D was larger than that in SHA-20. In Synomag®-D, the core particles included in the multicore structure were first magnetized by τ_N of approximately less than 10 ns. The magnetization of the effective core particles that were thermally disturbed under a zero magnetic field was generated by the partial alignment of the core particles (see Fig. 8b). The K_effV_M value for Synomag®-D increased after the formation of effective anisotropy within the multicore structure, which occurred during magnetic relaxation, as shown by the complex τ_N distribution over the wide time range (see Fig. 3b in solid).

Further estimation of τ₀ in future studies will provide more insights into the magnetization mechanisms within multicore structures, particularly in relation to the behavior of the core particles.

4 Conclusion

The widely distributed magnetic relaxation time of MNPs was empirically estimated from a magnetic relaxation process to be substantially fast compared to an applied pulsed magnetic field in the 20 ns to 200 ms range.

With respect to the single-core MNPs of SHA-20, a relaxation time proportional to the viscosity in accordance with the conventional theory of Brownian relaxation was dominantly observed in the liquid. When the Brownian relaxation time was substantially shorter than the Néel relaxation time, owing to the large anisotropy energy, Brownian relaxation dominantly occurred in the liquid in accordance with the conventional theory of the effective relaxation time.

By contrast, in the multicore MNPs of Synomag®-D, the distribution of the magnetic relaxation time associated with particle physical rotation without proportionality to the viscosity was confirmed in a fluid system. This phenomenon, which is difficult to explain using the theory of the effective relaxation time, was caused by repeating the two-step motion due to the balance between the friction and braking torques when the Néel relaxation time was shorter than the Brownian relaxation time. In addition, the conflicted phenomenon of a relatively large anisotropy energy and small coercivity in the DC magnetization curve was observed, which could be explained by the two different magnetization responses in individual core particles around the zero magnetic field and in the effective core particles formed by the core particles aligning under the magnetic field. The measurement based on static and dynamic magnetization responses indicated a shorter attempt time and larger anisotropy energy in Synomag®-D compared to those in SHA-20.

This indicated that the magnetization response could be universally determined by the effective magnetization parameters associated with the particle structure. On the other hand, the relationship between the effective magnetization parameters and particle structure was unrevealed, which is one of key factors for improving the performance when designing MNPs for use in biomedical applications, such as cancer theranostics.

In future work, it is necessary to enlarge the measurement period limited by the transition time of the applied magnetic field and the sensitivity of the detection coil to investigate specific magnetic relaxation mechanisms influenced by the structure of MNPs.

Author contributions

Haruki Goto: conceptualization, methodology, validation, formal analysis, investigation, software, data curation, writing – original draft, visualization. Masato Futagawa: validation, writing – review & editing. Yasushi Takemura: writing – review & editing, funding acquisition. Satoshi Ota: conceptualization, methodology, validation, formal analysis, software, data curation, writing – review & editing, supervision, project administration, funding acquisition.

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

The authors declare no conflicts of interest.

Acknowledgements

This work was partially supported by JSPS KAKENHI grant numbers 20H02163, 20H05652, and 23K26114, and JST ACT-X grant number JPMJAX21A5, JST SPRING, Japan Grant Number JPMJSP2167.
