Optimizing active sites via chemical bonding of 2D metal–organic frameworks and MXenes for efficient hydrogen evolution reaction activity

Abstract

Metal–organic frameworks (MOFs) are promising electrocatalysts due to their large surface areas and abundant metal sites, but their efficacy is limited by poor exposure of active metal atoms to the electrolyte. To address this issue, we report an innovative approach that integrates a conductive layered MXene (Ti₃C₂T_x) with a 2-dimensional (2D) Ni₃(2,3,6,7,10,11-hexaiminotriphenylene)₂-MOF through in situ synthesis of the MOF on the MXene, maximizing the accessible exposure of active sites for electrocatalytic hydrogen evolution reaction (HER) activity. XPS analysis confirms that the MOF is chemically bonded with the MXene layers, while SEM analysis shows complete overlapping, intercalation, and surface growth of the MOF on the MXene layers. The optimized chemically bonded MOF on MXene exhibits superior electrocatalytic activity, with an overpotential of 180 mV in alkaline media—four times better than that of the pristine MOF—and an overpotential of 240 mV in acidic media, three times better than that of the pristine MOF. The enhanced electrocatalytic activity is attributed to the bond formation between Ti atoms from the MXene and N atoms from the MOF, which facilitates charge transfer and improves both the kinetics and active electrocatalytic area for the HER. This method offers a simple, pioneering approach to fabricate noble metal-free, nanostructured electrocatalysts, enhancing water electrolysis efficiency and extending applicability to other conductive MOFs.

---

Introduction

Water electrolysis is a sustainable and promising alternative to traditional hydrogen production methods.¹ It boasts high catalytic efficiency, produces hydrogen of exceptional purity, and generates less pollution compared to conventional generation of H₂ from fossil fuels.² This process involves two main reactions: the hydrogen evolution reaction (HER) and the oxygen evolution reaction (OER). The HER progresses slowly, necessitating an efficient electrocatalyst to enhance the reaction rate.³ Although Pt/C is a top-performing electrocatalyst with excellent catalytic activity for the HER, its scarcity and high cost limit its widespread use.⁴ Therefore, there is an urgent need to develop high-activity, low-cost electrocatalysts for the HER. In response to this challenge, researchers have conducted extensive studies exploring transition metal derivatives such as transition metal phosphides,⁵ metal nitrides,⁶ alloys,⁷ and metal oxides.⁸ These materials have been investigated for their ability to effectively adsorb hydrogen, thereby enhancing reaction kinetics. Transition metal-based metal–organic frameworks (MOFs) are an emerging class of porous crystalline materials composed of metal ions or clusters coordinated with organic ligands. With their large porosity, diverse structures, and tunable compositions, MOFs have garnered significant attention in electrocatalysis.^9,10 Notably, MOFs incorporating Ni and Fe have demonstrated promising performances as electrocatalysts for the alkaline HER.¹¹ This is due to partial charge transfer between the transition metals and organic ligands in an alkaline medium, resulting in low overpotentials and stability comparable to state-of-the-art materials.^12–14 This interest arises from their facile synthesis, large specific surface areas, uniformly distributed metal nodes, and unique honeycomb-like π-conjugated structures. MOFs typically retain their porous architecture with a high density of active metal centers, thereby enhancing the electrocatalytic performance of the HER.¹⁵ Two-dimensional (2D) MOFs, composed of transition metal (TM) atoms coordinated with organic ligands, represent a unique class of porous coordination polymers. Their large surface area, excellent electrical conductivity, and tunable compositions have positioned them as promising candidates in the field of electrocatalysis.^16,17 Although bulk 2-dimensional (2D) MOFs exhibit electrical conductivity, a significant portion of their metal nodes are deeply embedded within the material, making them inaccessible to electrolytes.^18,19 Consequently, this limitation often results in their unsatisfactory performance during HER activity. To address these challenges, supporting a conductive MOF on a well-designed layered conductive matrix could be a potential solution. This approach would enhance accessibility to active sites and improve overall electrocatalytic performance for the HER.

Given their remarkable electronic conductivity, efficient charge transport, and cost-effectiveness, 2-dimensional (2D) MXene materials, particularly (Ti₃C₂T_x), are widely employed as charge transport materials to support active components and enhance electrochemical properties.^20,21 MXenes feature catalytically active basal planes with exposed metal sites, which can be functionalized with termination groups (T_x = O, OH, and F).^22,23 These groups provide sites for chemical bonding with other active materials, further enhancing their catalytic capabilities in various electrochemical applications.²⁴ Furthermore, 2D layered nanostructures of MXenes exhibit large surface areas and diverse elemental combinations.²⁵ These characteristics not only facilitate efficient electron and mass transfer across solid–liquid–gas interfaces, but also provide significant flexibility in designing hybrid materials. Thus, combining an MXene and an MOF via chemical bonding can be an effective strategy to develop highly active electrocatalysts. In this context, the terminal groups from the MXene can facilitate chemical bonding between the anionic ligand functionality from the MOF and cationic metal sites from the MXene.²⁶ This interaction can create an effective charge transfer pathway, enhancing the kinetics of electrocatalytic activity. The metal in the MXene can bond with anion atoms, synergistically optimizing the adsorption energies of intermediates at active sites, thereby achieving efficient HER performance.^24,26,27 For example, N-doping can enhance the electrocatalytic activity of Ti-based MXenes for the HER by up to two times.^23,24 Additionally, this molecular design strategy has the potential to address the issue of metal atom inaccessibility to electrolytes, thereby improving the efficiency of HER activity. Given these considerations, the combination of conductive MOFs—particularly single-metallic 2D Ni-based MOFs—with MXenes represents a promising strategy for advancing the development of nanostructures with enhanced HER activity in both acidic and alkaline media. This improvement arises from the increased number of accessible metal sites within the MOF and the strong interaction between MOF anion atoms and the MXene, which facilitates charge transfer and optimizes active site exposure for efficient electrocatalysis.

Herein, we report a facile in situ strategy for preparing an Ni₃(2,3,6,7,10,11-hexaiminotriphenylene)₂-MOF (Ni₃(HITP)₂-MOF) and Ti₃C₂T_x-MXene layered heterostructure. This approach creates a hybrid material with multiple HER active sites and enhances the pathway for charge transfer, resulting in excellent HER performance in both alkaline and acidic electrolytes. The nitrogen (N) atoms from the MOF ligands chemically bond with the titanium (Ti) in the MXene, completely enveloping the MXene layers, intercalating between them, and growing on their surfaces. Electrostatic interactions between the nitrogen atoms (anions) and titanium ions have been reported,²⁸ through which the terminating atoms (O, OH, F) of Ti₃C₂T_x-MXene act as active sites, coordinating the nitrogen atoms with titanium ions. This chemical bonding facilitates charge transfer and maximizes the active area, improving kinetics and electrochemical coverage for the HER. The chemically bonded MOF on the MXene in this study shows high electrocatalytic activity, with an overpotential of 180 mV at 10 mA cm⁻² and a Tafel slope of 123 mV dec⁻¹ in alkaline media, as well as a low overpotential of 240 mV at 10 mA cm⁻² in acidic media. Additionally, it exhibits excellent durability, sustaining the HER for over 150 hours. This method presents a straightforward yet innovative approach for producing noble metal-free, layered nanostructured electrocatalysts. It effectively enhances water electrolysis efficiency and broadens the applicability to other conductive MOFs.

Results and discussion

The synthesis route of chemically bonded Ni₃(HITP)₂@Ti₃C₂T_x is illustrated in Fig. 1(a). The Ti₃C₂T_x-MXene layers were synthesized by following a recently reported method (see the Experimental section in the ESI† for details).²⁴ Then, a Ni-based metal–organic framework (Ni₃(HITP)₂) is coated and intercalated onto the MXene layers using 2,3,6,7,10,11-hexaaminotriphenylene (HATP) and nickel(II) acetate (Ni(OAc)₂) via a simple solvothermal method²⁹ (synthesis of the MOF is shown in ESI Fig. S1†). Finally, the Ni₃(HITP)₂ on MXene is converted into chemically bonded Ni₃(HITP)₂@Ti₃C₂T_xvia annealing under forming gas (95% N₂ + 5% H₂) at 200 °C. The ratio between Ni₃(HITP)₂-MOF and Ti₃C₂T_x-MXene was varied by adjusting the amounts of HATP and Ti₃C₂T_x starting materials to achieve fully coated and intercalated Ni₃(HITP)₂ within the Ti₃C₂T_x layers. We synthesized four different layered heterostructures with different ratios of HATP and Ti₃C₂T_x: 2 : 1, 1 : 1, 2 : 3, and 1 : 4, denoted as MOF@Ti₃C₂T_x(66%HATP), MOF@Ti₃C₂T_x(50%HATP), MOF@Ti₃C₂T_x(33%HATP), and MOF@Ti₃C₂T_x(25%HATP), respectively. The heat-treated sample is denoted as MOF@Ti₃C₂T_x(Ti–N).

Fig. 1 (a) Schematic illustration of the fabrication process of chemically bonded Ni₃(HITP)₂@Ti₃C₂T_x. The inset shows HER activity on chemically bonded Ni₃(HITP)₂@Ti₃C₂T_x. SEM images of (b) pristine Ti₃C₂T_x-MXene, and (c–e) Ni₃(HITP)₂@Ti₃C₂T_x. TEM images of (f) pristine Ti₃C₂T_x-MXene, and (g–i) Ni₃(HITP)₂@Ti₃C₂T_x.

Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) were carried out to analyze the morphology and structure of Ni₃(HITP)₂@Ti₃C₂T_x. The as-synthesized Ti₃C₂T_x-MXene shows a well-stacked layered structure, as shown in Fig. 1(b) (the SEM images of pristine MOF are shown in ESI Fig. S2†). In contrast, the optimized Ni₃(HITP)₂@Ti₃C₂T_x (MOF@Ti₃C₂T_x(33%HATP)) exhibits a grass-like morphology on a large scale, consisting of continuous thin-layered structures with abundant wrinkles of Ni₃(HITP)₂-MOF, grown on the top surface and intercalated between the layers of Ti₃C₂T_x-MXene, as shown in Fig. 1(c) and (d). The interaction of Ni₃(HITP)₂-MOF with Ti₃C₂T_x-MXene creates an extensively hierarchical porous structure, with pore sizes in the range of tens of nanometers. The grass-like structure of Ni₃(HITP)₂@Ti₃C₂T_x is composed of stacked nanoparticles with widths of about 10–20 nm and lengths of 100–200 nm. This unique porous morphology efficiently increases electroactivity by exposing active centers and allowing rapid mass diffusion between Ni₃(HITP)₂-MOF and Ti₃C₂T_x-MXene nanosheets. Unlike the optimized MOF@Ti₃C₂T_x(33%HATP), with its Ni₃(HITP)₂@Ti₃C₂T_x structure, the heterostructures with other ratios of MOF and MXene (MOF@Ti₃C₂T_x(66%HATP), MOF@Ti₃C₂T_x(50%HATP), and MOF@Ti₃C₂T_x(25%HATP)) did not show continuous coverage of MOF on MXene (as shown in ESI Fig. S3†). Similar to the SEM analysis, the TEM images reveal that optimized Ni₃(HITP)₂@Ti₃C₂T_x consists of smooth, velvet-like layered structures (Fig. 1(f–i)). The as-synthesized Ti₃C₂T_x-MXene shows semitransparent layered structures, as shown in Fig. 1(f). However, the optimized Ni₃(HITP)₂@Ti₃C₂T_x (MOF@Ti₃C₂T_x(33%HATP)) consists of continuous and well-dispersed 2D Ni₃(HITP)₂-MOF on Ti₃C₂T_x-MXene sheets, as shown in Fig. 1(g). Furthermore, the high-resolution transmission electron microscopy (HRTEM) images of Ni₃(HITP)₂@Ti₃C₂T_x (Fig. 1(h, and i)) reveal clear lattice fringes with an interplanar spacing of 2.0 nm, corresponding to the (100) plane of Ni₃(HITP)₂. A detailed examination shows distinct hexagonal lattice points representing Ni atoms (ESI Fig. S4†), with a ∼2.0 nm spacing between adjacent pore centers. This observation is consistent with the crystal structure and agrees with reported theoretical atomic models.³⁰

The X-ray diffraction (XRD) patterns of Ni₃(HITP)₂@Ti₃C₂T_x are consistent with those of Ni₃(HITP)₂-MOF and Ti₃C₂T_x-MXene, as simulated from their crystal structures, confirming the successful growth of Ni₃(HITP)₂ on the MXene surfaces,^30,31 as shown in Fig. 2(a). The prominent peaks of Ni₃(HITP)₂ at 4.77° (100), 9.56° (200), and 27.48° (011) show its crystalline structure.³² Meanwhile, each composition of Ni₃(HITP)₂@Ti₃C₂T_x exhibits a prominent (002) peak of Ti₃C₂T_x-MXene at 8.80°, confirming the presence of 2D Ti₃C₂T_x-MXene, in line with the SEM and TEM results. It is noted that the (002) peak of Ti₃C₂T_x-MXene in all Ni₃(HITP)₂@Ti₃C₂T_x compositions is slightly shifted towards a lower angle compared to that of pristine Ti₃C₂T_x-MXene (9.09°), indicating the intercalation of MOF between the layers of Ti₃C₂T_x-MXene. Moreover, the variation in peak intensities across different compositions of Ni₃(HITP)₂-MOF and Ti₃C₂T_x-MXene is attributed to the differing ratios of these components, while all major peaks are present in every composition.

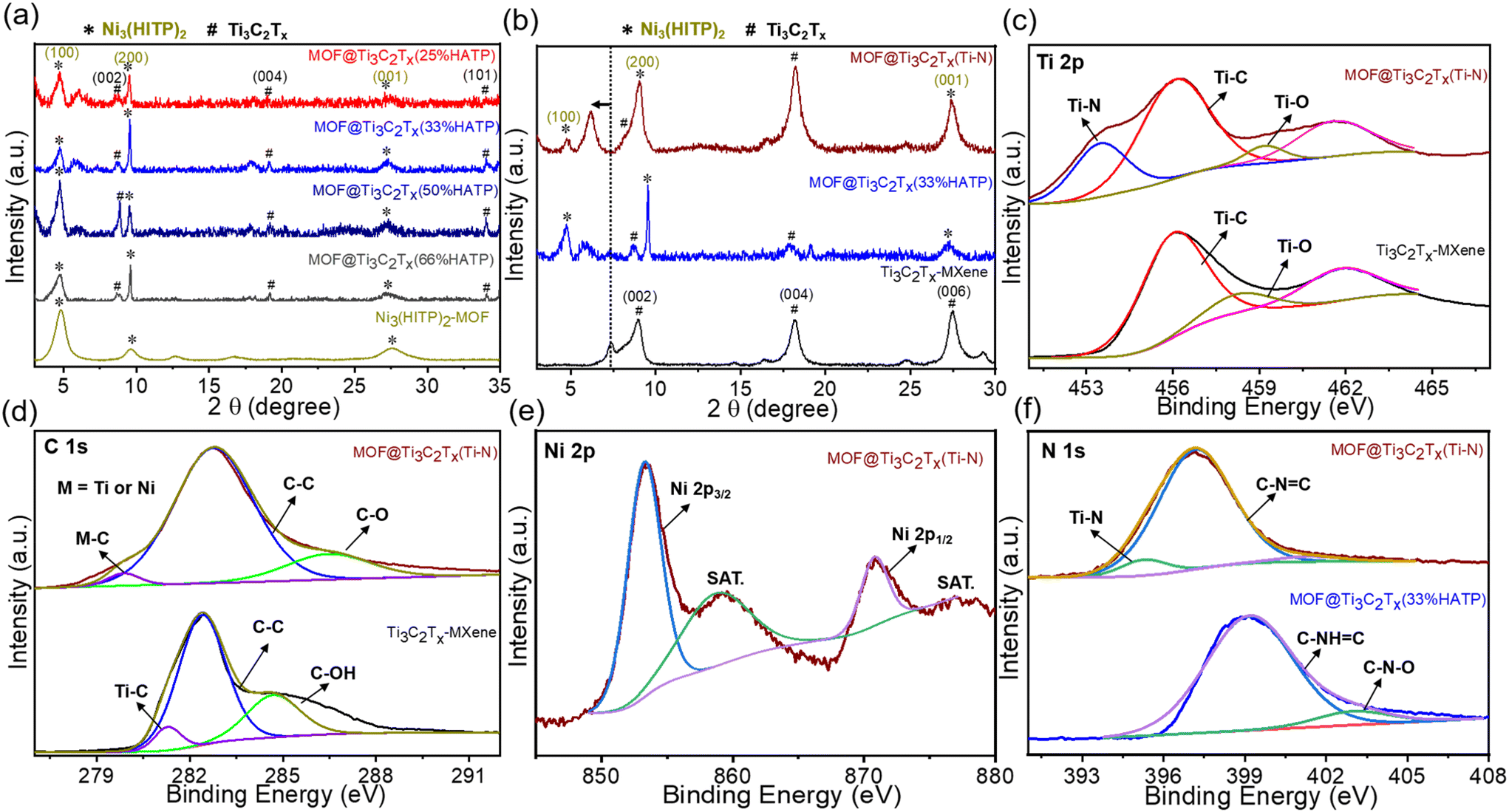

Fig. 2 Phase and chemical characterization of chemically bonded Ni₃(HITP)₂@Ti₃C₂T_x. (a) XRD patterns of MOF@Ti₃C₂T_x synthesized using varying compositions of MXene and HATP, illustrating the structural evolution with different ratios. (b) XRD patterns of annealed MOF@Ti₃C₂T_x (33% HATP) compared with pristine MXene, highlighting the peak shift in the MXene peak, which confirms the intercalation of MOF into MXene layers. High-resolution XPS spectra and fitting curves. (c) Ti 2p for MOF@Ti₃C₂T_x (Ti–N) and pristine MXene, demonstrating the appearance of a new peak at lower binding energy in MOF@Ti₃C₂T_x (Ti–N), which confirms the formation of Ti–N bonds. (d) C 1s for MOF@Ti₃C₂T_x (Ti–N) and pristine MXene. (e) Ni 2p for MOF@Ti₃C₂T_x (Ti–N). (f) N 1s for MOF@Ti₃C₂T_x (33% HATP) before (bottom) and after annealing (top), demonstrating a shift toward lower binding energy in the annealed sample, which confirms the formation of Ti–N bonding.

It is interesting to observe that after heat treatment of the optimized MOF@Ti₃C₂T_x composition (MOF@Ti₃C₂T_x(33%HATP)), the peak at 7.41°, which corresponds to the intercalation of the terminating groups (O, OH, and F) in the MXene, shifts further towards a lower angle, as shown in Fig. 2(b). This peak shift further validates the substitution of the terminating groups in Ti₃C₂T_x with intercalated Ni₃(HITP)₂-MOF between the MXene layers.³³ The valence state and chemical composition of Ni₃(HITP)₂@Ti₃C₂T_x are analyzed using X-ray photoelectron spectroscopy (XPS) to further confirm the chemical bonding between MXene and Ni₃(HITP)₂-MOF. Compared to pristine Ti₃C₂T_x-MXene, a new characteristic peak at 453.5 eV, corresponding to Ti²⁺, can be found in the Ti 2p XPS spectra of MOF@Ti₃C₂T_x(Ti–N) (Fig. 2(c)), suggesting the formation of Ti–N bonds.³⁴ With regard to the C 1s XPS spectra, the characteristic peaks of C–C/C=C bonds on the benzene ring at 284.5 eV indicate that the MOF structure is retained in MOF@Ti₃C₂T_x(Ti–N), as shown in Fig. 2(d). Additionally, the peak at 279.8 eV confirms the bond between carbon and metals (Ti–C/Ni–C).³⁵ The C 1s peak, originally at 284.8 eV, shifts towards a higher binding energy of 286.6 eV, indicating surface oxidation.³⁶ In the Ni 2p region spectra of MOF@Ti₃C₂T_x(Ti–N), peaks at 853.5 eV and 870.8 eV are assigned to Ni 2p_3/2 and Ni 2p_1/2, respectively (Fig. 2(e)), confirming the metallic behavior of Ni. The N 1s spectrum of MOF@Ti₃C₂T_x (Ti–N) shifts towards lower binding energy compared to the N 1s peak of pristine Ni₃(HITP)₂-MOF, indicating a higher concentration of C=N–C bonds relative to C–NH–C bonds. This shift suggests a favorable environment for nitrogen–metal bonding, further supporting the strong interaction between the MOF and MXene (Fig. 2(f)).³⁷ Further deconvolution of the N 1s spectrum reveals two distinct peaks at 395.1 eV and 397.3 eV, corresponding to titanium–nitrogen (Ti–N) and carbon–nitrogen (C=N) bonds, respectively (Fig. 2(f)). Additionally, the disappearance of the C–N–O peak after annealing indicates that the termination groups (O, OH) in the MXene are replaced by nitrogen, further supporting the formation of Ti–N bonding.³⁸

By controlling the composition of the MOF on Ti₃C₂T_x-MXene through in situ synthesis, we optimized MOF@Ti₃C₂T_x for efficient HER activity. The electrocatalytic activity of MOF@Ti₃C₂T_x was characterized in an alkaline (1.0 M KOH) electrolyte. We first compared the HER activity of MOF@Ti₃C₂T_x with different as-grown compositions of MOF on Ti₃C₂T_x-MXene using linear sweep voltammetry (LSV) curves at a scan rate of 10 mV s⁻¹, as shown in ESI Fig. S5(a).† In this study, all reported potentials were converted to the reversible hydrogen electrode (RHE) scale. The LSV curves indicate that MOF@Ti₃C₂T_x(33%HATP) has the lowest HER overpotential (207 mV) to achieve a current density of 10 mA cm⁻² among the synthesized compositions of MOF and Ti₃C₂T_x-MXene: MOF@Ti₃C₂T_x(66%HATP) (331 mV), MOF@Ti₃C₂T_x(50%HATP) (261 mV), and MOF@Ti₃C₂T_x(25%HATP) (330 mV). This confirms that fully continuous coverage of MOF on MXene is important to overcome the inherent limitations of MOFs, such as poor conductivity and limited stability, in achieving efficient HER activity. Furthermore, to investigate the effect of the chemical bond (Ti–N), LSV curves of the chemically bonded optimized composition of MOF@Ti₃C₂T_x (MOF@Ti₃C₂T_x(Ti–N)) were obtained, as shown in Fig. 3(a). The LSV results of MOF@Ti₃C₂T_x(Ti–N) demonstrate enhanced electrocatalytic activity for the HER with a lower overpotential of 180 mV than the optimized as-grown MOF@Ti₃C₂T_x(33%HATP) (207 mV). This is three times lower than that of pristine Ni₃(HITP)₂-MOF (706 mV), and pristine Ti₃C₂T_x-MXene (670 mV). The result explicitly indicates that the chemical bond between the metal of Ti₃C₂T_x-MXene and the anion of Ni₃(HITP)₂-MOF plays a significant role in promoting the HER activity of MOF@Ti₃C₂T_x. In addition, compared to similar studies on MOF or MOF-derived electrocatalysts, particularly single-metallic 2D MOFs, the electroactivity of Ni₃(HITP)₂@Ti₃C₂T_x(Ti–N) demonstrates significant superiority in this field,^39–44 summarized in ESI Table S1.†

Fig. 3 Electrocatalytic performance for the HER of chemically bonded Ni₃(HITP)₂@Ti₃C₂T_x in 1.0 M KOH. (a) Linear sweep voltammetry. (b) Tafel plots. (c) Calculated turnover frequencies (TOFs) for H₂ per active site. (d) Nyquist plots, derived from electrochemical impedance spectroscopy. (e) ECSA plots obtained by the extraction of the double-layer capacitance (C_dl). (f) Long-term stability (chronoamperometry) measurements.

To analyze the reaction kinetics occurring on MOF@Ti₃C₂T_x, Tafel plots were obtained by the Tafel equation according to their LSV curves, as shown in Fig. 3(b). The Tafel slope of MOF@Ti₃C₂T_x(Ti–N) reaches 123 mV dec⁻¹, significantly lower than that of pristine Ni₃(HITP)₂-MOF (175 mV dec⁻¹) and pristine Ti₃C₂T_x-MXene (172 mV dec⁻¹). Moreover, the Tafel slope values of as-grown MOF on Ti₃C₂T_x-MXene MOF@Ti₃C₂T_x(66%HATP), MOF@Ti₃C₂T_x(50%HATP), MOF@Ti₃C₂T_x(33%HATP) and MOF@Ti₃C₂T_x(25%HATP) are 240, 175, 165, and 204 mV dec⁻¹, respectively, as shown in ESI Fig. S5(b).† Among these samples, MOF@Ti₃C₂T_x(Ti–N) exhibits the smallest Tafel slope, indicating the fastest kinetics for HER electrocatalysis, thereby confirming the importance of the Ti–N bonds. For deeper insights into how the chemical bonding between MOF and MXene affects the reaction kinetics, we quantified the overall turnover frequencies (TOFs) per surface site, shown in Fig. 3(c) (detailed calculations are provided in the ESI†). The TOF value of MOF@Ti₃C₂T_x(Ti–N) is 0.59 s⁻¹ at an overpotential of 200 mV, which is 10 times higher than that of pristine Ti₃C₂T_x-MXene (0.06 s⁻¹) and 30 times higher than that of pristine Ni₃(HITP)₂-MOF (0.02 s⁻¹). The TOF value of the optimized as-grown MOF on Ti₃C₂T_x-MXene, MOF@Ti₃C₂T_x(33%HATP), is 0.33 s⁻¹, which is 2 times lower than MOF@Ti₃C₂T_x(Ti–N). The higher TOF strongly correlates with the enhanced catalytic performance for the HER, indicating that the improved activity of MOF@Ti₃C₂T_x is directly due to the chemical bonding between the MXene metal and MOF anions (Ti–N), which provides efficient active sites for electrocatalytic activity. Additionally, electrochemical impedance spectroscopy (EIS) was utilized to determine the charge-transfer resistance (R_ct), as shown in Fig. 3(d). The R_ct of chemically bonded MOF@Ti₃C₂T_x(Ti–N) is 3 times lower (30.0 Ω) than that of pristine Ni₃(HITP)₂-MOF (93.0 Ω) and 2.5 times lower than that of pristine Ti₃C₂T_x-MXene (71.0 Ω). Additionally, R_ct of the as-grown MOF@Ti₃C₂T_x(33%HATP) exhibits a higher value (39.0 Ω s⁻¹) than that of MOF@Ti₃C₂T_x(Ti–N). This aligns with the other kinetic measurements and suggests that the formation of the Ti–N chemical bonds facilitates charge transfer and provides more active sites for electrocatalytic activity.

To clarify the impact of the chemical bonding and continuous growth of MOF@Ti₃C₂T_x, we measured the electrochemically active surface area (ECSA) of the synthesized samples. This was done through cyclic voltammetry (CV) measurements to determine the electrical double-layer capacitance (EDLC) (C_dl), which is directly proportional to ECSA, as shown in ESI Fig. S6.† At each scan rate, the chemically bonded MOF@Ti₃C₂T_x(Ti–N) exhibits robust anodic and cathodic current densities with a quasi-rectangular shape, indicating a larger active surface area compared to the as-synthesized MOF@Ti₃C₂T_x(33%HATP). The plots showing differences in the variation of current density vs. scan rate (Fig. 3(e)) reveal C_dl values of 43.9 μF cm⁻² and 17.4 μF cm⁻² for MOF@Ti₃C₂T_x(Ti–N) and MOF@Ti₃C₂T_x(33%HATP), respectively. The MOF@Ti₃C₂T_x(Ti–N) shows a 2.5 times higher C_dl, attributed to the chemical bonding between Ti and N, which exposes previously inaccessible metal active sites for efficient electrocatalytic activity. In addition to its high activity, MOF@Ti₃C₂T_x(Ti–N) demonstrates excellent electrochemical durability, maintaining stable performance at 200 mV with no significant decrease in activity after 150 hours of continuous HER, as shown in Fig. 3(f). This level of durability meets the set goals for DOE electrocatalysts.⁴⁵ In comparison, the stability of pristine Ti₃C₂T_x MXene is inferior, confirming that the continuous growth of Ni₃(HITP)₂ MOF on the MXene enhances its durability in alkaline media. These results further validate that the stability of Ni₃(HITP)₂ MOF is superior to that of bimetallic MOFs, likely due to its strong chemical bonding with MXene and the absence of secondary metal-induced degradation pathways.⁴⁶ To evaluate the chemical and structural durability of MOF@Ti₃C₂T_x(Ti–N) in alkaline media, we conducted XPS and SEM analyses following electrochemical stability tests. The XPS results, shown in ESI Fig. S7,† indicate no significant changes in the chemical states of MOF@Ti₃C₂T_x(Ti–N). This suggests that the chemical bonding of the MOF on Ti₃C₂T_x effectively prevents oxidation and corrosion of the transition metal surface, resolving stability issues in alkaline electrolytes. Additionally, SEM analysis (shown in ESI Fig. S8†) confirms structural stability, with no significant alterations observed.

To assess the general applicability of our chemically bonded MOF on Ti₃C₂T_x-MXene for electrolyzer integration, we conducted HER electrocatalytic activity tests in acidic media (0.5 M H₂SO₄). The chemically bonded MOF@Ti₃C₂T_x(Ti–N) exhibits outstanding performance, achieving a remarkably low overpotential of 240 mV at 10 mA cm⁻², which is 2.5 times lower than that of pristine Ti₃C₂T_x-MXene (750 mV) and two times lower than that of pristine Ni₃(HITP)₂-MOF (640 mV), as shown in Fig. 4(a). This result surpasses the overpotential of leading PGM-free MOF-based electrocatalysts.^35,47–51 In contrast, the as-grown MOF@Ti₃C₂T_x(33%HATP) exhibits lower electrocatalytic activity with a higher overpotential (370 mV) compared to MOF@Ti₃C₂T_x(Ti–N). This result indicates that the Ti–N chemical bond provides more active sites for electrocatalytic activity. This finding suggests that efficient electrocatalytic performance for HER can be achieved by growing a chemically bonded MOF on a Ti₃C₂T_x-MXene to increase the number of active sites.

Fig. 4 Electrocatalytic performance for the HER of chemically bonded Ni₃(HITP)₂@Ti₃C₂T_x in 0.5 M H₂SO₄. (a) Linear sweep voltammetry. (b) Tafel plots. (c) Comparison of overpotential at 10 mA cm⁻² and Tafel slopes between Ni₃(HITP)₂@Ti₃C₂T_x and other MOF-based electrocatalysts. (d) Nyquist plots, derived from electrochemical impedance spectroscopy. (e) Cyclic voltammetry of Ni₃(HITP)₂@Ti₃C₂T_x and pristine Ni₃(HITP)₂-MOF. (f) ECSA plots obtained by the extraction of the double-layer capacitance (C_dl) from different 3D electrodes.

To understand the enhanced kinetics in acidic media, we extracted the Tafel plots from the polarization curves, as shown in Fig. 4(b). The Tafel slope of MOF@Ti₃C₂T_x(Ti–N) is approximately 136 mV dec⁻¹, which is the best among reported noble metal-free MOF-based electrocatalysts.^47,50 The comparison of electrocatalytic activity of MOF@Ti₃C₂T_x(Ti–N) with other reported noble metal-free MOF-based electrocatalysts is summarized in Fig. 4(c). Furthermore, we measured the charge transfer resistance (R_ct) of MOF@Ti₃C₂T_x(Ti–N), as shown in Fig. 4(d). The lower R_ct of MOF@Ti₃C₂T_x(Ti–N) (40 Ω), the smallest among the as-synthesized samples, further confirms that the chemical bond between the Ti of MXene and the N of MOF facilitates charge transfer in acidic media as well. Additionally, to confirm the enhancement in active sites, we calculated the ECSA from CV measurements. Similar to being under alkaline conditions, the chemically bonded MOF@Ti₃C₂T_x(Ti–N) shows higher anodic and cathodic current densities, indicating a significantly larger active surface area compared to pristine Ni₃(HITP)₂-MOF, as illustrated in Fig. 4(e) (CV of pristine Ti₃C₂T_x and MOF@Ti₃C₂T_x(33%HATP) are shown in ESI Fig. S9†). The plots of variable current density versus scan rate (Fig. 4(f)) show that MOF@Ti₃C₂T_x(Ti–N) has a C_dl value of 43.9 μF cm⁻², which is four times greater than that of pristine Ni₃(HITP)₂-MOF (9.5 μF cm⁻²). This indicates that MOF@Ti₃C₂T_x(Ti–N) provides more accessible active sites, leading to improved electrocatalytic activity in acidic media.

Up to this point, we have demonstrated that the chemically bonded MOF@Ti₃C₂T_x(Ti–N) significantly enhances HER activity in both acidic and alkaline media. To gain a fundamental understanding of this electrocatalyst's performance, we refer to our recent work which showed through density functional theory (DFT) studies that nitrogen-doped Ti₃C₂T_x-MXene with Ti–N bonds exhibits a lower Gibbs free energy for hydrogen adsorption (ΔG_H = −0.17 eV) compared to pristine Ti₃C₂T_x-MXene (ΔG_H = −0.21 eV),²⁴ providing optimal chemical adsorption behavior for electrocatalytic activity. Therefore, we focus on the effect of the chemical bonding between Ti and N in MOF@Ti₃C₂T_x(Ti–N) for electrocatalytic activity. Our hypothesis that the Ti–N bond promotes HER on MOF@Ti₃C₂T_x(Ti–N) electrodes is illustrated in Fig. 5. In this context, we consider Ti and Ni as active sites for the adsorption of H⁺ and OH⁻ ions, which are critical for the electrocatalytic activity. In alkaline media, we consider the mechanisms for overcoming kinetic barriers to water dissociation. At the Ti–N sites, while –OH attracts water to the surface, we propose that the splitting of water occurs at the metal (Ni) sites of the MOF, as shown in Fig. 5(a). The moderate adsorption energy for OH on Ti–N leads to an easy HO–H bond cleavage with the formation of adsorbed H*, followed by the removal of the second −OH site, restoring the structure to its original state.⁵² In acidic media, protons migrate to the energetically preferred metal sites (Ni) of the MOF and are reduced by one electron to produce Ti–N*–H. Finally, another proton from an adjacent H⁺(H₂O)_n reacts with the first H⁺ to generate H₂, as shown in Fig. 5(b).

Fig. 5 Schematic illustration of the role of Ti–N bonds in promoting the HER on MOF@Ti₃C₂T_x through the formation of strong non-covalent hydrogen bonding with the reactants (hydronium ions or water). (a) Proposed HER mechanism in an alkaline medium. (b) Proposed HER mechanism in an acidic medium.

Conclusions

In summary, we have developed a hybrid electrocatalyst composed of Ni₃(HITP)₂-MOF chemically bonded to Ti₃C₂T_x-MXene (MOF@Ti₃C₂T_x(Ti–N)). The in situ synthetic method of growing MOF on MXene allows for precise regulation of the chemical structure and composition of the resulting electrocatalyst. Benefiting from the chemical bond between the anion of the MOF and the metal from MXene, which improves intrinsic activity, the robustly integrated layered structures facilitate active site exposure, and the resulting MOF@Ti₃C₂T_x(Ti–N) electrocatalysts deliver excellent HER performance in both alkaline and acidic media. The optimized electrocatalyst achieves an overpotential of 180 mV at 10 mA cm⁻² and a Tafel slope of 123 mV dec⁻¹ in alkaline media, and an overpotential of 240 mV at 10 mA cm⁻² and a Tafel slope of 136 mV dec⁻¹ in acidic media, with outstanding durability of up to 150 hours. This work provides inspiration for designing noble metal-free MOF-based electrocatalysts and confirms our design concept of new conductive MOF materials for various energy conversion and storage applications.
