Ferroelectricity enhances ion migration in hard carbon anodes for high-performance potassium ion batteries

Abstract

Hard carbon is a promising candidate for potassium ion batteries due to its large interlayer spacing and abundant closed pores. However, the slow migration and sluggish diffusion kinetics of potassium ions lead to inferior insertion and pore-filling processes, causing severe ion channel blocking, continuous byproduct generation, and poor cycling stability. In this study, we coated hard carbon on top of tetragonal barium titanate particles forming a ferroelectricity-aided anode (t-BTO@C). The t-BTO@C anode exhibits higher interfacial charge density, enhanced insertion-pore filling capacity, and formation of fewer byproducts. The effective interaction between the spontaneous polarization electric field of t-BTO and potassium ions accelerates the potassium ion kinetics and ensures the homogeneous migration of potassium ions, as well as the improvement of t-BTO@C anode potassium storage. After 100 cycles at 0.05 A g⁻¹, the t-BTO@C anode shows a specific capacity of 374.9 mA h g⁻¹, higher than those of SiO₂@Carbon (97.2 mA h g⁻¹) and Pure Carbon (240.1 mA h g⁻¹). Paired with a Prussian white cathode, the full cell shows a specific capacity of 313.0 mA h g⁻¹ at 0.1 A g⁻¹, with 88.9% capacity retention after 40 cycles, much higher than those in recent reports. Our strategy provides a new path to improve the performance of the hard carbon anode in potassium ion batteries.

---

1. Introduction

Hard carbon is a potential candidate for alkali ion storage due to its larger interlayer spacing compared to graphite and abundant active sites for ion anchoring.¹ It is particularly suitable for batteries with larger ions, like sodium ion batteries (SIBs) and potassium ion batteries (PIBs). SIBs with hard carbon anodes have already been commercialized. Nevertheless, hard carbon in PIBs still faces many fundamental problems.² Due to the large size of potassium ions (1.38 Å for K⁺), the hard carbon anode suffers from large structural deformation and ion channel blocking, causing fast capacity decay.^3,4 Due to their large atomic mass, potassium ions show sluggish ion diffusion kinetics and cause poor rate performance in PIBs.⁵ Meanwhile, the sluggish kinetics also cause large polarization at the interface, causing continuous solid electrolyte interphase (SEI) formation and byproduct generation.³ The storage of potassium ions in hard carbon can be described using a two-stage model. The first stage is the adsorption of potassium ions on the surface active sites indicated by a steep slope region in the voltage-capacity graph above 1 V vs. K⁺/K. The second stage is insertion-pore filling into the interlayers and nanopores of hard carbon, shown as a relatively flat region with a voltage below 1 V vs. K⁺/K.⁶ The sluggish diffusion kinetics mostly affect the insertion-pore filling stage, which can be seen from the shortened capacity near 0 V vs. K⁺/K.⁷ There are several approaches for addressing the obstacles in ion migration including enlarging the graphitic interlayer spacing and enhancing electronic conductivity by doping heteroatoms^8,9 (sulfur, phosphorus, nitrogen, etc.) or engineering mesoporous structures to shorten the potassium ion migration distance.¹⁰ For example, Chen et al. designed a sulfur/oxygen co-doped porous hard carbon microsphere anode with an enlarged interlayer distance and abundant structural defects, which delivers 226.6 mA h g⁻¹ at 0.05 A g⁻¹ over 100 cycles.⁸ Cheng et al. constructed 3D honeycomb-like porous carbon with rapid de/intercalation kinetics of potassium ions, delivering 456 mA h g⁻¹ at 0.05 A g⁻¹ over 10 cycles.¹⁰ However, these methods could only enhance potassium ion migration passively.

Ferroelectricity is a phenomenon that materials have spontaneous electric polarization in a non-centrosymmetric lattice structure. In these materials, there are two metastable states with opposite internal dipole directions, which can be switched using an external electric field (Fig. S1†). One such example is the tetragonal barium titanate (t-BTO). In t-BTO lattices, Ti⁴⁺ is bonded with six O²⁻ forming corner shared octahedral TiO₆²⁻ cages. When the lattice is deviated from the cubic phase, the cage is elongated in the z direction and allows Ti⁴⁺ to have two equivalent positions in the cage. As a result, in a tetragonal BTO crystal, the two sub-lattices have opposite dipole moments. This intrinsic dipole moment in the t-BTO crystal lattice (spontaneous polarization, P_s) could spontaneously form randomized polarization domains, which can enhance the localized electric field to accelerate ion migration. By applying an external coercive field, the t-BTO lattice could be polarized and show a strong persistent electric field.^11–14 The ferroelectric materials were reported in lithium ion batteries as an effective strategy to regulate ion deposition.¹⁵ Sun et al. used ferroelectric t-BTO in polyethylene oxide-based composite polymer electrolytes to increase lithium ion transport.¹⁶ Xia et al. used the t-BTO layer to regulate lithium ion deposition and suppress dendrites. With horizontally polarized t-BTO, the deposition direction of lithium preferentially changed from vertical to lateral.¹⁷ In PIBs, there are only a few papers using ferroelectric particles in separators or solid electrolytes to enhance ion migration.^18,19 Wang et al. used ferroelectric particles in the separator to regulate potassium ion deposition in anode-free PIBs.¹⁹ However, there is no report on the regulation of potassium ion kinetics inside the hard carbon anode, which could be more direct and effective.

Herein, we successfully accelerated potassium ion kinetics in the hard carbon anode by coating it on top of ferroelectric t-BTO particles. The t-BTO particles show a maximum spontaneous polarization P_s of 3.46 μC cm⁻². The ferroelectric field of t-BTO particles successfully enhanced potassium ion kinetics and showed higher capacity in the insertion-pore filling stage. After 100 cycles at 0.05 A g⁻¹, the t-BTO@C anode shows a specific capacity of 374.9 mA h g⁻¹, higher than those of SiO₂@Carbon (97.2 mA h g⁻¹) and Pure Carbon (240.1 mA h g⁻¹). At 1 A g⁻¹ for 1000 cycles, the t-BTO@C anode retained 82.8% of its capacity at the 20th cycle, while the SiO₂@Carbon (SiO₂@C) completely lost all its capacity. In addition, t-BTO@C also showed much less byproduct generation. SEM and AFM images revealed that the t-BTO@C anode shows the most uniform and stable SEI layer without byproducts in 100 cycles. By pairing with the Prussian White (PW) cathode, the full-cell exhibits an initial discharge specific capacity of 356.2 mA g⁻¹ at a current density of 0.05 A g⁻¹. After 40 cycles, the full cell retains 313.0 mA g⁻¹ discharge specific capacity with 88.9% capacity retention compared to the 10th cycle. Our findings provide a new strategy to enhance the capacity and stability of PIBs.

2. Experimental section

2.1. Synthesis of t-BTO particles

t-BTO was synthesized by hydrothermal methods. Tetrabutyl titanate, barium hydroxide, aqueous ammonia, and deionized water were placed in the autoclave with a barium and titanium ratio of 2 : 1, holding at 200 °C for 36 hours. After the reaction, the products were centrifugally washed with acetic acid, deionized water, and anhydrous ethanol, followed by annealing at 80 °C in a vacuum-drying oven for 12 hours. The powder was ground to obtain t-BTO particles.^20,21

2.2. Synthesis of t-BTO@C, SiO₂@C, and Pure Carbon particles

70 mg of t-BTO was added in a certain amount of deionized water, and hexadecyl trimethyl ammonium bromide. The mixture was sonicated for 1 hour. An additional 8 ml of ethylene glycol and 0.9 ml of pyrrole were added to the solution followed by reaction at 0–4 °C for 24 hours. The product was filtered, washed, and dried at 80 °C for 12 hours to obtain t-BTO@polypyrrole particles. t-BTO@polypyrrole particles were placed in a ceramic boat and held under an argon atmosphere at 800 °C for 2 hours for carbonization, to obtain t-BTO@C. SiO₂@C powder was obtained using the same sequence, and Pure Carbon (Pure C) was synthesized without the addition of t-BTO.^22–24

2.3. Synthesis of PW particles

PW was synthesized using the co-precipitation method. Typically, 1.12 g of iron sulfate heptahydrate, 5 g of potassium citrate, 15 g of potassium chloride, and 0.88 g of ascorbic acid were dissolved in 100 ml of deionized water as solution A under a nitrogen atmosphere. Additionally, 1.69 g of potassium ferrocyanide trihydrate was dissolved in 100 ml of deionized water as solution B. Solution B was added dropwise to solution A at a rate of 0.28 ml min⁻¹ using a peristaltic pump under a nitrogen atmosphere. The milky-white product was left to stand overnight, washed three times by centrifugation using deionized water, and finally freeze-dried for 48 hours to obtain the Prussian white powder.^25,26

2.4. Synthesis of the t-BTO film

0.06 g of barium acetate and 0.08 g of isopropanol titanate were dissolved in 2 mL of a solvent which was a mixture of acetic acid, ethanol and deionized water, and this is referred to as solution 1. 40 μL of solution 1 was sucked up and spin-coated on 16 mm copper foil, with an acceleration of 2000 rpm, for 30 s. The spin coater copper foil was held in a vacuum tube furnace at 1000 °C for 2 h, to obtain the t-BTO film.

3. Results and discussion

t-BTO nanoparticles were synthesized by the hydrothermal method.²¹ As shown in Fig. 1a and b, the t-BTO nanoparticles have a cube-like shape with a size of about 50–150 nm, with a median at 100 nm. Powder X-ray diffractogram (XRD) profiles show that the calculated profiles were indexed to the space group of P4mm t-BTO (PDF#75-0462) with a = b = 3.995 Å and c = 4.028 Å (Fig. 1c). There is a split of diffraction peak in 2θ = 45.25° shown in the inset of Fig. 1c, matching the (200) and (002) crystal planes in PDF#75-0462. Due to the elongation along the z direction, the diffraction peaks of the (200) and (002) crystal planes were no longer equal. This is a characteristic feature of the tetragonal phase of the BTO lattice.²⁰ Further evidence of the tetragonal ferroelectric phase can be found in the Raman spectra. Three vibration modes (A₁, E, and B₁) in the tetragonal phase are Raman active and observed in Fig. 1d. The sharp peak near 181.7 cm⁻¹ corresponds to the E(TO) and E(LO) modes, and the broad peak at 244.2 cm⁻¹ is from the A₁(TO) mode. The sharp peak at 304.5 cm⁻¹ is due to the E(TO), E(LO) and B₁ modes. The peaks at 511.6 and 711.5 cm⁻¹ correspond to the E(TO), A₁(TO), and E(LO), A₁(LO) modes, respectively.²⁷ These results indicate that the Ti⁴⁺ and O²⁻ of t-BTO deviate from the center of the primitive cell, confirming that the t-BTO particles are in the tetragonal phase. The magnitude of ferroelectricity was measured by ferroelectric hysteresis as shown in Fig. 1e. The P–E hysteresis loop shows that P_s was 3.46 μC cm⁻², the remanent polarization (P_r) was 2.47 μC cm⁻², and E_c was 13.16 kV cm⁻¹. From the size distribution of t-BTO polycrystalline particles, the maximum switch voltage was 6.58 × 10⁻²–1.97 × 10⁻¹ V, which might be spontaneously switched during potassiation/depotassiation. Piezoresponse force microscopy (PFM) was used to verify the ferroelectricity of the particles at the microscopic scale. In Fig. 1f, the 180° phase shifts and butterfly amplitude loops strongly confirm the ferroelectricity of t-BTO polycrystalline particles. It can be seen that the maximum forward switch voltage in the phase profiles is 3.51 V, and the maximum reverse switch voltage is 3.39 V. The average maximum switch voltage is 3.45 V. Similarly, the 180° phase contour map detects the polarization reversal of the ferroelectric domains when the bias changes from 3 V to −3 V (Fig. S3a–c).† Most of the ferroelectric domains in the t-BTO nanoparticle distribution region are in the 180° phase when the bias voltage is 3 V, and most of the ferroelectric domains in the t-BTO nanoparticle are switched to the 0° phase when the bias voltage is −3 V.^28,29 The PFM measurement confirmed the ferroelectricity in t-BTO particles.

Fig. 1 (a) SEM image and particle size distribution (insert image) of t-BTO nanoparticles. (b) HAADF-STEM image and distribution of Ba, Ti, and O elements of t-BTO nanoparticles. (c) The XRD curve of t-BTO nanoparticles and a localized zoomed-in view. (d) Raman spectroscopy of t-BTO nanoparticles. (e) The P–E hysteresis loop of t-BTO nanoparticles. (f) The phase (black line)/amplitude (red line)-voltage loop of t-BTO nanoparticles. (g) SEM image of t-BTO@C materials. (h) and (i) high-resolution TEM image of t-BTO@C materials. (j) Synthetic scheme of t-BTO@C materials.

The XRD curve of t-BTO@C shown in Fig. S4a† displays a wide peak at around 2θ = 20°, representing the characteristic peak of the graphitic carbon (002) crystal plane. The broadening of this peak suggests a disordered carbon lattice, which is commonly observed in hard carbon.^30,31 The diffraction peak located at 2θ = 45.25° for t-BTO as depicted in Fig. S4b† still manifests a bifurcation into a pair of diffraction peaks. The core–shell structure of t-BTO@C was confirmed through the use of a Scanning Electron Microscope (SEM) and a Transmission Electron Microscope (TEM). As shown in the SEM image (Fig. 1g), the surface of the smooth cubic t-BTO particles roughens due to the hard carbon coating. The TEM images (Fig. 1h and i) clearly reveal the hard carbon shells outside the t-BTO cores. In comparison, SiO₂@C shows a similar core–shell structure while the Pure C sample shows the amorphousness of hard carbon (Fig. S5†). The lattice pattern of the core layer corresponds to the (001) crystal plane of t-BTO, whereas the carbon layer is observed as a continuous layer with a thickness ranging from 10 to 20 nm. In addition, the TEM energy dispersive spectra (EDS) shown in Fig. S6† reveal that Ba and Ti elements are uniformly distributed in the core layer, while C elements are dispersed throughout the entire particle. This evidence implies that the t-BTO nanoparticles remain in the tetragonal phase after the encapsulation process. In the Raman spectral profiles of t-BTO@C shown in Fig. S7,† the D peak at 1343.2 cm⁻¹ is associated with structural irregularities or defects within sp²-bonded carbon atoms, and the G peak at 1570.3 cm⁻¹ is linked to the stretching vibration of bonds within the carbon atom faces. The D peak intensity surpasses that of the G peak in t-BTO@C Raman profiles, and it signifies a preponderance of disorder or defects within the sp²-bonded carbon atomic configuration in t-BTO@C.³² Moreover, the Brunauer–Emmett–Teller (BET) measurement showed that the surface areas of the three samples were similar (Fig. S9†). Most of the pore diameters in the three samples were less than 10 nm, suitable for the pore-filling mechanism of potassium ion storage.³³ The synthesis of t-BTO@C materials is depicted in Fig. 1j, showcasing the t-BTO nanoparticles coated with hard carbon derived from the pyrolysis of polypyrrole.

The potassium storage performance of the t-BTO@C electrode in half-cells was investigated, and the non-ferroelectric SiO₂@C and Pure C electrodes serve as references. The t-BTO@C electrode also shows the highest capacity retention after 100 cycles, retaining 374.9 mA h g⁻¹. In contrast, without ferroelectricity, the SiO₂@C electrode and Pure C electrode retain only 97.2 mA h g⁻¹ and 240.1 mA h g⁻¹ capacity (Fig. 2a). Due to the large surface area, all three hard carbon samples show low initial coulombic efficiencies (Fig. 2b).³⁴ Nevertheless, the coulombic efficiencies can be improved by adjusting the optimization of the carbonization temperature. The coulombic efficiencies of all three samples approach 100% after 20 cycles of activation, suggesting that the hard carbon in the three samples is similar. In Fig. 2c and S10,† the galvanostatic charge/discharge profiles at a current density of 0.05 A g⁻¹ reveal the potassiation process in the t-BTO@C electrode. The curve consists of a two-stage potassiation process with a higher slope region (>1 V) from potassium ion adsorption and a lower slope region (<1 V) from potassium ion insertion and pore filling. The decay of capacity in prolonged cycles can be understood from SEI formation (initial few cycles) and ion channel blocking (later cycles).³⁵ The two-stage potassium storage model was also confirmed from the dQ/dV curve in Fig. 2d. In the first discharge profile, the dQ/dV curve exhibits a broad drop between 0.1 and 1 V, which corresponds to the pre-potassiation and SEI formation. Subsequently, the 2nd and 3rd discharge profiles show lesser changes, indicating reversible potassium storage capacity. In the region from 3 to 1 V, the nearly horizontal dQ/dV curve indicates that the adsorption process only contributes minimal capacity. Meanwhile, the curve shows an increased slope below 1 V, confirming that most of the capacity is from the insertion–pore filling stage. As the curve is near vertical below 0.2 V, the majority of the potassiation capacity is probably from the storage of potassium ions in the nanopores of hard carbon.⁷

Fig. 2 (a) Half-cell cycle performances of t-BTO@C, SiO₂@C, and Pure C electrodes at a current density of 0.05 A g⁻¹. (b) Coulomb efficiency of t-BTO@C, SiO₂@C, and Pure C electrodes at a current density of 0.05 A g⁻¹. (c) The galvanostatic charge/discharge profiles of t-BTO@C at a current density of 0.05 A g⁻¹. (d) The dQ/dV profile of the t-BTO@C electrode at a current density of 0.01 A g⁻¹. (e) Half-cell rate performances of t-BTO@C, SiO₂@C, and Pure C electrodes at current densities of 0.05, 0.1, 0.5, 1, and 2 A g⁻¹. (f) Charge/discharge profiles of rate performances of the t-BTO@C electrode. (g) Half-cell long cycle performances of t-BTO@C, SiO₂@C, and Pure C electrodes at a current density of 1 A g⁻¹. (h) Comparative performance profiles of the t-BTO@C electrode and other electrodes reported in the literature.^10,37–42

The rate performance of the t-BTO@C electrode is examined in Fig. 2e. When the current density is increased gradually from 0.05 to 0.1, 0.2, 0.5, 1, and 2 A g⁻¹, the t-BTO@C electrode releases 461.4, 390.0, 359.4, 326.5, and 288.1 mA h g⁻¹ average specific capacity, respectively. Later, when the current density is reduced from 1 to 0.5, 0.2, 0.1, and 0.05 A g⁻¹, the capacities are restored to 326.5, 371.4, 398.9, and 418.6 mA h g⁻¹, respectively. In the first cycle, the SiO₂@C electrode provides an average specific capacity of 430.1 mA h g⁻¹ at 0.05 A g⁻¹. Although the initial specific capacities of SiO₂@C and t-BTO@C are similar, the SiO₂@C electrode only has a capacity of 140.9 mA h g⁻¹ (32.8% of initial capacity) at 2 A g⁻¹, while the t-BTO@C electrode shows a higher capacity (288.1 mA h g⁻¹, 62.4% of initial capacity) under the same conditions. For the Pure C electrode, the initial capacity is smaller than for the other two samples. The rate performance of the Pure C electrode shows average specific capacities of 325.9, 282.5, 255.6, 233.0, 201.6, 224.1, 239.9, 253.3, and 272.6 mA h g⁻¹ from 0.05 to 2, and 2 to 0.05 A g⁻¹, respectively. The capacity at 2 A g⁻¹ is 61.9% of the initial capacity, which is still poorer than that of the t-BTO@C anode. Better kinetics can also be seen by the capacity decay after rate cycles. The remaining capacities of t-BTO@C, SiO₂@C, and Pure C are 90.8%, 66.5%, and 83.6%, respectively. Therefore, we can conclude that the better potassium ion kinetics improved both the rate performance and the capacity retention after rating cycles. The galvanostatic charge/discharge profiles corresponding to the rate performance of t-BTO@C, SiO₂@C, and Pure C electrodes are presented in Fig. 2f and S12a–b.† In these profiles, the t-BTO@C electrode shows a larger capacity from the insertion-pore filling stage than those of SiO₂@C and Pure C. In addition, the long cycling capability of the t-BTO@C electrode at a current density of 1 A g⁻¹ is shown in Fig. 2g. After 1000 cycles, the t-BTO@C electrode displays a stable reversible specific capacity of 238.2 mA h g⁻¹, showing a capacity retention rate of 82.8% in comparison with the 20th cycle. In contrast, in the SiO₂@C electrode the initial stabilized reversible specific capacity of 183.2 mA h g⁻¹ drops to near zero after 800 cycles. Although the Pure C electrode can steadily cycle 1000 times, it only shows a specific capacity of 135.7 mA h g⁻¹ at the end, showing only 60.3% capacity retention, still lower than that of the t-BTO@C electrode. As shown in Fig. 2h, the t-BTO@C electrode also exhibits higher capacity than many other reported hard carbon anodes at large current densities. The better rate performance and cycling stability of the t-BTO@C anode could be explained by the accelerated ion diffusion by the electric field generated from ferroelectric t-BTO particles. The P_s electrical field could both promote faster diffusion kinetics and increase the amount of potassium ions in the intercalation and pore-filling process.³⁶

To reveal the kinetic behavior difference of potassium ions in the three anodes, cyclic voltammetry (CV) measurements were performed as shown in Fig. 3. The CV profiles of t-BTO@C electrodes at different sweep rates are shown in Fig. 3a. The sweep rate is increased from 0.1 to 1 mV s⁻¹, and the CV peak currents increase accordingly. Then, the redox peak currents at different sweep rates and the corresponding sweep rates are linearly fitted based on eqn (1) (Fig. S14a†). The calculated b₁ value of the reduction peak is 0.948 and the b₂ value of the oxidation peak is 0.858. In principle, the Faraday current is proportional to v^1/2, and the pseudocapacitance current is proportional to v. Thus, the redox b values of the t-BTO@C electrode are between 0.5 and 1, indicating that the t-BTO@C electrode behaves with Faraday and pseudocapacitance attributes.^43,44

i = av^b (1)

Fig. 3 (a) Different sweep rates of the CV profile of the t-BTO@C electrode, and (b) different rate capacitive contribution ratios of the t-BTO@C electrode. (c) GITT tests of t-BTO@C, SiO₂@C, and Pure C electrodes. (d) The fourth dQ/dV profile, (e) the specific capacity–voltage profiles of the fourth cycle, and (f) the corresponding discharge capacity below 1 V of the t-BTO@C, SiO₂@C, and Pure C electrodes at a current density of 5 mA g⁻¹.

In eqn (1), a and b are constants, i is the redox peak current (mA), and v is the sweep rate (mV s⁻¹). To acquire the contributions of the pseudocapacitive and Faraday current, eqn (1) is converted into eqn (2). The first term (k₁v) is attributed to the pseudocapacitance current, and the second term (k₂v^0.5) is attributed to the Faraday current:

i(V) = k₁v + k₂v^0.5 (2)

In eqn (2), k₁ and k₂ are constants, i is the peak current (mA), v is the sweep rate (mV s⁻¹), and V is the specified voltage (V). As depicted in Fig. 3b, the pseudocapacitance contributions to charge storage of the t-BTO@C electrode are 62.5%, 73.7%, 76.5%, 80.9%, and 84.3% at sweep rates of 0.1, 0.3, 0.5, 0.7, and 1.0 mV s⁻¹, respectively. Similarly, the pseudocapacitance contributions of the non-ferroelectric SiO₂@C electrode are 59.0%, 71.5%, 74.9%, 79.2%, and 82.1% at sweep rates of 0.1, 0.3, 0.5, 0.7, and 1.0 mV s⁻¹, respectively (Fig. S14b–d†). It can be seen that the t-BTO@C electrode always exhibits high percentages of pseudocapacitance contribution. The increased pseudocapacitive contribution at higher sweep rates of the t-BTO@C electrode suggests faster potassium storage capability. In addition, the Galvanostatic Intermittent Titration Technique (GITT) in Fig. 3c shows that the t-BTO@C electrode has an average higher ion diffusion coefficient of 6.95 × 10⁻¹⁰ cm² s⁻¹, while those of SiO₂@C and Pure C electrode are 2.75 × 10⁻¹⁰ cm² s⁻¹ and 1.28 × 10⁻¹⁰ cm² s⁻¹, respectively. This could be due to the P_s of t-BTO enhancing the surface adsorption kinetics.^45,46 To illustrate, Fig. 3d presents the dQ/dV profiles of the fourth cycle. The oxidation potentials of t-BTO@C, SiO₂@C, and Pure C increase from 0.398 V to 0.470 V and 0.533 V, respectively. The large potential suggests larger polarization and slower electron transfer kinetics.⁴⁷ During the potassiation process, the t-BTO@C electrode shows a higher current below 0.2 V, while SiO₂@C and Pure C electrodes exhibit a smaller current in this voltage range. The larger current at a lower voltage confirms that the t-BTO@C electrode can accommodate a higher density of potassium ions. To validate this observation, in Fig. 3e the total potassium intercalation capacity of the t-BTO@C, SiO₂@C, and Pure C electrodes have been compared using constant–current discharge curves at 5 mA g⁻¹. The t-BTO@C electrode shows a longer tail in the curve, achieving a discharge capacity of 622.2 mA h g⁻¹ below 1 V (Fig. 3f), which exceeds the capacities observed in the other SiO₂@C (514.1 mA h g⁻¹) and Pure C electrodes (355.8 mA h g⁻¹). From electrochemical measurements, we confirm that the ferroelectric t-BTO@C anode has faster potassiation kinetics with a higher pseudo capacitance contribution and insertion-pore filling stage capacity. Such improvements can be attributed to the enhanced potassium ion migration by the P_s electric field at the vicinity of t-BTO particles.^48,49

Efficient and homogeneous migration of potassium ions and rapid charge transfer across interfaces are pivotal factors contributing to the stability and lifetime of PIBs. They can also greatly reduce various side products including the continuously generated SEI layer and other electrolyte byproducts.^50,51 To confirm the positive effect of local ferroelectric particles, the morphology of the t-BTO@C surface was measured by SEM and AFM. Both measurements confirm that the surface has fewer byproducts. SEM images depicting the electrode surfaces before the first cycle, and after 50 and 100 cycles, are presented in Fig. 4a–c and Fig. S15a–f.† After 50 cycles, there is a slight increase in the size of t-BTO@C particles, likely attributable to the formation of an SEI layer. In contrast, the average sizes of SiO₂@C and Pure C particles increase more rapidly, indicating the formation of large amounts of side products. This trend becomes more pronounced after 100 cycles, where bulk potassium fluoride byproducts are observed on SiO₂@C and Pure C electrodes, suggesting substantial side reactions (Fig. S16–21†). In contrast, the t-BTO@C electrode surface is nearly identical to the pristine surface, indicating minimal side reactions.⁵² To examine the actual height changes on these surfaces, atomic force microscopy (AFM) was employed to measure the surface roughness evolution before and after cycling (Fig. 4d–i). After 100 cycles, the t-BTO@C surface exhibits noticeably fewer corrugations compared to the other two electrodes, with the smallest surface roughness (R_a) recorded at 277 ± 16 nm. In contrast, the R_a values are higher at 467 ± 38 nm for SiO₂@C and 323 ± 21 nm for Pure C electrodes, confirming less roughening of the t-BTO@C surface (Table S1†). The morphological data from SEM and AFM clearly illustrate that the t-BTO@C electrode exhibits minimal byproduct formation in comparison with the electrode with non-ferroelectric SiO₂@C and Pure C.

Fig. 4 SEM image of (a) t-BTO@C, (b) SiO₂@C, and (c) the Pure C electrode surface after 100 cycles at 0.2 A g⁻¹. AFM three-dimensional electrode surface altitude morphology map of (d) t-BTO@C, (e) SiO₂@C, and (f) Pure C electrodes after 100 cycles at 0.2 A g⁻¹. The R_a value at different measurement points of (g) t-BTO@C, (h) SiO₂@C, and (i) Pure C electrodes.

We summarize the function of ferroelectric t-BTO particles in the potassiation and depotassiation process in Fig. 5. t-BTO with spontaneous electrical polarization could increase the effective electrical field in the vicinity of hard carbon shells. The average size of t-BTO particles is around 100 nm, suggesting that these particles can be easily polarized at a voltage as low as 0.35 V (Fig. S22†). During potassiation, the potassium ions are driven by the external electric field and migrate into the hard carbon layer. The t-BTO cores are polarized by the electric field which increases the effective electric field in the hard carbon shells. As a result, the potassiation process is accelerated with less chance of generating byproducts and avoiding the continuous growth of SEI. In the depotassiation process, the P_s electric field from the t-BTO particle can drive the potassium ion out of the hard carbon layer faster. Such an effect is not available in SiO₂@C or Pure C anodes. As a result, the potassiation and depotassiation process in t-BTO@C can be performed faster with fewer byproducts and thinner SEI.^36,53–57

Fig. 5 Schematic diagram of enhanced ion diffusion and capacity by spontaneous polarization electric field in the t-BTO@C electrode, as well as an explanation of the capacity decay and cycling instability of SiO₂@C and Pure C electrodes.

To verify the promising application of the t-BTO@C electrode, a coin full cell with a high-voltage window is prepared using Prussian white as the cathode and t-BTO@C as the anode (Fig. 6a). The PW/t-BTO@C delivers an initial discharge specific capacity of 356.2 mA h g⁻¹ (based on the anode weight) at a current density of 0.1 A g⁻¹ as shown in Fig. 6b. After 40 cycles, PW/t-BTO@C shows a discharge specific capacity of 313.0 mA h g⁻¹, with 88.9% capacity retention. Furthermore, the PW/t-BTO@C full-cell exhibits discharge specific capacities of 404.7, 371.4, 342.5, 340.1, 307.1, and 367.3 mA g⁻¹ at current densities of 0.05, 0.1, 0.2, 0.5, 1, and 0.05 A g⁻¹, respectively (Fig. 6c). In Fig. 6d, we compare the full-cell performance of our anode with hard carbon anodes reported recently in the literature under the same conditions. PW/t-BTO@C shows a specific capacity of 323.0 mA h g⁻¹, much higher than those of other full cells, confirming its outstanding full-cell performance.

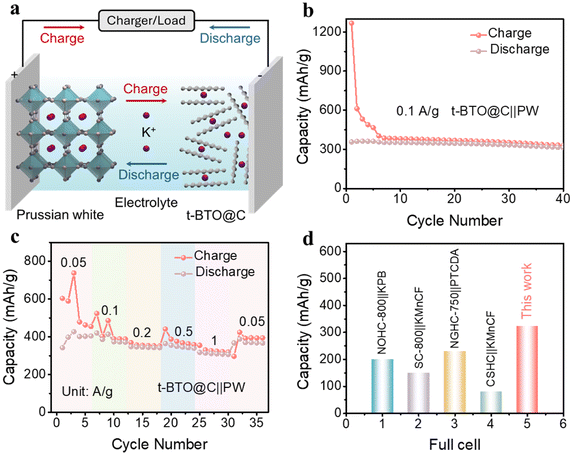

Fig. 6 (a) Schematic model of the PW/t-BTO@C full-cell. (b) Cycle performance of the t-BTO@C full-cell at 0.1 A g⁻¹. (c) Rate performance of the PW/t-BTO@C full-cell. (d) Comparative cycle performance of the PW/t-BTO@C full-cell and other full-cells reported in the literature at 0.1 A g⁻¹.^40–42,58

4. Conclusion

In summary, we fabricated a composite hard carbon anode using t-BTO particles as its core. The t-BTO particles show clear ferroelectric properties with a maximum polarization of 3.46 μC cm⁻² under a coercive field of 13.16 kV cm⁻¹. We confirmed that potassium ions can be driven by the P_s field of the t-BTO@C anode, enhancing the adsorption of potassium ions in graphitic interlayers. Such effective interaction increased the potassium ion kinetics and the insertion-pore filling potassium storage. The t-BTO@C anode presents 622.2 mA h g⁻¹ insertion-pore filling capacity, which is higher than the values for SiO₂@C (514.1 mA h g⁻¹) and Pure C (355.8 mA h g⁻¹). The P_s field also homogenizes potassium ion migration, resulting in a uniform SEI layer with less byproduct generation. Therefore, the specific capacity of the t-BTO@C anode achieves 374.9 mA h g⁻¹ over 100 cycles at 0.05 A g⁻¹, which is much higher than the values for SiO₂@C anode (97.2 mA h g⁻¹) and Pure C anode (240.1 mA h g⁻¹). The t-BTO@C anode could retain 238.1 mA h g⁻¹ (82.8% of its capacity) after 1000 cycles at 1 A g⁻¹. In addition, the PW/t-BTO@C full-cell exhibits a discharge specific capacity of 313.0 mA g⁻¹ at a current density of 0.05 A g⁻¹ after 40 cycles. Our results reveal an effective strategy to enhance the migration of potassium ions by ferroelectricity.
