The emerging field of twistronics utilizes the interfacial twist angle between two-dimensional materials to design and explore unconventional electronic properties. However, recent investigations revealed that not every twist angle is stable. Understanding and predicting preferred twist angles are therefore of vital importance and have received considerable attention; however, general analytical theories that can feasibly address the stability of twist angles have not yet been developed. In this work, we reveal the existence of universal analytical scaling laws that delineate the interface rotational energy landscape, enabling the determination of both stable angles and interlayer rotational torque. The universality of our theoretical results is fundamentally based on the evolution of moiré geometry, which is applicable across many material interface systems. Our results not only unify experimental observations and literature atomistic simulations, but also provide new perspectives for the rational design of nanoscale rotation-tunable electronic devices. Our theories can potentially inspire a deeper understanding of moiré-correlated interface mechanics.
To address the above challenge, in this work, we show that there are universal analytical scaling laws to account for the interface rotational energy landscape, which lead to a unified understanding of stable twist angles for twisted van der Waals bilayers. Fundamentally based on the evolution of moiré geometry, our theoretical approaches are universally applicable across many material interface systems. To extract general physical insights, we begin with molecular simulations16 for three representative material systems, including twisted bilayer graphene (TBG),17,18 bilayer MoS2,12,19,20 and graphene/h-BN heterobilayers.21,22 Our theories focus on equilateral triangles and hexagons as these shapes are frequently observed in chemical vapor deposition (CVD) growth processes.13,23 Our theoretical approach could also accommodate other shapes (e.g., see results for square shapes in the ESI†). In principle, any initial twisted configurations can be fabricated using the dry-transfer method.23,24 With the understanding of simulation observations, we develop moiré-geometry-based theories, which are capable of analytically accounting for the rotational energy landscape and determining both stable angles and interlayer rotational torque. Such straightforward analytical approaches have clear advantages over atomistic simulations, which may suffer from large model sizes. Our results not only show strong agreement with simulation and literature results, but also can potentially guide the design and deepen the understanding of twistronics.

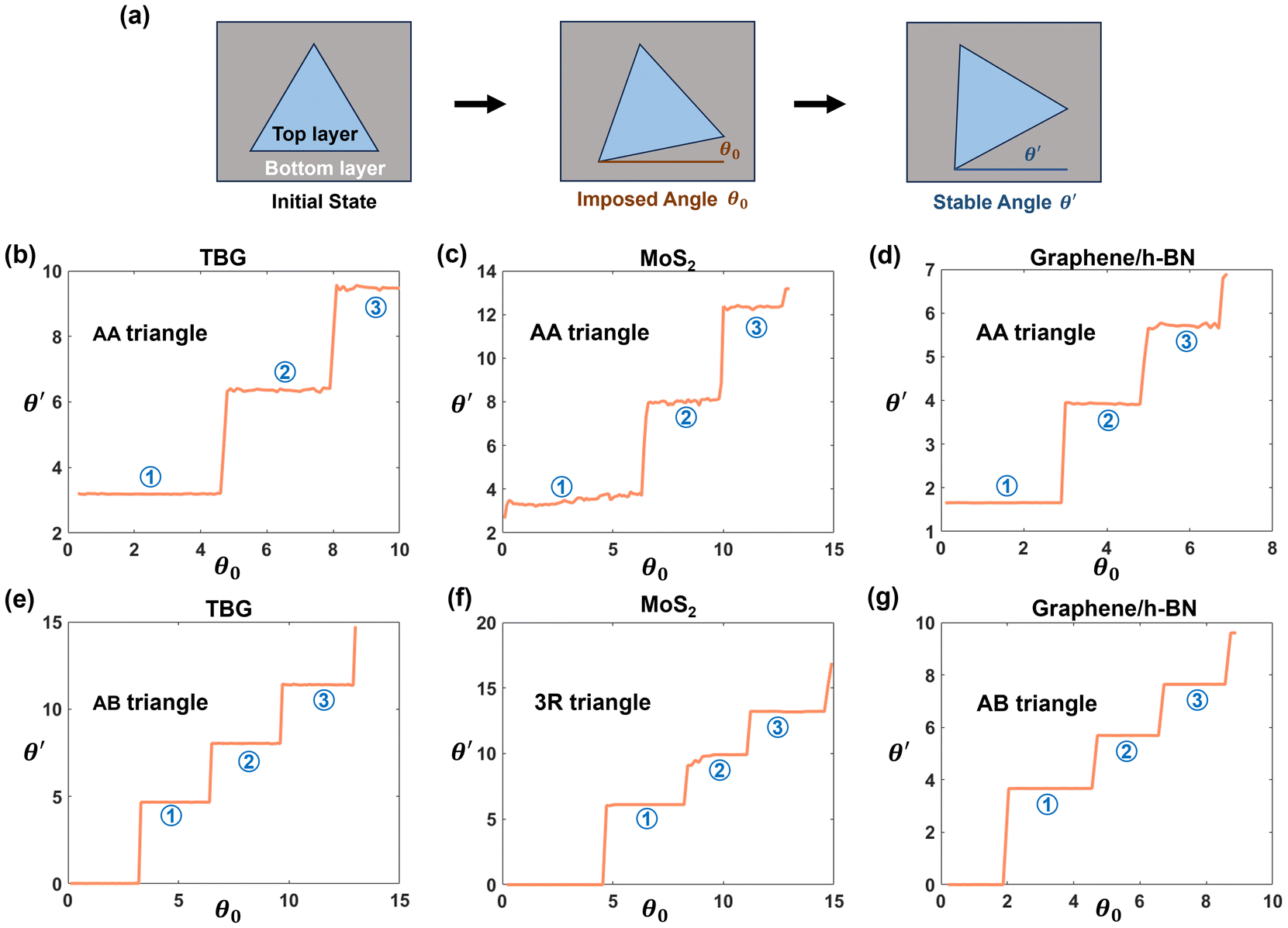

To understand the twist angle instability, we identify the correlation between moiré patterns and the interface stacking energy landscape (Fig. 2). Despite differences in flake size, TBG and MoS2 exhibit similar moiré patterns at different stable twist angles. For example, the left column in Fig. 2(a and d) shows the top views of the atomistic structure for three stable angles of TBG as shown in Fig. 1(b and e). The lighter region corresponds to the high-energy AA stacking domain, where atoms visually overlap, whereas the darker region represents the low-energy AB stacking.17 The distribution of these domains in MoS2 (Fig. 2(b and e)) is similar, although the stacking definition (i.e., AA and 3R) is different (see the ESI 1†). A more intricate moiré pattern is observed in the graphene/h-BN system (Fig. 2(c and f)), because both AA stacking and BA stacking possess the highest interface energy, with almost equal magnitudes, while the AB stacking still has the lowest interface energy.26 This intricacy can be ascribed to the existence of lattice mismatch.27 Given such complex observations of similarities and discrepancies across different materials, is there a unified theoretical framework to account for stable twist angles?
![]() | ||
| Fig. 2 The moiré patterns corresponding to the three stable angles from Fig. 1. The local stacking energies of the visual moiré patterns (left column) of different material flakes can be captured by the moiré periodic potential (right column). (a and d) TBG, (b and e) bilayer MoS2, and (c and f) graphene/h-BN heterostructure with initial AA and AB(3R) stacking configurations, where the actual stacking domains are labeled. In the left column of each panel, colors are selected to distinguish different layers. | ||
This work answers the above question. We find that the left-column moiré patterns can be universally described by a moiré periodic potential (the right column of Fig. 2), from which an analytical energy landscape can be elegantly derived. We utilized a general form of
to characterize the moiré potential of TBG and MoS2,28 where
represents the reciprocal lattice vector that accounts for the planar periodicity of the moiré pattern. However, for graphene/h-BN, because AA and BA stackings are considered energetically equivalent,26 the low-energy domains form triangular arrays and each low-energy domain is surrounded by six high-energy domains.21,22,26,29–31 Such an energy distribution can be conveniently represented by
.32,33 The essence of this theoretical treatment is that the symmetric, geometric and energetic characteristics of the moiré pattern in twisted van der Waals bilayers are satisfied.
Our theories use the following notations. The mismatch parameter p represents the ratio of the lattice constants between the top layer (Rt) and the substrate layer (Rs). For graphene/h-BN heterostructures, p = 0.98,2,27 while for TBG and bilayer MoS2, p = 1. The dimensionless size parameter
is used to denote the normalized flake size, where a is the lattice constant of the top layer and R is the radius of the circumcircle for an equilateral triangle or hexagon. For example, in Fig. 1, the size parameter r is
for TBG and
for bilayer MoS2, while for a graphene/h-BN heterostructure,
.
Our theories establish an analytical scaling mapping from the dimensionless twist angle θ, size parameter r, and lattice mismatch parameter p to interlayer rotational energy. The reciprocal lattice vector
carries information about the moiré wavelength λ and the orientation of the moiré pattern.34 The key step is to describe the evolution of
as a function of p, r, and θ. When the initial stacking configuration is AA, the center stacking after twisting remains close to AA; therefore, the moiré potential function35 is
. However, if the initial stacking is in the AB(3R) configuration, the center stacking after twisting remains close to AB(3R), and the moiré potential function should be modified35 to
. In our methodology, it is important to ensure that the mathematical description of the initial orientation and the subsequent rotation of moiré potential function are both consistent with the observed moiré patterns in real materials. Then, λ(θ, p) should be substituted34 as
and
. Furthermore, because the moiré pattern rotates with the flake, it is necessary to impose a rotation34 to the above moiré potential function. Finally, an analytical expression can be obtained by integrating the moiré energy function over the entire shape of the flake,32,35 denoted as
, where Ω(x, y, r) represents the corresponding shape of the flake. After normalization through division by the flake area, a dimensionless total energy landscape function
is obtained. The stable twist angles can then be readily extracted from its energy local minima.
We first present the elegant and concise rotational total energy function for triangular identical (p = 1) bilayer materials (based on
).
For initial AA stacking:
![]() | (1) |
For initial AB(3R) stacking:
![]() | (2) |
Also, the total energy functions for initial AA and AB(3R) stacking configurations of the hexagonal flake (based on
) are:
![]() | (3) |
![]() | (4) |
Note that for p = 1, the angle34 between the moiré vector and the lattice vector of the substrate is
, so for a small twist angle θ, we can assume that the moiré vector and the lattice vector are perpendicular. Exact formulas that fully considering moiré pattern rotation are presented in the ESI,† along with a three-dimensional plot of the energy function S(θ, r, p = 1). The troughs on the surface correspond to energy local minima for stable twist states.
The most general case (p ≠ 1), which can arise from inherent lattice mismatch or strain engineering,18,36 also has an analytical expression.
The total energy function for a triangular flake with the initial AA stacking (based on
as in the case of the Gra/h-BN system32,33) is:
![]() | (5) |
The definitions of the symbols in the above equations are listed as follows.
D = 8π2r2(1 + p2 − 2p cos θ)(3 − 9cot2 A). |
The total energy function for a triangular flake with the initial AB stacking (based on
) is:
![]() | (6) |
The definitions of the symbols in the above equations are listed as follows.
D = 4π2r2(1 + p2 − 2p cos θ)(1 − 2 cos(2A)). |
The other forms of the analytical total energy function (i.e., based on
, or hexagonal shapes) and results for the moiré interface caused by lattice mismatch without rotation can be found in the ESI.†

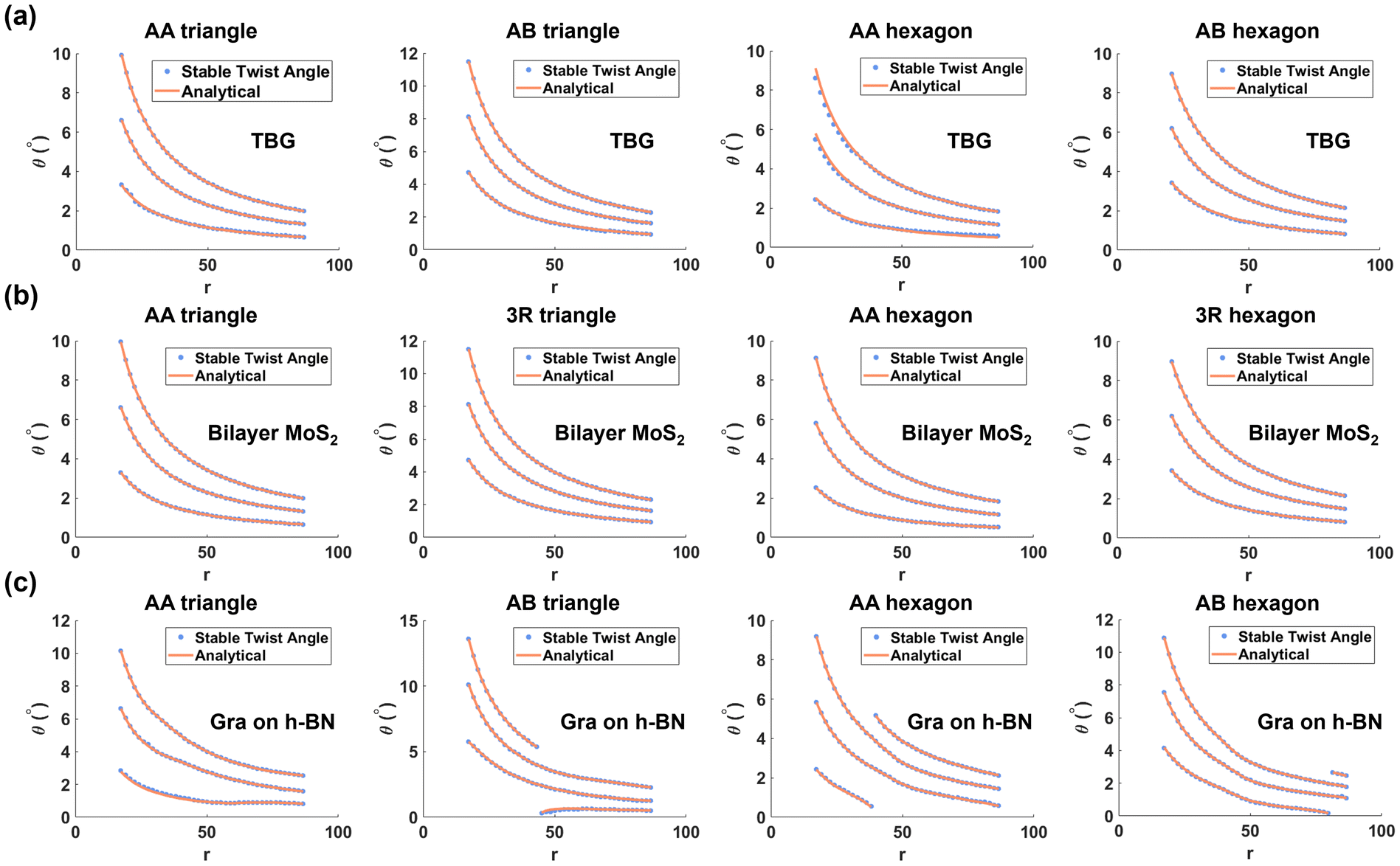

Over a wide range of normalized sizes, we demonstrate a satisfactory agreement between the first three local energy minima extracted from these analytical energy functions and large-scale molecular simulations, as shown in Fig. 3. Results for TBG and bilayer MoS2 (p = 1) are illustrated in Fig. 3(a and b), while results for Gra/h-BN (p ≠ 1) are presented in Fig. 3(c). We observe that for homobilayers (p = 1), the stable final angles are the same for different materials given the same normalized size r, and they differ from those of heterobilayers (p ≠ 1). Note that for small twist angles, local relaxation, which shrinks the AA region and expands the AB region, would appear. This effect is discussed in the ESI,† with the conclusion that local relaxation does not practically affect the angles of local energy extrema, in agreement with an earlier report.35
The interlayer rotational torque is a vital concept for interface twist engineering using 2D nano materials.13,37,38 In this work, we show that there are universal scaling laws that account for such interlayer rotational torque, which is the driving force for spontaneous rotation. By using an appropriate scaling factor, the interlayer rotational torque obtained from real material simulations can be reconstructed. Specifically, we demonstrate that the dimensionless theoretical torque Ttheory multiplied by certain coefficient K can match the simulated torque TMD. That is,

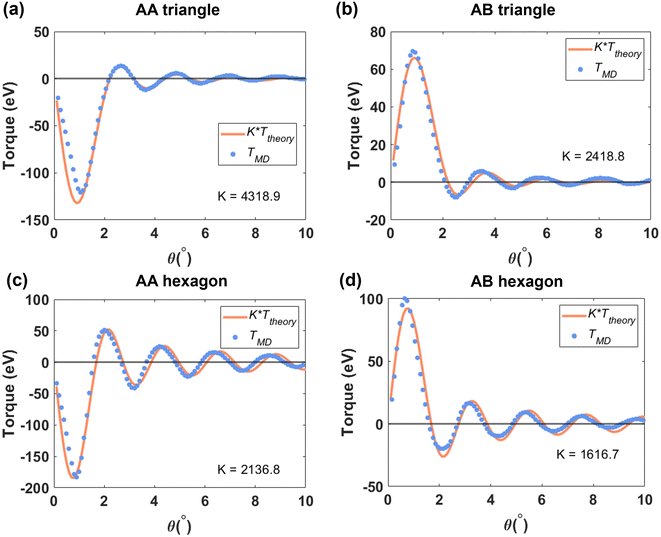

, where S(θ, r, p) is our dimensionless energy function for specific twist angles and flake sizes. The value of K is determined by minimizing the sum of the absolute values of discrepancies between the MD results and the theoretical scaled result (i.e., the L1 norm). In Fig. 4, we use TBG
to demonstrate the agreement across a continuous range of twist angles. The simulated torque TMD is calculated by numerically differentiating the simulated configuration energy with respect to twist angles. Fig. 4 shows that there is excellent scaling agreement for both triangular and hexagonal TBG flakes with initial AA and AB stacking configurations at a fixed r. Additional calculations in the ESI† indicate that the coefficient K remains almost unchanged for the same geometric shape with varying r. All these comparisons demonstrate satisfactory scaling performance. The zero-torque points correspond to the preferred twisted states or the saddle point on the rotational energy landscape. Our theoretical approach thus not only provides accurate predictions of stable twist angles but also offers significant convenience in interpreting interlayer torque in twisted bilayer systems.
Finally, Fig. 5 illustrates certain aspects of the immediate application of our theory. First, our theory can readily reproduce literature insights from extensive MD simulation results. For example, the dynamic twisting of graphene/h-BN bilayers has been studied in MD simulations by modulating heterostrain,23 where a hexagonal graphene flake with a width of 13.7 nm is placed on an h-BN monolayer, and then the energy-angle curves for the initial AA stacking are simulated. In this case, to apply our theory, the size parameter
, and eqn (S5)† is directly used for predictions. The satisfactory comparisons of the energy landscape with the original ref. 23 are shown in Fig. 5(a) for zero biaxial strain, Fig. 5(b) for 4% biaxial strain (εb), and Fig. 5(c) in the space of rotation angle and biaxial strain. Second, our theory can help interpret experimental measurements (Fig. 5(d)). For example, the distribution of rotation angles is experimentally measured for a triangular MoSe2 layer grown on a graphene surface,39 where the average size of the as-grown triangle domains is found to be about 8 nm2, so the averaged side length of the equilateral triangle flake is 4.3 nm. Given that the lattice constant for MoSe2 is 0.33 nm40 while that for graphene is 0.246 nm, we get
, and the normalized size
. The analytical energy landscape (eqn (S8)†) is then plotted as the red curve in Fig. 5(d), while the bar graph replots the frequency count on rotation angles in the experiment. It is anticipated that angles with higher energy are unfavorable, resulting in a lower frequency count. Notably, the use of the average flake size in our theory already produces a satisfactory interpretation of why certain angles have higher occurrence. The high energy barrier after the third preferred angle (about 17°) may explain the low count in the vicinity of the fourth preferred angle (about 21°). Third, our theory can guide the design of twistronics structures, where certain angles of interest are intrinsically coupled to certain flake sizes, alleviating the difficulty of experimental synthesis. For example, theoretical investigations41 show that there is actually a set of magic angles for TBG (i.e., 1.1°, 0.5°, 0.35°, and so on); however, the tiny magic angles of TBG smaller than 1° are not easily accessible in experiments.42 Nevertheless, our theory allows one to quickly scan the flake sizes whose preferred twisted states coincide with these peculiar angles. Fig. 5(e) shows a range of triangular flakes whose sizes correspond to θ = 1.1°, 0.5°, and 0.35°. Eqn (2) is directly used for predictions. Given these large sizes, computational searching for these states using conventional atomistic simulations is prohibitive, thus highlighting the advantages of our scaling laws.
![]() | ||
| Fig. 5 Using our analytical theories to (a–c) interpret simulated energy landscape from ref. 23, (d) understand the occurrence of angles from experiments,39 and (e) rationally design flake geometries intrinsically coupled to an array of magic angles of TBG (θ = 1.1°, 0.5°, and 0.35°). | ||
