Di- and tri-valent metal complexes with tris-amide-functionalised 1,4,7-triazacyclononane chelators

Abstract

The reactions of a series of divalent 3d metal ions (Co, Ni, Cu, Zn) with two tris-amide functionalised tacn ligands, {PhNHC(O)CH₂}₃-tacn (1) and {ⁱPrNHC(O)CH₂CH₂}₃-tacn (2), in alcohol solution are described. The resulting complexes, [M(1)](NO₃)₂ and [M(2)](NO₃)₂ are characterised by elemental analysis, mass spectrometry, IR, UV-vis, ¹H and ¹³C{¹H} NMR spectroscopy, as appropriate, and by single crystal X-ray analysis for four representative examples. In all cases the ligands behave as hexadentate chelators to the divalent metal ion, with N₃O₃ donor sets through the tacn N-donor atoms and the O-bound carboxamide pendant arms. However, the reaction of 1 with Co(NO₃)₂·6H₂O produces the Co(III) complex, [Co(1-H)](NO₃)₂, via air oxidation. The X-ray crystal structure of this complex confirms a distorted octahedral N₄O₂ coordination environment at cobalt(III) through the three facial tacn amine groups, the anionic N atom from one deprotonated amide group, and two O-bound carboxamides. In comparison, the coordination of 1 towards the trivalent group 13 nitrates, M(NO₃)·9H₂O (M = Ga and In) at room temperature in MeOH yields the distorted octahedral [M(1)](NO₃)₃ salts initially (from NMR and IR spectroscopy and elemental analysis data) as colourless solids. However, they are less stable than the divalent complexes, undergoing slow amide hydrolysis in MeOH at room temperature over several hours, or more rapidly with heating. This process occurs more readily with Ga(III) than with the less Lewis acidic In(III) analogue. The crystal structure of one hydrolysis product, [Ga(3)](NO₃), is also reported (3 = {PhNHC(O)CH₂-tacn-(CH₂CO₂)₂}²⁻), in which two amide arms from 1 are converted to carboxylates.

---

Introduction

The tacn (1,4,7-triazacyclononane) macrocycle has been used widely in coordination chemistry over the past decades due to the suitability of the nine-membered ring for facial coordination to a wide range of metal ions in different oxidation states and from across the periodic table.¹ A further attraction is its ability to accommodate various pendant functional groups via reaction at the secondary amines, leading to ligands that can serve as potent metal chelators. For example, N-functionalisation has been used to introduce neutral donor groups, as well as groups such as carboxylic acids and phosphinic acids,² that readily deprotonate, providing anionic donor groups. Overall, this provides an exceptional degree of control of the ligand denticity and donor environment, leading to highly tuneable metal binding characteristics. Consequently, complexes incorporating N-functionalised tacn ligands have been the focus of considerable attention for binding various metal radionuclides for imaging and therapy,^3–11 to create metal complexes as ‘scaffolds’ for the incorporation of radiofluorine towards positron emission tomography (PET) imaging strategies.¹² Recent work has reported combined tacn-based tracers incorporating both ¹⁷⁷Lu and ¹⁸F towards theragnostic applications,¹³ as well as for novel luminescent¹⁴ and magnetic resonance imaging¹⁵ probes.

We have reported the coordination of the tris-amide-functionalised tacn derivatives, 1 and 2 (L), with metal trifluoride fragments, using the molecular FeF₃·3H₂O, [MF₃(OH₂)₂(dmso)], M = Al, Ga, In, precursors in alcohol to form fac-[MF₃(1)] and fac-[MF₃(2)] in good yield. These complexes involve distorted octahedral F₃N₃ coordination through the tacn N₃ donor atoms only, with retention of the mutually fac fluorides and the amide pendant arms involved in H-bonding interactions with the coordinated fluorides. This was supported by their spectroscopic analysis and subsequently confirmed for [GaF₃(1)] and [InF₃(2)] by X-ray crystallography.¹⁶ We also demonstrated the radiofluorination of [GaF₃(1)] in MeOH solution via¹⁸F/¹⁹F isotopic exchange, by the addition of [¹⁸F]F⁻ in water. Upon heating briefly (10 min/80 °C), the target radio-product, [Ga¹⁸FF₂(1)], was obtained in ∼20% radiochemical yield and shown to have promising radiochemical stability over several hours when formulated in EtOH/H₂O or EtOH/phosphate buffered saline solution (Scheme 1).¹⁶

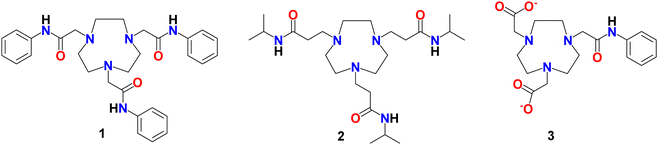

Scheme 1 the tris-amide-functionalised tacn-derivatives, 1 and 2, used in this work, together with the carboxylate ligand derivative, 3, formed by hydrolysis of 1 in the presence of the trivalent Ga(III) ions (see text below).

Consideration of the wider literature associated with amide-substituted tacn ligands has revealed a range of possible coordination modes and behaviours, with work mainly focused on 3d metal ions.^17–22 For example, Chaudhuri and co-workers have described a series of di-, tri- and tetra-valent complexes with the tacn ring bearing three –CH₂C(O)NH₂ or –CH₂C(O)NHMe pendant arms.¹⁷ All of these show hexadentate coordination, most commonly via an N₃O₃ donor set, i.e. through the tacn N atoms and the O atoms from the pendant carboxamides, with geometries intermediate between octahedral and trigonal prismatic. Under pH control, deprotonation of an amide N–H was observed with Cr(III), leading to a switch from O- to N-coordination of this amide to the Cr(III) ion. They also demonstrated that with Cr(III) or upon oxidation of Fe(II) to Fe(III), hydrolysis of between one and three of the amide functions to carboxylate occurs.¹⁷

We were therefore interested to investigate how the tris-amide ligands 1 and 2 behave towards both divalent transition metal ions, as well as to compare their coordination towards M(III) (M = Ga, In) using aquo cations (via M(NO₃)₃·9H₂O) rather than the metal trifluoride precursors used in our earlier work.¹⁶ We report here the preparation and characterisation of a series of new divalent transition metal and trivalent main group complexes incorporating the potentially hexadentate tris-amide tacn ligands, 1 and 2. The reactions of 1 with the trivalent M(NO₃)₃·9H₂O salts, M = In, Ga, are also discussed.

Experimental

Infrared spectra were recorded as Nujol mulls between CsI plates using a PerkinElmer Spectrum 100 spectrometer over the range 4000–200 cm⁻¹. Positive ion electrospray mass spectra (ESI⁺ MS) were recorded in MeOH using a Waters (Manchester, UK) Acquity TQD tandem quadrupole mass spectrometer. Samples were introduced to the mass spectrometer via an Acquity H-Class quaternary solvent manager (with TUV detector at 254 nm, sample and column manager). For diamagnetic complexes, ¹H and ¹³C{¹H} NMR spectra were recorded from CD₃OD solutions (unless otherwise stated) using a Bruker AV400 spectrometer and referenced to SiMe₄via the residual protio-solvent resonance (¹H and ¹³C). Duplicate microanalyses were out-sourced to Medac Ltd. While majority of measurements are within ±0.4% of the theoretical value, in a few cases the values are slightly outside this range, reflecting the inherent variability of microanalytical measurements across different facilities.²³ The complexes of ligand 2 are extremely hygroscopic, rapidly changing from free-flowing powders to sticky solids; since our microanalytical measurements are out-sourced, we were unable to obtain reliable data for a few of the complexes, although the spectroscopic and structural data are consistent with the formulations quoted. Solution UV-vis spectra were obtained in 1 cm quartz cells from a MeOH solution using a PerkinElmer Lambda 750S spectrophotometer.

Ligands 1 and 2 were prepared and purified using the reported methods.¹⁶ Metal salts were obtained from Sigma and used as received.

Preparations

[Co(1-H)](NO₃)₂

1 (0.030 mg, 0.057 mmol) and Co(NO₃)₂·6H₂O (0.016 g, 0.057 mmol) were dissolved in anhydrous MeOH. The pink solution was stirred at room temperature overnight. The solvent volume was then decreased in vacuo to ca. 1 mL, and Et₂O was added, causing precipitation of a dark pink solid, which was filtered and dried in vacuo. Yield: 0.029 g, 72%. Analysis required for C₃₀H₃₅CoN₈O₉·3H₂O·½Et₂O·3H₂O: C, 47.94; H, 5.78; N, 13.98%. Found: C, 47.99, H, 5.24, N, 13.50%. ESI⁺ MS (CH₃OH): found: 293.7 (expected for [Co(1-H)]²⁺: m/z = 293.6). IR (Nujol, ν/cm⁻¹): 3293w, 3272w (NH), 1626m, 1595m (C=O). UV-vis (MeOH): [small nu, Greek, tilde]/cm⁻¹ (ε/mol⁻¹ dm³ cm⁻¹) = 19 200 (46). ¹H NMR spectrum (d₄-MeOH): shows a spectrum in the typical chemical shift range as expected, consistent with l.s. Co(III), however, the spectrum appears to contain more than one species, most likely due to partial hydrolysis of the amide groups in solution. Crystals suitable for X-ray analysis were obtained by slow evaporation from a solution in MeOH over a few days.

[Ni(1)](NO₃)₂

A solution of Ni(NO₃)₂·6H₂O (0.027 g, 0.095 mmol) in MeOH (5 mL) was added to a solution of 1 (0.050 g, 0.095 mmol) in MeOH (5 mL). The purple coloured solution was stirred overnight. The solvent volume was reduced in vacuo by ca. 50% and Et₂O was added, causing precipitation of a purple solid, which was isolated via filtration and dried in vacuo. Yield: 0.054 g, 87%. Analysis required for C₃₀H₃₆N₈NiO₉·¼Et₂O·½H₂O: C, 50.74; H, 5.59; N, 14.79%. Found: C, 51.09, H, 5.34, N, 14.46%. ESI⁺ MS (CH₃OH): found: 293.3 (calculated for [Ni(L¹)]²⁺: m/z = 294.4). IR (Nujol, ν/cm⁻¹): 3400 br, 3250 br (OH), 3192 w, 3130 w (NH), 1682 m (HOH), 1621 s, 1596 s (C=O). UV-vis (MeOH): [small nu, Greek, tilde]/cm⁻¹ (ε/mol⁻¹ dm³ cm⁻¹) = 28 500 (46), 17 800 (30), 12 500 (34), 10 700 (54). Crystals suitable for X-ray diffraction were grown via the vapour diffusion of Et₂O into a methanol solution containing the product.

[Cu(1)](NO₃)₂

A solution of Cu(NO₃)₂·3H₂O (0.046 g, 0.190 mmol) in MeOH (5 mL) was added to a solution of 1 (0.100 g, 0.190 mmol) in MeOH (5 mL) and stirred for 3 h at room temperature. The solvent volume was reduced in vacuo and excess Et₂O was added, causing precipitation of a blue solid, which was isolated via filtration and dried in vacuo. Yield: 0.101 g, 74%. Analysis required for C₃₀H₃₆CuN₈O₉·1½H₂O: C, 48.48; H, 5.29; N, 15.08. Found: C, 48.88; H, 5.49; N, 14.71%. ESI⁺ MS (CH₃OH): found: 295.9 (expected for [Cu(L¹)]²⁺: m/z = 296.1). IR (Nujol, ν/cm⁻¹): 3400 br, 3200 br (OH), 3143 w (NH), 1652 sh (HOH), 1621 s, 1594 s (C=O). UV-vis (MeOH): [small nu, Greek, tilde]/cm⁻¹ (ε/mol⁻¹ dm³ cm⁻¹) = 13 600 (95). Crystals suitable for X-ray diffraction were grown via the vapour diffusion of Et₂O into a methanol solution containing the product.

[Zn(1)](NO₃)₂

A solution of Zn(NO₃)₂·6H₂O (0.057 mg, 0.191 mmol) in MeOH (5 mL) was added to a solution of 1 (0.100 g, 0.191 mmol) in MeOH (5 mL). This colourless was stirred overnight. The solvent volume was then reduced in vacuo to approx. 2 mL, and excess Et₂O was added, causing precipitation of a white solid, which was isolated via filtration and dried in vacuo. Yield: 0.096 g, 70%. Analysis required for C₃₀H₃₆N₈O₉Zn·1½H₂O: C, 48.36; H, 5.28; N, 15.04. Found: C, 48.19; H, 5.54; N, 14.50%. ¹H NMR (295 K, CD₃OD): δ (ppm) = 7.66–7.63 (m, [6H], ArH̲), 7.41–7.37 (m, [6H], ArH̲), 7.26–7.22 (m, [3H], ArH̲), 4.85 (H₂O), 4.04 (s, [6H], CH̲₂), 3.21–3.13 (m, [6H], tacn-CH̲₂), 3.01–2.93 (m, [6H], tacn-CH̲₂). ¹³C{¹H} NMR (295 K, CD₃OD): δ (ppm) = 173.6 (C=O), 137.8 (ArC), 130.4 (ArC), 127.5 (ArC), 122.5 (ArC), 59.9 (CH₂), 52.2 (tacn-CH₂). ESI⁺ MS (CH₃OH): 296.4 (expected for [Zn(L¹)]²⁺: m/z = 297.0). IR (Nujol, ν/cm⁻¹): 3400 br, 3200 br (OH), 3214 w, 3154 w (NH), 1695 sh (HOH), 1626 s, 1596 s (C=O).

[Ni(2)](NO₃)₂

A solution of Ni(NO₃)₂·6H₂O [0.016 g, 0.053 mmol] in MeOH (5 mL) was added to a solution of 2 (0.025 g, 0.053 mmol) in MeOH (5 mL). This was stirred for 2 h, changing from pale green to pale purple. The volume was reduced to ∼1–2 mL in vacuo and excess Et₂O was added, causing precipitation of a hygroscopic purple solid, which was isolated via filtration and dried in vacuo. Yield: 0.027 g, 81%. Analysis required for C₂₄H₄₈N₈NiO₉·2½H₂O: C, 41.39; H, 7.67; N, 16.09. Found: C, 41.51; H, 7.58; N, 16.42%. ESI⁺ MS (CH₃OH): 263.3 [expected for Ni(L²)]²⁺: (m/z = 263.2). UV-vis (MeOH): [small nu, Greek, tilde]/cm⁻¹ (ε/mol⁻¹ dm³ cm⁻¹) = 28 300 (43), 17 600 (22), 12 700 (30), 10 800 (62). IR (Nujol, ν/cm⁻¹): 3300 v br (OH) 3100 v br (NH), 1640 s (HOH), 1610 s, 1564 s (C=O). Crystals suitable for X-ray diffraction were grown via the vapour diffusion of Et₂O into a methanol solution containing the product.

[Cu(2)](NO₃)₂

A solution of Cu(NO₃)₂·3H₂O (0.029 g, 0.119 mmol) in MeOH (5 mL) was added to a solution of 2 (0.056 g, 0.119 mmol) in MeOH (5 mL). The blue-coloured solution was stirred overnight. The solvent volume was reduced in vacuo and excess Et₂O was added, causing precipitation of a dark blue solid. The solid was isolated via filtration and dried in vacuo. Yield: 0.059 g, 75%. ESI⁺ MS (CH₃OH): 266.0 [expected for Cu(L²)]²⁺: (m/z = 266.1). IR (Nujol, ν/cm⁻¹): 3400 br, 3200 br (OH), 3102 br (NH), 1639 sh (HOH), 1609 m, 1594 m (C=O). UV-vis (MeOH): [small nu, Greek, tilde]/cm⁻¹ (ε/mol⁻¹ dm³ cm⁻¹) = 13 000 (101). Crystals suitable for X-ray diffraction were grown via the slow evaporation of a Et₂O/MeOH solution.

[Zn(2)](NO₃)₂

A solution of Zn(NO₃)₂·6H₂O (0.022 g, 0.075 mmol) in MeOH (5 mL) was added to a solution of L² (0.035 g, 0.075 mmol) in MeOH (5 mL). The colourless solution was left to stir overnight. The solvent volume was reduced in vacuo and excess Et₂O was added, causing precipitation of a white solid, which was isolated via filtration and dried in vacuo. Yield: 0.037 g, 76%. Analysis required for C₂₄H₄₈N₉O₉Zn.2H₂O: C, 41.53, H,7.55, N, 16.14%. Found: C, 41.17, H, 7.12, N, 16.55%. ¹H NMR (295 K, CD₃OD): δ (ppm) = 4.85 (H₂O), 4.04–3.94 (septet, ³J_H–H = 6.5 Hz, [3H], ⁱPr-CH̲), 2.93–2.90 (br m, [6H], CH̲₂), 2.88–2.80 (br m, [8H], tacn-CH̲₂), 2.79–2.64 (br m, [4H], tacn-CH̲₂), 2.64–2.52 (br m, [6H], CH̲₂), 1.10–1.08 (d, ³J_H–H = 6.6 Hz, [18H], ⁱPr₂-CH̲₃). ¹³C{¹H} NMR (295 K, CD₃OD): δ (ppm) = 176.4 (C=O), 56.2 (tacn-CH₂), 55.0 (CH₂), 43.5 (ⁱPr-C̲H), 31.8 (C̲H₂), 22.3 (ⁱPr-C̲H₃). ESI⁺ MS (CH₃OH): 266.2 (expected for [Zn(L²)]²⁺: m/z = 266.2). IR (Nujol, ν/cm⁻¹): 3500 br, 3280 w (OH), 3114 br (NH), 1631 m (HOH), 1601 s, 1575 m (C=O).

[Ga(1)](NO₃)₃

A solution of Ga(NO₃)₃·9H₂O (0.024 g, 0.095 mmol) in MeOH (3 mL) was added to a solution of 1 (0.050 g, 0.095 mmol) in MeOH (3 mL). This was stirred at room temperature for ca. 12 h. The solvent volume was then reduced in vacuo, and Et₂O was added causing precipitation of a white solid, which was isolated via filtration and dried in vacuo. Yield: 0.035 g, 47%. Analysis required for C₃₀H₃₆GaN₉O₁₂·Et₂O: C, 47.57, H, 5.40, N, 14.68%. Found: C, 47.61, H, 5.41, N, 14.41%. ¹H NMR (295 K, CD₃OD): δ (ppm) = 7.40–7.47 (m, [6H], ArH̲), 7.03–6.94 (m, [9H], ArH̲), 4.85 (s, H₂O), 3.87 (s, [6H], CH̲₂), 3.21–3.09 (br m, [12H], tacn-CH̲₂). IR (Nujol, ν/cm⁻¹): 3400 br (OH), 3059 w (NH), 1686 sh, 1625 m, 1596 m (C=O).

[In(1)](NO₃)₃

A solution of In(NO₃)₃·9H₂O (0.057 g, 0.160 mmol) in MeOH (5 mL) was added to a solution of 1 (0.085 g, 0.160 mmol) in MeOH (5 mL) and the reaction was stirred at room temperature overnight, leaving a clear, colourless solution. The solvent volume was then reduced in vacuo, and Et₂O was added, causing precipitation of an off-white solid. This was isolated via filtration and dried in vacuo. Yield: 0.112 g, 84%. Analysis required for C₃₀H₃₆InN₉O₁₂·1/3Et₂O: C, 44.00, H, 4.62, N, 14.80%. Found: C, 43.69, H, 4.53, N, 14.35%. ¹H NMR (295 K, CD₃OD): δ (ppm) = 7.67–7.46 (m, [7H], ArH̲), 7.36–7.25 (m, [6H], ArH̲), 7.16–7.06 (m, [1H], ArH̲), 4.85 (H₂O), 4.22 (br s, [6H], CH̲₂), 3.44–3.35 (br m, [6H], tacn-CH̲₂), 3.25–3.06 (br m, [6H], tacn-CH̲₂). IR (Nujol, ν/cm⁻¹): 3450 br (OH), 3206 w, 3151 w (NH), (HOH), 1622 s, 1594 s, 1574 s (C=O).

X-ray crystallography

For several of the complexes, crystals suitable for single crystal X-ray analysis were obtained as described in the Experimental section. Data collections used a Rigaku UG2 goniometer equipped with a Rigaku HyPix-6000HE hybrid pixel detector mounted at the window of an FR-E+ SuperBright molybdenum (λ = 0.71073 Å) rotating anode generator with HF Varimax optics (100 μm focus) with the crystal held at 100 K, or a Rigaku UG2 goniometer equipped with a Rigaku Hypix 6000 HE detector mounted at the window of an FR-E+SuperBright molybdenum (λ = 0.71073 Å) rotating anode generator with (Arc)Sec VHF Varimax confocal mirrors (70 μm focus), with the crystal held at 100 K. Structure solution and refinement were performed using SHELX(T/S/L)97, SHELX2013, SHELX-2014/7 or olex2.refine via Olex2²⁴ or NoSpherA2²⁵ (for [Ni(1)](NO₃)₂·1½CH₃OH, [Cu(2))](NO₃)₂ and [Ga(3)]((NO₃)·1½H₂O). Structure solution and refinement was mostly routine except for [Ni(1)](NO₃)₂·1½CH₃OH where some disorder was evident in one pendant arm and was modelled using split site occupancies, and [Co(1-H)](NO₃)₂·2MeOH, [Cu(1)](NO₃)₂·1¼Et₂O·MeOH and [Ni(2)](NO₃)₂·0.249H₂O where there was some disorder in a solvent or a nitrate anion, which were modelled accordingly. For [Ni(2)](NO₃)₂, a solvent mask was applied to account for residual electron density, corresponding to 0.249 H₂O per formula unit. Similarly, a solvent mask was used to account for the solvent in [Ga(3)](NO₃)·1½H₂O, [Ni(1)](NO₃)₂·1½MeOH and [Cu(1)](NO₃)₂·1¼Et₂O·MeOH (for one MeOH and 0.25 Et₂O; the fully occupied Et₂O was identified in the difference map and refined normally). Further details are provided in the relevant cif files. The crystallographic parameters are given in Table S1 (ESI†).

Results and discussion

Reactions of 1 and 2 with divalent 3d metal ions

The divalent transition metal complexes of 1 and 2, [M(L)](NO₃)₂, were prepared by the direct addition of the relevant metal nitrate precursor, M(NO₃)₂·xH₂O, M = Ni, Cu, Zn, to the ligand in methanol (Scheme 2). The solutions were stirred at room temperature overnight, and the complexes were subsequently isolated as powdered solids in good yield. For M = Co, the reaction with ligand 1 formed the Co(III) complex, [Co(1-H)](NO₃)₂, shown in Scheme 2via air-oxidation – as discussed below.

Scheme 2 Synthesis of the complexes formed from reaction of 1 or 2 with the M(NO₃)₂·xH₂O precursors (M = Co, Ni, Cu, Zn).

Characterisation of the new complexes used elemental analysis, IR, UV-vis spectroscopy, ESI⁺ mass spectrometry, ¹H and ¹³C{¹H} NMR spectroscopy (for the Zn(II) species), as appropriate, and single crystal X-ray structure determinations for representative examples. The complexes show a strong tendency to incorporate H-bonded solvent (mainly MeOH and/or H₂O), which was also confirmed from both the crystallographic analyses and the IR spectra; this hampered efforts to obtain satisfactory elemental analyses for some of the complexes, especially those with ligand 2. The spectroscopic and structural data for these complexes are consistent with the expected hexadentate coordination of 1 and 2 giving distorted octahedral Ni(II), Cu(II) and Zn(II) complexes, and the metrics and UV-visible spectroscopic parameters are in very good agreement with that for related amide-functionalised tacn complexes in the literature which contain the same donor set.¹⁷ In the case of [Co(1-H)](NO₃)₂, the presence of a low spin d⁶ Co(III) is also supported by the observation of a ¹H NMR spectrum in the typical chemical shift range, although, in addition to [Co(1-H)]²⁺, further hydrolysis of the amide groups occurs readily in solution, hence it is likely that the spectrum contains a mixture of products.

To confirm the coordination environments and investigate both the influence of the metal dⁿ configurations and the effect of the different amide linking groups from the tacn N-donor atoms, X-ray crystallographic studies were undertaken on five examples, [Co(1-H)](NO₃)₂ (Fig. 1) and [M(L)](NO₃)₂ (M = Ni, Cu; L = 1 and 2), which are shown in Fig. 2 and 3. Key bond distances and angles involving the tacn ring and the five- or six-membered chelate rings involving the pendant amides formed by 1 and 2, respectively, are presented in Table 1.

Fig. 1 View of the structure of [Co(1-H)](NO₃)₂·2MeOH showing the atom numbering scheme and the H-bonding interactions between the nitrate anions and the amide N5 and N6 atoms of the carboxamide bound amide arms. Ellipsoids are shown at 50% probability, lattice MeOH and H atoms, except those on the amide N atoms, are omitted for clarity. H-bond distances to the nitrate anions: N5⋯O104 = 2.74, N6⋯O103′ = 2.736, O107⋯O105 = 2.764 Å.

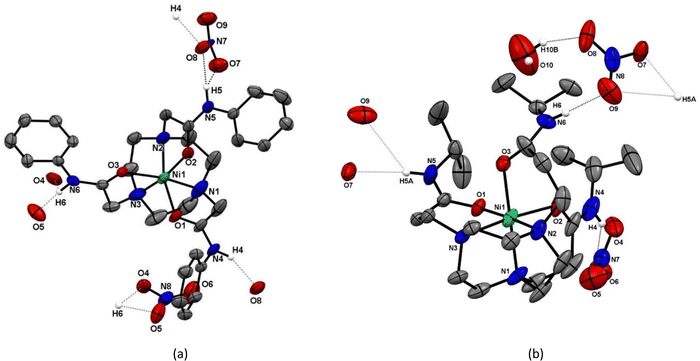

Fig. 2 Views of the structures present in (a) [Ni(1)](NO₃)₂·1½CH₃OH and (b) [Ni(2)](NO₃)₂·0.249H₂O showing the atom numbering schemes and the H-bonding interactions between nitrate anions and each of the amide N–H groups (N4⋯O8′ = 2.80, N5⋯O8 = 2.79 Å in [Ni(1)](NO₃)₂; N6⋯O9 = 2.861(4), N6A⋯O10 = 2.836(16), O10⋯O8 = 2.879(14) Å in [Ni(2)](NO₃)₂). Ellipsoids are shown at 50% probability and H atoms, except those on the amide N atoms, are omitted for clarity.

Fig. 3 View of a portion of the 1D chain formed through the H-bonding in [Ni(1)](NO₃)₂.

Table 1 Selected geometric parameters for the crystallographically characterised complexes in this work

Complex	d(M–N)/Å	d(M–O)/Å	∠N–M–N/°	∠N–M–O/°	Twist angle, θ^a/°
a The twist angle, θ, between the triangular N3 face from the coordinated tacn and the opposite triangular face containing the amide/carboxamide/carboxylate pendant donor groups; trigonal prismatic: θ = 0°; octahedral: θ = 60°.^26
[Co(1-H)](NO3)2·2MeOH	Co–N1 = 1.948(2)	Co–O1 = 1.9222(16)	N1–Co–N2 = 88.68(8)	N2–Co–O2 = 85.12(8)	52.26(6)
	Co–N2 = 1.9221(19)	Co–O2 = 1.9349(17)	N1–Co–N4 = 88.46(8)	N1–Co–O1 = 85.31(8)
	Co–N3 = 1.9288(19)		N2–Co–N4 = 89.45(8)
	Co–N4 = 1.928(2)		N3–Co–N4 = 84.96(8)
[Ni(1)](NO3)2·1½MeOH	Ni–N1 = 2.079(2)	Ni–O1 = 2.0558(16)	N1–Ni–N2 = 85.50(9)	N1–Ni–O1 = 82.38(8)	46.84(6)
	Ni–N2 = 2.072(2)	Ni–O2 = 2.032(2)	N1–Ni–N3 = 85.79(12)	N2–Ni–O2 = 82.63(9)
	Ni–N3 = 2.049(3)	Ni–O3 = 2.0805(15)	N2–Ni–N3 = 85.93(9)	N3–Ni–O3 = 81.62(8)
[Ni(2)](NO3)2·0.249H2O	Ni–N1 = 2.137(2)	Ni–O1 = 2.0653(16)	N1–Ni–N2 = 83.93(9)	N1–Ni–O2 = 91.37(9)	56.79(6)
	Ni–N2 = 2.142(2)	Ni–O2 = 2.078(2)	N1–Ni–N3 = 83.55(9)	N2–Ni–O3 = 90.15(8)
	Ni–N3 = 2.137(2)	Ni–O3 = 2.0643(18)	N2–Ni–N3 = 83.36(8)	N3–Ni–O1 = 91.71(7)
[Cu(1)](NO3)2·1¼Et2O·MeOH	Cu1–N1 = 2.116(2)	Cu1–O1 = 2.1937(19)	N2–Cu1 N1 = 84.14(8)	N1–Cu1–O1 = 77.64(8)
	Cu1–N2 = 2.043(2)	Cu1–O2 = 2.0194(19)	N3–Cu1 N1 = 81.31(8)	N2–Cu1–O2 = 81.70(8)	26.15(6)
	Cu1–N3 = 2.197(2)	Cu1–O3 = 2.0615(19)	N3–Cu1 N2 = 83.26(8)	N3–Cu1–O3 = 78.13(8)
	Cu2–N7 = 2.090(3)	Cu2–O4 = 1.9892(18)	N7–Cu2–N8 = 82.38(9)	N8–Cu2–O4 = 81.43(8)
	Cu2–N8 = 2.204(2)	Cu2–O5 = 2.0454(19)	N7–Cu2–N9 = 85.52(9)	N9–Cu2–O5 = 82.82(8)	46.28(6)
	Cu2–N9 = 2.020(2)	Cu2–O6 = 2.213(2)	N8–Cu2–N9 = 85.59(8)	N7–Cu2–O6 = 79.76(8)
	Cu3–N13 = 2.125(2)	Cu3–O7 = 2.0622(18)	N14–Cu3–N13 = 80.94(8)	N15–Cu3–O7 = 80.93(8)
	Cu3–N14 = 2.178(2)	Cu3–O8 = 2.1632(19)	N15–Cu3–N13 = 83.02(8)	N13–Cu3–O8 = 78.45(8)	27.15(6)
	Cu3–N15 = 2.076(2)	Cu3–O9 = 2.1196(19)	N15–Cu3–N14 = 82.69(8)	N14–Cu3–O9 = 77.64(8)
[Cu(2)](NO3)2	Cu–N1 = 2.3231(8)	Cu–O1 = 1.9678(6)	N1–Cu–N2 = 81.02(3)	N1–Cu–O1 = 89.62(3)	56.12(2)
	Cu–N2 = 2.0845(8)	Cu–O2 = 2.3599(7)	N1–Cu–N3 = 84.59(3)	N2–Cu–O2 = 89.48(3)
	Cu–N3 = 2.0184(7)	Cu–O3 = 1.9780(6)	N2–Cu–N3 = 87.07(3)	N3–Cu–O3 = 93.69(3)
[Ga(3)](NO3)·1.5H2O	Ga–N1 = 2.081(3)	Ga–O1 = 1.911(2)	N1–Ga–N2 = 85.10(11)	N1–Ga–O1 = 83.71(11)	46.80(8)
	Ga–N2 = 2.071(3)	Ga–O2 = 1.976(2)	N1–Ga–N3 = 84.28(11)	N2–Ga–O3 = 84.23(11)
	Ga–N3 = 2.099(3)	Ga–O3 = 1.911(2)	N2–Ga–N3 = 84.59(12)	N3–Ga–O2 = 81.41(11)

---

For [Co(1-H)](NO₃)₂, the donor set at the Co atom is N₄O₂, corresponding to three fac tacn N-donor atoms, two carboxamide O-donor atoms and one N atom from a deprotonated amide N donor atom; each of the two nitrate counter-anions are also engaged in H-bonding interactions with one of the ‘intact’, O-bonded (amide)NH functions. Comparison of the M–N(tacn) bond distances (ca. 1.93 Å for M = Co) with those in the other transition metal complexes with reported here (Table 1), and to related Co(II) and Co(III) complexes with tacn ligands, strongly supports the assignment as Co(III). For example, the Co(II) cation, [Co(tacn)₂]²⁺, has d(Co–N ca. 2.2) Å,²⁷ some 0.2 Å longer than d(Co–N) in Co(III) complexes with various tacn derivatives.²⁸

The four Ni(II) and Cu(II) complexes (Fig. 2 and 3) adopt similar structures, each involving hexadentate N₃O₃ coordination via the tacn N-donor atoms and three pendant carboxamide O-atoms. In these cases, one nitrate anion is engaged in H-bonding interactions with each amide N–H group.

In the [Ni(1)]²⁺ and [Ni(2)]²⁺ cations (Fig. 2) the ligands are hexadentate, with twist angles of 46.84(6) and 56.79(6)°, respectively (Table 1), consistent with geometries closer to octahedral than trigonal prismatic in both cases, although as expected the shorter linker in 1 leads to a smaller twist angle. The metrics for [Ni(2)]²⁺ are comparable to those reported for [Ni(tcet)](ClO₄)₂ (tcet = 3,3′,3′′-(1,4,7-triazacyclononane-1,4,7-triyl)tripropanamide), which also forms six-membered chelate rings to the O-bound carboxamides.²⁹ The different pendant arms in 1 and 2 give rise to differences in the typical N–Ni–N and N–Ni–O(amide) angles (Table 1). As expected, the five-membered chelate rings in [Ni(1)]²⁺ involving the amide O atoms result in much more acute N–Ni–O angles (ca. 82°) compared to the analogue with ligand 2 (six-membered chelate rings), with <N–Ni–O ca. 91°. The Ni–N bonds are also slightly shorter and the N–Ni–N angles slightly larger in [Ni(1)]²⁺ compared to [Ni(2)]²⁺. In both of the Ni(II) complexes each amide N–H group is H-bonded to a nitrate anion, with N(amide)⋯O(nitrate) distances ca. 2.8 Å, giving rise to infinite 1D chains (Fig. 3 and Fig. S10, ESI†).

As for Ni(II), both Cu(II) complexes (Fig. 4) involve coordination via an N₃O₃ donor set, although the angles subtended at the metal are quite different. The twist angles, θ, measured for the three crystallographically independent [Cu(1)]²⁺ cations are, Cu1 = 26.15(6), Cu2 = 46.28(6), Cu3 = 27.15(6)°. Thus, the Cu1 and Cu3 centred cations have geometries closer to trigonal prismatic, while the Cu2 centred cation the twist angle is much larger, indicating it is closer to octahedral. This can be seen in Fig. S11 (ESI†). The twist angle, θ = 56.12(2)° for the [Cu(2)]²⁺ cation, consistent with a distorted octahedron and in line with the larger chelate bite angle involving the amide pendant arms of 2 due to the extra CH₂ more readily accommodating the octahedral arrangement cf. that in ligand 1.

Fig. 4 Views of the structures of (a) [Cu(1)](NO₃)₂·1¼Et₂O·MeOH (note that there are three crystallographically independent cations and six nitrate anions in the asymmetric unit) and (b) [Cu(2)](NO₃)₂ showing the atom numbering schemes and the H-bonding interactions between nitrate anions and each of the amide N–H groups (for the major component: N4⋯O103 = 2.871(4), N5⋯O107 = 2.811(4), N6⋯O105 = 2.900(6), N10⋯O115 = 2.837(3), N11⋯O111′ = 2.849(3), N12⋯O117′ = 2.846(3) Å in [Cu(1)](NO₃)₂; N4⋯O4 = 2.8 Å in [Cu(2)](NO₃)₂). Ellipsoids are shown at 50% probability and H atoms, except those on the amide N atoms, are omitted for clarity.

A Jahn–Teller distortion is normally expected for octahedral d⁹ Cu(II) complexes. The bond distances for the [Cu(2)]²⁺ cation indeed show that along the N1–Cu–O2 axis the Cu–N1 bond is longer than the other two Cu–N bonds by ∼0.25 Å, while the Cu–O2 distance shows an even greater lengthening, by ∼0.4 Å, compared to the other Cu–O distances, consistent with a tetragonal elongation, and the increased flexibility provided by the six-membered chelate ring involving O2. For [Cu(1)]²⁺ evidence for a Jahn–Teller distortion from the bond distances around the metal in the distorted trigonal prismatic Cu1 and Cu3 centred cations is, as expected, much less obvious, with very small differences between the Cu–N and Cu–O bond distances (∼0.05–0.08 Å). However, for the Cu2 centred cation, which adopts a geometry closer to octahedral, there is a more obvious tetragonal elongation along the N8–Cu2–O6 axis. The large difference in the degree of twist in the three crystallographically independent [Cu(1)]²⁺ cations may be a result of crystal packing and/or weak secondary bonding interactions in the lattice.

As in the Ni(II) complexes, in the Cu(II) complexes each amide N–H group is H-bonded to a nitrate anion, with N(amide)⋯O(nitrate) distances of ca. 2.8 Å. While this gives rise to a 1D chain for [Cu(2)](NO₃)₂ (Fig. S12, ESI†), for [Cu(1)](NO₃)₂ with three crystallographically independent Cu species, the Cu1-based cation there is H-bonding to nitrate, but no polymeric array, while the Cu2 and Cu3 based cations link via the nitrates to give 2D sheets, as shown in Fig. 5.

Fig. 5 View of a portion of the 2D sheet observed for [Cu(1)](NO₃)₂ with bridging NO₃⁻ anions H-bonded to the amide N–H groups and linking the crystallographically independent Cu2 (purple) and Cu3 (blue) centred cations; each of the amide N–H groups in the Cu1-centred cations (green) H-bond to one nitrate forming a discrete moiety.

Reaction of 1 with M(NO₃)₃·9H₂O (M = Ga, In)

As discussed above, the fac-MF₃ units (M = Ga, Fe and, under some conditions, In) readily coordinate to 1 and 2via the tacn N₃-donor set, in all cases leaving the amide arms to engage in H-bonding interactions with the fluoride ligands (and sometimes solvent).¹⁶ This contrasts with the literature data on complexes of tris-amide tacn ligands with other trivalent ions, for example, the work of Chaudhuri et al. with Cr(III)¹⁷ showing deprotonation of one amide N–H group (and observed in our work, forming the Co(III) cation, [Co(1-H)]²⁺, as discussed above). In some cases hydrolysis of the amide functions has also been observed with trivalent metal ions.^17,30,31

We therefore investigated the reactions of 1 to the more Lewis acidic M³⁺ ions, by reaction of M(NO₃)₃·9H₂O (M = In, Ga) and 1 in MeOH, with gentle heating to promote coordination. For M = In, following work-up of the colourless solution, a white powdered solid was isolated in good yield. Both the elemental analysis and ¹H NMR spectrum (CD₃OD) were consistent with the formulation [In(1)](NO₃)₃, with hexadentate coordination of 1. ¹H NMR studies also showed that prolonged heating in MeOH (overnight) leads to some decomposition of the complex.

The corresponding reaction with a 1 : 1 Ga(NO₃)₃·9H₂O : 1 ratio, and heating in MeOH led to some white solid forming after ca. 1 h, and a pink solution, suggesting significant decomposition. The solid was very poorly soluble in common solvents, however, the ¹H NMR spectrum of the solid isolated from the mother liquor showed multiple resonances, suggesting solvolysis of the amide groups. The reaction was therefore repeated at room temperature and the progress monitored by ¹H NMR spectroscopy over a 24 h period. After ca. 2–3 h, the NMR spectrum of the colourless solution indicates one major species, consistent with the target [Ga(1)](NO₃)₃. Addition of Et₂O to a solution produced in this way gave a white solid, and microanalytical data support this formulation. However, extending the reaction time beyond ca. 5 h leads to slow emergence of additional resonances (Fig. S5c, ESI†) resembling those formed when the reaction was heated. Crystals suitable for single crystal X-ray analysis were grown via slow evaporation from a methanol solution of the product over several weeks and was found to be [Ga(3)](NO₃) with the hydrolysis of two amide arms. The structure (Fig. 6) reveals a distorted octahedral coordination environment at Ga(III) via the three tacn N-donor atoms, one pendant O-bonded carboxamide pendant arm and two carboxylate groups. The twist angle (θ) in [Ga(3)](NO₃)·MeOH is 46.80(8)° and the nitrate anion is H-bonded to the amide N–H group.

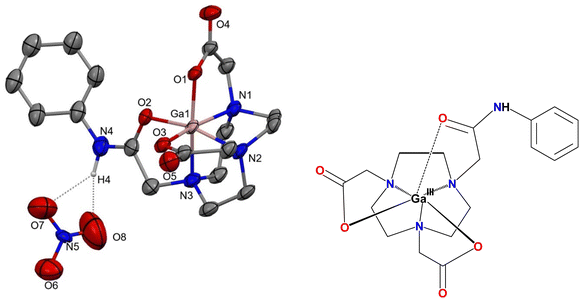

Fig. 6 View of the structure of complex present in [Ga(3)](NO₃)·1½H₂O with the atom numbering scheme (together with a diagram of the cation showing the coordination environment) and showing the H-bonding between the amide NH group and the nitrate counter-anion (HN⋯ONO₂ = 3.073(8), 2.918(7) Å). Ellipsoids are drawn at the 50% probability level and H atoms (except the amide NH) and the lattice water are omitted for clarity.

Hydrolysis at the amide functions of 1 on reaction with Ga(NO₃)₃·9H₂O contrasts with the behaviour discussed above for the [MF₃(1)] complexes.¹⁶ However, as discussed earlier, amide pendant groups can undergo hydrolysis in solution depending upon the reaction conditions, particularly in the presence of Lewis acidic metal ions, as in the case of [Ga(3)](NO₃) here. The coordination environment is similar to that used by Shetty et al. for ⁶⁸Ga radiolabelling, with the mono-amide NOTA ligands containing either a methylacetamide or benzylacetamide function.³² For the complex with the latter, coordination by the amide O-donor atom was observed at low pH, while (deprotonated) N-coordination occurs at higher pH. Very recently, Boros and co-workers³¹ have also exploited the Lewis acid promoted hydrolysis of the amide pendant function in gallium(III) complexes with ligands closely related to 3. This can be used to activate the release of metal pro-drugs for (radio)pharmaceutical applications.

Conclusions

A series of complexes of the tris-amide tacn ligands 1 and 2 with di- and tri-valent metal ions have been prepared. All of the complexes adopt distorted trigonal prismatic or octahedral coordination via an N₃O₃ donor set, which is confirmed by spectroscopic analysis and X-ray crystal structure determinations for four examples. Reaction of Co(NO₃)₂·6H₂O with 1 in MeOH led to air oxidation, producing the Co(III) complex, [Co(1-H)](NO₃)₂, containing an N₄O₂ donor set, with N-coordination via-one deprotonated amide function. Secondary H-bonding from the amide N–H groups to nitrate anions is evident in all of the structures, leading to extended 1- and 2D networks. The complexes of ligand 1 have slightly smaller twist angles, indicative of a larger trigonal prismatic distortion, compared to those with the more flexible ligand 2, which approximate to distorted octahedral geometries. It is also notable that the twist angles for the complexes of 1 reported here (with terminal Ph substituents) are much larger than for the more sterically compact tacn-{CH₂C(O)NH₂}₃ (Ph vs. H terminal substituents), e.g., [M(tacn-{CH₂C(O)NH₂}₃)](NO₃)₂, M = Fe: θ = 18.9°; M = Co: θ = 18.6°.³²

The trivalent complexes, [M(1)](NO₃)₃ (M = Ga, In) undergo slow hydrolysis either with heating or dissolution in MeOH over an extended period, and confirmed by a structure determination of the six-coordinate [Ga(3)](NO₃) where two amide arms have been converted to carboxylates. This process is slower for the In(III) analogue, consistent with its lower Lewis acidity. These results contrast with the trivalent [MF₃(1)] (M = Al, Ga, Fe) complexes,¹⁶ which involve only κ³-coordination from 1 (through the tacn ring), for which no evidence for hydrolysis was observed.

Author contributions

Project conceptualisation and funding (GR), complex synthesis and characterisation (CO’C, VKG), data analysis, manuscript preparation and reviewing (all authors).

Data availability

The spectroscopic data for all of the new ligands and complexes are presented in the ESI† for this manuscript, along with the radiolabelling data. The cif files and checkcifs are available via the CCDC with reference numbers 2405331–2405336.

Conflicts of interest

The authors have no conflicts to declare.

Acknowledgements

We thank the EPSRC for support through the Mithras Programme grant (EP/SO32789/1) and through DTP grant number EP/T517859/1 (CO’C).
