Cetyltrimethylammonium bromide modified magnetic apricot shells for removing Congo red dye and an artificial neural network model

Akinshola Olabamiji Akinola , Eswaran Prabakaran , Krishna Govender and Kriveshini Pillay *
Department of Chemical Sciences, University of Johannesburg, Johannesburg, South Africa. E-mail: kriveshinip@uj.ac.za

Received 16th November 2024 , Accepted 19th February 2025

First published on 20th February 2025


Abstract

This study focused on the synthesis of a cetyltrimethylammonium bromide-modified magnetic (Fe3O4@Ap/CTAB) nanocomposite from apricot shells and utilised an artificial neural network (ANN) to model the process parameters for removing Congo red (CR) dye from the aqueous environment. The as-prepared magnetic nanocomposite was characterised using various instrumental techniques such as Fourier Transform infrared spectroscopy (FT-IR), scanning electron microscopy (SEM), energy dispersive X-ray analysis (EDX), transmission electron microscopy (TEM), X-ray diffraction spectroscopy (XRD) and Brunauer–Emmett–Teller (BET) analysis. The nanocomposites showed sheet-like clusters of AS with dark particles of Fe3O4 on the surface. The point of zero charge (pHpzc) was found to be 8.04, while the surface area and the pore volume were 18.7842 m2 g−1 and 0.089736 cm3 g−1, respectively. The Fe3O4@Ap/CTAB nanocomposite was used as an adsorbent for the removal of Congo red (CR) dye under different conditions. The optimal sorption conditions achieved the highest capacity of 37.175 mg g−1 at 25 °C and 44.053 mg g−1 at 45 °C, at pH 6.5, with a dosage of 50 mg and a concentration of 22.3 mg L−1 in 4 hours. The nanocomposite achieved a 95.77% removal efficiency from real wastewater after shaking for 180 minutes at 25 °C under natural wastewater conditions. The data conformed mostly to the pseudo-second-order kinetic model and Langmuir isotherm, with the thermodynamic studies indicating a favourable, endothermic and spontaneous process with an ΔH° value of +27.193 kJ mol−1. The adsorbent efficiently sequestered the dye from the wastewater via physical adsorption and electrostatic attractions. A multi-layer ‘feed-forward neural network’, comprising 5 input parameters, a hidden layer, and an output parameter, was employed to predict CR removal efficiency. The performance of the network, evaluated by the coefficient of regression (R2), mean squared error, average percentage error, and mean absolute error, demonstrated a high R2 value of 0.9587. The minimal relative percentage error between the predicted and the test data confirms the ANN's effectiveness in capturing the non-linear behaviour of CR removal. This model of ANN can be employed for the prediction and optimisation of the adsorption process parameters for maximising CR removal using Fe3O4@Ap/CTAB, thereby aiding in the provision of pure water.


Introduction

The increasing development of industry has made the pollution of water a global concern. Surface and underground water bodies have become the ultimate recipients of the majority of industrial effluents and chemical residues emanating from industrial practices. These effluents from industries and agrarian practices contain organic and inorganic contaminants.1 Releasing these hazardous substances into the environment constitutes humungous problems for the ecosystem. Due to extensive anthropogenic practices, toxic metals, dyes, pesticides and pharmaceuticals, which represent the significant classes of organic and inorganic priority contaminants in water, navigate their way into the primary surface and subsurface water in villages and cities.2,3

Synthetic dyes, apart from their interference with the aesthetic value of water, have also been found to be detrimental to human health. The contamination of surface and underground water by dyes through various human and natural activities has become a global concern from diverse quarters in developed and developing countries. These organic pollutants pose serious threats to aquatic life and humans due to their non-biodegradability and accumulation in the ecosystem if inappropriately handled.4 Textile, dye and printing industries utilise a lot of water and produce huge amounts of wastewater with dyes, which are mainly organic. When these wastewaters are inappropriately treated and released into the environment, they pose an unquantifiable threat to land and water organisms. Dyes from textile industries, such as Congo red (CR) which is anionic, pose many health hazards, including damage to the human brain, reproductive systems, kidneys, nervous system and liver.5 CR, a direct anionic diazo dye which is stable and mostly non-biodegradable, is one of the major contaminants in water from the dye-utilising industries. CR has been found to present several dangers to living organisms upon exposure. These include acute toxicity to yeast, bacteria, protozoa, algae and other microorganisms. It has also been reported to likely cause cancer, mutations, genotoxicity, neurotoxicity and hematotoxicity.6 Due to these lethal effects, CR must be sequestered from wastewater before its release into the environment. The contamination of underground water has caused widespread concern as it has reduced the quality of drinking water in the world, which severely restricts the attainment of the sixth sustainable development goal of providing clean water and sanitation to all humanity by 2030.7,8 Therefore, it is fundamentally essential to ensure the treatment of wastewater in order to satisfy the legislated safety measures before being discharged into the aquatic environment.

Over time, several removal approaches for the removal of dyes from water have been studied due to their persistent nature and inefficient removal by biodegradation. Numerous methods, such as ultrafiltration, photocatalysis, coagulation, adsorption, nanofiltration, and so on, have been exploited for sequestering Congo red from water.9 Out of all these removal techniques, adsorption has proven to be highly beneficial for a number of reasons, including low energy requirement, selectivity, efficiency, lower cost, etc. Due to its comparatively lower cost, availability of a large range of adsorbents, effective treatment with no production of harmful by-products, and ease of handling, adsorption has the greatest appeal and potential.10,11 Commercially accessible and high-quality activated carbon (AC) has been successful in removing several contaminants from water as an adsorbent.12 Even so, the high cost of AC has rendered it utterly uneconomical for usage on an industrial scale, necessitating the search for affordable, renewable, but effective substitute adsorbents for remediating water and wastewater. Hence, cheaper absorbents are required to remove CR from water samples efficiently.

The separation of Congo red through adsorption from water has reportedly been accomplished using a variety of agricultural wastes and natural materials, including Antigonon leptopus leaf powder,9Grevillea robust composite,6 water hyacinth,13Aloe vera shells,14 pine cones,15 coir pith, rice husks and banana peels.16

Apricot is a member of the Rosaceae family of plants and is mostly grown in Africa, Asia, and Europe. A significant number of apricot shells are created during the processing of the seeds, and these are either thrown away as agricultural waste or used as a supplement to increase soil fertility.17,18 Apricot waste has been employed as the least expensive adsorbent to remove dyes and heavy metals.19 Apricot wastes were utilised to remove dyes such as crystal violet, malachite green, and methylene blue from aqueous solutions,20 while the stones (seeds) were used for the removal of astrazone yellow,21 astrazone black,22 and Congo red.23,24 Notwithstanding, the use of apricot stone shells is yet to be fully explored for the removal of CR.

However, the use of unmodified adsorbents often leads to suboptimal performance due to limitations in adsorption capacity, efficiency, and separation after use.25 This is evident in previous studies.23,24 Recently, because of their remarkable qualities, which include a large surface area, a large number of reactive atoms, excellent mechanical and thermal stability, and a large number of reactive surface sites, nano-adsorbents have attracted a lot of attention. Numerous metal-based nanoscale adsorbents have shown exceptional removal effectiveness for poisonous dyes from aqueous solutions, including ZnO/Zn(OH)2, ZnO nanorods, ZnS, Cu-doped ZnS, Mn-doped Fe3O4, and SnO2 nanoparticles.26 Traditional adsorbents can be challenging to separate from aqueous solutions and are prone to agglomeration during the adsorption process, hindering their practical applications. For these challenges to be surmounted, researchers are increasingly exploring the potential of magnetic nanomaterials. These materials offer a unique advantage due to their inherent magnetic properties, enabling rapid and efficient separation from liquids using an external magnetic field. This reusability significantly enhances their practicality.27 Notwithstanding, bare magnetic nanomaterials, while promising, face a problem: their high surface energy often leads to agglomeration. Surface modification has emerged as a common approach to address this issue, improving nanoparticle dispersion. However, there is currently very little research on the exploration of apricot stone shells (ASs), an abundantly available agricultural waste, as a viable precursor for synthesising a novel magnetic nanocomposite for the removal of organic pollutants from water.28 In this sense, pristine ASs are hard to separate from water, regenerate and reuse. Given these drawbacks, ASs have been incorporated with Fe3O4 to enhance its magnetic separation in this study. This modification can sometimes limit adsorption capacity due to the relatively thin functional shell layer coating the magnetic core. This research therefore adopts an alternative strategy that involves the creation of composite materials combining magnetic components with porous carbon structures and enhancing their dispersion and efficiency using CTAB, a positively charged surfactant, to improve their surface area, dispersibility, adsorption capabilities, separation, regeneration, and reusability for the removal of CR. AS was employed as the base material, offering a high surface area and pore volume, thereby significantly enhancing the composite's adsorption capacity for a wide range of pollutants, such as CR dye. Fe3O4 provides magnetic properties, enabling easy separation of the composite from solutions using an external magnetic field and also contributing to the composite's adsorption capacity. CTAB in the Fe3O4@Ap/CTAB composite primarily functions as a surface modifier, enhancing the dispersion and introducing a positive surface charge. This modification is beneficial for improving the adsorption of the anionic dye. Since it is a positively charged surfactant, CTAB adsorbs onto the surface of the composite thereby enhancing the dispersion of the nanocomposite, reducing aggregation and increasing the effective surface area for adsorption. Furthermore, CTAB introduces a positive charge from the quaternary ammonium group on the surface of the composite, which significantly helps to expedite the adsorption of the anionic CR dye. This CTAB-modified magnetic composite therefore offers a larger surface area, thereby effectively mitigating agglomeration while potentially enhancing the adsorption of the anionic CR dye and separation efficiency.

Modelling adsorption processes benefit significantly from using artificial neural networks (ANNs). ANNs are well suited for handling complex adsorption data since they are excellent at capturing non-linear connections. They can adapt to various conditions without making assumptions about adsorption mechanisms because of their data-driven approach.29 ANN can process a variety of data formats, including structural data, and automatically extract the necessary features, thereby eliminating the need for manual feature engineering. They offer good prediction power for novel adsorption conditions and are resilient to noisy data. ANNs scale well, benefit from parallel processing, and perform well when applied to new data. For effective and generalisable ANN model training, it is essential to have access to a sizable and diverse data collection.30 Artificial intelligence (AI) techniques have been employed to provide solutions to difficult problems. Artificial neural networks (ANNs), which process data by imitating the human brain system, are an AI method used for solving complex problems.31 ANN has therefore been employed to predict the efficacy of the adsorptive removal process. A number of studies have used ANN to predict the efficiency or the adsorptive capacities of different adsorbents in removing diverse forms of pollutants from water. The reported studies include the employment of ANN to predict the efficiency of the removal of copper(II) using pumice,32 electrocoagulation for the decolorisation of Basic Yellow,33 removal of lead(II) with rice husks,34 and with Prosopis juliflora.35 However, there is currently no available report on the use of ANNs for modelling the adsorption efficiency of the synthesised composite sorbents prepared from AS. Pristine AS is difficult to separate from aqueous solutions and tends to agglomerate during use, limiting their practicality. The incorporation of magnetic nanomaterials allows for quick and efficient separation using external magnetic fields, thereby enhancing reusability. However, bare magnetic nanomaterials are prone to agglomeration due to their high surface energy. Thus, the surfactant CTAB is introduced as a strategy to improve their dispersion to overcome this challenge, as well as increase the positively charged groups on the surface of the Fe3O4@Ap/CTAB nanocomposites for the enhanced uptake of the negatively charged CR dye molecules. Thus, this study utilised apricot stone shells to synthesise a novel cetyltrimethylammonium bromide (CTAB) modified magnetic composite as a substitute sorbent, offering a larger surface area, effectively mitigating agglomeration, while potentially enhancing the adsorption of anionic CR dye and separation efficiency in treating water and wastewater containing CR. Furthermore, the adsorption capacity of the dye within a minimal timeframe was investigated while maintaining a near-neutral pH during the process. Various experimental parameters, such as solution pH, adsorbent dosage, contact time, and the initial CR dye concentration, were systematically varied to evaluate their impact on dye removal efficiency. Additionally, the kinetics and the thermodynamics of the process were studied; the reusability of the composite was evaluated, and an artificial neural network (ANN) model was developed using Python programming to predict the adsorption efficiency. The efficacy of the Fe3O4@Ap/CTAB composite was also evaluated in an actual wastewater sample spiked with CR dye.

Materials and methods

Analytical grade reagents were utilised in this study. Sigma-Aldrich supplied iron(II) chloride tetrahydrate (FeCl2·4H2O) (99%), cetyltrimethylammonium bromide (CTAB) (99%), hydrochloric acid (HCl) (37%) and sodium hydroxide (NaOH) (>98%).

Apricot stones were collected from the Johannesburg fresh fruit market, City-deep, South Africa. The stones were washed with tap water several times, then dried, and the shells were separated. The shells were pulverised into particle sizes of 10–53 μm and stored for the synthesis of the composite.

Synthesis of the magnetic composite

The pulverised apricot stone shell (AS) was combined with magnetic nanoparticles using iron(II) chloride tetrahydrate (FeCl2·4H2O) via the following steps. 2.68 g of FeCl2·4H2O was dissolved in 80 mL of a solution of 1 M hydrochloric acid (HCl) at 70 °C and stirred for 10 minutes. 2.0 g of powdered AS was stirred into the solution for 50 minutes. The resulting mixture was adjusted to pH 10.4 with a dropwise addition of 3 M aqueous solution of NaOH. The resulting final black mixture was then sonicated for 30 minutes. This was separated and washed several times with deionised water and ethanol. The composite was dried at 60 °C for 14 hours and then carbonised at 180 °C for 18 hours. The mechanism for the formation of Fe3O4 is given below.

FeCl2·4H2O dissolves in HCl to give Fe2+ ions

image file: d4nj04953e-t1.tif

Part of the Fe2+ oxidised to Fe3+ in the presence of O2 and AS

image file: d4nj04953e-t2.tif

On addition of NaOH, Fe2+ and Fe3+ are coprecipitated with the apricot shell (Ap) as Fe(OH)2/Ap and Fe(OH)3/Ap.

Fe2+ + Fe3+ + Ap + 5OH → Fe(OH)2/Ap + Fe(OH)3/Ap

image file: d4nj04953e-t3.tif

NaCl and water are formed as the by-products from the addition of NaOH to FeCl2·4H2O and the oxidation of Fe2+ to Fe3+, respectively.

Modification of the composite with CTAB

The synthesised magnetic iron oxide apricot stone shell (Fe3O4@Ap) was further modified with CTAB in a ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]1 (w/w) to enhance its affinity and uptake for the target pollutant. The preparation of aqueous CTAB was conducted by placing 2 g of the compound in 200 mL of deionised H2O at room temperature with thorough stirring. 2 g of the Fe3O4@Ap was added to this solution. This was shaken for 24 hours at 130 rpm and 30 °C. The modified composite (Fe3O4@Ap/CTAB) was separated, washed and dried for 14 hours at 60 °C in a vacuum oven. This was stored in airtight glass vials for characterisation and further application. This process is shown in Scheme 1.
image file: d4nj04953e-s1.tif
Scheme 1 Synthesis of the Fe3O4@Ap/CTAB nanocomposite.

Characterisation of the nanocomposite

The Fe3O4@Ap/CTAB nanocomposite was characterised using various instrumental techniques. The physical and chemical attributes of both raw apricot stone shells and the synthesised nanocomposite were analysed using a blend of methods viz.: X-ray diffraction (using XRD, Rigagu Ultima IV, Japan), thermal gravimetric analysis (TGA) on a TGA Q500 (TA Instruments, USA), Fourier-transform infrared spectroscopy (FTIR), energy dispersive X-ray spectroscopy (EDX), scanning electron microscopy (SEM), transmission electron microscopy (TEM), and Brunauer–Emmett–Teller (BET) analysis. These advanced analytical methods offered insightful information about the successful synthesis of the nanocomposite and its potential as an efficient adsorbent.

Similarly, the surface charge of the Fe3O4@Ap/CTAB was determined at various pH values (2 to 13). The pH shift was plotted versus the initial pH to obtain the pH at which there is a neutral charge on the surface (pHpzc). The initial pH was prepared by adding 0.1 M HCl/NaOH to a mixture containing 175 mg of Fe3O4@Ap/CTAB in 350 mL 0.1 M aqueous solution of NaCl. This was agitated for 24 hours to obtain the final pH.4,36 The results are shown in Fig. 5(b).

Procedures of adsorption

Standard batch adsorption procedures were employed to assess the effectiveness of the synthesised magnetic nanocomposite in removing CR. The influences of various adsorption features, including initial concentration of CR (5–50 mg L−1), time of agitation (1–300 minutes), quantity of adsorbent (10–200 mg), temperature (298–318 K) and pH (1–11) were systematically investigated at 180 rpm in a water bath shaker. The drawn aliquots were separated with a magnetic bar and analysed at 498 nm on a UV spectrophotometer (Agilent Cary 60, version 2.0). Eqn (1) below was utilised to determine the removal efficiency (%).

image file: d4nj04953e-t4.tif(1)
where Co and Ce are, respectively, the starting and equilibrium concentrations of CR (mg L−1).

Studies on the isotherm were executed to analyse the adsorption process at equilibrium, providing insights into the properties, efficiency, and mechanisms of the sorbents. The obtained data were fitted to Langmuir, Temkin and Freundlich isotherm models to determine the most appropriate model governing the sorption processes.37–39 The efficacy of the Fe3O4@Ap/CTAB was then evaluated on an actual wastewater sample spiked with CR dye. All procedures were repeated three times to ensure the precision and accuracy of the results. The standard deviation of the obtained data was below 5%.

Development of an artificial neural network (ANN) optimal model

Various ANN architectures were examined to determine the optimum model to predict CR removal efficiency. Python neural network toolbox was explored using the experimental data obtained. The pH, time of agitation, initial concentration of CR, adsorbent dose, and temperature of the reaction were the input values (independent variables). The percentage removal of CR was the output (dependent variable). This was grouped into two sets: training (80%) and test (20%).

The adsorption model's neural network was built in a feed-forward approach with the multi-layer perceptron regressor (MLPRegressor) in Python's Scikit-learn library (Python 3.10.12 with tensorflow version 2.15.0). This comprised a ‘feed-forward neural network’ with complete connectivity containing input features (5), a single hidden layer (containing 100 neurons) and an output layer. A parameter grid search was conducted for hyperparameter tuning using a single or several concealed layers with various numbers of neurons (from 2 to 100). Three different activations functions: ‘hyperbolic tangent’ (Tanh), ‘rectified linear unit’ (ReLU), and sigmoid, with three optimisers: stochastic gradient descent (SGD), ‘adaptive moment estimation’ (Adam), and ‘Limited-memory Broyden–Fletcher–Goldfarb–Shanno’ (LBFGS) were explored for the parameter tuning at alpha values of 0.0001, 0.001 and 0.01; using the adaptive and constant learning rates. An instance of MLP Regression was created with maximum iterations of 1000 and a random state of 42. The best model with its hyperparameters was obtained. The best model was trained using the entire training dataset and subsequently used to forecast the efficiency of adsorption. The model was evaluated using mean absolute error (MAE), mean square error (MSE) and R2.31,35 The prediction was then compared with the actual experimental results.

Results and discussion

Characterisation of the nanocomposite

FTIR analysis. The functional groups on pristine AS and the Fe3O4@Ap/CTAB nanocomposite were studied using Fourier-transformed infrared (FTIR) spectroscopy, with the corresponding results presented in Fig. 1. The bands at 3435 cm−1, 2938 cm−1, 2872 cm−1, 2028 cm−1, 1637 cm−1, 1264 cm−1, 1050 cm−1, 889 cm−1, and 824 cm−1, which are respectively allocated to the –OH stretching of alcohols, C–H stretching of alkenes, C–H stretching of alkanes, stretching vibration of C[double bond, length as m-dash]O in ketone groups,40 C[double bond, length as m-dash]C of alkenes, asymmetric C–C–O aromatics, C–O cellulose and hemicelluloses, –CH cellulose, and –CH cellulose in the raw AS, were found to have shifted accordingly in Fe3O4@Ap/CTAB to 3416 cm−1, 2920 cm−1, 2843 cm−1, 2022 cm−1, 1633 cm−1, 1271 cm−1, 1018 cm−1, 949 cm−1, and 829 cm−1. The bands that disappeared from the raw AS spectrum include 1732 cm−1 apportioned to –C[double bond, length as m-dash]O hemicellulose, 1587 cm−1 assigned to C[double bond, length as m-dash]C of lignin, 1510 cm−1 ascribed to C–C aromatics, 1460 cm−1 assigned to C–H of deformation in lignin, 1376 cm−1 allocated to the C–H of cellulose and hemicellulose, 1328 cm−1 apportioned to the C–O of syringyl derivative and 605 cm−1apportioned to C–Cl.41 While distinct bands such as 3229 cm−1 allocated to the N–H stretching of amine, 1410 cm−1 assigned to the C[double bond, length as m-dash]C benzene ring, and 1159 cm−1 apportioned to the C–O vibration in lignin appeared in the spectrum for Fe3O4@Ap/CTAB,42 a band at 1117 cm−1 assigned to C–N stretching also appeared. It is worth noting that in the spectrum for Fe3O4@Ap/CTAB new bands at 570 cm−1 and 456 cm−1 emerged, ascribed to Fe–O bonds in the Fe3O4@Ap/CTAB. Similar trends were earlier reported for metal–oxygen bonds.43
image file: d4nj04953e-f1.tif
Fig. 1 FTIR spectra of raw AS, Fe3O4@Ap/CTAB and the spent adsorbent.

X-ray diffraction (XRD)

The diffraction patterns of raw AS, Fe3O4@Ap/CTAB composite and the spent nanocomposite are presented in Fig. 2. The non-crystalline attribute of the raw AS was established by the broad peaks, which appeared at 2θ values of 21.27°, 34.60° and 39.45° in its pattern.44 The major peaks of the Fe3O4@Ap/CTAB nanocomposite appeared at 2θ values of 18.24°, 30.13°, 35.47°, 43.16°, 53.59°, 57.10°, and 62.79°, which are correspondingly indexed in the Fe3O4 monoclinic phase, with a space group of Cc (ICDD: 04-025-0335) of (202), (224), (422), (008), (624), (606), and (448). The very weak broad peaks at 21.42° and 40.81°, corresponding to (002) and (100) of a graphitic carbon plane structure,42 were observed in the diffraction pattern of the nanocomposite, confirming the successful synthesis of the composite. Also, the diffraction pattern of the spent nanocomposite after adsorption remains the same as that of the nanocomposite before adsorption, proving that the synthesised nanocomposite adsorbent is structurally stable.
image file: d4nj04953e-f2.tif
Fig. 2 XRD pattern of raw AS, Fe3O4@Ap/CTAB composite and the spent adsorbent.

Morphology of Fe3O4@Ap/CTAB

The morphology of the Fe3O4@Ap/CTAB nanocomposite was examined with SEM and TEM, with the results presented in Fig. 3(A–F). The surface images of the composite, Fe3O4@Ap/CTAB, before adsorption were observed at various magnifications: 50 μm, 10 μm, and 5 μm. Fig. 3(A) shows dark particles embedded in a perforated sheet at 50 μm magnification. At higher magnifications of 10 μm and 5 μm, Fig. 3(B) and (C), respectively, the dark particles on the perforated sheet are more clearly visible. The SEM image of the spent adsorbent in Fig. 3(D) reveals the occupation of the pores previously observed in the Fe3O4@Ap/CTAB nanocomposite, suggesting the CR dye adhering to the Fe3O4@Ap/CTAB surface. The elemental composition of Fe3O4@Ap/CTAB was analysed by EDX, as shown in Fig. 3(E). The presence of N, Fe and Br in the EDX of the composite, which were absent in that of the raw AS, verifies the successful synthesis of Fe3O4 with apricot shells and its modification with CTAB. Fig. 3(E) shows that the TEM image of Fe3O4@Ap/CTAB nanocomposite delivered the sheet-like clusters of AS with dark particles of Fe3O4 on the surface, as indicated by the yellow arrow.
image file: d4nj04953e-f3.tif
Fig. 3 SEM image of Fe3O4@Ap/CTAB before adsorption at (A) 50 μm, (B) 10 μm, and (C) 5 μm magnifications, and (D) after adsorption at 10 μm. (E) EDX spectra of Fe3O4@Ap/CTAB. (F) TEM image of Fe3O4@Ap/CTAB before adsorption.

Thermogravimetric analysis

The stability and performance of raw AS and Fe3O4@Ap/CTAB nanocomposite toward heat were evaluated using thermogravimetric analysis (TGA) in a nitrogen environment. The temperature steadily increased at 10 °C min−1 from 30 °C to 800 °C. Fig. 4(a and b) show the respective results. The thermogram of AS (Fig. 4(a)) depicts three significant weight loss zones within the ranges of 28 to 130 °C, 130 to 350 °C, and 350 to 613 °C. These regions correlate, respectively, to the elimination of components related to water and volatile organics, the breakdown of cellulose and hemicellulose, and the thermal oxidation of lignin. More detailed information on the nuances of heat behaviour is obtained from the DTA curves. The AS showed marked stability beginning from 613 °C.41,42 Similarly, three weight loss zones were also visible in the Fe3O4@Ap/CTAB nanocomposite thermogram (Fig. 4(b)). Removal of organic compounds and water molecules was observed at 30 to 150 °C, whereas the reduction in weight at 150 to 337 °C could be ascribed to the breakdown of significant carbonisation. The Fe–O structural breakdown in the Fe3O4@Ap/CTAB nanocomposite was attributed to the loss at 337 to 470 °C. The Fe3O4@Ap/CTAB showed improved thermal stability over 470 °C with very little weight loss.42
image file: d4nj04953e-f4.tif
Fig. 4 TGA and DTA of (a) raw AS and (b) Fe3O4@Ap/CTAB.

Brunauer–Emmett–Teller (BET) analysis

The isotherms for nitrogen adsorption and desorption with BET analysis were utilised to determine the precise surface areas, pore capacity, and pore width of raw AS and Fe3O4@Ap/CTAB, as shown in Fig. 5(a). The dimensions of the surfaces of raw AS and Fe3O4@Ap/CTAB were 2.1019 m2 g−1 and 18.7842 m2 g−1, respectively, whereas the volumes of the pore were 0.011959 cm3 g−1 and 0.089736 cm3 g−1, respectively. The pore size distributions of raw AS and Fe3O4@Ap/CTAB were 22.7582 nm and 19.1088 nm, respectively. The Fe3O4@Ap/CTAB nanocomposite exhibited a significantly higher surface area (approximately 9 times larger), a smaller pore size, and a larger pore volume than raw AS. The higher surface area of the Fe3O4@Ap/CTAB showed a better prospective adsorption capability than raw AS. The mesoporous nature of both the raw AS and the composite is indicated by their pore diameters, which range from >2 nm to <50 nm materials.43
image file: d4nj04953e-f5.tif
Fig. 5 (a) BET Adsorption–desorption isotherm of raw As and Fe3O4@Ap/CTAB nanocomposite; (b) pH point of zero charge.

Adsorption of CR

Dosage study. The dosage of sorbent used is vital to the process's performance. The influence of Fe3O4@Ap/CTAB dosage (10–100 mg) on the adsorption of CR from water was examined without pH adjustment (natural pH of CR solution = 6.5) at 25 °C, 180 rpm shaking speed, 4 hours contact time in 0.05 L of 20 mg L−1 initial CR concentration. The result is shown in Fig. 6(a). When the amount of Fe3O4@Ap/CTAB was raised from 0.01 g to 0.05 g, the % removal was elevated considerably from 38.73% to 99.02%. Nevertheless, the % removal remains constant with additional dosage increases.45 The corresponding rise in CR removal with increasing Fe3O4@Ap/CTAB dosage could be accounted for by the increased quantity of sorption sites and the richly active and available binding locations on the Fe3O4@Ap/CTAB surface.6,46
image file: d4nj04953e-f6.tif
Fig. 6 (a) Dosage, (b) contact time, (c) pH, and (d) initial CR concentration studies.

Contact time study

The influence of agitation or contact time (1–300 minutes) on the adsorptive removal of CR from water onto Fe3O4@Ap/CTAB was determined at 25 °C, 180 rpm shaking speed, pH 6.5 and 50 mg dosage in 50 mL of 20 mg L−1 initial CR concentration. The obtained result is presented in Fig. 6(b). As the contact time increased, the adsorption efficiency initially improved; however, this trend eventually levelled off as the reaction tended towards equilibrium. Once equilibrium was attained, there were no further gradual changes in the adsorption rate. The results indicated that 58.67% of CR was removed within 10 minutes, and an effective equilibrium, with 99.11% removal, was reached after 240 minutes. As the Fe3O4@Ap/CTAB nanocomposite's empty sites become fewer, its initial capacity to enhance CR removal diminishes as the process progresses.47

pH studies

The interplay between the charged Fe3O4@Ap/CTAB surface, the ionised CR molecules, and the rate and sorption efficiency of CR from water are all greatly impacted by the solution's pH. In general, there are differences in the protonation of the groups on the surface of the adsorbent at various pH stages. Increased protonation of the adsorbent's functional groups is typically the outcome of lower pH levels.48 The impact of the CR solution's pH (1–11) was investigated at 25 °C, 50 mg Fe3O4@Ap/CTAB dosage, 180 rpm shaking speed, 4 hours contact time and 20 mg L−1 CR concentration. The result is presented in Fig. 6(c). From the study, there was complete removal (100%) of CR at a very acidic pH region (pH ≤ 5) and about 98% removal was observed as the pH of the reaction medium approached the point of zero charge (pHpzc = 8.04, as shown in Fig. 5(b)). The surface of the adsorbent is positively charged when the pH < pHpzc, while the surface carries negative charges when the pH exceeds the pHpzc. This explains the decline in the percentage removal to 91%, which was observed as the pH increased from 9–11. CR dissociates into its ionic form in an acidic environment, and the colour of the solution changes from red to blue. At pH values < 5, CR assumes a blue colour while it retains its red colour at pH > 5. As a result, CR can bind to the adsorbent by chemically interacting with the positively charged heads of the CTAB in Fe3O4@Ap/CTAB through its anionic group (–SO3).49 The adsorption efficiency increased in acidic pH because of the strong interactions between H+ and CR, as well as the attraction between the positive sorbent surface and CR. However, with the pH rising from 9 to 11, the effectiveness of Fe3O4@Ap/CTAB towards CR diminishes. This trend can be attributed to heightened electrostatic repulsion between the negatively charged adsorbent's surface in alkaline conditions and the negatively charged dye. Also, surplus OH ions compete with CR ions for the existing positively charged adsorption sites.45 Conversely, the pH had little effect on the efficiency of CR adsorption on Fe3O4@Ap/CTAB, as there was 98% to 100% removal of the dye from a pH of 1 to 9. This implies that the adsorbent is effective for the removal of the target pollutant in a wide range of pH values. The strong attraction through electrostatic interactions between the anionic dye and the cationic head of the CTAB, with the interactions of the van der Waals forces of the dye molecules and CTAB, could be responsible for the significant removal efficiency of CR. Comparable trends were observed by Shayesteh et al. in 2016.46

Concentration and temperature studies

The influence of initial CR concentrations (5–50 mg L−1) was examined at 298 K, 308K and 318 K, and the obtained results are shown in Fig. 6(d). As the CR concentration increases from 5 to 50 mg L−1, the CR absorption per starting dye concentration increases at 298 K from 5 to 37.6 mg g−1, from 5 to 38.6 mg g−1 (at 308 K), and from 5 to 43.7 mg g−1 (at 318 K). The amplified driving force, reduced diffusion barrier for CR ion transfer, and increased frequency of favourable collisions between CR ions and the adsorbent surface may be responsible for this concentration-dependent improvement in adsorption capacity.45,46 Conversely, when the initial dye concentration was elevated, the % removal of CR declined. This is because, at greater concentrations of CR, the ratio of CR to adsorbent is bigger, which causes the adsorption sites on Fe3O4@Ap/CTAB to saturate more quickly. As such, CR molecules have to struggle with one another for the few active sites that are available.50 This agrees with previous reports.47

Similarly, when the temperature is elevated from 298 K to 318 K, the removal efficiency also increases from 99.01% to 99.51% at 20 mg L−1 initial CR concentration. Thus, increasing the temperature increased the adsorption capacity from 37.175 mg g−1 to 44.053 mg g−1. This indicates that the adsorptive removal of CR onto Fe3O4@Ap/CTAB is strongly influenced by temperature. Elevated temperature causes the intra- and inter-molecular H-bonds in Fe3O4@Ap/CTAB to weaken and break, which alters the internal structures and makes it easier for CR molecules to enter empty pores. In addition, CR molecules' average kinetic energy increases when the temperature rises from 298 K to 318 K. This accelerates their movement in the direction of the unoccupied binding sites.43

Equilibrium study

Using the Langmuir, Freundlich, and Temkin isotherm models, the adsorption behaviour of CR onto Fe3O4@Ap/CTAB was fitted and analysed. The characteristic features of the isotherm models obtained are displayed in Table 1. The monolayer adsorption of CR molecules on the uniform surface of Fe3O4@Ap/CTAB is described by the Langmuir isotherm. Eqn (2) expresses it in linear form.

image file: d4nj04953e-t5.tif(2)
where Ce represents the equilibrium concentration of CR (mg L−1), qe signifies the equilibrium amount of CR on Fe3O4@Ap/CTAB (mg g−1), qm denotes the maximum adsorption capacity (mg g−1), and KL stands for the Langmuir constant (L mg−1).
Table 1 Adsorption isotherms of CR onto Fe3O4@Ap/CTAB
Model Parameters Temperature (K)
298 308 318
Langmuir
q max (mg g−1) 37.17472 38.91051 44.05286
K L (L mg−1) 4.637931 5.354167 14.1875
R L 0.01051 0.009117 0.00346
R 2 0.9943 0.9975 0.999
Freundlich
K F 15.62428 16.3757 19.5254
N 3.607504 3.430532 16.18123
R 2 0.257 0.2297 0.0105
Temkin
B T (J mol−1) 5.9911 6.6871 3.5156
B 413.5421 382.9331 752.0344
K T (L mg−1) 24.65766 20.85908 1485.412
R 2 0.4462 0.4212 0.1019


An important Langmuir parameter is RL, shown in eqn (3):


image file: d4nj04953e-t6.tif(3)

C 0 represents the initial concentration of CR.

Adsorption is unfavourable if RL > 1, exhibits linear adsorption if RL = 1, is appropriate if 0 < RL < 1, and is irreversible if RL = 0.

The Freundlich isotherm suggests that adsorption takes place on many layers. This points to the heterogeneous adsorption process and infinite adsorption sites with different energies on their surface. The following eqn (4) represents this.


image file: d4nj04953e-t7.tif(4)

K F represents the Freundlich constant, indicating the adsorption capacity (the amount of dye adsorbed) and image file: d4nj04953e-t8.tif is another Freundlich constant representing the adsorption intensity. When plotted linearly as log[thin space (1/6-em)]qeversus log[thin space (1/6-em)]Ce, the intercept and slope yield KF and image file: d4nj04953e-t9.tif respectively. The parameter n represents the divergence from linearity in the adsorption process and helps determine the type of adsorption mechanism. The n values n = 1, n < 1, and n > 1 indicate linear, chemical, and physical adsorption processes for the adsorption systems.

The Temkin isotherm looks at the heat of adsorption between the adsorbate and adsorbent. The expressed linear form is given as eqn (5).


image file: d4nj04953e-t10.tif(5)
R is 8.314 J mol−1 K−1 (gas constant), T (K) is the operating temperature, and Kt (L g−1) and b (kJ mol−1) are Temkin isotherm constants that reflect maximal binding energy and heat of adsorption, respectively.

It was observed, based on the R2 values of the three models, that the uptake of CR onto Fe3O4@Ap/CTAB fits best into the Langmuir model (Table 1). The Langmuir model has an R2 value of 0.9943, contrary to the Freundlich and Temkin models, which have R2 of 0.257 and 0.4462, respectively. The highest adsorption capacity, as determined by the Langmuir model, was 37.175 mg g−1 at 298 K, which was found to increase to 44.053 mg g−1 with temperature. This was found to be higher than and comparable to results obtained in the literature from other adsorbents. The comparison is stated in Table 2. Evident in Table 1 are the RL values obtained from the model, which decreased as the temperature increased, and these values were within the range 0 < RL < 1, suggesting an appropriate and favourable CR-Fe3O4@Ap/CTAB adsorption process. The degree of adsorption of CR-Fe3O4@Ap/CTAB and the heterogeneous relationship of the process could be explained by the Freundlich model. The large KF value (15.62428 at 298 K), which increases with increasing temperature, and the n value (3.607504) > 1 is suggestive of a strong affinity of Fe3O4@Ap/CTAB for CR.1 The isotherm models’ fitness to the data is Langmuir > Temkin > Freundlich.

Table 2 Different adsorbents with their maximum adsorption capacities (max)
pH q max (mg g−1) Time (min) Ref.
PVC@graphene-polyaniline 4.5 40.00 360 51
Peanut shell 8 15.1 40 52
Zeolite; Padina gymnospora/zeolite 7 9.23; 12.38 480 53
CTAB modified pumice 8 27.32 1440 46
Hollow Zn–Fe2O4 nanospheres 6 16.58 120 54
Apricot kernel (seed) 3–5 5.38, 5.41 50 24
Apricot stone (seed)/H3PO4 13 32.85, 23.42 40 23
Fly ash Natural pH 22.12 50 55
Natural clinoptilolite 3 16.92 240 25
PANI/ZTO Natural pH 64.51 15 49
Cashew nutshell 3 5.18 120 56
PANI/Fe3O4 21.38 90 57
Na-Bentonite; Kaolin Neutral 35.84; 5.44 60 58
Fly ash/NiFe2O4 composites 7 22.73 180 59
Antigonon leptopus leaf 5 18.18 60 9
Water hyacinth stem & leaf Natural pH 14.36 & 13.908 60 13
Bricks Kiln Chamber Fly Ash 4 33.3 30 60
Fe 3 O 4 @Ap/CTAB 6.5 37.18, 44.05 240 This study


Kinetics study

The adsorption kinetics that reveals the mechanism of CR uptake on Fe3O4@Ap/CTAB was investigated using four models, namely: pseudo-first-order (PFO), pseudo-second-order (PSO), Elovich and Intra-particle diffusion (IPD). The mathematical expressions of each of the models are given in eqn (6) to (9), respectively.

PFO: ln(qeqt) = ln[thin space (1/6-em)]qeK1t)(6)

image file: d4nj04953e-t11.tif(7)

image file: d4nj04953e-t12.tif(8)

IPD: qt = Kt1/2 + C(9)
qe and qt represent the quantities of adsorbed CR (mg g−1) at equilibrium and at any given period of time (min), respectively, while t is time (min), K1 (min−1), K2 (g mg−1 min−1) and K (mg g−1 min−1/2) are the rates constants of pseudo-first order (PFO), pseudo-second-order (PSO) and intraparticle diffusion models, respectively. α is the initial adsorption rate constant, and β is the constant of desorption correlating to the energy required for chemisorption as well as surface coverage. The PFO establishes a one-order link between time change and adsorption capacity, whereas the PSO establishes a second-order relationship between adsorption capacity and concentration. This model depicts how the dye's dissolved ions adsorb onto the adsorbent surface through cation exchange or chemical sharing, with a chemical process involved. The Elovich model depicts the activated chemisorption process because it is widely correlated to chemisorption kinetics. It can handle a wide range of sluggish adsorption procedures. It is applicable to heterogeneous adsorbent surfaces. The IPD model determines the rate-controlling step for the adsorption process.

The fittings of the adsorption data into these models are shown in Fig. 7(a)–(d), and the results of the parameters obtained are displayed in Table 1. The PSO more appropriately describes the kinetics of CR adsorption onto Fe3O4@Ap/CTAB because it has the highest R2 value of 0.9995 in comparison to other models, as seen in Table 1. The high closeness of the calculated (qe(calc.)) and the experimental (qe(exp.)) equilibrium quantities (22.94 mg L−1 and 22.30 mg L−1, respectively) and the very low sum of square errors (SSE) of 0.212 also corroborate the better fitting of the adsorption data to PSO than PFO and other tested kinetic models. A similar trend in the uptake of CR on various materials has been published.47,61,62


image file: d4nj04953e-f7.tif

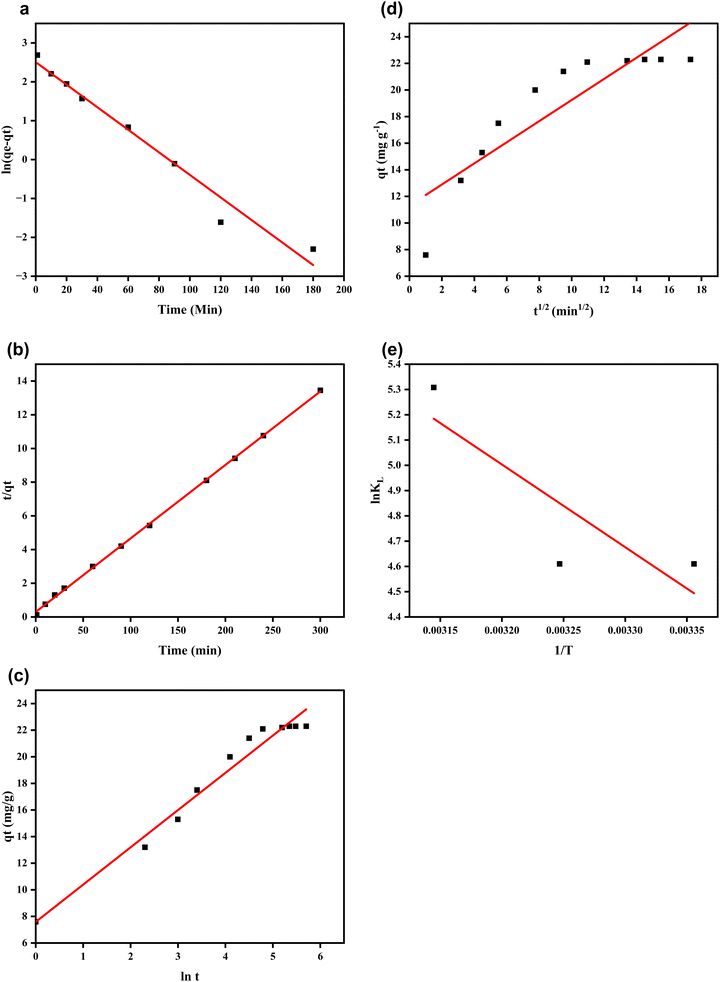

Fig. 7 (a) PFO kinetic, (b) PSO kinetic, (c) Elovich, (d) IPD, and (e) thermodynamic plots of CR adsorption.

The fitting of the adsorption data to the PSO model is a sign that the process of CR adhering to Fe3O4@Ap/CTAB advances by a number of mechanisms, which include attraction of the negative CR ions to the active centre of the adsorbent's surface and chemical interactions between CR and Fe3O4@Ap/CTAB (Table 3).1

Table 3 Kinetic models of CR adsorption on Fe3O4@Ap/CTAB
Model Parameter Value
PFO q e(calc.) (mg g−1) 12.24038
q e(exp.) (mg g−1) 22.3
R 2 0.97336
K 1 (min−1) 0.02899
SSE 3.353208
PSO q e(calc.) (mg g−1) 22.93578
q e(exp.) (mg g−1) 22.3
R 2 0.9995
K 2 (g mg−1 min) 0.006377
SSE 0.211927
Elovich A 42.07712
B 0.356977
R 2 0.9708
IPD R 2 0.7846
K diff (mg g−1 min−1/2) 0.7942
C 11.308


Thermodynamic study

The thermodynamics of the CR-Fe3O4@Ap/CTAB sorption process were investigated at temperatures of 298 K, 308 K and 318 K to access the free energy, entropy and enthalpy change of the system using eqn (10)–(12). The results of these are displayed in Table 4.

ΔG0 = −RT[thin space (1/6-em)]ln[thin space (1/6-em)]KL(10)

ΔG0 = ΔH0TΔS0(11)

image file: d4nj04953e-t13.tif(12)
where ΔG0 is the standard Gibb's free energy change, ΔH0 is the standard enthalpy change, ΔS0 is the standard entropy change, R is the gas constant, and T is the temperature. The slope and intercept of the graph of ln[thin space (1/6-em)]KLversusimage file: d4nj04953e-t14.tif (Fig. 7(e)) give the values of ΔH0 and ΔS0, respectively.
Table 4 Thermodynamic parameters of CR on Fe3O4@Ap/CTAB
Temp. (K) K L (L mol−1) ΔG0 (kJ mol−1) ΔH0 (kJ mol−1) ΔS0 (kJ mol−1 K−1)
298 100.5 −11.422 +27.193 +0.129
308 100.5 −11.8053
318 202 −14.0343


The CR-Fe3O4@Ap/CTAB sorption process was feasible and spontaneous as ΔG0 has negative values from −11.422 kJ mol−1 to −14.0343 kJ mol−1, while both ΔS0 and ΔH0 have positive values of +0.129 kJ mol−1 K−1 and +27.193 kJ mol−1, respectively. Furthermore, the spontaneity of the process was enhanced by the positive value of ΔS0, which signifies an elevated degree of disorderliness in the system. The positive ΔH0 value further proves the endothermic character of the process.

Removal of CR from a real wastewater sample

A real wastewater sample collected from the ERWART wastewater treatment plant was spiked with CR dye and was adsorbed using the nanocomposite. The initial dye concentration in the real wastewater sample prior to treatment was determined to be 7.1 ppm. The nanocomposite achieved a 95.78% removal from real wastewater after shaking for 180 minutes at 180 rpm at 25 °C under natural wastewater conditions. This shows the great potential of the sorbent for the efficient treatment of dye-containing wastewater.

Adsorption mechanism of CR with Fe3O4@Ap/CTAB adsorbent

In order to investigate the adsorption mechanism of CR with Fe3O4@Ap/CTAB adsorbent, the Congo red dye was first adsorbed on the surface of the adsorbent. This phenomenon may have been brought about by an electrostatic interaction between the positive charge surfaces of Fe3O4@Ap/CTAB adsorbent and the negative charge surface of CR. Furthermore, the aromatic character of CR and the Ap in the Fe3O4@Ap/CTAB adsorbent was also involved in a hydrophobic (π–π) interaction.63 A schematic diagram showing the proposed mechanism of adsorption is displayed in Scheme 2.
image file: d4nj04953e-s2.tif
Scheme 2 Proposed adsorption mechanism.

Artificial neural network (ANN) optimal model

The best model obtained after the parameter grid search (shown in Fig. 8(a)) was found to contain the following parameters: ‘tanh’ activation, 0.0001 alpha value, 100 neurons in the hidden layer, constant learning rate, ‘sgd’ solver, iterations of 1000, and a random state of 42. This model was trained and tested on the adsorption data. The result of the ANN prediction of the adsorptive removal of CR on Fe3O4@Ap/CTAB and the percentage error (determined by eqn (13)) is shown in Table 5. The prediction was then compared with the actual experimental results. The plot of the experimental values with the corresponding ANN predicted values is given in Fig. 8(b). The mean absolute error was found to be 1.7626; the mean squared error was 14.8586; the average percentage error was 0.3866, and the coefficient of determination (R2) was 0.9587, suggesting the high prediction accuracy of the model and the great promise it carries. This ANN modelling approach has great potential as the five input variables, pH of the CR solution, agitation time, adsorbent dosage, concentration, and temperature, in the recommended ANN model are enough for the prediction of the effective sequestering of CR.

image file: d4nj04953e-t15.tif(13)

image file: d4nj04953e-f8.tif
Fig. 8 (a) Architecture of the optimum model, and (b) the plot of the experimental values with the corresponding ANN predicted values.
Table 5 The ANN predicted and the experimental values of the adsorption efficiency of CR removal
pH C o Time Dose Temp. Experimental % removal ANN predicted % removal % Error
6.5 5 240 50 45 100 100.1507985 0.150799
6.5 22.5 240 50 25 99.11111 98.70220604 0.412571
6.5 22.5 120 50 25 98.22222 97.604 0.62941
6.5 39.4 240 50 45 97.20812 96.34587857 0.887006
6.5 20.3 240 50 35 99.01477833 99.2586255 0.246274
6.5 20.3 240 50 45 99.50739 99.6978142 0.191367
6.5 22.6 240 50 25 99.11504 98.67080303 0.448203
6.5 20.4 240 50 25 99.01961 99.25281397 0.235513
3 22.6 240 50 25 100 100.2781661 0.27817


Reuse and regeneration of the nanocomposite

A study of the reusability of the nanocomposite was conducted. CR was desorbed from the nanocomposites, and the composites reapplied for the adsorption in order to understand and assess its reusability. This was done as follows: 50 mg of the Fe3O4@Ap/CTAB nanocomposite in a 50 mL CR solution (20 mg L−1) was used in the initial adsorption studies, carried out for 3 hours at 25 °C and 180 rpm. The CR-saturated Fe3O4@Ap/CTAB nanocomposite was then shaken for two hours with 50 mL of ethanol for a complete desorption process.64 After that, the revitalised adsorbent was extracted with the aid of a strong magnet, cleaned with distilled water, and dried for 12 hours at 65 °C to get ready for the next adsorption/desorption cycle at the same CR concentration. Four cycles of this full process were carried out (as shown in Fig. 9), and the sorbent was 80.86% efficient for the removal of CR, with a desorption efficiency of 95.86% in the fourth cycle. The desorption efficiency was determined by:

image file: d4nj04953e-t16.tif(14)

image file: d4nj04953e-f9.tif

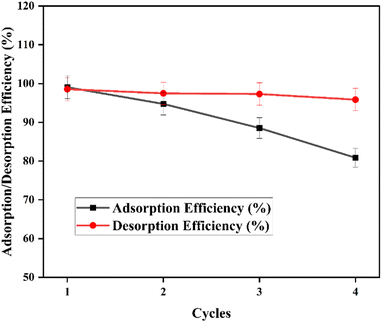

Fig. 9 Reusability cycle of the adsorbent.

The leaching study conducted showed 0.21 mg L−1 of iron after the adsorption using the composite. This is less than 0.3 mg L−1, which is the recommended or permissible level of iron in drinking water given by the WHO.65

Conclusions

The present study successfully synthesised a novel Fe3O4@Ap/CTAB nanocomposite and utilised ANNs to ascertain the ideal procedure settings for eliminating CR from wastewater by using the nanocomposite as a sorbent. The best criteria for the adsorption experiment that produced the highest possible adsorption capacity value of 37.175 mg g−1 at room temperature and 44.053 mg g−1 at 45 °C were pH 6.5, 50 mg dosage, a concentration of 22.3 mg L−1, and 240 minutes. The adsorption data are most accurately characterised by the Langmuir isotherm and the Pseudo second-order kinetic model. The thermodynamic investigations reveal an endothermic, favourable and spontaneous process. A multi-layer ‘feed-forward neural network’ comprising 5 input parameters, a hidden layer, and a single output parameter was used to forecast how much CR could be removed. Metrics, including the coefficient of regression (R2), mean squared error, average percentage error, and mean absolute error, were used to evaluate the network's performance. With the R2 value being 0.9587, the small relative percentage error comparing the test and predicted data suggests that the developed ANN model successfully captured the multidimensional features of CR removal efficiency. In order to remove as much CR as possible from aqueous solutions using Fe3O4@Ap/CTAB, this model of ANN can be employed for the prediction and optimisation of the adsorption process parameters, helping to provide pure water.

Author contributions

A. O. Akinola: conceptualisation, data curation, formal analysis, investigation, methodology, software, and writing – original draft. E. Prabakaran: methodology, project administration, and writing – review & editing. K. Govender: supervision, software, validation, visualisation, and writing – review & editing. K. Pillay: conceptualisation, supervision, funding acquisition, validation, resources, validation, and writing – review & editing.

Data availability

The Python 3.10.12 with TensorFlow version 2.15.0 code used for the ANN modelling is available at https://drive.google.com/drive/folders/1KEMCUuj_oVTpbzJKD2WobzX7gvWIMv29?usp=sharing.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors are grateful to the Global Excellence and Stature, Fourth Industrial Revolution (GES 4.0) Initiatives and the Faculty of Science, University of Johannesburg, South Africa.

References

  1. O. V. Anumasahun, A. O. Akinola, O. O. Bello, O. S. Agboola and O. S. Bello, Chem. Data Collect., 2023, 44, 100997 CrossRef CAS.
  2. I. Md Meftaul, K. Venkateswarlu, R. Dharmarajan, P. Annamalai and M. Megharaj, Sci. Total Environ, 2020, 711, 134612 CrossRef CAS PubMed.
  3. Z. N. Garba, A. K. Abdullahi, A. Haruna and S. A. Gana, Beni-Suef Univ. J. Basic Appl. Sci., 2021, 10, 19 CrossRef.
  4. O. S. Bello, F. T. Akinwale, O. S. Agboola, A. O. Ibrahim and O. O. Adesina, Biomass Convers. Biorefin., 2024, 14, 5157–5170 CrossRef CAS.
  5. A. Sharma, Z. M. Siddiqui, S. Dhar, P. Mehta and D. Pathania, Sep. Sci. Technol., 2019, 54, 916–929 CrossRef CAS.
  6. P. VenkataRao, G. SaiTarun, C. Govardhani, B. Manasa, P. Joel Joy and M. Vangalapati, Mater. Today: Proc., 2020, 26, 3009–3014 CAS.
  7. W. Aktar, Adv. Environ. Res., 2011, 13(2), 423–432 Search PubMed.
  8. N. Khatri and S. Tyagi, Front. Life Sci., 2015, 8, 23–39 CrossRef CAS.
  9. V. Sri Devi, B. Sudhakar, K. Prasad, P. Jeremiah Sunadh and M. Krishna, Mater. Today: Proc., 2020, 26, 3197–3206 CAS.
  10. P. Hadi, J. Barford and G. McKay, J. Environ. Chem. Eng., 2014, 2, 332–339 CrossRef CAS.
  11. S. Sumiyati, H. S. Huboyo and B. S. Ramadan, E3S Web Conf., 2019, 125, 03015 CrossRef CAS.
  12. Q.-S. Liu, T. Zheng, P. Wang, J.-P. Jiang and N. Li, Chem. Eng. J., 2010, 157, 348–356 CrossRef CAS.
  13. A. Extross, A. Waknis, C. Tagad, V. V. Gedam and P. D. Pathak, Int. J. Environ. Sci. Technol., 2023, 20, 1607–1644 CrossRef CAS.
  14. Y. Omidi Khaniabadi, M. J. Mohammadi, M. Shegerd, S. Sadeghi and H. Basiri, Environ. Health Eng. Manage. J., 2016, 4, 29–35 CrossRef.
  15. S. Dawood, T. K. Sen and C. Phan, Water, Air, Soil Pollut., 2014, 225, 1818 CrossRef.
  16. M. A. M. Salleh, D. K. Mahmoud, W. A. W. A. Karim and A. Idris, Desalination, 2011, 280, 1–13 CrossRef CAS.
  17. B. T. Hosseinabady, P. Ziarati, E. Ballali and K. Umachandran, J. Environ. Anal. Toxicol., 2018, 8, 1–8 Search PubMed.
  18. Ş. Yüksel and R. Orhan, Arab. J. Sci. Eng., 2019, 44, 5345–5357 CrossRef.
  19. T. D. Šoštarić, M. S. Petrović, F. T. Pastor, D. R. Lončarević, J. T. Petrović, J. V. Milojković and M. D. Stojanović, J. Mol. Liq., 2018, 259, 340–349 CrossRef.
  20. Y. Önal, J. Hazard. Mater., 2006, 137, 1719–1728 CrossRef PubMed.
  21. E. Demirbas, M. Kobya and M. T. Sulak, Bioresour. Technol., 2008, 99, 5368–5373 CrossRef CAS PubMed.
  22. S. Kahraman, P. Yalcin and H. Kahraman, Water Environ. J., 2012, 26, 399–404 CrossRef CAS.
  23. M. Abbas and M. Trari, Process Saf. Environ. Prot., 2015, 98, 424–436 CrossRef CAS.
  24. A. F. D. AL-Niaimi and F. H. Muhi, Biochem. Cell. Arch., 2020, 20, 2273–2279 Search PubMed.
  25. R. Nodehi, H. Shayesteh and A. R. Kelishami, Microchem. J., 2020, 153, 104281 CrossRef CAS.
  26. K. L. Bhowmik, A. Debnath, R. K. Nath, S. Das, K. K. Chattopadhyay and B. Saha, J. Mol. Liq., 2016, 219, 1010–1022 CrossRef CAS.
  27. S. Zhai, R. Chen, J. Liu, J. Xu and H. Jiang, J. Taiwan Inst. Chem. Eng., 2021, 120, 161–168 CrossRef CAS.
  28. M. Yilmaz, T. J. Al-Musawi, M. Khodadadi Saloot, A. D. Khatibi, M. Baniasadi and D. Balarak, Biomass Convers. Biorefin., 2024, 14, 649–662 CrossRef CAS.
  29. H.-T. Thai, Structures, 2022, 38, 448–491 CrossRef.
  30. K. Yetilmezsoy and S. Demirel, J. Hazard. Mater., 2008, 153, 1288–1300 CrossRef CAS PubMed.
  31. M. Tanzifi, S. H. Hosseini, A. D. Kiadehi, M. Olazar, K. Karimipour, R. Rezaiemehr and I. Ali, J. Mol. Liq., 2017, 244, 189–200 CrossRef CAS.
  32. N. G. Turan, B. Mesci and O. Ozgonenel, Chem. Eng. J., 2011, 171, 1091–1097 CrossRef CAS.
  33. N. Daneshvar, A. R. Khataee and N. Djafarzadeh, J. Hazard. Mater., 2006, 137, 1788–1795 CrossRef CAS PubMed.
  34. S. Ullah, M. A. Assiri, M. A. Bustam, A. G. Al-Sehemi, F. A. Abdul Kareem and A. Irfan, Paddy Water Environ., 2020, 18, 455–468 CrossRef.
  35. K. K. Ilavenil, P. Pandian and A. Kasthuri, Mater. Today: Proc., 2023, 72, 2344–2350 CAS.
  36. M. Akhond, G. Absalan and E. Rafatmah, Anal. Bioanal. Chem. Res., 2016, 3, 225–237 CAS.
  37. M. H. Armbruster and J. B. Austin, J. Am. Chem. Soc., 1938, 60, 467–475 CrossRef CAS.
  38. V. Temkin and M. J. Pyzhev, Ussr, 1940, 12, 217–225 Search PubMed.
  39. H. Freundlich, Zeitschrift für Phys. Chemie, 1907, 57U, 385–470 CrossRef.
  40. M. S. Reza, S. Afroze, M. S. A. Bakar, R. Saidur, N. Aslfattahi, J. Taweekun and A. K. Azad, Biochar, 2020, 2, 239–251 CrossRef.
  41. K. Aljoumaa, H. Tabeikh and M. Abboudi, J. Indian Acad. Wood Sci., 2017, 14, 127–132 CrossRef.
  42. E. Prabakaran, K. Pillay and H. Brink, Mater. Today Sustainability, 2022, 18, 100123 CrossRef.
  43. O. I. Adeiga and K. Pillay, J. Environ. Manage., 2024, 355, 120274 CrossRef CAS PubMed.
  44. Ç. S. Özdemir, H. Varliklioz and S. Yapici, J. Phys. Chem. Funct. Mater., 2018, 1, 18–24 Search PubMed.
  45. S. Mohebali, D. Bastani and H. Shayesteh, J. Mol. Struct., 2019, 1176, 181–193 CrossRef CAS.
  46. H. Shayesteh, A. Rahbar-Kelishami and R. Norouzbeigi, J. Mol. Liq., 2016, 221, 1–11 CrossRef CAS.
  47. J. N. Wekoye, W. C. Wanyonyi, P. T. Wangila and M. K. Tonui, Environ. Chem. Ecotoxicol., 2020, 2, 24–31 CrossRef.
  48. P. Koohi, A. Rahbar-kelishami and H. Shayesteh, Environ. Technol. Innov., 2021, 23, 101559 CrossRef CAS.
  49. S. Singh, S. Perween and A. Ranjan, J. Environ. Chem. Eng., 2021, 9, 105149 CrossRef CAS.
  50. S. K. Sahoo, J. P. Dhal and G. K. Panigrahi, Compos. Commun., 2020, 22, 100496 CrossRef.
  51. R. Kumar, M. O. Ansari, N. Parveen, M. A. Barakat and M. H. Cho, RSC Adv., 2015, 5, 61486–61494 RSC.
  52. A. Abbas, S. Murtaza, K. Shahid, M. Munir, R. Ayub and S. Akber, Middle-East J. Sci. Res, 2012, 11, 828–832 CAS.
  53. A. R. Dryaz, M. Shaban, H. AlMohamadi, K. A. A. Al-Ola, A. Hamd, N. K. Soliman and S. A. Ahmed, Sci. Rep., 2021, 11, 21058 CrossRef CAS PubMed.
  54. R. Rahimi, H. Kerdari, M. Rabbani and M. Shafiee, Desalination, 2011, 280, 412–418 CrossRef CAS.
  55. M. Harja, G. Buema and D. Bucur, Sci. Rep., 2022, 12, 1–18 CrossRef PubMed.
  56. P. Senthil Kumar, S. Ramalingam, C. Senthamarai, M. Niranjanaa, P. Vijayalakshmi and S. Sivanesan, Desalination, 2010, 261, 52–60 CrossRef CAS.
  57. X. P. Teng, M. Y. K. Bryan, P. V. Chai and J. Y. Law, Mater. Today: Proc., 2020, 46, 1875–1881 Search PubMed.
  58. V. Vimonses, S. Lei, B. Jin, C. W. K. Chow and C. Saint, Chem. Eng. J., 2009, 148, 354–364 CrossRef CAS.
  59. S. K. Sonar, P. S. Niphadkar, S. Mayadevi and P. N. Joshi, Mater. Chem. Phys., 2014, 148, 371–379 CrossRef CAS.
  60. P. Govindaraj and N. Gnanavelraja, Int. J. Appl. Eng. Res., 2018, 13, 11693–11700 Search PubMed.
  61. M. Foroughi-dahr, H. Abolghasemi, M. Esmaieli, G. Nazari and B. Rasem, Process Saf. Environ. Prot., 2015, 95, 226–236 CrossRef CAS.
  62. N. F. Al-Harby, E. F. Albahly and N. A. Mohamed, Polymers, 2021, 13, 4446 CrossRef CAS PubMed.
  63. A. Chowdhury, S. Kumari, A. A. Khan and S. Hussain, J. Hazard. Mater., 2020, 385, 121602 CrossRef CAS PubMed.
  64. A. Chowdhury, S. Kumari, A. A. Khan and S. Hussain, J. Environ. Chem. Eng., 2021, 9, 106554 CrossRef CAS.
  65. World Health Organization, Who/Sde/Wsh/03.04/08, 2003, 2, 4.

This journal is © The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2025
Click here to see how this site uses Cookies. View our privacy policy here.
