Techno-economic and life cycle analysis of bio-hydrogen production using bio-based waste streams through the integration of dark fermentation and microbial electrolysis

Abstract

Hydrogen derived from bio-based sources, or biohydrogen (bioH₂), has the potential to reduce GHG emissions from industrial and transportation sectors, owing to the low carbon footprint and myriad applications like refinery operation, ammonia production, steel production, fuel cell, etc. To evaluate the commercialization potential of bioH₂ production, we modeled bioH₂ production and conducted techno-economic analysis (TEA) and life cycle analysis (LCA) of two facilities producing 50 metric tonnes of bioH₂ per day from cheese whey (CW) and solid food waste (SFW) through the integration of dark fermentation (DF) and microbial electrolysis cell (MEC) technologies. LCA results showed that CW and SFW can produce carbon-negative bioH₂, with emissions of −8.6 and −8.0 kg GHG kg⁻¹ bioH₂ with carbon sequestration and renewable electricity resources, respectively, making bioH₂ potentially eligible for a tax credit of $3 kg⁻¹ H₂ based on provision 45 V of the U.S. Inflation Reduction Act (IRA). In this study, bioH₂ production treats waste streams to generate fresh water, thus, potentially can receive waste water treatment fee that varies with regions. The MEC capital cost dominates the bioH₂ cost, which is mainly determined by current density. With a current density of 20 A m⁻², the production cost for CW input varied between $17 and $24 kg⁻¹ bioH₂, while that for SFW input ranged from $29 to $30 kg⁻¹ bioH₂ under different operating conditions, considering the 45 V tax credit, waste water treatment fee and production revenue. If the current density increases to 100 A m⁻², the bioH₂ cost decreases to a range of $4.0–$6.9 for CW and $5–$6 for SFW scenarios. This study also shows that low-cost bioH₂ can be produced using CW waste stream as feedstock.

---

Green foundation

1. This study explores the potential of organic matter-rich biowastes, such as cheese whey and solid food waste, as feedstock to produce bioH₂ and CO₂ following integrated biochemical routes.

2. BioH₂ can be used in the transportation and industrial sectors, while CO₂ can be used in the beverage industry or can be sequestered. The study showed low-cost bioH₂ production, especially when cheese whey is used as the feedstock, with a low environmental footprint.

3. The material cost of the MEC stack and operating current density are key cost drivers of bioH₂ production costs.

Introduction

Finding a clean alternative to fossil fuels has become paramount owing to the effects of carbon dioxide (CO₂) emissions on the global climate, such as melting glaciers, rising sea levels, intense heat waves, and an increased number of wildfires.¹ Alternatives must be environmentally sustainable and commercially viable. Hydrogen (H₂) is a potential clean alternative fuel because it is a zero-carbon energy carrier that can be produced from a variety of non-fossil sources. Currently, the United States (U.S.) produces about 10 million metric tonnes (MT) of hydrogen annually, mainly for petroleum refining and ammonia production.^2–4 According to Ruth et al., H₂ demand may grow to around 22–41 MMT per year, with potential uses in emerging industrial sectors and transportation applications.⁵

Hydrogen is a zero-carbon molecule, but its current production via steam methane reforming (SMR) of natural gas is carbon intensive. The life cycle greenhouse gas (GHG) emissions of SMR hydrogen are approximately 10 kilograms (kg) of CO₂ equivalent (CO_2e) per kg H₂ produced.⁶ Clean hydrogen can be produced via water electrolysis using renewable or nuclear electricity, leading to near-zero fuel cycles or well-to-wheel (WTW) GHG emissions (i.e., excluding equipment-embodied emissions). However, the electrolysis of water consumes a significant amount of electricity, ranging from 40 to 55 kW h kg⁻¹ H₂,⁷ depending on the technology employed.

This work investigates an alternative clean hydrogen production technology that produces bio-hydrogen from waste streams using the integration of dark fermentation and microbial electrolysis cells (DF-MECs).

Wastewater is an abundant resource in today's urbanized world. According to the U.S. Department of Energy (DOE), wastewater treatment consumes around 30 terawatt-hours of electricity per year in the U.S., leading to an annual cost of approximately $2 billion. Wastewater contains a significant amount of energy in the form of organic compounds (or contaminants), which, if captured, can be transformed into valuable products, including H₂.⁸ Shen et al.⁹ reported that 86% of wastewater treatment plants (WWTPs) with an average wastewater flow rate of 10–100 million gallons per day with anaerobic digestion systems utilize biogas, out of which around 5% are upgraded to pipeline renewable natural gas (RNG). Further research is required to overcome technical barriers, such as biogas upgrading and cleanup. An alternative pathway for waste energy utilization is recovery as bioH₂. With the market price of H₂ at $1.50 kg⁻¹ or $13 MMBtu⁻¹ H₂,¹⁰ it has a higher market value than RNG (assuming the market price of natural gas to be $4 MMBtu⁻¹ (ref. 11)).

Various waste streams have been evaluated for bioH₂ production, such as cheese whey (CW), winery waste, and brewery waste.^12–14 Considering the wastewater organic content and discharge capacity, CW is particularly attractive as a feedstock for bioH₂ production. Out of these different sources of wastewater, the cheese industry consumes a significant amount of water and produces a large amount of wastewater. The U.S. produces around 13 billion pounds of cheese, generating around 3.9 million gallons of CW per day.¹⁵ CW is the waste stream from the cheese industry and has a high organic content.¹⁶ It consists of 93%–94% water, with the rest being lactose, proteins, fats, and other minerals.¹⁷

Urbanization and population growth have also led to a rapid increase in municipal solid waste, and 22% of it is solid food waste (SFW).¹⁸ In 2018, the U.S. Environmental Protection Agency (EPA) reported a 60% increase in food waste compared to levels in 1990.¹⁹ Food waste is a rich source of carbohydrates and is produced in vast quantities, especially in commercial locations such as restaurants, institutional cafeterias, and residential areas.²⁰ Thus, CW and SFW are potential feedstocks for bioH₂ production.

Bio-based H₂ production includes thermochemical processes, such as biomass gasification^21–23 and fast pyrolysis,^24,25 as well as biotechnological processes, such as direct and indirect photolysis, photo-fermentation,^26–28 dark fermentation (DF),^29–31 and biomass-driven electrolysis.^32–34 Well-known processes, such as fast pyrolysis, await commercialization owing to the high energy demand during scale up;³⁵ photofermentation has a major challenge of being light (intensity) dependent, resulting in H₂ yield uncertainty.^36,37

Dark fermentation (DF) is one of the most widely used techniques for producing H₂ from organic waste residues.^38–41 Compared to photo-based biochemical processes, DF has a higher H₂ concentration yield and fewer requirements for a controlled environment for microorganisms (independent of light intensity).^42,43 Particularly, DF, operated under aqueous conditions, is well suitable for treating aqueous and wet waste streams and generating fresh water.⁴⁴ DF is a biochemical conversion of organic matter to bioH₂ that uses microorganisms in the absence of light and oxygen.⁴⁵ A techno-economic analysis (TEA) of DF fed by agricultural residues estimated a reduction in H₂ production cost from $50 kg⁻¹ (2015 dollars, including byproduct credits) to around $6 kg⁻¹ (2025, including byproduct credits) assuming an improvement in technologies with increased studies and experimental work.⁴⁶ Hosseinzadeh et al.⁴⁷ reported that detailed research is required to increase the H₂ productivity from wastewater and biomass to increase commercial viability. Han et al. studied the techno-economic analysis of bioH₂ production from waste bread via DF, obtaining a final production cost of $15 kg⁻¹ H₂.⁴⁸ Thus, more investigation is required to scale up plant capacity. From a sustainability viewpoint, DF accounted for greenhouse gas (GHG) emissions of 2.5 kg CO_2e kg⁻¹ H₂, which is much lower than fossil-based H₂ production.⁴⁹ Y. Kannah et al.⁵⁰ mentioned that dark fermentation-based systems producing H₂ incur comparatively lower production and capital costs than systems employing photo-fermentation.

While DF converts organics (e.g., sugars) to hydrogen, it co-produces fatty acids, such as acetic acid. These fatty acids can be further processed to generate more hydrogen using microbial electrolysis cells (MECs).⁵¹ The following equations show what occurs during dark fermentation and microbial electrolysis, producing bioH₂ from glucose and galactose (DF) and organic acids (MEC).

Dark fermentation:

C₆H₁₂O₆(glucose/galactose) + 2H₂O → 2CH₃COOH + 4H₂ + 2CO₂

C₆H₁₂O₆(glucose/galactose) → CH₃CH₂CH₂CO₂H + 2H₂ + 2CO₂

C₆H₁₂O₆(glucose/galactose) + 2H₂O → CH₃CH₂CO₂H + 5H₂ + 3CO₂

Microbial electrolysis cells:

CH₃COOH + H₂O → 4H₂ + 2CO₂

CH₃CH₂CH₂CO₂H + 6H₂O → 10H₂ + 4CO₂

CH₃CH₂CO₂H + 4H₂O → 7H₂ + 3CO₂

MEC is an emerging technology that removes additional organic matter from wastewater while producing valuable bioproducts, such as H₂.⁵² Segundo-Aguilar et al.⁵³ used a double-chambered MEC that uses wastewater from the food industry to produce H₂ at the cathode and biogas at the anode. Breakeven was reached with an H₂ production efficiency of 40%, voltage of 0.3 V, and H₂ and biogas prices of $5.10 kg⁻¹ and $0.20 m⁻³, respectively, with a profit of $0.01 kg⁻¹ chemical oxygen demand (COD) removed. This study was performed on a lab-scale basis. Studies have pointed out that MEC is at an early stage of development; thus, a thorough analysis is required, especially during scale-up when performing techno-economic analysis.

MEC systems also have environmental benefits. Chen et al.⁵⁴ reported a reduction in GHG emissions of around 64% through further process optimization of MEC systems fed by urban wastewater. The study reported GHG emissions of 18.8 kg CO_2e kg⁻¹ H₂ using the U.S. electricity mix, indicating that carbon intensity can be further reduced using renewable energy resources. The GHG emissions obtained in this study were similar to those of H₂ production via coal gasification.⁵⁵ Recent studies have indicated that integrating MEC systems with anaerobic digestion,⁵⁶ or anaerobic membrane bioreactor,⁵⁷ or thermoelectric micro-converter,⁵⁸ or microbial fuel cells and dark fermentation⁵⁹ could enhance energy generation by recovering various valuable products, providing advantages for their application in the future. Koul et al.⁶⁰ discussed the significant potential of MEC-integrated systems in forming a future bioeconomy although extensive research is required to increase the product yield and efficiency of the process.

The integration of DF and MEC has been observed to enhance the total bioH₂ yield. Marone et al.⁶¹ observed that an integrated DF-MEC system produced 13 times the bioH₂ yield of a standalone DF system. Li et al.⁶² studied an integrated DF-MEC facility fed by cornstalks and observed around three times the H₂ production of DF alone. An MEC system plays a vital role in additional H₂ production and COD removal from DF effluent, thus making the system environmentally attractive. However, the production cost was not evaluated.

To the best of our knowledge, no studies have evaluated both the production cost and GHG emission reduction potential of bioH₂ produced from an integrated DF-MEC system. This work fills this information gap and evaluates two potential feedstock sources: cheese whey (CW) and solid food waste (SFW).

Methodology

The system analysis in this study is performed in three major steps: (I) process modeling, (II) techno-economic analysis (TEA) and (III) life cycle analysis (LCA).

In the CW-fed scenario, the aqueous feedstock is preheated to 105 °C to remove lactic acid bacteria,⁶³ cooled, and fed into a fermenter that is maintained at 60 °C. Inoculum is heated to 85 °C and batch-fed into the fermenter (capacity of each fermenter vessel being 1 MM gallon⁶⁴), keeping the CW-to-inoculum volumetric ratio at 2.5 : 1.^14,63 After 48 hours of fermentation, H₂ is generated along with CO₂, and the gas mixture (H₂, CO₂, and water vapor) is directed to a Selexol™ unit, followed by a pressure swing adsorption (PSA) process to separate the CO₂ for sequestration and obtain high purity H₂.⁶⁵ In addition, the CO₂ is further purified with a CO₂ capture unit for potential sequestration or sale. The aqueous effluent, which is rich in organic acids (OAs), such as acetic acid, butyric acid, and propionic acid, is fed to the MEC system to produce more H₂ and CO₂. The total CO₂ produced from both processes is collected and compressed to 2200 psi⁶⁶ for carbon capture and sequestration (CCS) or to be sold to the beverage industry.

In the SFW feedstock scenario, in addition to the integrated DF-MEC, a pretreatment process, which includes grinding and potassium hydroxide (KOH) treatment, is necessary to size the solid feedstock for conversion efficiency.⁶⁷ The net bioH₂ obtained from both scenarios was set at 50 MT day⁻¹, per DOE's targeted production scale.⁶⁸

Process modeling

Using Aspen Plus™ software, we developed two process models to simulate commercial-scale plants with capacities of 50 MT day⁻¹ of bioH₂.⁶⁹ The CW and SFW feedstock compositions were taken from Moreno et al.¹⁴ and Kim and Shin,⁶⁷ respectively (Tables S1 and S2†). The dark fermentation operating conditions and yield were set based on previous studies by Davis et al.^64,70 and Humbird et al.⁷¹ Given the absence of commercial MEC operation, the conceptual commercial scale MEC was designed with the design factors of proton exchange membrane (PEM) and chloralkali electrolyzer systems as studied by Mayyas et al.,⁷² Escapa et al.,⁷³ and Cusick et al.¹² Fig. 1 and 2 show the process flow diagrams of the two 50 MT day⁻¹ bioH₂ plants using CW and SFW as feedstock, respectively, with their corresponding stream conditions (denoted by the flow numbers in Fig. 1 and 2) tabulated in the ESI in Tables S2 and S3.† In both bioH₂ plants, the process model undergoes the following sub-processes (also shown in Fig. 1 and 2):

• Handling: Feedstock handling and transportation are reflected in the feedstock cost and life cycle analysis carbon footprint.

• Pretreatment: This applies only to the SFW-fed scenario, where the SFW is ground and treated with KOH to enhance the feedstock-to-H₂ conversion efficiency. The insoluble food waste content (around 40% of SFW, mostly containing bone structure) is separated and disposed of. Owing to incomplete information, we treated the non-soluble solid as lignin. The insoluble solid is not converted or sent for combustion but rather filtered for disposal. In the CW scenario, no pretreatment is required.

• Dark fermentation (DF): In this process, fermentation occurs in the absence of O₂ to generate H₂, CO₂, organic acids, and other by-products, such as ethanol.²⁹ In the SFW scenario, the SFW loading to the fermenter is assumed to be 50 g L⁻¹.⁷⁴ The gaseous product from DF contains H₂, CO₂, and H₂O, which go to the gas recovery section for separation using the Selexol unit and pressure swing adsorption (PSA). For both scenarios, we assumed that DF occurs at 60 °C and 1 bar for 48 hours, reaching a conversion rate (of sugars) of approximately 80%, using validated test results.⁷⁵ From previous literature studies of waste materials to bioH₂ production through DF, it is observed that acetic acid formation is highest, followed by butyric and propionic acid.^{13,61,65,74–85} Hence, based on prior literature reviews, we assumed that 51% of glucose produces acetic acid (along with H₂ and CO₂), while 24% and 5% of glucose produce H₂ and CO₂ through the production of BA and PA, respectively, which are further reutilized during MEC.

• MEC bacteria: This step involves bacteria production using effluents from DF along with protein and diammonium phosphate (DAP) (nutrients required for bacterial growth) based on a process developed in previous studies.⁸⁶ For both CW and SFW scenarios, we assumed that the MEC conversion of organic acid is 90%.⁸⁷

• Microbial electrolysis cell (MEC): In this process, the DF effluent, containing acetic acid, butyric acid, and propionic acid (CW scenario only), is utilized by microorganisms at the anode side to generate electrons and protons at a very low voltage. The electrons go to the cathode side and reduce protons to produce H₂.⁶⁰ The MEC effluent, with other remaining organics and impurities, is fed to the WWTP. For both scenarios, organic acid loading is set at 10 g L⁻¹.⁸⁸

• Gas recovery: This section separates the H₂ and CO₂ gas streams from the DF gaseous product. The effluent goes through a glycol process, commercially called Selexol,⁶⁵ for the recovery of CO₂, followed by a pressure swing adsorption (PSA) process⁸⁹ that separates CO₂ and H₂ gases. The PSA process is modeled using a reference design adopted from Spath et al.⁸⁹ report, assuming an 85% H₂ recovery rate. MEC generates high-purity H₂ and CO₂ from the cathode and anode, respectively; thus, only compression is needed. The byproduct CO₂ is compressed to 2200 psi (or 150 atm) for further storage and transportation⁶⁶ and thus can be either sold to the beverage industry or sent to geological sequestration sites.

• Boiler: This process involves the generation of steam and onsite electricity via the combustion of unused components of DF and MEC.

• Wastewater treatment plant: This step includes the treatment of wastewater before it is discharged to the environment, and a portion of the treated water is recirculated and used to meet process water requirements. No additional process water is required since both feedstocks are around 88% water.

• Utility: This section consists of a cooling tower and recycling of the treated water from the WWTP to meet process requirements.

• Storage: This section primarily involves the storage of process chemicals.

Fig. 1 Detailed process flow diagram showing 50 MT day⁻¹ bioH₂ production from CW through DF-MEC integration.

Fig. 2 Detailed process flow diagram showing 50 MT day⁻¹ bioH₂ production from SFW through DF-MEC integration.

The purity of product H₂ for both feedstock scenarios is 99.99% with 290 psi (or 20 atm), while that of CO₂ is 99.8% with 2200 psi (or 150 atm). For the dark fermentation bacteria production, we assumed a bacteria loading of 3.5 × 10⁻⁴ g g⁻¹ sugars based on a previous study of bioH₂ production from corn stover⁴⁶ since there is no such information available about using CW and SFW as feedstocks.

Life cycle analysis

LCA is widely used to quantify the environmental impacts and carbon footprint of a product. The LCA evaluation used in this study follows the International Organization for Standards (ISO) 14040 and 14044.^90,91 The Greenhouse Gases, Regulated Emissions, and Energy Use in Technologies (GREET)⁹² 2022 model was employed to quantify the life cycle GHG emissions of bioH₂ produced from two conceptual plants using CW and SFW as feedstocks. This is a well-to-gate analysis that includes all stages along the bioH₂ supply chain, starting from energy recovery and raw material extraction to the bioH₂ product delivered at the plant gate ready for transportation to downstream customers. Table 1 lists the carbon intensities of all resources consumed in the conceptual bioH₂ plants modeled in this study. For both cases, we assumed that the waste streams are burden free and that the two plants are located at the site where the waste is accumulated. Both scenarios were normalized to a functional unit of 1 kg H₂ for comparison purposes. The power required by both plants is assumed to be sourced either from the U.S. electricity grid mix or from renewable resources.

Table 1 GHG emission factors of resources required for bioH₂ production from CW- and SFW-fed plants⁶

Resources	Emission factor (kg CO2e kg^−1 or kW h)
U.S. electricity grid mix	0.44
Corn steep liquor	1.72
Diammonium phosphate	1.74
KOH	1.80
Nutrients in the CW scenario	0.52
Nutrients in the SFW scenario	1.64

---

After obtaining the LCA results, H₂ production cost graphs in the TEA section for both feedstock scenarios were compared based on the 2022 U.S. Inflation Reduction Act's 45 V credits for H₂ production⁹³ and 45 Q credits for carbon capture and sequestration.⁹⁴ These potential tax credits enable the facilities to earn additional production tax credits (PTCs) depending on the life cycle GHG emissions from the H₂ plant and CO₂ captured and sequestered, and they last for 10 years in the 45 V case and 12 years in the 45 Q case. Only one of the potential PTCs is accounted for at a time. Related information is provided in Table S7† and shown in the TEA result section.

We further quantified the water consumption factor (WCF) for the two plants using the following equation:

where W_p is the clean water produced by the WWTP section, W_pr is the water recycled to be used by the integrated DF-MEC system, and W_e is the water consumption rate for electricity usage. The water consumption rates for electricity (U.S. mix, wind, and solar) are 0.59 gal kW⁻¹ h⁻¹, 0.001 gal kW⁻¹ h⁻¹ and 0.12 gal kW⁻¹ h⁻¹, respectively.⁶ There is a minus (negative) sign at the beginning of the equation since both plants produce clean water on a net basis.

Techno-economic analysis (TEA)

The economic feasibility of the two plants was evaluated using the U.S. Department of Energy (DOE) supported hydrogen analysis (H2A) production models⁶⁸ to obtain the levelized bioH₂ production cost. The bioH₂ production cost was estimated with a discounted cash flow rate of return analysis using a 10% internal rate of return (IRR) over the project lifetime of 40 years operating at 90% capacity. For this purpose, annual expenditure, revenues, and investment costs were estimated. Annual expenses (or operating costs) primarily included fixed costs (e.g., labor and maintenance costs), raw materials, and energy expenses. Revenues earned depended on how the plants chose to utilize the byproduct CO₂. Finally, the investment (or capital costs) primarily consisted of the purchase and installation costs of all the equipment, working capital, depreciation over the period, indirect project construction costs, etc. All cost estimates are based on 2019 U.S. dollars. Table 2 shows the economic assumptions for the two bioH₂ plants. Table 3 shows the material and energy flows and costs for the two plants. An Aspen Process Economic Analyzer⁹⁵ was used to size the equipment across all operating units of the two Aspen Plus models and estimate the equipment costs of the two plants. In the case of the MEC system, we assumed current densities of 20 A m⁻², 50 A m⁻² and 100 A m⁻² based on experimental results by Jeremiasse et al.,⁹⁶ Miller⁹⁷ and Liu et al.,⁹⁸ respectively. These MEC studies used wastewater and biomass as feedstock, using graphite/graphite felt as the anode and Ni foam/MoP as the cathode. From reported MEC test results using various feedstocks at different scales, the current density varies greatly from approximately 2.5 A m⁻² (ref. 73) up to 100 A m⁻²,^97,98 as summarized in Table S4.† Based on the available literature data, the median MEC current density value is around 20 A m⁻². Thus, this study shows TEA results based on three MEC operating current densities and evaluates their impact on the economics of the two plants (since with an increase in current density, the material required for MEC decreases and vice versa). The median of current density (20 A m⁻² (ref. 96)) is used to estimate the bioH₂ production costs based on current MEC operations. The higher and more optimistic MEC current densities of 50 A m⁻² and 100 A m⁻² are used to evaluate their impact on the bioH₂ production cost.^97,98 The MEC stack design was adopted from the literature based on commercially available proton exchange membrane (PEM) water electrolyzers and chloralkali electrolyzers.^12,72,73 Some of the key assumptions in the MEC design, e.g., cost information, are provided in Tables S5 and S6 of the ESI.† We note that MEC operating at 20 A m⁻² has graphite felt and Ni foam as electrode materials⁹⁶ while MEC operating at 50 A m⁻² and 100 A m⁻² has graphite and MoP as electrode materials,^97,98 as shown in Table S6.† In Table S5,† the study assumed MEC active areas of 2 m² and 0.3 m². The latter value (0.3 m²) is taken based on NREL's 2021 technical report on PEM electrolyzers,⁹⁹ which is ongoing. The 2 m² value is taken from Brinkmann et al.'s study of industrial-scale chlor-alkali plants.¹⁰⁰ Our study primarily focuses on the results derived from Brinkmann et al.¹⁰⁰ since that study is based on common industrial practices. The bioH₂ production costs, based on a 0.3 m² active area of the MEC electrode,⁹⁹ are included in the ESI in Fig. S1 and S2.†

Table 2 Financial assumptions for the two 50 MT day⁻¹ bioH₂ plants^68,72

Parameters	Assumptions
Plant life	40 years
After tax IRR	10%
Construction period	3 years
Start-up time	1 year
Income tax rate	25.74%
Salvage value	10% of depreciable capital investment
Revenue and costs during start-up	Fixed costs: 100%
	Variable costs 75%
	Revenue: 50%
Equity	40%
Interest rate on debt financing	3.7%
Working capital	15% of the yearly difference in operating costs
Salvage value	10% total capital investment
Decommissioning costs	10% of depreciable capital investment
Depreciation schedule	20 years, MACRS

---

Table 3 Material and energy flows and costs/revenue (2019 USD) for CW and SFW plants producing 50 MT day⁻¹ bioH₂

Materials/energy input	Flowrate (MT or MW h day^−1)	Price	Ref.
a Not the cost but revenue earned through CO2 sales in the beverage industry.
CSL	0.03 (CW), 0.04(SFW)	$0.036 lb^−1	71
DAP	0.02 (CW), 0.003(SFW)	$0.63 lb^−1	71
KOH	0 (CW), 72 (SFW)	$0.71 kg^−1	101
Nutrients in the CW scenario	194.6	$4.30 kg^−1	102–113
Nutrients in the SFW scenario	0.1	$1.10 kg^−1	110
Industrial electricity	916.7 (CW), 1089 (SFW)	$0.067 kW^−1 h^−1	114
CO2^a (used in beverage industry)	490.2 (CW), 492.7 (SFW)	$0.10 kg^−1	115

---

Our study points out that since both feedstocks are (bio-based) waste streams, both have the advantage of earning additional revenues through discharge or landfill tipping (disposal) fees charged to the waste producers. For SFW, the tipping fee is assumed to be around $53 MT⁻¹ of solid waste disposed of,¹¹⁶ which is a typical municipal solid waste disposal fee in the U.S. For this study, we considered a net tipping fee of $32 MT⁻¹ of solid waste since we are disposing of 40% of the insoluble SFW as lignin, as mentioned above. In the case of CW, the discharge fees heavily depend on the COD, total suspended solid (TSS) contents in the wastewater, and the location of the plant. The four governing equations¹¹⁷ used to calculate the net discharge fees are as follows:

D_f = S_t + D_h + V_f, (1)

where D_f = net discharge fees, S_t = strength charge, D_h = domestic holding tank fees or rate, and V_f = volume discharge fees (also referred to as the industrial capacity discharge rate).where V = the volume of the waste stream in million gallons per year (MGPY); TSS = amount of suspended solid in mg L⁻¹; COD = amount of chemical oxygen demand in mg L⁻¹; 8.34 = designated conversion rate; TSS_rate = $ lb⁻¹ of excess

TSS present, depending on the region; and COD_rate = $ lb⁻¹ of excess COD present, which again depends on the region.

where P = the designated amount for the holding tank, which usually remains the same throughout.where Q = the designated amount for discharging the liquid waste streams.

The TSS, COD, domestic tank, and industrial wastewater discharge fee rates assumed for each region are shown in Table 4. Using eqn (1)–(4), Table 5 shows that the revenue earned through the discharge fee is highest for the western U.S. region (California), followed by those of the southern and midwestern U.S. regions.

Table 4 TSS, COD, domestic tank and industrial wastewater discharge fee rates considered for each region

Regions in the U.S.	TSSrate ($ lb^−1)	CODrate ($ lb^−1)	P	Q	Ref.
Midwest	0.413	0.21	11.4	3.1	117
South	0.27	0.26			118
West	1.14	0.43			119

---

Table 5 Revenue earned through discharge and tipping fees of CW and SFW feedstocks, respectively, by the 50 MT day⁻¹ bioH₂ plant

Regions in the U.S.	Cheese whey wastewater discharge fees $ kg^−1 CW (or $ kg^−1 H2)	Solid food waste (net) tipping fees $ kg^−1 SFW (or $ kg^−1 H2)
Midwest	−0.057 (−5.6)	−0.032 (−2.9)
South	−0.064 (−6.3)
West	−0.11 (−11.3)

---

Results and discussion

Life cycle analysis (LCA)

Fig. 3 and 4 illustrate the life cycle GHG emissions of bioH₂ produced from the two plants. Various scenarios assuming different sources of electricity supply and CO₂ byproduct utilization methods were assessed, and the scenarios were compared based on these factors. The scenarios were also compared to existing facilities producing H₂ from natural gas (NG) via SMR with and without carbon capture and sequestration (CCS) facilities and via proton exchange membrane (PEM) water electrolysis systems using U.S. mix, wind, and solar electrical energy inputs. These are designated by the dashed-dot, dotted, dashed, and solid lines, respectively, illustrated in Fig. 3 and 4.

Fig. 3 Well-to-gate GHG emission comparison of different electricity sources and byproduct CO₂ utilization for a 50 MT day⁻¹ plant producing H₂ from CW through DF-MEC integration.

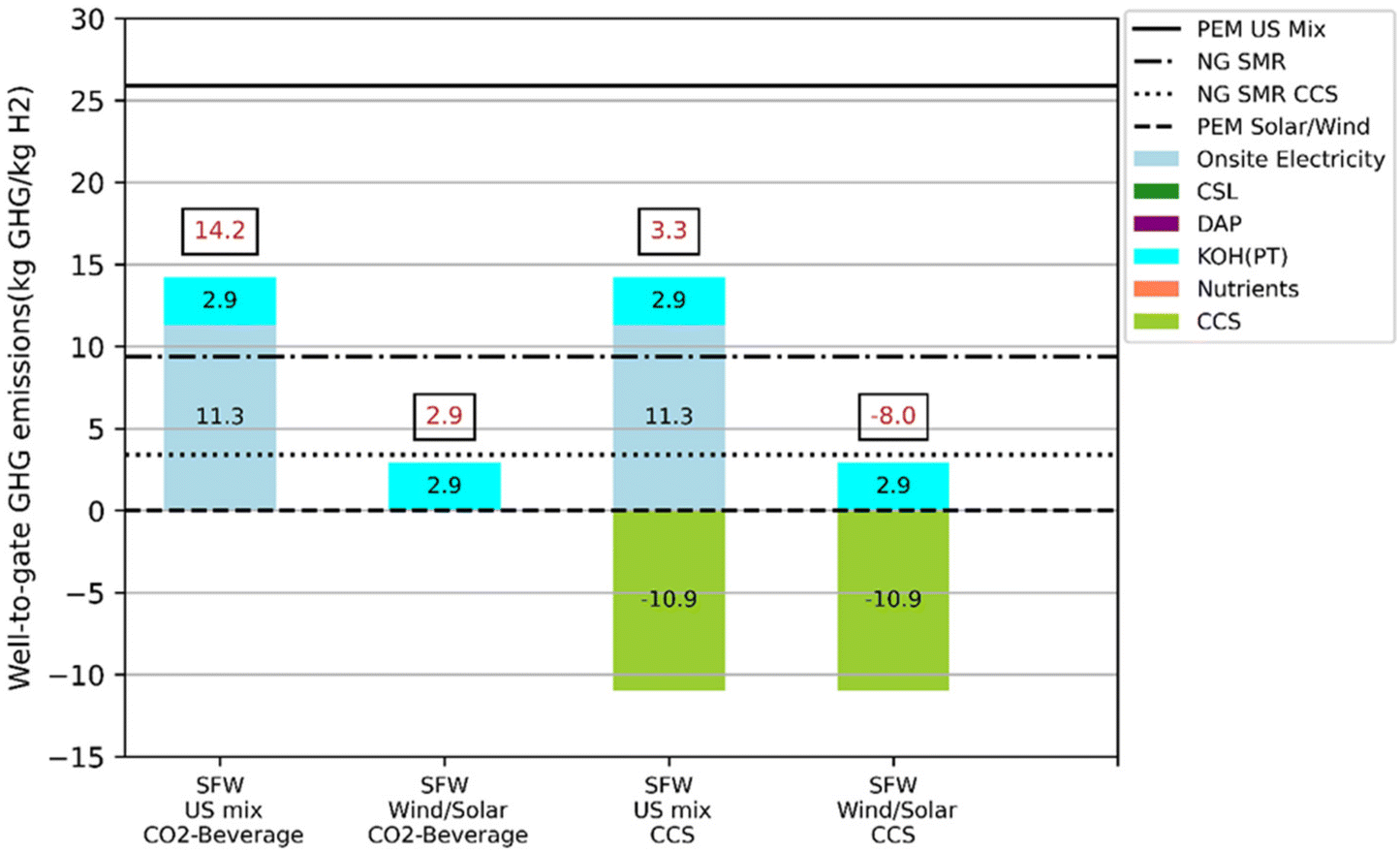

Fig. 4 Well-to-gate GHG emission comparison of different electricity sources and byproduct CO₂ utilization for a 50 MT day⁻¹ plant producing H₂ from SFW through DF-MEC integration.

In both scenarios, when the U.S. mix electricity is used, electricity is the main source of GHG emissions, accounting for 9.5 kg GHG kg⁻¹ H₂ in the CW scenario and 11.3 kg GHG kg⁻¹ H₂ in the SFW scenario. Electricity GHG emissions are zero when the source is renewable. In the SFW scenario, the GHG emissions from the U.S. mix electricity are around 18% higher than in the CW scenario owing to the additional pretreatment required. This shows that the life cycle GHG emissions for both scenarios are sensitive to the electricity input rate and source.

The use of nutrients (trace elements required by bacterial growth) in the CW scenario contributes 2.3 kg GHG to the life cycle GHG emissions of bioH₂, while their impacts in the SFW scenario are negligible. This is because the CW scenario requires more nutrients than the SFW scenario. The SFW scenario, however, incurs a GHG emission of 2.9 kg GHG kg⁻¹ H₂ from the KOH required for pretreating the SFW, which is not required in the CW scenario.

For both scenarios, using the CCS technology to capture and sequester byproduct CO₂ constitutes a major GHG sink, which further helps in achieving negative life cycle GHG emissions for both scenarios when the electricity source is renewable. This, in turn, reduces the net H₂ production cost through a PTC of $3 kg⁻¹ H₂ (Table S7†) for both plants. PTCs of $0.75 and $1.00 kg⁻¹ H₂ are assumed for the second and third cases of the CW scenarios, respectively. For the SFW scenarios, the PTC assumed for both the second and third cases is $0.60 kg⁻¹ H₂.

Water consumption factor

This study also quantified the water consumption factor (WCF) since two plants (Table 6) require process water. Table 6 shows the water consumption factors of the two plants using different electricity sources. The WCFs are all negative since both plants use the organic content of the wastewater to produce bioH₂ and clean water. A portion of this clean water is used by the integrated DF-MEC process and electricity generation, and the rest can be discharged into the environment. All scenarios discharge clean water to the environment, unlike conventional H₂ production pathways, such as SMR and PEM electrolysis, which have WCFs of 2.4 and 4.1 gal kg⁻¹ H₂, respectively.¹²⁰ Thus, none of them incur the cost of buying process water.

Table 6 Water consumption factors of CW- and SFW-fed plants producing 50 MT H₂ day⁻¹ with different electricity resources

Scenario	Net water discharged (MM gal h^−1)	WCF (gal kg^−1 H2)
CW—U.S. mix	0.03	−16
CW—wind	0.05	−28
CW—solar	0.048	−26
SFW—U.S. mix	0.02	−13
SFW—wind	0.05	−27
SFW—solar	0.045	−24

---

Techno-economic analysis (TEA)

Fig. 5(a)–(e) show the installed equipment costs required by the two plants and MEC operating at 20 A m⁻², 50 A m⁻² and 100 A m⁻² current density, each producing 50 MT day⁻¹ of bioH₂. To produce 50 MT day⁻¹ bioH₂, the installed equipment costs at 20 A m⁻², 50 A m⁻² and 100 A m⁻² for the CW plant are $3398 million (MM), $1265 million MM and $711 MM, respectively. The same for SFW plants are $3918 MM, $1465 MM and $832 MM at 20 A m⁻², 50 A m⁻² and 100 A m⁻², respectively. The total project investments for the 50 MT day⁻¹ bioH₂ plant are $4826 MM, $1798 MM and $1010 MM for a CW-fed plant and $5564 MM, $2081 MM and $1181 MM for an SFW-fed plant with an MEC section operating at current densities of 20 A m⁻², 50 A m⁻² and 100 A m⁻², respectively. The total project investment includes total direct capital costs, engineering costs, site preparation, project contingency, licensing, permits, and land costs. The SFW plant incurs additional costs of around 1%–3% for feedstock pretreatment with KOH and separation of insoluble SFW content. No pretreatment is required for CW plants.

Fig. 5 Installed equipment costs for (a) CW to 50 MT day⁻¹ bioH₂, (b) SFW to 50 MT day⁻¹ bioH₂ MEC operating at 20 A m⁻², (c) CW to 50 MT day⁻¹ bioH₂, (d) SFW to 50 MT day⁻¹ bioH₂ with the MEC operating at 50 A m⁻², (e) CW to 50 MT day⁻¹ bioH₂ and (f) SFW to 50 MT day⁻¹ bioH₂ with the MEC operating at 100 A m⁻² via the DF-MEC integration pathway.

For both plants, the MEC system is the main contributor to the installed capital costs, averaging approximately 92% of the total installed equipment cost for the three MEC operating current densities. Considering both the CW and SFW-fed plants, for the 20 A m⁻² scenario, 97% of the installed capital costs are incurred by the MEC system, followed by 92% for 50 A m⁻² and around 85% for 100 A m⁻². This is also because the anode (graphite felt – $290 m⁻²) used for the 20 A m⁻² scenario⁹⁶ is more expensive than the anode (graphite plate – $20 m⁻²) used for 50 A m⁻² and 100 A m⁻²,^97,98 as shown in Table S6.† Thus, increasing the current density 5 times (20 A m⁻² to 100 A m⁻²) reduces the installed capital cost by approximately 78% for both CW and SFW scenarios. This suggests the imperative need to increase the MEC current density as well as to use less expensive electrode materials to reduce the capital costs of the overall plants. Tables S5 and S6† present the stack design parameters, the materials, and the costs of the primary MEC stack design materials. The detailed breakdown of MEC assembly costs for both plants at 20 A m⁻², 50 A m⁻² and 100 A m⁻² MEC current densities is shown in Fig. 6. At approximately 30% and 24%, the membrane and transportation layer are the two largest contributors to the final MEC assembly cost, respectively, for both CW and SFW scenarios. From Fig. 6, it is observed that for both scenarios, increasing the current density from 20 A m⁻² to 100 A m⁻² decreases the total MEC cost assembly by approximately 80%. This further decreases the total installed capital cost by around 78% for both scenarios, as shown in Fig. 5 (comparing a and b versus e and f).

Fig. 6 Installed equipment costs of the MEC assembly for CW and SFW scenarios.

In both scenarios, the MEC section needs to operate at a much higher current density to decrease total capital costs. At present, the MEC current densities considered for this study are 20 A m⁻², 50 A m⁻² and 100 A m⁻²,^97,98 which is much lower than a PEM electrolyzer operating at a current density of approximately 17 000–30 000 A m⁻².^72,121 Further research is required to increase the operating current density of MEC to aid in reducing the total capital cost and thus the final H₂ production costs.

The 50 MT day⁻¹ bioH₂ production cost contributors for the CW and SFW plants, operating at MEC current densities of 20 A m⁻², 50 A m⁻² and 100 A m⁻² are shown in Fig. 7 and 9, respectively. The CW scenarios have lower bioH₂ production costs at 50 and 100 A m⁻², ranging from $7.2 (at 50 A m⁻²) and $2.9 (at 100 A m⁻²) in the U.S. Midwest region to $1.5 (at 50 A m⁻²) and −$2.8 (at 100 A m⁻²) in the U.S. west region per kg H₂ produced, assuming the U.S. grid mix as the electricity resource and by-product CO₂ being sold to the beverage industry. The production costs are comparatively higher for the SFW scenario, ranging from $11.0 (at 50 A m⁻²) to $6.1 (at 100 A m⁻²) per kg H₂, assuming the U.S. grid mix as the electricity resource and by-product CO₂ being sold to the beverage industry.

Fig. 7 Contributions to the levelized bioH₂ production cost of an integrated DF-MEC facility producing 50 MT day⁻¹ H₂ from CW based on the plant located in (a) the midwestern U.S., (b) south U.S., and (c) west U.S. regions, with the current density of MEC being 20 A m⁻², 50 A m⁻² and 100 A m⁻², given the source of electricity supply, byproduct utilization, and potential tax credits earned (if applicable) for each case.

Another point of comparison for both feedstock scenarios, reflected in the H₂ production cost graphs of the second, third, fourth and fifth scenarios in Fig. 7 and 9, is additional tax credits obtained through the 2022 IRA 45 V and 45 Q credits for H₂ production⁹³ and carbon sequestration,⁹⁴ respectively. Each TEA plot for both scenarios is compared based on electricity input and CO₂ usage. The electricity cost ($ kW⁻¹ h⁻¹) remains the same for all scenarios considered, both U.S. mix and wind/solar power; the difference lies in the life cycle GHG emissions shown in Fig. 3 and 4. The LCA results with different electricity input and CO₂ usage govern the amount of tax credits obtained through the 2022 IRA 45 V, as shown in Table S7,† and thus affect the net bioH₂ production costs. One noticeable thing for both plants (CW and SFW) is that, with an MEC current density of 20 A m⁻², the facilities are not economically viable. The lowest bioH₂ production cost achieved is $16.9 kg⁻¹ H₂ for the western US region- CW scenario and $29 kg⁻¹ H₂ for the SFW scenario (assuming renewable energy as an electricity resource with CCS technology and IRA 45 V tax credits).

Fig. 7(a)–(c) show the contributions of different parameters towards the production cost of 50 MT day⁻¹ bioH₂ across the U.S. midwestern, southern, and western regions, respectively. Each scenario and location are also compared based on MEC operating conditions of 20 A m⁻², 50 A m⁻² and 100 A m⁻² current densities to understand the importance of increasing the MEC current density for bioH₂ production.

When CW is used as the feedstock, discharge fee revenues play the largest role in reducing the production cost of H₂, followed by the utilization of the CO₂ by-product, which in turn affects the corresponding PTC obtained by the facility. The discharge fees, as mentioned above, depend on the plant location. High discharge fees in the western region of the U.S. ($11.3 kg⁻¹ H₂) lead to negative H₂ production costs (Fig. 7c at 100 A m⁻²) owing to the increased revenues earned. Other than capital costs, electricity and required nutrients are the main contributors to a variable cost of around $3.30 kg⁻¹ H₂ for all three regions shown in Fig. 7.

Fig. 8a–c show the sensitivity of the levelized H₂ production cost from CW to different process parameters. The baseline scenario uses the U.S. mix as the electricity source and assumes selling CO₂ to the beverage industry. We varied each parameter, one at a time, by ±20% and explored the effects on the H₂ production cost. For Fig. 8b and c (MEC current densities being 50 and 100 A m⁻², respectively), the H₂ production cost is mostly sensitive to variations in four parameters, with the most influential one being MEC current density, followed by discharge fees, IRR, and H₂ output. Increasing the MEC current density or discharge fees by 20% decreases the H₂ production cost by around 30% and 16% at 50 A m⁻², respectively. At 100 A m⁻², the discharge fee is more sensitive than the MEC current density. Increasing the discharge fee by 20% decreases the H₂ production cost by 38%, while the same for the MEC current density (baseline being 100 A m⁻²) is around 30%. In regions where the discharge fee is higher, such as the western U.S., the variations in discharge fees become the most influential factor, surpassing the MEC current density (Fig. S3 and S4†). An increase in the MEC current density decreases the MEC area (or the corresponding MEC stack materials required), which significantly decreases the final bioH₂ production cost. The impact of the final bioH₂ cost due to the discharge fee heavily depends on the region considered, as discussed in Tables 4 and 5.

Fig. 8 Sensitivity analysis of H₂ production cost from CW via DF-MEC integration producing 50 MT day⁻¹ of H₂ based on plants located in the Midwest U.S. region with MEC operating at (a) 20 A m⁻², (b) 50 A m⁻² and (c) 100 A m⁻². The labels include the baseline values of each parameter considered.

Similar to the MEC current density and discharge fee, the H₂ production amount shows a similar indirect proportionality relationship (an increase in the parameter decreases the levelized bioH₂ production cost) with the overall production cost. However, increasing the required IRR by 20% increases the H₂ production cost range by approximately 15–20% for the midwestern U.S. region (operating at 50 and 100 A m⁻² MEC current densities), showing a directly proportional relationship of IRR with the production cost of H₂. Similar patterns are also observed for MEC membrane, MEC transport layer and electrode (cathode and anode) costs. Sensitivity analyses for the southern and western U.S. regions are shown in Fig. S3 and S4.† Fig. 8a shows the sensitivity of the 20 A m⁻² MEC current density on the bioH₂ production cost. The most sensitive parameter is the current density, which is similar to that observed for the 50 A m⁻² case (Fig. 8b). Unlike 50 A m⁻² and 100 A m⁻², for MEC operation at 20 A m⁻², the discharge fee plays a much less significant role, which is also observed for the south and west U.S. regions for the CW scenario (Fig. S3a and S4a†). This furthermore supports the need for increased MEC current density operation so that the revenues earned through CW (feedstock) at different locations can gain potential significance, especially for the west U.S. region. Another point of difference observed in Fig. 8a–c is that for the 20 A m⁻² case, the MEC electrode prices are much more sensitive parameters for the bioH₂ production cost compared to 50 A m⁻² and 100 A m⁻² cases, which is also observed for the SFW bioH₂ production cost sensitivity analysis in Fig. 10. This suggests the need for cheaper MEC electrode materials along with increasing the MEC current density operation.

Fig. 9 shows the detailed production cost breakdown of an integrated DF-MEC facility producing 50 MT day⁻¹ H₂ from SFW in various scenarios with different sources of electricity supply, CO₂ byproduct utilization methods, and types of potential PTC applied, based on the GHG emissions for each case shown in Fig. 4. Similar to the CW-fed case, each aforementioned scenario is compared based on MEC operating current densities of 20 A m⁻², 50 A m⁻² and 100 A m⁻². The bioH₂ production costs vary between $5.0 kg⁻¹ and $31 kg⁻¹, including $2.9 kg⁻¹ revenue earned in the form of net tipping fees. However, the consumption of electricity, KOH, and nutrients contributed $3 to the production cost per kg of H₂ produced. This value is lower than those in the CW scenario because the amount of nutrients required in the CW scenario is higher than that in the SFW scenario. As mentioned earlier, bioH₂ production cost from SFW, operating at an MEC current density of 20 A m⁻², is not at all economically viable. The average production cost is $30 kg⁻¹ H₂, considering all the five cases assumed, as illustrated in Fig. 9.

Fig. 9 Production cost breakdown for an integrated DF-MEC facility producing 50 MT day⁻¹ H₂ from SFW, with MEC operating current density being 20 A m⁻², 50 A m⁻² and 100 A m⁻², based on source of electricity supply, byproduct utilization, and PTC earned (if applicable) for each case.

We obtained production costs of $10.6 (at 50 A m⁻²) and $5.7 (at 100 A m⁻²) per kg H₂ with wind/solar as the electricity resource, revenues generated from tipping fees, CO₂ being sold to the beverage industry, and potential PTC obtained through 2022 IRA H₂ (45 V) for the first 10 years (second scenario of Fig. 9). The lowest H₂ production cost of $5.0 kg⁻¹ is achieved when using wind/solar electricity with CCS technology, with MEC operating at 100 A m⁻². The life cycle GHG emissions for this case are −8.00 kg per kg H₂, qualifying the system to obtain a PTC of $3 kg⁻¹ H₂ through the 2022 IRA H₂ (45 V).

Fig. 10 depicts the sensitivity of the cost of H₂ production using SFW as feedstock to different process parameters. The variations in the MEC current density exhibited the greatest impact on the fluctuations in H₂ production cost, followed by the IRR and H₂ output. Varying the current density by ±20% changes the net H₂ production cost by around ∓20%, while varying the IRR and H₂ output by ±20% varies the net production cost by ±11% and ∓10%, respectively, when MEC is operating at 20 A m⁻², 50 A m⁻² and 100 A m⁻². This shows that for both plants, the MEC current density plays a vital role in reducing the final bioH₂ production cost.

Fig. 10 Sensitivity analysis of H₂ production cost from SFW via DF-MEC integration producing 50 MT day⁻¹ of H₂, with MEC current density operation being at (a) 20 A m⁻², (b) 50 A m⁻² and (c) 100 A m⁻². The labels include the baseline values of each parameter considered.

Overall, both processes are modeled using validated lab test results from the literature, which represent the latest scientific discovery, with potential improvement via fundamental science advancements, e.g., bacterial genetic engineering, MEC electrode and membrane development. Meanwhile, for the scaling up of plant operation, the DF yield and MEC current density are affected by factors other than scientific elements, e.g., feedstock inconsistency and presence of impurity, mass and heat transfer limitations and material fouling. Efficient engineering design (e.g., pretreatment to remove solids or impurities) and material/equipment development (e.g., efficient propeller and anti-fouling practices) allow efficient scaling with satisfactory yield towards commercialization.

Conclusions

This study investigated the economic and environmental prospects of two 50 MT day⁻¹ bioH₂ production facilities using CW and SFW as feedstock and producing high-purity CO₂ as a byproduct. The CO₂ is either sold to the beverage industry or captured and sequestered. Since both feedstocks are waste streams, they can potentially contribute discharge/tipping revenue earning opportunities instead of being expenses. Discharge fees for the CW varied according to plant location because the COD and TSS rates varied with location. The discharge fees were $5.6, $6.3 and $11.3 per kg H₂ produced for the midwestern, southern and western U.S. regions, respectively. The tipping fees for SFW were based on typical municipal solid waste fees and had a flat rate of $53 MT⁻¹ (ref. 116) across the U.S. A tipping fee of $2.9 kg⁻¹ H₂ can be regarded as revenue earned. Based on literature data (Table S4†), MEC operating at current density was set to 20 A m⁻², 50 A m⁻² and 100 A m⁻² to observe their impact on the final bioH₂ production costs for both feedstocks.

Economic analysis showed that the MEC section is the primary contributor to the installed capital cost, emphasizing the need for further research to increase the current density of MEC operation along with using cheaper electrode materials. These observations are further supported in the bioH₂ cost sensitivity analysis plots of CW and SFW scenarios. In the CW scenario, the discharge fee significantly affected the final production cost of bioH₂, demonstrating a $5-$11 kg⁻¹ cost reduction, and it was observed that with an increase in current density from 20 A m⁻² to 100 A m⁻², the discharge fee was the most sensitive parameter.

Since the waste streams do not carry emissions burdens from upstream, the life cycle GHG emissions of bioH₂ production depend only on the carbon intensities of electricity and nutrients. Using renewable electricity together with CCS technology, the bioH₂ produced from both feedstocks is carbon negative, qualifying the system to receive a PTC of $3 kg⁻¹ H₂ under 2022 IRA 45 V. For both feedstocks, 45 V leads to greater benefits (about $2.1 kg⁻¹ reduction over the life of the project) than 45 Q (about $0.4 kg⁻¹ reduction). However, the wastewater discharge exhibits the highest benefit ($5-$11 kg⁻¹ cost reduction).

The study further quantified WCF, which is a cost to most plants using process water. Both plants assessed in this work have no water consumption since they used the organic matter of the waste streams to produce H₂ and gave away clean water, some of which is reutilized by the process, thereby eliminating the need to buy process water from outside. An average of 23 and 21 gallons of clean water per kg bioH₂ was produced and/or discharged through DF-MEC of CW and SFW, respectively, unlike H₂ production methods, such as SMR and PEM electrolysis, which consume fresh water.⁶

This study showed the potential of low-cost H₂ production pathways using DF-MEC integration, different electricity sources and CO₂ utilization/sequestration strategies. For the two waste feedstocks, the MEC process needs further research and development to increase the current density and further reduce the total capital costs. From a low-cost bioH₂ production viewpoint, all CW-fed scenarios showed significant potential across all three U.S. regions evaluated, especially the western region, considering current densities of 50 and 100 A m⁻². However, none of the scenarios are economically feasible with MEC operating at a current density of 20 A m⁻². Some of the limitations of this study are the variable composition of the waste feedstock, especially solid food waste, and the maintenance costs and lifetime operational hours of the MEC.

BioH₂ production is more capital intensive than PEM electrolysis owing to the lower current density of MEC, which requires further research. However, bioH₂ production from waste streams has advantages in lower electricity consumption (20–22 kW h kg⁻¹ H₂ vs. 55 kW h kg⁻¹ H₂ from PEM⁷) and the generation of treated clean water instead of consuming fresh water. This makes bioH₂ production extremely attractive in areas with a constrained water supply and a high wastewater discharge fee, such as California.
