A green and efficient strategy to utilize spent SCR catalyst carriers: in situ remediation of Cu@TiO₂ for photocatalytic hydrogen evolution

Abstract

The selective utilization of titanium dioxide (TiO₂) carriers in spent selective catalytic reduction (SCR) catalysts offers a promising strategy to alleviate environmental pollution and recover high-value resources. Herein, we report a green and sustainable method for the in situ remediation of TiO₂ carriers from spent SCR catalysts with a short process using a simple impregnation method to prepare recovered CR-TiO₂ with the deposition of Cu. When employed in photocatalytic hydrogen production, CR-TiO₂ achieved a hydrogen production rate of 388 μmol g⁻¹ h⁻¹, which was 1.75 times higher than that of C-TiO₂ (commercial TiO₂). Experimental results and DFT calculations demonstrated that the doping of Cu species broadened the light absorption range of TiO₂ and promoted water dissociation, thus enhancing its photocatalytic performance. Finally, the process was evaluated by life cycle assessment (LCA), which showed a nearly 67.8%, 71.8%, 66.5%, and 83.2% reduction in fossil fuel depletion, ozone depletion, carbon dioxide and sulfur dioxide emissions, respectively, compared to the conventional electronic-grade TiO₂ synthesis method. This work provides a sustainable way to produce clean, green energy by utilizing titanium resources recovered from spent SCR catalysts. Furthermore, it provides new insights into turning waste into treasure and opens up a new way to alleviate environmental problems.

---

1. Introduction

Selective catalytic reduction (SCR) catalysts are widely used in power plant decommissioning systems to improve the selective reduction of flue gas (i.e. nitrogen oxides) and are suitable for major industrial scenarios.^1–3 However, they are usually deactivated after 3–5 years with a short lifespan due to the existence of heavy metal, therefore, simple disposal of spent SCR catalysts (landfill vs. stockpile) is not an economical solution.^4,5 The industry produces about 250 000 tons of spent SCR catalysts per year, and the environmental pollution caused by their deactivation has become a serious problem.^6–8 In this context, the concept of “waste to energy” has generated a great deal of interest in the scientific community by recycling waste to high value-added energy materials.^9–12 Lou et al. reduced the high amount of arsenic-containing catalysts to the detection limit by an alkaline-acid leaching recovery process, and the regenerated catalysts showed even higher activity than the commercial catalysts in the NO conversion process after supplementation with active components.¹³ Mohammad Avis Khan successfully prepared MoS₂@CNF electrocatalysts using spent methane reforming catalysts by a hydrothermal method in combination with MoS₂, which delivered an overpotential of 128 mV at a current density of 25 mA cm⁻².¹⁴ In terms of the value-added utilization of spent SCR catalysts, many studies have been carried out by our group. By designing a unique acid leaching process, vanadium recovered from waste materials can be used as a cathode material for aqueous zinc ion batteries, and the discharge capacity of the batteries assembled with VO₂ was 204.6 mA h g⁻¹ for the first five cycles.¹⁵ Feng et al. used a one-step alkaline leaching method to recover TiO₂ as a cathode material for aqueous zinc ion batteries.¹⁶ The recycled TiO₂ in combination with graphene could be used for lithium-ion battery with good specific capacity and electrochemical performance. As a potential secondary resource, spent SCR catalysts contain 70%–90% of TiO₂. Thus, recovering TiO₂ from spent SCR catalysts can not only alleviate the pressure on the environment but also improve the utilization of titanium resources from raw materials and reduce the stockpile of deactivated and harmful catalysts. Photocatalytic hydrogen evolution to produce hydrogen energy is considered to be one of the most promising clean energy sources.^17,18 The traditional semiconductor photocatalysts, represented by TiO₂, have been widely studied by the scientific community because of their high chemical stability, environmental friendliness, good photocatalytic activity and easy preparation.^19–22 Moreover, TiO₂ is considered the main raw material for green hydrogen energy production by decomposing water under sunlight.^23–25 However, the high cost, insufficient redox capacity, severe charge recombination and few surface active sites still limit the large-scale application of TiO₂-based photocatalysts.²⁶ Based on these issues, recycling titanium resources from selective catalytic reduction (SCR) catalysts with in situ deposition technology to fabricate highly efficient TiO₂ photocatalytic electrocatalysts is a feasible way to solve the present resource utilization and energy problems.

Herein, a short process for the in situ remediation of TiO₂ carriers from spent SCR catalysts was developed in combination with the simultaneous deposition of a transition metal. A series of well-dispersed copper (Cu)-doped photocatalysts (CR-TiO₂) was prepared by using recycled TiO₂ from spent SCR catalysts, and the photocatalytic hydrogen evolution performance and underlying mechanism of CR-TiO₂ were investigated. It was demonstrated that the Cu–TiO₂ interaction could improve the carrier transfer capacity based on experimental and theoretical calculations. Cu–TiO₂ has excellent charge transfer ability as well as good hydrogen adsorption ability, which is beneficial for photocatalytic hydrogen production. Finally, the in situ remediation process was evaluated by using life cycle assessment (LCA), which demonstrated the environmental friendliness and feasibility of this process to prepare photocatalysts. This work demonstrates the high value-added utilization of titanium resources from waste SCR catalysts in photocatalytic hydrogen production, which is instructive for the recycling of waste materials to generate clean energy.

2. Experimental

2.1. Chemical and reagents

The waste SCR catalysts used in this study were provided by Anhui Yuanchen Environmental Protection Technology Co. Copper chloride anhydrous (CuCl₂) was purchased from Adamas. The deionized water used had a conductivity of 18.2 MΩ cm. All the other chemical reagents were used directly in the experiments without any purification.

2.2. Pretreatment process of spent SCR catalysts

The spent SCR catalyst contained TiO₂ with a purity of 96.07%, which was recovered by a similar method reported by our group,¹⁶ and its main components are as follows: (96.07 wt% TiO₂, 3.61 wt% Al₂O₃, 0.3 wt% SiO₂, 0.31 wt% WO₃, 0.19 wt% V₂O₅, 0.18 wt% F₂O₃, and 0.09 wt% CaO). The original obtained TiO₂ is denoted as R-TiO₂.

2.3. Synthesis of CR-TiO₂

In a 100 mL beaker, 40 mL of deionized water and a certain amount of R-TiO₂ was added and stirred for 10 min, and then 1% (atomic ratio) of CuCl₂ was added to the above suspension under vigorous stirring for 3 h. Subsequently, the obtained mixture was washed and centrifuged three times to obtain a light-green product, which was placed in an oven at 60 °C for 8 h. After drying and grinding, the powder was dispersed uniformly in a ceramic boat and calcined at 450 °C for 2 h, after the completion of the pyrolysis, the powder was cooled in air to obtain the final product of CR-TiO₂.

2.4. Characterization

The crystal structure of the samples were determined by recording their X-ray diffraction peaks (XRD) using a (D8 Advance) goniometer configured for Cu Kα radiation (λ = 1.54056 Å) in the 2θ scanning range of 5° to 90° at 40 kV and 40 mA Cu K_λ radiation. The surface morphology and microstructure and the lattice fringes of the samples were measured using a scanning electron microscope (SEM, A Quanta 200F) and transmission electron microscope (TEM, F20 field emission scanning electron microscope). XPS photoelectron spectroscopy (XPS) was carried out by using a Thermo Fisher Scientific K-Alpha (USA) to understand the elemental chemical state of the samples. An inductively coupled plasma emission spectrometer (ICP-OES, AVIO 200, Optima 8000) was used to quantify the actual loading of Cu. A fluorescence spectrophotometer (F-4700, Hitachi, Japan) was used to conduct the luminescence measurement, and the excitation wavelength was set at 320 nm at room temperature to obtain the maximum emission wavelength. The UV-visible diffuse reflectance spectral data were collected on a PerkinElmer Lambda 950 spectrophotometer.

2.5. Photocatalytic hydrogen evolution

The photocatalytic water-splitting experiments were carried out on an all-glass automatic on-line trace gas analysis system (Labsolar-6A, Beijing Perfect Light Technology Co., Ltd) and a multi-channel photochemical reaction test system (PCX-50C Discover, Perfect Light Ltd). Sacrificial agents are essential in the photocatalytic decomposition of water, given that they can act as electron donors and reduce carrier recombination. Methanol was used as the sacrificial agent in this study. Briefly, 20 mg catalyst was uniformly dispersed in a reactor containing a mixed solution of 80 mL water and 20 mL methanol. The hydrogen production process was carried out by using argon as the carrier gas and methanol as the sacrificial agent, and the reaction was stirred under vacuum for half an hour prior to the reaction. The photocatalytic hydrogen production test started when the reactor vacuum reached 0.3 kPa, effectively excluding the influence of air. Hydrogen production was recorded and analyzed by an on-line gas chromatograph (GC9790II (PLF-01)) with a 300 W Perfect Light PLS-SXE300C xenon lamp. The chiller temperature was set at 5 °C. A 300 W Xe lamp was used as the light source for full-light irradiation without cutoff filters.

2.6. Photoelectrochemical measurements

An electrochemical workstation (CHI760E, China) was used to obtain the transient photocurrent response with electrochemical impedance data. The electrolyte used was a 0.2 M sodium sulfate solution. The workstation consists of a working electrode, a counter electrode (platinum sheet) and a reference electrode. The working electrode was prepared as follows: 2 mg of catalyst was added to a mixture of 1 mL of ethanol and 40 μL of Nafion solution (5 wt%), sonicated for half an hour so that the slurry was uniformly coated on the surface of FTO conductive glass with a size of 2.0 cm × 2.0 cm (conductive side), and dried in the air for 3 h before testing.

2.7. Theoretical calculations

The density functional theory (DFT) calculations carried out in this study were processed by using the VASP simulation software. To simulate the real environment, a TiO₂ block model containing 108 atoms, 36 Ti atoms and 72 O atoms was created. A vacuum layer of 15 Å was added to eliminate layer-to-layer interactions. The coulombic interactions between local electrons were considered, and the U of the Ti element was set to 5 eV. The truncation energy ENCUT = 520 eV was used in the calculations, and the minimum energy convergence criterion during the geometry optimization process was 1 × 10⁻⁵ eV. The K-point network was set to 5 × 5 × 2.

3. Results and discussion

Given that the spent SCR catalyst has a variety of non-homogeneous elements, the types and specific contents of various elements were determined before and after the recycling process, and the results are shown in Tables S1 and S2.† The content of TiO₂ after the recycling process was 96.07%, which is referred to as R-TiO₂. As shown in Fig. 1, a large amount of TiO₂ carriers in the waste SCR catalysts was generated by industrial consumption, and a short-flow in situ remediation method was used to remediate the waste TiO₂ carriers to produce CR-TiO₂, which was then applied in the field of photocatalytic hydrogen production to achieve resource reutilization.

Fig. 1 Schematic illustration of the synthesis process of CR-TiO₂ for photocatalytic hydrogen production.

The surface morphology of the photocatalysts was characterized by high-resolution transmission electron microscopy (HR-TEM) and scanning electron microscopy (SEM). The TEM image clearly showed the lattice stripe of CR-TiO₂, which was estimated to be 0.348 nm and is consistent with the anatase crystalline (101) facet of TiO₂ (Fig. 2a), indicating the excellent crystallinity of CR-TiO₂. In addition, the selected area electron diffraction (SAED) images show clear diffraction rings with CR-TiO₂ (Fig. 2b), respectively, which also correspond to the (101), (112), and (200) facets of anatase TiO₂. From Fig. 2c, it can be clearly seen that CR-TiO₂ exhibits a spherical morphology. As shown in Fig. 2d–f, the EDS mapping revealed the presence and uniform distribution of Ti, O, and Cu in CR-TiO₂, indicating that Cu is uniformly dispersed on the surface of TiO₂, which provides evidence for the synergistic interaction between TiO₂ and Cu. The crystal structure of CR-TiO₂ was characterized by X-ray diffraction (XRD) spectroscopy, as shown in Fig. 3a. The strong diffraction peaks at around 25.3° in the XRD spectrum are attributed to the formation of TiO₂ in the standard anatase crystal form. The R-TiO₂ recovered from the spent SCR material also showed the standard TiO₂ diffraction peaks in its XRD pattern.^27,28 We found out that negligible difference in the crystal structure of CR-TiO₂ compared to C-TiO₂ (commercial TiO₂) can be observed. The XRD peaks for CR-TiO₂ did not show any signals with respect to Cu, which can be attributed to the low concentration of Cu. This phenomenon suggests that small amounts of Cu do not cause changes in the XRD diffraction peaks of TiO₂.^29–31 The comprehensive analysis of the morphology and crystal structure indicates that the CR-TiO₂ photocatalyst was successfully prepared in this study.

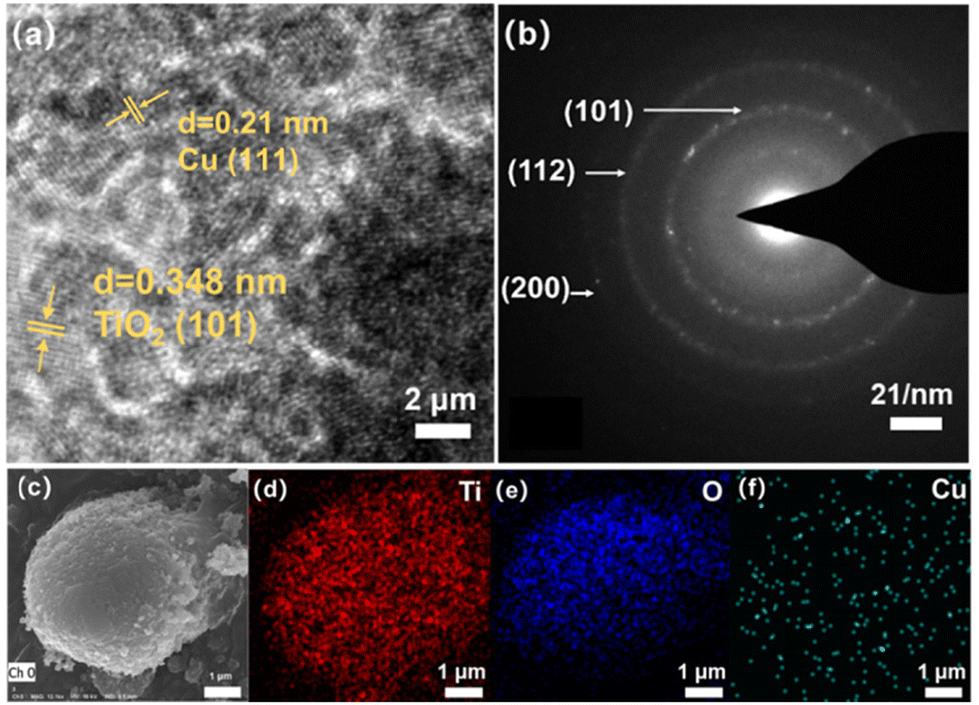

Fig. 2 (a) HR-TEM images of CR-TiO₂. (b) SAED images of CR-TiO₂. (c) SEM image of CR-TiO₂. (d–f) SEM-EDS mapping of CR-TiO₂.

Fig. 3 (a) XRD patterns of C-TiO₂, R-TiO₂ and CR-TiO₂. XPS spectra of Cu 2p (b), (c) Ti 2p, and (d) O 1s, respectively.

The chemical state of Ti, O and Cu in the catalyst were also confirmed using X-ray photoelectron spectroscopy (XPS). As shown in Fig. 3b, the Cu 2p of R-TiO₂ did not show signals for Cu species. The two peaks at 933.1 eV and 953.2 eV in the spectra of CR-TiO₂ correspond to Cu 2p3/2 and Cu 2p1/2 of Cu²⁺, respectively, compared to that of R-TiO₂, which is attributed to the successful loading of Cu on TiO₂.^32,33 The Ti 2p spectrum of R-TiO₂ shows peaks corresponding to Ti 2p3/2 and Ti 2p1/2 at 458.7 eV and 464.3 eV, respectively, and the energy difference between the spin orbitals of 5.6 eV confirms the presence of Ti⁴⁺.³⁴ The Ti 2p binding energies of CR-TiO₂ shifted towards higher energies compared to that of R-TiO₂, suggesting that the introduction of Cu species changed the electron density of the Ti 2p orbitals.³⁵ The electrons tend to move towards Ti species with a higher charge density, leading to a lower binding energy.³⁶ The XPS spectrum of O 1s of CR-TiO₂ was decomposed into three peaks at 529.6 eV, 531.25 eV, and 532.6 eV, belonging to lattice oxygen, vacancy oxygen, and adsorbed oxygen, respectively.^37,38 Compared with the R-TiO₂ catalyst, the O 1s characteristic peak of CR-TiO₂ showed a slightly blue-shifted binding energy of the oxygen vacancy by 0.3 eV. In addition, the concentration of oxygen vacancies in CR-TiO₂ (18.26%) is much higher than that in R-TiO₂ (8.29%), which may be due to the fact that Cu doping led to a lattice mismatch, which increased the proportion of oxygen vacancies.³⁹ Combined with the above-mentioned analyses, we infer that doping with low concentrations of Cu species may improve the photocatalytic ability of R-TiO₂.

4. Photocatalytic hydrogen evolution

One of the primary objectives of the in situ remediation of spent TiO₂ carriers is to establish photocatalytic activity centers through Cu deposition to increase hydrogen production.⁴⁰ We performed a 4 h photocatalytic hydrogen production cycle test and a stability test for 12 h under full-spectrum conditions with a 300 W Xe lamp. Methanol was used as the sacrificial agent in this study according to previous reported literature.^41,42 The hydrogen production performance is shown in Fig. 4. The wide band gap of TiO₂ and the susceptibility of photogenerated electron pairs to complexation has a negative effect on its photocatalytic performance.^43,44 Thus, as expected, R-TiO₂ showed a moderate hydrogen production capacity with a performance of 76 μmol g⁻¹ h⁻¹. Alternatively, CR-TiO₂ showed the highest photocatalytic hydrogen production capacity of 368 μmol g⁻¹ h⁻¹, which is 4.84 times and 1.5 times higher than that of R-TiO₂ and C-TiO₂ (221 μmol g⁻¹ h⁻¹), as displayed in Fig. 4a and b, respectively. The photocatalytic activity of the CR-TiO₂ catalyst is superior to previously reported photocatalysts (Table S4†). This phenomenon suggests that the modification of Cu species can effectively increase the utilization of photogenerated carriers and significantly improve the water hydrolysis performance of TiO₂.⁴⁵

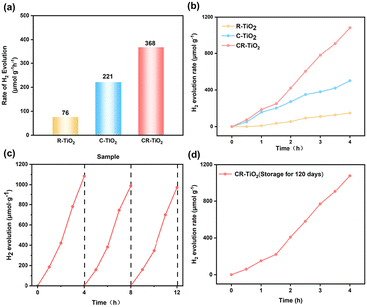

Fig. 4 (a) Hydrogen production rate of R-TiO₂, C-TiO₂ and CR-TiO₂. (b) Hydrogen production by different photocatalysts for 4 h. (c) Long-cycle hydrogen production performance of CR-TiO₂. (d) Hydrogen production performance of CR-TiO₂ after 120 days of storage.

Moreover, CR-TiO₂ also showed excellent stability without significant decrease in its hydrogen production performance during the 12 h long cycle experiment (Fig. 4c). In addition, XRD tests were performed on CR-TiO₂ after the long cycle test. As shown in Fig. S1,† CR-TiO₂ showed the standard TiO₂ diffraction peaks, which proves that the crystalline structure of CR-TiO₂ was not destroyed after the long-time testing, indicating its good stability. It should be mentioned that CR-TiO₂ maintained good hydrogen production activity (above 90%) after 120 days of storage at room temperature (as shown in Fig. 4d), proving its excellent stability.

The optical absorption property of a catalyst is one of the factors affecting its activity, and thus we characterized the optical properties of R-TiO₂ and CR-TiO₂ by UV-vis absorption spectroscopy. Pure TiO₂ has a band gap width of around 3.2 eV, and generally only absorbs in the UV region.⁴⁶ As shown in Fig. 5a and the enlarged area (Fig. 5a, inset), it can be seen that the absorption edges of CR-TiO₂ slightly red-shifted compared to R-TiO₂, which indicates that the absorbance of CR-TiO₂ expands towards the long wavelength absorption region.^47,48 This is probably because Cu doping can change the electronic structure of TiO₂, resulting in a narrower band gap between its conduction and valence bands, which is responsible for its increased light absorption range.⁴⁹Fig. 5b shows the fitted Tauc plot, from which it can be seen that the band gap of R-TiO₂ is 3.22 eV, while the band gap of CR-TiO₂ is reduced to 3.18 eV, and this decreased band gap drove the improvement in the photocatalytic activity of CR-TiO₂. The rate of photogenerated electron–hole pair complexation is an important assessment of catalyst efficiency. Using steady-state photoluminescence (PL) and time-resolved decay spectroscopy (TRPL), the carrier transfer mechanism of CR-TiO₂ and R-TiO₂ could be investigated to quantify their corresponding charge transfer ability. As shown in Fig. 5c, the higher peak intensities in the spectra indicate higher electron–hole recombination ratios and higher energies required for the excited molecules to return to the ground state. Pure TiO₂ showed the highest peak around 468 nm, where there is a clear charge recombination process. Alternatively, CR-TiO₂ showed a significantly lower peak intensity. Therefore, we can infer that the recombination of holes and electrons in CR-TiO₂ can be suppressed and the charge separation efficiency is significantly improved.

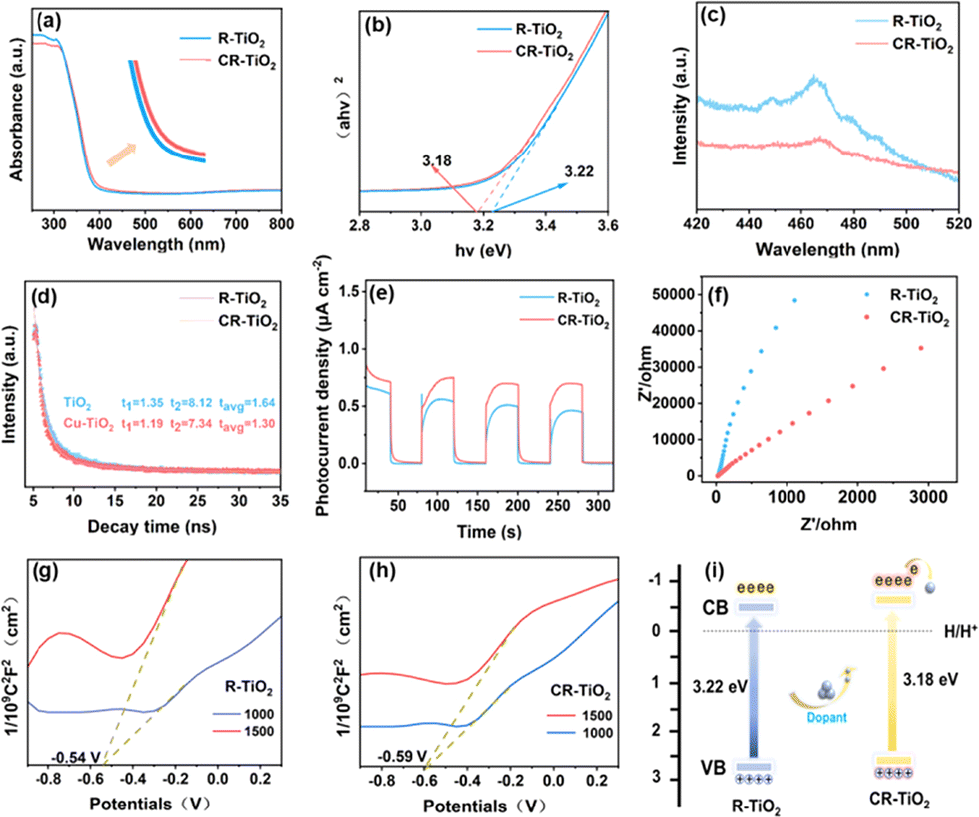

Fig. 5 (a) Absorption spectra of R-TiO₂ and CR-TiO₂, and inset, enlarged absorption spectra. (b) Tauc-plots of R-TiO₂ and CR-TiO₂. (c) PL spectra of R-TiO₂ and CR-TiO₂. (d) TRPL decay curves for R-TiO₂ and CR-TiO₂. (e) Photocurrent responses of R-TiO₂ and CR-TiO₂. (f) EIS of R-TiO₂ and CR-TiO₂. (g and h) Mott–Schottky plots of R-TiO₂ and CR-TiO₂, respectively. (i) Schematic illustration of energy band of R-TiO₂ and CR-TiO₂.

The lifetime (τ_avg) of R-TiO₂ and CR-TiO₂ (τ₁ = 1.35 ns, τ₂ = 8.12 ns and τ_avg = 3.64 ns for R-TiO₂; τ₁ = 1.19 ns, τ₂ = 7.34 ns and τ_avg = 1.30 ns for CR-TiO₂) was obtained from the data fitting of the time resolution photoluminescence (TRPL) decay curves, as demonstrated in Fig. 5d. This phenomenon suggests that Cu loading can lead to a decrease in the PL lifetime of R-TiO₂. After the calculation, CR-TiO₂ has the highest rate constant K_ct for charge transfer, K_ct = 1.59 × 10⁻⁸ s⁻¹, which indicates that the electron transfer ability between TiO₂ and Cu species can be effectively enhanced. CR-TiO₂ has an effective charge transfer efficiency (η_ET) of 20.74%, suggesting that this material has the optimal charge transfer capability. This is consistent with its hydrogen production performance, indicating that the doping of Cu species effectively improved the charge transfer ability in hydrogen production.

Carrier migration is governed by the carrier transfer kinetics, which directly affects the smooth progress of redox reactions, and the performance of a photocatalyst depends on the carrier behavior of the material itself. Therefore, to observe the photoelectric properties of catalyst carriers more intuitively and study their charge transfer separation ability, transient photocurrent response and electrochemical impedance spectroscopy (EIS) were employed. As shown in Fig. 5e, the photocurrent response strength of CR-TiO₂ significantly increased compared to that of R-TiO₂, which implies that the synergistic effect between Cu and R-TiO₂ led to the enhanced separation of electrons and holes. As shown in Fig. 5f. It can be clearly seen that the Nyquist radius of CR-TiO₂ is lower than that of R-TiO₂. The smaller radius indicates the stronger electron migration ability, and this phenomenon proves that CR-TiO₂ shows more favorable charge transport than R-TiO₂. Based on the above-mentioned results, we can conclude that the doping of Cu species greatly improved the electron-hole separation and electron transfer ability of TiO₂ and promoted the rapid production of hydrogen. To confirm the energy band structure of the materials, we verified the band edge positions of R-TiO₂ and CR-TiO₂ by the XPS-Vb method. As shown in Fig. S2,† the valence band positions of R-TiO₂ and CR-TiO₂ were determined to be 2.69 V and 2.70 V, respectively. To further validate the energy band structures, the energy band positions of R-TiO₂ and CR-TiO₂ were also investigated using Mott–Schottky diagrams. The Mott–Schottky (M–S) plot enables the determination of the flat-band potentials and the valence band or conduction band values. As in shown in Fig. 5g and h, the positive slopes of CR-TiO₂ and R-TiO₂ indicate that they are both n-type semiconducting materials. By observing the intersection of the tangent line with the X-axis, the conduction band potentials of CR-TiO₂ and R-TiO₂ are −0.59 and −0.54 V, respectively. According to the UV-converted Tauc-plots, the band gaps of CR-TiO₂ and R-TiO₂ were calculated to be 3.18 and 3.22 eV, respectively. Therefore, by using the empirical formula E_CB = E_VB − E_g, their valence band potentials are 2.59 and 2.63 V, respectively. The results show that compared with R-TiO₂, Cu doping led to a lower conduction band (CB) position for CR-TiO₂. As the band gap decreases, the electron leaps easier, and more photogenerated carriers can participate in the reaction, thus improving the photocatalytic activity.

We established the structures of TiO₂ and Cu–TiO₂ to investigate the photocatalytic mechanism in real environments (Fig. 6a and b, respectively). The change in DOS is caused by the introduction of Cu (Fig. 6c and d), suggesting that Cu doping can optimize the electronic structure of TiO₂, which can significantly improve the electron transfer ability and enable the migration of photogenerated electrons from Cu 3d to Ti 3d. The electrons in TiO₂ can easily jump from the valence band to the conduction band, and thus effectively inhibit the rapid complexation of the electron–hole pairs.^50,51 To further explain the reason for the difference in material properties, the system work function of TiO₂ and Cu–TiO₂ was calculated, which is usually used as a measure of the ease of electron mobility of a material. As shown in Fig. S3,† the work function for the TiO₂ and Cu–TiO₂ surfaces were determined to be 7.26 eV and 7.10 eV, respectively, indicating that Cu effectively enhances the mobility of the photogenerated carriers. In addition, the charge difference density was visualized to study the effect of Cu doping on the electron distribution (Fig. 6e). The planar charge difference density clearly shows the redistribution of electrons after Cu doping as well as the change in the electron density of atoms around Cu.

Fig. 6 (a and b) Structural diagrams of TiO₂ and Cu–TiO₂. (c and d) Density of states diagrams for TiO₂ and Cu–TiO₂, respectively. (e) Differential charge density diagrams of Cu–TiO₂. (f) Gibbs free energies for H adsorption on TiO₂ and Cu–TiO₂.

According to Fig. 6f (inset), it can clearly be seen that the electron density of the Ti atoms and O atoms decreased around the Cu atoms (yellow areas in the differential charge diagram represent electrons gained and blue areas represent electrons lost), and the electrons converge from the Ti site to the Cu site. By comparing the Gibbs free energy of hydrogen adsorption (G_H*), it is possible to analyze the hydrogen evolution kinetics. The free energy diagram (Fig. 6f) shows that the ΔG_H* of the Cu–TiO₂ structural model is −0.79 eV, while the ΔG_H* of TiO₂ was estimated to be −0.98 eV, sugeesting good hydrogen adsorption ability with a lower energy barrier of Cu–TiO₂, which are beneficial for the photocatalytic hydrogen production.

The preparation process has a significant impact on the ecosystem, and thus it is necessary to assess the viability of the system from multiple perspectives. Consumption and production (gas, liquid, solid, hazardous waste, etc.) during the preparation process can cause changes in the ecosystem. Accordingly, to analyze the environmental impact of the in situ remediation of TiO₂ carriers from spent SCR catalysts into photocatalysts and assess the economical value of the process, two systems were constructed by using life cycle assessment (LCA) to compare our synthetic process (Path 1) and the traditional electronic grade TiO₂ (purity >99.0%) recycling process (Path 2). As shown in Fig. 7a, Path 1 produced CR-TiO₂via the in situ remediation of waste TiO₂ carriers through calcination. Path 2 produced high-purity TiO₂ through alkaline leaching and acid leaching and other processes.^52,53 Accordingly, four factors including fossil fuel depletion value, ozone depletion, terrestrial acidification and climate change were selected for analysis. As shown in Fig. 7b–e, the fossil fuel depletion value (2.87 kg/kg), ozone depletion (3.8 × 10⁻⁷ kg/kg), CO₂ (10.1 kg/kg) and SO₂ gas emissions (0.093 kg/kg) in Path 1 are much lower than that in Path 2. The reductions were 47.91%, 68.85%, 48.2% and 79.69%, respectively. This indicates that Path 1 shows a lower the environmental impact than that of Path 2. Moreover, the photocatalytic hydrogen production performance of the CR-TiO₂ is higher than that of commercial TiO₂ (purity >99%). This work highlights the environmental advantages and significance of turning waste catalysts into novel photocatalytic energy materials.

Fig. 7 (a) Flow chart for environmental assessment. Path 1: doping process used in this work. Path 2: conventional process for obtaining TiO₂ (purity >99%). (b) CO₂ gas emissions, (c) SO₂ gas emissions, (d) fossil depletion, and (e) ozone depletion.

5. Conclusion

In summary, we developed a new strategy for the high-value utilization of spent SCR catalysts in the field of sustainable energy production. The TiO₂ carriers in spent SCR catalysts were subjected to a short process of in situ remediation to form CR-TiO₂ photocatalytic nanomaterials with an excellent hydrogen production performance. CR-TiO₂ exhibited a high photocatalytic hydrogen production capacity up to 368 μmol g⁻¹ h⁻¹, which is 1.5 times higher than that of C-TiO₂ (221 μmol g⁻¹ h⁻¹). Its high performance was attributed to the Cu–Ti intermetallic interaction, which reduced the band gap and the electron–hole pair complexation rate. Compared with C-TiO₂, CR-TiO₂ exhibited lower electrical resistance and a higher degree of photoresponsiveness, suggesting that CR-TiO₂ can be directly applied in photocatalytic hydrogen production systems. Furthermore, the theoretical calculation results revealed that Cu–TiO₂ has excellent charge transfer ability and good hydrogen adsorption ability, which are beneficial for photocatalytic hydrogen production. In addition, an economic evaluation of the whole process was systematically performed, which showed that the fossil fuel depletion value, ozone depletion, terrestrial acidification and climate change are much lower than that of the conventional recycling process, proving the feasibility of this process. This work is instructive for the recycling of waste materials to generate clean energy and provides new insights to alleviate environmental pollution.

Data availability

The data supporting this article have been included as part of the ESI.†
