Shumin
Zhang
a,
Feipeng
Zhao
c,
Liang
Li
*a and
Xueliang
Sun
*b
aSchool of Physical Science and Technology, Jiangsu Key Laboratory of Frontier Material Physics and Devices, Suzhou Key Laboratory of Intelligent Photoelectric Perception, Jiangsu Key Laboratory of Advanced Negative Carbon Technologies, Center for Energy Conversion Materials & Physics (CECMP), Soochow University, Suzhou, 215006, P. R. China. E-mail: lli@suda.edu.cn
bNingbo Key Laboratory of All-Solid-State Battery, Eastern Institute for Advanced Study, Eastern Institute of Technology, Ningbo, P. R. China. E-mail: xsun@eitech.edu.cn
cInstitute of Functional Nano & Soft Materials (FUNSOM), Soochow University, Suzhou, 215123, P. R. China
First published on 30th May 2025
With the rapid development of solid-state electrolytes (SSEs), high-performance cathode materials specifically designed for all-solid-state batteries (ASSBs) are attracting increasing attention. Achieving interfacial compatibility between the continuously advancing SSEs and cathode active materials (CAMs) is crucial for the realization of advanced ASSBs. Recently, the emergence of interface-compatible dual-conductive (ICDC) cathodes has opened up a novel pathway towards developing ASSBs with high energy density and cost efficiency. ICDC cathodes refer to single cathode materials engineered to simultaneously achieve mixed ionic–electronic conductivity while ensuring good compatibility with SSEs in ASSBs. This innovative research topic has been propelled by the ongoing evolution of SSEs. In this minireview, we first discuss the progress in the mutual enhancement of SSEs and cathode materials, with a focus on addressing interface compatibility and dual conductivity challenges faced by conventional layered oxide CAMs in advanced sulfide- or halide-based ASSBs. Then, we outline two primary approaches for achieving ICDC cathodes: sulfurization and halogenation. Finally, we present an outlook, highlighting unresolved questions and future research directions. This minireview provides not only a summary of advancements in ICDC cathodes, but also fundamental guidance to inspire further exploration of cathode materials to be integrated with the state-of-the-art SSEs.
Broader contextThe advancement of solid-state electrolytes (SSEs) has brought increasing attention to high-performance cathode materials that are specifically tailored for all-solid-state lithium batteries (ASSLBs). Ensuring compatibility between these evolving SSEs and cathode materials is critical for the development of efficient ASSLBs. Recently, interface-compatible dual-conductive (ICDC) cathodes, which exhibit both mixed ionic–electronic conductivity and interfacial compatibility with SSEs within a single material, have garnered increasing attention. These cathodes offer a promising pathway toward ASSLBs with both high energy density and cost efficiency. This minireview begins by exploring the mutual advancements in SSEs and cathode materials aimed at achieving interfacial compatibility and improved ionic/electronic conductivity when applying conventional layered oxide cathodes in the latest sulfide- or halide-based ASSLBs. It then outlines two key strategies—sulfurization and halogenation—that enable the realization of single cathode materials compatible with homo-category SSEs and the dual-conduction capability (Li-ion and electron) simutaniously. Finally, we provide an outlook in this field, highlighting unresolved challenges and identifying future research directions. This minireview aims to summarize recent progress in ICDC cathode materials while offering guidance for the development of next-generation cathode materials in synergy with advanced SSEs. |
One of the purposes of developing cathode materials for ASSLBs is to realize high chemical compatibility with the SSEs, which have been extensively studied in recent years.10–12 As shown in Fig. 1, since 2008, using sulfide-based SSEs, represented by Li argyrodites and Li10GeP2S12-type (LGPS) materials,13,14 high ionic conductivities up to 10−2 S cm−1 have been achieved.9,15–17 While this achievement has mitigated the issue of sluggish ion transport in solids, sulfide SSEs are still suffering from severe interfacial challenges when paired with conventional layered oxide CAMs.18,19 Additional interface modifications (e.g., coatings) are necessary to improve the interface stability.6,18,19 However, the reliance on coating methods and the presence of heterogeneous solid–solid interfaces increase system complexity and raise the barriers for practical applications.20 Facing this dilemma, Tarascon and co-workers proposed sulfide cathode materials (e.g., Li-rich Li1.13Ti0.57Fe0.3S2) to achieve good compatibility with sulfide superionic conductors.21 The use of chemically homogeneous materials, such as sulfides for both electrolytes and cathodes, is beneficial for eliminating the space charge layer (SCL)22 that arises from different chemical potentials between sulfides and oxides.23
![]() | ||
Fig. 1 Double timelines illustrating how the development of superionic conductors expedites the innovation of cathode materials. Schematic diagrams of the crystal structure are from the Materials Project database, except for LiNbOCl4,12 Copyright (2023), with permission from Wiley-VCH, LiSiGePSBrO (LGPS-type Li9.54[Si0.6Ge0.4]1.74P1.44S11.1Br0.3O0.6),9 Copyright (2023), with permission from AAAS, Li1.33Ti0.67S2,21 Copyright (2019), with permission from Springer Nature, and LiTi2(PS4)3.24 Copyright (2024), with permission from Springer Nature. |
As the latest generation of inorganic SSEs, halide-based SSEs have garnered increasing attention since Asano et al. reported Li3YX6 (X = Cl, Br)3 in 2018, due to their favorable compatibility with conventional layered oxide cathodes.25–28 In parallel, halide CAMs such as VX3 (X = Cl, Br, I)29 and FeCl3,30 which exhibit intrinsic thermodynamic stability with halide SSEs, have been revisited very recently for high-performance ASSLBs. During the same period, a variety of derivative compounds, including Li3VCl6,31 Li2.9Fe0.9Zr0.1Cl6,32 and Li3TiCl6,33 were reported. These materials not only display redox activity but also feature a minimal difference between ionic and electronic conductivities (typically less than four orders of magnitude), enabling their application as either catholytes or CAMs.
Complementing these material innovations, Cui and co-workers proposed a breakthrough solution:24 an interface-compatible dual-conductive (ICDC) sulfide-based cathode, specifically a Ge/Se co-doped LiTi2(PS4)3 compound, can function independently as a cathode without the use of any conductive additives. This ICDC cathode can also be referred as a homogeneous cathode, which exhibits mixed ionic and electronic conductivity in a single material, avoids interfacial incompatibility-related reactions, and delivers a high specific capacity of 250 mA h g−1 with zero-strain behavior. Altogether, the development of high-performance ICDC cathodes represents a critical step toward realizing ASSLBs with high energy density, high power density, and extended cycle life.
Based on the above retrospect of mutual promotion between SSEs and cathode materials, we contend that the continuous advancement of SSEs is expediting the development of ICDC cathode materials specifically for ASSLBs. This emerging technical approach has been gradually gaining prominence, with ICDC cathodes demonstrating intrinsic compatibility with the state-of-the-art SSEs and exhibiting dual-conduction properties, thereby innovating the constitution of conventional cathode composites. In the following sections, we will elaborate on the necessity, experimental strategies, and characterization methods for developing ICDC cathode materials. In the end, we will propose several open questions about current ICDC cathodes and the extended research directions.
The challenge of inhomogeneous (de)lithiation is attributed to the insufficient dual conduction in most conventional oxide CAMs. The ion and electron transport capabilities are essential for electrochemical reactions in batteries; yet conventional CAMs are not necessarily efficient ionic–electronic conductors (Table 1). As a result, additional ionic and/or electronic conducting additives are typically required in cathode composites to establish effective dual-conduction networks for ASSLBs. This introduces two/three-phase interfaces within the cathode composite (Fig. 2b). At these interfaces, volume changes associated with (de)intercalation in the CAMs and the decomposition of SSEs drive the agglomeration of ionic/electronic additives in certain regions while leaving others deficient. Such uneven distribution reduces the utilization of CAMs and causes continuous capacity fading. Meanwhile, the accompanied cracking of CAMs exposes fresh surfaces that may not be in contact with ionic/electronic additives, further deteriorating reversible capacity. Moreover, the presence of carbon additives exacerbates the degradation of SSEs (e.g., sulfide SSEs) and promotes interfacial side reactions.38,39 Consequently, avoiding or reducing carbon additives and SSEs in cathode composite fabrication has been gradually realized as important to mitigate the above negative effects.40,41 In this context, developing ICDC cathode materials with satisfactory dual conductivity has become necessary. The concept of all-electrochemical-active (AEA) cathodes is the ultimate goal of ICDC cathodes.42 The proposed materials feature superior mixed ionic–electronic mobility without any additional conductive additives. This approach enables a simplified cathode composition while maximizing the material usage efficiency.
Cathode materials | Li-ion diffusion capability | Electronic conductivity (mS cm−1) | Voltage (V vs. Li/Li+) | Specific capacity (mA h g−1) | Ref. |
---|---|---|---|---|---|
Li1.75Ti2(Ge0.25P0.75S3.8Se0.2)3 | σ Li+: 0.22–0.66 mS cm−1 | 242–412 | 2.55 | 250 | 24 |
Li1.13Ti0.57Fe0.3S2 | — | 20 | 2.5 | 214 | 21 and 43 |
O3–LixTiS2 | — | 13.28 | 2.2–2.3 | 195 | 44 |
Li3CuS2 | σ Li+: 3.3 × 10−3 mS cm−1 | 9.5 | 2.1 | 380 | 45 |
Li3NiS4 | — | 2 | 2.25 | 400 | 46 |
Li3VS3 | σ Li+: >0.1 mS cm−1 | >0.1 | ∼2.1 | 437 | 47 |
Li14Mn2S9 | σ Li+: 0.011 mS cm−1 | — | ∼3.3 | — | 48 |
Cubic Li2FeCl4 | σ Li+: 0.021 mS cm−1; | — | 3.6 | 126 | 49 |
(DLi+: 2.8 × 10−10 cm2 s−1) | |||||
Li2FeCl4 (Cmmm + Imma) | σ Li+: 0.01 mS cm−1 | 2 × 10−4 | 3.7 | 126 | 50 |
FeCl3 | — | — | 3.65 | 159 | 30 |
Li2VCl4 | σ Li+: 0.01–0.03 mS cm−1 | — | 2.4 | 129.7 | 51 |
VCl3 | D Li+: 10−10 cm2 s−1 | — | 2.85 | 170 | 29 |
Li3TiCl6 | 1.04 mS cm−1 | 7.3 × 10−4 | ∼3.2 | ∼90 | 33 |
LiCoO2 | σ Li+: 10−4 mS cm−1 | 0.1 | 3.9 | 140 | 52 and 53 |
D Li+: 10−13–10−11 cm2 s−1 | |||||
LiNi0.8Co0.2O2 | σ Li+: 0.36–0.42 mS cm−1 | 5.17 | 3.75 | 195 | 54 |
D Li+: ∼10−13 cm2 s−1 | |||||
LiNi0.8Mn0.2O2 | σ Li+: 0.26–0.31 mS cm−1 | 2.63 | 3.85 | 187 | 54 |
D Li+: ∼10−14 cm2 s−1 | |||||
LiFePO4 | D Li+: 10−18–10−14 cm2 s−1 | 10−6 | 3.4 | 170 | 53 and 55 |
LiMn2O4 | D Li+: 10−14–10−11 cm2 s−1 | 10−3 | 3.4 | 148 | 53 and 56 |
![]() | ||
Fig. 3 Sulfurizing cathode materials. (a) Schematic band structure of Ni2+-substituted Li1.33Mn0.67O2 compared with Li1.33Ti0.67S2 and its Fe2+-substituted derivative. The label “nb” indicates non-bonding.21 Copyright (2019), with permission from Springer Nature. (b) Voltage profiles of Li1.13Ti0.57Fe0.3S2 obtained from the charge-window opening experiment. Comparison of the Ragone plots of Li1.13Ti0.57Fe0.3S2 and typical cathode materials (NMC-811: LiNi0.8Mn0.1Co0.1O2).21 Copyright (2019), with permission from Springer Nature. (c) Schematic band structure of LiTi2(PS4)3 and LiTi2(PSe4)3 guided by the density of states (DOS).24 Copyright (2024), with permission from Springer Nature. (d) Finite element analysis simulating the lithiation behavior of one LTG0.25PSSe0.2 particle in the homogeneous cathode and one NCM811 particle in the heterogeneous cathode.24 Copyright (2024), with permission from Springer Nature. (e) The scheme of an AEA-ASSLB (100 wt% AEA cathode, anode: Li metal) and the comparisons of the weight and volume percentages of various components in various battery configurations.42 Copyright (2021), with permission from Wiley-VCH. |
To enable dual conduction in one sulfide cathode material, multiple-element substitution associated with tuning the electronic structure of S has been carried out. For example, Cui et al.24 employed Ge4+/Se2− co-doping into the structure of LiTi2(PS4)3 to obtain an optimal composition of Li1.75Ti2(Ge0.25P0.75S3.8Se0.2)3 (abbreviated as LTG0.25PSSe0.2). This material shows Li+/electronic conductivities of 0.22/242 mS cm−1 when fully charged, increasing monotonically to 0.66/412 mS cm−1 when fully discharged. As shown in Fig. 3c, the Se doping decreases the bandgap compared to using pure S, thus enhancing electronic conductivity. Ge incorporation reduces the number of delocalized electrons within the GeS4 tetrahedra and facilitates the Li-ion migration. Due to the sufficient dual conduction, the LTG0.25PSSe0.2 sulfide cathode served as the only cathode layer without mixing with any carbon or SSEs to construct a high-performance ASSB, showing 70% capacity retention after 20000 cycles at 2.5C. The extreme homogeneity of the lithiation process in Li1.75Ti2(Ge0.25P0.75S3.8Se0.2)3 was also illustrated by comparing to that of a conventional NCM811 cathode in the finite element analyses (Fig. 3d), and was believed to be the most important reason leading to the high performance. Based on the S-based cathode materials (e.g., TiS2 and Mo9S8) for ASSLBs, Li and Suo proposed a concept of using AEA materials as cathode.42 As shown in Fig. 3e, a dense electrode is entirely constructed from AEA cathode, which can minimize the energy density gap between the accessible and theoretical energy density at the electrode level. AEA cathodes are a highly investigated family among the ICDC cathode materials, and have attracted increasing attention in constructing all-solid-state Li–S batteries (e.g., Li3VS3,47 Li2TiS3,61 Li3CuS2,45 Li3NbS4,46etc.). The main reason is due to the semi-conducing properties of transition metal sulfides, where the S2−/S redox activity can be easily promoted even in the solid-state configuration.
![]() | ||

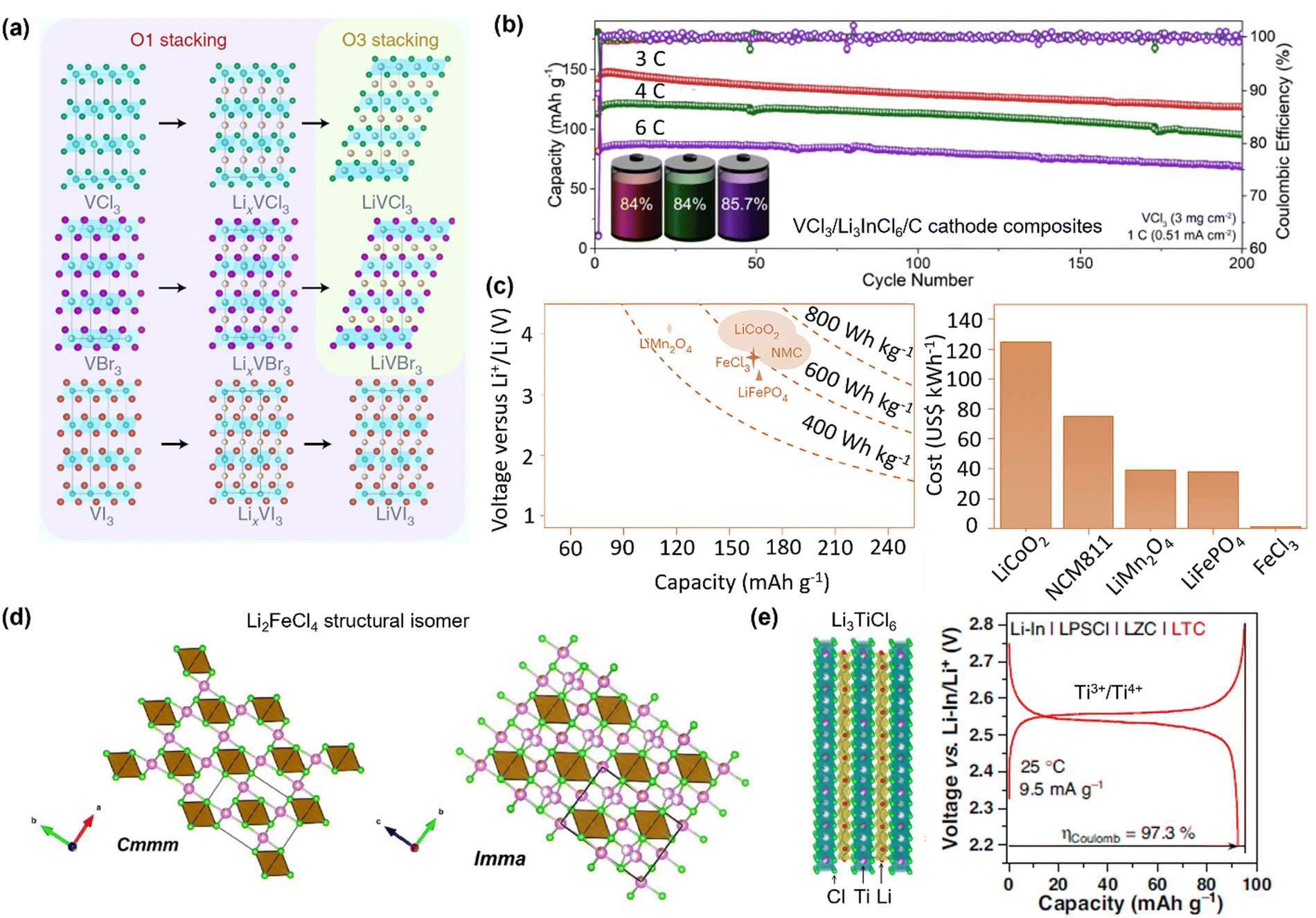

Fig. 4 Halogenating cathode materials. (a) Crystal structures of pristine, intermediate, and end-of-discharge phases for VCl3, VBr3 and VI3 cathode materials.62 Copyright (2021), with permission from Springer Nature. (b) Cycling stability of ASSLB using VCl3–Li3InCl6–C cathode composites at 3, 4, and 6C. The battery schemes show the capacity retentions after 200 cycles.29 Copyright (2023), with permission from Wiley-VCH. (c) Comparisons of voltage, specific capacity, and price between the FeCl3 cathode and other various cathode materials.30 Copyright (2024), with permission from Springer Nature. (d) Li2FeCl4 structures with Cmmm and Imma space groups.50 Copyright (2024), with permission from ACS Publications. (e) A scheme of the layered crystal structure of Li3TiCl6, and the initial charge/discharge curve of the Li3TiCl6 cathode in a halide-based ASSLB that is based on the Ti3+/Ti4+ redox.33 Copyright (2023), with permission from Springer Nature. |
Incorporating lithium into metal halides results in lithium metal halides with promising ionic conductivity, while partially retaining the electronic conductivity influenced by the electronic structure of the transition metal. The cubic-type Li2FeCl4 that was previously only regarded as an ionic conductor (2.1 × 10−5 S cm−1) has been first revealed to show a redox activity (126 mA h g−1/3.6 V).49 Similarly, Li2VCl4 with an ionic conductivity of 1–3 × 10−5 S cm−1 was reported to show a reversible specific capacity of 129.7 mA h g−1 in ASSLBs, when mixed with 10 wt% of carbon to prepare a cathode composite.51 The Li2FeCl4 cathode prepared by ball-milling and post-annealing crystallizes in a SnMn2S4-type NaCl superstructure (Cmmm) with a small portion of the ordered spinel superstructure (Immm) (Fig. 4d).50 This Li2FeCl4 features Li+/electronic conductivities of 0.01/2 × 10−4 mS cm−1, respectively. When tested in ASSLBs, the material shows a highly reversible Li (de)intercalation at 3.7 V, and good cycling stability with an 86% capacity retention after 6000 cycles at 2C. A dual-conductive Li3TiCl6 with Li+/electronic conductivities of 1.04/(7 × 10−4) mS cm−1 can serve as electrode material based on the Ti3+/4+ and Ti2+/Ti3+redox couples, delivering a reversible capacity of ∼90 mA h g−1 (Fig. 4e).33 It is worth noting that the Li3TiCl6 CAM in the Li3TiCl6/C cathode composite can comprise up to 95 wt%, which is significantly higher than the typical loading (<80 wt%) for layered oxide cathodes. Compared to the sulfurization approach, the dual conduction properties achieved via halogenation have not reached a similarly high level. However, the halogenation route has been gradually leading to the innovative development of homogenous cathode materials for ASSLBs because halides show relatively high working potential and capacity that is comparable with several typical oxide cathode materials.
Electrochemo-mechanical failures would be another challenge related to ICDC cathodes. Imaging techniques, such as X-ray computed tomography (XCT), can reflect the morphology changes within a cold/hot-pressed pellet without destructing the material. Electrochemical techniques combined with pressure/stress monitoring are also non-destructive and effective tools,64 which can qualitatively reflect the reaction kinetics and volume changes within ICDC cathodes and SSE particles. For understanding electrochemo mechanisms in detail, spectroscopy techniques (Raman, mass spectroscopy, X-ray absorption spectroscopy (XAS), etc) can be used to reveal the in situ generated interphases by providing information regarding the structure of molecules, the oxidation state of the interested elements, and the local chemical environment. Nowadays, artificial intelligence techniques (such as deep learning) are popular, and are coupled with advanced imaging techniques to identity the unknown phases.65 Designing home-made in situ/operando set ups and coupling two or more techniques (such as XCT-pressure monitoring66) together seem to be more powerful to get comprehensive information about the ICDC cathode materials.67
![]() | ||
Fig. 5 Illustrative diagram depicting the design principle for developing homogenous cathode materials for ASSLBs based on advanced sulfide or (oxy)chloride SSEs. |
Despite significant progresses, research on ICDC cathodes remains in its early stage, with several open questions and underexplored fields requiring further investigation:
(1) Dynamic evolution and dual conduction: current ICDC cathodes exhibit dual-conduction properties (Li ions and electrons), but their structures and morphologies evolve dynamically during charging/discharging. The intermediate charged/discharged products may show variations in the conduction properties, which are still poorly understood. Moreover, to enable a better comparison with conventional cathodes and SSEs, a standard protocol for describing ion transport capability of ICDC cathodes in ASSLBs, using either the Li-ion diffusion coefficient or Li-ion conductivity, should be established.
(2) Cathode–cathode and cathode–electrolyte interfaces: first, the intrinsic “solid-solid” contact is poor, resulting in pores, voids and grain boundaries among ICDC cathode and SSE particles. Second, the in situ formed cathode–cathode and cathode–electrolyte interfaces, such as interphases, gas, and/or contact loss, can directly affect the performance of ASSLBs. Amorphous thin films and self-healing crystals with good ductility and zero strain are promising for addressing these issues.
(3) Insufficient working potential: the working potential of current homogeneous cathode materials remains low, with a maximum of 3.7 V achieved by the Fe2+/3+ redox in halide-based cathodes. While FeCl3-based cathodes deliver energy densities comparable to LiCoO2, they fall short compared to Ni-rich layered oxide cathodes and other high-voltage cathodes. To bridge this gap, future research should focus on designing high-voltage ICDC cathodes, considering the electronegativity of the elements and the selection of counterions to enhance electrochemical potential. Modifying the existing materials would be another route for achieving desirable electrochemical potential of ICDC cathodes. Their crystallinity, inner defects, and particle size can affect the site energy of ions and the band energy state of electrons, which determines the voltage profiles of the targeted materials. However, achieving high-voltage ICDC cathodes with satisfactory dual conductivity remains a major challenge, especially for developing ICDC cathodes containing electronegative anions while maintaining decent ionic conductivity simultaneously.
(4) Expanding ICDC properties to anodes: in fact, a Li metal anode can be treated approximately as an AEA material, in which both Li ions and electrons can effectively diffuse at the Li–SSE interface. However, interfacial instability between the Li metal and SSEs is severe, mainly resulting from the reduction of SSEs and dendrite growth. Extending the concept of ICDC electrode materials to anodes may improve the interfacial compatibility at the anode side, for example, modifying the existing dendrite-free Li4Ti5O12-based systems. While non-Li metal anodes show higher working potentials and the use of them would sacrifice energy density, their ability to enhance long-term stability and suppress dendrite formation presents a promising pathway for practical development of ASSLBs.
(5) Extension beyond lithium systems: the ICDC strategy can be extended to other solid-state systems, such as all-solid-state sodium batteries, for both cathode and anode applications. For Na-based chemistry, the development of homogeneous approaches beyond sulfurization and halogenation is needed. For instance, new materials compatible with Na-based superionic conductors (e.g., borohydride SSEs) could be explored. Demonstrating the universality of the ICDC strategy in different systems would further validate its potential and accelerate the development of high-energy-density and safe solid-state batteries.
This journal is © The Royal Society of Chemistry 2025 |
