Microwave-assisted interzeolite transformations

Abstract

Microwave heating of FAU zeolite in alkaline solutions results in transformations into EDI, MER, LTJ, CAN, and ANA-type zeolites. The use of microwaves significantly accelerates the synthesis and uncovers a previously unobserved transformation to LTJ-type zeolite.

---

Zeolites are hydrated aluminosilicates whose active synthesis began in the 1950s, driven by their commercialization in separation and purification processes.¹ Initially, zeolite production has been based on the hydrothermal conversion of aluminosilicate gels. Over time, this method proved effective not only for zeolites but also for a variety of chemically different zeolite-like materials.^2,3 For many years, gel-based synthesis remained the dominant method. However, in the pursuit of faster, more sustainable, and better-controlled synthesis, an alternative technique – interzeolite transformation (IZT) has reemerged, building on the early works of Barrer.⁴ The IZT method involves the hydrothermal⁵ or room temperature⁶ transformation of a pre-existing (“parent”) zeolite into a structurally different “daughter” zeolite. This approach has gained significant attention due to its simplicity and potential advantages. These include faster crystallization, the ability to produce frameworks with a high Si/Al ratio and advanced pore chemistry, the creation of hierarchical structures, and the achievement of low synthesis temperatures and short crystallization times—outcomes that are often difficult to reach with conventional gel-based zeolite synthesis.^6–11 Among the parent phases, FAU-type zeolite is one of the most studied due to its wide availability, cost-effective synthesis, and low-density framework, which allows transformations into a range of lower-density zeolites.¹² One such transformation is the conversion of FAU to MER-type zeolite, reported by Kirschhock and colleagues in 2013.¹³ They used an Rb- and Na-containing hydroxide solution and FAU zeolite with a Si/Al ratio of 2.6, obtaining MER zeolite after 96 hours at 95 °C. Similarly, Chengyu et al. later reported the synthesis of MER zeolite by transforming NaY and HY-FAU (Si/Al = 2.4–2.6) zeolites in a K-containing solution at 100–150 °C for 96 hours.¹⁴MER zeolite was obtained under dry conditions by the mechanochemical treatment of FAU zeolite (Si/Al = 2.4) with KOH at 110 °C for 120 minutes.¹⁵ Additionally, MER has been synthesized from clinoptilolite-rich natural zeolite.¹⁶EDI zeolite, another potassium-containing zeolite, was recently synthesized by IZT of FAU in concentrated KOH solutions, either at room temperature for 11–35 days or at 60 °C for 6–27 hours.⁶ The IZT resulting in ANA-type structures was reported in 1999 by Chiyoda and Davis, who transformed NaY (Si/Al = 2.0–3.0) into ANA zeolite using sodium-containing solutions.¹⁷ In 2010, Wang et al. synthesized ANA zeolite crystals with a regular icositetrahedron morphology by transforming ultrastable zeolite Y (Si/Al = 6.7) in NaOH solution at 100 °C for 42–288 hours.¹⁸ In 2013, Kirschhock and colleagues synthesized synthetic pollucite (Cs-ANA) by IZT of FAU zeolite (Si/Al = 2.6) in CsOH solution at 95 °C for 48 hours¹³ More recently, ANA zeolite was synthesized through mechanochemically-assisted transformation of commercial FAU (Si/Al = 2.4) using CsOH or NaOH at 110 °C for 120 minutes.¹⁵CAN zeolite was also synthesized under similar conditions using KOH.¹⁵ Notably, the mechanochemically-assisted transformations of FAU are faster than the conventional synthesis of MER and ANA, which typically take 6 hours¹⁹ and 5–10 hours,²⁰ respectively.

Considering the need for more efficient synthesis routes, various types of radiation, such as UV light,^21,22 gamma rays²³ and microwaves,^24–26 have been used to enhance the zeolite crystallization from gel media. However, similar methods have not yet been applied to IZT-based synthesis. In this context, this work introduces the first examples of microwave-assisted interzeolite transformation and shows how this method can significantly accelerate crystallization and uncover new transformation pathways.

Fig. 1 shows the indexed powder XRD patterns of EDI zeolites (PDF: 025-0619) obtained by the transformation of FAU zeolite under the conditions listed in Table 1. At 160 °C, the EDI zeolite crystallizes within 10 minutes, while it takes 65 minutes at 80 °C and 365 minutes at 60 °C. At 60 °C, a longer crystallization time (1325 minutes) results in EDI zeolite with higher relative XRD peaks intensity. However, at 80 °C and 160 °C, the thermodynamic stability of EDI zeolite is reduced, and longer synthesis times lead to the formation of a dense KAlSiO₄ phase (Fig. S1†).

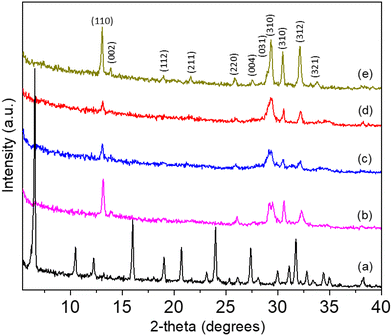

Fig. 1 Powder XRD pattern showing the transformation of the (a) parent FAU zeolite into EDI zeolite at (b) 160 °C for 10 minutes (no. 11), (c), 80 °C for 65 minutes (no. 3), (d) 60 °C for 365 minutes (no. 2) and (e) 60 °C for 1325 minutes (no. 1).

Table 1 Synthesis conditions leading to ITZ of FAU to EDI, MER, LTJ, ANA, and CAN zeolites

No	Temp (°C)	FAU (g)	KOH (g)	H2O (g)	Time (min)	Daughter Phase	Si/Al EDS
a NaOH. b CsOH.
1	60	0.5	4.47	3.9	1325	EDI	1.2
2	80	0.5	4.47	3.9	365	EDI	1.2
3	80	0.5	4.47	3.9	65	EDI	1.3
4	130	0.5	1	4.5	15	FAU	1.7
5	140	0.5	1	4.5	15	FAU	1.7
6	150	0.5	1	4.5	15	MER	1.7
7	160	0.5	1^a	4.5	15	CAN	1.2
8	160	0.15	1	4.5	15	LTJ	1.3
9	160	1	1	4.5	15	MER	1.8
10	160	0.5	0.71^b	3.5	15	Cs-ANA	2.6
11	160	0.5	1	2	10	EDI	1.3
12	170	0.5	1	4.5	15	MER	1.8
13	170	0.5	1.35^b	2.59	65	Cs-ANA	3.3

---

Fig. 2a shows the transformation of FAU to MER zeolite followed by powder XRD (indexed by PDF: 01-086-1110) at different temperatures for 15 minutes of synthesis with batch composition: 0.5–1 g FAU–1 g KOH–4.5 g H₂O. The parent FAU structure is maintained at 130 °C and 140 °C, but there is an apparent shift of framework-dependent XRD reflections (in the 20–35°2θ range) towards smaller angles. Especially indicative is the atomic plane (555). The refined powder XRD patterns (Fig. S2 and S3†) of FAU obtained at 130 °C show unit cell of a = 24.94 Å, and FAU obtained at 140 °C shows unit cell a = 24.91 Å that, according to Breck–Flanigen equation [Si/Al = ((192 × 0.00868)/(a₀ – 24.191)) – (1)]²⁷ corresponds to a Si/Al ratio of 1.2 and 1.3, respectively. These values are slightly lower than those determined by EDS analyses (1.7), suggesting the presence of an amorphous phase. This amorphous phase is formed during the desilication of FAU zeolite in alkaline solution, where silicon is preferentially removed from the framework due to the higher susceptibility of Si–O–Si bonds to alkaline hydrolysis, while aluminium tends to remain in the structure. This selective removal of silicon can lead to localized framework degradation and the formation of amorphous, silicon-rich aluminosilicate regions. As a result, bulk analysis by EDS, which captures both crystalline and amorphous components, shows a higher Si/Al ratio (e.g., 1.7), while XRD, which only reflects the composition of the remaining crystalline FAU framework, shows a lower Si/Al ratio (e.g., 1.3). This discrepancy indicates that desilication has introduced non-crystalline, Si-rich amorphous material, and that the crystalline fraction of the zeolite has become relatively Al-enriched. These observations suggest that the early stages of interzeolite transformation not only alter the chemical composition but also result in partial amorphization and framework reconstruction, which cannot be fully captured by XRD alone. The lowest temperature at which MER zeolite crystallizes is 150 °C. Despite the doubled amount of FAU seeds at 160 °C, MER zeolite also forms and shows a higher relative peak intensity compared to the MER obtained at 150 and 170 °C, suggesting an improved crystallinity (Fig. 2a).

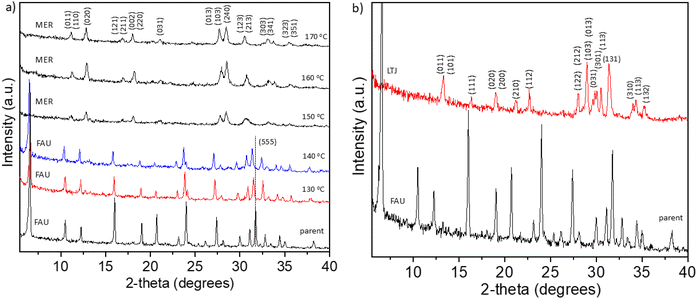

Fig. 2 Powder XRD patterns of zeolites obtained by IZT of (a) parent FAU sample for 15 minutes at different temperatures – dashed line shows the shift of (555) reflection of the parent FAU sample with increasing temperature of synthesis. (b) Powder XRD patterns of transformation of FAU to LTJ zeolite at 160 °C for 15 minutes.

Fig. 2b shows the transformation of FAU zeolite to LTJ zeolite (PDF: 01-080-3851) followed by XRD. This transformation occurs in the system 0.15 g FAU–1 g KOH–4.5 g H₂O at 160 °C for 15 minutes. The difference with the FAU–MER zeolite transformation is the lower amount of FAU seeds, which apparently influence the phase selectivity in the studied system. To the best of our knowledge, LTJ has not yet been synthesized via IZT. Typical LTJ synthesis includes synthesis from rice husk²⁸ or kaolinite²⁹ at hydrothermal conditions, which takes more than 24 hours.

Fig. 3 shows the powder XRD patterns following the transformation of FAU to ANA and FAU to CAN zeolites. The FAU–ANA IZT was achieved at the system: 0.5 g FAU–1.36 g CsOH–2.59 g H₂O (at 170 °C for 65 minutes), resulting in Cs-ANA with a Si/Al ratio of 3.3 (Fig. 3b). A similar FAU–ANA (Si/Al = 2.6) transformation occurred at 0.5 g FAU–0.71 g CsOH–3.5 g H₂O (at 160 °C for 15 minutes) (Fig. 3c) leading to XRD patterns with higher relative crystallinity. These results demonstrate that both the framework composition and crystallinity can be effectively controlled by adjusting the synthesis conditions. CAN zeolite was synthesized at 0.5 g FAU–1 g NaOH–3.9 g H₂O (160 °C for 15 minutes), resulting in a framework with a Si/Al ratio of 1.2 (Fig. 3d).

Fig. 3 Powder XRD patterns of transformation of (a) FAU to (b) ANA zeolite obtained at 170 °C for 65 minutes. (c) ANA zeolite obtained at 160 °C for 15 minutes. (d) CAN zeolite obtained at 160 °C for 15 minutes.

Fig. 4a outline the FAU–FAU, FAU–EDI, FAU–MER, FAU–LTJ, FAU–ANA and FAU–CAN interzeolite transformations, along with their respective temperatures and corresponding Si/Al ratios. Except for the FAU–FAU transformation, none of the interzeolite transformations (IZTs) exhibit common composite building units (CBUs) between the parent FAU and the resulting daughter zeolite (Fig. S4†). This suggests that the transformation likely involves a complete breakdown of the parent zeolite framework into amorphous or intermediate species before reconstruction into the daughter phase. Along with powder XRD diffraction, these transformations were followed by FTIR spectroscopy (Fig. 4b). All samples show different intensity bands between 400 and 800 cm⁻¹ associated with the secondary building units of the zeolite framework, reflecting differences in framework topology.³⁰ A comparison of the spectra reveals clear differences in the framework structures of the various zeolites. These differences are particularly evident in the positions of the absorption bands associated with asymmetric Si–O–T (T = Si or Al) vibrations. In particular, variations in the position of the intense bands around 950–1090 cm⁻¹ reflect both differences in the Si/Al ratio and changes in the local environment within the framework.^30,31 Generally, the position of the most intense band in the asymmetric stretching region shifts toward lower wavenumbers with decreasing Si/Al ratio, as observed: FAU_Si/Al=3 (991 cm⁻¹), ANA_Si/Al=2.6 (986 cm⁻¹), MER_Si/Al=1.8 (977 cm⁻¹), FAU_Si/Al=1.7 (966 cm⁻¹), LTJ_Si/Al=1.3 (952 cm⁻¹), EDI_Si/Al=1.3 (956 cm⁻¹), CAN_Si/Al=1.2 (960 cm⁻¹). The only exceptions to this trend are LTJ, EDI, and CAN, where the differences in Si/Al ratio are minimal. This deviation may be attributed to framework-specific structural features or local compositional effects that influence the vibrational environment independently of the Si/Al ratio.³⁰

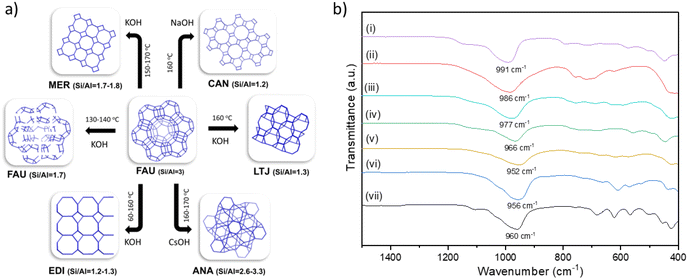

Fig. 4 (a) Schematic presentation of the observed IZT. (b) FTIR spectra of (i) FAU Si/Al = 3, (ii) ANA Si/Al = 2.6, (iii) MER Si/Al = 1.8, (iv) FAU Si/Al = 1.7, (v) LTJ Si/Al = 1.3, (vi) EDI Si/Al = 1.2, (vii) CAN Si/Al = 1.2.

Fig. 5a–i shows SEM images of the parent FAU zeolite and the different daughter zeolites. When the IZT is performed at 130–140 °C, the parent FAU zeolite partly dissolves (Fig. 5b, S5, and S6†). This dissolution retains the original particle shape but produces numerous nanofins (100–500 nm) carved into the surface. Compared to previous examples of post-synthetic treatment of FAU and other zeolites that result in hierarchal structures,^10,32,33 the microwave-assisted approach shows potential for more simple (organic-free) and faster crystal hierarchization. Between 150 and 170 °C, FAU transforms to prismatic intergrowths of MER crystals (Fig. 5c and S7†) with Si/Al = 1.7–1.8. The crystals obtained at higher temperatures (170 °C) are better faced than those obtained at lower temperatures (150–160 °C). LTJ zeolite crystallizes as prismatic, well-faced submicron crystals grown over micron-sized particles (Fig. 5d and S8†). Similar prismatic morphology for LTJ zeolite has been observed in conventional synthesis.^28,29 EDS chemical analysis on both crystal morphologies showed Si/Al close to 1.3. Fig. 5e shows SEM images of EDI zeolite obtained in the system 0.5 g FAU–4.47 g KOH–3.9 g H₂O for 1325 minutes at 60 °C and for 65 minutes at 80 °C, as shown in Fig. S7.† In both synthesis temperatures, EDI forms aggregates of nanoparticles (90–100 nm). When synthesized using lower KOH and H₂O amounts (0.5 g FAU–1 g KOH–2 g H₂O) at 160 °C, EDI appears as well-formed, intergrown prismatic particles ranging from submicron to micrometer sizes (0.5–1.7 μm) (Fig. 5f). These morphologies are typical of EDI zeolite, as previously reported under both room-temperature⁶ and classical hydrothermal synthesis.^34–36Cs-ANA zeolites were synthesized under two different conditions: (1) 170 °C for 65 minutes (0.5 g FAU–1.35 g CsOH–2.59 g H₂O) (Fig. 5g) and (2) 160 °C for 15 minutes (0.5 g FAU–0.71 g CsOH–3.5 g H₂O) (Fig. 5h). In both cases, Cs-ANA crystallizes as aggregates of submicron, sphere-like particles. In the first system, the submicron (400–600 nm) particles are decorated with second-generation nanoparticles (50–70 nm), indicating a decrease in precursor concentration, leading to slower growth and smaller second-generation crystals. This feature is absent in the second CsOH concentrated system, where spherical particles of around 500 nm are formed. Spherical particles of Cs-ANA zeolite have been previously described for interzeolite¹⁵ and conventional synthesis.³⁷ The Si/Al ratio of the sample obtained for 65 minutes is 3.3, while the Si/Al ratio of the sample obtained for 15 minutes is 2.6, indicating a potential for controlling the chemical composition of Cs-ANA zeolite. Additionally, in a system of 0.5 g FAU–1 g NaOH–4.5 g H₂O, FAU zeolite transforms into a CAN-type structure at 160 °C in 15 minutes (Fig. 5i). The resulting phase crystallizes as sub to micrometric intergrowths of prismatic crystals, which is typical for CAN-type zeolites.³⁸

Fig. 5 Representative SEM images of the (a) parent FAU zeolite transformed in the conditions listed in Table 1 to (b) FAU (no. 4, 5), (c) MER (no. 13), (d) LTJ (no. 8), (e) EDI (no. 1, 2) and (f) EDI (no. 11), (g) Cs-ANA (no. 14), (h) Cs-ANA (no. 10) and (i) CAN (no. 7).

Table 2 compares the fastest reported IZTs leading to EDI, MER, LTJ, ANA, and CAN zeolites with the phases synthesized in this work. In addition, microwave radiation allows FAU–LTJ transformation, which has not been reported so far. The comparison shows that microwave-assisted synthesis at higher temperatures assures dramatically faster crystallization than the mechanochemically-assisted and the typical conventional heating approach. A non-zeolitic aluminosilicate with a kaliophilite (KAlSiO₄) structure was also obtained.

Table 2 Comparison of the time and temperature of selected interzeolite transformations of FAU zeolite

IZT	Heating	Time	Temp (^°C)	Ref.
MC – mechanochemical.a Feldspathoid^40,41
FAU → MER	Conventional	4 d	95	13
FAU → Cs-ANA	Conventional	2 d	95	13
FAU → EDI	Conventional	6 h	60	6
FAU → Na-ANA	Conventional & MC	2 h	110	15
FAU → Cs-ANA	Conventional & MC	2 h	110	15
FAU → MER	Conventional & MC	2 h	110	15
FAU → ANA	Conventional & MC	2 h	110	15
FAU → CAN	Conventional & MC	2 h	110	15
FAU → KAlSiO4^a	Microwave	15 min	160	This work
FAU → MER	Microwave	15 min	150–170	This work
FAU → LTJ	Microwave	15 min	160	This work
FAU → Cs-ANA	Microwave	15 min	160	This work
FAU → EDI	Microwave	10 min	160	This work
FAU → CAN	Microwave	15 min	160	This work

---

In perspective, microwave heating significantly accelerates IZT by introducing two key effects: selective volumetric heating and enhanced dissolution–recrystallization dynamics. Unlike conventional heating, microwaves interact directly with polar molecules and ions, enabling uniform and rapid heating throughout the reaction medium.³⁹ This promotes faster dissolution of the parent zeolite and accelerates nucleation and framework reorganization. The increased mobility of species under microwave conditions lowers energy barriers and drives more efficient transformation via the dissolution–recrystallization mechanism. Additionally, microwave-assisted synthesis can guide the transformation pathway toward the formation of the desired zeolite phase by favouring kinetic over thermodynamic control, reducing the likelihood of competing or metastable phases.

In summary, this work introduces microwave radiation in the synthesis of zeolites by interzeolite transformation. This approach provides control over the particle size and fast access to zeolite structures such as EDI, MER, LTJ, ANA, and CAN. Additional derivates of the microwave-assisted IZT are the discovery of FAU–LTJ interzeolite transformation and a pathway to nanostructured faujasites by desilication of a parent zeolite in a short time. From this perspective, further development of the microwave-assisted IZT is expected to result in other zeolite framework types.

Data availability

The data underlying this study are available in the article and its ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors thank the Portuguese Foundation for Science and Technology (FCT) for financial support under the framework of Strategic Funding UIDB/04650/2020: Centre of Physics Universities of Minho and Porto (CF-UM-UP) and UID/00686: Centro de Química da Universidade do Minho (CQ-UM/UM). The authors also thank the FCT for financial support under FCT investigator contracts CEECIND/00833/2017 (https://doi.org/10.54499/CEECIND/00833/2017/CP1458/CT0017) (RG). SF thanks SEMAT (University of Minho) for the support.
