Changing the reaction pathway of the CaAl₂ oxidation using ball milling

Abstract

As previously shown, CaAl₂ can be oxidized using elemental O₂ to form CaAl₂O₄. This reaction, however, proceeds via Ca₁₂Al₁₄O₃₃ and elemental Al as intermediates which are subsequently transformed into the stoichiometric reaction product. High-energy ball milling is known to decrease the crystallite size of a material and to significantly produce defects enabling different reaction pathways compared to a highly crystalline bulk material. In this subsequent study, a different oxidizing agent (H₂O) as well as the ball milling behavior of CaAl₂ and the consecutive oxidation via elemental O₂ were studied. While the use of H₂O as the oxidizing agent showed only minor differences in the reaction products, ball milling of CaAl₂ decreases, as expected, the crystallite size of the material and introduces defects. This is visible both in the powder X-ray diffraction patterns and in the ²⁷Al solid-state MAS NMR spectra. In the subsequent steps, the ball milled material was oxidized in an STA system. Already 5 min of ball milling significantly changes the energy pattern of the reaction. Powder X-ray diffraction studies on the oxidized material clearly indicate that a different reaction pathway occurs. Samples ball milled for 180 min even get pyrophoric.

---

1. Introduction

Light weight alloys are of key importance for modern technical applications such as automotive and transportation applications,^1–5 architecture,^5–7 but also as corrosion resistant parts for air- and spacecrafts,^8–12 for medical applications like implants or stents,^10–15 or as non-sparking tools for gas stations, oil rigs or fire fighters.^16–18 In some of these alloys, intermetallic compounds play an important role.^1,5,19,20 The thermal and chemical resistance alongside astonishing mechanical properties of materials from the Ti–Al system²¹ led to their use in aircraft and gas turbines.^22,23 However, the corrosion resistance of many materials is insufficient at elevated temperatures, which can be improved by alloying or special structuring.^24–26 Therefore, oxidation studies are an important field of research.^26–30 Alloys based on Ni and Al show supreme corrosion stability under extreme conditions. In AlNi for example, a protective layer of aluminum oxide Al₂O₃ (corundum, space group R3̄m) is formed when the material is exposed to air at elevated temperatures.^31–33 Finally, aluminum alloys can be protected from oxidation by addition of small amounts of CaAl₂.³⁴

Since intermetallic compounds are, in contrast to ionic compounds, not restricted to charge neutrality with respect to their compositions, they exhibit a plethora of different compositions and crystal structures³⁵ in their respective binary phase diagrams.³⁶ This manifold could, in theory, be utilized to synthesize valence precise e.g. ternary chalcogenides. Hoppe and co-workers prepared different AMO₂ phases (A = Li–K, M = In, Tl) starting from the Zintl phases NaTl, KTl, and LiIn^37–39 and also CsAuO could be obtained by the reaction of CsAu with dry O₂.⁴⁰ The oxidation of BaCu and YCu as well as related compounds led to the high-temperature superconductor YBa₂Cu₃O_7−δ.^41–44 Jung and coworkers used different homo- and heterogeneous alloys for the synthesis of various different oxides,^45–53 but also CaAl₂S₄ and SrAl₂S₄ ⁵⁴ as well as Eu₂GeS₄,⁵⁵ EuAl₂S₄ ⁵⁶ and LiGaX₂ (X = O, S)⁵⁷ were synthesized by this route.

Recently, we have shown that the cubic Laves phase CaAl₂ (space group Fd3̄m) can also be oxidized to the expected product CaAl₂O₄ (space group P2₁/c);⁵⁸ however, the reaction is far away from being straightforward. When heat-treating CaAl₂ under air, Ar/O₂ mixtures or elemental oxygen, initially Ca₁₂Al₁₄O₃₃ (mineral mayenite; space group I4̄3d) is formed. This compound is significantly richer in calcium as the starting material, leaving unoxidized elemental aluminum behind. This was proven by X-ray diffraction and ²⁷Al NMR experiments. Repetitive grinding and oxidation finally led to almost phase pure CaAl₂O₄ samples. In this paper, we report a follow-up study in which a different oxidizing agent, H₂O, was used to investigate the differences between water and O₂. Furthermore, it is known that ball milling can not only be used to reduce the particle and crystallite size of a material, but also to introduce defects, activating the material. This can lead to phase transitions,⁵⁹ partial reduction⁵⁹ or can be used to e.g. surface modify transition metal oxides^60,61 or to intercalate Li into activated transition metal oxides.^62,63 Therefore, the precursor CaAl₂ was activated via high-energy ball milling. The different reaction pathways as well as their intermediates were investigated with the help of powder X-ray diffraction experiments, ²⁷Al solid-state NMR studies, and thermal analyses.

2. Experimental

Synthesis

Precursor CaAl₂. Calcium pieces (ChemPur, Karlsruhe, Germany, 99.5%) and aluminum pellets (Onyxmet, Olsztyn, Poland, 99.99%) were used as received for the synthesis of the intermetallic starting material CaAl₂. The binary precursor was prepared on a 400–500 mg scale. The Ca pieces were stored under an argon atmosphere; surface contaminations were removed mechanically prior to use. The synthesis of the binary compounds was carried out in a custom-build arc furnace. Elements were transferred under argon into a water-cooled copper hearth and arc-melted under dried argon at 800 mbar.⁶⁴ The argon was purified prior to use with titanium sponge (873 K), silica gel, and molecular sieves. To avoid evaporation of Ca, the Al pieces were piled on top and additionally enclosed in Al foil. Careful melting created an encapsulation of the Ca pieces. The resulting bead was turned over and remelted three times to increase the homogeneity. The weight loss in all cases was <1 mass%. The as-cast samples are silver metallic; ground powders are grey and stable in air for months. Phase purity was checked by powder X-ray diffraction (vide infra).

High-energy ball milling. For ball milling small amounts of CaAl₂ (∼1 g of material), a home built stainless steel jar (stainless steel 1.4125) with a volume of approximately 5 mL was used in a Mixer Mill, MM400 (Retsch, Haan, Germany) using one stainless steel ball (∅ = 10 mm; mass of ∼4 g) and a frequency of 30 Hz for different times (5–180 min). Before each milling step 300 μL of DME (1,2-dimethoxyethane) were added to the milling jar to avoid cementation. The milling jar was loaded in an argon filled glove box (MBraun UNIlab pro eco) with H₂O and O₂ values below 0.1 and 0.5 ppm, respectively. After every milling step, the jar was transferred back to the glovebox to empty out the milling jar. The powder stuck to the walls was mechanically removed and a small portion was taken for X-ray powder diffraction and thermal analysis/oxidation in an STA system (vide infra).

Caution: Ball-milled metals and intermetallic compounds can get pyrophoric after milling. The handling of the samples under an inert atmosphere (e.g. inside an Ar filled glove box) is advised.

Oxidation of CaAl₂. Oxidation reactions were performed in a STA system (vide infra) and a custom-built oxidation setup using a tube furnace (Carbolite Gero GmbH & Co. KG, Neuhausen, Germany) as the heating device. Pure oxygen, as well as wet argon were used as oxidation media. The flow rate for all gases was 20 mL min⁻¹. For the wet argon, argon was bubbled through demineralized, degassed H₂O before entering the furnace. The samples were placed in porcelain boats and centered in the tube furnace.

Thermal analysis/oxidation

Simultaneous thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) were carried out with a TGA/DSC 1 Star HT/1600 system (Mettler Toledo, Columbus, OH, USA) under an Ar/O₂ atmosphere with flow rates of 40 mL min⁻¹ each. For all oxidation experiments heating and cooling rates of 20 K min⁻¹ and dwelling periods of 60 min were applied. Samples were placed into alumina crucibles (∅ = 6 mm, h = 4.5 mm) for the STA measurements.

Powder X-ray diffraction

Powder X-ray diffraction (PXRD) patterns of the pulverized samples were recorded at room temperature on a D8-A25-Advance diffractometer (Bruker, Karlsruhe, Germany) in Bragg Brentano θ–θ-geometry (goniometer radius 280 mm) with CuK_α-radiation (λ = 154.0596 pm). A 12 μm Ni foil working as the K_β filter and a variable divergence slit were mounted at the primary beam side. A LYNXEYE detector with 192 channels was used at the secondary beam side. Experiments were carried out in the 2θ range of 6–130° with a step size of 0.013° and a total scan time of 1 h. The recorded data was evaluated using Rietveld refinements^65,66 with the Bruker TOPAS 5.0 software,⁶⁷ the fundamental instrument parameters were determined beforehand. The crystallite sizes were determined from TOPAS using the LVol-IB values. For the ball-milled samples, the strain L parameter was refined additionally. To determine the amorphous part of a sample, ∼15 mass% of elemental Si were added to the sample and homogenized. During the Rietveld analysis, the contribution of the internal standard was fixed to the weighed value, enabling the determination of an amorphous fraction where present.

SEM/EDX data

Semi-quantitative EDX analyses of one ball-milled sample of CaAl₂ were conducted on a JEOL 7000F (JEOL, Freising, Germany) scanning electron microscope equipped with an EDAX Genesis 2000 EDX detector (EDAX, Unterschleissheim, Germany). The sample was sprinkled on conductive carbon tape and one area scans as well as three independent data points were measured.

²⁷Al solid-state MAS NMR

²⁷Al solid-state MAS NMR spectra were recorded on an Avance III 400 WB (Bruker Biospin, Ettlingen, Germany) at 104.35 MHz using magic-angle spinning (MAS). The samples were used as fine powders. To reduce density and electrical conductivity, samples were mixed with dried sodium chloride in a ratio of 1 : 9 (sample : NaCl) or higher. The diluted samples were loaded into a cylindrical ZrO₂ rotor with a diameter of 4 mm and spun at the magic angle at a frequency of 13 kHz. All experiments conducted were single-pulse experiments with a typical pulse length of 0.83 μs (≈30° pulse) and a relaxation delay of 1 s. Resonance shifts were referenced to an aqueous 1 molar AlCl₃ solution. The NMR spectra were recorded using the Bruker Topspin⁶⁸ software; the analysis was performed with the help of the Dmfit software.⁶⁹

3. Results and discussion

Precursor characterization

As the starting material, the cubic Laves phase CaAl₂ (MgCu₂ type, space group Fd3̄m, a = 804.02(1) pm)^58,70 was used. It could be shown by XRD and NMR investigations that ∼5 mass% of the Al richer phase CaAl₄ is present (CaGa₄ type, space group C2/m, a = 616.91(1), b = 618.50(1) c = 634.34(1) pm, β = 118.03(1)°).⁷⁰ When oxidizing this compound with air or pure O₂ the structures of the main products are the ternary oxides Ca₁₂Al₁₄O₃₃ (mineral mayenite, own type, space group I4̄3d, a = 1198.2 pm)⁷¹ and the expected product CaAl₂O₄ (own type, space group P2₁/c, a = 870, b = 809.2, c = 1746.9 pm, β = 119.589).⁷² Besides these two ternaries, the binary oxides CaO (NaCl type, space group Fm3̄m, a = 474 pm)⁷³ and Al₂O₃ (own type, space group R3̄c, a = 486, c = 1324 pm)⁷³ as well as two other ternary oxides Ca₃Al₂O₆ (own type, space group Pa3̄, a = 1526.2 pm)⁷⁴ and CaAl₄O₇ (own type, space group C2/c, a = 1289, b = 888, c = 545 pm, β = 107.05°)⁷⁵ have to be mentioned as important compounds that are observed during oxidation. A detailed discussion of the chemical structures of these can be found in the original literature cited above or in the previously published work.⁵⁸Fig. 1 depicts a comparative schematic of the previously published results⁵⁸ in comparison to the outcome of this work based on the crystal structures involved.

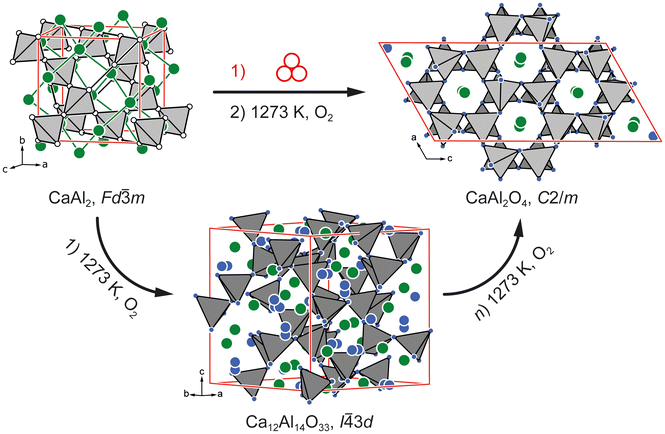

Fig. 1 Two reaction pathways for the oxidation of cubic CaAl₂ at 1273 K with elemental O₂. A direct formation of monoclinic CaAl₂O₄ is observed when activating the material by ball milling. Without ball milling, cubic Ca₁₂Al₁₄O₃₃ is formed initially as previously reported.⁵⁸

Oxidation of CaAl₂ using wet argon

In a first approach of changing the outcome of the oxidation reaction of CaAl₂ the idea of using different oxygen sources came up. One possibility is to use water instead of oxygen in the home-built tube furnace setup. However, instead of using pure water, an argon stream was bubbled through degassed, demineralized water and fed into the furnace. The result does not show any noticeable difference to the outcome of the O₂ oxidation, with mayenite (Ca₁₂Al₁₄O₃₃) still being the main product. One exception might be that in contrast to small amounts of cubic Ca₃Al₂O₆, approximately 5 mass% of the monoclinic oxide CaAl₄O₇ could be identified in the powder diffraction pattern (Fig. 2; Table 1).

Fig. 2 Powder X-ray diffraction pattern of the oxidation product of CaAl₂ in a tube furnace at 1273 K for 1 h using wet argon. Experimental data are shown as black dots, the simulated diffraction pattern from refinement as the red line, the difference is shown as a continuous blue line, and the Bragg positions for Ca₁₂Al₁₄O₃₃, CaAl₂O₄, CaAl₄O₇, Al, Al₂O₃ and CaO are shown as orange, green, brown, pink, cyan and olive ticks.

Table 1 Phase contributions obtained by PXRD (mass%) via Rietveld refinement for the oxidation of CaAl₂ using wet argon. The standard deviations are ±1 mass%

Ca12Al14O33	CaAl2O4	CaAl4O7	CaO	Al2O3	Al	Fig.
63	13	10	1	8	5	S1

---

Ball milling experiments

In the second approach, instead of changing the oxidizing agent, milling of the powders was employed. This can be used to reduce the average crystallite size, increase the surface area of the starting material and introduce defects and amorphous regions or even induce phase transitions.^76–78 At first, intermetallic CaAl₂ was treated in a vibrating ball mill for up to three hours. A significant decrease of the crystallite size during milling could be observed using powder X-ray diffraction. The broadening of the reflections is already visible in the comparison of the powder diffractograms shown in Fig. 3. From the diffraction data it can also be seen that no change in the crystal structures or the phase composition is observed. Fig. 4a illustrates the decrease of the crystallite size over time; for a second batch the crystallite sizes of the starting material and the 30 min milled material are shown. The crystallite size decreases with an almost exponential decay over the milling intervals starting from >350 nm down to roughly 50 nm after three hours (Table 2). A second batch that was milled for 30 min straight shows comparable results. The decrease in crystallite size could also be proven by ²⁷Al solid state NMR experiments. The spectra for the species milled for 90 and 180 minutes show almost identical shifts and signal shapes; only a broadening of the central transition and spinning sidebands is visible as can be seen in Fig. 4b. However, a significant effect is visible when compared to pristine CaAl₂.^70,79 This clearly shows that the crystallite size is reduced alongside the formation of defects leading to broadened NMR resonances. Detailed simulations of the spectra can be found in the ESI.† To verify this even further, powder X-ray diffraction experiments with known amounts of Si as the internal standard were conducted on the 30 and 180 min ball milled samples. In this way, the amorphous phase contribution can be determined. For the 30 min milled sample the amorphous phase amounts to 5(1) mass% while at 180 min 20(1) mass% are observed. Fig. S37 and S38† show the respective diffraction data along with the Rietveld fits. The sample milled for 30 min was additionally examined by SEM/EDX investigations. No abrasion of the milling jar can be observed as no Fe can be found in the EDX results.

Fig. 3 Powder X-ray diffraction patterns of CaAl₂ as the pristine material obtained (a) after arc melting and (b) after 180 min ball milling. Experimental data are shown as black dots, the simulated diffraction pattern from refinement as the red line, the difference is shown as a continuous blue line, and the Bragg positions for CaAl₂ and CaAl₄ are shown in orange and green ticks.

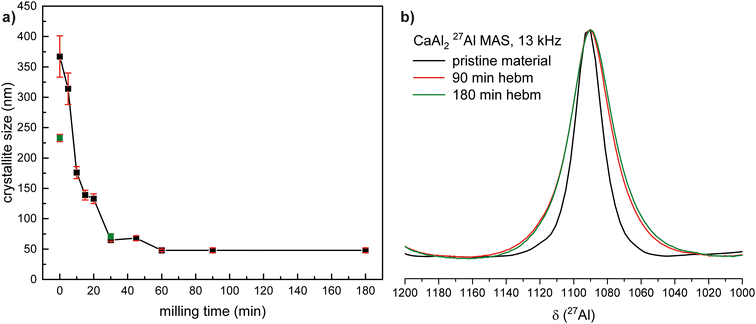

Fig. 4 (a) Decrease of the crystallite size (determined as LVol-IB) as a function of milling time, extracted from the powder diffractograms using the TOPAS software. The estimated standard deviations are indicated by error bars. The data of a second batch are shown in green. (b) ²⁷Al MAS NMR spectra for CaAl₂ as the pristine material (black) and after 90 and 180 minutes (red and green) of ball milling.

Table 2 Crystallite size (determined as LVol-IB) of the milled CaAl₂ samples at different milling times. The determined amorphous phase contributions are given

Milling time/min	Crystallite size/nm	Amorphous phase/mass%	Fig.
0	367(34)	0	S2
5	314(26)		S3
10	176(10)		S4
15	139(8)		S5
20	133(8)		S6
30	65(2)	5(1)	S7/S37
45	68(4)		S8
60	48(2)		S9
90	48(4)		S10
180	48(4)	20(1)	S11/S38

---

Oxidation experiments after ball milling

To study the impact of the milling on the oxidation behavior the milled samples were transferred to an STA system. Since the transfer of the samples into the system was not possible fully under argon, the measurement was started as fast as possible. For all samples except for the one milled for 180 min, no obvious oxidation during the transfer was observed. However, for the latter, a pyrophoric behavior was observed. Powder X-ray diffraction did not show a decomposition of the starting material after 180 min of ball milling (Fig. S11†). However, since a significant amorphous contribution was deduced (vide supra), it is likely that the mechanochemical treatment produced a material with an increased surface area and introduced defects near/at the surface. As known for nanoparticles of ignoble metals, these are highly pyrophoric.^{76–78,80–83} A similar situation could be assumed here.

Fig. 5 shows a comparison of the obtained STA data for the starting material and the milled materials after 90 and 180 minutes. For pristine CaAl₂, a highly exothermic reaction (Fig. 5a, red trace) at 1130 K can be observed, raising the temperature inside the STA system significantly (Fig. 5a, green trace). Furthermore, a multi-step reaction seems to take place as multiple effects are visible in the heat flux curve. In addition, a significant mass increase can be observed (Fig. 5a, black trace). The powder X-ray diffraction pattern also significantly changes. After oxidation, (Fig. 5b), several oxides can be observed, in line with what was reported previously.⁵⁸ When oxidizing the material that was ball milled for 5 min in the STA system (Fig. S14†), an increase of CaAl₂O₄ can be observed right away based on powder X-ray diffraction. Fig. 5c depicts the STA results of CaAl₂ ball milled for 90 min. In the heat flux (red trace) it becomes evident that the heat signature becomes smeared and less intense (note that the scale bar for the heat flux is the same in all STA graphs). The overall area remains almost the same, indicating an earlier onset and an overall less pronounced reaction onset. The mass increase is a little steeper than before; however, the overall mass gain (+53 mass%) is the same for pristine and 90 min ball milled CaAl₂. The corresponding powder diffraction pattern is shown in Fig. 5d, indicating a different phase composition compared to the oxidized pristine material (Fig. 5b). Fig. 5e finally shows the STA results from the pyrophoric CaAl₂ that was ball milled for 180 min and Fig. 5f shows the corresponding powder X-ray diffraction pattern. When the sample was transferred to the STA crucible, an initial reaction was observed that stopped by itself after some seconds. It is assumed that this initial oxidation only happens on the surface and does not proceed throughout the sample, similar to what was shown for e.g. AlNi.⁸⁴ This assumption is strengthened by the STA results. There is still a mass increase of +42 mass%, which is, however, smaller than the one for the pristine and 90 min milled material. Finally, the amorphous phase contributions of the 30 and 180 min milled oxidized materials were determined. In both cases, the amorphous phase contribution amounts to <1 mass% (Fig. S39 and S40†).

Fig. 5 STA experiments (mass change in black, heat flux in red and temperature program in green) and the corresponding Rietveld refinements of the collected powder X-ray diffraction data for the respective oxidation products of pristine (a, b) CaAl₂ and after 90 (c, d) and 180 (e, f) minutes ball milling. Experimental data are shown as black dots, the simulated diffraction pattern from refinement as the red line, the difference is shown as a continuous blue line, and the Bragg positions for Ca₁₂Al₁₄O₃₃, CaAl₂O₄, Ca₃Al₂O₆, CaAl₄O₇, Al, Al₂O₃ and CaO are shown as orange, green, purple, brown, pink, cyan and olive ticks.

Overall, it can be seen that with prolonged milling times, the amount of Ca₁₂Al₁₄O₃₃ steadily decreases while at the same time the amount of CaAl₂O₄ increases (Table 3). Fig. 6 depicts the evolution of the ratio between the two interesting main oxides; a plot of all phases present is shown in Fig. S36† and is given in Table 3. This observation underlines our previous assumption: Ca diffuses to the surface of the particle, enabling the formation of Ca₁₂Al₁₄O₃₃ and leaving elemental Al behind.⁵⁸ When ball milling CaAl₂, the crystallite size gets significantly reduced, shortening the Ca diffusion path length, hampering the formation of the mayenite type structure and enabling the direct formation of CaAl₂O₄. This is furthermore in line with our previous quantum-chemical calculations,⁵⁸ rendering both competing oxides similar in formation energy with CaAl₂O₄ being the thermodynamically slightly more stable compound.

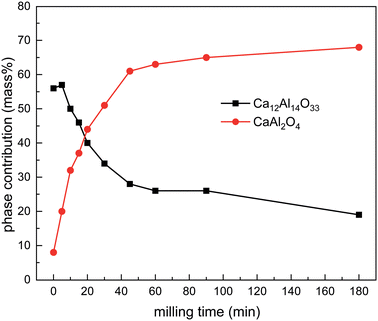

Fig. 6 Results of the Rietveld refinements of the oxidation reactions after different milling times (selected phases only). For all observed phases see Fig. S36.†

Table 3 Results of the Rietveld refinements from powder X-ray diffraction data of the STA treated samples after different milling times. The standard deviations for the determined mass% are ±1 mass%

Milling time (min)	Phase contributions obtained by PXRD (mass%)							Fig.
	Ca12Al14O33	CaAl2O4	Ca3Al2O6	CaAl4O7	CaO	Al2O3	Al
0	56	8	10	0	3	13	10	S13
5	57	20	4	0	0	11	8	S14
10	50	32	0	7	0	8	3	S15
15	46	37	0	7	0	7	3	S16
20	40	44	0	8	0	6	2	S17
30	34	50	0	7	0	7	2	S18
45	28	61	0	6	0	4	1	S19
60	26	63	0	8	0	3	0	S20
90	26	65	0	7	0	2	0	S21
180	19	69	0	12	0	0	0	S22

---

Finally, we want to address the crystallite sizes determined for the oxidized material. As shown in Fig. 4a, the crystallite size of the ball milled CaAl₂ steadily decreases with increasing milling time. When analyzing the crystallite sizes of the oxidized material from the STA investigations, the sample after 5 min of ball milling shows 36(3) nm for CaAl₂O₄ and 84(2) nm for Ca₁₂Al₁₄O₃₃. The crystallite sizes of CaAl₂O₄ roughly stay the same regardless of the applied milling time; for Ca₁₂Al₁₄O₃₃ an increase to ∼120 nm for 10–30 min is visible followed by a decrease to ∼50 nm for the 60 and 90 min milled samples. However, there is no clear trend visible in these data (Table S1†).

4. Conclusion

The intermetallic Laves phase CaAl₂ was oxidized in two ways: using water (in Ar) and pure O₂ after ball milling. While in the first case no difference between elemental oxygen and the un-ball milled material can be observed, the ball milled CaAl₂ is oxidized in a significantly different way. This can be attributed to a reduced crystallite size of CaAl₂ which is ∼50 nm after 180 min of ball milling. Interestingly, ²⁷Al solid-state MAS NMR investigations on the milled material clearly showed that alongside the drastically reduced crystallite size also strain is observed in the material as the NMR signals broaden. STA investigations finally confirmed that ball milling has an influence on the oxidation behavior. While the pristine un-milled sample shows an intense sharp exothermic reaction, the milled samples show a significantly broadened effect while the area of the signal is approximately the same as for pristine CaAl₂. Up to 90 minutes of milling all samples exhibit a similar mass gain of ∼150 mass%. When CaAl₂ is milled for 180 min, the sample becomes pyrophoric; however, the reaction is not self-sustaining. This leads to the assumption that only the surface is oxidized as an additional mass gain is still observed in the STA experiments. The main product of the oxidation reaction of pristine CaAl₂ is Ca₁₂Al₁₄O₃₃ which crystallizes in the so called mayenite type structure. For the milled samples, the respective amount of Ca₁₂Al₁₄O₃₃ drops in almost an exponential fashion while instead the stochiometric oxidation product CaAl₂O₄ is formed in higher amounts. The presented results clearly show that already short ball milling times can significantly influence the reaction pathway and therefore drastically shift the product scope.

Author contributions

Conceptualization by GK and OJ; synthetic work by ECJG; initial draft of the manuscript by ECJG. ECJG performed the XRD, STA and ²⁷Al NMR investigations; the entire work was supervised, guided, and revised by GK and OJ. The manuscript was corrected by all authors and finalized by GK and OJ.

Data availability

Details on the Rietveld refinements, crystallite sizes, STA curves, and ²⁷Al NMR spectroscopic data can be found in the ESI.†

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

The authors declare no competing interests.
