Pablo del Mazo-Sevillanoa,
Alfredo Aguado
a,
François Lique
b,
Rafael A. Jara-Torob and
Octavio Roncero
*c
aDepartamento de Química Física Aplicada (UAM), Unidad Asociada a IFF-CSIC, Facultad de Ciencias Módulo 14, Universidad Autónoma de Madrid, 28049, Madrid, Spain
bUniv Rennes, CNRS, IPR (Institut de Physique de Rennes), UMR 6251, F-35000, Rennes, France
cInstituto de Física Fundamental (IFF-CSIC), C.S.I.C., Serrano 123, 28006, Madrid, Spain. E-mail: octavio.roncero@csic.es
First published on 26th June 2025
Carbon hydrides play a crucial role in the formation of complex organic molecules in highly UV illuminated regions of the interstellar medium (ISM). The formation of CH+ is the first step in the reactions leading to the formation of various carbon hydrides. CH+ formation is relatively well understood with strong agreement between theoretical and experimental results. However, its destruction by collision with the H atom, at low temperatures of interest in the ISM, is in contrast still not well understood and there is a large discrepancy between theoretical and experimental data [R. Plasil et al., AstroPhys. J., 2011, 737, 1], which are almost an order of magnitude smaller than various classical and quantum mechanical calculations. In this work we have computed and fitted a new set of non-adiabatic potential energy surfaces (PES) for the title system, including the three lower adiabatic states. We then investigate three possible sources of disagreement with the experimental results: non-adiabatic effects from regions near the conical intersections, and rotational and vibrational excitation of the CH+ molecule. We conclude that vibrational excitation of the CH+ plays a major role in reducing the reactivity at low temperatures, and we raise the question of whether vibrational thermalization of the CH+ is not fully achieved in the experiment. Such non-thermalized conditions could explain the decrease of the measured reaction rate constant.
![]() | (1) |
This sequence stops with the formation of CH3+ because its reaction with a hydrogen molecule is very slow, and different experimental studies did not observe the formation of CH4+ or CH5+ in these reactions at low temperatures.4–6 CH3+ in the ISM then reacts with other atoms and molecules, initiating the formation of a great variety of organic molecules observed in space. These CHn+ (n = 1–5) carbon cations have anomalous properties and have opened the field of carbocation chemistry,7,8 where the spectroscopic study of these species, pioneered by Oka and co-workers,9–12 is extremely important to characterize these intermediates in astrochemistry.
CH+ was one of the first molecules observed in space13 and it has been observed in many different environments of the ISM since then. However, CH2+ has not been observed yet, and CH3+ was only observed in 202314 using the James Webb space telescope (JWST). Very recently, vibrationally excited CH+ and CH3+ were observed in emission using the JWST in the Orion bar and the protoplanetary disk d203-506.15 The simulation of the abundance of these species in different rovibrational states requires the knowledge of state-to-state rate constants to consider the chemical excitation in radiative transfer models.
The formation of CH+ in reaction (1) is reasonably well known. The reaction is endothermic by 0.393 eV (ref. 16) and presents a deep well of ≈4.5 eV. The integral cross-sections and thermal rate constants have been extensively studied experimentally.16–24 Many theoretical studies have been carried out using quasi-classical trajectory (QCT)25–28 and phase space and transition state theory.16,23,29 Also, quantum mechanical state-to-state rate constants have been obtained,30,31 which have been widely used in radiative transfer models.
However, the reverse reaction in reactions leading to the destruction of CH+ with atomic hydrogen is less understood. Federer and co-workers32 first measured the thermal reaction rate constant of 7.5 × 10−10 cm3 s−1 at 300 K, and later at higher temperatures.33 These values are about 2–3 times lower than the Langevin limit. New surprising experimental results were measured more recently in an ion trap combined with a cold effusive H-atom beam,34 revealing a one order of magnitude drop in the reaction rate constant below 60 K, while for higher temperatures, the values are consistent with those measured by Federer et al.32,33 This decrease at lower temperatures was initially interpreted as a decrease of the efficiency of the reaction with decreasing rotational state (j) of the CH+. There are two different families of theoretical calculations based on different families of ground adiabatic potential energy surfaces (PES's). Warmbier and Schneider35 and Bovino et al.,36 using close coupling in hyperspherical coordinates and negative imaginary potentials, respectively, reported a decrease of the reactive rate constant below 100 K. However, detailed theoretical studies27,37,38 performed accurate time-independent close coupling calculations on the ground adiabatic PES, and found the thermal rate constant to be nearly constant below 100 K, with a value of ≈10−9 cm3 s−1, far higher than that measured by Plasil et al.34 Moreover, Werfelli et al.38 found that the state-dependent rate constant decreases with an increase in the rotational excitation j, contradicting the initial interpretation of the experimental measurement.
A recent work39 considered the participation of other processes not included by Plasil et al.,34 such as the stabilization of ions by collisions with the He atoms used in the experiment as a buffer to thermalize CH+ in the ion trap, to model the kinetics and compare with the measured abundances of C+, CH+, CH2+ and CH3+. No appreciable difference was found in the abundances with or without including these extra processes, and the possibility of non-adiabatic effects was proposed as responsible for the reduction of reactivity at low temperatures. Indeed, it is important to note that in the H + CH+ linear approach, there is a conical intersection (CI), which was discussed in detail when constructing the ground electronic adiabatic PES.27,37,38 This PES was able to reproduce the cusp introduced by this CI rather satisfactorily. The question is then how non-adiabatic transitions affect the reaction dynamics? This is one of the objectives of this study.
The crossings in the CH2+ system are not limited to this crossing, but instead are far more complicated as found by Liskow et al.,40 and the deep well describing CH2+(2A′) arises from a series of crossings involving C+(2P) + H2, C(3P) + H2+ and C(1D) + H2+, as represented in Fig. 1. In ref. 39 a simple energy-based diabatization model41 was applied to some fixed configurations, showing that it was able to reproduce the crossings occurring at relatively long distances, but failed to reproduce some intruder electronic states giving rise to the CH2+(2A′) well. Note that very recently, a 2 × 2 diabatic model has been developed for the two lower adiabatic states of CH2+, considering the 1Σ+ and 3Π states on the CH+ + H2 asymptote and the 2P states on the C+ + H2 asymptote. The formation of CH+ was studied using a wave packet method.42
In this work, we include a third state in the diabatization to account for the intruder state originating from the C(3P) + H2+ asymptote and giving rise to the deep CH2+(2A′) well, using a neural network method guided by symmetry considerations, as described in Section 2. We then study the destruction of CH+ by hydrogen atoms using quantum wave packet (WP), adiabatic statistical (AS) and quasi-classical (QCT) methods to obtain physical insight into the reaction, showing the impact of non-adiabatic dynamics in the reactive cross-section and state-dependent rate constants, as well as the effect of rotational and vibrational excitation of the CH+ reactant, as described in Section 3. Finally Section 4 is devoted to extracting some conclusions.
There is no general method to build the unitary diabatization transformation and it is very system dependent. Traditionally, the methods are classified as derivative-based, energy-based and property-based methods.47 The complexity increases with the number of atoms and the number of states that need to be included. Diabatization localized in the Franck–Condon region using the linear couplings in the Hamiltonian has shown great success in the photodissociation of polyatomic systems.48 Also, in the fewest switching surface hopping method49 used in classical trajectory methods, a local diabatization along each individual trajectories can help to overcome the difficulties.
However, the description of the whole configuration space, from reactants to products along the reaction path, becomes very complex, especially when more than two electronic states are involved. Many different approaches have been used as recently reviewed.50 An energy-based method using a model Hamiltonian based on the inclusion of three states correlating to C+(2P) was explored39,41 yielding excellent results in the asymptotic regions. However, this method is not adequate when higher “intruder” electronic states appear in the interaction region, producing a disruption. In the field of neural networks, PES several automatic and semiautomatic methods exist to produce a diabatic potential energy matrix (PEM) depending on whether diabatic information is required in the procedure. Automatic methods have been successfully applied to treat two state systems.42,51 However, they are not directly applicable to more states since unexpected state crossings appear. Semiautomatic methods such as diabatization by deep neural network (DDNN)52,53 incorporate some diabatic information to the fit, aiming to govern the order of the diabatic states across the configuration space. In this work, we employ a version of the DDNN method where the diabatic dataset is generated from highly symmetric configurations (SDDNN). The steps to apply the SDDNN method are: (I) identify the correlation diagram between diabatic states, (II) compute the adiabatic and diabatic datasets and (III) fit the PEM with a feed-forward neural network.
In this work, we treat three lower A′ adiabatic states: CH+(1Σ+) + H, CH+(3Π) + H and CH(2Π) + H+ on the reactant side, and C+(2P) + H2 and C(3P) + H2+ on the product side. The criteria to identify the correlation diagram between diabatic states are as follows: (i) preserve the Λ projection of the electronic wavefunctions in the C∞v configurations and (ii) an ab initio analysis of highly symmetric configurations (i.e. C2v). There is one Σ state which correlates CH+(1Σ+) + H with C+(2P) + H2(1Σg+) through CH2+ (2B1), and two Π states which correlate CH+(3Π) + H with C+(2P) + H2(1Σg+) through CH2+ (2B1), and CH(2Π) + H+ with C(3P) + H2+ through CH2+ (2A1). In the following we refer to these diabatic states as Σ, Π1 and Π2.

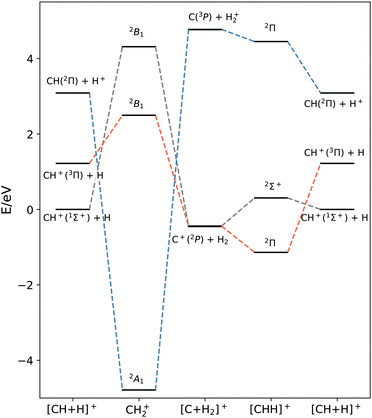

These three states cross in various regions of the PES as sketched in Fig. 1 producing three relevant conical intersections for the collinear CH+ + H approach on both the C and H sides and a third one as C approaches perpendicularly the H2 in Jacobi coordinates. In these C2v configurations, some of the couplings vanish, making these highly symmetric geometries a perfect choice from which to generate the diabatic dataset employed in the training process.
The adiabatic dataset consists of a set of all geometries with their respective adiabatic energies ordered by increasing energy. It is prepared by computing the ab initio energy of a grid of geometries in terms of the coordinates presented in the inset of Fig. 2 in the Cs symmetry group. A total of ≈58500 ab initio are included in the adiabatic dataset. About 85% of them have an energy lower than 5 eV with respect to the CH+ + H asymptote. The specific grids employed to computed these points can be found in the ESI.†
The diabatic dataset is required in the SDDNN method to enforce a specific ordering of the diabatic states. It is formed by a smaller set of points calculated at the higher symmetry C2v which allows identifying the diabatic states. In this case we select the geometries with θ = 0°, θ = 180° and γ = 90°. In this group, the A′ states split into the A1 and B1 representations. However, two B1 states appear, and its order must be assigned “by hand” according to the correlation scheme presented above. A total of ≈1500 geometries are included in this dataset.
![]() | (2) |
The diagonal elements represent the diabatic energies of each state, and the non-diagonal elements their couplings.
Ui = ViNN + VLR,i (i = Σ, Π1, Π2) | (3) |
![]() | (4) |
![]() | (5) |
The adiabatic energies are the eigenvalues of the diabatic matrix in eqn (2). The charge transfer in the adiabatic states is implicitly associated with the transfer between the different diabatic states.
VNN is fitted with a FI-NN54 with 5 input neurons, three hidden layers of 40 neurons each, and an output layer with 6 elements—three diagonal and three non-diagonal elements in eqn (2). Hyperbolic tangent activation functions are applied between hidden layers except for the last output layer. The FIs are computed with the negative exponential of the interatomic distances (exp(−αd)), with α = 0.5a0−1.
The loss function to minimize during the training process is:
![]() | (6) |
In summary, the key points to achieve a successful diabatic potential energy matrix are: (1) the diabatic dataset which governs the order of the diabatic states for highly symmetric geometries according to the correlation diagram proposed for the system, (2) the functional form to describe the couplings, which vanish for highly symmetric configurations, and (3) the minimization of the diabatic couplings, avoiding spurious state flips.
For the CH+ + H rearrangements we consider charge–induced dipole, dipole–induced dipole and dispersion. For the C+ + H2 rearrangement charge–quadrupole and charge–induced dipole are considered:
![]() | (7) |
![]() | (8) |
WLR,Σ = (Vlr,CH++H, Vlr,CH++H, Vlr,C++H2) | (9) |
WLR,Π1 = (0, 0, Vlr,C++H2) | (10) |
WLR,Π2 = (0, 0, 0) | (11) |
Wd = (σ(rCH1), σ(rCH2), σ(rHH)) | (12) |
s = argmin(Wd) | (13) |
VLR,χ = (WLR,χ)s | (14) |
Note that there is no continuity issues since the index s will only change upon reaction, when the three particles are close together and all of the long-range interactions are canceled due to the change of independent variable to . In fact, the parameters Rlim and Re can be tuned in order to guarantee the energy conservation, by turning off the long-range contributions at larger or shorter distances.
During the training process, these long-range contributions are included in the diagonal elements of the PEM in eqn (3). Therefore the VNN terms are effectively fit to the difference between the ab initio and the long range energies. At long distances between the reactants or products the only remaining interaction energy is the long-range term, without the need to use a switching function.
Fig. 2 also presents the three relevant CIs in the system. Two of them appear in the CH+ + H approach for θ = 0° and θ = 180°. The third CI is found in the C+ + H2 approach with γ = 90°. These CIs no longer appear once the system moves away from these highly symmetric configurations. Fig. 2 also shows the deepest well describing the CH2+ system in the bottom right panel. In all cases, the points are the ab initio points, and the solid lines are the adiabatic eigenvalues obtained in the diabatic fit, whose diagonal elements are shown by dashed lines, showing excellent agreement.
Fig. 3 presents the minimum energy paths for each of the diabatic states in terms of the H–H–C angle, showing the main features of the diabatic states. In the bottom panels, for large α angles near the H–H–C linear configuration, the two lower diabatic states, Σ and Π, are well separated from the third one, which causes the appearance of the CH2+ well at α = 30°. The Σ diabatic state is repulsive in the two rearrangement channels, with a maximum at rCH − rHH = 0. In contrast, the Π diabatic state is attractive in the two rearrangement channels showing a shallow well at rCH − rHH = 0. The Π state correlates with the excited CH+(3Π) and and it crosses the Σ before its minimum, giving rise to the CI. In the top panels, at bent geometries, α = 30 and 80°, the third diabatic state is strongly established, crossing the other two diabatic states to form the CH2+ well.
For α = 180° a direct mechanism can be found where the H atom approaches CH+ from the H side. For this linear approach, we do not find a deep well. For the reaction to occur in the ground electronic state, the system has to go through a CI, changing from the Σ state to the low lying Π state. On the other hand, as α tends to 0°, the first Π state becomes repulsive and the second Π state is highly attractive. The deeper well of this Π state corresponds to the equilibrium geometry of CH2+. When the system proceeds from this side, the process is expected to become statistical.
Finally, we investigate the accuracy of the non-adiabatic coupling matrix elements (NACMEs). The analytical NACMEs in the PES are computed as explained in ref. 55:
![]() | (15) |
![]() | ||

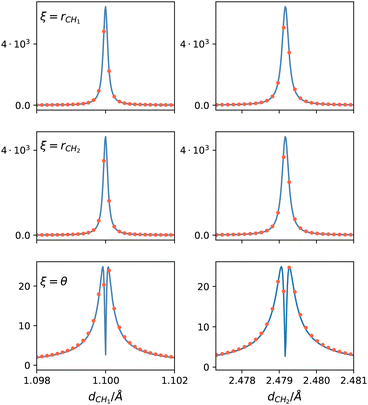

Fig. 4 Comparison of the NACMEs along the two C–H distances computed in the PES (blue line) and ab initio at a CASSCF level (red dots) close to the CI, at θ = 0.01°. ξ indicates the coordinate with respect to which the NACME is computed as indicated in eqn (15). |
Finally, Table 1 presents the RMSE of the fitted potential energy surface for the range of energies of interest.
E/eV | State ![]() |
State à | State ![]() |
---|---|---|---|
−4.0 | 35.7 (404) | — | — |
−3.0 | 30.0 (1090) | — | — |
−2.0 | 27.7 (2029) | — | — |
−1.0 | 29.0 (4677) | 33.3 (41) | — |
0.0 | 26.0 (13![]() |
17.2 (3743) | — |
1.0 | 23.6 (24![]() |
21.9 (11![]() |
— |
2.0 | 23.3 (32![]() |
26.1 (24![]() |
— |
3.0 | 22.7 (39![]() |
26.6 (34![]() |
35.9 (4967) |
4.0 | 22.0 (49![]() |
25.3 (46![]() |
33.0 (27![]() |
Two sets of calculations are performed, one including the three coupled diabatic states and the second with only the ground adiabatic potential obtained after diagonalization of the 3 × 3 electronic Hamiltonian developed above. The converged results for J = 0 and initial CH+(v = 0, j = 0) are shown in Fig. 5. In both cases, the reactivity presents rapid oscillations with energy, associated with resonances corresponding to the CH2+ complex in the deep well. At higher energies, the reaction probability in the 3 × 3 diabatic model is larger, by approximately a factor of 2. This increase is attributed to the increase of density of states in the C+ + H2 asymptote, to which two electronic states correlate in the diabatic representation, while only one correlates to the CH+ + H products. At low energies, the adiabatic and 3 × 3 diabatic are in general closer, simply because the number of open channels in the C+ + H2 side is already considerably higher even in the adiabatic model. All this indicates that the inclusion of the electronic couplings does not reduce the reactivity under this regime.
![]() | ||

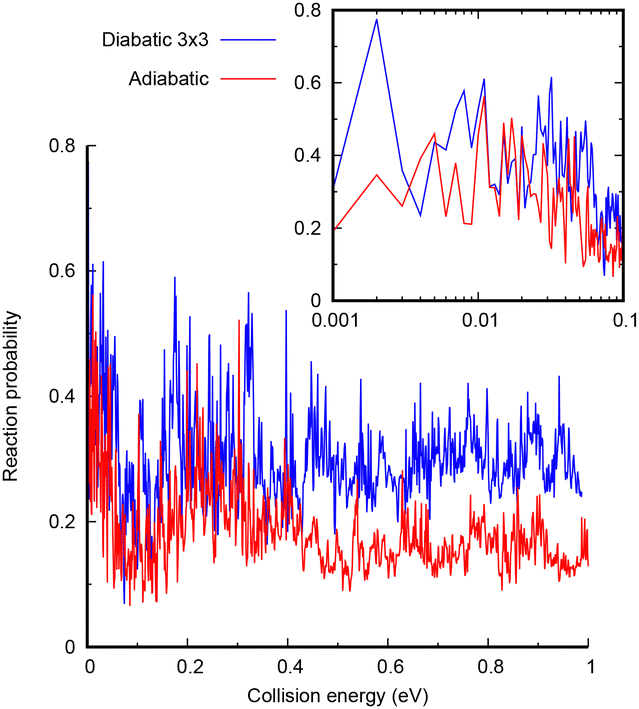

Fig. 5 Total reaction probability for CH+ (v = 0, j = 0) + H → C+ + H2 reaction as a function of translational energy for the adiabatic (red) and 3 × 3 diabatic model (blue). |
The presence of resonances, especially at low energies, requires very long propagations to achieve convergence, typically of the order of 105 Chebyshev iterations. In addition, for insertion reactions presenting deep wells, it is important to include many Ω projections to obtain the appropriate density of states and properly describe the reaction dynamics. All this together, makes the calculation of all J values computationally very demanding. Up to J = 90 is required to converge the partial wave summation to obtain the reaction cross-section. In this study, we use Ωmax = min(J, 15) and we limit the calculations to J = 0, 5, 10, 15, 20, 25, 30, 40, 50 and 60. For intermediate J values, the state-2-state reaction probabilities are obtained with the J-shifting interpolation method,64 as successfully applied to the reverse reaction.30
The total reactive cross-section obtained for the adiabatic and the 3 × 3 diabatic PESs is shown in Fig. 6. The cross-section obtained in the 3 × 3 diabatic case is slightly larger than that for the single adiabatic PES (below 4 meV and above 0.1 eV) or very close. Above 0.1 eV and below 5 meV, the ratio between the 3 × 3/adiabatic cross-section is lower than 1.2, and this may be explained by the higher density of states of C+ + H2 products in the 3 × 3 case, because two electronic states correlate to this limit.
![]() | ||
Fig. 6 Total CH+ (v = 0, j = 0) + H → C+ + H2 reaction cross-section for the adiabatic and 3 × 3 diabatic model obtained by WP and AS methods, as indicated in the caption. |
The continuous decreasing slope of the two cross-sections above 7–9 meV is consistent with the Langevin behavior for charge–induced dipole long-range interactions in CH+ + H. The change in the behavior below 4–5 meV is attributed to the cusp introduced by the electronic crossing at some configurations and could explain a slight decrease of the corresponding rate coefficients compared to the Langevin model.
The difference between the two AS results is similar to that obtained with the exact wave packet treatment, but larger, with a ratio of ≈1.5 instead of 1.2. The AS results are in general larger than the wave packet results, but very close in the 3–100 meV interval. This slight overestimation is attributed to the presence of an alternative direct reactive and non reactive routes, as it was recently found,39 which in the exact calculations may reduce the reactivity. These alternative routes can be seen in Fig. 3, especially in the diabatic MEP for α = 180° which shows a direct connection between reactants and products, with a rather low barrier with no entrance to the deep insertion well. The diabatic barrier at this angle is of 0.26 eV, which gets even lower in the adiabatic representation. Therefore, this direct route reduces the flux through the deep insertion well, and it is the reason for the difference between the wave packet and statistical methods.
The two AS results continue increasing with decreasing energy below 3 meV. The reason is that the effective adiabatic potential curves do not show any maxima because the average of the potential matrix elements somehow washes out the cusp introduced by the electronic crossing at some (linear) configurations. The fast decrease of the AS results above 0.5 eV corresponds to the disappearance of the well in the effective adiabatic potentials for J > 65. Thus, for J > 65 the reaction to form C+ + H2 is closed in the AS treatment, and only lower partial waves contribute to the reactive cross-section.
The structures of the AS cross-sections with energy are associated with the opening of C+ + H2 (N(H2), producing a relative increase in reactive probabilities) and CH+ + H (N(CH+), producing a decrease) channels. The N(CH+)/N(H2) ratio continuously increases with energy, and becomes 1 at approximately 0.1 eV, where the AS cross-sections show a change of slope (see Fig. 1 in the ESI†).
The results obtained with the 3 × 3 and adiabatic electronic models are shown in Fig. 7, and are compared with the state-selected rate constant for j = 0 obtained by Werfelli et al.38 using an accurate time-independent hyperspherical close coupling method with a fit of an adiabatic PES. The 3 × 3 results are in very good agreement in the interval 50–500 K with respect to that of Werfelli et al.,38 and the present results are slightly smaller. The two present results show a weak decrease below 30 K, far from that of the experimental results by Plasil et al.34
![]() | ||

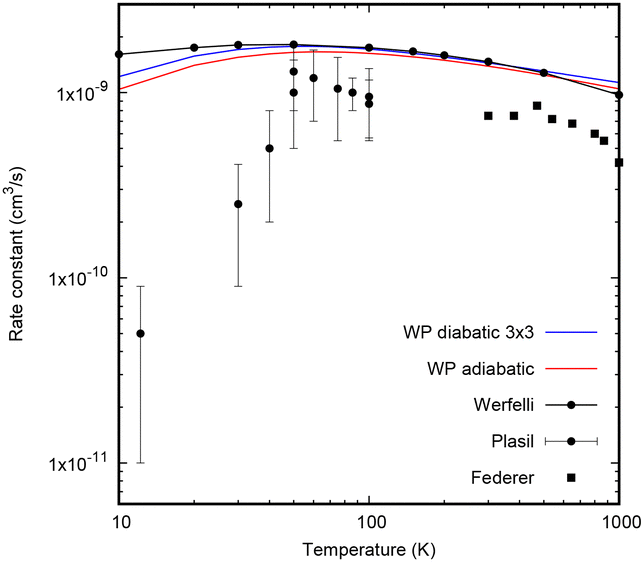

Fig. 7 Total CH+ (v = 0, j = 0) + H → C+ + H2 reaction rate constant for the adiabatic (red) and 3× 3 diabatic model (blue). The results in black lines with points correspond to the state selected rate constant of Werfelli et al.38 for j = 0. The experimental results are taken from Plasil et al.34 and Federer et al.32 |
In Fig. 8 QCT and AS reaction rate constants for different j rotational levels are presented. The QCT result for j = 0 is about a factor of two lower than the WP result while the 3 × 1 AS presents much better agreement. Moreover, the QCT calculations do not show a marked dependence of the reaction rate constant with the rotational level, in contrast to the statistical results and those previously reported by Werfelli et al.,38 which are in good agreement. All these arguments yield to the conclusion that the QCT approach fails to accurately describe the reactive rate constant, loosing the memory of the initial state when forming long-lived complexes. QCT and AS results present lower and upper limits to the quantum Wave packet results, which are computationally more demanding. However, this mild effect of the initial rotational state is not sufficient to explain the huge decrease of the reactive rate constant found experimentally.
![]() | ||

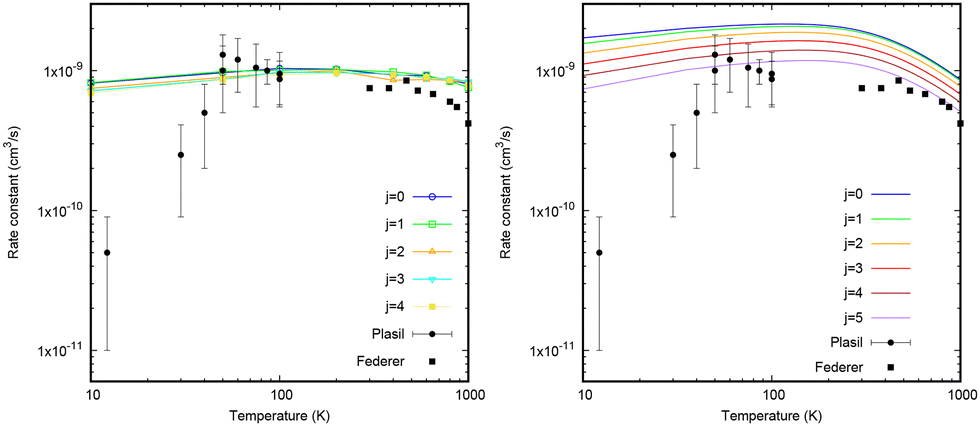

Fig. 8 Total CH+ (v = 0, j = 0, 1, 2, 3, 4, and 5) + H → C+ + H2 reaction rate constants obtained with QCT calculations including surface hopping (left panel) and the AS 3 × 1 method (right panel). The experimental results are taken from the studies by Plasil et al.34 and Federer et al.32 |
Therefore the origin of the decrease of the experimental rate constants below 50 K is not attributed to either non-adiabatic effects or the rotational excitation of CH+. The present 3 × 3 diabatic model includes the three relevant electronic states participating in the dynamics. It is rather accurate in the reproduction of the high level ab initio adiabatic calculations and the non-adiabatic couplings as shown above. We can therefore conclude that the crossings occurring among these electronic states are not responsible for the reduction of the rate constant at low temperatures.
There are other electronic mechanisms not considered in this model. First, the Renner–Teller couplings with the A′′ states. It has been argued that including this effect can reduce the reactivity.69 However, in this case, the A′′ states correlate only with C+ + H2 asymptote, but through the excited electronic states of CH+ products, not accessible at the energies considered here. Therefore, in the present case, it is expected that the inclusion of Renner–Teller couplings cannot reduce the reactivity, even more, it could increase it.
Also, the spin–orbit couplings are not considered here. The inclusion of spin–orbit sublevels would lead to the increase of C+(2P) + H2 density of states, while weakly affecting the CH+(1Σ+) + H(2S), whose degeneracy would be multiplied by a factor of two. Again, this would favor the reaction towards C+ formation.
Finally, in this work we study yet another possible source of reduction of reactivity at low temperatures, which is the potential excitation of the CH+ vibration during its generation in the experiments.
To check this hypothesis we have performed QCT with surface hopping and AS calculations for v > 0 described above and the results are shown in Fig. 9. Clearly, the reaction rate constants decrease with initial vibrational excitation. In the QCT calculations this decrease with v seems to gradually reduce with increasing v and saturates for v = 5. For v = 5 the total reaction state-dependent rate is nearly a factor of 10 lower than for v = 0, and very close to the experimental results, considering the error bars.
![]() | ||
Fig. 9 Total CH+ (v = 0, 1, 2, 3, 4, and 5, j = 0) + H → C+ + H2 reaction rate constants obtained with QCT calculations including surface hopping (left panel) and the AS 3 × 1 (right panel) methods. The thermal rate constant is also presented as a dashed black line in the right panel. The experimental results are taken from the studies by Plasil et al.34 and Federer et al.32 |
In the right panel of Fig. 9, the same rate constants obtained with the AS method show a similar trend. The AS approach is closer to the full quantum WP results, as described above. The statistical character of the reaction is not only more accurate than the QCT results, but also produces a more drastic reduction of the rate constant with increasing v.
What is the reason why vibrational excitation produces a diminution of the reaction rate constant? AS results give a very simple explanation in terms of the density of states of reactants and products, as illustrated in Fig. 1 of the ESI,† Section S3. As the total energy increases, the density of states of CH+ reactants increases more rapidly than that of H2 simply because it has much lower rotational constant and lower vibrational frequency.
Hence, one can see that the magnitude of the CH+ + H rate constants measured by Plasil et al.34 strongly depends on the vibrational temperature of CH+ in the cell. Plasil et al.34 considered that the internal degrees of freedom of CH+ are coupled to the cold environment efficiently by inelastic collisions with helium buffer gas so that both the rotational and vibrational temperatures of CH+ are equal to the kinetic temperature after a few ms. Hence, CH+ was expected to be only in the ground vibrational manifold and in the first few rotational levels when it reacted with H. One could consider that local thermodynamic equilibrium (LTE) conditions are reached if kα × [He] × Δt > 1 (α = vib or rot), where kvib and krot are the quenching rate constants, [He] is the density of He in the cell and Δt is the time before the reaction.
Lets consider a typical density of He of 1013 cm−3 and a time of 10 ms for relaxing hot CH+ formed by electronic impact on CH4 (those values are the typical values provided by Plasil et al.34). One would hence see that kvib and krot have to be of the order of ≈10−11 cm−3 s−1 to reach LTE conditions after 10 ms. Stoecklin & Voronin70 computed rotational and vibrational quenching cross-sections for the He–CH+ collisional system. The corresponding rotational quenching rate coefficients derived from their cross-sections were found to be of the order of magnitude of ≈10−10 cm−3 s−1 so that one can safely assume that the rotational temperature of the gas is equal to the kinetic temperature. In contrast, the corresponding vibrational quenching rate coefficients derived from the cross-sections of Stoecklin & Voronin70 were found to be of the order of ≈10−12 cm−3 s−1 at 10 K indicating that a time of 10 ms is certainly not enough to reach LTE conditions for the vibrational distribution. Hence, for the measurement at low temperature (T < 50 K), one could expect that part of the CH+ in the cell was in vibrationally excited states when it reacted with H. Because of the lower reactivity of CH+ in vibrationally excited states, one could see that the determination of the thermal CH+ + H rate constants derived by Plasil et al.34 should have considered the vibrational distribution of CH+ in the cell that is unlikely to be the one of a Boltzmann distribution. Rate coefficients for the vibrational quenching of ions are expected to rapidly increase with increasing temperature and vibrational states. This increase of the rate coefficients would help in reaching LTE conditions faster when the temperature is above 50 K explaining the better agreement between the experiments and the theoretical calculations (assuming that only CH+(v = 0) is populated) above 60 K.
Therefore, we conclude that the most plausible reason for the disagreement between theory and the experimental measurements at low temperatures below 50 K is that the vibrational energy transfer at this low temperature with the He atoms is not efficient enough, and CH+ in the trap is still excited in v > 1 vibrational levels. Under this assumption, appropriately weighting the rate constants for several vibrational states over a non-Boltzmann vibrational distribution, the theoretical description can reasonably describe the measured results. New experimental measurements are therefore needed to check this assumption.
In order to validate this assumption, the vibrational relaxation of CH+ with He as a function of temperature should be studied in detail for highly excited vibrational states. Also, new experimental studies under different conditions, ideally with controlled vibrational distribution of CH+ reactants, are needed.
A variety of dynamical methods have been used to study the non-adiabatic dynamics, revealing that the inclusion of electronic couplings produces some changes in the reactive cross-sections and rate constants, but were unable to reproduce the drastic reduction of the reactive rate constant below 50 K. Initial rotational excitation of CH+ has been analyzed and produces a slight decrease, in agreement with previous results.38
Finally, the initial vibrational excitation of CH+ has been studied, showing a remarkable decrease of the reactive rate constant as a function of v, so that for v = 5 the rate is about ten times lower than that for v = 0, and in near agreement with the experiment. Above 100 K, the calculated rate constants for v = 0 are in agreement with the experiment. We therefore conclude here that the thermalization of CH+ reactants, originated by electron bombardment, with He atoms below 50 K is not efficient enough to relax the vibrational excitation of CH+, and this is the reason why the experimental results show a dramatic one order reduction below 50 K.
New experiments are needed to check this finding, and the determination of the vibrational excitation of CH+ obtained after electron bombardment of methane. Also, the efficiency of the vibrational excitation in a gas of He atoms should be studied as a function of temperature, both experimentally and theoretically.
The decrease of the destruction rate constant of CH+ with atomic hydrogen when increasing the vibrational excitation has a potential impact on the relative abundances of vibrationally excited CH+, recently observed in PDRs and PPDs,15 since in these highly UV illuminated objects, there is a relatively high abundance of atomic hydrogen.
