Synthesis and structural characterisation of Cu^II-based MOFs constructed by combining functionalised 1,4-bis(1H-imidazol-1-Yl)benzene ligands with copper sulfate

Abstract

Anion-pillared metal–organic frameworks (APMOFs) are a class of coordination polymers in which divalent anions connect two adjacent layers of a 2D network generated by neutral ligands and cationic metal centres. This class of MOFs is commonly composed by materials built using pyridine-based ligands and octahedral fluorinated anions as linear pillars. Only recently, the use of nitrogen based five-membered ring ligands and/or tetrahedral anions, such as sulfate, has been reported. The combination of 1,1′-(2-(trifluoromethyl)-1,4-phenylene)bis(1H-imidazole) (bibCF₃) ligand with copper(II) sulfate generates a 2D MOF (UdP-20) of minimal formula [CuSO₄(bibCF₃)_1.5]·3H₂O. UdP-20 possesses a square lattice (sql) topology in which the copper sulfate dimer molecular building block acts as 4-connected nodes and exhibits flexibility, transitioning to a closed pore phase (UdP-20-cp) upon heating. The use of different functionalised bib ligands allowed us to obtain three new examples of APMOFs: UdP-21 with 1,1′-(2-chloro-1,4-phenylene)bis(1H-imidazole) (bibCl), UdP-22 with 1,1′-(2-methyl-1,4-phenylene)bis(1H-imidazole) (bibMe) and UdP-23 with 1,1′-(2-methoxy-1,4-phenylene)bis(1H-imidazole) bibOMe. All these materials possess 2D layers connected to each other by bridging sulfate anions leading to an overall 3D anion pillared framework. All the herein reported materials were characterised by elemental analysis, thermogravimetric analysis, and powder and single crystal X-ray diffraction. Moreover, their CO₂ adsorption behaviour was investigated, revealing results in alignment with what is already reported in the literature for similar materials in the case of UdP-20, while UdP-21, UdP-22 and UdP-23 exhibited moderate CO₂ adsorption, due to transition to denser phases upon activation.

---

Introduction

Porous coordination networks (PCNs) are a class of sorbents constructed by coordination of inorganic and/or organic ligands to metal ions generating a porous network. PCNs are promising materials that could be used in catalysis, in volatile organic compound (VOC) capture and in gas separation/storage, e.g. carbon dioxide, methane, and water vapor.^1–7 Most PCNs are built from metal ions or clusters paired with anionic organic linkers, classifying them as metal–organic frameworks (MOFs).^8–10 However, when neutral ligands are employed, the inorganic counteranions can significantly influence the topology of the resulting structure.^11,12 For instance, divalent inorganic anions can serve as ditopic linkers, connecting adjacent layers by coordinating cationic metal nodes within two-dimensional (2D) metal–organic layers, resulting in the formation of anion-pillared metal–organic frameworks (APMOFs).^13,14 APMOFs can be prepared using either linear pillars, typically octahedral fluorinated anions (e.g., SiF₆²⁻, TiF₆²⁻, NbOF₅²⁻, TaOF₅²⁻, WO₂F₄²⁻),^13–17 or angular pillars, such as CrO₄²⁻, MoO₄²⁻, WO₄²⁻, PO₄³⁻ and SO₄²⁻.^{13,14,18–20} It is important to note that the choice of the counteranion influences not only the framework's connectivity, but also the strength of the metal-pillar bonds, thereby influencing the overall stability of the resulting APMOF. Despite the outstanding gas adsorption and separation properties demonstrated by some APMOFs, such as the SIFSIX family,^21–25 the use of fluoride-based anions poses challenges that include the potential risk of HF exposure during the synthesis of inorganic anions or during the thermal decomposition of the material.²⁶ The use of environmentally friendly and abundant sulfate anions as the pillar can represent a valid alternative to fluorinated anions. To date, several MOFs having sulfate anions as pillars have been published in the literature, but the adsorption properties for only a few of them have been investigated.^{19,21,27–34} In particular, interesting results in term of gas separation were obtained using a new sulfate APMOF, referred to as SOFOUR-1-Zn, built employing tetra(4-pyridyl)benzene (TEPB) as the organic linker and Zn^II as the metal node.¹⁹ Since the publication of this work, three other members of this family of APMOFs were reported to be active in C₂H₂/CO₂ separation: SOFOUR-TEPE-Zn (TEPE = 1,1,2,2-tetra(pyridin-4-yl)ethene),²⁰ SOFOUR-DPDS-Ni (DPDS = 4,4′-dipyridyldisulfide)³¹ and SOFOUR-2-Zn having enmepy (N¹,N²-bis(pyridin-4-ylmethyl)ethane-1,2-diamine) as the ligand.^32,33 Almost all the SOFOUR and most of the APMOFs reported are typically constructed using a pyridine-based ligand. In comparison, there are relatively few examples in the literature of such materials incorporating N-based five-membered ring ligands, such as imidazoles, pyrazoles, triazoles, or tetrazoles.^{5,13,14,35–37} For instance, the APMOF constructed using 1,4-bis(1-imidazolyl)benzene (bib) as a ligand in combination with CuSiF₆, named SIFSIX-23-Cu, exhibits a unique cis-bridging coordination mode of hexafluorosilicate anions.^23,24 Moreover, this material displays a flexible framework whose phase switching can be triggered by CO₂ adsorption. The reversible transformation observed is attributed to the low rotational barrier of the bib ligand.^3,23,38–40 When the benzene ring in the linker was replaced with a pyridine, the resulting flexible coordination network, SIFSIX-23-Cu^N, displayed a shape-memory effect.²² The first two materials prepared combining bib or a functionalised bib ligand (1,4-bis(1-imidazolyl)naphthalene = bin) with copper sulfate were recently reported by Zaworotko and co-workers.⁴¹ Both these materials showed a 2D square lattice network with a peculiar sulfate dimer molecular building block. In particular, the use of the more sterically hindered bin allowed obtaining a MOF that exhibits high selectivity for C₂H₂ over CO₂ and C₂H₄.

Given our recent interest in the study of copper-based MOFs using bib as a linker,⁴² we report herein our studies on the synthesis, characterisation and adsorption properties of new MOFs employing four different 1,4-bis(1-imidazolyl)benzene ligands functionalised on the benzene ring and copper sulfate as the inorganic salt.

Results and discussion

Layering a methanolic solution of 1,1′-(2-(trifluoromethyl)-1,4-phenylene)bis(1H-imidazole) (bibCF₃) on a water/ethylene glycol solution of CuSO₄ (for further details see the Experimental section) afforded blue crystals of UdP-20 (UdP stands for Università di Pisa) suitable for single crystal X-ray analysis. UdP-20 crystallises in the triclinic P1̄ space group with the following lattice parameters: a = 9.9888(5) Å, b = 11.4316(5) Å, c = 12.6577(7) Å, α = 104.810(2)°, β = 94.908(2)°, γ = 102.704(2)°, and volume = 1347.6(1) ų (for further details see Table S1†). The asymmetric unit consists of one Cu^II atom, one sulfate anion, one bibCF₃ ligand (named A) and one half bibCF₃ ligand (named B) whose centre of mass lies on an inversion centre (Fig. 1a). The former bibCF₃ adopts an antiperiplanar conformation⁴³ (Cu–N–N–Cu torsion angle 172.9°, Fig. S1†) with a dihedral angle between planes designed by the imidazoles of 8.3° (Fig. S2†). The dihedral angles between the benzene ring plane and the imidazole planes are 46.5° and 38.5°, respectively (Fig. S3†). Moreover, the CF₃ group on the bibCF₃ ligand A is subjected to positional disorder with a slight preference for the ortho position respect to N4 (freely refined occupancy of 56%, Fig. S4†). Also bibCF₃ ligand B adopts an antiperiplanar conformation⁴³ with a Cu–N–N–Cu torsion angle of 180.0° (Fig. S5†) and with the two imidazole rings lying on parallel planes that form a dihedral angle with the benzene ring plane of 49.9° (Fig. S6†). As already observed for CuSO₄(bib)_1.5,⁴¹ the structure possesses a copper sulfate dimer molecular building block (MBB) in which the Cu atoms are bridged by two sulfate anions bonding with a (μ-κ¹O)-coordination mode forming a Cu₂O₂ ring with its centre of mass located on an inversion centre (Fig. 1b). Each Cu is pentacoordinated in a distorted square pyramidal geometry with two positions occupied by the sulfate oxygen atoms and three position occupied by the imidazole nitrogen atoms (Fig. 1b). The base of the pyramid presents an open metal site with the nearest sulfate oxygen atom at 2.950 Å (Fig. 1b).

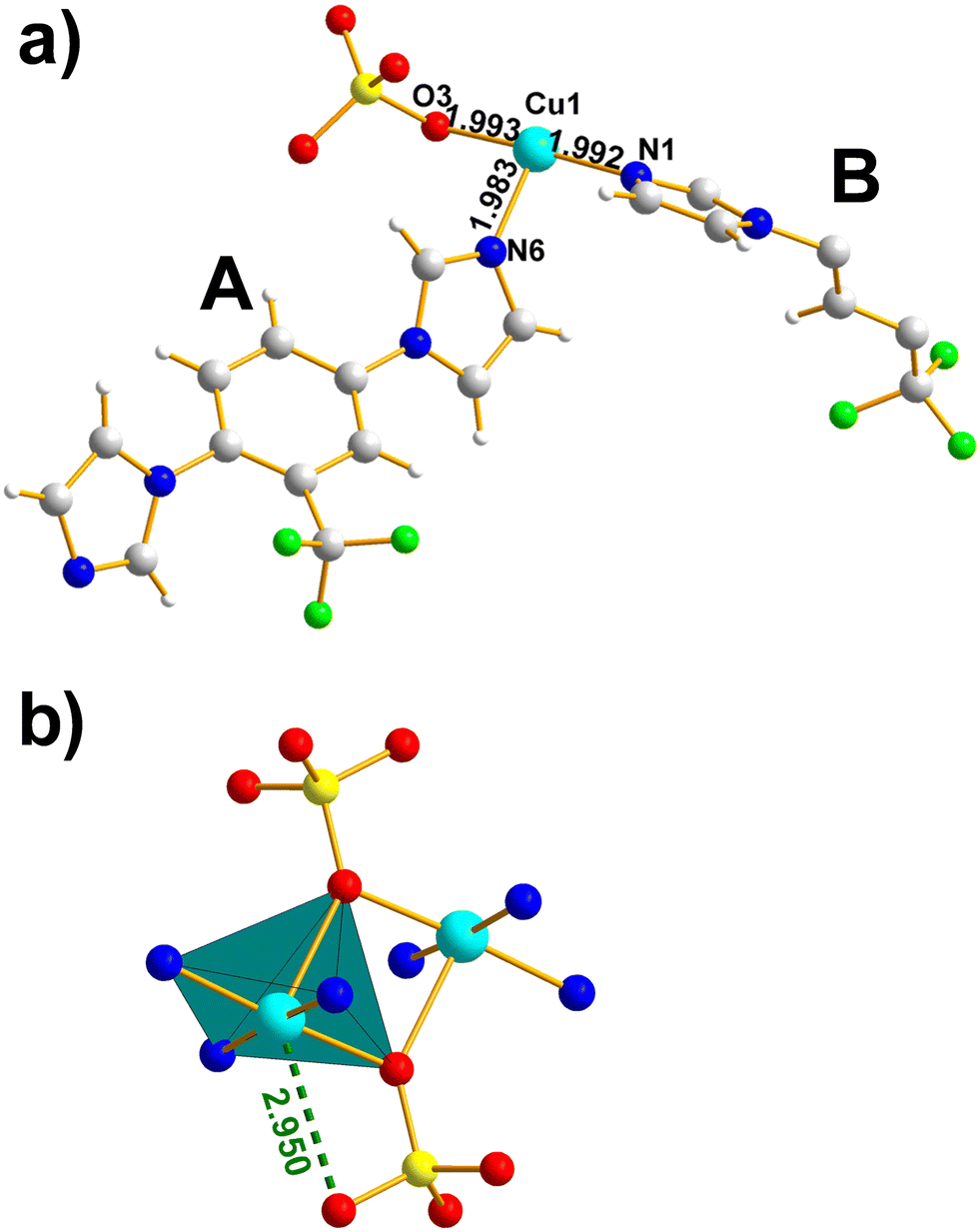

Fig. 1 Asymmetric unit and selected bond distances (a) and coordination environment of copper (b) in UdP-20. Nomenclature A and B refers to crystallographic independent bibCF₃ ligands in the asymmetric unit. Colour code: Cu, cyan; F, green; N, blue; C, grey; S, yellow; O, red; H, white.

Due to the orientation of the bibCF₃ ligands, the overall structure of UdP-20 possesses a 2D square lattice (sql) topology in which the CuSO₄ MBB serves as a 4-connected node that binds other dimers through one ligand in a direction and through two parallel ligands forming a “double wall” (Fig. 2a). The structure has 19.9% of void space thanks to 1D channels running along the c axis (Fig. 2b). Layers present a sort of zig-zag conformation (Fig. 2c) with the interlayer distance (7.13 Å, Fig. S7†) that resemble more the distance observed in CuSO₄(bin)_1.5 (7.32 Å) than in CuSO₄(bib)_1.5 (4.99 Å).⁴¹

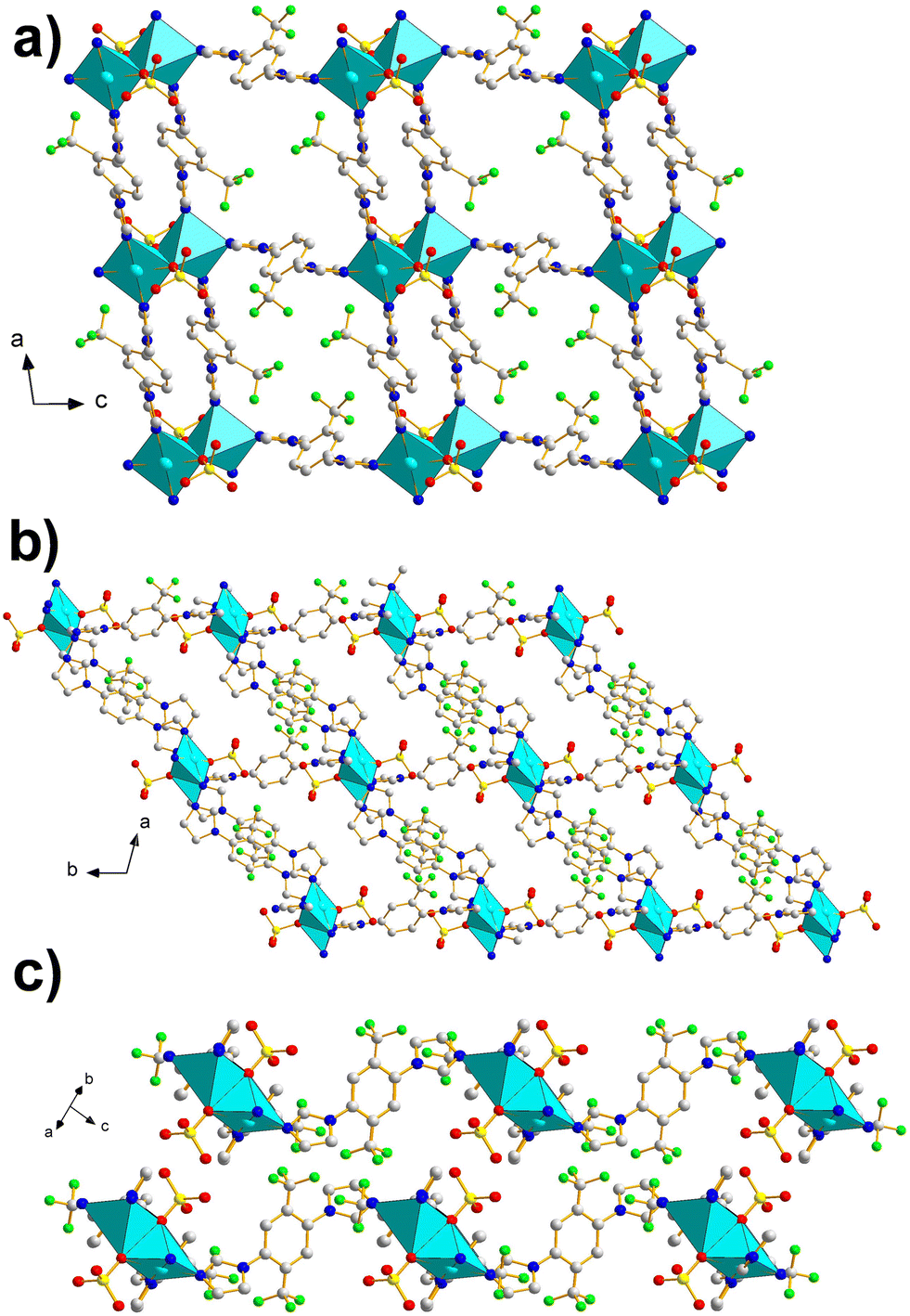

Fig. 2 View of a UdP-20 monolayer along the b axis (a) and the c axis (b). Side view of two corrugated adjacent layers (zig-zag conformation) in UdP-20 (c). Colour code: Cu, cyan; F, green; N, blue; C, grey; S, yellow; O, red. Hydrogen atoms have been omitted for clarity.

While bulk syntheses of UdP-20 using a water/methanol mixture at 298 K or 333 K did not allow us to isolate the same material obtained in single crystalline form (Fig. S8†), the use of a water/acetonitrile mixture at 353 K (for further details see the Experimental section) enabled the formation of the desired phase (Fig. 3a). Elemental analysis (Experimental section) and TGA (Fig. S9†) on the freshly synthesised powder are coherent with a MOF of formula [CuSO₄(bibCF₃)_1.5]·3H₂O. To evaluate the stability of the structure, PXRD patterns were registered after heating UdP-20 in an oven at 353 K for 2 hours, revealing the transformation of this material to another phase, named UdP-20-cp (closed pores, Fig. 3a). Indexing the phase allowed us to reveal that the material probably preserves the connectivity and the topology of UdP-20, maintaining the triclinic P1̄ space group with a contraction of the cell volume of 9%. Lattice parameters of UdP-20-cp were found to be: a = 9.423(2) Å, b = 11.460(2) Å, c = 12.735(4) Å, α = 70.93(1)°, β = 69.03(1)°, γ = 79.553(7)°, and volume = 1210.47 ų (Fig. S10†). Noteworthy, UdP-20-cp remains stable for months if stored in the presence of moist air while the exposure of the material to acetone vapours allowed restoring the same phase of UdP-20 in 15 hours (Fig. S11†), confirming the reversibility of the process. Similar transformations were already observed in [CuSO₄(bib)_1.5] and [CuSO₄(bin)_1.5] using single crystals.⁴¹ Unfortunately, the attempts to achieve the phase transition on UdP-20 single crystals failed due to the loss of crystallinity during the transformation.

Fig. 3 PXRD pattern comparison between UdP-20 calculated (red), UdP-20 as synthesised and UdP-20 after the activation process (UdP-20-cp, green) (a). CO₂ isotherm at 273 K registered on UdP-20-cp (b).

The gas sorption properties of UdP-20 were initially investigated by evaluating the N₂ adsorption at 77 K on a sample activated at 353 K under vacuum to achieve a complete transformation to UdP-20-cp. Unfortunately, the material seems to be not porous to nitrogen considering the very low adsorption uptake (<3 cm³ g⁻¹ STP) (Fig. S12†). On the other hand, the material displays a type I isotherm for CO₂ adsorption at 273 K on an UdP-20 sample activated as described above. The maximum uptake showed by UdP-20-cp is 0.98 mmol g⁻¹ at 1.1 bar (Fig. 3b). These results are in accordance with what was already observed for [CuSO₄(bib)_1.5]⁴¹ revealing that the substitution of a hydrogen atom with a CF₃ group on the benzene ring of the ligand did not affect the adsorption properties of this kind of 2D materials.

With the aim of further expanding the family, we applied the same crystallisation method described for UdP-20 using three more substituted ligands, i.e., bibCl (UdP-21), bibMe (UdP-22), bibOMe (UdP-23). All these materials crystallise in the triclinic P1̄ space group with lattice parameters summarised in Table S1† and, surprisingly, none of these structures resembles the UdP-20 framework. The asymmetric units of UdP-21 and UdP-22 consist of two Cu^II centres sitting on an inversion centre, a sulfate anion and two bibX (X = Cl or Me) ligands (named A and B, Fig. 4a and b). The bibX type A ligand adopts a synclinal conformation⁴³ (Cu–N–N–Cu torsion angle around 40°, Fig. S13†) with a dihedral angle between planes designed by imidazole rings around 69° (Fig. S14†). The other bibX ligand present in the asymmetric unit (named B) also possesses a synclinal conformation⁴³ (Cu–N–N–Cu torsion angle around −89°, Fig. S15†) with a dihedral angle between planes designed by imidazole rings of ca. 86° (Fig. S16†). Different from UdP-21 and UdP-22, UdP-23 possesses an asymmetric unit composed by one bibOMe ligand (named A) and two half ligands (named B and C, respectively) whose centres of mass are sitting on an inversion centre (Fig. 4c). The type A bibOMe ligand exhibits a syn conformation (Cu–N–N–Cu torsion angle 2.2°, Fig. S17†) with the imidazole rings lying on almost parallel planes (dihedral angle between planes 0.3°, Fig. S18†). On the other hand, the two half ligands (named B and C) in UdP-23 possess an anti conformation (Cu–N–N–Cu torsion angle 180.0°, Fig. S19†) with the two imidazoles rings lying on parallel planes close to each other (dihedral angle 0.0°, distance 0.39 Å, Fig. S20†).

Fig. 4 Asymmetric units and selected distances of UdP-21 (a), UdP-22 (b) and UdP-23 (c). Nomenclature A, B and C refers to crystallographic independent bibX ligands in the asymmetric units. Colour code: Cu, cyan; Cl, green; N, blue; C, grey; S, yellow; O, red, H, white.

Notably, UdP-23 exhibits disorder on sulfate anions and on bibOMe ligands. The former was principally disordered on two positions and its occupancy was freely refined with a preference of 61% for one of the two positions (Fig. S21†). The disorder of the functional group on ligands named B and C can be attributable to the proximity of the symmetry element, while the OMe group on the ligand A is subjected to positional disorder due to the different coordination direction of the ligand, with a slight preference for the proximity to Cu1 (Fig. 4c; freely refined occupancy of 58%, Fig. S22†).

In all the materials, the coordination environment of both Cu atoms in the asymmetric unit is formed by four imidazoles and two sulfate ions, resulting in hexacoordinated metal centres in a distorted octahedral geometry with the sulfate ions coordinated in mutual trans position (Fig. 5a and S23†). Moreover, all these materials exhibit the same topology, where each Cu centre is connected to other four Cu atoms through bibX ligands, thus acting as a 4-connected node in a sql grid topology with corrugated layers (Fig. 5b and c). The 2D layers are connected to each other by coordination of bridging sulfate anions to Cu atoms, above and below the layers leading to an overall 3D anion pillared framework (Fig. 5d). Therefore, UdP-21, UdP-22 and UdP-23 can be accounted as new members of the SOFOUR family of materials.^14,19 The use of SQUEEZE⁴⁴ to remove diffused and disordered solvent in the pores was necessary to properly refine the crystal structures. Therefore, UdP-21, UdP-22 and UdP-23 showed 34.7%, 34.3% and 22.6% of void space, respectively, thanks to the 1D channel running along the b axis.

Fig. 5 UdP-21: copper and sulphur coordination environments (a), view of a monolayer along the b axis (b), view of two adjacent layers from two different perspectives (c) and (d). In (c) and (d), the connection through ligands between Cu atoms was represented by a black line. Colour code: Cu, cyan; Cl, green; N, blue; C, grey; S, yellow; O, red. Hydrogen atoms have been omitted for clarity.

Bulk synthesis of UdP-21, UdP-22 and UdP-23 can be performed by mixing a water solution of CuSO₄ with a methanolic solution of the selected ligand at room temperature. Light blue powders, whose PXRD patterns were in good agreement with the calculated from single crystal structures (Fig. 6a–c), were obtained. Moreover, elemental analysis and TGA (Fig. S24†) performed on powder samples confirm that all these MOFs have the general formula [CuSO₄(bibX)₂]·YH₂O, with an Y amount of physisorbed water which depends on the material (see the Experimental section).

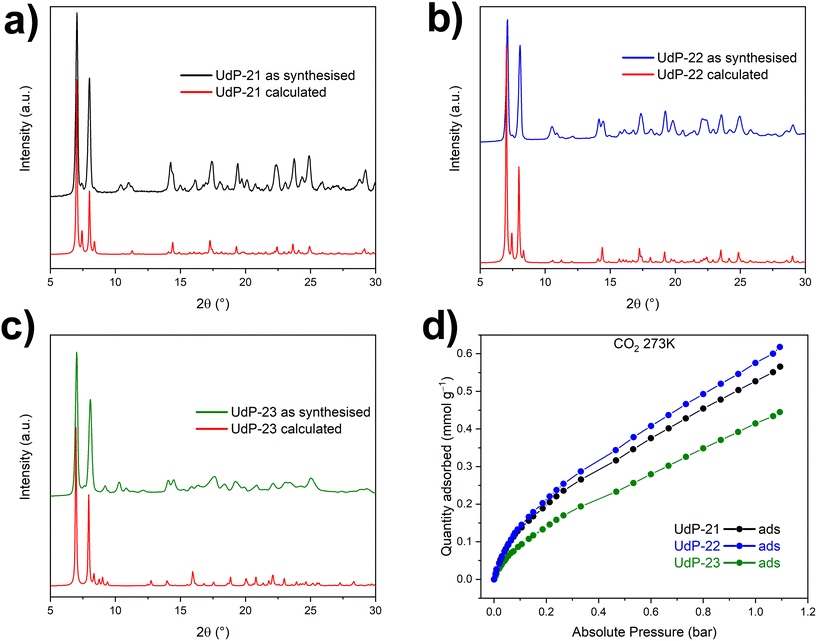

Fig. 6 Experimental and calculated PXRD patterns (a)–(c) and CO₂ isotherms at 273 K (d) of UdP-21, UdP-22 and UdP-23.

Several attempts to obtain a similar anion pillared structure using the bibCF₃ ligand were conducted, even using a large excess (5 equivalents) of bibCF₃, trying to access the 2 : 1 stoichiometry exhibited by UdP-21, UdP-22 and UdP-23. However, the same UdP-20 phase was consistently obtained.

The new SOFOUR materials were studied as gas sorbents exhibiting interesting properties, in particular in separation of light hydrocarbons and CO₂.^19,20,31,33 As a preliminary investigation, we evaluated the adsorption properties of the newly prepared sulfate-pillared MOFs. As observed for UdP-20, UdP-21, UdP-22 and UdP-23 are not porous through N₂ measured at 77 K (Fig. S25†), while they exhibit type I CO₂ adsorption isotherms at 273 K, with a low gas adsorption capacity (Fig. 6d) compared to UdP-20 and to other SOFOUR MOFs reported in the literature.^19,20,31 Specifically, UdP-21 and UdP-22 exhibit similar CO₂ adsorption at 1 bar with maximum uptakes of 0.57 mmol g⁻¹ and 0.62 mmol g⁻¹, respectively, while UdP-23 displays an adsorption of 0.44 mmol g⁻¹ at 1 bar.

In order to evaluate the effect of the activation process, PXRD patterns were collected on UdP-21, UdP-22 and UdP-23, after heating at 353 K under vacuum to replicate the activation procedure (Fig. S26–S28†). UdP-21 and UdP-22 showed a loss of long range order after thermal treatment, with unaltered structure connectivity. The original PXRD patterns can be restored after exposure of the powder to moist air for several days (14 days for UdP-21; 2 days for UdP-22). On the other hand, UdP-23 showed a phase transition during the activation process and thus variable temperature powder X-ray diffraction (VTPXRD) patterns were also registered showing a double step phase transition first at 393 K and then at 433 K. After exposure of the powder to moist air for 18 hours, the intermediate phase was restored (Fig. S28†) and remained stable even after one month. Unfortunately, due to the limited crystallinity of these new phases, we were not able to index their powder patterns.

Conclusions

Moved by the desire to prepare pillared materials and study the influence of different functional groups on the benzene ring of bib ligand on the structural motif, we combined 1,1′-(2-(trifluoromethyl)-1,4-phenylene)bis(1H-imidazole) (bibCF₃) ligand with copper(II) sulfate obtaining a 2D material (UdP-20) in which the 4-connected nodes of each layer are composed of a dimeric Cu₂O₂ ring formed by two Cu atoms and two (μ₂-η₂)-sulfate anions. Heating the UdP-20 powder sample allowed the transition to a closed pore phase (UdP-20-cp), which exhibit a reduced cell volume of 9%. Notably, exposing UdP-20-cp to acetone vapours successfully restored the original UdP-20 phase, demonstrating the reversibility of the process. CO₂ adsorption properties of UdP-20 were also investigated at 273 K, displaying a type I isotherm with modest amount of gas adsorbed. Structural results and CO₂ adsorption properties are in alignment with a similar 2D material previously reported in the literature, i.e. CuSO₄(bib)_1.5.

Following the same crystallization method employed for UdP-20, other functionalised bib ligands were used, i.e., 1,1′-(2-chloro-1,4-phenylene)bis(1H-imidazole) (bibCl), 1,1′-(2-methyl-1,4-phenylene)bis(1H-imidazole) (bibMe) and 1,1′-(2-methoxy-1,4-phenylene)bis(1H-imidazole) (bibOMe). Combination of these ligands with CuSO₄ afforded three new isostructural MOFs, UdP-21, UdP-22 and UdP-23, with the general formula [CuSO₄(bibX)₂]·yH₂O. In contrast with what observed for UdP-20, these materials possess a typical anion pillared framework in which 2D layers, formed by cationic metals (4-connected nodes) and ligands, are connected to each other by coordination of anions (SO₄²⁻ in these cases) to the metal centres revealing the functional group influence on the structural topology. Therefore, UdP-21, UdP-22 and UdP-23 can be accounted as the first non-pyridine based members of the SOFOUR family. Adsorption properties of these new sulfate-pillared MOFs were preliminarily investigated exhibiting type I CO₂ isotherms with a low amount of sorbed gas probably due to a loss of crystallinity (for UdP-21 and UdP-22) and to a phase transition (for UdP-23) during the activation process.

Experimental

Materials and methods

Reactants and solvents were purchased from Alfa Aesar, Merck, Strem, FluoroChem or TCI Chemicals, and were of the highest purity available. The glass reaction vessels for the ligand synthesis were dried at 413 K prior to use, evacuated (10⁻² mbar) and then filled with nitrogen. The ligand syntheses were conducted under N₂ atmosphere using standard Schlenk techniques by a slight modification of reported procedure.⁴⁵ Products were stored in air once isolated.

Gas chromatography flame ionisation detector (GC-FID) analysis was performed using a Nexis GC-2030 gas chromatograph (Shimadzu, Japan) equipped with a J&W DB-1 column (15 m × 0.25 mm × 0.25 μm, Agilent Technologies, USA).

¹H, ¹³C and ¹⁹F nuclear magnetic resonance (NMR) spectra were recorded on a Jeol JNM-ECZ400S instrument equipped with a Royal Broadband probe. Chemical shifts (expressed in parts per million) are referenced to the residual solvent peaks for ¹H and ¹³C and to CFCl₃ as external standard for ¹⁹F.⁴⁶

Powder X-ray diffraction (PXRD) patterns were collected in the 5–35° 2θ range with a Rigaku MiniFlex 600C diffractometer using Cu Kα radiation (1.54056 Å). The X-ray tube was operated at a voltage of 40 kV and a current of 15 mA. Variable temperature powder X-ray diffraction (VTPXRD) patterns were obtained using the above-described diffractometer with a BTS500 benchtop heating stage (Anton Paar). The sample was heated from 303 K to 433 K with a rate of 10 K min⁻¹ and the sample was left at the desired temperature for 15 minutes before collecting the pattern.

CHNS elemental analyses were performed on a Vario MICRO cube instrument (Elementar).

TGA of samples were performed with a TA Instruments Thermo balance model Q5000IR using a heating rate of 5 °C min⁻¹ in the temperature range of 303–973 K under air flow (20 mL min⁻¹). The sample amount was in the range 3.430–3.554 mg. Mass calibration was performed using certified mass standards, in the range 0–100 mg, supplied by TA Instruments. Temperature calibration was based on the Curie point of paramagnetic metals. A multi-point calibration with five Curie point reference materials (Alumel, Ni, Ni83%Co17%, Ni63%Co37%, and Ni37%Co63%) was performed.

N₂ adsorption isotherms were collected at 77 K on a Micromeritics 3Flex sorption analyser. The cooling bath was prepared using liquid nitrogen. CO₂ adsorption measurements were carried out on a Micromeritics ASAP 2020 analyser at 273 K. The temperature was kept constant thanks to a home-made patented glass coating cell⁴⁷ in which a coolant or heating fluid, connected to a thermostatic bath (JULABO F25), is recirculating. Prior to all sorption measurements, the sample (about 200 mg) was heated overnight at 353 K under vacuum (residual pressure 7 μbar).

Synthesis of bibX (X = CF₃, Me, Cl, OMe) ligands

General procedure. The selected 2-X-1,4-dibromobenzene derivative (ca. 15 mmol), imidazole (ca. 45 mmol), CuI (20 mol%) and K₂CO₃ (ca. 45 mmol) were placed in a 250 mL two neck round bottom flask, equipped with a reflux condenser. Three cycles of vacuum/N₂ were done and then 45 mL of anhydrous N,N-dimethylformamide (DMF) was added. The resulting reaction mixture was then heated to 423 K and stirred for 24–48 h. After cooling to room temperature, the mixture was diluted with 150 mL of a CH₂Cl₂/CH₃OH (1 : 1 v/v) mixture and filtered over a celite pad. Solvents were evaporated from the filtered organic layer and the residue was suspended in 150 mL of CH₂Cl₂. The suspension was transferred to a large separating funnel and washed twice with H₂O (2 × 250 mL). The organic layer was collected and then dried over MgSO₄. The solvent was evaporated at reduced pressure affording a solid that was purified by trituration (8 h) in hexane (80 mL).

Bulk synthesis of [CuSO₄(bibCF₃)_1.5]·3H₂O, UdP-20

A freshly prepared aqueous solution of CuSO₄·5H₂O (0.03 M, 10 mL) was heated to 353 K and then added to a refluxing solution of bibCF₃ in CH₃CN (0.06 M, 10 mL). The resulting mixture was stirred at 353 K for 4 hours and then cooled to room temperature. The solid obtained was centrifugated and washed with CH₃CN (10 mL) at 328 K for 1 hour and then with acetone (2 × 5 mL) for 20 minutes each portion. The light blue solid was dried in air overnight and then in the oven at 353 K for 20 minutes. Yield 140 mg (69%). Elemental analysis found: C, 40.59; H, 3.45; N, 13.85; S, 5.05. Calcd. for [CuSO₄(bibCF₃)_1.5]·3H₂O: C, 38.42; H, 3.37; N, 14.59; S, 4.77.

Bulk synthesis of [CuSO₄(bibX)₂]·YH₂O (X = Me, Y = 9; X = Cl, Y = 8; X = OMe, Y = 7)

An aqueous solution of CuSO₄·5H₂O (0.3 M, 1.0 mL) was added dropwise to a methanolic solution of selected monosubstituted bibX (0.6 M, 1.0 mL). Instantaneous formation of a solid was observed. The mixture was vigorously stirred for 18 hours at room temperature and then the solid was washed with CH₃OH (2 × 3 mL) for 30 hours and with acetone (4 mL) for 20 minutes. The solid obtained was finally dried in air overnight and in an oven at 353 K for 20 minutes.

[CuSO₄(bibCl)₂]·8H₂O, UdP-21

From bibCl (150 mg, 0.61 mmol) and CuSO₄·5H₂O (76 mg, 0.30 mmol). Light blue solid. Yield 220 mg (79%). Elemental analysis found: C, 36.67; H, 4.19; N, 14.35; S, 3.86. Calcd. for [CuSO₄(bibCl)₂]·8H₂O: C, 36.35; H, 4.32; N, 14.13; S, 4.04.

[CuSO₄(bibMe)₂]·9H₂O, UdP-22

From bibMe (150 mg, 0.67 mmol) and CuSO₄·5H₂O (83 mg, 0.33 mmol). Light blue solid. Yield 232 mg (93%). Elemental analysis found: C, 40.24; H, 5.25; N, 14.44; S, 4.14. Calcd. for [CuSO₄(bibMe)₂]·9H₂O: C, 40.54; H, 5.50; N, 14.55; S, 4.16.

[CuSO₄(bibOMe)₂]·7H₂O, UdP-23

From bibOMe (150 mg, 0.62 mmol) and CuSO₄·5H₂O (78 mg, 0.31 mmol). Light blue solid. Yield 182 mg (76%). Elemental analysis found: C, 40.37; H, 4.87; N, 14.46; S, 4.15. Calcd. for [CuSO₄(bibOMe)₂]·7H₂O: C, 40.28; H, 5.07; N, 14.45; S, 4.14.

Crystallisation of UdP-20, 21, 22, 23

In a 15 × 160 mm test tube equipped with a screwcap, CuSO₄·5H₂O (23 mg, 0.09 mmol) was dissolved in 0.3 mL of water and then 6 mL of ethylene glycol was added. 3 mL of water buffer was layered on the copper solution and subsequently, a third layer of selected ligand (0.19 mmol) in methanol (6 mL) was added on top. The test tube was closed and left at room temperature for two weeks. Blue crystals were collected.

Single-crystal X-ray diffraction

Single-crystal X-ray diffraction was performed with a Bruker D8 Venture instrument equipped with a microfocus Mo source (Kα radiation, λ = 0.71073 Å) and a 2D Photon III detector. The main experimental details regarding the structure determination by single-crystal X-ray diffraction are reported in Table S1.† The unit cell was identified and initially refined using APEX4.⁴⁸

Successively, data were integrated and reduced using SAINT⁴⁹ and XPREP.⁵⁰ Absorption effects were corrected using SADABS.⁵¹ Structures were solved and refined with the aid of SHELXL-2019/1.⁵² Hydrogen atoms were fixed at calculated positions and refined by using a riding model. The unit cell of all these materials contains additional total potential solvent accessible void, which is likely to be occupied by highly disordered solvent molecules. These voids have been treated using the SQUEEZE routine of PLATON.⁴⁴

In UdP-20, a fixed occupancy value of 0.5 was assigned to the H6 atom and to the CF₃ group (C7, F1, F2, F3). Since the complete ligand containing these atoms is generated by symmetry operations, this constraint was applied to preserve the chemical integrity of the structure. Allowing a free variable refinement would lead to an average number of CF₃ groups either smaller or larger than one, depending on the refined value. A similar situation occurs in two ligands within the asymmetric unit of UdP-23; therefore, the same occupancy value (0.5) was assigned to the hydrogen atoms and methoxy groups bonded to C2 (H2, O1M, C1M, H1MA, H1MB, H1MC) and C23 (H23, O4M, C4M, H4MA, H4MB, H4MC).

Data availability

The data supporting this article such as, PXRD patterns and TGA analysis can be found in the ESI.† CIF files for structural data and AIF files for the adsorption data have been attached as part of the ESI.† Crystallographic data for all the compounds have been deposited at the CCDC under 2411960–2411963 and can also be found attached as part of the ESI.†

Conflicts of interest

The authors declare no competing financial interest.

Acknowledgements

The authors thank the Italian MUR for the provision of funding through the Project PRIN 2020 doMino (ref 2020P9KBKZ) and the University of Pisa for the provision of funding through the Progetto di Ricerca di Ateneo (PRA) “New horizons in CO₂ chemistry: from capture to fine chemicals and metal based drugs” (PRA_2020_39). The authors thank Dr. Elena Pulidori and Maria Rita Carosi for the TGA measurements. This research has received funding from the Project CH4.0 under the MUR program “Dipartimenti di Eccellenza 2023-2027” (CUP: D13C22003520001). V. G. acknowledges the Italian MUR for her PhD grant PON DM1061.
