Synthesis of ¹¹C-epoxides, aziridines, and cyclopropanes from structurally modified ¹¹C-sulfur ylides

Abstract

A method for the radiosynthesis of ¹¹C-epoxides, aziridines, and cyclopropanes is described. Through generating ¹¹C-methyl sulfonium salts and corresponding sulfur ylides, the formation of ¹¹C-epoxides is possible in moderate-to-high radiochemical conversions. This method is translated to other 3-membered cyclic species and drug-like scaffolds. Automated radiosynthesis with this method suggests viability for clinical PET radiochemistry.

---

Positron emission tomography (PET) is a non-invasive imaging technique that enables the in vivo imaging of biological processes to probe disease states. The production of PET radiotracers involves the incorporation of unnatural β⁺-emitting isotopes into a molecule of interest. Frequently, small molecule PET tracers are labelled with ¹¹C or ¹⁸F given these isotopes’ simple production on commercial cyclotrons and the prevalence of carbon and fluorine in drug-like molecules.

¹¹C-Methylating reagents like [¹¹C]CH₃I and [¹¹C]CH₃OTf have found widespread use in clinical PET tracer production as means to radiolabel nucleophilic functionalities through displacement (O, N, S) and cross-coupling reactions.¹ Despite the commonality and operational simplicity of ¹¹C-methylations, [¹¹C]CH₃X synthons otherwise generate limited chemical diversity. To maximize the utility and chemical diversity available from [¹¹C]CH₃X reagents, we sought novel methods for their incorporation into chemical scaffolds.

We aimed to utilize [¹¹C]CH₃I or [¹¹C]CH₃OTf with sulfide nucleophiles to form radiolabelled sulfonium salts and generate their sulfur ylides for novel radiolabelling, similar to previously explored ¹¹C-phosphonium salts.² Sulfur ylides are versatile reagents in cycloadditions, cross couplings, rearrangements, annulations, and carbene precursors.^3–6

Given the prevalence of epoxides in drug molecules (Scheme 1A), we were initially interested in whether transformation of a ¹¹C-sulfonium salt to the corresponding ylide, in the presence of a suitable carbonyl compound, would enable a Johnson–Corey–Chaykovsky-type reaction to form ¹¹C-epoxides (Scheme 1B) as ubiquitous intermediates for synthesis and bioactive motifs. Further, we aimed to extend the use of these non-stabilised ylides to imines and activated alkenes to label medicinally valuable aziridines and cyclopropanes.^7,8 We believed that a method for the generation of the ¹¹C-isotopologues of these functionalities would serve as a valuable tool for radiochemistry, particularly in cases where ¹¹C-methylation of a target molecule may not be feasible.

Scheme 1 (A) Bioactive compounds featuring epoxide and aziridine motifs. (B) Formation of ¹¹C-epoxides via sulfonium salts.

The trimethyl sulfonium (Me₃S⁺I⁻) and sulfoxonium iodide (Me₃SO⁺I⁻) reagents typically employed in analogous cycloadditions provide no selectivity in the group transferred. Correspondingly, the generation of the equivalent ¹¹C-reagent would result in undesirable isotopic dilution and low molar activities of the desired ¹¹C-products. This, combined with the short half-life of ¹¹C (t_1/2 = 20.4 min), motivated an alternative approach for translation to radiochemistry. To ensure the exclusive transfer of the ¹¹C–CH₃ group, we attempted to synthesise the biaryl sulfonium salt 2a (Scheme 2). We began by exposing sulfide 1a to [¹¹C]CH₃OTf at ambient temperature, however this produced multiple products and was not viable in an attempted ¹¹C-epoxide formation. We reasoned that the high reactivity of pure [¹¹C]CH₃OTf dissuades direct product formation by promoting favourable side reactions including solvolysis from residual H₂O and potential reactivity with MeCN leading to further reactive intermediate formation.⁹

Scheme 2 [¹¹C]MeOTf and [¹¹C]MeI in formation of sulfonium salt 2a.

We believed that the introduction of AgOTf could aid in product formation through the slow generation of [¹¹C]CH₃OTf from less reactive [¹¹C]CH₃I. Screening conditions with [¹¹C]CH₃I in the presence of AgOTf and 1a successfully produced the desired sulfonium salt at 60 °C over 5 minutes in PhCl. Application of the formed sulfonium salt 2a to the synthesis of 4a produced the desired epoxide in good radiochemical conversion (RCC) when using KOtBu at 120 °C over 5 minutes.

We next examined the effect the sulfonium salt and its respective ylide species had on epoxidation (Table 1). Exposing sulfides 1a–1e to identical conditions in the formation of 2a, we compared their conversion to 4a. While all the sulfides formed their sulfonium salts equally effectively by rTLC, they differed significantly in conversion to 4a. The biaryl sulfides 1a–1c (Table 1, entries 1–3) showed a preference for electron dense aryl substituents with 2b performing most effectively, while tricyclic sulfides 1d and 1e (Table 1, entries 4 and 5) were substantially less effective in the formation of 4a. In all, this suggests that the rigidity and electron density of the operant sulfur ylide influence the nucleophilicity toward attack on the carbonyl of 3a.

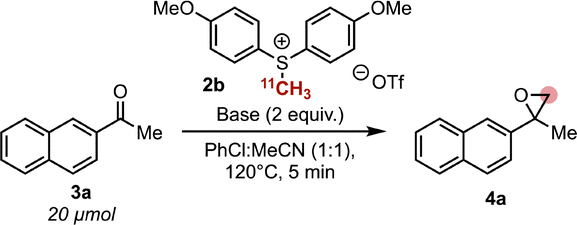

Table 1 Conditions-[¹¹C]CH₃I (in PhCl) added to 1a–e (20 µmol) and AgOTf (1 eq.) (300 µL PhCl), heated to 60 °C for 5 min to form 2a–e; 200 µL of 2a–e solution added to vial containing KOtBu (2 eq.), treated with 3a (20 µmol, 200 µL MeCN) and stirred at 120 °C for 5 min before filtering and rHPLC analysis

Entry	Sulfide	4a (rTLC) (%)	4a (rHPLC) (%)
1	1a	93	75
2	1b	92	86
3	1c	87	60
4	1d	77	42
5	1e	65	21

---

Due to the electron rich nature of the most successful sulfide 1b, we investigated the synthesis of its respective sulfonium salt 2b under milder conditions (Table 2). While this revealed that the AgOTf loading could be modestly reduced without detriment, attempts to form 2b in the absence of AgOTf, even at 120 °C, were unsuccessful. Furthermore, MeCN was not a compatible solvent for 2b formation.

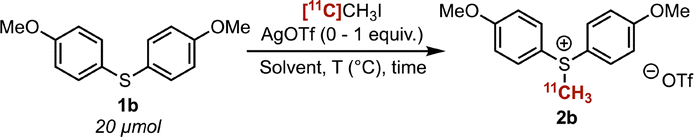

Table 2 Investigation of 2b formation conditions

Entry	Solvent	T (°C)	AgOTf	Time	2b (rHPLC)
1	MeCN	80	1.0 eq.	15 min	Trace
2	PhCl	120	0 eq.	5 min	Trace
3	PhCl	60	1.0 eq.	5 min	91%
4	PhCl	rt	1.0 eq.	5 min	25%
5	PhCl	60	0.75 eq.	5 min	89%
6	PhCl	60	0.5 eq.	5 min	56%

---

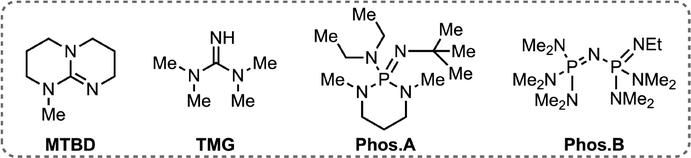

We proceeded to explore the range of bases that could be employed alongside 2b to form the operant ylide species (Table 3). The pK_a of 2b is unknown, though similar sulfonium species display pK_as 16–18, prompting us to explore strong organic and inorganic bases.¹⁰ KOtBu provided improved RCC to 4a over KOH, and comparable results at lower equivalency (Table 3, entries 1–3). Reducing the temperature of the reaction to 80 °C gave a similar result to 120 °C for 4a (Table 3, entry 4), however significantly reduced RCCs were noticed with substrates 4b and 4g at 80 °C (vide infra). Phosphazene bases successfully promoted the reaction with P₂-Et similarly effective to KOH though alternative organic bases were ineffective (Table 3, entries 5–8) perhaps on account of their hygroscopicity.

Table 3 Conditions-[¹¹C]CH₃I (in PhCl) added to 1b (20 µmol) and AgOTf (1 eq.) (300 µL PhCl), heated to 60 °C for 5 min to form 2b; 200 µL of 2b solution added to vial containing base (2 eq.), treated with 3a (20 µmol, 200 µL MeCN) and stirred at 120 °C for 5 min before filtering and rHPLC analysis

Entry	Base	4a (rTLC)	4a (rHPLC)
a At 80 °C.
1	KOH (n = 3)	78% (± 11%)	64% (±13%)
2	t-BuOK (n= 3)	92% (±<1%)	82% (±11%)
3	t-BuOK (1 eq., n = 3)	85% (±2%)	65% (±10%)
4^a	t-BuOK (1 eq., n = 1)	91%	77%
5	MTBD	3%	0%
6	TMG	6%	0%
7	Phos.A	40%	11%
8	P2-Et (Phos.B)	53%	58%

---

Applying the optimized protocol to a range of substrates featuring aldehydes and ketones, we discovered that those featuring electron withdrawing or neutral substituents performed well (4b, 4c, 4e, 4g, 4h) with aldehyde substrates requiring only 1 equivalent of KOtBu to give high conversions (Fig. 1). 4d unfortunately only gave complex mixtures which can be attributed to the known instability of electron-rich epoxides and their propensity to form polymers.¹¹ Heterocyclic examples 4i and 4j were formed in modest RCC, as were spirocyclic epoxides 4k and 4l. Further, example 4f and its precursor 3f feature a competing acidic benzylic site which was tolerated in low RCCs.

Fig. 1 Conditions-[¹¹C]CH₃I (in PhCl) added to 1b (20 µmol) and AgOTf (1 eq.) (300 µL PhCl), heated to 60 °C for 5 min to form 2b; 200 µL of 2b solution added to vial containing base, treated with 3a–o (20 µmol, 200 µL MeCN) and stirred at 120 °C for 5 min before filtering and rHPLC analysis. ^aReaction performed at 100 °C.

Substrates 4b and 4g feature ester groups which may be subject to transesterification in the presence of potassium tert-butoxide. This prompted us to change to the non-nucleophilic P₂-Et as an alternative, affording both epoxides in good RCCs.

To complement the synthesis of ¹¹C-epoxides, we aimed to expand this protocol to other valuable functionalities accessible from sulfur ylides including aziridines and cyclopropanes. Electron rich aziridine 4m was challenging with only low RCCs achieved regardless of temperature or base employed, however N-Ts aziridine 4n could be formed in fair RCCs albeit with notable variability.

Extension of the protocol to activated alkenes was also feasible, with 4o formed successfully in moderate RCC. Notably, the trifluoromethyl substituted cyclopropane present in 4o can be employed as a replacement for metabolically labile tert-butyl groups in medicinal compounds.⁸

Further, we wanted to examine this method in the context of biologically active, complex substrates as a feasible means to clinically relevant ¹¹C-products. The successful synthesis of 4o prompted us to attempt the synthesis of the T-type calcium channel blocker [¹¹C]apinocaltamide (ACT-709478) 4p using alkene precursor 3p which was accessed in 5 steps from commercially available starting materials in high yields (Fig. 2A). Subsequently, we managed to successfully form 4p in modest RCC (Fig. 2B), following our standard conditions with 2 equivalents of KOtBu.

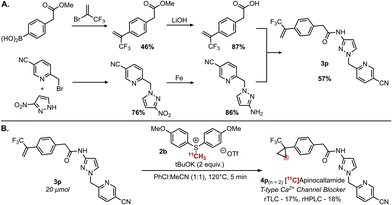

Fig. 2 (A) Synthesis of precursor 3p. (B) Radiosynthesis of [¹¹C]Apinocaltamide 4p.

Apart from being privileged motifs in select bioactive molecules, epoxides can be versatile intermediates for further chemical differentiation.¹² To illustrate this, we attempted a ring-opening hydrolysis of 4a (Fig. 3). Transformation of epoxide 4a to diol 5 was achieved by introducing H₂O and TFA after completion of the epoxide formation. This transformation confirms the presence of epoxide 4a as an intermediate product and provides a novel route to radiolabelled diols.

Fig. 3 Radiolabelling of diol 5 from hydrolysis of epoxide 4a.

Using [¹¹C]CH₃OTf in the formation of our sulfonium salts would simplify the reaction protocol and avoid the addition of silver. We therefore reinvestigated the use of [¹¹C]CH₃OTf with aliphatic cyclic sulfide 1f in effort to prevent any possible side reactions (Scheme 3). We first subjected 1f to [¹¹C]CH₃I using our standard conditions, successfully forming 2f and proceeding to form epoxide 4b in modest RCC. Unfortunately, while the analogous formation of 2f using [¹¹C]CH₃OTf appeared successful by rTLC, rHPLC revealed a much broader peak than expected for 2f and, although subsequent formation of epoxide 4b was possible, the RCC was very low. The reasons for differing results when using [¹¹C]CH₃OTf and [¹¹C]CH₃I are likely a result of intractable byproduct formation from highly reactive [¹¹C]CH₃OTf the identity of which remain unclear and need to be further investigated in the future.⁹

Scheme 3 Reactivity of sulfide 2f formed using [¹¹C]CH₃I or [¹¹C]CH₃OTf.

Finally, we attempted an automated procedure using higher activities of [¹¹C]CH₃I (>500 mCi) adapted from the manual conditions. Automation of the method provided a set of challenges relative to the manual reactions. The formation 2b from [¹¹C]CH₃I proceeded successfully, however it was not fully consumed in the second step unless the amount of P₂-Et base was increased relative to the manual reactions with 3b. Additionally, the subsequent step at 120 °C produced a new major signal by rHPLC, which had been observed only as a minor byproduct previously, with only trace 4b observed. Lowering the temperature of the reaction allowed us to favour epoxide formation over byproduct, suggesting both significant differences between the manual and automated heating efficiencies and the thermal instability of 4b. Nevertheless, with modified conditions, we successfully isolated 22 mCi of 4b in 99% radiochemical purity from 600 mCi of [¹¹C]CH₃I (3.65% non-decay corrected activity yield) in 19 minutes with a molar activity >710 mCi µmol⁻¹ (n = 2). Analysis of the crude reactions showed only a modest decrease in RCC relative to the manual reactions (59%).

In summary, we have produced a range of radiolabelled sulfonium salts, formed their respective sulfur ylides, and explored their reactivity under conditions amenable to ¹¹C-radiolabelling. Synthesis of simple and complex (hetero)aryl epoxides from aldehydes and ketones has been explored and extension of the protocol to the formation of aziridines and trifluoromethyl substituted cyclopropanes was also accomplished. The process can be automated using a radiochemistry synthesis module and is amenable for the ¹¹C-labelling of biologically active, complex substrates that are relevant for clinical PET imaging applications (Scheme 4).

Scheme 4 Automated radiosynthesis of 4b from aldehyde 3b.

Financial support of this work from NIH (R01EB021155 to PJHS) is gratefully acknowledged. The authors also thank Prof. Melanie Sanford and her lab, as well as Eric Webb, Gregory Bowden, Jay Wright and Allen Brooks for helpful discussions.

Conflicts of interest

The authors declare no conflicts of interest.

Data availability

The data supporting this article are all available in the supplementary information (SI). Supplementary information: experimental/synthetic protocols, characterization data, radioTLC and HPLC traces. See DOI: https://doi.org/10.1039/d5cc05951h.
