Controllable growth of two dimensional stereoscopic PtTe₂ nanosheets for efficient electrocatalytic hydrogen evolution

Abstract

Among the transition metal dichalcogenide family, two-dimensional (2D) PtTe₂ has emerged as a promising electrocatalyst for the hydrogen evolution reaction (HER), due to its high edge catalytic activity, excellent conductivity and chemical stability, etc. However, the active sites of 2D PtTe₂ synthesized on conventional planar insulating substrates are limited to the edges, and the traditional synthetic method is not compatible with low-cost batch production. Herein, we report the large-area uniform growth of stereoscopic PtTe₂ nanosheets on highly conductive, carbon cloth substrates featuring abundant active sites and tunable thicknesses (from ∼3.0 nm to bulk state), via a facile chemical vapor deposition route. We find that the stereoscopic structure of PtTe₂ on the carbon fiber surface can facilitate efficient electron transport from the conductive carbon cloth to the active edge sites of the PtTe₂ nanosheets along the in-plane direction. And the catalytic activity can be significantly improved by increasing the average nanosheet thickness from ∼3.0 to 7.5 nm, leading to an ultra-low overpotential of ∼38.8 mV at the current density of 10 mA cm⁻² and a rather low Tafel slope of ∼59.2 mV dec⁻¹. Hereby, this work is expected to deepen our understanding of the thickness-dependent catalytic activity of 2D layered materials, and stimulate further structure design and synthesis explorations of 2D catalysts on 3D templates for highly efficient water splitting related applications.

---

Among the huge transition metal dichalcogenide (TMDC) family, two-dimensional (2D) PtTe₂ has drawn tremendous attention, due to its unique properties (e.g., type-II Dirac fermion,¹ excellent conductivity² and robust air stability³), and various applications in electrocatalysis,⁴ terahertz emission, mid-infrared photodetection,³etc. As electrocatalysts in the hydrogen evolution reaction (HER), 2D PtTe₂ nanosheets exhibit high edge catalytic activities, due to the ultra-low hydrogen adsorption Gibbs free energy (∼0.09 eV by theoretical calculations).⁵ Intriguingly, distinguished from common TMDCs (e.g., MoS₂⁶ and ReS₂) with fewer d-electrons, the d orbitals of group-10 metal atoms were nearly fully occupied, and the p_z orbitals of interlayer chalcogen atoms of related TMDCs were highly hybridized. This resulted in strong interlayer interactions, and strong thickness-dependent electronic structures/properties.⁷ The catalytic activity of group-10 metal related TMDCs should hereby correlate with their thicknesses and edge sites, since thicker flakes expose more catalytically active sites and exhibit tunable band gaps (even to zero). For example, PtSe₂ displays an exceptional bandgap transition (from ∼1.28 to 0.23, and 0 eV) from monolayer to trilayer and bulk state,⁸ enhanced conductivity from bilayer (∼4 × 10² S m⁻¹) to twenty layers (∼2 × 10⁵ S m⁻¹),⁹ and relatively high catalytic activities.⁹

Similarly, 2D PtTe₂ also displayed a semiconducting-to-metallic transition (bandgap ∼0.5–0 eV) from monolayer to bilayer.¹⁰ It crossed from a 2D metal to a three-dimensional (3D) type-II Dirac semimetal with increasing thicknesses from 2–3 to 4–6 layers, for molecular beam epitaxy (MBE) derived PtTe₂ films.¹¹ Besides affecting the electronic structure, the thickness of PtTe₂ also determines the loading amount of Pt, which makes identifying an optimal PtTe₂ nanosheet thickness crucial for maximizing the HER activity while reducing the noble metal usage. In addition, theoretical predictions revealed that the catalytically active sites of intrinsic 2D PtTe₂ for the HER were situated on the edges, while its basal plane was inert.¹² So far, PtTe₂ islands,¹⁰ nanosheets² and thin films³ have been achieved on 2D planar substrates (e.g., 6H-SiC(0001), mica and SiO₂/Si) by MBE, CVD or thermal-assisted conversion routes.¹³

Compared with 2D planar nanosheets, catalysts with stereoscopic structures (e.g., CoS₂ microwires or nanowire arrays and vertically-oriented MoS₂, TaS₂,¹⁴ NbS₂¹⁵ and PtSe₂¹⁶ nanosheets) can expose more edge sites, facilitate the depinning and releasing of H₂ bubbles from the catalyst surfaces, and improve the overall HER performance. In addition, the stereoscopic structures can enable efficient electron transport from conductive substrates to the active edge sites of TMDCs along the in-plane direction, which can avoid the interlayer potential barrier effect.¹⁴ Motivated by these results, we have designed a facile atmospheric-pressure CVD (APCVD) route to achieve the direct synthesis of stereoscopic PtTe₂ nanosheets with tunable thicknesses on low-cost, scalable, highly conductive carbon cloth (CC) substrates. Carbon fibers with highly curved surfaces were selected to induce high density nucleation, and the stereoscopic growth of 2D PtTe₂ nanosheets. A metal-precursor pre-coating strategy was developed to guarantee the uniform, controllable supply of metal precursor, thus enabling the uniform growth of stereoscopic PtTe₂ nanosheets, in line with the recent batch production of 2D materials. The achieved 3D hybrids were selected as perfect candidates to explore the thickness-dependent electrocatalytic properties in the HER. Overall, this work is envisioned to propel spatial structural design and performance improvement in PtTe₂-based catalysts.

The APCVD growth of 3D vertically-oriented 1T-TaS₂¹⁴ and 1T-PtSe₂¹⁶ nanosheets was realized by our group, by using nanoporous gold (NPG) as a substrate (Fig. S1, Fig. S2, SI). Herein, commercial carbon cloth (CC) is selected as the substrate for the growth of stereoscopic PtTe₂ nanosheets (Fig. 1a), since commercial CC is woven from carbon fibers (Fig. 1b), showing good conductivity, excellent thermal/chemical stability and low-cost, etc. Moreover, the 3D curved surfaces (Fig. 1c) can provide large surface areas, enabling stereoscopic nucleation and growth of PtTe₂ nanosheets (Fig. 1c and d). The uniform feeding of the metal precursor is also a key step, which was realized by dripping well-optimized PtCl₂/HCl solution onto the CC substrate followed by a drying process (Fig. 1e).

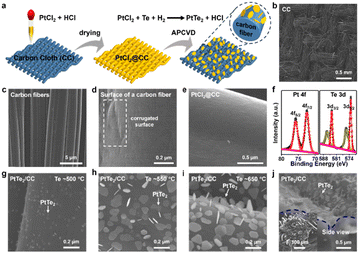

Fig. 1 APCVD growth of stereoscopic PtTe₂ nanosheets on the highly corrugated surfaces of carbon cloths (CCs) inner weaved by carbon fibers. (a) Schematic illustration of the synthesis strategy for stereoscopic PtTe₂ nanosheets on CC, by combining a facile metal precursor pre-coating strategy with a subsequent APCVD process. (b) Large-scale SEM image of the CC substrate. (c) SEM image of carbon fiber bunches. (d) SEM image of the corrugated carbon fiber surface. (e) SEM image of carbon fibers after being pre-coated with the PtCl₂ precursor (loading mass: ∼0.8 mg cm⁻²). (f) XPS spectra regarding Pt and Te elements for the as-grown samples (Te precursor at ∼650 °C and PtCl₂ loading mass of ∼0.8 mg cm⁻²). (g)–(i) Representative SEM images of as-grown PtTe₂ nanosheets on carbon fibers (PtCl₂ loading mass of ∼0.8 mg cm⁻²) at different Te precursor temperatures of ∼500 °C (c), 550 °C (d), and 650 °C (e), respectively. (j) Side-view SEM image of the as-grown PtTe₂ nanosheets on carbon fibers revealing their stereoscopic structures. Inset: Corresponding SEM image of the cut CC substrate with the blue curve indicating the cut edge.

A facile APCVD route was then executed, by using Te powder as the precursor (Fig. S3, SI). After APCVD growth (Te precursor at ∼650 °C), the chemical composition of the as-grown samples was first determined by X-ray photoelectron spectroscopy (XPS) (Fig. 1f). The Pt 4f_7/2 and 4f_5/2 peaks occur at binding energies of ∼72.5 and ∼75.8 eV, while the Te 3d_5/2 and 3d_3/2 peaks appear at ∼573.2 and ∼583.6 eV, respectively. These results agree well with the reported XPS spectra of mechanically exfoliated 1T-PtTe₂ flakes, confirming the successful synthesis of 1T-PtTe₂. Notably, the other two peaks at ∼575.6 and 586.0 eV are assigned to Te–O bonds (Fig. S4, SI), possibly due to the formation of TeO₂ and its sub-oxide form (TeO_2−x).³

The volatilization temperature of the Te precursor was found to be an essential parameter for modulating the growth morphology of PtTe₂. The PtCl₂@CC with the PtCl₂ loading mass of ∼0.8 mg cm⁻² was first selected, under the same growth temperature of ∼700 °C for ∼15 min, but with different volatilization temperatures of Te. By gradually increasing the temperature of Te from ∼500 °C, to ∼550 °C, to ∼600 °C, sparsely distributed PtTe₂ nanosheets (∼30 nm in edge size) (Fig. 1g), high density irregular shaped flakes (∼100 nm) (Fig. 1h), and regular shaped flakes (truncated triangles or hexagons) were obtained on the carbon fibers (Fig. S5, SI), respectively. At ∼650 °C, the PtTe₂ nanosheets showed increased thickness to ∼150 nm, and uniform truncated triangular or hexagonal shapes (Fig. 1i). In addition, the contrasts of the PtTe₂ nanosheets gradually deepened with increasing Te temperature, indicating the increased nanosheet thicknesses, as similarly reported for the growth of few-layer WS₂ flakes.

According to the representative side-view SEM image, the PtTe₂ nanosheets were vertically or inclinedly grown on the highly curved surfaces of the carbon fibers, showing stereoscopic structures (Fig. 1j) (Fig. S6, SI). This growth behaviour is similar to the CVD growth of HfS₂ on SiO₂/Si¹⁷ or VSe₂ on sapphire. The growth of PtTe₂ should follow the dangling-bond-assisted self-seeding growth mechanism. Altogether, under the uniform supply of metal precursor, an optimal Te precursor temperature (i.e., ∼650 °C) is crucial for achieving large-area uniform, stereoscopic PtTe₂ nanosheets with regular shapes on carbon fibers.

At the optimal Te temperature (∼650 °C), the morphologies of PtTe₂ are investigated with varying loading mass of PtCl₂ precursor (from ∼0.2 to 2.0 mg cm⁻²). Notably, the PtTe₂ nanosheets present hardly changed flake sizes (Fig. 2a–c, ∼150 nm), showing the unique stereoscopic configurations with truncated triangular or hexagonal shapes. Notably, similar nucleation densities (∼35 nanosheets μm⁻²) and large-scale uniform morphologies can be achieved (Fig. S6–S9, SI), possibly due to the uniform supply of metal precursor via the designed metal precursor pre-coating strategy. As reported previously, the in-plane (E_g) and out-of-plane (A_1g) modes of 2D PtTe₂ redshift with increasing thicknesses.² Herein, a series of Raman spectra were collected to extract the E_g peak positions (Fig. 2d-h) and average thickness of the PtTe₂ flakes. With increasing PtCl₂ loading amounts from ∼0.2 to 0.4, 0.8, and 2.0 mg cm⁻², the E_g peaks redshift from ∼117.7–114.2 cm⁻¹ to 114.6–112.9, 112.6–111.6, and 110.5–110.2 cm⁻¹, corresponding to average thicknesses of ∼3.0, 5.0, 7.5, and ≥12 nm, respectively (Fig. 2d–g).

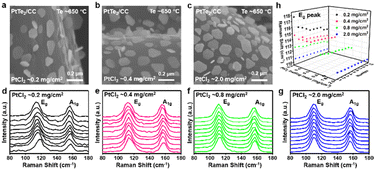

Fig. 2 Thickness-controllable growth and Raman characteristics of stereoscopic PtTe₂ nanosheets on carbon fibers (achieved by adjusting the loading mass of PtCl₂ precursor). (a)–(c) Representative SEM images of as-grown PtTe₂ nanosheets (with Te precursor hold at ∼650 °C) under different PtCl₂ loading masses of ∼0.2 (a), 0.4 (b), and 2.0 mg cm⁻² (c), respectively. (d)–(g) Raman spectra captured from as-grown PtTe₂ nanosheets with different PtCl₂ loading masses of ∼0.2 (d), 0.4 (e), 0.8 (f) and 2.0 mg cm⁻² (g), respectively. (h) Corresponding statistical distribution of the E_g peak positions extracted from (d)–(g), showing a continuous redshift with increasing PtCl₂ loading, and average thickness evolution from ∼3.0 to ≥12 nm.

In summary, by adjusting the PtCl₂ precursor amount, thickness-controlled growth of large-area uniform, stereoscopic PtTe₂ nanosheets can be achieved on CC substrates. When directly used as electrocatalysts in the HER, electron transport from the carbon fibers to the active edge sites can be realized through in-plane rather than from out-of-plane directions (needs to overcome the interlayer potential barrier). This enables 2D stereoscopic PtTe₂ nanosheets as perfect platforms in electrocatalytic related explorations.

High-resolution transmission electron microscopy (HR-TEM) and energy-dispersive X-ray spectroscopy (EDS) characterizations were then performed to examine the crystal quality and chemical composition of the CVD-derived PtTe₂ nanosheets. As shown in Fig. 3a, PtTe₂ nanosheets are distinguished in the low-magnification TEM image, presenting truncated triangular or hexagonal shapes. The stacked form arises from aggregation of nanosheets from the transfer process, due to the van der Waals interlayer interaction. The selected-area electron diffraction (SAED) pattern (Fig. 3b) presents a single set of diffraction spots with six-fold symmetry, suggesting the hexagonal crystal structure. Moreover, the HR-TEM image of the PtTe₂ nanosheets (Fig. 3c, d and Fig. S10 in SI) demonstrates a perfect lattice with a spacing of ∼0.201 nm, consistent with the lattice spacing of the (110) plane of the 1T-PtTe₂ flakes.² Additional EDS mapping images confirm the large area uniform element ratio of Pt/Te ∼1 : 1.94 (Fig. 3e–h). Overall, the CVD-derived stereoscopic PtTe₂ nanosheets possess a 1T-phase structure and high crystal quality.

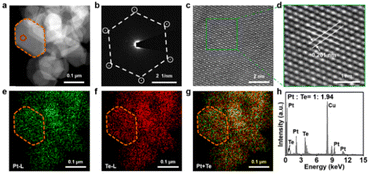

Fig. 3 Representative TEM and EDS characterizations of the PtTe₂ nanosheets after being transferred onto the Cu grid, showing the rather high crystal quality. (a) Low-magnification TEM image of the PtTe₂ nanosheets. (b) Corresponding SAED pattern captured from the red circle region in (a), indicating the single-crystal nature of the hexagonal-shaped PtTe₂ nanosheets. (c) Corresponding HR-TEM image (captured from the orange circle in (a)). (d) Zoomed-in HR-TEM image of the green square in (c), showing a lattice spacing of ∼0.201 nm. (e)–(g) Corresponding EDS elemental mapping images regarding Pt and Te elements, and the mixture of Pt and Te captured from (a). (h) Corresponding EDS spectrum of the selected area in (e).

Furthermore, the as-grown stereoscopic PtTe₂ nanosheets on CC substrates with different thicknesses are directly used for the electrocatalytic HER (schematic image in Fig. 4a). The polarization curves of the stereoscopic PtTe₂ nanosheets are displayed in Fig. 4b, with average thicknesses varying from ∼3.0 nm (PtCl₂ ∼0.2 mg cm⁻²), 5.0 nm (PtCl₂ ∼0.4 mg cm⁻²), and 7.5 nm (PtCl₂ ∼0.8 mg cm⁻²) to the bulk state (≥12 nm) (PtCl₂ ∼2.0 mg cm⁻²). Notably, the overpotentials at the current density of 10 mA cm⁻² (η₁₀) significantly decrease from ∼65.6 to 48.5 to 38.8 mV (from ∼3.0 nm to 5.0 nm to 7.5 nm), and the Tafel slopes (extracted from the linear portions of the polarization curves) decrease accordingly from ∼95.8 to 76.3 to 59.2 mV dec⁻¹ (Fig. 4c). The exchange current density (J₀) (calculated by extrapolating the Tafel plot) (Fig. 4c) increases from ∼2.0 to 2.17 to 2.29 mA cm⁻², possibly due to the increased active sites for the HER with increasing thicknesses. As a result, the catalytic activity of the stereoscopic PtTe₂ nanosheets can be enhanced with increasing the PtTe₂ thicknesses in a suitable range. Further electrochemical impedance spectroscopy (EIS) measurements were also performed to show the electrode kinetics (Fig. 4d), and the charge transfer resistances (R_ct) vary from ∼0.46 to 0.38 to 0.18 Ω, accordingly. This indicates the faster electron transfer of the stereoscopic PtTe₂ on CC during the HER process.

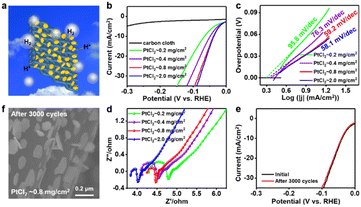

Fig. 4 Thickness-dependent catalytic activity of stereoscopic PtTe₂ nanosheets on CC substrates. (a) Schematic illustration of the HER process. (b) Polarization curves of stereoscopic PtTe₂ nanosheets with different thicknesses from ∼3.0 nm (PtCl₂ ∼0.2 mg cm⁻²), to ∼5.0 nm (PtCl₂ ∼0.4 mg cm⁻²), ∼7.5 nm (PtCl₂ ∼0.8 mg cm⁻²) and bulk (≥12 nm) (PtCl₂ ∼2.0 mg cm⁻²), with the bare CC substrate as a reference. The η₁₀ values are ∼65.6, 48.5, 38.8 and 37.5 mV, respectively. (c) Corresponding Tafel plots of different samples in (b) showing Tafel slope values of ∼95.8, 76.3, 59.2 and 58.1 mV dec⁻¹, respectively. (d) EIS Nyquist plots of different samples in (b). (e) Polarization curves of stereoscopic PtTe₂ nanosheets (PtCl₂ ∼0.8 mg cm⁻², 7.5 nm thick) before and after 3000 cycles of CV tests. The overlapping curves confirm the robust stability of the catalyst. (f) SEM image of the stereoscopic PtTe₂ nanosheets (∼7.5 nm thick) on a CC substrate after CV tests.

However, with increasing the thickness from ∼7.5 nm to bulk (≥12 nm), the η₁₀, Tafel slope, J₀ and R_ct values change a little from ∼38.8 to 37.5 mV, from ∼59.2 to 58.1 mV dec⁻¹, from ∼2.29 to 2.32 mA cm⁻², and from ∼0.18 to 0.16 Ω (Fig. 4b–d), respectively. This nearly stable catalytic property is possibly due to the limited exposure of active edge sites in thicker nanosheets (>7.5 nm). Additionally, the long-term stability of the stereoscopic PtTe₂ nanosheets is further evaluated by cyclic voltammetry (CV), which shows a negligible difference before and after 3000 cycles (Fig. 4e). And the PtTe₂ nanosheets maintain the initial morphology after the HER tests (Fig. 4f). A comparison of the HER performances of various TMDC-based catalysts is also performed (Table S1, SI). The stereoscopic 2D PtTe₂ nanosheets (∼7.5 nm thick) exhibit superior catalytic properties to many reported 2D TMDC-related catalysts, and comparable to noble-metal-based electrocatalysts. As a result, the developed 2D stereoscopic PtTe₂ nanosheets on CC substrate systems can present relatively high electrocatalytic activity, low noble metal usage, excellent durability, facile production process, etc.

In summary, we have developed a facile APCVD route for the controllable growth of large-area uniform, thickness tunable stereoscopic PtTe₂ nanosheets on CC substrates. The thickness-dependent catalytic activity is unveiled to find ultrathin nanosheets with relatively high catalytic properties, while possessing low noble metal use amount. Notably, nanometer-thick, stereoscopic 3D PtTe₂ nanosheets can exhibit superior catalytic properties to many 2D TMDC catalysts, and comparable properties to noble-metal-based catalysts, showing the advantages of relatively high electrocatalytic activity, low noble metal usage, excellent durability, and facile production process, etc. Briefly, this catalytic system can serve as a practical model for examining the thickness-dependent catalytic activity, the internal mechanism and the property modulation of group-10 metal-related TMDCs. This work should promote the direct synthesis and application exploration of related catalysts in various energy related fields.
