Metal-dependant structural families of aminomethylphosphonic acid assemblies differentiated by ion mobility mass spectrometry and density functional theory

Abstract

Herein the morphology of aminomethylphosphonic acid (AMPA)–metal aggregates are analysed by ion mobility-mass spectrometry, DFT and IRMPD spectroscopy. Matching experimental collision cross section to the DFT predicted minima allowed unambiguous assignment of [M(AMPA)(AMPA-H)]⁺ where M = Mg²⁺, Ca²⁺, and Mn²⁺. Two distinct structural families of [M(AMPA)(AMPA-H)]⁺ where M = Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺, Mn²⁺, Cu²⁺, and Zn²⁺ were differentiated by ion mobility mass spectrometry. Groupings of experimental collision cross sections were observed for a square pyramidal geometry, (M = Ca²⁺, Sr²⁺, Ba²⁺) versus a seesaw geometry (M = Mg²⁺, Mn²⁺, Cu²⁺, and Zn²⁺), paving the way for distinction of aggregates at the earliest stages of assembly.

---

Aminomethylphosphonic acid (AMPA, Scheme 1, 1) is one of the main metabolites of glyphosate.¹ Structurally, AMPA is an α-aminophosphonic acid and is an analogue of the simple α-amino acid, glycine (Scheme 1, 2).² Due to both its environmental abundance (sourced from break down of glyphosate, and from phosphonate based detergents) and environmental persistence (much longer relative persistence than glyphosate),^3–7 AMPA aggregation is of significant interest. The interplay between environmental and aggregation effects may play a critical role related to health and biology. For example, AMPA: has potential as a wastewater-borne marker of disease;⁸ may hamper the biotransformation potential of glyphosate;⁹ in rural waterways can change the microbial communities;¹⁰ exposure may influence glucose metabolism;¹¹ and has been found in brain tissue of glyphosate exposed mice and may contribute to neurodegeneration.¹²

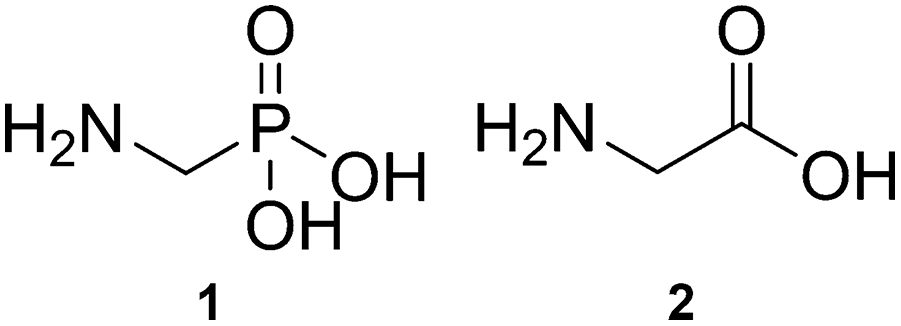

Scheme 1 Structures of aminomethylphosphonic acid (AMPA) (1) and glycine (2).

In the environment, AMPA can sequester divalent metals, favouring Cu²⁺ > Zn²⁺ > Mg²⁺ > Ca²⁺.¹³ Synthetically, AMPA can be incorporated in metal coordination polymers, for example, the reaction between AMPA and the metal salts of Zn, Cd, Hg, Pb, Ag, Cu and Co has generated metal–phosphonate polymers (including a bimetallic metal–organic framework with Cu and Ag).^14,15 Dimers have also been synthesised from the divalent metals copper(II),¹⁶ zinc(II),¹⁷ and magnesium(II).¹⁸ Beyond herbicides and detergents, materials applications of AMPA are growing, for example, as an additive in photovoltaic solar cells.¹⁹ For synthetic and materials purposes, understanding the structural “family” of the initially formed clusters in the gas phase is a potentially convenient approach to structurally predicting the bulk compound or material.^20,21 Structural screening approaches using ion mobility mass spectrometry could significantly speed up the discovery process, especially by avoiding the need to first crystallise synthetic targets.^20,21

Gas phase studies also reveal unimolecular behaviours, for example AMPA anion decomposes via the P–C bond;^22–24 and coordination preferences, for example divalent metals coordinate to phosphonate oxygen to form monomeric [M(AMPA-H)]⁺.²⁵ Following the in depth gas phase analysis of [M(glyphosate)(glyphosate-H)]⁺ dimers, which remarkably revealed a common structural motif both between various divalent metals and between the gas phase and condensed phases,²⁶ herein, the gas phase structural comparison of [M(AMPA)(AMPA-H)]⁺ dimers with divalent metal cations (M = Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺, Mn²⁺, Cu²⁺, and Zn²⁺) using cross-platform ion mobility mass spectrometry (IM-MS), combined with a robust CREST-CENSO approach to the isomeric search,^27–30 is carried out for insight into the structural families. While not always directly comparable to the condensed phase, gas phase structures nonetheless provide fundamental insight into aggregation processes.

ESI-IM-MS of [M(AMPA)(AMPA-H)]⁺Dimers: Equimolar mixtures of AMPA and metal salts were analysed using electrospray ionisation (ESI) IM-MS (SI Pages S3–S5). As discussed previously,²⁵ the full-scan ESI-IM-MS of AMPA and metal salts reveals formation of monomeric [M(AMPA-H)]⁺, dimeric [M(AMPA)(AMPA-H)]⁺, along with larger and higher order species (e.g. doubly charged). The most abundant peak in the full scan mass spectrum of all metals examined here corresponds to dimeric [M(AMPA)(AMPA-H)]⁺, with relative intensities typically more than double of the [M(AMPA-H)]⁺ ions, indicating favourable formation of the dimers.²⁵

The mass-selected IM-MS arrival time distributions (ATD) of [M(AMPA)(AMPA-H)]⁺ reveal a dominant peak for all metals (Table 1, and SI, Fig. S1–S4) on both cyclic IM (cIMS) and travelling wave IM (TWIMS) platforms. Less intense secondary peaks are observed for all species except M = Ba²⁺. These additional peaks are significantly less intense and are assigned as fragments of higher order clusters for cIMS, and as contaminants for TWIMS (SI Page S9 and S10).

Table 1 [M(AMPA)(AMPA-H)]⁺ experimental collision cross sections (^ExpCCS_N2, Ų). Errors are ±0.3 Ų, (standard deviation of the measurement acquired in triplicate). The % diff. compares the ^ExpCCS_N2 of the cIMS and TWIMS for the dominant species

	Mg^2+	Ca^2+	Sr^2+	Ba^2+	Mn^2+	Cu^2+	Zn^2+
a Shouldering peak.
m/z	245	261	309	359	276	284	285
cIMS	151.8	154.1	152.9	153.0	150.7	143.6	147.4
						(146.9)^a
TWIMS	152.7	156.3	156.6	156.9	151.8	150.2	149.8
% Diff.	0.4	0.9	1.6	1.7	0.5	3.0	1.1

---

Experimental CCS, denoted ^ExpCCS_N2, for TWIMS and cIMS were derived by calibration,^31,32 and are in excellent agreement, a <2% difference for all metals except for M = Cu²⁺ (% diff of 3%, Table 1). [Cu(AMPA)(AMPA-H)]⁺ by cIMS has a shouldering peak (SI, Fig. S2b); this additional separation compared to TWIMS (c.f. SI Fig. S4b) may contribute to the inter-platform discrepancy. Consistently TWIMS has a larger ^ExpCCS_N2 than cIMS, which we attribute to differences in background molecules interacting with the analytes.^33,34 The range of measured CCS is 143.6–156.9 Ų, with some structural trends apparent (Fig. 1).

Fig. 1 Comparison of [M(AMPA)(AMPA-H)]^{+ Exp}CCS_N2, ^CalcCCS_N2 and (a) cationic radius of M or (b) the reduced mass term μ^−0.5 of the complex. Error bars represent the standard deviation of the CCS in triplicate (±0.1–0.3 Ų).

Structural trends of measured collision cross section (^ExpCCS_N2): It is interesting that the ^ExpCCS_N2 values for [M(AMPA)(AMPA-H)]⁺ when complexing with Ca²⁺, Sr²⁺ and Ba²⁺ are all essentially the same at ∼156 Ų, despite the significantly larger cationic radius and mass of Sr²⁺ and Ba²⁺ compared to Ca²⁺ (Table 1 and Fig. 1). The trend suggests that there is a lack of direct correlation between the metal radius and the size of the complex. It is suspected that other structural features, such as the orientation of the AMPA molecules, are the determining factor in their overall size.

Comparing the reduced mass term, μ^−0.5 (where μ is the reduced mass for each [M(AMPA)(AMPA-H)]⁺ in N₂ drift gas), or the cationic radius of the incorporated metal, M, to the measured CCS allows the origin of IM measured size differences to be explored. According to the low-field mobility limit (Mason-Schamp) eqn (1), the CCS should be proportional to the μ^−0.5 if the CCS difference is due to mass.³⁵ Likewise, size differences stemming from cationic radius of the metal will correlate with a periodic increase in radius.

The ^ExpCCS_N2 for [M(AMPA)(AMPA-H)]⁺ complexes do not proportionally increase as the metal cationic radius increases (Fig. 1a). Similarly, the μ^−0.5 values, do not directly correlate to the ^ExpCCS_N2 values (Fig. 1b). The trend for ^ExpCCS_N2 for [M(AMPA)(AMPA-H)]⁺ is thus neither simply proportional to the cationic radius of the metal, nor the reduced mass term μ^−0.5; other factors govern the size differences.

For transition metals (M = Mn²⁺, Cu²⁺ and Zn²⁺), the ^ExpCCS_N2 is clustered in the range 144–151 Ų. The Cu²⁺ and Zn²⁺ complexes are particularly close in size. For M = Mn²⁺ the ^ExpCCS_N2 values are always slightly larger than for Cu²⁺ and Zn²⁺ complexes, despite the smaller mass of Mn. M = Mg also falls within this transition metal size range. For M = Mg²⁺versus Mn²⁺, the difference in the ^ExpCCS_N2 values observed is only ∼1 Ų despite the difference in cationic radius of Mg²⁺ and Mn²⁺ being 0.12 Ų. Thus, there are two ^ExpCCS_N2 “clusters”; one for M = Mg²⁺, Mn²⁺, Cu²⁺ and Zn²⁺, and the other for the larger M = Ca²⁺, Sr²⁺ and Ba²⁺ suggesting the structural variation is not dependent on cation radius or mass, but rather the overall bonding and arrangement of atoms.

Predicted [M(AMPA)(AMPA-H)]⁺structures: For each [M(AMPA)(AMPA-H)]⁺ complex, the gas-phase structural optimisation and isomer search yielded a global minimum structure. For these structures, the metal cation coordinates to a deprotonated phosphonate oxygen, and is positioned centrally, consistent with phosphonate binding modes observed by X-ray crystallography for dimers of M = Cu²⁺, Zn²⁺ and Mg²⁺.^16–18 In the gas phase the neutral AMPA molecule coordinates to maximise the interaction between the cation, the amine group and the phosphoryl oxygen (Fig. 2). Overall, two geometries were observed for the optimised [M(AMPA)(AMPA-H)]⁺ complexes. For complexes with metals where the metal cationic radius is less than 1 Ų (M = Mg²⁺, Cu²⁺, Zn²⁺ and Mn²⁺), the [M(AMPA)(AMPA-H)]⁺ complexes adopt a see-saw geometry (Fig. 2a–d). On the other hand, when the metal cationic radius is equal to or greater than 1 Ų (M = Ca²⁺, Sr²⁺ and Ba²⁺), the complex adopts a square pyramidal like geometry (Fig. 2e–g).

Fig. 2 Global minimum structures (UM06/Def2TZVP) of [M(AMPA)(AMPA-H)]⁺, M = (a) Mg, (b) Cu, (c) Zn, and (d) Mn, in seesaw (orange); M = (e) Ca, (f) Sr, and (g) Ba in square pyramidal (blue).

Attempts to optimise the “alternate” metal coordination geometry for each dimer resulted to reversion to preferred geometry. Additionally, all low-lying structures also possessed the same geometry as the minima for each metal. Thus the two geometries are not competitive.

Structural characterisation of [M(AMPA)(AMPA-H)]⁺complexes: Experimental ^ExpCCS_N2 values were compared with trajectory method calculated values, denoted ^CalcCCS_N2, using the DFT optimised [M(AMPA)(AMPA-H)]⁺ structures (Fig. 1, red stars, see SI page S5 for CREST-CENSO and DFT method). Scaling factors were not appropriate, as the difference between ^ExpCCS_N2 and ^CalcCCS_N2 ranges between 0–7%, depending on the species (SI Pages S11–S12). While CCS is overestimated by ^CalcCCS_N2, trends are essentially reproduced, except for M = Sr²⁺ and Ba²⁺, which deviate from the flat trend experimentally observed for the heavier alkali earth metals (Fig. 1). The overestimate of ^CalcCCS_N2, may result from the non-covalent structure that determines the CCS being inadequately represented by the DFT. While ^ExpCCS_N2 and ^CalcCCS_N2 M = Ca²⁺ matches closely, for M = Sr²⁺, Ba²⁺, and also Zn²⁺, the difference between the experimental and predicted CCS values are larger than 2%, thus more experimental evidence would increase the confidence in the structural assignment of these ions. However, for M = Cu²⁺ the ^ExpCCS_N2 and ^CalcCCS_N2 difference that is larger than 2% but additional evidence from IRMPD spectroscopy lead to the confident assignment of to the predicted global minimum see saw structure (SI, Page S13). As predicted by DFT (UM06/Def2TZVP, SI, Page S5), both [Mg(AMPA)(AMPA-H)]⁺ and [Mn(AMPA)(AMPA-H)]⁺ adopt a see-saw complex geometry resulting in their very similar ^ExpCCS_N2 values.

Thus, the two size “clusters” experimentally observed within the CCS size trends connect to two structural families, those structures adopting the square pyramidal like geometry, with measured CCS in the range of 153–157 Ų (M = Ca²⁺, Sr²⁺ and Ba²⁺), and those adopting the see saw geometry, with measured CCS in the range of 144–153 Ų (M = Mg²⁺, Cu²⁺, Zn²⁺ and Mn²⁺). This helps explain that while the size of the metal determines which of the two shapes is preferred, there is no direct periodic trend resulting in a linear correlation between properties of mass or metal radii.

The gas phase structures of [Mg(AMPA)(AMPA-H)]⁺, [Ca(AMPA)(AMPA-H)]⁺ and [Mn(AMPA)(AMPA-H)]⁺ have been successfully assigned to their predicted global minimum structures from comparison of their collision cross section values without the application of a scaling factor. It was found that the metal cation coordinates to the deprotonated phosphonate group, while the neutral AMPA is positioned around the metal cation to form either a seesaw (for M = Mg²⁺ Cu²⁺, Zn²⁺ and Mn²⁺) or square pyramidal (for M = Ca²⁺ Sr²⁺ and Ba²⁺) geometry.

IM measured size trends for [M(AMPA)(AMPA-H)]⁺ complexes are mainly dictated by the overall coordination geometry and complexes that were predicted to adopt the same geometry were grouped together within a similar range of ^ExpCCS_N2 values. Thus, structural families of the dimers were effectively differentiated by IM-MS. This sets the scene for automated classification of assemblies at the earliest stages of aggregation using IM-MS.²¹

Conceptualization, writing – original draft, methodology, funding acquisition: OR and NJR; investigation: OR, HM, MN, SB, KH, AMR, and NJR; formal analysis: OR, HM, OHLW, MN, SB, KH, and NJR; visualization: OR, HM, OHLW, SB, NJR; OR and NJR; writing – review & editing: OR, HM, OHLW, MN, SB, KH, AMR, JH, and NJR resources, supervision: AMR, JH, and NJR.

We acknowledge the following funding, NJR: Australian Research Council (DE170100677); AMR: Dutch Research Council via VICI (VI.C.192.024), Aspasia (015.015.009), and KIC Key Technologies (KICH1.ST01.20.041); OR: UNSW University International Postgraduate Award, Chemistry Postgraduate Travel Award, and Development, Research and Development Grant. Access: Australian Government National Computational Infrastructure via UNSW Resource Allocation Scheme (gy60) and NCMAS (cw7); UTS Proteomics Core Facility. Thanks to Maria Pettyjohn, River Pachulicz, Tara Pukala, Boris Ucur, Shane Ellis, Matt Padula and Frank Hennrich.

Conflicts of interest

There are no conflicts to declare.

Data availability

The data supporting this article have been included as part of the supplementary information (SI). Supplementary information: methods, spectra, analysis and citations. The DFT optimised coordinates are available at: https://doi.org/10.5281/zenodo.16417310. See DOI: https://doi.org/10.1039/d5cc04906g.
