Synthesis of [60]fullerene-fused dihydroindolizines via copper-catalyzed dearomative N-heteroannulation

Abstract

A novel copper-catalyzed approach for the construction of [60]fullerene-fused dihydroindolizine derivatives has been developed through dearomative N-heteroannulation of [60]fullerene with electron-withdrawing group-substituted 2-picolines. A plausible reaction mechanism has been proposed. Additionally, a representative fullerene product can be applied in organic solar cells as the third component.

---

Over the past three decades, [60]fullerene (C₆₀) and its derivatives have been extensively utilized in materials science, biomedicine and photoelectric materials owing to their outstanding physical and chemical properties.¹ Therefore, the functionalization of fullerenes has attracted widespread attention.² Transition metal-catalyzed/promoted reactions, including those mediated by Mn(III),^3,4 Fe(II)/Fe(III),^3,5 Ag(I)⁶ and Pd(0)/Pd(II)⁷ salts, have been one of the most frequently employed and efficient strategies. Notably, copper salts with economic feasibility, ready availability and reduced toxicity have been extensively used in fullerene functionalization.⁸

On the other hand, the unique molecular structure and electronic properties of C₆₀ lead to its strong electron-deficient nature. Consequently, C₆₀ tends to undergo nucleophilic and radical additions with electron-rich compounds, whereas its reaction with electron-deficient compounds remains a significant challenge.² The Cu(I)/Cu(II) promoted/catalyzed free-radical reactions of C₆₀ with electron-deficient compounds, such as N-sulfonylated o-amino-arylmalonates^8b and α-bromoacetamides,^8c have been reported. However, these reactions require long reaction times and still result in relatively low yields. Therefore, an efficient and productive protocol that can facilitate reactions between C₆₀ and electron-deficient compounds is urgently needed.

Moreover, dearomative transformations of aromatic compounds have become a key focus in contemporary research.⁹ Extensive research in this field has concentrated on electron-rich aromatic compounds such as indoles,¹⁰ furans¹¹ and phenols.^9a However, the transformation of electron-deficient pyridine compounds remains a significant challenge.^9c,10a 2-(Pyridine-2-yl)acetates, as some of the common electron-withdrawing group-substituted 2-picolines, are versatile building blocks for constructing various heterocycles such as quinolines, bipyrimidines and indolizines.¹² In 2022, the Yan group developed a Cu-catalyzed oxidative [3+2] annulation of 2-(pyridine-2yl)acetates with maleimides to access 1H-pyrrolo[3,4-b]indolizine-1,3-diones (Scheme 1a).¹³ The dearomatization in fullerene chemistry has garnered research interest. The divergent additions of 2,2′-diazidobiphenyls to C₆₀ and Sc₃N@I_h-C₈₀ were recently reported, disclosing an unexpected cascade dearomative process to afford unprecedented azafulleroids fused with a 7-6-5-membered ring system, which represented a new dearomative mode of benzenoid structures.¹⁴ With our continuous interest in copper salt-catalyzed reactions⁷ and dearomatization transformations¹⁴ in fullerene chemistry, herein we report a copper-catalyzed reaction of C₆₀ with electron-withdrawing group-substituted 2-picolines via dearomative N-heteroannulation to provide C₆₀-fused dihydroindolizines (Scheme 1b).

Scheme 1 Cu-catalyzed reactions of electron-withdrawing group-substituted 2-picolines and (a) maleimides, (b) C₆₀.

To establish the optimal reaction conditions, ethyl 2-(5-bromopyridin-2-yl)acetate (1a) was selected as the model substrate to react with C₆₀ (Table 1). Initially, a mixture of C₆₀ (0.05 mmol), 1a (0.15 mmol), Cu(OAc)₂·H₂O (0.10 mmol) and AgNO₂ (0.10 mmol) in 1,2-dichlorobenzene (1,2-C₆H₄Cl₂, 6 mL) was heated under stirring in an oil bath at 140 °C for 1 h. To our delight, the C₆₀-fused dihydroindolizine (2a) was obtained in 5% yield (Table 1, entry 1). Replacing AgNO₂ with AgNO₃, AgOAc, AgCl or Ag₂O could increase the yield to over 20% (Table 1, entries 2–5). To our satisfaction, when Ag₂CO₃ was used, the yield of 2a was significantly enhanced to 61% (Table 1, entry 6). Different copper salts were subsequently examined. However, the reaction yield dropped remarkably when Cu(OAc)₂ or CuCl₂ was employed (Table 1, entries 7 and 8). Hydrated copper salts, including Cu(NO₃)₂·3H₂O and Cu(TFA)₂·xH₂O, were also examined, but could not give higher yields (Table 1, entries 9 and 10). Further screening of cuprous salts CuOAc and CuCl led to lower yields (Table 1, entries 11 and 12). When the reaction was performed without Cu(OAc)₂·H₂O, only a trace amount of 2a was formed (Table 1, entry 13), whereas the absence of Ag₂CO₃ resulted in a significantly reduced yield of 2a (Table 1, entry 14), indicating the importance of the copper and silver salts in this transformation. Subsequently, we investigated the impact of varying the molar equivalents of silver and copper salts in this reaction. We found that either increasing or decreasing the molar equivalents could not result in a higher yield of 2a (Table 1, entries 15–18). In addition, shortening or prolonging the reaction time and reducing or increasing the reaction temperature were also detrimental to the product yield (Table 1, entries 19–22). Moreover, when 0.3 equiv. of Cu(OAc)₂·H₂O was employed, the isolated yield remained at a respectable 41%, indicating that even a catalytic amount of the copper salt could efficiently promote the reaction (Table 1, entry 23). Based on the above results, the optimized conditions were established as follows: C₆₀ (0.05 mmol), 1a (3 equiv.), Cu(OAc)₂·H₂O (2 equiv.) and Ag₂CO₃ (2 equiv.) in 1,2-C₆H₄Cl₂ (6 mL) at 140 °C for 1 h (Table 1, entry 6).

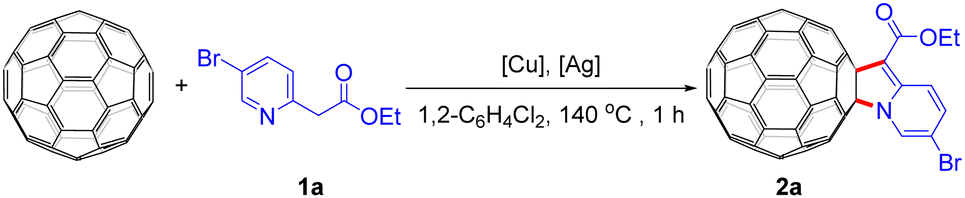

Table 1 Optimization of the reaction conditions^a

Entry	Copper salt	Silver salt	Yield^b (%)
a Unless otherwise specified, all reactions were conducted with C60 (0.05 mmol), 1a (0.15 mmol), copper salt (0.10 mmol) and silver salt (0.10 mmol) in 1,2-C6H4Cl2 (6 mL) at 140 °C for 1 h. b Isolated yields. Values in parentheses were based on consumed C60. c 0.075 mmol of copper salt. d 0.125 mmol of copper salt. e 0.075 mmol of silver salt. f 0.125 mmol of silver salt. g 0.5 h instead of 1 h. h 1.5 h instead of 1 h. i 120 °C instead of 140 °C. j 160 °C instead of 140 °C. k 0.015 mmol of Cu(OAc)2·H2O.
1	Cu(OAc)2·H2O	AgNO2	5 (12)
2	Cu(OAc)2·H2O	AgNO3	24 (34)
3	Cu(OAc)2·H2O	AgOAc	27 (69)
4	Cu(OAc)2·H2O	AgCl	28 (60)
5	Cu(OAc)2·H2O	Ag2O	23 (42)
6	Cu(OAc) 2 ·H 2 O	Ag 2 CO 3	61 (72)
7	Cu(OAc)2	Ag2CO3	31 (62)
8	CuCl2	Ag2CO3	26 (56)
9	Cu(NO3)2·3H2O	Ag2CO3	10 (19)
10	Cu(TFA)2·xH2O	Ag2CO3	41 (62)
11	CuOAc	Ag2CO3	24 (50)
12	CuCl	Ag2CO3	5 (18)
13	—	Ag2CO3	Trace
14	Cu(OAc)2·H2O	—	26 (61)
15^c	Cu(OAc)2·H2O	Ag2CO3	51 (72)
16^d	Cu(OAc)2·H2O	Ag2CO3	33 (68)
17^e	Cu(OAc)2·H2O	Ag2CO3	40 (70)
18^f	Cu(OAc)2·H2O	Ag2CO3	53 (70)
19^g	Cu(OAc)2·H2O	Ag2CO3	56 (78)
20^h	Cu(OAc)2·H2O	Ag2CO3	49 (58)
21^i	Cu(OAc)2·H2O	Ag2CO3	46 (75)
22^j	Cu(OAc)2·H2O	Ag2CO3	59 (85)
23^k	Cu(OAc)2·H2O	Ag2CO3	41 (69)

---

With the optimal reaction conditions in hand, we next explored the scope of substrates, and the results are shown in Scheme 2. Firstly, different substituent groups on the aromatic ring of 2-(pyridine-2-yl)acetates were examined in this reaction. The reactions of C₆₀ with substrates 1b–e having the electron-withdrawing chloro, fluoro, trifluoromethyl and nitro groups at the 5-position on the aromatic ring proceeded well at 140 °C (150 °C for 1d) for 1 h and were smoothly transformed into the corresponding products 2b–e in 23–50% yields. For the more reactive ethyl 2-(pyridine-2-yl)acetate (1f), the target product 2f could not be obtained under the above optimal conditions. However, when the reaction with C₆₀ was carried out at a catalytic amount (0.3 equiv.) of Cu(OAc)₂·H₂O and at a lower temperature of 25 °C for 4 h, product 2f was isolated in a high yield of 71%. Substrates 1g and 1h containing electron-donating methyl and methoxy groups on the pyridyl ring were also very reactive and able to generate products 2g and 2h in 66% and 45% yields, when the Cu-catalyzed reactions with C₆₀ were conducted at 25 °C for 4 h and 0 °C for 24 h, respectively. Secondly, 2-picolines bearing other electron-withdrawing groups at the methylene moiety were investigated. The reaction of C₆₀ with substrate 1i containing a benzyl ester at 25 °C for 4 h provided product 2i in 64% yield. The Cu-promoted reactions of C₆₀ with 2-picolines 1j, 1k and 1l bearing a cyano group instead of an ester group required a higher temperature of 140 °C for 1 h, generating products 2j, 2k and 2l in 25%, 33% and 20% yields, respectively. Substrates 1m–o having a phosphate group were also compatible with this protocol, and the Cu-promoted reactions at 140 °C for 1 h gave products 2m–o in 41–42% yields. When 2-picolines 1p and 1q bearing a sulfonyl group were employed, the Cu-promoted reactions with C₆₀ at 140 °C for 1 h could provide products 2p and 2q in 32% and 26% yields, respectively. The Cu-promoted reactions of 2-picolines 1r and 1s containing a keto group with C₆₀ also performed well at 140 °C for 1 h and afforded products 2r and 2s in 36% and 50% yields, respectively. 2-Picoline 1t bearing an amide group was very reactive, and the Cu-catalyzed reaction with C₆₀ could take place at 40 °C for 1 h to give product 2t in 48% yield.

Scheme 2 Results for the reactions of C₆₀ with electron-withdrawing group-substituted 2-picolines 1a–t. ^a Unless otherwise specified, all reactions were conducted with C₆₀ (0.05 mmol), 1 (0.15 mmol), Cu(OAc)₂·H₂O (0.10 mmol) and Ag₂CO₃ (0.10 mmol) in 1,2-C₆H₄Cl₂ (6 mL) at 140 °C for 1 h. ^bIsolated yields. Values in parentheses were based on consumed C₆₀. ^cReaction at 150 °C for 1 h. ^d0.3 equiv. of Cu(OAc)₂·H₂O was added. ^ePhCl as the solvent instead of 1,2-C₆H₄Cl₂. ^fReaction at 25 °C for 4 h. ^gReaction at 0 °C for 24 h. ^hReaction at 40 °C for 1 h.

A scale-up reaction of C₆₀ (0.5 mmol) with 1a (1.5 mmol) was conducted under the optimal reaction conditions. Product 2a was obtained in 245.1 mg (51% yield), demonstrating the practicability of the present method at a larger scale.

To better understand the reaction mechanism, control experiments were performed (Scheme 3). Under the optimal reaction conditions, the formation of product 2a was significantly inhibited by adding 1 equiv. of 2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPO), resulting in a yield of only 16%. In comparison, while 5 equiv. of TEMPO were added, 2a could not be identified. Interestingly, the radical coupling product TEMPO-1a between TEMPO and 1a could be detected by ESI-MS. Similarly, the radical coupling product BHT-1a could also be detected by ESI-MS (for details, see ESI†). These results strongly indicated that a radical process was likely involved in the present reaction.

Scheme 3 Control experiments.

Based on the above experimental results and the previous literature,^13,15 a plausible mechanism for this reaction is proposed in Scheme 4. First, electron-withdrawing group-substituted 2-picoline 1 proceeds through a single electron transfer (SET) reaction and is oxidized to form the methylenyl radical species A. Then, the intermediate A is captured by C₆₀ to produce the fullerenyl radical B. Then, the intermediate B undergoes intramolecular cyclization to generate the carbon radical C, which can then form radical D through resonance. Finally, compound 2 can be obtained through carbocation formation by oxidation followed by deprotonation.

Scheme 4 Proposed reaction mechanism.

The molecular structures of products 2a–t were characterized by HRMS, ¹H NMR, ¹³C NMR, FT-IR and UV-vis spectra, and 2f was further identified by single-crystal X-ray crystallography. All HRMS of these products presented the correct [M]⁺ or [M] ⁻ peaks. Their ¹H NMR spectra displayed the expected chemical shifts for all protons. The ¹³C NMR spectra of the products showed no more than 30 peaks in the range of 132.6–150.8 ppm for the 58 sp²-carbons of the C₆₀ cage and two peaks in the 69.82–87.41 ppm range for the two sp³-carbons of the C₆₀ skeleton, consistent with the C_s symmetry of their molecular structures. The UV-vis spectra of 2a–t displayed characteristic peaks at around 315 nm and 430 nm, which are diagnostic absorptions for 1,2-adducts of C₆₀.⁸

In addition, the half-wave reduction potentials and energy levels of C₆₀-fused dihydroindolizines 2a–t and C₆₀ were investigated by cyclic voltammetry (CV) and differential pulse voltammetry (DPV) and are summarized in Table S2 (see ESI†). All of their electrochemical properties were quite similar and showed no more than three reversible redox processes.

Given that fullerene derivatives have been applied in organic solar cells (OSCs) as the third component,^5c,14,16 preliminary results showed that 2d could be employed in OSCs with the architectures of ITO/PEDOT:PSS/D18-Cl:N3:2d (1:1.4:0.2)/PDIN/Ag (Fig. 1). The selection of 2d was based on its higher solubility and the beneficial effects of the fluoro atoms.¹⁷ The device with 2d as the third component showed an improved power conversion efficiency (PCE) of 17.48% with a short circuit current density (J_SC) of 27.14 mA cm⁻², an open-circuit voltage (V_OC) of 0.87 V and a fill factor (FF) of 74.13%. The control device without a fullerene additive showed a lower PCE of 17.11% with a J_SC of 26.65 mA cm⁻², a V_OC of 0.87 V and an FF of 73.91%. Additionally, the external quantum efficiency (EQE) in the 300–1000 nm range was measured. The J_SC values were in good agreement with the values achieved from the J–V measurements within a 5% mismatch (25.61 and 26.48 mA cm⁻²) (for details, see ESI†). These results revealed that the C₆₀-fused dihydroindolizine 2d was a beneficial third-component material in the active layer of OSCs.

Fig. 1 (a) Schematic illustration of the OSC structure used in this work. (b) J–V curves of D18-Cl:N3 (blue line) and D18-Cl:N3:2d (red line)-based OSCs.

In summary, the copper-catalyzed dearomative N-heteroannulation reaction of C₆₀ with electron-withdrawing group-substituted 2-picolines has been successfully developed for the synthesis of C₆₀-fused dihydroindolizines. This method possesses the merits of a high yield of up to 71% and a broad substrate scope compatible with different electron-withdrawing groups. A plausible mechanism for the construction of C₆₀-fused dihydroindolizines has been proposed based on control experiments. The representative product 2d has also been utilized as the third component in OSCs and has shown an improved performance.

We are grateful for financial support from the National Natural Science Foundation of China (22071231) and the Postdoctoral Fellowship Program of CPSF (GZC20240009).

Data availability

The data supporting the findings of this study are available in the ESI† of this article.

Conflicts of interest

There are no conflicts to declare.
