Liquid-crystalline nanostructured membranes for CO2 separation

Takashi Kato *ab, Kazushi Imamura c, Takeshi Sakamoto a and Yu Hoshino *c
aDepartment of Chemistry and Biotechnology, School of Engineering, The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-8656, Japan. E-mail: kato@chiral.t.u-tokyo.ac.jp
bInstitute for Aqua Regeneration, Shinshu University, 4-17-1 Wakasato, Nagano 380-8553, Japan
cDepartment of Applied Chemistry, Kyushu University, 744 Motooka, Nishi-ku, Fukuoka 819-0395, Japan. E-mail: hoshino.yu.673@m.kyushu-u.ac.jp

Received 27th December 2024 , Accepted 5th February 2025

First published on 6th February 2025


Abstract

We report herein that self-organized subnanoporous membranes prepared from ionic liquid-crystalline (LC) compounds exhibit CO2 separation properties (αCO2/N2 ≈ 60) in humid conditions. A bicontinuous cubic (Cubbi) LC film shows N2 barrier properties, whereas the CO2 permeability is kept as permeable.


The development of CO2 separation membranes1–3 that allow rapid and selective CO2 permeation is critical for rebalancing the global carbon cycle.4 Membranes fabricated from polymers,5–8 graphene oxide,9 metal–organic frameworks,10 zeolites,11 organic/inorganic interpenetrating networks,12 and liquid water13 have been prepared for CO2 gas separation. To achieve optimal performance, defect-free ultrathin separation membranes enabling fast sorption, diffusion, and desorption of CO2 need to be designed, while minimizing the sorption of competing gases.

Thin films derived from polyamine-based hydrogel particles14–16 and gel membranes of ionic liquids17–19 were also examined for CO2 separation. Since the humidity of gas strongly affects its permeability through polymer membranes,7,14–20 gas permeation behaviors under various humid conditions were examined. Poly(ionic liquid) membranes have been shown to be useful for CO2 separation.17 These materials contain ionic groups such as ammonium, imidazolium, and phosphonium moieties. However, these membranes form basically amorphous states.17–19 We expected that the self-organized structures of ionic subnanoporous membranes21–25 in humid conditions may enhance the gas separation properties. These structures are fixed by in situ polymerization of ionic liquid-crystalline (LC) compounds in the ordered state.

Our intention was to develop self-organized ionic LC membranes21–29 for CO2 gas separation. Several examples were reported as LC gas separation membranes.30–32 Bara et al. reported CO2 permeation through the membrane prepared from a lyotropic columnar LC monomer having a carboxylic acid moiety.30 The membrane with an ordered cylinder structure showed higher CO2 separation properties (αCO2/N2 ≈ 27) compared to the non-ordered membrane prepared from the isotropic phase (αCO2/N2 ≈ 21). It was assumed that interactions between CO2 and the carboxylate groups of the ordered membrane with the aquatic environment of the pores caused higher CO2 solubility and gas separation. Kloos et al. described gas separation using a smectic polymer membrane prepared from rod-shaped monomers having a crown ether moiety.31 The membranes preserving more ordered smectic structures showed CO2/N2 separation properties whereas membranes having disordered structures did not exhibit the gas separation.31 Jones et al. reported lyotropic liquid crystals showing light-driven columnar-to-cubic phase switching and the phase transition changed their CO2 permeability.32 Development of membranes with ordered pores and the examination of the relationship between the organized structures and performance of the membranes are of interest.

Here, we describe the CO2 gas separation properties of subnanoporous LC membranes in high humidity conditions. A wedge-shaped LC compound (1) and a rod-shaped LC compound (2) (Fig. 1) were used for the evaluation of gas permeation. These polymer films were originally developed as ion-conductors26–29,33 and water-treatment membranes.21–25 Compound 1 exhibits a bicontinuous cubic (Cubbi) phase and its nanostructured membrane shows salt rejection comparable to those of nano-filtration membranes.21,22 Compound 2 forms smectic (Sm) phases exhibiting two-dimensional channels showing enhanced water permeability and lower salt rejection ability since the Sm phase shows larger ratio of the hydrophilic nanopores.23


image file: d4cc06751g-f1.tif

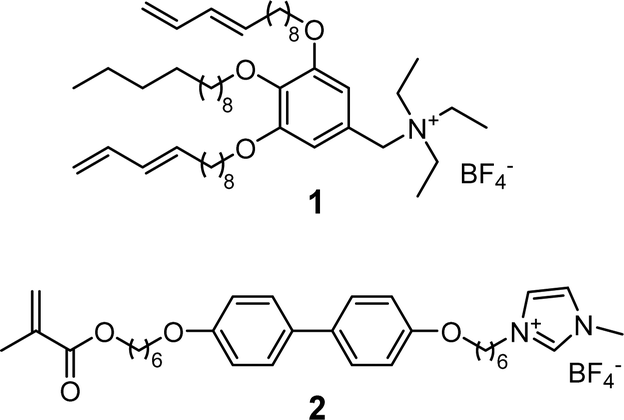

Fig. 1 Molecular structures of the LC monomers.

The ionic LC membranes show unique ion permeation/rejection selectivity due to interactions among the ionic moieties, solutes, and water molecules.21,22,34–37 It is of interest to examine the performance of those organized ionic sites for CO2 separation.

Compounds 1 and 2 (Fig. 1) were synthesized according to the procedures previously reported.21–24 Polymer membranes (P1 and P2) for the gas separation tests were prepared from the LC monomers 1 and 2, respectively, with the transcription method using a poly(vinyl alcohol) (PVA) layer as a sacrifice layer (Fig. S1, ESI).21 On a PVA substrate, compound 2 forms vertically aligned nanochannels in the Sm phase.25 Thin films of 1 or 2 were obtained by in situ polymerization of the spin-coated mixture of the monomer and a photoinitiator on the PVA substrate. The nanostructured LC polymer layer was supported by porous substrates composed of polysulfone and poly(ethylene terephthalate) (PET) (Fig. 2). These supporting layers impart mechanical toughness to the membranes.


image file: d4cc06751g-f2.tif

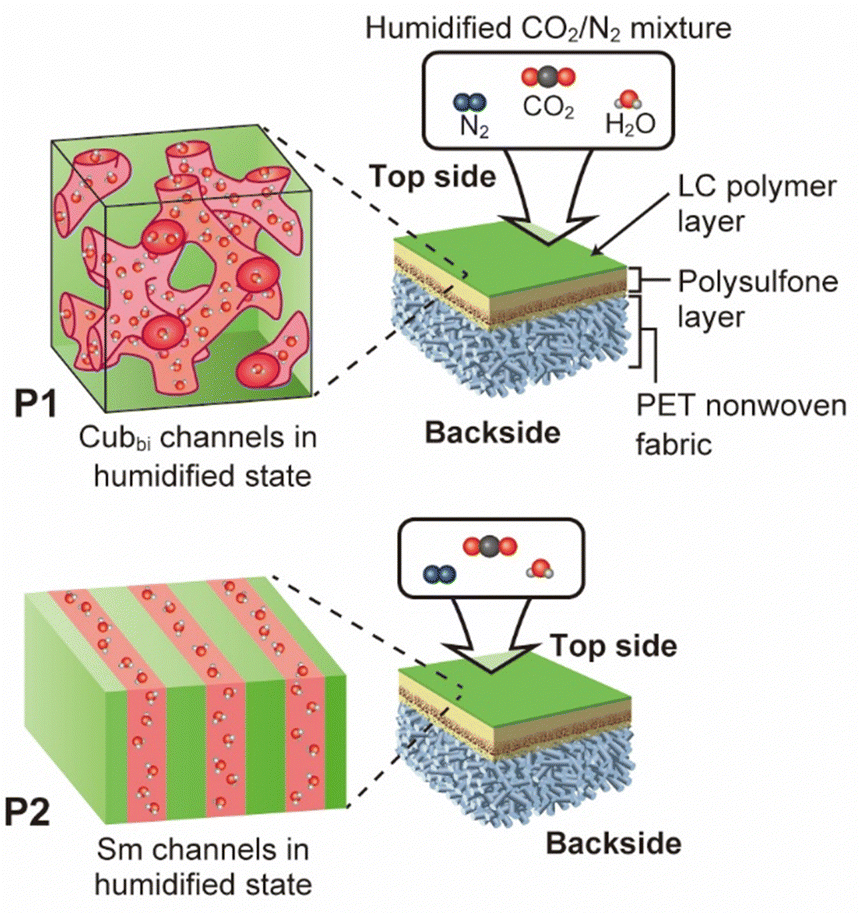

Fig. 2 Schematic illustrations of the nanostructured LC polymer membranes in controlled humid conditions.

The gas-permeation properties of the LC membranes (diameter = 25 mm) were evaluated by flowing simulated post-combustion gases containing 10 vol% CO2 and 90 vol% N2 (40 °C, 100 mL min−1) on the top side of the membranes of the LC polymer film (Fig. S2, ESI). The gas mixture was humidified by passing through a temperature-controlled water bath. The backside of the membranes was swept with helium gas to quantify the amount of gaseous species in the permeate by gas chromatography. The humidity of the backside gas was also controlled so that the gas humidity on both sides was the same.

Fig. 3 shows the permeance of CO2 and N2 permeation through P1 and P2 membranes when the relative humidity (RH) of the supplied gas was set to 50%, 80%, and 90%. P1 and P2 membranes showed high CO2 and N2 permeance below 80% RH. The permeances of CO2 and N2 were calculated to be of over 1000 gas permeation units (GPU, where 1 GPU = 1 × 10−6 cm3(STP) (s cm2 cmHg)−1). The CO2 selectivity, αCO2/N2 (permeance of CO2/permeance of N2) was almost 1, indicating that these membranes did not work as CO2 separation membranes below 80% RH.


image file: d4cc06751g-f3.tif
Fig. 3 Effects of humidity on CO2 (red bars), N2 (black bars) permeance and selectivity (blue dots) of (a) P1 and (b) P2 LC membranes at 40 °C.

The N2 permeance of the Cubbi membrane P1 decreased dramatically from 1500 GPU to 3 GPU when the humidity was increased from 80% RH to 90% RH (Fig. 3a). The N2 permeance through the P2 membrane also decreased under high humidity, but it was about 80 GPU (Fig. 3b). The N2 barrier property of the smectic P2 membrane was approximately 1/30th that of CubbiP1 membrane. The CO2 permeance also decreased when increasing the RH from 80% to 90%. However, the CO2 permeances through the sub-nanoporous membranes were greater than those of N2 for each membrane and the CO2 permeance was almost independent from the structures of P1 and P2 in contrast to the N2 permeance. The CO2 permeance of the P1 membrane was about 180 GPU and that of P2 was about 360 GPU at 90% RH, respectively. Consequently, these LC membranes exhibited CO2 selectivity under humid conditions. In particular, the CubbiP1 membrane at 90% RH showed the highest CO2 selectivity (αCO2/N2 ≈ 60). This reflects the high N2 barrier performance of the Cubbi membranes under high humidity conditions.

Since post-combustion exhaust gas has a high water vapor partial pressure with a humidity of over 90% RH, the development of CO2 separation membranes that function at high humidity is important, and thus various membranes for such purpose have been reported.7,9,14–20,38–40 Typically, membranes such as amine-added membranes and hydrogel membranes absorb water at high humidity, and the absorbed water facilitates CO2 to dissolve and diffuse in the membrane.7,14–16,19,20,40 On the other hand, since N2 has low polarity, its solubility in membranes decreases due to moisture absorption by the membrane. The high CO2 selectivity that appeared in the LC membrane under high humidity is due to the low solubility of N2 caused by moisture absorption by the ionic liquid crystal, while the solubility of highly polar CO2 was maintained. The differences in N2 barrier properties and CO2 selectivity under high humidity between liquid crystal membranes with different phases may be due to the efficiency of their ionic moieties. It is assumed that the effects of ionic moieties are further critical in the Cubbi structure with smaller nanochannels compared to the Sm structure shown as their ion removal properties.21,23

To clarify the cause of the difference in gas permeance of P1 and P2 membranes at high humidity, we quantified the amount of water absorbed by the P1 and P2 membranes under highly humidified conditions with a thermogravimetry differential thermal analysis system equipped with a humidity controller (TG-DTA/HUM, Fig. S3, ESI). For the TG-DTA/HUM measurements, nanostructured polymer membranes without the polysulfone substrate were used. Fig. 4 shows the mass changes of each membrane. Both the membranes P1 (Cubbi) and P2 (Sm) absorbed water when the humidity was gradually increased at 40 °C. They absorbed water by weight of approximately 10% of the dry weight of the membrane at 90% RH. The amount of absorbed water was not significantly different between the Cubbi and Sm films. This indicates that under high humidity, the polarity of the membrane increases as the membrane absorbs water, and as a result the solubility of N2, which is non-polar, decreases, resulting in an increase in barrier properties against N2.


image file: d4cc06751g-f4.tif
Fig. 4 Effect of humidity on the amount of water absorbed by P1 (Cubbi) (triangle) and P2 (Sm) (circle) membranes at 40 °C.

In conclusion, we have found that an ionic self-organized membrane that preserves a bicontinuous LC cubic structure exhibits the CO2/N2 selectivity of 60 at 90% RH, whereas no selectivity was observed below 80% RH. This selectivity at higher humidity is caused by water molecules adsorbed in the ionic subnanoporous membranes, which disturb the permeation of non-polar N2 molecules.

T. K. and Y. H. conceived and designed the project. T. K., K. I., T. S. and Y. H. wrote the manuscript. T. S. synthesized the LC molecules and prepared the LC membranes. K. I. performed the gas separation experiments and analyzed the data. All of the authors read the paper.

This work was supported by a JSPS KAKENHI (JP19H05715; Grant-in-Aid for Scientific Research on Innovative Areas of Aquatic Functional Materials). This research was also supported by the MEXT Program, Data Creation and Utilization-Type Material Research and Development Project (Grant Number JPMXP1122714694), and JST (Grant Number JPMJPF2114).

Data availability

The data supporting this article have been included as part of the ESI.

Conflicts of interest

There are no conflicts to declare.

Notes and references

  1. K. Xie, Q. Fu, G. G. Qiao and P. A. Webley, J. Membr. Sci., 2019, 572, 38 CrossRef CAS.
  2. Y. Fan, W. Yu, A. Wu, W. Shu and Y. Zhang, RSC Adv., 2024, 14, 20714 RSC.
  3. N. Du, H. B. Park, M. M. Dal-Cin and M. D. Guiver, Energy Environ. Sci., 2012, 5, 7306 RSC.
  4. T. C. Merkel, H. Lin, X. Wei and R. Baker, J. Membr. Sci., 2010, 359, 126 CrossRef CAS.
  5. Y. Hirayama, T. Yoshinaga, Y. Kusuki, K. Ninomiya, T. Sakakibara and T. Tamari, J. Membr. Sci., 1996, 111, 169 CrossRef CAS.
  6. M. F. Jimenez-Solomon, Q. Song, K. E. Jelfs, M. Munoz-Ibanez and A. G. Livingston, Nat. Mater., 2016, 15, 760 CrossRef CAS PubMed.
  7. Y. Chen and W. S. W. Ho, J. Membr. Sci., 2016, 514, 376 CrossRef CAS.
  8. Z. Qiao, S. Zhao, M. Sheng, J. Wang, S. Wang, Z. Wang, C. Zhong and M. D. Guiver, Nat. Mater., 2019, 18, 163 CrossRef CAS PubMed.
  9. H. W. Kim, H. W. Yoon, S.-M. Yoon, B. M. Yoo, B. K. Ahn, Y. H. Cho, H. J. Shin, H. Yang, U. Paik, S. Kwon, J.-Y. Choi and H. B. Park, Science, 2013, 342, 91 CrossRef CAS PubMed.
  10. Y. Wang, H. Jin, Q. Ma, K. Mo, H. Mao, A. Feldhoff, X. Cao, Y. Li, F. Pan and Z. Jiang, Angew. Chem., Int. Ed., 2020, 59, 4365 CrossRef CAS PubMed.
  11. M. Y. Jeon, D. Kim, P. Kumar, P. S. Lee, N. Rangnekar, P. Bai, M. Shete, B. Elyassi, H. S. Lee, K. Narasimharao, S. N. Basahel, S. Al-Thabaiti, W. Xu, H. J. Cho, E. O. Fetisov, R. Thyagarajan, R. F. DeJaco, W. Fan, K. A. Mkhoyan, J. I. Siepmann and M. Tsapatsis, Nature, 2017, 543, 690 CrossRef CAS.
  12. R. Vendamme, S. Onoue, A. Nakao and T. Kunitake, Nat. Mater., 2006, 5, 494 CrossRef CAS PubMed.
  13. Y. Fu, Y. B. Jiang, D. Dunphy, H. Xiong, E. Coker, S. S. Chou, H. Zhang, J. M. Vanegas, J. G. Croissant, J. L. Cecchi, S. B. Rempe and C. J. Brinker, Nat. Commun., 2018, 9, 990 CrossRef PubMed.
  14. Y. Hoshino and S. Aki, Polym. J., 2024, 56, 463 CrossRef CAS.
  15. Y. Hoshino, T. Gyobu, K. Imamura, A. Hamasaki, R. Honda, R. Horii, C. Yamashita, Y. Terayama, T. Watanabe, S. Aki, Y. Liu, J. Matsuda, Y. Miura and I. Taniguchi, ACS Appl. Mater. Interfaces, 2021, 13, 30030 CrossRef CAS PubMed.
  16. Y. Liu, D. Nakamura, J. Gao, K. Imamura, S. Aki, Y. Nagai, I. Taniguchi, K. Fujiwara, R. Horii, Y. Miura and Y. Hoshino, ACS Appl. Mater. Interfaces, 2024, 16, 29112 CrossRef CAS PubMed.
  17. M. G. Cowan, D. L. Gin and R. D. Noble, Acc. Chem. Res., 2016, 49, 724 CrossRef CAS PubMed.
  18. Z. Dai, L. Ansaloni, D. L. Gin, R. D. Noble and L. Deng, J. Membr. Sci., 2017, 523, 551 CrossRef CAS.
  19. F. Moghadam, E. Kamio and H. Matsuyama, J. Membr. Sci., 2017, 525, 290 CrossRef CAS.
  20. I. Taniguchi, K. Kinugasa, M. Toyoda, K. Minezaki, H. Tanaka and K. Mitsuhara, Polym. J., 2021, 53, 129 CrossRef.
  21. M. Henmi, K. Nakatsuji, T. Ichikawa, H. Tomioka, T. Sakamoto, M. Yoshio and T. Kato, Adv. Mater., 2012, 24, 2238 CrossRef CAS PubMed.
  22. T. Sakamoto, T. Ogawa, H. Nada, K. Nakatsuji, M. Mitani, B. Soberats, K. Kawata, M. Yoshio, H. Tomioka, T. Sasaki, M. Kimura, M. Henmi and T. Kato, Adv. Sci., 2018, 5, 1700405 CrossRef PubMed.
  23. D. Kuo, M. Liu, K. R. S. Kumar, K. Hamaguchi, K. P. Gan, T. Sakamoto, T. Ogawa, R. Kato, N. Miyamoto, H. Nada, M. Kimura, M. Henmi, H. Katayama and T. Kato, Small, 2020, 16, 202001721 Search PubMed.
  24. D. Kuo, T. Sakamoto, S. Torii, M. Liu, H. Katayama and T. Kato, Polym. J., 2022, 54, 821 CrossRef CAS PubMed.
  25. T. Sakamoto, K. Asakura, N. Kang, R. Kato, M. Liu, T. Hayashi, H. Katayama and T. Kato, J. Mater. Chem. A, 2023, 11, 22178 RSC.
  26. J. Uchida, B. Soberats, M. Gupta and T. Kato, Adv. Mater., 2022, 34, 2109063 CrossRef CAS PubMed.
  27. T. Kato, M. Yoshio, T. Ichikawa, B. Soberats, H. Ohno and M. Funahashi, Nat. Rev. Mater., 2017, 2, 17001 CrossRef.
  28. K. Kishimoto, M. Yoshio, T. Mukai, M. Yoshizawa, H. Ohno and T. Kato, J. Am. Chem. Soc., 2003, 125, 3196 CrossRef CAS PubMed.
  29. K. Hoshino, M. Yoshio, T. Mukai, K. Kishimoto, H. Ohno and T. Kato, J. Polym. Sci. Part A: Polym. Chem., 2003, 41, 3486 CrossRef CAS.
  30. J. E. Bara, A. K. Kaminski, R. D. Noble and D. L. Gin, J. Membr. Sci., 2007, 288, 13 CrossRef CAS.
  31. J. Kloos, N. Jansen, M. Houben, A. Casimiro, J. Lub, Z. Borneman, A. P. H. J. Schenning and K. Nijmeijer, Chem. Mater., 2021, 33, 8323 CrossRef CAS PubMed.
  32. B. E. Jones, J. L. Greenfield, N. Cowieson, M. J. Fuchter and R. C. Evans, J. Am. Chem. Soc., 2024, 146, 12315 CrossRef CAS PubMed.
  33. T. Ichikawa, M. Yoshio, A. Hamasaki, J. Kagimoto, H. Ohno and T. Kato, J. Am. Chem. Soc., 2011, 133, 2163 CrossRef CAS PubMed.
  34. R. Watanabe, T. Sakamoto, K. Yamazoe, J. Miyawaki, T. Kato and Y. Harada, Angew. Chem., Int. Ed., 2020, 59, 23461 CrossRef CAS PubMed.
  35. Y. Ishii, N. Matubayasi, G. Watanabe, T. Kato and H. Washizu, Sci. Adv., 2021, 7, eabf0669 CrossRef CAS PubMed.
  36. S. Mehlhose, T. Sakamoto, M. Eickhoff, T. Kato and M. Tanaka, J. Phys. Chem. B, 2024, 128, 4537 CrossRef CAS PubMed.
  37. Y. Zhang, R. Dong, U. R. Gabinet, R. Poling-Skutvik, N. K. Kim, C. Lee, O. Q. Imran, X. Feng and C. O. Osuji, ACS Nano, 2021, 15, 8192 CrossRef CAS PubMed.
  38. T. Kai, S. Kazama and Y. Fujioka, J. Membr. Sci., 2009, 342, 14 CrossRef CAS.
  39. J. Liao, Z. Wang, C. Gao, S. Li, Z. Qiao, M. Wang, S. Zhao, X. Xie, J. Wang and S. Wang, Chem. Sci., 2014, 5, 2843 RSC.
  40. Y. Li, Q. Xin, H. Wu, R. Guo, Z. Tian, Y. Liu, S. Wang, G. He, F. Pan and Z. Jiang, Energy Environ. Sci., 2014, 7, 1489 RSC.

Footnote

Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d4cc06751g
