Polyhydroxy starch with abundant hydroxyls and a unique structure enables uniform Zn deposition

Abstract

Zinc metal is a promising anode material for zinc-ion batteries (ZIBs), but severe side reactions and dendrite formation hinder its commercialization. In this study, starch is introduced into the ZnSO₄ electrolyte for stabilizing the Zn anode. With abundant hydroxyl groups, starch can reconstruct the H-bond system in the electrolyte, suppressing side reactions. Moreover, the unique ring and double-helix structures of starch show strong interactions with Zn²⁺ ions. The large molecule structure also exhibits a steric hindrance effect, regulating the diffusion and reduction of Zn²⁺. Additionally, starch molecules can adsorb onto the Zn anode, promoting the formation of a solid–electrolyte interphase (SEI) and resulting in uniform Zn deposition along the (002) plane. Consequently, this approach enhances the stability and reversibility of the Zn anode.

---

The increasing importance of renewable energy sources underscores the urgent need for effective energy storage solutions.¹ Aqueous Zn-ion batteries (ZIBs) have emerged as promising candidates owing to their safety and affordability.^2,3 Zinc metal, a key component of ZIBs, boasts non-toxicity, abundant reserves, and high theoretical capacity. However, the commercial viability of ZIBs is impeded by parasitic reactions and dendrite formation.^4,5

Various strategies have been proposed to address these issues.^6–8 Electrolyte engineering is particularly appealing due to its simplicity, cost-effectiveness, and multifunctionality.⁹ Existing additives encompass a range of materials such as inorganic salts, organic solvents, and polymers.¹⁰ Polymer additives, in particular, are characterized by multiple functional groups that can strongly interact with Zn²⁺, thereby influencing the transfer behavior. Moreover, they have the capability to disrupt original H-bonds, which can reduce the content of active water. For example, hyaluronic acid (HA) with abundant –COOH and –OH groups, could disrupt H-bonds among water molecules, thereby inhibiting side reactions.¹¹ Additionally, Zn dendrite growth is believed to be influenced by the preferential growth of specific crystal planes. The preferred Zn(002) plane growth makes crystals grow at 0–30° from the Zn anode.¹² However, Zn atoms tend to deposit on the (101) plane due to their strong binding energy, leading to preferential growth of the (101) plane at an angle of 30–70° and forming Zn dendrites.¹³ Introducing additives with different functional groups into the electrolyte, such as triethanolamine,¹⁴ and N,S-CDs,¹⁵ has been reported to induce Zn(002) plane deposition.

Starch, a low-cost natural biopolymer, has been used to prepare a gel electrolyte for zinc-air batteries due to its hydrophilicity and adhesion.¹⁶ Here, it is introduced into the ZnSO₄ electrolyte for stabilizing the Zn anode. The starch (farina starch) consists of α-D-glucopyranosyl units linked via α-1,4-glucosidic linkages (Fig. S1, ESI†). Due to the ability of hydroxyl groups to form H-bonds, starch exhibits helical polymer chains. These chains intertwine in an anti-parallel manner, forming a characteristic double-helix structure.¹⁷ It also can reconstruct the H-bonds in the electrolyte, suppressing water-induced reactions. Due to the intense electron density, the ring and double-helix structure with obvious steric hindrance effect has strong zincophilicity, regulating the deposition behaviour of Zn²⁺ ions. Moreover, a solid electrolyte interface (SEI) is formed. Uniform Zn deposition with exposure of the Zn(002) plane is achieved, yielding an enhanced long-term cycling stability in Zn‖Zn, Zn‖Cu and Zn‖VO₂ cells.

Generally, in a dilute electrolyte, Zn²⁺ tends to interact with surrounding electron donors, forming a Zn[H₂O]₆²⁺ structure.¹⁸ When the starch is introduced, the coordination environment of Zn²⁺ can be altered due to the dense electron density from hydroxyl groups. The interaction between Zn²⁺ and starch (including units, rings, and double helices) has been calculated using density functional theory (DFT). As illustrated in Fig. 1a, a stronger interaction is formed between Zn²⁺ and starch, particularly with the ring and helix structure, which potentially alters the Zn[H₂O]₆²⁺ solvation structure.

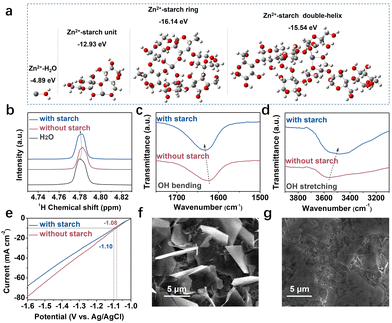

Fig. 1 (a) Binding energy of Zn²⁺ with H₂O and starch (unit, ring, and double-helix). (b) ¹H NMR spectra. FTIR spectra of OH bending (c) and stretching (d) and (e) LSV curves. SEM images of soaked Zn foil in electrolyte without (f) and with starch (g).

Nuclear magnetic resonance (NMR) analysis has been conducted to examine the changed solvation structure of Zn²⁺ (Fig. 1b). The ¹H peak shifts to a lower field when ZnSO₄ is introduced. This indicates the formation of Zn[H₂O]₆²⁺, which can decrease the surrounding electron density and weaken the electrostatic shielding effect on protons.¹⁹ Upon the introduction of starch, the ¹H peak shifted back to a higher field, indicating a changed coordination structure and formed H-bonds.²⁰

The impact of starch on H-bonds has been confirmed using Fourier transform infrared spectroscopy (FTIR). A blue shift is observed in the bending vibration of H₂O (1600–1700 cm⁻¹), while the stretching vibration of H₂O (3000–3500 cm⁻¹) exhibits a notable red shift upon the introduction of starch (Fig. 1c and d). This shift indicates the formation of H-bonds between starch and water, leading to a reconstruction of the H-bond network in the electrolyte.²¹ Hydrogen evolution reaction (HER) is a competitive process with the formation of H-bonds.²² More energy may be needed to decouple the H-bonds in the reconstructed system, suppressing side reactions.

The HER and corrosion of the Zn anode in different electrolytes have been conducted using linear sweep voltammetry (LSV) and linear polarization experiments (Tafel). At 10 mA cm⁻², a larger overpotential (−1.10 V) is observed in the electrolyte with starch, which is 19 mV higher than that in the bare ZnSO₄ electrolyte. This result demonstrates the inhibitory effect of starch on H₂ generation. Additionally, a wider electrochemical window is obtained in the starch-containing electrolyte in Fig. S2 (ESI†). The Tafel plot in Fig. S3 (ESI†) indicates a lower corrosion current in the starch-containing electrolyte, suggesting the mitigation of the self-corrosion issue of the Zn anode.

The starch in inhibiting side reactions has been further investigated by immersing Zn foil in the electrolyte for 6 hours. From X-ray powder diffraction (XRD) results (Fig. S4, ESI†), Zn₄SO₄(OH)₆·4H₂O (PDF#44-0673²³) is observed on the soaked Zn foil. Notably, the intensity is weak in the electrolyte containing starch, indicating suppressed formation of by-products. Moreover, the intensity of the Zn(002) plane is significantly enhanced in the starch-containing electrolyte compared with that in the bare ZnSO₄ electrolyte, with I₍₀₀₂₎/I₍₁₀₁₎ ratios of 3.9 and 1.8, respectively. The exposure of the Zn(002) plane facilitates horizontal Zn deposition, which is parallel to the surface of the electrode (Fig. S5, ESI†). Additionally, Zn(002) with the lowest surface energy is less reactive, contributing to the attenuation of side reactions.²⁴ Scanning electron microscopy (SEM) images in Fig. 1f and g show that numerous irregular flake-like Zn dendrites are present in the bare ZnSO₄ electrolyte, whereas the surface appears dense and flat in the starch-containing electrolyte. These SEM images corroborate the findings from the XRD analysis.

It is widely acknowledged that the morphology of initial nucleation is closely linked to the generation and growth of Zn dendrites. Uneven Zn nucleation can lead to surface protrusions on the Zn electrode, exacerbating electric field irregularities and ultimately promoting Zn dendrite formation through a “tip effect” mechanism.²⁵ The nucleation overpotential, which influences Zn nucleation, has been assessed by the cyclic voltammetry (CV) method. As illustrated in Fig. 2a, a higher nucleation overpotential is attained in the electrolyte containing starch, which can foster the formation of smaller Zn nuclei.²⁶

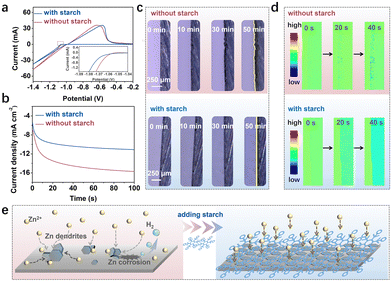

Fig. 2 (a) CV curves at a scan rate of 1 mV s⁻¹. (b) CA curves. (c) In situ recording images of the Zn deposition process. (d) In situ electrochemical digital holography for Zn²⁺ concentration evolution at the interface of the electrodes. (e) Scheme for the underlying mechanism in uniform Zn deposition.

The diffusion behavior of Zn²⁺ has been examined using the chronoamperometry (CA) method at −150 mV (Fig. 2b). The rapid initial increase in current density observed in both electrolytes indicates the uncontrolled 2-dimensional (2D) diffusion.²⁷ The continuous upward trend of current in the bare ZnSO₄ electrolyte suggests sustained 2D diffusion, where Zn²⁺ diffuses laterally along the Zn surface and accumulates at energetically favourable sites (protrusions, lattice defects, boundaries, impurities, etc.) to form initial Zn nuclei.²⁸ In contrast, with starch, the current stabilizes faster. The constrained 2D diffusion means that Zn²⁺ can deposit near the initial adsorption sites, resulting in more nucleation sites and uniform Zn deposition.²⁹

The actual Zn deposition process has been observed using an in situ optical microscope. Noticeable protrusions appear in the ZnSO₄ electrolyte after 10 minutes, followed by uncontrolled growth of Zn dendrites (Fig. 2c). In contrast, the starch-containing electrolyte exhibits uniform and stable Zn deposition, with no apparent protrusions even after 50 minutes. The in situ electrochemical digital holography (EDH) technique has been employed to monitor the evolution of ion concentration during the initial Zn²⁺ reduction (Fig. 2d). The change of Zn²⁺ ion concentration can lead to a shift in colour. After 20 seconds, a local colour change is observed in both electrolytes. In the ZnSO₄ electrolyte, an uneven Zn²⁺ concentration is evident at the interface, which can lead to the formation of Zn dendrites. The uniform Zn²⁺ concentration in the starch-containing electrolyte indicates a uniform Zn²⁺ flux. The decreased Zn²⁺ concentration at the interface in starch-containing electrolyte should result from the adsorption of starch on the Zn anode, showing the steric hindrance effect. Due to the restrained ion and electron transfer, the Zn deposition process can be modulated. This speculation is verified by the electrochemical impedance spectroscopy (EIS) and the contact angle tests. The EIS results in Fig. S6 (ESI†) confirm the restrained reduction of Zn²⁺ ions. The lower contact angle between the Zn anode and the electrolyte containing starch in Fig. S7 (ESI†) indicates the higher surface energy at the interface between the Zn anode and electrolyte with starch, indicating the adsorption of starch molecules on the Zn anode.³⁰

Based on the above analysis, it can be speculated that the starch molecule can reconstruct the H-bond system, suppressing side reactions. Moreover, it can interact with Zn²⁺ and adsorb on the electrode, directing the Zn²⁺ diffusion and reduction (Fig. 2e).

The stability of the Zn anode has been investigated using Zn‖Zn symmetric cells. As presented in Fig. 3a and Fig. S8 (ESI†), the cells in the ZnSO₄ electrolyte can only work steadily for about 200 h (5 mA cm⁻² and 1 mA h cm⁻²), 50 h (5 mA cm⁻² and 5 mA h cm⁻²), and 110 h (10 mA cm⁻² and 5 mA h cm⁻²) under various conditions. When the starch is introduced, there is an apparent improvement. The cycling life of Zn‖Zn cells increased to 1500 h, 225 h, and 350 h. The Zn‖Zn cells in the electrolyte with 0.1 and 0.4 mg mL⁻¹ starch also exhibit an improved performance (Fig. S9 and S10, ESI†) compared to the bare ZnSO₄ electrolyte. As starch has a steric hindrance effect, 0.2 mg mL⁻¹ is the optimum concentration. It shows a comparable performance with the reported results (Table S1, ESI†). Besides, the better rate performance and cycling stability at 30 mA cm⁻² of Zn‖Zn cells in electrolyte with additive corroborate the effectiveness of starch (Fig. S11 and S12, ESI†). The coulombic efficiency (CE) has been confirmed by the Zn‖Cu cells. As shown in Fig. 3b and Fig. S13 (ESI†), a more stable CE is achieved in the electrolyte with starch. The average CE is 99% under the condition of 1 mA cm⁻² and 0.5 mA h cm⁻² for 1750 cycles. In sharp contrast, in the ZnSO₄ electrolyte, there are fluctuant voltage profiles with a low CE of 97% for about 210 cycles. The Zn deposition behaviour (plating and stripping) on Cu foil at 20 mA cm⁻² has been studied. As shown in Fig. S14 (ESI†), there are flat Zn deposits on Cu foil in the electrolyte with starch.

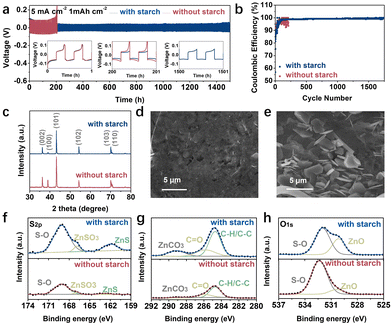

Fig. 3 (a) Cycling performance of Zn‖Zn cells at 5 mA cm⁻² and 1 mA h cm⁻². (b) CE of Zn‖Cu cells at 1 mA cm⁻² and 0.5 mA h cm⁻². (c) XRD profile of cycled Zn anodes; SEM images of cycled Zn anodes in the electrolyte (d) with and (e) without starch. XPS spectrum of S 2p (f), C 1s (g) and O 1s (h) of the cycled Zn anodes.

The morphology and structure of the cycled Zn electrolyte after 50 cycles have also been analyzed. The XRD results in Fig. 3c exhibit a higher I₍₀₀₂₎/I₍₁₀₁₎ ratio of 3.87 for the electrolyte with starch, while it is 1.50 in the ZnSO₄ electrolyte, indicating a preferential exposure of the (002) plane. Compared to Fig. 3d and e, the compact, flat, and smooth Zn anode is achieved in electrolyte with starch, consistent with the XRD results.

The surface chemistry of the cycled Zn anode has been investigated by X-ray photoelectron spectroscopy (XPS) after Ar⁺ sputtering (5 nm). The S 2p spectra indicate the presence of S–O, ZnSO₃, and ZnS components, with the S–O component from SO₄²⁻ being the main component.³¹ The prominent ZnS peak in the electrolyte with starch indicates the formation of solid electrolyte interphase (SEI). In the C 1s spectra, C–C/C–H, C–O, and ZnCO₃ can be observed,³² derived from CO₂ and starch. The much higher intensity in the electrolyte with starch confirms the contribution of partial decomposition of starch. Additionally, as further confirmed by O 1s spectra, more ZnO is formed in the electrolyte with starch.³³ Therefore, it can be speculated that the SEI layer consisting of ZnCO₃, ZnS, and ZnO is formed on the Zn surface in the electrolyte with starch. The XPS spectrum of Zn 2p in Fig. S15 (ESI†) also affirms the influence of starch on the surface chemistry of the Zn electrode.

The inclusion of starch in the electrolyte is demonstrated to enhance the performance of Zn‖VO₂ full cells, highlighting the significant potential for practical ZIBs. The synthesized VO₂ is confirmed via XRD (JCPDF# 31-1438), as depicted in Fig. S16 (ESI†). The SEM result in Fig. S17 (ESI†) reveals its rod-like morphology. The rate capability of Zn‖VO₂ cells in both electrolytes is depicted in Fig. 4a–c at 0.1–2 A g⁻¹. Remarkably, the cells utilizing the electrolyte with starch exhibit a higher capacity compared to those using the bare ZnSO₄ electrolyte. The cyclic voltammetry (CV) curves presented in Fig. 4d exhibit similar profiles in both electrolytes, confirming an unaffected charge storage mechanism. Noteworthy is the lower voltage polarization (0.16 V) observed in the electrolyte with starch compared to the bare ZnSO₄ electrolyte (0.22 V). The long-term cycling performance shown in Fig. 4e demonstrates the full cells in the starch-containing electrolyte maintaining a more stable performance, retaining a capacity of 155 mA h g⁻¹ after 250 cycles at 0.5 A g⁻¹. Interestingly, the battery capacity in the bare ZnSO₄ electrolyte is higher during the initial 10 cycles, possibly attributed to proton embedding, by-product contributions to capacity, and the rapid charge transfer facilitated by the Zn anode's rough surface.

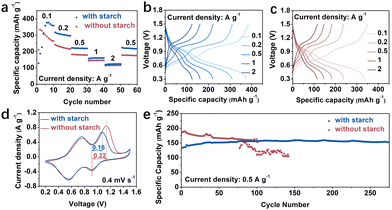

Fig. 4 (a) Rate performance. GCD curves in electrolyte (b) with and (c) without starch. (d) CV curves. (e) Long-term stability of the Zn‖VO₂ cell.

In summary, starch is introduced into the ZnSO₄ electrolyte. Due to the hydroxyl groups, the original H-bond system is altered, inhibiting the water-triggered reactions. Moreover, the large molecule structure enables starch with a steric hindrance effect, and the ring and helix structure has a stronger interaction with Zn²⁺, which can modulate the diffusion and reduction of Zn²⁺. In addition, SEI is formed on the Zn surface in the electrolyte with starch, facilitating the Zn deposition along with the (002) plane. Consequently, highly stable Zn‖Zn, Zn‖Cu, and Zn‖VO₂ cells are achieved. This study offers a cost-effective and environmentally friendly electrolyte additive for stabilizing Zn anodes, thus advancing the development of ZIBs. The long-term stability of starch, as well as its stability under extreme conditions, should be studied in the future.
