Introduction to neutron techniques for cultural heritage

Abstract

Since the early 2000s, neutron techniques have become available for the non-invasive characterisation of cultural heritage artefacts, especially those made of metal, ceramic or stone. This is thanks to the ability of neutrons to penetrate deeply into objects, to study their inner volume non-invasively. The neutron methods available can efficiently provide information on the composition and micro-structural properties of materials, along with 2D and 3D images of an artefact's internal structure, helping to answer questions related to manufacturing processes, state of degradation, authenticity and provenance. This Technical Brief presents an overview of the main neutron-based methods and the different types of neutrons suitable for the characterisation of materials of interest in cultural heritage and includes case studies highlighting the impact of these applications in archaeological and historical research.

---

1. Why neutrons?

Neutrons are an ideal probe for the scientific investigations of materials in many fields, including heritage science. In many respects, they can be used in a similar way to X-rays to produce images and plots reflecting the structure and composition of objects, but there are important differences.

The advantage of neutrons is that they can penetrate deeply but non-invasively into an object and can interact strongly with some light atoms, such as hydrogen, unlike X-rays which only interact weakly. This is a useful property for the analysis of organic materials or the detection of moisture. Additionally, bulk elemental analysis can be performed using gamma-ray emission techniques following neutron irradiation.

Table 1 compares some of the properties of neutrons and X-rays, and a practical example involving a cultural heritage object is shown in Fig. 1.

Table 1 Selected elements of comparison between X-rays and neutrons

Element of comparison	X-rays	Neutrons
Interaction with	Electron shells of atoms	Nuclei of atoms
Interaction proportional to the mass of atoms	Yes	No
Sensitive to light elements	No	Yes (some)
Interference from surface corrosion/patina	Yes	No
Penetration through dense materials	No	Yes

---

Fig. 1 Samson Slaying a Philistine by Pierino da Vinci (ca. 1529–1553/54), Museo del Bargello, Florence, viewed with neutrons: ‘neutron radiograph’ (left), X-radiography (centre) and visible light (right). Neutrons clearly show hydrogen-containing fills and repairs in Samson's right arm and shoulder, while the repair in the arm is not clearly visible with X-rays.

Neutron techniques can be applied to objects with complex shapes. The main requirements are that objects must fit in the instrument's experimental area and should not be so thick that they absorb all of the neutron beam – areas analysed can span several tens of centimetres, up to a few meters in the vertical direction, with thicknesses not exceeding 10 cm. For most materials, neutrons can access the inner volume of an object up to a thickness of several centimetres, even when corrosion layers or patinas are present on the surface.

Neutrons can reveal the inner structure, composition and microstructural properties of objects and can provide information about their state of conservation and method of manufacture (ref. 1 and references cited therein), without requiring sampling.

The main restriction on the use of these techniques in cultural heritage is that neutrons are only accessible at large-scale facilities, such as the ISIS Neutron and Muon Source in the UK, ILL (Institut Laue-Langevin) in France, SNS (Spallation Neutron Source) in the USA, J-PARC in Japan, etc., and operation requires highly specialised personnel. Usually, access to the facilities (‘beam-time’) is awarded by a panel. Access is free of charge for academic purposes, and in many cases funds to cover travel and accommodation are available. Non-academic institutions can apply alone or with an academic partner. Most neutron sources assign a beamline scientist to non-technical applicants, to help with the application and submission process. Portable Isotopic Neutron Spectroscopy (PINS), which enables on-site measurements by bringing a portable instrument directly to the field, has the potential to eliminate the need for transporting objects to large-scale facilities, and could be valuable for future cultural heritage applications.

2. Types of neutron interactions

The interactions of neutrons with the nuclei in the material under study depend on the structure of those nuclei, rather than (as with X-rays) their mass. Usually, elements close in atomic number Z (where Z is the number of protons) can be more easily distinguished with neutrons than with X-rays. Neutron techniques can also distinguish isotopes of the same element.

Neutrons interact with materials via scattering – which can be elastic or inelastic – and via absorption (see Fig. 2 and 3).

Fig. 2 Summary of neutron techniques relevant to cultural heritage.

Fig. 3 Schematic representation of the neutron interaction processes most relevant for cultural heritage studies. Some incident neutrons (red arrows on the left) are absorbed by the sample and do not emerge after interaction. Others are scattered in various directions, with only two random paths shown in the illustration. Additionally, the emission of γ-rays from the sample may result after neutron capture.

2.1 Scattering

In a scattering interaction, a neutron hits the object and is scattered at a certain angle, which depends on how the atoms in the object itself are arranged. This neutron may or may not change its energy, in what is called inelastic or elastic scattering, respectively.

2.1.1 Elastic scattering. Neutron diffraction (ND), an elastic scattering phenomenon, is particularly relevant when an object has a crystalline structure – meaning that the atoms are arranged in a regular pattern, with a basic unit repeated along the pattern (unit cell) to form the crystal. This is relevant in the investigation of archaeological materials, metals and ceramics in particular.

The diffraction pattern obtained via neutron diffraction provides quantitative information on phase composition and other microstructural properties such as grain size, texture and residual stresses in the materials investigated. These properties can be unequivocally derived from the position, shape and intensity of the diffraction peaks. For example, in the case of metals, the technique provides clues on the efficiency of the smelting process, carburisation level, state of conservation, quantity of alloying elements and thermal and mechanical treatments applied during manufacturing and use, all leaving permanent features in the diffraction pattern.

Additionally, with small angle scattering, where the scattering angle is small with respect to common scattering (also called wide angle neutron scattering), it is possible to investigate the interface between ‘softer’ materials, such as painting surfaces and polymers, but also the porosity of objects, which has relevant applications in the study of ceramics.

Neutron diffraction from amorphous materials such as glass can also give information about the local interaction of atoms in the structure, in the absence of long-range order, as is the case of a crystalline structure.

2.1.2 Inelastic scattering. Inelastic neutron scattering (INS) studies the loss in energy of neutrons interacting with samples. It is particularly suited to studying the motion of atoms in molecules (vibrational modes), to give access to information on the sample's structure and dynamics (atoms' motion). INS methods have proved to be useful tools for probing archaeological bones² for example, since they can interrogate hydrogen atoms in the inorganic matrix of this highly heterogeneous material.

2.2 Absorption

In an absorption interaction, a neutron is captured by a nucleus in the object under investigation and is therefore removed from the incident beam. This enables imaging applications, such as radiography and tomography (a three-dimensional image of the internal structure of a solid object that allows the visualisation of any 2D slice of it). Whilst its resolution is lower than that of X-ray tomography,³ it still provides better results with thick objects, or objects offering low contrast between different components, and for visualising hydrogen atoms (Fig. 1).

Recently, a more advanced energy selective technique, NRTI (Neutron Resonance Transmission Imaging) has been gaining popularity. Based on the resonant neutron absorption reaction, NRTI combines sensitivity to elemental and isotopic composition with detailed morphological information and can provide quantitative isotope-selective 2D (radiography) and possibly 3D (tomography) elemental maps.¹

After neutron capture, the resulting combined absorbed neutron and nucleus, referred to as a compound nucleus, is in an excited state, and must decay to a more stable state through a number of different processes, which includes the emission of γ-rays. These are fingerprints of elements/isotopes, making γ-spectroscopy following neutron capture an effective elemental analysis method, with added isotope sensitivity. The available techniques for elemental analysis with γ-spectroscopy are PGAA (Prompt Gamma Activation Analysis), NRCA (Neutron Resonance Capture Analysis) and NAA (Neutron Activation Analysis); the first two rely on γ-ray measurements during irradiation, the last on delayed γ-ray measurements after irradiation.¹

3. How many types of neutrons are there?

Neutrons are loosely classified according to their energy (given in millielectronvolts – meV, or electron volts – eV), with different applications for each energy band. Only the lower three are useful for heritage applications: cold neutrons (neutron energy less than 25 meV) are suitable for imaging applications; thermal neutrons (neutron energy around 25 meV, up to 0.3 eV) are suitable for diffraction, small angle scattering and imaging; epithermal neutrons (or resonance region, neutron energy higher than 0.3 eV) are useful for elemental analysis and mapping with isotope sensitivity.

4. Case studies

Diffraction, imaging and elemental analysis are the most established neutron-based techniques to address questions about the composition, state of conservation and production method of an artefact.² These three case studies provide examples of practical cultural heritage applications.

4.1 The Vittoria Alata of Brescia

The analysis of fragments from the Vittoria Alata,⁴ an archaeological bronze, showed that neutron diffraction can easily differentiate between superficial layers (due to corrosion, chemical treatment, gilding, silvering, etc.) and the bulk material. Where other elemental techniques overestimated the amount of tin due to surface corrosion and loss of copper (decuprication), neutron diffraction reliably derived the tin content of the original alloy.

Fig. 4 shows the diffraction patterns obtained from two fragments. The peaks correspond to bronze, lead and cuprite (a corrosion product), and it is possible to quantify their relative amounts, thereby giving information on both the fragments' compositions and their state of conservation. Crucially, the signal from the original, intact copper alloy (bronze) is separate from that of the surface corrosion product (cuprite). The peaks' intensities reveal that the lead and cuprite contents vary in different areas of the statue. Also, the position of the peaks corresponding to the bronze phase is shifted, showing that the two fragments have different tin contents. Neutron imaging on other fragments revealed that one of them is most likely not original.

Fig. 4 Neutron diffraction plots of two samples from the Vittoria Alata. In sample 3 M (blue trace), the presence of dendrites is revealed by double diffraction peaks of the bronze phase. This is due to the presence of two bronze phases with slightly different tin contents (dendrites) that are therefore shifted with respect to one another.

4.2 Wootz steel

Neutron diffraction is the only analytical non-destructive technique able to identify wootz steel,⁵ a type of high-carbon crucible steel with a distinctive pattern, developed in India during the mid-1st millennium BCE. The most interesting microstructural feature to identify wootz steel artefacts is the texture (the preferred orientation) present in the carbon-containing cementite phase, but not in the ferrite phase. In the case shown in Fig. 5, diffraction patterns collected at different scattering angles exhibit a strong change in intensity of the cementite peaks.

Fig. 5 Anisotropic cementite pattern in a wootz steel object. The distinctive character is the changing ratio of the peaks at 1.85 and 1.87 Å at different diffraction angles (texture), shown in the full diffraction pattern on the left and in the close-up on the right.

Information from the carbon content, obtained from the ferrite/cementite ratio, and the texture (preferred orientation) of the cementite phase, indicated the temperature range at which the steel had been produced. For both of these reasons, neutron diffraction can also be used to discriminate between authentic and reproduction wootz steel.

4.3 Bimetallic Chinese swords

In one of the first examples of a non-destructive bulk elemental map, two ancient Chinese bimetallic swords were characterised⁶ in unprecedented detail using NRTI and ND. NRTI enabled the presence and distribution of iron and copper to be mapped.

The main difference between the two swords was the assembly/manufacturing method and the composition. In one of the swords (Fig. 6), the iron blade extends deep into the bronze hilt, contrary to the other sword that seems to be built favouring aesthetics over functionality.

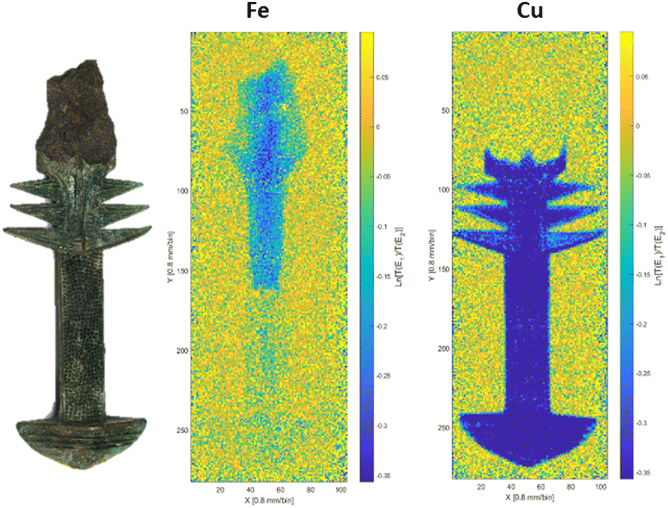

Fig. 6 Fe and Cu distribution in a Chinese bimetallic sword fragment. The colour scale indicates the level of absorption – the darker the colour, the higher the absorption.

Only iron could be detected in the blades, while the bronze hilts show the presence of secondary and trace elements. They both show similar amounts of copper and relevant traces of silver and antimony, but different amounts of tin and arsenic.



This Technical Brief was prepared by Antonella Scherillo (ISIS Neutron and Muon Source, STFC Rutherford Appleton Laboratory, UK) on behalf of the Heritage Science Expert Working Group of the Analytical Methods Committee and approved by the AMC on 15th May 2025.
