Bis(corannulenyl)ethene as an efficient photochromic material

Abstract

We herein report photochromic 1,2-bis(2-methoxy-corannulenyl)perfluorocyclopentene (1) possessing two corannulene moieties as the side aryl units of diarylethene. One enantiomer and the other enantiomer of one chiral atropisomer of 1 respectively forming columnar structures in the crystal were revealed via single-crystal X-ray analysis. Compound 1 exhibited an efficient photochromic behaviour with a large molar absorption coefficient of 5.0 × 10⁴ M⁻¹ cm⁻¹, and significantly high photochemical quantum yields of 0.64 and 0.49 were demonstrated for photocyclization and photocycloreversion reactions, respectively. This high efficiency was rationalized by the changed abundance ratios of atropisomers between the open- and closed-isomers and the shortened distance between reactive carbons with the help of the curved structure. In addition, the application possibility of 1 as a photochromic material was demonstrated in a poly(methyl methacrylate) film.

---

Introduction

Photochromic compounds, which exhibit reversible colour change accompanying isomerization through photoirradiation, have attracted much attention and have been broadly studied for the development of material functions such as sensing, optical memory, and photo-switching.^1–6 Among them, diarylethenes and related substances are intensively studied owing to their high durability and high thermal stability.^1,7,8 They undergo photocyclization from open-form to closed-form isomers under UV irradiation and photo-cycloreversion under visible-light irradiation. Their practical photo-sensitivity is enhanced by increasing optical absorbance and photochemical quantum yields. For example, the photocyclization quantum yield is increased by controlling the conformation of open-form isomers,⁹i.e., the photoreactive anti-parallel conformation should be highly photosensitive but the parallel one is photochemically non-reactive because photocyclization proceeds through a symmetry-allowed conrotatory pathway.⁸ In the photochromism of diarylethenes, both photocyclization and photocycloreversion proceed through the same conical intersection to the ground state. Hence, the sum of the quantum yield values of photocyclization ϕ_o–c and photocycloreversion ϕ_c–o should be unity at the maximum.¹ A simultaneous increase in ϕ_o–c and ϕ_c–o is thus challenging for exploring efficient colour-changing and photo-switching molecular materials. In this regard, our strategy is to exploit the curved aromatic structure of diarylethenes to perturb the ground-state structure of open and closed isomers and reaction pathways of forward and reverse reactions. Corannulene,^10–15 a bowl-like curved aromatic compound, has attracted significant interest owing to its large curved π-surface with some unique features such as geometrical and electronic anisotropy,^14,16,17 characteristic bowl-to-bowl inversion,^18–20 large HOMO–LUMO gap,²¹ and formal 20π electrons, which are much different from those of classic planar 4n + 2π aromatic compounds.^13,22

We have recently reported tetrathienyl corannulenes with a high photocyclization quantum yield, close to unity.²³ It further displayed high photosensitivity with a large absorption coefficient in the UV range, which is mainly because of the central corannulene unit.

Herein, we report a diarylethene derivative with two corannulene moieties as side aryl units and its photochromic behaviour together with a discussion on its atropisomers.

Results and discussion

Synthesis and characterization of a bis(corannulenyl)ethene compound

1,2-Bis(2-methoxy-corannulenyl)perfluorocyclopentene (1), a new diarylethene derivative with two curved aromatic corannulene units as side aryls, was designed and synthesized via the coupling reaction of 1-bromo-2-methoxycorannulene and perfluorocyclopentene in 16% yield (Fig. 1). 1 was characterized using ¹H, ¹⁹F and ¹³C NMR spectroscopy (Fig. S1 and S2, ESI†) and EI mass spectrometry (Fig. S3, ESI†).

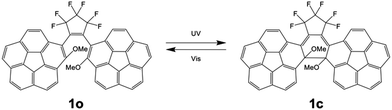

Fig. 1 Molecular structures of the open-form 1o and the closed form 1c in the photochromism of 1.

The isolation of 1 was confirmed on the GPC profile (Fig. S4, ESI†), NMR and MS. The ¹H NMR spectrum of 1 showed signals of aromatic/aliphatic region in 16 : 6 ratio in both CDCl₃ and toluene-d₈. The two characteristic methyl peaks suggested the C_s-symmetric parallel and the C₂-symmetric anti-parallel conformations (see also Fig. S1 and S2, ESI†), with their ratios of about 1 : 5 and 1 : 8 in CDCl₃ and toluene-d₈, respectively. The minor signals in the aromatic region were also assigned to the parallel conformation. The major component of the C₂-symmetry was clearly confirmed with the single 2F peak of the central CF₂ unit in the ¹⁹F NMR spectra (Fig. S1c and S2b, ESI†), while those of the minor component displayed geminal splitting in the C_s-symmetry. An EI mass signal assigned to [1]⁺ was observed at m/z = 732.1524.

Crystal structure of 1

A colourless needle crystal suitable for single-crystal X-ray analysis was obtained by the slow evaporation of a solution of 1 in CH₂Cl₂. The molecular structure and crystallographic parameters of 1 are shown in Fig. 2a and Table S1 (ESI†), respectively. The depth of the corannulene moiety of 0.092 nm is similar to that of the non-substituted corannulene (0.087 nm),¹¹ which may be influenced by the crystal packing with intermolecular interactions.²⁴ The crystal is composed of a couple of enantiomers of C₂-symmetric anti-parallel isomers (Fig. 2a). The two di-substituted curved corannulene moieties on each molecule have the same chirality based on their curvature, denoted as P and M in Fig. 2,²⁵ with unique helicity around the central hexatriene structure. PP and MM isomers were observed. The C–C distance between the reactive carbon atoms was 0.493 nm. The crystal showed no photochromism, as expected from the C–C distance that was much longer than 0.42 nm, which is not suitable for the photocyclization reaction in crystals.²⁶

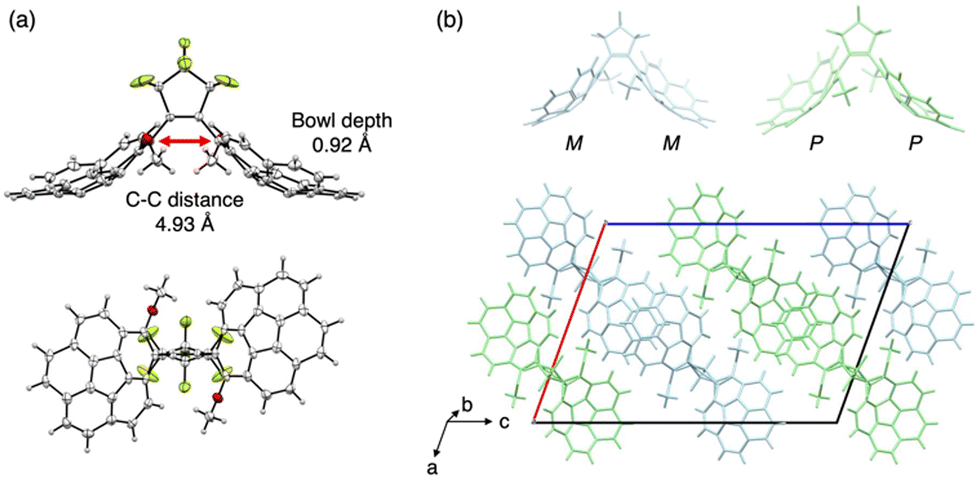

Fig. 2 Single-crystal X-ray structures of 1. (a) Molecular structure represented with 50% thermal ellipsoids and viewed from the top (top) and the side (bottom) and (b) the packing structure.

In the crystal, corannulene moieties of the same PP or MM isomers are stacked enantiomerically with intermolecular CH⋯π interactions²⁷ and weak π–π interactions²⁸ in a concave–convex fashion, where the distances are 2.9 Å (<the sum of the van der Waals radii) and 3.8 Å, respectively, forming a columnar structure in a zig-zag manner (Fig. 2b and S5, ESI†). The other corannulene moieties of these molecules positioned outside of this columnar structure are also arranged in a similar zig-zag columnar manner so as to construct a 2D layer structure with single handedness. Such 2D layer structures respectively composed of PP and MM enantiomers are alternately arranged in an ABAB fashion with intermolecular CH⋯π and CH⋯F interactions²⁹ with the distances of 2.8 Å and 2.5 Å, respectively, shorter than the sum of the van der Waals radii. We also observed non-photochromic behaviour of the powdered sample prepared by grinding the crystals, which is tentatively ascribed to retention of the conformation with less photoactivity, as in the crystal structure.

Atropisomers of 1

Variable-temperature NMR and DFT calculation were performed to examine the presence of atropisomers of 1. The coalescence of the methyl peaks of parallel and antiparallel isomers with increasing temperature in variable-temperature NMR corresponded to the rotation of the corannulene groups (Fig. S6 and S8, ESI†). With decreasing temperature, the methyl peaks of parallel and antiparallel isomers broadened and split into at least three and two peaks, respectively. The parallel and antiparallel isomers appear to be composed of several atropisomers, which are distinguishable at a temperature lower than 203 K in CD₂Cl₂ or toluene-d₈ (Fig. S7 and S8, ESI†). The activation energy of the bowl-to-bowl inversion of the corannulene compound with the depth of 0.084 nm was reported to be 10.2 kcal mol⁻¹ with a coalescence temperature of 209 K.¹⁸ Considering the reported correlation between the depth and inversion¹⁰ and the depth of 1 in crystal, the observed coalescence at low temperature is attributed to the reduced inversion rate of corannulene and recognizable isomers based on its curvature.

We then studied the possible ground state structures of the open form of 1, 1o by means of DFT calculation at the rωB97XD/6-31+G(d) level. 1o is able to have many atropisomers, based on the combination of central hexatriene structure, in parallel and C₂-symmetric anti-parallel isomers of p̲ and m̲ helicity. By counting bowl-shaped di-substituted corannulenes of P and M isomers, we could expect 4 parallel isomers and 8 anti-parallel isomers such as Pp̲P and Pm̲P. As the most stable isomer, we elucidated a possible structure of an anti-parallel isomer 1o-1 (Fig. 3), which is Pp̲P of quasi C₂-symmetry (and Mm̲M, of course). The isomer 1o-1 displays the distance of 0.366 nm between the reaction centre carbon atoms, which is suitable for the photocyclization reaction. We could also evaluate the possible structure of Pm̲P type C₂-symmetric anti-parallel structure 1o-2, which resembles the crystal structure (Fig. 2). Although 1o-2 is significantly (ca. 25 kJ mol⁻¹) higher than 1o-1 in energy, it seems to be stabilized in the crystal packing with inter-molecular interactions. We could also elucidate other possible structures for 1o, as exemplified in the ESI† (see Fig. S9 and S10). Some of these isomers are possibly co-existing in the solution phase at ambient temperature. We also conducted DFT calculation for the closed-form isomer 1c. As illustrated in Fig. 3, the most stable 1c-1 possesses Pm̲M type non-symmetric structure. Quasi C₂-symmetric structure 1c-2 is about 9 kJ mol⁻¹ higher than 1c-1 in energy. Although the origin of this considerable energy loss in 1c-2 is not fully revealed (see Fig. S9 and S11, ESI†), light irradiation would promote structural transformation between the quasi C₂-symmetric 1o-1 and non-symmetric 1c-1 along with the bowl-to-bowl inversion and breaking the symmetry during or after the photoisomerization reaction. Hence, the forward and the backward photoisomerization reactions may proceed through different reaction pathways. The bowl-depth of 1c-1 (0.079 nm and 0.076 nm) are considerably shallower than that of normal corannulenes (0.084 nm) and 1o-1 (0.088 nm), which may decrease the NMR-coalescence temperature of 1c. 1o/1c were also characterized with their energy difference ΔH values of about 131–146 kJ mol⁻¹, which depend on the atropisomers. This relatively large energy change might be rationalized with the difference in the aromatic stabilization in the corannulene units in 1o/1c. We investigated the change in the aromaticity upon photocyclization by means of the NICS(0)^30,31 values derived by the DFT calculations at the rωB97XD/6-31+G(d) level. Considerable positive change was elucidated in the NICS(0) value (ΔNICS(0)_1c–1o = +13.62 & +13.70) at the reaction centre C₆ rings of corannulene units (Fig. S12, ESI†). These computational results are apparently opposite to the primitive expectation for the corannulene units in 1o/1c, which proceed to formal conversion between the 20π non-aromatic and the 18π aromatic systems.

Fig. 3 Atropisomers of antiparallel open-form isomers of 1o-A, 1o-1 and 1o-2 and closed-form isomers 1c, 1c-1 and 1c-2. Enantiomers are omitted for clarity.

The absorption spectra of the atropisomers of 1o were also calculated by TD-DFT at the rωB97XD/6-31+G(d) level, which overlaps with the practically identical absorption maxima and intensities, which correspond to the observed spectra (Fig. S13, ESI†). The TD-DFT calculation was also performed to the atropisomers of 1c (Fig. S14, ESI†), again suggesting the similar absorption bands. We analysed 1 as an ensemble of atropisomers due to the difficulty in separation, also considering the similarity in the absorption spectra.

Photochemical properties

The optical properties of 1o were characterized with UV-vis absorption spectra and compared with those of typical diarylethenes (Table 1). In CHCl₃, compound 1o showed an absorption band at 293 nm with a large absorption coefficient ε of 6.2 × 10⁴ M⁻¹ cm⁻¹ as expected for its two corannulene skeletons. In toluene, the absorption band was almost the same at 294 nm with a smaller ε (5.0 × 10⁴ M⁻¹ cm⁻¹). Slight solvent-dependent shift may suggest the CT character of the absorption, which changes the ε value by altering the overlap with shorter absorption bands.

Table 1 Optical properties of 1 in toluene and literature values of 2–5 in n-hexane

Compound	Solvent	ε o /M^−1 cm^−1 (λmax,o/nm)	ε c /M^−1 cm^−1 (λmax,c/nm)	Φ o–c	Φ c–o
a Absorption coefficients of the open and the closed forms of εo and εc are shown with the absorption maxima λmax,o in the UV region and λmax,c in the visible region, respectively. b The optical properties of 2–5 in n-hexane were reported in the literature.^32–35
1	Toluene	50 100 (294)	6000 (546)	0.64	0.49
2	n-Hexane	6780 (245)	1040 (511)	0.017	0.35
3	n-Hexane	7650 (282)	7820 (480)	0.16	0.05
4	n-Hexane	25 000 (275)	3800 (581)	0.26	0.15
5	n-Hexane	33 000 (309)	15 000 (625)	0.44	<2.0 × 10^−5

---

Compound 1o displayed fluorescence emission with a peak at 480 nm in toluene, where no significant effect of atmosphere was observed (Fig. S15, ESI†). The emission quantum yields ϕ_f of 1o was 0.016 in toluene under excitation at 365 nm.

Photochromism of 1

The colourless solution of 1 turned purple in colour upon UV-irradiation and this photochromic reaction was characterized with UV-vis absorption and ¹H NMR spectra. A CHCl₃ solution of 1o was irradiated by UV light at 365 nm to show spectral change with the progressive absorption peak at 543 nm and shoulder peaks at about 350 and 400 nm, which are assigned to the closed form isomer 1c (Fig. S16, ESI†). From the isosbestic point, this reaction appears to be a 1-to-1 reaction without any significant side reaction. The spectrum turned back to the original state by the successive visible-light irradiation, indicating photochromism between 1o and 1c. A toluene solution of 1o also exhibited similar photochromic behaviour with the peak appearing at 546 nm and shoulders at about 350 and 400 nm and an isosbestic point at 303 nm by UV-irradiation (Fig. 4). The high durability was demonstrated by repeating the colouration and bleaching cycles at least 10 times without photodegradation (Fig. S17, ESI†).

Fig. 4 The UV-vis absorption spectral change in 1o in toluene under photoirradiation at 300 nm and the UV-vis absorption spectrum of 1c with the colour change of the solution.

Isomer 1c was isolated as a dark purple solid by HPLC with CHCl₃ : hexane = 1 : 3. The isolated 1c showed UV-vis spectra with the peaks at 543 and 546 nm in CHCl₃ and toluene with shoulders at about 350 nm and 400 nm, respectively. Visible-light irradiation reproduced the spectra of 1o. The ε value of 1c was estimated to be 7.7 × 10³ M⁻¹ cm⁻¹ at 543 nm in CHCl₃ and 6.0 × 10³ M⁻¹ cm⁻¹ at 546 nm in toluene (Table 1). The maximum conversion ratio was about 46% at photostationary state with irradiation at 300 nm in diluted toluene solution.

The photochromic behaviour of 1 was also investigated by ¹H and ¹⁹F NMR spectroscopy (Fig. S18 and S19, ESI†). New peaks appeared in both the aliphatic and aromatic region by UV-irradiation at 365 nm in CDCl₃ or in toluene-d₈, corresponding to the formation of 1c. The NMR spectra returned to the original state by the following visible-light irradiation, which is consistent with the photochromic behaviour observed by the absorption spectra. The conversion ratio was estimated to 8% or 10% in CDCl₃ or toluene-d₈ in the NMR tube, respectively. 1c displayed a single CH₃ signal at 2.54 ppm in CDCl₃, indicating the symmetric structure at ambient temperature, which was also supported by the ¹⁹F NMR spectra.

The photochemical quantum yields for photocyclization ϕ_o–c and cycloreversion ϕ_c–o were estimated to be 0.30 and 0.31, respectively, in CHCl₃. In toluene, interestingly, much larger values of ϕ_o–c = 0.64 and ϕ_c–o = 0.49 were obtained, indicative of the high efficiency of both photocyclization and photo-cycloreversion in a less polar solvent. The increase in the ϕ_o–c values with decreasing solvent polarity from CHCl₃ to toluene may be partly ascribed to the twisted intramolecular charge transfer, similar to those of the previously reported diarylethenes.³⁶ We may also consider the solvent effect on the relative population of different isomers of both 1o and 1c. The DFT-predicted structures of 1o in the planar conformation in the ground state (Fig. S20, ESI†) showed large and asymmetric dihedral angles and the C–C distance is close enough for photocyclization, possibly due to geometrical distortion and asymmetry. Even if both dihedral angles are supposed to be 90°, similar to that in the twisted conformation, photoreactive C–C distance would be less than 0.42 nm, suitable for photocyclization.²⁶ Such a geometrical distortion that originated from the corannulene curvature may be one reason for the high ϕ_o–c value. The ϕ_o–c value of 0.64 in toluene is more than double of 0.30 in CHCl₃. Since the ratio of the antiparallel conformer in CDCl₃ is almost the same as that in toluene-d₆, 83% (1 : 5) and 89% (1 : 8), respectively. The significant solvent effect should be explained by the solvent-dependent ϕ_o–c value of the reactive antiparallel conformer and the solvent-dependent abundance ratios of the several atropisomers associated with corannulene inversion.

While the methoxy groups on the reactive carbons strongly suppress the ϕ_c–o of dithienylethenes,³⁵ it increases the ϕ_c–o of diarylethene with naphthalene.³³ The present relatively large ϕ_c–o value of 1c/1o might be related to the effect of methoxy group on the reactive carbons and, meanwhile, is the largest value so far reported for diarylethenes with methoxy groups. The ϕ_c–o value of 0.49 is almost comparable to the ϕ_o–c value of 0.64 as well as the ε value at the irradiation wavelength. Such comparable balance of both reactions results in the conversion ratio at the photostationary state of only 46% in spite of the high photosensitivity. We also confirmed no remarkable oxygen effect on the quantum yields, supporting singlet excited state on the dominant reaction pathway (Table S2, ESI†). The sum of the ϕ_o–c and ϕ_c–o values of 1o/c reached 1.13, markedly beyond unity. This implies significant perturbation on the forward and reverse reaction pathway, which could originate from the interconversion between atropisomers in the ground and/or the excited states.

VT-NMR of the closed form 1c interestingly showed no coalescence behaviour in the temperature range between 183 K and 403 K, different from 1o, which shows coalescence below 203 K (Fig. S6–S8, ESI†). The bowl-curvature becomes shallower upon photocyclization, as elucidated by DFT calculation, which should suppress the activation energy for the bowl-to-bowl inversion of corannulene units in 1c.

Thermal stability of 1

1c showed no marked fading at 363 K (90 °C) for 8000 s, which implies significantly high thermal stability in the closed form isomer. This is obviously contradictive to the relatively large energy difference between 1o and 1c, ΔH, of 140 kJ mol⁻¹ between 1o-1 and 1c-1, for example (Fig. 3 and Fig. S9, ESI†). The thermal fading kinetics was evaluated between 403 K and 433 K for elucidating the activation energy of the cycloreversion reaction, E_a = 89 kJ mol⁻¹, with a frequency factor A = 3.73 × 10⁷ s⁻¹ obtained from the Arrhenius plot (Fig. S21b, ESI†).³⁷ The half-lifetime t_1/2 is calculated to be 4 years at 20 °C, which is sufficiently stable for classifying to the P-type photochrome. The very small A value, which is 10⁴–10⁶ times smaller than that of previously reported typical diarylethenes,^38–40 should be responsible for the high thermal stability of 1c. In addition, the thermodynamic activation parameters of enthalpy ΔH^‡, entropy ΔS^‡ and Gibbs free energy ΔG^‡ were evaluated to be 85 kJ mol⁻¹, −111 J K mol⁻¹ and 119 kJ mol⁻¹, respectively, by the Eyring plot (Fig. S21c, ESI†). The large negative value of ΔS^‡ suggests that the degree of randomness affects the thermal stability, which may be ascribed to the atropisomers, their bowl inversion behaviour, or the increase of the bowl depth upon cycloreversion.

Photochromism of 1 in a film

We further demonstrated the photochromic feature of 1o/c in poly(methyl methacrylate) (PMMA) films. The clear pare yellow film was prepared from the CHCl₃ solution of 1o and PMMA by drop-casting and drying on a quartz plate. The PMMA film of 1o exhibited photochromism with the increase in the absorption at 550 nm by UV-irradiation and the decrease in visible-light irradiation (Fig. 5 and Fig. S22b, ESI†). No marked shift in the absorption bands from those in the solution was observed (Fig. S22a, ESI†). The durability of the film was confirmed by repeating the colouration and bleaching cycles for 10 times without marked photodegradation (Fig. S22c, ESI†). No marked change in the conversion ratio to 1c was observed in the successive cycles. A weak emission was also observed similar to that in a solution (Fig. S22d, ESI†). The photochromic behaviour in the PMMA film indicated that 1o could have a reactive conformation and the intermolecular packing effect should be suppressed.^41,42

Fig. 5 The UV-vis absorption spectral change in a 1o/PMMA film, prepared by drop-casting chloroform solution containing 1o (12 mM) and PMMA (10 wt%) (1o/PMMA = ca. 5 wt%) under s photoirradiation at 365 nm. Inset: Colour change of a 1o/PMMA film.

We further assessed the neat film of 1o, which was prepared by drop-casting the CHCl₃ solution of 1o. It showed no colour change under UV-irradiation (Fig. S23a, ESI†). Powder X-ray diffraction showed diffused peaks, indicating a partially crystalline state (Fig. S24, ESI†). The diffraction peaks partly overlapped with the simulated ones for the single-crystal data, which suggested that a part of the structure in the bulk crystal could be maintained in the neat film. The apparent crystallite size D was calculated to be 20 nm by Scherrer's equation.⁴³ We also prepared a neat film of 1c with deep purple colour. The absorption band at 550 nm decreased with visible-light irradiation but was not recovered under UV-irradiation (Fig. S23b, ESI†). The bleaching reaction seems to form 1o with reactive anti-parallel conformation, which might spontaneously turn to the non-reactive conformation, possibly similar to those in the crystalline structure through the bowl-to-bowl inversion. To the best of our knowledge, the present results deliver the first example of the photoswitching nature of corannulene derivatives in neat films. One-way photoresponse behaviour has been studied for some applications such as imaging technology.^44,45

Compound 1 showed the following characteristics in solution and in a PMMA film: (i) high photoreactivity of both cyclization and cycloreversion reactions, ϕ_o–c = 0.64 and ϕ_c–o = 0.49, (ii) a very large molar absorption coefficient of the open isomer of 5.0 × 10⁴ M⁻¹ cm⁻¹, (iii) large enthalpy difference between the open and closed form of more than 140 kJ mol⁻¹, (iv) the closed form displays significant thermal stability, which is partly because of the entropy effect and could be ascribed to the changes in the bowl-depth and to the possible bowl-to-bowl inversion upon isomerization. Because of the low frequency factor and modest activation energy, compound 1 behaves as the “P-type” photoswitching unit in a wide temperature range. These figures of 1 may also shed a light on the possible tunability of internal heat capacity and energy storage capability by means of curved aromatic units.^46,47 These results thus suggest the unique functionality of curved aromatic units in photochromic units for various molecular materials, including photoswitching and light energy technology.

Conclusions

In conclusion, we synthesized herein a new diarylethene derivative 1 with two curved aromatic corannulene skeletons as the side aryl units and studied its photochromic behaviour. Compound 1 showed high photochromic efficiency in toluene with a large ε value of the open form, 5.0 × 10⁴ M⁻¹ cm⁻¹, at 294 nm and large quantum yields of the photoreactions (ϕ_o–c = 0.64 and ϕ_c–o = 0.49). Interestingly, the sum of ϕ_o–c and ϕ_c–o values was >1.0, which can be explained by the existence of atropisomers based on the curvature with different quantum yields and the change in their abundance ratio in 1o and 1c with the help of geometrical curvature. DFT calculation predicts reversible photomodulation in the bowl-depth of corannulene units. The high thermal stability of 1c in spite of the large ϕ_c–o was explained by a significantly small frequency factor A = 3.73 × 10⁷ s⁻¹ and a large negative value of ΔS^‡ = −111 J K mol⁻¹, even with a moderate activation energy in the ground state and a small activation energy in the excited state. In addition, the photochromism of 1 was demonstrated in PMMA films, while one-way colour change was observed in the bulk neat film. The high photosensitivity, large enthalpy difference and high thermal stability of 1 demonstrated promising properties based on the curved structure for future applications such as energy storage.

Experimental

Materials

Chemicals were purchased from FUJIFILM Wako Pure Chemical Corporation, Tokyo Chemical Industry Co., Ltd (TCI), Kanto Chemical Co., Inc. or Sigma-Aldrich Japan G.K. and used as received without further purification. Silica gel column chromatography was performed using silica gel 60N (spherical neutral, particle size 63–210 μm). Recycling preparative GPC separation was performed with a LaboACE LC-5060 (Japan Analytical Industry Co., Ltd).

Synthesis of 1

1-Bromo-2-methoxycorannulene (360 mg, 1.00 mmol, 1.00 eq.) was dissolved in dry THF at −78 °C under nitrogen. 1.6 M n-BuLi in hexane (660 μL, 1.05 mmol, 1.05 eq.) was slowly added and stirred for 3 h at −78 °C. Then, 0.75 M perfluorocyclopentene in THF (530 μL, 0.40 mmol, 0.40 eq.) was gradually added dropwise. The mixture was stirred for 4 h at −78 °C and then overnight at room temperature. The reaction mixture was poured into 1 M HCl (6 mL). The solution was extracted with CH₂Cl₂ (5 mL × 2) and washed with water. The organic layer was dried over anhydrous MgSO₄ and the solvent was evaporated. After purification by silica gel column chromatography (Hexane : CH₂Cl₂ = 5 : 1), 1,2-bis(2-methoxy-corannulenyl)perfluorocyclopentene (58 mg, 0.08 mmol, 16%) was obtained as a yellow solid. ¹H NMR (500 MHz, toluene-d₈): δ 8.08 (dd, J = 2, 9 Hz, 2H, ap), 7.60 (d, J = 9 Hz, 2H, ap), 7.43 (d, J = 9 Hz, 2H, ap), 7.30 (d, J = 9 Hz, 2H, ap), 7.23 (d, J = 9 Hz, 2H, ap), 7.10 (d, J = 9 Hz, 2H, ap), 6.88 (m, 4H, ap), 4.11 (s, 0.75H, p), 3.82 (s, 6H, ap). ¹⁹F NMR (470 MHz, toluene-d₈): δ −107.53 (dd, J = 9, 263 Hz, 0.3F, p), −108.99 (d, J = 263 Hz, 2F, ap), −110.13 (d, J = 263 Hz, 2F, ap), −111.92 (dd, J = 9, 263 Hz, 0.3F, p), −131.84 (quin, J = 6 Hz 2F, ap), −131.5–133.2 (m, 0.3F, p). HRMS (EI) m/z: calcd for C₄₇H₂₂F₆O₂ {[1]⁺}: 732.1524; found: 732.1524. The peaks due to parallel and antiparallel conformations of 1 are denoted as p and ap, respectively.

NMR measurement

NMR spectra were recorded on a JEOL JNM-ECA600 (600 MHz), JEOL JNM-ECZ500R (500 MHz) or JEOL JNM-ECX400P (400 MHz). Compound 1 has two conformations, parallel (p) and antiparallel (ap). In the ¹H NMR spectra, the parallel peaks in the aromatic region were difficult to be identified because these are very small and overlapped with the antiparallel peaks. VT-NMR were measured in CD₂Cl₂ (183–293 K), tetrachloroethane-d₂ (293–403 K) and toluene-d₈ (183–373 K). The temperature was changed at 10 K and measurements were performed after the temperature had remained constant.

MS measurement

Electron Ionization (EI) mass spectra were recorded on a mass spectrometer (JEOL JMS-700 MStation for EI). The samples were prepared by dissolving in CHCl₃.

Single-crystal X-ray analysis and powder X-ray diffraction

Single-crystal X-ray crystallographic analysis was performed using a Rigaku XtaLAB Synergy (1.2 kW) diffractometer with photon Jet-R rotating anode X-ray source CuKα radiation and Hypix-6000HE detector. A single crystal for diffraction measurement was mounted with epoxy resin on a glass fiber, the temperature of which was controlled using a nitrogen gas-flow. The collected X-ray diffraction data were processed using CrysAlisPro. The obtained data were solved with the SHELXT structure solution program and refined with the SHELXL refinement package using Olex2 ver1.5. Hydrogen atoms were refined using the riding model. The powder X-ray diffraction (PXRD) patterns were recorded on a Rigaku SmartLab9kW/IP/HY/N diffractometer using CuKα radiation (λ = 1.540593 Å) in the 2θ range of 4°–40° with a step size of 0.02° and a scan rate of 1° min⁻¹. The sample film was prepared by drop-casting the CHCl₃ solution of 1o (5.0 mM) on the Si single-crystalline substrate. The simulated PXRD pattern of 1o was generated from the single-crystal X-ray data using the Free Mercury program by the Cambridge Crystallographic Data Center. The setting wavelength, step size and FWHM (2θ) were 1.54056 Å, 0.02° and 0.34°, respectively.

UV-vis absorption spectral measurements

UV-vis absorption spectra were recorded using a JASCO V-550 or V-760 spectrometer. The decay of the peaks in the visible region by thermal cycloreversion reaction were measured at 90 °C in toluene and at 130, 140, 150 and 160 °C in decalin. The temperature was controlled by a JASCO ETC 505T temperature controller (90 °C), and an aluminium bath and a magnetic stirrer with a hot plate (EYELA RCH-1000) (130, 140, 150 and 160 °C).

Quantum yield measurements

The quantum yields of photocyclization and photocycloreversion were measured using a Shimadzu QYM-01. The excitation wavelength (ϕ_o–c/ϕ_c–o) was 330/540 nm in CHCl₃ and 365/540 nm in toluene. The change in the absorption spectra and the number of photons absorbed by 1o and 1c were measured, then each change of the number of 1o and 1c was calculated upon photoirradiation. To reveal the oxygen effect, the CHCl₃ solution of 1 was bubbled with oxygen and nitrogen for 15 min and then the quantum yields were measured respectively.

Emission spectral measurements

Emission and excitation spectra were measured using a JASCO FP-8500 spectrometer. The excitation wavelengths were 350 nm in toluene and 300 nm in PMMA film.

Emission quantum yield measurements

Emission quantum yield was measured using a Hamamatsu Photonics C9920-02 instrument with an integrating sphere. The excitation wavelength was 365 nm in toluene.

Theoretical calculations

The optimized structures of the ground state and molecular orbitals were calculated by the density functional theory (DFT) and time-dependent density functional theory (TD-DFT) method at the rωB97XD/6-31+G(d) level of theory. NICS(0) values were calculated by the gauge-independent atomic orbital (GIAO method) at the rωB97XD/6-31+G(d) level of theory. The Banquo atoms were placed on the centroid of rings and the NMR shift was calculated. All calculations were carried out using the Gaussian16 package.⁴⁸

The bowl depth of corannulene moiety

The bowl depth is defined the distance between the centroid of the five interior carbon atoms and the centroid of the ten carbon atoms on the rim.

The isolation of 1c

The closed form of 1 (1c) was isolated by HPLC (CHCl₃ : Hexane = 1 : 3) from the mixture of 1o and 1c obtained by UV-irradiation of the solution of 1o. HPLC separation was performed with a COSMOSIL 5SL-II packed column (20 mm I.D. × 250 mm, Nacalai Tesque, Inc.), a UV/vis detector (JASCOUV-2075 Plus) and an HPLC pump (JASCO PU-2080 Plus).

Data availability

The data supporting this article have been included as part of the ESI.† Crystallographic data for 1 has been deposited at the CCDC under 2345853† and can be obtained from DOI: 10.1039/d4tc03157j.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors acknowledge Prof. Masahiro Ehara for his support on the calculation with technical assistance and Ms Yoshiko Nishikawa for her support in the EI mass measurement. This work was partly supported by JSPS KAKEN-HI Grant Numbers JP23H04876 and JP22H05134 for Transformative Research Area (A), and JP24K08361/JP22H02052 for Grant-in-Aid for Scientific Research (C/B) (M. Y./T. K.). This work made use of NAIST common facilities supported by “Advanced Research Infrastructure for Materials and Nanotechnology” in Japan (ARIM) of Ministry of Education, Culture, Sports, Science and Technology (MEXT) (JPMXP1224NR5023). This research was supported by Joint Research by Institute for Molecular Science (IMS program JPMXP1222MS0016, JPMXP1223MS0021).

Notes and references
