Hexacoordinate germanate metal–organic frameworks for the detection of Pb²⁺ ions in aqueous solution

Abstract

Hexacoordinate silicate and germanate linkers supporting high negative charges have been prepared and applied as building blocks for anionic MOF frameworks with lanthanide metal-based nodes. The SiO₆/GeO₆ centred linkers [Et₃NH]₂[H₃L-Si/Ge] [H₃L-Si/Ge = tris(3,4-diolato-benzoic acid) silicate/germanate] were initially prepared and characterised, with the germanate ligand demonstrating excellent water stability. A series of rare earth MOFs (IMP-33-Sc and IMP-34-Ln, Ln = Y, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu) were then synthesised under hydrothermal conditions using H₃L-Ge. Both IMP-33-Sc and IMP-34-Ln exhibit (3,6)-connected networks with the same flu-3,6-C2/c topology, however, whereas IMP-33-Sc contains trimetallic nodes, IMP-34-Ln nodes are bimetallic, thus leading to a higher anionic network charge of 4− in IMP-34-Ln (vs. 1− in IMP-33-Sc). The terbium based MOF IMP-34-Tb exhibits characteristic luminescent properties and is shown to be selectively quenched by Pb²⁺ ions in aqueous solutions through a dynamic quenching process. A strong linear relationship between the fluorescence intensity and Pb²⁺ concentration in the range of 0.01–4 mM makes it a promising sensor for aqueous Pb²⁺ ions.

---

Introduction

Metal–organic frameworks (MOFs) are highly crystalline porous materials with a wide range of potential applications in areas such as gas capture and storage, catalysis, chemical sensing, and water harvesting.¹ The large diversity in these materials is often attributed to the versatility of the organic ligand, which can be designed to impart specific connectivity or functionality. Tetravalent silicon, and to a lesser extent germanium, centred connectors have shown promise in MOF construction as highly branched building blocks,^2–5 and in the case of siloxanes for their high hydrophobicity.⁶ Hexavalent silicate and germanate connectors, most notably the hexafluorides SiF₆²⁻ and GeF₆²⁻, have also been utilized as building blocks for MOF synthesis, in particular in the SIFSIX/GeFSIX series of MOFs.^7–11 These MOFs consist of a 2D-layer comprising di-topic N-based ligands and metal nodes (usually Cu²⁺, Zn²⁺ or Ni²⁺), connected to form a 3D network by axial Si/GeF₆²⁻ anions (Fig. 1a).⁹ The pore size in these materials can be varied by adopting different length N-donor ligands. Using this approach SIFSIX/GeFSIX MOFs have been successfully optimised for a range of gas storage and separation scenarios.^11–14

Fig. 1 (a)–(e) Hexavalent Si/Ge connectors used in MOF and COF construction (E = Si/Ge).

Hexacoordinated Si and Ge connectors based on SiO₆ or GeO₆ octahedra are less well known, with only a handful of examples reported in the MOF and COF literature. The majority of these are based on triscatechol silicate or germanate anions. Martsinko et al. have reported two coordination polymers (CPs) with ligands based on GeO₆ octahedra (see Fig. 1b) with Cu²⁺ and Ba²⁺ metal nodes.^15,16 Roeser et al. reported two 3D anionic COFs with permanent porosity based on SiO₆ octahedra (Fig. 1c and d).^17,18 An analogous COF with GeO₆ octahedra (Fig. 1d) has also been reported by Wang et al.¹⁹

These connectors are usually highly negatively charged due to the presence of the dianionic hexacoordinate Si or Ge centre. This can bring some unique features to MOF and COF construction including easier access to anionic networks. For example, the presence of alkaline metal counter-cations in the anionic Ge-COFs reported by Wang facilitated fast ion conduction and also increased CO₂ gas selectivity.^19,20 Tris-catecholate silicate derivatives have also been used in polymer synthesis and have been studied for absorption of dyes and used as solid electrolytes.^21–23 In this work we focus upon the development of a novel ligand for MOF construction based on SiO₆ or GeO₆ octahedral with tris-connectivity via three pendant carboxylate groups and an overall 5− negative charge (Fig. 1e). It was anticipated that these building blocks could facilitate the formation of MOF networks with more highly charged metal centres (such as rare earth cations) and also aid in the formation of novel anionic frameworks with potential use in the detection or absorption of cationic species such as Pb²⁺.²⁴

Lead is a commonly encountered toxic element because it will accumulate in the human body and cause permanent damage to the nervous system even at low concentrations.²⁵ Exposure to lead has also been linked to various diseases such as cancer, and anaemia.²⁶ As such, there is high interest in the development of sensitive sensors for detecting lead in aqueous solutions. Lanthanide elements are well known for optical sensing with characteristic luminescent emission.^27,28

In the present work, the triethylammonium salts of novel tris-catechol silicate/germanate type ligands, namely [Et₃NH]₂[H₃L-Si/Ge], have been synthesised. These contain three pendant carboxylic acid groups which can provide coordination sites for metal cations in MOF construction (Fig. 1e). Unlike the silicon-based connector, the germanium-based linker was shown to have excellent water stability and was used to prepare a series of GeO₆-based MOFs with rare earth (RE) metals which exhibited novel 3D structures and good water stability. Among these MOFs, IMP-34-Tb emitted bright green light under UV excitation and showed promise in Pb²⁺ sensing.

Experimental section

Materials and general methods are specified in the ESI.†

Linker synthesis

Bis(triethylammonium) tris(3,4-diolato-benzoic acid) silicate [Et₃NH]₂[H₃L-Si]: 3,4-dihydroxybenzoic acid (2.312 g, 15 mmol) was first dissolved in acetonitrile (20 mL). Et₃N (1.39 mL, 10 mmol) was added to the stirred solution, resulting in the formation of a white precipitate. Si(OMe)₄ (0.74 mL, 5 mmol) was then added, and the mixture was stirred at room temperature for 48 h. The white precipitate formed was isolated by suction filtration, then washed with acetonitrile and diethyl ether before drying under vacuum at 50 °C for 3 h to give a white powder. Yield: 2.92 g, 85%. ¹H NMR (400 MHz, D₆-DMSO): δ (ppm) = 10.51 (br, 1H, COOH), 7.10 (dd, 1H, J = 8, 2 Hz, C6-H), 6.79 (t, 1H, J = 2 Hz, C2-H), 6.26 (d, 1H, J = 8 Hz, C5-H), 3.10 (q, 4H, J = 8 Hz, CH₂CH₃), 1.16 (t, 6H, J = 8 Hz, CH₂CH₃); ¹³C NMR (101 MHz, D₆-DMSO): δ (ppm) = 168.99 (COOH), 157.91, 151.83, 120.43, 117.74, 109.59, 108.69, 46.30 (CH₂CH₃), 9.12 (CH₂CH₃); ²⁹Si NMR (80 MHz, D₆-DMSO): δ (ppm) = −138.17; MS (ESI†): calcd (monoisotopic) for [C₂₁H₁₂O₁₂Si + H]⁻m/z = 485.0182, found m/z = 485.0198; IR (ATR): ν (cm⁻¹) = 2980 (br), 1656, 1498, 1444, 1269, 1118, 829, 774, 691, 663, 543.

Bis(triethylammonium) tris(3,4-diolato-benzoic acid) germanate [Et₃NH]₂[H₃L-Ge]: 3,4-dihydroxybenzoic acid (1.849 g, 12 mmol) was dissolved in acetonitrile (dry solvent, 20 mL). Et₃N (1.12 mL, 8 mmol) was added to the stirred solution, resulting in the formation of a white precipitate. Ge(OMe)₄ (0.59 mL, 4 mmol) was then added, and the mixture was stirred at room temperature for 48 h. The resulting white precipitate was isolated by suction filtration, then washed with acetonitrile and diethyl ether before drying under vacuum at 50 °C for 3 h to give a white powder. Yield: 2.73 g, 93%. ¹H NMR (400 MHz, D₂O): δ (ppm) = 7.31 (dd, 1H, J = 8 Hz, C6-H), 7.18 (d, 1H, J = 2 Hz, C2-H), 6.64 (d, 1H, J = 8 Hz, C5-H), 2.99 (q, 4H, J = 8 Hz, CH₂CH₃), 1.10 (t, 6H, J = 8 Hz, CH₂CH₃); ¹³C NMR (101 MHz, D₂O): δ (ppm) = 171.38 (COOH), 154.74, 148.36, 122.23, 118.48, 112.34, 111.66, 46.59 (CH₂CH₃), 8.15 (CH₂CH₃); MS (ESI†): calcd for [C₂₁H₁₂O₁₂Ge + H]⁻m/z = 530.9624, found m/z = 530.9626; IR (ATR): ν (cm⁻¹) = 3010 (br), 1657, 1494, 1439, 1264, 1118, 942, 813, 773, 648, 408.

Synthesis of MOFs

A mixture of metal nitrate (Sc, Y, Gd, Tb, Dy, Ho, Er, Tm, Yb or Lu, all trivalent, 0.1 mmol) and [Et₃NH]₂[H₃L-Ge] (0.05 mmol) were placed in a 7 mL screw cap glass vial, followed by addition of water (3 mL) and MeCN (1 mL). The mixture was sealed and sonicated for 5 min to ensure the reagents completely dissolved, before heating at 80 °C for 24 h to afford blade-shaped crystals (except for IMP-33-Sc which gave prism-shaped crystals). IMP-34-Ho and IMP-34-Er gave pale orange and pink crystals respectively, whilst all other crystals were colourless. Crystals were isolated from the hot solution directly through filtration, and the bulk phase purity of the crystals was confirmed through PXRD measurements (Fig. 5 and Fig. S3, ESI†).

Results and discussion

Synthesis and general characterization

The [H₃L-Si/Ge]²⁻ linkers were synthesized as triethyl-ammonium salts from the reaction of 3,4-dihydroxybenzoic with Et₃N and either Si(OMe)₄ or Ge(OMe)₄, using a similar procedure to that previously employed for tris(catecholate) silicate/germanate synthesis (Scheme 1).²⁹ The successful preparation of the desired hexacoordinate SiO₆/GeO₆ based linkers was confirmed using multinuclear NMR and IR spectroscopy and mass spectrometry. ¹H NMR studies on both Si and Ge linkers were consistent with the formation of the products with a 1 : 2 ratio of silicate/germanate anion to ammonium cation. ²⁹Si NMR studies on [H₃L-Si]²⁻ gave a single peak at −138.2 ppm which is close to that previously reported for tris(catecholate) silicate (−141.2 ppm).²⁹

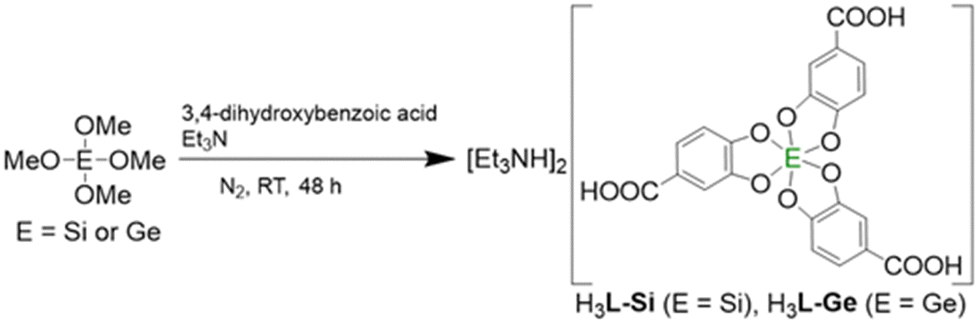

Scheme 1 Linker synthesis.

The silicon-based H₃L-Si dianion showed poor water stability: dissolution in water was followed by precipitation of a white powder (presumably silicon dioxide³⁰) and ²⁹Si NMR spectra revealed no silicon-containing species remained in the solution. Additionally, ¹H NMR (in D₂O) showed regeneration of the 3,4-dihydroxybenzoic acid starting material indicating full hydrolysis of [H₃L-Si]²⁻ had occurred.²⁹ In contrast H₃L-Ge showed no evidence of decomposition in the presence of water even when heated in D₂O at 80 °C for 72 hours (see ESI†).

Solid-state structure of [Et₃NH]₂[H₃L-Si]

Slow diffusion of diethyl ether into a dry DMF solution of [Et₃NH]₂[H₃L-Si] afforded colourless tablet crystals which were analysed using single-crystal X-ray diffraction. In addition to the ligand structure, we were interested to see whether this silicate could form a hydrogen bonding network (HOF).³¹

[Et₃NH]₂[H₃L-Si] crystallised in the triclinic P1̄ space group, with the silicon atom coordinated by three deprotonated catecholate groups as expected to give a slightly distorted octahedral geometry at Si, as shown in Fig. 2a. The Si–O bond lengths are in the range 1.767(3) to 1.798(3) Å, with adjacent and opposite O–Si–O bond angles in the ranges 87.10(14) to 94.67(14)° and 174.50(16) to 177.24(16)° respectively. These values are consistent with those reported for other tris-catechol silicate species.^29,32 In addition, the dianion is chiral at the Si centre, with a racemic mix of D- and L-isomers observed in the solid-state structure.

Fig. 2 (a) Crystal structure of [Et₃NH]₂[H₃L-Si]; (b) zigzag H-bonding chain structure; (c) packing diagram viewed along (0 1 0); C: grey, H: pink, O: red, N: light blue, Si: pale yellow; H bonds are shown as light blue lines; alkyl/aryl H atoms and ammonium cations in (b) and (c) are omitted for clarity.

Intermolecular H-bonds are observed between the N–H group on the ammonium cation and three facially positioned oxygen atoms in the SiO₆ group. The N(H)⋯O–Si distances are in the range 2.867 and 3.355 Å (mean 3.146 Å). Two of the carboxylic acid groups in the H₃L-Si dianion form hydrogen bonding dimers with adjacent COOH groups, resulting in the formation of a zigzag H-bonded chain (Fig. 2b). The O(H)⋯O distances range between 2.573 and 2.605 Å, which are consistent with similar structures in HOFs built from poly-carboxylic acids.⁴ The third carboxylic acid group does not participate in hydrogen bonding with other silicate or ammonium ions.

The 1D hydrogen-bonded chains pack in an antiparallel fashion in the crystal lattice to give a structure with channels of diameter 3.4 Å along the (0 1 0) direction³³ (Fig. 2c). However, these potential void areas are filled with ammonium cations and disordered solvent molecules (calculated three DMF per formula unit). The absence of a robust 3D H-bonding network meant it was not possible to remove the solvent molecules and realize any permanent porosity for this material.

Although it was not possible to obtain crystals of [Et₃NH]₂[H₃L-Ge] suitable for SCXRD characterisation, the PXRD pattern for this compound matches closely with the PXRD pattern obtained for [Et₃NH]₂[H₃L-Si] (Fig. S1, ESI†), indicative of their isostructural nature.

IMP-33-Sc

Attempts to prepare novel MOFs with the [H₃L-Si]²⁻ silicate linker was unsuccessful due to the poor water stability of this molecule (vide supra). However, the good water stability of the germanate linker allowed a series of MOFs to be prepared using [Et₃NH]₂[H₃L-Ge]. Thus, the reaction of [Et₃NH]₂[H₃L-Ge] with Sc(NO₃)₃ in a mixture of water and MeCN at 80 °C for 24 h afforded colourless prism-shaped crystals. Single crystal X-ray diffraction revealed a 3D MOF network of structure [Sc₃(L-Ge)₂(H₂O)₆]·[Et₃NH]·(MeCN)₆(H₂O)₉ (IMP-33-Sc), and the purity of the bulk sample was confirmed by PXRD measurements (Fig. S2, ESI†). IMP-33-Sc crystallised in the monoclinic space group P2₁ as an anionic framework, with triethylammonium cations and disordered solvent molecules (MeCN and H₂O) sited within the pores. The triethylammonium cations were located in the crystal structure and form H-bonding interactions between the ammonium N–H and two O different atoms from the GeO₆ centre, with the distances ranging from 2.988 to 3.264 Å. H-Bonding interactions are also observed to the GeO₆ unit from the metal coordinating water molecules in the SBU (Fig. S16, ESI†). Furthermore, ¹H NMR spectra of the digested MOF in aqueous NaOD confirms the triethylammonium to L-Ge ratio of 1 : 2 (Fig. S13, ESI†).

To visualise the topology of the framework better, the metal clusters and ligands can be reduced to simple nodes (Fig. 3). There are two types of crystallographically independent metal-containing nodes or SBUs which both exhibit the same connectivity being based on three linearly arranged Sc³⁺ cations with octahedral geometries (Fig. S17, ESI†). The central Sc³⁺ cations coordinate with six bridging di-monodentate carboxylate groups (each from a different ligand), while the terminal Sc³⁺ cations coordinate with three bridging di-monodentate carboxylate groups and three water molecules (Fig. 3a). Similar motifs are well known in transition metal-based MOFs and have been previously reported for Sc with different terminal coordinated molecules.³⁴ There are four types of crystallographic distinct germanate molecules, each of which bridges three metal SBUs in a (κ¹-κ¹-μ₂)³-μ₆ coordination mode. The combination of 6-connected metal nodes and 3-connected ligands yields a flu-3,6-C2/c topology, which is somewhat rare in the literature but has been previously reported in a series of MOFs using tridentate carboxylate linkers and lanthanide metal clusters.^35–38

Fig. 3 (a) Coordination environment of the SBU; (b) tridentate Ge ligand; (c) packing diagram of the IMP-33-Sc (0 1 0); (d) topology view of the network. C: grey, O: red, Ge: grey blue, Sc: pink, H atoms are omitted for clarity.

Theoretical removal of disordered non-coordinated solvent molecules, coordinated water molecules and ammonium cations from the pores of IMP-33-Sc gave a PLATON³⁹ predicted solvent-accessible void volume of 57% of the unit cell. However, IMP-33-Sc became amorphous after activation under vacuum at 60 °C for 12 h, as indicated by PXRD (Fig. S2, ESI†). This was attributed to the partial collapse of the framework, and thus the material did not exhibit any permanent microporosity. However, soaking the ‘activated’ MOF in water led to the regeneration of IMP-33-Sc as shown using PXRD (Fig. S2, ESI†).

IMP-34-Y and IMP-34-Ln

A series of lanthanide metal nitrates (Y, Gd, Tb, Dy, Ho, Er, Tm, Yb or Lu, all trivalent) were treated with [Et₃NH]₂[H₃L-Ge] in a mixture of water and MeCN in a sealed glass vial at 80 °C for 24 h to afford blade-shape crystals in each case. The yttrium containing crystals were analysed by SCXRD and found to be [Y₂(L-Ge)₂(H₂O)₄][Y(H₂O)₈][Et₃NH]·3H₂O. IMP-34-Y crystallised in the monoclinic space group C2/c and comprises an anionic [Y₂(L-Ge)₂(H₂O)₄]⁴⁻ network counterbalanced by [Y(H₂O)₈]³⁺ and [Et₃NH]⁺ cations within its pores. The oxygen atoms in the GeO₆ centre form hydrogen bonds to coordinated water molecules of the [Y(H₂O)₈]³⁺ counter-cation as well as to solvent water molecules (Fig. S18, ESI†). H-Bond interactions were also observed between the oxygen atoms on the ligand carboxylate groups and water molecules from solvent and SBU. The solvated Y³⁺ counter cation was located in the solid-state structure, however the ammonium cations were not observed due to disorder although their presence was confirmed using ¹H NMR spectroscopy of the digested MOF in aqueous NaOD which showed a germanate ligand to ammonium cation ratio of 2 : 1 (Fig. S14, ESI†).

The metal nodes (SBUs) in IMP-34-Y comprise two yttrium cations, each of which is coordinated by two bidentate chelating carboxylate groups, two di-monodentate bridging carboxylate groups and two water molecules (Fig. 4a). This therefore gives a six-connected vertex. The three deprotonated carboxylate groups in each ligand molecule bind to a different SBU to give an overall (κ¹-κ¹-μ₁)²-(κ¹-κ¹-μ₂)-μ₄ coordination mode. To visualise the topology of the framework better, the metal clusters and ligands can be reduced to simple 6- and 3-connected nodes respectively (Fig. 4) to give a flu-3,6-C2/c network. Interestingly, this is the same topology as observed in IMP-33-Sc, however the bimetallic metal node in IMP-34-Y has a lower charge than the trianionic metal node in IMP-33-Sc resulting in a higher negative charge on the network: [Y₂(L-Ge)₂]⁴⁻vs. [Sc₃(L-Ge)₂]⁻.

Fig. 4 (a) Coordination environment of the SBU; (b) tridentate Ge ligand; (c) packing diagram of the IMP-34-Y (0 1 0); (d) topology view of the network (0 1 0). C: grey, O: red, Ge: grey blue, Y: pale blue. H atoms are omitted for clarity.

Powder X-ray diffraction measurements on freshly prepared IMP-34-Y show the bulk product to be consistent with the calculated pattern from the single crystal X-ray data (Fig. S3, ESI†). Theoretical removal of highly disordered non-coordinated solvent molecules and cations from the pores of IMP-34-Y gave an estimated solvent-accessible void volume of 59% using PLATON.³⁹ However, N₂ sorption studies on the activated material (heated under vacuum at 60 °C for 12 h) revealed that the framework is essentially non-porous, presumably due to the presence of metal and ammonium cations in the pore space which could not be removed under vacuum (Fig. S19, ESI†). Activation of IMP-34-Y resulted in some minor peak shifts, however soaking the activated MOF in water led to the regeneration of the original MOF material as shown using PXRD studies (Fig. S3, ESI†) and demonstrated the stability of the MOF under aqueous conditions.

Single crystal analysis of IMP-34-Dy reveals that this MOF has an identical framework structure and topology to IMP-34-Y, with minor differences in unit cell parameters (Fig. S20, S21 and Table S2, ESI†). All the other lanthanide MOFs studied were shown to have matching PXRD patterns to IMP-34-Y and IMP-34-Dy (Fig. 5) and hence are predicted to be isostructural.⁴⁰ Thermogravimetric analysis of all IMP-34-Ln MOFs exhibited similar weight loss curves (Fig. S4, ESI†), with thermal stability up to 300 °C.

Fig. 5 PXRD results of IMP-34-Y and IMP-34-Ln.

Photoluminescence properties of IMP-34-Tb

Tb-based MOFs have been reported to exhibit outstanding luminescent properties with a visible region light emission, and have been used in a variety of sensing applications.^41–44IMP-34-Tb displays a bright green luminescence in the solid state under UV excitation (366 nm). The luminescence property was studied in aqueous suspension by adding 3 mg IMP-34-Tb to 3 mL DI water, followed by treatment in an ultrasound bath for 20 min. IMP-34-Tb exhibits characteristic luminescence emission peaks at 488 nm, 545 nm, 585 nm and 621 nm (λ_ex = 330 nm, Fig. 6) corresponding to the typical f–f transitions of Tb³⁺ ions (⁵D₄ → ⁷F₆, ⁵D₄ → ⁷F₅, ⁵D₄ → ⁷F₄ and ⁵D₄ → ⁷F₃ respectively). The absolute quantum yield of the IMP-34-Tb is found to be 24.45%, and the average fluorescence lifetime is 0.65 ms (Fig. S5, ESI†).

Fig. 6 Excitation and emission spectra of IMP-34-Tb.

Sensing of Pb²⁺ ions

We then proceeded to study the sensing ability of the IMP-34-Tb towards metal ions, with a view to its application as a sensor for aqueous Pb²⁺. A series of aqueous solutions (metal nitrate) containing either Na⁺, Mg²⁺, K⁺, Ca²⁺, Mn²⁺, Co²⁺, Ni²⁺, Zn²⁺, Sr²⁺, Cd²⁺, Cs⁺ or Pb²⁺ ions were prepared with a concentration of 10 mM. When the IMP-34-Tb MOF was added to the Pb²⁺ solution there was a significant fluorescence quench (90%), while other metal ions did not markedly affect the intensity (Fig. 7, quench percentage = [(I₀ − I)/I₀] × 100%, I₀ and I are the luminescence intensity of the ⁵D₄ → ⁷F₅ transitions (545 nm) of IMP-34-Tb before and after treatment with metal cations respectively). This phenomenon suggests that the IMP-34-Tb can be used to selectively detect Pb²⁺ ions in aqueous solutions.

Fig. 7 (a) Relative luminescence intensity of IMP-34-Tb at 545 nm with different metal cations; (b) linear relationship between the relative luminescence intensity and Pb²⁺ concentration at 545 nm.

The sensing sensitivity of IMP-34-Tb towards Pb²⁺ ions was then studied using various concentrations of Pb²⁺ solutions. The fluorescence emission intensity decreased with the increasing Pb²⁺ concentration (Fig. 7b). The quench efficiency was calculated with the Stern–Volmer equation, I₀/I = 1 + K_SV[Q], where K_SV is the quenching constant, and [Q] is the con-centration of the Pb²⁺ ion.⁴⁴ The plot shown in Fig. 7b reveals a linear relationship (R² = 0.994) between relative intensity and Pb²⁺ concentration in the range of 10⁻² mM to 4 mM. The calculated K_SV value is 1.80 × 10³ M⁻¹, which is comparable to other MOFs which have been reported for Pb²⁺ ion sensing (Table 1). The calculated limit of detection (LOD = 3σ/K_SV, where σ is the standard error) is 2.29 × 10⁻⁴ M.

Table 1 Selection of MOFs reported for Pb²⁺ sensing

MOF	K SV/M^−1	Ref.
a 5-HiH2BDC = 5-hydroxy-iso-benzenedicarboxylic acid. b H2bdc = benzene-1,4-dicarboxylic acid, bpy = 4,4′-bipyridine. c H2FDC = 9,9-dimethyl-2,7-fluorenedicarboxylic acid. d H4dppa = 5-(3′4′-dicarboxylphenoxy) isophthalic acid, dima = dimethyl-amine.
[Tb(5-HiBDC)(H2O)5]n^a	1.75 × 10^4	41
Cu2(BDC)2(bpy)^b	3.91 × 10^3	45
[Eu2(FDC)3DMA(H2O)3]·DMA·4.5H2O^c	2.97 × 10^3	46
[[Tb(dppa)(H2O)2]·dima·H2O·0.5O]n^d	8.69 × 10^3	42
IMP-34-Tb	1.80 × 10^3	This work

---

The efficacy of IMP-34-Tb for Pb²⁺ sensing in the presence of multiple metal ions was also evaluated by using a solution containing a cocktail of metal ions (10 mM: Na⁺, Mg²⁺, K⁺, Ca²⁺, Mn²⁺, Co²⁺, Ni²⁺, Zn²⁺, Cd²⁺, Sr²⁺ and Cs⁺). The luminescence intensity of IMP-34-Tb was higher than 90% in the mixed ion solution in the absence of Pb²⁺ ions, however on addition of Pb²⁺ the luminescent intensity fell to below 10% (Fig. S7, ESI†). These results are promising, showing good performance under conditions commonly encountered in environmental and biological systems.

Quench mechanism

In order to investigate the quench mechanism in the low concentration regime, the luminescent lifetime of IMP-34-Tb before and after treatment with Pb²⁺ (0.1 mM) was measured. The result shows that on treatment with the Pb²⁺ solution, there was a noticeable decrease in the phosphorescence lifetime from 0.65 to 0.55 ms (545 nm). Meanwhile, UV-vis absorption results (Fig. S6, ESI†) show that there is no overlap between the absorption band of the Pb²⁺ solution and the excitation/emission bands for IMP-34-Tb. These results therefore exclude the possibility of a competitive absorption mechanism. MOF decomposition or the formation of new non-fluorescent complexes during the quench process was ruled out using PXRD results (Fig. S8, ESI†). Hence it can be concluded that a dynamic quench mechanism is occurring. The quench behaviour likely originates from the coordination of the Pb²⁺ ions to the phenolic oxygens in IMP-34-Tb, facilitated by the highly negative charge of the framework.⁴¹ Such interactions will affect the energy transfer process between the Tb³⁺ ion and the framework, where the latter acts as the “antenna”. Furthermore, after washing the Pb-treated IMP-34-Tb with water 3 times, the luminescence intensity of the MOF sample returns to approx. 100% compared to the untreated MOF sample (Fig. S9, ESI†). This phenomenon further verifies the presence of a dynamic quench mechanism at lower concentration regions, as the MOF retains its structure in the quench process.

Conclusions

In summary, novel silicate and germanate linkers have been prepared based on SiO₆ or GeO₆ octahedra with three pendant carboxylic acid groups and high negative charges of 5− in their deprotonated forms. The Si linker salt [Et₃NH]₂[H₃L-Si] self-assembles into zigzag chains in the solid state by way of intermolecular H-bonding interactions between neighbouring carboxylic acid functionalities. However, the poor water stability of [H₃L-Si]²⁻ made it unsuitable for applications in solvothermal MOF synthesis protocols and hence the isostructural but water-stable [H₃L-Ge]²⁻ was employed instead. Thus, reaction of RE metal nitrates with [H₃L-Ge]²⁻ gave a series of novel anionic RE-MOFs. Both IMP-33-Sc and IMP-34-Ln exhibit (3,6)-connected networks with the same flu-3,6-C2/c topology, however whereas IMP-33-Sc contains trimetallic nodes, IMP-34-Ln nodes are bimetallic, thus leading to a higher anionic network charge of 4− in IMP-34-Ln (vs. 1− in IMP-33-Sc). These materials represent the first examples of MOFs built from tridentate GeO₆ based linkers. Additionally, IMP-34-Tb exhibits characteristic luminescence properties and is shown to have good selectivity towards Pb²⁺ ions with potential applications in the quantitative detection of these heavy metal ions in aqueous solutions.

Data availability

The data supporting this article have been included as part of the ESI.† Crystallographic data for compounds [Et₃NH]₂[H₃L-Si], IMP-33-Sc, IMP-34-Y and IMP-34-Dy have been deposited at Cambridge Crystallographic data centre (CCDC) under 2331262, 2348717, 2348718, and 2348719 respectively and can be obtained viahttps://www.ccdc.cam.ac.uk/structures. Additional information on the data refinements are included in the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank Mr Jiewen Wei for the measurement of quantum yield.
