Poly(3,4-ethylenedioxythiophene)/poly(bis(4-phenoxysulfonic acid)phosphazene) conductive composites: an alternative interfacial layer to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS†

Elif Büşra Çelebi ab, Joseph Cameron b, Peter J. Skabara b and Ferda Hacıvelioğlu *ab
aGebze Technical University Department of Chemistry, Gebze, Kocaeli 41400, Turkey. E-mail: ferda.hacivelioglu@glasgow.ac.uk; peter.skabara@glasgow.ac.uk
bUniversity of Glasgow, School of Chemistry, G12 8QQ, Glasgow, UK

Received 9th January 2024 , Accepted 25th February 2024

First published on 26th February 2024

Abstract

Poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS) is a popular solution-processable hole transporting layer used in organic semiconductor devices such as organic light-emitting diodes or organic photovoltaics. It has benefits such as suitability for orthogonal processing, tunable conductivity and smooth film formation, yet the PSS polyelectrolyte is prone to degradation, impacting device performance or lifetime. In this work we present the use of PEDOT blends with a poly(bis(4-phenoxysulfonic acid)phosphazene) (PSAP) polyelectrolyte and study the effect of the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSAP ratio on the composite material properties. A comparable doping level can be achieved in PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSAP films with respect to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS and, as a result, an appropriate electrical conductivity for use as a hole transport layer can be achieved. Finally, when applied in organic light-emitting diodes, the use of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSAP hole transport layers can boost the external quantum efficiency, highlighting the promising performance of PSAP polyelectrolyte in conductive blends.

Introduction

Among the family of conjugated conducting polymers, poly(3,4-ethylenedioxythiophene) (PEDOT) is one of the most studied due to its unique properties such as high transparency in the visible region, high environmental stability, and tunable conductivity.1 Although it was initially designed as a solution-processable material, it was found to be insoluble in water or common organic solvents. PEDOT's solution processability problem could be overcome by the incorporation of the water-soluble polyanionic charge balancer poly(styrene sulfonic acid) (PSS) which allows the dispersion of the whole macromolecular salt system (PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS) in water.2 Since solution processability was achieved, PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS has become a prominent material for a number of applications including organic electrodes,3 batteries4 and supercapacitors,5 and artificial muscle applications.6 However, the acidic and hygroscopic nature of PSS itself brought some unwanted properties to the final conducting material.7 For example, if PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS is used between a transparent conducting electrode, usually indium-doped tin oxide (ITO), and the active layer in an OLED, PSS etches the ITO which results in migration of indium and tin to the inner layers.8,9 This results in the degradation of the device and shortened device lifetime, which is an issue that must be overcome to compete with inorganic semiconductor-based technologies. In addition to its hygroscopicity and acidity, PSS is prone to degradation in the presence of radicals,10–12 or oxidants,13 while PEDOT is usually synthesised inside an aqueous solution of PSS in the presence of very strong oxidants such as ammonium persulfate14 or sodium persulfate.15,16 Therefore, a polymer backbone with a high oxidative stability is highly sought to cope with the instability problems. In contrast to styrene-based polymers, poly(aryloxyphosphazenes) are viable alternatives with some unique properties.17 Poly(phosphazenes) have alternating P and N atoms on the main chain which are in their highest oxidation state and thus the poly(phosphazene) backbone is highly resistant to thermal and chemical oxidative conditions.17 Whilst poly(dichlorophosphazene) is unstable in a moist environment, it is an effective precursor for lots of different and highly stable poly(phosphazenes) by the macromolecular nucleophilic substitution of the chlorine atoms by alcohols, phenols, or nucleophilic amines in the presence of a base. Although it is typically challenging to synthesise sulfonic acid functionalised poly(aryloxyphosphazenes), some of us recently introduced a simple synthetic procedure for the preparation of fully or partially sulfonated poly(aryloxyphosphazenes) by covalent protection of the sulfonic acid moiety.18 This progress then led us to develop single-component water-soluble PEDOT-grafted sulfonic acid functionalised poly(aryloxyphosphazene) copolymers.19 However, growing PEDOT graft arms on another polymer requires a specially designed precursor which has thiophene anchors on its backbone, therefore it is not as simple to polymerise as EDOT in the presence of poly(bis(4-oxybenzene sulfonic acid)phosphazene), i.e., PSAP, which is the polyphosphazene analogue of the PSS.

In this study, we prepared a series of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP composites by varying the EDOT feed ratio into aqueous solutions of PSAP which were then chemically oxidised to PEDOT by using a fixed oxidant-to-monomer ratio ((NH4)2S2O8, APS / EDOT of 6[thin space (1/6-em)]:[thin space (1/6-em)]5). Towards the application of PSAP in optoelectronic devices, we synthesised the poly(dichlorophosphazene) by living cationic polymerisation of the monomer Cl3P[double bond, length as m-dash]NSiMe3, which leads to low dispersity (Đ) and controlled molecular weight (Mw) poly(phosphazenes), followed by functionalisation with 4-oxybenzene sulfonic acid.20 The resulting composites were then tested as an alternative hole transport layer (HTL) to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (Al 4083) on Super Yellow (SY)-based OLED devices with a configuration of indium-doped tin oxide (ITO)/HTL/SY/Ca/Al.

Results and discussion

The preparation of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP macromolecular salt systems were very similar to the preparation of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS, as depicted in Scheme 1. In this study the precursor, poly(dichlorophosphazene) (PDCP), was synthesised from the living cationic polymerisation of Cl3P[double bond, length as m-dash]NSiMe3 as it gives quantitative conversion and an almost monodisperse polymer with a controlled molecular weight.21 The PDCP synthesised by this route had a Mw of 2.05 × 105 Da and Đ = 1.25 with a monomer-to-initiator (PCl5) ratio of 400/1, which was very similar to the literature value as determined by gel permeation chromatography or size exclusion chromatography measurements. Then, PDCP was successfully derivatised to poly(bis(4-oxybenzene sulfonic acid) phosphazene) (PSAP) in a two-step process: first, a nucleophilic substitution reaction of PDCP with ethyl 4-hydroxybenzene sulfonate in the presence of NaH and then conversion to sulfonic acid by treatment with dilute H2SO4.18 After purification of the PSAP by a few ethanol precipitations, a 2% (w/w) stock water solution was used for the chemical oxidative polymerisation of EDOT to PEDOT in the presence of ammonium peroxydisulfate (APS, (NH4)2S2O8). The EDOT feed ratio (w/w) was varied between 1[thin space (1/6-em)]:[thin space (1/6-em)]1 to 1[thin space (1/6-em)]:[thin space (1/6-em)]11 in odd-number intervals, whilst keeping the EDOT:APS stoichiometric ratio fixed as 1[thin space (1/6-em)]:[thin space (1/6-em)]1.2, to optimise the conductivity, optical, and morphological properties of the resulting PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP composites.
image file: d4tc00109e-s1.tif

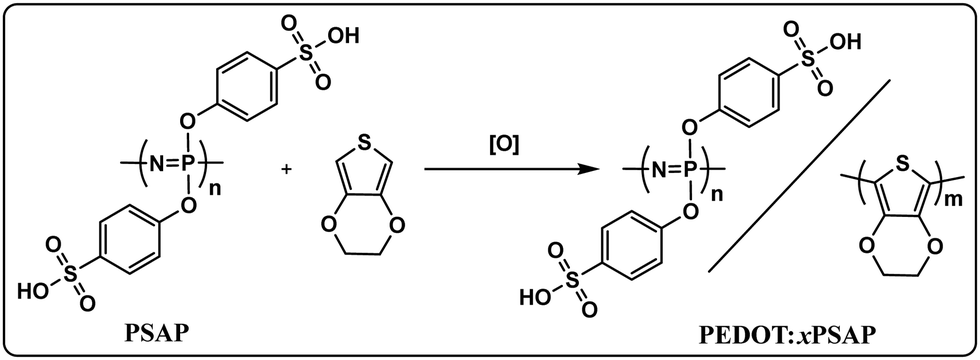

Scheme 1 Synthetic pathway to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP.

The PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP blends prepared using different EDOT feed ratios were studied using Fourier-transform infrared (FTIR) spectroscopy, as shown in Fig. 1. PSAP itself has characteristic vibration peaks of –OH, –CH and C[double bond, length as m-dash]C stretching at 3460, 3100, and 1595 and 1493 cm−1, respectively. The strong vibration peaks at 1360 and 1042 cm−1, and 1122 cm−1 can be attributed respectively to S[double bond, length as m-dash]O (symmetrical, and asymmetrical) and S–O stretching, whilst antisymmetric P–O stretching is observed at 934 cm−1. The spectrum of commercial PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (Al 4083) has peaks at very similar frequencies with additional PEDOT aliphatic C–H stretching peaks at 2860 and 2915 cm−1, and C–S stretching peaks at 937, 808 and 675 cm−1 (Fig. 1). A prominent change in the spectra of the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP composites can be seen between 2750 to 3365 cm−1. The –OH stretching moved to 3220 cm−1, which is an indication of intermolecular bonding between PSAP and PEDOT. Furthermore, the remaining free –OH stretching peak at 3460 cm−1 increases with the decreasing PEDOT ratio (Fig. 1). Since PSAP has no aliphatic groups and thus no aliphatic –CH stretching, the peaks between 2760 to 2890 cm−1 can be assigned to aliphatic –CH vibrations of PEDOT. The relative intensity of this peak increases with increasing amount of PEDOT in the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP blends. Another apparent difference in the FTIR spectra of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP compared to PSAP is found in the range between 1660 and 1306 cm−1. The two distinct bands at ∼1650 and 1404 cm−1, which have increased intensity with increasing PEDOT ratio in the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP composites, can be attributed to the C[double bond, length as m-dash]C and C–C stretching of PEDOT, also observed in the spectrum of commercial PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (Al 4083).


image file: d4tc00109e-f1.tif
Fig. 1 Solid state(film) FTIR spectra of PSAP, PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP samples.

The interaction of PEDOT with PSAP in PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs was further investigated by UV-Vis absorption measurements (Fig. 2). The poly(phosphazene) backbone does not have absorption in the UV-Vis and NIR range and therefore its fully sulfonated benzene sulfonic acid derivative PSAP will not affect the optical properties of PEDOT. Fig. 2 shows a strong absorption band at 800 nm arising from the polaron transitions of PEDOT for all the materials. The absorption intensity increases by the increasing PEDOT ratio in PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs. PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS, AL4083 grade, has a PEDOT-to-PSS ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]6 (w/w) and shows very similar absorption behaviour to PEDOT:5PSAP, which has the PEDOT-to-PSAP ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]5 (w/w). This difference is not surprising since PSS has one sulfonic acid per repeating unit of the polymer, whereas PSAP has two sulfonic acid moieties. The PEDOT polaron absorption in the NIR region of the spectra remains almost the same for all materials measured except PEDOT:1PSAP which has an absorption maximum at 925 nm, and then its absorption remains constant up to 1400 nm. Hence, it can be said that all the samples have high polaron concentration ensuring electrical conductivity whilst there is no sign of neutral PEDOT absorption around ∼600 nm.


image file: d4tc00109e-f2.tif
Fig. 2 Comparative UV-Vis spectra of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (Al4083) samples in 0.2% water.

The similarity between PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs is also evident in the surface morphology as shown from the tapping mode AFM images presented in Fig. 3. The PEDOT:1PSAP film shows some aggregates on the surface which may be caused by an insufficient amount of PSAP to stabilise the PEDOT dispersion in solution. On the other hand, the PEDOT:11PSAP film begins to show potential phase segregation, albeit the height difference between the domains and the bulk remains reasonably small. It can be expected that if the PSAP content were increased there would be further phase segregation. However, in general, the films show good uniformity and as such it can be expected that the PEDOT rich layers are homogenously distributed in the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs, emphasising the good film formation which may arise from the use of poly(aryloxyphosphazenes). The PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP water dispersions were stable at room temperature without any precipitation over 3 months and only the PEDOT:1PSAP had minor precipitated particles which could be redispersed simply by shaking. Hence, the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP water dispersions have similar morphological features to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS and may be an alternative to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS for organic electronic device applications.


image file: d4tc00109e-f3.tif
Fig. 3 AFM topography images of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP thin films. The root mean square roughness (Rq) for the films were as follows: PEDOT:1PSAP – 5.82 nm; PEDOT:3PSAP – 2.27 nm; PEDOT:5PSAP – 5.90 nm; PEDOT:7PSAP – 1.35 nm; PEDOT:9PSAP – 3.10 nm; PEDOT:11PSAP – 1.50 nm and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (Al4083) – 2.64 nm.

Thermal stability is another important property of interfacial layers for application in organic electronics which affects the device's lifetime. The TGA plots of the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs are given in Fig. 4 and the results have been summarised in Table 1. As can be seen from Fig. 4 and Table 1, most of the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs decompose over 250 °C except PEDOT:1PSAP which has the highest PEDOT content. Although it was proven that PSAP and its derivatives have high oxidative and thermal stability,17 the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs show lower thermal stability compared to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (Fig. 4). The decrease of thermal stability with the increase in PEDOT composition, or comparatively lower thermal stability of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP at a similar PEDOT content to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS, is modest and perhaps not particularly significant for most device applications. However, a possible explanation for the lower thermal stability of the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs may be the lack of radical traps in the chemically inert polyphosphazenes which cannot stabilise these species that evolved during the decomposition of PEDOT. Unlike PSAP, ortho- positions of the benzene ring of PSS are prone to abstract radicals which subsequently delocalise on to the α-position of the main polymer chain by stabilisation, and then chain scission takes place.12,13 It is possible that the presence of PEDOT, which already carries the radical polarons, may repair the PSS chain by donating electrons in a process similar to a previously observed cerium-mediated repair of poly(α-methyl styrene sulfonate) analogue.11 On the other hand, the radical species on the PEDOT may react with the radical carrying α-position of the main PSS chain to form a covalent bond and thus result in a more stable PEDOT adduct. Hence, this may result in a more thermally stable PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS material, and thus explains why the thermal decomposition rate of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS is lower than PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs at a higher (PEDOT:1PSAP and PEDOT:3PSAP) or similar PEDOT content, i.e., PEDOT:5PSAP&PEDOT:7PSAP.


image file: d4tc00109e-f4.tif
Fig. 4 Comparative TGA results of PSAP, PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS.
Table 1 Selected thermal and conductivity data for PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS, PSAP and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP
Material T d (°C) % Residue R s (Ω □−1) Conductivity (S cm−1)
a Room temperature ionic conductivity value from ref. 18.
PSAP 373.9 56.8 — 0.04a
PEDOT:1PSAP 225.6 29.8 4.9 × 102 2.4 × 10−1
PEDOT:3PSAP 250.8 31.7 1.1 × 104 1.1 × 10−2
PEDOT:5PSAP 251.2 34.8 1.0 × 105 1.1 × 10−3
PEDOT:7PSAP 248.0 40.3 1.1 × 106 1.2 × 10−4
PEDOT:9PSAP 254.9 46.9 1.2 × 106 1.1 × 10−4
PEDOT:11PSAP 305.6 54.4 1.2 × 106 9.3 × 10−5
AL4083 304.6 42.3 1.1 × 106 9.6 × 10−5

Although PEDOT:1PSAP has lower thermal stability compared to PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS and other analogues in the series, it has an initial conductivity of 0.24 S cm−1 similar to high conductivity grade pristine PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS22 (Table 1). On the other hand, the conductivity decreases to 11 mS cm−1 in the PEDOT:3PSAP sample and continues to decrease with a decrease of PEDOT content in PEDOT:5PSAP, PEDOT:7PSAP PEDOT:9PSAP and PEDOT:11PSAP, which have a very similar conductivity to commercial Al4083.

Organic light-emitting diodes were fabricated using the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP materials as hole transport layers (HTLs) in place of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS. The device structure was as follows: ITO/HTL/Super Yellow/Ca/Al. A summary of the device performance achieved using different HTLs is shown in Table 2, while current density–voltage-luminance and external quantum efficiency (EQE) vs luminance plots are shown in Fig. 5 and Fig. S1–S7 (ESI†), respectively.

Table 2 Summary of OLED performance with PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP hole transport layers
HTL V on (V) L max (cd m−2) EQEmax (%)
PEDOT:1PSAP 2.6 28[thin space (1/6-em)]100 1.40
PEDOT:3PSAP 2.6 34[thin space (1/6-em)]700 1.80
PEDOT:5PSAP 2.5 55[thin space (1/6-em)]300 2.14
PEDOT:7PSAP 2.9 17[thin space (1/6-em)]100 1.82
PEDOT:9PSAP 2.5 61[thin space (1/6-em)]300 2.20
PEDOT:11PSAP 2.5 34[thin space (1/6-em)]500 2.15
AL4083 2.7 65[thin space (1/6-em)]300 1.81


image file: d4tc00109e-f5.tif

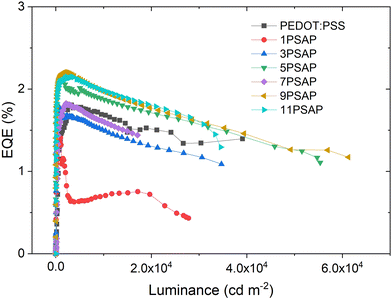

Fig. 5 External quantum efficiency (EQE) vs. luminance plots for OLEDs containing PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS or PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP hole transport layers.

When the hole transport layer contains PEDOT:1PSAP or PEDOT:3PSAP, the EQE and maximum luminance are lower than observed for the equivalent PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS containing device. However, OLEDs PEDOT:5PSAP, PEDOT:7PSAP, PEDOT:9PSAP and PEDOT:11PSAP all show superior EQEs with respect to the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS based analogue, although the maximum luminance is greatest in the latter. Optimum performance for OLEDs studying the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP series as hole transport layers is achieved in terms of both maximum luminance and EQE for PEDOT:9PSAP. This can be attributed to a combination of factors, with a suitable conductivity ensuring better charge carrier balance in the emissive layer, better thermal stability and smooth surface topography. When the PSAP concentration is increased further, the apparent phase segregation (Fig. 3) begins to limit performance. Overall, we have highlighted how PSAP can be used effectively as a polyelectrolyte for PEDOT blends used as hole transport layers in organic light-emitting diodes.

Conclusion

In this manuscript we have reported the synthesis and application of PEDOT blends with poly(bis(4-phenoxysulfonic acid)phosphazene) (PSAP) polyelectrolyte. The PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSAP films show a high polaron concentration and electrical conductivities comparable to the commercially available PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS blend (Al4083). The composite materials were applied in organic light-emitting diodes as hole transport layers, with devices containing PEDOT:5PSAP, PEDOT:9PSAP and PEDOT:11PSAP giving improved efficiency compared to a PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS-containing analogue. As a result, we have demonstrated that PSAP is a promising polyelectrolyte for use in conductive materials for organic electronics applications.

Experimental

Materials and methods

Ammonium peroxydisulfate (APS) was obtained from Alfa Aesar and 4-hydroxybenzenesulfonic acid hydrate (>85%) was obtained from Tokyo Chemical Industry Co. (TCI) and used without further purification. The deuterated solvents, CDCl3 and D2O for NMR spectroscopy and the following chemicals were obtained from Merck: NaH (60% suspension in mineral oil), ethanol, H2SO4 (98%), tetrahydrofuran (THF), 3,4-ethylenedioxythiophene (EDOT), PCl5 (98%) and triethyl orthoformate (98%). Super Yellow, poly(1,4-phenylenevinylene) (SY), was obtained from Sigma–Aldrich. PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (AL4083) was obtained from Ossila Ltd. Deionised (DI) water (18 MΩ) was obtained from a Millipore water purification system. All other reagents and solvents were reagent grade quality and obtained from commercial suppliers.

Equipment

FT-IR spectra of the thin film samples of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs were recorded on a Jasco FT-IR 4100 spectrometer in attenuated total reflectance (ATR) mode in the range of 4000–650 cm−1. 1H, 13C, 31P NMR measurements were recorded in CDCl3 and D2O solutions on a Bruker 500 MHz spectrometer. UV-Vis spectra were recorded on a Shimadzu UV-2600 in the range of 250 to 1400 nm in 0.2% water solutions. Thermal properties of the samples were measured by using Netzsch TG209 F3 Tarsus TGA instrument between 25–600 °C at a 20 °C min−1 heating rate under constant flow of 30 mL N2. Atomic force microscopy (AFM) was carried out using a Bruker Innova AFM. DC conductivities of the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSAP thin films were measured by using a Signatone four-point probe with Keithley 2450 source meter. The conductivity of spin-cast PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP samples were calculated from the following equation,
image file: d4tc00109e-t1.tif
where σ is the conductivity (S cm−1), t is the thickness (cm) of the sample (measured by AFM analysis) (cm), Rs is the sheet resistance (Ω □−1).

Synthesis

Poly(dichlorophosphazene) (PDCP) was synthesised from the room temperature living cationic condensation polymerisation of Cl3P[double bond, length as m-dash]NSiMe3 with a monomer/initiator (PCl5) ratio of 400[thin space (1/6-em)]:[thin space (1/6-em)]1, according to literature procedure.2131P NMR (CDCl3) δ = −17.5 [br s, –Cl2[P with combining low line][double bond, length as m-dash]N–]. GPC/SEC (5% Bu4NBr, THF mobile phase) Mw = 2.05 × 105, PDI = 1.25.

Poly(bis(4-phenoxysulfonic acid)phosphazene) was synthesised by reacting PDCP with ethyl 4-hydroxybenzene sulfonate and subsequent transformation to free acid form according to the literature procedure.1831P NMR (D2O) δ = −20.5 [br s, 1P, –N = [P with combining low line](OPhSO3H)2]. 1H NMR (D2O) δ = 6.5 and 7.1 ppm [two br s, aromatic phenyl protons].

Preparation of poly(3,4-ethylenedioxythiophene)/poly(bis(4-phenoxysulfonic acid) phosphazene) (PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP) water dispersions. Poly(bis(4-phenoxysulfonic acid) phosphazene) (PSAP) (2.0 g, 5.12 mmol) was dissolved in deionised water (100 mL) to obtain a 2% (w/w) stock solution and used for preparation of composites by varying the EDOT feed ratio (n/n). Specific reagent amounts are given in Table 3 and the general experimental procedure was as follows. A 10 mL aliquot of 2% PSAP solution in water was taken from the above stock solution in a round-bottomed 25 mL flask and the corresponding stoichiometric amount of EDOT (Table 3) was added under vigorous stirring. The mixture was stirred for half an hour and the calculated amount of oxidant (APS) in water was added slowly. The reaction turned light blue in 1 hour and was allowed to stir for 2 days. The resulting dark blue mixture was then filtered through a 0.45 μm PTFE syringe filter and labelled as PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP where x denotes the PSAP weight ratio. {1H}31P NMR (D2O) δ = −20.5 [br s, 1P, [P with combining low line](OPhR)2, R = –SO3H]. 1H NMR (D2O) δ = 6.5 and 7.1 ppm [two br s, aromatic phenyl protons], δ = 3.66 ppm [br s, –OC[H with combining low line]2C[H with combining low line]2O–, PEDOT]. 13C NMR (D2O) δ = 120.1 and 131.9 ppm (disubstituted benzene), 127.3 (br d) and 152.9 ppm (di substituted benzene ipso carbons), δ = 115.2 and 141.5 ppm (br s, quaternary C atoms of PEDOT), δ = 62.5, 63.9, 65.4 ppm [br m, –O[C with combining low line]H2[C with combining low line]H2O–, PEDOT].
Table 3 Used reagent amounts for the preparation of PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP composites
Material EDOT APS PSAP/EDOT Ratio (w/w)
mg mmol mg mmol
PEDOT:1PSAP 50.0 0.35 96.3 0.42 1
PEDOT:3PSAP 16.7 0.12 32.9 0.14 3
PEDOT:5PSAP 10.0 0.07 19.3 0.08 5
PEDOT:7PSAP 7.14 0.05 13.8 0.06 7
PEDOT:9PSAP 5.56 0.04 10.7 0.05 9
PEDOT:11PSAP 4.55 0.03 8.2 0.04 11

Device fabrication

OLED devices were fabricated on ITO substrates purchased from Kintec with a sheet resistance of 7 Ω □−1 and ITO thickness of 150 nm. The ITO substrates were cleaned under ultra-sonication using deionised water, acetone, and isopropanol consecutively for 10 minutes. The substrates were dried by blowing compressed air and then treated with oxygen plasma for 10 minutes. The PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAPs and PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS (Heraeus) samples were filtered into 5 mL vials using a 0.45 μm PVDF filter and were spin coated onto the ITO substrates at 3000 rpm for 60 seconds using a Specialty Coating Systems G3P-8 spin coater and the films were annealed at 120 °C for 20 minutes. The films were then transferred to a glove box (MBraun) with controlled oxygen and moisture (O2 < 0.1 ppm, H2O < 0.1 ppm). Super Yellow (SY) solution (5 mg mL−1) in anhydrous toluene was prepared a day earlier and kept stirring at 40 °C to ensure complete dissolution of the polymer. Then the SY active layer was spin coated onto the PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP or PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS films using a spin coater at 1400 rpm for 60 seconds to obtain a thickness of ∼90 nm. 40 nm of Ca (Sigma Aldrich) and 60 nm of Al (Kurt J. Lesker) were respectively deposited by physical vapor deposition at a rate of 0.5 to 1 Å s−1, using an MBRAUN thermal evaporator at pressures of ∼10−6 mbar. The final OLED device structures were glass/ITO/HTL (PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]xPSAP or PEDOT[thin space (1/6-em)]:[thin space (1/6-em)]PSS)/SY/Ca/Al and each OLED pixel had an area of 1.5 × 3.5 mm2. Current–voltage-luminance (IVL) of the devices were measured using a SCS4200 (Keithley) semiconductor characterisation system interfaced with a L203 luminance meter (Irradian).

Data availability

The raw data that supports this manuscript can be found at http://dx.doi.org/10.5525/gla.researchdata.1540.

Author contributions

E. B. Ç.: conceptualization, data curation, formal analysis, investigation, writing – original draft. J. C.: data curation, investigation, methodology, writing – original draft. P. J. S.: funding acquisition, project administration, supervision, writing – review & editing. F. H.: Conceptualisation, funding acquisition, project administration, supervision, writing – original draft.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We greatly acknowledge the Royal Society for funding our research under the grant number NAF_R2_180625. We also acknowledge TUBITAK for their support for FH (grant number 113Z314) and EBC (2219-International Postdoctoral Research Fellowship). JC thanks the EPSRC for funding (grant number EP/T022477/1).
