DOI: 10.1039/D4TC00018H (Paper) J. Mater. Chem. C, 2024, 12, 5496-5505

[001]-Oriented heteroepitaxy for fabricating emissive surface mounted metal–organic frameworks†

Tonghan Zhao *a, Narges Taghizade b, Jan C. Fischer a, Bryce S. Richards ac and Ian A. Howard‡ *ac
aInstitute of Microstructure Technology, Karlsruhe Institute of Technology, Hermann-von-Helmholtz-Platz 1, 76344 Eggenstein-Leopoldshafen, Germany. E-mail: tonghan.zhao@kit.edu; iahoward@gmail.com
bInstitute of Solid State Physics, NAWI Graz, Graz University of Technology, Petersgasse 16, A-8010 Graz, Austria
cLight Technology Institute, Karlsruhe Institute of Technology, Engesserstrasse 13, 76131 Karlsruhe, Germany

Received 2nd January 2024 , Accepted 16th March 2024

First published on 20th March 2024

Abstract

Well-oriented growth of surface-anchored metal–organic frameworks (SURMOFs) makes them ideal candidates for optical sensor applications. In this work, SURMOF bilayers and trilayers that exhibit [001] orientation are formed via heteroepitaxial growth. Using liquid-phase epitaxy (LPE), a 〈100〉 silicon substrate is alternatingly exposed to a solution of metal salts and organic linkers. A Cu2(BDC)2(DABCO) basis layer allows subsequent deposition of Zn2(BDC)2(DABCO) with 93% of the material aligned in the crystallographic [001] orientation. This is not possible without a Cu-SURMOF seed layer. Out-of-plane X-ray diffraction, 2D grazing-incidence wide-angle X-ray scattering, and scanning electronic microscopy techniques reveal that the hybrid SURMOFs display oriented island-type film growth, resulting in multishell islands. A third oriented SURMOF Zn2(ADC)2(BPy) can be added to endow the heterostructure with photoluminescence, which is not quenched by the Cu-SURMOF due to the intermediate Zn2(BDC)2(DABCO) layer. Conceptually, the step-by-step LPE deposition method allows the construction of monolithic multilayer SURMOFs wherein the orientation can be controlled by well-behaved templating layers and functionality can be added by more exotic layers that are challenging to grow on their own.

Introduction

Metal–organic frameworks (MOFs) – built from inorganic ions/clusters and organic ligands – are ideal candidates for optical sensing,1,2 information encryption,3 and bioimaging,4 owing to their high porosity, thermal stability, structural diversity, and high compatibility.5–7 The deposition of MOFs onto surfaces is of interest for these applications, and also for realizing optical devices.8 The construction of surface-anchored MOFs (SURMOFs) through layer-by-layer liquid-phase epitaxy (LPE) is one approach for forming thin films and membranes for such applications.9,10 In an LPE process, alternating deposition of inorganic and organic components onto the substrate allows fine control of the distribution and thickness of functional entities in thin films, by controlling the sequence and cycles of deposition.11,12 Ideally, the growth mode of SURMOF thin films is expected to have a resolution of “one unit layer” and the thickness of the layers consisting of a specific component is proportional to the number of corresponding deposition cycles.13 Indeed, using the SURMOF approach, the heteroepitaxial deposition of a variety of MOFs has been demonstrated14 and the suppression of interpenetration of different components has been achieved.15 This allows for thin-film structural flexibility,16 and enabling applications, e.g., in non-linear optics.17,18

With excellent crystalline order, the photophysical properties of SURMOFs make them potentially interesting materials for light harvesting, and photon emission.19,20 Of particular interest in this context is the mobility of excitons, which affect the efficiency of the macroscopic transport properties.21–24 Exciton diffusion is strongly dependent on the orientation of the chromophores and their distance. Thus, we are actively seeking to leverage the rich field of SURMOFs to produce well-defined, oriented thin films in which the positions of chromophores can be precisely controlled. In previous work, we fabricated a heterostructure with oriented 2D layers perpendicular to the substrate for triplet–triplet annihilation-based upconversion (TTA-UC).25 The emission of TTA-UC requires efficient triplet motion in between sensitizer and emitter molecules, thus ensuring the collision of two triplets to form one singlet exciton. The emission from this singlet excited state then has a higher energy than the incident photons (i.e., upconversion). Unfortunately, the emission efficiency was suppressed in this 2D SURMOF because the fast axis of triplet motion parallel to substrate while the sensitizer and emitter 2D sheets perpendicular to the substrate.24 To address this challenge, introducing a dinitrogen pillar linker to form layer pillar-type SURMOFs of the general formula M2L2P (M = metal ion, L = dicarboxylate, P = dinitrogen pillar ligand) would be an ideal strategy:26 In this case the 2D-layer “sheets” can be separated by pillar linkers perpendicular to the substrate, therefore maximizing exciton transfer. To date, the vast majority of SURMOFs prepared with a desired [001] orientation (2D layers parallel to the substrate) are grown on gold substrates coated with organic thiol self-assembled monolayers (SAMs).27,28 However, a much more ubiquitous substrate that meets these criteria is available – silicon (all the mentioned silicon substrates have a native oxide). Ott and coworkers reported [001]-oriented growth of Cu2(BDC)2(DABCO), in which the 2D sheets of BDC parallel to the substrate and were separated by DABCO molecules, by only rinsing silicon with absolute ethanol before the step-by-step deposition of metal ions and linkers (BDC = 1,4-benzene dicarboxylic acid, DABCO = 1,4-diazabicyclo[2.2.2]octane).29 However, Cu2+ ions typically exhibit a quenching effect on such luminescent materials.30–32 Thus, it is desired to employ ions with a full-filled d orbital, such as Zn2+, to retain the photoluminescence (PL) properties of the linkers.

Here, we first focus on developing a strategy for growing [001]-oriented Zn2(BDC)2(DABCO) on an ethanol-rinsed Si〈100〉 substrate by the LPE method. Despite varying the synthesis conditions over a wide range, only poorly ordered Zn-type SURMOFs were obtained when directly growing them on the Si substrate. Considering stepwise LPE has demonstrated its ability to fabricate SURMOF heterostructures,14,33 we explored the possibility of first growing a Cu2(BDC)2(DABCO) SURMOF employing the established procedure,29 on which – by heteroepitaxy – a series of Zn2(BDC)2(DABCO) layers is deposited. These retained the highly-ordered [001] orientation of the Cu2(BDC)2(DABCO) (Fig. 1). The Zn2(BDC)2(DABCO) layers then serve as a spacer to separate the finally grown Zn2(ADC)2(BPy) layers from the Cu2(BDC)2(DABCO) SURMOF (ADC = 9,10-anthracenedicarboxylic acid, BPy = 4,4′-bipyridine). In this way, the luminescence quenching effect of Cu2+ is suppressed, while the blue-colored emission from the anthracene units contained in the ADC linkers is preserved.


image file: d4tc00018h-f1.tif

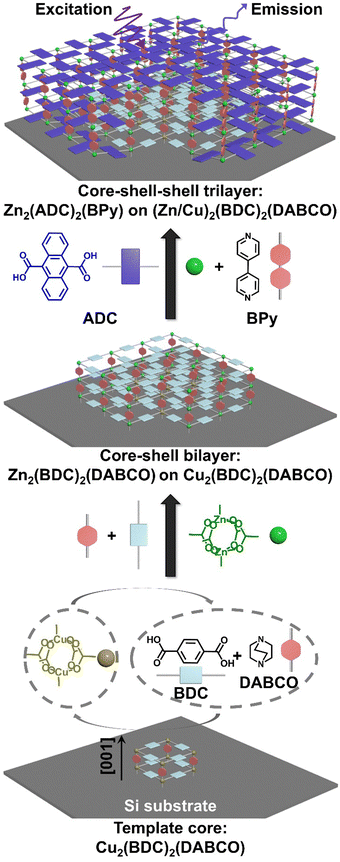

Fig. 1 Schematic illustration of the sequential deposition of SURMOF heterostructures. Additionally, the structure of the used components is shown. As a first step, a Cu2(BDC)2(DABCO) SURMOF is prepared by alternating soaks of the substrate in an ethanol solution containing the copper ions and a solution containing a mixture of BDC/DABCO. In the second step, the copper is replaced with zinc, which results in the deposition of Zn2(BDC)2(DABCO) on the originally grown Cu2(BDC)2(DABCO) particles. This gives rise to the formation of core–shell (Zn/Cu)2(BDC)2(DABCO) heterostructure. Eventually, the growth of another emissive Zn2(ADC)2(BPy) layer using ADC/BPy instead of BDC/DABCO leads to a core–shell–shell trilayer structure. In the schematics, a corner of the trilayer structure is removed to expose the core–shell and core–shell–shell thin film structures.

Results and discussion

Growth of [001]-oriented copper- and zinc-based pillar-layered SURMOFs

The SURMOFs were synthesized employing an automated pump setup, built according to the setup reported by McCarthy et al.29 This system has the capability to immerse the substrate alternatively into solutions containing either the metal salt or linkers. As a starting point, we attempted the growth of Cu2(BDC)2(DABCO) using the protocol also from McCarthy et al.29 The 〈100〉 polished Si wafer was rinsed with absolute ethanol three times and dried in a N2 stream. The substrate was then transferred to the automated pump system substrate container (preheated to 60 °C) and soaked for 15 min in 1 mmol L−1 copper acetate ethanol solution, followed by rinsed twice with ethanol (for 0.5 and 4.5 min, respectively) except for the very first cycle of copper treatment, next soaked for 30 min in an ethanolic solution of 0.4 mmol L−1 BDC and 0.2 mmol L−1 DABCO, and rinsed twice with ethanol again (for 0.5 and 4.5 min, respectively). Then the cycle was repeated.

After 20 cycles, the formed SURMOF was investigated by out-of-plane X-ray diffraction (XRD), which confirmed the formation of a Cu2(BDC)2(DABCO) structure on the 〈100〉 Si wafer (green line in Fig. 2a). The observation of several 2θ peaks (at 9.3°, 18.5°, and 27.8°) which can be associated with the (001) peaks, and of the otherwise strong (100) peak being suppressed, suggest a preferred orientation along the [001] direction. This result is consistent with the prior report.29 Encouraged by these results, we repeated the fabrication replacing the Cu by a Zn salt. Zn2(BDC)2(DABCO) SURMOF with 20 cycles was synthesized using the same procedure. In contrast, the out-of-plane XRD pattern of Zn2(BDC)2(DABCO) exhibited both the (100) and (001) peaks at 8.3° and 9.2°, pointing toward a poor order. A texture equivalent to that in the Cu2(BDC)2(DABCO) was not achieved.


image file: d4tc00018h-f2.tif

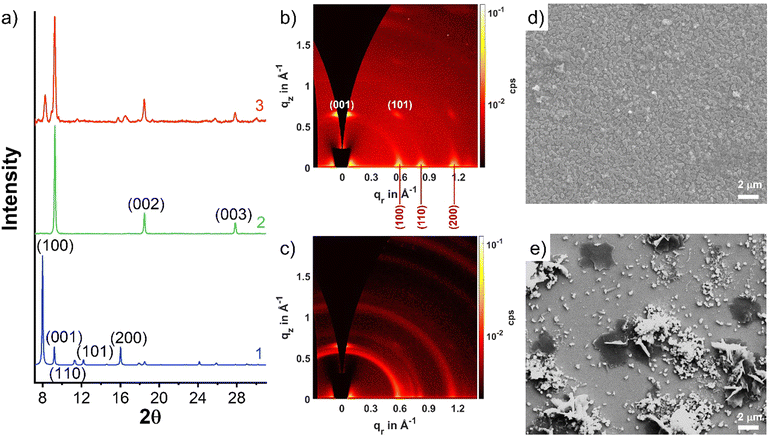

Fig. 2 (a) Experimental XRD patterns of Cu2(BDC)2(DABCO) (2) and Zn2(BDC)2(DABCO) (3) and simulated diffractogram for the DFT-optimized, fully activated structure of Zn2(BDC)2(DABCO) (1) as 2 GIWAXS patterns of (b) Cu2(BDC)2(DABCO) and (c) Zn2(BDC)2(DABCO). SEM images of (d) Cu2(BDC)2(DABCO) and (e) Zn2(BDC)2(DABCO).

To gain further insight into the degree of crystallite orientation across the substrate, we employed 2D grazing incidence wide-angle X-ray scattering (GIWAXS) to examine the Cu2(BDC)2(DABCO) and Zn2(BDC)2(DABCO) films. Cu2(BDC)2(DABCO) crystallites result in unique points on the GIWAXS pattern (Fig. 2b), representing a very high degree of orientation, where the [001] direction is perpendicular to the substrate surface. On the contrary, the Zn2(BDC)2(DABCO) sample GIWAXS pattern presents diffraction rings (Fig. 2c). One point to be noted is that the rings are more obvious on the (100) plane rather than on the (001) and (110) planes. This observation is interesting, and we envision a two-part possible explanation. The first is that a portion of the Zn2(BDC)2(DABCO) grown along the (100) direction perpendicular to the substrate surface as we discussed above. However, the ring-shaped scattering pattern was mostly observed corresponding to the lattice parameters that originate from Zn coordinated with BDC only. Hence, we also considered the presence of impurities such as non-oriented Zn(BDC) as a second effect leading to the observed scattering pattern.34,35 Scanning electronic spectroscopy (SEM) images of both Cu2(BDC)2(DABCO) and Zn2(BDC)2(DABCO) were taken to provide more evidence. As shown in Fig. 2d and e, SEM reveals dense island-shaped Cu2(BDC)2(DABCO) crystallites on the surface. In contrast, Zn2(BDC)2(DABCO) yielded surface with a poor homogeneity. Apart from parallel and perpendicularly aligned plates (regarded as [001]- and [100]-oriented crystals, respectively), a lot of small particles can be observed on the surface, which further confirms the formation of byproducts during the synthesis of Zn2(BDC)2(DABCO). Attempts to optimize the orientation and phase purity of the samples by varying the preparation parameters, the concentration of the individual components in the precursor solutions, and the different substrates – for example, crystalline TiO2- and Gd2O3-coated Si wafers as well as amorphous glass plate (Fig. S1, ESI†) – were not successful. These findings demonstrate that [001]-oriented Zn2(BDC)2(DABCO) SURMOF is not well suited for a direct application of the LPE process on an ethanol-rinsed Si substrate.

Heteroepitaxial growth of [001]-oriented zinc-based pillar-layered SURMOFs on copper-based SURMOFs

The availability of high-quality Cu2(BDC)2(DABCO) then made it possible to test whether heteroepitaxial growth of the Zn-based SURMOF is possible. As a first attempt, 18 cycles of Zn2(BDC)2(DABCO) deposition were carried out after 2 cycles of Cu2(BDC)2(DABCO) growth. This sample was named as 18C/2C-(Zn/Cu)2(BDC)2(DABCO) and characterized by out-of-plane XRD, GIWAXS, and SEM. In addition, density functional theory (DFT) calculations were conducted on Zn2(BDC)2(DABCO) for reference. The simulated lattice parameters for the tetragonal unit cell turned out to be a = b = 11.05 Å and c = 9.59 Å (Fig. 3a). Notably, these simulated values are quite consistent with the experimentally observed lattice parameters, which are a = b = 10.92 Å and c = 9.61 Å.36 Specifically, parameters a and b showed a reduction of approximately 1.19%, while parameter c exhibited a slight increase of approximately 0.21%. As shown in Fig. 3b, the out-of-plane XRD of 18C/2C-(Zn/Cu)2(BDC)2(DABCO) has a good agreement with the simulated diffractogram of Zn2(BDC)2(DABCO) with preferred orientation along the [001] direction, indicating 18C-Zn2(BDC)2(DABCO) grew only in the [001] direction, perpendicular to the substrate surface on the 2C-Cu2(BDC)2(DABCO) template. Regarding the GIWAXS pattern, the highly oriented growth of 18C/2C-(Zn/Cu)2(BDC)2(DABCO) was demonstrated by the identical points at out-of-plane [001] and in-plane [100] directions as well as the diagonal (110) plane and off-axis (101) plane with almost no trace of scattering rings (Fig. 3c). By integrating the GIWAXS data along in-plane direction, we obtained the 1D GIWAXS in-plane diffraction pattern (Fig. 3d). This plot closely matches the simulated in-plane XRD pattern of Zn2(BDC)2(DABCO). In addition, the SEM image in Fig. 3e reveals a plate-like morphology of 18C/2C-(Zn/Cu)2(BDC)2(DABCO) with a width ∼1 μm. This agreement between experimental and simulated data validates the crystal structure of the material. In terms of a qualitative view of these results, the deposition of Zn2(BDC)2(DABCO) templated by Cu2(BDC)2(DABCO) island seeds vastly improves the degree of preferential orientation of the Zn2(BDC)2(DABCO) – an extremely promising result.
image file: d4tc00018h-f3.tif

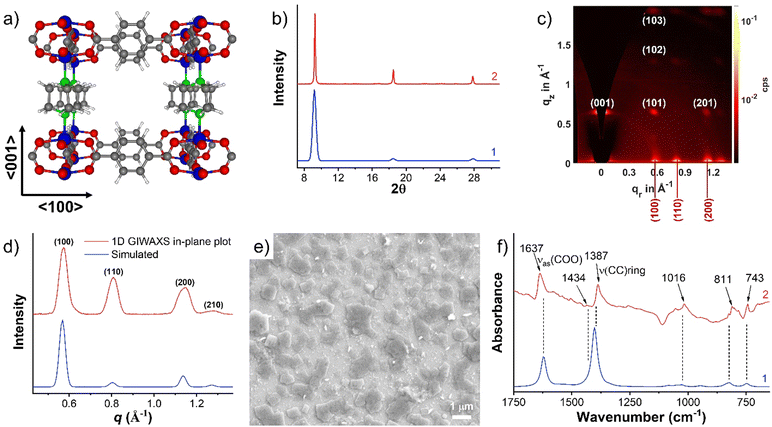

Fig. 3 (a) Simulated structure of Zn2(BDC)2(DABCO) by DFT. Blue: Zn, gray: C, red: O, white: H. (b) Out-of-plane XRD pattern of 18C/2C-(Zn/Cu)2(BDC)2(DABCO) (2) and simulated diffractogram of Zn2(BDC)2(DABCO) with preferred orientation along the [001] direction (1) as reference. (c) 2D GIWAXS pattern of 18C/2C-(Zn/Cu)2(BDC)2(DABCO). (d) Integrated 1D GIWAXS in-plane pattern of 18C/2C-(Zn/Cu)2(BDC)2(DABCO) and simulated in-plane XRD pattern of Zn2(BDC)2(DABCO) regarding the DFT calculation. (e) SEM image of 18C-Zn2(BDC)2(DABCO) grows on 2C-Cu2(BDC)2(DABCO). (f) FTIR-ATR spectra of experimental 18C/2C-(Zn/Cu)2(BDC)2(DABCO) (2) and simulated Zn2(BDC)2(DABCO) (1).

For a quantitative analysis of orientation degree, we used the signal from the family {101} planes as a reporter. The scattering of this chosen peak does not position on [q with combining right harpoon above (vector)]z axis, so that we can extrapolate the intensity of the corresponding ring to the origin and measure the entire intensity of the peak by Gaussian fitting as we have done in previous work.37 As the penetration depth of the X-rays is dependent on the incidence angle, αi, of the primary beam in the GIWAXS technique, we collected a diffractogram for 18C/2C-(Zn/Cu)2(BDC)2(DABCO) at αi = 0.6° to obtain the scattering from the entire sample thickness (Fig. 4a). Afterwards, we prepared a pole figure (Fig. 4b), which is a commonly used approach for estimating the degree of orientational order for a thin film based on GIWAXS.38–40 To generate such a pole figure, the scattering intensity is integrated between a minimum and maximum cutoff radius, r1 and r2, then presented as a function of the angle to the [q with combining right harpoon above (vector)]z axis, γ. These angle and radii are illustrated in Fig. 4a. For the peak and ring that correspond to the scattering from the (101) peak of the 18C/2C-(Zn/Cu)2(BDC)2(DABCO), we take r1 to be 0.82 and r2 to be 0.90. To correct for nonsample-related scattering the background was taken at a slightly larger radius (r1 = 0.96 and r2 = 1.05) and subtracted from the measured signal. In addition, a correction to the pole figure to account for the fraction of the scattering signal observed at each γ was introduced.37 This can be accomplished by multiplying the measured intensity, I(γ), by sin(γ). The sin(γ) corrected pole figure so generated (shown in Fig. 4b), we can model with a Gaussian peak with almost no isotropic scattering in the background which indicates that scattering from a subset of the crystallites that have 2D powder texture with their [001] axis aligned to the surface normal clearly dominates. This procedure allows us to quantitatively conclude that ∼93% of the scattering comes from the 2D powder texture so that the sample indeed has the desired high degree of surface orientation.


image file: d4tc00018h-f4.tif

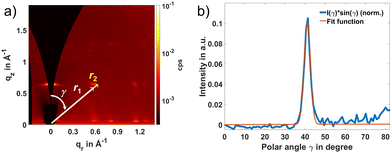

Fig. 4 (a) 2D GIWAXS pattern of 18C/2C-(Zn/Cu)2(BDC)2(DABCO) at 0.6° incidence angle. (b) sin(γ) corrected pole figure corresponding to data in (a) used to estimate that 93% of the film has a 2D powder texture.

Considering those ideal results, we further deposited 3, 8, 13, 28, and 38 cycles of Zn2(BDC)2(DABCO) on top of 2 cycles of Cu2(BDC)2(DABCO). The XRD and GIWAXS patterns demonstrated a desired [001]-oriented growth of Zn2(BDC)2(DABCO) on 2C-Cu2(BDC)2(DABCO) with increasing cycles until 38 cycles (Fig. S2–S6, ESI†). 38C/2C-(Zn/Cu)2(BDC)2(DABCO) shows a scattering ring at the (100) plane which is similar to 20C-Zn2(BDC)2(DABCO). Fig. 6c and Fig. S6b (ESI†) compare GIWAXS measurements on 38C/2C-(Zn/Cu)2(BDC)2(DABCO) sample with different probing depths (αi = 0.2° and 0.05° corresponding to a penetration depth of ∼800 and ∼6 nm in a smooth film, respectively). The 2D GIWAXS data shown here are similar for the two angles of incidence, suggesting the 38C/2C-(Zn/Cu)2(BDC)2(DABCO) remains [001]-oriented across a large sample volume. In contrast, a thin film containing byproducts, as discussed earlier, shows (100), (200), and (300) scattering rings. The SEM image shows obvious cluster-like particles on the merging boundary of parallel aligned planes (Fig. S7, ESI†), confirming our hypothesis regarding scattering rings caused by impurities.

Identifying vibrational modes in the infrared absorption spectrum is a helpful step in confirming the chemical composition of a material. To achieve this, Fourier transform infrared spectroscopy with attenuated total reflection (FTIR-ATR) was employed to characterize 18C/2C-(Zn/Cu)2(BDC)2(DABCO). For comparison, the IR spectra for Zn2(BDC)2(DABCO) were also simulated and compared with the experimental results, as presented in Fig. 3f. The absorbance peak at 1637 cm−1 was assigned to the asymmetric carboxylate stretch, νas(COO), while the symmetric carboxylate stretching mode, νs(COO), was attributed to 1434 cm−1 peak. The separation of 203 cm−1 between these vibrational modes aligns well with established findings in the literature.41 Furthermore, peaks at 1387 cm−1 correspond to the C[double bond, length as m-dash]C vibrational modes of the benzene ring, while the peak at 1016 cm−1 is assigned to the phenyl vibrational C–H bending character. Additionally, peaks at 811 and 743 cm−1 correspond to the C–H rocking mode and hydrogen wagging modes in the BDC linker, respectively. These observed features, along with the peaks in the fingerprint region, closely match the simulated results (as shown in Fig. 3f). The good match between experimental and simulated data supports the conclusion that Zn2(BDC)2(DABCO) was successfully synthesized on top of Cu2(BDC)2(DABCO). Energy dispersive X-ray (EDX) analysis was conducted on the hetero (Zn/Cu)2(BDC)2(DABCO) SURMOFs to gain insight into the elemental distribution with thin film depth. The EDX results indicate the content of Zn increases with the increasing deposition cycles in heterostructures as shown in Fig. S8a (ESI†). The elemental mapping of the cross section of the 38C/2C-(Zn/Cu)2(BDC)2(DABCO) film demonstrates a sufficient amount of Zn atoms (Fig. S8b–d, ESI†), further confirming the SURMOF grown with Zn.

To qualitatively estimate the thickness of (Zn/Cu)2(BDC)2(DABCO) with a number of growth cycles of Zn-type MOF, we obtained high-resolution XRD data of the (001) peak of 2C-Cu2(BDC)2(DABCO) and Zn2(BDC)2(DABCO) with various deposition cycles on it (Fig. 5a). Subsequently, the full width at half maximum (FWHM) of the (001) XRD peaks were obtained by Gaussian fitting. The average thickness along [001] direction was estimated by Scherrer equation (D(001) = kλ/β[thin space (1/6-em)]cos[thin space (1/6-em)]θ, where k is the Scherrer constant (0.89), λ is the wavelength of the X-ray (0.154 nm), β is the FWHM, θ is the Bragg angle of the peak). As show in Fig. 5b, the average height gradually increased with the number of growth cycles. The crystallite size demonstrates a nonlinear growth with respect to the number of cycles. This phenomenon has been reported also in the literature,42,43 and may be attributed to a storage mechanism in which unreacted components are temporarily held on or in the already deposited SURMOF. The amount of precursor material accessible near the interface can then vary during each island growth step and thereby cause a nonlinearity in the development of crystallite size with the number of cycles. The estimated thickness of (38C/2C)-(Zn/Cu)2(BDC)2(DABCO) is ∼73 nm, agreeing well with the observed height in cross-sectional SEM image (Fig. S8b, ESI†). This observation indicates vertical growth of the SURMOF platelets. In addition, the gradual growth of the platelet width as the number of deposition cycles was increased from 3 to 38 can be retraced by SEM, until, finally, full coverage of the substrate is achieved (Fig. S7, ESI†). In other words, an island-type growth (Volmer–Weber growth) for the core–shell heterostructures was observed.44,45 As illustrated in Fig. 6, the Cu2(BDC)2(DABCO) first formed and distributed on the substrate in the shape of small islands. Then, alternating immersion between Zn and linkers solution produced Zn2(BDC)2(DABCO) growing along both lateral and vertical directions on those islands. Further growth eventually leads to merging of individual islands, ultimately resulting in films that fully covered the substrate. It should be noted that the thin film resulting from this growth mode is not perfectly homogeneous, while Frank–Van der Merwe type growth should yield MOF films of nearly uniform thickness and without pinholes.13,45–47 To improve the homogeneity, it may have something to do with the modification of substrates, selection of precursors, and conditions of synthesis. For instance, to facilitate MOF nucleation, the surface may require functionalization with active sites. This process usually involves the introduction of functional groups such as –COOH or the application of a metal oxide buffer layer, such as ZnO. Our laboratory is currently conducting further mechanistic studies and developing associated processes.


image file: d4tc00018h-f5.tif

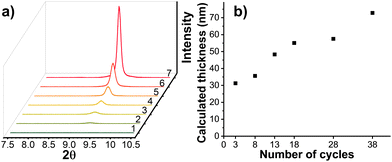

Fig. 5 (a) Out-of-plane XRD of 2C-Cu2(BDC)2(DABCO) (1), 3C/2C-(Zn/Cu)2(BDC)2(DABCO) (2), 8C/2C-(Zn/Cu)2(BDC)2(DABCO) (3), 13C/2C-(Zn/Cu)2(BDC)2(DABCO) (4), 18C/2C-(Zn/Cu)2(BDC)2(DABCO) (5), 28C/2C-(Zn/Cu)2(BDC)2(DABCO) (6), and 38C/2C-(Zn/Cu)2(BDC)2(DABCO) (7). (b) Calculated average thickness as a function of number of growth cycles.

image file: d4tc00018h-f6.tif
Fig. 6 Schematic showing layer-by-layer growth proceeds via the formation of islands and thus follows a Volmer–Weber-like growth mechanism.

The Cu2(BDC)2(DABCO)-templated growth of pillar-layered Zn-type SURMOF with [001] orientation is not limited to the Zn2(BDC)2(DABCO). Zn2(NDC)2(DABCO) is a well-known MOF (NDC = naphthalene-1,4-dicarboxylic acid) that possesses similar lattice parameters to Cu2(BDC)2(DABCO). Therefore, it serves as an initial target to synthesize a [001]-oriented SURMOF by using this heteroepitaxial method, following Zn2(BDC)2(DABCO). Indeed, using 2C-Cu2(BDC)2(DABCO) as a template, crystalline and highly [001]-oriented 20C-Zn2(NDC)2(DABCO) could be obtained (XRD and GIWAXS patterns shown in Fig. S9, ESI†).

Core–shell–shell heterostructure

With a successful protocol established for growing well-oriented Zn-type SURMOF on Cu2(BDC)2(DABCO), we next considered SURMOFs attractive for optical application, such as M2L2P-type MOFs that include photo- and electroactive ligands. These would be attractive for building functional materials by virtue of being able to tune two separate ligands. As detailed above, Cu2(BDC)2(DABCO) is a useful template for developing controlled growth methodology, leaving one curious if a third layer oriented in [001] direction could be constructed on the core–shell (Zn/Cu)2(BDC)2(DABCO) structure – particularly, if emissive linkers are involved in the third layer, the second shell Zn2(BDC)2(DABCO) could serve as a spacer to prevent the fluorescence from quenching by copper (Fig. 7a). To verify this hypothesis, Zn2(ADC)2(BPy) was a clear initial target. The ADC linker dissolved in ethanol can produce fluorescence at visible wavelengths and has an analogous transversal length to BDC. Choosing BPy as a pillar ligand could verify if the heteroepitaxial growth can happen in a SURMOF with lattice mismatch in the c parameter as well. BPy, thereby, should give new diffraction peaks at smaller angles which conveniently allows to distinguish the second shell from the underlying core–shell (Zn/Cu)2(BDC)2(DABCO) structure.
image file: d4tc00018h-f7.tif
Fig. 7 (a) Illustration of core–shell–shell trilayer structure. (b) 2D GIWAXS patterns of Zn2(ADC)2(BPy) grown on 3C/2C-(Zn/Cu)2(BDC)2(DABCO). (c) Normalized PL spectra of Zn2(ADC)2(BPy) on 3C/2C-(Zn/Cu)2(BDC)2(DABCO) (blue line), ethanolic ADC solution (5 × 10−7 mol L−1, cyan line), and drop-casted ADC film (green line). λex = 300 nm. (d) Time-resolved PL decay of Zn2(ADC)2(BPy) on 3C/2C-(Zn/Cu)2(BDC)2(DABCO) (blue triangle), ethanolic ADC solution (5 × 10−7 mol L−1, cyan square) and drop-casted ADC film (green cycle) monitored at 426, 423, and 501 nm, respectively. λex = 365 nm. Black square is the instrument response function of excitation source.

We prepared 20C-Zn2(ADC)2(BPy) grown on top of 3C/2C-(Zn/Cu)2(BDC)2(DABCO) by the liquid-phase-epitaxy method. Examined by XRD leads to the observation of one single peak at 12.7° (q = 0.90 Å-1) and a shoulder peak at 19.3° (q = 1.36 Å−1). These two peaks correspond to the (004) and (006) planes along c axis, verified by comparison with the structural simulation of Zn2(ADC)2(BPy) (Fig. S10a, ESI†). Although the first order (002) peak cannot be detected because of the instrument limitation, the integrated result of the out-of-plane GIWAXS pattern shows an obvious peak ∼6.4° (q = 0.46 Å−1), indicating the retention of the [001] orientation while deposited 20C-Zn2(ADC)2(BPy) on 3C/2C-(Zn/Cu)2(BDC)2(DABCO). As for the 2D GIWAXS pattern, several additional peaks were observed from this trilayer sample concerning 3C/2C-(Zn/Cu)2(BDC)2(DABCO). Those (002), (004), and (112) peaks originating from Zn2(ADC)2(BPy) indicates the preferential [001] orientation of 20C-Zn2(ADC)2(BPy) (Fig. 7b). In addition, the out-of-plane integration plot of GIWAXS diffractograms with varying angles of incidence shows the intensity ratio of (004) of Zn2(ADC)2(BPy) to (001) of (Zn/Cu)2(BDC)2(DABCO) gradually increases with incidence angle decreasing, indicating the third layer is, in fact, on top of the core–shell structure (Fig. S10b, ESI†). This result further supports the successful fabrication of core–shell–shell structure.

Considering the second shell Zn2(BDC)2(DABCO) could keep Zn2(ADC)2(BPy) from fluorescence quenching by Cu2+, we carried out photophysical studies on this trilayer structure. For comparison, a drop-cast film of ADC from an ethanol solution on a Si substrate and a dilute ADC solution in ethanol at a concentration of 5 × 10−7 mol L−1 were also investigated. As shown in Fig. 7c, the steady-state fluorescence spectrum of the core–shell–shell Zn2(ADC)2(BPy) on 3C/2C-(Zn/Cu)2(BDC)2(DABCO) exhibits a broad band with a maximum at 426 nm. ADC in ethanol shows three fine peaks at 399, 423, and 447 nm while the emission of ADC film centers at 501 nm. Additionally, time-resolved PL decay reveals a lifetime of the ADC solution emission of 7.11 ns, adopting a mono-exponential decay characteristic (Fig. 7d). However, analysis of the fluorescence decay of the core–shell–shell SURMOF at 426 nm reveals two emitting species with lifetimes of 1.23 and 6.45 ns, respectively. This pattern mirrors that of aggregated ADC films, which exhibit both short (2.15 ns) and long (6.33 ns) decay components (Table S1, ESI†). Within the Zn2(ADC)2(BPy) lattice, ADC molecules are held apart vertically (along [001] direction) by BPy; yet they are proximal in the horizontal 2D sheet.48 This arrangement allows for potential interactions between adjacent ADC or BPy molecules, which is also evident by the emission broadening. Despite the broad emission band, the lifetimes extracted from monitoring the PL decay at 426 and 501 nm are similar. Moreover, the decay tail bears resemblance to that of ADC molecules in ethanol. These observations suggest that ADC molecules within the SURMOF can engage in coupling states but also have the capability to emit as isolated monomers when excited.

Conclusions

In summary, we constructed a [001]-oriented core–shell–shell heretostructural SURMOF composed of Cu2(BDC)2(DABCO) core and Zn2(BDC)2(DABCO) and Zn2(ADC)2(BPy) shells by the heteroepitaxial method. Using LPE, despite growing poorly oriented on its own, Zn2(BDC)2(DABCO) could be achieved in [001] orientation with a Cu2(BDC)2(DABCO) as an underlying oriented templated layer. This core–shell structure was systemically investigated and found to obey an island-type Volmer–Weber growth mechanism. In addition, a core–shell–shell SURMOF structure with the second shell Zn2(ADC)2(BPy) serving as an emitter, the first shell Zn2(BDC)2(DABCO) as a spacer, and the core Cu2(BDC)2(DABCO) as the structural template was also achieved utilizing heteroepitaxy. Since Zn2(BDC)2(DABCO) could suppress the quenching effect of Cu2+, the photoluminescence properties of Zn2(ADC)2(BPy) could be examined. This study facilitates the fabrication of future designer optical materials with a common, single orientation.

Experimental

Materials

All reagents and solvents were used as received or otherwise indicated. Copper acetate monohydrate (Cu(OOCCH3)2·H2O, 98%, Alfa Aesar), zinc acetate dihydrate (Zn(OOCCH3)2·2H2O, 97+%, Alfa Aesar), and 4,4′-bipyridine (BPy, 98%, Alfa Aesar) were purchased from ThermoFisher (Kandel) GmbH. Naphthalene-1,4-dicarboxylic acid (NDC, 99.66%) and 9,10-anthracenedicarboxylic acid (ADC, 98%) were purchased from BLD Pharmatech GmbH. 1,4-Bibenzene dicarboxylic acid (BDC) was purchased from Merck KGaA. 1,4-Diazabicyclo[2.2.2]octane (DABCO, ≥99%) was purchased from Sigma-Aldrich GmbH. Gd2O3@Si substrates with 150 nm Gd2O3 coated by molecular-beam epitaxy were purchased from Translucent Energy, Inc. Atomic layer deposition (ALD)-TiO2-coated silicon substrates were prepared by using a Picosun R-series ALD reactor. The deposition was performed at 300 °C with 125 cycles. The pulsing and purging time for TiCl4 was 0.1 s and 9 s, respectively; while water was 0.1 s and 13 s, respectively. The examined thickness of TiO2 is 3 nm.

Characterization

2D grazing incidence wide angle X-ray scattering measurements were carried out on a Bruker D8 Advance equipped with a copper X-ray source (40 kV, 40 mA), Goebel mirror, a 0.5 mm micro mask and a 0.3 mm snout on the primary track and an Eiger 2R_500K detector on the secondary track. The reciprocal q-space GIWAXS scattering images was obtained with the GIXSGUI MATLAB plug-in.49 X-ray diffraction patterns were obtained using a Bruker D2 Phaser diffractometer with CuKα radiation. The simulated XRD patterns of Zn2(NDC)2(DABCO) and Zn2(ADC)2(BPy) are based on single crystal .cif data in the literatures.48,50 FTIR-ATR spectra were acquired on a Bruker VERTEX 70 FT-IR spectrometer. Steady-state photoluminescence was recorded with a Ocean Insight QE PRO spectrometer-based system using a UV LED (λ = 300 nm) as excitation source. Fluorescence decay was recorded on the Edinburgh Instruments FS5 spectrofluorometer with excitation by an external LED (365 nm). SEM images were taken on a ZEISS Supra 60VP. To examine the cross section image at the sample center, the sample was broken in half prior to measurement.

Synthesis of SURMOFs

The SURMOF synthesis on different substrates was performed, as previously reported, using the pump sequence by McCarthy et al.29 Typically, for Cu2(BDC)2(DABCO) the epitaxial growth process consists of alternately immersing a 〈100〉 Si substrate into an ethanolic solution of the building units: Cu(OOCCH3)2·H2O (1 mmol L−1, 15 min) and BDC/DABCO (0.4/0.2 mmol L−1, 30 min). Between each soaking step, the substrates were rinsed thoroughly with ethanol for two times (0.5 and 4.5 min each). The temperature of the heating bath was fixed at 60 °C. The pump sequence lacked the ethanol-only immersion between the very first metal ion and ligand immersion. For zinc-type SURMOFs, ethanolic solution of Zn(OOCCH3)2·2H2O (1 mmol L−1) was used, and the concentration of BDC, NDC, ADC, DABCO, and BPy in ethanol were fixed at 0.2 mmol L−1.

Simulation

We employed the Fritz Haber Institute (FHI-aims) code,51 based on density functional theory (DFT), to investigate the stability and equilibrium structural parameters of Zn2(BDC)2DABCO. To determine the minimum energy structure, we initially utilized the Perdew–Burke–Ernzerhof (PBE) functional,52 augmented with many-body dispersion correction.53 We selected “tight” settings within FHI-aims and carried out computations with a well-converged 2 × 2 × 2 k-points grid, systematically sampling the Brillouin zone. Strict convergence criteria were enforced for variations in charge density (10−5), total energy (10−6 eV), and forces (10−4 eV Å−1) to ensure the highest precision. To determine Kohn–Sham eigenstate occupations, we applied a Gaussian broadening function with a σ = 0.01 eV width, significantly enhancing electronic state evaluations. Relativistic effects were accurately accounted for using the atomic Zeroth-Order Regular Approximation (ZORA).54 In local geometry optimizations, an advanced iteration of the Broyden–Fletcher–Shanno–Goldfarb (BFGS) optimization algorithm,51 incorporating the trust radius method, facilitated the identification of minima on the potential energy surface. Throughout the optimization process, convergence was rigorously maintained, with a tolerance threshold of 10−3 eV Å−1 consistently upheld.

For the IR calculations, FHI_aims code with the PBE functional underestimate IR peak positions. Switching to the hybrid functional improve alignment with experimental peaks. For calculating the IR spectrum, we turned to the CRYSTAL23 code.55 Within this code, crystalline orbitals are expressed as linear combinations of localized atomic orbitals of Gaussian type. We employed the hybrid B3LYP functional,56,57 accounting for dispersion interactions via the D3 correction. The lattice parameters were obtained from FHI-aims calculations and the atomic positions relaxed before conducting vibrational calculations (B3LYP-D3 shows underestimation of lattice constants compared to experimental data). The accuracy of the Coulomb and exchange series was controlled by setting thresholds equal to 9, 9, 9, 9, 18.58 Reciprocal space was discretized using a Monkhorst–Pack 4 × 4 × 4 grid in the irreducible part of the Brillouin zone. We maintained a self-consistency procedure accuracy of no less than 10−11 atomic units (1 a.u. = 27.21 eV) to ensure the precision of our results.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors gratefully acknowledge the Helmholtz Association for funding through HEMF, and the MTET program (Materials and Technologies for the Energy Transition) – Topic 1 – Photovoltaics (38.01.05), and the recruitment initiative of B. S. R. We acknowledge support by the KIT-Publication Fund of the Karlsruhe Institute of Technology. T. Z. gratefully acknowledges the support of the Helmholtz-OCPC Postdoctoral Exchange Program (ZD202131) and the National Natural Science Foundation of China (22205045).
