Amphiphilic acetylacetone-based carbon dots

Abstract

The ongoing development of carbon dots (CDs) for different applications calls for researching novel methods for their synthesis and surface functionalization. For the fabrication of photonic devices, apart from the obvious requirement of bright luminescence, CDs also should be soluble in the non-polar solvents used for the ink-printing of their functional layers. Herein, we introduce amphiphilic CDs synthesized from a mixture of benzoic acid and ethylenediamine in acetylacetone, which satisfy both of the abovementioned requirements. These CDs are quasi-spherical nanoparticles that are 20–50 nm in size, with aliphatic, carbonyl, amide, imine, and carbamate groups at the surface. This wide spectrum of surface groups renders them amphiphilic and soluble in a variety of substances, such as toluene, chloroform, alcohol, and water, with relative polarity ranging from 0.002 to 1. By variation of the molar ratio of benzoic acid and ethylenediamine, the highest quantum yield reported so far of 36% in isopropanol is achieved for the amphiphilic CDs. As a demonstration of the use of developed amphiphilic CDs in LEDs, green-emitting charge-injection devices were fabricated with a broad emission band centered at 515 nm, maximal luminance of 1716 cd m⁻², and CCT of 5627 K. These LEDs are the first ones based on amphiphilic CDs. Furthermore, these CDs can be used as luminescent inks and as an active material for solar concentrators.

---

Introduction

Recently, carbon dots (CDs) have been recognized as an important class of light-emitting nanomaterials due to the ease of preparation, bright photoluminescence (PL), high colloidal stability, and low/negligible toxicity.^1–3 Using different chemical precursors in the bottom-up synthesis of CDs makes it possible to functionalize their surface for different purposes, ranging from biomedical to energy/lighting applications.⁴ For the latter direction, which includes light-emitting devices (LEDs), solar cells, composite catalysts, the energy level structure and existence of electron-withdrawing or -donating groups at the surface of CDs play a crucial role.^5–8 In many cases, however, the surface functionality of CDs is somewhat limited by the fact that their synthesis and further solubilization are traditionally performed in polar solvents. Moreover, the application of CDs in devices as a part of the composite emissive/charge-transport layers demands their compatibility with a variety of polymers and other materials, which are mostly soluble in non-polar solvents.⁹

Despite this demand, studies devoted to the development of CDs soluble in nonpolar organic solvents and amphiphilic nanoparticles are still rare. Currently, the non-polar based CDs have been produced by hot injection,¹⁰ microwave-assisted,^11,12 solvothermal methods,^13–15 and by refluxing.¹⁶ In most of the studies where hydrophobic CDs were produced, combinations of aliphatic compounds (amines, aldehydes, acids) with hydrophobic molecules, including organic dyes, were used as precursors. For example, hydrophobic CDs were prepared by hot-injection method from melted Paraplast granules injected in toluene and stabilized with dodecanethiol.¹⁰ In another study,¹⁷ hydrophobic CDs were prepared from rhodamine B and then functionalized with polyethylene glycol (PEG) to increase their solubility in polar media. By refluxing dodecylamine in chlorobenzene, hydrophobic blue-emissive CDs with the PL quantum yield (QY) reaching 10% were made;¹⁶ these CDs could be easily mixed with polymers such as poly(methyl methacrylate) and polydimethylsiloxane. In another study, dodecylamine-based CDs were used as surfactants to stabilize multi-walled carbon nanotubes.¹⁸ Moreover, methods for fabricating bright amphiphilic CDs are still in their infancy.¹⁹ The amphiphilicity of CDs can be introduced via post-synthetic surface modification with long hydrophobic chain epoxides or acrylamides, as was recently shown in a study by Chen et al.²⁰ Another example is the synthesis of CDs in acetone, which mixes well with both polar and non-polar solvents.¹⁴ For most of the reported hydrophobic or amphiphilic CDs,^{10,16,17,20–25} the PL bands experienced shifts with the change in polarity of the medium. This is commonly referred to as solvatochromism, and their PL QYs did not exceed the value of 33%.²² Another class of CDs that can be used for composite fabrication and further implementation as phosphors in down-conversion LEDs are silane-functionalized CDs.^26–29 A summary of the synthetic methods and optical properties of hydrophobic and amphiphilic CDs is provided in Table S1 (ESI†).

In this work, we aimed to develop a simple one-pot synthesis of amphiphilic CDs with increased PL QY in a range of solvents. For that, we selected acetylacetone as a solvent and benzoic acid (BA) and ethylenediamine (EDA) as precursors of CDs. The synthesized CDs demonstrate amphiphilic properties, remarkable stability in a variety of solvent media, as well as chemical yield and PL QY up to 36%, which is the highest value reported so far for amphiphilic CDs. Importantly, these CDs are easily mixed with glycerin, a toluene solution of polystyrene, and the common charge transport polymer, polyvinylcarbazole (PVK). We used the amphiphilic CDs to fabricate charge-injection green LEDs with a broad emission band and maximal luminance of 1716 cd cm⁻².

Results and discussion

Synthesis of amphiphilic CDs

To synthesize amphiphilic CDs in acetylacetone, a combination of BA and EDA was used (Fig. 1(a)). This synthesis was inspired by a ‘classical’ synthetic pathway towards bright CDs using citric acid and EDA,^30,31 which also allowed researchers to produce anisotropic hydrophobic³² and red-emitting^33–35 CDs. In this work, citric acid was replaced by BA which served as a hydrophobic component. BA derivatives were previously shown to increase the amount of carbonyl groups at the CD surface, which induced phosphorescence for those CDs in a powder.³⁶ Acetylacetone is a high-boiling solvent (140 °C), which is easily mixed with both polar and non-polar solvents. Thus, it is an ideal candidate as a reactive medium, facilitating the formation of amphiphilic groups at the CD's surface via keto–enol reaction. However, it was previously used only as a carbon source in microwave-assisted syntheses^37,38 and Aldol reactions under mild conditions, resulting in the formation of hydrophilic CDs.³⁹

Fig. 1 (a) Scheme of the synthesis of amphiphilic CDs from benzoic acid and ethylenediamine in acetylacetone. (b) Photographs of amphiphilic CDs in different solvents, taken under sunlight (left panel) and UV light (right panel).

We envisage three possible mechanisms for the formation of amphiphilic CDs through interaction of acetylacetone with EDA only, BA only, and both precursors together, as demonstrated in Fig. S2–S4 (ESI†), respectively. When EDA reacts with acetylacetone as its carbonyl derivative, bis(acetylacetone)ethylenediamine (Acacen) is formed.⁴⁰ Subsequently, Acacen in an excess of acetylacetone forms CDs enriched with imine groups at the surface (Fig. S2, ESI†). When BA reacts with acetylacetone, a denser CD core is formed. This is based mostly on acetylacetone covered with hydrophobic benzene rings (Fig. S3, ESI†). The reaction of acetylacetone with BA and EDA at the same time increases the hydrophobicity of the formed CDs and accelerates the formation of Acacen such that esterification inside CDs and 1,4-addition reactions are possible (Fig. S4, ESI†). The proposed mechanisms of efficient interaction between ethylenediamine, benzoic acid, and acetylacetone can be the reason for the rather high mass ratio of the synthesized CDs in relation to the amount of initial precursors (up to 10%). We expect that the CDs formed by the latter reaction would possess a variety of functional groups at the surface which create an amphiphilic shell (Fig. 1(a)), thus rendering those nanoparticles soluble in both polar and nonpolar media. Indeed, we have found that the produced CDs can be easily dispersed in a broad set of polar and nonpolar solvents such as water, methanol, ethanol, isopropanol, acetonitrile, dimethyl sulfoxide (DMSO), acetone, chloroform, toluene, and tetrachloromethane (TCM), as shown by the photographs in Fig. 1(b) obtained under sunlight and UV excitation. In the following, we will elaborate in detail on the morphology, surface chemistry, and optical properties of the produced amphiphilic CDs. In the forthcoming discussion, CD samples produced using EDA or BA as the only precursors are denoted as CD_EDA and CD_BA, respectively. For the CDs produced from the mixtures of BA and EDA in acetylacetone while changing the molar ratio of these two precursors, samples are designated as CD_XX, where XX is the BA-to-EDA molar ratio. The details of the synthesis are provided in the Experimental section.

Morphology and surface functionalities of CDs

The study of the CDs’ morphology performed by a combination of microscopy and spectroscopy methods has confirmed the assumption of their core–shell structure, as shown by TEM images in Fig. 2(a)–(c) and outlined in the forthcoming discussion.

Fig. 2 Morphology and size of amphiphilic CDs. (a)–(c) TEM images (with HRTEM images as insets) of CD_EDA (a), CD_0.22 (b), and CD_BA (c). (d) AFM image of CD_0.22; inset shows a height profile along 2 particles highlighted on the AFM image. (e) Mean size values determined from TEM images and AFM height analysis for CD_EDA, CD_0.22, and CD_BA. (f) XRD pattern of CD_0.22.

As can be seen from the TEM image in Fig. 2(a) and Fig. S5(a) (ESI†), CD_EDA consisted of a carbonized core of 7.8 ± 1.5 nm, and a rather thick polymer shell (20–25 nm). CD_BA consisted of a carbonized core of up to 40 nm in size, whose interplanar distance of 0.34 nm (inset in Fig. 2(c)) corresponds to the distance between the sp² planes in graphite,⁴¹ surrounded by a thicker polymer shell (Fig. 2(c) and Fig. S5(c), ESI†). The CD_0.22 sample comprises particles with a 5–7 nm core and interplane distance of 0.25 nm, which can be ascribed to doped sp²-carbon domains as was previously reported for S,N-doped CDs⁴² or N,Ca-doped CDs.⁴³ These domains are surrounded by a polymer shell so that the overall size of the particles becomes 15.1 ± 4.9 nm (Fig. 2(b) and Fig. S5(b), (c), ESI†). From the analysis of the AFM images of CD_EDA, CD_BA, and CD_0.22 shown in Fig. S6(a) and (b) (ESI†) and Fig. 2(d), respectively, one can derive their height to be less than 20 nm, with a rather broad distribution (Fig. S6(c)–(e), ESI†). The average height was determined as 6.0 ± 3.2, 12.0 ± 8.0, and 10.4 ± 4.0 for CD_EDA, CD_0.22, and CD_BA, respectively. The sizes of the three CD samples estimated from TEM and AFM images are summarized in Fig. 2(e); one can see that they increase with the increase of the BA amount. These CDs are quasi-spherical, as seen in Fig. S5(c) (ESI†) with the example of a single CD_0.22 particle. The difference in the TEM and AFM sizes for CD_0.22 and CD_BA can be attributed to an increased thickness of their polymer shell, as can be seen for CD_BA in Fig. 2(c) and Fig. S5(d)–(g) (ESI†), and for CD_0.22 in Fig. S5(c) (ESI†).

In the XRD pattern of CD_0.22 shown in Fig. 2(f), wide peaks at 16°, 24°, and 42° 2θ are observed; they are attributed to the (004), (002), and (100) planes of the defective planar structures similar to those reported for doped CDs^43,44 and graphitic carbon nitride.⁴⁵ The broadening of the XRD peaks can be related both to the amorphous structure (more than 95% estimated amorphous content) and small size of crystallites (less than 2 nm).

As shown in Fig. S7(a) (ESI†), amphiphilic CDs are composed of carbon, oxygen, and nitrogen (except for the case of CD_BA where no nitrogen was present). The contents of these three elements were determined as 67%, 77%, and 65% for carbon, 29%, 16%, and 32% for oxygen, and 1%, 4%, and 0% for nitrogen in CD_EDA, CD_0.22, and CD_BA, respectively. This experimentally determined chemical composition agrees well with the reaction schemes provided in Fig. S2–S4 (ESI†), adjusted to the BA/EDA molar ratio and an excess of acetylacetone in the syntheses. The highest amount of carbon and nitrogen alongside with the lowest amount of oxygen was observed for CD_0.22 synthesized from the mixture of BA and EDA in acetylacetone, which confirms that BA facilitates the reaction of EDA with acetylacetone, as illustrated in Fig. S3 (ESI†). From the high-resolution XPS data shown in Fig. S8 (ESI†), it is seen that CD_BA are carbonized particles and their surface is rich with hydroxyl and carbonyl groups. For CD_EDA, only a small amount of nitrogen atoms is incorporated into the CD structure as pyridinic N. For CDs produced from both EDA and BA, pyridinic and graphitic N are present as well (Fig. S8(e) and (f), ESI†).

The Raman spectrum of CD_0.22 (Fig. S7(b), ESI†) has 5 distinct bands with peaks at 1245, 1315, 1415, 1570, and 1655 cm⁻¹, which are attributed to the D*, D, D′′, G, and D′ bands typical for doped graphene and graphene oxide structures⁴⁶ with relative intensities of 15%, 38%, 5%, 20%, and 27%, respectively. The D* band can be attributed to the sp³-hybridized carbon observed in polyene⁴⁷ and disordered graphite.⁴⁸ In addition, the signal at 1130–1200 cm⁻¹ can be attributed to trans-polyacetylene chains.⁴⁹ The D and G bands are the breathing and stretching modes of the sp²-hybridized carbon domains, respectively.⁵⁰ The D′′ band originates from the amorphous carbon phase,⁵¹ and the D′ band corresponds to an intra-valley resonance with the G band, and undergoes a splitting due to the presence of impurities.⁵² Thus, we infer that the CDs synthesized here are carbon polymorphs with N and O atoms incorporated into sp²-domains. They demonstrate a high degree of presence of the amorphous/polymer phase (as manifested through the presence of the D′′ and D′ bands and a large width of the D and G bands) and a large amount of surface polymer chains such as trans-polyacetylene (manifested through the presence of the D* band).

From the FTIR spectra of the CDs provided in Fig. S7(c) (ESI†), one can see that those spectra are different from the FTIR spectrum represented by a sum of the precursors (shown by a grey line). The FTIR spectra in the range of 4000–2500 cm⁻¹ of CDs formed from a mixture of BA and EDA have peaks at 3300, 3060, 2974, 2924, and 2886 cm⁻¹, which can be attributed to the stretching vibrations of OH-bonding, C_arom-H, asymmetric CH₃, asymmetric CH₂, and symmetric CH₃, respectively. For the 2500–1300 cm⁻¹ range, strong peaks at 1680 and 1610 cm⁻¹, and medium-intensity peaks at 1560, 1530, 1490, 1450, 1380, and 1360 cm⁻¹ are observed. The former two peaks can be attributed to the stretching vibrations of the -CO–CH₂–CO- bond in acetylacetone-related structures and C=C groups;⁵³ the peak at 1490 cm⁻¹ originates from the arene stretching; and the peaks at 1300–1500 cm⁻¹ can be attributed to the bonds of the aromatic carbon with nitrogen and/or oxygen atoms. A gradual change in the peaks’ intensities and their positions with an increase of EDA and decrease of the BA content in the precursor mixture is observed: the amount of aromatic phase decreases with an increase of N-doping, which manifests itself as the increase of intensity in the wavenumber regions attributed to the C–N groups vibrations. From the above chemical composition analysis, it can be inferred that amphiphilic CDs are O,N-doped carbon particles with an excess of aliphatic and aromatic groups at the surface. Moreover, they possess –CO–CH₂–CO– groups from acetylacetone, which should make them highly soluble in a variety of solvents.

Optical properties of amphiphilic CDs

Optical properties were monitored for amphiphilic CDs dissolved in three different solvents–water, isopropanol, and chloroform (Fig. 3 and Fig. S9–S15, ESI†). The peak positions for absorption, PL excitation and PL spectra of these samples are summarized in Table S3 (ESI†). The absorption spectra of all CDs show peaks at 220, 260, and 300–315 nm. Upon addition of EDA, several other peaks emerge at 390, 465, and 490 nm (Fig. 3(a)–(c)). While comparing the PLE-PL maps for CD_BA with other samples (Fig. S15(c)–(e), ESI†), the following observations can be made: CD_BA in isopropanol has a PL band at 480 nm excited over a wide spectral range (240–400 nm), whereas the EDA-based CDs in isopropanol have a PL band at 350 nm efficiently excited at 240 and 290 nm and PL band at 460 nm efficiently excited at 240, 300, and 390 nm.

Fig. 3 Optical properties of CDs in water, isopropanol, and chloroform: CD_EDA (violet), CD_0.15 (blue), CD_0.22 (cyan), CD_0.33 (green), CD₁ (yellow), CD₂ (orange), and CD_BA (red). (a)–(c) Absorption and (e)–(g) PL spectra excited at 400 nm. (d) PL QY of CDs in water (black squares), isopropanol (red circles), and chloroform (blue triangles), depending on the BA/EDA molar ratio in the synthesis. (h) Radiative (Γ, solid symbols) and nonradiative (k_nr, open symbols) relaxation constants of CDs in water (black squares), isopropanol (red circles), and chloroform (blue triangles), as a function of the BA/EDA molar ratio used in the synthesis.

The most intense emission among CDs dispersed in different solvents is observed for those dissolved in isopropanol, with a maximal PL QY of 36% for CD_0.22 (Fig. 3(d)). The least intense emission in general is observed for CD_BA, meaning that optical centers formed under participation of EDA and BA result in CDs with a higher brightness. From the PL decays and estimated PL lifetimes shown in Fig. S16 (ESI†) and summarized in Table S4 (ESI†), radiative (Γ) and nonradiative (k_nr) relaxation rates were calculated. The radiative rates follow the trend of the PL QY as shown in Fig. 3(h), varying from 0.003 to 0.09 × 10⁹ s⁻¹, whereas nonradiative rates fluctuate around the mean value of 0.2 × 10⁹ s⁻¹. From the spectra, the position of the absorption and PL of optical centers formed in amphiphilic CDs are only shifted slightly upon changing the solvent, indicating that they are not significantly affected by the medium and are well protected within the CD structure.

Optical properties for CD_0.22 of identical weights were measured in different solvents with varying relative polarity given in brackets: tetrachloromethane (0.052), toluene (0.099), chloroform (0.259), acetone (0.355), dimethyl sulfoxide (0.444), acetonitrile (0.46), isopropanol (0.617), ethanol (0.654), methanol (0.762), and water (1.0), as summarized in Fig. 4. The CD concentration was estimated as ∼0.5 mg mL⁻¹ for all of these samples. With the increase of the relative polarity from 0.052 to 1.0, the absorption peaks slightly blue-shifted from 402 to 385 nm (Fig. 4(a) and (b)), while the PL spectra blue-shifted from 465 to 457 nm (Fig. 4(e) and (f)). In comparison to reported hydrophobic CDs,^13,54 where the absorption and PL bands experienced much larger spectral shifts of up to 160 nm, the observed changes in the absorption and PL peak positions are rather minor. A similar behavior was observed for amphiphilic CDs synthesized from (formylmethyl)triphenylphosphonium chloride in acetone, whose PL peak shifted from 595 and 620 nm by changing the solvent from water to chloroform.¹⁴ The optical density of the amphiphilic CDs increases with the relative polarity of the solvent (Fig. 4(c)), while PL QYs reach the maximal value of 36% in the solvent with the relative polarity of 0.617 (isopropanol) and are lower in both more polar and less polar solvents, going down to 3% only for CD_0.22 in tetrachloromethane (Fig. 4(g)). The change in PL QY can be explained by the change in either radiative or nonradiative decay rate depending on the type of emission centers. Both radiative and nonradiative decay rates are affected by the interaction of the excited dipole with solvent molecules. However, no single model can explain the diverse spectral properties displayed by fluorophores in various environments.⁵⁵

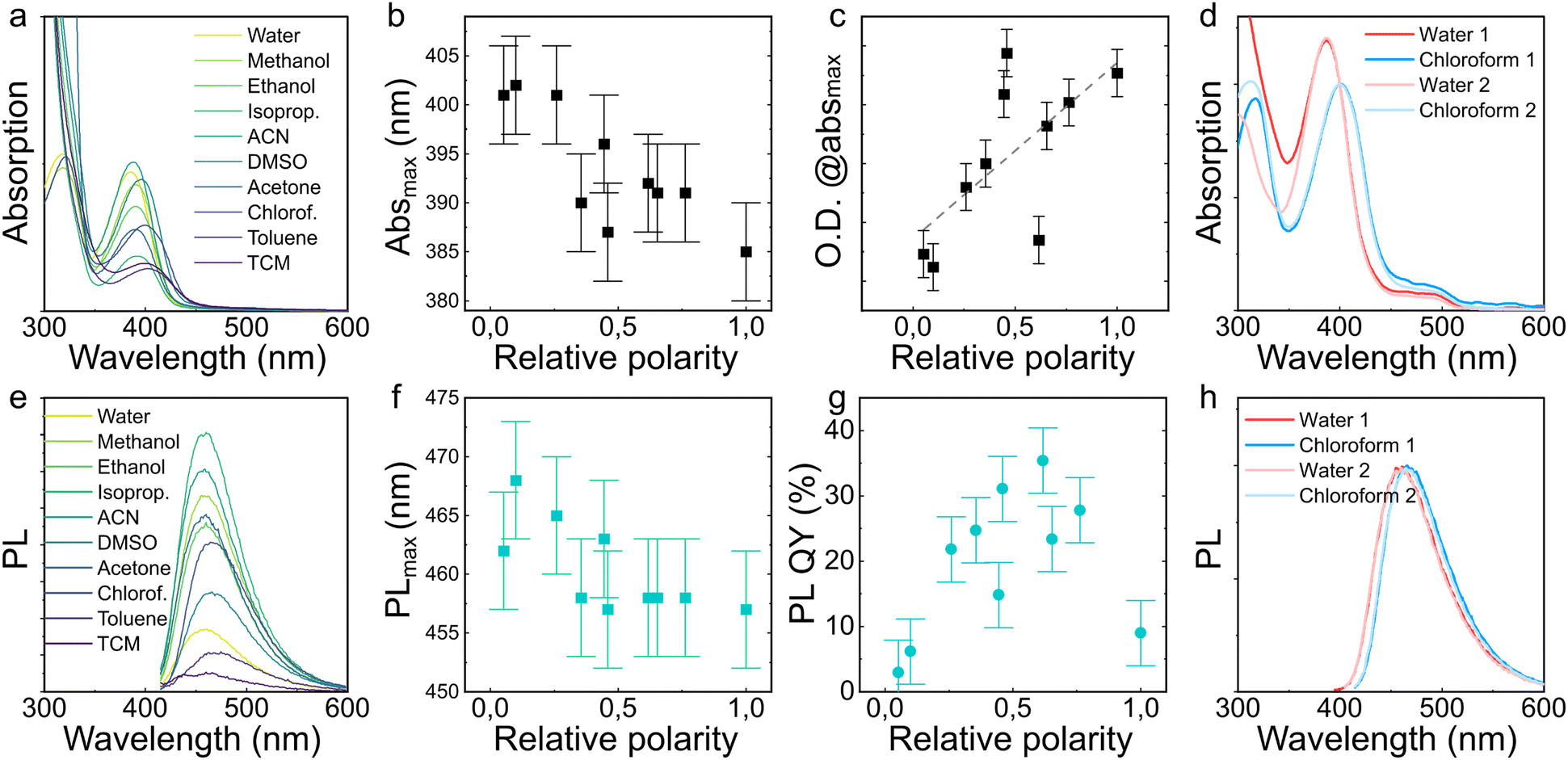

Fig. 4 Optical properties of CD_0.22 dispersed in a set of solvents with varying relative polarity: (a) absorption spectra, (b) long-wavelength absorption peak position and (c) optical density at its maximum depending on the relative polarity of the solvent; (e) PL spectra, (f) PL peak position excited at 400 nm, and (g) PL QY as a function of the relative polarity of the solvent; (d) absorption and (h) normalized PL spectra excited at 400 nm recorded while changing the solvents from water to chloroform in 2 cycles (1 and 2).

To demonstrate the amphiphilicity of CDs, their optical spectra during several cycles of dissolution in water and chloroform were measured, and are shown in Fig. 4(d) and (h). It is seen that both absorption and PL spectra are the same in water/chloroform after the 1st and 2nd dispersion cycles of CD_0.22, in terms of the positions of the respective maxima, indicating that the produced CDs are indeed amphiphilic, as was shown in Fig. 1(b).

Energy level structure of CDs, and their application in LEDs and luminescent inks

The amphiphilic property of the CDs opens a possibility to fabricate composite materials in combination with non-polar conductive polymers, such as polyvinyl carbazole (PVK), for both optoelectronic and photovoltaic devices. For this purpose, we firstly determined the energy structures of CD_EDA, CD_BA, and CD_0.22 by UPS measurements,⁵⁶ with the UPS spectra presented in Fig. S17 (ESI†). The derived energy structure schemes are shown in Fig. 5(a) for CD_0.22 and in Fig. S18 (ESI†) for CD_EDA and CD_BA. The depth of the highest occupied molecular orbital (HOMO) was estimated from the UPS spectra (Fig. S17, ESI†) from the width of the He I UPS spectrum according to E_Homo = (E_cut-off − E_f) − hλ, where hλ is the energy of the incident photons of 21.22 eV; E_cut-off – the energy of the secondary electron cut-off regions (right side edge of the spectrum shown in Fig. S17(a), ESI†), E_F – the left-side edge of the spectrum as shown in Fig. S17(a) (ESI†). The ground state S0 corresponding to the HOMO energy was plotted from the vacuum level with E_vac = 0 eV, and the position of the lowest unoccupied molecular orbital (LUMO) was estimated according to E_LUMO = E_HOMO + E_g, where E_g was estimated as the edge of the absorption spectrum (Fig. S17b, ESI†). The excited states S1, S2, and S3 were plotted according to the positions of E_LUMO, and absorption bands Abs-1, Abs-2, and Abs-3, respectively, and the radiative transitions were shown as colored arrows corresponding to emissive centers determined from PLE-PL maps. The values of all energy level positions are summarized in Table S5 (ESI†). After absorption of light with the wavelength of 260 nm (black arrow in Fig. 5(a) and S18, ESI†), the excited state S3 related to the Abs-3 band becomes deactivated through the nonradiative transition to the lowest excited states S1 and S2, from which radiative transitions PL-1 and PL-2 (green arrows in Fig. 5(a) and Fig. S18, ESI†) to the ground state S0 can occur. The S1 and S2 states can also be populated by a direct absorption of light with wavelengths of 315 and 395 nm, respectively (black arrows in Fig. 5(a)), and be deactivated through both radiative (green arrows in Fig. 5(a) and Fig. S18, ESI†) and nonradiative transitions to the ground state S0. The radiative relaxation of photoexcited charge carriers for CD_0.22 are observed as emission bands at 350 and 460 nm, which can be excited at 260, 315, and 395 nm (Fig. S11(d) and Table S5, ESI†).

Fig. 5 (a) Energy level structure of CD_0.22. HOMO and LUMO energy levels are shown by thick black lines. Upon excitation, the charge carriers move from the ground state (S0) to higher energy states S1, S2, or S3 corresponding to the experimentally observed absorption bands (thin black lines). From these states, the charge carriers can relax radiatively, which is represented by colored arrows (the length of the arrows corresponds to the energy of the emission), or non-radiatively, which is represented by wavy lines. (b) Energy level diagram of the charge-injection CD-LED: the levels for PVK are within the cyan box, and those for the CD_0.22 are within the empty box. (c) CIE coordinates for the green light emitted by the fabricated CD-LEDs; the inset shows a photograph of the operating LED. (d) PL spectra of the CD_0.22 solution in isopropanol (dashed black line) and CD_0.22@PVK excited at 405 nm (orange line); EL spectrum of CD-LED is shown by green line. (e) Current density–luminance–voltage (J–L–V) characteristic curve and (f) luminance–current density (L–J) curve of the CD-LED.

For the CD_0.22, their highest occupied molecular orbital (HOMO) lies at −7.2 eV, while the lowest unoccupied molecular orbital (LUMO) is at −4.4 eV. From the optical data discussed above, one can identify excited states of S1, S2, and S3 located at −4.0, −3.3, and −2.4 eV, which correspond to the absorption peaks Abs-1, Abs-2, and Abs-3 in Table S3 (ESI†), respectively; those levels are presented in Fig. 5(a) as thin black lines. The radiative transitions of the two emissive centers corresponding to PL-1 and PL-2 in Table S3 (ESI†) are shown by colored arrows from the S1 and S2 energy levels, respectively. CD_0.22 has a Stokes shift, which is shown as a difference between the ground state (S0 level) and the energy level. The charge carriers from this level radiatively relax (dotted line), as shown in Fig. 5(a). A very similar energy structure could be derived for CD_EDA, as shown in Fig. S18 (ESI†). However, for the CD_BA, HOMO and LUMO levels lie at −6.5 and −3.1 eV, respectively; and there are only two excited states, S1 and S2, with one radiative transition from S2. It is worth noting that the energy level engineering of CDs is important, since they can be then further used as auxiliary components to improve the charge transporting layer/active materials interfaces.⁵⁷ In a recent review, the positions of the HOMO and LUMO energy levels of different materials were summarized for the electron transport layers applicable in perovskite solar cells: the LUMO energy level varied from −3.3 to −4.5 eV.⁵⁸ The similar values of LUMO levels achieved for the CDs developed in this work, combined with the possibility to mix them with organic polymers, open an opportunity to use amphiphilic CDs in perovskite solar cells, including those on flexible substrates.⁵⁹

Considering that the highest PLQY of 36% was achieved for CD_0.22, these particles were used for the fabrication of CD-LEDs. A very common conductive polymer PVK was chosen as a polymer host for the CDs. CD_0.22 was mixed with PVK in chlorobenzene with a final concentration of 25 wt%; the detailed procedure for the CD-LED fabrication is provided in Supporting Information. The multilayer structure and the band structure for the fabricated CD-LED is shown in Fig. 5(b). CD_0.22 has a lower HOMO level (−7.2 eV) as compared to PVK (−5.8 eV). This helps to facilitate the charge carrier accumulation within the CD-PVK layer. The Commission Internationale de L'Eclairage (CIE) coordinates of the EL spectrum is (0.332, 0.430), and the correlated color temperature (CCT) is 5627 K (Fig. 5(c)). Fig. 5(d) shows the electroluminescence (EL) spectrum of the operating CD-LED in comparison with the PL spectra of the same device excited at 405 nm from the ITO side, and of the reference sample of CD_0.22 embedded in PVK (CD_0.22@PVK). Both EL and PL bands of the LED device and the CD_0.22@PVK film are redshifted to 490–530 nm as compared to the PL band of CD_0.22 in isopropanol (shown by the dashed line in Fig. 5(d) and in the PL-PLE map in Fig. S19, ESI†), along with the emergence of emission in the 600–700 nm spectral region. A similar redshift was observed in ref. 60, where it was attributed to an activation of emission from surface states with a lower bandgap as compared to the CD's core states caused by injection of charge carriers. In our case, the similarity of the PL spectrum of CD_0.22@PVK with the EL from CD-LED points to the possibility of activation of the radiative transitions related to the absorption band of CDs at 510 nm, as well as the formation of additional emissive centers arising from the interaction between CDs and PVK. Further investigations will be needed to address those two possibilities.

From Fig. 5(e), the turn-on voltage (V_on), which is defined as the bias voltage to be applied to a CD-LED to reach the luminance of 1 cd m⁻², is equal to 5.2 V. The threshold voltage for the current density, which is estimated from the current density slope in Fig. 5(e), is 9.7 V. The current efficiency of the devices was estimated as 0.2 cd A⁻¹ at the current density of 31 mA cm⁻² (Fig. 5(f)). The average brightness of the CD-LEDs exceeds 1000 cd cm⁻², and the maximal brightness reaches 1716 cd cm⁻². The latter value is comparable to or better than those for the reported CD-based LEDs listed in Table S6 (ESI†) for devices employing CDs with a PL QY near 40%. The CD-LEDs kept their emission after at least 50 on/off cycles.

The amphiphilicity of the developed CDs opens up an opportunity to easily mix them with different kinds of polymer solutions. As an example, CD_0.22 was mixed with 5 wt% of polystyrene (PS) in toluene, with a resulting concentration of 0.5 mg mL⁻¹ (CD_0.22/PS-1) and 0.25 mg mL⁻¹ (CD_0.22/PS-2). The appearance of the CD_0.22/PS-1 sample under UV light is shown in Fig. 6(a). The mixtures were deposited on glass slides, forming highly transparent thin films with a transmission of 88.7% for both CD_0.22/PS-1 and CD_0.22/PS-2 at 365 nm (Fig. 6(b) and Fig. S20, ESI†). From Fig. 6(c), one can see that the CD films demonstrate bright emission at the substrate edge under UV light (365 nm) as compared to clear glass, thus providing a simple solar concentrator. From PLE-PL maps, the emission band slightly blueshifts from 460 nm to 440 nm and broadens compared to that of CD_0.22 in isopropanol solution with excitation bands observed at 220, 315, and 390 nm (Fig. S11, ESI†). We also checked the solubility of CD_0.22 in glycerin and glycerin/isopropanol media for obtaining luminescent inks (CD_0.22/Gl), as shown in Fig. 6(a). The obtained mixture can be easily transferred into a fountain pen for writing, and the resulting inscription “Nano” shows emission similar to that in the isopropanol solution, as shown in Fig. 6(d) and (e). We also noticed that apart from the demonstration of amphiphilic CDs produced in this work as active material for LEDs, solar concentrators, and luminescent inks, they can also be used as auxiliary components of perovskite-based solar cells.⁶¹

Fig. 6 (a) Photographs of C_0.22 dispersed in polystyrene/toluene (CD_0.22/PS, left) and glycerin/isopropanol (CD_0.22/Gl, right) solutions, taken under 365 nm UV lamp. (b) and (c) Photographs of thin films of CD_0.22 (CD_0.22/PS-1 and CD_0.22/PS-2 samples) on glass substrates under white light (b) and under 365 nm UV lamp (c), compared to bare glass slide. (d) and (e) Photographs of a “Nano” inscription made with a CD_0.22 ink on a filter paper, taken under white light (d) and under 365 nm UV lamp (e).

Conclusions

To conclude, we introduced the synthesis of amphiphilic CDs from a mixture of benzoic acid and ethylenediamine in acetylacetone, which are easily dispersible in a variety of solvents of different polarity, such as water, methanol, ethanol, isopropanol, acetonitrile, dimethyl sulfoxide, acetone, chloroform, toluene, and tetrachloromethane without any significant changes of the absorption and emission peak positions. The high PL QY reaching 36% makes these amphiphilic CDs suitable as an active material for different applications, including charge-injection CD-LEDs, where they can be used in combination with a common polymer PVK. The fabricated LEDs show the EL peak at 515 nm with a 200 nm width, maximal luminance of 1716 cd cm⁻², CIE coordinates of X = 0.332, Y = 0.430 and CCT of 5627 K. Mixing amphiphilic CDs with glycerin and polystyrene makes it possible to fabricate luminescent inks and thin films with optical responses similar to that for CDs in solution. The developed synthesis of amphiphilic CDs opens up an opportunity to conveniently fabricate different optoelectronic and photovoltaic devices with improved characteristics.

Experimental

Synthesis of CDs

BA was dissolved in 5 mL of acetylacetone under sonication, and different amounts of EDA were added to the mixture; the masses of BA and the volumes of EDA used to produce 7 different CD samples are provided in Table S2 (ESI†). The mixture was transferred into a 40 mL Teflon reactor and maintained at 190 °C for 8 h in an oven. After the solvothermal treatment, the CD solution was dialyzed through a membrane with a molecular weight cut-off of 7 kDa against deionized water for two days to remove any residual raw materials. Details of the purification procedure are given in ESI.† After the dialysis, the CDs were redispersed in isopropanol and stored at 5 °C.

CD-LED fabrication

A layer of ITO pre-etched with hydrochloric acid on glass substrates was used as a transparent anode. The substrates were cleaned by ultrasonic treatment in soap solution, distilled water, deionized water, acetone, and isopropanol for 10 min, and dried by an air flow. Next, the substrates were treated with UV and oxygen plasma for 20 and 10 min, respectively. A layer of PEDOT-PSS was deposited on the clean ITO surface by spin-coating (2000 rpm, 1 min), and dried at 140 °C for 10 min. A layer of PolyTPD was deposited from its chlorobenzene solution by spin-coating (2000 rpm, 1 min) in a nitrogen atmosphere, and dried at 120 °C for 10 min. Next, the mixture of CD_0.22 (10 mg mL⁻¹) and PVK (10 mg mL⁻¹) in chlorobenzene was deposited by spin-coating (2000 rpm, 1 min) and dried at 80 °C for 10 min. The final concentration of CDs in PVK was estimated as 25 wt%. Finally, layers of TPBI, LiF, and Al were deposited by spraying in a vacuum spraying chamber at a pressure of 1–2 × 10⁻⁶ mbar. The film prepared using the same procedure from the mixture of CD_0.22 (10 mg mL⁻¹) and PVK (10 mg mL⁻¹) in chlorobenzene was used as a reference sample; it is designated hereafter as CD_0.22@PVK. The figures-of-merit of CD-LEDs were measured at room temperature inside a nitrogen-filled glovebox without additional cooling. Under these conditions, the CD-LEDs maintained their functionality for up to 30 min of continuous operation.

CD-based solar concentrators

A toluene solution containing 5 wt% polystyrene was mixed with different amounts of stock solution of CD_0.22 in isopropanol to obtain two mixtures with CD concentrations of 0.5 mg mL⁻¹ (CD_0.22/PS-1) and 0.25 mg mL⁻¹ (CD_0.22/PS-2). A 100-μL volume of the obtained mixtures was spin-casted (3000 rpm, 30 s) onto clean glass slides.

CDs ink fabrication

A 10-μL volume of CD_0.22 stock solution in isopropanol with a concentration of 13 mg mL⁻¹ was added to 1 mL of glycerin and glycerin/isopropanol (1/1 volume mixture). The obtained mixture was used as ink for writing on filter paper.

The information on the materials used and characterization is given in the ESI.†
