Highly stable poly-nitro components achieved through supramolecular encapsulation

Jichuan Zhang ab, Jinhao Zhang b, Jatinder Singh a, Wanbao Wu c, Richard J. Staples d, Jiaheng Zhang *b and Jean'ne M. Shreeve *a
aDepartment of Chemistry, University of Idaho, Moscow, Idaho 83844-2343, USA
bSauvage Laboratory for Smart Materials, Harbin Institute of Technology, Shenzhen 518055, China
cSchool of Petrochemical Engineering, Changzhou University, Changzhou 213000, China
dDepartment of Chemistry, Michigan State University, East Lansing, Michigan 48824, USA

Received 11th December 2023 , Accepted 5th February 2024

First published on 5th February 2024


Abstract

As representatives of poly-nitro oxidant components, dinitramide [N(NO2)2, DN] and nitroformate [C(NO2)3, NF] exhibit a very large potential as energetic materials given their highly available oxygen content. However, their low thermal stabilities have always been the main reason limiting their applications. Now, a strategy of encapsulating poly-nitro components through supramolecular self-assembly has been developed; six supramolecular encapsulated structures (two series): MA@DN, MA@NF, MA@TNP; TATOT@DN, TATOT@NF, and TATOT@TNP (Ma: melamine; TATOT: 3,6,7-triamino-7H-[1,2,4]triazolo[5,1-c][1,2,4]-triazole; TNP: 3,4,5-trinitro-pyrazolate) were assembled simply in aqueous solution. Benefiting from the supramolecular structure, and the fixed hydrogen bonds formed between the poly-nitro components and the supramolecular framework, the thermal stability of these poly-nitro components was improved remarkably. Particularly, the decomposition temperatures of MA@DN, MA@NF, and MA@TNP are 243, 225, and 268 °C, respectively, which are the highest decomposition temperatures among these derivatives. Additionally, supramolecules based on TATOT exhibit excellent detonation properties and lower sensitivities to mechanical stimuli, which makes them promising as high energy materials with lower sensitivities. This work provides a new strategy for stabilizing liable components, and as a result, more and more highly energetic and stable materials based on poly-nitro components will be prepared.


Introduction

As representatives of unstable poly-nitro oxidants, dinitramide [N(NO2)2, DN]1 and nitroformate [C(NO2)3, NF],2 attract considerable attention as explosives and propellants given their high oxygen content and simple preparation. Over the years, various strategies, including forming salts with nitrogen-rich cations,3–8 encapsulated by Metal–Organic Frameworks (MOFs),9 Hydrogen-bonded Organic Frameworks (HOFs),10 Polymers,11etc., have been employed to improve their thermostabilities, the decomposition temperatures of most of the resultant structures are still low (the decomposition temperatures of DN-based derivatives lie between 130–180 °C,12 and the thermostabilities of NF-based compounds fall between 80–150 °C).2–9 Nevertheless, it is worth noting that the more hydrogen bonds (HB) fixed on the poly-nitro oxidant with the surrounding molecule/ion, the higher the stability of their derivatives, such as in the salt of TABT-DN (TABT: 4,4′,5,5′-tetraamino-3,3′-bi-1,2,4-triazolate).13 All of the oxygen atoms of DN were fixed by hydrogen bonds (HBs), leading to a decomposition temperature of 201 °C; in the structure of MA-NF, 5 of these atoms of NF were fixed by 10 HBs, which give raise to a thermal stability of 143 °C.3 Recently, our studies have shown that except for the HBs generated between the poly-nitro component and the surrounding environment, if the surrounding molecule/ion forms a framework to trap these poly-nitro components, their thermostability is improved. For example, the thermostablity of DN was improved to 221 °C through encapsulation of energetic MOFs,14 and the decomposition temperature of the nitroformate was improved to 200 °C through encapsulation of HOFs.10 Although there is only one encapsulated example for both DN and NF (one for each), their thermostability is still undesirable. These two examples suggest strongly that encapsulation is a very promising strategy to improve the thermostablilty of the poly-nitro component to a higher level with a desirable stability.

Supramolecules, which can be constructed readily through non-covalent interactions between components, have played an extensive role in molecular cognition, delivery, stabilization, etc.15–17 Moreover, supramolecules in which the components are paired through a hydrogen bond synthon form a tight framework with excellent stability.18–20 Hence, if the poly-nitro oxidant component is encapsulated by a supramolecular framework consisting of paired hydrogen bonds, and the poly-nitro components form hydrogen bonds with the surrounding supramolecular ligands, the decomposition temperature of the poly-nitro component will be remarkably improved. Fortunately, poly-amino heterocyclic rings meet the requirement from the energetic materials' point perfectly, since not only N and NH2 from different poly-amino-heterocyclic ligands connect them into supramolecular frameworks through paired hydrogen bonds, and the NH2 group in a ligand can also form various hydrogen bonds with the encapsulated poly-nitro components.21,22

Now, considering the cost and solubility, melamine was selected for assembly with DN, and the supramolecular structure with the encapsulated dinitramide MA@DN was obtained in aqueous solution. The poly-nitro components were then extended to NF and TNP, which have more nitro groups (Scheme 1). It is exciting that the supramolecular structures MA@NF, and MA@TNP with encapsulated NF and TNP were obtained, respectively. Enlightened by the above statement and discovery, TATOT with a high heat of formation was selected to assemble with the three poly-nitro components, respectively, in order to improve the energy density of the resultant supramolecules. Subsequently, all three poly-nitro components were successfully encapsulated forming supramolecular structures TATOT@DN, TATOT@NF and TATOT@TNP. The decomposition temperatures of MA@DN, MA@NF, MA@TNP, TATOT@DN, TATOT@NF, and TATOT@TNP are 243 and 225, 268, 225, 182 and 222 °C, respectively. The thermostabilities of MA@DN, MA@NF, and TATOT@TNP are the highest among those derivatives of DN, NF, and TNP, respectively. Their structures, and detonation properties as well as physicochemical properties, were studied comprehensively in this work.


image file: d3ta07665b-s1.tif
Scheme 1 Assembly of supramolecular structures with encapsulated poly-nitro oxidant components.

Results and discussion

Single crystal structures

MA@DN crystalizes in a triclinic (P[1 with combining macron]) space group with two molecules of H2O, one dinitramide anion, two melamine cations (50% occupancy of proton in melamine), to give a formula {(C3H6.5N6.)2·N(NO2)2·2H2O}n, with a density of 1.668 g cm−3 at 173 K {ESI (ESI), Section S2}. Each dinitramide anion was encapsulated by six half-melamine cations located on both sides of the DN (Fig. 1a and b); the four O atoms of each DN were fixed by 6H bonds from the surrounding six melamine cations, with lengths ranging from 2.132 Å to 2.501 Å (ESI, Sections S3 and S4). The half-melamine cations were connected by paired H bonds with lengths of 2.105 and 2.129 Å, respectively, to form the supramolecular framework. Finally, the supramolecular framework and its encapsulated DN form a 2D planar network via various hydrogen bonds (Fig. 1c).
image file: d3ta07665b-f1.tif
Fig. 1 (a) The surrouding hydrogen bonding enviroment of NF in MA@DN; (b) the supramolecular encapsulated structure of MA@DN; (c) the layer by layer packing of MA@DN.

MA@NF and MA@TNP were prepared in the same way as MA@DN, which is shown in Fig. 2. MA@NF also crystallized in a triclinic (P[1 with combining macron]) space group, with one H2O, one nitroform anion, one melamine cation, and one neutral melamine in each unit cell (Formula: C3H6N6·C3H7N6·C(NO2)3·H2O) with a density of 1.715 g cm−3 at 173 K. Similar to the structure of MA@DN, the melamine molecule and its cations were connected into supramolecular framework through parallel H bonds (from 2.120 Å to 2.215 Å), the supramolecular frameworks which were arranged on both sides of the NF anion, and all oxygen atoms of the NF anion were trapped by the supramolecular framework through nine (9) H bonds (from 2.154 Å to 2.536 Å, Fig. 2a and b). The larger volume of NF compared to that of DN, leads to one oxygen of a nitro group extending out of the supramolecular plane. Finally, the NF anions, the melamine molecules and the melamine cations were connected by these H bonds into a 2D supramolecular network (Fig. 2c). MA@TNP also crystallized in a triclinic (P[1 with combining macron]) space group, with two H2O molecules, one nitroform anion, one melamine cation, and one neutral melamine in each unit cell (Formula: C3H6N6·C3H7N6·C3N5O6·2H2O) with a density of 1.655 g cm−3 at 100 K. Similarly, melamine and its cations were connected by parallel H bonds (from 1.959 Å to 2.214 Å) into a supramolecular framework arranging both sides of the TNP anion. The TNP anion was trapped by the supramolecular framework which formed though 6H bonds (5H bonds on one side and 1H bond on the other side (Fig. 2d and e)), whose lengths are between 1.968 Å and 2.472 Å. Similar to MA@NF, the steric hindrance of the three adjacent nitro groups of TNP causes one nitro group to extend out of the supramolecular plane. Nevertheless, TNP anions and the supramolecular framework which formed were in a 2-D network (Fig. 2f).


image file: d3ta07665b-f2.tif
Fig. 2 Single crystal structures and packing modes of supramolecular structures MA@NF (2a)–(2c) and MA@TNP (2d)–(2f) (H2O molecules are omitted).

Screened by the poly-amino heterocyclic ring, acceptable solubility, high heat of formation, and simple preparation, 3,6,7-triamino-7H-[1,2,4]triazolo[5,1-c][1,2,4]-triazole (TATOT, 470.5 kJ mol−1)13 was selected to replace MA to assemble with DN, NF and TNP anions, respectively. Interestingly, TATOT assembled encapsulated supramolecular structures TATOT@DN (C3H6N8·C3H7N8·N(NO2)2), TATOT@NF (C3H6N8·C3H7N8·C(NO2)3), and TATOT@TNP ((C3H6.5N8)2·C3N5O6·2H2O) with all these three anions. X-ray single-crystal diffraction shows that these three supramolecular structures crystallized in a triclinic (P[1 with combining macron]) space group with calculated densities of 1.743, 1.722 and 1.741 g cm−3 at 100 K, respectively. Similar to the series of MA-based supramolecules, in all these three structures, TATOT and its cations formed linear supramolecular structures through paired H bonds, and the anions were encapsulated by linear supramolecular structures from both sides through H bonds (Fig. 3). Different from the single poly-nitro anion encapsulation in the MA series, each of two anions were trapped by supramolecular structures in the TATOT series. It is interesting that in TATOT@DN and TATOT@NF, all of the oxygen atoms of DN and NF were fixed by 10 and 8H bonds, respectively. It is possible that due to the bigger volume and more crowded nitro groups in TNP compared to that of DN and NF, three and one oxygen atom(s) of TNP are not fixed by H bonds in MA@TNP and TATOT@TNP, respectively. Finally, all these three encapsulated structures were connected to be 3-D supramolecules by H bonds (Fig. S1–S3).


image file: d3ta07665b-f3.tif
Fig. 3 Single crystal structures and packing modes of TATOT@DN (a)–(c), TATOT@NF (d)–(f), and TATOT@TNP (g)–(i) (H2O molecules are omitted).

Stability

The poly-nitro components were encapsulated by supramolecular structures, and the poly-nitro component was fixed by H bonds. Their thermostabilities were determined under nitrogen at 5 °C min−1. Although in the crystal structures of MA@DN, MA@NF, MA@TNP and TATOT@TNP, there is crystal H2O, their thermal behaviors are almost the same as those of the anhydrous samples (supplementary section 5), except for the disappearance of the endothermic H2O peak which suggests that the removal of the lattice water molecule doesn't change the supramolecule structure. It is exciting that all six supramolecules have excellent thermostabilities, with decomposition temperatures (onset) at 243, 225, 268, 225, 182, and 222 °C (Fig. 4), respectively.
image file: d3ta07665b-f4.tif

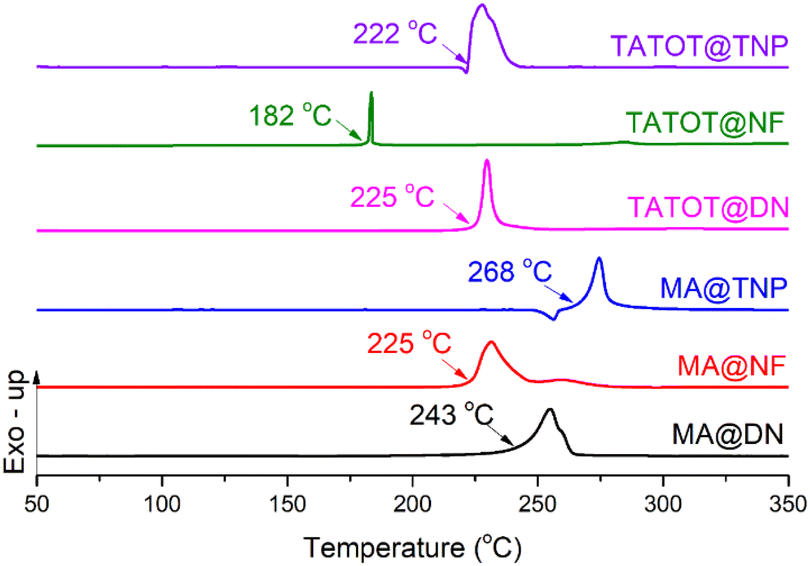

Fig. 4 The differential scanning calorimetry (DSC) scans of the six supramolecules at 5 °C min−1 in a N2 atmosphere.

The thermostablities of MA@DN, MA@NF, and MA@TNP are the highest among their derivatives, respectively. The impact and friction sensitivities of these dried samples were determined by BAM standards, and for the supramolecules based on the MA series, all of them are insensitive to impact and friction (IS > 40 J, FS > 360 N). The impact sensitivities of TATOT@DN, TATOT@NF, and TATOT@TNP are 30 J, 25 J and 25 J, respectively, and all of them are insensitive to friction (FS > 360 N). Although the decomposition temperatures of the supramolecules based on TATOT are lower than those of the MA series, they are higher than the majority of DN, NF and TNP derivatives, respectively. High thermostabilities and less sensitivity to external stimulation suggest that all six supramolecules are full of potential.

Given the excellent stabilities of the supramolecules, it was interesting to investigate the rationale for their high thermal stabilities. Compared with the crystal structures of TABT-DN,13 MA-NF3 and TATOT-TNP,23 which have high decomposition temperatures (201 °C, 143 °C and 208 °C, respectively) for the DN,12 NF2–9 and TNP24 salts, respectively, the strength of the supramolecular structures which are connected by paired H bonds are stronger (Fig. 1–3), was proved by the NCI (Noncovalent interaction) calculations (Fig. 5a–h and ESI, Section S6).25,26 Additionally, NCI calculations also show that the encapsulated poly-nitro component has multi-interactions with the supramolecular framework. Particularly, in MA@DN, MA@NF, TATOT@DN and TATOT@NF, each oxygen atom of an NO2 group has noncovalent interactions with the supramolecular frameworks. In these four supramolecules, the noncovalent interactions between the poly-nitro oxidants are stronger than other structures based on DN and NF, respectively. For the DN series of supramolecules, the interactions between DN and the supramolecular framework which consisted of MA are stronger than that in TATOT@DN. Similarly, the interactions between NF and the supramolecular framework consisting of MA is stronger than that in TATOT@NF. Calculations based on ESP (Electrostatic Potential) show that the maximum ESP around DN and NF in MA@DN and MA@NF are 41.14 and 43.39 kcal mol−1 (Fig. 5i–l), respectively, which are lower than those in TATOT@DN (41.78 kcal mol−1) and TATOT@NF (49.87 kcal mol−1), rationalizing that the decomposition temperatures of MA@DN and MA@NF are higher than those of TATOT@DN and TATOT@NF,27,28 respectively. ESP calculations also support that the observed thermostable order for the DN and NF series are MA@DN > TATOT@DN > TABT-DN, MA@NF > MA-TATOT@NF10 >TATOT@NF > MA-NF,3 respectively. 2D fingerprint calculations based on Hirshfeld surfaces show that higher percentages of O⋯O interactions result in the lower stability, which is due to that the fact that more O⋯O interactions mean more NO2 groups are not trapped and fixed by surrounding ligands.29 For example, in the DN series, the O⋯O interactions of MA@DN > TATOT@DN > TABT-DN are 0.7, 0.9 and 2.3% (Fig. 6 and Supplementary section 7), respectively, which explains the thermostable order of MA@DN > TATOT@DN > TABT-DN.


image file: d3ta07665b-f5.tif
Fig. 5 (a–h) NCI calculations of MA@DN, TATOT@DN, MA@NF and TATOT@NF; (i–l) the ESP calculations of MA@DN, TATOT@DN, MA@NF and TATOT@NF.

image file: d3ta07665b-f6.tif
Fig. 6 2D fingerprint calculations and its statistics of interaction types for the DN series.

Detonation properties

The densities of the six anhydrous supramolecules were determined at room temperature to be 1.68, 1.72, 1.66, 1.69, 1.68 and 1.74 g cm−3, respectively (Table 1). Their heats of formation were calculated to be 7.9, −390.7, −487.3, 1206.0, 868.5, and 782.4 kJ mol−1 (Supplementary section 8), respectively, according to the method of literature.30 Their detonation velocities were determined by EXPLO5 (6.06.02 version) to be 7663, 7345, 6540, 9388, 8838, and 8433 m s−1, respectively, and the detonation pressures are 20.19, 18.55, 14.10, 36.52, 32.15, and 28.65 GPa, respectively. Except for MA@TNP, all the detonation properties of the new supramolecules are higher than those of TNT.26 Supramolecules of the TATOT series have excellent detonation properties, e.g., the detonation properties of TATOT@NF are comparable to that of RDX,31 and the detonation velocity of TATOT@DN is comparable to that of HMX.32 All six supramolecular structures are promising candidates for energetic materials due to their excellent thermostabilities.
Table 1 Physicochemical properties of different energetic compounds
Supramolecule ρ (g cm−3) T d (°C) ΔHfoc (kJ mol−1) D v (m s−1) P (GPa) ISf (J) FSg (N)
a Experimental density at room temperature. b Decomposition temperature (onset) (°C). c Enthalpy of formation (kJ mol−1). d Detonation velocity (m s−1). e Detonation pressure (GPa). f Impact sensitivity (J). g Friction sensitivity (N). h Ref. 15. i Ref. 19. j Ref. 20.
MA@DN 1.68 243 7.9 7663 20.19 >40 >360
MA@NF 1.72 225 −390.7 7345 18.55 >40 >360
MA@TNP 1.66 268 −487.3 6540 14.18 >40 >360
TATOT@DN 1.69 225 1206.0 9388 36.52 30 >360
TATOT@NF 1.68 182 868.5 8838 32.51 25 >360
TATOT@TNP 1.74 222 782.4 8433 28.65 28 >360
TNTh 1.65 295 −115 6881 19.50 15 353
RDXi 1.81 205 80 8750 34.9 7.5 120
HMXj 1.91 270 74.8 9144 39.20 7.5 120


Conclusions

A new strategy for encapsulating poly-nitro components through supramolecular self-assembly was discovered. Six supramolecular structures of MA@DN, MA@NF, MA@TNP.

TATOT@DN, TATOT@NF, and TATOT@TNP were simply obtained in an aqueous solution. Benefiting from the supramolecular framework, and tight encapsulation by supramolecular structures though H bonds, the thermostability of these poly-nitro components was improved remarkably. In particular, the decomposition temperatures of MA@DN, MA@NF, and MA@TNP are 243, 225, and 268 °C, respectively, which are the highest among their corresponding derivatives. Additionally, the TATOT series of supramolecules have excellent detonation properties, which gives them a good potential to behave as energetic materials. Since this study provides a novel insight and strategy for stabilizing poly-nitro components, more and more poly-nitro oxidants with high thermostability and excellent properties will be designed and prepared based on this work.
