In recent years, the ‘kirigami’ technique has gained significant attention for creating meta-structures and meta-materials with exceptional characteristics, such as unprecedented stretchability. These properties, not typically inherent in the original materials or structures, present new opportunities for applications in stretchable and wearable electronics. However, despite its scientific and practical significance, the application of kirigami patterning on a monolayer of tungsten disulfide (WS2), an emerging two-dimensional (2D) material with exceptional mechanical, electronic, and optical properties, has remained unexplored. This study utilizes molecular dynamics (MD) simulations to investigate the mechanical properties of monolayer WS2 with rectangular kirigami cuts. We find that, under tensile loading, the WS2 based kirigami structure exhibits a notable increase in tensile strain and a decrease in tensile strength, thus demonstrating the effectiveness of the kirigami cutting technique in enhancing the stretchability of monolayer WS2. Additionally, increasing the overlap ratio enhances the stretchability of the structure, allowing for tailored high strength or high strain requirements. Furthermore, our observations reveal that increasing the density of cuts and reducing the length-to-width ratio of the kirigami nanosheet further improve the fracture strain, thereby enhancing the overall stretchability of the proposed kirigami patterned structure of WS2.
Recent research endeavors have focused on leveraging kirigami to enhance the stretchability of 2D materials. Molecular dynamics (MD) simulations have been employed to investigate the mechanical properties of kirigami-modified 2D materials, including MoS2,17,18 graphene,19,20 h-BN,21 and phosphorene22 under various conditions. In particular, the application of kirigami engineering was first explored with graphene which has led to a significant improvement in fracture strain properties at nanoscale, nearly three times greater than those observed in pristine monolayer graphene.19,23 Similarly, the kirigami techniques have led to substantial enhancements in the mechanical properties of MoS2 (fourfold increase in yield strain and sixfold increase in fracture strain), h-BN (three to five times increase in fracture strain), and phosphorene (almost twofold increase in fracture strain) compared to their pristine counterparts.24–26
Experimentally, kirigami can be achieved in a number of ways including photolithography, chemical vapor deposition, oxygen plasma etching, two-photon polymerization (2PP) etc.9,27,28 The first experimental demonstration of kirigami was conducted by Blees et al. where pristine graphene sheets were patterned using conventional photolithography techniques.9
Following that, the technique of kirigami was also applied to TMDs using CVD and etching-based methods.27,29 In both cases, kirigami resulted in enhanced stretchability and transport properties with potential applications in the field of stretchable electronics. Similar top-down approach have been employed to fabricate kirigami MoS2, 2D PtSe2, etc. materials as well.30 Tungsten disulfide (WS2), a two-dimensional material, has gained prominence in various applications such as gas sensing applications, optical modulators, solid and dry film lubricants and as self-lubricating composite materials.31 It exhibits promising potential in the fields of nanoelectronics, spintronics, and optoelectronics, owing to its desirable properties such as a 2 eV energy gap between bound and free states, low heat conduction, and strong spin–orbit interaction.32 Notably, WS2 demonstrates better tribological properties and heat resistance than MoS2, making it a viable alternative for similar applications.31 By extending the kirigami approach to enhance the stretchability of monolayer pristine WS2, exciting possibilities may emerge for its utilization in stretchable and wearable electronics.33
The aim of this study is to investigate the efficacy of the kirigami concept in improving the stretchability of WS2, a 2D material with exceptional electrical,34 mechanical,35 chemical,36 and optical37 properties. In this study, rectangular kirigami cuts are introduced to pristine monolayer WS2 nanosheets. Then, molecular dynamics (MD) simulations are employed to analyze the impacts of kirigami cuts on the stretchability of the structure under uniaxial tensile loading. A comprehensive comparison of stress–strain responses between kirigami WS2 and its monolayer pristine counterpart is presented. Furthermore, the influence of chiral orientations (armchair (AC) and zigzag (ZZ)), overlap ratio, cut density and nanosheet length-to-width ratio on the mechanical parameters of the kirigami structure, including ultimate tensile strength (UTS), and fracture strain, are investigated. Since, the fabrication techniques of kirigami cut materials mostly involve fabrication methods28 related to complex chemistry such as chemical vapor deposition,27 photolithography, oxygen plasma etching, two-photon polymerization (2PP) etc., the outstanding computational results will certainly motivate the researchers for the fabrication of the kirigami structures. The results will be valuable not only to the field of computational nanomaterial chemists but to the 2D material experimental community.

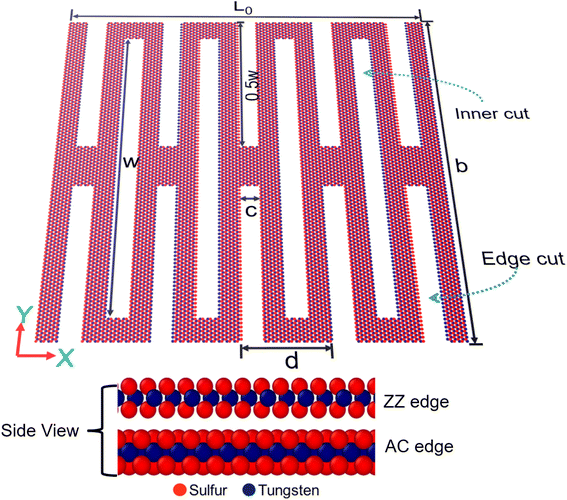

The value of γ is varied by changing L0 while keeping the number of kirigami cuts constant. ESI materials† contain a GIF that illustrates the evolution of the kirigami structure in relation to α, β, γ. In this study, we considered kirigami for both AC and ZZ edges. Fig. 1 illustrates a representative AC WS2 kirigami, comprising N = 18984 atoms, with a nanosheet length L0 ≈ 300 Å, width b ≈ 300 Å, height of each inner cut w ≈ 265 Å, width of each inner cut c ≈ 19 Å, and distance between successive cuts d ≈ 65 Å.
The MD simulations on the kirigami were conducted employing the widely used open-source code LAMMPS,38 developed by Sandia, while incorporating the Stillinger–Weber (SW) potential specifically tailored for WS2 as proposed by Jiang et al.39 The calibration of this potential was based on the phonon dispersion phenomena of single-layer 1H-WS2, which encompasses both out-of-plane and in-plane vibrational motions.40 So, the SW potential is expected to effectively capture out-of-plane deflections involving changes in angles and rotations.39
The interatomic potential model employed in the present work is very useful in describing the dynamics of a wide range of systems including the 2D kirigami systems.41–44
The structural and energetic evolution of single-layer 1H-WS2 predicted by the SW potential is proven to be accurate in the literature.17,35,39,41 The theoretical studies of single-layer 1H-WS2 have largely utilized first-principles calculations. The SW potential, derived from a VFF model, which includes bond stretching and angle bending interactions fitted to phonon dispersion data matches the results. The process of applying tensile strain by keeping the ends fixed is also widely accepted and the deformation geometry predicted by this potential matches well with the other research works available in literature.17,35,39,41 In addition, the Young's modulus and Poisson's ratio was found to be in line with ab initio results.45,46 The nonlinear elastic constant and ultimate stress values also showed good agreement with theoretical predictions. And therefore, it is very suited for simulating mechanical behaviors of kirigami cut WS2.
In the simulation procedure, after energy minimization, NVE, NPT and NVT ensembles were applied to the system for 50 ps, 100 ps and 20 ps respectively for equilibration at a timestep of 1 fs. Then, uniaxial tensile strain was applied to the two opposing edges of the nanosheet with a 109 s−1 strain rate maintaining periodic boundary conditions in every direction. The stresses were estimated using virial stress theorem.47 The structures were created using Atomsk48 and atomic visualizations were done with the OVITO package.49 In the context of 2D materials, where thickness is atomically thin and constant, stress is referred to as normalized by the unit thickness, measured in units of N m−1.17,19
At the point of peak stress, we have found the UTS to be 12.61 N m−1 along the AC edge, slightly higher than that observed along the ZZ edge. To determine Young's modulus, we employed Hooke's law and linearly fitted the stress–strain curve at low strain levels (<0.2%). The calculated Young's modulus values are 90.16 N m−1 for the AC edge and 88 N m−1 for the ZZ edge. For the specific nanosheet size of 54.2 Å × 62.6 Å, which has also been used in a previous study,41 our findings are consistent with the literature, as summarized in Table 1. The agreement between our findings and the existing literature underscores the accuracy of our simulator.
In comparison to the pristine structure (Fig. 2(a)), the kirigami structure demonstrates enhanced stretchability under applied tension at the AC edge of the model, as illustrated in Fig. 2(b). In this case, the kirigami structure had an overlap ratio of α = 0.38, and the simulation was conducted at a temperature of 300 K. To closely examine the impact of the kirigami cutting method on the mechanical properties of monolayer WS2, we analyze the three deformation stages of the corresponding structure, as shown in Fig. 2(b). The ending of deformation stages 1, 2 and 3 are marked with points M, N and O, respectively.
In stage 1, a slight increment in stress (∼0.005 N m−1) is observed at the onset of deformation as the strain reaches up to 15%. Progressing into stage 2, the stress rises to ∼0.029 N m−1 with further strain increase from 15% to 43%. Transitioning to stage 3, a substantial surge in stress (∼0.14 N m−1) occurs as the strain continues to rise from 43% to 88.3%. The deformation stages observed in our study are consistent with those reported in a previous study of hBN kirigami by Gamil et al.22
In order to further understand the effect of kirigami cut, we delve into a more detailed examination of the three deformation stages observed here. Fig. 3 illustrates the atomic visualization of the deformation process of the kirigami sheet (α = 0.38, β = 0.045 and γ = 1) at various timestamps of 0.15 ns, 0.55 ns, 0.85 ns and 0.90 ns. The kirigami sheet is subjected to uniaxial tensile strain along the AC edge (x-direction). The color coding in the figure represents per atom stress, ranging from 0 to 1.5 × 106 GPa nm2.
In deformation stage 1, the kirigami structure expands by approximately 7%, with the inner cuts (denoted by w in Fig. 1) exhibiting slight elongation along the loading direction (Fig. 3(a)). The stress increment in stage 1 is negligible (∼0.005 N m−1). In this stage, the deformation mechanism primarily involves elastic bond stretching, while no flipping or rotation of the WS2 kirigami sheet is observed. This is in contrast to previous studies on graphene kirigami,19 where rotation and flipping were observed in the initial stage. Hanakata et al.17 reported that the absence of such behavior could be attributed to the higher elastic bending modulus of the structure under investigation compared to monolayer graphene.52
Transitioning to stage 2, we have observed substantial out-of-plane deformation of the rectangular cuts under the applied tension. Simultaneously, the cuts undergo a transformation, gradually deforming into convex like patterns (i.e., middle section is thicker than edges).13,53 Within this stage, the stress exhibits a notable increase from 0.005 N m−1 to 0.029 N m−1 as the strain progressively rises from 7% to 43%. The emergence of the convex pattern becomes clearly visible after 0.55 ns, as shown in Fig. 3(b).
In stage 3, as the structure undergoes further stretching along the loading direction, the out-of-plane deformation of the inner cuts gradually diminishes. As the applied load causes the kirigami sheet to stretch further, it becomes nearly flat. Notably, the convex pattern persists even at 0.85 ns of deformation (Fig. 3(c)). The stress within the structure reaches a significant level (∼0.14 N m−1), resulting in stress concentration at the mechanical joints of the cuts, as indicated by the color code in Fig. 3. Eventually, fracture occurs at a strain of 88.3% as shown in Fig. 3(d). The crack point, denoted by O in Fig. 2(b), corresponds to the location of maximum stress (∼0.14 N m−1) which is also indicated by the dashed red circles in Fig. 3. Within a narrow strain range of approximately 2%, the kirigami structure experiences complete rupture following the initiation of the crack.
Next, we analyze the effect of α, β and γ on the mechanical characteristics of the kirigami structures. Fig. 4 shows the influence of the overlap ratio (α) on the stress–strain behavior of kirigami-WS2 models along the AC and ZZ edges. Increasing the cut length, denoted as w in Fig. 1, leads to higher values of α, and vice versa. Fig. 4 indicates that by controlling the overlap ratio, we can effectively manipulate the stretchability and tensile strength of the kirigami nanosheet. Under the tensile loading along the AC edge, as α increases from 0 to 0.38, the fracture strain increases from ∼10.1% to ∼88.3%, while the UTS decreases from ∼0.545 N m−1 to ∼0.152 N m−1. Similarly, along the ZZ edge, increasing α from 0 to 0.38 leads to an increase in fracture strain from ∼8.6% to ∼88.8%, accompanied by a decrease in UTS from approximately ∼0.484 N m−1 to ∼0.147 N m−1. The ZZ edge exhibits a relatively lower UTS, but a slightly higher fracture strain compared to that of along the AC edge. The variation in stress response along different chiral orientations can be attributed to the bond structures54 of WS2.
WS2 features a trigonal-prismatic crystal structure known as h-WS2, where a layer of tungsten atoms is sandwiched between two layers of sulfur atoms. In the ZZ edge, the S–W–S and S–W–S′ bonds are densely packed compared to the AC edge, where S and S′ belong to different groups on the top or bottom side.55 The bond angles along the ZZ edge can stretch further before fracture under tensile loading.41 This distinction may provide a possible explanation for the slightly higher fracture strain observed when loaded along the ZZ edge as compared to the AC edge.
The deformation mechanism observed at different α values can be explained as follows. α = 0 represents the configuration where the edge and inner cuts begin to overlap (Fig. 1). Han et al.21 reported that when α is less than 0, the edge and inner cuts do not overlap, severely constraining or even inhibiting out-of-plane deformation at lower α values. In this scenario, the cuts can be regarded as atomic line defects, which can significantly reduce the strength and strain of the structure. Smaller values of α correspond to higher UTS, approaching that of the cut-free nanosheet. Similar kind of observations were made for α values of −0.24, −0.12 and 0. Hence, our analysis indicates that at lower overlap ratios (α ≤ 0), the desired advantages of the kirigami patterned cut, such as high stretchability, cannot be achieved. This phenomenon has been observed in previous studies on various materials, such as kirigami graphene,19 MoS2,17 hBN21 and phosphorene.22
In contrast, higher overlap ratios may lead to enhanced stretchability. Our study indicates that increasing the α value from 0.12 to 0.38 resulted in a decrease in stress from 0.21 N m−1 to 0.152 N m−1, while the fracture strain increased from 29.4% to 88.3%. Han et al.21 reported that when α is greater than 0, the flipping and rotation mechanism at stage 2 and 3 becomes prominent. This mechanism significantly contributes to the extensive stretchability of the kirigami configuration. With an increasing overlap between the edge and interior cuts, the stretchability of the kirigami WS2 structure progressively increases.17,19,21,22
Next, we investigated the influence of β on the stretchability of the kirigami nanosheet. As highlighted before, the value of β is changed by altering c while all other geometric factors remain unchanged. The results presented in Fig. 4(d) demonstrate that, under the tensile loading along the AC edge, an increase in β from 0.009 to 0.108 corresponds to a decrease in fracture strain from approximately 128.7% to 28.4%, while the UTS shows an increase from about 0.079 N m−1 to 0.278 N m−1. Likewise, along the ZZ edge, an increase in β from 0.009 to 0.108 is accompanied by a decrease in fracture strain from approximately 133.8% to 29.8%, along with an increase in UTS from around 0.091 N m−1 to 0.261 N m−1. This behavior can be attributed to the fact that, when β values are higher, the density of cuts decreases, resulting in kirigami structures that exhibit characteristics almost similar to pristine structures. Consequently, this leads to lower fracture strain and higher UTS. Because of the same reason, we observe almost similar scenarios along ZZ edges when β is higher (Fig. 4(d)).
The observed effects of α and β in this study aligns with previous investigations on kirigami graphene,19 MoS2,17 hBN21 and phosphorene.22 As we mentioned earlier, in a study exploring the effects of various parameters on the mechanical properties of kirigami MoS2,17 the authors reported an increase in fracture strain by a factor of 6 compared to its pristine counterpart. In our study, for the kirigami structure with α = 0.38, β = 0.009 and γ = 1, we have observed an increase in fracture strain by a factor of ∼9 along the AC direction, providing evidence that kirigami significantly enhances stretchability of monolayer WS2. As highlighted before, the kirigami structure enables a significant trade-off between stress and strain. Higher stretchability is accompanied by a lower fracture stress point, and vice versa. This trade-off is evident in the trends observed in Fig. 4(c) and (d), illustrating that an increase (decrease) in α (β) results in an increase in fracture strain and a decrease in UTS. In other words, increase (decrease) in α (β) enhances the impact of kirigami.
Now, to examine the impact of the length-to-width ratio (γ), we varied γ while keeping α constant. Our findings reveal that, under the tensile loading along the AC edge, as γ decreases from 2.33 to 0.5, the fracture strain (Fig. 5(a)) increases from ∼27% to ∼164%, while the UTS decreases from ∼0.25 N m−1 to ∼0.105 N m−1. Similarly, along the ZZ edge, decreasing γ from 2.33 to 0.5 leads to an increase in fracture strain from ∼30% to ∼195%, accompanied by a decrease in UTS from ∼0.245 N m−1 to ∼0.077 N m−1. In our investigation, we increased the value of γ while keeping the number of kirigami cuts constant, resulting in a higher value of d and a lower density of cuts. This reduction in cut density caused the kirigami structure to display characteristics more akin to pristine structures, consistent with previous results shown in Fig. 4(d). As a result, the fracture strain decreased and the UTS increased with respect to γ (Fig. 5(a)). Additionally, the differences in behavior between the AC and ZZ edges became less pronounced as γ increased (Fig. 5(b)), owing to the same underlying mechanism. Our findings indicate that, in addition to α and β, we can also maximize the fracture strain by reducing the length-to-width ratio (decreasing γ).
We simulated monolayer pristine WS2 with varying length to width ratio to investigate the impact of γ on fracture strain and UTS (Fig. 5(b)). In contrast to the kirigami structure, we did not observe significant changes in fracture strain or UTS in the case of monolayer pristine WS2 when varying γ values. Decreasing γ from 2.33 to 0.5 led to an 11.6% increase in fracture strain and a 5.5% increase in UTS along the AC edge. Similarly, along the ZZ edge, we observed a 9.7% increase in fracture strain and a 3.56% increase in UTS. On the other hand, for the kirigami structures (Fig. 5(a)), decreasing γ from 2.33 to 0.5 resulted in a more than 500% increase in fracture strain and a 69% decrease in UTS. Fig. 5(a) illustrates that the fracture strain differences along the AC and ZZ edges are approximately 30% when γ is around 0.5, and both the strain values are approximately 11 times higher than those of their pristine structures as shown in Fig. 5(b). We also investigated the size effect for the pristine and kirigami nanosheets. We found that for the same γ, with pristine WS2 nanosheets of different sizes, the fracture strain and UTS do not vary that much, whereas kirigami counterparts vary substantially with the change of nanosheet sizes. The curve displaying variation of fracture strain and UTS with nanosheet size is shown in ESI Fig. 1 in the ESI Section.†
According to our discussion it is now evident that the interaction between α, β, and γ in kirigami-modified nanosheets involves a complex interplay that significantly impacts the material's mechanical properties. α, which represents the overlap ratio between middle cuts and edge cuts, enhances ductility by facilitating the flipping and rotating of cuts during deformation. However, the effectiveness of α is moderated by β, which defines the density and spacing of the cuts. Higher β values, indicating more frequent cuts, can distribute stress more evenly but also introduce more stress concentration points, potentially leading to earlier failure. Therefore, while a higher α promotes ductility, an optimal β is necessary to avoid excessive stress concentrations. γ, the length-to-width ratio of the nanosheet, further influences this interaction by affecting the overall stress distribution and deformation behavior. A higher γ, implying a longer and narrower sheet, enhances the effectiveness of α by allowing more uniform stress distribution along the sheet's length, making the flipping and rotating mechanisms more effective. Conversely, a lower γ can concentrate stress in smaller areas, negating some of the benefits provided by an optimal α and β combination. Thus, the interaction between these parameters must be carefully balanced: higher α values enhance ductility, but this must be supported by an optimal β to prevent stress concentrations, and an appropriate γ to ensure uniform stress distribution and effective deformation mechanisms. This intricate interplay is essential for achieving desired mechanical properties in kirigami-modified nanosheets, making them suitable for advanced applications that require high flexibility and strength.
The stress–strain curves are also sensitive to temperature as seen in the stress–strain graphs (ESI Fig. 2†) at different temperatures from 100 K to 600 K. At lower temperatures, the structure exhibits higher strength and can endure more stress before failing. As the temperature increases the atomic vibrations, thermal expansion, and dislocation mobility of the material also increase, leading to decreased strength and earlier failure. These changes might result from the weakening of atomic bonds and potential microstructural alterations due to the increased thermal energy. Further discussions have been added to the ESI.†
