A green light emissive LaSr₂AlO₅:Er³⁺ nanocrystalline material for solid state lighting: crystal phase refinement and down-conversion photoluminescence with high thermal stability

Abstract

The present study reveals the structural and optoelectronic characteristics of a down-converted (DC) green luminous Er³⁺ doped LaSr₂AlO₅ phosphor that was produced by employing an efficient and reliable gel-combustion process assisted with urea as a fuel. Using Rietveld refinement of diffraction data, the crystal structure and phase formation were examined. The surface morphology and elemental configuration of the phosphor were analyzed via TEM and EDX spectroscopy, respectively. The band gap of LaSr₂AlO₅ (5.97 eV) and optimized La_0.96Sr₂AlO₅:4 mol% Er³⁺ (5.51 eV) classify the optimized sample as a direct band-gap material. The PL peaks located in the visible range corresponding to transitions ²H_9/2 → ⁴I_15/2 (406 nm), ²H_11/2 → ⁴I_15/2 (520 nm), ⁴S_3/2 → ⁴I_15/2 (550 nm), and ⁴F_{9/ 2} → ⁴I_15/2 (665 nm) were revealed by photoluminescence spectroscopy under 377 nm excitation. Above 4 mol% Er³⁺ doping, concentration quenching was observed, which was controlled by the quadrupole–quadrupole interaction. Based on the findings of the double exponential fitting of lifetime curves acquired from the emission spectra at λ_ex = 377 nm and λ_em = 550 nm, the average lifetime of the excited levels of considered nanomaterials was estimated. The temperature-dependent emission spectra of the La_0.96Sr₂AlO₅:4 mol% Er³⁺ sample were collected in the range 298–498 K. The considered phosphor was found to have a high thermal stability as evidenced by the luminous intensity being sustained at 74.29% at 498 K compared to the intensity at ambient temperature (298 K) with an activation energy of 0.1453 eV. The calculated color purity and superb chromaticity coordinates indicates that the phosphors have a high degree of color purity, which further supports its applicability as a green component in solid-state lighting.

---

1 Introduction

People are becoming more conscious about environmental preservation and energy conservation in the modern world as energy resources become more limited.^1,2 The scientific community is now looking for effective energy-saving gadgets owing to the rising demand for energy in the twenty-first century. In simple terms, phosphors makes LED light usable. LED chips are intrinsically blue, red, or green, with blue LEDs being the most commonly used in solid-state lighting. However, the blue light that they produce is unusable for everyday lighting and must be covered with a phosphor. The phosphor material converts the high-energy light from the LED to a lower-energy (longer wavelength) light. Phosphors can absorb all or a part of the light emitted by the LED. As a result, phosphors produce color wavelengths longer than the absorbed light.^3–5 In light of this, a great deal of work has gone into creating new lighting sources, leading to the introduction of light-emitting diodes (LEDs) and white light-emitting diodes (w-LEDs) as solid-state lighting (SSL) sources.^6–9 Compared to traditional incandescent and halogen lights, LEDs and w-LEDs have the benefits of low energy consumption, durability, extended life, the absence of mercury, and environmental friendliness.^10–12 Due to their benefits, LEDs and w-LEDs have a wide variety of potential applications in the fields of display technology and lighting.

Solid-state lighting was the earliest use of light-emitting diodes after blue light-emitting diodes were developed in the 1990s. In 1997, this innovation led to the creation of white-emitting LEDs by merging a blue-emitting GaN-chip with a yellow phosphor (YAG:Ce).^13,14 Nevertheless, the resultant w-LED has certain shortcomings, including low color temperature stability and a poor color rendering index (CRI).^15,16 The focus of w-LED manufacturing changed from a YAG:Ce phosphor blue LED-based plan to a tri-color (red, green, and blue) phosphor ultraviolet LED-based approach in order to reduce these problems.^17,18 In addition to saving a significant amount of energy and lowering environmental pollution, using phosphor-converted w-LEDs instead of conventional lighting equipment is a potent technology with a high color rendering index and adequate color reproduction for efficient lighting.^19,20 The selection of a suitable luminescent host material is considered to be essential in enabling the spectacular uses of RE ions and ensuring their remarkable illuminated properties. Compared to other inorganic materials, aluminates are considered a superior luminous host material for RE ions and have been extensively studied for solid-state lighting purposes.^21,22 LaSr₂AlO₅ is an inorganic host substance with I4/mcm space symmetry with a tetragonal crystal structure.²³ LaSr₂AlO₅ has excellent properties, such as a high optical band gap and excellent optical, thermal, and chemical stability.²⁴ Trivalent erbium (Er³⁺), one of the lanthanide (Ln³⁺) ion family, is an efficient down-converting luminescent centre that may be used to create green emissive phosphors by converting NUV light to visible spectrum.^25,26 Moreover, the illuminating characteristics that Er³⁺ ions achieve are highly dependent on the environment of the encompassing host into which these ions are assimilated. For this reason, authors conducted extensive research to find a sustainable host for trivalent erbium ions exhibiting viable properties like superior chemical and thermal durability, reduced toxicity, rigid framework, and high lumen output.^27–29 To modify the optical characteristics of Er³⁺ doped LaSr₂AlO₅ luminous nanoparticles and investigate their potential applications in many domains, it is imperative to establish simple synthetic procedures that provide controlled and uniform crystalline phase, shape, and size. This resulted in the development of a number of chemical techniques, such as the microwave-aided method, chemical vapour decomposition, gel-combustion, and sol–gel.^30–33 The gel-combustion technique has been the focus of this study because of its special qualities, which include its simplicity of synthesis, ability to produce high-purity nano-sized crystalline powders at low temperatures, improved homogeneity, and ability to produce high-purity powder.^34–36 In the present study, we discuss the combustion synthesis of LaSr₂AlO₅:xEr³⁺ (x = 1–7 mol%) phosphors. XRD and SEM/TEM investigations provide structural and morphological information about the synthesized materials. Diffuse reflectance spectra (DRS) and luminescence (PL/PLE) spectra were used to analyze the optical characteristics of the developed nanophosphors. Furthermore, temperature-dependent PL emission spectra of the developed phosphor demonstrated its high thermal stability. The photometric outcomes show that the produced phosphor has good color purity, which suggests that it could be potentially utilized to produce cool green light.

2 Experimental

2.1 Materials and synthesis

A series of green light emissive La_(1−x)Sr₂AlO₅:x mol% Er³⁺ (x = 1–7 mol% Er³⁺) nanophosphors were produced using a gel-combustion method aided by urea as fuel (Fig. 1). In a beaker, high purity metal nitrates such as Sr(NO₃)₂, La(NO₃)₃·6H₂O, Er(NO₃)₃·6H₂O, and Al(NO₃)₂·9H₂O were mixed in the correct stoichiometric ratio with the calculated amount of urea. The mixture was constantly stirred to achieve a homogeneous solution. The overall oxidizing and reducing valencies in the balanced reaction determine the molar ratio of urea to the metal nitrates. To produce highly uniform oxides with stoichiometric accuracy, urea as fuel is an essential component. Urea serves as a fuel for the redox process after being oxidized by nitrate ions. Energy is delivered by urea in the exothermic method.³⁷ The beaker was then placed into the preheated furnace and kept at 600 °C for a short time. Dehydration, foaming, and decomposition are the first problems the solution encounters. The required solid appears as a result of the combustible gases generated by this method of igniting and burning with flame.³⁸ The end product was then removed from the furnace, permitted to cool at normal temperature, and thoroughly crushed into powder. The obtained powder materials underwent further calcination to achieve the desired phase.

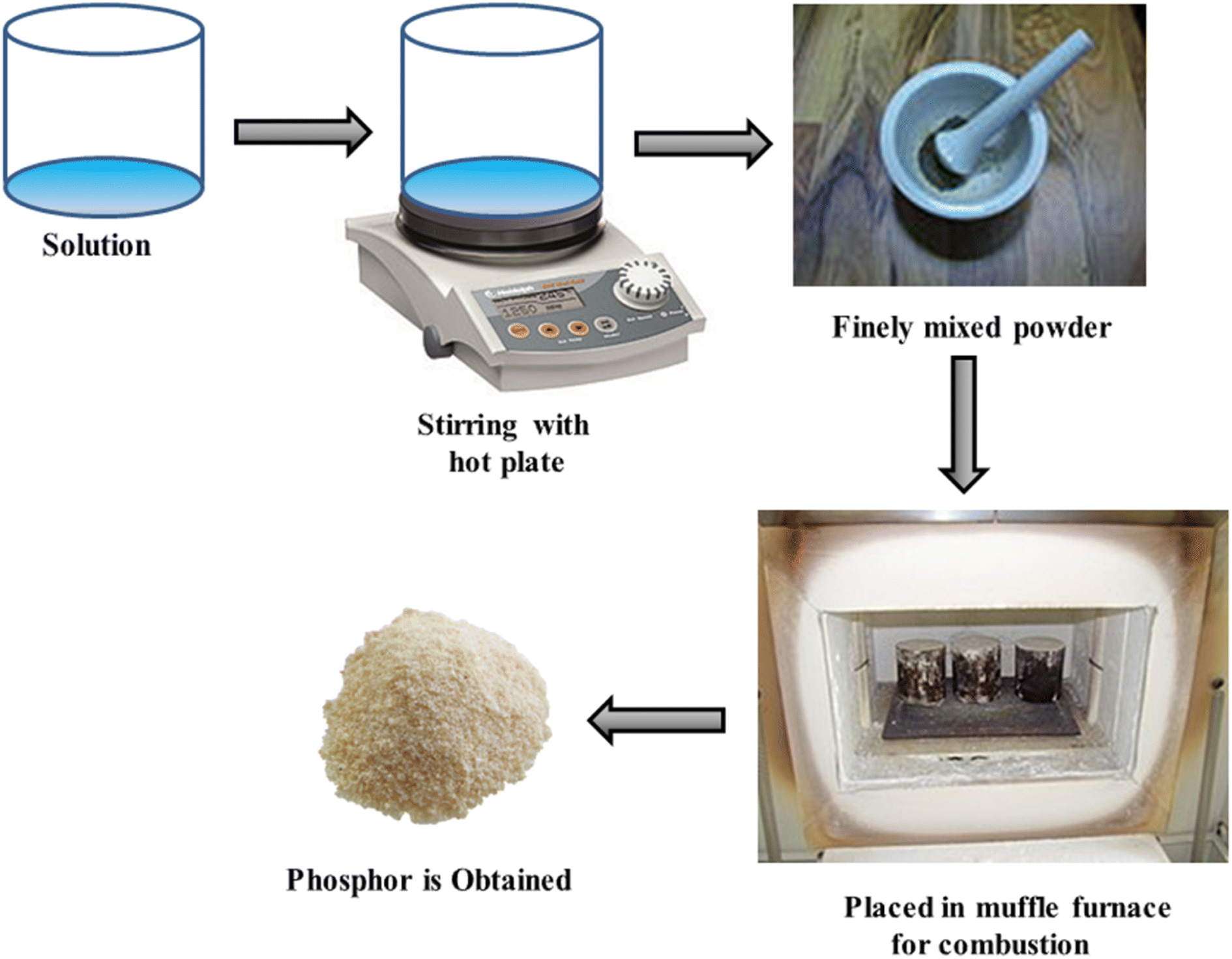

Fig. 1 Schematic diagram of the gel-combustion process used for the synthesis of LaSr₂AlO₅:Er³⁺ nanophosphors.

2.2 Instrumentations

The X-ray diffraction patterns of produced samples were recorded on a Rigaku Ultima-IV diffractometer, which scans at a rate of 2° min⁻¹. This allowed for the examination of phase purity and crystallinity of the samples. Cu-Kα was utilized as the radiation. Also, 40 kV and 40 mA were maintained as the constant tube voltage and current, respectively. Match! 3.0 Rietveld refinement software was used for the refining process to analyze materials in both qualitative and quantitative aspects. TECNAI transmission electron microscope (200 kV) was used to analyze the morphology and particle size. Ametek energy dispersive X-ray spectrometer was used for elemental analysis to determine the chemical composition of the synthesized phosphors. A Horiba Jobin YVON Fluorolog spectrophotometer aided by xenon light was used to analyze the excitation and emission spectra of the materials at room temperature.

3 Results and discussion

3.1 XRD evaluation

The phase purity, crystal structure, and crystallinity of the undoped LaSr₂AlO₅ and Er³⁺ (1–7 mol%) doped LaSr₂AlO₅ nanomaterials were assessed via X-ray diffraction. The XRD patterns of undoped and different (1–7 mol%) Er³⁺ doped LaSr₂AlO₅ nanophosphors are displayed in Fig. 2(a), which were captured at room temperature within a 2θ scanning range of 10°–80°. The standard reference used in this case was the diffraction data of EuSr₂AlO₅ nanomaterial shown in Fig. 2(a), representing JCPDS No. 70-2197.³⁹ The experimental diffraction data and reference data are in good accordance with each other with respect to their location and relative intensity of diffraction lines, which further affirm the phase excellence and monophasic nature of the synthesized nanomaterials. The tetragonal class (reference material) with I4/mcm space (140) group symmetry was perceived in undoped LaSr₂AlO₅ and all samples of LaSr₂AlO₅ doped with Er³⁺ (1–7 mol%) phosphors. The crystal structure of the synthesized material remains the same at different doping levels of Er³⁺ ions. Nonetheless, peaks in the doped samples were found to vary in position, indicating that the dopant Er³⁺ ion was properly incorporated into the LaSr₂AlO₅ lattice. Fig. 2(b) demonstrates the enlarged view of the diffraction patterns of the host as well as all doped samples. It is clear from Fig. 2(b) that the diffraction peaks of doped samples moved towards the greater 2θ angle due to the incorporation of the smaller Er³⁺ ions. Additionally, the interplanar spacing (d) values associated with the sharpest peak (202) were calculated and found to decrease in a predictable manner with increasing Er³⁺ ion doping levels (Table 1). These outcomes were caused by the smaller activated cation replacing the larger host cation. Hence, these results were further validated by the Bragg's hypothesis (2d sin θ = nλ).⁴⁰ The effective ionic radii for La³⁺ and Er³⁺ ions in the LaSr₂AlO₅ matrix are 1.16 Å (CN = 8) and 1.004 Å (CN = 8), respectively. It is believed that Er³⁺ ions occupied the positions of La³⁺ ions in the crystal structure. The difference in ionic radius between the activator and host ions is allowed to be up to 30%. The radii% variance (D_r) between active (Er³⁺) ions and likely substituted La³⁺ in the LaSr₂AlO₅ matrix was deliberated using the following formula (1).⁴¹

Fig. 2 (a) Diffraction patterns of LaSr₂AlO₅ and La_1−xSr₂AlO₅:xEr³⁺ (x = 1–7 mol%) phosphors; (b) an enlarged pattern view of all considered samples.

Table 1 The interplanar d-spacing values of the host and Er³⁺ (1–7 mol%) doped phosphors

Sample	2θ angle	d-Spacing (Å)
LaSr2AlO5 (LSA)	30.82	2.8989
LSA:1 mol% Er^3+	30.85	2.8961
LSA:2 mol% Er^3+	30.87	2.8943
LSA:3 mol% Er^3+	30.90	2.8915
LSA:4 mol% Er^3+	30.94	2.8879
LSA:5 mol% Er^3+	30.96	2.8861
LSA:6 mol% Er^3+	30.99	2.8834
LSA:7 mol% Er^3+	31.03	2.8797

---

Thus, it can be shown that the activator ions successfully replaced the host ions in the present investigation since the computed difference between the activator and host cations is 13.44%. The Debye–Scherrer approach uses the peak broadening analysis to assess the crystallite size. This method uses eqn (2) to calculate the average crystallite size.⁴²

Here, λ denotes the used X-ray wavelength, β defines the FWHM value of the peak, 2θ is the scattering Bragg angle, and k is a constant (0.89). The average particle size data can potentially be exploited to calculate the dislocation density of the host and different doped samples. The number of dislocation lines per unit volume of the crystal is represented by the dislocation density value, which serves as a metric for the size of crystal defects. Additionally, the dislocation density will indicate the degree of crystallinity present in the nanoparticle. Eqn (3) may be used to compute the dislocation density.⁴³

Table 2 provides the dislocation density and crystallite size as a function of dopant ion concentration. The calculation demonstrates that the nanoparticles produced in this work have a rather low dislocation density. A low dislocation density indicates a high degree of crystallinity in the synthesized nanoparticles.

Table 2 Computed diffraction values of LaSr₂AlO₅ and La_1−xSr₂AlO₅:xEr³⁺ (x = 1–7 mol%) nanophosphors

Sample (LSA)	2 theta (2θ)	FWHM	Crystallite size (nm)		Dislocation density (10^−4)	Microstrain (ε × 10^−4)
			Scherrer's	W–H
LaSr2AlO5 (LSA)	30.82	0.2173	39.61	45.17	6.37	4.7425
LSA:1 mol% Er^3+	30.85	0.2204	39.05	43.12	6.56	5.2127
LSA:2 mol% Er^3+	30.87	0.2221	38.76	42.54	6.66	5.8204
LSA:3 mol% Er^3+	30.90	0.2241	38.41	41.10	6.78	6.2487
LSA:4 mol% Er^3+	30.94	0.2298	37.46	39.78	7.12	6.3687
LSA:5 mol% Er^3+	30.96	0.2331	36.94	38.11	7.33	7.2671
LSA:6 mol% Er^3+	30.99	0.2403	35.83	36.81	7.79	8.0457
LSA:7 mol% Er^3+	31.03	0.2538	33.93	35.72	8.69	9.2486

---

3.1.1 Williamson–Hall (W–H) analysis. For the W–H plot, strain broadening and size widening must be combined. The W–H technique is the most convenient integral breadth method for distinguishing between the strain-dependent line broadening and crystallite size by analyzing peak width as a function of 2-theta. To show how the lattice strain causes peak broadening, one can utilize the Stokes–Wilson formula (4).

β_strain = 4ε tan θ (4)

Consequently, the overall broadening caused by the size and strain in a specific peak with hkl-value may be given as;

β_hkl = β_size + β_strain (5)

Here, β_hkl is used for the FWHM of the various XRD lines.

On modifying the above eqn (6), we obtained^44,45

Eqn (7) takes into account the isotropic nature of the crystal, i.e., all parameters are independent of the direction along which they are evaluated. Hence, the microstrain was taken to be the same in all crystallographic orientations. Plotting the term β cos θ vs. 4 sin θ for the tetragonal phase favored the alignment of peaks in the samples under consideration (Fig. 3). In the linear fitted plot, the slope and intersect indicate strain and particle size, respectively. All the obtained values corresponding to the microstrain and crystallite size for focused materials are summarized in Table 2.

Fig. 3 W–H plot for the host and different doped La_1−xSr₂AlO₅:xEr³⁺ (x = 1–7 mol%) samples.

3.1.2 Rietveld refinement and crystal structure. Employing the Rietveld refinement technique, a typical crystal shape of the synthesized material was developed in order to identify the occupancy of rare earth (Er³⁺) ions in the LaSr₂AlO₅ lattice. Refinement results corresponding to the host (LSA) material and the optimized (LSA:4 mol% Er³⁺) sample are displayed in Fig. 4(a) and (b), and it is very clear from the fitting profiles that the calculated results are in good agreement with the experimental values. The refinement outcomes show the synthesized samples having a tetragonal system with the I4/mcm space group. The superiority of the Rietveld refinement is demonstrated through the residuals R_p, R_wp and simplified χ². These goodness factors are defined by various eqn (S1)–(S4).†⁴⁶ In these equations, I₀, I_c and w stand for measured and calculated peak intensities and weighting factor, respectively. Also, N_obs and N_var define the data points and fitting characteristics, respectively. From the refinement outcomes, R_p and R_wp factors were 5.10%, 5.52% and 7.59%, 9.58% and the reduced chi-square value (χ²) = 2.17 and 2.31 for the host and optimized sample, respectively, showing good convergence of fit. All the refinement data corresponding to the host and optimized sample are summarized in Table 3. According to the results summarized in Table 3, the doped optimized sample's values for unit cell parameters (a, b, and c) were found to be lower than those of the host sample. This was likely caused by the smaller dopant ions replacing the larger host ions. Additionally, the doped sample's unit cell volume seems to have reduced. These results collectively demonstrate that the host material was successfully doped with Er³⁺ ions.

Fig. 4 Rietveld profiles of (a) undoped LaSr₂AlO₅ and (b) La_0.96Sr₂AlO₅:4 mol% Er³⁺ samples.

Table 3 Rietveld refinement parameters of LaSr₂AlO₅ and optimal La_0.96Sr₂AlO₅:4 mol% Er³⁺ nanophosphors

Sample	LaSr2AlO5	LSA:4 mol% Er^3+
Formula weight	421.09	422.21
System	Tetragonal	Tetragonal
2θ range; step (deg.)	10–80; 0.02	10–80; 0.02
Wavelength (Å)	1.54056	1.54056
Space group	I4/mcm	I4/mcm
Space group number	140	140
Pearson symbol	tI	tI
Formula unit	4	4
Lattice-symbol	I	I
a (Å)	6.7884	6.7135
b (Å)	6.7684	6.7135
c (Å)	10.9341	10.8209
Volume (Å^3)	503.869	487.70
α = β = γ	90.00	90.00
χ^2	2.17	2.31
Rp (%)	5.10	5.52
Rwp (%)	7.59	9.58

---

Fig. 5 illustrates the LaSr₂AlO₅ crystal structure and provides information about the luminous centre of the host and the doping of activator ions. [La/SrO₈], [SrO₁₀], and [AlO₄] units comprise the three kinds of polyhedra that together make up the LaSr₂AlO₅ crystalline structure.⁴⁷ Host La³⁺ ions are located at half of 8h crystallographic sites in this structure, forming an eight-fold coordination polyhedral unit called [La(1)O₈]. Also, Sr²⁺ has two distinct sites, i.e., Sr(2) occupies the other half of the 8h atomic locations and forms the [Sr(2)O₈] polyhedral, whereas Sr(3) occupies the 4a positions and forms [Sr(3)O₁₀] coordinated polyhedra. Al(4)O₄ unit is a coordination of four oxygen atoms with Al in the 4b crystal locations. The remaining 4c and 16l sites are occupied by O(5) and O(6), respectively. Table S1† provides a summary of the occupancy factors, atomic coordinates, sites, and isotropic displacement parameters obtained for the LaSr₂AlO₅ sample.

Fig. 5 Crystal structure of LaSr₂AlO₅ along with the coordinative environment of various cations.

3.2 TEM analysis

Utilizing TEM images of the LaSr₂AlO₅:Er³⁺ phosphor, the structure, framework, and crystal size of samples were analyzed. Fig. 6 displays the TEM micrograph of the optimized sample. The homogeneously dispersed particles on the surface are approximately spherical in shape and vary in size from 32 to 45 nm. The uneven distribution of heat and mass flow during combustion caused small discrepancies in crystallite size.^48,49 The crystal size obtained from the TEM examination correlates well with the XRD measurements.

Fig. 6 TEM micrograph of the La_0.96Sr₂AlO₅:4 mol% Er³⁺ nanophosphor.

3.3 EDX investigation

EDX is a frequently used technique to determine the elemental composition in a small region of the sample. Higher energy electrons from the outer shell inhabit the holes left by the expelled electrons from an electron bombardment in the inner shell of the atom. Identical X-rays with specific energy emanate as electrons migrate from the outer to the inner shell. The measurement of the amount and wavelength of X-rays generated allows for the confirmation of the identification of specific components in the material under examination. Fig. 7(a) and (b) reveal the EDX profiles of undoped LaSr₂AlO₅ and Er³⁺ (4 mol%) doped LaSr₂AlO₅, respectively. In addition to small peaks from dopant Er³⁺ ions in the doped LaSr₂AlO₅ phosphor, the profile shows large peaks for the La, Sr, Al, and O elements. It shows how well the Er³⁺ ions are incorporated into the host matrix. Inset of Fig. 7(a) and (b) shows data in the form of a table compiling the findings of the quantitative EDX study performed on the undoped and Er³⁺ doped samples.

Fig. 7 EDX profiles of the (a) LaSr₂AlO₅ (b) La_0.96Sr₂AlO₅:4 mol% Er³⁺ nanophosphor and the inset represents the atomic and weight percentages of the respective samples.

3.4 Photoluminescence study

3.4.1 Excitation and emission spectra. In order to examine the luminous characteristics of nanomaterials, the PLE spectrum at a fixed characteristic PL wavelength of ∼548 nm of Er³⁺ has been recorded within the wavelength region of 200–540 nm. The PLE profile of LSA:4 mol% Er³⁺ is illustrated in Fig. 8. The charge transfer band for O²⁻ → Er³⁺ is signified by a broad band from 220 to 280 nm with numerous excitation peaks at ∼351 nm, ∼363 nm, ∼377 nm, ∼407 nm, ∼448 nm, ∼488 nm, and ∼521 nm.⁵⁰ The most significant signal detected at ∼377 nm is associated with the ⁴I_15/2 → ⁴G_11/2 transition of Er³⁺ ions, revealing that the present phosphor may be advantageous in developing NUV-based LEDs. In addition, peaks are observed at 351 nm (⁴I_15/2 → ⁴G_7/2), 363 nm (⁴I_15/2 → ⁴G_9/2), 407 nm (⁴I_15/2 → ²H_9/2), 448 nm (⁴I_15/2 → ⁴F_5/2), 488 nm (⁴I_15/2 → ⁴F_7/2), and 521 nm (⁴I_15/2 → ²H_11/2).⁵¹ Photoluminescence emission spectra have been obtained at an excitation wavelength of 377 nm, as displayed in Fig. 9. The PL profile demonstrates various emissive peaks centered at ∼406 nm with blue emission having ²H_9/2 → ⁴I_15/2 transition, ∼520 nm with green emission having transition ²H_11/2 → ⁴I_15/2, ∼550 nm with strong green emission from ⁴S_3/2 → ⁴I_15/2 transition, and red emissive peak at ∼665 nm with ⁴F_9/2 → ⁴I_15/2 transition.⁵² The prominent peak at ∼550 nm is caused by the ⁴S_3/2 → ⁴I_15/2 transition, which has a value ΔJ = 6, indicating that it is an electric dipole (ED) transition and responsible for the green emission observed in synthesized nanophosphors. Various transition states corresponding to the Er³⁺ ion in focused nanophosphors are represented in Fig. 10.

Fig. 8 Excitation spectrum of the La_0.96Sr₂AlO₅:4 mol% Er³⁺ nanophosphor.

Fig. 9 Emission spectra of the La_1−xSr₂AlO₅:xEr³⁺ (x = 1–7 mol% Er³⁺) nanophosphors.

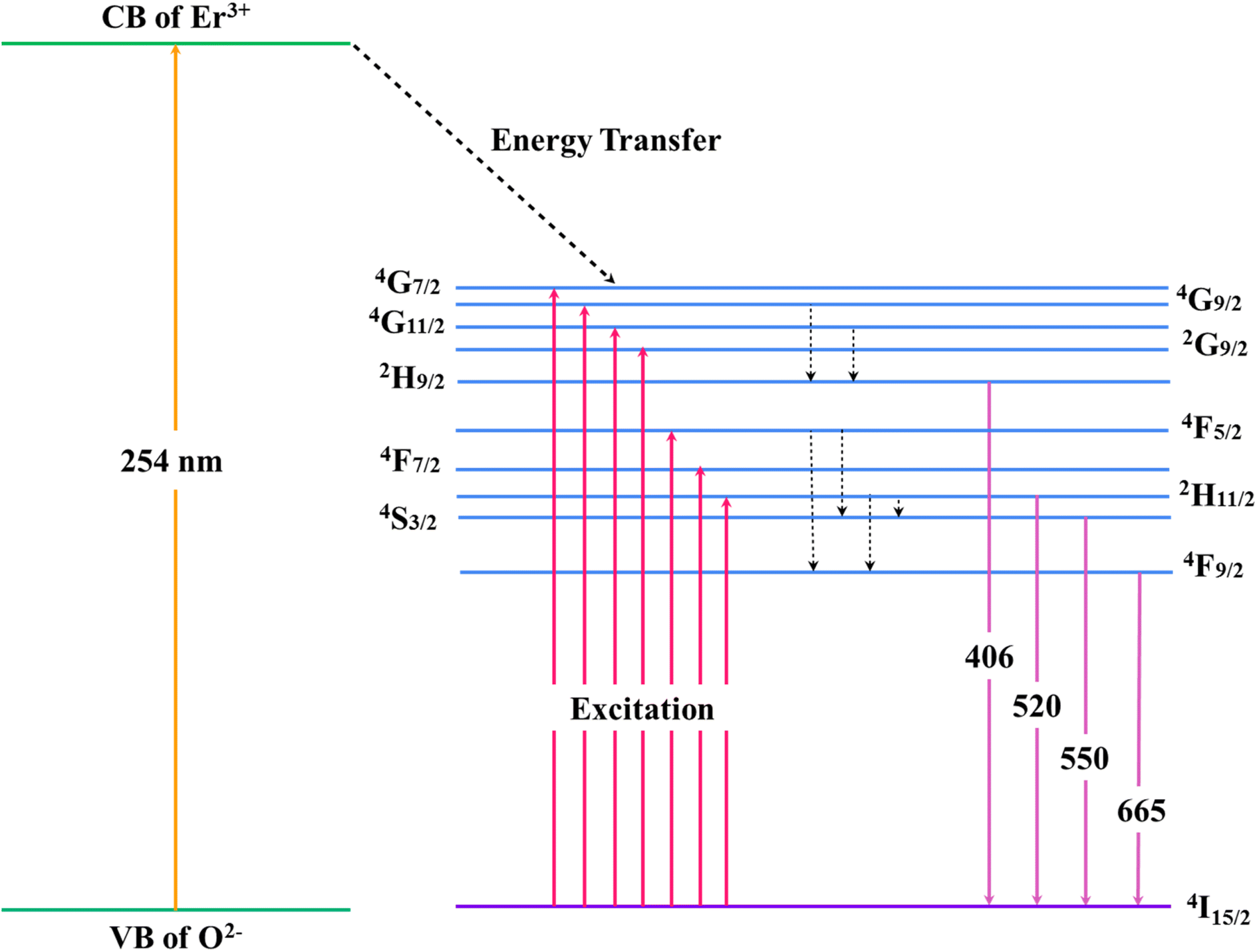

Fig. 10 Pictorial representation of different energy states of Er³⁺ ion in the considered nanophosphors.

3.4.2 Concentration quenching. The peak intensities increased as the Er³⁺ content increased to 4 mol% of Er³⁺ ions, as shown in Fig. 11. After that point, the emission peak intensities were observed to decline. Concentration quenching (CQ) is the main cause of the emission intensities reducing after the optimal Er³⁺ concentration. Non-radiative energy transfer is primarily responsible for the luminance quenching in the phosphor material within the same rare earth ions. It is commonly known that the spacing between the doping ions is reduced when the amount of doping is consistently raised. In order to calculate the critical distance (R_c) between the rare earth ions, eqn (8) was proposed by Blasse, which is given below.⁵³Here, x_c, V, and N denote the critical amount of activator ion, volume of unit cell, and number of existing locations per unit cell, respectively. For LSA phosphors doped with Er³⁺, these values are x_c = 4 mol%, V = 487.70.107 Å, and N = 4. The R_c value was therefore determined to be 17.88 Å. The Blasse theory states that reabsorption, exchange interaction, and multipolar interaction are the three possible non-radiative energy transmission mechanisms between rare earth ions. Radiative reabsorption takes precedence when there is a significant overlap between excitation and emission. CQ occurs due to the exchange interaction when R_c is smaller than 5 Å. Concentration quenching occurs due to the multipolar interaction when the critical distance exceeds 5 Å. Since the observed R_c value in this work is more than 5 Å, concentration quenching is primarily driven by the multipole–multipole interaction. Three types of interactions are included in the multipole–multipole interaction: dipole–dipole (d–d), dipole–quadrupole (d–q), and quadrupole–quadrupole (q–q). The following formula (9) provides the PL emission intensity (I) for each activator amount (x) in accordance with the Dexter theory.⁵⁴

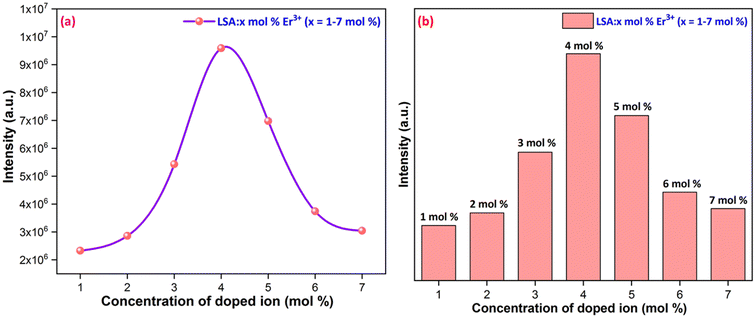

Fig. 11 Concentration quenching profiles of the considered nanophosphors.

The plot of log(I/x) vs. log(x) is fitted linearly using the luminescence intensity of Er³⁺ concentration in the LSA host matrix, as shown in Fig. 12. Fitting eqn (9) yielded a slope of −3.28. The value of Q is calculated as 9.84, which is close to 10. This result validates that the quadrupole–quadrupole interaction was responsible for concentration quenching in Er³⁺ activated LaSr₂AlO₅ nanophosphors.

Fig. 12 Straight line fitted graph between log(x) and log(I/x).

3.5 Luminescence lifetime

When a phosphor radiatively decays from an excited level to the ground state, light is released. The dynamics of illumination, quenching, and energy transfer mechanism are all explained by the decay lifetime. For the purpose of recording the luminescence lifetime data, the excitation and emission wavelengths were fixed at 377 nm and 550 nm, respectively. The recorded decay curve for the optimum (4 mol%) concentration of LSA:Er³⁺ phosphor is depicted in Fig. 13. Numerous exponential functions were employed to precisely match the acquired data. The double exponential function listed below yields the best outcome.⁵⁵

I_t = I₀ + A₁ exp(−t/τ₁) + A₂ exp(−t/τ₂) (10)

Here, I is the luminous intensity, t is the time, A₁ and A₂ are fitting parameters, and τ₁ and τ₂ are the slow and fast components. The average lifetime may also be estimated by putting the values of A₁, A₂, τ₁ and τ₂ into the following eqn (11).

τ_avg = (A₁t₁² + A₂t₂²)/(A₁t₁ + A₂t₂) (11)

Fig. 13 Decay lifetime profile of the La_0.96Sr₂AlO₅:4 mol% Er³⁺ nanophosphor and the inset represents the Auzel fitted graph for all doped samples.

According to the fitting results, when x = 1, 2, 3, 4, 5, 6, and 7 mol% of Er³⁺, the average decay times of La_(1−x)Er_xSr₂AlO₅ nanophosphors are 1.431, 1.344, 1.227, 1.134, 1.059, 0.978, and 0.703, respectively. As a result of the non-radiative energy transfer, the average lifespan rapidly declines as the concentration of Er³⁺ rises. Additionally, the radiative lifetime was assessed using Auzel's model to analyze the variance in luminescence lifespan with increasing dopant concentration.

In the above relation, τ_c, c_o, τ_o and N represent the lifetime at concentration c, concentration constant, intrinsic radiative lifetime, and number of phonons, respectively. Quantum efficiency (η) describes the converting ability of the system between input and output. Quantum efficiency of a 4f emitting level depends on the radiative (A_R) and non-radiative (A_NR) rates due to deactivation processes of the emitting level. The computed value of ⁴S_3/2 emitting states τ_o = 1.681 ms, obtained from the fitting procedure (inset of Fig. 13), was valuable for deriving the quantum efficiency employing the subsequent eqn (13).⁵⁶

Employing the radiative lifetime (τ_o), observed lifetime (τ_avg), and the following relationship, the total non-radiative relaxation rates (A_NR) are also computed.

Table 4 lists the non-radiative transition rate and quantum efficiency values of the synthesized nanophosphors. It was feasible to effectively integrate the nanomaterials into white light-emitting diodes for illumination because their synthesis produced incredibly high quantum efficiency values.

Table 4 Decay time and quantum efficiency of La_1−xSr₂AlO₅:xEr³⁺ (x = 1–7 mol%) phosphors

Sample	τavg (ms)	AnR (S^−1)	(η%)
LSA:1 mol% Er^3+	1.431	104.01	85.06
LSA:2 mol% Er^3+	1.344	149.24	79.95
LSA:3 mol% Er^3+	1.227	220.19	72.99
LSA:4 mol% Er^3+	1.134	287.03	67.40
LSA:5 mol% Er^3+	1.059	349.48	62.99
LSA:6 mol% Er^3+	0.978	427.69	58.17
LSA:7 mol% Er^3+	0.703	827.64	41.82

---

3.6 Optical absorption analysis

In the realm of optoelectronic applications, the optical band gap of materials is indispensable. Diffuse reflectance spectra (DRS) obtained through UV-Vis spectroscopy were employed to calculate the band gap for the prepared nanophosphors. This spectroscopic method assesses the incident light decline following matrix surface absorption or reflection. When referring to powder samples, dispersion occurs more often and it is harder to assess the scattered intensity. Then, for this kind of measurement, the reflection mode is appropriate. Fig. 14(a) exhibits the DRS of LSA and LSA: 4 mol% Er³⁺ in 200–800 nm spectral regions. For the doped optimized sample, different absorption peaks were obtained at 254 nm, 377 nm, 448 nm, 488 nm, and 521 nm due to the charge transfer between oxygen and erbium ion, ⁴I_15/2 → ⁴G_11/2, ⁴I_15/2 → ⁴F_5/2, ⁴I_15/2 → ⁴F_7/2 and ⁴I_15/2 → ²H_11/2 transitions, respectively. The optical band gap (E_g) is computed using the Kubelka Munk formula provided by⁵⁷

Fig. 14 (a) Diffusion reflectance spectra and the (b) optical band gap of the host and optimized samples.

In this relationship, R and F(R) represent diffuse reflectance and Kubelka–Munk absorption function, respectively. The scattering and absorption coefficients are also defined separately by S and K. Tauc's relation is associated with the optical energy gap (E_g) and linear absorption coefficient, which is given below.

αhν = A[hν − E_g]ⁿ (16)

In this, A is a constant, hν represents the photon's energy, and n stands for the type of transition. Depending on the direct transition, indirect transition, forbidden direct, and forbidden indirect transitions, the value of n may be 1/2, 2, 3, and 3/2, respectively. Eqn (15) and (16) may be used to write the following expression⁵⁸

[F(R)hν]² = C(hν − E_g)ⁿ (17)

The plot of [F(R)hν]² vs. hν spectra displayed in Fig. 14(b) indicates the E_g values for the host (E_g = 5.97 eV) and optimized (E_g = 5.51 eV) sample, respectively. The energy gap value reduces on Er³⁺ ion incorporation in the host material.

3.7 Thermal stability

To assess the luminous features of phosphors for practical use in light-emitting devices, the temperature stability of luminescence is an essential parameter. The temperature-dependent emission spectra of tetragonal La_0.96Sr₂AlO₅:4 mol% Er³⁺ phosphors from 298 to 498 K are depicted in Fig. 15(a). Spectral variations become nearly nonexistent as the temperature rises, but the thermal quenching from the nonradiative transition causes their PL intensities to go downward. Additionally, it can be noted that the emission intensity maintains 74.29% of its initial intensity up to 498 K as that of the starting temperature, as displayed in Fig. 15(b), demonstrating the outstanding thermal durability of the developed phosphor. The Arrhenius eqn (18) may be used to describe the thermal activation process that causes the PL emission intensity to drop as the temperature increases.⁵⁹Here, E_a, k, I_T and I₀ are the activation energy, Boltzmann constant, intensity at temperature T, and original intensity, respectively. The relationship of 1/kT vs. ln(I₀/I_T) is shown in Fig. 16. The defined data is linearly fitted with a slope of −0.1453, corresponding to E_a = 0.1453 eV. In general, a phosphor with a higher E_a value would be less likely to undergo the non-radiative transition. Consequently, the produced phosphor has a high activation energy value, indicating that it is more resistant to thermal quenching.

Fig. 15 (a) Temperature-dependent photoluminescence of the La_0.96Sr₂AlO₅:4 mol% Er³⁺ phosphor; (b) bar intensity graph showing the efficiency as a function of temperature.

Fig. 16 Linear fitted graph between ln[(I₀/I_T) − 1] vs. 1/KT for the La_0.96Sr₂AlO₅:4 mol% Er³⁺ phosphor.

3.8 Photometric investigation

Photometric characterization is another method to confirm the color and quality of light generated by the synthesized phosphor material. It covers a wide range of factors, including CIE coordinates, correlated color temperature, and color purity. Eqn (S5)† was employed to analyze chromaticity points (x, y) in accordance with CIE-1931.⁶⁰ The tristimulus values for the fundamental red, green, and blue colors are shown as X, Y, and Z, correspondingly. The CIE chromaticity diagram for the phosphor under investigation is shown in Fig. S1–S7.† The ratio of the spacing between the pure white coordinates (x_i, y_i) and computed CIE coordinates (x, y) to the separation dominant wavelength (x_d, y_d) and pure white coordinates (x_i, y_i) is known as color purity.⁶¹

The temperature at which a phosphor emits the same color as an ideal blackbody is known as its CCT value. The McCamy relation (20) is mathematically used to get the CCT values of each produced phosphor.⁶²

CCT = −437n³ + 3601n² − 6861n + 5514.31 (20)

Here, n is (x − x_e)/(y − y_e) is the inverse slope line with x_e and y_e known as convergence epicenters having values of 0.332 and 0.186, respectively. The computation includes changing the CIE point (x, y to u′, v′) to evaluate the color temperature data using eqn (S6).† Fig. S8–S14† display the CIE 1976 color profile of Er³⁺ (1–7 mol%) doped LSA nanophosphors associated with their CCT values. In general, cold light suitable for commercial usage corresponds to CCT values of more than 3000 K. On the other hand, warm light has a CCT value of less than 3000 K and is a potential candidate for indoor lighting in the SSL area. The computed values of (x, y), color purity, CCT, and (u′, v′) are summarized in Table 5.

Table 5 Chromaticity parameters of La_1−xSr₂AlO₅:xEr³⁺ (x = 1–7 mol%) nanophosphors

Sample	(x, y)	CP (%)	(u′, v′)	CCT (K)
LSA:1 mol% Er^3+	0.3129, 0.6636	94.6	0.1211, 0.5777	4238
LSA:2 mol% Er^3+	0.3135, 0.6601	93.6	0.1218, 0.5771	4632
LSA:3 mol% Er^3+	0.3132, 0.6491	89.5	0.1233, 0.5748	4388
LSA:4 mol% Er^3+	0.3139, 0.6364	92.4	0.1255, 0.5722	4127
LSA:5 mol% Er^3+	0.3132, 0.6491	90.1	0.1233, 0.5748	4237
LSA:6 mol% Er^3+	0.3101, 0.6564	91.2	0.1209, 0.5760	4362
LSA:7 mol% Er^3+	0.3124, 0.6510	90.4	0.1227, 0.5751	4491

---

4 Conclusions

This article demonstrates the simple and faster gel-combustion approach that is employed to produce LaSr₂AlO₅:Er³⁺ phosphors. The XRD method was utilized to investigate the phase purity and structure of the synthesized materials. The XRD peaks indicate increased phase purity and higher crystallinity, which improves the optical characteristics of phosphor materials. Rietveld refinement of the XRD data provides an accurate depiction of the crystal structure, including the dimension of the unit cell, atomic position coordinates, and the structure generated by every atom with neighboring atoms. The produced samples are in space group I4/mcm of the tetragonal crystal structure. TEM images display almost spherical particles, agglomerated with uneven-sized particles in the synthesized material. EDX profiles show the presence of all atoms and define the composition of the prepared materials. Following Er³⁺ doping, the energy band gap has been observed to reduce, demonstrating the Burstein–Moss effect. On 377 nm UV excitation, the phenomena of down conversion photoluminescence were investigated in detail. At 550 nm, the strongest peak was observed, producing a vivid green color corresponding to the ⁴I_15/2 → ⁴G_11/2 transition of Er³⁺ ions. Concentration quenching resulted in a decline in PL intensity beyond 4 mol% when the doping concentration of Er³⁺ was increased. Multipolar (quadrupole–quadrupole) interaction was the predominant interaction during concentration quenching. Thermal quenching is shown to have an activation energy of 0.1453 eV. All of the aforementioned findings imply that the suggested LaSr₂AlO₅:Er³⁺ phosphor, which emits green light and has exceptional luminescent properties, would be a potential material for solid-state lighting.

Data availability

Data will be made available on request.
