Multi-controlled ternary emission of platinum(II) switches as a visual optical sensor for enzyme and pH detection

Zhu Shu ab, Xin Lei a, Qingguo Zeng a, Yeye Ai *a, Xinyi Chen b, Yanglin Lv b, Yunchu Shao b, Guohua Ji c, Tingjing Sun a, Guanjun Xiao ad and Yongguang Li *a
aCollege of Material, Chemistry and Chemical Engineering, Key Laboratory of Organosilicon Chemistry and Material Technology Ministry of Education, Hangzhou Normal University, Hangzhou 311121, China. E-mail: aiyeye@hznu.edu.cn; yongguangli@hznu.edu.cn
bKharkiv Institute, Hangzhou Normal University, Hangzhou 311121, China
cHangzhou Polytechnic, Hangzhou 311402, China
dState Key Laboratory of Superhard Materials, College of Physics, Jilin University, Changchun 130012, P. R. China

Received 16th April 2024 , Accepted 13th May 2024

First published on 16th May 2024


Abstract

Near-infrared (NIR) optical sensors are widely applied in biomedical treatment, environmental monitoring, and food safety because of their advantages of avoiding the interference of self-absorption and self-emission. Herein, a pH-sensitive luminescent platinum(II) complex with dual-armed alkyl chains modified with an ammonium ionic head has been designed and explored as an NIR probe. The pH-responsive probe can switch between ternary emission, including green and dual NIR emission, from the monomer, excimer and aggregated ground states in aqueous medium, which can be further regulated by nucleoside polyphosphates via non-covalent interactions with remarkable spectroscopic changes. The time-dependent detection of the assembly/disassembly of an adenosine triphosphate (ATP) and phosphorescent platinum(II) complex can be achieved based on the continuous photophysical changes. Guanosine triphosphate (GTP) can be recognized by visualized dual apparent and emission colors among various nucleoside polyphosphates.


Introduction

Luminescent sensors have been extensively used to detect special species in the fields of environmental, biological, pharmacological, and physiological science. The advantages of utilizing luminescent probes, including high selectivity and sensitivity, help us to understand the physiological processes and mechanisms in the organism system and to detect harmful species and pollutants in our daily lives. For example, nucleotides are essential biological phosphate molecules that serve as the building blocks of DNA and RNA. In particular, ATP, serving as a primary source of energy in diverse cellular functions, is significant in energy storage in organisms.1–4 In the ATP molecular structure, the purine base adenine and sugar ribose compose the nucleoside adenosine. Adenosine, in turn, is connected with three phosphate groups through phosphodiester bonds. Each constituent element of ATP, phosphate, adenine, and ribose, plays a different role in intermolecular interactions.5–7 For biomolecular detection, luminescent probes should not only show high sensitivity but also avoid interferences from other luminescent species in the biological system, because most substances in living systems own high-energy emissive behaviors and yield blue and green emissions. Hence, it is necessary to explore luminescent probes with much longer emission wavelengths.

Some types of luminescent probes based on the emission mechanisms of Förster resonance energy transfer (FRET),8,9 photoinduced electron transfer (PET),10,11 intramolecular charge transfer (ICT)12,13 and excited-state intramolecular proton transfer (ESIPT),14 have been widely explored to detect environmental and biological species. The optical signal detection method exhibits the advantages of small sample consumption, convenient and rapid operation, and high sensitivity and accuracy. Meanwhile, new and efficient chiral optical sensors based on the electronic absorption spectrum, fluorescence spectrum, circular dichroism spectrum, and circular polarized luminescent spectrum have also attracted much attention. This will provide an effective approach for the separation of chiral materials,15,16 screening of high-throughput chiral catalytic systems,17,18 monitoring of environmental contaminants,19,20 and detection of living entities.21–24

Phosphorescent complexes with the characteristics of large Stokes shift, long lifetime, and much lower emissive energy are good candidates for optical probes.25,26 In particular, long-wavelength emission will improve the sensitivity and accuracy due to it reducing or avoiding the interference from luminophores in the microenvironment. Among the various phosphorescent materials, organoplatinum(II) complexes with a square-planar geometry are prone to self-assembly with optical property changes.27–30 Based on the apparent and emission color changes, it is possible to develop visual optical probes for faster and more intuitive detection.31–37 We have developed an amphiphilic organoplatinum(II) complex as a volatile organic compound (VOC) sensor.38 This sensor showed a rapid response, high selectivity and good reversibility in water and alcohol vapor with distinct apparent and emissive color changes in the visible light and NIR regions, respectively. The terpyridine platinum(II) complexes can also be explored as a time-dependent probe for monitoring enzymatic activities. Yam and coworkers reported a terpyridine platinum(II) complex with a hydroxyl functional group that exhibited self-assembly properties in an aqueous solution,39 which can be governed by the polyanionic nature of ATP and phosphopeptide. The aggregates were disassembled into adenosine diphosphate (ADP) and inorganic phosphate (Pi) under the catalysis of ATPase with drastic apparent color and emission changes. The discernible alterations in the assembly and hydrolysis processes provide an alternative method to assess the enzyme's activity.

In general, supramolecular assembly systems are often affected by the microenvironment, including factors like temperature, pH and solvents.40–47 Based on our previous work about alcohol-selective NIR luminescent sensors and molecular hinges with distinct mechano- and piezochromic responses in the NIR region48 as well as the visual distinction of the enantiomers due to drastic spectroscopic regulation,49 herein, we report a water-soluble cationic cyclometalated platinum complex with double-armed ammonium ions (1) exhibiting emission color changes from green to dual NIR due to switching between the monomer, excimer, and aggregated ground states (Scheme 1). It is designed as an optical probe to accurately detect pH values in a small range. In particular, GTP can be distinguished by the ternary luminescent platinum(II) switch among various phosphate nucleotides, such as adenosine monophosphate (AMP), ADP, ATP, uridine triphosphate (UTP) and GTP. This provides an effective visual approach to detect phosphate nucleotides and avoids interferences from the intrinsic luminescence in organisms.


image file: d4qi00957f-s1.tif
Scheme 1 Cartoon representation of the acid–base and ATP/ALP (alkaline phosphatase) responsive luminescence and assembly processes.

Results and discussion

Design, synthesis, characterization

The structure of the synthesized complex 1 is shown in Scheme 1. The introduction of a 1,3-di(2-pyridyl)benzene (N^C^N) cyclometalating ligand to the metal complex with the formation of a C–Pt bond can elevate the energy of the nonemissive d–d excited state due to the stronger σ-donating effect of the ligand, resulting in excellent optical characteristics.50–55 The electron-withdrawing CF3 substituent on the N^C^N ligand can effectively improve the stability of the complex.48,56 The introduced double-armed alkyl chain with an ammonium ionic head can increase its solubility in H2O. More importantly, the positively charged ammonium arms can combine with phosphate anions via electrostatic interactions to induce the assembly of the coordinated platinum(II) complex. The synthetic route of 1, as well as detailed experimental procedures and characterizations, can be found in the ESI (Scheme S1).

Photophysical and dual-emissive properties

The photophysical properties of complex 1 were first studied in DMF at a concentration of 0.2 mM (Fig. S1A). The high-energy intensity absorption bands before 350 nm are attributed to the intraligand (IL) [π → π*] transition of the N^C^N ligand. The low-energy, moderately intense absorption bands at ca. 362, 380 and 407 nm originate from the mixed Pt(II)-perturbed ILPt [π → π*] transition of the cyclometalated N^C^N ligand and metal-to-ligand charge transfer (MLCT) ([dπ(Pt) → π*(N^C^N)]) transition. The well-resolved vibronic-structured emission bands at 489, 522, and 563 nm, with the vibrational progressional spacings of 1251 and 1395 cm−1 arising from the aromatic C[double bond, length as m-dash]C and C[double bond, length as m-dash]N vibrational modes (Fig. S1B), and a luminescence lifetime at 489 nm of 35 ns (Fig. S2), primarily originate from the platinum-perturbed 3IL excited state of the N^C^N ligand. A much higher quantum yield in the solid state (21.2%) was obtained than that in solution (0.9%). Notably, the intensity of the NIR emission band at about 700 nm gradually increases without apparent color changes as the concentration increases to 2.0 mM (Fig. S1B). The emission band at 700 nm is tentatively attributed to the excimer formation of 1 with the evidence of the absorption tail at 425 nm keeping in line with Beer's law (Fig. S3), which is further supported by the similar excitation spectra of the emission at 489 and 700 nm (Fig. S4). However, after adding H2O to the DMF solution, keeping the concentration of 0.4 mM, it was found that the absorption bands at 350–430 nm gradually decreased in intensity and broadened with a slight blue shift as well as the emission color changing from green to orange-yellow as the content of more polar H2O increased (Fig. 1).
image file: d4qi00957f-f1.tif

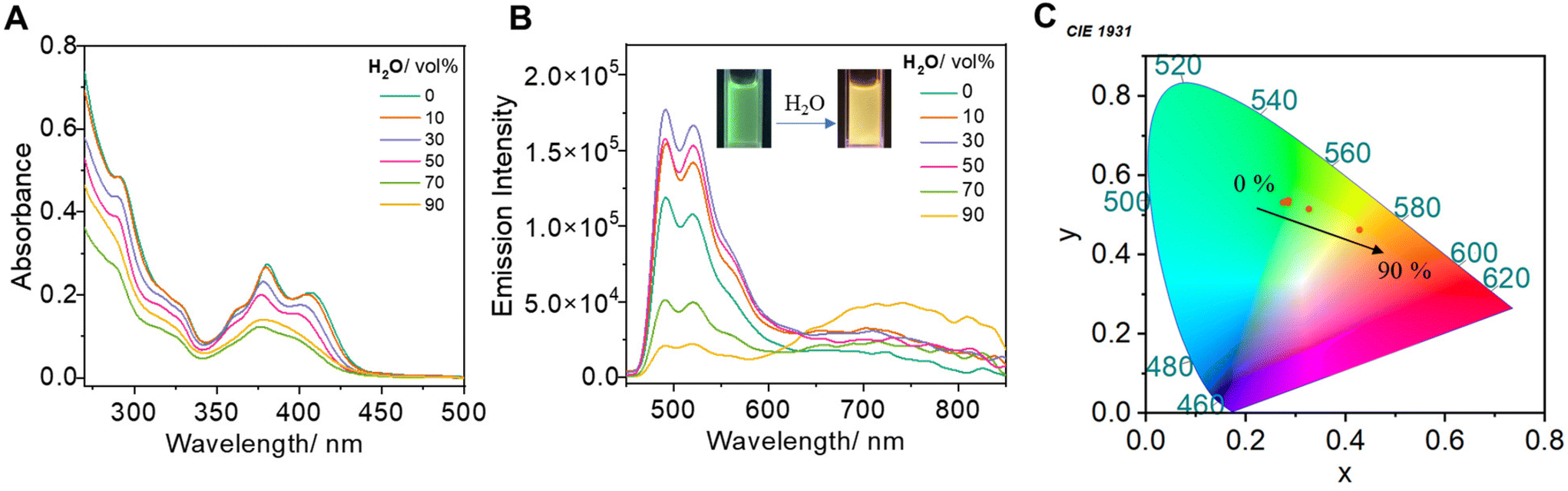

Fig. 1 (A) UV-Vis absorption and (B) emission spectra of 1 (0.4 mM) versus H2O fraction in the H2O-DMF mixture (insets: photographs of the emission changes of 1 in DMF and 90% H2O-DMF solutions); (C) CIE coordinate diagram of the emission color in H2O-DMF mixtures with different H2O proportions.

Acid/base responsive ternary luminescence

The double-armed alkyl chain with an ammonium ionic head improves the solubility of the luminescent complex 1 in H2O with pH = 6.67 measured by a pH meter. A moderately intense absorption band at 380 nm and an absorption tail at wavelength > 500 nm were observed (Fig. 2). Upon addition of KOH or CH3COOH to the above solution, there were no obvious changes in the UV-Vis absorption and emission spectra with the pH in the range from 6.00 to 8.00 (Fig. S5). However, a new absorption band at 575 nm appeared accompanied by a drastic apparent color change from orange-yellow to purple as the pH reached 10.60, indicating the formation of aggregates in the ground state with intermolecular π–π stacking and metal–metal interactions. The 575 nm absorption band disappeared and the color changed back to orange-yellow after the addition of CH3COOH to the above sample with pH = 11.00 (Fig. 2A). Apart from the 3IL green emission, an intense NIR band at 750 nm with an emission shoulder at 825 nm was observed in H2O. Interestingly, the NIR emission band at 825 nm was increased with the disappearance of the monomer green emission band at 489 nm after the addition of KOH (Fig. 2B). A similar emission spectrum to that of 1 in the initial H2O solution was obtained after the addition of CH3COOH. In order to confirm the emission origins, the excitation spectra were further collected. The good overlap of the excitation spectra of the emission peaks at 489, 650 and 700 nm suggests that the 750 nm NIR emission band originates from the excimer formed in the excited state (Fig. S6). The excitation spectrum of the 820 nm NIR emission band is different from those of the 489, 650 and 700 nm emission bands, in line with the new absorption band at 575 nm, indicating the formation of aggregates in the ground state, resulting in triplet metal–metal-to-ligand charge transfer (3MMLCT). Hence, a reversibly acid/base-responsive ternary luminescence system was constructed based on single small platinum(II) complexes.
image file: d4qi00957f-f2.tif

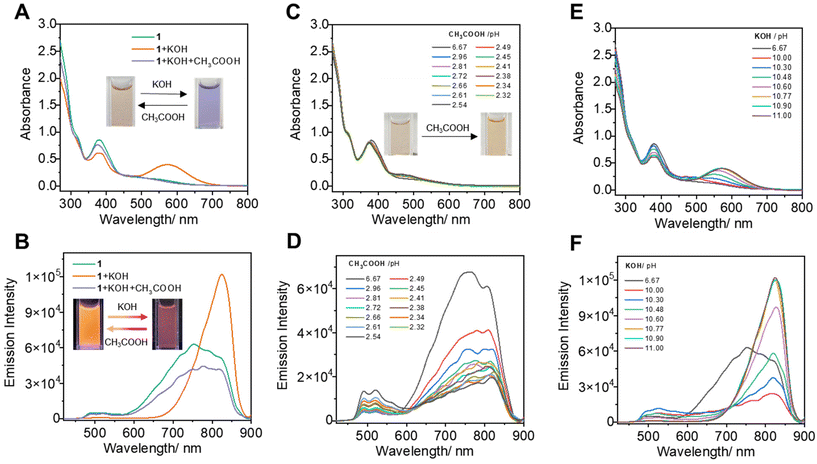

Fig. 2 (A) UV-Vis absorption and (B) emission spectra of 1 on addition of base and acid in H2O solutions (0.2 mM) (insets: photographs of the apparent and emission color on addition of base and acid). (C) UV-Vis absorption and (D) emission spectral changes upon gradual addition of CH3COOH into the solution of 1 (0.2 mM) (insets: photographs of the apparent color changes of 1 before and after adding CH3COOH). (E) UV-Vis absorption and (F) emission spectral changes upon gradual addition of KOH into the solution of 1 (0.2 mM).

The above phenomena demonstrate that 1 shows dual visualized apparent and emissive color changes in response to acid and base. The double ammonium ionic heads improve the solubility of the molecules and further suppress the molecular aggregation in H2O with the appearance of an absorption tail and a weak 3MMLCT emission and the observation of spherical nanoparticles around 100 nm in diameter according to the transmission electron microscopy (TEM) and dynamic light scattering (DLS) results (Fig. 3D and E). Upon addition of a base, the neutrally charged amine groups not only decrease the solubility, but also eliminate the repulsive charge forces and further strengthen the intermolecular π–π stacking and metal–metal interactions resulting in the formation of spherical nanoparticles with enhanced 3MMLCT emission. Subsequently, after the addition of acid, positively charged ammonium ionic heads are reformed and the spectroscopies are also recovered. The possible mechanism is summarized in Scheme 1.


image file: d4qi00957f-f3.tif
Fig. 3 (A) UV-Vis absorption, (B) photographs of the apparent color, (C) emission spectra and (D) DLS curve variations upon the gradual addition of ATP (0–1.0 eq.) into the Tris-HCl (50 mM) buffer solution of 1 (0.2 mM) (inset A: the absorbance intensity changes at λ = 600 nm; inset C: photographs of the apparent color and emission changes of 1 in 0 eq. and 1.0 eq. solutions). TEM images of (E) 1 (0.2 mM), and (F) 1-ATP (0.2 mM, 0.5 eq. ATP).

Subsequently, we investigated the relationship between pH value and emission. Upon gradual addition of CH3COOH to the aqueous solution of 1 with a pH value in the range of 2.96–2.34 that inhibits the hydrolysis of the protonated 1, isosbestic and isoemissive points at 434 and 621 nm were observed in the UV-Vis absorption and emission spectra, respectively, suggesting the conversion of the initial hydrolyzed molecules (Fig. 2C and D). The enhancement of the 3IL emission originating from the monomer with decreasing intensity of the NIR excimer and 3MMLCT emission bands is due to the improved solubility and repulsive charge forces, which restrain the aggregates and excimer formation in the ground and excited state, respectively. On the contrary, upon gradual addition of KOH to the aqueous solution of 1 with a pH value in the range of 10.00–11.00, isosbestic and isoemissive points at 506 and 708 nm were observed in the UV-Vis absorption and emission spectra, respectively, along with a drastic apparent color change from yellow to purple, suggesting the complete conversion of the protonated molecules (Fig. 2E and F). The intensity of the NIR 3MMLCT emission band significantly enhanced accompanying the disappearance of the monomer and excimer emission due to the formation of aggregates under strong π–π stacking and metal–metal interactions, caused by the decreased solubility and repulsive charge forces (Fig. 2F and S7). This indicates that it is possible to precisely regulate the transformation of each individual form of 1 using acid and base (Fig. S8 and S9). The fluctuations in pH value can be visually and sensitively detected in a small range using molecule 1 with obvious color changes.

ATP-induced supramolecular assembly and dynamic hydrolysis by ALP

Complex 1 modified with an ammonium ionic head and acetate counter ion can provide a microenvironment with pH from 6.00 to 8.00 in H2O with no obvious changes in the UV-Vis absorption and emission spectra. The complex can provide a near neutral system in which ATP is stable. On the gradual addition of ATP to 1 in aqueous solution, the initial absorption band at 380 nm progressively became much broader, accompanied by the appearance of a new absorption band in the range of 450–750 nm (Fig. 3A). The apparent yellow color turned to purple, which can be conveniently visualized by the naked eye. Similarly, the NIR 3MMLCT emission band at 820 nm was greatly boosted as the emission bands from the monomer and excimer gradually disappeared (Fig. 3C). The above optical behaviors indicate that ATP can induce the assembly of 1 primarily due to the electrostatic interaction between the phosphate and ammonium with a binding ratio of 1[thin space (1/6-em)]:[thin space (1/6-em)]2 (ATP[thin space (1/6-em)]:[thin space (1/6-em)]1), accompanied by the formation of strong π–π stacking and metal–metal interactions yielding the NIR 3MMLCT emission. This is further confirmed by the DLS and TEM results (Fig. 3D–F), which are in line with the disappearance of the signals of the 1H NMR spectra (Fig. S10).

ATP is involved in many metabolism-related reactions with the conversion of the triphosphate to di- and monophosphates providing energy to drive many processes in living cells. We used alkaline phosphatase (ALP) as the hydrolytic enzyme to investigate the transformation of 1-ATP aggregates during the ATP hydrolysis process. The UV-Vis absorption spectrum and apparent color showed no obvious changes when ALP was added into the 1 aqueous solution at 37 °C (Fig. S11). When ALP was added to the 1-ATP aggregates, the intensity of the absorption band at 589 nm was gradually decreased along with an apparent color change from the initial purple color to orange (Fig. 4A). These results indicate that the introduction of ALP hydrolyzes ATP to AMP and Pi, and decomposes the 1-ATP aggregates. This is further supported by the electrospray ionization mass spectrometry (ESI-MS) results with the observation of the AMP species (Fig. S12 and S13). It was found that the hydrolysis time decreased as the ALP concentration increased according to the absorption intensity monitored at 589 nm (Fig. 4A and B). For example, the hydrolyzed solution with 30 U mL−1 of ALP quickly turned from purple to orange color within 1000 s. The activity of ALP can remain as in the initial state and the hydrolytic reaction can be recycled (Fig. 4B). The disassembly process can also be verified by using CD spectroscopy (Fig. 4C). When ATP is introduced to a 1 aqueous solution, a positive Cotton effect at 500 nm immediately appears, indicating the chiral sense transfer to the nanoparticles. Nevertheless, the CD signal became totally silent in the presence of ALP, further suggesting that an ATP hydrolytic process occurred leading to the dissociation of the 1-ATP assemblies.


image file: d4qi00957f-f4.tif

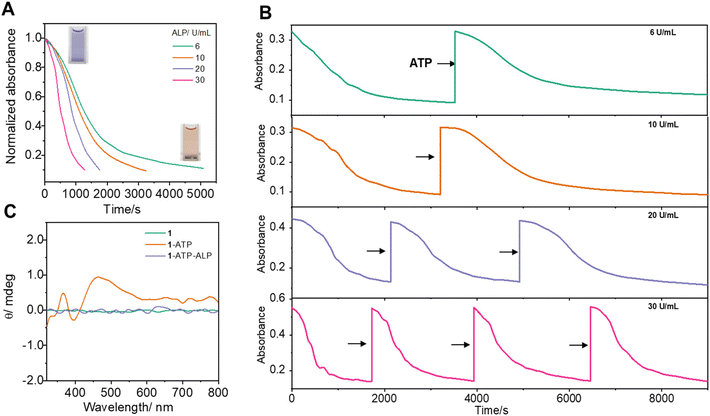

Fig. 4 (A) Normalized absorption spectra of ALP with different units. (B) Time-dependent absorbance intensity at 589 nm upon the addition of ATP (0.3 eq.) to 1 (0.2 mM) being repeat several times in the presence of 6, 10, 20 and 30 U mL−1 of ALP. (C) CD spectra of 1, 1-ATP and 1-ATP–ALP in H2O (medium: 50 mM Tris-HCl, 20 mM MgCl2).

Selectively sensing phosphated nucleotides

Besides ATP, other phosphate nucleotides, including AMP, ADP, GTP and UTP, were selected to study their optical properties after co-assembly with 1 (Fig. S14). It is notable that, unlike 1-ADP, 1-ATP and 1-UTP, the UV-Vis absorption spectrum of 1-GTP is similar to that of 1-AMP (Fig. 5A). The sizes of the aggregates as well as their emission properties are related to the negative charge of the phosphated nucleotides (Fig. 5B, C and S15–S22). 1-AMP showed an emission band at 795 nm originating from the excimer and some mixing 3MMLCT excited state. The emission bands of 1-ADP, 1-ATP and 1-UTP mainly originated from the 3MMLCT excited state. Unusually, GTP completely quenched the emission (Fig. 5B). The phosphate nucleotides GTP and AMP can be conveniently recognized by the visually apparent and emission colors as shown in Fig. 5D. The dual optical detection approach makes the luminescent platinum(II) complexes a good candidate to sense special species and to improve the accuracy.
image file: d4qi00957f-f5.tif

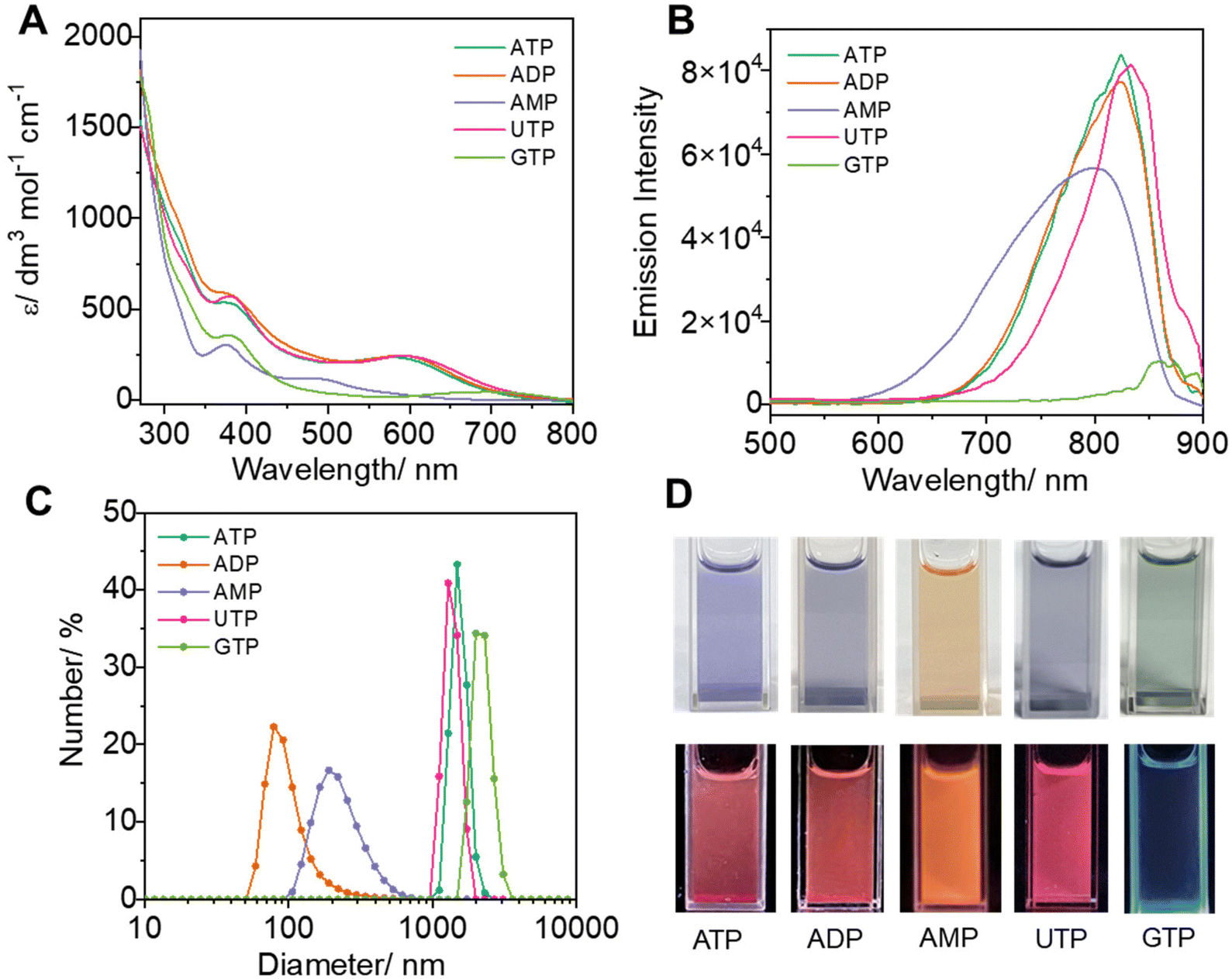

Fig. 5 (A) UV-Vis absorption, (B) emission spectra and (C) DLS data of 1 (0.2 mM) with different types of phosphates in a Tris-HCl (50 mM) buffer solution. (D) Top: photographs of the apparent color changes of 1 (0.2 mM) with different types of phosphates (0.5 eq.). Bottom: photographs of the emission changes of 1 (0.2 mm) with different types of phosphates (0.5 eq.).

Conclusions

In summary, we have designed and synthesized a water-soluble platinum(II) complex with double-armed alkyl chains modified with an ammonium ionic head. Its ternary emission can be switched between green and NIR colors from the monomer, excimer and aggregated ground states through multilevel assembly. It shows high sensitivity to the pH value and can detect the pH accurately to 0.1 units. The positively charged ammonium arms can combine with phosphate anions via electrostatic interactions to induce the assembly of the luminophores, accompanied by drastic optical behaviors. It can be used to monitor the hydrolytic reaction of phosphate nucleotides. Importantly, the phosphate nucleotide GTP can be conveniently recognized by dual visualized apparent and emission colors. It was demonstrated that the platinum(II) complex with ternary luminescent switching is a good candidate to develop visualized sensors.

Conflicts of interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (22201057 and 21871297), the Zhejiang Provincial Natural Science Foundation of China (LR22B010001 and LQ23B010001), and Hangzhou Normal University (2021QDL001 and 2021QDL065). We sincerely thank Professor Vivian Wing-Wah Yam for her helpful discussion and guidance.

References

  1. J. Deng and A. Walther, ATP-Powered Molecular Recognition to Engineer Transient Multivalency and Self-Sorting 4D Hierarchical Systems, Nat. Commun., 2020, 11, 3658–3670 CrossRef CAS PubMed.
  2. A. Patel, L. Malinovska, S. Saha, J. Wang, S. Alberti, Y. Krishnan and A. A. Hyman, ATP as a Biological Hydrotrope, Science, 2017, 356, 753–756 CrossRef CAS PubMed.
  3. S. C. Weber, A. J. Spakowitz and J. A. Theriot, Nonthermal ATP-Dependent Fluctuations Contribute to The in Vivo Motion of Chromosomal Loci, Proc. Natl. Acad. Sci. U. S. A., 2012, 109, 7338–7343 CrossRef CAS PubMed.
  4. Z. Shu, X. Lei, Y. Ai, K. Shao, J. Shen, Z. Huang and Y. Li, ATP-Induced Supramolecular Assembly Based on Chromophoric Organic Molecules and Metal Complexes, Chin. Chem. Lett., 2024, 109585 CrossRef.
  5. Z. Li, S. Li, Y. Guo, C. Yuan, X. Yan and K. S. Schanze, Metal-Free Nanoassemblies of Water-Soluble Photosensitizer and Adenosine Triphosphate for Efficient and Precise Photodynamic Cancer Therapy, ACS Nano, 2021, 15, 4979–4988 CrossRef CAS PubMed.
  6. A. Mishra, S. Dhiman and S. J. George, ATP-Driven Synthetic Supramolecular Assemblies: From ATP as a Template to Fuel, Angew. Chem., Int. Ed., 2021, 60, 2740–2756 CrossRef CAS PubMed.
  7. Z. Li, C. J. Zeman, S. R. Valandro, J. P. O. Bantang and K. S. Schanze, Adenosine Triphosphate Templated Self-Assembly of Cationic Porphyrin into Chiral Double Superhelices and Enzyme Mediated Disassembly, J. Am. Chem. Soc., 2019, 141, 12610–12618 CrossRef CAS PubMed.
  8. Q. Wu, K. Y. Zhang, P. Dai, H. Zhu, Y. Wang, L. Song, L. Wang, S. Liu, Q. Zhao and W. Huang, Bioorthogonal “Labeling after Recognition” Affording an FRET-Based Luminescent Probe for Detecting and Imaging Caspase-3 via Photoluminescence Lifetime Imaging, J. Am. Chem. Soc., 2020, 142, 1057–1064 CrossRef CAS PubMed.
  9. C. Liu, X. Wei, H. Zhang, M. Zhang, X.-F. Yu, N. Hildebrandt, Q.-Y. Luo and Z. Jin, Nucleic Acid Hybridization Enhanced Luminescence for Rapid and Sensitive RNA and DNA Based Diagnostics, Anal. Chem., 2022, 94, 15964–15970 CrossRef CAS PubMed.
  10. R. Zhang, Z. Ye, Y. Yin, G. Wang, D. Jin, J. Yuan and J. A. Piper, Developing Red-Emissive Ruthenium(II) Complex-Based Luminescent Probes for Cellular Imaging, Bioconjugate Chem., 2012, 23, 725–733 CrossRef CAS PubMed.
  11. C. Y.-S. Chung, S. P.-Y. Li, K. K.-W. Lo and V. W.-W. Yam, Synthesis and Electrochemical, Photophysical, and Self-Assembly Studies on Water-Soluble pH-Responsive Alkynylplatinum(II) Terpyridine Complexes, Inorg. Chem., 2016, 55, 4650–4663 CrossRef CAS.
  12. R. Zhang, S. Liu, J. Wang, G. Han, L. Yang, B. Liu, G. Guan and Z. Zhang, Visualization of Exhaled Hydrogen Sulphide on Test Paper with An Ultrasensitive and Time-Gated Luminescent Probe, Analyst, 2016, 141, 4919–4925 RSC.
  13. Y. Guo, D. Zhang, J. Wang, H. Lu and S. Pu, Luminescent Probe Based on Photochromic Cyclometalated Iridium(III) Complex for High Selectivity Detection of Thiophenol, Dyes Pigm., 2020, 175, 108191 CrossRef CAS.
  14. J. C. Azcárate, S. A. Díaz, J. A. Fauerbach, F. Gillanders, A. A. Rubert, E. A. Jares-Erijman, T. M. Jovin and M. H. Fonticelli, ESIPT and FRET Probes for Monitoring Nanoparticle Polymer Coating Stability, Nanoscale, 2017, 9, 8647–8656 RSC.
  15. C. Zhang, C. Xu, C. Chen, J. Cheng, H. Zhang, F. Ni, X. Wang, G. Zou and L. Qiu, Optically Programmable Circularly Polarized Photodetector, ACS Nano, 2022, 16, 12452–12461 CrossRef CAS PubMed.
  16. W. R. Kitzmann, J. Freudenthal, A.-P. M. Reponen, Z. A. VanOrman and S. Feldmann, Fundamentals, Advances, and Artifacts in Circularly Polarized Luminescence (CPL) Spectroscopy, Adv. Mater., 2023, 35, 2302279 CrossRef CAS PubMed.
  17. Q. Cheng, A. Hao and P. Xing, A Chemosensor-Based Chiral Coassembly with Switchable Circularly Polarized Luminescence, Nat. Commun., 2021, 12, 6320 CrossRef CAS PubMed.
  18. B. H. Jhun, S. Y. Park and Y. You, Molecular Sensors Producing Circularly Polarized Luminescence Responses, Dyes Pigm., 2023, 208, 110786 CrossRef.
  19. K. Cui, Z. Chen, Z. Wang, G. Zhang and D. Zhang, A Naked-Eye Visible and Fluorescence “Turn-On” Probe for Acetyl-Cholinesterase Assay and Thiols as Well as Imaging of Living Cells, Analyst, 2011, 136, 191–195 RSC.
  20. K. Kim, O. G. Tsay, D. A. Atwood and D. G. Churchill, Destruction and Detection of Chemical Warfare Agents, Chem. Rev., 2011, 111, 5345–5403 CrossRef CAS PubMed.
  21. S. H. Jung, K. Y. Kim, J. H. Lee, C. J. Moon, N. S. Han, S.-J. Park, D. Kang, J. K. Song, S. S. Lee, M. Y. Choi, J. Jaworski and J. H. Jung, Self-Assembled Tb3+ Complex Probe for Quantitative Analysis of ATP during Its Enzymatic Hydrolysis via Time-Resolved Luminescence in Vitro and in Vivo, ACS Appl. Mater. Interfaces, 2017, 9, 722–729 CrossRef CAS PubMed.
  22. C. Li, X. Zheng, W. Chen, S. Ji, Y. Yuan and X. Jiang, Tumor Microenvironment-Regulated and Reported Nanoparticles for Overcoming the Self-Confinement of Multiple Photodynamic Therapy, Nano Lett., 2020, 20, 6526–6534 CrossRef CAS PubMed.
  23. J. Li and T. Chen, Transition Metal Complexes as Photosensitizers for Integrated Cancer Theranostic Applications, Coord. Chem. Rev., 2020, 418, 213355 CrossRef CAS.
  24. X. Li, Y. Zhao, T. Zhang and D. Xing, Mitochondria-Specific Agents for Photodynamic Cancer Therapy: A Key Determinant to Boost the Efficacy, Adv. Healthcare Mater., 2021, 10, 2001240 CrossRef CAS.
  25. R. Kumar, T. Y. Ohulchanskyy, I. Roy, S. K. Gupta, C. Borek, M. E. Thompson and P. N. Prasad, Near-Infrared Phosphorescent Polymeric Nanomicelles: Efficient Optical Probes for Tumor Imaging and Detection, ACS Appl. Mater. Interfaces, 2009, 1, 1474–1481 CrossRef CAS PubMed.
  26. M. Yasukagawa, A. Shimada, S. Shiozaki, S. Tobita and T. Yoshihara, Phosphorescent Ir(III) Complexes Conjugated with Oligoarginine Peptides Serve as Optical Probes for in Vivo Microvascular Imaging, Sci. Rep., 2021, 11, 4733 CrossRef CAS PubMed.
  27. M. Yoshida and M. Kato, Regulation of Metal-Metal Interactions and Chromic Phenomena of Multi-Decker Platinum Complexes Having π-Systems, Coord. Chem. Rev., 2018, 355, 101–115 CrossRef CAS.
  28. Y. Ai, Y. Fei, Z. Shu, Q. Zeng, Y. Zhang, Y. Zhu, X. Lei, J. Xu, J. Liu and Y. Li, Dynamic Assembly-Induced Time-Resolved Optical Switches for Rewritable Advanced Information Encryption, Adv. Opt. Mater., 2023, 2301047 CrossRef CAS.
  29. X. Zheng, M. H.-Y. Chan, A. K.-W. Chan, S. Cao, M. Ng, F. K. Sheong, C. Li, E. C. Goonetilleke, W. W. Y. Lam, T.-C. Lau, X. Huang and V. W.-W. Yam, Elucidation of the Key Role of Pt⋯Pt Interactions in the Directional Self-Assembly of Platinum(II) Complexes, Proc. Natl. Acad. Sci. U. S. A., 2022, 119, e2116543119 CrossRef CAS PubMed.
  30. J. Li, K. Chen, J. Wei, Y. Ma, R. Zhou, S. Liu, Q. Zhao and W.-Y. Wong, Reversible On-Off Switching of Excitation-Wavelength-Dependent Emission of a Phosphorescent Soft Salt Based on Platinum(II) Complexes, J. Am. Chem. Soc., 2021, 143, 18317–18324 CrossRef CAS PubMed.
  31. F. Wang, S. Yang, S. Li, S. Zhao, B. Cheng and C. Xia, High Resolution and High Signal-To-Noise Ratio Imaging with Near-Field High-Order Optical Signals, Nano Res., 2022, 15, 8345–8350 CrossRef CAS.
  32. W. Zhang, S. Chen, P. Sun, S. Ye, Q. Fan, J. Song, P. Zeng, J. Qu and W.-Y. Wong, NIR-II J-Aggregated Pt(II)-Porphyrin-Based Phosphorescent Probe for Tumor-Hypoxia Imaging, Adv. Healthcare Mater., 2022, 11, 2200467 CrossRef CAS PubMed.
  33. J. B. Reyes, P. S. Sherin, A. Sarkar, M. K. Kuimova and R. Vilar, Platinum(II)-Based Optical Probes for Imaging Quadruplex DNA Structures via Phosphorescence Lifetime Imaging Microscopy, Angew. Chem., Int. Ed., 2023, 62, e202310402 CrossRef PubMed.
  34. A. S.-Y. Law, M. C.-L. Yeung and V. W.-W. Yam, A Luminescence Turn-On Assay for Acetylcholinesterase Activity and Inhibitor Screening Based on Supramolecular Self-Assembly of Alkynylplatinum(II) Complexes on Coordination Polymer, ACS Appl. Mater. Interfaces, 2019, 11, 4799–4808 CrossRef PubMed.
  35. K. K.-W. Lo, Molecular Design of Bioorthogonal Probes and Imaging Reagents Derived from Photofunctional Transition Metal Complexes, Acc. Chem. Res., 2020, 53, 32–44 CrossRef CAS PubMed.
  36. Y. Ai, Z. Zhang, Y. Fei, R. Ye, A. S.-Y. Law, Z.-W. Mao, J. Liu, Y. Li and V. W.-W. Yam, Rational Design of Platinum(II) Complexes with Orthogonally Oriented Triazolyl Ligand with Emission Enhancement Characteristics for Cancer Chemotherapy in vivo, Sci. China: Chem., 2023, 66, 2878–2884 CrossRef CAS.
  37. C.-M. Che, J.-L. Zhang and L.-R. Lin, PEG-Linked Luminescent Platinum(II) Complex as Aqueous Polymeric Molecular Light Switch for Protein Binding Reactions, Chem. Commun., 2002, 2556–2557 RSC.
  38. Y. Li, L. Chen, Y. Ai, E. Y.-H. Hong, A. K.-W. Chan and V. W.-W. Yam, Supramolecular Self-Assembly and Dual-Switch Vapochromic, Vapoluminescent, and Resistive Memory Behaviors of Amphiphilic Platinum(II) Complexes, J. Am. Chem. Soc., 2017, 139, 13858–13866 CrossRef CAS PubMed.
  39. M. C.-L. Yeung and V. W.-W. Yam, Phosphate Derivative-Induced Supramolecular Assembly and NIR-Emissive Behaviour of Alkynylplatinum(II) Terpyridine Complexes for Real-Time Monitoring of Enzymatic Activities, Chem. Sci., 2013, 4, 2928–2935 RSC.
  40. P. K. Kundu, D. Samanta, R. Leizrowice, B. Margulis, H. Zhao, M. Börner, T. Udayabhaskararao, D. Manna and R. Klajn, Light-Controlled Self-Assembly of Non-Photoresponsive Nanoparticles, Nat. Chem., 2015, 7, 646–652 CrossRef CAS PubMed.
  41. D. Samanta, D. Galaktionova, J. Gemen, L. J. W. Shimon, Y. Diskin-Posner, L. Avram, P. Král and R. Klajn, Reversible Chromism of Spiropyran in The Cavity of a Flexible Coordination Cage, Nat. Commun., 2018, 9, 641 CrossRef PubMed.
  42. Y. Wang, X. Yang, S. Li, T. Long and W. Li, Organic Acid Regulated Self-Assembly and Photophysical Properties of Perylene Bisimide Derivatives, Materials, 2020, 13, 1656 CrossRef CAS PubMed.
  43. Y. Xiang, C. Liu, S. Ma, X. Wang, L. Zhu and C. Bao, Stimuli-Responsive Peptide Self-Assembly to Construct Hydrogels with Actuation and Shape Memory Behaviors, Adv. Funct. Mater., 2023, 33, 2300416 CrossRef CAS.
  44. Q. Zhang, W.-Z. Wang, J.-J. Yu, D.-H. Qu and H. Tian, Dynamic Self-Assembly Encodes a Tri-stable Au-TiO2 Photocatalyst, Adv. Mater., 2017, 29, 1604948 CrossRef PubMed.
  45. Q. Wang, Z. Qi, M. Chen and D.-H. Qu, Out-Of-Equilibrium Supramolecular Self-Assembling Systems Driven by Chemical Fuel, Aggregate, 2021, 2, e110 CrossRef CAS.
  46. X. Wang, X. Wang, S. Jin, N. Muhammad and Z. Guo, Stimuli-Responsive Therapeutic Metallodrugs, Chem. Rev., 2019, 119, 1138–1192 CrossRef CAS PubMed.
  47. H. Mita, S. Hattori, T. Sasaki, S. Takamizawa and K. Shinozaki, Assembling of a Water-Soluble N^C^N-Coordinated Pt(II) Complex Aggregate Assisted by Carbon Dioxide in Basic Aqueous Solution, ChemSusChem, 2024, 17, e202301174 CrossRef CAS PubMed.
  48. Y. Ai, Y. Li, M. H.-Y. Chan, G. Xiao, B. Zou and V. W.-W. Yam, Realization of Distinct Mechano- and Piezochromic Behaviors via Alkoxy Chain Length-Modulated Phosphorescent Properties and Multidimensional Self-Assembly Structures of Dinuclear Platinum(II) Complexes, J. Am. Chem. Soc., 2021, 143, 10659–10667 CrossRef CAS PubMed.
  49. B. Li, Y. Li, M. H.-Y. Chan and V. W.-W. Yam, Phosphorescent Cyclometalated Platinum(II) Enantiomers with Circularly Polarized Luminescence Properties and Their Assembly Behaviors, J. Am. Chem. Soc., 2021, 143, 21676–21684 CrossRef CAS PubMed.
  50. E. A. Wood, L. F. Gildea, D. S. Yufit and J. A. G. Williams, Synthesis, Structures and Luminescence Properties of N^C^N-Coordinated Platinum(II) Complexes Based on an Anthracene Core: A Red Shift and a Twist, Polyhedron, 2021, 207, 115401 CrossRef CAS.
  51. A. F. Rausch, L. Murphy, J. A. G. Williams and H. Yersin, Improving the Performance of Pt(II) Complexes for Blue Light Emission by Enhancing the Molecular Rigidity, Inorg. Chem., 2012, 51, 312–319 CrossRef CAS.
  52. S.-L. Lai, W.-Y. Tong, S. C. F. Kui, M.-Y. Chan, C.-C. Kwok and C.-M. Che, High Efficiency White Organic Light-Emitting Devices Incorporating Yellow Phosphorescent Platinum(II) Complex and Composite Blue Host, Adv. Funct. Mater., 2013, 23, 5168–5176 CrossRef CAS.
  53. A. F. Rausch, L. Murphy, J. A. G. Williams and H. Yersin, Probing the Excited State Properties of the Highly Phosphorescent Pt(dpyb)Cl Compound by High-Resolution Optical Spectroscopy, Inorg. Chem., 2009, 48, 11407–11414 CrossRef CAS PubMed.
  54. P. Pander, A. V. Zaytsev, A. Sil, J. A. G. Williams, P.-H. Lanoe, V. N. Kozhevnikov and F. B. Dias, The Role of Dinuclearity In Promoting Thermally Activated Delayed Fluorescence (TADF) in Cyclometallated, N^C^N-Coordinated Platinum(II) Complexes, J. Mater. Chem. C, 2021, 9, 10276–10287 RSC.
  55. Y. Ai, Y. Fei, Z. Shu, Y. Zhu, J. Liu and Y. Li, Visible-Light-Controlled Ternary Chiroptical Switches with High-Performance Circularly Polarized Luminescence for Advanced Optical Information Storage and Anti-Counterfeiting Materials, Chem. Eng. J., 2022, 450, 138390 CrossRef CAS.
  56. Y. Ai, Z. Ni, Z. Shu, Q. Zeng, X. Lei, Y. Zhu, Y. Zhang, Y. Fei and Y. Li, Supramolecular Strategy to Achieve Distinct Optical Characteristics and Boosted Chiroptical Enhancement Based on the Closed Conformation of Platinum(II) Complexes, Inorg. Chem., 2023, 62, 10665–10674 CrossRef CAS PubMed.

Footnote

Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d4qi00957f
