Synthesis of stereoregular polymyrcenes using neodymium-, iron- and copper-based catalysts

Abstract

β-Myrcene was polymerized with catalysts based on pyridyl-imino complexes of neodymium, iron and copper. Highly stereoregular polymers were obtained: in particular, the neodymium-based catalyst gave highly cis-1,4 polymers (≥97%), while iron and copper catalysts gave a quite unusual structure in the field of stereospecific polymerization, that is, a predominantly alternating cis-1,4-alt-3,4 polymer containing cis-1,4 unit (five units) sequences within the polymer chain. Structural, thermal and mechanical characterization of the obtained polymers was carried out.

---

1. Introduction

In the last few decades, interest in renewable resource polymers has grown enormously within both the scientific and industrial communities, and this is essentially attributable to the fact that (i) fossil resources have finite availability and within the next century, they will be nearly depleted; (ii) the main oil-producing countries are generally characterized by political instability, which also leads to a considerable fluctuation in prices with an overall tendency to rise and (iii) the industrial activities associated with their transformation into commodity chemicals and polymers often cause significant environmental problems (e.g., accumulation of CO₂ in the atmosphere, global warming and dangerous climate change). With regard to the greater sustainability of industrial processes, the search for catalytic polymerization systems based on metals with a lower environmental impact and less toxicity than those currently used (e.g., Cr, Co, Ni) is also arousing considerable interest, as indicated, for instance, by the extensive scientific and patent literature on iron-based systems.

In this context, on the basis of the experience previously acquired in the field of the polymerization of conjugated dienes with iron-,^1–4 copper-^5,6 and neodymium-based catalytic systems,^3,7 we have now examined the polymerization of β-myrcene with catalysts based on pyridyl-imino complexes of neodymium, iron and copper.

β-Myrcene is a member of the large family of terpenes, which, due to its structural similarity to isoprene (I) and butadiene (B) and large availability, has recently attracted growing attention as a building block for the synthesis of a vast range of polymers, including the elastomer synthesis: polymers having cis-1,4, trans-1,4 and 3,4 structures have already been obtained and characterized (Fig. 1).^8–25

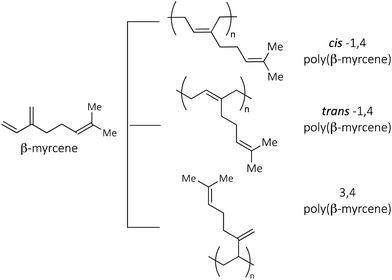

Fig. 1 Stereoregular poly(β-myrcene)s.

Highly stereoregular poly(myrcene)s, exhibiting somewhat unusual structures as regards the field of conjugated diene polymerization, were obtained, and their synthesis and characterization are reported in the present paper.

2. Experimental

2.1. General procedures and materials

Unless otherwise stated, manipulations of air- and/or moisture-sensitive materials were carried out under an inert atmosphere using a dual vacuum/nitrogen line and standard Schlenk-line techniques. Nitrogen was purified by passage over columns of CaCl₂, molecular sieves and BTS catalysts or by passage over the columns Alphagaz Purifiers O₂-Free and H₂O-Free (Air Liquide). Heptane (Merck, 99% pure) and toluene (Aldrich, >99.5%) were refluxed over Na for 8 h and then distilled and stored over molecular sieves. β-Myrcene (Merck, ≥90% pure) was refluxed over CaH₂ for 3 h, then distilled trap-to-trap and stored under dry nitrogen. Iron,⁴ copper⁶ and neodymium^3,7 complexes were prepared as already reported in the literature. Methylaluminoxane (MAO) (Aldrich, 10 wt% solution in toluene), tetraisobutylaluminoxane (TIBAO) (Akzo Nobel, 10 wt% solution in cyclohexane) and tetrachloroethane-d₂ (C₂D₂Cl₄) (Aldrich, >99.5% atom D) were used as received.

2.2. Polymerization

A standard procedure is reported. Myrcene was introduced into a 25 mL dried glass reactor, then the solvent (heptane or toluene) was added and the solution so obtained was brought to the desired polymerization temperature. MAO (or TIBAO) and the metal (Nd or Fe or Cu) complex were then added, as toluene (heptane in the case of neodymium) solution, in order. The polymerization was terminated with methanol containing a small amount of hydrochloric acid, and the polymer was coagulated and repeatedly washed with methanol, and then dried in vacuo at room temperature to constant weight.

2.3. Polymer characterization

FTIR spectra were acquired using a PerkinElmer Spectrum Two in attenuated total reflectance (ATR) mode in the spectral range of 4000–500 cm⁻¹. ¹³C and ¹H NMR measurements were carried out on a Bruker Avance 400 spectrometer, operating at 400 MHz for ¹H and 100.58 MHz for ¹³C. The spectra were obtained in C₂D₂Cl₄ at 103 °C (hexamethyldisiloxane, HMDS, as internal standard). The concentration of polymer solutions was about 10 wt%. ¹³C conditions: 10 mm probe, 14.50 μs as a 90° pulse, a relaxation delay of 18 s, and an acquisition time of 1.87 s. Proton broadband decoupling was achieved with a 1 D sequence using bi_waltz_16_32 power-gated decoupling. Two-dimensional heteronuclear ¹H–¹³C experiments were recorded on a Bruker DRX 600 MHz spectrometer thermostated at 330 K. The g-HSQC experiment (gradient-heteronuclear single quantum correlation) was performed by applying a coupling constant ¹J_CH = 140 Hz; data matrix 2 K × 512; number of scans: 128; 7.47 μs as a 90° pulse. The g-HMBC experiments (gradient-heteronuclear multiple bond correlation) were performed by applying a delay of 50 ms for the evolution of long-range coupling; data matrix 2 K × 512; number of scans 128; D1 2.00 s. Data were zero filled and weighted with a sine bell function before Fourier transformation. The microstructure of the resultant polymers was determined by ¹H and ¹³C NMR data, according to the literature.^8,13,16,19 The average molecular weight (M_w) and the molecular weight distribution (M_w/M_n) were obtained using a high-temperature Waters GPCV2000 size exclusion chromatography (SEC) system equipped with a refractometer detector. The experimental conditions consisted of three PL Gel Olexis columns, ortho-dichlorobenzene as the mobile phase, 0.8 mL min⁻¹ flow rate, and 145 °C. The calibration of the SEC system was performed using eighteen narrow M_w/M_n poly(styrene) standards with M_ws ranging from 162 to 5.6 × 10⁶ g mol⁻¹. For SEC analysis, about 12 mg of polymer was dissolved in 5 mL of ortho-dichlorobenzene with 0.05% of BHT as an antioxidant.

Details of the characterization of the structure by X-ray diffraction and calorimetry and the analysis of the mechanical properties are reported in the ESI.†

3. Results and discussion

3.1. Polymerization of myrcene with Nd-catalysts

Catalysts obtained by combining the neodymium complex Nd1 (Fig. 2) with tetraisobutylaluminoxane (TIBAO) provided isoprene polymers with a very high cis-1,4 content (≥97%) and molecular weight;^3,7 given the similarity between isoprene and myrcene, both of which are isoprenoids, we expected similar results in the case of myrcene, as actually revealed.

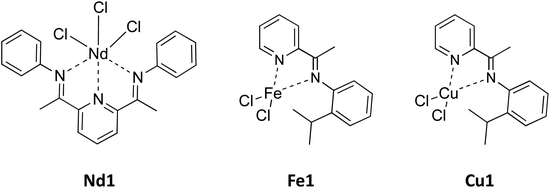

Fig. 2 Neodymium (Nd1), iron (Fe1) and copper (Cu1) complexes used in this work.

Poly(myrcene) with a rather high molecular weight, narrow polydispersion and extremely high cis-1,4 content (around 97%) was obtained, as shown by their FT-IR (Fig. SI_1†), ¹H (Fig. SI_2†) and ¹³C NMR spectra (Fig. SI_3† and Fig. 4) (Table 1). The glass transition temperature was about −60 °C, quite similar to that of natural rubber. The catalyst activity was rather low, although complete monomer conversions could be achieved.

Table 1 Polymerization of β-myrcene with neodymium, iron and copper complex-based catalysts^a

Entry	Mt_complex (μmol)	Al_type	Al/Mt	Time (h)	Yield (g)	Conv. %	cis-1,4^b (%)	3,4^b (%)	M w ^c (kg mol^–1)	M w/Mn ^c	T g ^d (°C)
a Polymerization conditions: toluene as solvent (heptane in entry 1), total volume 16 mL; myrcene, 2 mL; 22 °C. b Percentage of cis-1,4, and 3,4 units determined by ^1H and ^13C NMR. c Average molecular weight (Mw, in kg mol^−1) and molecular weight distribution (Mw/Mn) by SEC. d Glass transition temperature (Tg) by DSC.
1	Nd1 (10)	TIBAO	1000	46	1.39	87.9	97	3	319	2.4	−65
2	Fe1 (10)	MAO	100	1/4	1.17	74.0	68	32	109.6	2.0	−57
3	Cu1 (20)	MAO	500	48	0.59	37.3	67	33	261.8	2.0	−56

---

3.2. Polymerization of myrcene with an Fe-catalyst

The catalytic system Fe1/MAO was reported to provide predominantly syndiotactic 1,2 polybutadienes^3,4 and predominantly alternating cis-1,4-alt-3,4 polyisoprenes containing cis-1,4 sequences (three units) within the polymer chain.^3,4 Again, given the similarity between isoprene and myrcene, we expected similar results from the polymerization of myrcene with the same catalysts, and actually poly(myrcene) with a mixed cis-1,4/3,4 (68 : 32) structure (Fig. SI_1, SI_2, and SI_3†) was obtained, with the iron system exhibiting extremely high activity (Table 1), much higher with respect to that exhibited by the neodymium system. The polymer molecular weight was around 110 kg × mol⁻¹ with a polydispersion of 2, and the glass transition temperature (T_g) was about −57 °C. The distribution mode of the cis-1,4 and 3,4 units along the polymeric chain turned out to be quite regular but at the same time rather unusual for the stereospecific polymerization field. The poly(myrcene) obtained with the Fe1-based catalyst was in fact characterized by an alternating cis-1,4-alt-3,4 structure in which, however, long cis-1,4 unit sequences (five units) can be detected within the polymer chain (Fig. 3), as suggested by the NMR (¹H, ¹³C and 2D) analysis of the polymer reported below in the Polymer characterization section.

Fig. 3 Predominantly alternating (cis-1,4)-alt-3,4 poly(myrcene) containing “long” cis-1,4 sequences (five units) along the polymer chain, obtained with the Fe1/MAO and Cu1/MAO systems. The structure shown can be considered as the repeating unit of the polymer chain. Structure (I) represents a cis unit involved in an alternating 3,4-(cis-1,4)-3,4 sequence; structure (II) represents a cis unit involved in a homopolymer (cis-1,4)-(cis-1,4)-(cis-1,4) sequence; structure (III) is a cis unit involved in a 3,4-(cis-1,4)-(cis-1,4) sequence; structure (IV) is a cis unit involved in a (cis-1,4)-(cis-1,4)-3,4 sequence.

3.3. Polymerization of myrcene with a Cu-catalyst

The Cu1/MAO system provided from myrcene a polymer whose ¹³C NMR spectrum (Fig. S3†) was perfectly superimposable on that of iron poly(myrcene), clearly indicating a perfectly identical polymeric structure, that is, a highly stereoregular alternating cis-1,4-alt-3,4 structure in which long cis-1,4 unit sequences (five units) are present within the polymer chain. The polymer molecular weight was about 262 000 g × mol⁻¹ with a polydispersion of 2, and the glass transition temperature (T_g) was about −56 °C. The activity of the copper system resulted to be much lower with respect to that of the iron system, and this could be attributed to the different structures of the active centers in the case of iron and copper, as shown below in section 3.7.

3.4. Polymer characterization

The FT-IR spectra of the three different poly(myrcene)s obtained with neodymium-, iron- and copper-based catalysts are shown in Fig. SI_1.† Absorptions at 827 cm⁻¹ and 888 cm⁻¹ are indicative of the presence of 1,4 and 3,4 units, respectively. The band at 1375 cm⁻¹ is indicative of the presence of 1,4 units with a cis structure, with the typical absorption of the trans-1,4 unit band at 1385 cm⁻¹ being not detectable. This means that in poly(myrcene) from Nd almost exclusively cis-1,4 units are present, while in poly(myrcene)s from iron and copper both 3,4 and cis-1,4 units can be detected. The amount of cis-1,4 and 3,4 units was calculated from the ¹H NMR spectra (see Fig. SI_2†), according to that reported in the literature.^16,19 The cis content of the Nd-poly(myrcene) resulted to be about 97%, while in the Fe- and Cu-poly(myrcene), it was about 70%, with the remaining units being exclusively 3,4. The attribution of the peaks in the case of the neodymium cis polymer was carried out on the basis of what has already been reported in the literature, and it is shown in Fig. 4 (C9, 15.72 ppm; C10, 23.56 ppm; C4, 25.00 ppm; C5, 25.35 ppm; C6, 29.01 ppm; C1, 35.11 ppm; C7, 122.90 ppm; C3, 123.05 ppm; C8, 128.99 ppm; and C2, 137.28 ppm). The attribution of the peaks was instead clearly more complicated in the case of poly(myrcene)s from iron- and copper-based catalysts (Fig. 4; peaks corresponding to the C9 carbons and C1 of the 3,4 units are not shown, just to make all the other peaks clearer and more visible. The complete spectra are however reported in ESI Fig. SI_4†), even if the presence of extremely sharp peaks and their distribution immediately directed us towards a rather regular structure, very similar to those found in the case of the poly(isoprene)s previously synthesized by us with the same iron and copper catalytic systems. We therefore hypothesized an alternating cis-1,4-alt-3,4 structure containing long cis-1,4 unit sequences within the polymeric chain (five units, with the cis/3,4 molar ratio of about 70/30) (Fig. 3) and then checked this hypothesis through an accurate NMR analysis (¹³C and two-dimensional experiments).

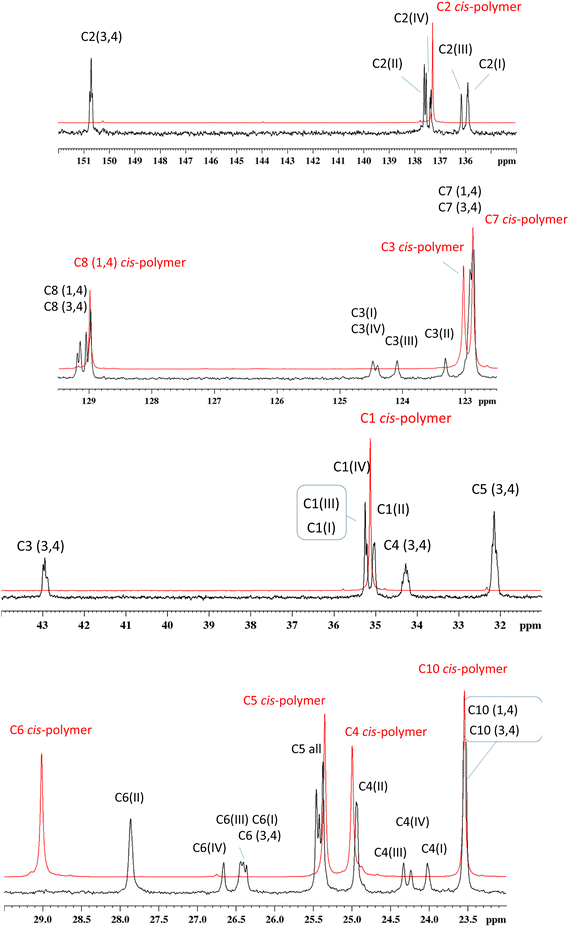

Fig. 4 Assignment of the peaks in the ¹³C NMR spectra of Nd-polymyrcenes (in red) and Fe-polymyrcenes (in black).

The polymer microstructure was deeply investigated through two-dimensional ¹H–¹³C HMBC experiments, (heteronuclear multiple bond correlation in Fig. SI_5†) and crucial were the long-term correlations among protons and carbons. In detail, carbon atoms from C7 to C10 have the same chemical shifts for both 3,4- and cis-1,4 myrcene units, independent of the comonomer sequences (see Fig. 4). They were assigned starting from the ¹H–¹³C long-term correlations of methyl groups shown in Fig. SI_5,† as follows: C9 at 15.70 ppm; C10 at 23.54 ppm; C7 at 122.88–122.92 ppm; C8 at 128.98–129.17 ppm. Assignment of the 3,4 unit carbons was done in the same way, but starting from the correlations of the olefinic H1 protons at 4.67 ppm (Fig. 5 and Fig. SI_6†), which are as follows: C1 at 107.05 ppm; C2 at 150.72 ppm; C3 at 42.96 ppm; C5 at 32.15 ppm. It is evident that only one signal was observed for each of the two olefin carbons of a myrcene unit having a 3,4 structure, indicating that the 3,4 unit experiences only one type of environment. Finally, to complete the assignment of the 3,4 myrcene unit, C4 was positioned at 34.28 ppm and C6 at 26.5–26.30 ppm.

Fig. 5 Expanded spectral region of ¹H–¹³C HMBC of poly(myrcene) obtained with the Fe-based catalyst, @600 MHz and 330 K, evidencing peculiar correlations.

Apart from this first quite easy assignment, the remaining carbon atoms were assigned step by step due to the complex pattern of almost superimposed signals from Fig. SI_5.† C3 of a cis-1,4 unit (I) involved in an alternating 3,4-(cis-1,4)-3,4 sequence was assigned at 124.40 ppm; C3 of a cis 1,4 unit (IV) at 124.48 ppm; C3 (III) at 124.1 and C3 (II) at 123.3 ppm. The differentiation among the olefinic CH atoms (C3 and all the C7 in the spectral region between 122 and 125 ppm) was made considering the absence of correlations in Fig. SI_6† between C3 and the protons of the methyl groups (C9 and C10). Moving on to the assignment of the cis-1,4 units, C2 (I) was assigned at 135.91 ppm, C2 (III) at 136.16 ppm, C2 (IV) at 137.38 ppm and C2 (II) at 137.59 ppm, while the C5 of all units was positioned between 25.46 and 25.38 ppm. The C1 of cis-1,4 units (II) was assigned at 35.04 ppm; C1 (IV) at 35.21 ppm, and C1 (I) and (III) at 35.26 ppm. Once the chemical shift of C1 and its protons was known, the (cis-1,4)-3,4 sequence was verified by observing the presence of a correlation among the H1 protons of the cis-1,4 unit (at 1.86 ppm) with the C2 of the 3,4-unit at 150.72 ppm and with the C3 at 42.96 ppm (Fig. SI_5†). After all, for the assignment of comonomer sequences, the proton spectral region between 4.9 and 5.1 ppm in the HMBC spectrum (Fig. 5) played a crucial role, even if it was very hard to solve considering that at 0.15 ppm, four protons can be found (H7 for both 3,4- and 1,4-myrcene units and H3 for the 1,4-myrcene units involved in (I), (II), (III), and (IV) sequences, correlating with more than 12 carbons in the F1 dimension).

3.5 Structural and thermal characterization

The X-ray diffraction profiles of the as-prepared samples of poly(myrcene)s, listed in Table 1, prepared with Nd1, Fe1 and Cu1 catalysts are reported in Fig. 6A. All three samples show diffuse scattering with two broad maxima at 2θ = 7° and 18°, indicating that the samples are amorphous, although the NMR characterization seems to suggest a remarkable stereoregularity of the polymers. The lack of crystallinity is likely to be attributed to the presence of rather long pendants/side chains (Fig. 3), preventing crystallization in some way. In fact, either the sample with an essentially cis-1,4 structure prepared with Nd1, or the samples with prevalent alternating cis-1,4-alt-3,4 structures and long sequences of cis-1,4 units prepared with Fe1 and Cu1, present long pendant chains even in the regular cis-1,4 units that prevent crystallization. The diffraction profiles of the compression-molded samples prepared by heating the as-polymerized samples at a temperature of 120 °C under a press at low pressure and successive slow cooling to room temperature are shown in Fig. 6B. All samples still show diffuse scattering, indicating that no crystallization occurs upon slow cooling after annealing at high temperature.

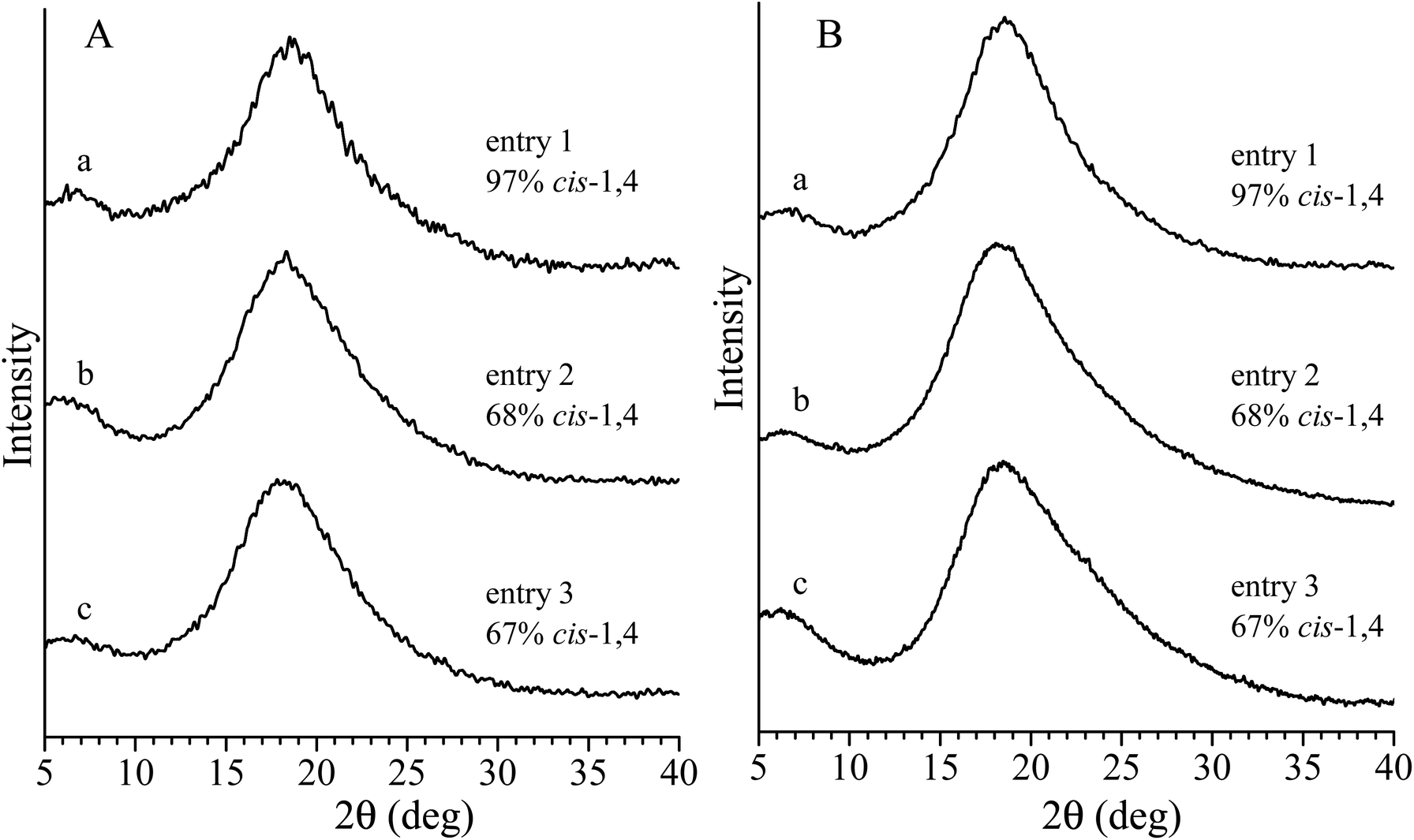

Fig. 6 X-ray powder diffraction profiles of the as-prepared (A) and compression-molded (B) samples of poly(myrcene)s of entry 1 (a), entry 2 (b) and entry 3 (c) of Table 1 prepared with the catalysts Nd1, Fe1 and Cu1, respectively.

The DSC curves of the amorphous as-prepared samples of poly(myrcene)s recorded during heating of the as-prepared samples up to 120 °C, cooling down to −100 °C and successive second heating are shown in Fig. 7. All curves show only a glass transition temperature at low temperature (lower than −50 °C) and the absence of any endothermic or exothermic signals. The exact values of the glass transition temperature have been evaluated in the DSC cooling and successive heating curves recorded at the same scanning rates to avoid hysteresis phenomena (Fig. 7 and Table 1). The value of glass transition temperature depends on the molecular structure and, in particular, on the concentration of cis-1,4 units, and decreases with increasing concentrations of cis-1,4 units. Samples of entries 2 and 3 with 67–68% of cis-1,4 units and characterized by prevalent alternating cis-1,4/3,4 structures, prepared with iron- and copper-based catalysts, show a glass transition temperature of −56/−57 °C, while the sample of entry 1 with 97% of cis-1,4 units prepared with a neodymium-based catalyst shows the lowest glass transition temperature of about −65 °C.

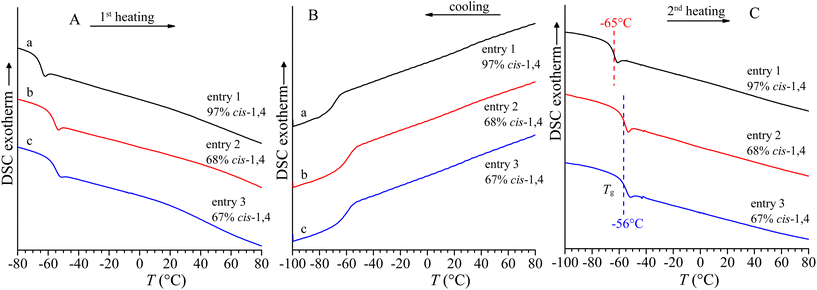

Fig. 7 DSC curves recorded during heating of the as-prepared samples (A), cooling (B) and successive heating (C) at 10 °C min⁻¹ scanning rate of samples of poly(myrcene)s of entry 1 (a), entry 2 (b) and entry 3 (c) prepared with the catalysts Nd1, Fe1 and Cu1, respectively.

3.6 Mechanical properties

Compression molded films of poly(myrcene) samples, as listed in Table 1, have been prepared by heating the as-prepared powder samples up to 120 °C under a press at low pressure and slowly cooling down to room temperature. The stress–strain curves of compression-molded films of the three samples of poly(myrcene)s prepared with the three catalysts Nd1, Fe1 and Cu1 are reported in Fig. 8. All samples show mechanical behavior typical of amorphous polymers with low modulus and stress values at any strain. Moreover, the samples show uniform deformation without evident yielding up to achieve maximum values of stress at deformations in the range 200–400%. At higher deformations, the samples experience viscous flow without breaking up to 600–800% strain (Fig. 8). In particular, the sample with an almost regular cis-1,4 structure (97% of cis-1,4 units) and the lowest glass transition temperature, prepared with the neodymium catalyst, shows lower modulus, stress and tensile stress values with remarkably higher ductility. This is due to the almost complete conformational freedom of the single bonds adjacent to the double bonds that results in higher flexibility and easier deformability and a lower modulus and stress, compared to microstructures with high concentrations of 3,4 units. The values of the mechanical parameters are reported in Table 2.

Fig. 8 Stress–strain curves of compression molded films of samples of poly(myrcene)s of entry 1 (a), entry 2 (b) and entry 3 (c) of Table 1, prepared with the catalysts Nd1, Fe1 and Cu1, respectively.

Table 2 Composition, molecular mass (M_w), polydispersion (M_w/M_n), glass transition temperature (T_g), average values of Young's modulus (E), deformation at break (ε_b), stress at break (σ_b) and maximum stress before viscous flow (σ_b(max)) evaluated from the stress–strain curves of Fig. 8 of the compression-molded films of poly(myrcene)s obtained with catalysts Nd1, Fe1 and Cu1

Entry	Mt	cis-1,4 (%)	3,4 (%)	M w (kg mol^−1)	M w/Mn	T g ^a (°C)	E (MPa)	ε b (%)	σ b (MPa)	σ b(max) (MPa)
a Glass transition temperature evaluated from the DSC heating curves of Fig. 7C recorded at a heating rate of 10 °C min^−1.
1	Nd	97	3	319	2.4	−65	0.21 ± 0.02	700 ± 150	0.02 ± 0.01	0.08 ± 0.03
2	Fe	68	32	109.6	2.0	−57	0.42 ± 0.04	361 ± 97	0.09 ± 0.03	0.15 ± 0.02
3	Cu	67	33	261.8	2.0	−56	0.62 ± 0.01	240 ± 70	0.12 ± 0.03	0.21 ± 0.02

---

3.7. Some mechanistic considerations

The particular and somewhat unusual structure of the poly(myrcene)s described in the present paper and the different behaviors exhibited by the Nd-, Fe-, and Cu-based catalysts towards butadiene, isoprene, and myrcene lead us to formulate the following remarks:

(a) Fe1/MAO and Cu1/MAO give (i) essentially alternating cis-1,4-alt-3,4 polymers, in which, however, long cis-1,4 sequences (5 units) are present within the polymer chain, from myrcene; (ii) essentially alternating cis-1,4-alt-3,4 polymers, in which, however, short cis-1,4 sequences (3 units) are present within the polymer chain, from isoprene;^3,4 (iii) predominantly syndiotactic 1,2 polymers from butadiene,^3,4 with some cis-1,4 units randomly distributed along the polymer chain. This experimental evidence confirms once more the importance of the monomer structure, and also indeed of the last units of the growing chain, in determining the polymerization selectivity.^2,3,26

(b) What is stated above, however, is not always true, since Nd1/TIBAO invariably supplies high cis polymers from butadiene, isoprene and myrcene. This means that the polymer microstructure is always the result of the combination of two main factors, namely the catalytic structure and the monomer structure; sometimes one of the two factors may clearly prevail, making the influence of the other factor practically negligible. In the case of the polymerization of myrcene with the Nd-catalyst, the polymerization mechanism is likely the classical one already reported for other dienes (Fig. 9), with the monomer cis-η⁴ coordinated to the Nd atom, the growing chain bonded to the Nd-atom through an anti-η³-allyl bond and the insertion of the incoming monomer onto the C3 of the anti η³-allyl unit giving rise to a cis-1,4 unit.

Fig. 9 Scheme of the formation of cis-1,4 units in the polymerization of myrcene with the Nd-based catalyst.

(c) We have said above that a rather unusual polymer structure was obtained from β-myrcene with the iron- and copper-based catalysts. In our previous paper,⁴ we reported on the polymerization of isoprene with the same iron-based catalyst to give a polymer having a similar structure, that is, an essentially alternating cis-1,4-alt-3,4 polymer, in which short cis-1,4 sequences (3 units) are present within the polymer chain. We had also proposed a possible mechanism for the formation of such an unusual polymer, and we now believe that such a mechanism (Fig. 10) can be re-proposed to account for the formation of a poly(myrcene) having an essentially alternating cis-1,4-alt-3,4 structure, in which, however, long cis-1,4 sequences (5 units) are present within the polymer chain. This scheme of mechanism illustrates, in our opinion, in a plausible way, the subsequent coordination and insertion of myrcene that can lead to the formation of the polymer described in the present paper, even if we realize it does not clarify the reason for the formation of these monomeric sequences (10 units) so regular as to constitute the repeating unit of the polymer itself. In this regard, computational studies could perhaps be of great help.

Fig. 10 A possible formation mechanism for the predominantly alternating cis-1,4-alt-3,4 poly(myrcene) containing long cis-1,4 sequences (five units) within the polymer chain.

(d) The catalytic activity of the iron system is much higher than that of the copper system. A plausible explanation for such a difference could be the following: in the case of the iron-based catalyst, the structure of the active center is likely that shown in Fig. 11(a), with the ligand coordinated to the iron atom, the diene cis-η⁴ coordinated and the growing chain linked to the metal atom through an allyl bond. Such a structure is not possible in the case of the copper-based system, as we would have three electrons in excess of those allowed according to the 18 electron rule.

Fig. 11 Possible active site structures.

As already reported in our previous work, we can hypothesize different structures for the catalytic center in the case of the copper catalyst, as shown in Fig. 11(b) and (c).

Myrcene can coordinate cis-η⁴ with both double bonds, but, in this case, the ligand must have migrated entirely on methylaluminoxane (Fig. 11c), or it can coordinate with only one double bond (trans-η²), and in this case, the ligand can remain coordinated to the copper atom with only one donor atom (Fig. 11b).

A sort of equilibrium can be hypothesized between form (b), with the monomer trans-η² coordinated and the ligand coordinated with only one nitrogen atom, and form (c), with the monomer cis-η⁴ coordinated and the ligand onto MAO, with the formation of 1,2 (3,4) units (form (b), through insertion of the incoming monomer to the C3 of the allyl group) rather than cis-1,4 (form (c), through insertion of the incoming monomer to the C1 of the allyl group) depending on whether the equilibrium is more shifted towards form (b) or form (c), respectively.

The formation of these active centers with different structures and the oscillation between forms (b) and (c) could be responsible for a lower rate of polymerization, such as to justify the considerable difference in the catalytic activity between iron- and copper-based systems. However, the fact that catalytic centers with different structures (in the case of iron- and copper-based catalysts) can supply the same polymer would seem to indicate that in this case the determining factor of the polymerization stereoselectivity is likely the monomer structure.

4. Conclusion

Highly stereoregular polymers were obtained from myrcene using neodymium, iron and copper organometallic complexes, having a well-defined structure, in combination with methylaluminoxane.

In particular, highly cis-1,4 polymers have been obtained with neodymium-based systems, while polymers having a rather unusual structure as regards the stereospecific polymerization of conjugated dienes, that is, a mainly alternating cis-1,4-alt-3,4 structure, but with regular cis-1,4 sequences (5 units) along the polymer chain, were obtained by means of iron and copper catalysts. The polymers have generally high molecular weights and glass transition temperature values of around −60 °C, similar to those of natural rubber, which makes them of potential interest for possible use as elastomers.

The polymers are amorphous, despite the high degree of stereoregularity exhibited, as indicated by NMR analysis. The lack of crystallinity is probably due to the presence of rather long pendants/side chains even in a rather regular molecular structure that prevents crystallization. In fact, either the sample with a prevalent cis-1,4 structure prepared with Nd1 or the samples with prevalent alternating cis-1,4-alt-3,4 structures and long sequences of cis-1,4 units prepared with Fe1 and Cu1 present long pendant chains even in the regular cis-1,4 units that prevent crystallization.

As a consequence, the samples show the mechanical behavior of soft materials with uniform deformation without evident yielding up to achieve maximum values of stress at deformations in the range 200–400%. At higher deformations, the samples experience viscous flow without breaking up to 600–800% strain.

Finally, the different behaviors exhibited by the Fe1/MAO and Cu1/MAO systems towards butadiene, isoprene and myrcene represent a further confirmation of the remarkable influence of the monomer structure on the polymerization selectivity.
