P-Stereodefined morpholino dinucleoside 3′,5′-phosphorothioates

Abstract

Here, we present for the first time the synthesis of P-stereodefined morpholino phosphorothioate analogs by using a modified 1,3,2-oxathiaphospholane method (OTP method) and provide valuable structural insights into their stereochemistry. N-(2-Thio-4,4-pentamethylene-1,3,2-oxathiaphospholane) derivatives of morpholino-type nucleosides (mU-OTPs) were synthesized, separated into pure P-diastereomers and used to prepare P-stereodefined morpholino dinucleoside 3′,5′-phosphorothioates.

---

Introduction

Recently, Caruthers’ lab has successfully developed a strategy for the chemical synthesis and preparation of a new class of synthetic molecules called thiophosphoramidate morpholinos (TMOs) using phosphoramidite chemistry.¹ These TMOs contain two moieties, namely a phosphorothioate (PS) and a morpholine ring, and have been tested in the oligotherapeutics arena.² Dumbović et al. and Le et al. have described how these P-stereorandom TMO constructs exhibit interesting biological properties with considerable therapeutic potential.^3,4

Recent reports have shown that stereoisomerically pure PS oligos have better in vitro and in vivo efficacy than their diastereomeric mixture.⁵ Therefore, from the racemic mixtures of thousands of diastereomeric species, only a few molecules may represent functional and hopefully non-harmful species, of which only some are active. Identifying the most active stereoisomers requires the development of stereodefined synthesis of oligonucleotide drugs, which allows lower doses with more potent compounds. Many stereopure PS oligonucleotides are currently in clinical development at Wave Life Sciences.⁶ Wave is a leading genetic drug company focused on exploiting the potential of stereopure oligonucleotides to treat diseases of the central nervous system,⁷ liver⁸ and eyes.⁹ Therefore, the stereoselective synthesis of potential drug candidates is an important goal to achieve.

The increased interest in the stereocontrolled chemical synthesis of phosphorothioate analogs has prompted us to adapt the 1,3,2-oxathiaphospholane (OTP) method for the synthesis of P-stereodefined morpholino phosphorothioate analogs (Fig. 1). The OTP method, as developed by Stec et al.,^10,11 has already been successfully used for the stereocontrolled synthesis of PS-DNA, PS-LNA (Locked Nucleic Acids),^12,13 PS-GNA (Glycol Nucleic Acids),¹⁴ PS-RNA and PS-(2′-OMe) RNA phosphorothioate analogs.¹⁵ Recently, we extended the OTP method and applied TBD and Verkade bases, which can be successfully used instead of DBU.¹⁶

Fig. 1 Schematic representation of P-stereodefined morpholino dinucleoside 3′,5′-phosphorothioates.

Herein, we describe the synthesis and HPLC separation of mU-OTPs (2) into pure P-diastereomers (2afast- and 2bslow-eluting), as well as the successful crystallographic analyses of the above-mentioned monomers.

These P-diastereomerically pure monomers 2a and 2b were then used for the synthesis of P-stereodefined dinucleotides 4a and 4b (Scheme 1) and their enzymatic stability were tested. X-ray analysis of 5b showed the S_P absolute configuration of the phosphorus atom.

Scheme 1 The synthesis of morpholino OTP and mU_PST dinucleotides. 2a: (fast); 2b: (slow); 3a: (from 2a); 3b: (from 2b); 4a: (from 2a); 4b: (from 2b); 5a: (from 4a); and 5b: (from 4b). Conditions: (i) cat. NaHSO₄/SiO₂ in CH₃CN; (ii) 1.5 eq. of Verkade base and 2 eq. of 3′-O-acetyl-2′-deoxythymidine in CH₃CN; (iii) 1.5% dichloroacetic acid (DCA) in CH₂Cl₂, NH₄OH, and rt.

Results and discussion

Preparation of P-diastereomerically pure oxathiaphospholane derivatives of morpholino nucleosides (mU-OTPs)

The morpholino nucleoside of uridine (mU, 1) was synthesized according to published literature protocols.¹ Briefly, 5′-O-dimethoxytrityl ribonucleoside (Scheme 2) was oxidatively converted into an acyclic dialdehyde derivative, followed by reductive amination.

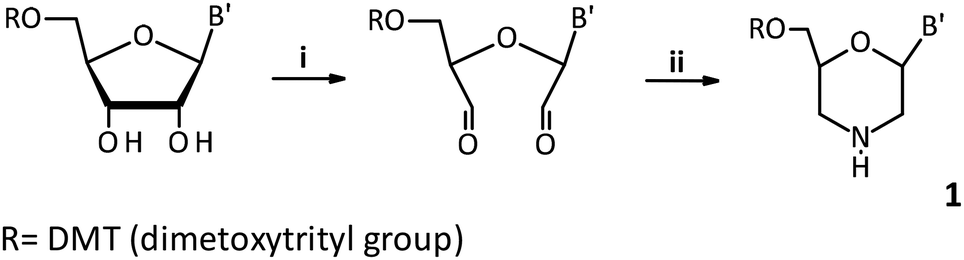

Scheme 2 (i) NaIO₄ (1.2 equiv.), anhydrous methanol, and 3 h; (ii) (NH₄)₂B₂O₇ (1.2 equiv.), NaCNBH₃ (2.0 equiv.), CH₃COOH (2.0 equiv.), and 16 h.

Then, the morpholino oxathiaphospholane monomer (mU-OTP, 2) was synthesized according to a recently published protocol.¹⁶ The oxathiaphospholane monomers mU-OTPs (2) were synthesized according to a general procedure published for the synthesis of standard OTP monomers. Briefly, the overnight dried morpholino nucleoside was phosphitylated with 2-chloro-“spiro”-4,4-pentamethylene-1,3,2-oxathiaphospholane, followed by sulfurization with elemental sulfur. The monomer 2 (as a mixture of P-diastereomers) was obtained with a reasonable yield (∼80%). The P-diastereomers were formed in nearly equimolar amounts: ca. 55% of fast-(2a) and 45% of slow-eluting (2b) P-diastereomers, as indicated by ³¹P NMR, respectively (Fig. S2 and S3, ESI†). The P-diastereomers were separated by preparative HPLC (Fig. S4, ESI†) using a silica gel column and their diastereomeric purity was confirmed by ³¹P NMR, ¹H NMR, ¹³C NMR (Fig. S5–S10, ESI†) and HRMS (Fig. S11 and S12, ESI†).

Additionally, ³¹P NMR analysis showed that the fast-eluting isomer had higher chemical shifts than its slow-eluting counterpart, which is opposite to the OTP derivatives of 2′-deoxyribonucleosides and LNA-OTP analogs (Table 1). Interestingly, the correlation is identical to that observed for the OTP derivatives of 2′-OMe-ribonucleosides and 3′-amino-2′,3′-dideoxyribonucleosides.¹⁷

Table 1 Chromatographic and spectroscopic characteristics of the morpholino oxathiaphospholane monomer mU-OTP (2) and its P-diastereomers (2a and 2b)

mU-OTP
Yield^a (%)	77
R f (TLC)^b	0.76
Eluent for HPLC separation^c (v/v)	Hexane : ethyl acetate (45 : 55)
MM calc. (Da)	735

---

For mU-OTP	Fast	Slow
a Yield of the isolated mixture of P-diastereomers. b CHCl3 : MeOH (9 : 1). c Separation of P-diastereomers at an AcOEt : hexane ratio (v/v), isocratically. d Pursuit XRs silica gel column (10 μm, 250 × 21.2 mm, flow rate 10 mL min^−1, and isocratically). e Recorded with a SYNAPT G2-Si high definition mass spectrometer. f In anhydrous CD3CN.
R t (min)^d	21	30
HR MS^e (m/z)^e	734.2134	734.2133
δ ^31P NMR^f (ppm)	100.29	100.22

---

X-ray crystallography analysis of the 6′-OH oxathiaphospholane monomer mU-OTPs

In order to gain structural insights into the stereochemistry of P-stereodefined morpholino analogs, we studied the crystalized structures of 3a/3b and the morpholino dinucleoside 3′,5′-phosphorothioates. Here, we present for the first time the X-ray crystal structures of separated P-diastereomers with their determined absolute configuration. Crystallization attempts with DMT-labeled OTP derivatives were however unsuccessful. Based on previous experience with the crystallization of oxathiaphospholane derivatives in the DNA¹¹ and LNA series,¹² we decided to remove the DMT group in mU-OTPs to obtain mU derivatives. Detritylation was carried out in anhydrous acetonitrile using a sodium hydrogen sulfate suspension deposited on silica gel.¹⁸ Crystals suitable for X-ray analysis were obtained from the 6′-OH deprotected fast- and slow-eluting monomers, respectively. Crystals suitable for diffraction experiments were obtained by slow evaporation of the solvent. Single colorless transparent prism-shaped crystals of 3a were obtained by recrystallization from a mixture of acetonitrile and methanol (2 : 1 v/v), while 3b was recrystallized from a mixture of chloroform and methanol (1 : 1 v/v), yielding colorless, needle-shaped crystals (Fig. S13 and S14, ESI†). Suitable crystals of 3a and 3b with dimensions of 0.57 × 0.57 × 0.28 mm and 0.67 × 0.15 × 0.10 mm, respectively, were selected and mounted on a suitable support on an XtaLAB Synergy Dualflex HyPix diffractometer. The crystals were maintained at a steady T = 293.88(10) K during data collection. The structures were solved using the ShelXT¹⁹ structure solution program and the intrinsic phasing solution method and by using Olex2 ²⁰ as the graphical interface. The models were refined with version 2018/3 of ShelXL²¹ using least squares minimization. The crystal data and refinement parameters for 3a and 3b are collected in Tables S1–S6 (ESI†).

Crystallographic analysis showed that fast- (Fig. 2a) and slow-eluting (Fig. 2b) isomers of mU-OTP have the P-atom in the R_P and S_P absolute configurations (Fig. 2c), respectively (according to the Cahn–Ingold–Prelog rules, the endocyclic sulfur atom has a higher priority than the exocyclic one).

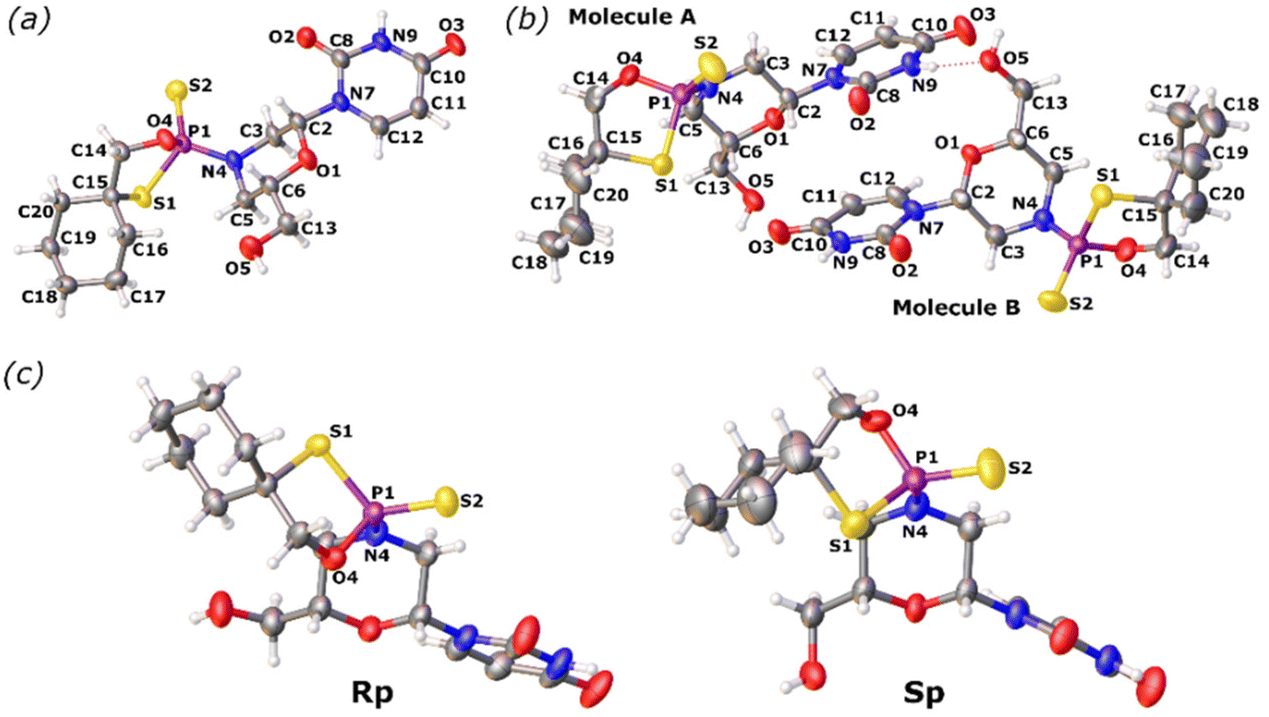

Fig. 2 X-ray ORTEP diagrams of (a) the 6′-OH fast-eluting P-diastereomer of 3a and (b) the 6′-OH slow-eluting P-diastereomer of 3b, showing (c) the R_P and S_P absolute configurations, respectively. Colors: red: oxygen, blue: nitrogen, yellow: sulfur, and purple: phosphorus. CCDC: (a) 2079450 and (b) 2079449.†

Stereocontrolled synthesis of morpholino dinucleoside phosphorothioate mU_PST through the oxathiaphospholane approach

To study and optimize the coupling reaction (Scheme 1(ii)), we investigated the reactivity of morpholino oxathiaphospholane monomer 2 (as a mixture of P-diastereomers) towards 3′-O-acetyl-2′-deoxythymidine in the presence of various activators by performing ³¹P NMR spectroscopy. Here, it should be emphasized that mixtures of P-diastereomers and non-deuterium acetonitrile were used to optimize the synthetic protocol. The reactions were carried out at room temperature with 1 equivalent of monomer 2 and 1.5 equivalents of 3′-O-acetyl-2′-deoxythymidine in dry acetonitrile in the presence of various activators. First, the optimization was carried out using the standard conditions of the oxathiaphospholane method, namely with 1.2 DBU equivalents. After 15 minutes, roughly 90% of the reaction mixture consisted of unreacted starting material 2 (δ: 100.79, 100.08 ppm; Fig. S15, ESI†). After 60 minutes, the conversion reaction was not complete (Fig. S17, ESI†). Attempts to increase the yield by extension of the coupling time or increasing the DBU concentration were unsuccessful. Since longer reaction times led to other by-products, we decided to utilize TBD²² instead of DBU. With 1.2 eq. of TBD, we observed the formation of a major product 4, which showed two resonance signals at around 61 ppm in the ³¹P NMR spectrum and was accompanied by significant amounts of unreacted substrate and a phosphate moiety, which can be seen as a signal at 45 ppm (9%) (Fig. S18, ESI†). After 45 minutes, the substrate disappeared completely with the formation of the major product 4, accompanied by a considerable amount of a minor product (20%, 45 ppm, Fig. S19, ESI†). When a reaction was performed with 5 eq. of TBD, the same result was observed within 15 minutes. Further research demonstrated that the best activator for synthesizing the P-stereodefined phosphorothioate of morpholino analogs (4) using the OTP method proved to be the Verkade base (Vb). Using 1.5 equivalents of Vb, the reaction proceeded very rapidly (15 minutes) and ³¹P NMR showed the presence of only one major product 4 (Fig. S20, ESI†). These results suggest that the formation of an internucleotide phosphorothioate linkage involving the morpholino nucleoside via the oxathiaphospholane route is highly efficient and stereocontrolled.

The synthesis of P-stereodefined phosphorothioate dinucleotides mU_PST was next carried out on a semi-preparative scale. Pure P-diastereomers fast- (3a) and slow-eluting (3b) were reacted with 3′-O-Ac-Thy in the presence of Vb to yield the corresponding protected dinucleotides mU_PST (4a and 4b, Scheme 1), which were isolated using silica gel of a Reveleris Flash Chromatography system and analyzed by ³¹P NMR and HRMS (yield around 70%, Fig. S21 and S22, ESI†).

X-ray analysis of the 6′-OH dinucleotide mU_PST

Since X-ray analysis worked best when using detritylated P-diastereomers of fast- (3a) and slow-eluting (3b), further analyses were performed with 5a and 5b in order to complete the stereochemical assignments of the P-diastereomeric diesters. The DMT moiety was removed with 1.5% aqueous dichloroacetic acid (DCA) in dichloromethane over 10 minutes at room temperature. The resultant detritylated dinucleotides mU_PST 5a and 5b (Fig. S23, ESI†) were isolated in 66% and 61% yields, respectively. The structures of the dinucleotides mU_PST were confirmed by HRMS (Fig. S26 and S28, ESI†). Numerous crystallization attempts of the DMT-protected (4a and 4b) and unprotected (5a and 5b, Scheme 1) dimers were not successful. Based on the literature, we decided to explore the possibility of crystal formation after complexation with selected proteins.²³ Initial attempts of 5a and 5b complex formation with human serum albumin (HSA) and histidine triad nucleotide-binding protein 1 (HINT1) were unsuccessful. However, successful crystal formation was achieved by soaking the dinucleotides in bovine pancreatic RNase A as the RNase A/dimer complex was obtained. Briefly, native RNase A crystals were grown by vapor diffusion with hanging droplets. The droplets consisted of 2 μL of protein at a concentration of 10 mg mL⁻¹ and 2 μL of well solution containing 22–25% (w/v) PEG 4000 and 20 mM sodium citrate (pH 5.5). The prepared solution was incubated at 8 °C and RNase A crystals formed after 3–5 days. Crystals of the complex were obtained by soaking preformed RNase A crystals in mother liquor containing 25 mM of 5b for 10–30 minutes. The soaked crystals prepared for analysis did not need to be cryopreserved, but were grown on a very thin film of crystallization buffer. The excess liquid was removed by gently touching the embedding loop on the plate surface. Then the prepared crystals for analysis were cooled directly in a stream of nitrogen.

The crystal data and refinement parameters for 5b are collected in Tables S7 and S8 (ESI†). The analysis of the crystallographic data showed that the mU_PST dimer (5b), which was obtained from slow-eluting (3b), has the P-atom with the S_P absolute configuration (according to the Cahn–Ingold–Prelog rules, the endocyclic sulfur atom has higher priority than the exocyclic one) (Fig. 3).

Fig. 3 The electron density map (Fo–Fc omit map) at 1.80 Å resolution from the crystal structure of S_P-dimer 5b with RNase A. The map is contoured at the 3.0 level. Lys67 and Thr71 residues are involved in direct dimer binding. Hydrogen bonds are indicated by dashed lines. (PDB ID: 8R5V).

Conclusions

In summary, the results presented in this work provide evidence that a modified oxathiaphospholane method can be successfully applied for the stereocontrolled synthesis of novel P-stereodefined phosphorothioate morpholino analogs. Oxathiaphospholane derivatives of morpholino nucleosides (mU-OTPs) were synthesized with a good yield and effectively separated into pure P-diastereomers. The analysis of the crystallographic data showed that fast- and slow-eluting mU-OTP have the P atom in the R_P and S_P absolute configurations, respectively, according to the Cahn–Ingold–Prelog rules, where the endocyclic sulfur atom has a higher priority than the exocyclic one. The synthesis of P-stereodefined dinucleotide phosphorothioates mU_PST (5) was also performed with a relatively high yield. X-ray crystallographic analysis revealed that the phosphorus atom in 5b, which was obtained from the slow-eluting diastereomer 3b, had the S_P absolute configuration. Here, we have presented the first-time determination of stereochemistry at the stereogenic phosphorus atom in morpholino analogs. Further research will focus on preparing stereodefined morpholino phosphorothioate oligonucleotides having all four bases and determining their biochemical and biological properties.
