Measuring local pH at interfaces from molecular tumbling: A concept for designing EPR-active pH-sensitive labels and probes

Abstract

Molecular probes and indicators are broadly employed for pH measurements in bulk media and at interfaces. The underlying physical principle of pH measurements of most of these probes is based on a change in the electronic structure that, for example, results in a shift of the emission peak of the fluorescence probes, changes in NMR chemical shifts due to the affected electronic shielding, or magnetic parameters of pH-sensitive nitroxides as measured by EPR. Here we explore another concept for measuring local protonation state of molecular tags based on changes in rotational dynamics of electron spin-bearing moieties that are readily detected by conventional continuous wave X-band EPR. Such changes are especially pronounced at biological interfaces, such as lipid bilayer membranes, due to the probe interactions with adjacent charges and polarizable dipoles. The concept was demonstrated by synthesizing a series of pH-sensitive nitroxides and spin-labelled phospholipids. EPR spectra of these newly synthesized nitroxides exhibit relatively small – about 0.5 G – changes in isotropic nitrogen hyperfine coupling constant upon reversible protonation. However, spin-labelled phospholipids incorporated into lipid bilayers demonstrated almost 6-fold change in rotational correlation time upon protonation, readily allowing for pK_a determination from large changes in EPR spectra. The demonstrated concept of EPR-based pH measurements leads to a broader range of potential nitroxide structures that can serve as molecular pH sensors at the desired pH range and, thus, facilitates further development of spin-labelling EPR methods to study electrostatic phenomena at chemical and biological interfaces.

---

Introduction

Effect of reversible protonation on EPR spectra of free radicals bearing protonatable groups was first reported in the middle of 1960s.^1–3 It was shown that the protonated and non-protonated radical species can be readily differentiated by their EPR spectra due to changes in magnetic parameters, such as isotropic nitrogen hyperfine coupling constant A_iso and isotropic g-factor g_iso, upon protonation. This observation suggested that EPR spectroscopy of free radicals could be employed for studying proton transfer and related phenomena in chemical and biological systems. However, practical applications of the observed effect required designing and synthesizing free radicals that, in addition to measurable changes in magnetic parameters upon protonation, would also be stable under experimental conditions. Nitroxide-type free radicals are good candidates for such applications. Indeed, some of these nitroxides have been shown to undergo reversible protonation at the oxygen atom of the N–O˙ moiety in concentrated acids or non-aqueous solutions without the loss of the paramagnetism.^4–6 However, in strongly acidic aqueous solutions most of the nitroxides undergo disproportionation to form EPR-silent oxoammonium salt and hydroxylamine^7,8 making them unsuitable for experiments in aqueous media. Years later it was discovered that in some nitroxides, and particularly those bearing strongly basic groups, a positive charge resulting from protonation of these groups makes the consecutive protonation of a weakly basic N–O˙ moiety, and, hence, disproportionation, much less favourable. This finding paved the way to design and application of such nitroxides as EPR active pH probes in physicochemical and biophysical studies. For example, 4-amino derivatives of the 2,2,6,6-tetramethylpiperidine nitroxide Tempo were employed for measuring pH gradients across membranes based on the differences in membrane-binding properties of protonated and non-protonated nitroxide species.^9,10 However, small effects of protonation on magnetic parameters of the EPR spectra in such nitroxides (ΔA_iso = 0.13 G,¹¹ the difference between A_iso of the non-protonated, R˙, and protonated, R˙H⁺, forms of the nitroxide) severely limited their practical application as EPR pH probes. Nitroxides of the 2-imidazoline series 1 (Fig. 1) show pH-induced spectral changes in physiological pH range and a relatively large – up to ΔA_N1 ≈2.40 G and ΔA_N3 ≈1.40 G – difference in the nitrogen hyperfine coupling constants of the protonated and non-protonated forms.¹² Unfortunately, the EPR spectra of these nitroxides are rather complex due to hyperfine couplings to three non-equivalent nitrogen atoms. This complicates analysis of protonation phenomena.

Fig. 1 pH-Sensitive 2-imidazoline, 3-imidazoline and 1,3-imidazolidine nitroxides.

Broad applications of protonatable nitroxides in biophysical studies became possible only in the early eighties after two groups of researchers independently discovered the effect of pH on EPR spectra of imidazolidine nitroxides 2 and 4 and 3-imidazoline 3 (Fig. 1).^13,14 For these nitroxides the difference between A_isoR˙ and A_isoR˙H⁺ was found to be ΔA_N ≈1.0 G. Such a large value of ΔA_N simplified analysis of the nitroxide protonation phenomena from fast motion EPR spectra consisting of three sharp, equally spaced, hyperfine lines arising from hyperfine coupling to ¹⁴N nucleus. Since then, a significant progress was made in both synthesis of pH-sensitive nitroxide spin labels and probes and also development of associated EPR methods for studies of proton transfer and local electrostatic phenomena in a broad range of biological and chemical systems (for reviews see ref. 11 and 15–17).

Today, pH-sensitive EPR probes are finding numerous applications for monitoring local pH in biomedical studies. pH regulation is critical for a myriad of physiological functions like cellular metabolism, blood pH regulation, and a function of the digestive system where a disruption of pH balance is linked to various pathological conditions.¹⁸ Despite a significant decay of the EPR signal intensity in biological environment, nitroxides in conjunction with low-frequency EPR spectroscopy and imaging techniques have been shown to enable reproducible and accurate noninvasive pH determination in vitro and in vivo.^19–21 The use of pH-sensitive nitroxides in low-field EPR spectroscopy and imaging is based exclusively on the difference in hyperfine constants between protonated and non-protonated forms and has been shown to provide high-precision measurements of pH^19,22–24 with accuracy as high as 0.1 pH units.^23,25

Nitroxide probes with low pK_a values have been used for monitoring acidic pH in the stomach of rodents in experiments in vivo and to follow such changes upon administration of different antacid medications.^20,26–28 The use of EPR in tissue with pH homeostasis close to neutral, such as tumor tissues, was enabled by designing probes with higher pK_a values, extended half-life in vivo, and by modification of membrane permeability of probes to ensure an extracellular localization.^29–31 Such probes have been applied to studies of tumor tissue acidosis in live mice by enabling quantitative visualization of regional changes in extracellular pH associated with altered tumor metabolism.^29,32 More recently, such probes were shown to be able to detect an increased extracellular acidification in tumor tissue following treatment of an animal with a metabolism targeting inhibitor.³³ Recently, development of pH-sensitive EPR probes moved beyond nitroxide compounds with syntheses of new dual-function trityl radicals capable to report on both pH and O₂ concentration in tumor tissues.^34–37

pH-Sensitive nitroxides are also finding applications in other fields, such as materials and nanoscience. For example, measurements of pK_a of pH-sensitive nitroxides were utilized to evaluate acidic and electrostatic properties of porous materials like mesoporous molecular sieves,^38,39 Xerogels,⁴⁰ nanoporous anodic aluminum oxide (AAO),⁴¹ and silica nanoparticles-water interfaces.⁴²

Without risking to move too far off course of the study, we also would like to mention an increased interest in use of pH-sensitive EPR-active compounds as smart control agents in chemical synthesis.⁴³ For example, pH-switchable alkoxyamines have been used to control the polymerization of styrene and butyl acrylate⁴⁴ and the protonation state of the nitroxide has been shown to influence rates of nitroxide-mediated polymerization (NMP).^45–47

As illustrated above, continued synthetic efforts over the last two decades yielded a selection of pH-sensitive probes and labels covering a broad pH range. However, analysis of the literature data shows that most if not all pH-sensitive nitroxides synthesized to this date are based on modifications of the same two core structures – 3-imidazoline 3 and 1,3-imidazolidine 4 (Fig. 1). Undoubtedly, there is an explanation for that: the protonatable amidino and tertiary amino functionalities in the structures of 3-imidazoline 3 and 1,3-imidazolidine 4 heterocycles, respectively, are located two σ-bonds away from the EPR-active N–O˙. Such design is close to the optimal one based on several considerations. Firstly, the locations of the protonatable functionalities close to the spin-bearing N–O˙ moiety cause rather significant ΔA_N shifts of ∼0.8–1.4 G upon the change in the protonation state of the basic groups. The change in A_iso of about 1 G simplifies accurate quantification of the individual components of EPR spectra corresponding to the protonated or non-protonated forms of the nitroxide, especially when the spin probe/label tumbling rate falls into the fast motion regime. Moving the protonatable functionality further away from the N–O˙ group significantly reduces the ΔA_N value (for example, 4-amino-2,2,6,6-tetramethylpiperidine 1-oxyl was found to have ΔA_N of only ≈0.13 G (ref. 11)) and, as a result, lowers the accuracy of the pK_a determination. We note here that the accuracy of the ΔA_N measurement can be significantly improved by using least-squares simulation of EPR spectra (for a description of fitting software see,^48–51 for practical applications, see ref. 52 and 53). Secondly, an electron-withdrawing effect of the N–O˙ group at this distance from the protonatable moiety remains to be moderate so the pK_a values of probes would fall within the practically useful pK_a range (i.e., 3÷8 units of pH). Note that the strong electron withdrawing effect of the N–O˙ group causes a reduction of the intrinsic pK_a's of basic functionalities by several units of pK_a.^14,54 If the protonatable group is located to the N–O˙ moiety closer than in 3 or 4, the pK_a of the probe will be too low for practical applications. Taken together, these two factors significantly limit available options in designing new EPR pH probes with desirable properties, such as pK_a range, partitioning coefficients between polar and apolar phases, probe binding affinities, etc., that can be tailored to specific applications.

Previously, we introduced phospholipids covalently modified with pH-sensitive nitroxides at the head group as EPR spin probes for studying interfacial electrostatic phenomena in detergent micelles and lipid bilayers.^55–57 In such systems these lipid-based probes position the pH-sensitive nitroxide group at the aqueous side of the interfacial region while the lipid tail is inserted into the lipid phase. For lipid bilayers above and below the main phase transition temperature, the probes demonstrated pH-dependent X-band (9.5 GHz) EPR spectra that fall into intermediate or slow-motion regime in both protonated and non-protonated forms. When recorded at intermediate pH values, the spectra of protonated and non-protonated forms of the nitroxides were not fully resolved as in the fast motion limit; however, the changes in the EPR line shapes were significant to allow for accurate determination of a fraction of protonated nitroxide from least-squares simulations assuming a slow-exchange two-component model.^55–57 It should be noted here that the changes in EPR line shapes in such systems are primarily caused by a reduction of the tumbling rate of the nitroxide upon protonation rather than effects of the nitroxide protonation state on its magnetic parameters. Indeed, the maximum reported change in the isotropic nitrogen hyperfine coupling constant A_iso upon protonation of nitroxides of ΔA_iso = 1.35 G (ref. 11) is significantly smaller than the typical X-band peak-to-peak line widths – about 5 G or more – of the individual spectral components of spin-labelled phospholipids embedded into a lipid bilayer. Such large linewidths make the observations of the nitroxide protonation through changes in magnetic parameters practically impossible. However, significant changes in EPR line shapes arising from a more restricted rotation of the probe are still observed. These changes in rotational dynamics are attributed to electrostatic interactions of a charged (protonated) form of the nitroxide with a charged bilayer interface and/or a change in the effective hydrodynamic radius/hydrogen bonding network of the probe resulting from protonation. The latter effect was previously observed in electrically neutral Triton X-100 micelles.^55–57 Thus, one can hypothesize that the nitroxides with the ionizable functionality located sufficiently far from the N–O˙ group to exert a minimal or no effect at all on A_iso could still serve as EPR pH probes in sterically restricting environments, such as lipid bilayers, detergent micelles, or lipid–protein interface, as long as the tumbling of the charged and the neutral forms differs significantly. Proving this hypothesis would provide synthetic chemists with more freedom in the challenging task of designing pH-sensitive nitroxide probes and, as a result, significantly expand the arsenal of pH-sensitive probes for biophysical and physicochemical EPR studies.

We note here that back in 1974 Barratt and Laggner observed pH effects on EPR line shapes of spin-labelled fatty acids incorporated into lecithin multilamellar vesicles (MLVs).⁵⁸ The authors explained the effect by an increase in anisotropy of molecular tumbling arising from about 6 Å dislocation of the probe along the membrane normal upon an ionization of the probe carboxylic group remote to the nitroxide.⁵⁸ Such repartitioning probes were then used to investigate surface electrostatic properties of lipid bilayers and lipid–protein interactions by analysing the fractions and rotational dynamics of multicomponent EPR spectra of spin-labelled steric acids arising upon ionization of the carboxylic group.^59–61 A method of determination of the membrane potential from partitioning of small nitroxides between aqueous and lipid phases resulting in different EPR spectra due to changes in molecular tumbling was also developed.⁶²

The general approach to pH determination from EPR spectra described here does not require any probe repartitioning as it based on a universal observation that diffusion of a charged molecular probe is slowed down by the counterions that have to move together with the probe.⁶³ This effect is magnified at interfaces where other charges or dipoles are present and where nitroxide X-band EPR spectra of membrane probes fall into an intermediate motion regime making the spectra very sensitive to small changes in the rotational correlation time. Thus, in this proof-of-concept study we focused on the synthesis and an initial EPR characterization of pH-sensitive nitroxide spin labels and spin-labelled phospholipids designed within this new concept – to report on their ionization state through changes in the rotational dynamics observed by EPR. Spin labels were characterized by X-band EPR in aqueous solutions, whereas spin-labelled phospholipids were titrated in model multilamellar vesicles composed of either 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-(1′-rac-glycerol) (POPG) or 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC). Also, we demonstrate that EPR-active pH-sensitive phospholipids can be synthesized in one step directly from the parent phosphatidylethanolamine (PE) lipid via a reductive amination reaction of the proper nitroxide containing either ketone or aldehyde group.

Results and discussion

Synthesis

Thiol-methanethiosulfonate click reaction was chosen as the leading method for covalent modification of the lipid polar head group with pH-sensitive spin label(s). This choice was justified by many years of successful application of this click chemistry in site-directed spin labelling (SDSL) EPR studies,⁶⁴ superior selectivity of this reaction with respect to SH-group, commercial availability of a headgroup thiol-modified phospholipid 1,2-dipalmitoyl-sn-glycero-3-phosphothioethanol, and also by our previous experience in using this reaction in the protein spin labelling and the synthesis of spin-labelled phospholipids.^55–57,65 Dimethylamino-substituted pyrrolidine nitroxide 10 was used as a core molecular structure. A synthetic route to the target spin label 12 is shown in Scheme 1.

Scheme 1 (i) Di-tert-butyl dicarbonate, Et₃N, CH₃CN; (ii) ClCOOEt, Et₃N, ether, −10 °C; (iii) NaBH₄, EtOH, −15 °C; (iv) H₂O/CH₃OH, 6 : 1 v/v, reflux; (v) HCOH, HCOOH, 60 °C; (vi) Et₃N, CH₃SO₂Cl, CH₂Cl₂, −10 °C.

The initial compound amino acid 5 (POAC) was synthesized according to literature procedures.^66,67 Boc-protection of the primary amino group, followed by preparation of the mixed anhydride 7 and its reduction with NaBH₄, afforded the N-Boc-protected amino alcohol 8. Deprotection of the latter in a boiling water–methanol (6 : 1 v/v) mixture⁶⁸ gave the amino alcohol 9 in good yield. Alkylation of the primary amino group of 9 was carried out using the Eschweiler–Clarke reaction to give the tertiary amine 10; hydroxyl group of the latter was activated through formation of the corresponding mesylate 11. Nucleophilic substitution of the OSO₂CH₃ group in 11 with bromide, iodide, or azide afforded corresponding derivatives 13, 14, and 15 (Scheme 2). Strain-promoted azide–alkyne cycloaddition of 15 with 3-amino-1-(11,12-didehydrodibenzo[b,f]azocin-5(6H)-yl)propan-1-one (DBCO-amine) readily afforded triazole adduct 16, most likely as a mixture of syn- and anti-isomers^69,70 (Scheme 2). However, attempts to obtain the methanethiosulfonyl derivative 12 from 11 have failed. Reaction of the latter with sodium methanethiosulfonate did not afford thiosulfonate nitroxide 12. At room temperature 11 did not react with NaSSO₂CH₃ both in DMSO and EtOH; at the elevated temperature (70 °C), an inseparable mixture of products has formed. We speculate that thiosulfonate anion might be too “soft”, compared to Br⁻, I⁻, and N₃⁻, to attack the “hard” electrophilic carbon adjacent to the mesylate group. Besides, the geminal methyl groups in position 2 of the pyrrolidine heterocycle could create an unfavourable steric environment for the attack by a relatively bulky methanethiosulfonate. Attempts to obtain 12 through the reaction of NaSSO₂CH₃ with halogen derivatives 13 and 14 were also unsuccessful.

Scheme 2 (i) NaN₃, DMSO, 70 °C; (ii) LiBr (or LiI), DMSO, 70 °C; (iii) DBCO-amine.

To make the steric requirements for the nucleophilic substitution less demanding, a handle between the pyrrolidine heterocycle and the leaving group was introduced. This was accomplished by reacting the hydroxymethyl derivative 10 with either 2-bromoethyl isocyanate or 2-(2-bromoethoxy)tetrahydro-2H-pyran (Scheme 3). Tetrahydropyranyl protecting group in 17 was removed with aqueous acetic acid;⁷¹ the resulting hydroxyethyl derivative 18 was converted to the mesylate 19. Reactions of 19 and the bromo derivative 21 with NaSSO₂CH₃ afforded the methanethiosulfonate spin labels 20 and 22, respectively.

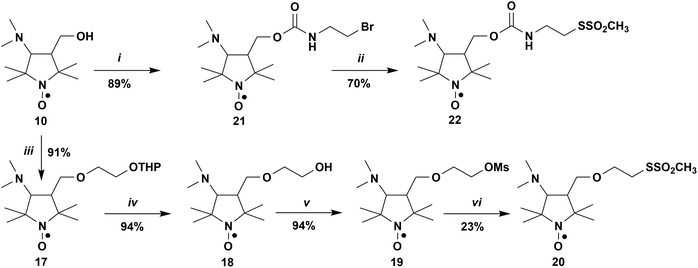

Scheme 3 (i) Br(CH₂)₂NCO, EtOAc; (ii) NaSSO₂CH₃, DMSO, rt; (iii) Br(CH₂)₂OTHP, KOH, DMSO, rt; (iv) CH₃COOH–H₂O mixture (4 : 1 v/v), 50–55 °C, 3 h; (v) CH₃SO₂Cl, Et₃N, CH₂Cl₂, −10 °C; (vi) NaSSO₂CH₃, DMSO, 70 °C.

Spin-labelled phospholipids 20-PTE and 22-PTE (Fig. 2) were synthesized through the thiol-methanethiosulfonate click reaction of 20 and 22, respectively, with a thiol-modified phospholipid 1,2-dipalmitoyl-sn-glycero-3-phosphothioethanol (PTE).

Fig. 2 Chemical structures of spin-labelled phospholipids.

pH-Sensitive spin-labelled phospholipid 23-DOPE was synthesized using a different approach – through a reductive amination of the ketone nitroxide 23⁷² with 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE) lipid (Scheme 4). This spin-labelling methodology presents a rather advantageous way to designing pH-sensitive EPR-active phospholipids from PE lipids because the amino functionality of the phosphoethanolamine residue becomes the protonatable group of the pH-sensitive spin-labelled phospholipid. We speculate that this methodology could also be applied for spin-labelling of protein lysine residues.

Scheme 4 Synthesis of the spin-labelled phospholipid via a reductive amination reaction.

EPR characterization of novel nitroxides

Nitroxides and spin-labelled phospholipids were EPR titrated (X-band, 9.5 GHz) in aqueous solutions or lipid suspensions, respectively, to determine their pK_a's. Thiosulfonate group is known to be hydrolytically labile at basic pH⁷³ and pK_a of the spin label is expected to change after a covalent attachment to a molecule of interest. For these reasons, spin labels 22 and 20 were titrated in the forms of adducts with 2-mercaptoethanol 24 and 25, respectively (Fig. 3).

Fig. 3 Chemical structures of 2-mercaptoethanol adducts.

The side chain structures in these adducts (Fig. 3) are similar to those of spin labels attached to the thiol group of the PTE lipid (Fig. 2), and, as we have previously reported,^55–57 the hydroxyethyl moiety of these compounds is mimicking the inductive effect of the PTE head group attachment rather well. Similarly, nitroxide 26, synthesized via the reductive amination of the ketone nitroxide 23 with 2-aminoethanol (Scheme 5), was used as a water-soluble model of the spin-labelled phospholipid 23-DOPE for EPR characterization in aqueous solutions. Azide 15 was EPR-characterized both as such, and also in a form of the triazole adduct with DBCO-amine 16 (Scheme 2). The DBCO derivatives are widely used in various copper-free alkyne–azide conjugation and labelling protocols,^74–76 although this type of conjugation has a limited utility in biophysical EPR studies because of the bulkiness of the linker.

Scheme 5 Reductive amination of the ketone nitroxide 23.

For characterization of spin-labelled phospholipids in lipid bilayers, multilamellar vesicles (MLV's) composed of either POPG or POPC were doped with 20-PTE, 22-PTE, or 23-DOPE at 1 mol% using experimental protocols described elsewhere.^56,57

Aqueous solutions of all the nitroxides synthesized in this work exhibit typical isotropic three-line X-band (9.5 GHz) EPR spectra (ESI, S69–S76†). Unlike the X-band EPR spectra of many other pH-sensitive nitroxides, the spectra of the newly synthesized compounds did not show characteristic splitting of the high-field nitrogen hyperfine component at intermediate pH values. This splitting results from a difference in nitrogen hyperfine coupling constants of protonated and non-protonated forms of a nitroxide (typically, ΔA_iso ≈ 0.80–1.30 G)^52,53 and, is indicative of a slow, on the EPR time scale, chemical exchange. According to the previously established slow-exchange condition that relates the pK_a of the nitroxide probe and the type of the chemical exchange:⁷⁷

where Δν is the frequency difference between high-field components of the protonated and non-protonated forms of the nitroxide; κ₁^H+ ≈ κ₁^OH− ≈ 1 × 10¹⁰ M⁻¹ s⁻¹ are the forward rate constants for the diffusion controlled protonation (R˙ + H⁺ ⇆ R˙H⁺) and deprotonation (R˙H⁺ + OH⁻ ⇆ R˙ + H₂O) reactions, respectively.⁷⁷

For nitroxides 10–26. Then for these nitroxides pK_a values would fall into a range 3.9 < pK_a < 10.1, and such EPR species are expected to be in a slow chemical exchange regime. However, none of the fast motion EPR spectra of the novel nitroxides revealed a splitting in the high field nitrogen hyperfine coupling components but only some extra broadening resulting in a decrease in the peak-to-peak amplitude (ESI, S69–S76†). Some of the reasons for the absence of splitting include a lack of spectral resolution as the two m_I = −1 lines of ΔB_p–p ≈ 1.2 G in widths are separated by only ΔB ≈ ΔA_iso ≈ 0.50 G and/or a higher than estimated exchange rate. For example, as it was shown for pH-sensitive nitroxides of the 3-imidazoline and imidazolidine series, the R˙ ⇆ R˙H⁺ exchange rate could be increased by the presence of a buffer, causing the two high-field lines to coalesce. However, replacement of 50 mM phosphate buffer with 50 mM NaCl solution did not show any effect on the shape of the high-field EPR line (see ESI, S70†). Thus, we speculate that protonation of the functionality in the side chain (e.g., in nitroxides 10–26) is less sterically inhibited compared to that of the one being a part of the heterocycle, such as in 3-imidazoline and imidazolidine nitroxides. Our speculation is supported by the existing correlation between bimolecular constant of the proton exchange reaction and the steric accessibility of the protonation site.⁷⁸

For accurate measurements of A_iso the experimental spectra were modelled as single-component fast-motion nitroxide spectra. The line shape of each of the nitrogen hyperfine components was approximated by a Voigt function⁴⁸ with Gaussian and Lorentzian contributions to the linewidth and the effective isotropic hyperfine constant being adjustable parameters of the fit. Isotropic nitrogen hyperfine coupling parameters of the synthesized nitroxides and titration data are summarized in Table 1.

Table 1 Isotropic nitrogen hyperfine coupling constants (A_isoR˙ and A_isoR˙H⁺), ΔA_iso, and pK_a values for aqueous solutions of selected nitroxides at 17 °C

Compound	A isoR˙, G	A isoR˙H^+, G	ΔAiso, G	pKa
10	15.98 ± 0.02	15.47 ± 0.02	0.51 ± 0.03	6.25 ± 0.01
15	15.78 ± 0.03	15.27 ± 0.02	0.51 ± 0.04	5.80 ± 0.02
16	15.68 ± 0.03	15.17 ± 0.03	0.51 ± 0.04	4.44 ± 0.02
18	15.97 ± 0.02	15.45 ± 0.02	0.51 ± 0.03	6.39 ± 0.01
24	15.89 ± 0.04	15.37 ± 0.05	0.52 ± 0.06	5.51 ± 0.03
25	15.95 ± 0.01	15.44 ± 0.02	0.51 ± 0.02	6.22 ± 0.06
26	16.06 ± 0.02	15.57 ± 0.01	0.49 ± 0.02	6.73 ± 0.01

---

All pH-sensitive nitroxides demonstrate a small but readily detectable ΔA_iso ≈0.50 G difference between the isotropic nitrogen hyperfine coupling constants of the protonated and non-protonated forms and pK_a values in the range of ∼4–7 units of pH depending on the structure of the side chain. We note that adduct 16 exhibits the lowest aqueous pK_a = 4.44 ± 0.02, which could be either a result of an electron-withdrawing effect of the triazole moiety, or a destabilizing electrostatic effect of the protonated 3-aminopropylamide side chain (pK_a = 8.81 ± 0.10 (ref. 79)), and/or an electron-withdrawing effect of the protonated triazole moiety (triazoles have been reported to be weakly basic^80–82), or a combination of both effects. To support EPR determination of pK_a we conducted a potentiometric titration of the compound 10. Analysis of the potentiometric measurements (see ESI, Fig. S1†) yielded pK_a = 6.27 ± 0.06, which is in good agreement with the EPR data (pK_a = 6.25 ± 0.01).

To demonstrate utility of spin-labelled phospholipids 20-PTE, 22-PTE, and 23-DOPE as EPR probes for biological membranes, EPR titration of these lipids in model multilamellar vesicles (MLVs) composed either of anionic phospholipid POPG or zwitterionic phospholipid POPC in fluid (17 °C) bilayer phases was performed. EPR spectra of all these spin-labelled lipids fall into an intermediate-to-slow motion regime (Fig. 4, left). It could be seen that, similar to our previous data for titration of spin-labelled lipids in model lipid bilayers,^55–57 a decrease in pH resulted in a gradual appearance of a more immobilized spectral component. We attribute the latter component to a protonated form of the nitroxide that is expected to have a slower tumbling (vs. uncharged nitroxide) due to electrostatic interactions with the negatively charged bilayer interface.

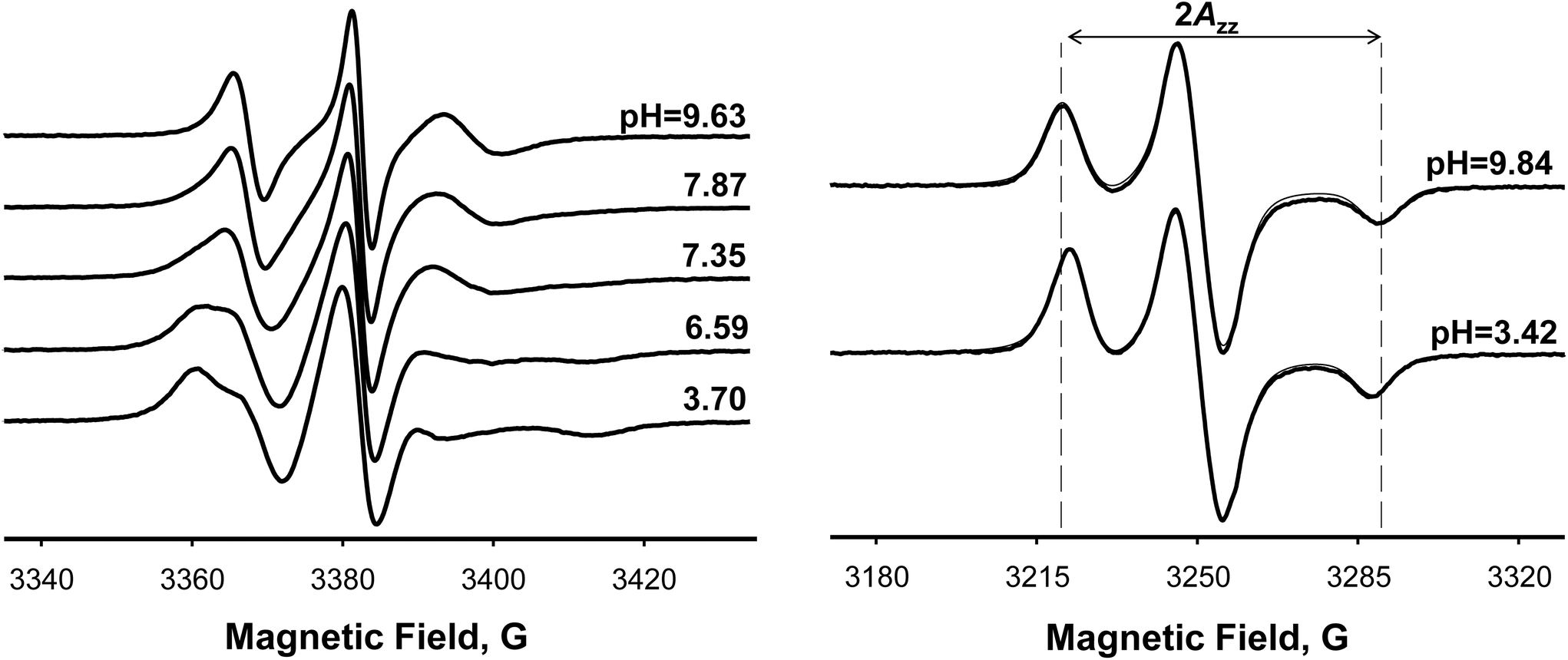

Fig. 4 Left: Representative X-band (9.5 GHz) EPR spectra from a titration of multilamellar POPG vesicles doped with 1 mol% of the spin-labelled phospholipid 20-PTE. Spectra were measured at 17 °C. Right: Experimental rigid-limit (77 K) X-band EPR spectra from POPG MLVs doped with 1 mol% of the spin-labeled phospholipid 20-PTE in non-protonated (top) and protonated (bottom) forms shown as thick black lines are superimposed with simulated spectra (thin black lines), which are almost indistinguishable from the experimental spectra. Approximate magnetic field positions corresponding to 2A_zz nitrogen hyperfine splitting of the non-protonated form are shown as dashed lines and pH values are indicated next to the spectra.

A clear demonstration that the protonation affects magnetic parameters of spin-labelled phospholipids such as 20-PTE was obtained by measuring rigid limit EPR spectra at 77 K. Fig. 4 (right) compares rigid limit X-band EPR spectra of 20-PTE in POPG MLVs at pH = 9.84 (top) when this nitroxide is expected to be in the non-protonated form with a spectrum at pH = 3.42 (bottom) when this nitroxide is fully protonated. The positions of the outer nitrogen hyperfine lines corresponding to 2A_zz of the non-protonated nitroxide are shown as dashed lines to demonstrate that this magnetic parameter is decreased upon protonation (compare top and bottom spectra in Fig. 4, right). This effect was quantified by least-squares simulation of the spectra using Pepper function of EasySpin.^83,84 The Pepper function is designed for simulations and fitting of CW EPR spectra in the absence of rotational averaging such as those observed for single crystals or the crystals grounded into a powder. Thus, this function was selected for simulating spectra obtained at 77 K.⁸⁵ The simulated spectra shown as thin lines in Fig. 4 (right) are superimposed with the experiment (thick black lines) and are nearly identical. We note that x- and y-axis principal components of both g-matrix and A-tensor of the nitroxides are typically not resolved in the rigid limit X-band EPR spectra unless the radicals are perdeuterated.⁸⁶ Thus, the main changes caused by local electric fields and hydrogen bonding are expected in A_zz component,^87,88 which for 20-PTE in POPG MLVs was found to change from A_zz ≈ 34.34 G to ≈32.84 G upon protonation. Therefore, ΔA_iso = ⅓(ΔA_xx + ΔA_yy + ΔA_zz) ≈ ⅓ΔA_zz = 0.50G, which is in an excellent agreement with ΔA_iso = 0.50 ± 0.01 G, determined from the fast motion spectra (Table 1).

To demonstrate that the protonation of pH-sensitive nitroxides attached to the lipid polar head results in large changes in rotational tumbling, representative EPR spectra of 20-PTE incorporated at 1 mol% into POPG MLVs and measured at 17 °C were least-squares simulated using chili function of EasySpin.^84,85 The Chili function is designed for simulations and fitting of CW-EPR spectra in the slow-motion regime, and, hence, was used for the 17 °C spectra. Simulations of EPR spectra by the Chili function is based on a solution of the Stochastic Liouville Equation (SLE). For simplicity, an isotropic rotational model was assumed, and magnetic parameters obtained from the rigid limit simulations of Fig. 4 were slightly adjusted to account for fast residual librations resulting in some pre-averaging of the anisotropic magnetic parameters. Fig. 5 shows that the best simulations (thin lines) closely follow the experimental spectra (thick lines). The spectra of non-protonated nitroxide yielded effective correlation time τ ≈ 1.4 ns while rotational tumbling of the fully protonated form at pH = 3.42 demonstrated significantly longer correlation time of ≈8.3 ns.

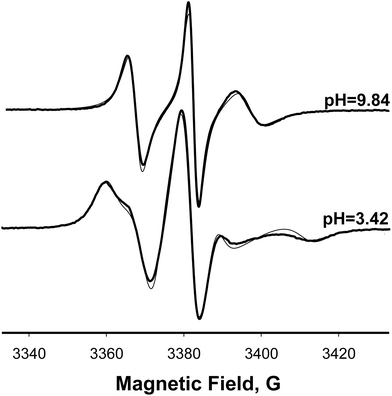

Fig. 5 Experimental (thick line) and least-squares simulated (thin) X-band EPR spectra of multilamellar POPG vesicles doped with 20-PTE at 1 mol%. Experimental spectra were measured at 17 °C and pH = 9.84 (non-protonated form, top) and pH = 3.42 (fully protonated, bottom). The effective rotational correlation time increased from τ ≈ 1.4 ns for the non-protonated nitroxide to τ ≈ 8.3 ns for the protonated form.

Although simulations of slow-motion EPR spectra of spin-labelled lipids demonstrated a good agreement with experiment (Fig. 5), such simulations are known to be time consuming because of multiple parameters involved. Thus, in order to decrease the number of adjustable parameters and simplify the simulations, the spectra at intermediate pH values were simulated as a superposition of two components, each corresponding to the protonated and non-protonated forms of the nitroxide (i.e., a slow exchange model was assumed). These two reference spectra we measured experimentally, and the weights of the individual components were adjusted during the fitting and then used to calculate a fraction f = I_R/(I_R + I_RH+) of the non-protonated form from the corresponding double integrals of the individual components. Details of the decomposition procedure are described elsewhere.^56,57Fig. 6 shows an example of such a two-component decomposition of an EPR spectrum of 20-PTE in POPG MLVs. The residual of the fit – a difference between the experimental and simulated spectra – reveals only minor deviations, thus, demonstrating the applicability of the slow exchange model. To determine the pK_a of the probe, the fraction of the non-protonated form, ƒ, was plotted as a function of pH and the experimental titration data were fitted to the Henderson–Hasselbalch equation. Fig. 7 shows such plots for titration of 22-PTE incorporated in multilamellar vesicles composed of POPC or POPG at 17 °C, and the corresponding fits to the Henderson–Hasselbalch equation. Titration data for the three spin-labelled phospholipids incorporated in POPC or POPG multilamellar vesicles are summarized in Table 2.

Fig. 6 Example of a least-squares decomposition of the experimental X-band EPR spectrum from multilamellar POPG vesicles doped with 1 mol% 20-PTE. Spectrum was measured at 17 °C and pH = 6.97. (A) Experimental X-band EPR spectrum; (B) and (C) – least-squares simulated spectra of the protonated and non-protonated forms of the nitroxide, respectively; (D) residual of the fit – the difference between the experimental and simulated spectra.

Fig. 7 Experimental EPR titration data for multilamellar POPC (○) and POPG (●) vesicles doped with spin-labelled lipid 22-PTE at 1 mol%. Data were acquired at 17 °C. The fits to the Henderson–Hasselbalch equation are shown as solid lines and the best-fit pK_a values are indicated next to the plots.

Table 2 EPR titration data for spin-labelled lipids incorporated into multilamellar vesicles and measured at 17 °C

Spin-labeled lipid	ML vesicle lipid composition	pKa	ΔpKa^a
a ΔpKa = pKa(POPG) − pKa(POPC).
22-PTE	POPC	4.61 ± 0.03	2.47 ± 0.04
22-PTE	POPG	7.08 ± 0.02	n/a
20-PTE	POPC	6.04 ± 0.06	1.63 ± 0.07
20-PTE	POPG	7.67 ± 0.04	n/a
23-DOPE	POPC	6.70 ± 0.05	1.53 ± 0.06
23-DOPE	POPG	8.23 ± 0.03	n/a

---

Notably, unlike 22-PTE and 23-DOPE, the experimental titration plot for 20-PTE in multilamellar POPC vesicles contains several reproducible outlier data points at pH below the pK_a of the probe (Fig. 8, left panel). Since this model system has no titratable groups other than tertiary amino group of the nitroxide (pK_a of the phosphate group in POPC is too low, pK_a ≈ 1.0 (ref. 89)), we ruled out a possibility of the second pK_a transition. Furthermore, when EPR titration of 20-PTE was conducted in 200 nm unilamellar POPC vesicles (ULVs), the titration plot (Fig. 8, right panel) showed no deviations from the Henderson–Hasselbalch titration curve. This indicates that the observed deviation was caused by the multilamellar nature of the vesicles. This observation can be rationalized as follows. Fig. 8 (left panel) shows that at pH slightly below the probe pK_a the fraction of the non-protonated form of the nitroxide ceased to follow the typical S-shaped titration curve, indicating that the fraction of the protonated form is accumulating slower than expected. In terms of the acid–base equilibrium, this means that there is a local factor that disfavours further positive charge development at the nitroxide moieties. One of such factors could be a positive charge of the choline quaternary ammonium groups from the leaflet of the adjacent lamella. The observed effect seems to be electrostatic in nature and comes into play when the amount of the positively charged nitroxide residues reaches a certain number (about 50% of the total amount in our case). We can safely assume that below this critical R˙H⁺ concentration the lipid system is capable of negating the electrostatic repulsion and accommodating these newly developed positive charges through conformational changes of phospholipid headgroups.^90,91 However, above this critical R˙H⁺ concentration, conformational changes in the headgroup region cannot negate the electrostatic repulsion any more, and further addition of acid results in formation of a smaller than expected fraction of the protonated nitroxides. Note that the upper half of the titration curve reaches plateau at pH ≈ pK_a + 2.0, which is typical for titration. The lower half, on the other hand, reaches the plateau at pH ≈ pK_a − 3.0, which is approximately one unit of pH lower than expected. Clearly, similar deviation from a single pK_a titration curve is not possible for the unilamellar vesicles, which have no adjacent lamellas. The answer to the question “why this effect was observed only for 20-PTE but not 22-PTE or 23-DOPE” lies, most likely, in the structure and the length of the tether linking the nitroxide moiety to the phospholipid. We speculate that the observed phenomenon is a combination of the length and the conformational flexibility of the tether that makes the protonatable group readily affected by the charged choline residue. One way to check this hypothesis in the future will be to study MLVs containing a fraction of lipids with the headgroups modified by PEG (polyethylene glycol) because PEG coatings of liposomes is known to shield the surface from aggregation.⁹²

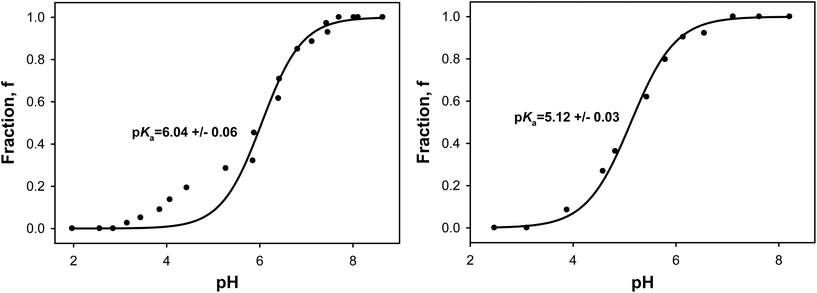

Fig. 8 Experimental EPR titration data for the spin-labeled lipid 20-PTE in multilamellar (left) and 200 nm unilamellar (right) POPC vesicles. Data were acquired at 17 °C. The Henderson–Hasselbalch titration curves are shown as solid lines. Note that the experimental data in the left panel represent a combination of the data from two independent EPR titration experiments carried out over entire pH range.

It should be noted here that the pK_a of 20-PTE in 200 nm ULVs is significantly lower than MLVs prepared from the same lipids (ΔpK_a = 0.92 ± 0.07). Previously, we have observed a similar, but less sizable effect upon titration of another spin-labelled phospholipid, IKMTSL-PTE, in DMPG vesicles.⁵⁷ This effect was attributed to the difference in average packing density of lipids in the ULVs vs. MLVs that are composed of many lamellae of varying local curvatures. An interaction between adjacent lamellae could be another factor. Indeed, we have shown that the surface electrostatic potential of phosphatidylcholine MLVs such as those composed of DMPC is negative (e.g., Ψ ≈ −100 mV at 17 °C (ref. 56)). Then the presence of the adjacent lamellas in MLVs is expected to increase the negative surface potentials of the individual MLV bilayers vs. surface potential in ULVs and shift the observed local pK_a to higher values. However, further detailed investigation of this effect appears to be beyond the focus of the current study.

Conclusions

A concept for designing pH-sensitive nitroxides for studying electrostatic phenomena at biological interfaces based on changes in the shape of EPR spectra arising from a difference in molecular tumbling rates of the protonated and non-protonated forms, was demonstrated. Following this concept, a new series of protonatable nitroxide spin labels and probes of the pyrrolidine type was designed to exhibit a suitable range of pK_a values but not necessarily have a large effect of protonation on magnetic parameters of the nitroxide (i.e., A_iso). The rotational motion of nitroxides at the biological interfaces, such as lipid bilayer surfaces, becomes significantly more restricted when these spin probes acquire an electric charge, and the fraction of such molecules can be readily derived by a straightforward decomposition of EPR spectra into two components. Since determination of the fractions of nitroxides in the charged-uncharged equilibria is based on the effects of molecular motion, such pH-sensitive probes may even show no measurable changes in magnetic parameters in order for the method described here to work.

The protonatable functionality in the newly synthesized nitroxides is not a part of the nitroxide heterocycle, as in the pH-sensitive nitroxides of the 3-imidazoline and 1,3-imidazolidine series but is located in the side chain of the pyrrolidine nitroxide. These nitroxides demonstrated a rather small difference between the A_iso of the protonated and non-protonated forms, ΔA_iso ≈ 0.50 G, and the pK_a values varying within the range from pK_a = 4.44 ± 0.02 to pK_a = 6.73 ± 0.01. Click reaction between the new methanethiosulfonate spin labels and a head group thiol-modified phospholipid 1,2-dipalmitoyl-sn-glycero-3-phosphothioethanol (PTE) was employed for synthesizing the EPR-active pH-sensitive phospholipids. Yet another type of the EPR-active pH-sensitive phospholipid was synthesized via one-step direct reductive amination of the ketone nitroxide with phosphatidylethanolamine lipid (DOPE). These new spin-labelled phospholipids report on their ionization state through the changes in the rotational dynamics. Indeed, the intermediate-to-slow-motion X-band EPR spectra of these spin-labelled phospholipids, doped to POPG or POPC MLVs at 1 mol%, demonstrated a gradual appearance of a more immobilized spectral component upon decrease in pH. The observed pH effect was attributed to the fact that the tumbling of the protonated nitroxide characterized by an effective rotational correlation time τ was significantly slowed down from τ ≈ 1.4 ns for uncharged nitroxide to τ ≈ 8.3 ns for the charge one due to the electrostatic interactions with the charged bilayer interface. The pK_a values of these new spin-labelled phospholipids were found to vary within a rather broad range from pK_a = 4.61 ± 0.03 to pK_a = 8.23 ± 0.03, depending on the structure of the protonatable head group and the composition of the lipid bilayer.

Overall, the feasibility of the concept of measuring local electrostatic phenomena at biological interfaces has been demonstrated. Spin-labelled phospholipids synthesized within the proposed approach were shown to exhibit rather pronounced pH-induced changes in EPR spectra characterized by protonation transitions with pK_a values varying within a rather broad pH range. The latter makes these phospholipids a valuable spectroscopic EPR probes for studying proton transfer-related and electrostatic phenomena in detergent micelles and at biological interfaces, such, for example, as lipid bilayer-water or lipid bilayer-membrane protein interface. We believe that the results of this proof-of-concept work will untie chemist's hands and open new avenues in designing the EPR active pH probes for biophysical studies.

Experimental section

Materials and methods

All chemicals and solvents were purchased from VWR International (Radnor, PA), Fisher Scientific (Waltham, MA), or Sigma-Aldrich (St Louis, MO), unless otherwise indicated, and used without additional purification. All solvents were reagent grade and used as received. 1,2-Dipalmitoyl-sn-glycero-3-phosphothioethanol (PTE), 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE), 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-(1′-rac-glycerol) (POPG), and 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) were purchased from Avanti Polar Lipids (Alabaster, AL) as chloroform solutions (>99% pure) and used without further purification. 1-Oxyl-2,2,5,5-tetramethyl-pyrrolidin-3-one 23 was a generous gift from Dr Igor A. Kirilyuk (Novosibirsk Institute of Organic Chemistry, Russia). Preparative thin layer chromatography was performed on a PTLC plate (Kieselgel 60 F254; Merck, Whitehouse, NJ). MS analysis was carried out using a high-resolution mass spectrometer Thermo Fisher Scientific Exactive™ Plus MS, a benchtop full-scan Orbitrap mass spectrometer, equipped with Heated Electrospray Ionization (HESI). Samples were introduced into the mass spectrometer via TriVersa NanoMate® (Advion Interchim Scientific, Ithaca, NY). The mass spectrometer was operated in a positive ion mode. Infrared spectra were obtained with a Jasco FT/IR-4100 spectrometer (Jasco Inc., Easton, MD). ULVs were characterized by dynamic light scattering (DLS, Zetasizer, Malvern, Westborough, MA).

EPR measurements

X-band (9.5 GHz) continuous wave (CW) EPR spectra were recorded with a Varian (Palo Alto, CA) Century Series E-109 spectrometer interfaced to a PC. The sample temperature was maintained with stability better than ±0.02 °C and a gradient below 0.07 °C cm⁻¹ over the sample region by a digital variable temperature accessory described previously.⁹³ Aqueous solutions or lipid suspensions were drawn into a poly(tetrafluoroethylene) capillary (i.d. = 0.81 mm, o.d. = 1.12 mm, NewAge Industries, Inc., Southampton, PA), and the capillary was folded and inserted into a i.d. = 3 mm, o.d. = 4 mm clear fused quartz EPR tube open from both ends (VWR International). Typical spectrometer settings were as follows: the modulation amplitude was set to a quarter or a half of the narrowest line peak-to-peak line width; time constant, 64 ms; incident microwave power, 2 mW; sweep time, 30 s; and scan width, 100 G. Typically, between 10 and 50 individual scans were acquired and averaged out.

EPR titration experiments

EPR titration experiments in aqueous solution were carried out in 50 mM phosphate buffer solutions adjusted to a required pH. In all the experiments the pH values were measured with a SimpHony pH meter (VWR International) equipped with InLab microcombination pH electrode (Mettler-Toledo GmbH, Greifensee, Switzerland) three-point calibrated using two sets of standard VWR (VWR International) buffer solutions: one at pH = 1.68, 4.0, and 7.0 and another at pH = 4.0, 7.0, and 10.0. Before the measurements, both the samples and the standard buffer solution were equilibrated at a required temperature using a circulating bath Model 9710 (PolyScience, Niles, IL) equipped with a digital temperature controller. For EPR titration and pH equilibration of MLVs, approximately 50–100 μl of lipid dispersion was placed into a 1.5 ml Eppendorf tube and the pH of the solution was adjusted by titration with a 0.3 or 0.05 M HCl solution or a 0.1 M NaOH solution. To ensure pH equilibration inside the MLVs after adjusting the pH, the dispersion was subjected to ten consecutive freeze–thaw cycles between liquid nitrogen and a water bath maintained at the temperature of the EPR experiment. The sample was vortexed occasionally, and the pH was measured at the temperature of the EPR experiment. For titration and pH equilibration of ULVs, the pH of the lipid dispersion was adjusted by titration with a 0.3 or 0.05 M HCl solution or a 0.1 M NaOH solution, and the sample was allowed to equilibrate for 10–15 min at the temperature of experiment with occasional vortexing.

Potentiometric titration

Potentiometric titration in aqueous solution was carried out at room temperature (21 °C) as follows. 3 mM solution of the nitroxide 10 in DI water was acidified with HCl down to pH = 3.66 (completely protonated form of the nitroxide) and titrated with 10 mM NaOH solution. Experimental data and the fit are shown in Fig. S1 of the ESI.† The pH of the solution was measured with a SimpHony pH meter equipped with InLab microcombination pH electrode three-point calibrated using standard VWR buffer solutions at pH = 1.68, 4.0, and 7.0.

3-Cyano-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrole 1-oxyl was synthesized according to the literature procedure.⁶⁶

3-Amino-4-cyano-2,2,5,5-tetramethylpyrrolidine 1-oxyl⁶⁷. Commercial ammonium hydroxide was cooled with ice-water bath to ca. 0 °C and saturated with dry gaseous NH₃. The concentration of the resulted NH₃ solution was estimated to be 44 w/v %. 3-Cyano-2,2,5,5-tetramethylpyrroline 1-oxyl (7.33 g, 44.4 mmol) was suspended in 25 ml of this NH₃ solution, the flack was sealed tight, and the reaction mixture was allowed to stay for 4 days upon stirring. After that, another 25 ml of concentrated NH₃ solution were added and stirring was continued for 4 days more. The reaction mixture was saturated with NaCl, and the precipitate formed (3-carbamido-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrole 1-oxyl) was collected on a filter. Aqueous solution was extracted with ethyl acetate; organic extract was dried over MgSO₄ and concentrated under reduced pressure. A residue was treated with ether and precipitated another portion of 3-carbamido-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrole 1-oxyl was collected on a filter. Overall, 1.93 g (23.8%) of amide was collected. Ether solution was concentrated and separated by chromatography on Al₂O₃, first with hexane–EtOAc, 50 : 50 (v/v), and then with hexane–EtOAc, 40 : 60 (v/v), as eluents, to give 3-amino-4-cyano-2,2,5,5-tetramethylpyrrolidine 1-oxyl (5.06 g, 62.6%). Also, 0.14 g (1.9%) of the starting nitrile was recovered.

3-Amino-1-oxyl-2,2,5,5-tetramethylpyrrolidine-4-carboxylic acid (POAC, 5)⁶⁷. A mixture of 3-amino-4-cyano-2,2,5,5-tetramethylpyrrolidine 1-oxyl (3.36 g, 18.5 mmol), Ba(OH)₂·8H₂O (22 g, 69.7 mmol), and water (125 ml) was refluxed for 48 h. After that, a solid phase was filtered off; an aqueous phase was diluted two-fold with water, and dry CO₂ was added portion-wise, slowly. The precipitate formed was filtered off, and the aqueous solution was treated with dry CO₂ again. The CO₂ treatment followed by filtration was repeated until the solution stayed clear after CO₂ addition. Clear aqueous solution was lyophilized giving crude POAC (3.5 g, 97%), which was used without further purification.

3-tert-Butoxycarbonylamino-1-oxyl-2,2,5,5-tetramethylpyrrolidine-4-carboxylic acid (N-Boc POAC, 6). To a suspension of POAC 5 (4.16 g, 20.7 mmol) in 30 ml of dry acetonitrile, triethylamine (6.65 ml, 47.8 mmol) and di-tert-butyl dicarbonate (5.9 g, 27 mmol) were added consecutively upon stirring. The resulting mixture was stirred for 48 h at room temperature. After that, volatiles were removed under a reduced pressure, water (100 ml) was added to a residue, and pH of the aqueous phase was brought to pH ≈2.0 with 2N HCl. The aqueous phase was extracted with ethyl acetate and the organic extract was dried over Na₂SO₄. Ethyl acetate was removed under a reduced pressure; the resulting crude solids were triturated in chloroform to give the target compound as a yellow precipitate, 2.9 g (46%). mp 204–208 °C (dec). FT-IR (KBr, λ_max, cm⁻¹): 3384, 3114 (br), 2987, 2939, 1743, 1686, 1523, 1368, 1298, 1279, 1170, 1143, 1045. HRMS-ESI: m/z calcd for C₁₄H₂₅N₂O₅ [M]⁺ 301.17580, found 301.17569; calcd for C₁₄H₂₅N₂O₅K [M + K]⁺ 340.13951, found 340.13951.

3-tert-Butoxycarbonylamino-4-hydroxymethyl-1-oxyl-2,2,5,5-tetramethylpyrrolidine 8. Step 1. Triethylamine (0.52 ml, 3.7 mmol) was added to a suspension of N-Boc POAC 6 (1 g, 3.3 mmol) in dry ether (60 ml), and dry CH₂Cl₂ (40 ml) was added to make a clear solution. The resulting solution was cooled down to −10 °C, and a solution of ethyl chloroformate (0.35 ml, 3.7 mmol) in 5 ml of ether was added dropwise upon stirring. The reaction mixture was allowed to warm up to room temperature and stirring was continued for 3 h. After that, the reaction mixture was evaporated under a reduced pressure to dryness, the residue was dissolved in ether (25 ml), and a solution was filtered through a filter paper to give crude mixed anhydride 7.

Step 2. Sodium borohydride (1.25 g, 33 mmol) was added to EtOH (75 ml) cooled to −15 °C, and an ether solution of the mixed anhydride 7 from Step 1 was added dropwise upon stirring and cooling. The reaction mixture was allowed to stay for 2 h (slowly warmed up to the room temperature). The reaction mixture was evaporated to dryness, water (20 ml) was added to the residue, and the mixture was extracted with chloroform. Organic extract was dried over Na₂SO₄. The product was purified on silica gel, with CHCl₃ containing 4.5 v/v% of CH₃OH as eluent to give 0.75 g of hydroxymethyl derivative 8 as a light yellow solid (79% yield after two steps). mp 196–198 °C (dec) (hexane–EtOAc). FT-IR (KBr, λ_max, cm⁻¹): 3339 (br), 3375 (br), 2985, 2970, 2934, 2877, 2813, 1686, 1518, 1362, 1301, 1288, 1167, 1052, 1004, 860, 755. HRMS-ESI: m/z calculated for C₁₄H₂₇N₂O₄ [M]⁺ 287.19653, found 287.19621.

3-Amino-4-hydroxymethyl-1-oxyl-2,2,5,5-tetramethylpyrrolidine 9. N-Boc nitroxide 8 (0.761 g, 2.6 mmol) in a mixture of water (100 ml) and CH₃OH (15 ml) was refluxed⁶⁸ until TLC test (silica gel, CHCl₃ + CH₃OH) showed no presence of the starting compound (≈22 h). After that, the reaction mixture was saturated with solid KOH and extracted with chloroform (4 × 30 ml). Organic solution was extracted with 3% HCl (4 × 20 ml), acidic solution was washed with chloroform (2 × 20 ml), basified with solid KOH, and extracted with chloroform (4 × 20 ml). Organic extract was dried over Na₂SO₄. Evaporation of chloroform under a reduced pressure afforded 9 as a slightly yellow viscous oil (crystallized in 4 °C fridge) that was used without further purification. R_f = 0.4 (silica gel, CHCl₃ + 1.5% v/v CH₃OH). Yield 0.446 g (90%). mp 120–121 °C (hexane–EtOAc). FT-IR (KBr, λ_max, cm⁻¹): 3331, 3284, 3194, 2978, 2932, 2898, 2873, 1612, 1466, 1362, 1180, 1100, 1039, 986, 955, 941, 760. HRMS-ESI: m/z calcd for C₉H₂₀N₂O₂ [M + H]⁺ 188.15193, found 188.15146.

3-Dimethylamino-4-hydroxymethyl-1-oxyl-2,2,5,5-tetramethylpyrrolidine 10. An amino derivative 9 (0.106 g, 0.57 mmol) was dissolved in 5 ml of 37% aqueous solution of formaldehyde, 130 μl of 88% formic acid was added, and the reaction mixture was heated and maintained at 60 °C upon stirring. In 2.5 h 130 μl of formic acid was added, and the heating was continued for 2 h. The course of reaction was controlled by TLC (silica gel, CHCl₃ + 1.5% v/v CH₃OH, compound 10 has R_f = 0.75). After the reaction was over, the reaction mixture was basified with 10% NaOH solution to pH≈10 and extracted with CHCl₃ (2 × 15 ml). Chloroform extract was dried over Na₂SO₄ and concentrated under a reduced pressure. After purification on silica gel (CHCl₃ + 1% v/v of CH₃OH) nitroxide 10 was obtained as a yellow solid, yield 0.105 g (86%). mp 127–129 °C (hexane–EtOAc). FT-IR (KBr, λ_max, cm⁻¹): 3398, 2973, 2932, 2922, 2893, 2828, 2791, 2778, 1478, 1449, 1359, 1308, 1207, 1177, 1133, 1088, 1042, 1032. HRMS-ESI: m/z calcd for C₁₁H₂₄N₂O₂ [M + H]⁺ 216.18323, found 216.18314.

Methanesulfonic acid (4-dimethylamino-1-oxyl-2,2,5,5-tetramethyl-pyrrolidin-3-yl)methyl ester 11. A solution of dimethylamino nitroxide 10 (0.244 g, 1.1 mmol) and Et₃N (181 μl, 1.3 mmol) in dry CH₂Cl₂ (20 ml) was cooled down to −10 °C, and a solution of CH₃SO₂Cl (101 μl, 1.3 mmol) in 3 ml of CH₂Cl₂ was added dropwise upon stirring. In 5 min the cooling bath was removed and stirring continued at room temperature for 3 h. The reaction mixture was diluted with 10 ml of CH₂Cl₂, washed with water (3 × 10 ml), 5% solution of NaHCO₃ (2 × 10 ml), and dried over Na₂SO₄. After the solvent evaporation a light yellow solid of the methanesulfonyl derivative 11 was acquired, 0.316 g (95%). mp 96–98 °C (hexane–EtOAc). FT-IR (KBr, λ_max, cm⁻¹): 3023, 3007, 2974, 2930, 2875, 2833, 2786, 1477, 1456, 1351, 1172, 952, 844. HRMS-ESI: m/z calcd for C₁₂H₂₆N₂O₄S [M + H]⁺ 294.16078, found 294.16035.

3-Bromomethyl-4-dimethylamino-1-oxyl-2,2,5,5-tetramethylpyrrolidine 13. LiBr (87.8 mg, 1.01 mmol) was added to a solution of methanesulfonyl derivative 11 (35 mg, 0.119 mmol) in dry DMSO (4 ml) and heated at 70 °C for 10 h. The reaction mixture was diluted with a brine (15 ml), extracted with EtOAc, organic extract was thoroughly washed with brine (4 × 5 ml), dried over Na₂SO₄, and concentrated under reduced pressure; the residue was separated by preparative TLC (silica gel, hexane–EtOAc, 3 : 2 v/v, R_f = 0.69) to give 13 as a yellow crystalline solid, yield 73%, mp 90–92 °C (hexane–EtOAc). FT-IR (KBr, λ_max, cm⁻¹): 3026, 2988, 2973, 2932, 2922, 2871, 2837, 2794, 2786, 1481, 1470, 1449, 1359, 1281, 1253, 1223, 1175, 1077, 1061, 1044, 991, 962, 879, 648. HRMS-ESI: m/z calcd for C₁₁H₂₃BrN₂O [M + H]⁺ 278.09883 (⁷⁹Br) and 280.09733 (⁸¹Br), found 278.09836 and 280.09573.

3-Dimethylamino-4-iodomethyl-1-oxyl-2,2,5,5-tetramethylpyrrolidine 14 was synthesized similar to 13. Organic extract was washed with 5% Na₂S₂O₃ solution, then with a brine. Chromatographic purification (silica gel, hexane–EtOAc, 3 : 2 v/v) afforded 14 as a light yellow powder, yield 33%, mp 99–102 °C (dec) (hexane). FT-IR (KBr, λ_max, cm⁻¹): 3026, 2970, 2932, 2917, 2871, 2837, 2799, 1481, 1372, 1359, 1212, 1186, 1173, 1071, 1055, 1039, 957, 877. HRMS-ESI: m/z calcd for C₁₁H₂₃IN₂O [M + H]⁺ 326.08496, found 326.08464.

3-Azidomethyl-4-dimethylamino-1-oxyl-2,2,5,5-tetramethylpyrrolidine 15 was synthesized similar to 13. Purification on silica gel using hexane–EtOAc mixture (3 : 2 v/v) as an eluent (R_f = 0.49) gave 15 as a yellow solid, yield 93%. mp 48–50 °C (hexane–EtOAc). FT-IR (KBr, λ_max, cm⁻¹): 2979, 2969, 2933, 2833, 2794, 2781, 2098, 1481, 1451, 1370, 1358, 1283, 1243, 1225, 1174, 1074, 1038, 897, 817. HRMS-ESI: m/z calcd for C₁₁H₂₃N₅O [M + H]⁺ 241.18971, found 241.18917.

(2-Bromoethyl)carbamic acid (4-dimethylamino-1-oxyl-2,2,5,5-tetramethylpyrrolidin-3-yl)methyl ester 21. 2-Bromoethyl isocyanate (40 μl, 0.443 mmol) was added to a solution of the nitroxide 10 (45 mg, 0.209 mmol) in EtOAc (5 ml) and the reaction mixture was stirred at room temperature for 72 h (monitored by TLC, silica gel, CHCl₃ + 5% v/v CH₃OH as eluent). The reaction mixture was concentrated under a reduced pressure and the residue was purified on silica gel using CHCl₃ + 5% v/v CH₃OH as an eluent. The bromo-derivative 21 was obtained as a yellow solid, yield 68 mg (89%). mp 108–111 °C (hexane–EtOAc). FT-IR (KBr, λ_max, cm⁻¹): 3316, 3044, 2975, 2929, 2871, 2837, 2783, 1718, 1708, 1623, 1532, 1362, 1244, 1215, 1175, 1141, 1047, 965, 781, 656. HRMS-ESI: m/z calcd for C₁₄H₂₈BrN₃O₃ [M + H]⁺ 365.13086 (⁷⁹Br) and 367.12936 (⁸¹Br), found 365.13074 and 367.12814.

(2-((Methylsulfonyl)thio)ethyl)carbamic acid (4-(dimethylamino)-1-oxyl-2,2,5,5-tetramethyl-pyrrolidin-3-yl)methyl ester 22. Sodium methanethiosulfonate dihydrate NaSSO₂CH₃·2H₂O (71.7 mg, 0.422 mmol) was added to a solution of bromo derivative 21 (30.8 mg, 8.44 × 10⁻⁵ mol) in 1 ml of dry DMSO, and the reaction mixture was allowed to stay at room temperature. After the reaction was completed (monitored by TLC, silica gel, CHCl₃ + 5% v/v CH₃OH), the reaction mixture was diluted with a brine and extracted with EtOAc. An organic extract was thoroughly washed with brine, dried over Na₂SO₄, and concentrated under reduced pressure. After a separation on silica gel using CHCl₃ + 5% v/v CH₃OH as an eluent, the methanethiosulfonate 22 was obtained as a dark yellow viscous oil, 23 mg (70%). FT-IR (neat, λ_max, cm⁻¹): 3331, 2975, 2927, 2873, 2850, 2783, 1712, 1526, 1455, 1362, 1319, 1257, 1130, 1047, 957, 743. HRMS-ESI: m/z calcd for C₁₅H₃₁N₃O₅S₂ [M + H]⁺ 397.16996, found 397.16975.

Synthesis of the adduct 16. A solution of 3-amino-1-(11,12-didehydrodibenzo[b,f]azocin-5(6H)-yl)propan-1-one (DBCO-amine) (0.0031 g, 1.125 × 10⁻⁵ mol) in 0.5 ml of acetonitrile was added to a solution of azide 15 (0.0027 g, 1.125 × 10⁻⁵ mol) in 0.5 ml of acetonitrile, and the resulting mixture was allowed to stay for 6 h. TLC analysis (silica gel deactivated with Et₃N, CHCl₃–CH₃OH–Et₃N (100 : 3 : 0.5 v/v) as an eluent) showed no presence of the starting materials. After a chromatographic purification, compound 16 was obtained as a crystalline solid, R_f = 0.31 (silica gel deactivated with Et₃N, CHCl₃–CH₃OH–Et₃N (100 : 3 : 0.5 v/v) as an eluent), yield 0.0057 g (98%). FT-IR (neat, λ_max, cm⁻¹): 3419, 2975, 2925, 1649, 1457, 1380, 1199, 1002, 967, 938, 781. HRMS-ESI: m/z calcd for C₂₉H₃₉N₇O₂ [M + H]⁺ 517.31597, found 517.31558; m/z calcd for C₂₉H₄₀N₇O₂ [M + 2H]²⁺ 259.16163, found 259.16149.

3-Dimethylamino-1-oxyl-2,2,5,5-tetramethyl-4-[2-(tetrahydropyran-2-yloxy)-ethoxymethyl]-pyrrolidine 17. 2-(2-Bromoethoxy)tetrahydro-2H-pyran (0.512 ml, 3.39 mmol) was added to a solution of the nitroxide 10 (182 mg, 0.847 mmol) in 12 ml DMSO containing crushed KOH (892 mg, 15.93 mmol). The reaction mixture was vigorously stirred at room temperature for 24 h. After that, inorganic precipitate was filtered off; DMSO solution was diluted with a brine (50 ml) and the resulting aqueous solution was extracted with EtOAc. The tetrahydropyran-protected nitroxide 17 was obtained as yellow viscous oil, 265 mg (91%). FT-IR (neat, λ_max, cm⁻¹): 2968, 2933, 2868, 2831, 2779, 1455, 1356, 1123, 1073, 1034, 867, 817. HRMS-ESI: m/z calcd for C₁₈H₃₆N₂O₄ [M + H]⁺ 344.26696, found 344.26750.

3-Dimethylamino-4-(2-hydroxy-ethoxymethyl)-1-oxyl-2,2,5,5-tetramethylpyrrolidine 18. Deprotection of the nitroxide 17 was carried out similar to the literature procedure.⁷¹ A solution of the O-THP derivative 17 (0.140 g, 0.408 mmol) in 3 ml of CH₃COOH–H₂O mixture (4 : 1 v/v) was heated at 50–55 °C for 3 h (monitored by TLC, silica gel, CHCl₃ + 1.5% v/v CH₃OH). After the reaction was completed, the reaction mixture was added dropwise upon vigorous stirring to a saturated NaHCO₃ solution (10 ml), after that solid NaOH was added to bring the pH up to pH = 10–11. The basic solution was extracted with EtOAc, organic extract was washed with brine, and dried over Na₂SO₄. After concentration under a reduced pressure the residue was purified on silica gel with CHCl₃ + 2% v/v CH₃OH as an eluent to give 18 as a yellow oil, yield 100 mg (94%). FT-IR (neat, λ_max, cm⁻¹): 3414, 2973, 2929, 2873, 2786, 1732, 1646, 1455, 1380, 1359, 1281, 1244, 1212, 1180, 1124, 1074, 1055, 1039. HRMS-ESI: m/z calcd for C₁₃H₂₈N₂O₃ [M + H]⁺ 260.20944, found 260.20984.

2-((4-(Dimethylamino)-1-oxyl-2,2,5,5-tetramethylpyrrolidin-3-yl)methoxy)ethyl methanesulfonate 19. A solution of nitroxide 18 (46.4 mg, 0.179 mmol) and Et₃N (27.4 μl, 0.197 mmol) in 3 ml of dry CH₂Cl₂ was cooled down to −10 °C, and a solution of CH₃SO₂Cl (15.3 μl, 0.197 mmol) in 1 ml of CH₂Cl₂ was added dropwise upon stirring. In 5 min the cooling bath was removed, and the stirring continued at room temperature for 3 h. The reaction mixture was diluted with 5 ml of CH₂Cl₂, washed with water (2 × 5 ml), 5% solution of NaHCO₃ (1 × 5 ml), and dried over Na₂SO₄. Solvent evaporation afforded the methanesulfonyl derivative 19 as a yellow solid (57 mg, 94%). mp 78–80 °C (hexane–EtOAc). The compound was used without further purification. FT-IR (neat, λ_max, cm⁻¹): 2973, 2921, 2870, 2848, 2784, 1458, 1353, 1171, 1128, 1016, 969, 924, 807. HRMS-ESI: m/z calcd for C₁₄H₃₀N₂O₅S [M + H]⁺ 338.18699, found 338.18734.

S-(2-((4-(Dimethylamino)-1-oxyl-2,2,5,5-tetramethylpyrrolidin-3-yl)methoxy)ethyl) methanesulfonothioate 20. A DMSO solution (3 ml) containing methanesulfonyl nitroxide 19 (0.05 g, 0.148 mmol), NaSSO₂CH₃·2H₂O (0.1 g, 0.588 mmol), and LiBr (0.005 g, 5.76 × 10⁻⁵ mol) was heated at 70 °C for 40 min. The reaction mixture was diluted with a brine, extracted with EtOAc; an organic extract was washed with brine, dried over Na₂SO₄, and concentrated under a reduced pressure. After a separation on silica gel with CHCl₃ + 5% v/v CH₃OH as eluent, the methanethiosulfonate 20 was obtained as a yellow viscous oil, 0.012 g, yield 23%. FT-IR (neat, λ_max, cm⁻¹): 3005, 2986, 2976, 2935, 2903, 2882, 2830, 2800, 2775, 1475, 1454, 1356, 1313, 1210, 1134, 1118, 967, 745. HRMS-ESI: m/z calcd for C₁₄H₃₀N₂O₄S₂ [M + H]⁺ 354.16415, found 354.16460.

Spin-labeling of 1,2-dipalmitoyl-sn-glycero-3-phosphothioethanol (PTE) (General procedure). 50 mM phosphate buffer pH = 6.86 (1.5 ml) was added to a chloroform solution (3 ml) containing 1,2-dipalmitoyl-sn-glycero-3-phosphothioethanol (sodium salt) (1.75 × 10⁻⁵ mol) and a methanethiosulfonate spin label (either 22 or 20, 1.77 × 10⁻⁵ mol) and the resulting two-phase mixture was vigorously stirred for 24 h. Organic layer was separated, concentrated under a reduced pressure, and the residue was separated on silica gel. Spin-labeled phospholipids were obtained as yellowish viscous oils. 22-PTE: a mixture CHCl₃–CH₃OH–H₂O (70 : 30 : 1 v/v) was used as an eluent, 70% yield. FT-IR (neat, λ_max, cm⁻¹): 3342, 2954, 2920, 2849, 1739, 1726, 1531, 1467, 1242, 1178, 1103, 1071, 1023. HRMS-ESI: m/z calcd for C₅₁H₉₉N₃NaO₁₁PS₂ [M + H]⁺ 1047.63508, found 1047.63213. 20-PTE: a mixture CHCl₃–CH₃OH–H₂O (70 : 15 : 0.5 v/v) was used as an eluent, 44% yield. FT-IR (neat, λ_max, cm⁻¹): 2949, 2917, 2847, 2793, 1742, 1464, 1376, 1362, 1239, 1167, 1097, 1068, 1017. HRMS-ESI: m/z calcd for C₅₀H₉₈O₁₀N₂NaPS₂ [M + H]⁺ 1004.62927, found 1004.62864; C₅₀H₉₇O₁₀N₂Na₂PS₂ [M + Na]⁺ 1026.61122, found 1026.61118.

Spin-labelling of 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE). 1-Oxyl-2,2,5,5-tetramethylpyrrolidin-3-one 23 (0.013 g, 8.33 × 10⁻⁵ mol) and 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (20 mg, 2.68 × 10⁻⁵ mol, 1 ml of chloroform solution) were mixed, diluted with 2 ml of CHCl₃ and 4 ml of i-PrOH, and tetrabutylammonium cyanoborohydride (0.023 g, 8.16 × 10⁻⁵ mol) was added upon stirring. The reaction mixture was heated at a slight reflux for 24 h (monitored by TLC). After concentration at a reduced pressure, the residue was separated on silica gel using a mixture CHCl₃–CH₃OH–H₂O (70 : 15 : 0.5 v/v) as an eluent affording 23-DOPE as slightly yellow viscous oil. Yield 21.6 mg (91%). FT-IR (neat, λ_max, cm⁻¹): 3409, 2925, 2852, 1737, 1460, 1231, 1065, 821. HRMS-ESI: m/z calcd for C₄₉H₉₃N₂O₉P [M + H]⁺ 884.66132, found 884.59905.

Synthesis of mercaptoethanol adducts 24 and 25 was carried out similar to the previously described procedure.⁵⁵

(2-((2-Hydroxyethyl)-disulfaneyl)ethyl)carbamic acid (4-(dimethylamino)-1-oxyl-2,2,5,5-tetramethylpyrrolidin-3-yl)methyl ester 24. Purified on silica gel with CHCl₃ + 5% v/v CH₃OH, the adduct 24 was obtained as a yellow viscous oil, yield 95%. FT-IR (neat, λ_max, cm⁻¹): 3326, 3063, 2973, 2930, 2871, 2786, 1705, 1531, 1459, 1362, 1255, 1178, 1141, 1044, 774. HRMS-ESI: m/z calcd for C₁₆H₃₃N₃O₄S₂ [M + H]⁺ 395.19070, found 395.19043.

3-(Dimethylamino)-4-((2-((2-hydroxyethyl)disulfaneyl)-ethoxy)methyl)-2,2,5,5-tetramethyl-pyrrolidin-1-oxyl 25. Purified on silica gel with CHCl₃ + 5% v/v CH₃OH, the adduct 25 was obtained as a yellow viscous oil, yield 80%. FT-IR (neat, λ_max, cm⁻¹): 3401, 2979, 2925, 2866, 2783, 1459, 1387, 1357, 1282, 1242, 1210, 1178, 1117, 1076, 1044, 1010, 972. HRMS-ESI: m/z calcd for C₁₅H₃₂N₂O₃S₂ [M + H]⁺ 352.18489, found 352.18531.

3-(2-Hydroxyethylamino)-1-oxyl-2,2,5,5-tetramethylpyrrolidine 26. An isopropanol solution (2 ml) containing H₃PO₃ (0.0115 g, 0.14 mmol) and ethanolamine (0.0085 g, 0.14 mmol) was prepared. The resulting solution was mixed with 23 (0.0044 g, 2.8 × 10⁻⁵ mol) dissolved in 1 ml of i-PrOH, and then NaCNBH₃ (0.0395 g, 0.14 mmol) was added. The reaction mixture was heated overnight (hot plate was set to 80 °C) upon stirring. Volatiles were removed under a reduced pressure, the residue was dissolved in CHCl₃; the organic layer was thoroughly washed with 5% solution of NaHCO₃, and dried over Na₂SO₄ to give 26 as a yellow oily product, 0.0029 g (51%). FT-IR (neat, λ_max, cm⁻¹): 3396, 2970, 2927, 2869, 2850, 1646, 1564, 1463, 1412, 1367, 1255, 1130, 1058, 967. HRMS-ESI: m/z calcd for C₁₀H₂₂N₂O₂ [M + H]⁺ 202.16758, found 202.16735.
