Zn-doped NiMoO₄ enhances the performance of electrode materials in aqueous rechargeable NiZn batteries

Abstract

In this work, zinc was introduced to prepare Ni_1−xZn_xMoO₄ (0 ≤ x ≤ 1) nanoflake electrodes to increase the energy density and improve the cycling stability for a wider range of applications of aqueous rechargeable nickel–zinc (NiZn) batteries. This was achieved using a facile hydrothermal method followed by thermal annealing, which can be easily scaled up for mass production. Owing to the unique nanoflake structures, improved conductivity, and tunable electronic interaction, excellent electrochemical performance with high specific capacitance and reliable cycling stability can be achieved. When the Zn doping is 25%, the Ni_0.75Zn_0.25MoO₄ nanoflake electrode displays a high specific capacitance of 345.84 mA h g⁻¹ (2490 F g⁻¹) at a current density of 1 A g⁻¹ and improved cycling stability at a high current density of 10 A g⁻¹. NiZn cells assembled with Ni_0.75Zn_0.25MoO₄ nanoflake electrodes and zinc electrodes have a maximum specific capacity of 344.7 mA h g⁻¹ and an energy density of 942.53 W h kg⁻¹. This design strategy for nickel-based electrode materials enables high-performance energy storage and opens up more possibilities for other battery systems in the future.

---

1. Introduction

Batteries have attracted increasing attention from researchers in both academia and industry owing to their rapid development into diverse products ranging from consumer electronics to grid-scale energy storage devices.^1–3 Nickel-based aqueous rechargeable batteries such as NiCd, NiMH, NiFe, and NiZn have gained renewed interest owing to their improved power density, high safety, and low cost.^4–6 Among these candidates, the rechargeable alkaline NiZn battery with its higher cell voltage has the advantages of greater energy density and higher power density and can thus be more cost-effective.^7,8 Zinc anodes have low redox potential and high theoretical capacity, and they can be safely used in a highly conductive aqueous electrolyte, making them promising for large-scale applications.⁹ However, the present commercial Ni-based electrode, with its unavoidable oxygen evolution side reaction, poor conductivity, and low actual energy density, needs to be improved to better achieve the advantages of NiZn batteries.¹⁰ Such development and improvement of nickel-based electrode materials will also be beneficial for the other Ni-based battery chemistries.

Nickel-based nanomaterials have been widely explored based on the rechargeable redox reaction between the nickel hydroxide redox couples (Ni(II)(OH)₂/Ni(III)OOH). They are the first choice for Ni-based batteries in industrial production. They have also received increasing attention owing to their relatively high theoretical specific capacitance of 2082 F g⁻¹ and fast redox kinetics.^11,12 Nevertheless, it can be improved by developing other Ni-based redox couples. Nickel oxide (NiO) is a green crystalline solid material and a promising electrode material owing to its unique electrical properties, with excellent ion storage kinetics and a relatively high capacitance of 2573 F g⁻¹. To obtain NiO nanomaterials, some different approaches have been investigated with tunable composition, size, morphology, and crystalline structure.^13–15 Recently, nickel molybdate (NiMoO₄) has been recognized as a strong candidate owing to its high theoretical specific capacitance >3000 F g⁻¹. The relatively high electrochemical activity arises from the reversible redox reaction of Ni²⁺/Ni³⁺ and the spinel crystal structure offering effective charge storage and high ion diffusion rate in a robust host structure with a three-dimensional network of well-connected interstitial sites.^16–19 It is, however, still a challenge to improve the electrochemical performance of these nanomaterials.

To improve the performance, hybrid nanostructures fabricated by combining Ni-based materials with other high-conductive materials or conductive substrates were employed to enhance electrochemical performances.^20,21 Considerable efforts have been invested in composite strategies for these materials. Although good performance was indeed achieved, some components were too complex to analyze the mechanisms in detail, making further practical development difficult. Therefore, the introduction of heteroatoms (such as Co, Al, Zn, Mn, and Mg) was explored to understand the composition, phase transition, defects, and electronic structures to further guide the synthesis and control of the materials.^22–25 Many studies on metal ion doping have been reported to enhance the structure stability and promote the electrochemical performance of these electrode materials for Ni/Zn batteries. Fu et al. prepared Ni/SnS₂@Ni(OH)₂ decorated on carbon cloth by doping Ni to increase electro-active sites and enlarge the interfacial area, thus reaching a reversible specific capacitance of 2090 F g⁻¹ at 1 A g⁻¹.²⁶ Shen et al. reported a novel and efficient zinc-induced phase reconstruction method to boost the electrochemical stability of cobalt–nickel double hydroxide cathode materials to improve the stability and rate capability for high-performance Ni/Zn batteries.²⁷ Xiang's group fabricated ultrathin NiMn_xO_y nanosheets via a simple H₂-annealing process to form oxygen vacancies improving the areal capacity and cycling performance.²⁸ Xu et al. used nanosheets with high electrical conductivity and increased concentration of oxygen vacancies to construct hierarchical Co-doped NiMoO₄. NiMoO₄ with 15% cobalt doping assembled with a Zn electrode displayed high capacity and excellent cycle stability.²⁹ In addition, Zhao's group obtained Ni,Zn-codoped spinel MgCo₂O₄in situ grown on a Co foam via a simple hydrothermal process, exhibiting enhanced capacitance and cycling stability.³⁰ There is a lot of work to prove that doping is a simple and effective way. For a Ni/Zn battery, Zn doping is a good choice to adjust the structure and composition of materials to tailor the structure and enhance the electrochemical performance by reducing the effects caused by the generated zincate in a zinc-rich environment.³¹

In this work, we synthesized Ni_1−xZn_xMoO₄ nanoflakes by a simple hydrothermal method. The amount of Zn doping in NiMoO₄ was controlled by adjusting the proportion of metal ions added to the precursor solution during the synthesis process. The specific capacitance, rate capability, and cycling stability of the Ni_1−xZn_xMoO₄ electrode are significantly better than those of the pristine NiMoO₄ electrode. Introducing Zn was simplified by the unique nanoflake structures. When the Zn-doping percentage is 25%, Ni_0.75Zn_0.25MoO₄ can achieve a high specific capacity of 345.84 mA h g⁻¹ (2490 F g⁻¹) at 1 A g⁻¹ and enhanced cycling capacitance retention at a high current density of 10 A g⁻¹. Furthermore, NiZn cells based on the Ni_1−xZn_xMoO₄ nanoflake electrodes and zinc counter electrodes were constructed to explore the practical applications. The device exhibited high energy density, power density, and good cycling stability, presenting promising applications in aqueous rechargeable alkaline devices.

2. Experimental section

2.1. Synthesis of Zn-doped NiMoO₄

Zn-Doped NiMoO₄ was obtained by a simple one-step hydrothermal process. First, (1 − x) mmol Ni(NO₃)₂·6H₂O, x mmol Zn(NO₃)₂·6H₂O, 1 mmol Na₂MoO₄, and 5 mmol urea were dissolved in 35 mL deionized (DI) water to obtain a uniform solution (where x = 0, 0.25, 0.5, 0.7, 0.75, 0.8, 0.9 and 1). Then, the homogeneous mixture was poured into a 50 mL Teflon-lined stainless steel autoclave, into which a piece of clean nickel foam had already been added, and kept at 150 °C for 6 h. Finally, the product was obtained and washed with DI water followed by drying at 60 °C overnight. For comparison, the same process was performed without the nickel foam. The samples were labeled as Ni_1−xZn_xMoO₄, where x represents the amount of Zn(NO₃)₂·6H₂O, and x = 0, 0.25, 0.5, 0.7, 0.75, 0.8, 0.9 and 1, respectively. Here, x describes the amount of Zn added during the synthesis process but does not represent the elemental content of the final product. Finally, all the products were obtained after thermal annealing at 300 °C for 2 h in air.

2.2. Material characterizations

X-ray powder diffraction patterns were recorded using an X-ray diffractometer (D8 DISCOVER, Bruker) in the range from 10° to 80°. The morphology of the samples was observed using a scanning electron microscope (SEM, JSM-7000F for binder-free materials, and Ultra 55 for powder materials) and a scanning transmission electron microscope (STEM, Themis Z, Thermo Fisher Scientific) equipped with an EDX detector. X-ray photoelectron spectrum (XPS) was recorded to analyze the elemental composition and valence state by employing a model of ESCALAB 250Xi (Thermo).

2.3. Electrochemical characterizations

The electrochemical characterizations were carried out in a three-electrode system using an electrochemical workstation (VSP300, Biologic, France). The obtained binder-free electrode, platinum wire, and Hg/HgO were used as the working, counter, and reference electrodes, respectively, in a 6 M KOH aqueous electrolyte solution. For the powder materials, the working electrode was prepared as follows: active material (80 wt%), acetylene black (10 wt%), and polyvinylidene difluoride (10 wt%, dissolved in N-methyl-pyrrolidone) were mixed to form a slurry. Then, the slurry was coated onto a Ni foam and dried at 120 °C under vacuum overnight to obtain the electrode.

For the electrode, the electrochemical performance was tested by cyclic voltammetry (CV, 0–0.6 V), galvanostatic charge–discharge measurements (GCD, 0–0.5 V), electrochemical impedance spectroscopy (EIS, 10⁻²–10⁵ Hz applied at the open circuit potential), and long-term cycling measurements. For the cell, the obtained electrode was assembled with a zinc electrode. The voltage range is 1.2–2.2 V for CV and 1.2–1.9 V for GCD measurements, respectively. For the calculation of the electrode and battery capacity, the effective mass of the active electrode material was taken as the difference in mass of the nickel foam electrode before and after synthesis.

3. Results and discussion

The morphologies and structures of the obtained Ni_1−xZn_xMoO₄ nanoflakes were characterized by scanning electron microscopy (SEM), as shown in Fig. 1. It can be noted that almost all samples exhibit a similar nanoflake structure. Generally, this special structure has a higher specific surface area and can provide more surface active sites to promote the redox reaction of the material surface layer.³² The formation of this structure is assumed to include heterogeneous nucleation and crystal growth. In the following hydrothermal process, many ultrafine nanocrystallines are first formed on the surface of the NF substrate and become the nucleus in the subsequent growth process. Then, this nucleus adsorbs more ions and aggregates and tends to grow into small nanoflakes. Depending on the concentration of the precursor solution, material layers with different densities and thicknesses can be formed.³³ In addition, without the presence of the NF substrate, the nanoflakes will continue to serve as nucleation centers to absorb newly generated nanosheets with higher surface energy and smaller sizes. Microspheres are formed by cross-linking due to the minimizing interfacial energy, as shown in Fig. S1 (ESI†).³⁴

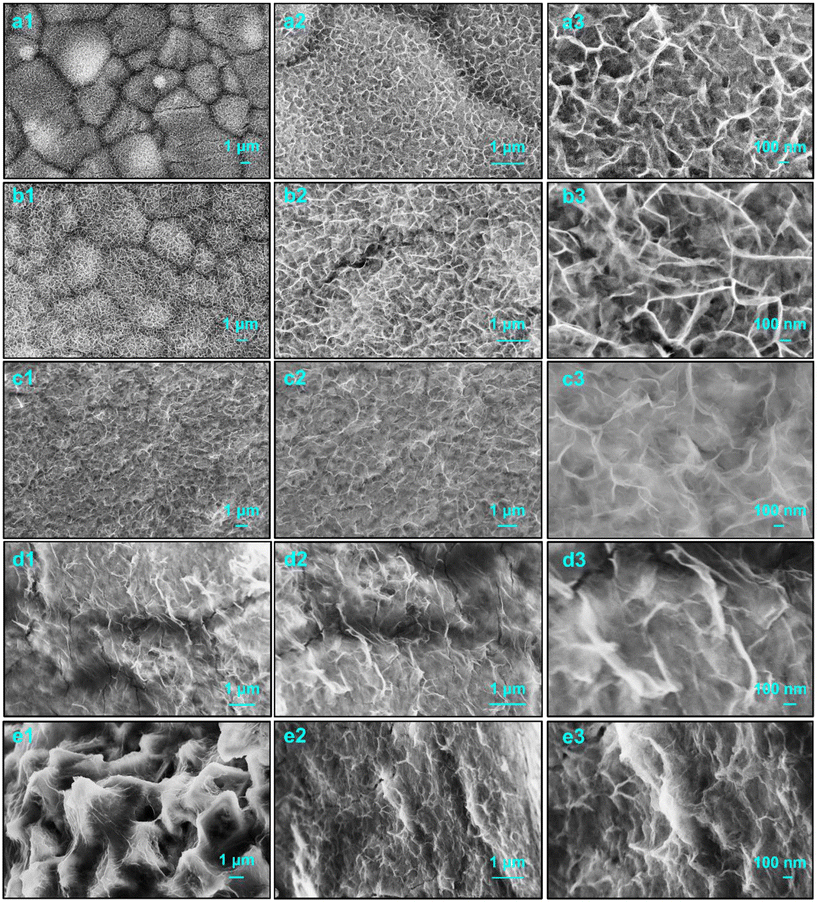

Fig. 1 SEM images of obtained materials: (a1–a3) NiMoO₄, (b1–b3) Ni_0.75Zn_0.25MoO₄, (c1–c3) Ni_0.5Zn_0.5MoO₄, (d1–d3) Ni_0.25Zn_0.75MoO₄, and (e1–e3) ZnMoO₄, respectively.

For the obtained Ni_1−xZn_xMoO₄ nanoflakes, Fig. 1a displays the SEM images of pristine NiMoO₄, in which uniform ultrathin nanoflakes can be clearly seen. Fig. 1b–d present the SEM images of obtained samples doped with different Zn contents. It can be observed that the morphologies of these samples are changed gradually. As shown in Fig. 1b, although the Ni_0.75Zn_0.25MoO₄ sample has a similar nanoflake structure to the pristine NiMoO₄ sample, the size is significantly increased and it has clearer morphological boundaries, indicating the promotion and enhancement of the structure. When the Zn content is more than 50%, the sample shows a weak nanoflake structure and a thinner layer of materials (Fig. 1c–e). Ni-Based nanoflakes are easier to form than Zn-based nanosheets owing to the presence of the nickel foam substrate. When Zn²⁺ is doped into NiMoO₄ to replace part of Ni²⁺, the electronic structure of NiMoO₄ will be changed. The strong repulsive force between Zn and O is conducive to the transfer of electrons to Ni²⁺, thereby enhancing the charge storage performance.³¹ This indicates that the nucleation and crystallization process involves two metal cations. Their electronic structure, migration rate, ionic radius, etc., will affect the final morphology, crystal structure, and crystallinity, thus affecting their physical and chemical properties.

Fig. S1 (ESI†) shows the corresponding SEM images of the Ni_1−xZn_xMoO₄ powder materials. Similarly, the pristine NiMoO₄ powders are microspheres with a diameter of 1–2 μm composed of numerous cross-linked nanoflakes. These microspheres have a hollow structure, clearly showing the existence of larger cavities. Their formation may be caused by the thermal decomposition and self-assembly processes of the precursor. This hollow structure can accelerate the diffusion rate and mass transfer of electrolyte ions inside the material, leading to more effective redox reactions. With the increase in Zn content, the size of the microspheres gradually increases, and the nanoflakes on the surface gradually transform into nanosheets. In partial location, the morphology looks like ultrathin nanoflakes wrapped around nanosheets. This phenomenon seems to be strengthened with the appearance of coarser and large-sized nanosheets when the Zn content reaches 50%. However, when only zinc cations were added to completely replace the nickel cations, stronger nanosheets with uniform distribution appeared. This process is basically similar to the above-mentioned growth process on the NF substrate. Furthermore, as shown in Fig. 2a, the scanning transmission electron microscopic (STEM) images confirm the ultrathin nanoflake structure of the obtained Ni_0.75Zn_0.25MoO₄ materials coated onto the NF. The corresponding EDX mapping and element spectrum (Fig. S2a, ESI†) illustrate the existence and uniform distribution of the Ni, Zn, Mo, and O elements, respectively.

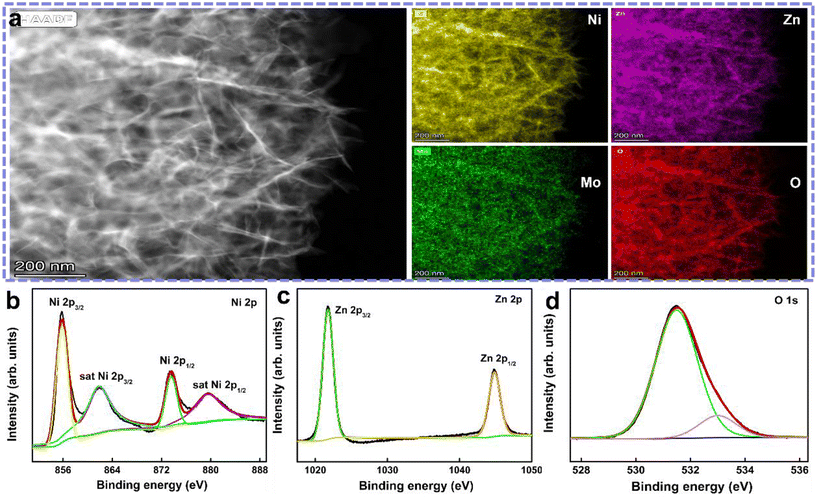

Fig. 2 (a) STEM images of Ni_0.75Zn_0.25MoO₄ materials and the corresponding EDX mapping, and (b–d) high-resolution XPS spectra of Ni 2p, Zn 2p, and O 1s, respectively.

In Fig. S2b (ESI†), the crystal structure and crystallinity of the obtained Ni_1−xZn_xMoO₄ nanomaterials were confirmed by X-ray diffraction (XRD). As shown in Fig. S2b (ESI†), the signal of the NF substrate (JCPDS card no. 04-0850) dominates the XRD pattern.³⁵ Local exposure outside the NF makes the signal of the materials weak. Thus, the partially enlarged XRD patterns of the obtained materials with different Zn contents are presented to assist in analyzing the crystal phase structure (shown in Fig. S2c, ESI†). In the beginning, it was difficult to distinguish the peaks to determine the phase composition owing to their weak signal and strong noise. The peaks roughly were conjectured to be crystal planes of NiMoO₄ (JCPDS card no. 12-0348).³⁴ As Zn is added and its content increases, the peak position shifts slightly, indicating that Zn atoms replace a part of Ni atoms resulting in a change in the lattice constants due to the increase in radius. When the content of Zn exceeds 50%, it shows mixed phases containing NiMoO₄ and ZnMoO₄ (JCPDS card no. 25-1024), which indicates that Zn was successfully doped into NiMoO₄. However, the Ni₀Zn₁MoO₄ sample becomes a mixed phase containing some zinc oxide (JCPDS card no. 36-1451), which is caused by the oxidation after calcination in air. In addition, it can be noticed that the intensity of the peak gradually increases with the increase in Zn content, which indicates that doping Zn into NiMoO₄ can improve the crystallinity and enhance the structural stability. Although it cannot be accurately described, the specific composition of this dopant leads to better cycle life and higher specific capacity of the Ni_1−xZn_xMoO₄ electrodes. We attribute this to the increased diffusion of the electrolyte ions into the electrode materials.

X-ray photoelectron spectroscopy (XPS) was performed to detect the elemental composition and valence states of the Ni_0.75Zn_0.25MoO₄ nanoflakes. The survey spectrum (Fig. S2d, ESI†) suggests the existence of Ni, Zn, Mo, and O. The Ni_0.75Zn_0.25MoO₄ nanoflakes contain Zn and the atomic fraction is up to 11% corresponding to 26.37% of the mass fraction, which confirms the successful doping of Zn into NiMoO₄. Fig. 2b–d show the high-resolution XPS spectra of Ni 2p, Zn 2p and O 1s, respectively. The Ni 2p XPS spectrum has two main binding energy peaks at 855.8 eV and 873.55 eV belonging to Ni 2p_3/2 and Ni 2p_1/2 core levels accompanied by corresponding satellite peaks at 861.8 eV and 879.5 eV, respectively. The binding energy gap between Ni 2p_3/2 and Ni 2p_1/2 is 17.75 eV, which is in good agreement with previously reported data and the presence of a Ni²⁺ oxidation state.³⁶ The Zn 2p XPS spectrum (Fig. 2c) shows two strong peaks at 1021.76 and 1044.84 eV, corresponding to Zn 2p_3/2 and Zn 2p_1/2 of the Zn²⁺ state, respectively.³⁷ The O 1s XPS spectrum (Fig. 2d) can be composed of the lattice oxygen species at 531.49 eV and surface-adsorbed oxygen ions at 533.0 eV, which are assigned to the oxygen species in Ni_0.75Zn_0.25MoO₄.³⁸ Most importantly, it can be confirmed that the additional metal ions are successfully doped on the surface. This is probably beneficial for the electrochemical reactions that occur on the surface of the material.³¹

The Ni_1−xZn_xMoO₄ nanomaterials were electrochemically characterized in a three-electrode system by cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) measurements. Fig. 3a compares the CV curves at 5 mV s⁻¹. All curves have a couple of peaks, revealing the reversible redox reaction in the charge/discharge process. Generally, the integral of the enclosed CV curve represents the specific capacitance. The Ni_0.75Zn_0.25MoO₄ electrode possesses the largest integrated area, indicating the largest specific capacitance. Additionally, Fig. 3b displays the CV curves of the Ni_0.75Zn_0.25MoO₄ electrode at different scan rates accompanied by broad redox peaks. This is ascribed to the reversible redox reactions between different valence states of the metal ions. First, molybdate decomposes to obtain M²⁺ metal salt ions (1); second, M²⁺ metal salt ions are converted into M(OH)₂ hydroxide in the alkaline electrolyte (2); finally, the faradaic redox reactions would occur between M(OH)₂ and MOOH as follows (3):^35,39

MMoO₄ ↔ M²⁺ + MoO₄²⁻ (1)

M²⁺ + 2OH⁻ ↔ M(OH)₂ (2)

M(OH)₂ + OH⁻ ↔ MOOH + H₂O + e⁻ (3)

Fig. 3 Electrochemical performance in a three-electrode system (6 M KOH): (a) comparison CV curves, (b) CV curves of Ni_0.75Zn_0.25MoO₄, (c) comparison GCD curves, (d) GCD curves of Ni_0.75Zn_0.25MoO₄, (e) comparison of specific capacity at different current densities, and (f) comparison of EIS plots.

Furthermore, the rate capability was characterized by the GCD measurement. All electrodes present similar shapes, corresponding to the redox reaction during the charge/discharge process at 1 A g⁻¹, as shown in the CV curves in Fig. 3c and S3a (ESI†). Obviously, the Ni_0.75Zn_0.25MoO₄ electrode has a higher capacity than other electrodes. Fig. 3d shows the GCD curves of the Ni_0.75Zn_0.25MoO₄ electrode at different current densities, illustrating good rate performance while maintaining a good curve shape. In Fig. 3e and S3b (ESI†), the specific capacitances of all the electrodes are compared. The specific capacities at 1 A g⁻¹ of the Ni_1−xZn_xMoO₄ (x = 0, 0.1, 0.2, 0.25, 0.3, 0.5, 0.75, and 1) electrode were calculated to be 68.88, 117.64, 182.08, 345.84, 148.43, 105.44, 54.89, and 33.38 mA h g⁻¹ (495.92, 847.98, 1311.00, 2490.04, 1068.70, 759.17, 395.19, and 240.34 F g⁻¹), respectively. For the Ni_0.75Zn_0.25MoO₄ electrode, the specific capacitance is still 239.58 mA h g⁻¹ (1724.97 F g⁻¹) at up to 10 A g⁻¹. For comparison, the CV and GCD measurements of all the powder materials are presented in Fig. S4 (ESI†). The corresponding specific capacitances at different scan rates and current densities are plotted in Fig. S5 (ESI†). Similar electrochemical behaviors and the same trend in the above-mentioned results indicate that the design and measurements of material compositions are feasible with good stability.

The reaction kinetics of the obtained nanomaterials was evaluated by electrochemical impedance spectroscopy (EIS). All Nyquist plots have a small semicircle in the high-frequency region where the corresponding diameter is ascribed to the charge transfer resistance. As shown in Fig. 3f and S6 (ESI†), all the samples have a relatively small charge transfer resistance. A straight line in the low-frequency region reflects the ion diffusion in the bulk of the materials.⁴⁰ However, a higher slope of the Zn-doped NiMoO₄ electrode indicates better conductivity, when the Zn content is below 50%. This also demonstrates that the electronic structure of NiMoO₄ can be effectively adjusted by Zn heteroatom doping. In particular, the Ni_0.75Zn_0.25MoO₄ electrode exhibits the most favorable electronic conductivity, best reaction kinetics, and fast ion diffusion, probably caused by the optimized composition and cross-linked nanoflake structure.

To explore the electrochemical reaction kinetics of the Ni_0.75Zn_0.25MoO₄ electrode, the capacitance contribution was evaluated from the CV curves between 0.2 and 1 mV s⁻¹. Weak polarization with a slight shifting of redox peaks at low scan rates is shown in Fig. 4a. In general, this capacitance contribution can be evaluated by i = aυ^b, i is the current, υ is the scan rate, and a and b are adjustable constants.⁴¹ Therefore, the b value which is calculated by the slope of log(i) = b log(υ) defines the charge storage process. When b is close to 0.5, the capacitance is dominated by ionic diffusion which is a slow faradaic process; when b is close to 1, the capacitance is distributed by the fast surface-scale redox reaction and the adsorption of the electrolyte ions. Based on the results in Fig. 4a, the values of b corresponding to cathodic and anodic peaks were calculated to be 0.65 and 0.62 (Fig. 4b), respectively, which indicates that the electrochemical kinetics of the Ni_0.75Zn_0.25MoO₄ electrode includes both diffusion and surface scale processes.

Fig. 4 (a) CV curves, (b) relationship between log(scan rate) and log(current), (c) percentages of capacity distribution at different scan rates of the obtained Ni_0.75Zn_0.25MoO₄ electrode in a 6 M KOH electrolyte, (d) comparison of cycling stability at 10 A g⁻¹, the insets are the GCD curves before cycling, and (e) SEM images after cycling.

To further investigate the charge storage mechanism, Dunn's equation (i(V) = k₁υ + k₂υ^1/2, where i(V) is the peak current, and k₁ and k₂ are adjustable constants) was employed for distinguishing the ratio of the capacitance contribution. Here, k₁υ and k₂υ^1/2 respond to the capacitive contribution and the diffusion contribution, respectively. According to the CV measurements, the percentage of contribution is shown in Fig. 4c. With increased scan rates, the capacitive-controlled contribution of the Ni_0.75Zn_0.25MoO₄ electrode is 54, 63, 70, 76, 81, and 92% at 0.2, 0.4, 0.6, 0.8, 1, and 2 mV s⁻¹ respectively. It can be noticed that when the scan rate is higher than 2 mV s⁻¹, the capacitive-controlled contribution almost entirely dominates, which is ascribed to enhanced reactivity and improved conductivity.

As shown in Fig. 4d, the cycling behaviors of the Ni_0.75Zn_0.25MoO₄ electrode were carried out at 10 A g⁻¹. Compared with the pristine NiMoO₄ electrode, the cycling performance of the Ni_0.75Zn_0.25MoO₄ electrode exhibits a significantly slower decrease in capacity retention during the initial several hundred cycles. We suggest that this is due to the improvement of crystallinity and the strength of the nanostructure during the cycling charge/discharge process. The specific capacitance retention of the Ni_0.75Zn_0.25MoO₄ electrode is ∼40% after 600 cycles, while that of the NiMoO₄ electrode is 30%. The inset in Fig. 4d shows the GCD curves of the two electrodes before cycling. Longer discharge time obviously indicates the better performance of the Ni_0.75Zn_0.25MoO₄ electrode. In Fig. S7 (ESI†), the cycling stability of the obtained powder materials was also studied. The capacitance retention of the NiMoO₄ powder material quickly decreases while other Zn-doped materials still maintain a better stability. Furthermore, as shown in Fig. 4e, the SEM images after cycling indicate that its nanostructure is basically well preserved, and even the originally weak ultra-thin nanoflakes have become slightly stronger with a certain increase in thickness due to the volume changes during the charge and discharge cycles. From the above-mentioned cycling behaviors, it can be observed that it is an effective strategy to adjust the composition and crystal structure of the material via heteroatom doping to improve the cycling stability.

The performance of the obtained Ni_0.75Zn_0.25MoO₄ electrode was characterized in a two-electrode aqueous NiZn cell with a zinc counter electrode in a 6 M KOH solution. As shown in Fig. 5a, the CV curves of the Ni_0.75Zn_0.25MoO₄//Zn cell were measured within the voltage window of 1.2–2.2 V at different scan rates. The curves present a similar shape, without significant deformation with the gradual increase in scan rates, demonstrating fast reaction kinetics and good interface properties. In order to evaluate the energy storage performance of the assembled NiZn cell, the GCD curves at different current densities were tested, which are presented in Fig. 5b and c. All GCD curves show a stable charge/discharge platform and maintain good shapes, indicating its good rate performance and reversibility. Fig. 5d shows the discharge capacity of the Ni_0.75Zn_0.25MoO₄//Zn cell based on the activated material's mass of the Ni_0.75Zn_0.25MoO₄ electrode. The capacities are 344.7, 337.3, 330, 322, 315.5, 309.9, 304.8, 296.9, 288.5 and 247.6 mA h g⁻¹ at current densities of 0.5, 1, 2, 3, 4, 5, 6, 8, 10 and 20 A g⁻¹, respectively.

Fig. 5 Ni_0.75Zn_0.25MoO₄//Zn cell in a 6 M KOH electrolyte: (a) CV curves, (b and c) GCD curves, (d) specific capacities at different current densities, (e) cycling stability at 6 A g⁻¹, the inset shows the comparison of GCD curves before and after cycling, and (f) Ragone plots.

Fig. 5e displays the cycling stability of the Ni_0.75Zn_0.25MoO₄//Zn cell, and the capacity retains 65% of the initial value with 100% of coulombic efficiency after 600 cycles at a high current density of 6 A g⁻¹. The Ragone plots in Fig. 5f show the energy density of the Ni_0.75Zn_0.25MoO₄//Zn cell to be 942.53 W h kg⁻¹ at a power density of 1.37 kW kg⁻¹. When the power density of the NiZn cell reaches up to 54.69 kW kg⁻¹, the energy density still remains at 676.93 W h kg⁻¹, which surpasses those of previously reported aqueous NiZn batteries, such as NiMoO₄–NC//Zn (407.8 W h kg⁻¹ at 18.1 kW kg⁻¹),¹⁶ Ni(OH)₂//Zn (148.54 W h kg⁻¹ at 1.72 kW kg⁻¹), Co-doped NiMoO₄//Zn (474.1 W h kg⁻¹ at 3.5 kW kg⁻¹),²⁹ P(Ni, Fe)//Zn (962.6 W h kg⁻¹ at 0.87 kW kg⁻¹),³⁵ Ni_0.8Co_0.1Mn_0.1(OH)₂@CuO@CF//Zn (605.2 W h kg⁻¹ at 1.017 kW kg⁻¹),⁴² Ni–NiO–CC//Zn (441.7 W h kg⁻¹ at 1.1 kW kg⁻¹),⁴³ NiCo₂O₄@NiMoO₄/Ni₂P//Zn (384 W h kg⁻¹ at 0.46 kW kg⁻¹),¹⁸ NiCo₂O₄//Zn (301.3 W h kg⁻¹ at 0.654 kW kg⁻¹),⁴⁴ and Ni,Zn-codoped MgCo₂O₄//Zn (120.4 W h kg⁻¹ at 0.3119 kW kg⁻¹).³⁰

4. Conclusions

In this work, Ni_1−xZn_xMoO₄ nanoflakes have been synthesized by doping Zn into NiMoO₄ by a one-step hydrothermal method. Combining the advantages of unique nanoflake structures, improved conductivity, and tunable electronic interaction, the obtained Ni_0.75Zn_0.25MoO₄ electrode achieved an outstanding specific capacity of 345.84 mA h g⁻¹ at 1 Ag⁻¹, good rate capability, and improved cycling stability. Furthermore, a NiZn cell was fabricated with the Ni_0.75Zn_0.25MoO₄ cathode and Zn anode, which presents a high discharge capacity of 344.7 mA h g⁻¹ at 0.5 A g⁻¹ and good cycling stability. Moreover, this battery displayed a high energy density of 942.53 W h kg⁻¹ at a power density of 1.37 kW kg⁻¹, making it a promising candidate for aqueous rechargeable alkaline batteries. Additionally, this progress in the material design of Ni electrodes enabling high-performance energy storage may also be applied to other battery systems.
