Nanoscale, 2024,
16, 15815-15823
Giant Rashba-splitting of one-dimensional metallic states in Bi dimer lines on InAs(100)†
Received
11th April 2024
, Accepted 31st July 2024
First published on 2nd August 2024
Abstract
Bismuth produces different types of ordered superstructures on the InAs(100) surface, depending on the growth procedure and coverage. The (2 × 1) phase forms at completion of one Bi monolayer and consists of a uniformly oriented array of parallel lines of Bi dimers. Scanning tunneling and core level spectroscopies demonstrate its metallic character, in contrast with the semiconducting properties expected on the basis of the electron counting principle. The weak electronic coupling among neighboring lines gives rise to quasi one-dimensional Bi-derived bands with open contours at the Fermi level. Spin- and angle-resolved photoelectron spectroscopy reveals a giant Rashba splitting of these bands, in good agreement with ab initio electronic structure calculations. The very high density of the dimer lines, the metallic and quasi one-dimensional band dispersion and the Rashba-like spin texture make the Bi/InAs(100)-(2 × 1) phase an intriguing system, where novel transport regimes can be studied.
Introduction
The Rashba–Bychkov (RB) effect lifts the spin degeneracy of the electronic bands in crystalline solids with broken structural inversion symmetry,1 typically caused by the presence of a surface or an interface. This effect has attracted great attention as a fundamental mechanism for spin generation/control in spintronic devices,2,3 owing to the spin-momentum locking, which constraints the spin and momentum directions of an electron to be mutually perpendicular. The RB effect has been detected by angle-resolved photoelectron spectroscopy (ARPES) in many two-dimensional (2D) systems and classified according to the Rashba parameter αR, which quantifies the energy–momentum separation of the bands with opposite spins.4–7αR depends on the atomic spin–orbit coupling (SOC) and the gradient of the electron potential across the structural discontinuity (surface/interface plane).8–11 The giant RB effect (αR > 3 eV Å) has been suggested to play a key role in spin-to-charge conversion phenomena occurring in 2D heterostructures.12–15 The discovery of a large Rashba splitting in the metallic states of Pb on Ge(111) has opened the way to spin accumulation, filtering and injection in semiconductor materials.16
The RB effect can significantly influence the electronic structure and spin texture of one-dimensional (1D) systems, such as quantum wires, and favor the emergence of a specific spintronic functionality.17 In a 1D system subject to the RB interaction the spin degeneracy of the spin-split bands at the time-reversal symmetry point can be removed by an external magnetic field opening a gap. If this gap opens at the Fermi level (EF), a pure and non-dissipative spin current can be established by applying a voltage. The exploitation of this mechanism is not trivial due to the scarcity of systems with genuine 1D RB-like spin texture. As an example, the 1D bands of Bi chains on Ag(110) display giant RB splitting, but the density of states of the system at EF is dominated by bulk Ag states.18 Semiconductor substrates, on the other hand, can support the formation of 1D structures with RB-split metallic states, as experimentally demonstrated for Au chains on Si(557),19 and theoretically predicted for Bi-adsorbed In atomic chains on Si(111).20
Bi is known to form different types of superstructures on III–V semiconducting surfaces.21–34 Some of these are based on Bi stripes displaying quasi 1D bands with giant RB splittings.28,30–32,34 Bi-terminated III–V semiconductors are expected to be non-metallic, according to the electron counting model, in order to decrease the surface energy.35 A notable exception to this model is the metallic behavior of Bi dimer lines grown on GaAs(100) (the so-called (2 × 1) phase), which emerges from scanning tunneling spectroscopy (STS) measurements and finds confirmation in density functional theory (DFT) calculations (without SOC).23,24 This full-monolayer phase made of symmetric dimers is stabilized by stress relief and pseudogap formation23 and was predicted to maintain long range compositional uniformity even at high temperature.36 An in-depth analysis aimed at establishing the dimensionality of the Bi-derived states and the magnitude of the RB effect in this and similar systems (Bi/GaAsxN1−x(100)-(2 × 1)22 and Bi/InAs(100)-(2 × 1)26) is still missing.
The present study reports on the electronic structure of the Bi/InAs(100)-(2 × 1) phase, which is examined by STS, photoelectron spectroscopy with spin analysis and DFT calculations. The (2 × 1) phase occurs at the completion of one Bi monolayer and consists of an array of uniformly oriented Bi dimer lines. The electronic coupling between neighboring lines turns out to be much weaker than along the dimer lines, thus giving rise to Bi-derived bands with highly anisotropic in-plane dispersion. The Fermi surface presents open quasi 1D contours with RB-like spin texture and giant splitting with αR values up to 4.6 eV Å, owing to the large SOC of Bi and the low structural symmetry. These findings suggest that the Bi/InAs(100)-(2 × 1) phase could support the generation of non-dissipative and spin-polarized currents and find application in spin-to-charge conversion processes.
Methods
Undoped n-type wafer substrates of InAs(100) were treated with Ar ion sputtering (800 eV) and annealing (720 K) cycles. This procedure results in the formation of the (4 × 2)/c(8 × 2) surface reconstruction visible in the low-energy electron diffraction (LEED) pattern of Fig. 1(a).26,37,38 Bi was deposited from a resistively heated source in excess to one monolayer (1 ML corresponds to one Bi atom per (1 × 1) surface unit cell of InAs(100)) on the substrate kept at 300 K. The Bi/InAs(100) interface displays the following sequence of ordered superstructures for decreasing Bi coverage: (2 × 6) for more than 1.33 ML Bi,21,29,33 (2 × 10) at about 1.2 ML Bi,26 (2 × 1) at 1 ML Bi,26 (2 × 8) coexisting with (2 × 4) below 1 ML Bi,24 (2 × 4) at 0.38 ML Bi.21 60-Minute-long annealing at 550 K was necessary to release Bi exceeding 1 ML from the surface and stabilize the (2 × 1) phase (LEED pattern in Fig. 1(b)). This phase consists of a uniform array of Bi dimer lines running along the [011] direction, as shown in the scanning tunneling microscopy (STM) image of Fig. 1(c).26 STM and STS data were acquired with a home-made instrument at 300 K for the clean InAs(100) surface and at 70 K for the Bi/InAs(100)-(2 × 1) phase by using a gold tip. The bias voltage and current were set to of Vbias = −0.5 V and I = 3 × 10−11 A to acquire constant current topographic maps. The differential conductance (dI/dV) curves were measured by the lock-in technique with a 20 mV modulation of Vbias. Photoelectron spectroscopy measurements were carried out at the VUV-Photoemission, BaDElPh39 and NanoESCA40 beamlines of the Elettra Synchrotron (Trieste, Italy) at liquid nitrogen temperature. Core level and ARPES spectra were collected with hemispherical electron spectrometers at the VUV-Photoemission and BaDElPh beamlines. Spin- and momentum-resolved constant energy maps of the photoelectron signal were acquired at the NanoESCA beamline using a momentum microscope, which is equipped with a W(100)-based spin detector.41 The analysis of the spin-resolved maps was performed following the procedure described in ref. 42.
 |

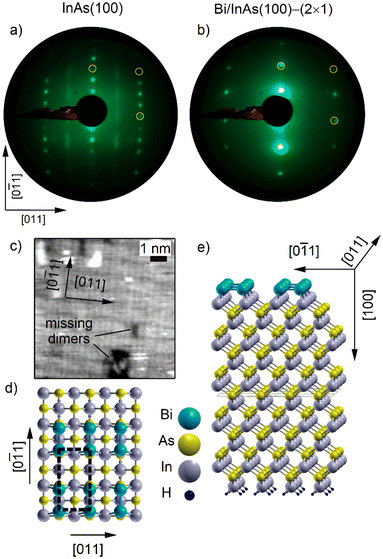

| Fig. 1 (a) LEED pattern of clean InAs(100) with (4 × 2)/c(8 × 2) reconstruction at 48 eV primary electron energy. Yellow circles mark the position of the (1 × 1) spots. (b) LEED pattern of the Bi/InAs(100)-(2 × 1) phase at 46 eV primary electron energy. Yellow circles mark the position of the (1 × 1) spots. (c) Constant current STM image of the Bi/InAs(100)-(2 × 1) phase. Light gray rectangles represent the Bi dimers. Missing dimers appear as dark regions. (d) Top view and (e) three-dimensional rendition of the structural model used to calculate the electronic structure of the Bi/InAs(100)(2 × 1) phase. The dashed rectangle in (d) represents the (2 × 1) surface unit cell. | |
DFT calculations were performed in the local density approximation43 using the full potential linearized augmented plane-wave method, as implemented in the Fleur code.44 The Bi/InAs(100)-(2 × 1) system was simulated with a slab of 21 atomic layers based on the symmetric dimer model proposed for the Bi/GaAs(100)-(2 × 1) system:24 one-atom-thick Bi dimer lines running along the [011] direction on the top surface; 19 atomic layers of InAs(100), with outermost In planes, as the substrate; hydrogen-terminated bottom surface. Fig. 1(d and e) display the top view and the three-dimensional representation of this structural model. The in-plane lattice constant (4.27 Å) and interlayer distance between In (or As) planes (3.02 Å) were set to those of bulk InAs. Structural relaxation on the Bi-terminated side of the slab led to 2.96 Å Bi–In interlayer distance, 3.07 Å Bi–Bi distance in the dimers and 0.5% expansion of the interlayer distance between the topmost In planes. Compared to the 1 × 1 Bi monolayer, about 0.31 eV/Bi are gained by Bi dimerization. Hydrogen atoms were placed on the bottom surface to saturate the dangling bonds. An attractive potential term of 2.67 eV was applied to the p-states of In and As to get a better description of the band gap and SOC was included in a self-consistent manner. The In terminations on both sides of the InAs substrate led to an artificial hole doping of the system and to a difference of 0.22 eV between the EF position in the calculations and experiments.
Results and discussion
Fig. 1(c) shows a typical STM image acquired on a sample displaying the (2 × 1) LEED pattern (Fig. 1(b)). The observation of light gray rectangles with 2
:
1 ratio between the long side (aligned with the [0
1] substrate axis) and the short side (aligned with the [011] substrate axis) is a signature of the dimerization of Bi atoms, which are not resolved individually in the present image,26 in analogy to similar systems.22,23 The dimers form an array of parallel lines running along the [011] axis. The continuity of the Bi dimer lines is occasionally interrupted by missing dimers (dark gray areas), as reported for the Bi/GaAs(100)-(2 × 1) phase.23 The structural features observed in the STM image are reproduced by the model of the Bi/InAs(100)-(2 × 1) phase. Bi atoms forming dimers present a reduced Bi–Bi distance along [0
1] with respect to the surface lattice constant of the substrate (Fig. 1(d)). These Bi dimers give rise to the parallel lines seen in Fig. 1(e).
Fig. 2 compares STS and photoelectron spectra of the clean InAs(100) surface and Bi/InAs(100)-(2 × 1) phase. The dI/dV signal of clean InAs(100) (top spectrum of Fig. 2(a)) is close to zero over an interval of 0.30 eV including EF that can be identified with the bulk bandgap of the substrate.45 The dI/dV signal of the Bi/InAs(100)-(2 × 1) phase (collected away from missing dimer regions, bottom spectrum of Fig. 2(a)) is more than a factor 10 higher than the noise level at EF, thus attesting the metallic character of the (2 × 1) phase. The peaks observed at −0.2, −0.08 and 0.08 eV (black arrows) will be discussed later in connection with the ARPES and DFT analyses.
 |
| Fig. 2 (a) dI/dV spectra for clean InAs(100) at 300 K (top spectrum) and Bi/InAs(100)-(2 × 1) at 70 K (bottom spectrum). Negative Vbias values indicate occupied states. (b) Survey photoelectron spectra at hν = 70 eV of clean InAs(100) (top spectrum) and Bi/InAs(100)-(2 × 1) (bottom spectrum) and (c) corresponding spectra near EF. (d–f) Core level spectra hν = 70 eV and related fittings of the (e) As 3d (f) Bi 5d and (g) In 4d lines for the clean InAs/(100) surface (top) and Bi/InAs(100)-(2 × 1) phase (bottom). | |
Survey spectra of the photoelectron signal at hν = 70 eV for the two systems (Fig. 2(b)) are useful to compare the intensities of the core level lines. In both cases, the much higher signal of In with respect to As has combined structural and electronic origin, as the sputtering/annealing procedure results in an excess of In at the surface and In 4d states have 5.6 times larger photoionization cross section than As 3d states.46 The zoom of the photoelectron signal near EF for InAs(100) (top spectrum) and Bi/InAs(100)-(2 × 1) (bottom spectrum) in Fig. 2(c) highlights the semiconducting vs. metallic properties of the two systems.
Fig. 2(d–f) show the analysis of the As 3d, Bi 5d and In 4d levels of InAs(100) (top spectra) and Bi/InAs(100)-(2 × 1) (bottom spectra), respectively. The As 3d spectrum of clean InAs(100) can be fitted with two doublets related to sub-surface As atoms (red line, As 3d5/2 at 40.50 eV) and bulk-like As atoms (green line, As 3d5/2 at 40.69 eV). The sub-surface component is suppressed due to a restructuring of the (4 × 2)/c(8 × 2) termination, occurring in correspondence with the formation of the (2 × 1) phase. The Bi 5d spectrum can be fitted with one doublet (blue line, Bi 5d5/2 at 23.55 eV) very similar to that of metallic Bi,47 at variance with the two doublets used in the literature.26 The slight asymmetry of the peaks (tail on the high binding energy side) is interpreted as a signature of the metallic character of the Bi/InAs(100)-(2 × 1) phase,48 rather than ascribed to the presence of another phase.26 This interpretation is in agreement with the data of Fig. 2(a and c) and will be strengthened by the ARPES and DFT analyses reported in Fig. 3 and 4. Two doublets corresponding to surface (red line, In 4d5/2 at 17.48 eV) and bulk (green line, In 4d5/2 at 17.23 eV) components are sufficient to fit the In 4d spectrum of clean InAs(100). After the formation of the (2 × 1) phase, the surface doublet is quenched and another doublet appears on the low binding energy side of the bulk component. This new doublet has an asymmetric shape (blue line, In 4d5/2 at 16.93 eV) that is compatible with metallic In49 in contact with surface metallic Bi.
 |
| Fig. 3 (a–c) Constant energy cuts of the photoelectron signal for the Bi/InAs(100)-(2 × 1) phase taken at 0.15 eV binding energy with hν = 65 eV and p-polarized light. Black dashed lines indicate the edges of the SBZs. (a) Original data. (b) High-symmetry points of the central SBZ (thick black line), and constant energy contours of the S1–S4 bands (red/blue continuous lines) are plotted on the original data. (c) Second derivative of the original data along the kx axis. (d) Spin-polarized constant energy cut at 0.15 eV. SQA and SBZs (dashed lines) are shown. (e–i) ARPES spectra collected along the green dashed lines shown in panel (b). All data are displayed in the second derivative form. (e–g) Spectra along three equivalent directions. (h) Spectra along the –Ȳ– direction. (i) Spectra along the direction. | |
 |
| Fig. 4 (a) Spin-resolved DFT calculations. The size of the symbols is proportional to the in-plane component of the spin polarization along the ky axis. The location of EF in the calculation (left axis) and in the experiment (right axis) differ by 0.22 eV. (b) Comparison between the band dispersion calculated by DFT and measured by ARPES along the –Ȳ– direction using the experimental energy scale. | |
Fig. 3(a–c) show a constant energy cut of the photoelectron signal of the Bi/InAs(100)-(2 × 1) phase acquired at 0.15 eV below EF with the momentum microscope. This instrument allows to scan simultaneously an area of the (kx,ky) space including several surface Brillouin zones (SBZs) of the system. For clarity, the edges of the (2 × 1) SBZs (black dashed lines) are overlaid to the data. The central SBZ (rectangle with thick black edges,
and
) and its high symmetry points are reported in Fig. 3(b). The photoelectron signal is characterized by four bands S1–S4, which are elongated in the ky direction and cross the edges of neighboring SBZs. Fig. 3(c) displays the second derivative of the original data taken along the kx axis, to better visualize low intensity sections of S1–S4. All the features observed in Fig. 3(a–c) are absent in the clean substrate (Fig. S1 of the ESI†),50 reflect the periodicity of the (2 × 1) superstructure, and, therefore, can be identified as Bi-derived electronic states. The wavy S1/S2 and straight S3/S4 constant energy contours are schematically represented by red and blue continuous lines for positive kx values in Fig. 3(b), where the color is assigned on the basis of the spin analysis.
In the spin-resolved constant energy map of Fig. 3(d) the spin quantization axis (SQA), determined by the experimental geometry,40 is parallel to the ky axis. The intensity of red and blue colors for spin-up and spin-down states, respectively, is proportional to their spin projection along the SQA. The most evident feature of Fig. 3(d) is the full reversal of the spin texture with respect to the ky axis. Portions of the S1–S3 contours are highlighted by red/blue dashed lines for positive kx values to guide the eye. S1 and S2 display high and opposite spin polarizations, thus suggesting they form a RB pair. The spin analysis of S3 and S4 is hindered by their low intensity close to kx = 0 axis, while their high spin-polarization clearly emerges at larger |kx| values. The high spin-polarization of the S1–S4 states in Fig. 3(d) means that the spins of the Bi-derived bands are almost parallel or anti-parallel to the SQA.
The ARPES spectra of Fig. 3(e–i) show the energy–momentum dispersion of the S1–S4 bands along the segments marked by the green dashed lines in Fig. 3(b). Also in this case the data are presented in the second derivative form to enhance the sensitivity to weak features. The three ARPES maps taken along equivalent
directions (Fig. 3(e–g)) demonstrate the strong state-dependent modulation of the photoelectron signal in the (kx,ky) plane, due to matrix element effects. S1 and S2 clearly cross EF, thus making the Bi/InAs(100)-(2 × 1) phase metallic, in agreement with the analysis displayed in Fig. 2. This metallic character is a distinctive feature of the (2 × 1) phases that 1 ML Bi forms on GaAs(100)23,24 and GaAsxN1.x(100).22 All S1–S4 states can be observed simultaneously along the
–Ȳ–
direction of Fig. 3(h). The dispersion of S3 and S4 (Fig. 3(g and h) and Fig. S2 of the ESI†) closely reminds the RB-split states observed in the (2 × 1) phases of Bi on the (110) surfaces of III–V semiconductors.28,30–32 This suggests that also S3/S4 form a RB pair of bands, in analogy to S1/S2. Fig. 3(i) shows the ARPES spectra along the
direction. The flat feature represents the S3/S4 crossing point. The minimum at
(0.2 eV) and the flat dispersion about Ȳ (0.08–0.1 eV) can be directly correlated to the peaks observed at the same energies in the occupied part of the STS spectrum in Fig. 2(a). The STS peak at 0.08 eV above EF can be linked to the maxima of the S3 and S4 bands (see Fig. 4), which cross EF and, therefore, contribute to the metallicity of the system.
The data of Fig. 3 clearly demonstrate that all S1–S4 bands have an anisotropic in-plane dispersion, which can be associated to the structural properties of the (2 × 1) phase. Due to the formation of the Bi dimers, the separation between Bi atoms in neighboring dimer lines is larger than along the lines. Correspondingly, the electronic coupling of Bi-related states along the dimer lines is stronger that perpendicular to them, thus resulting in steeply dispersing and flat bands, respectively, and open elongated contours. Overall, the ARPES and spin polarization analyses allow to describe S1/S2 and S3/S4 as RB-split pairs of bands with quasi 1D and metallic character.
In order to interpret the experimental findings described above, the electronic structure of the Bi/InAs(100)-(2 × 1) system was computed by DFT using the model reported in Fig. 1(d and e), which is based on the symmetric dimer model proposed for the Bi/GaAs(100)-(2 × 1) system.24Fig. 4(a) shows the spin-resolved DFT band structure calculations along the high-symmetry directions of Bi/InAs(100)(2 × 1). The size of the symbols is proportional to the spin polarization of the states, with the SQA oriented along the ky axis. Red/blue colors correspond to up/down spin channels, in analogy to the experiment. The horizontal dashed line indicates the experimental position of EF, which lies 0.22 eV above EF in the calculations. This difference has been evaluated by aligning the experimental and calculated S3/S4 bands (Fig. 4(b)). It derives from the artificial hole doping due to the excess of In atoms in the model (10 In planes vs. 9 As planes). To ease the comparison between experiment and theory, the energy scale of the calculations will be referred to the experimental position of EF (right axis of Fig. 4(a)) from here onwards. The electronic structure in the proximity of EF is characterized by four spin-polarized and Bi-derived bands, which are labeled with S1–S4 in analogy to the experiment. The additional bands crossing EF along
and
and showing no spin-polarization originate from the H-terminated surface and are not relevant to the present discussion.
All S1–S4 bands display quasi 1D character, which emerges by comparing their steep dispersion along
and Ȳ–
(parallel to the Bi dimer lines) with their flat dispersion along
and
–
(perpendicular to the Bi dimer lines). The spin analysis reveals that S1/S2 and S3/S4 form two RB pairs. The strength of the RB effect can be evaluated in the proximity of
and Ȳ through αR = 2·ΔE/Δk, as shown in Fig. 4(b). The S1/S2 pair presents giant αR values of 4.6 eV Å along
–Ȳ–
and 3.5 eV Å along
. For the S3/S4 pair αR is 2.3 eV Å along
–Ȳ–
and 2.7 eV Å along
. In Fig. 4(b) the calculated bands are overlaid to the ARPES data of Fig. 3(h) to demonstrate the correspondence between theory and experiment. The slight offset of the experimental S1/S2 pair with respect to the calculations can indicate that the spin-splitting and, consequently, the αR value are larger than predicted. A similar effect is seen Fig. S2 of the ESI† for the S3/S4 pair. The overall good agreement allows to describe the Bi/InAs(100)-(2 × 1) phase as an array of Bi dimer lines with metallic character determined by two pairs of bands displaying quasi 1D dispersion and RB-like spin texture.
The RB states of the present system display a unique combination of metallic character, giant Rashba parameter and strong 1D anisotropy. The measured Rashba parameter of 4.6 eV A is larger than the giant values reported for the metallic states of BiTeI (3.85 eV A (ref. 51)), Bi/Ag(111) (3.05 eV A (ref. 6)), free-standing atomic Te chains (2.17 eV A (ref. 52)) and metallic nanowires on semiconducting substrates (0.8–3.5 eV A (ref. 20, 53 and 54)). It approaches the largest αR value so far observed in semiconducting Bi lines (5.5 eV A (ref. 28)). We emphasize that this giant value originates primarily from the large SOC of Bi and the 1D anisotropy of the dimer lines, and is rather insensitive to the choice of the potential and therefore of the substrate's gap (Fig. S3†). The unique properties of the Bi/InAs(100)-(2 × 1) phase can find application in spin-to-charge conversion via the inverse Edelstein effect.55 The Rashba-split surface states could carry a charge current in response to the nonzero spin density associated to spin injection from an adjacent ferromagnetic layer.12 Such an interface can be used to detect spin currents with an efficiency that is expressed by λ = αRτs/ħ, where τs is the spin-relaxation time.56 Assuming the average spin-relaxation time of 5 fs,28,56 one may expect an efficiency of about 3.5 nm, which is significantly larger than in 2D RB systems (0.3 nm (ref. 12)) and topological insulators (2.1 nm (ref. 57)). The decoupling of the S1/S2 surface bands from the bulk states of the semiconductor substrate near EF
15 and the reduced back-scattering associated to the quasi 1D dispersion58–60 could favor even larger τs values. From the fundamental point of view, the S1/S2 bands could be also used for studying exotic electronic phenomena, such as Majorana bound states61 and spin-dependent density waves.62 At variance with the S1/S2 bands, the maxima of the S3/S4 pair lie just above EF close to
. Most likely these maxima produce the peak located at 0.08 eV in the unoccupied part of the STS spectrum (Fig. 2(a)). In fact, S1 and S2 are expected to give rise to a featureless dI/dV signal, due to their steep dispersion and distance from
near EF. The vicinity of the S3/S4 crossing point to EF at
, which is a time-reversal symmetry point of the system, can realize the scenario depicted in ref. 17: an external magnetic field could open a gap between S3 and S4; if the gap includes EF, the application of a voltage would allow the flow of a non-dissipative, pure spin current through the Bi dimer lines. Notably, the exact location of the S3/S4 bands with respect to EF can be tuned by external doping or gating, thanks to the semiconducting nature of the substrate, to meet the requirements of ref. 17.
Conclusion
The present work reports on the electronic structure of the Bi/InAs(100)-(2 × 1) phase. This system can be described as a compact array of Bi dimer lines, whose metallic character is determined by two pairs of quasi 1D bands displaying RB-type spin texture. The robust metallicity and giant Rashba parameter of S1/S2 pair can be of interest for spin-to-charge conversion devices, with potentially high efficiency enhanced by the 1D anisotropic dispersion and semiconducting substrate. The location of the low-lying S3/S4 pair, with a crossing point at
very close to EF, appears to be suitable to host pure spin-polarized and non-dissipative currents, upon the application of an external magnetic field. The experimental verification of these novel transport properties would open new perspectives for the exploitation of the RB effect in spintronic devices.
Author contributions
P. M. Sheverdyaeva: investigation, data curation, validation, formal analysis, writing – original draft, project administration. G. Bihlmayer: resources, software, conceptualization, validation, writing – review and editing. S. Modesti: investigation, data curation, validation, formal analysis, writing – review and editing. V. Feyer, M. Jugovac, G. Zamborlini, C. Tusche, Ying-Jiun Chen, X. L. Tan, K. Hagiwara, L. Petaccia, S. Thakur, A. K. Kundu: investigation, data curation, validation, writing – review & editing. Carlo Carbone: validation, writing – review & editing. Paolo Moras: conceptualization, supervision, validation, writing – review & editing. All authors participated in the analysis and discussion of the results.
Data availability
The data supporting this article have been included as part of the ESI.†
Conflicts of interest
There are no conflicts to declare.
Acknowledgements
We acknowledge EUROFEL-ROADMAP ESFRI of the Italian Ministry of University and Research. G. B. gratefully acknowledges the computing time granted through JARA-HPC on the supercomputer JURECA at Forschungszentrum Jülich. A. K. K. acknowledges receipt of a fellowship from the ICTP-TRIL Programme, Trieste, Italy and funding from the US Department of Energy, Office of Basic Energy Sciences, contract no. DE-SC0012704. C. T. and Y.-J. C. acknowledge support by the German Federal Ministry of Education and Research (BMBF) under grant no. 05K19PGA. We acknowledge Elettra Sincrotrone Trieste for providing access to its synchrotron radiation facilities (beamtime no. 20170258, 20175193, 20185310).
References
- Y. A. Bychkov and E. I. Rashba, Oscillatory effects and the magnetic susceptibility of carriers in inversion layers, J. Phys. C: Solid State Phys., 1984, 17, 6039 CrossRef.
- A. Manchon, H. Koo, J. Nitta, S. M. Frolov and R. A. Duine, New perspectives for Rashba spin–orbit coupling, Nat. Mater., 2015, 14, 871 CrossRef CAS PubMed.
- I. Žutić, J. Fabian and S. Das Sarma, Spintronics: Fundamentals and applications, Rev. Mod. Phys., 2004, 76, 323 CrossRef.
- S. LaShell, B. A. McDougall and E. Jensen, Spin Splitting of an Au(111) Surface State Band Observed with Angle Resolved Photoelectron Spectroscopy, Phys. Rev. Lett., 1996, 77, 3419 CrossRef CAS PubMed.
- Y. M. Koroteev, G. Bihlmayer, J. E. Gayone, E. V. Chulkov, S. Blügel, P. M. Echenique and P. Hofmann, Strong Spin-Orbit Splitting on Bi Surfaces, Phys. Rev. Lett., 2004, 93, 046403 CrossRef PubMed.
- C. R. Ast, J. Henk, A. Ernst, L. Moreschini, M. C. Falub, D. Pacilé, P. Bruno, K. Kern and M. Grioni, Giant Spin Splitting through Surface Alloying, Phys. Rev. Lett., 2007, 98, 186807 CrossRef PubMed.
- A. Tamai, W. Meevasana, P. D. C. King, C. W. Nicholson, A. de la Torre, E. Rozbicki and F. Baumberger, Spin-orbit splitting of the Shockley surface state on Cu(111), Phys. Rev. B: Condens. Matter Mater. Phys., 2013, 87, 075113 CrossRef.
- G. Bihlmayer, S. Blügel and E. V. Chulkov, Enhanced Rashba spin-orbit splitting in Bi/Ag(111) and Pb/Ag(111) surface alloys from first principles, Phys. Rev. B: Condens. Matter Mater. Phys., 2007, 75, 195414 CrossRef.
- J. Premper, M. Trautmann, J. Henk and P. Bruno, Spin-orbit splitting in an anisotropic two-dimensional electron gas, Phys. Rev. B: Condens. Matter Mater. Phys., 2007, 76, 073310 CrossRef.
- S. Mathias, A. Ruffing, F. Deicke, M. Wiesenmayer, I. Sakar, G. Bihlmayer, E. V. Chulkov, Yu. M. Koroteev, P. M. Echenique, M. Bauer and M. Aeschlimann, Quantum-Well-Induced Giant Spin-Orbit Splitting, Phys. Rev. Lett., 2010, 104, 066802 CrossRef CAS PubMed.
- H. Bentmann, T. Kuzumaki, G. Bihlmayer, S. Blügel, E. V. Chulkov, F. Reinert and K. Sakamoto, Spin orientation and sign of the Rashba splitting in Bi/Cu(111), Phys. Rev. B: Condens. Matter Mater. Phys., 2011, 84, 115426 CrossRef.
- J. C. Rojas Sánchez, L. Vila, G. Desfonds, S. Gambarelli, J. P. Attané, J. M. De Teresa, C. Magén and A. Fert, Spin-to-charge conversion using Rashba coupling at the interface between non-magnetic materials, Nat. Commun., 2013, 4, 2944 CrossRef PubMed.
- R. Sun, S. Yang, X. Yang, E. Vetter, D. Sun, N. Li, L. Su, Y. Li, Y. Li, Z. Z. Gong, Z. K. Xie, K. Y. Hou, Q. Gul, W. He, X. Q. Zhang and Z. H. Cheng, Large Tunable Spin-to-Charge Conversion Induced by Hybrid Rashba and Dirac Surface States in Topological Insulator Heterostructures, Nano Lett., 2019, 19, 4420 CrossRef CAS PubMed.
- J. Li, P. Xu, J. Shen, Y. Cai and X. Jin, Spin-charge conversion in Bi(√3×√3)R30°/Ag(111) structure, J. Magn. Magn. Mater., 2021, 540, 168471 CrossRef CAS.
- J. Shen, Z. Feng, P. Xu, D. Hou, Y. Gao and X. Jin, Spin-to-Charge Conversion in Ag/Bi Bilayer Revisited, Phys. Rev. Lett., 2021, 126, 197201 CrossRef CAS PubMed.
- K. Yaji, Y. Ohtsubo, S. Hatta, H. Okuyama, K. Miyamoto, T. Okuda, A. Kimura, H. Namatame, M. Taniguchi and T. Aruga, Large Rashba spin splitting of a metallic surface-state band on a semiconductor surface, Nat. Commun., 2010, 1, 17 CrossRef PubMed.
- C. H. L. Quay, T. L. Hughes, J. A. Sulpizio, L. N. Pfeiffer, K. W. Baldwin, K. W. West, D. Goldhaber-Gordon and R. de Picciotto, Observation of a one-dimensional spin–orbit gap in a quantum wire, Nat. Phys., 2010, 6, 336 Search PubMed.
- P. M. Sheverdyaeva, D. Pacilè, D. Topwal, U. Manju, M. Papagno, V. Feyer, M. Jugovac, G. Zamborlini, I. Cojocariu, C. Tusche, X. L. Tan, K. Hagiwara, Y.-J. Chen, J. Fujii, P. Moras, L. Ferrari, E. Vescovo, G. Bihlmayer and C. Carbone, One-dimensional Rashba states with unconventional spin texture in Bi chains, Phys. Rev. B, 2022, 106, 045108 CrossRef CAS.
- T. Okuda, K. Miyamoto, Y. Takeichi, H. Miyahara, M. Ogawa, A. Harasawa, A. Kimura, I. Matsuda, A. Kakizaki, T. Shishidou and T. Oguchi, Large out-of-plane spin polarization in a spin-splitting one-dimensional metallic surface state on Si(557)-Au, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 82, 161410 CrossRef.
- T. Tanaka and Y. Gohda, First-principles prediction of one-dimensional giant Rashba splittings in Bi-adsorbed In atomic chains, Phys. Rev. B: Condens. Matter Mater. Phys., 2018, 98, 241409(R) CrossRef.
- P. Laukkanen, M. Ahola, M. Kuzmin, R. E. Perälä, I. J. Väyrynen and J. Sadowski, Bi-induced (2 × 6), (2 × 8), and (2 × 4) reconstructions on the InAs(1 0 0) surface, Surf. Sci., 2005, 598, L361 CrossRef CAS.
- P. Laukkanen, J. Pakarinen, M. Ahola-Tuomi, M. Kuzmin, R. E. Perälä, I. J. Väyrynen, A. Tukiainen, J. Konttinen, P. Tuomisto and M. Pessa, Structural and electronic properties of Bi-adsorbate-stabilized reconstructions on the InP(100) and GaAsxN1−x(100) surfaces, Phys. Rev. B: Condens. Matter Mater. Phys., 2006, 74, 155302 CrossRef.
- P. Laukkanen, M. P. J. Punkkinen, H.-P. Komsa, M. Ahola-Tuomi, K. Kokko, M. Kuzmin, J. Adell, J. Sadowski, R. E. Perälä, M. Ropo, T. T. Rantala, I. J. Väyrynen, M. Pessa, L. Vitos, J. Kollár, S. Mirbt and B. Johansson, Anomalous Bismuth-Stabilized (2×1) Reconstructions on GaAs(100) and InP(100) Surfaces, Phys. Rev. Lett., 2008, 100, 086101 CrossRef CAS PubMed.
- M. P. J. Punkkinen, P. Laukkanen, H.-P. Komsa, M. Ahola-Tuomi, N. Räsänen, K. Kokko, M. Kuzmin, J. Adell, J. Sadowski, R. E. Perälä, M. Ropo, T. T. Rantala, I. J. Väyrynen, M. Pessa, L. Vitos, J. Kollár, S. Mirbt and B. Johansson, Bismuth-stabilized (2×1) and (2×4) reconstructions on GaAs(100) surfaces: Combined first-principles, photoemission, and scanning tunneling microscopy study, Phys. Rev. B: Condens. Matter Mater. Phys., 2008, 78, 195304 CrossRef.
- M. Ahola-Tuomi, P. Laukkanen, M. P. J. Punkkinen, R. E. Perälä, I. J. Väyrynen, M. Kuzmin, K. Schulte and M. Pessa, Formation of an ordered pattern of Bi nanolines on InAs(100) by self-assembly, Appl. Phys. Lett., 2008, 92, 011926 CrossRef.
- M. Ahola-Tuomi, M. P. J. Punkkinen, P. Laukkanen, M. Kuzmin, J. Lång, K. Schulte, A. Pietzsch, R. E. Perälä, N. Räsänen and I. J. Väyrynen, Properties of self-assembled Bi nanolines on InAs(100) studied by core-level and valence-band photoemission, and first-principles calculations, Phys. Rev. B: Condens. Matter Mater. Phys., 2011, 83, 245401 CrossRef.
- J. Kishi, Y. Ohtsubo, T. Nakamura, K. Yaji, A. Harasawa, F. Komori, S. Shin, J. E. Rault, P. Le Fèvre, F. Bertran, A. Taleb-Ibrahimi, M. Nurmamat, H. Yamane, S.-I. Ideta, K. Tanaka and S.-I. Kimura, Spin-polarized quasi-one-dimensional state with finite band gap on the Bi/InSb(001) surface, Phys. Rev. Mater., 2017, 1, 064602 CrossRef.
- T. Nakamura, Y. Ohtsubo, Y. Yamashita, S.-I. Ideta, K. Tanaka, K. Yaji, A. Harasawa, S. Shin, F. Komori, R. Yukawa, K. Horiba, H. Kumigashira and S.-I. Kimura, Giant Rashba splitting of quasi-one-dimensional surface states on Bi/InAs(110)-(2×1), Phys. Rev. B, 2018, 98, 075431 CrossRef CAS.
- O. Heckmann, M. Christine Richter, J.-M. Mariot, L. Nicolaï, I. Vobornik, W. Wang, U. Djukic and K. Hricovini, Quasi 1D structures at the Bi/InAs(100) surface, AIP Conf. Proc., 2018, 1996, 020017 CrossRef.
- T. Nakamura, Y. Ohtsubo, N. Tokumasu, P. Le Fèvre, F. Bertran, S.-I. Ideta, K. Tanaka, K. Kuroda, K. Yaji, A. Harasawa, S. Shin, F. Komori and S.-I. Kimura, Giant Rashba system on a semiconductor substrate with tunable Fermi level: Bi/GaSb(110)–(2×1), Phys. Rev. Mater., 2019, 3, 126001 CrossRef CAS.
- Y. Ohtsubo, N. Tokumasu, H. Watanabe, T. Nakamura, P. Le Fèvre, F. Bertran, M. Imamura, I. Yamamoto, J. Azuma, K. Takahashi and S.-I. Kimura, One-dimensionality of the spin-polarized surface conduction and valence bands of quasi-one-dimensional Bi chains on GaSb(110)-(2×1), Phys. Rev. B, 2020, 101, 235306 CrossRef CAS.
- T. Nakamura, Y. Ohtsubo, A. Harasawa, K. Yaji, S. Shin, F. Komori and S. Kimura, Fluctuating spin-orbital texture of Rashba-split surface states in real and reciprocal space, Phys. Rev. B, 2022, 105, 235141 CrossRef CAS.
- D. Nafday, C. Richter, O. Heckmann, W. Wang, J.-M. Mariot, U. Djukic, I. Vobornik, P. Lefevre, A. Taleb-Ibrahimi, F. Bertran, J. Rault, L. Nicolaï, C. S. Ong, P. Thunström, K. Hricovini, J. Minár and I. Di Marco, Electronic structure of Bi nanolines on InAs(100), Electronic structure of Bi nanolines on InAs(100), Appl. Surf. Sci., 2023, 611, 155436 CrossRef CAS.
- A. N. Mihalyuk, L. V. Bondarenko, A. Y. Tupchaya, D. V. Gruznev, N. Yu. Solovova, V. A. Golyashov, O. E. Tereshchenko, T. Okuda, A. Kimura, S. V. Eremeev, A. V. Zotov and A. A. Saranin, Emergence of quasi-1D spin-polarized states in ultrathin Bi films on InAs(111)A for spintronics applications, Nanoscale, 2024, 16, 1272–1281 RSC.
- L. Zhang, E. G. Wang, Q. K. Xue, S. B. Zhang and Z. Zhang, Generalized Electron Counting in Determination of Metal-Induced Reconstruction of Compound Semiconductor Surfaces, Phys. Rev. Lett., 2006, 97, 126103 CrossRef PubMed.
- A. Duzik, J. C. Thomas, A. van der Ven and J. M. Millunchick, Surface reconstruction stability and configurational disorder on Bi-terminated GaAs(001), Phys. Rev. B: Condens. Matter Mater. Phys., 2013, 87, 035313 CrossRef.
- P. De Padova, C. Quaresima, P. Perfetti, R. Larciprete, R. Brochier, C. Richter, V. Ilakovac, P. Bencok, C. Teodorescu, V. Y. Aristov, R. L. Johnson and K. Hricovini, Electron accumulation layer on clean In-terminated InAs(0 0 1)(4×2)-c(8×2) surface, Surf. Sci., 2001, 482485, 587 CrossRef.
- G. Goryl, D. Toton, M. Goryl, N. Tomaszewska and J. J. Kolodziej, Structure of the In-rich InAs (001) surface, Surf. Sci., 2011, 605, 2073 CrossRef CAS.
- L. Petaccia, P. Vilmercati, S. Gorovikov, M. Barnaba, A. Bianco, D. Cocco, C. Masciovecchio and A. Goldoni, BaD ElPh: A 4 m normal-incidence monochromator beamline at Elettra, Nucl. Instrum. Methods Phys. Res., Sect. A, 2009, 606, 780 CrossRef CAS.
- C. Schneider, C. Wiemann, M. Patt, V. Feyer, L. Plucinski, I. Krug, M. Escher, N. Weber, M. Merkel, O. Renault and N. Barrett, Expanding the view into complex material systems: From micro-ARPES to nanoscale HAXPES, J. Electron Spectrosc. Relat. Phenom., 2012, 185, 330 CrossRef CAS.
- C. Tusche, M. Ellguth, A. A. Ünal, C.-T. Chiang, A. Winkelmann, A. Krasyuk, M. Hahn, G. Schönhense and J. Kirschner, Spin resolved photoelectron microscopy using a two-dimensional spin-polarizing electron mirror, Appl. Phys. Lett., 2011, 99, 032505 CrossRef.
- C. Tusche, M. Ellguth, A. Krasyuk, A. Winkelmann, D. Kutnyakhov, P. Lushchyk, K. Medjanik, G. Schönhense and J. Kirschner, Quantitative spin polarization analysis in photoelectron emission microscopy with an imaging spin filter, Ultramicroscopy, 2013, 130, 70 CrossRef CAS PubMed.
- S. H. Vosko, L. Wilk and M. Nusair, Accurate spin-dependent electron liquid correlation energies for local spin density calculations: a critical analysis, Can. J. Phys., 1980, 58, 1200 CrossRef CAS.
-
https://zenodo.org/records/7576163, DOI:10.5281/ZENODO.7576163.
- Z. M. Fang, K. Y. Ma, D. H. Jaw, R. M. Cohen and G. B. Stringfellow, Photoluminescence of InSb, InAs, and InAsSb grown by organometallic vapor phase epitaxy, J. Appl. Phys., 1990, 67, 7034 CrossRef CAS.
- J. J. Yeh and I. Lindau, Atomic subshell photoionization cross sections and asymmetry parameters: 1 ≤ Z ≤ 103, At. Data Nucl. Data Tables, 1985, 32, 1 CrossRef CAS.
- T. Conard, R. Sporken, J. Ghijsen, L. M. Yu, R. Caudano, R. Seemann and R. L. Johnson, Photoemission study of the Interface, Surf. Sci., 1996, 369, 177 CrossRef CAS.
- S. Doniach and M. Sunjic, Many-electron singularity in X-ray photoemission and X-ray line spectra from metals, J. Phys. C: Solid State Phys., 1970, 3, 285 CrossRef CAS.
- P. Moras and C. Carbone, Quantum well band formation in Ag films on InSb(111), J. Phys.: Condens. Matter, 2009, 21, 355502 CrossRef CAS PubMed.
- N. Tomaszewska, L. Walczak, J. Lis and J. J. Kolodziej, Surface states and charge accumulation states on reconstructed InAs(001) surfaces, Surf. Sci., 2015, 632, 103 CrossRef CAS.
- K. Ishizaka, M. Bahramy, H. Murakawa, M. Sakano, T. Shimojima, T. Sonobe, K. Koizumi, S. Shin, H. Miyahara, A. Kimura, K. Miyamoto, T. Okuda, H. Namatame, M. Taniguchi, R. Arita, N. Nagaosa, K. Kobayashi, Y. Murakami, R. Kumai, Y. Kaneko, Y. Onose and Y. Tokura, Giant Rashba-type spin splitting in bulk BiTeI, Nat. Mater., 2011, 10, 521–526 CrossRef CAS PubMed.
- J. Han, A. Zhang, M. Chen, W. Gao and Q. Jiang, Giant Rashba splitting in one-dimensional atomic tellurium chains, Nanoscale, 2020, 12, 10277 RSC.
- J. Park, S. W. Jung, M.-C. Jung, H. Yamane, N. Kosugi and H. Woong Yeom, Self-Assembled Nanowires with Giant Rashba Split Bands, Phys. Rev. Lett., 2013, 110, 036801 CrossRef PubMed.
- A. Takayama, T. Sato, S. Souma, T. Oguchi and T. Takahashi, One-Dimensional Edge States with Giant Spin Splitting in a Bismuth Thin Film, Phys. Rev. Lett., 2015, 114, 066402 CrossRef CAS PubMed.
- V. Edelstein, Spin polarization of conduction electrons induced by electric current in two-dimensional asymmetric electron systems, Solid State Commun., 1990, 73, 233 CrossRef.
- K. Kondou and Y. Otani, Emergence of spin–charge conversion functionalities due to spatial and time-reversal asymmetries and chiral symmetry, Front. Phys., 2023, 11, 1140286 CrossRef.
- W. Han, Y. Otani and S. Maekawa, Quantum materials for spin and charge conversion, npj Quantum Mater., 2018, 3, 27 CrossRef.
- A. W. Holleitner, V. Sih, R. C. Myers, A. C. Gossard and D. D. Awschalom, Dimensionally constrained D'yakonov–Perel’ spin relaxation in n-InGaAs channels: transition from 2D to 1D, New J. Phys., 2007, 9, 342 CrossRef.
- D. Lükermann, M. Gauch, M. Czubanowski, H. Pfnür and C. Tegenkamp, Magnetotransport in anisotropic Pb films and monolayers, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 81, 125429 CrossRef.
- M. Kopciuszyński, M. Krawiec, R. Zdyb and M. Jałochowski, Purely one-dimensional bands with a giant spin-orbit splitting: Pb nanoribbons on Si(553) surface, Sci. Rep., 2017, 7, 46215 CrossRef PubMed.
- N. Sedlmayr, J. M. Aguiar-Hualde and C. Bena, Majorana bound states in open quasi-one-dimensional and two-dimensional systems with transverse Rashba coupling, Phys. Rev. B, 2016, 93, 155425 CrossRef.
- B. Braunecker, G. I. Japaridze, J. Klinovaja and D. Loss, Spin-selective Peierls transition in interacting one-dimensional conductors with spin-orbit interaction, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 82, 045127 CrossRef.
|
