Self-brushing for nanopatterning: achieving perpendicular domain orientation in block copolymer thin films

Abstract

The self-assembly of thin films of block copolymers (BCPs) with perpendicular domain orientation offers a promising approach for nanopatterning on a variety of substrates, which is required by advanced applications such as ultrasmall transistors in integrated circuits, nanopatterned materials for tissue engineering, and electrocatalysts for fuel cell applications. In this study, we created BCPs with an A-b-(B-r-C) architecture that have blocks with equal surface energy (γ_air) and that can bind to the substrate, effectively creating a non-preferential substrate coating via self-brushing that enables the formation of through-film perpendicular domains in thin films of BCPs. We employed a thiol–epoxy click reaction to functionalize polystyrene-block-poly(glycidyl methacrylate) with a pair of thiols to generate an A-b-(B-r-C) BCP and tune γ_air of the B-r-C block. The secondary hydroxyl and thiol ether functionality generated by the click reaction was utilized to bind the BCP to the substrates. Scanning electron microscopy revealed that perpendicular orientation was achieved by simply annealing a thin film of the BCP on the bare substrate without the usual extra step of coating a random copolymer brush on the substrate. The self-brushing capability of the BCP was also examined on gold, platinum, titanium, aluminum nitride, and silicon nitride surfaces. These results demonstrate that self-brushing is a promising approach for achieving perpendicular domain orientation in thin films of BCP for nanopatterning on a variety of useful surfaces.

---

Introduction

The ability to manifest the unique properties of finely patterned functional inorganic materials is tremendously important in advanced applications.^1,2 One example is the formation of ultrasmall transistors, which enhance computation power while simultaneously providing greater energy efficiency.³ In another example, thin films of silicon nitride (SiN_x) have been used as diffusion barriers, capping layers, and etch stops in the manufacturing of integrated circuits.^4,5 While semiconductor applications provide common examples of patterned inorganic materials, there are applications of these materials that are far removed from semiconductor applications. For example, nanopatterned gold (Au) has been utilized to control cell behavior in tissue engineering.^6–8 Nanopatterned platinum (Pt) in the form of a Pt nanowire array has been proposed for high-performance electrocatalysts for fuel cell applications.⁹ Titanium (Ti), which is strong, light, and biocompatible, has been actively investigated for promising orthopedic implants, where the tissue adhesion can be significantly boosted by functionalizing the Ti surface at the nanoscale.¹⁰ Thin films of aluminum nitride (AlN_x) are widely used in acoustic wave devices, optoelectronics, and energy harvesters because of the high band gap and high thermoelectric conductivity of AlN_x.¹¹ To continue to apply these inorganic materials for advanced applications requires nanopatterning at finer and finer scales. The creation of such features at the nanoscale remains a grand challenge.

Self-assembly of block copolymers (BCPs) in thin films offers a promising approach to generate patterns at the nanoscale.^12–14 Directed self-assembly (DSA) of BCPs has been implemented in semiconductor manufacturing and non-semiconductor applications such as the fabrication of bit patterned media, nanoporous membranes, and phononic crystals.^14–17 For self-assembly to form well-defined features with minimal defects in the assembled structures, the BCP must have a suitable value of χN, where χ is the Flory–Huggins interaction parameter and N is the degree of polymerization of the BCP. The ideal BCP morphology for pattern transfer consists of through-film domains that are perpendicular to both the substrate and the free surface. While the development of approaches such as solvent annealing or the use of a top-coat to achieve perpendicular domains at the free surface has been impressive, these treatments add complexity to the overall processes, and simple thermal annealing is preferred. Perpendicular domain orientation via thermal annealing with a free surface requires that each block has the same surface energy with air (γ_air) at the annealing temperature, such that the difference in γ_air between the two blocks (Δγ_air) = 0. Similarly, the difference of the surface energies of each block with the substrate (Δγ_sub) must also equal zero. To manage these often-conflicting properties, we recently reported a series of high-throughput BCP platforms with an A-block-(B-random-C) (A-b-(B-r-C)) polymer architecture that can achieve both small feature sizes (<10 nm) and Δγ_air = 0, and then coated the substrate with a non-preferential copolymer brush to achieve Δγ_sub = 0.^18–22

Copolymer coatings are commonly used to modulate the block–substrate interaction.^23–25 The coating is typically a random copolymer brush consisting of the constituent monomers of the BCP and additional functionality that can either crosslink or form a covalent bond with the surface of the substrate. Recently, we reported a B-r-C random copolymer that could enable Δγ_sub = 0 between an A-b-(B-r-C) BCP and a silicon substrate.²⁶ Surprisingly, in some instances more than one composition ratio of B and C (φ; φ = n_C/(n_B + n_C), where n_i is the number of repeat units of type i) of the coating could enable Δγ_sub = 0. Previous work reported using an amphiphilic BCP to create Langmuir–Blodgett films and used poly(2,2,6,6-tetramethyl-4-piperidyl methacrylate)-block-poly(glycidyl methacrylate) to deposit coatings on the surface of indium-doped tin oxide, in which the glycidyl methacrylate block could covalently bond to the surface oxides.^27–29 These studies suggested that incorporating into the BCP domain functionalities that can form stable interactions with the substrate offers a pathway to form a monolayer coating, which may effectively serve as a self-brushing layer (SBL) and obviate the extra step of coating a random copolymer brush on the substrate. This approach could enable perpendicular assembly of domains by only spin-coating and annealing the functionalized BCP.

Here, we employed a thiol–epoxy click reaction to functionalize polystyrene-block-poly(glycidyl methacrylate) (S-b-G) with pairs of thiols to generate an A-b-(B-r-C) BCP with Δγ_air = 0. The thiol–epoxy reaction generated a secondary hydroxy group at each epoxy repeat unit that could form a covalent bond with silanol groups on the surface of the silicon substrate. This A-b-(B-r-C) BCP served as an exemplar BCP to explore the self-brushing behavior. This concept was extended to substrates that are essential in semiconductor manufacturing, such as Si, Au, Pt, Ti, AlN_x, and SiN_x. BCP domain orientation was examined with scanning electron microscopy (SEM). The chain conformation of the BCP self-brushing layer was also estimated using film thickness (h) measurements.

Experimental

Materials and syntheses

Styrene (99%, Aldrich), glycidyl methacrylate (GMA, 99%, Aldrich), 2-cyano-2-propyl benzodithioate (CPDB, 97%, Strem Chemicals), 2-mercaptopyridine (2MP, 99%, Aldrich), methyl thioglycolate (MTG, 95%, Aldrich, volatile and with very unpleasant smell!), 2,2,2-trifluoroethanethiol (TFET, 95%, Aldrich, volatile and with very unpleasant smell!), 2,2′-azobis(2-methylpropionitrile) (AIBN, 98% Aldrich), lithium hydroxide (LiOH, 99.99%, Aldrich), tetrahydrofuran (THF, 99.9%, Fisher Chemical), N,N-dimethylformamide (DMF, anhydrous, 99.8%, Aldrich), diiodomethane (CH₂I₂, 99%, Aldrich) and propylene glycol methyl ether acetate (PGMEA, >99.5%, Aldrich) were purchased and used as received unless otherwise noted. LiOH aqueous solutions were freshly made before each thiol–epoxy reaction at a concentration of approximately 20 mg mL⁻¹ in deionized water. Inhibitor in the styrene and GMA monomers was removed by passing the monomers through a basic alumina column prior to use. AIBN was recrystallized from methanol twice prior to use. Cross-linkable polystyrene (x-S) was purchased from polymer source and used as received.

Synthesis of poly(glycidyl methacrylate) (G) end-functionalized with the chain transfer agent (CPDB). To a two-neck round bottom flask equipped with a condenser and a magnetic stir bar was added GMA (50.0 g, 351.7 mmol), AIBN (0.22 g, 1.3 mmol), and CPDB (0.89 g, 4.0 mmol). After three freeze–pump–thaw cycles, the mixture was stirred at 60 °C for 1 h and then quenched with liquid N₂. The resulting G-CPDB polymer was purified with three precipitation cycles in hexanes and dried in a vacuum oven overnight.

Synthesis of polystyrene-block-poly(glycidyl methacrylate) (S-b-G) block copolymer. To a two-neck round bottom flask equipped with a condenser and a magnetic stir bar was added styrene (50.0 g, 351.7 mmol), AIBN (0.22 g, 1.3 mmol), and G-CPDB macro-chain transfer agent (0.89 g, 4.0 mmol). After three freeze–pump–thaw cycles, the mixture was stirred at 60 °C for 1 h and then quenched with liquid N₂. The resulting S-b-G BCP was purified by three precipitation cycles in hexanes and dried in a vacuum oven overnight.

Standard procedure for thiol–epoxy modification of S-b-G. To a two-neck round bottom flask equipped with a magnetic stir bar was added a solution of S-b-G (116.0 mg, GMA unit 0.33 mmol), 2MP (84 mg, 0.76 mmol, 3.29 eq. to GMA unit), and TFET (22.1 mg, 0.19 mmol, 0.58 eq. to GMA unit) in THF (2.5 g). The solution was then cooled to 0 °C followed by the addition of an aqueous solution of LiOH (40 μL, 0.07 eq. to GMA unit). The reaction was then warmed to room temperature and stirred for 18 h. The product was obtained after three precipitation cycles in hexanes and dried in a vacuum oven overnight. Block ratio, number averaged molecular weight (M_n), and dispersity (Đ) were characterized with ¹H nuclear magnetic resonance spectroscopy (¹H NMR) and size exclusion chromatography (SEC).

Material characterization

¹H NMR was performed on a Bruker AVANCE II+ 500. The NMR samples were dissolved in a deuterated solvent (CDCl₃) at a concentration of approximately 15 mg mL⁻¹. M_n and Đ were characterized with SEC on a Shimadzu gel permeation chromatography system equipped with a Wyatt DAWN HELEOS II multi-angle light scattering detector, a Wyatt ViscoStar III differential viscometer, a Wyatt Optilab T-rEX differential refractive index detector, and a Shimadzu SPD-M₃₀A photodiode array detector (200–800 nm). The pump used was a Shimadzu HPLC LC20-AD. THF with 250 ppm of BHT was used as the eluent solvent and the columns sets were 2 Agilent PLgel 5 μm MIXED-D plus guard.

SEM images were acquired on a Zeiss Merlin high-resolution field-emission SEM with a 1–1.5 keV accelerating voltage at a working distance <4 mm using the in-lens secondary electron detector. Image brightness and contrast were adjusted for presentation. Atomic force microscopy (AFM) was performed on a Bruker Nanoscope IIIa Multimode 5 using tapping mode in air. Small-angle X-ray scattering (SAXS) data was collected on a SAXSLAB (Xenocs)'s Ganesha with a rotating anode (Cu Kα) providing a focused X-ray beam with λ = 0.154 nm. The detector used was a Gabriel-type multi-wire area detector (1024 × 1024 pixels).

Grazing-incidence small-angle X-ray scattering (GISAXS) images were collected with the Beamline 8-ID-E at the Advanced Photon Source, Argonne National Lab. Diffraction patterns were collected using a photon energy of 10.9 keV. An incidence angle of 0.14° was chosen for all reported measurements. This angle was chosen because it is above the typical critical angle of organic thin film but below the critical angle of the silicon substrate. The exposure time for the measurements was 3–10 s. The images were collected at a sample-to-detector distance of 2185 mm using a Pilatus MF pixel array detector. To minimize beam damage and background air scatter, measurements were performed in a vacuum chamber at ∼10⁻³ Torr.

The h of each film was measured using a J. A. Woollam Alpha SE ellipsometer and fitted using a Si–SiO_x–Cauchy model where the native oxide thickness was preset at 1.5 nm. For films with h < 10 nm, the optical constants were first fit to thick films, and then locked to determine h more accurately.

γ _air values were determined from contact angle measurements, which were performed with a KRÜSS drop shape analyzer DSA100 (KRÜSS GmbH). Solutions of the nanocoating in PGMEA or THF were spin-coated on a Piranha-cleaned silicon wafer to form thin films with h = ∼30 nm. The thin films were then annealed on a hot plate at 150 °C for 1 h inside a N₂ glovebox. Before each contact angle measurement, dry N₂ was blown over the film surface to remove particle contaminants. The contact angles of two probing liquids, deionized H₂O and CH₂I₂, were recorded using the sessile drop method with a drop volume of 1 μL for each measurement. The left and right contact angles of each drop were averaged, and 10 sessile drops were deposited for each sample. γ_air was then calculated using the OWRK method.^30,31

Substrate surface preparation

Silicon wafers (4′, N-type, 〈100〉 orientation) were purchased from Pure Wafer. First, an O₂ plasma was used to clean the wafer surface. Then 50 nm of Au, Ti, and Pt were deposited on silicon wafer with a 1 Å s⁻¹ deposition rate and a 10 rpm rotation speed using an Angstrom EvoVac electron beam evaporator. Double-sided SiN_x wafers were purchased from Pure Wafer. A 100 nm nitride layer with a tensile stress <250 ± 50 MPa was deposited on both sides of the silicon wafer using low-pressure chemical vapor deposition (LPCVD). AlN_x coatings (∼30 nm) were deposited on silicon wafers at 250 °C with 0.64 Å/cycle deposition rate using an Ultratech Fiji G2 Plasma-Enhanced atomic layer deposition system.

Deposition of BCP onto the substrate

Thin films of the model BCP were prepared by spin-coating the BCP solution in THF onto the substrate of interest. Silicon wafers were pre-cleaned using a hot piranha solution (a mixture of 30% H₂O₂ and 70% (v/v) concentrated H₂SO₄, Danger!) and rinsed with deionized H₂O. Other substrates including Au, Pt, Ti, AlN_x, and SiN_x were fabricated as described above. The BCP-coated wafer was then annealed in a glove box filled with N₂ at 150 °C for 1 h.

Directed self-assembly (DSA) with self-brushing

To conduct the self-brushing DSA process, a 15 nm thick film of x-S was spin-coated onto a clean silicon wafer and then thermally cross-linked. The x-S was then patterned using e-beam lithography with a CSAR-Neu 7520 from ALLRESIST GmbH. Then the resist was developed using MIF 726 for 1 min, followed by a quick water rinse. The pattern was trim etched into the x-S substrate underneath it to achieve ∼1.5L₀ wide guide stripes on different pitches. After stripping any remaining resist, the BCP was spin-coated on top of the x-S pattern to a thickness of 2L₀ and annealed at 175 °C for 10 min in a nitrogen glovebox. Our previous study determined that self-brushing of the BCP would selectively occur only on the silicon wafer when the film was annealed at 175 °C for 10 min.¹⁸ This determination was critical because formation of the brush on the guide stripe would prohibit the chemoepitaxial guiding effect.

Results and discussion

The chemical structure of the exemplar BCP and film construction is depicted in Fig. 1a. First, S-b-G(TFET-r-2MP) (M_n = 19.8 kg mol⁻¹, Đ = 1.13) with a value of φ that provided Δγ_air = 0 was synthesized following a procedure reported previously.¹⁸ The matched surface energy was confirmed by an island-hole test, where a 0.5L₀ topography was formed after thermal annealing the BCP thin films on a preferential S-coated silicon wafer.¹⁸ The BCP thin film was then deposited and annealed on a substrate that can bind to the functionality in the BCP, such as secondary –OH or the thiol ether. Such a binding interaction leads to the formation of an SBL, which can be used to modulate the substrate–BCP interactions. Fig. 1b–d shows representative top-down SEM images of S-b-G(TFET-r-2MP) films with different thickness annealed on piranha-cleaned silicon substrates.

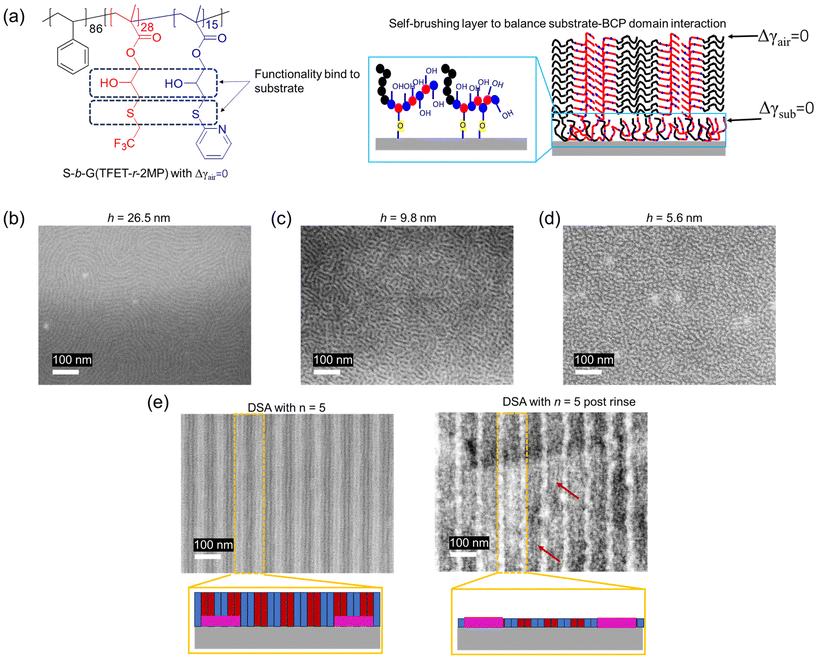

Fig. 1 (a) The chemical structure of S-b-G(TFET-r-2MP) with Δγ_air = 0 at φ of 0.35 and L₀ of 14.3 nm when annealed at 150 °C. This BCP is used to form a self-brushing layer (SBL) through the reactive moiety, either the secondary hydroxyl group or the thiol ether group, with the substrates as indicated by the dashed box. The proposed SBL formation is depicted on the right. (b–d) Top-down SEM micrographs of S-b-G(TFET-r-2MP) with film thicknesses of (b) 26.5 nm, (c) 9.2 nm, and (d) 5.6 nm, on a piranha-treated Si surface. (e) Left: SEM image of chemoepitaxy DSA with 5× density multiplication (n = 5) of S-b-G(TFET-r-2MP) using crosslinked S (x-S) as the guide. Right: SEM image of the DSA pattern post rinse. To enhance the contrast of the nanostructures, the pattern was stained with Al₂O₃ using the sequential infiltration synthesis process. The bright white stripes are the guide pattern of x-S. Partial alignment of the SBL is indicated by the red arrows.

A through-film perpendicular orientation of the domains can be achieved with thermal annealing when Δγ_air = 0 and Δγ_sub = 0. Thus, it was initially surprising when the thin films of the BCPs spontaneously formed perpendicular domains after thermal annealing on a piranha-cleaned silicon wafer, which is a high surface energy that is not likely to provide Δγ_sub = 0 for the BCP. The surface tensions of substrates used in this work in summarized in Table S1.† This formation of perpendicular domains suggested the presence of a coating layer formed in situ that balanced the interaction of each block with the substrate. A series of rinses of the BCP-coated silicon wafer in THF and THF/DMF revealed a residual thin film layer that functioned as an SBL. The SBL was formed through a condensation reaction between the secondary hydroxyl groups of the BCP and silanol groups on the surface of the silicon substrate. The secondary hydroxy group could also undergo a transesterification reaction resulting in crosslinking. However, this reaction was less pronounced than the condensation reaction due to steric hinderance and the absence of a catalyst.³² To mimic the SBL, a thinner BCP film with only 5.6 nm (h/L₀ = 0.40) was deposited on a piranha-cleaned wafer, yielding the fingerprint feature shown in Fig. 1d. A high-resolution SEM micrograph of a S-b-G(TFET-r-2MP) thin film after annealing on a piranha-treated Si surface is shown in Fig. S1a.† With the encouraging results showing the perpendicular assembly of BCP domains with SBL, a chemoepitaxy DSA was then performed as a proof-of-concept to demonstrate the capability of SBLs for nanopatterning. x-S was used as the guide (Fig. S2a†). Representative SEM images of DSA with 5× density multiplication are shown in Fig. S2b.† Although defects are present after DSA, the images shows that self-brushing has significant potential for nanopatterning applications. In addition, a rinsing test was performed on a film of BCP after DSA with 5× density multiplication, which revealed features of the SBL aligned to the guide stripes, as shown in Fig. 1e. This alignment, albeit poor, implies that the SBL can be guided by a chemical pattern and could potentially mitigate the etch and pattern transfer related issues that occur when using a random copolymer brush in the background regions of the chemical pattern.

GISAXS was performed to probe the self-assembled structures quantitively over a large scale, as shown in Fig. 2a. First, the perpendicular domain orientation (out-of-plane) was observed in the two-dimensional profile, which agrees well with the SEM results. Fig. 2b shows the full width at half maximum (FWHM) of the principal diffraction peak, which is inversely proportional to the grain size (ζ) of the self-assembled in-plane structure, as a function of normalized h. ζ of the self-assembled feature decreased monotonically as h decreased, following a power law fit of ζ ∼ (h/L₀)^−0.602, which agreed well with the SEM results. The reduced grain sizes were likely due to the thickness confinement effect, which prevented polymer chain compression and extension such that they could not efficiently move across another chain to form more uniform structures, similar to previously reported studies.^33–35 The formation of fingerprint patterns in both the thick and thin films demonstrated the capability of the SBL to balance the domain–substrate interaction of the two different blocks of the BCP.

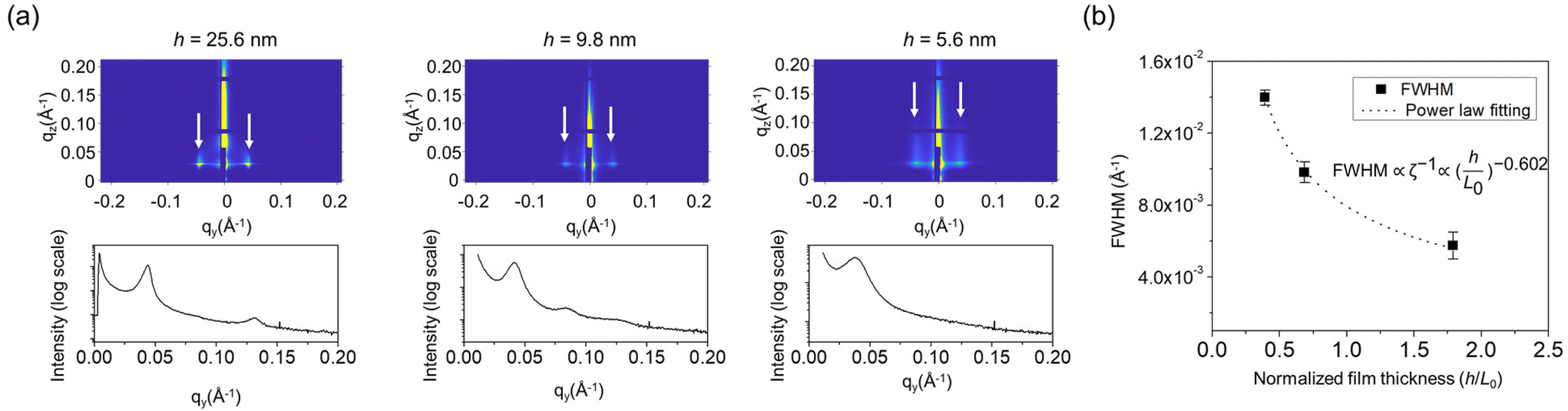

Fig. 2 (a) 2D profile of grazing incidence small angle X-ray scattering of S-b-G(TFET-r-2MP) with film thicknesses (h) of 25.6, 9.8, and 5.6 nm, annealed on a piranha-treated Si surface. Below each 2D profile is the corresponding 1D profile. The white arrows indicate the presence of perpendicular assembly. (b) The full width at half-maximum (FWHM) of the principal peak of the 1D profile as a function of normalized film thickness. The FWHM, which is inversely proportional to the grain size (ζ), shows a good power law fit to the normalized film thickness, as shown by the dashed line. The FWHM and its standard deviation were obtained from a Gaussian peak fitting function using OriginPro v8.1.

To investigate the conformation of the SBL, several scenarios of chain conformation of self-assembled BCP monolayer on silicon substrate were considered, as shown in Fig. 3a. In the first scenario, the silicon surface is exclusively occupied by G(TFET-r-2MP), causing the S block to reside above the SBL–BCP interface. This is analogous to submerging a substrate coated with a thin film of BCP into a selective solvent that is preferential to one of the blocks. By varying the solvent quality and grafting density, the number density of the reactive moiety, and the chain length, the conformation of the extended S chain can be in the brush or the mushroom regime. In the second case, only part of the –OH groups in the G block can react with the surface silanols, such that both the S and part of the G block reside above the SBL–BCP interface. As the number density of the reactive moiety decreases, more G block chains can extend into the SBL–BCP interface along with S. Following this analysis, the number density of grafting sites also has a direct impact on the fraction of the two blocks exposed to the SBL–BCP interface, which can differ from the volume fraction of the blocks in bulk. The presence of both S and G(TFET-r-2MP) in the SBL–BCP interface creates a nonpreferential substrate coating, similar to the case of a nonpreferential poly(styrene-co-methyl methacrylate) (S-r-M) brush coating for polystyrene-block-poly(methyl methacrylate) (S-b-M) BCPs in previous reports.²³Fig. 3b shows a comparison of γ of the SBL (γ_coat) to γ of S (γ_S), G(TFET) (γ_G(TFET)), and G(2MP) (γ_G(2MP)), which are determined with contact angle measurements using H₂O and CH₂I₂. Γ_coat is close to γ_S and a φ-average of γ_G(TFET) and γ_G(2MP), suggesting that both S and G(TFET-r-2MP) were exposed to the free surface, effectively forming the SBL–BCP interface in the assembled structures. To estimate the grafting density and evaluate the chain conformation in the SBL, h is measured. For a similar M_n, the h of the SBL is approximately half of the h of an OH-terminated polymer brush grafted on a piranha-cleaned silicon wafer. Table S2† summarizes the literature values of h and M_n of the polymer brushes. Both the γ and h results indicate that only a fraction of the hydroxyl groups react with the surface where multiple anchoring points are possible, which agrees well with previous studies on side-chain grafted polymer coatings.^36,37

Fig. 3 (a) Schematics of the possible interactions of the self-assembled monolayer and the silicon substrate. With a substrate that is preferential to the G(TFET-r-2MP) block, many bonds form with each chain, which fully occupies the silicon surface, such that the number and density of BCPs adsorbed on the surface is low. In this situation, the S chain extends away from the substrate, making the self-assembled monolayer preferential to the S block. When the substrate is preferential to both blocks, single or multiple anchoring points are possible, but a greater density of BCPs can connect with the surface. In this configuration, both S and G(TFET-r-2MP) blocks extend away from the substrate, making the self-assembled monolayer non-preferential to the S and G(TFET-r-2MP) blocks. (b) The comparison of surface energies of the residue layer.

Depositing thin films of a BCP on an Au surface eliminates the condensation reaction between the hydroxy groups in the BCP and the surface silanols but allows for the formation of S–Au bonds through chemisorption.^38–41 The binding affinity is sufficiently high to leave a residue layer after multiple rinses with DMF.⁴² The chain conformation, similar to the case of secondary –OH on a silicon surface, depends on the number density of the thiol–ether grafting sites. Upon annealing a 26 nm thin film of S-b-G(TFET-r-2MP) on an Au surface, a fingerprint pattern is apparent in the SEM images, as shown in Fig. 4a, indicating Δγ_sub = 0. For comparison, annealing a thin film of lamellae-forming S-b-M, which does not contain a moiety that is reactive with Au, on an Au surface yields a parallel assembly of domains at a temperature known to have Δγ_air = 0 for S-b-M. Previous work has determined that Au is preferential to the S domain over the M domain.^43,44 Thus, the distinct perpendicular domain orientation of this work must be attributed to the SBL formed by the thiol–ether functionality in G(TFET-r-2MP). The chain conformation should be similar to the case of the polymer on Si. A fingerprint pattern is also observed after annealing the S-b-G(TFET-r-2MP) film on a Pt surface, as shown in Fig. 4b. One noticeable difference is that a grain-like structure, indicated by the dashed circle in Fig. 4a, is observed in the film on the Au surface but not on the Pt surface. One possible reason is that the Au–S interaction (418 kJ mol⁻¹) is stronger than the Pt–S interaction (234 kJ mol⁻¹),⁴⁵ which can reduce chain relaxation and prevent the formation of more uniform structures. Because the Ti surface is prone to oxidation, a thin layer of titanium oxide (TiO₂) can be formed when exposed to air.⁴⁶ Like the case of the S-b-G(TFET-r-2MP) thin film annealed on Si, perpendicular assembly is obtained on the Ti surface, as shown in Fig. 4c. The SBL likely forms through the TiO₂–OH, TiO₂–S and Ti–S interactions.^47,48

Fig. 4 (a–e) Top-down SEM images of a 26 nm thick film of S-b-G(TFET-r-2MP) annealed on different surfaces. (a) Au. (b) Pt. (c) Ti. (d) AlN_x. (e) SiN_x. In (a), the yellow dashed circles indicate the grain-like structure. A thin layer of Ti was also used as an adhesion layer when creating the Au and Pt substrates. (a) and (b) show a thin film of Ti between the metal and the Si, which was used as an adhesion promoter. The image in (e) is featureless because the assembled film lacks perpendicular domains. (f) Large-area SEM image of a self-assembled thin film of 26 nm thick S-b-G(TFET-r-2MP) on SiN_x that exhibits island and hole topographic features, indicative of a parallel domain orientation at the free surface.

AlN_x and SiN_x are two essential coating materials in nanofabrication and in numerous applications. The surface properties of AlN_x depend heavily on the deposition process. A report in the literature states that the pristine AlN_x surface contains a significant amount of O in addition to Al and N, suggesting the presence of Al–OH groups on the surface.⁴⁹Fig. 4d shows the fingerprint structure that is formed after depositing and annealing a 26 nm film of S-b-G(TFET-r-2MP) on an AlN_x coating on Si. The SBL is formed through the condensation reaction of the hydroxy groups in G(TFET-r-2MP) with the surface Al–OH groups. The analysis done in the case of Si should be applicable. Surprisingly, a parallel assembly was observed in the case of SiN_x as shown in Fig. 4e and f. Carduner et al. and Okada et al. reported the chemical composition of the surface layer of SiN_x was SiO_xN_y, which is composed of Si–NH₂, Si–OH, Si₂–NH, and Si–H.^50,51 Comparing the AlN_x and SiN_x surfaces, the BCP film that formed on SiN_x did not lead to Δγ_sub = 0. The preference for one of the blocks in the BCP is presumably attributed to the higher grafting density of the SBL, similar to the first scenario in Fig. 3a. The high grafting density is a result of a greater number of reactive sites for G(TFET-r-2MP). For example, the hydroxyl group can react with Si–H through deprotonation,⁵² and the ester group can react with Si–NH₂ to form an amide bond.⁵³ The surface functionality is known to be process-dependent, which could be leveraged to control BCP domain orientation for nanopatterning applications.⁴⁶ Topographic features such as surface roughness have been shown to induce perpendicular assembly, however, it is not applicable to the case study in this work because the substrates were atomically smooth. Nevertheless, the study here utilizing the spontaneous perpendicular assembly of BCP films simplifies the process for the fabrication of nanopatterned features on different surfaces. We anticipate this concept can be extended to other BCPs with Δγ_air = 0 and with blocks containing functionalities that can bind to the substrate of interest. Future work should focus on the fundamentals of the interaction between the substrate and the BCP and utilization of the created nanostructures for downstream applications.

Conclusions

A model BCP, S-b-G(TFET-r-2MP) with an A-b-(B-r-C) architecture, where A and B-r-C have equal γ_air and the B-r-C block contains functionality that can bind to the substrate, was deposited onto Si, Au, Pt, Ti, SiN_x, and AlN_x surfaces. Examination of the thin films that remained after rinsing determined that S-b-G(TFET-r-2MP) could form an SBL either through a condensation reaction or chemisorption with the surface functionality of the substrates. An SBL formed on the Si, Au, and Pt substrates that balanced the BCP domain–substrate interaction for the two blocks, as evidenced by the perpendicular domains that spontaneously self-assembled via thermal annealing. The chain conformation and surface energies of the self-brushing layer were evaluated, where multiple grafting sites on the substrates caused both S and G(TFET-r-2MP) blocks to extend through the SBL–BCP interface, making the SBL nonpreferential to S-b-G(TFET-r-2MP). Parallel domains were observed when a SiN_x layer coated the substrate. This research presents self-brushing as a new approach to realize perpendicular domain orientation without the use of separate coatings. Future work should focus on investigating the capability of self-brushing for BCPs with other morphologies. From a technical point of view, with subsequent selective etching, we anticipate that self-brushing can simplify the fabrication of useful nanofeatures for advanced applications.
